This document provides information on a security access cover product called the Torlift. The Torlift is a mild steel hinged access cover and frame that is EPDM sealed and weather resistant. It can be operated from above and below, has internal or external frame weep pipes and external balanced lifting points. It also includes standard security features like a double deterrent anti-vibration locking system and hidden tamperproof hinges. The covers are available in single, twin, triple or multiple configurations and a variety of standard and optional load ratings. Dimensions and additional options are also specified.

1. CI/SfB (5-) Xh
JUNE 2009
STEELWAY
Brickhouse
E X P E R T S I N S T E E L
SECURITY ACCESS COVER
MILD STEEL HINGED ACCESS COVER AND FRAME WHICH IS
EPDM SEALED, WEATHER RESISTANT AND OPERABLE FROM ABOVE AND BELOW
Torlift
P R O D U C T I N F O R M A T I O N

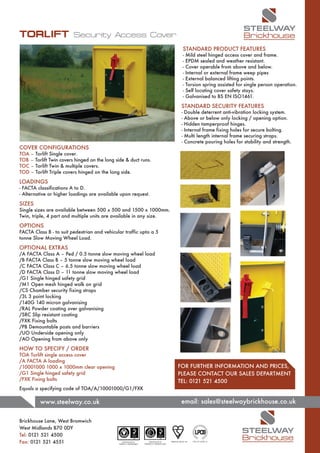

2. STEELWAY
TORLIFT Security Access Cover Brickhouse
STANDARD PRODUCT FEATURES
- Mild steel hinged access cover and frame.
- EPDM sealed and weather resistant.
- Cover operable from above and below.
- Internal or external frame weep pipes
- External balanced lifting points.
- Torsion spring assisted for single person operation.
- Self locating cover safety stays.
- Galvanised to BS EN ISO1461.
STANDARD SECURITY FEATURES
- Double deterrent anti-vibration locking system.
- Above or below only locking / opening option.
- Hidden tamperproof hinges.
- Internal frame fixing holes for secure bolting.
- Multi length internal frame securing straps.
- Concrete pouring holes for stability and strength.
COVER CONFIGURATIONS
TOA – Torlift Single cover.
TOB – Torlift Twin covers hinged on the long side & duct runs.
TOC – Torlift Twin & multiple covers.
TOD – Torlift Triple covers hinged on the long side.
LOADINGS
- FACTA classifications A to D.
- Alternative or higher loadings are available upon request.
SIZES
Single sizes are available between 500 x 500 and 1500 x 1000mm.
Twin, triple, 4 part and multiple units are available in any size.
OPTIONS
FACTA Class B - to suit pedestrian and vehicular traffic upto a 5
tonne Slow Moving Wheel Load.
OPTIONAL EXTRAS
/A FACTA Class A – Ped / 0.5 tonne slow moving wheel load
/B FACTA Class B – 5 tonne slow moving wheel load
/C FACTA Class C – 6.5 tonne slow moving wheel load
/D FACTA Class D – 11 tonne slow moving wheel load
/G1 Single hinged safety grid
/M1 Open mesh hinged walk on grid
/CS Chamber security fixing straps
/3L 3 point locking
/140G 140 micron galvanising
/RAL Powder coating over galvanising
/SRC Slip resistant coating
/FXK Fixing bolts
/PB Demountable posts and barriers
/UO Underside opening only
/AO Opening from above only
HOW TO SPECIFY / ORDER
TOA Torlift single access cover
/A FACTA A loading
/10001000 1000 x 1000mm clear opening FOR FURTHER INFORMATION AND PRICES,
/G1 Single hinged safety grid PLEASE CONTACT OUR SALES DEPARTMENT
/FXK Fixing bolts TEL: 0121 521 4500
Equals a specifying code of TOA/A/10001000/G1/FXK
