1. www.bosch-do-it.com.au
Bosch Power Tools
DIY Catalogue 2010
The Complete Power Tool Range

2. Turn a house and a garden into your home
With Bosch Lithium-Ion Technology
If you've used any of Bosch's lithium-ion garden tools Many of Bosch’s DIY tools are ideal for outdoor projects.
and know about their many benefits, you'll be pleased to Another benefit to choosing Bosch is that the lithium-ion
know that there's a lot more waiting for you in Bosch's DIY batteries on selected garden tools are interchangeable
power tools range. In fact, much of Bosch's experience with those on certain Bosch power tools, meaning you
in bringing lithium-ion powered garden tools to market, can complete any job without losing valuable time.
such as cordless hedge trimmers, shears and the world's
first lithium-ion powered lawn mower, the Rotak LI, was As Bosch offers such a wide range of tools featuring
jointly acquired in the research and development of this this leading technology, you can embark on any project
comprehensive range of innovative tools. knowing that there’ll be a Bosch tool packed with all the
features you need. So whether you’re drilling the decking
Bosch has continued to develop and launch lithium-ion or sanding it down, mowing the lawn or tidying up your
powered tools that make DIY projects easier and more shrubs and hedges, Bosch’s cordless tools with innovative
enjoyable to take on. Bosch’s Uneo, for example, is very lithium-ion technology offer unbeatable advantages and
versatile, allowing you to hammer, drill and drive screws make house and garden projects a real pleasure.
in any surface with just one tool. And Bosch’s lightweight
and compact IXO, the world’s best-selling powertool to be
powered by a lithium-ion battery. No other tool is handier
and more popular for project requiring intricate fixing.

3. Lithium-ion technology
at a glance:
Compact, durable and quickly recharged
Due to their short charge times, Bosch
cordless tools with lithium-ion technology are
ready to use quickly. They are also especially
durable and last six times longer than
conventional nickel cadmium batteries.
Full power at all times
Reduced self-discharge, no memory effect:
Li-Ion NiCd
85% 0% constant battery capacity over the entire
lifetime. Always ready when you are thanks
Battery charge
to lithium-ion technology.
after four months
on standby.
Same power at half the size
Due to the lithium-ion technology, the size
and weight of the batteries are reduced
by approx. 60% compared to conventional
nickel cadmium batteries – although they
offer the same amount of power.
High power, low weight
Bosch cordless tools with lithium-ion
technology impress with their very compact
design, low weight and ease of use. This
saves you a lot of effort when working.
Long lifetime
The intelligent Electronic Cell Protection,
Bosch ECP, protects the lithium-ion batteries
against excessive temperatures and overload,
therefore giving them a particularly long
lifetime.
3

4. Summary of contents Cordless Drill/Drivers/
Garden Tools
Screwdrivers
Cordless Garden Tools 6–9 Cordless Drill/Drivers 22-23
Cordless endurance thanks
to lithium-ion technology.

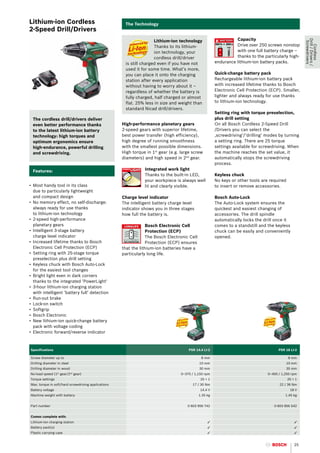

Lithium-ion Cordless
Drill/Drivers 24-25
Secateurs 10

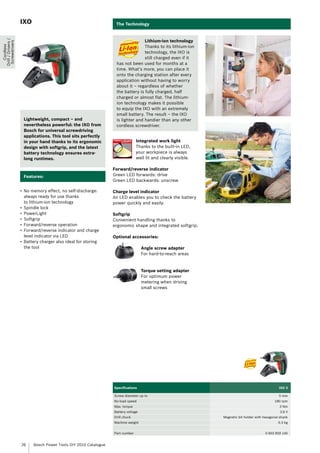

IXO 26
Shrub Shears 10
Impact Driver 27

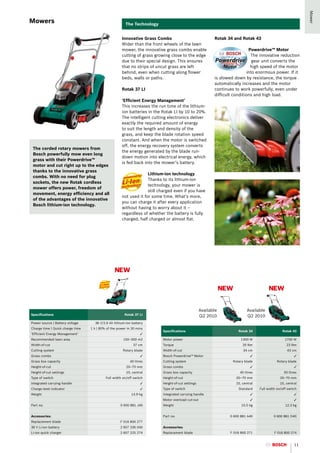

Mowers 11
Lithium-ion Cordless
2-Speed Hammer Drills 28

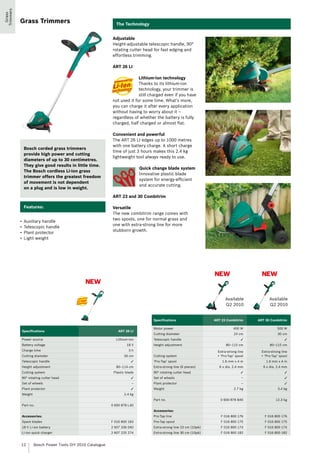

Grass Trimmers 12
Uneo
Hedgecutters 13
UNEO 29
High Pressure Washers 14–15
Impact Drills
1-Speed Impact Drills 30
Bosch tools for all occasions
2-Speed Impact Drills 31
Fine Spray Systems 16–17
Paintbrushes ans drips were yesterday.
Today we spray.
PMF 180 E 18–21 Rotary Hammer
The new all-rounder from Bosch.

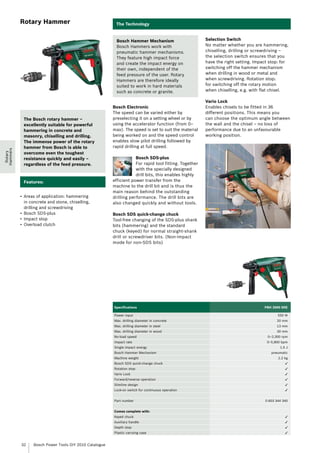

Rotary Hammer 32
4 Bosch Power Tools DIY 2010 Catalogue

5. Saws Digital Measuring Tools
Jigsaws 33 Digital Detectors 44
All Purpose Saw 34
Digital Laser Rangefinders 45
Circular Saw 35
Laser Spirit Level 46
Cross-Line Laser Levels 46
Planer/Router
Planer 36
Router 36
Decoration Tools
Fine Spray Systems 47
Sanders
Orbital Sander 38 Electric Tacker 48
Random Orbital Sanders 39 Cordless Universal Cutter 49
Belt Sander 40 Glue Gun 49

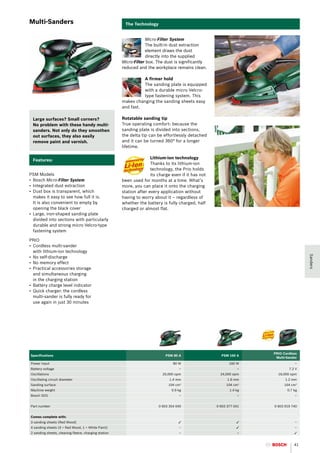

Multi-Sanders 41 Heat Guns 50
Angle Grinders All Purpose Vacuum Cleaner

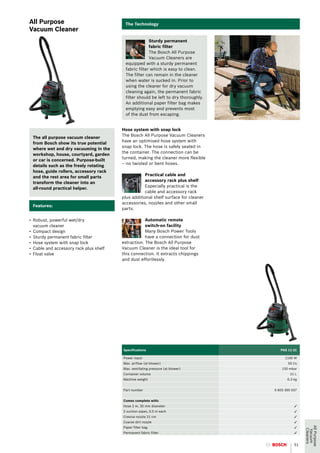

Angle Grinders 42 All Purpose Vacuum Cleaner 51
Multifunction Tool
Multifunction Tool 43
5

6. The cordless garden tools from Bosch.
Cordless endurance thanks
to lithium-ion technology.
Bosch Rotak –
the lawnmower revolution.
The first cordless lawnmower with the same power as a mains-powered
mower. This means extremely high cutting power and extremely short
charge times of only one hour. The powerful lithium-ion battery does
not experience self-discharge or memory effect. Beyond comparison:
40% lighter than conventional lawnmowers, it makes particularly good
cuts. Grass up to 30 cm long. Even close to edges thanks to the innovative
grass combs.
The complete Bosch Lawnmower range can be found at a glance
on Pages 11.
6 Bosch Power Tools DIY 2010 Catalogue

7. A world first: Bosch Cordless Garden Tools with lithium-ion
technology are incredibly powerful, only half as heavy as con-
ventional cordless garden tools and, therefore, much easier to
handle – no cable, no petrol, no self-discharge and no memory
effect, so they are always ready for use. This makes gardening
work even more enjoyable.
Mowing lawns, shaping bushes, cutting hedges – all of these are much
easier to do if you have a constant supply of full cordless power. Due
to innovative technology and superior know-how, Bosch now also
offers its established reliability with modern lithium-ion batteries.
Special electronics ensure maximum lifetime of the ­ithium-ion garden
l
tools. And the energy reserves are swiftly replenished thanks to the
fast battery chargers.
This means that you finally have more energy for the most important
thing: designing your garden. Starting with the lawn. Whether wild
and meadowy or with graphically straight surfaces, lawns have to be
cared for. The Rotak Cordless Lawnmower is ideal for this. Its
innovative grass combs reliably guide grass growing close to walls Lithium-ion batteries offer
and edges towards the blade. And its motor has the same power as many advantages:
a corded mower with the highest cutting strength. Typical Bosch:
• More power at less weight
the absolute demand for perfect performance applies in equal • est handling: up to 40% more
B
­ easure to the Bosch Isio, the new cordless shrub and edging
m compact and 50% lighter than
conventional cordless garden tools
shear. It helps you to shape the natural growth of your plants. This is
• educed self-discharge and memory
R
what you get from Bosch – quality tools for convenient gardening, effect, so they are always ready
whether small or large. for use
• hort charge times in comparison
S
to conventional batteries
Now you can look forward
to full cordless power and
lightweight, handy tools!
Cordless freedom and more time
for creativity. Bosch Cordless
Garden Tools turn your garden
into a pleasure ground.
Bosch Isio –
It’s all a matter of shape.
The new Isio cordless edging and shrub shear. For individually
designing small box shrubs on the balcony or patio. Thanks
to the SDS system, the laser-cut quality blades can be changed
at the push of a button – for accurately cutting the edges
of your lawn.
Further information on Page 10.
7

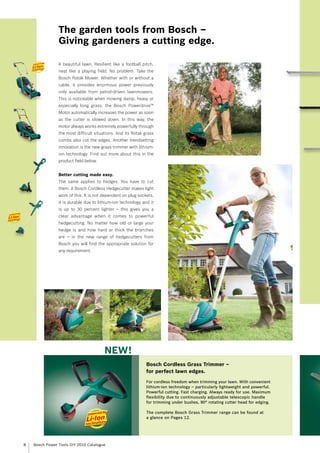

8. The garden tools from Bosch –
Giving gardeners a cutting edge.
A beautiful lawn. Resilient like a football pitch,
neat like a playing field. No problem. Take the
Bosch Rotak Mower. Whether with or without a
cable, it provides enormous power previously
only available from petrol-driven lawnmowers.
This is noticeable when mowing damp, heavy or
especially long grass: the Bosch Powerdrive™
Motor automatically increases the power as soon
as the cutter is slowed down. In this way, the
motor always works extremely powerfully through
the most difficult situations. And its Rotak grass
combs also cut the edges. Another trendsetting
innovation is the new grass trimmer with lithium-
ion technology. Find out more about this in the
product field below.
Better cutting made easy.
The same applies to hedges. You have to cut
them. A Bosch Cordless Hedgecutter makes light
work of this. It is not dependent on plug sockets,
it is durable due to lithium-ion technology and it
is up to 30 percent lighter – this gives you a
clear advantage when it comes to powerful
hedgecutting. No matter how old or large your
hedge is and how hard or thick the branches
are – in the new range of hedgecutters from
Bosch you will find the appropriate solution for
any requirement.
NEW!
Bosch Cordless Grass Trimmer –
for perfect lawn edges.
For cordless freedom when trimming your lawn. With convenient
lithium-ion technology – particularly lightweight and powerful.
Powerful cutting. Fast charging. Always ready for use. Maximum
flexibility due to continuously adjustable telescopic handle
for trimming under bushes, 90° rotating cutter head for edging.
The complete Bosch Grass Trimmer range can be found at
a glance on Pages 12.
8 Bosch Power Tools DIY 2010 Catalogue

9. The tool’s perfectly balanced
centre of gravity together with
the especially smooth running
of the low-wear conrod drive
ensure that Bosch Hedgecutters
offer very convenient handling.
For this reason, any hedge can
be effortlessly and efficiently
worked on, even in critical areas.
Built-in safety
Work can only be performed when both
hands are in contact with the handle.
Convenient and safe without a cable.
Handy, easy hedgecutting in any position
due to perfect handle ergonomics.
NEW!
The world’s lightest
cordless hedgecutter.
Power-Tech
Winner of weight comparison: up to 30% lighter than comparable The patented Power-Tech system
tools due to lithium-ion batteries. Patented Power-Tech system enables the tool to carry on
for powerful cutting when other hedgecutters stall. Laser-cut, cutting powerfully when other
diamond ground blades and 15 mm tooth spacing, enabling you hedgecutters stall.
to cut even medium-thick branches perfectly. Put simply: more
power at less weight.
The complete Bosch Hedgecutter range can be found at a glance
on Pages 13.
9

10. Shrb Shears
Secateurs /
Secateurs The Technology
Bosch innovation
World’s first battery integrated
lithium‑ion secateurs replacing the
straining manual cutting action.
Strong performance
Patented ‘Power-Blade’ System for
effortless pruning with a cutting
diameter of up to 14 mm.
Bosch Lithium-Ion Technology
Pruning made easy with the world’s No self-discharge, no memory effect and
first secateurs with an integrated always ready to use. Delivers on average NEW
lithium-ion battery. It delivers on 500 cuts of 9 mm soft wood (fresh wood)
average more than 500 cuts with with one battery charge.
one battery charge. With just one
move of your finger, it cuts through
Specifications CISO
branches or twigs up to a diameter
of 14 millimetres smoothly Battery type Lithium-ion
and cleanly. Battery voltage max. 14 mm diameter
Cutting capacity 18 V
Cuts per battery charge 5001
Cutting system Bypass
Features:
`Power-Blade´ System ✓
Charge time 5 hours
• Charge level indicator Weight 0.6 kg
• Safety lock prevents unintentional
activation Part no. 0 600 855 041
• Innovative trigger system
• Easy charging, thanks to the mobile Accessories:
phone-type charger Spare blade F 016 800 286
Shrub Shears The Technology
Bosch Lithium-Ion Technology
No self-discharge, no memory effect and
always ready to use. Delivers an incredible
run time of up to 50 mins.
The ISIO is handy, very lightweight
and always ready for use due to the
lithium-ion technology. As a cordless
NEW NEW
shrub shear, it is perfect for shaping
shrubs and small hedges. As a
cordless edging shear, it is perfect
for accurately cutting the edges
of your lawn.
ISIO Cordless ISIO Cordless
Specifications
Shrub Shear Shear Set
Battery type Lithium-ion Lithium-ion
Features: Battery power 3.6 V 3.6 V
Blade length 110 mm 80 mm
Tooth spacing 8 mm –
• Practical charge indicator
Weight 0.6 kg 0.5 kg
• Easy blade changing thanks
Charge time 5h 5h
to Bosch SDS
Running time 40 min 40 min
• Laser-cut quality blades
for a precise cut Part no. 0 600 833 041 0 600 833 043
• Comfortable softgrip
Accessories:
Grass shear blade 2 609 002 039 2 609 002 039
Shrub shear blade 2 609 002 040 2 609 002 040
Lubricant spray 250 ml 1 609 200 399 1 609 200 399
10 Bosch Power Tools DIY 2010 Catalogue

11. Mower
Mowers The Technology
Innovative Grass Combs Rotak 34 and Rotak 43
Wider than the front wheels of the lawn
mower, the innovative grass combs enable Powerdrive™ Motor
cutting of grass growing close to the edge The innovative reduction
due to their special design. This ensures gear unit converts the
that no strips of uncut grass are left high speed of the motor
behind, even when cutting along flower into enormous power. If it
beds, walls or paths. is slowed down by resistance, the torque
automatically increases and the motor
Rotak 37 LI continues to work powerfully, even under
difficult conditions and high load.
‘Efficient Energy Management’
This increases the run time of the lithium-
ion batteries in the Rotak LI by 10 to 20%.
The intelligent cutting electronics deliver
exactly the required amount of energy
to suit the length and density of the
grass, and keep the blade rotation speed
constant. And when the motor is switched
off, the energy recovery system converts
The corded rotary mowers from
the energy generated by the blade run-
Bosch powerfully mow even long
down motion into electrical energy, which
grass with their Powerdrive™
is fed back into the mower’s battery.
motor and cut right up to the edges
thanks to the innovative grass
Lithium-ion technology
combs. With no need for plug
Thanks to its lithium-ion
sockets, the new Rotak cordless
technology, your mower is
mower offers power, freedom of
still charged even if you have
movement, energy efficiency and all
not used it for some time. What’s more,
of the advantages of the innovative
you can charge it after every application
Bosch lithium-ion technology.
without having to worry about it –
regardless of whether the battery is fully
charged, half charged or almost flat.
NEW
NEW NEW
Available Available
Specifications Rotak 37 LI Q2 2010 Q2 2010
Power source | Battery voltage 36 V/2.6 Ah lithium-ion battery
Charge time | Quick charge time 1 h | 80% of the power in 30 mins
Specifications Rotak 34 Rotak 43
‘Efficient Energy Management’ ✓
Recommended lawn area 150–300 m2 Motor power 1300 W 1700 W
Width-of-cut 37 cm Torque 20 Nm 23 Nm
Cutting system Rotary blade Width-of-cut 34 cm 43 cm
Grass combs ✓ Bosch Powerdrive™ Motor ✓ ✓
Grass box capacity 40 litres Cutting system Rotary blade Rotary blade
Height-of-cut 20–70 mm Grass combs ✓ ✓
Height-of-cut settings 10, central Grass box capacity 40 litres 50 litres
Type of switch Full width on/off switch Height-of-cut 20–70 mm 20–70 mm
Integrated carrying handle ✓ Height-of-cut settings 10, central 10, central
Charge level indicator ✓ Type of switch Standard Full width on/off switch
Weight 13.9 kg Integrated carrying handle ✓ ✓
Motor overload cut-out ✓ ✓
Part no. 0 600 881 J40 Weight 10.5 kg 12.3 kg
Accessories: Part no. 0 600 881 A40 0 600 881 D40
Replacement blade F 016 800 277
36 V Li-ion battery 2 607 336 040 Accessories:
Li-ion quick charger 2 607 225 274 Replacement blade F 016 800 271 F 016 800 274
11

12. Trimmers
Grass
Grass Trimmers The Technology
Adjustable
Height-adjustable telescopic handle, 90°
rotating cutter head for fast edging and
effortless trimming.
ART 26 LI
Lithium-ion technology
Thanks to its lithium-ion
technology, your trimmer is
still charged even if you have
not used it for some time. What’s more,
you can charge it after every application
without having to worry about it –
regardless of whether the battery is fully
charged, half charged or almost flat.
Convenient and powerful
The ART 26 LI edges up to 1000 metres
with one battery charge. A short charge
Bosch corded grass trimmers
time of just 3 hours makes this 2.4 kg
provide high power and cutting
lightweight tool always ready to use.
diameters of up to 30 centimetres.
They give good results in little time.
Quick change blade system
The Bosch cordless Li-ion grass
Innovative plastic blade
trimmer offers the greatest freedom
system for energy-efficient
of movement is not dependent
and accurate cutting.
on a plug and is low in weight.
ART 23 and 30 Combitrim
Features: Versatile
The new combitrim range comes with
two spools, one for normal grass and
• Auxiliary handle
one with extra-strong line for more
• Telescopic handle
stubborn growth.
• Plant protector
• Light weight
NEW NEW
NEW
Available Available
Q2 2010 Q2 2010
Specifications ART 23 Combitrim ART 30 Combitrim
Motor power 400 W 500 W
Specifications ART 26 LI
Cutting diameter 23 cm 30 cm
Power source Lithium-ion Telescopic handle ✓ ✓
Battery voltage 18 V Height adjustment 80–115 cm 80–115 cm
Charge time 3h Extra-strong line Extra-strong line
Cutting diameter 26 cm Cutting system + ‘Pro-Tap’ spool + ‘Pro-Tap’ spool
Telescopic handle ✓ ‘Pro-Tap’ spool 1.6 mm x 4 m 1.6 mm x 4 m
Height adjustment 80–114 cm Extra-strong line (6 pieces) 6 x dia. 2.4 mm 6 x dia. 2.4 mm
Cutting system Plastic blade 90° rotating cutter head ✓ ✓
90° rotating cutter head ✓ Set of wheels – ✓
Set of wheels – Plant protector – ✓
Plant protector ✓ Weight 2.7 kg 3.4 kg
Weight 2.4 kg
Part no. 0 600 878 B40 12.3 kg
Part no. 0 600 878 L40
Accessories:
Accessories: Pro-Tap line F 016 800 176 F 016 800 176
Spare blades F 016 800 183 Pro-Tap spool F 016 800 175 F 016 800 175
18 V Li-ion battery 2 607 336 040 Extra-strong line 23 cm (10pk) F 016 800 174 F 016 800 174
Li-ion quick charger 2 607 225 274 Extra-strong line 30 cm (10pk) F 016 800 182 F 016 800 182
12 Bosch Power Tools DIY 2010 Catalogue

13. Hedgecutters
Hedgecutters The Technology
Blade tip protector
For easy cutting along the edges of walls
and the ground.
AHS 48 LI
Electronic ‘Anti-Blocking’ System
If a thick branch cannot be
cut through immediately, the
innovative micro-electronics
detect this and instantly
adjust the running direction of the blades
Bosch corded electric hedgecutters to continue cutting powerfully through
offer more power and a tooth wood where other tools would stall.
spacing of up to 24 mm. The Bosch
cordless Li-ion hedgecutter offers Lithium-ion technology
more freedom of movement and Thanks to its lithium-ion
removes the risk of cutting through technology, your hedgecutter
a cable. It is very lightweight and its is still charged even if you
innovative ‘Anti-Blocking’ System have not used it for some
prevents virtually any chance time. What’s more, you can charge it
of stalling. after every application without having to
worry about it – regardless of whether the
battery is fully charged, half charged or
Features: almost flat.
AHS 650-24 ST and AHS 52-16
• Laser cut, diamond ground blades
• Light weight
Advanced handle ergonomics
• Blade tip protector
Optimum centre of gravity and 4 switch
positions for relaxed and balanced work.
NEW
NEW NEW
Available Available
Q2 2010 Q2 2010
Specifications AHS 48 LI
Power source Lithium-ion
Battery voltage 18 V
Charge time 3h
Specifications AHS 650-24 ST AHS 52-16
Run time Up to 50 min
‘Anti-Blocking’ System ✓ Motor power 600 W 420 W
Tooth opening 15 mm Tooth opening 24 mm 16 mm
Blade length 480 mm Blade length 650 mm 520 mm
No-load stroke rate 2200 spm Slipping clutch torque 50 Nm –
Weight 2.2 kg No-load stroke rate 2800 spm 3200 spm
Blade tip protector ✓ –
Part no. 0 600 849 0 40 Weight 4.2 kg 3.1 kg
Accessories: Part no. 0 600 848 440 0 600 847 403
18V/ 1.3 Ah Li-ion battery 2 607 336 040
Li-ion quick charger 2 607 225 274 Accessories:
Lubricant spray 250 ml 1 609 200 399 Lubricant spray 250 ml 1 609 200 399 1 609 200 399
13

14. High Pressure
Washers
High Pressure Washers The Technology
Metal pump
The high quality Bosch
metal pump with stainless
steel and brass components
ensures long life.
Mobile*
Equipped with two robust wheels
for easy manoeuvrability.
Storage facilities*
Cable and hose storage features
are incorporated.
Aquatak Click 125
Bosch innovation
No tedious untangling,
no more buckling and
knotting thanks to the
Bosch offers you a wide range of
new ‘Torsion-Flex’ highpressure hose.
high-pressure washers, each with a
variety of different features. They
* Excludes Aquatak 10 and 100
also differ from each other in terms
of motor power and maximum water
pressure from 100 to 125 bar. When
choosing a high-pressure washer,
you should base your decision on
the type of cleaning work you intend
to do, i.e. whether it is heavy or
light, frequent or occasional.
Specifications Aquatak 10 Aquatak 100 Aquatak 110 PLUS Aquatak 115 Plus Aquatak Clic 125
Max. pressure 100 bar 100 bar 110 bar 115 bar 125 bar
Motor power 1300 W 1400 W 1600 W 1700 W 1800 W
Max. flow rate 300 L/h 330 L/h 380 L/h 380 L/h 410 L/h
Max. flow temperature 40 ºC 40 ºC 40 ºC 40 ºC 60 ºC
Self-priming function – – – – ✓✓
Weight 6 kg 6 kg 7.2 kg 7.2 kg 13 kg
Part Number 0 600 876 G40 0 600 876 A40 0 600 876 D40 0 600 876 E40 0 600 879 040
Comes complete with: Fan lance Jet Fan lance Vario Jet Fan lance Vario Jet Fan lance 4 Jet lance
– – Roto Power lance Roto Power lance –
– Flexi Jet lance Flexi Jet lance Flexi Jet lance –
– – Wash brush Wash brush –
3.5 m hose 3.5 m hose 5 m hose 6 m hose 6 m hose
Integrated 0.5 L Integrated 0.5 L Integrated 0.75 L Integrated 0.75 L Integrated 1 L
detergent tank detergent tank detergent tank detergent tank detergent tank
14 Bosch Power Tools DIY 2010 Catalogue

15. Choose the right accessories
for your Bosch high-pressure washer Get the best results whenever and whatever
you’re cleaning with the full range of
specially formulated Bosch detergents.
Wash brush Adjustable rotary brush Extension lance All-purpose cleaner Glass cleaner
F016800209 F016800211 F016800206 F016800232 F016800235
Detergent bottle* Hose extension* Flexi-jet lance Patio cleaner Car cleaner
F016800208 F016800212 F016800171 F016800237 F016800236
* xcept for Aquatak 1250, 115 PLUS,
E *Not recommended for Aquatak Go
110 PLUS
Bosch Aquasurf cleaner* Water filter Back-flow valve Polishing wax Insect cleaner for cars
F016800169 F016800221 F016800222 0.5 L - F016800233 F016800230
*Not recommended for Aquatak Go 2.5 L - F016800234
Alloy wheel cleaner Universal adapter set
F016800229 F016800108
15

16. Paintbrushes and drips
were yesterday. Today we spray.
The new fine spray systems from Bosch.
Do you want to quickly freshen up
wood, plastic and metal? No problem.
The portable Spray System PFS 65
offers precise and constant spraying
quality with the highest possible
flexibility. With the tool over your
shoulder and the lightweight gun
securely in your hand, you can work
quickly and easily, even overhead.
SprayControl Technology Setting the 3-stage paint nozzle Tank replacement thanks
High air volume, low pressure. A wide paint jet in horizontal or vertical to SDS quick coupling
The result: brilliant paint application direction or a pencil jet – the paint Bosch SDS enables you to change the
due to the highest level of fine nozzle can be precisely adjusted tank in no time – for fast paint changes
paint atomisation. for accurate spraying. and easy cleaning.
16 Bosch Power Tools DIY 2010 Catalogue

17. There is a solution for making work more pleasur-
able: consistent painting without tears, bristles
or lumps. Simply work with the handy Bosch Fine
Spray System PFS 55 for smaller projects.
No more blotches! Now there is the new generation of Bosch Fine
Spray Systems with innovative SprayControl Technology, which enables
effortless spraying of spotless paint surfaces. At last, a spray system PFS 55
that prevents spattering and limits the spray mist. One system in Handy fine spray
system for small
three models. For projects of all sizes. and medium-sized
projects.
Evenly painted doors, tables, benches, carports, boats – the new fine spray
systems from Bosch always produce such perfect results that you will really
PFS 65
look forward to your painting work. Thanks to the innovative SprayControl Portable and compact
Technology, you can work at high volume and low pressure more precisely fine spray system for
medium-sized projects.
than ever before. With no spatters and no tears. And the high level of accuracy
means less masking is required. So you are guaranteed to work faster. Also
with all different kinds of materials: weatherproof varnishes, scratchproof
synthetic paints, extremely smooth polishes, waterproof undercoat, heat-
resistant engine paint (and even with detergents and insect repellents).
With the new Bosch Fine Spray Systems, you can achieve flawless varnishing
and painting results with no effort.
NEW!
Portable and flexible. Fast and durable.
Precise with little spray mist
All of these advantages are thanks to the innovative SprayControl Technology.
For brilliant, fine and controlled paint application. Three times faster than
with a paintbrush or roller. With no blots, drips or spatters. It is also low
in noise and vibration. This is the modern way of spraying effortlessly.
With nothing but enthusiasm.
Further information on Page 47.
17

18. One tool for all jobs.
The new all-rounder from Bosch.
The PMF 180 E from Bosch is a true model of versatility. Do No problem with the PMF 180 E! The more you work with it, the more
you want to replace your old carpet with a nice new parquet? you will come to appreciate its abilities: its handiness and power. The
The PMF 180 E can help! manoeuvrability in tight spaces: when it saws, when it cuts, when it
Do you want the joints in your bathroom to shine in a brilliant new sands, when it ... You are sure to come up with countless other ways
white? The PMF 180 E is raring to go! And do you want to finally of using the PMF 180 E.
restore the classic motorbike you have stowed away in your garage?
Oscillation Angle function
The high-frequency oscillation allows for
precise work without kick-back.
Oscillation: 15000–21000/min All tool accessories can be fixed at the
2.8° appropriate angle with no risk of slipping.
Tool changes are made quick and easy
by the single-screw principle.
18 Bosch Power Tools DIY 2010 Catalogue

19. Versatile when The PMF 180 E works precisely right into the furthest angle because
its shape helps you in tight spaces – even in areas close to floors and
working in tight walls. Therefore, the PMF 180 E gives you a clear advantage in
spaces.
comparison to conventional power tools. Cutouts in door frames
when laying parquet and laminate are done with ease. Do you want to
work on fitted worktops? No problem, either! And not even metal can
stop the PMF 180 E. The metal saw blades enable you to cut nails
and pipes to the required length in no time.
Cutouts in worktops Trimming plasterboard Cutting pipes
Sawing
Plunge-cutting saw blades Plunge-cutting saw blades
wood, plastic, plasterboard for metal (aluminium, copper,
in widths of 10, 20, 32 mm metal plate) in widths of 10,
20 mm
Shortening door frames Sawing biscuit joints Cutting hinges to length
Sawing
The depressed centre of the
bi-metal segment saw blade
brings you closer to your
cutting target: it enables you
to get into border areas that
conventional machines only
reach with extreme difficulty
or do not reach at all.
BiM segment saw blade
Versatile when Whether short or long cuts, whether in the middle or at the very
edge: the PMF 180 E and the BiM segment saw blade with depressed
working in tight centre enable you to work everywhere quickly and easily. Your
corners and
parquet will be flush in no time, protruding wooden parts will be
removed in a flash and the new drainpipe will be cut to the right
close to edges. length very quickly. And you will be able to do this without great
effort but with the highest precision.
19

20. Versatile when The PMF 180 E also makes light work of the hardest materials.
Simply clamp in the TC Riff segment saw blade and the PMF 180 E is
p
­ erforming ready to start: for making an additional cable duct in the wall, for
hard applications.
cutting your new wall tiles or for removing the old joint material.
Thanks to its power, the PMF 180 E ensures a safe and precise cut.
Cutting cable ducts Removing joint material Cutting tiles
Cutting,
routing
Make work in hard subsurfaces easier for yourself: the
tungsten-carbide Riff segment saw blade effortlessly
removes old putty joints and can even work in wall tiles.
TC Riff segment saw blade
for working on hard materials
NEW!
The PMF 180 E:
a multi-talented tool with many qualities
Whether sawing, cutting, routing or sanding – the PMF 180 E
from Bosch is a truly multi-talented tool. Its powerful 180-watt
motor with 15,000–21,000 oscillations per minute ensures
precise and fast results. Pleasant, convenient working due
to low vibration, continuously variable electronics and weight
of only 1.2 kg.
Further information on Page 43.
20 Bosch Power Tools DIY 2010 Catalogue

21. Versatile when The PMF 180 E ensures perfect surfaces. In your house, around your
house or, for example, when working on the body of your car or
the perfect finish motorbike. Its sanding attachment turns it into a powerful and
is required.
reliable delta sander. And because the PMF 180 E is extremely
lightweight and handy, you can achieve impressive results without
having to apply a lot of feed pressure. What’s more, you also create
little dust because the PMF 180 E has a port for connecting a
vacuum cleaner.
Evening out surfaces Smoothing plasterboard Sanding filler
Sanding
The sanding attachment Dust extraction guard
Fitted and equipped in no
time: the sanding sheets
are really easy to replace
thanks to the micro Velcro-
type fastening system.
Versatile Bosch quality
accessories
for your ideas.
The PMF 180 E not only opens the way to new ideas, it also enables White Paint helps you
when working on paint
you to put them into practice. Whether wood, plastic, metal, stone or and varnish.
whatever you want to sand: make it easy for yourself and choose
from the countless sanding sheets in the Bosch range of accessories.
Not only do they suit the respective material, they also fit the PMF
180 E. The same applies to the cleaning and polishing fleeces that Red Wood is the specialist
you can use to put the finishing touches to a surface when you have for all work with wood.
finished working on it.
Black Stone is ideal
for working on hard
and brittle surfaces.
Apply the perfect finish
with the polishing fleece
without grit and with the
polishing felt.
21

22. Cordless 1-Speed The Technology
Drill/Drivers
Two-sleeve ‘Click’ keyless chuck Run-out brake
Drill / Drivers /
Screwdrivers
The ‘Click’ keyless chuck for easy Stops the motor in the shortest possible
Cordless
changing of screwdriver bits and drill time – no after-run. Ideal for series
bits emits an acoustic signal as soon screwdriving, as you can work without
as the screwdriver bit or the drill bit interruption.
is clamped in tight.
Softgrip
Smooth and safe handling because
Integrated work light vibrations are reduced to a minimum.
(PSR 1800)
Thanks to the built-in LED,
your workpiece is always
well lit and clearly visible.
The cordless drill/drivers from Bosch Electronic
Bosch are compact, lightweight For speed control using the trigger
and powerful universal tools for switch – ‘acceleration’ from 0–max.
cordless drilling and screwdriving. For smooth pilot drilling followed
The battery technology and the high by rapid drilling at full speed.
level of ergonomics enable optimum
work in any situation. Quick-change battery pack
Rechargeable NiCd battery. It is small,
works in any location, is very sturdy
Features: and maintenance-free. It provides a
high power output level and is capable
of a large a large number of charging
Collective features of PSR 12-2, PSR 14.4 and discharging cycles.
and PSR 1800:
• Setting ring with torque preselection Setting ring with torque preselection,
plus drill setting plus drill setting
• Easy handling thanks to two-sleeve On all Bosch Cordless Drill/Drivers you
• ‘Click’ keyless chuck can select the ‘screwdriving’/‘drilling’
• Run-out brake modes by turning a setting ring. There
• Electronic forward/reverse indicator are 25+1 torque settings (5+1 PSR 1800)
• Powerful motor and planetary gears available for screwdriving. When the
• Softgrip machine reaches the set value, it
• Screwdriver bit storage on housing automatically stops the screwdriving
• Bosch Electronic process.
• Quick-change battery pack
with voltage coding
Specifications PSR 12-2 PSR 14.4-2 PSR 1800
Screw diameter up to 7 mm 8 mm 8 mm
Drilling diameter in steel 12 mm 12 mm 10 mm
Drilling diameter in wood 23 mm 26 mm 28 mm
No-load speed (1st gear/2nd gear) 0–400 rpm/0–1,200 rpm 0–400 rpm/0–1,400 rpm 0–700 rpm
Max. torque (drill setting) 27 Nm 30 Nm 30 Nm
Battery voltage 12 V 14.4 V 18 V
Machine weight with battery 1.6 kg 1.7 kg 1.7 kg
Part number 0 603 916 J40 0 603 916 G40 0 603 955 342
22 Bosch Power Tools DIY 2010 Catalogue

23. Cordless 2-Speed The Technology
Drill/Drivers
Charging technology Bosch Electronic
Drill / Drivers /
Screwdrivers
This series is equipped with a For speed control using the trigger switch
Cordless
20 minute turbo charger that – ‘acceleration’ from 0–max. For smooth
automatically detects the charge pilot drilling followed by rapid drilling at
status of the battery and reduces the full speed.
current supply when the full charge
status is reached. This intelligent Quick-change battery pack
‘battery full’ detection reduces both Rechargeable NiCd battery. The battery
wear on the batteries and power is small, works in any location, is very
consumption. sturdy and requires no maintenance. It
provides a high power output level and
is capable of a large number of charging
‘Click’ keyless chuck and discharging cycles.
with Bosch Auto-Lock
The cordless drill/drivers from The keyless chuck for easy changing Setting ring with torque
Bosch are compact, lightweight and of screwdriver bits and drill bits emits preselection, plus drill setting
powerful tools for cordless drilling an acoustic signal as soon as the The torque on all Bosch Cordless Drill/
and screwdriving. The battery screwdriver bit or the drill bit is clamped Drivers can easily be set using a setting
technology and a high level of in tight. The integrated Bosch Auto-Lock ring. There are 25 torque settings
ergonomics enable optimum work ensures that the machine locks the drill available for screwdriving. When the
in any situation. spindle at standstill, making it easy and setting is correct, the machine is
convenient to open the keyless chuck. automatically stopped as soon as
the screw has been driven flush
Features: High-performance planetary gears into the material.
2-speed gears with superior lifetime,
best power transfer (high efficiency),
• 2-speed high-performance high degree of running smoothness
planetary gears with the smallest possible dimensions.
• Setting ring with 25-stage torque High torque in 1st gear (e.g. large screw
preselection plus drill setting diameters) and high speed in 2nd gear.
• ‘Click’ keyless chuck with Bosch
Auto-Lock for the easiest tool changes Run-out brake
• Bright light even in dark corners Stops the motor in the shortest possible
thanks to the integrated ‘PowerLight’ time – no after-run. Ideal for series
• Quick charger with intelligent screwdriving, as you can work without
’battery full’ detection interruption.
• Run-out brake
• Lock-on switch Integrated work light
• Softgrip Thanks to the built-in LED,
• Bosch Electronic your workpiece is always well
• Quick-change battery pack with voltage lit and clearly visible.
coding and increased capacity (1.5 Ah)
• Screwdriver bit storage on housing
• Electronic forward/reverse indicator
Specifications PSR 14.4 VE PSR 18 VE
Screw diameter up to 8 mm 10 mm
Drilling diameter in steel 10 mm 12 mm
Drilling diameter in wood 35 mm 40 mm
No-load speed (1st gear / 2nd gear) 0–400 / 1,250 rpm 0–400/1250 rpm
Torque settings 25 + 1 25 + 1
Max. torque in soft/hard screwdriving applications 22 / 36 Nm 28/44 Nm
Battery voltage 14.4 V 18 V
Machine weight with battery 1.75 kg 2.0 kg
Part number 0 603 951 G41 0 603 951 E41
Comes complete with:
20 min quick charger 3 3
2 battery pack 3 3
Plastic carrying case 3 3
23

24. Lithium-ion Cordless The Technology
1-Speed Drill/Drivers
Softgrip
Drill / Drivers /
Screwdrivers
Lithium-ion technology Convenient handling thanks to
Cordless
Thanks to its lithium- ergonomic shape and integrated softgrip.
ion technology, your
cordless drill/driver is still charged Quick-change battery pack
even if you have not used it for some (only PSR 14.4 LI)
time. What’s more, you can place it Rechargeable lithium-ion battery pack
onto the charging station after every with increased lifetime thanks to Bosch
application without having to worry Electronic Cell Protection (ECP). Smaller,
about it – regardless of whether the lighter and always ready for use thanks
battery is fully charged, half charged to lithium-ion technology.
or almost flat. Lithium-ion technology
also allows for a particularly Setting ring with pre-selectable torque
lightweight and compact design. settings, plus drill setting
The cordless 1-speed drill/drivers ‘Screwdriving’/’drilling’ modes can be
with lithium-ion technology are selected by turning a setting ring. There
handy, powerful tools thanks Integrated work light are 10 torque settings available for
to the efficient battery technology T
hanks to the built-in LED, screwdriving. When the machine reaches
from Bosch. your workpiece is always the set value, it automatically stops the
well lit and clearly visible. screwdriving process.
Forward/reverse indicator ‘Click’ keyless chuck with Bosch
Features: Green LED forwards: drive Auto-Lock
Green LED backwards: unscrew The ‘Click’ keyless chuck for the easiest
• Most handy tools in their class changing of screwdriver bits and drill
due to particularly lightweight Bosch Electronic Cell bits, by hand and without the need
and compact design Protection (ECP) for additional tools, emits an acoustic
• No memory effect, no self-discharge: The Bosch Electronic Cell signal as soon as the screwdriver bit
always ready for use thanks Protection (ECP) ensures or the drill bit is clamped in tight. The
to lithium-ion technology that the lithium-ion batteries have a integrated Bosch Auto-Lock ensures
• Intelligent 3-stage battery charge particularly long life. that the machine locks the drill spindle
level indicator at standstill, making it easy and
• Increased lifetime thanks to Bosch Charge level indicator convenient to open the keyless chuck.
Electronic Cell Protection (ECP) The intelligent battery charge level
• Setting ring with 10 pre-selectable indicator shows you in three stages
torque settings, plus drill setting how full the battery is.
• ‘Click’ keyless chuck with Bosch
Auto-Lock for the easiest bit changes
• Bright light even in dark corners thanks
to the integrated ‘PowerLight’
• 3-hour lithium-ion charging station
with intelligent ‘battery full’ detection
• Run-out brake stops the tool
immediately when required
• Lock-off switch
• Softgrip for convenient working
• Bosch Electronic for easy speed control
• Electronic forward/reverse indicator
• 14.4 V lithium-ion quick-change
battery pack with voltage coding NEW
(only PSR 14.4 LI) NEW
Specifications PSR 10.8 LI PSR 14.4 LI
Screw diameter up to 6 mm 8 mm
Drilling diameter in steel 8 mm 10 mm
Drilling diameter in wood 20 mm 25 mm
No-load speed 0 – 410 rpm 0 – 450 rpm
Torque settings 10 + 1 10 + 1
Max. torque in soft/hard screwdriving applications 10/25 Nm 12/28 Nm
Battery voltage 10.8 V 14.4 V
Machine weight with battery 0.95 kg 1.15 kg
Part number 0 603 954 040 0 603 954 140
24 Bosch Power Tools DIY 2010 Catalogue

25. Lithium-ion Cordless The Technology
2-Speed Drill/Drivers
Lithium-ion technology Capacity
Drill / Drivers /
Screwdrivers
Thanks to its lithium- Drive over 250 screws nonstop
Cordless
ion technology, your with one full battery charge –
cordless drill/driver thanks to the particularly high-
is still charged even if you have not endurance lithium-ion battery packs.
used it for some time. What’s more,
you can place it onto the charging Quick-change battery pack
station after every application Rechargeable lithium-ion battery pack
without having to worry about it – with increased lifetime thanks to Bosch
regardless of whether the battery is Electronic Cell Protection (ECP). Smaller,
fully charged, half charged or almost lighter and always ready for use thanks
flat. 25% less in size and weight than to lithium-ion technology.
standard Nicad drill/drivers.
Setting ring with torque preselection,
The cordless drill/drivers deliver plus drill setting
even better performance thanks High-performance planetary gears On all Bosch Cordless 2-Speed Drill
to the latest lithium-ion battery 2-speed gears with superior lifetime, /Drivers you can select the
technology: high torques and best power transfer (high efficiency), ‚screwdriving‘/‘drilling‘ modes by turning
optimum ergonomics ensure high degree of running smoothness a setting ring. There are 25 torque
high-endurance, powerful drilling with the smallest possible dimensions. settings available for screwdriving. When
and screwdriving. High torque in 1st gear (e.g. large screw the machine reaches the set value, it
diameters) and high speed in 2nd gear. automatically stops the screwdriving
process.
Features: Integrated work light
Thanks to the built-in LED, Keyless chuck
your workpiece is always well No keys or other tools are required
• Most handy tool in its class lit and clearly visible. to insert or remove accessories.
due to particularly lightweight
and compact design Charge level indicator Bosch Auto-Lock
• No memory effect, no self-discharge: The intelligent battery charge level The Auto-Lock system ensures the
always ready for use thanks indicator shows you in three stages quickest and easiest changing of
to lithium-ion technology how full the battery is. accessories. The drill spindle
• 2-speed high-performance automatically locks the drill once it
planetary gears Bosch Electronic Cell comes to a standstill and the keyless
• Intelligent 3-stage battery Protection (ECP) chuck can be easily and conveniently
charge level indicator The Bosch Electronic Cell opened.
• Increased lifetime thanks to Bosch Protection (ECP) ensures
Electronic Cell Protection (ECP) that the lithium-ion batteries have a
• Setting ring with 25-stage torque particularly long life.
preselection plus drill setting
• Keyless chuck with Bosch Auto-Lock
for the easiest tool changes
• Bright light even in dark corners
thanks to the integrated ‘PowerLight‘
• 3-hour lithium-ion charging station
with intelligent ‘battery full’ detection
• Run-out brake
• Lock-on switch
• Softgrip
• Bosch Electronic
• New lithium-ion quick-change battery
pack with voltage coding
• Electronic forward/reverse indicator
Specifications PSR 14.4 LI-2 PSR 18 LI-2
Screw diameter up to 8 mm 8 mm
Drilling diameter in steel 10 mm 10 mm
Drilling diameter in wood 30 mm 35 mm
No-load speed (1st gear/2nd gear) 0–370 / 1,150 rpm 0–400 / 1,250 rpm
Torque settings 25 + 1 25 + 1
Max. torque in soft/hard screwdriving applications 17 / 30 Nm 22 / 36 Nm
Battery voltage 14.4 V 18 V
Machine weight with battery 1.35 kg 1.45 kg
Part number 0 603 956 T42 0 603 956 S42
Comes complete with:
Lithium-ion charging station 3 3
Battery pack(s) 3 3
Plastic carrying case 3 3
25

26. IXO The Technology
Lithium-ion technology
Drill / Drivers /
Screwdrivers
Thanks to its lithium-ion
Cordless
technology, the IXO is
still charged even if it
has not been used for months at a
time. What’s more, you can place it
onto the charging station after every
application without having to worry
about it – regardless of whether
the battery is fully charged, half
charged or almost flat. The lithium-
ion technology makes it possible
to equip the IXO with an extremely
small battery. The result – the IXO
Lightweight, compact – and is lighter and handier than any other
nevertheless powerful: the IXO from cordless screwdriver.
Bosch for universal screwdriving
applications. This tool sits perfectly
in your hand thanks to its ergonomic Integrated work light
design with softgrip, and the latest Thanks to the built-in LED,
battery technology ensures extra- your workpiece is always
long runtimes. well lit and clearly visible.
Forward/reverse indicator
Features: Green LED forwards: drive
Green LED backwards: unscrew
• No memory effect, no self-discharge: Charge level indicator
always ready for use thanks An LED enables you to check the battery
to lithium-ion technology power quickly and easily.
• Spindle lock
• PowerLight Softgrip
• Softgrip Convenient handling thanks to
• Forward/reverse operation ergonomic shape and integrated softgrip.
• Forward/reverse indicator and charge
level indicator via LED Optional accessories:
• Battery charger also ideal for storing
the tool Angle screw adapter
For hard-to-reach areas
Torque setting adapter
For optimum power
metering when driving
small screws
Specifications IXO 3
Screw diameter up to 5 mm
No-load speed 180 rpm
Max. torque 3 Nm
Battery voltage 3.6 V
Drill chuck Magnetic bit holder with hexagonal shank
Machine weight 0.3 kg
Part number 0 603 959 140
26 Bosch Power Tools DIY 2010 Catalogue

27. Impact Driver The Technology
Powerful high-performance motor
Drill / Drivers /
Screwdrivers
Small but powerful tools for tough jobs:
Cordless
with a torque of up to 130 Nm, the
Bosch Cordless Impact Drivers are truly
powerful screwdrivers for driving and
loosening screws, particularly in metal.
Integrated work light
Thanks to the built-in LED,
your workpiece is always
well lit and clearly visible.
Quick-change battery pack
Rechargeable NiCD battery. The battery
The cordless impact driver from is small, works in any location, is very
Bosch is a compact, lightweight and sturdy and requires no maintenance. It
powerful tool for versatile use. The provides a high power output level and
battery technology and the high is capable of a large number of charging
level of ergonomics enable optimum and discharging cycles.
work in any situation.
Features:
• High torque and high impact force
• Auto-Lock
• Compact and ergonomic design
• Forward/Reverse
• LED light
• Removable belt
• Externally changeable carbon brushes
• Metal gear housing
Specifications PDR 14.4
Battery voltage 14.4 V
No-load speed 0–2,600 rpm
Impact rate 0–3,000 rpm
Max. torque 130 Nm
Battery capacity 1.5 Ah
Weight 1.7 kg
Part number 0 603 917 G40
27

28. Lithium-ion Cordless The Technology
2-Speed Hammer Drills
Capacity
Drill / Drivers /
Screwdrivers
Lithium-ion technology Drive over 300 screws nonstop with
Cordless
Thanks to its lithium- one full battery charge – thanks to the
ion technology, your particularly high-endurance lithium-ion
cordless drill/driver is still charged battery packs.
even if you have not used it for some
time. What’s more, you can place it Quick-change battery pack
onto the charging station after every Rechargeable lithium-ion battery pack
application without having to worry with increased lifetime thanks to Bosch
about it – regardless of whether the Electronic Cell Protection (ECP). Smaller,
battery is fully charged, half charged lighter and always ready for use thanks
or almost flat. Lithium-ion technology to lithium-ion technology.
also allows for a particularly
lightweight and compact design. Setting ring with pre-selectable torque
The cordless hammer drills settings, plus drill setting, plus hammer
from Bosch are extremely high- drill setting
performance multifunctional tools High-performance planetary gears On all Bosch cordless 2-speed hammer
for cordless hammer drilling, 2-speed gears with superior lifetime, drills you can select the ‘screwdriving’
drilling and screwdriving. best power transfer (high efficiency), / ‘drilling’ / ‘hammer drilling’ modes
high degree of running smoothness by turning a setting ring. There are
with the smallest possible dimensions. 30 torque settings available for
High torque in 1st gear (e.g. large screw screwdriving. When the machine
Features: diameters) and high speed in 2nd gear. reaches the set value, it automatically
stops the screwdriving process.
• Most handy tools in their class Charging technology
due to particularly lightweight The intelligent lithium-ion charging Keyless chuck with Bosch Auto-Lock
and compact design station allows for the battery to be No keys or other tools are required
• No memory effect, no self-discharge: charged both on its own and together to insert or remove accessories. Bit
always ready for use thanks with the tool in only one hour. It changes are by hand without additional
to lithium-ion technology automatically detects the charge status tools. The Auto-Lock system ensures
• 2-speed high-performance of the battery and reduces the current the quickest and easiest changing
planetary gears supply when the full charge status is of accessories. The drill spindle
• Intelligent 3-stage battery reached. This intelligent ‘battery full’ automatically locks the drill once it
charge level indicator detection reduces both wear on the comes to a standstill and the keyless
• Increased lifetime thanks to Bosch batteries and power consumption. chuck can be easily and conveniently
Electronic Cell Protection (ECP) opened.
• Setting ring with 30 pre-selectable Bosch Electronic Cell
torque settings, plus drill setting, Protection (ECP) Charge level indicator
plus hammer drill setting The Bosch Electronic Cell The intelligent battery charge level
• Keyless chuck with Bosch Auto-Lock Protection (ECP) ensures indicator shows you in three stages
and for the easiest bit changes that the lithium-ion batteries have how full the battery is.
• Bright light even in dark corners a particularly long life.
thanks to the integrated ‘PowerLight’
• 1-hour lithium-ion charging station
with intelligent ‘battery full’ detection NEW NEW
• Run-out brake
• Lock-off switch
• Softgrip
• Bosch Electronic
• New lithium-ion quick-change
battery pack with voltage coding
• Electronic forward/reverse indicator
Specifications PSB 14.4 LI-2 PSB 18 LI-2
Screw diameter up to 8 mm 8 mm
Drilling diameter in steel 13 mm 13 mm
Drilling diameter in wood 30 mm 35 mm
Drilling diameter in masonry 14 mm 15 mm
Drilling diameter in concrete 10 mm 12 mm
No-load speed (1st gear / 2nd gear) 0 – 350/1,550 rpm 0 – 400/1,650 rpm
Max. torque 23/40 Nm 30/48 Nm
Torque settings 30 + 2 30 + 2
Battery voltage 14.4 V 18 V
Machine weight with battery 1.7 kg 1.8 kg
Part number 0 603 958 440 0 603 958 340
Comes complete with:
60-minute quick charger 3 3
Auxiliary handle 3 3
Plastic carrying case 3 3
28 Bosch Power Tools DIY 2010 Catalogue

29. Uneo – Hammering, The Technology
drilling, screwdriving
Pneumatic function Dimensions and weight
Uneo – the unique Thanks to its particularly compact shape
three-in-one tool and innovative technology, the Uneo
from Bosch – makes has unbelievably small dimensions and
it possible to drive weighs only 1.1 kilograms. The tool
screws, drill and hammer drill in is as small as a DIN A5 sheet of paper,
concrete with only one tool. The therefore making it very convenient
innovation is a pneumatic hammer to use.
Uneo
mechanism with the smallest ever
dimensions! In combination with Fully equipped
a powerful motor, it enables high for immediate use
utilisation of power in an extremely Another new feature is the
small space. The single impact force drill bit holder for the concrete
of 0.9 joules at 4,800 blows per drill bits: the SDS-Quick system. Drill
The Uneo from Bosch. The compact minute speaks for itself. bits with small wings on the shank can
3-in-1 power tool. Hammers, drills be inserted quickly and conveniently, in
and drives screws in any surface exactly the same way as the SDS-plus
– even concrete. And thanks to Lithium-ion battery system: insert the drill bit, let it engage
lithium-ion technology, not only is it Thanks to the modern and off you go. But all drill bits or
particularly handy, it is also always lithium-ion battery, work screwdriver bits with a hexagonal
ready for use. with the Uneo is not shank can also be used.
impaired by annoying cables. With its
14.4 volts, it offers all of the advantages To enable you to perform the wide range
Features: of modern lithium-ion technology: of applications straight after purchase,
powerful working, no self-discharge and it Bosch offers the innovative Uneo in a
is ready for use at all times. For example, set with four drill bits for a wide variety
• Pneumatic function 100 screws (5x50 mm) can be driven of materials, and four different types of
• Immediately ready for use. with one battery charge. Thanks to the long screwdriver bits. Easy screwdriving
Comes complete with collection practical battery charger, the Uneo is as and drilling – even in concrete: Uneo
of practical accessories easy to charge as a mobile phone. A from Bosch – the unique three-in-one
• Lithium-ion battery practical display informs you about the tool!
• 3 functions in one: hammering, charging state during work. If the red
drilling and screwdriving LED lights up, it is advisable to recharge Bosch Electronic Cell
the battery soon. Two illuminated arrows Protection (ECP)
show whether forward or reverse The Bosch Electronic Cell
operation is set, for example when Protection (ECP) ensures
screwdriving. that the lithium-ion batteries have
a particularly long life.
Specifications Uneo
Battery voltage 14.4 V
Max. drilling diameter in concrete 10 mm
Max. drilling diameter in steel 8 mm
Max. drilling diameter in wood 10 mm
No-load speed 0–900 rpm
Impact rate 0–4,800 bpm
Impact stop 3
Single impact energy 0.9 J
Bosch Hammer Mechanism pneumatic
Machine weight 1.1 kg
Battery capacity 1.3 Ah
Bosch Electronic 3
Bosch SDS-Quick toolholder 3
Forward/reverse operation 3
Forward/reverse indicator 3
Charge level indicator 3
Part number 0 603 952 040
Comes complete with:
3-hour charger 3
Concrete drill bits (SDS-Quick) 1 x dia. 6 mm, 1 x dia. 8 mm 3
Metal drill bits (HSS) 1 x dia. 5 mm, 1 x dia. 6 mm 3
Four long screwdriver bits 3
1 x Ph2, 1 x Pz1, 1 x Pz2, 1 x SL 1.0 x 5.5
29

30. 1-Speed Impact Drills The Technology
Bosch Electronic Bosch Press+Lock
The speed can be varied either by By pressing the button on
preselecting it on a setting wheel the top of the drill, the user
or by using the accelerator function can lock the drill spindle and
(from 0–max.). The speed is set to suit can then open and close the drill chuck
the material being worked on and the by turning it. This system enables you
speed control enables slow pilot drilling to change accessories more quickly and
followed by rapid drilling at full speed. easily than with conventional twin-sleeve
keyless chucks.
Softgrip
For maximum convenience when drilling, Bosch Power Control
a secure grip and better control of the Machines with Bosch Power Control
machine. feature speed preselection and torque
preselection. Speed preselection is
Impact
The ergonomic, compact design of Bosch Auto-Lock for drilling suited to materials; torque
Drills
the Bosch impact drills makes them The Auto-Lock (PSB 650 preselection is for uniform screwdriving
comfortable and safe to handle RE) system is an innovative of a large number of screws. The
when impact drilling, drilling and development for impact drills sliding switch can be used to switch
screw driving. for tool-free drill bit changes. The drill between speed preselection and torque
spindle automatically locks the drill once preselection. The setting wheel is used
it comes to a stop. The user only has to to select the required value. When torque
turn the drill’s chuck, and can therefore preselection is used, the machine is
Features:
change accessories more quickly and switched off automatically when the set
easily than with any other fixing system value is reached. This enables the user
• Bosch Electronic available. to insert screws to a uniform depth.
• Forward/reverse operation
• Longer lifetime of carbon brushes Bosch Constant Electronic
due to revolving brush plate Bosch Constant Electronic keeps the
• Ergonomically shaped handle speed constant under load (ideal for
heavy-duty use such as sawing holes,
drilling large diameters or stirring).
Specifications PSB 500 RE PSB 600 RE PSB 650 RE
Power input 500 W 600 W 650 W
Max. drilling diameter in concrete 13 mm 13 mm 16 mm
Max. drilling diameter in steel 10 mm 12 mm 12 mm
Max. drilling diameter in wood 20 mm 30 mm 30 mm
No-load speed 50–3,000 rpm 0–2,800 rpm 50–3,000 rpm
Machine weight 1.5 kg 1.7 kg 1.7 kg
Speed preselection in the switch – – 3
Bosch Press+Lock – – 3
Softgrip 3 3 3
Part number 0 603 126 040 0 603 409 240 0 603 126 240
Comes complete with:
Auxiliary handle 3 3 3
Depth stop 3 3 3
DIY accessories set – (100 pc) 3 (200 pc) 3
Plastic carrying case 3 3 3
30 Bosch Power Tools DIY 2010 Catalogue

31. 2-Speed Impact Drills The Technology
2-speed gears Softgrip
2-speed drills are particularly versatile in For maximum convenience when
operation. Low speed with high torque drilling, a secure grip and better
in 1st gear, e.g. sawing holes or drilling control of the machine.
large diameters; high speed with adapted
torque in 2nd gear for working with
a small drilling diameter.
Bosch Constant Electronic
Bosch Constant Electronic keeps the
speed constant under load (ideal for
heavy-duty use such as sawing holes,
drilling large diameters or stirring).
Impact
The two-speed gearbox ensures a Supertorque
Drills
high level of versatility and power. The Supertorque function offers extra
Whether holesawing, stirring work power for all applications that put
or large drilling diameters - Bosch special demands on user and machine.
offers the right tool for every user. This electronic third gear offers
a maximum level of torque in the
‘S’ switch position for particularly
hard tasks.
Features:
Keyless chuck
• 2-speed gears Impact-resistant, sturdy keyless drill
• Bosch Electronic chuck. In conjunction with Auto-Lock, the
• Forward/reverse operation automatic drill spindle lock, accessories
• Bosch Auto-Lock keyless chuck can be changed quickly and conveniently
• (except for PSB 700-2 RE) with one hand.
• Lock-on switch for continuous operation
fully integrated in the handle Bosch Safe Stop
• Ergonomically shaped handle The PSB 1000-2 RCA is equipped with
an overload cut-off device to protect
the machine. If the drill bit gets jammed
during drilling, the power transfer from
the motor to the drill bit is interrupted
and subsequently stops. This overload
protection is deactivated when
Supertorque is switched on.
Specifications PSB 700-2 RE PSB 1000-2 RCE
Power input 701 W 1010 W
Max. torque 32 Nm 60 Nm
Max. drilling diameter in concrete (1st gear / 2nd gear) 20/13 mm 20/13 mm
Max. drilling diameter in steel (1st gear / 2nd gear) 13/8 mm 16/8 mm
Max. drilling diameter in wood (1st gear / 2nd gear) 40/25 mm 40/25 mm
Max. screw diameter 8 mm 12 mm
No-load speed (1st gear / 2nd gear) 0–800 / 2,600 rpm 0–1,100 / 2,800 rpm
Impact rate 44,200 bpm 47,600 bpm
Machine weight 2.4 kg 2.4 kg
Speed preselection 3 3
Bosch Safe Stop – 3
Bosch Constant Electronic – 3
Bosch Auto-Lock – 3
2-speed gears with ‘Supertorque’ – 3
Part number 0 603 172 540 0 603 172 840
Comes complete with:
Auxiliary handle 3 3
Depth stop 3 –
Plastic carrying case 3 3
31

32. Rotary Hammer The Technology
Bosch Hammer Mechanism Selection Switch
Bosch Hammers work with No matter whether you are hammering,
pneumatic hammer mechanisms. chiselling, drilling or screwdriving –
They feature high impact force the selection switch ensures that you
and create the impact energy on have the right setting. Impact stop: for
their own, independent of the switching off the hammer mechanism
feed pressure of the user. Rotary when drilling in wood or metal and
Hammers are therefore ideally when screwdriving. Rotation stop:
suited to work in hard materials for switching off the rotary motion
such as concrete or granite. when chiselling, e.g. with flat chisel.
Vario Lock
Bosch Electronic Enables chisels to be fitted in 36
The speed can be varied either by different positions. This means you
The Bosch rotary hammer – preselecting it on a setting wheel or by can choose the optimum angle between
excellently suitable for powerful using the accelerator function (from 0– the wall and the chisel – no loss of
hammering in concrete and max). The speed is set to suit the material performance due to an unfavourable
masonry, chiselling and drilling. being worked on and the speed control working position.
The immense power of the rotary enables slow pilot drilling followed by
hammer from Bosch is able to rapid drilling at full speed.
Hammers
overcome even the toughest
Rotary
resistance quickly and easily – Bosch SDS-plus
regardless of the feed pressure. For rapid tool fitting. Together
with the specially designed
drill bits, this enables highly
Features: efficient power transfer from the
machine to the drill bit and is thus the
main reason behind the outstanding
• Areas of application: hammering drilling performance. The drill bits are
in concrete and stone, chiselling, also changed quickly and without tools.
drilling and screwdriving
• Bosch SDS-plus Bosch SDS quick-change chuck
• Impact stop Tool-free changing of the SDS-plus shank
• Overload clutch bits (hammering) and the standard
chuck (keyed) for normal straight-shank
drill or screwdriver bits. (Non-impact
mode for non-SDS bits)
Specifications PBH 2000 SRE
Power input 550 W
Max. drilling diameter in concrete 20 mm
Max. drilling diameter in steel 13 mm
Max. drilling diameter in wood 30 mm
No-load speed 0–2,300 rpm
Impact rate 0–5,800 bpm
Single impact energy 1.5 J
Bosch Hammer Mechanism pneumatic
Machine weight 2.2 kg
Bosch SDS quick-change chuck 3
Rotation stop 3
Vario Lock 3
Forward/reverse operation 3
Slimline design 3
Lock-on switch for continuous operation 3
Part number 0 603 344 340
Comes complete with:
Keyed chuck 3
Auxiliary handle 3
Depth stop 3
Plastic carrying case 3
32 Bosch Power Tools DIY 2010 Catalogue

33. Jigsaws The Technology
Bosch SDS Roller guide
The standard Bosch The saw blade is guided by
SDS enables effortless the support roller. This roller
and safe saw blade absorbs the force generated
changes within seconds – without by the feed pressure of the jigsaw and
additional tools. Fit the saw blade prevents the saw blade from going
and you’re ready for action. With ’astray’ to either side. This is the
saw blade ejection. only way in which accurate and
precise cuts are possible.
Bosch Electronic Laser beam
Bosch Electronic enables the user The laser beam can
to adjust the stroke rate. Either by be switched on/off
preselecting a stroke rate range on a individually, making it the
The new generation of jigsaws setting wheel or by controlling the stroke perfect sawing aid for straight and
from Bosch enable you to saw rate via the trigger switch in the handle precise cuts. What’s more, the laser
tight curves and wavy lines more (‚acceleration‘ from 0–max.). The stroke module can be removed to enable
easily and precisely than ever rate preselection enables you to adjust the sawing close to edges and shuts
before and without vibration. They stroke rate range to suit the material you down automatically after 10 minutes
come as standard with Bosch SDS are working on (only for PST 800 PEL). to prevent the batteries from going
for effortless and safe saw blade flat accidentally.
changes in seconds – without the 4-stage pendulum action
need for additional tools. The saw blade can move in
two different ways: a stroke Tool box
action and a pendulum action. Easy storage of saw blades
Features: The elliptical saw blade pendulum action in the integrated saw blade
distributes the pressure across the entire storage compartment (only
Saws
sawing path, enabling fast cutting and for PST 800 PEL)
• Bosch SDS a longer lifetime of the saw blade (only
• Sole plate which can be swivelled PST 700 PEL and PST 800 PEL). Dust extraction
to both sides and moved to the back For connection to a
• Softgrip Bosch ‚Low Vibration‘ Bosch All Purpose Vacuum
• Switchable air-blast function The integrated mass balance compensates Cleaner or to an ordinary
• Connection for dust extraction forces and torques produced by the household vacuum cleaner. Dust is
• Roller guide for accurate cutting movement of the stroke drive and directly extracted at the saw blade to
• Transparent protective cover ensures extremely smooth running. the extraction channel integrated in the
(except for PST 670 L) housing and fed to the vacuum cleaner.
This gives a clear view of the cutting line
and an environment free of dust.
Specifications PST 670 L PST 700 PEL PST 800 PEL
Power input 500 W 530 W 620 W
Power output 270 W 290 W 340 W
Cutting depth in wood 67 mm 70 mm 80 mm
Cutting depth in steel 3 mm 4 mm 6 mm
No-load stroke rate 3,100 spm 500–3,100 spm 500–3,100 spm
Machine weight 1.9 kg 2.0 kg 2.1 kg
Sole plate Steel Steel Steel
Bosch SDS 3 3 3
Bosch Electronic – 3 3
4-stage pendulum action – 3 3
Air-blast facility 3 3 3
Laser beam that can be switched on/off 3 3 3
Softgrip 3 3 3
Tool box – – 3
Part number 0 603 413 140 0 603 413 540 0 603 352 140
33

34. All Purpose Saw The Technology
Bosch SDS
Saw blades can be changed
without tools by using a slide
element button. This ensures
quick and convenient blade change –
from a wood saw blade to a saw blade
for metal. The all purpose saw is ready
in next to no time for new tasks.
Bosch Electronic
Bosch Electronic enables the user
to adjust the stroke rate. Either by
controlling it via the trigger switch
in the handle (‘acceleration’ from
The all-purpose saw from Bosch is a 0–max.) as with the PFZ 500 E.
speedy all-round saw for quick cuts
in wood, plastic and metal. It offers Ergonomically designed handle system
high performance with compact The variable, ergonomic handle system
dimensions and good ergonomics. – handle with on/off switch – ensures
comfortable and safe handling. Equally
suitable for right-handed or left-handed
operation.
Features:
Integrated hand protector
• Bosch SDS The hand protector integrated into the
• Bosch Electronic design of the PFZ 500 E ensures safe
• Low-vibration running and convenient working.
Saws
Softgrip
For outstanding, safe guidance
and effortless working.
Specifications PFZ 500 E
Power input 500 W
Power output 320 W
Cutting depth in wood 150 mm
Cutting depth in steel 10 mm
Stroke rate 0–2,700 spm
Saw blade stroke 23 mm
Machine weight 2.0 kg
Bosch Electronic 3
Bosch SDS 3
Lock-on switch 3
Softgrip 3
Part number 0 603 398 040
Comes complete with:
Saw blade for wood 3
Saw blade for wood and metal 3
Plastic carrying case 3
34 Bosch Power Tools DIY 2010 Catalogue

35. Circular Saw The Technology
Safety switch
Prevents inadvertent
activation. The tool can
only be switched on when
the safety switch is pressed and held
in place.
Cutting depth adjustment /
Angle adjustment
Accurate cutting depth adjustment and
precise adjustment for bevel cuts via
the quick clamping lever. Easy, accurate.
Bosch Circular Saw Blades
The circular saw from Bosch is The OPTILINE WOOD saw
the ideal tool for precise rip and blade is supplied as standard
mitre cuts. With the highest level with all Bosch Circular Saws.
of convenience and safety, it offers Alternately, two offset teeth and one
perfect control and maximum flat tooth ensure fast and clean cutting
precision in a wide range of results. OPTILINE WOOD saw blades
applications. are specially designed for wood cutting
applications.
Features: Spindle lock
The spindle lock allows for quick and
convenient saw blade changing. Simply
• Lock-on switch
press the button – saw blade locked
• Pendulum protective guard
Saws
– and use the Allen key to loosen the
• Easy cutting depth adjustment
spindle nut.
• Dust extraction (adapter needed)
• Auxiliary handle integrated
in the housing
Specifications PKS 66
Power input 1000 W
Power output 760 W
Cutting depth range at 90° 0–66 mm
Cutting depth range at 45° 0–48 mm
Circular saw blade rated diameter 190 mm
Circular saw blade bore size 30 mm
No-load speed 4,800 rpm
Guide plate 160 × 345 mm
Machine weight 3.8 kg
Protective guard Aluminium
Mitre cuts 3
Double-sided safety switch 3
Spindle lock 3
Part number 0 603 204 X40
35

36. Planer The Technology
Combined guidance
and cutting depth
adjustment handle
Firstly, it serves as an
auxiliary handle for secure guidance
of the planer. Secondly, it can
be used to set the cutting depth,
even during planing.
V-grooves
The Bosch planer stands for fast
V-grooves for easy slanting
and precise working with a high
of edges.
material removal rate and large
planing width. It comes as standard
Integrated dust extraction
with a combined guidance and Specifications PHO 1
It can either be directed
cutting depth adjustment handle for
into a dust bag (optional Cutting depth 0–1.5 mm
non-slip guidance and continuously
accessory) or a Bosch All Rebating depth 0–8 mm
variable adjustment.
Purpose Vacuum Cleaner or an ordinary Power input 500 W
household vacuum cleaner. The dust Power output 250 W
extraction can be connected to either Planing width 82 mm
Features: the right or left, ensuring an environment No-load speed 19,000 rpm
free of dust. Machine weight 2.0 kg
Lock-on switch 3
• Patented Woodrazor blade system V-grooves 3
• Lock-on switch
• Combined guidance and cutting Part number 0 603 272 237
depth adjustment handle
• Electronically balanced cutter Comes complete with:
block for quiet running Tungsten carbide reversible 3
• Integrated connection planer blade
for dust extraction Allen key 3
Planers /
Routers
Router The Technology
Bosch Speed Electronic
Speed Electronic enables infinitely
variable speed preselection. This can
be preselected to suit the material with
a setting wheel.
On/off switch on handle
The on/off switch is ergonomically
integrated in the handle. For comfortable
The router from Bosch is a versatile work and more safety.
tool: its applications range from
accurate groove, edge and profile Bosch SDS
routing through to long-hole and High-quality sole plate with Specifications POF 1200 AE
copy routing. It enables you to work coating. The SDS system
enables easy, tool-free Power input 1200 W
with an extremely high level of
Power output 650 W
convenience and precision. insertion of the template guide.
Maximum router cage stroke 55 mm
Toolholder (supplied) 6 mm, 8 mm
Dust extraction
and 1/4’
Features: For connection to a Bosch All Purpose
No-load speed 11,000–28,000 rpm
Vacuum Cleaner or ordinary household
Machine weight 3.4 kg
vacuum cleaner. Dust is directly extracted Spindle lock 3
• Bosch Electronic at the router bit via the extraction adapter Bosch SDS for template guide 3
• Speed adjustment via setting wheel and fed to the vacuum cleaner. This gives Bosch Speed Electronic 3
• Spindle lock for easy router bit changing a clear view of the workpiece and an
• SDS system for easy insertion environment free of dust. Part number 0 603 26A 140
of the template guide
• On/off switch on handle Spindle lock Comes complete with:
• Depth pre-setting with scale Easy router bit changing – the integrated Centring pin 3
and adjustment in stages spindle lock makes this possible. Simply Template guide (Ø 17 mm) 3
• Guide columns with protective lock the spindle at the push of a button, Straight bit (dia. 8 mm) 3
rubber sleeves loosen the nut, replace the router bit, Collets 3
• Softgrip tighten the nut and release the lock again. Spanner 3
• Connection for dust extraction Parallel guide 3
• Transparent protective guard Dust extraction adapter 3
36 Bosch Power Tools DIY 2010 Catalogue

37. The appropriate sanding tool
for any requirement.
Since not all sanding tasks are the
same, Bosch offers the ideal tool
for every sanding application. The
graph below shows you the special
advantages of the individual tools
at a glance. This makes it easy
for you to find the right tool for
your requirements.
Material Shapes/ Corners/
Tool Surface quality
removal rate Curves Edges
100%
Orbital Sander
For large and perfect
surfaces right into corners
Multi-Sander 100%
Multi-talented tool for
medium-sized surfaces
and corners
Random Orbit Sander 100%
For effective sanding
on curved surfaces
Belt Sander
100%
For the highest
material removal rate
Sanders
on large surfaces
37

38. Orbital Sander The Technology
Integrated dust Bosch Electronic
extraction The Bosch Electronic enables
A built-in, powerful the user to set the orbital
dust extraction system stroke rate by using a setting
transports the dust at high speed wheel to preselect an orbital stroke rate
into the Bosch Micro-Filter System. range. The orbital stroke rate preselection
This ensures that the dust extraction is used prior to sanding to set an orbital
rate is high. Guarantees longer life of stroke rate range that is suitable for the
the sanding sheets, a clear view of material being worked on.
the sanding area and an environment
free of dust. Softgrip
For effortless working and safe handling.
Easy handling
It is easy to see how full
Fast and fine sanding on even the transparent dust box
surfaces. Smooth sanding or paint is. The tried and tested
removal – the Bosch orbital sander ribbed filter system is easily cleaned
produces the best sanding results and can be used repeatedly.
on wood and metal.
Sanding sheet
clamping system
Features:
The easy-to-use clamp lever
makes changing sanding
• Bosch Micro-Filter System sheets convenient and easy; the sanding
• Integrated dust extraction sheets are firmly and securely seated.
• Ergonomic handle for accurate handling
• Softgrip Sanding plate with
Velcro-type fastening
The sanding plate is equipped
with a durable micro Velcro-
type fastening system. This allows you
to change sanding sheets quickly and
easily: pull off the old sanding sheet
and attach a new one, that’s it.
Sanders
Specifications PSS 250 AE
Power input 250 W
Power output 125 W
Sanding plate 92 × 182 mm
Micro Velcro-type system 92 × 185 mm
Clamping system 93 × 230 mm
Sanding surface 167 cm2
Oscillations 14,000–24,000 opm
Oscillating circuit diameter 2.0 mm
Machine weight 1.6 kg
Bosch Micro-Filter System 3
Softgrip 3
Bosch Electronic 3
Sanding sheet clamping system 3
Sanding plate with micro Velcro-type fastening 3
Part number 0 603 340 240
38 Bosch Power Tools DIY 2010 Catalogue

39. Random Orbit Sanders The Technology
Integrated dust Bosch Electronic
extraction Bosch Electronic enables
A built-in, powerful the user to adjust the orbital
dust extraction system stroke rate. On the Bosch
transports the dust at high speed Random Orbit Sander, this is done using
into the Bosch Micro-Filter System. the orbital stroke rate preselection by
This ensures that the dust extraction means of a setting wheel. In this way,
rate is high. Guarantees longer life of the machine can be individually adapted
the sanding sheets, a clear view of to the material and the task. Premature
the sanding area and an environment wear of the sanding sheet is prevented
free of dust. and the life of the sanding sheet is
extended.
Quickly cleaned
The sturdy container and Velcro-type fastening
Regardless of whether you want to the filter can be used for The sanding plate is equipped
sand or polish, whether on wood, very long periods – saving with a Velcro-type fastening
plastic, metal, roughcast or paint, you money. The quick fastening lock system. This allows you to
whether on flat or curved surfaces, ensures easy handling of the dust change sanding sheets quickly and
the Bosch PEX principle in the box and therefore uncomplicated easily: pull off the old sanding sheet
random orbit sanders from Bosch disposal of the sanding dust. and attach a new one.
ensures the finest finish and high
sanding performance.
Bosch PEX principle
All Bosch Random Orbit
Features: Sanders work with the PEX
principle: random orbit
movement plus rotation. The resulting
• Bosch Micro-Filter System eccentric rotation of the sanding plate
• Integrated dust extraction provides an excellent material removal
• Sanding plate with Velcro-type fastening rate and fine, scratch-free sanding
results. Ideal conditions for subsequent
surface finishing. Top results are also
achieved for polishing work, e.g. of
varnishes, brass or Perspex.
Sanders
Specifications PEX 400 AE PEX 270 AE
Power input 400 W 270 W
Sanding plate diameter 125 mm 125 mm
Oscillations 9,000–26,000 opm 15,000–24,000 opm
Eccentricity 2.50 mm 2.00 mm
Machine weight 1.9 kg 1.5 kg
Bosch Micro-Filter System 3 3
Bosch Electronic 3 3
All-round adjustable auxiliary handle 3
Sanding plate with Velcro-type fastening 3 3
Part number 0 603 310 637 0 603 369 768
Comes complete with:
Bosch Micro-Filter 3 3
3 sanding sheets (Red Wood) 3 3
Spanner 3 –
Rubber sanding plate 3 3
Auxiliary handle 3 –
39

40. Belt Sander The Technology
Integrated dust Bosch Electronic
extraction Bosch Electronic enables the
A built-in, powerful user to adjust the belt speed.
dust extraction system Either by preselecting a speed
transports the dust at high speed range on a setting wheel and/or by
into the Bosch Micro-Filter System. controlling the belt speed via the trigger
This ensures that the dust extraction switch in the handle (‘acceleration’
rate is high. Guarantees longer life of from 0–max.). The speed preselection
the sanding sheets, a clear view of is used prior to sanding to set a speed
the sanding area and an environment range that is suitable for the material
free of dust. being worked on. The belt speed control
via the trigger switch enables controlled
Quickly cleaned initial sanding in delicate materials,
The sturdy container and for example varnishes, veneers, etc.
Fast sanding of large surfaces the filter can be used for
with a high material removal rate very long periods – saving
– the belt sander from Bosch for you money. The quick fastening lock
maximum sanding performance ensures easy handling of the dust
on wood, plastic or metal. box and therefore uncomplicated
disposal of the sanding dust.
Features:
Sanding belt
tensioning system
• Bosch Micro-Filter System The sanding belt can
• Integrated dust extraction be changed comfortably
• Sanding belt tensioning system and easily with the easy-to-operate
• Fine adjustment of guide rollers tensioning lever.
means that the belt can be operated
with fine precision Automatic belt system
Manual belt alignment is
not required as the belt is
automatically held in the
correct work position during sanding.
Sanders
Specifications PBS 7 AE
Power input 600 W
Power output 300 W
Belt speed 170–250 m/min
Sanding surface 76 × 130 mm
Belt dimensions 75 × 457 mm
Machine weight 2.4 kg
Bosch Micro-Filter System 3
Sanding belt tensioning system 3
Automatic belt system 3
Bosch Electronic 3
Part number 0 603 391 737
Comes complete with:
Bosch Micro-Filter 3
Angle adapter –
Sanding belt (Red Wood) 3
Subframe 3
Parallel and angle guide 3
40 Bosch Power Tools DIY 2010 Catalogue

41. Multi-Sanders The Technology
Micro-Filter System
The built-in dust extraction
element draws the dust
directly into the supplied
Micro-Filter box. The dust is significantly
reduced and the workplace remains clean.
A
firmer hold
The sanding plate is equipped
with a durable micro Velcro-
type fastening system. This
makes changing the sanding sheets easy
and fast.
Large surfaces? Small corners? Rotatable sanding tip
No problem with these handy multi- True operating comfort: because the
sanders. Not only do they smoothen sanding plate is divided into sections,
out surfaces, they also easily the delta tip can be effortlessly detached
remove paint and varnish. and it can be turned 360° for a longer
lifetime.
Lithium-ion technology
Features:
Thanks to its lithium-ion
technology, the Prio holds
PSM Models its charge even if it has not
• Bosch Micro-Filter System been used for months at a time. What’s
• Integrated dust extraction more, you can place it onto the charging
• Dust box is transparent, which station after every application without
makes it easy to see how full it is. having to worry about it – regardless of
It is also convenient to empty by whether the battery is fully charged, half
opening the black cover charged or almost flat.
• Large, iron-shaped sanding plate
divided into sections with particularly
durable and strong micro Velcro-type
fastening system
PRIO
• Cordless multi-sander
with lithium-ion technology
Sanders
• No self-discharge
• No memory effect
• Practical accessories storage
and simultaneous charging
in the charging station
• Battery charge level indicator
• Quick charger: the cordless
multi-sander is fully ready for
use again in just 30 minutes
PRIO Cordless
Specifications PSM 80 A PSM 160 A
Multi-Sander
Power input 80 W 160 W –
Battery voltage – – 7.2 V
Oscillations 20,000 opm 24,000 opm 16,000 opm
Oscillating circuit diameter 1.4 mm 1.6 mm 1.2 mm
Sanding surface 104 cm2 104 cm2 104 cm2
Machine weight 0.9 kg 1.4 kg 0.7 kg
Bosch SDS – – –
Part number 0 603 354 040 0 603 377 041 0 603 919 740
Comes complete with:
3 sanding sheets (Red Wood) 3 3 –
4 sanding sheets (3 × Red Wood, 1 × White Paint) – 3 –
2 sanding sheets, cleaning fleece, charging station – – 3
41

42. Angle Grinders The Technology
Protective guard
All Bosch Angle Grinders are
fitted with a protective guard
that can be adjusted without
tools to protect against flying sparks and
other particles. Depending on the model,
the guard can be adjusted up to 270°.
Protective guard coding
Coding of the protective guard prevents
incorrect fitting. The axial safety device
ensures secure seating and more safety.
Spindle lock
Cutting, grinding, roughing or rust Pressing the spindle lock fixes the spindle
removal: the compact, handy angle in place. Discs are changed easily using a
grinders from Bosch offer plenty spanner or without tools with the Bosch
of power and a high level of safety SDS quick-locking nut.
and convenience.
Features:
• Spindle lock
• Protective guard adjustable
up to 270° without tools
• Coding of the protective guard
prevents incorrect fitting
• Easy-to-use on/off switch
Grinders
Angle
NEW
Specifications PWS 1000 PWS 1500 PWS 2000
Power input 670 W 670 W 800 W
Grinding disc diameter 100 mm 115 mm 125 mm
No-load speed 11,000 rpm 11,000 rpm 11,000 rpm
Machine weight 1.4 kg 1.4 kg 1.9 kg
Part number 0 603 411 040 0 603 411 140 0 603 411 341
42 Bosch Power Tools DIY 2010 Catalogue

43. Multifunction Tool The Technology
Oscillation
15,000–21,000 oscillations per minute
at 2.8 angular degrees allow for precise
working without kick-back.
Motor
The powerful 180-watt motor ensures
sustained performance. Low vibrations
without self-movements of the tool and
the infinitely adjustable electronics
increase convenience.
Toolholder
The attachments can be inserted into
Sawing, cutting, routing, sanding.... the toolholder in different positions. The
The multifunction tools from Bosch positive engagement of the toolholder
offer countless possibilities for prevents any risk of slipping. The single-
putting DIY ideas into practice. screw principle enables easy and fast
tool changes.
Connection for dust extraction
Features:
The port for connecting a vacuum
cleaner allows for clean working
• Oscillation principle for versatile and a clear view of the work area.
applications – multifunctional and
precise with powerful 180 watts
• Bosch Electronic: infinitely variable
control of the oscillation speed by
turning the setting wheel – to suit
the material being worked on
• Toolholder with universal screw –
fast and uncomplicated changing
of all accessories with the Allen key
• Integrated connection for dust
extraction
Multifunction
Tools
Specifications PMF 180 E
Power input 180 W
Power output 74 W
Oscillation angle on left/right 1.4°
No-load speed 15,000–21,000 rpm
Weight 1.2 kg
Bosch Electronic 3
Part number 0 603 100 041
Comes complete with:
Delta sanding plate 93 mm 3
Bi-metal segment saw blade 3
HCS plunge-cutting saw blade for wood 3
Sanding sheet set Wood-top 3
Allen key 3
Plastic carrying case 3
43

44. Digital Detectors The Technology
Maximum safety For example, the PDO Multi:
when drilling
The Bosch Detectors Detection
reliably detect, for of metals
example, electrical cables. Green
light for drilling: the luminous ring
shows where you can drill. You can Detection
then mark the detected position of electrical cables
immediately with a pencil.
Detection of
Red light wooden substructures
Object found
You should play it safe if you want
to drill in walls: the handy digital
Zoom mode
detectors from Bosch enable you
Refines the search and
to find live cables, pipes or girders
Green light enables exact locating
and frames made of metal, as well
OK to drill of objects.
as wooden substructures, with the
highest precision and safety.
Features:
• Detection of metals and electrical cables
• High detection depth
• Detected objects are indicated
by a luminous ring
• Concise display
• Small and handy
• Battery operation
Specifications PDO 6 PDO Multi
Measuring
Max. detection depth
Digital
Tools
for iron 6 cm 8 cm
for copper 5 cm 6 cm
for power cables 3 cm 5 cm
for wood – 2–3 cm
Calibration automatic automatic
Battery 1 × 9 V 6LR61 1 × 9 V 6LR61
Weight 0.20 kg 0.25 kg
Part number 0 603 010 100 0 603 010 000
Comes complete with:
Protective case – 3
2 marking pencils – 3
Battery 3 3
44 Bosch Power Tools DIY 2010 Catalogue

45. Digital Laser Rangefinders The Technology
Laser technology
Truly accurate measurement results
can only be achieved by measuring
with laser technology.
Laser measurement
with PLR 30
Precise measurement
using a laser. Measurement
accuracy ± 2 mm over 30 m.
In comparison:
Equipped with state-of-the-art
laser technology, the rangefinders
Ultrasound measurement
from Bosch deliver measurement
Tapered measurement using
results with maximum precision
ultrasound. Measurement
and reliability.
accuracy ± 50 mm over 10 m.
Digital display
Features: Concise display of the
measurement results.
• Measurement range 0.2–30 m
• Extremely accurate due to laser Extremely compact
technology As small as a mobile phone,
• Measurement functions: length, area, the PLR 30 fits in any pocket.
volume and continuous measurement
• Memory function
• Addition and subtraction
of measured values
• Large digital display
• Battery operation
Specifications PLR 30
Laser diode 650 nm
Laser class 2
Measurement range 0.2 – 30.0 m
Measurement accuracy, typ. ± 2.0 mm
Measurement time, typ. 0.5 s
Measurement time, max. 4s
Power supply 4 x 1.5 V LR03 (AAA)
Automatic deactivation 5 mins
Measuring
Digital
Tools
Weight 0.18 kg
Length measurement function 3
Area measurement function 3
Volume measurement function 3
Continuous measurement function 3
Indirect measurement function
Reference level of measurement Rear edge
Part number 0 603 016 000
Comes complete with:
Protective pouch 3
Battery 3
45

46. Laser Spirit Level The Technology
Laser technology
The high-quality laser
projects a particularly
clearly visible laser line
up to 5 metres.
Height adjustment
The integrated magnet can
Precise alignments, visible edges
be used to finely adjust the
and geometric applications? No
exact position of the laser
problem for the laser spirit level
on the wall holder.
from Bosch.
Aluminium contact surface
The PLL 5 can also be used
Features: as a ‚normal‘ spirit level for Specifications PLL 5
fast levelling work. Working range*, approx. 5m
• For all horizontal and vertical Laser diode 635 nm
levelling work Laser class 2
• Projects a laser line up to 5 m Accuracy ± 1.0 mm/m
Weight 0.12 kg
• High-quality, bright laser
Spirit level function integrated
• Particularly small and handy,
Battery 2 × 1.5 V LR03 (AAA)
fits in any pocket
• Practical wall holder
Part number 0 603 015 000
can be fixed to any surface
–
– allows for fine adjustment Comes complete with:
of the exact position of the laser Battery 3
• Can also be used as a manual spirit level Wall holder 3
• Battery operation *depending on lighting conditions
Cross-Line Laser Levels The Technology
Cross-Line Laser Level Self-levelling laser lines
At the push of a button, The innovative, self-levelling laser
you have the option of a technology allows for accurate working
horizontal, vertical, slanted without manual settings.
or cross fire laser line, which can be
switched on/off separately and is
projected onto the wall to assist you
with your work. Diagonal lines are also
possible in a special mode.
The cross and line lasers from Bosch
now make complicated alignment of
objects a thing of the past. Levelling
work can be completed quickly and Specifications PCL 1 Set
precisely thanks to state-of-the-art Working range*, approx. 10 m
laser technology and extremely Laser diode 635 nm
easy operation. Laser class 2M
Measuring
Digital
Tools
Self-levelling time, typ. 4s
Levelling range ≤5°
Features: Accuracy ± 0.5 mm/m
Tripod thread 1/4’
Weight 0.50 kg
• Self-levelling laser lines that can Battery 4 × 1.5 V LR6 (AA)
be switched on/off individually
• Horizontals, verticals, cross-lines Part number 0 603 008 001
or angles
• 10 m working range Comes complete with:
• 2 high-quality, bright lasers Protective case 3
• 1/4‘ thread for use on a normal Batteries 3
camera tripod Wall Holder –
• Battery operation Tripod (1.10 m) 3
*depending on lighting conditions
46 Bosch Power Tools DIY 2010 Catalogue

47. Fine Spray Systems The Technology
SprayControl Technology 3-stage paint nozzle
The high level of fine For more diversity and flexibility
paint atomisation ensures when working.
brilliant paint application.
The air jacket that envelops Air cap Jet Application
the paint jet enables precise and clean
application of various spray materials. Vertical fan jet for horizontal
When the work is finished, only the parts working direction
used to guide the paint are separated
by SDS and can be cleaned quickly Horizontal fan jet for vertical
and easily. working direction
Electronic airflow control Pencil jet for corners, edges
and hard-to-reach areas
The airflow can be set
The fine spray systems from Bosch electronically via the
ensure brilliant paint application. continuously variable 2-1
They enable you to measure the switch, in order to control Bosch SDS
precise amount of paint, they are the paint mist and the speed of the paint SDS system ensures easy,
suitable for materials of various application. The low airflow stage is used fast paint changes and
levels of viscosity and they offer for a material with thin viscosity and a easy cleaning.
a versatile range of applications high airflow stage is used for a material
for work in the house and garden. with thick viscosity. A high airflow stage
also results in faster paint application. Paint flow control
(Only for PFS 105 E) The continuously variable
Features: flow control allows for
precise working.
• SprayControl Technology
• 3-stage controllable paint nozzle
(horizontal, vertical, pencil jet)
• Handle extension makes it safe
to set the gun down
• Paint tank with level indicator
• Parked position for work breaks
NEW NEW
Specifications PFS 55 PFS 65
Power input 280 W 280 W
Max. pumping capacity 0 – 110 g/min 0 – 130 g/min
Atomisation energy 55 W 65 W
Paint application 5 m2 in 12 mins 5 m2 in 10 mins
Tank volume 600 ml 600 ml
Machine weight 1.3 kg 2.8 kg
Hose length – 1.8 m
Decoration
Part number 0 603 206 040 0 603 206 140
Tools
Comes complete with:
600-ml tank 3 3
Measuring container 100 ml 3 3
Handle extension 3 3
Carrying strap – 3
Training DVD 3 3
47

48. Electric Tacker The Technology
Impact control
Impact is controlled either at the touch
of a trigger switch or by pressing the
tacker nose to the workpiece. You
can choose between single impact
or continuous impact for quicker
repeat work.
Safety nose
The impact can only be triggered in the
work position.
Impact force preselection
The setting wheel can be
Say goodbye to hammers, screws,
used to preselect the required
glue and pins: the powerful tacker
impact force in stages.
from Bosch helps you to quickly
and easily fix panels and hard fibre
PowerLight
boards and to fit insulation and
The integrated PowerLight
decoration materials such as foils,
enables you to work in dark
strips or even fabrics.
and awkward areas.
Softgrip
Features:
Ergonomically shaped handle
with softgrip and large switch
• For rapid stapling of insulation for effortless work.
material, foils, textile wallpapers
and many more materials.
• Front arrangement of tacker nose
for tacking close to edges
• Staple supply display
Specifications Cordless Tacker PTK 3.6 V
Battery voltage 3.6 V
Impact rate 30 bpm
Application range with 11.4-mm staples 6–14 mm
Nails 14 mm
Machine weight 1.2 kg
Bosch Electronic
Mechanical impact force preselection 3
Staple supply display 3
Bosch duotac automatic
Softgrip 3
PowerLight 3
Decoration
Tools
Part number 0 603 968 840
Comes complete with:
5-hour charger 3
Battery pack(s) 3
1000 staples (type 53, length 8 mm) 3
Plastic carrying case 3
48 Bosch Power Tools DIY 2010 Catalogue

49. Cordless Universal Cutter The Technology
Lithium-ion technology
Thanks to its lithium-
ion technology, the Xeo
holds its charge even if
it has not been used for months at a
time. You can recharge it at any time
without any problems – regardless of
whether the battery is fully charged,
half charged or flat. The lithium-
ion technology makes it possible
to equip the Xeo with an extremely
Decoration materials, cardboard or small battery.
carpet: the Xeo cordless universal
cutter from Bosch enables you
to effortlessly and quickly cut all Charge level indicator
different kinds of flexible materials An LED enables you to check the battery
at any time – without a cable. power quickly and easily.
Softgrip Specifications Xeo
Features: Thanks to the ergonomic design Max. cutting strength 6 mm
with softgrip, any hand feels great No-load speed 240 rpm
with the Xeo. Battery voltage 3.6 V
• Lithium-ion technology
Charge time 5 hours
• No self-discharge
Cutting performance up to 150 m
• No memory effect per battery charge
• AutoSharp: self-sharpening blade Machine weight with battery 0.4 kg
• Charge level indicator via LED Lock-on switch 3
• Lock-on switch AutoSharp 3
• Softgrip
Part number 0 603 205 040
Comes complete with:
5-hour charger 3
Glue Gun The Technology
Mechanical feed system
The glue feed for application
can be finely regulated by
means of a mechanical feed
system operated by the large switch.
Bosch Constant Electronic
Automatic temperature control
with electronically regulated heating
elements for even glue consistency.
The glue gun from Bosch is ideal for
adhesive attachment, model making,
repairing, sealing and jointing. They
stick almost anything: wood, plastic,
ceramic, metal, glass, textiles,
leather and much more.
Features:
• Bosch Constant Electronic
• Glue stick up to 200 mm
• Mechanical feed system: fine application Specifications PKP 18 E
of glue – rapid, targeted application Gluing capacity 20 g/min
• Glue stick guide with viewing glass Glue stick diameter 11 × 45–200 mm
Decoration
• Ready to use quickly thanks to glue Voltage 100–240 V
Tools
stick pre-heating Machine weight 0.35 kg
• Practical nozzle with heat protection
cladding and anti-drip device Part number 0 603 264 537
• Wire stand makes it safe to set
the glue down Comes complete with:
• Temperature-resistant housing 1 glue stick 3
with protective insulation 1 extra-long nozzle 3
49

50. Heat Guns The Technology
Temperature display
A wide range of possible
applications thanks to
infinitely variable temperature
setting (50–630 °C) via a display (PHG
630 DCE). Cold-air setting for fast
cooling and working at low temperatures
(PHG 630 DCE).
Bosch Constant Electronic
The preset temperature is
kept constant electronically.
For especially precise work,
e.g. soldering and welding (PHG 630
Hot air guns from Bosch are DCE).
perfectly suited to thawing, drying,
speeding-up the drying process of Airflow control
glued connections, shaping, and The airflow can be controlled
dust-free removal of paint. over several stages. The
lower airflow stage is used
to prevent the area surrounding the
workpiece from overheating or to
Features:
prevent light workpieces from shifting in
the airflow. A higher airflow stage allows
• Thermal stop the workpiece to be heated more quickly.
• Control of temperature and airflow
in stages Thermal stop
• Support surface for bench-mounted Automatic deactivation
operation of the heating element
• Closed handle for safe work to prevent overload
(Thermal Protection).
Bosch Softgrip
Convenient handling and
non-tiring working thanks
to the ergonomic design
and softgrip.
Specifications PHG 630 DCE PHG 500-2
Power input 2000 W 1600 W
Temperature 50–630 °C 300 / 500 °C
Airflow 150 / 300 / 500 l/min 240 / 450 l/min
Machine weight 0.90 kg 0.75 kg
Thermal stop 3 3
Decoration
Removable heat shield 3 –
Tools
Bosch Softgrip 3 –
Cold-air setting, 50 °C 3 –
Infinitely variable temperature control 3 –
Bosch Constant Electronic 3 –
Display 3 –
Part number 0 603 29C 737 0 603 29A 037
50 Bosch Power Tools DIY 2010 Catalogue

51. All Purpose The Technology
Vacuum Cleaner
Sturdy permanent
fabric filter
The Bosch All Purpose
Vacuum Cleaners are
equipped with a sturdy permanent
fabric filter which is easy to clean.
The filter can remain in the cleaner
when water is sucked in. Prior to
using the cleaner for dry vacuum
cleaning again, the permanent fabric
filter should be left to dry thoroughly.
An additional paper filter bag makes
emptying easy and prevents most
of the dust from escaping.
Hose system with snap lock
The Bosch All Purpose Vacuum Cleaners
The all purpose vacuum cleaner
have an optimised hose system with
from Bosch show its true potential
snap lock. The hose is safely seated in
where wet and dry vacuuming in the
the container. The connection can be
workshop, house, courtyard, garden
turned, making the cleaner more flexible
or car is concerned. Purpose-built
– no twisted or bent hoses.
details such as the freely rotating
hose, guide rollers, accessory rack
Practical cable and
and the rest area for small parts
accessory rack plus shelf
transform the cleaner into an
Especially practical is the
all-round practical helper.
cable and accessory rack
plus additional shelf surface for cleaner
accessories, nozzles and other small
Features:
parts.
• Robust, powerful wet/dry Automatic remote
vacuum cleaner switch-on facility
• Compact design Many Bosch Power Tools
• Sturdy permanent fabric filter have a connection for dust
• Hose system with snap lock extraction. The Bosch All Purpose
• Cable and accessory rack plus shelf Vacuum Cleaner is the ideal tool for
• Float valve this connection. It extracts chippings
and dust effortlessly.
Specifications PAS 11-21
Power input 1100 W
Max. airflow (at blower) 50 l/s
Max. ventilating pressure (at blower) 150 mbar
Container volume 21 L
Machine weight 6.3 kg
Part number 0 603 395 037
Comes complete with:
Hose 2 m, 35 mm diameter 3
2 suction pipes, 0.5 m each 3
Crevice nozzle 21 cm 3
Coarse dirt nozzle 3
All Purpose
Paper filter bag 3
Cleaners
Vacuum
Permanent fabric filter 3
51

52. The House of Bosch
now at www.bosch-do-it.com.au!
The best projects, detailed
instructions, hints and tips from
professionals, comprehensive
product information and much
more: bosch-do-it.com meets
all your DIY needs.

53. Great ideas for every area
Experts 1/2 – 1 day
€150
Are you looking for fresh project ideas to pep up your
home? You will find them for every area of your home
at our new website, bosch-do-it.com.au. Welcome to the
House of Bosch – where ideas live!
Have a look around the House of Bosch and you will instantly notice that every room is full of ideas. When taking the
virtual tour through the kitchen, bathroom or living room, you will find great projects to help you make your home
even more attractive. From an elegant room divider to a practical side table, from easy to demanding – see what
inspires you most! To ensure that you enjoy building these objects from beginning to end, every project is explained
step by step. There is also a comprehensive DIY encyclopaedia that explains the most important terms, and there
are helpful hints and tips contributed by professionals. And if you are yet to obtain the right tool for the job, you can
browse through a detailed overview of all Bosch power tools in the
online product catalogue. What else is there to discover? Why not
pay us a visit? The doors of the House of Bosch are always open
to you!

54. Available here:
Robert Bosch (Australia) Pty. Ltd. Robert Bosch (New Zealand) Ltd.
1555 Centre Road Phone: 0800 543 353
Clayton Vic 3168 Fax: 0800 428 570
Phone: 1300 30 70 44 www.bosch-pt.co.nz
Fax: 1300 30 70 45
www.bosch-pt.com.au
Bosch Power Tools:
100% Quality, 100% Service.
Why should you choose Bosch Power Tools for your DIY work?
Quite simply because we offer the best solution for each of your
challenges. And because each of our products is manufactured
to the highest quality standards, ensuring that you will enjoy
your tool for a long time. Should your Bosch Power Tool however
break down at any time, we will quickly repair it. And at the end
of its long life, we guarantee that your Bosch Power Tool can
be disposed of in an environmentally-friendly manner.
Printed in Australia KRD 02/2009 – RB 1871 PG
Whilst every care has been taken in the preparation of this publication, Bosch does not warrant the accuracy
or completeness of the information in this publication and Bosch reserves the right to alter specifications
without notice. To the extent permitted by law, Bosch excludes all liability, including negligence, for any
loss incurred in reliance on the contents of this publication.
F005XP0074
