Hub Technologies was founded in 2005 to develop solid aerosol compound technology and become a leader in fire suppression. It has developed Aerohub, a third generation aerosol system that uses an organic base to quickly extinguish fires without damaging equipment or harming people. Aerohub removes chain carriers from the flame reaction and produces stable potassium compounds to stop the fire. It provides benefits like being environmentally friendly, cost effective to install and maintain, and safe for electronics.
Aerohub english version
- 2. Our Mission Foundedby Hussein Bahari and Omar Bahari in 2005, Hub Technologies has invested significantly in research and development involving solid aerosol compound technology • Hub Technologies intends to be a leader in the fire suppression industry. • Hub Technologies spearheads • A one-stop centre of choice for transformation of Malaysia as a fire and safety-related products. global leader in Green Technology. • Setting international industry benchmarks through outstanding • Particularly the Environmentally solutions and services Friendly Aerosol-based Fire Suppression Industry
- 3.
- 4.
- 5. Market Captured 2006 2007 2008 2009 2009- 2010 • Balai Seni • Hotel • Wisma Darul • Zeal Hi-Tech •UPM, Lukis, Casuarina, Iman, Sdn Bhd Malaysia Malaysia Perak, Trengganu • Biro Perbadanan •Kenderaan Malaysia • Singapore Statistik, kebal , ATM. • Felda Bulkers, Polytechnic Indonesia • Airport Bali, • Kenaf, LKPN Johor, • Indosat, Indonesia Malaysia Indonesia • Maxis Comm, • Nanyang • Atlantis, Indonesia Malaysia University of • Time Dot Singapore • Kodeco Oil Rig, Batam, Com, • Mindef, Indonesia Malaysia Malaysia • Pelantar minyak PETRONAS, Malaysia
- 6. HUB TECHNOLOGIES (M)SDN BHD A New Generation of Aerosol Fire Suppression System Manufactured and Designed by 6 HUB TECHNOLOGIES (M) SDN BHD

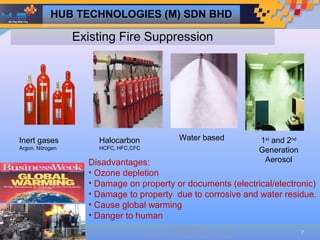

- 7. HUB TECHNOLOGIES (M)SDN BHD Existing Fire Suppression Inert gases Halocarbon Water based 1st and 2nd Argon, Nitrogen HCFC, HFC,CFC Generation Disadvantages: Aerosol • Ozone depletion • Damage on property or documents (electrical/electronic) • Damage to property due to corrosive and water residue. • Cause global warming • Danger to human Designed by 7 HUB TECHNOLOGIES (M) SDN BHD
- 8. What is AEROHUB ANew Generation Aerosol Fire Suppression (3 rd Generation) • Fully organic base +(organic admixture and binder) • Malaysian invention and patented • Locally manufactured • Recognised National Product (SJJB) Designed by 8 HUB TECHNOLOGIES (M) SDN BHD
- 9. Why AEROHUB Evidence ofAerohub’s effectiveness Hub Video Designed by 9 HUB TECHNOLOGIES (M) SDN BHD

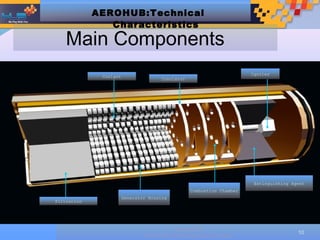

- 10. AEROHUB:Technical Characteristics Main Components Igniter Coolant Insulator Extinguishing Agent Combustion Chamber Generator Housing Filtration Designed by 10 HUB TECHNOLOGIES (M) SDN BHD
- 11. AEROHUB: Method ofActivation 2 ways of activation Electrical Signal from Control Panel (Manual / Automatic) Thermal- self activation Designed by 11 HUB TECHNOLOGIES (M) SDN BHD
- 12. What is AEROHUB Totalflooding aerosol gives out smoke-like appearance Holding time up to 60 minutes. Organic coolant 40-45degC Aerohub aerosol being rapidly generated Designed by 12 HUB TECHNOLOGIES (M) SDN BHD
- 13. Aerohub: Fire Basics ThreeBasic elements of fire O2 O2 O2 Oxygen 4th Element of fire - Chain Carriers O H OH O, H & OH Heat Heat Fuel Fuel Note: O –oxygen ion H- Hydrogen ion OH – Hydroxide ion Chain carriers –on surface of fire > propagate the fire to grow
- 14. How AEROHUB extinguishes fire How it works O2 O2 O2 Oxygen K+ Aerohub Chain aerosol K+ O H OH carrier (Potassium + Organic admixture. Heat O, H & OH K+ Fuel 1.Chemical Removal of radicals fire chain carriers 2.Physical Cooling the fire to a level where the fire cannot re-ignite.( Lowering the temperature but not by freezing the air or equipment)
- 15. How AEROHUB extinguishes fire How it works Stable Products KOH Chain carrier K O O, H & OH H KO Removed from the Flame Chain K O KOH H O KO K O KOH KOH The Potassium radicals (K*) bind and remove chain carriers (O, H, OH) Stops propagation of fire => stable products KOH(potash), KO. NO depletion of oxygen

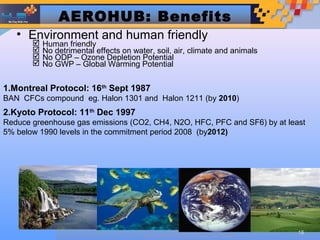

- 16. AEROHUB: Benefits • Environment and human friendly Human friendly No detrimental effects on water, soil, air, climate and animals No ODP – Ozone Depletion Potential No GWP – Global Warming Potential 1.Montreal Protocol: 16th Sept 1987 BAN CFCs compound eg. Halon 1301 and Halon 1211 (by 2010) 2.Kyoto Protocol: 11th Dec 1997 Reduce greenhouse gas emissions (CO2, CH4, N2O, HFC, PFC and SF6) by at least 5% below 1990 levels in the commitment period 2008 (by2012) Designed by 16 HUB TECHNOLOGIES (M) SDN BHD

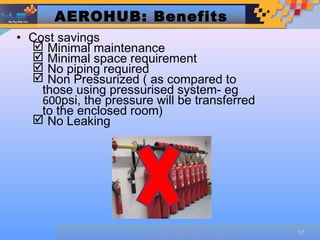

- 17. AEROHUB: Benefits • Costsavings Minimal maintenance Minimal space requirement No piping required Non Pressurized ( as compared to those using pressurised system- eg 600psi, the pressure will be transferred to the enclosed room) No Leaking Designed by 17 HUB TECHNOLOGIES (M) SDN BHD
- 18. AEROHUB: Benefits Advance technology Noimmediate and after effects on electronic & magnetic equipments No usage of Nitrobutadien (oily residue) or Nitrocellulose No formation of toxic or corrosive chlorine compounds. No Sulphur (cause corrosion), potassium chloride. No Non-Halal Gelatine Fast discharge time (1-2 seconds) and easy replacement Safe, reliable and simple Installation Designed by 18 HUB TECHNOLOGIES (M) SDN BHD
- 19. AEROHUB: Benefits Other factors: 100 % Malaysian Product. Save outflow of Ringgit. 100% Malaysian invention. File in patent in Malaysia and Registered. Maintenance – Local support readily available. Spares – complete set replacement while under warranty. Lower costs – 15-25% lower than our competitor. Designed by 19 HUB TECHNOLOGIES (M) SDN BHD
- 20.
- 21. AEROHUB : AGITHuman Toxicity test Chemical Name Formula Average Results Average Conversion Life Threatening O2 20.6vol.% - - Oxygen Co 1195 ppm 0.12vol.% 0.3 vol.% Carbon monoxide Co2 0.40 vol % - 20.0 vol% Carbon dioxide No <1ppm - - Nitric oxide No2 <1ppm - - Nitric dioxide K 492mg/m3 - - Potassium anion No3 <23mg/3 - - Nitrogen trioxide pH 8.5 - - pH Scale - - Potassium Carbonate K2CO3 879mg/m3 21

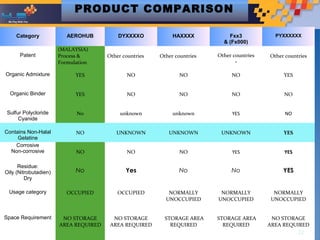

- 22. PRODUCT COMPARISON Category AEROHUB DYXXXXO HAXXXX Fxx3 PYXXXXXX & (Fx000) (MALAYSIA) Patent Process & Other countries Other countries Other countries Other countries Formulation - Organic Admixture YES NO NO NO YES Organic Binder YES NO NO NO NO Sulfur Polycloride No unknown unknown YES NO Cyanide Contains Non-Halal NO UNKNOWN UNKNOWN UNKNOWN YES Gelatine Corrosive Non-corrosive NO NO NO YES YES Residue: Oily (Nitrobutadien) No Yes No No YES Dry Usage category OCCUPIED OCCUPIED NORMALLY NORMALLY NORMALLY UNOCCUPIED UNOCCUPIED UNOCCUPIED Space Requirement NO STORAGE NO STORAGE STORAGE AREA STORAGE AREA NO STORAGE AREA REQUIRED AREA REQUIRED REQUIRED REQUIRED AREA REQUIRED 22
- 23.
- 24.
- 25. PRODUCT COMPARISON Category AEROHUB DXXXXXO HXXXXX ErXXX13 PYXXXX Pipework No piping No piping YES YES NO required required Standby Pressure NOT NOT HIGH HIGH NOT PRESSURISE PRESSURISED PRESSURE PRESSURE PRESSURISED D Leakage NO NO YES YES No Pressure Pressure Loss Holding Time 45-60 mins 30 mins 5 min. 5 min Uncertain Maintenance No No (MINIMUM) Yes Yes Minimum (MINIMUM) Thermal Shock No No Yes Yes No 25
- 26. PRODUCT COMPARISON Category AEROHUB FM200 (HFC-227ea) CF3CHFCF3 (MALAYSIA) Patent Process & Formulation USA - Composition Organic base and organic binder Heptafluoropropane Supplier Local Fike HFC-227ea (DuPont™ (HUB Technologies Sdn Bhd) FE227™) Kidde FM-200® Acute Overexposure No Contact with the liquid or cold gas may cause frostbite. Has a central nervous systems effect. Contains Non-Halal Gelatine UNKNOWN NO Corrosive Non-corrosive YES NO Oily Residue No No 26 (Nitrobutadien)
- 27. PRODUCT COMPARISON Category AEROHUB FM200 (HFC-227ea) CF3CHFCF3 Thermal decomposition may produce Hazardous Decomposition None the following: Hydrogen fluoride, carbon Products monoxide and carbon dioxide. (NOT SAFE FOR HUMANS) Standby Pres NOT PRESSURISED HIGH PRESSURE – stored as and AND HENCE liquid and pressurized with nitrogen Pressure Loss NO PRESSURE LOSS at 42bar ((609 psi) Overexposure to HFC-227ea may Potential Health Effects NO cause suffocation, if air is displaced by vapors, and irregular heart beat with a strange sensation in the chest, feeling of fainting, dizziness, weakness, sometimes progressing to loss of consciousness and death. HFC-227ea may cause frostbite if liquid or escaping vapor contacts the skin and the eyes. Holding Time 45-60 mins 10 min Maintenance No (MINIMUM) Yes 27 Thermal Shock No Yes
- 28. ENVIRONMENTAL DATA Category Ozone Depleting GWP Global Atmospheric Extinguishing Mechanism of Potential ODP Warming lifetimes (yrs) concentration fire suppression Potential ( C02=1) %V.V. g/m3 AEROSOL BASED 0 0 0 - Physical and chemical 0 FE13 -11700 36.4 7-18 chemical HFC BASED: FE25, FM200, FE13 FM200- 2900 264 10 5600 65 5 chemical CFC BASED Halon 1301 PFC BASED: 0.036 11.9 chemical Naf S 111 1450 12 NATURAL GASES: 0 264 16-18 Physical Argonite 0 38 Argotec 0 0 0 37.5 Inergen 0 0 0 50 1 1 120 CO2 WATER BASED 0 0 0 0 physical CHEMICAL 0 0 0 chemical POWDER 28 Or physical
- 29.
- 30.
- 31.
- 32.
- 33.

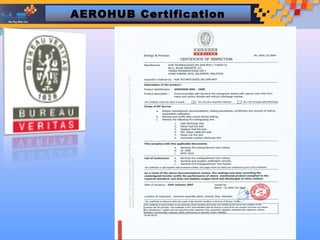

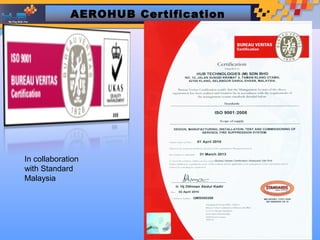

- 34. AEROHUB Certification In collaboration withStandard Malaysia
- 35.
- 36. AEROHUB Certification SINGAPOREC IVILDEFENCEF ORCE HQ SINGAPORE CIVIL IIEFENCE FORCE 9f Ubi Avenue 4 Singspore 40882? Website:h ttp//:www.scdfg. ov.sg Ref No : CON1C0007003108 PROPOSAL:F IRE SI.JPPRBSSIOSNY STEM (GENERAL ENQUIRES) RECORD OF CONSULTATION Item 1: Fire suppressions ystemt o be used in an occupied space in lieu of sprinkler system. How to obtain approval or no objection by SCDF on product oSed.- Comment: ComplywithNFPA200l' A PROUD MEMBER OF THE HOME TEAM SINGAPORE CIVIL DEFENCE F ORCE IIQ SINGAPORE CTWL DEFENCE FORCE 91 ubi Avenue 4 SingaPore 4A8827 Websiteh: ttP//:wwwscdfg. ov'sg ffib Please quote our ref. ng' in all future cotrespondences
- 37.
- 38.
- 39. AEROHUB Models available Model SS/MS SS/MS SS/MS SS/MS SS/MS SS/MS 50 30 20 10 5 2.5 50m3 30m3 20m3 10m3 5m3 2.5m3 Room Volume GENERATOR SPECIFICATIONS : • Generator housing and all internal components are made of Stainless Steel or Mild Steel to suit the environment. • Temperature : Operates with +50 to -50 °C • Humidity : Operates up to 96% RH • Warranty : 2 years for manufacturer’s defect
- 40. Pelantar MInyak Kilang Fasiliti Penyelidikan Bunker Petroleum & Gas Amunisasi Stesen Penghantaran kenderaan Stesen Radio Ketenteraan si Jet Penerbangan Pertukaran nika Kereta Kebal u Pusat Kawalan Data om lek Te Infrastruktur Pusat Kawalan Data Pengangkutan Bilik Komputer Kapal Penjanaan Kuasa Tingkat tinggi Kereta Bilik Penjana Keretapi Bilik UPS Bas Hospital Sub Stesen Universiti Bilik AHU Bilik HV Bilik LV Kotak DB
- 41. Industr y Analysis • Generated revenue for fire suppression industry is RM 70 mill in 2010. • Market growth estimated – RM0.6 billion in 5 yrs 2011(Total RM87mil) 2015 (Total RM151mil) Total Fire Suppression Market size in Malaysia in RM (millions) a copyright and trademark of Hub Technologies Source: Jab BOMBA Malaysia and Takaful Malaysia
- 42. Industr y Analysis 2011 2015 Total Fire Suppression Market size outside Malaysia in RM Market share (millions) •Asia Pacific 33% • Middle East 33% • Others 34% a copyright and trademark of Hub Technologies
- 43. AEROHUB Installation Ceiling Flush Blower Room Generator Room Mounting Inside Engine Switchgear Room MCC Room
Editor's Notes
