The document discusses Java desktop application development. It summarizes a presentation about issues with Java rich client applications and introduces solutions like NetBeans RCP and SwingLabs. The presentation discusses the speaker's qualifications and experience with the blueMarine project, a photographic workflow application. It demonstrates NetBeans RCP features and components like explorers, viewers, and actions. The presentation concludes that most challenges for shipping desktop apps are now history and developers can be creative in using frameworks beyond Swing.

2. blueMarine
photographic workflow with Java
or Why You Should Really Ship
Swing Applications
Fabrizio Giudici
Senior Java Architect

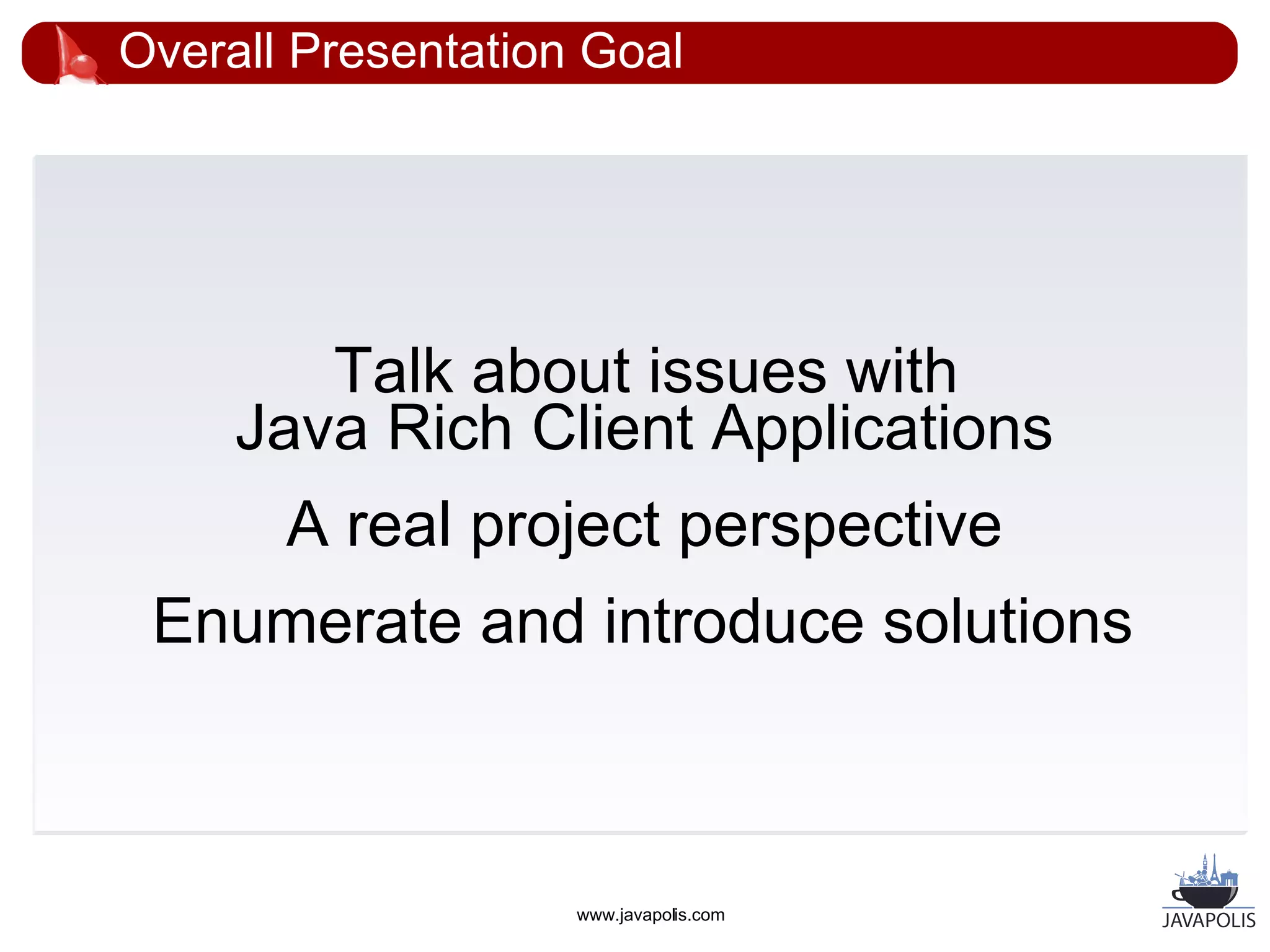

3. Overall Presentation Goal
Talk about issues with
Java Rich Client Applications
A real project perspective
Enumerate and introduce solutions
www.javapolis.com

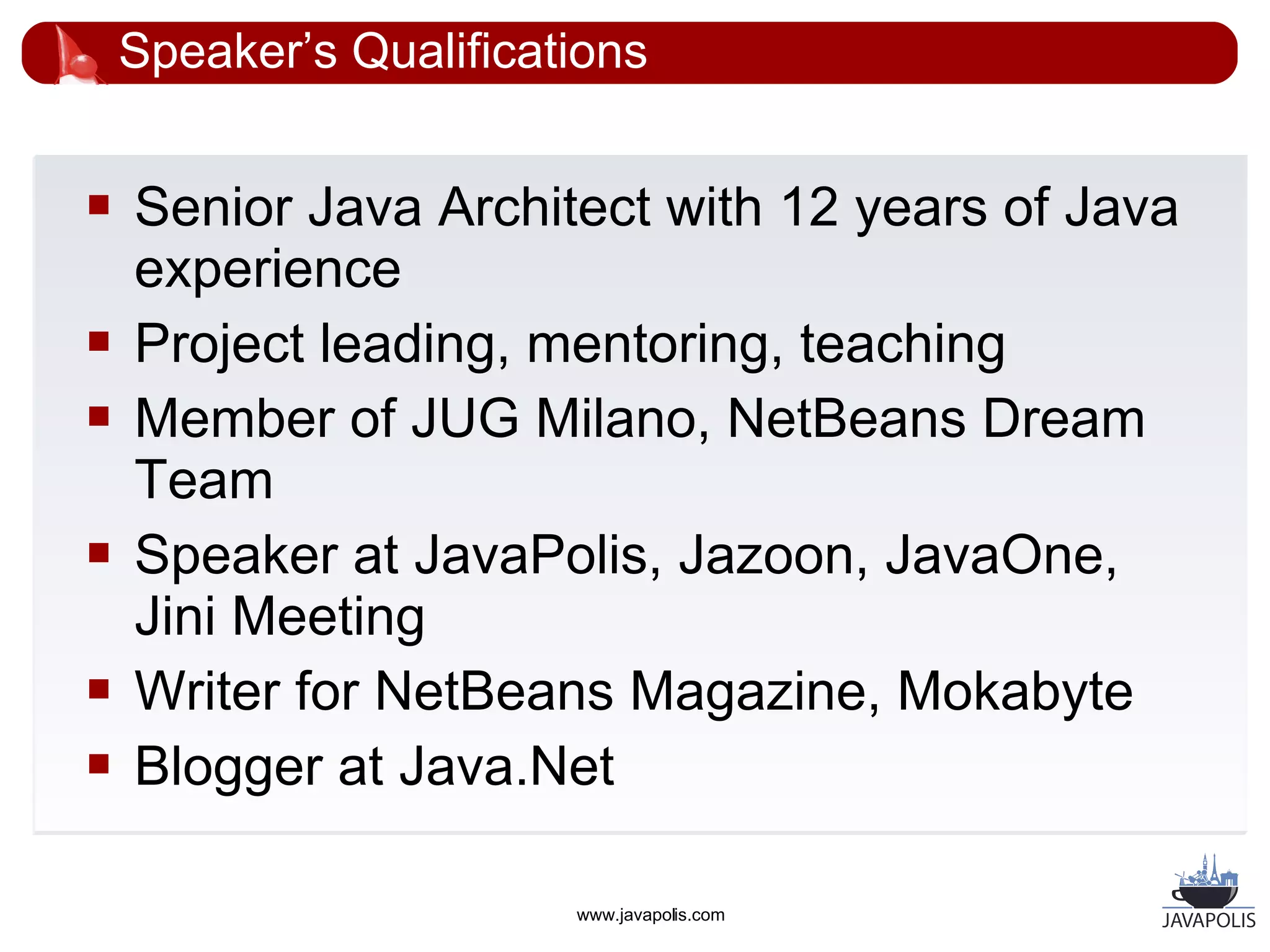

4. Speaker’s Qualifications
 Senior Java Architect with 12 years of Java
experience
 Project leading, mentoring, teaching
 Member of JUG Milano, NetBeans Dream
Team
 Speaker at JavaPolis, Jazoon, JavaOne,
Jini Meeting
 Writer for NetBeans Magazine, Mokabyte
 Blogger at Java.Net
www.javapolis.com

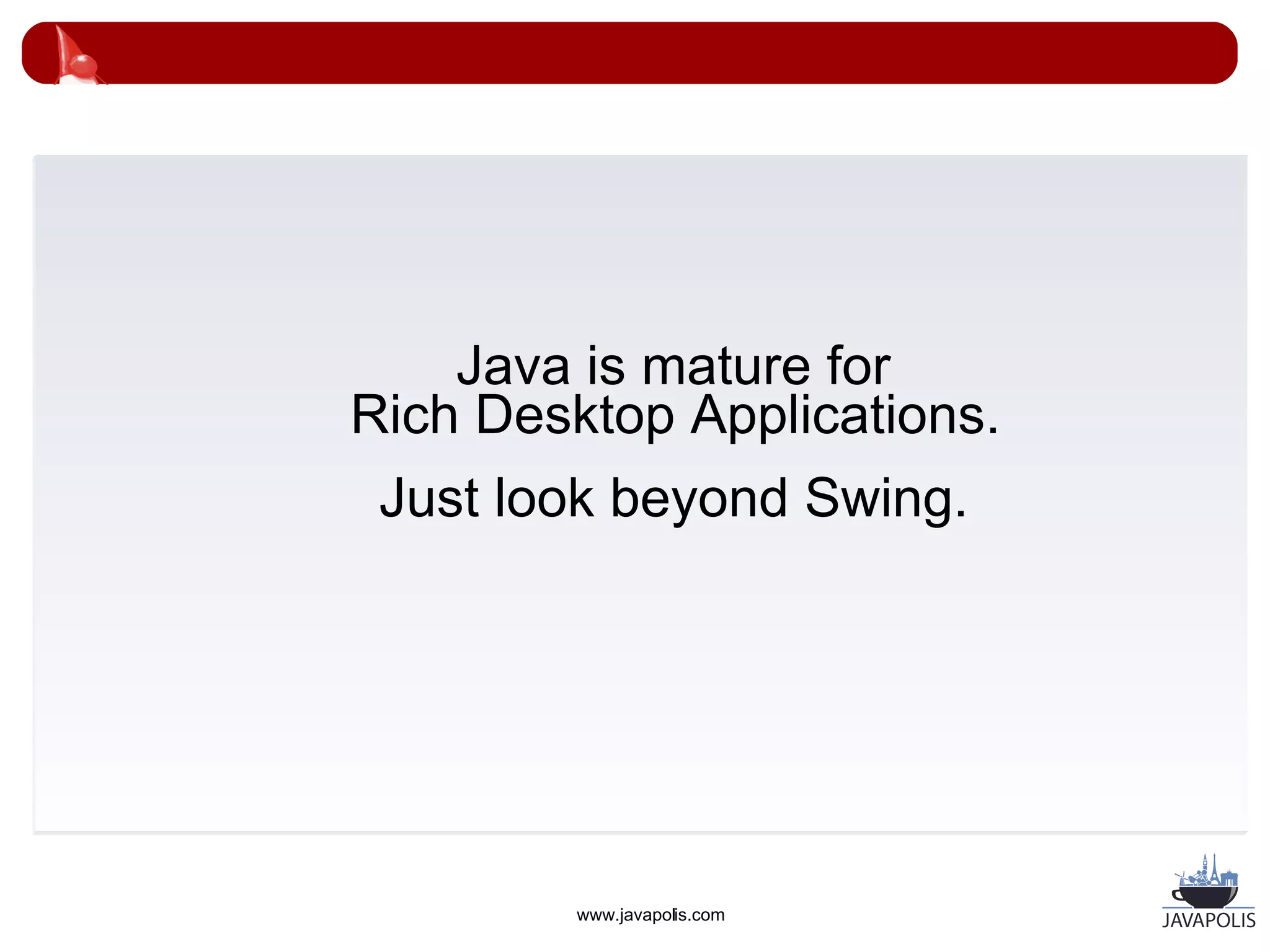

5. Java is mature for
Rich Desktop Applications.
Just look beyond Swing.
www.javapolis.com

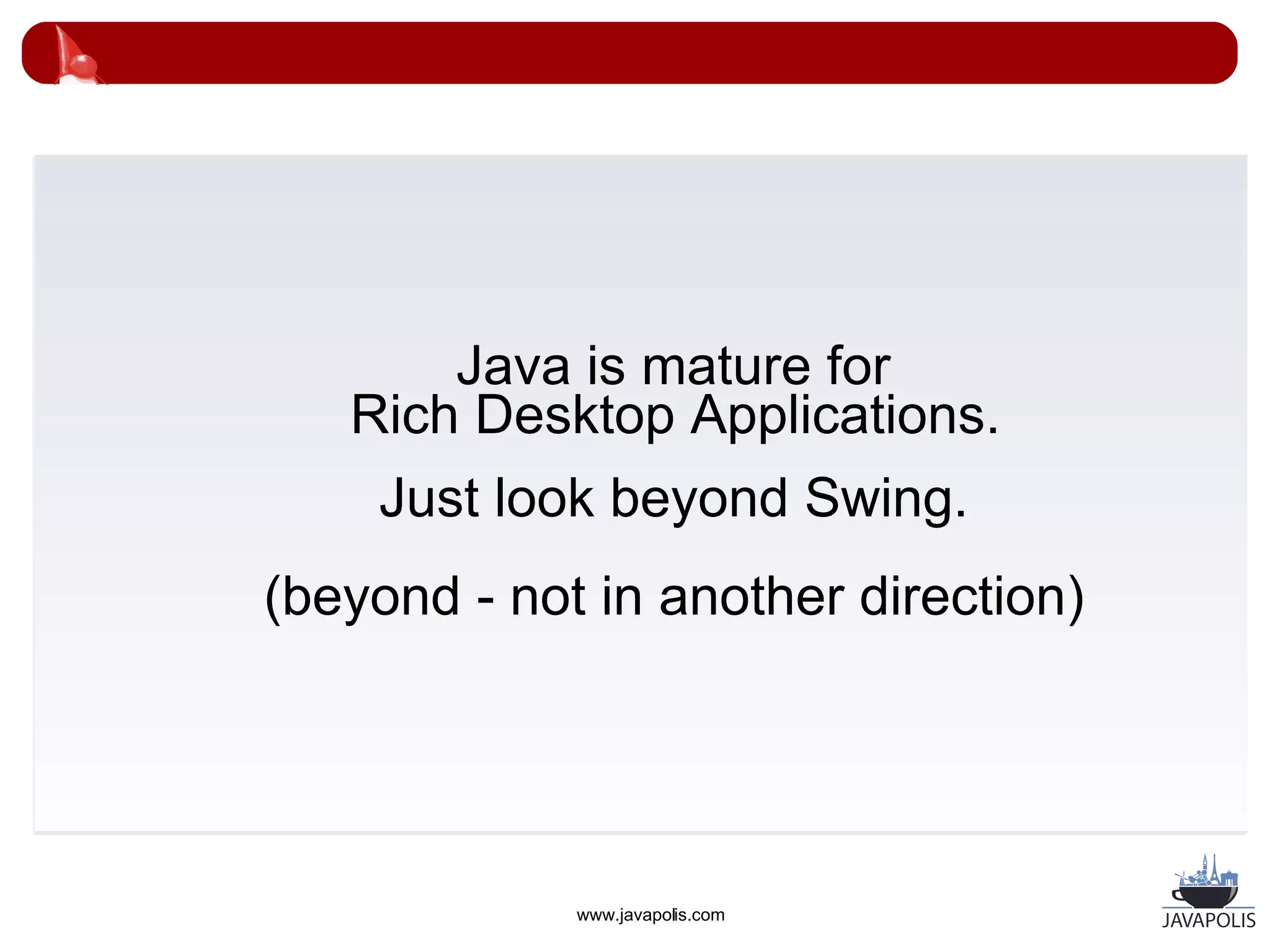

6. Java is mature for
Rich Desktop Applications.
Just look beyond Swing.
(beyond - not in another direction)
www.javapolis.com

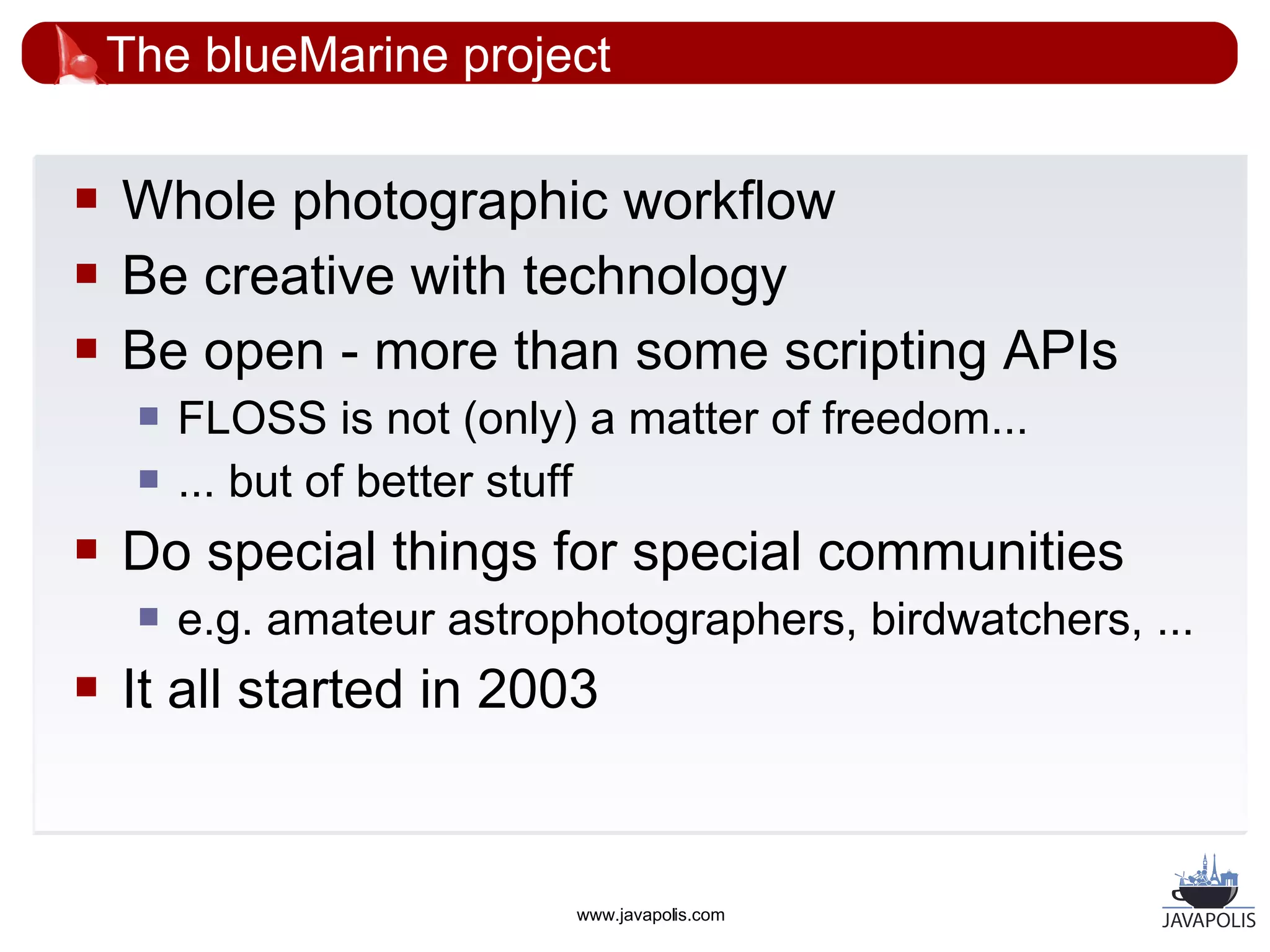

7. The blueMarine project
 Whole photographic workflow
 Be creative with technology
 Be open - more than some scripting APIs
 FLOSS is not (only) a matter of freedom...
 ... but of better stuff
 Do special things for special communities
 e.g. amateur astrophotographers, birdwatchers, ...
 It all started in 2003
www.javapolis.com

8. DEMO
Splash

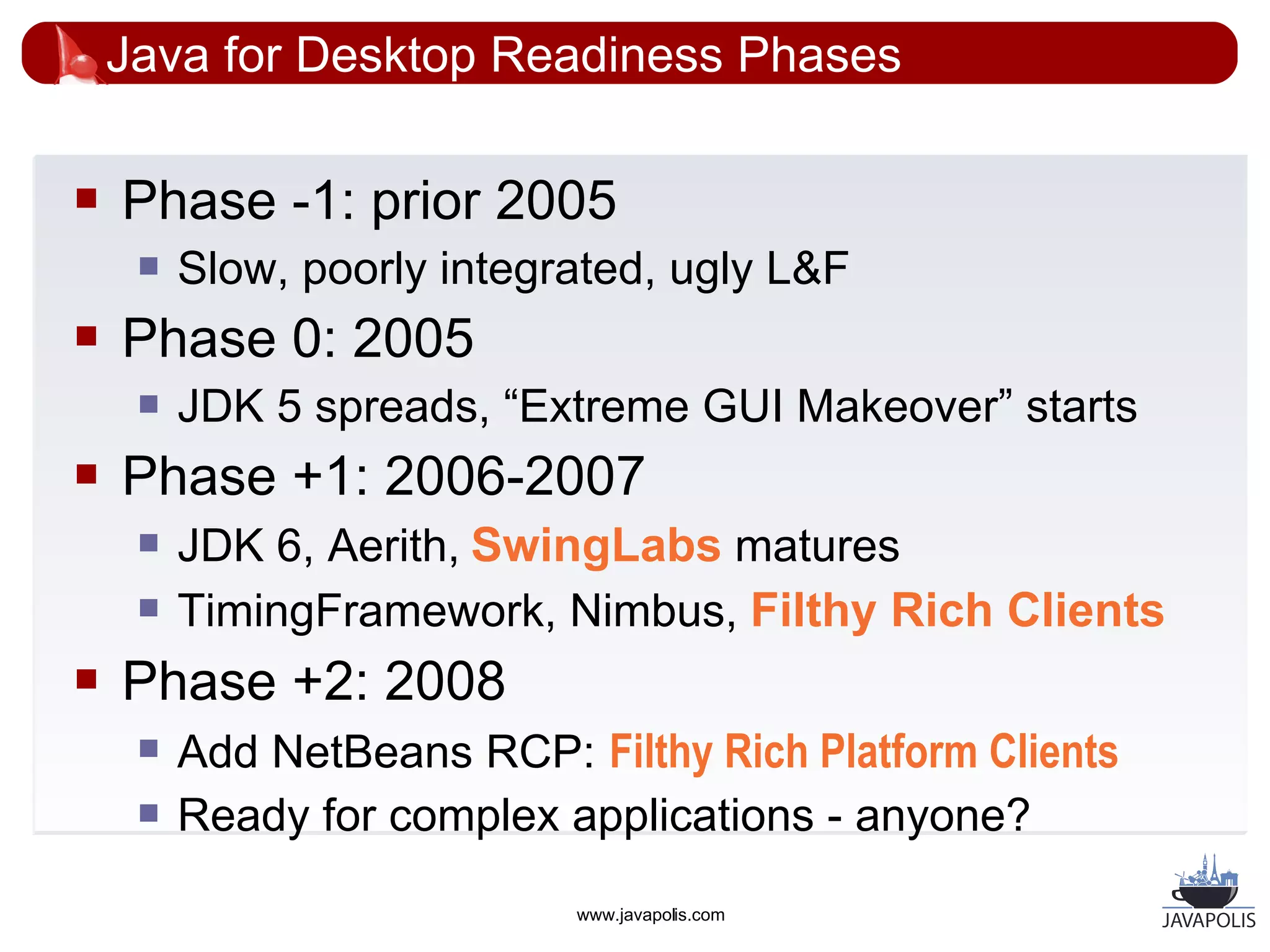

9. Java for Desktop Readiness Phases
 Phase -1: prior 2005
 Slow, poorly integrated, ugly L&F
 Phase 0: 2005
 JDK 5 spreads, “Extreme GUI Makeover” starts
 Phase +1: 2006-2007
 JDK 6, Aerith, SwingLabs matures
 TimingFramework, Nimbus, Filthy Rich Clients
 Phase +2: 2008
 Add NetBeans RCP: Filthy Rich Platform Clients
 Ready for complex applications - anyone?
www.javapolis.com

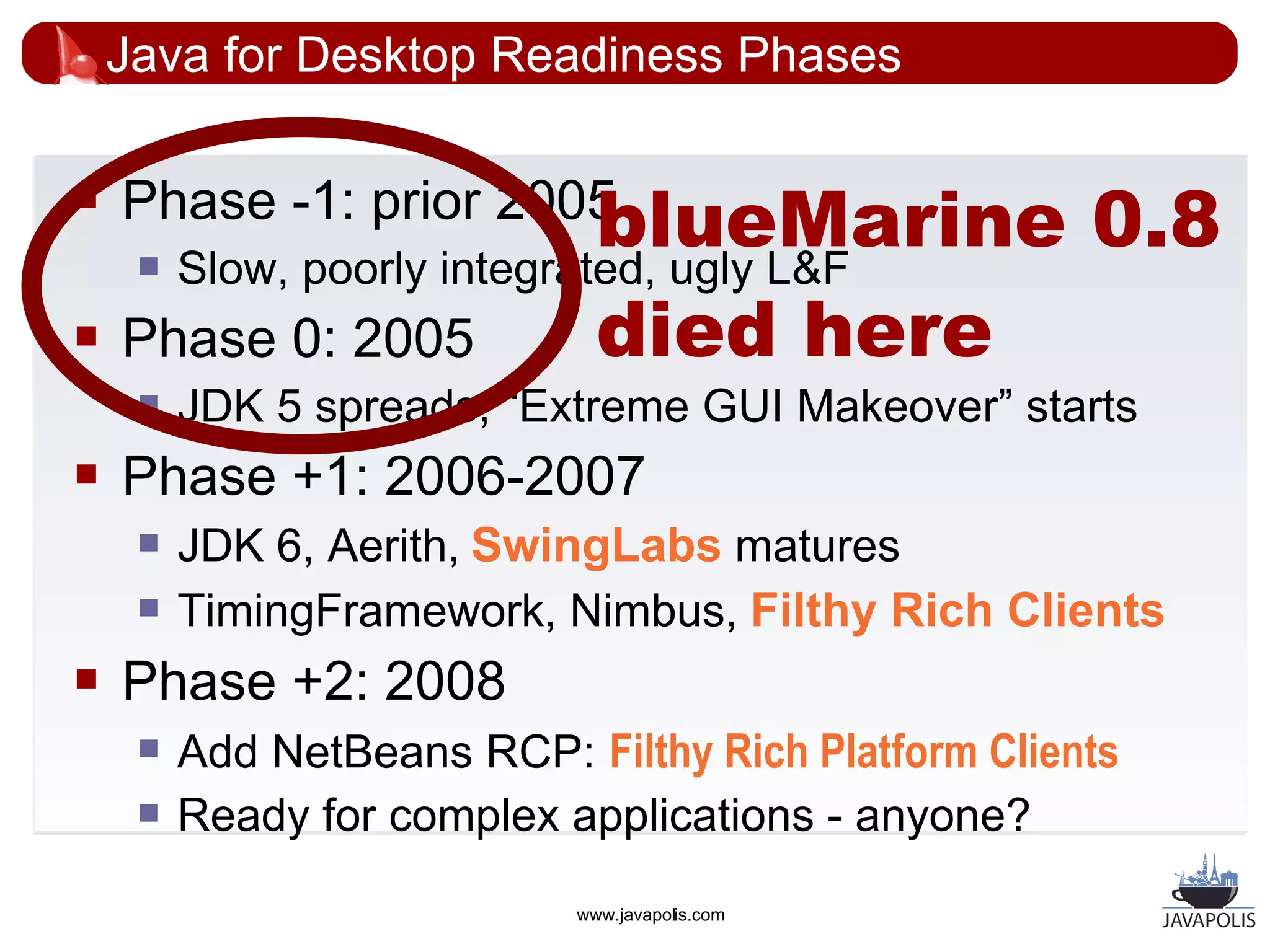

10. Java for Desktop Readiness Phases


blueMarine
Phase -1: prior 2005
Slow, poorly integrated, ugly L&F
0.8
 Phase 0: 2005 died here
 JDK 5 spreads, “Extreme GUI Makeover” starts
 Phase +1: 2006-2007
 JDK 6, Aerith, SwingLabs matures
 TimingFramework, Nimbus, Filthy Rich Clients
 Phase +2: 2008
 Add NetBeans RCP: Filthy Rich Platform Clients
 Ready for complex applications - anyone?
www.javapolis.com

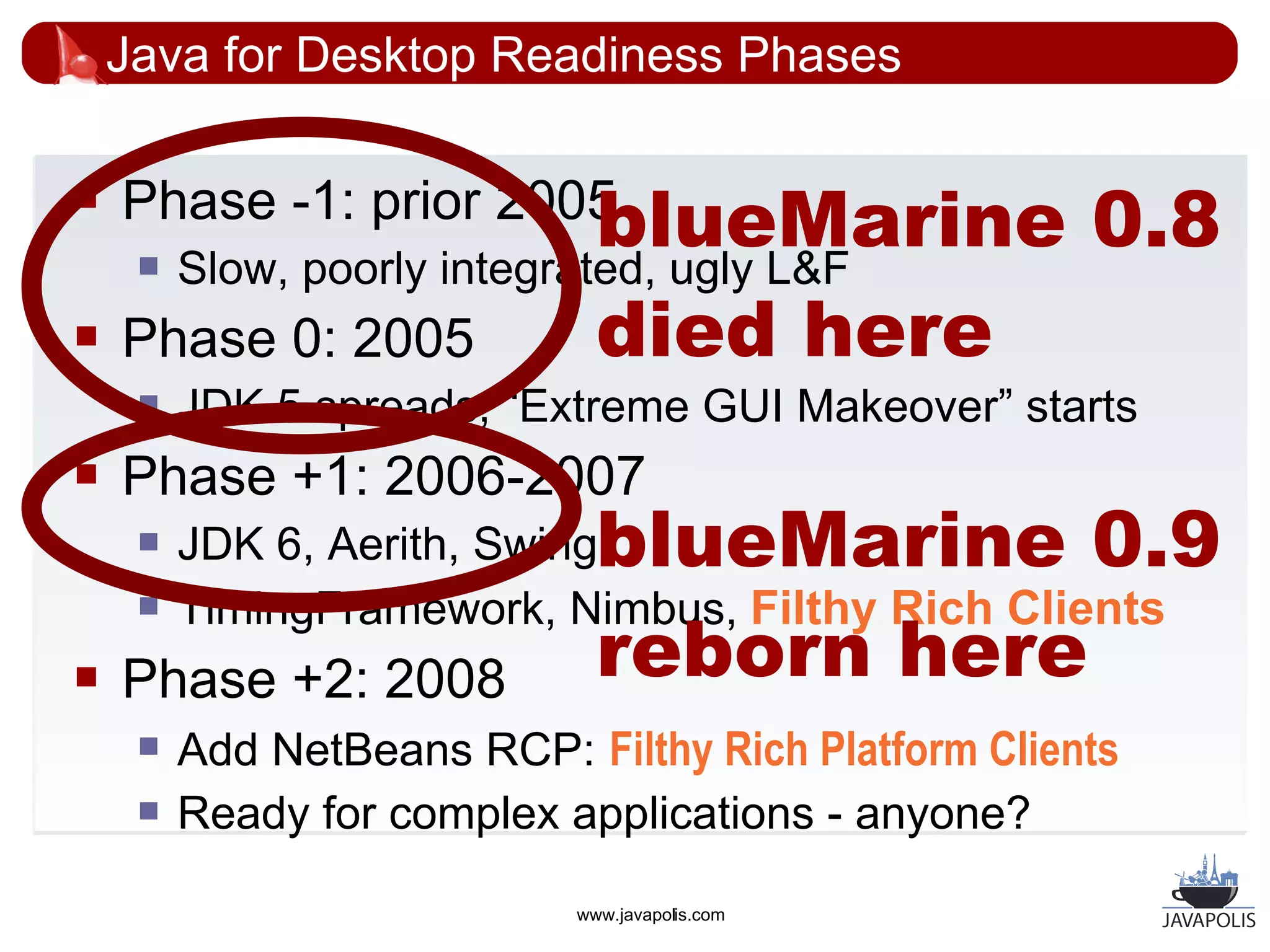

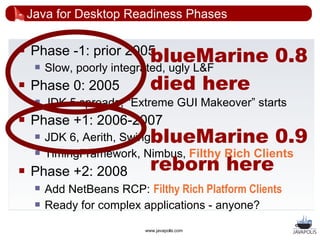

11. Java for Desktop Readiness Phases


blueMarine
Phase -1: prior 2005
Slow, poorly integrated, ugly L&F
0.8
 Phase 0: 2005 died here
 JDK 5 spreads, “Extreme GUI Makeover” starts
 Phase +1: 2006-2007
 JDK 6, Aerith, Swing blueMarine 0.9
 TimingFramework, Nimbus, Filthy Rich Clients
 Phase +2: 2008 reborn here
 Add NetBeans RCP: Filthy Rich Platform Clients
 Ready for complex applications - anyone?
www.javapolis.com

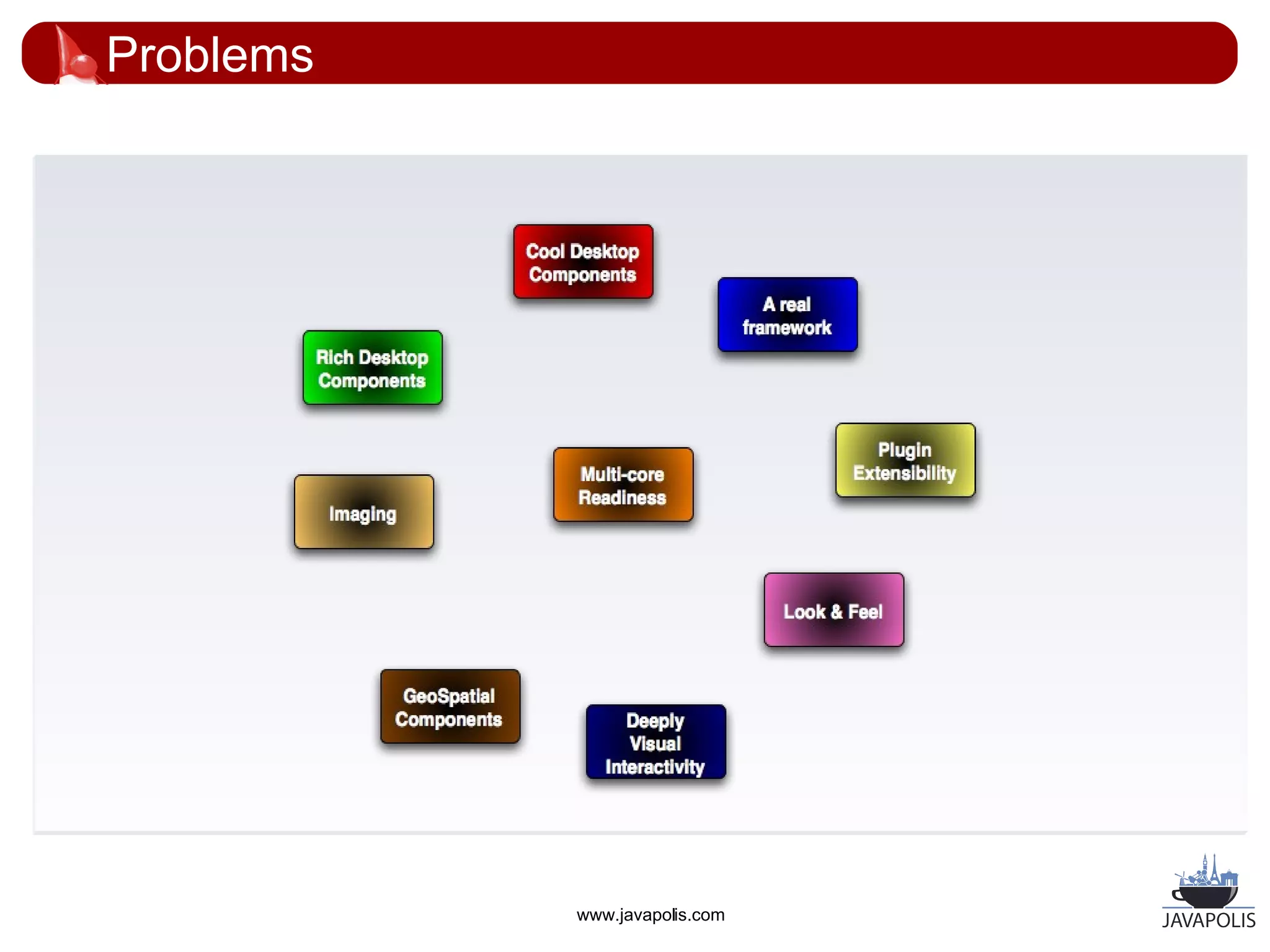

12. Problems
www.javapolis.com

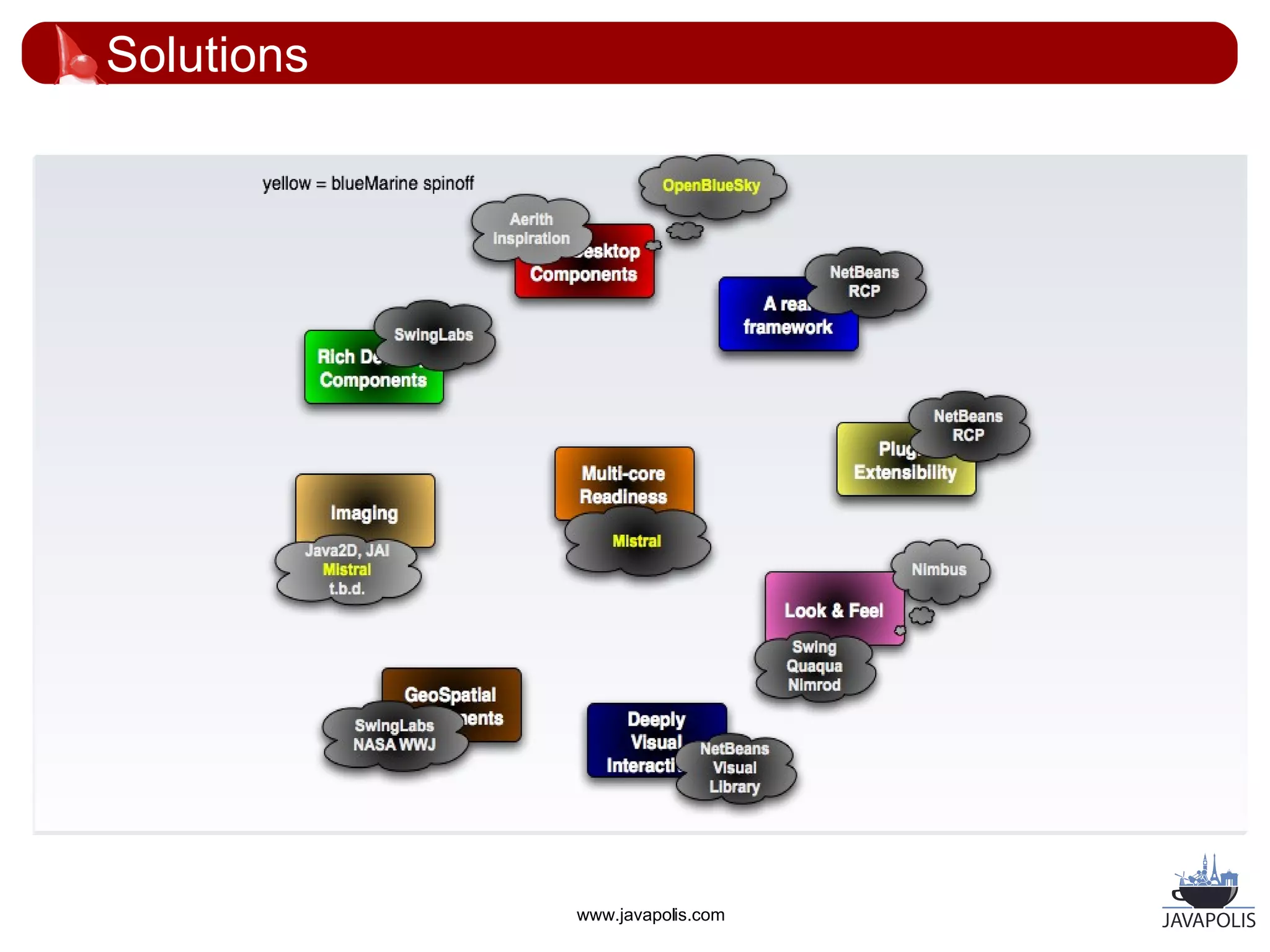

13. Solutions
www.javapolis.com

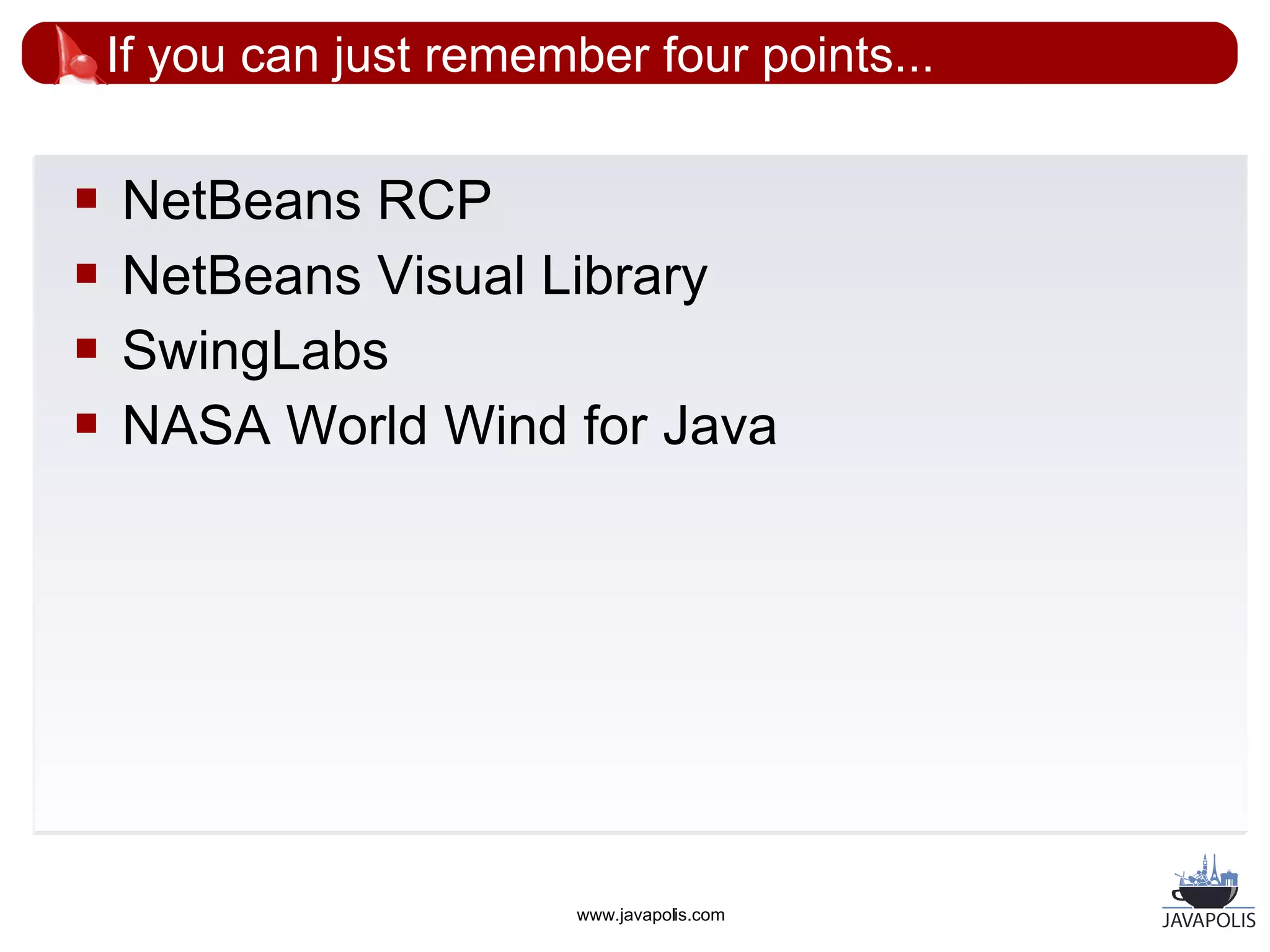

14. If you can just remember four points...
 NetBeans RCP
 NetBeans Visual Library
 SwingLabs
 NASA World Wind for Java
www.javapolis.com

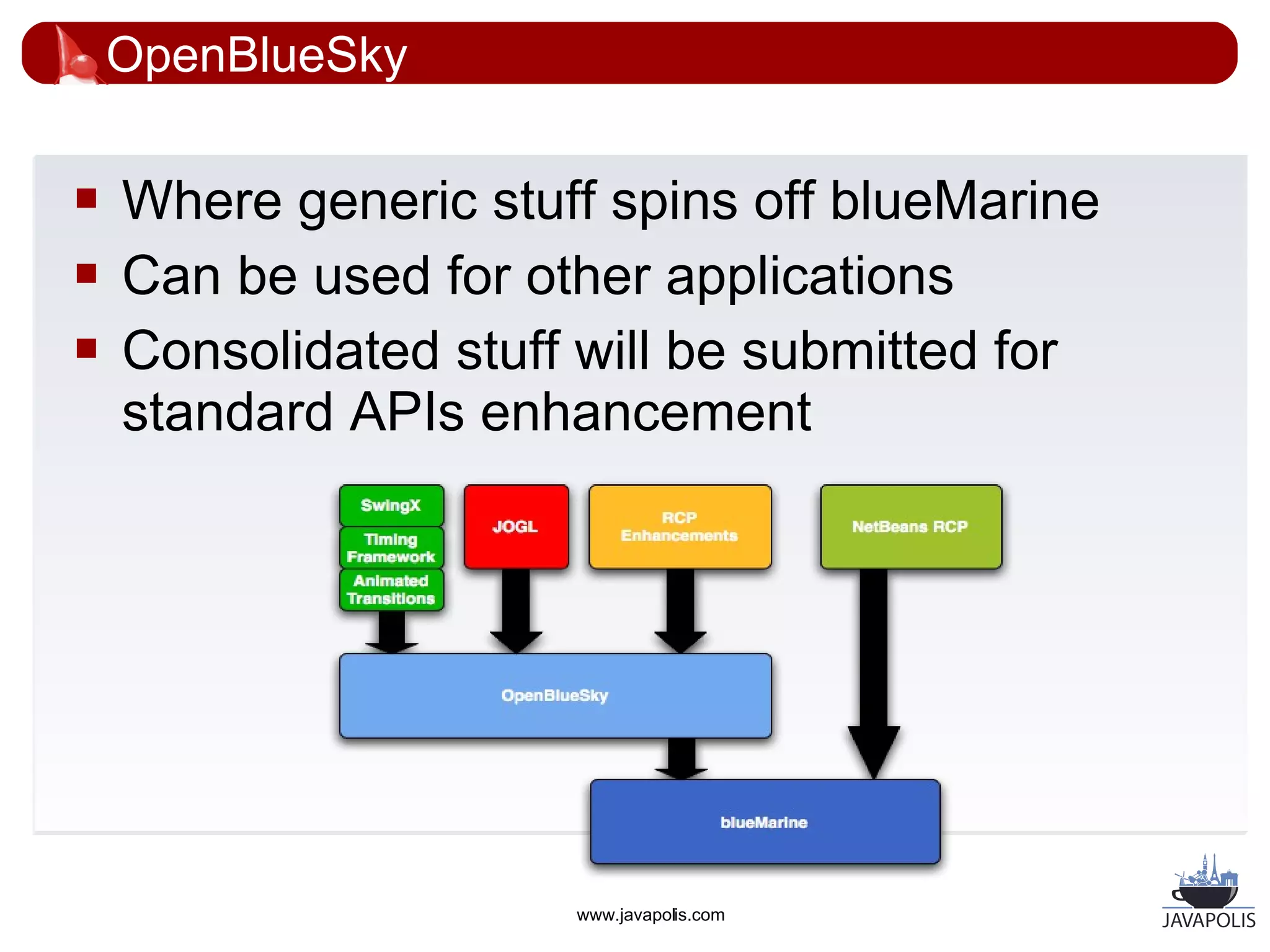

15. OpenBlueSky
 Where generic stuff spins off blueMarine
 Can be used for other applications
 Consolidated stuff will be submitted for
standard APIs enhancement
www.javapolis.com

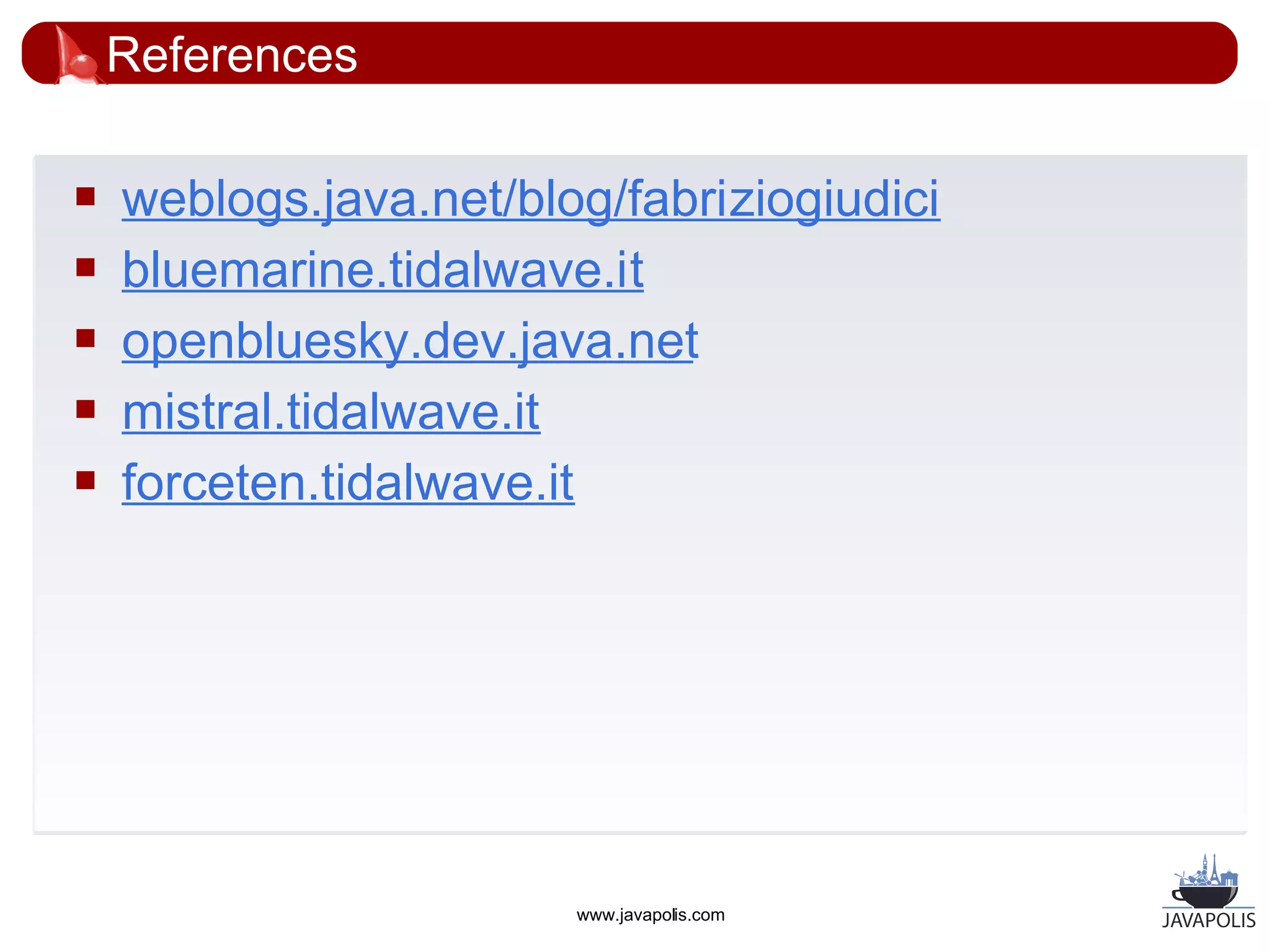

16. References
 weblogs.java.net/blog/fabriziogiudici
 bluemarine.tidalwave.it
 openbluesky.dev.java.net
 mistral.tidalwave.it
 forceten.tidalwave.it
www.javapolis.com

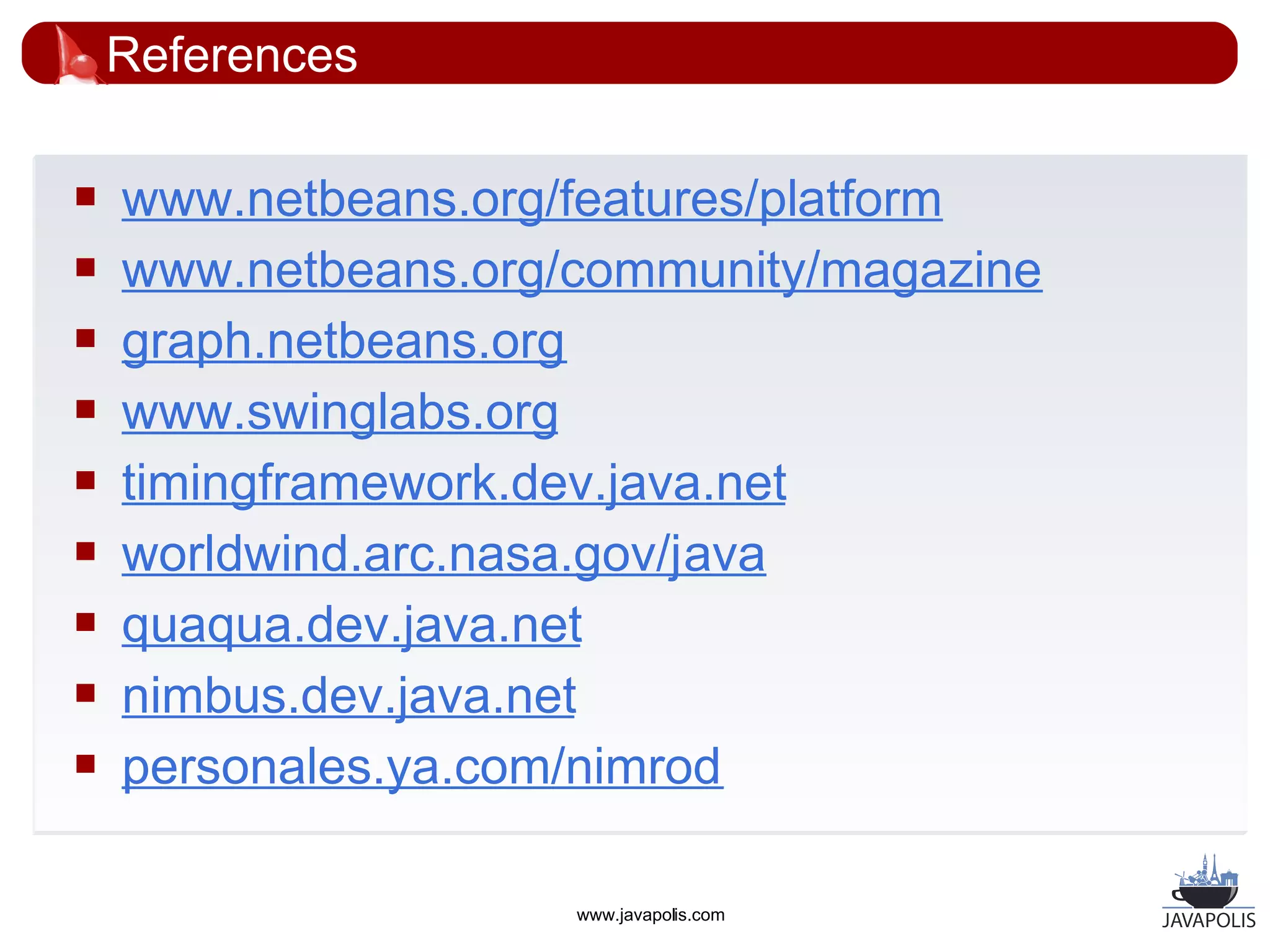

17. References
 www.netbeans.org/features/platform
 www.netbeans.org/community/magazine
 graph.netbeans.org
 www.swinglabs.org
 timingframework.dev.java.net
 worldwind.arc.nasa.gov/java
 quaqua.dev.java.net
 nimbus.dev.java.net
 personales.ya.com/nimrod
www.javapolis.com

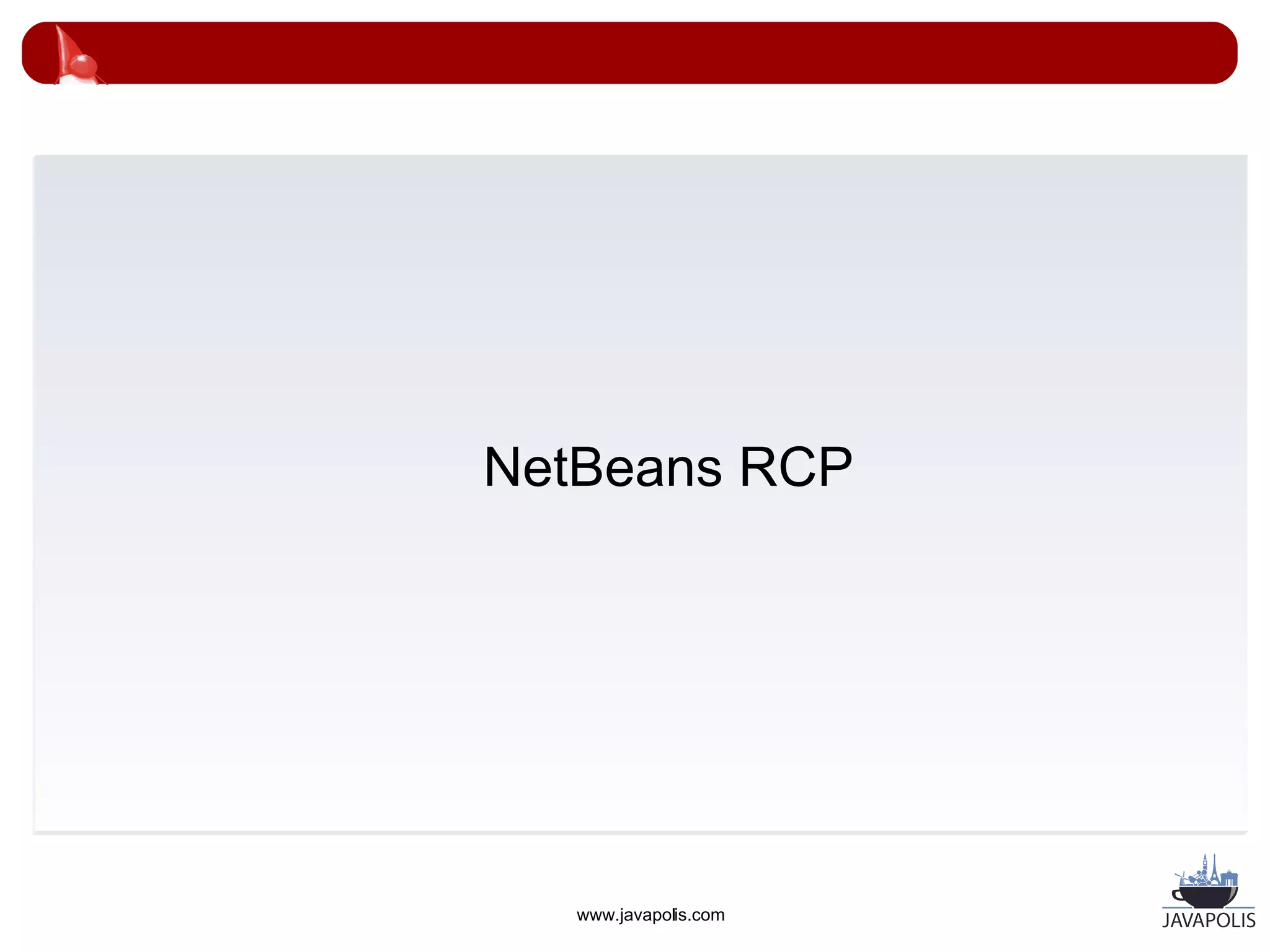

18. NetBeans RCP
www.javapolis.com

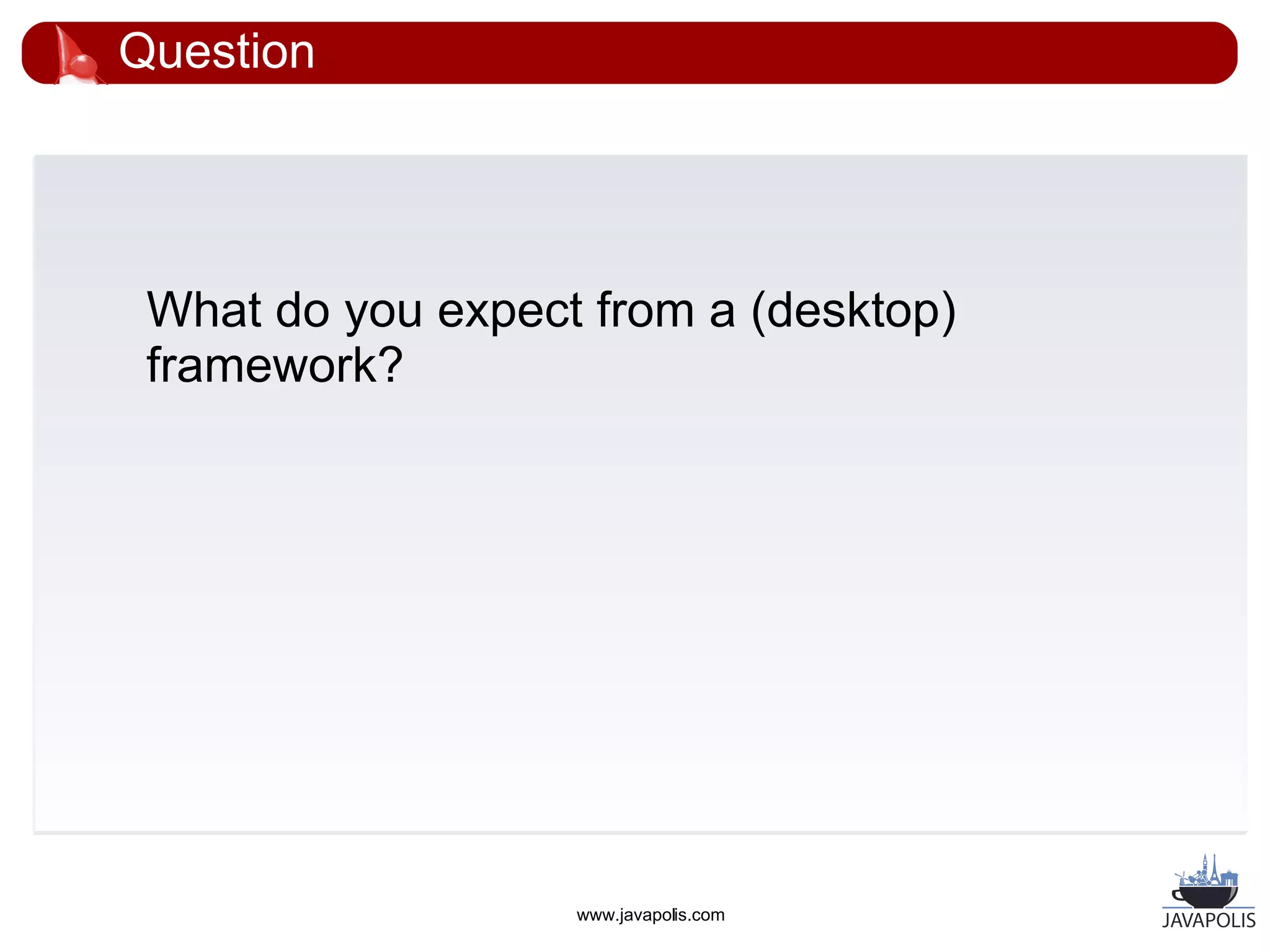

19. Question
What do you expect from a (desktop)
framework?
www.javapolis.com

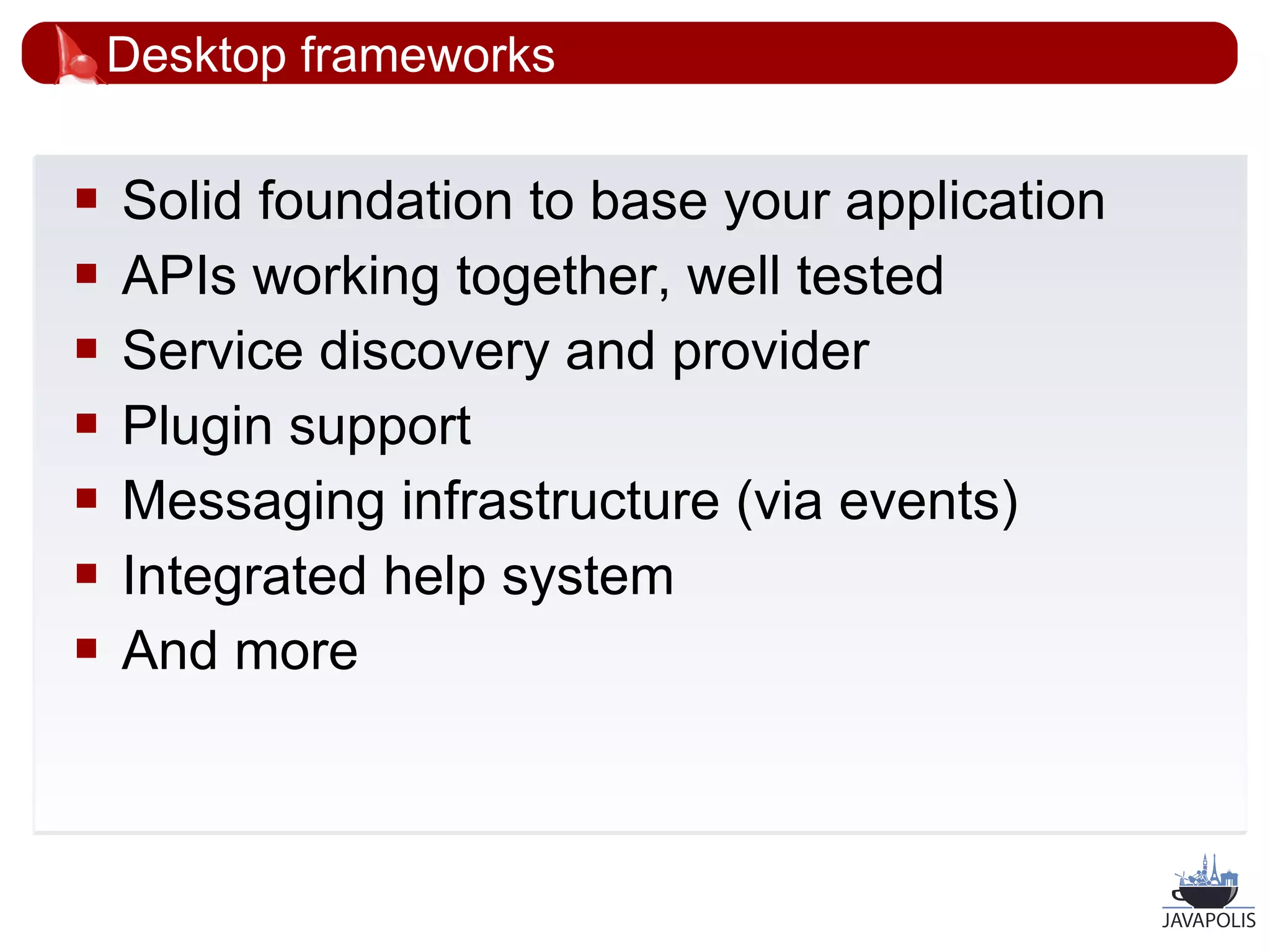

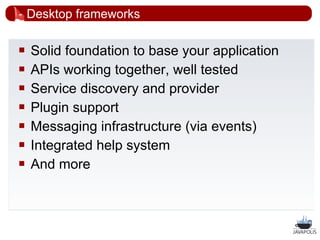

20. Desktop frameworks
 Solid foundation to base your application
 APIs working together, well tested
 Service discovery and provider
 Plugin support
 Messaging infrastructure (via events)
 Integrated help system
 And more
20

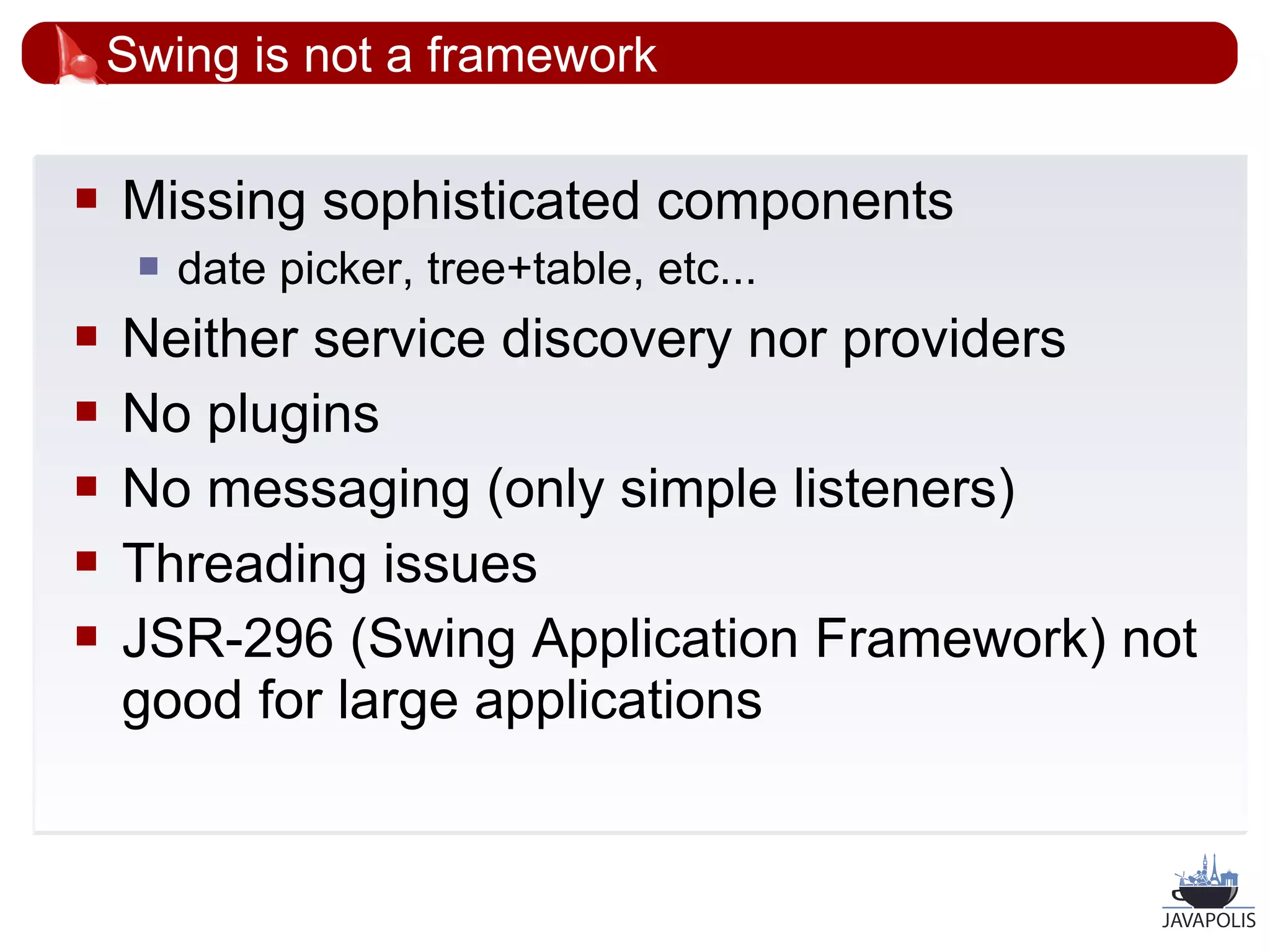

21. Swing is not a framework
 Missing sophisticated components
 date picker, tree+table, etc...
 Neither service discovery nor providers
 No plugins
 No messaging (only simple listeners)
 Threading issues
 JSR-296 (Swing Application Framework) not
good for large applications
21

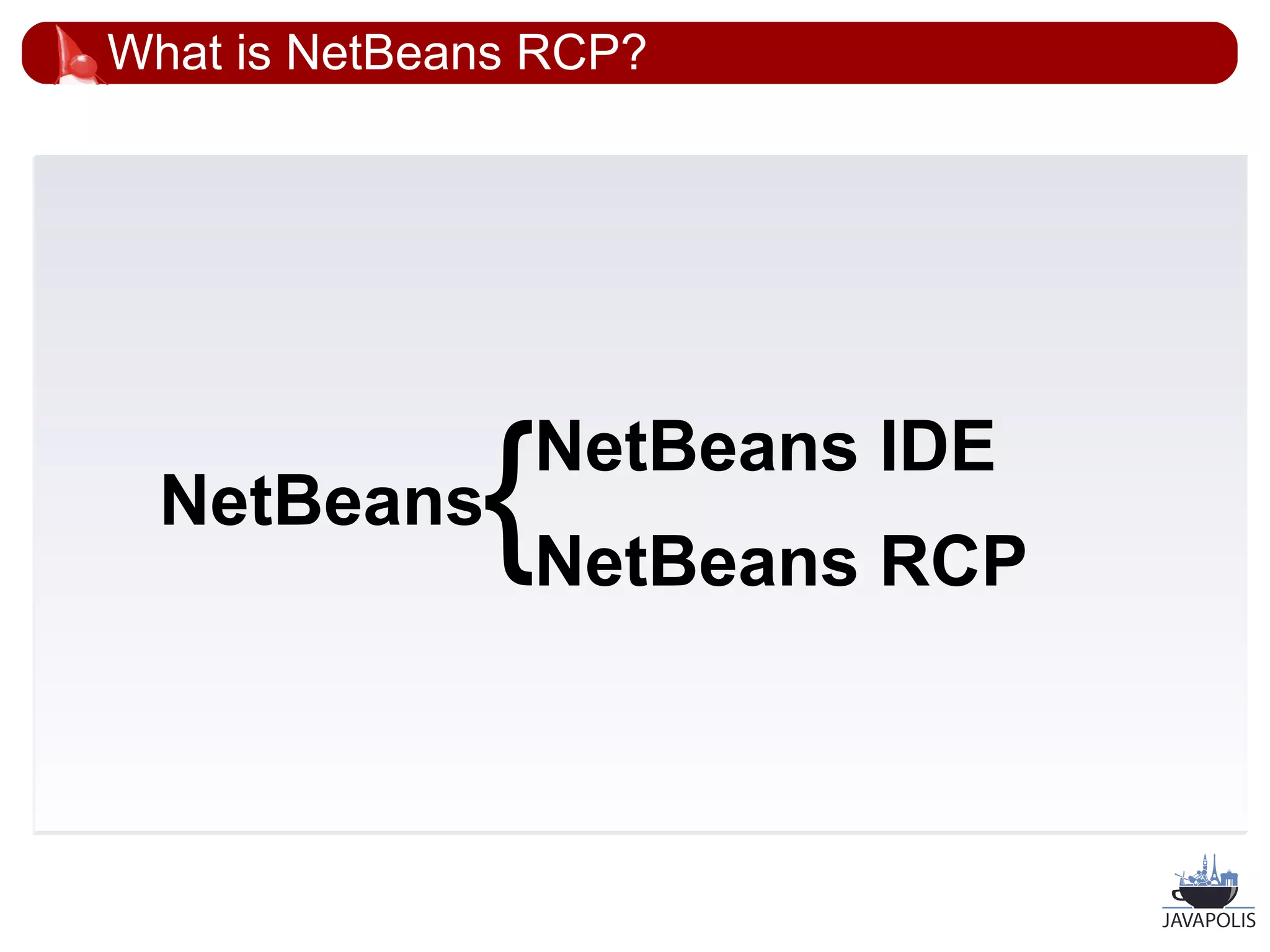

22. What is NetBeans RCP?
NetBeans { NetBeans IDE
NetBeans RCP
22

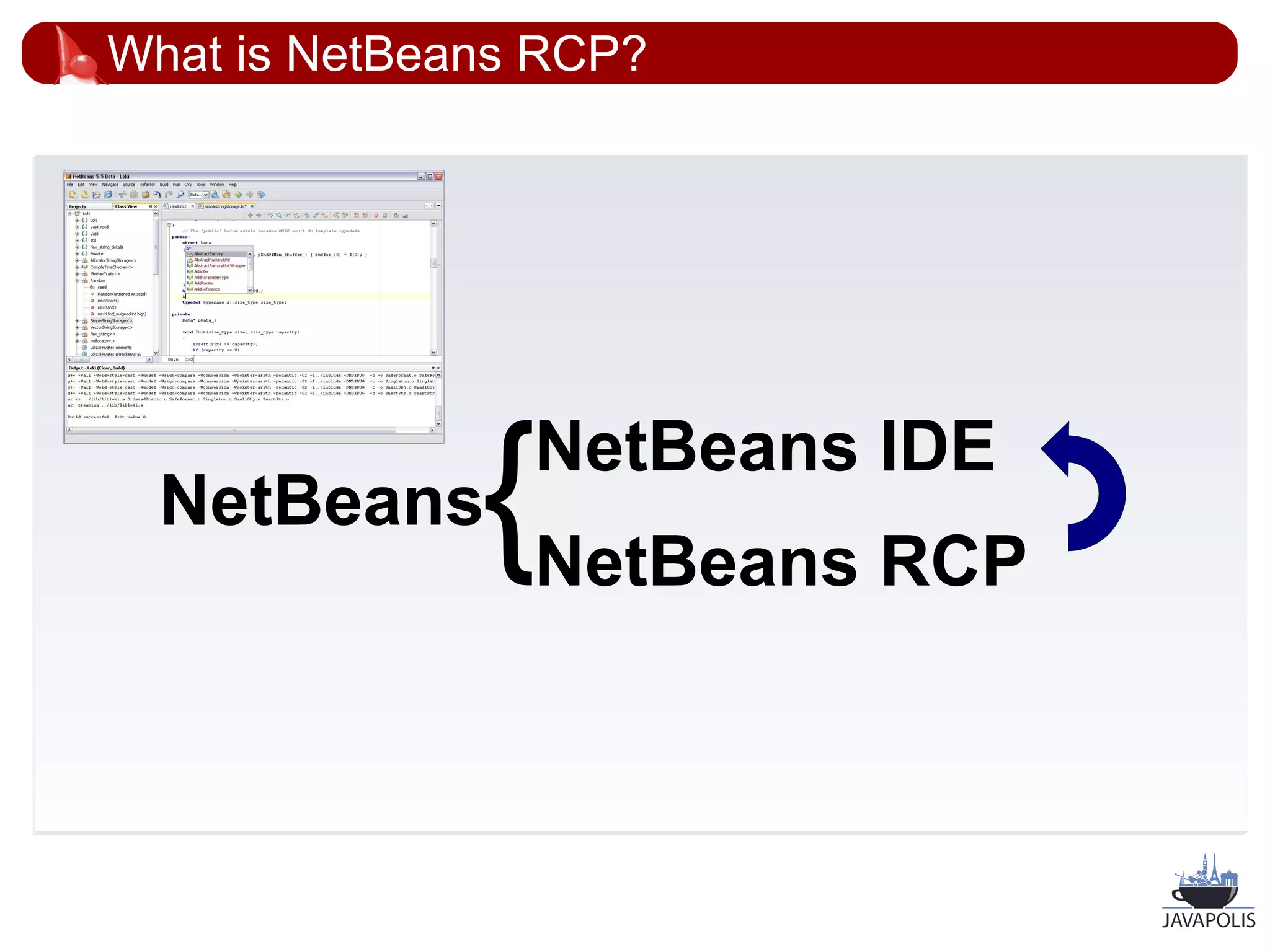

23. What is NetBeans RCP?
NetBeans { NetBeans IDE
NetBeans RCP
23

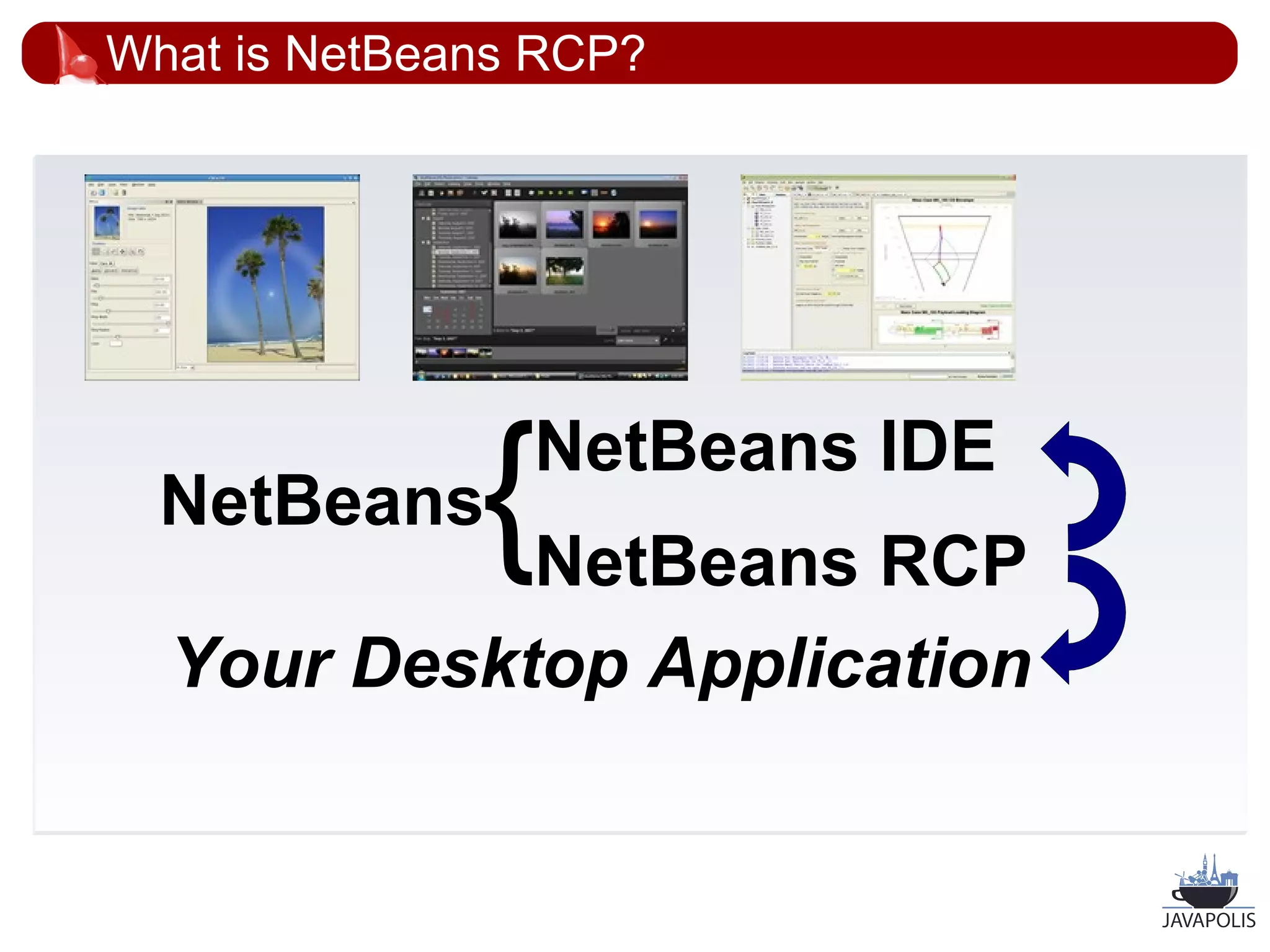

24. What is NetBeans RCP?
NetBeans { NetBeans IDE
NetBeans RCP
Your Desktop Application
24

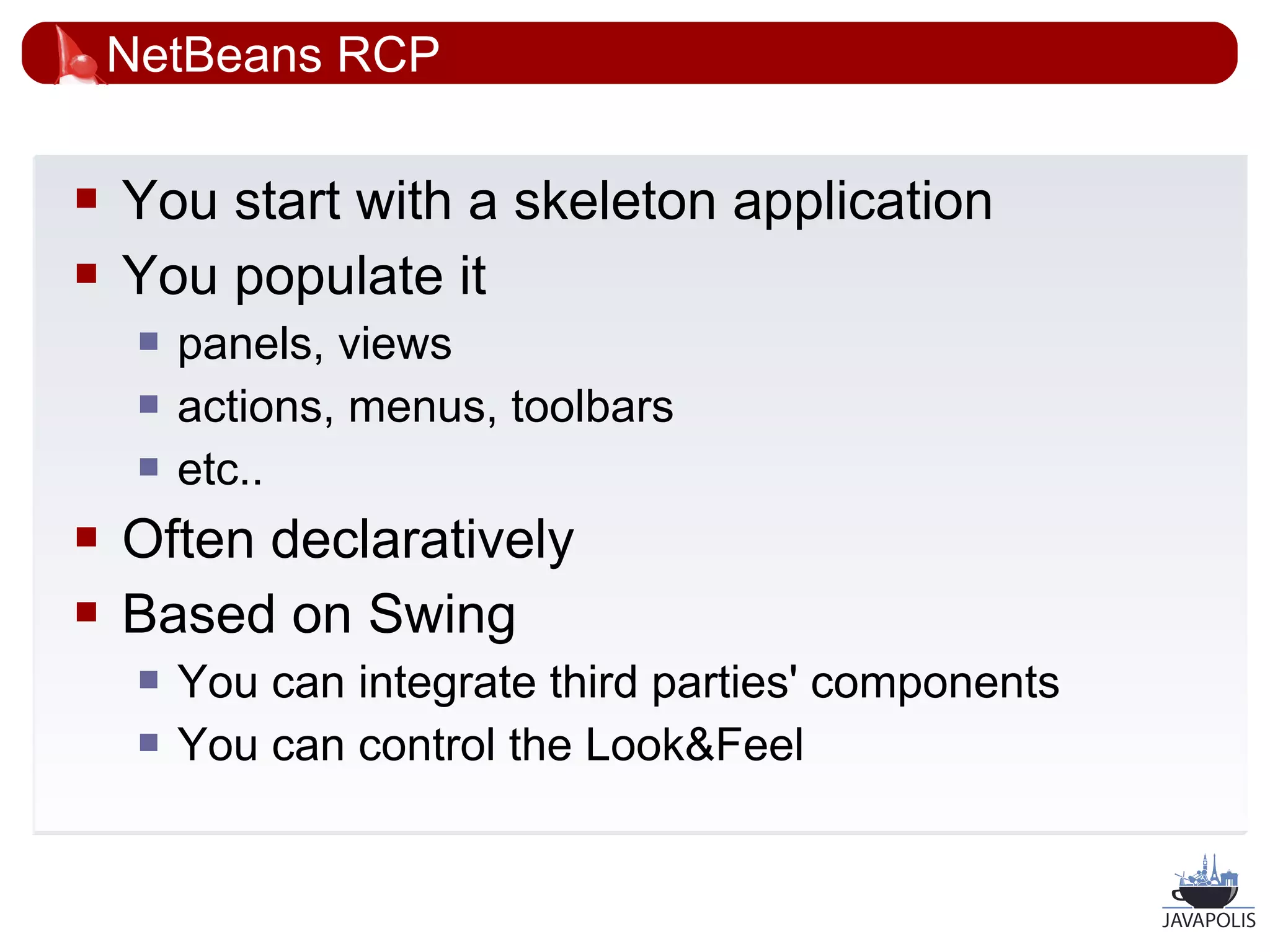

25. NetBeans RCP
 You start with a skeleton application
 You populate it
 panels, views
 actions, menus, toolbars
 etc..
 Often declaratively
 Based on Swing
 You can integrate third parties' components
 You can control the Look&Feel
25

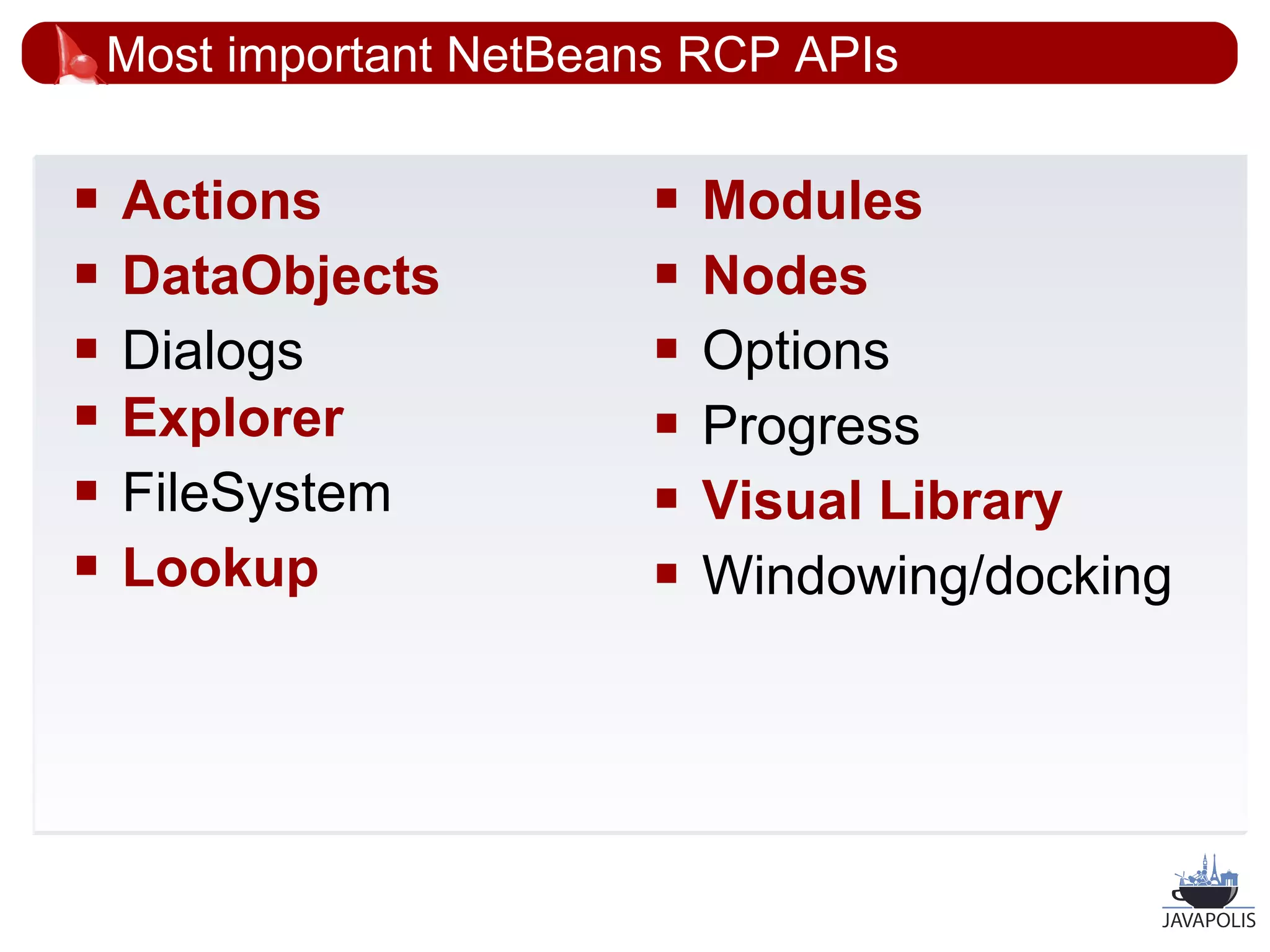

26. Most important NetBeans RCP APIs
 Actions  Modules
 DataObjects  Nodes
 Dialogs  Options
 Explorer  Progress
 FileSystem  Visual Library
 Lookup  Windowing/docking
26

27. DEMO
Explorers, Viewers, Actions

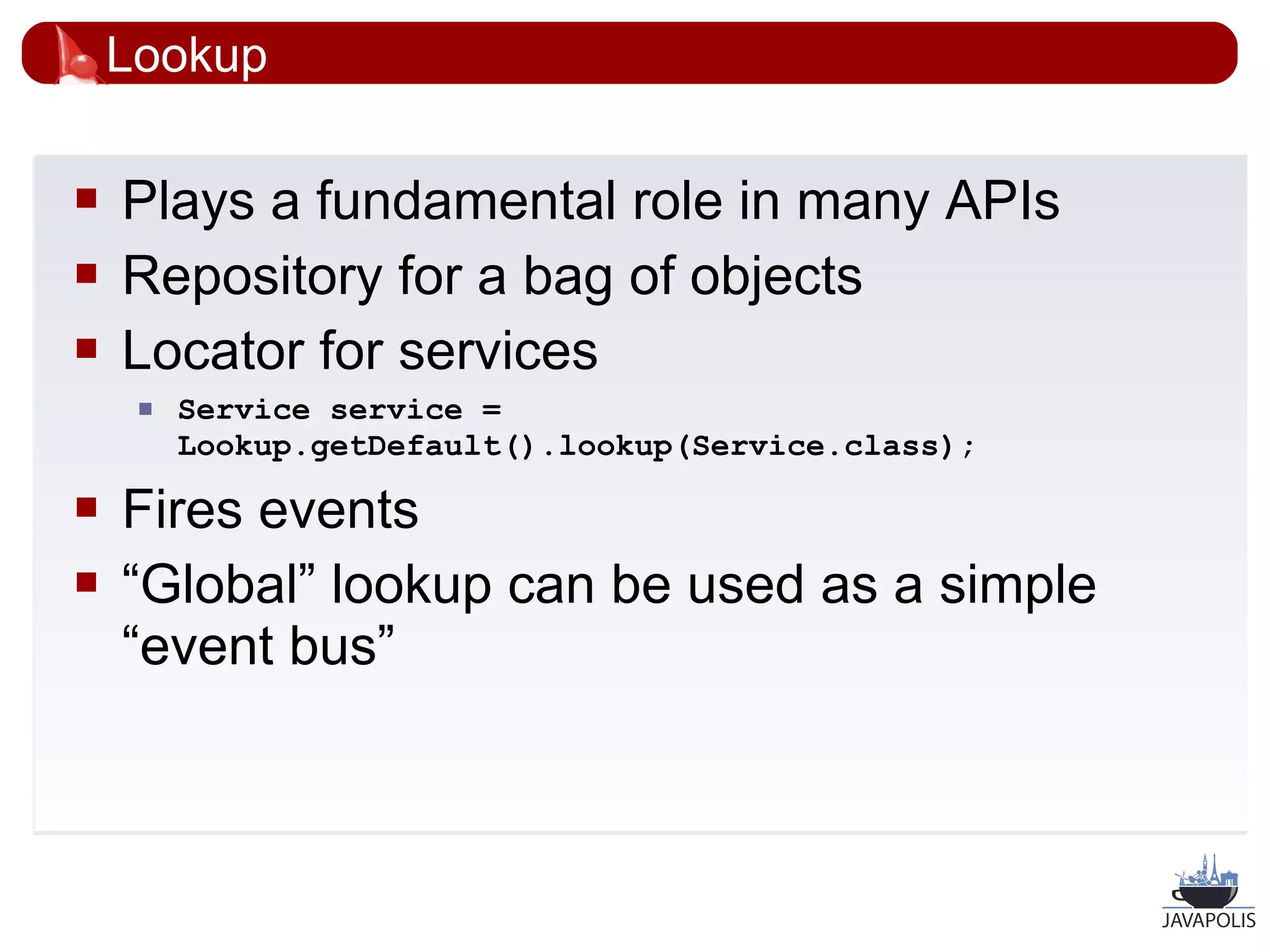

28. Lookup
 Plays a fundamental role in many APIs
 Repository for a bag of objects
 Locator for services
 Service service =
Lookup.getDefault().lookup(Service.class);
 Fires events
 “Global” lookup can be used as a simple
“event bus”
28

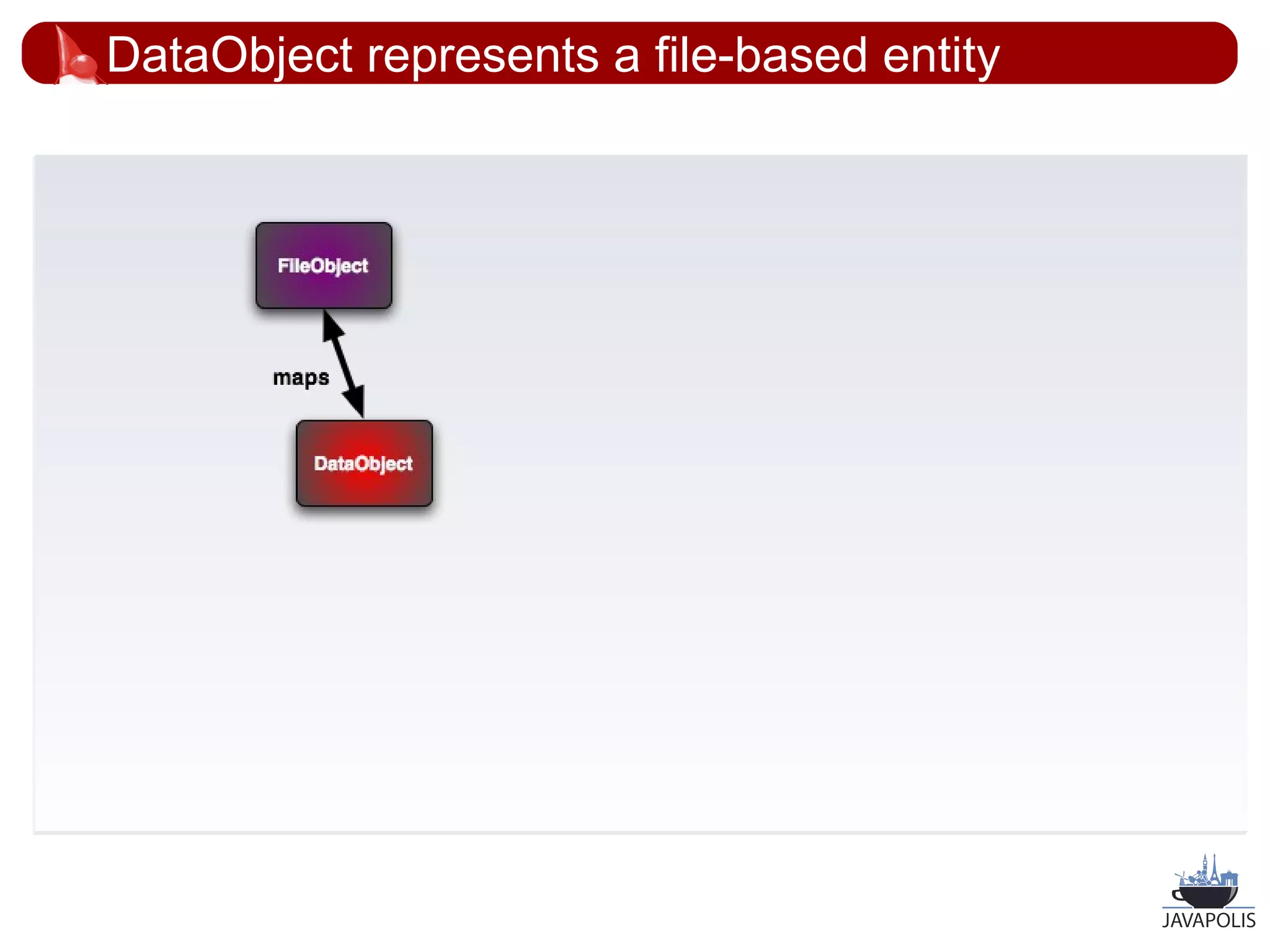

29. DataObject represents a file-based entity
29

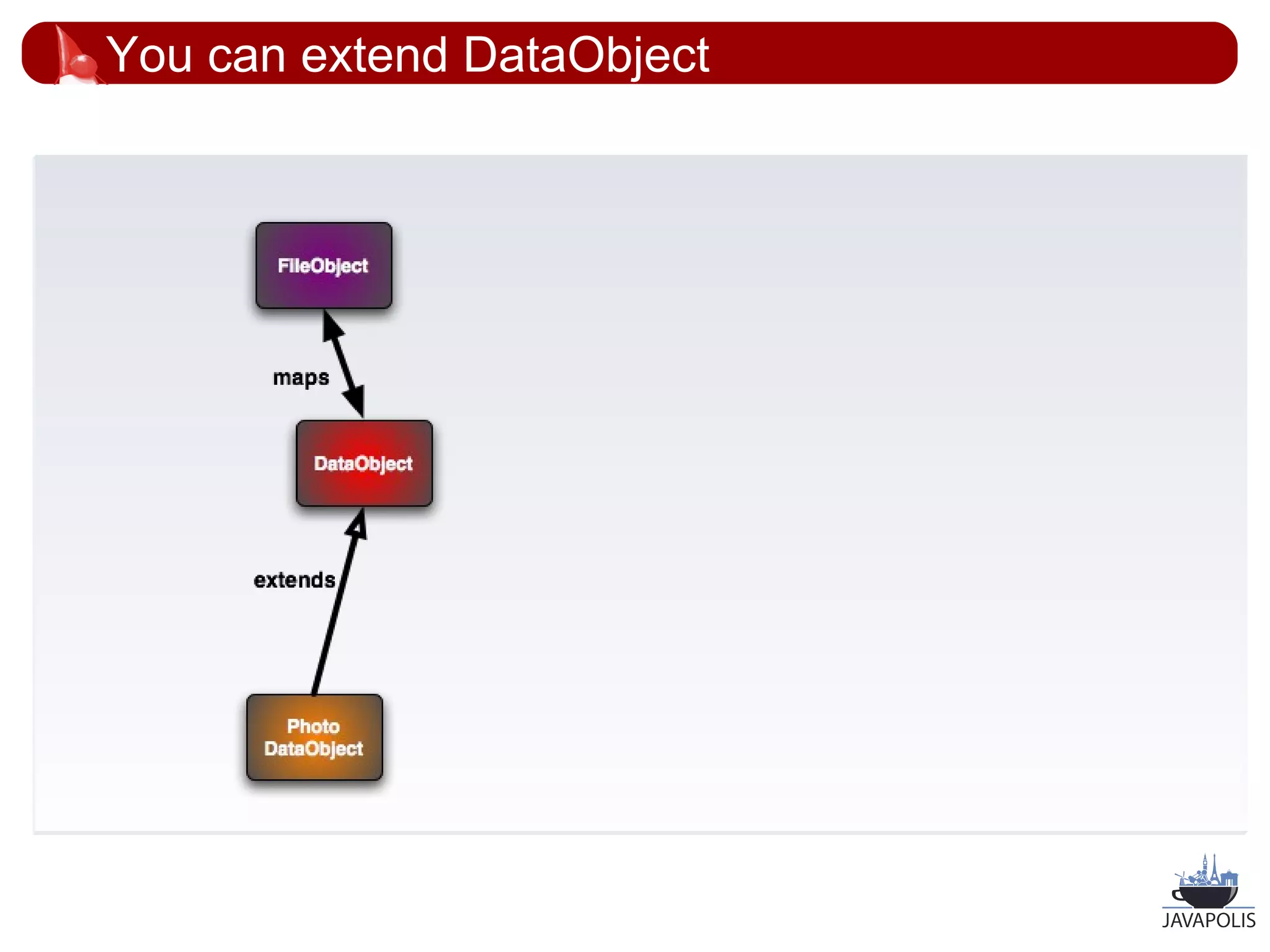

30. You can extend DataObject
30

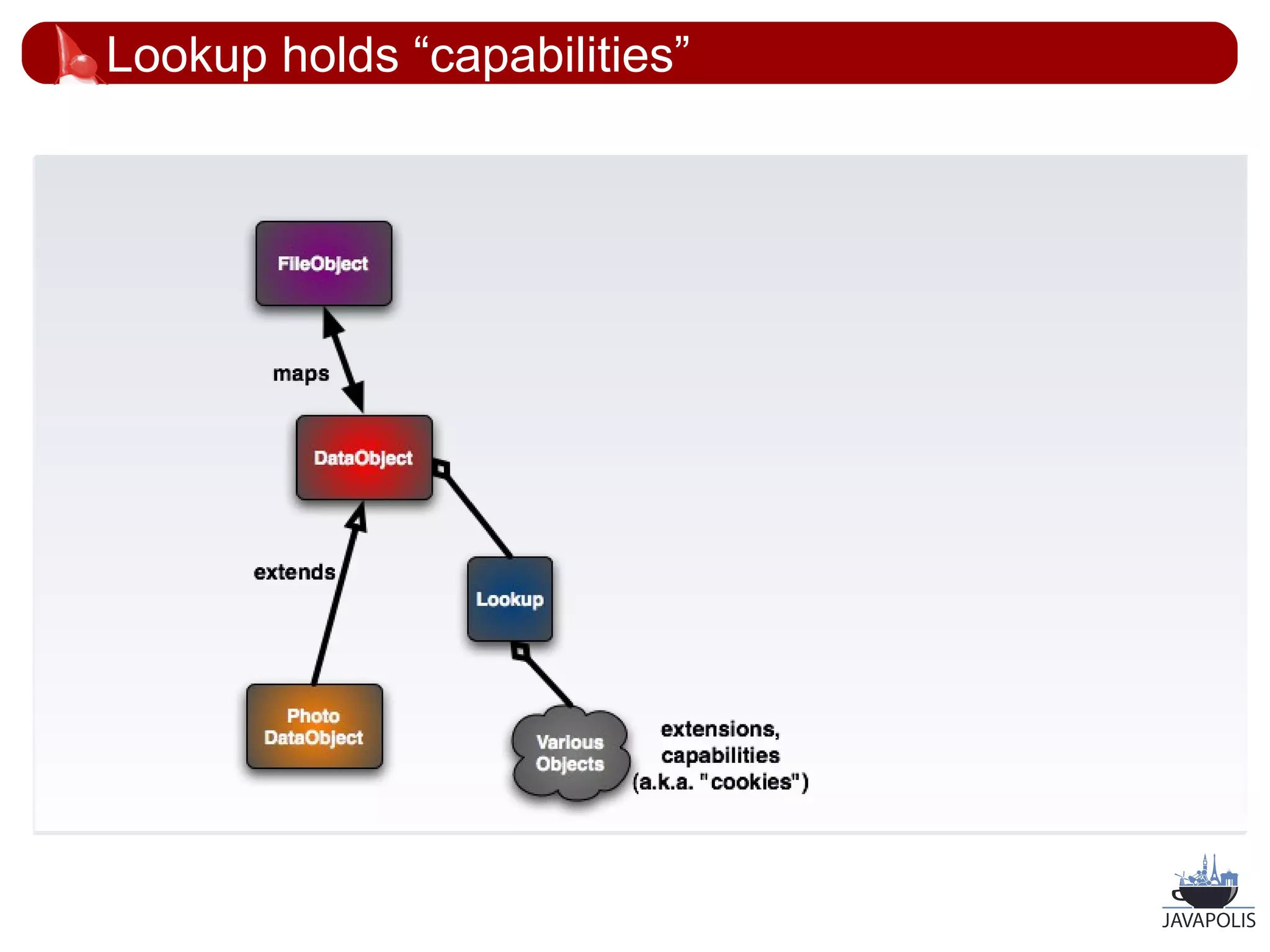

31. Lookup holds “capabilities”
31

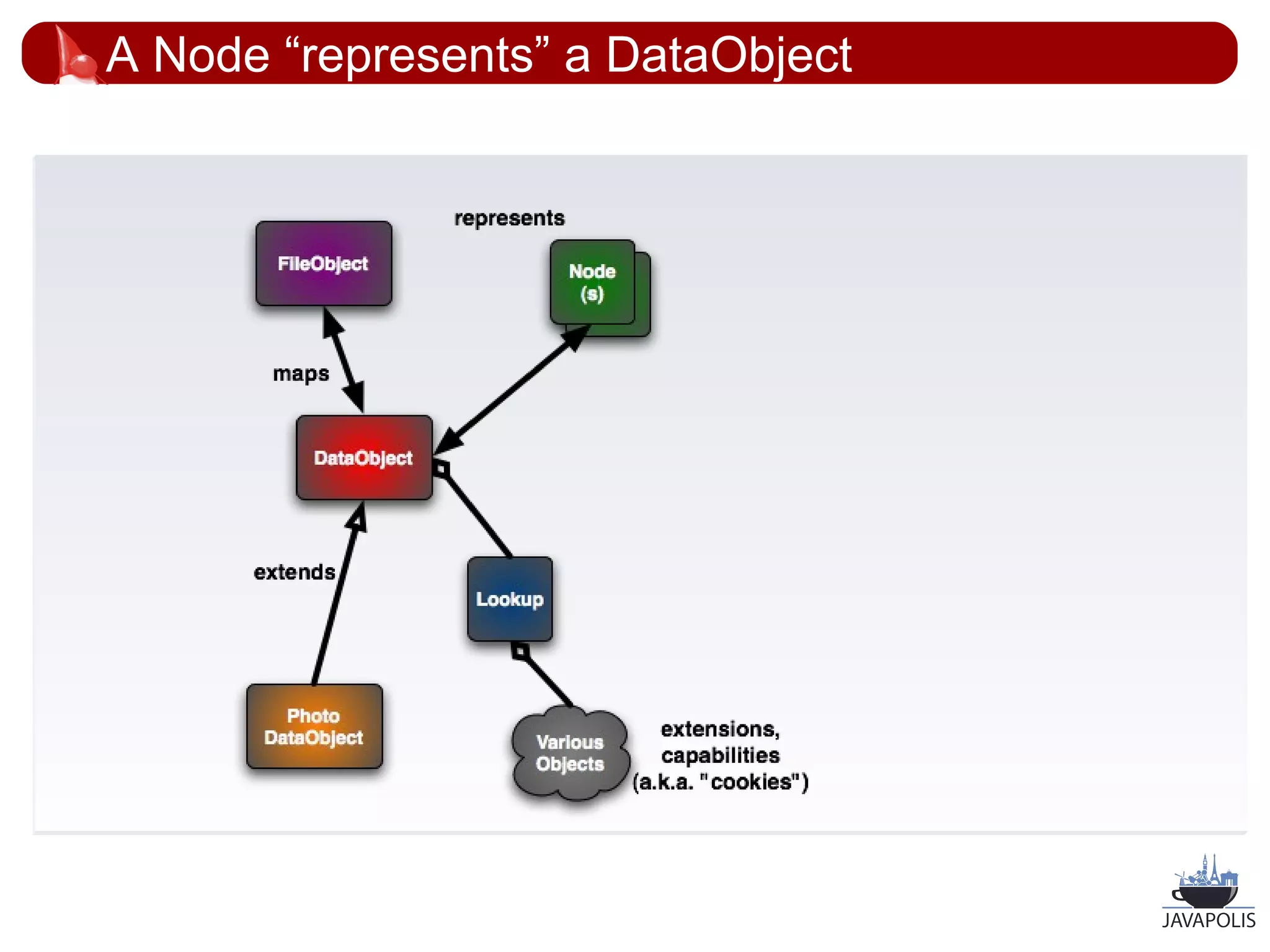

32. A Node “represents” a DataObject
32

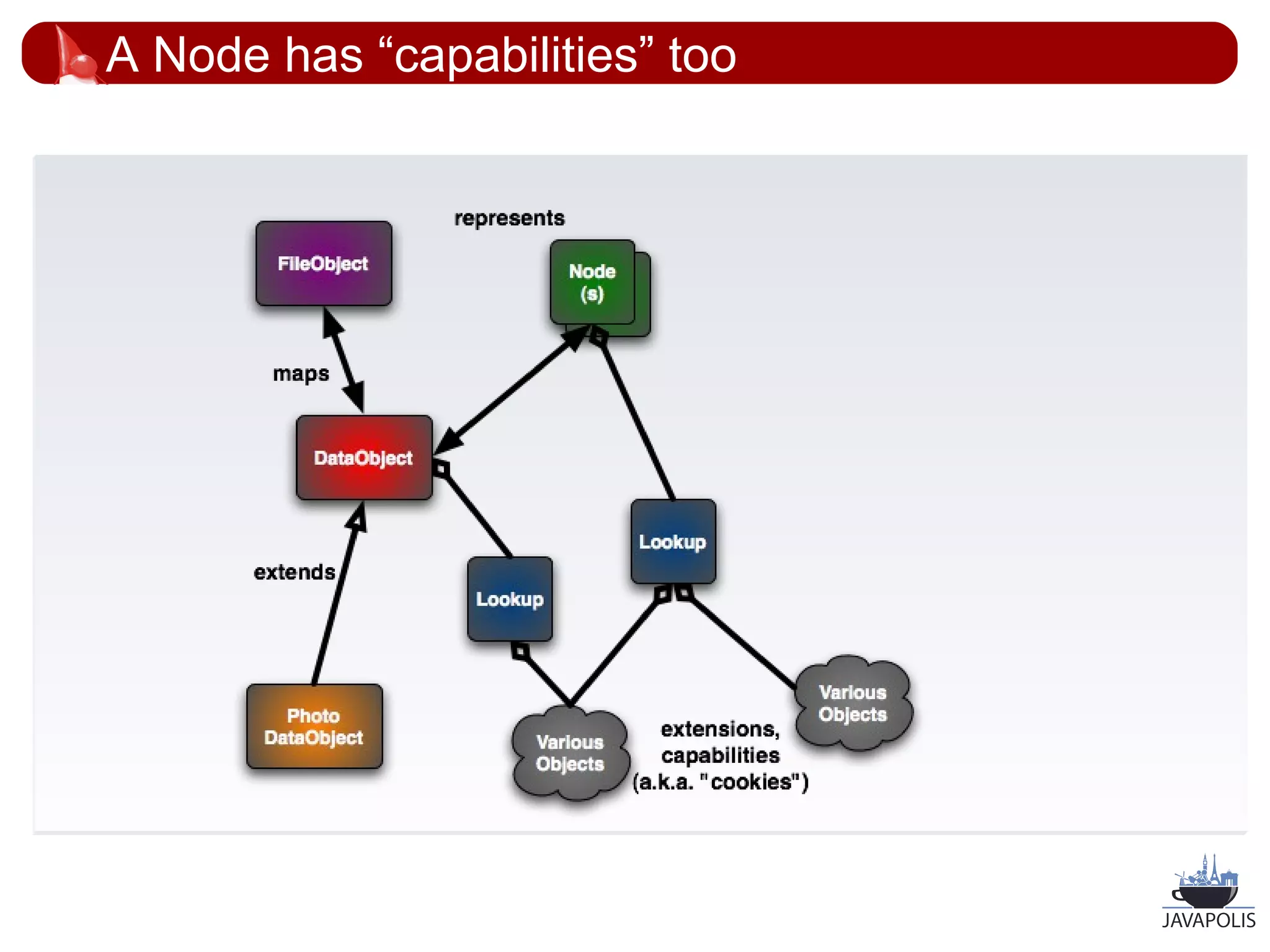

33. A Node has “capabilities” too
33

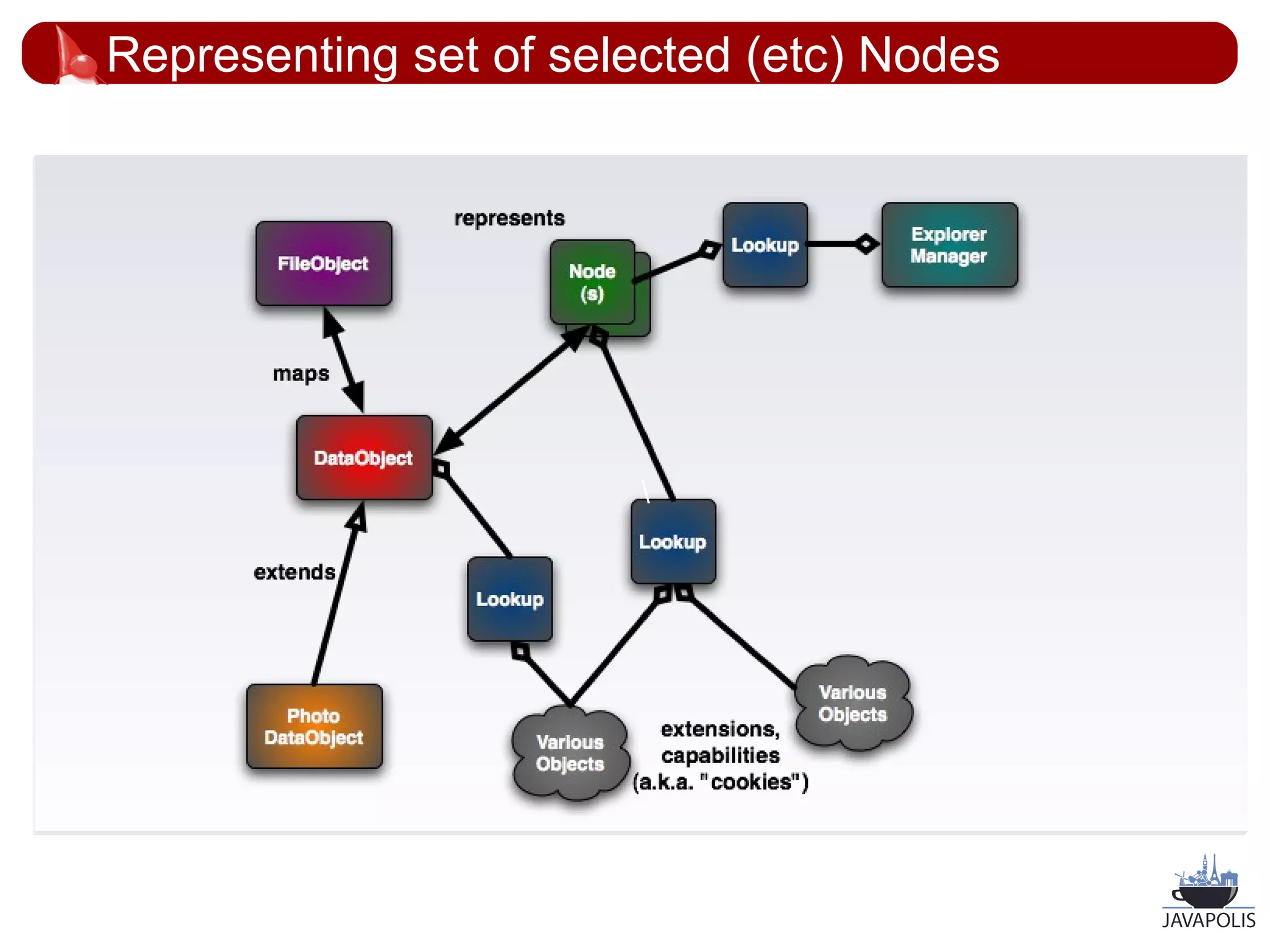

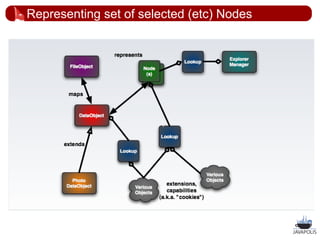

34. Representing set of selected (etc) Nodes
34

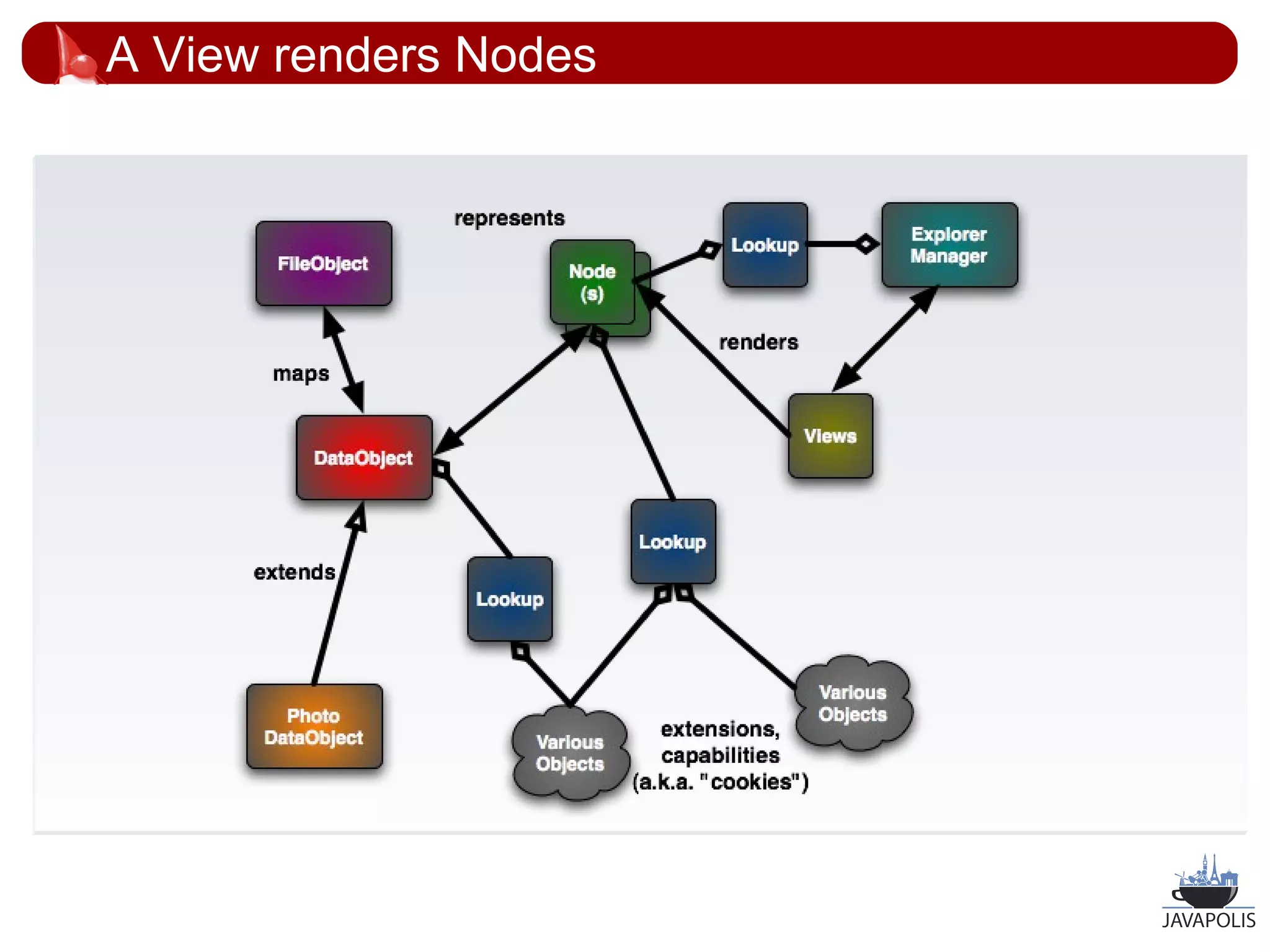

35. A View renders Nodes
35

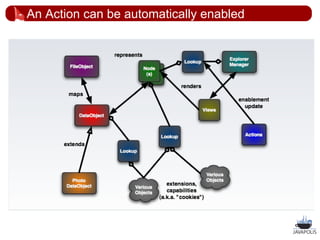

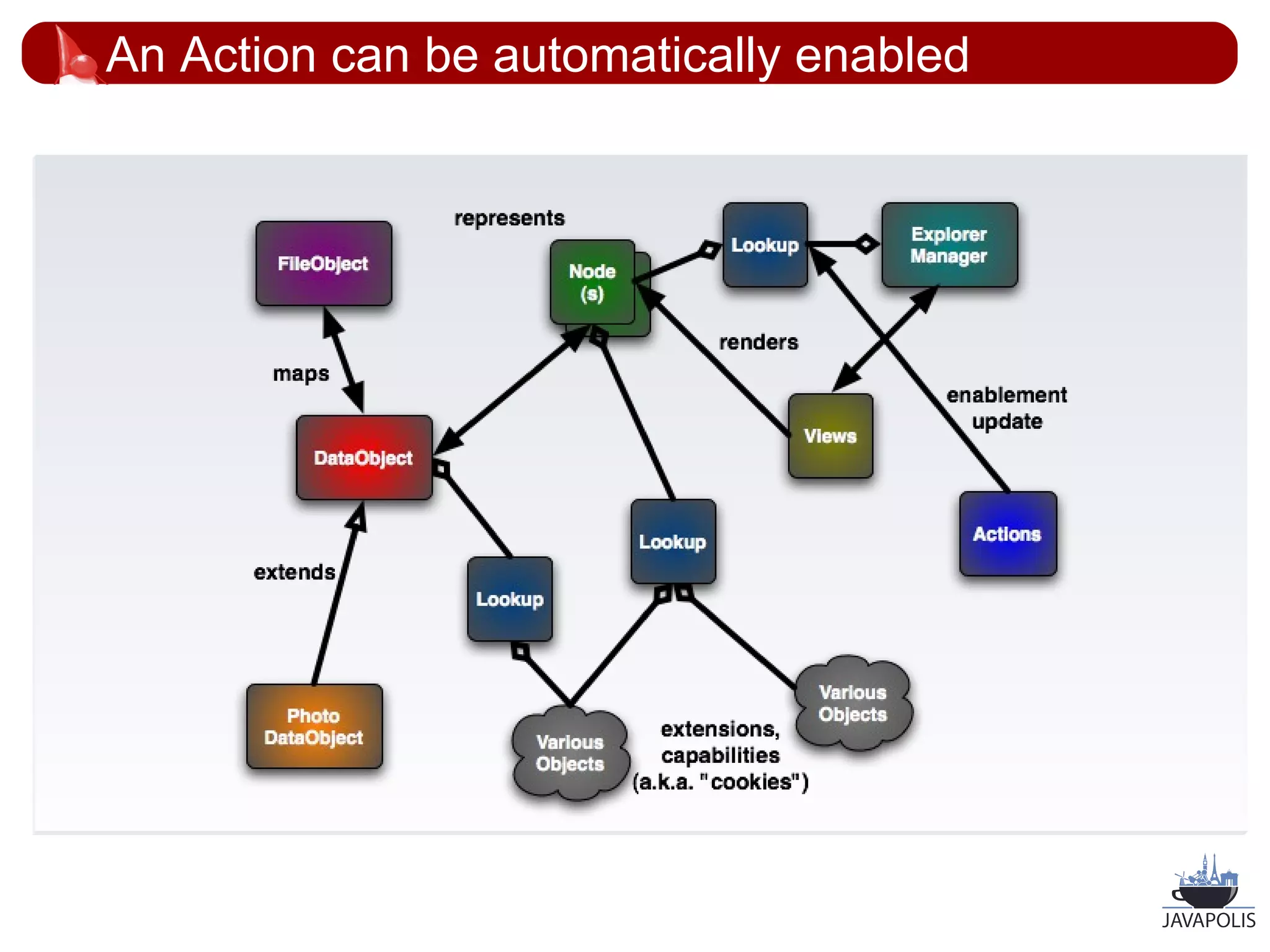

36. An Action can be automatically enabled
36

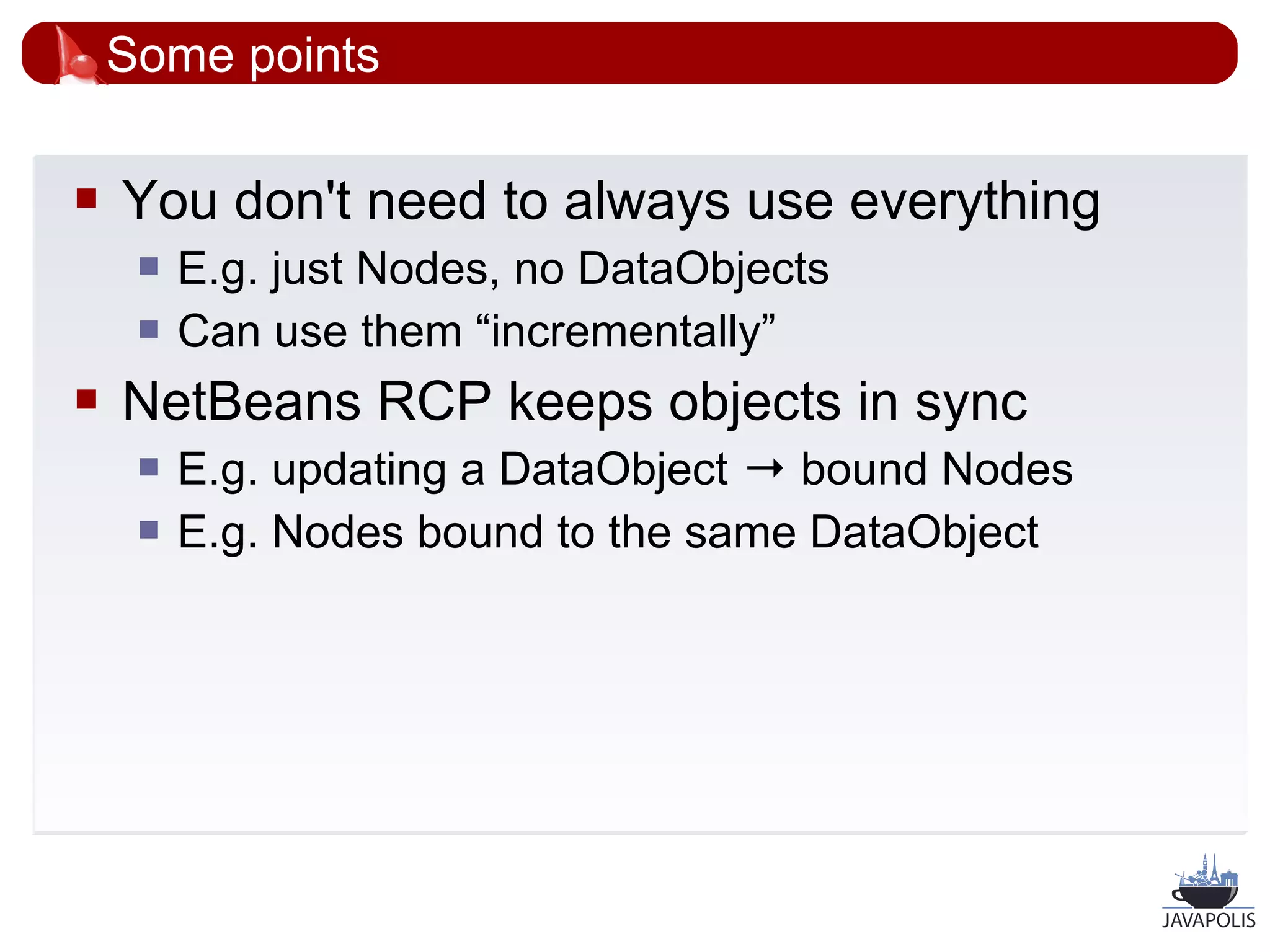

37. Some points
 You don't need to always use everything
 E.g. just Nodes, no DataObjects
 Can use them “incrementally”
 NetBeans RCP keeps objects in sync
 E.g. updating a DataObject → bound Nodes
 E.g. Nodes bound to the same DataObject
37

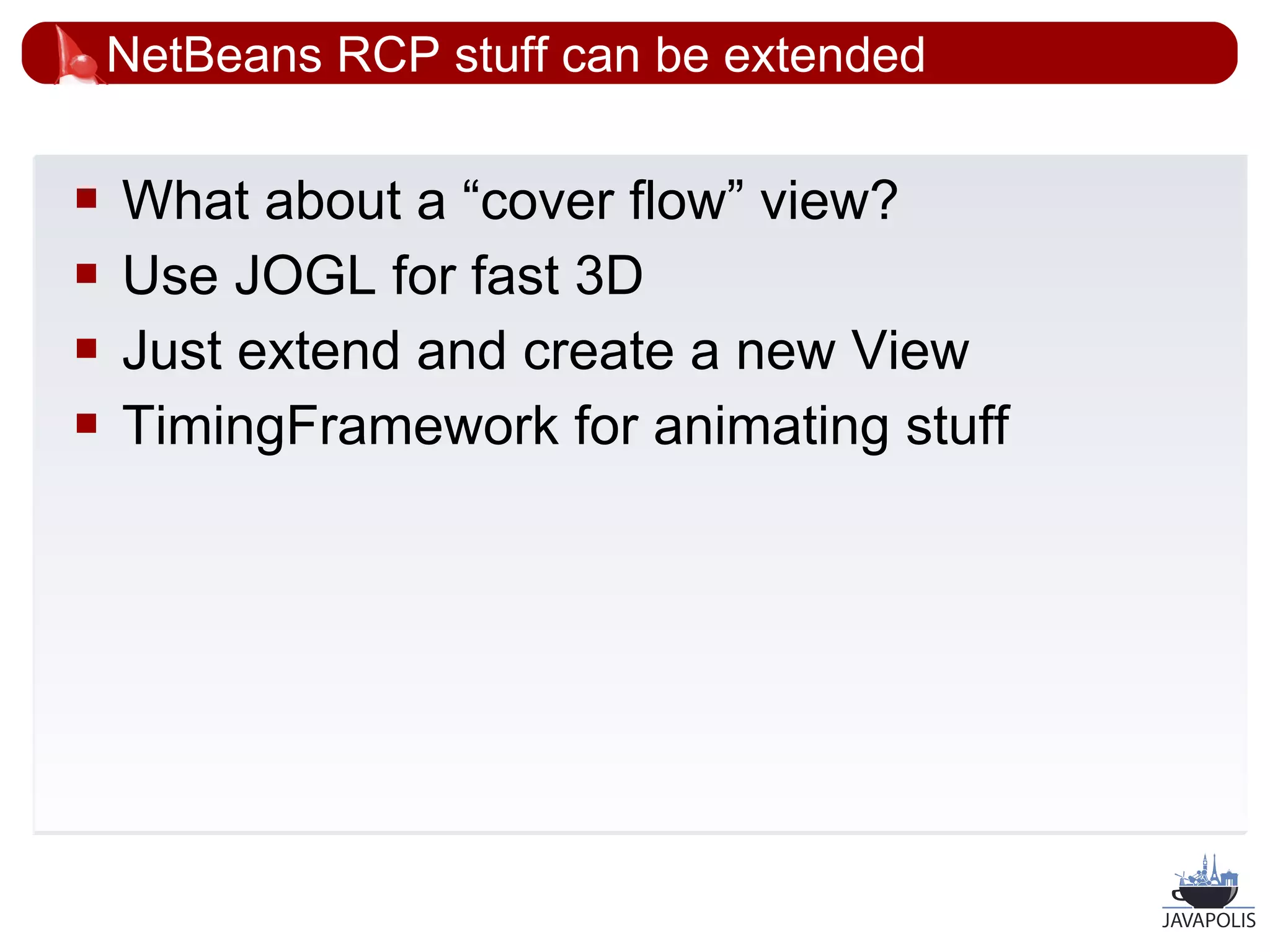

38. NetBeans RCP stuff can be extended
 What about a “cover flow” view?
 Use JOGL for fast 3D
 Just extend and create a new View
 TimingFramework for animating stuff
38

39. DEMO
CoverFlowView

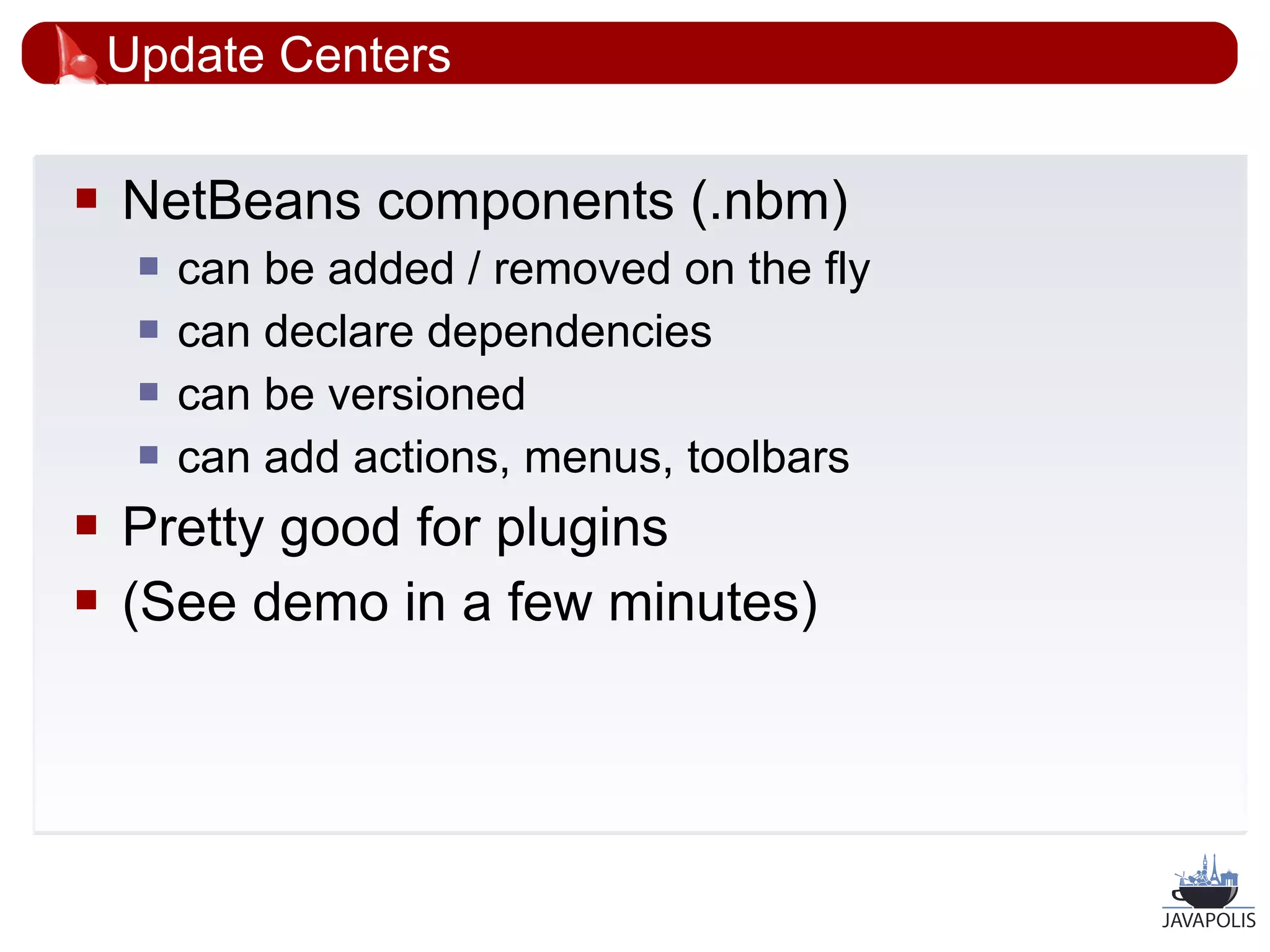

40. Update Centers
 NetBeans components (.nbm)
 can be added / removed on the fly
 can declare dependencies
 can be versioned
 can add actions, menus, toolbars
 Pretty good for plugins
 (See demo in a few minutes)
40

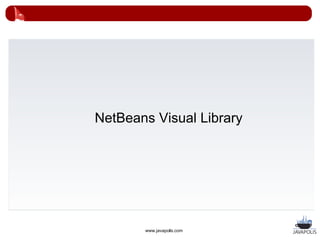

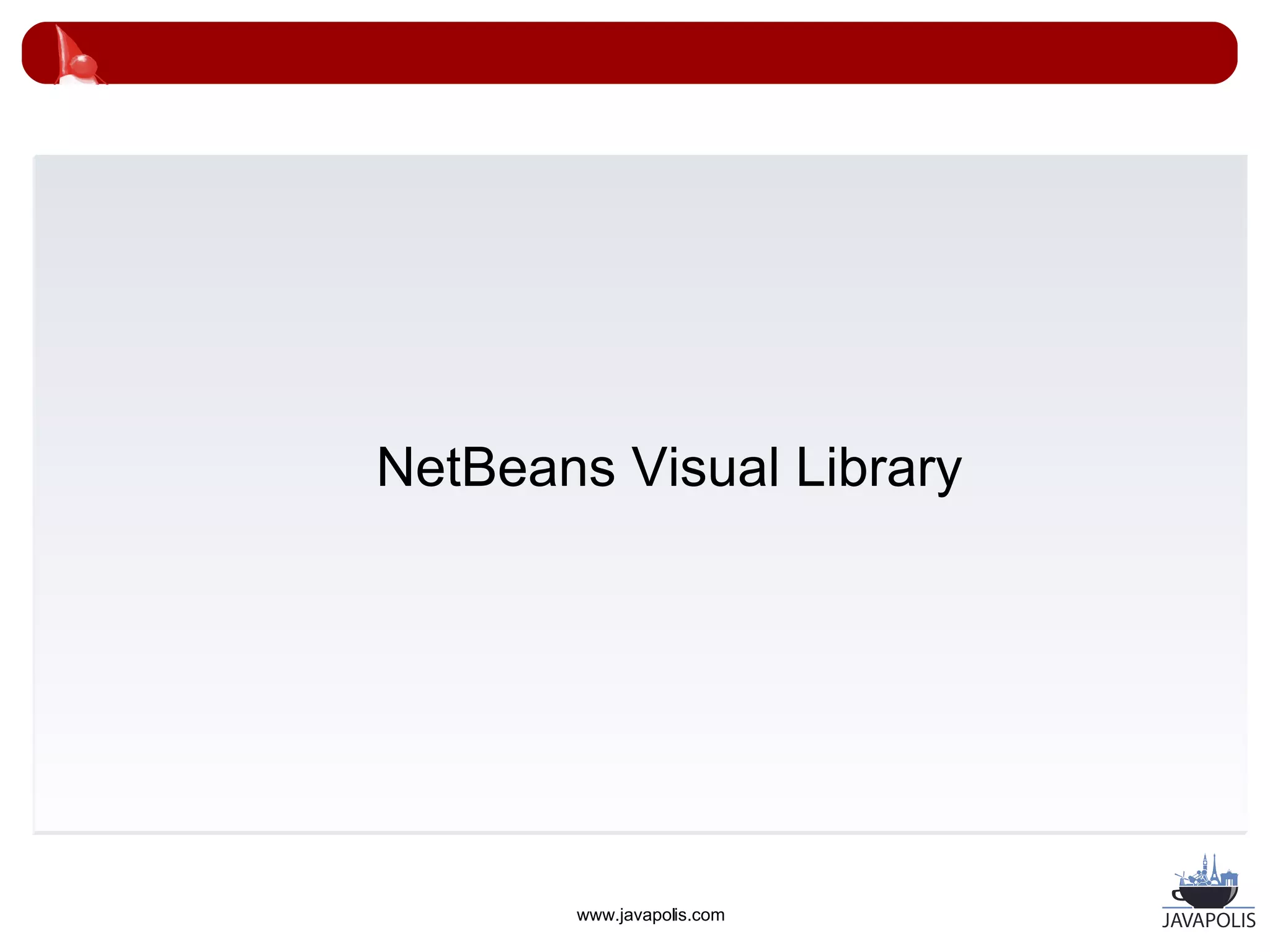

41. NetBeans Visual Library
www.javapolis.com

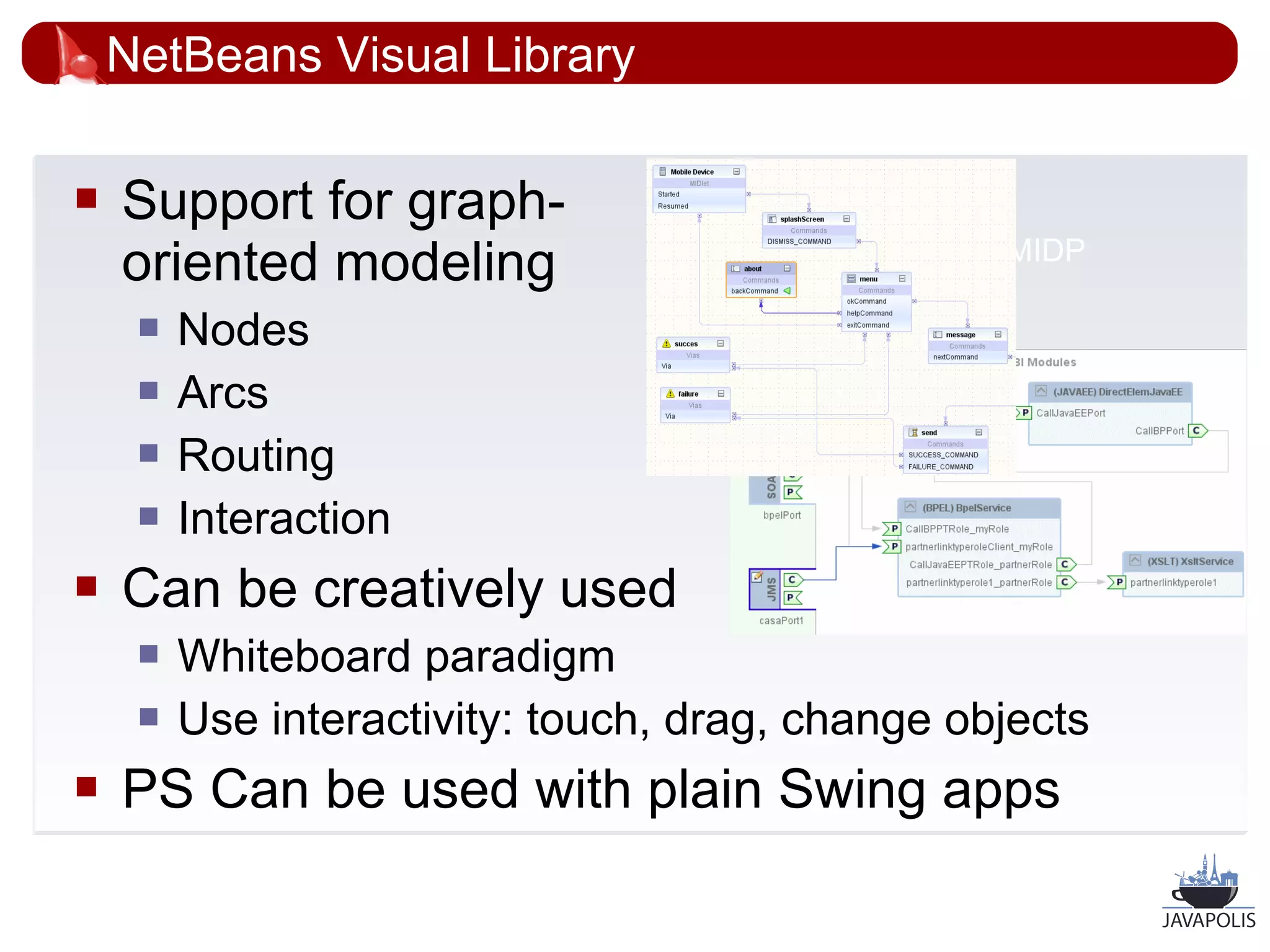

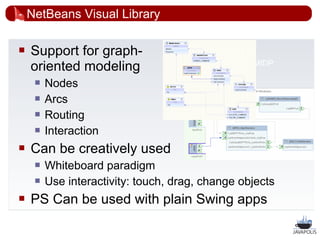

42. NetBeans Visual Library
 Support for graph- add screenshot
oriented modeling from UML or MIDP
designer
 Nodes
 Arcs
 Routing
 Interaction
 Can be creatively used
 Whiteboard paradigm
 Use interactivity: touch, drag, change objects
 PS Can be used with plain Swing apps
42

43. DEMO
LightTable

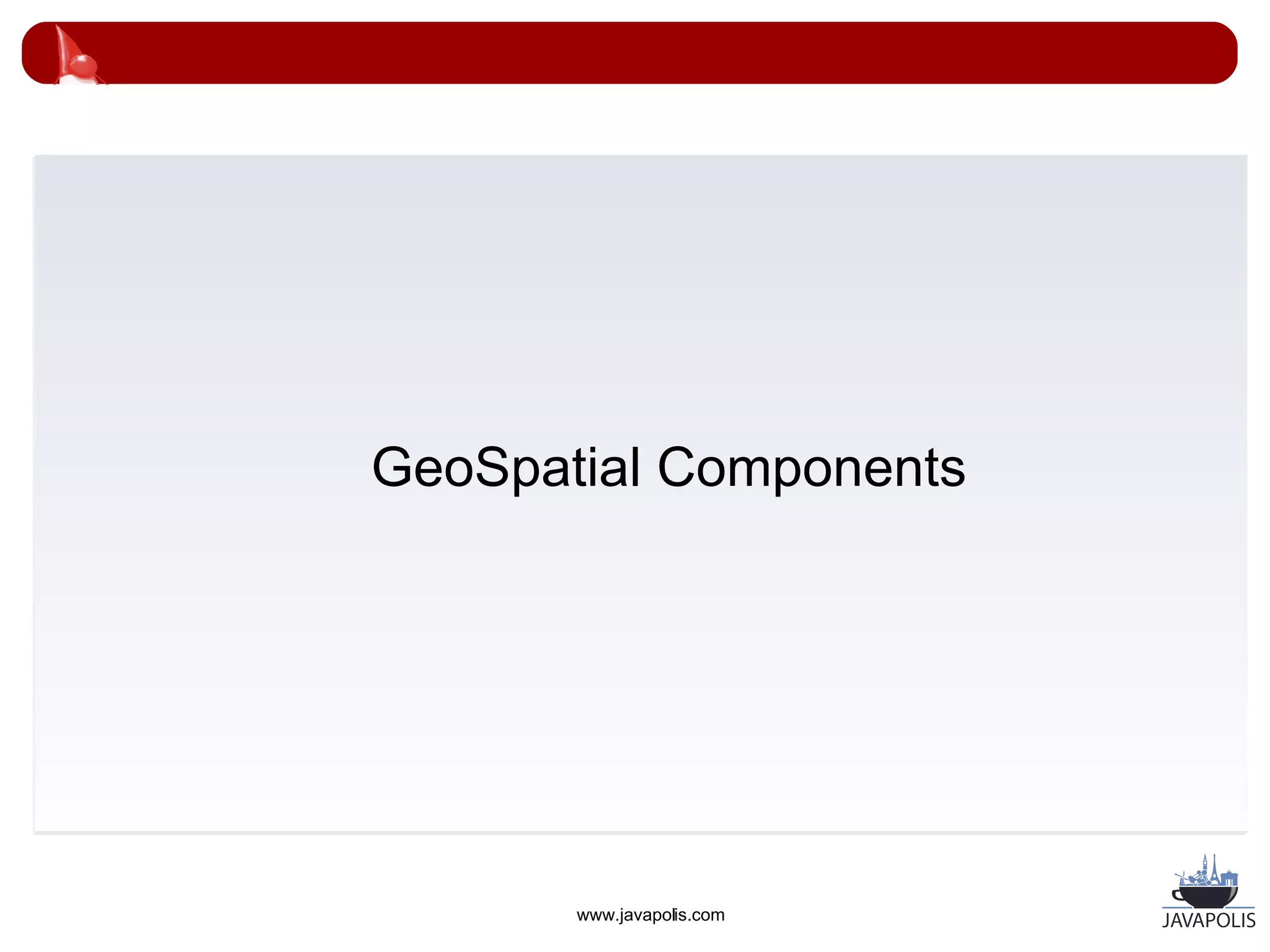

44. GeoSpatial Components
www.javapolis.com

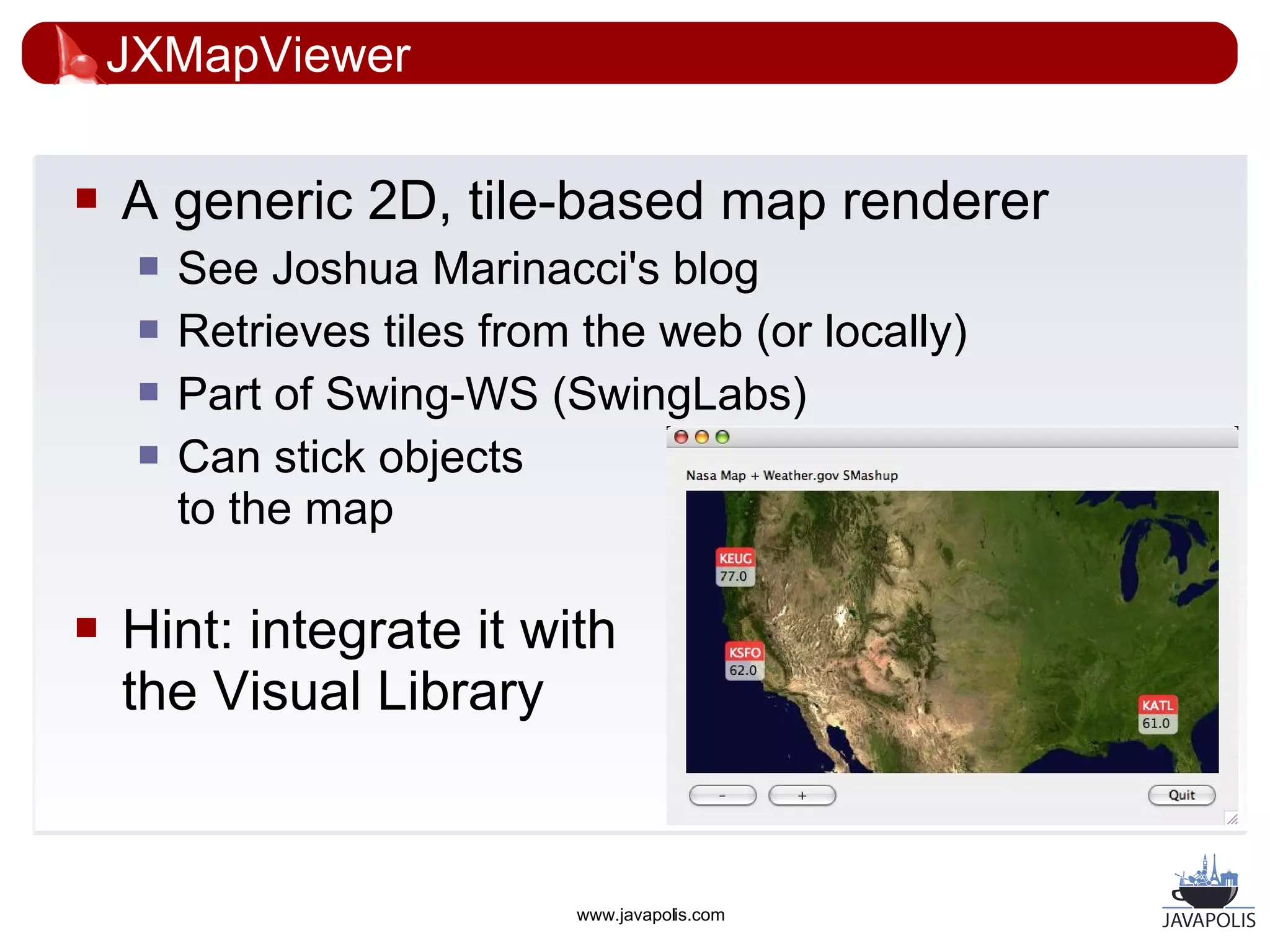

45. JXMapViewer
 A generic 2D, tile-based map renderer
 See Joshua Marinacci's blog
 Retrieves tiles from the web (or locally)
 Part of Swing-WS (SwingLabs)
 Can stick objects
to the map
 Hint: integrate it with
the Visual Library
www.javapolis.com

46. DEMO
GeoViewer

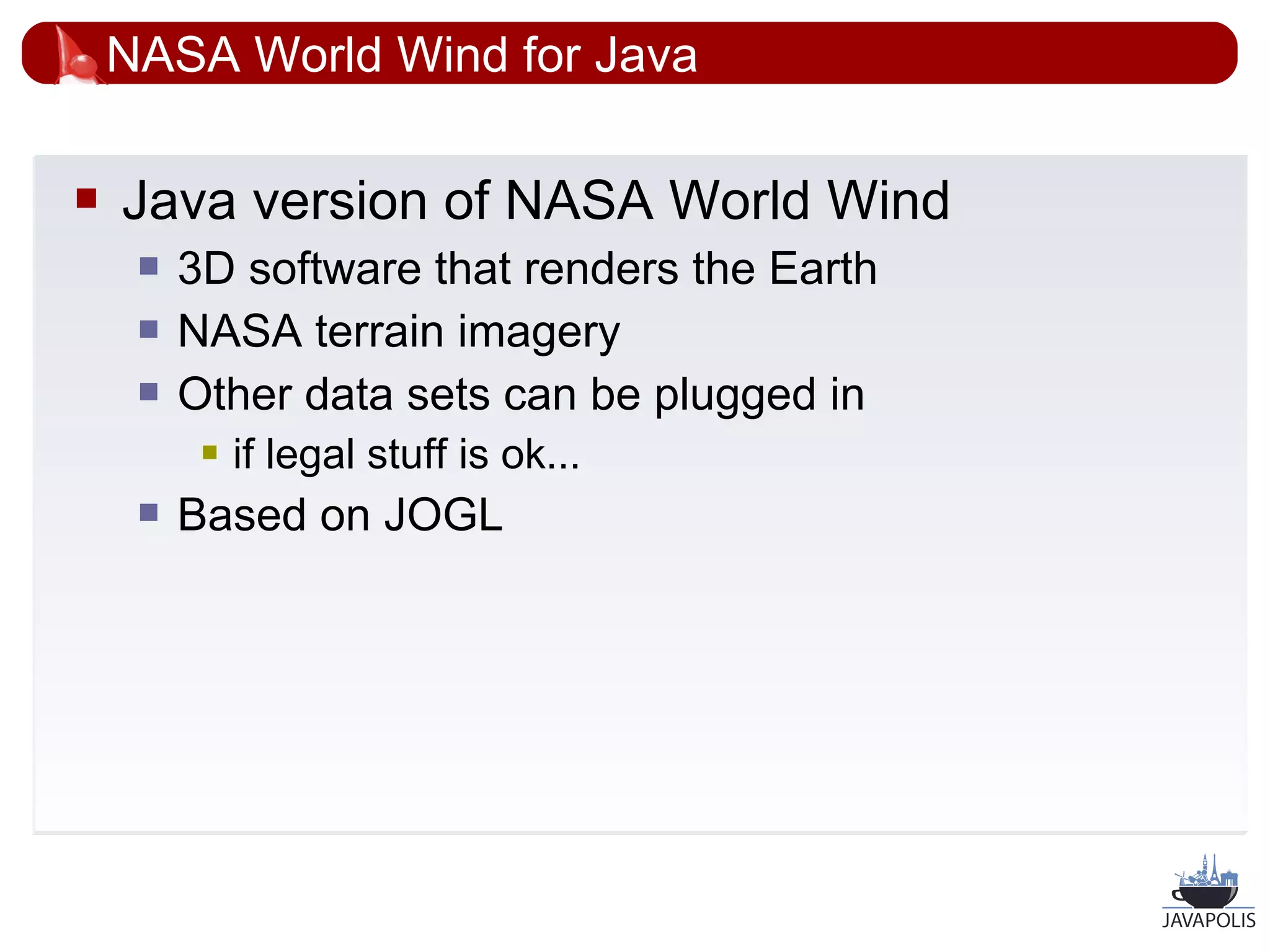

47. NASA World Wind for Java
 Java version of NASA World Wind
 3D software that renders the Earth
 NASA terrain imagery
 Other data sets can be plugged in
 if legal stuff is ok...
 Based on JOGL
47

48. DEMO
GeoViewer 3D

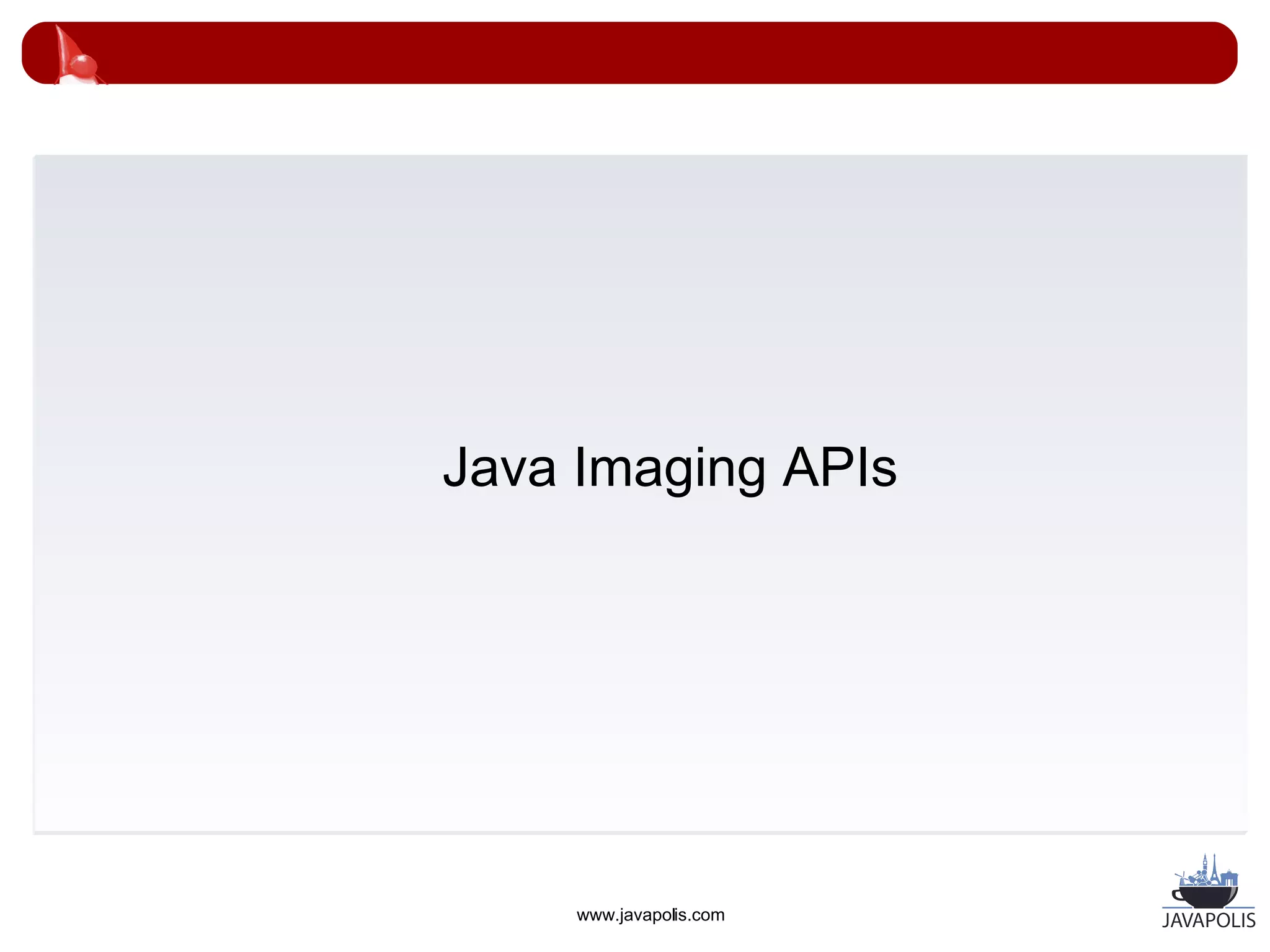

49. Java Imaging APIs
www.javapolis.com

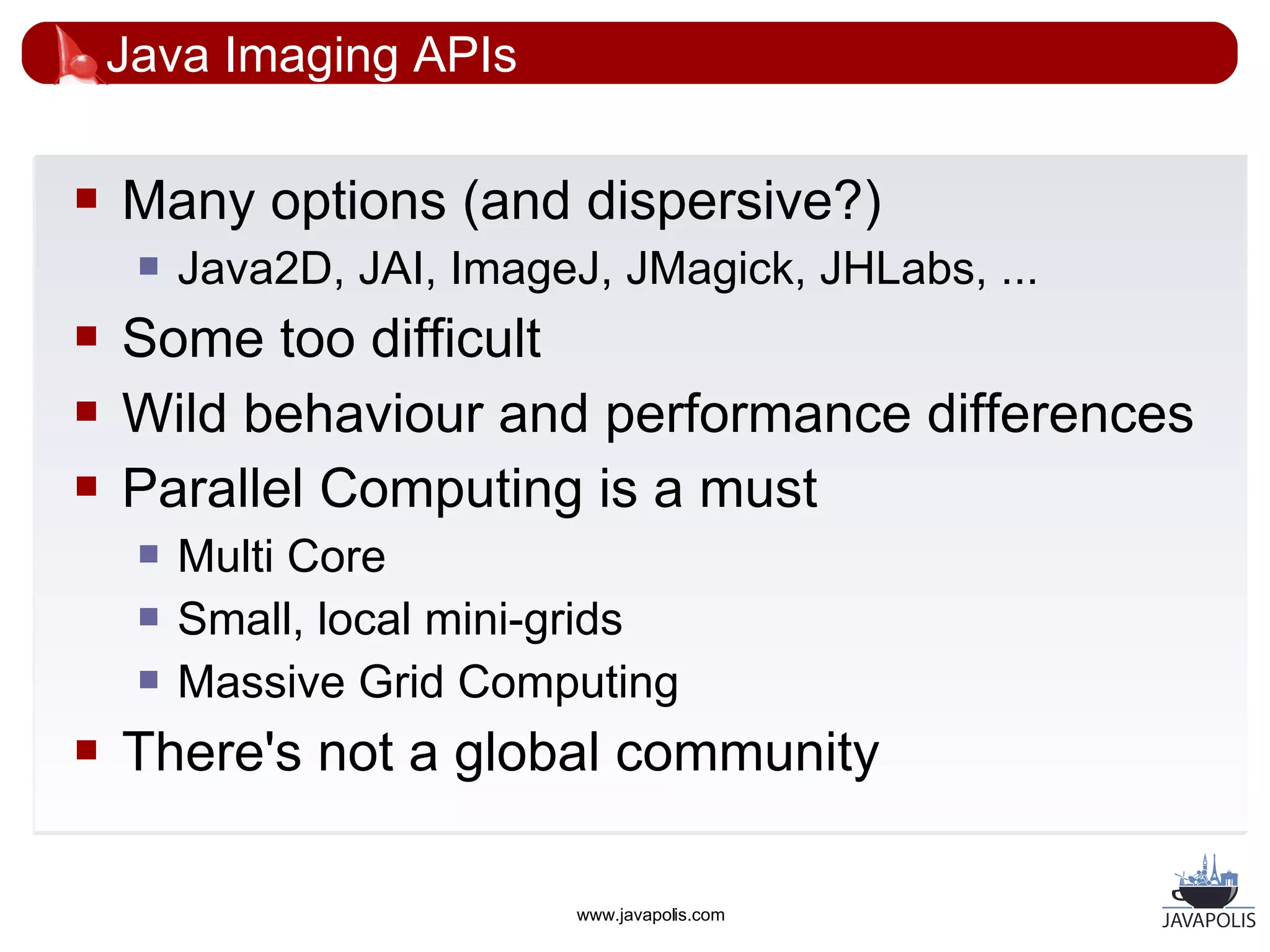

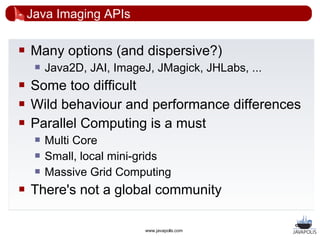

50. Java Imaging APIs
 Many options (and dispersive?)
 Java2D, JAI, ImageJ, JMagick, JHLabs, ...
 Some too difficult
 Wild behaviour and performance differences
 Parallel Computing is a must
 Multi Core
 Small, local mini-grids
 Massive Grid Computing
 There's not a global community
www.javapolis.com

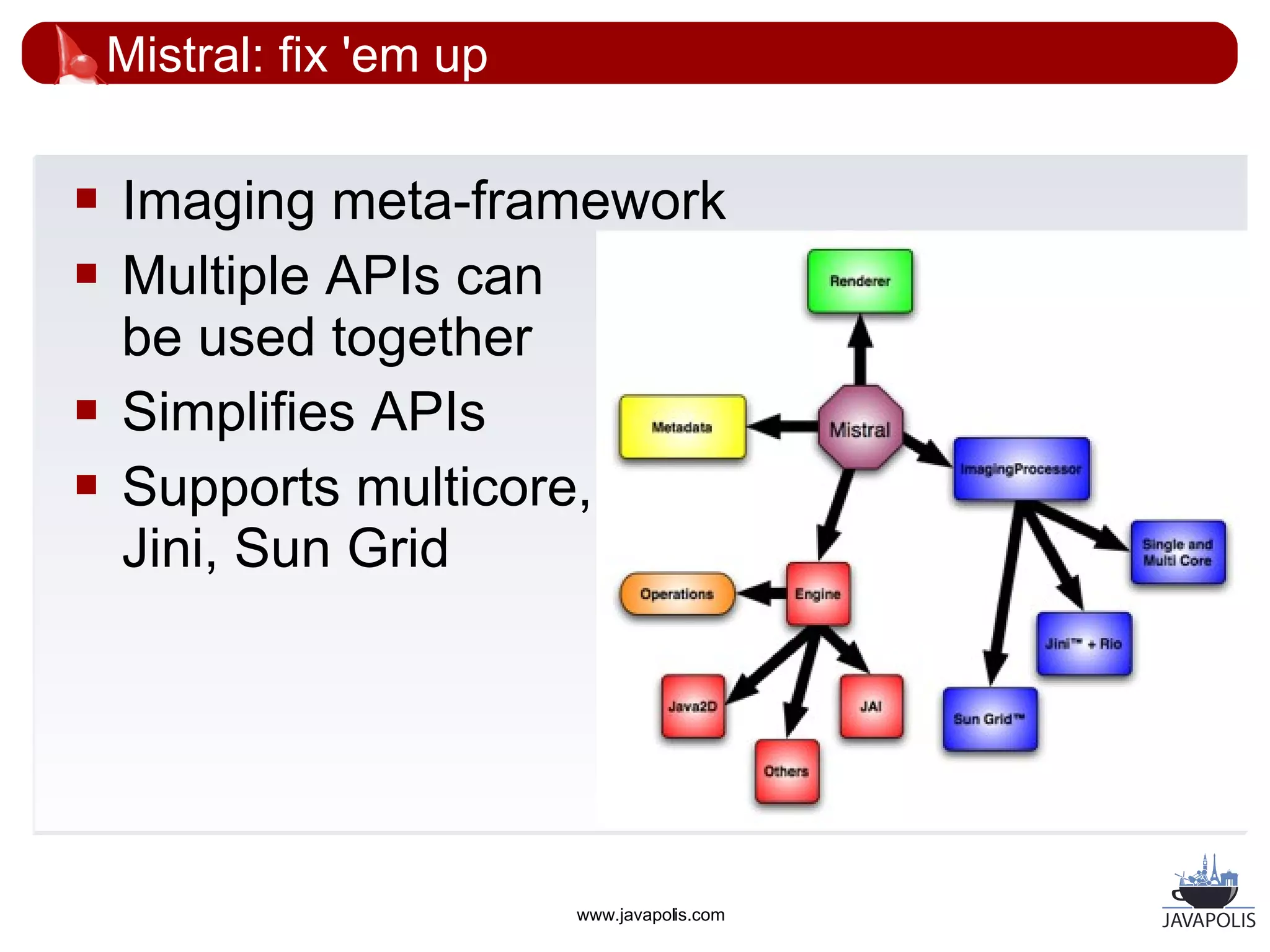

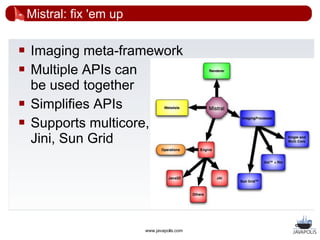

51. Mistral: fix 'em up
 Imaging meta-framework
 Multiple APIs can
be used together
 Simplifies APIs
 Supports multicore,
Jini, Sun Grid
www.javapolis.com

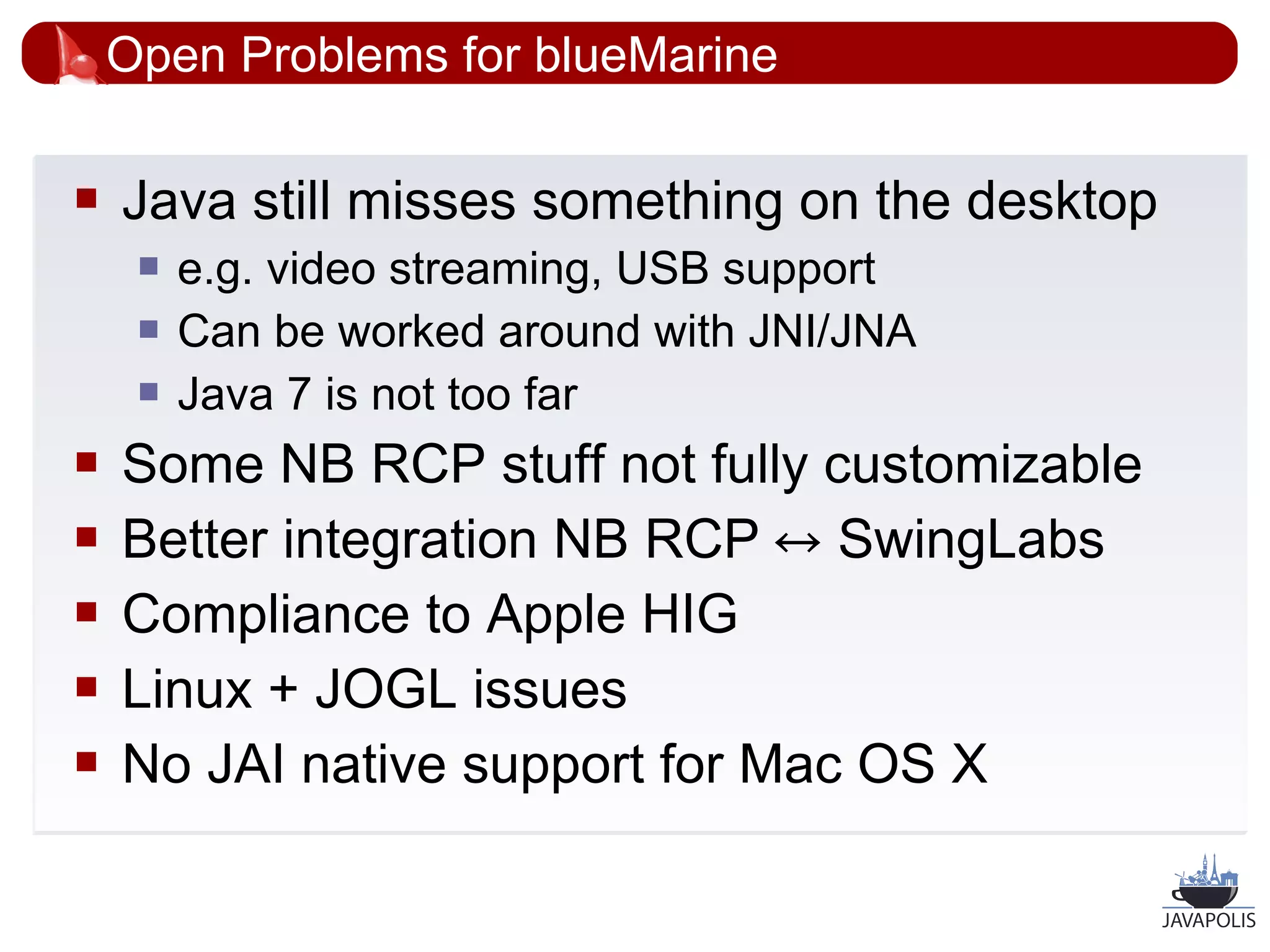

52. Open Problems for blueMarine
 Java still misses something on the desktop
 e.g. video streaming, USB support
 Can be worked around with JNI/JNA
 Java 7 is not too far
 Some NB RCP stuff not fully customizable
 Better integration NB RCP SwingLabs
 Compliance to Apple HIG
 Linux + JOGL issues
 No JAI native support for Mac OS X
52

53. A final point
www.javapolis.com

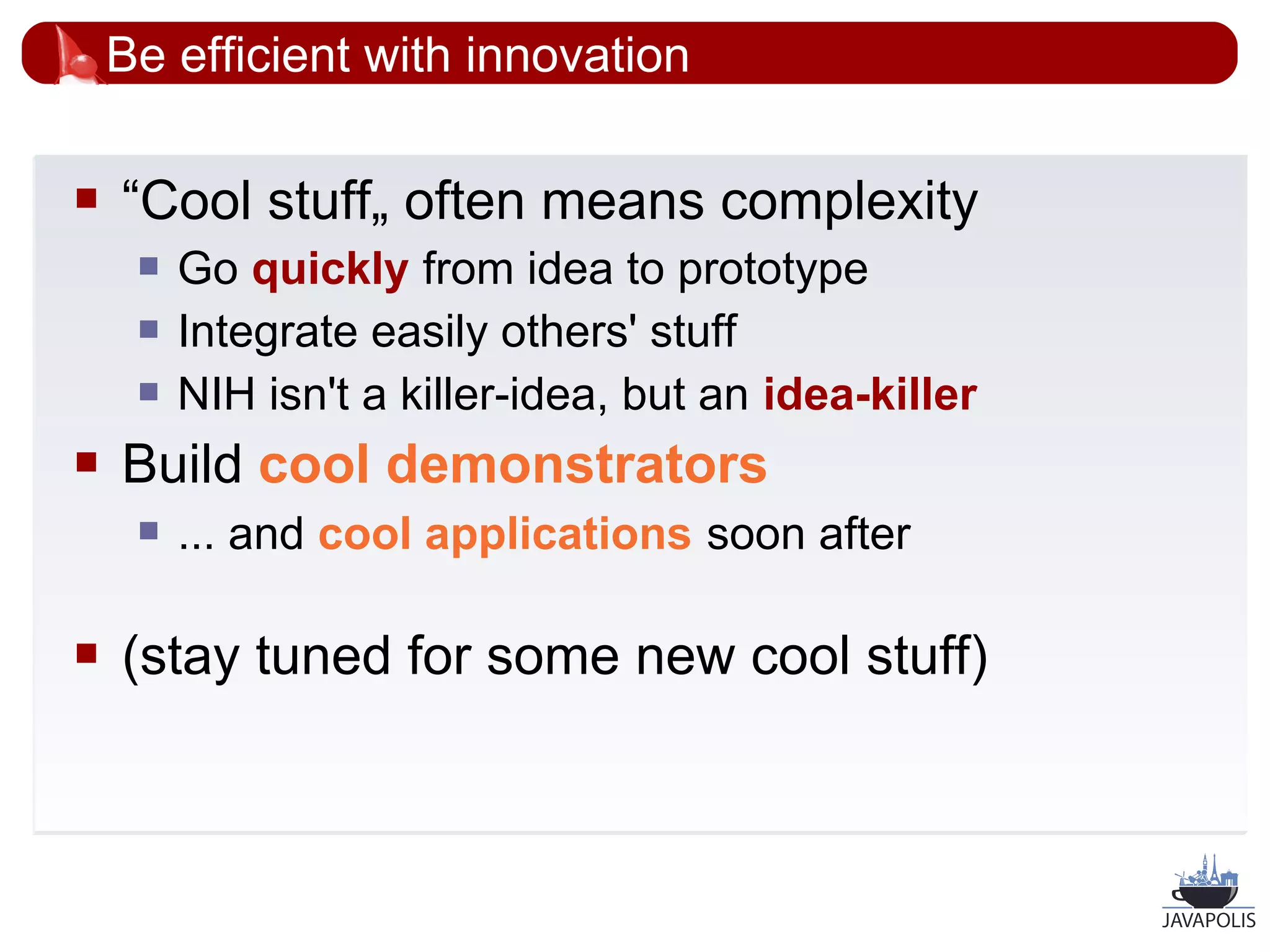

54. Be efficient with innovation
 “Cool stuff„ often means complexity
 Go quickly from idea to prototype
 Integrate easily others' stuff
 NIH isn't a killer-idea, but an idea-killer
 Build cool demonstrators
 ... and cool applications soon after
 (stay tuned for some new cool stuff)
54

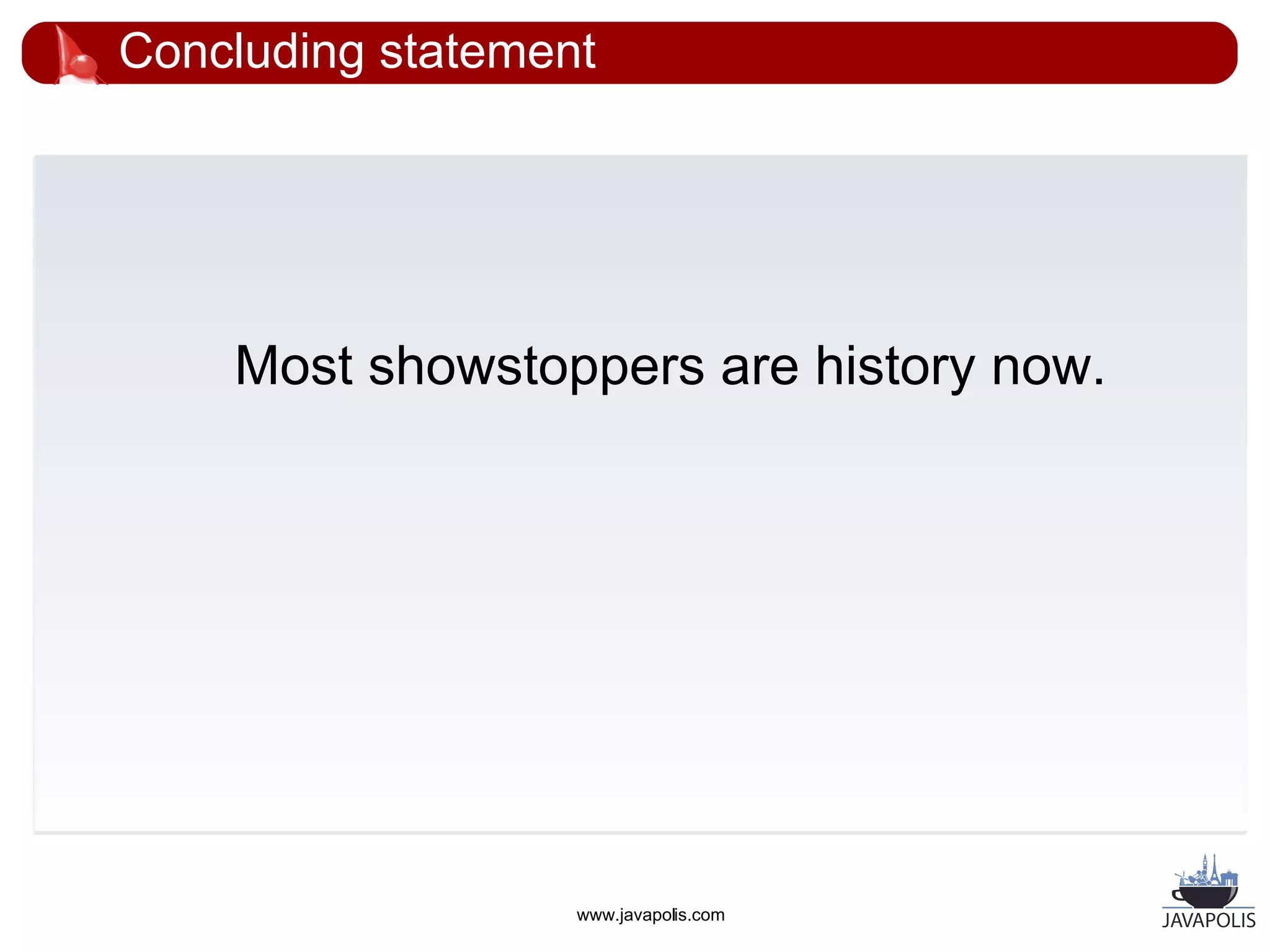

55. Concluding statement
Most showstoppers are history now.
www.javapolis.com

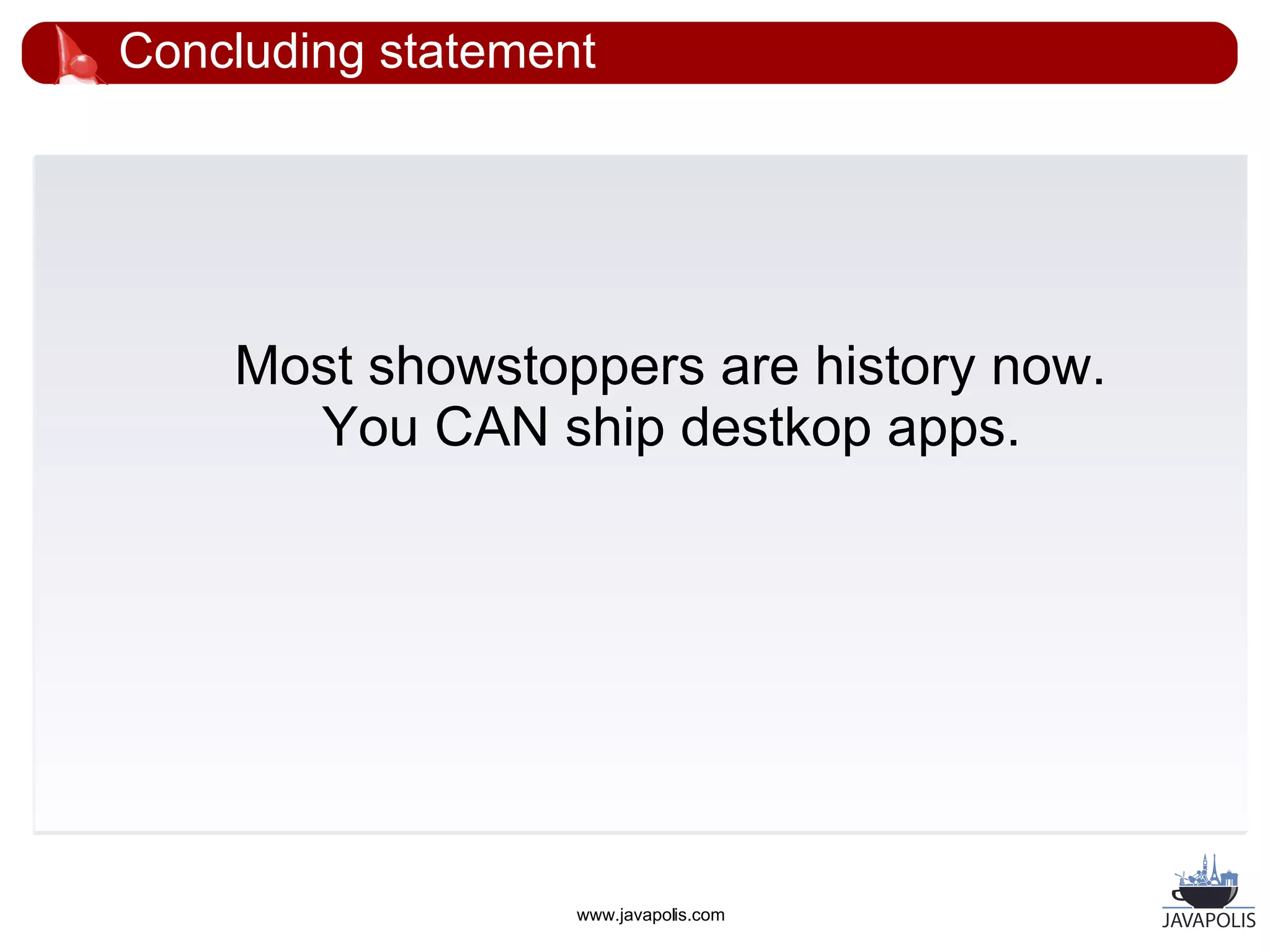

56. Concluding statement
Most showstoppers are history now.
You CAN ship destkop apps.
www.javapolis.com

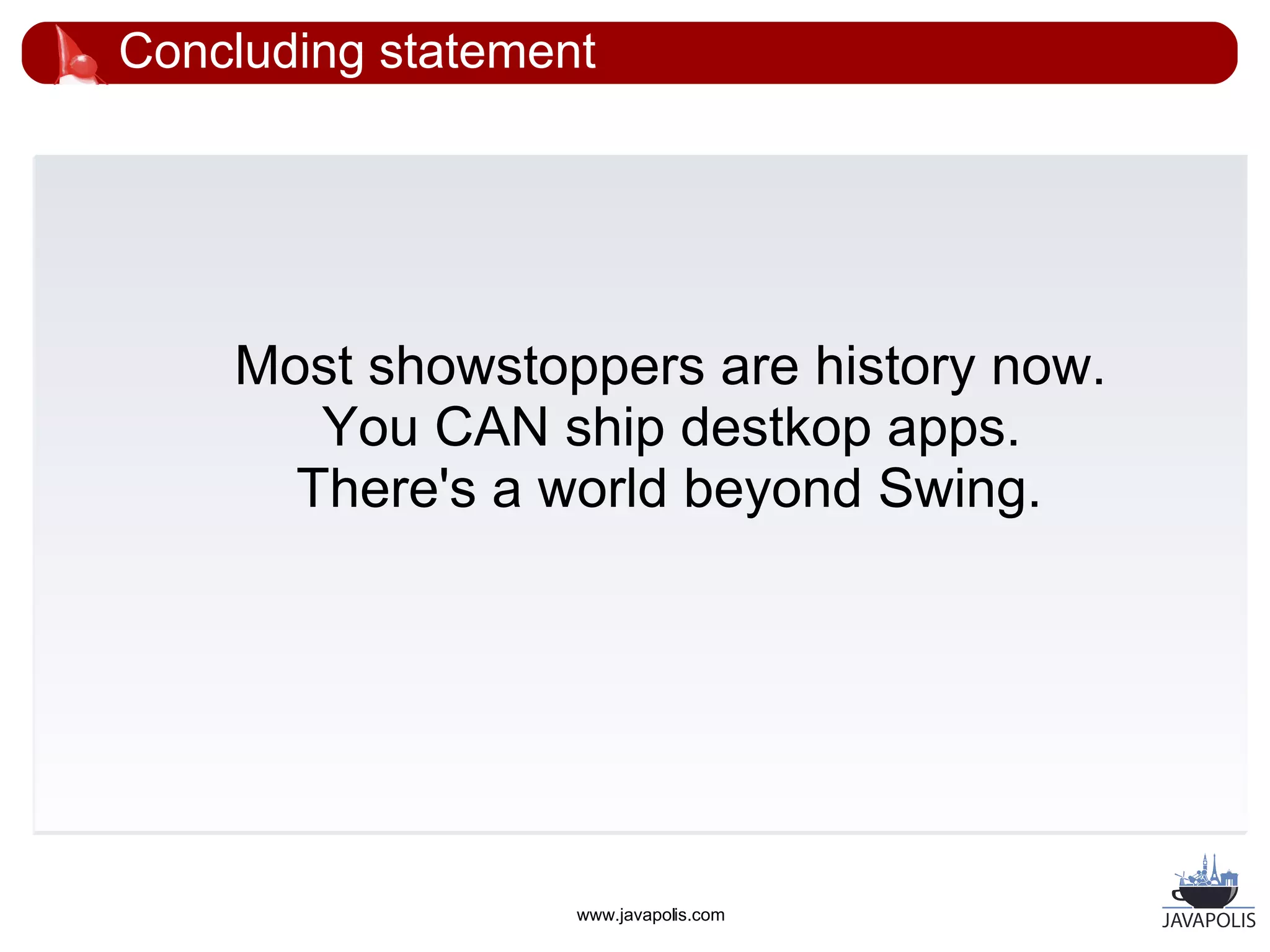

57. Concluding statement
Most showstoppers are history now.
You CAN ship destkop apps.
There's a world beyond Swing.
www.javapolis.com

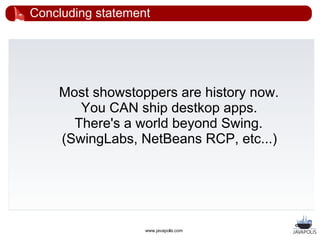

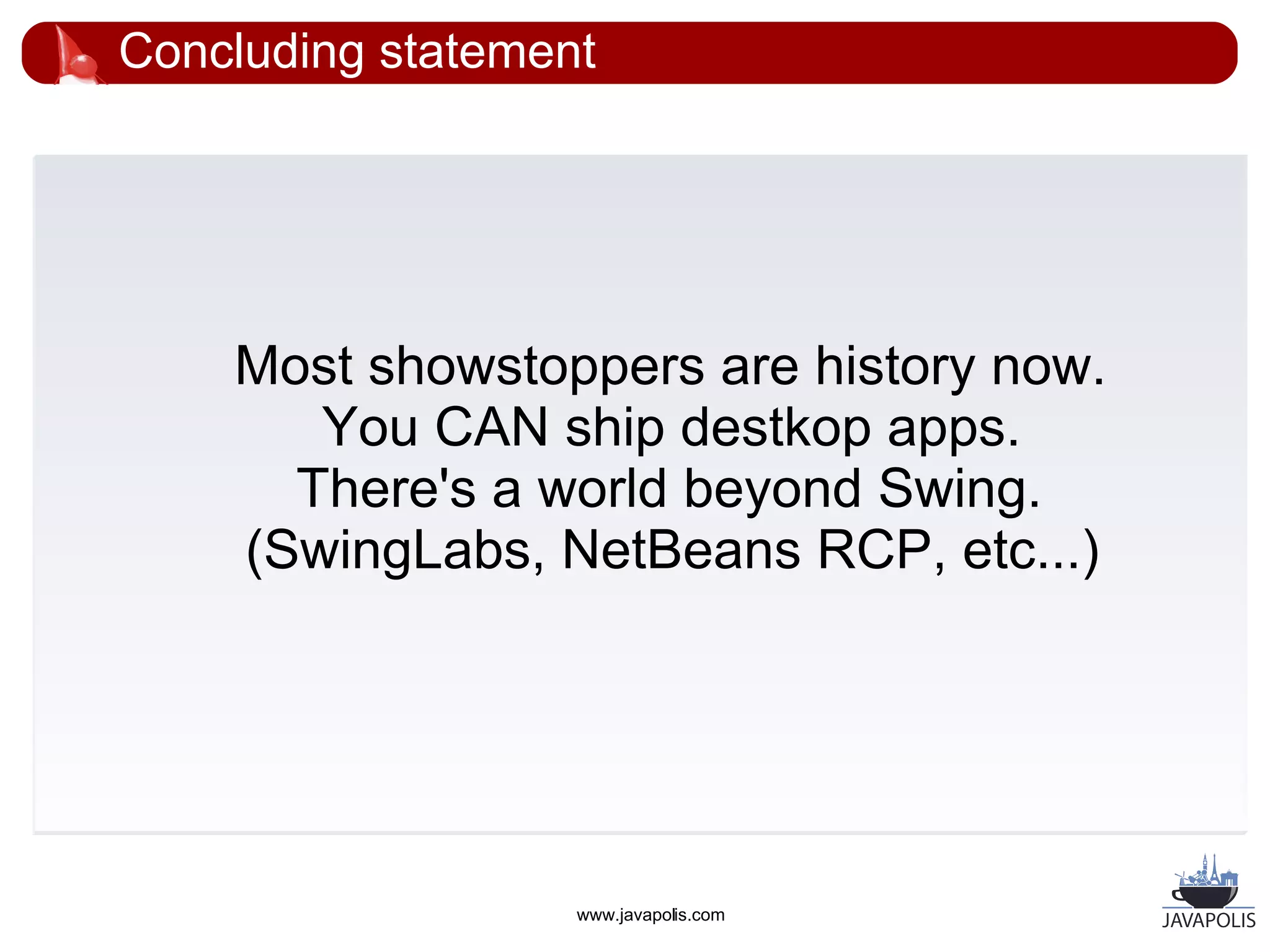

58. Concluding statement
Most showstoppers are history now.
You CAN ship destkop apps.
There's a world beyond Swing.
(SwingLabs, NetBeans RCP, etc...)
www.javapolis.com

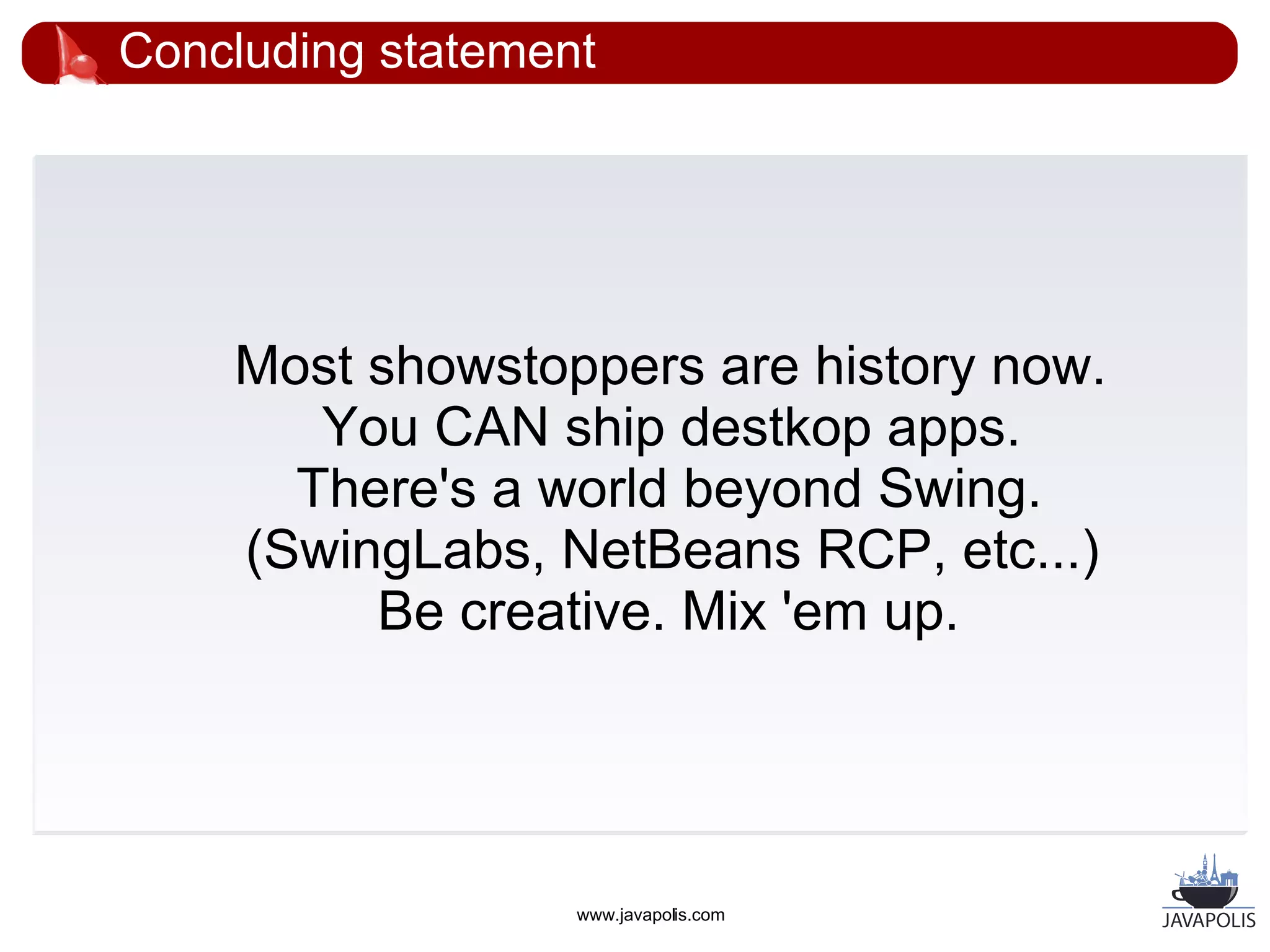

59. Concluding statement
Most showstoppers are history now.
You CAN ship destkop apps.
There's a world beyond Swing.
(SwingLabs, NetBeans RCP, etc...)
Be creative. Mix 'em up.
www.javapolis.com

60. Q&A
View JavaPolis talks @ www.parleys.com

61. Thank you for your
attention
