This document provides information about an upcoming mobility hackathon being held December 12-14, 2014 in Roma. It discusses IBM Bluemix and its cloud service models including Infrastructure as a Service, Platform as a Service, and Software as a Service. The document also summarizes Bluemix services like DevOps, Watson, Internet of Things, and provides tutorials and examples for developing apps on Bluemix.

1. 1
Mobility Hackathon
December 12-14, 2014
Roma
IBM Bluemix on the go
Giulio Santoli
giulio_santoli@it.ibm.com

2. 2 © 2014 IBM Corporation

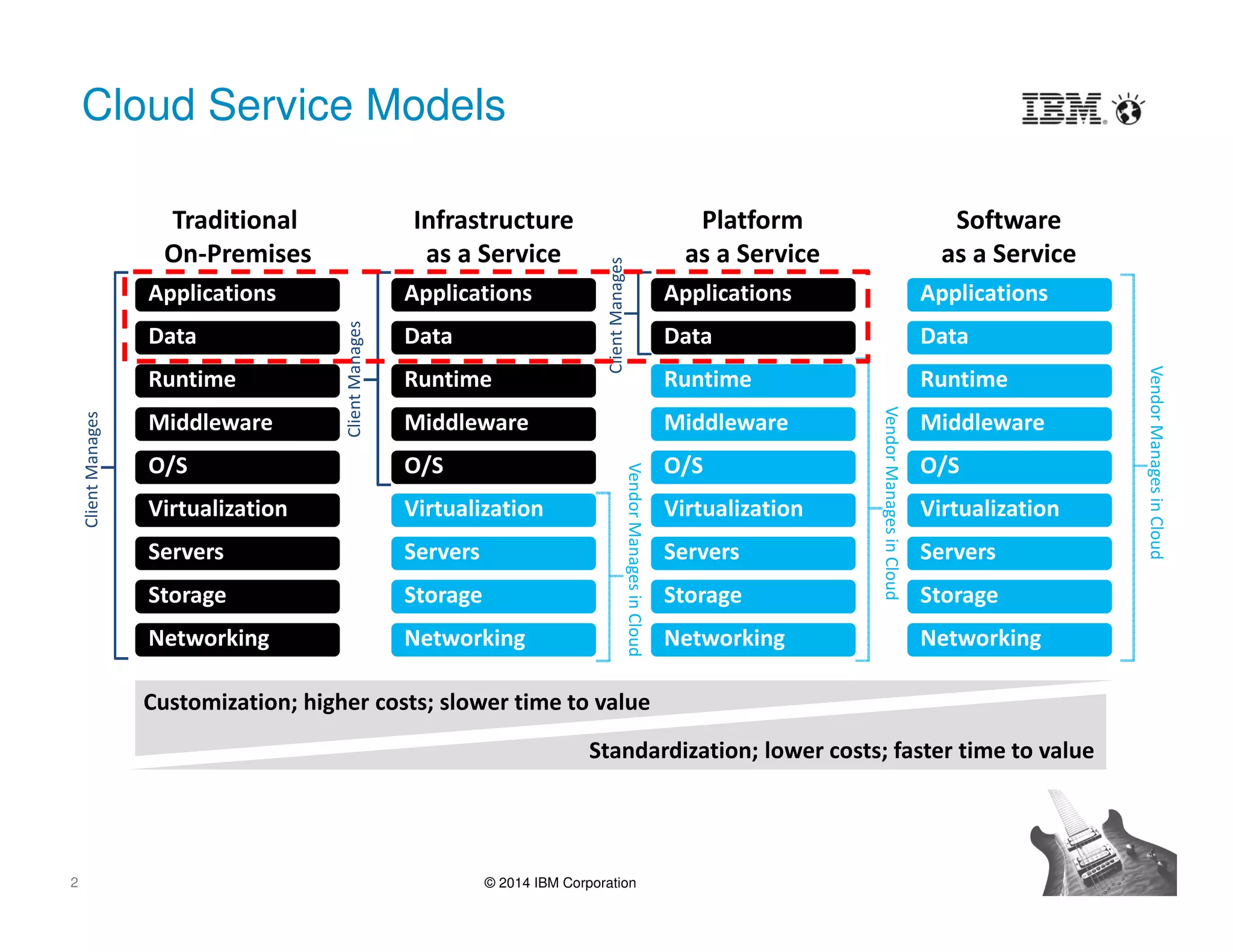

Cloud Service Models
Networking Networking Networking Networking
Storage Storage Storage Storage
Servers Servers Servers Servers
Virtualization Virtualization Virtualization Virtualization
O/S O/S O/S O/S
Middleware Middleware Middleware Middleware
Runtime Runtime Runtime Runtime
Data Data Data Data
Applications Applications Applications Applications
Traditional
On-Premises
Infrastructure
as a Service
Platform
as a Service
Software
as a Service
ClientManages
VendorManagesinCloud
VendorManagesinCloud
VendorManagesinCloud
ClientManages
ClientManages
Customization; higher costs; slower time to value
Standardization; lower costs; faster time to value

3. 3 © 2014 IBM Corporation
Security
Services
Web and
application
services
Cloud
Integration
Services
Mobile
Services
Database
services
Big Data
services
Watson
Services

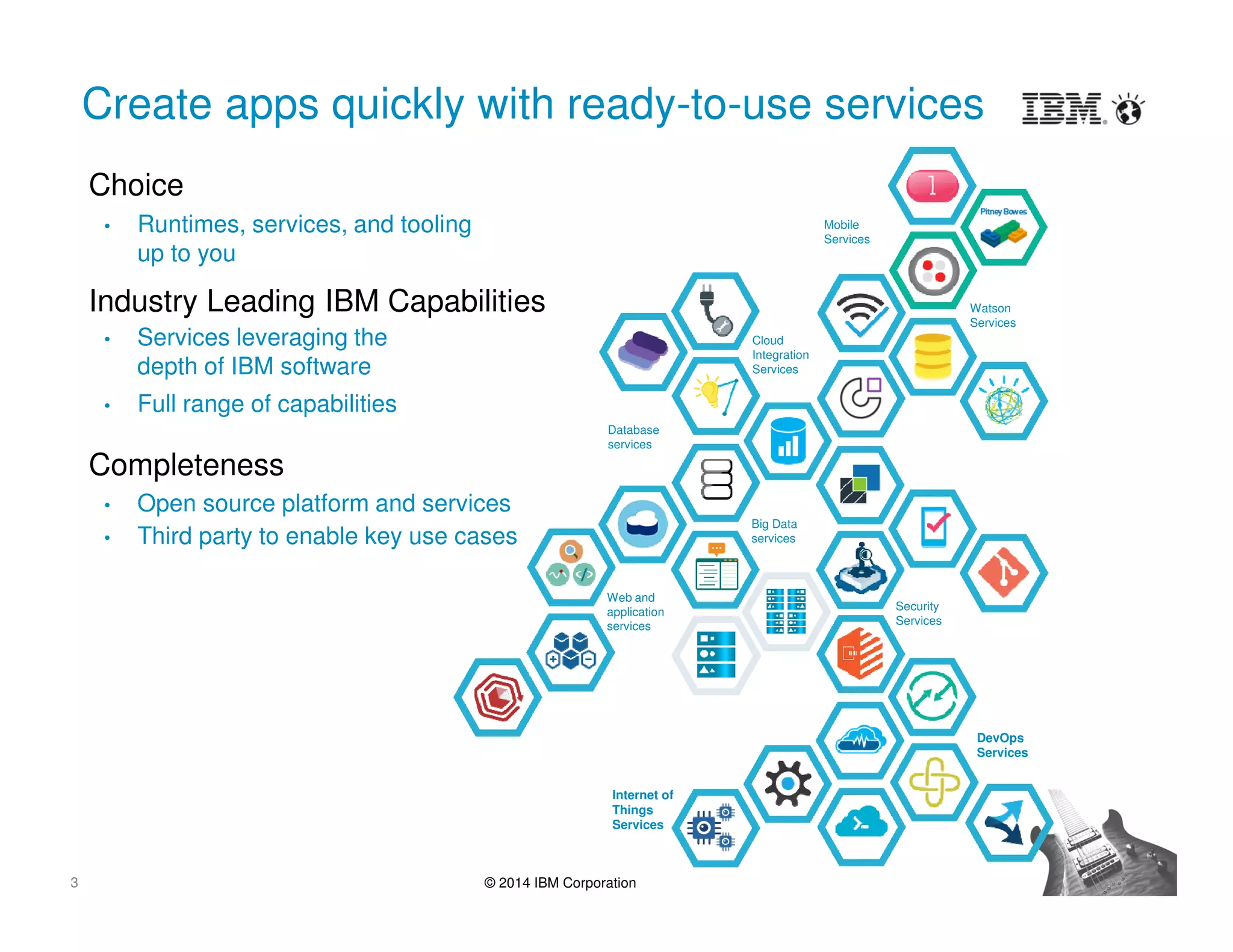

Create apps quickly with ready-to-use services
DevOps
Services
Internet of
Things
Services
• Runtimes, services, and tooling
up to you
Choice
Industry Leading IBM Capabilities
• Services leveraging the
depth of IBM software
• Full range of capabilities
Completeness
• Open source platform and services
• Third party to enable key use cases

4. 4 © 2014 IBM Corporation

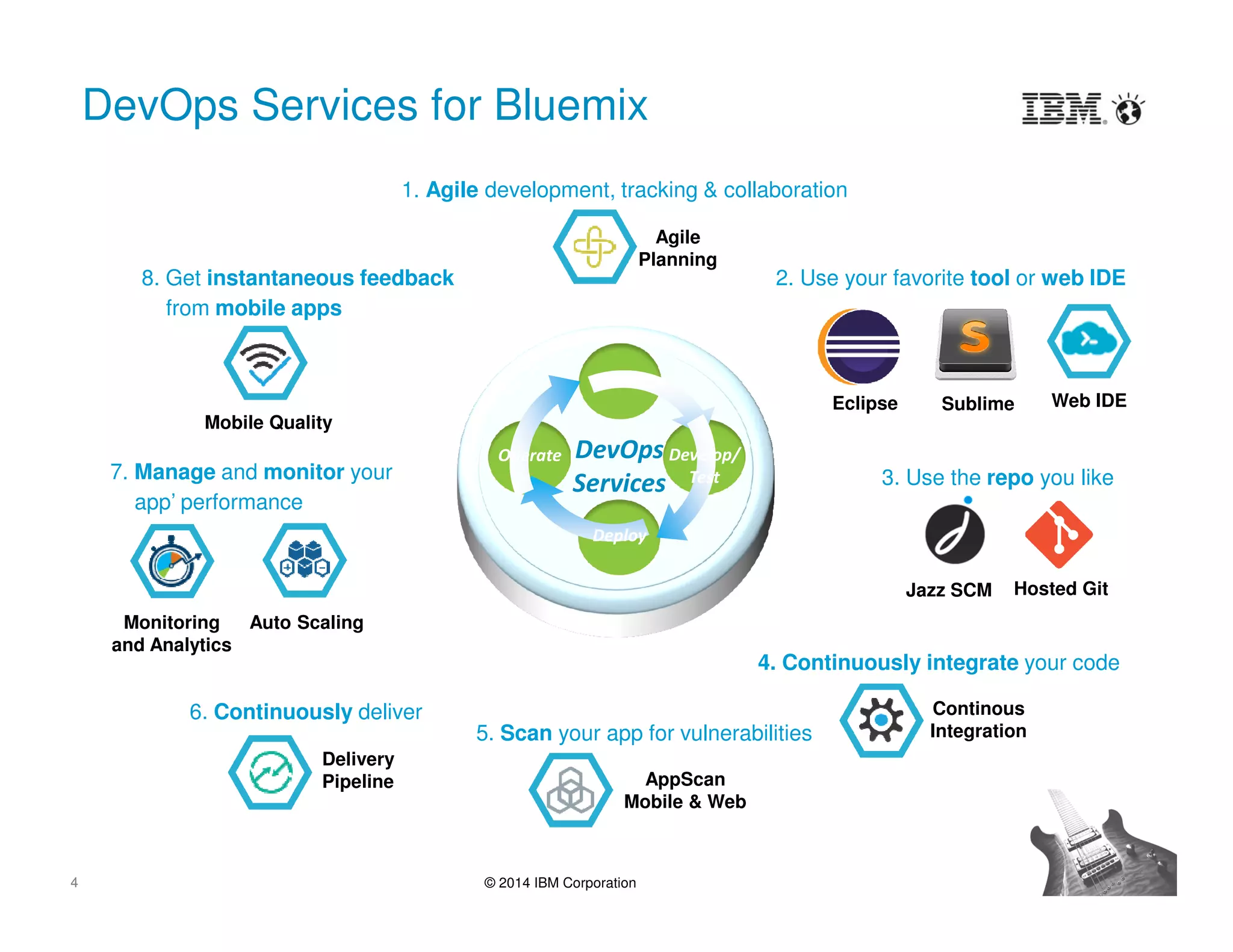

DevOps Services for Bluemix
1. Agile development, tracking & collaboration
2. Use your favorite tool or web IDE
6. Continuously deliver
8. Get instantaneous feedback
from mobile apps
7. Manage and monitor your
app’ performance
4. Continuously integrate your code
Agile
Planning
5. Scan your app for vulnerabilities
Jazz SCM Hosted Git
Web IDE
Delivery
Pipeline AppScan
Mobile & Web
Continous
Integration
Mobile Quality
Monitoring
and Analytics
Operate Develop/
Test
Deploy
Steer
DevOps
Services
Eclipse Sublime
3. Use the repo you like
Auto Scaling

5. 5 © 2014 IBM Corporation

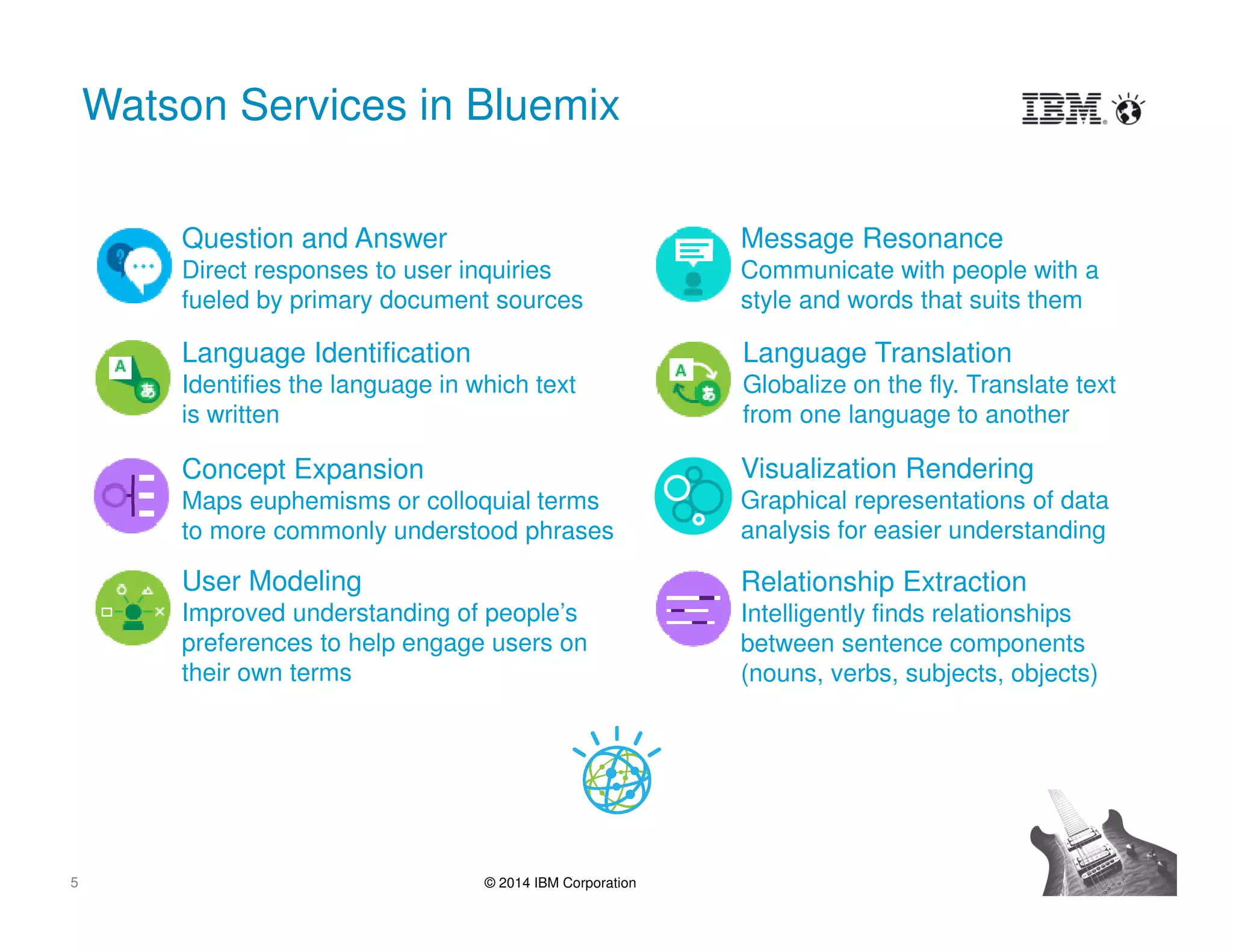

Watson Services in Bluemix
Concept Expansion
Maps euphemisms or colloquial terms
to more commonly understood phrases
User Modeling
Improved understanding of people’s
preferences to help engage users on
their own terms
Language Identification
Identifies the language in which text
is written
Question and Answer
Direct responses to user inquiries
fueled by primary document sources
Message Resonance
Communicate with people with a
style and words that suits them
Relationship Extraction
Intelligently finds relationships
between sentence components
(nouns, verbs, subjects, objects)
Visualization Rendering
Graphical representations of data
analysis for easier understanding
Language Translation
Globalize on the fly. Translate text
from one language to another

6. 6 © 2014 IBM Corporation

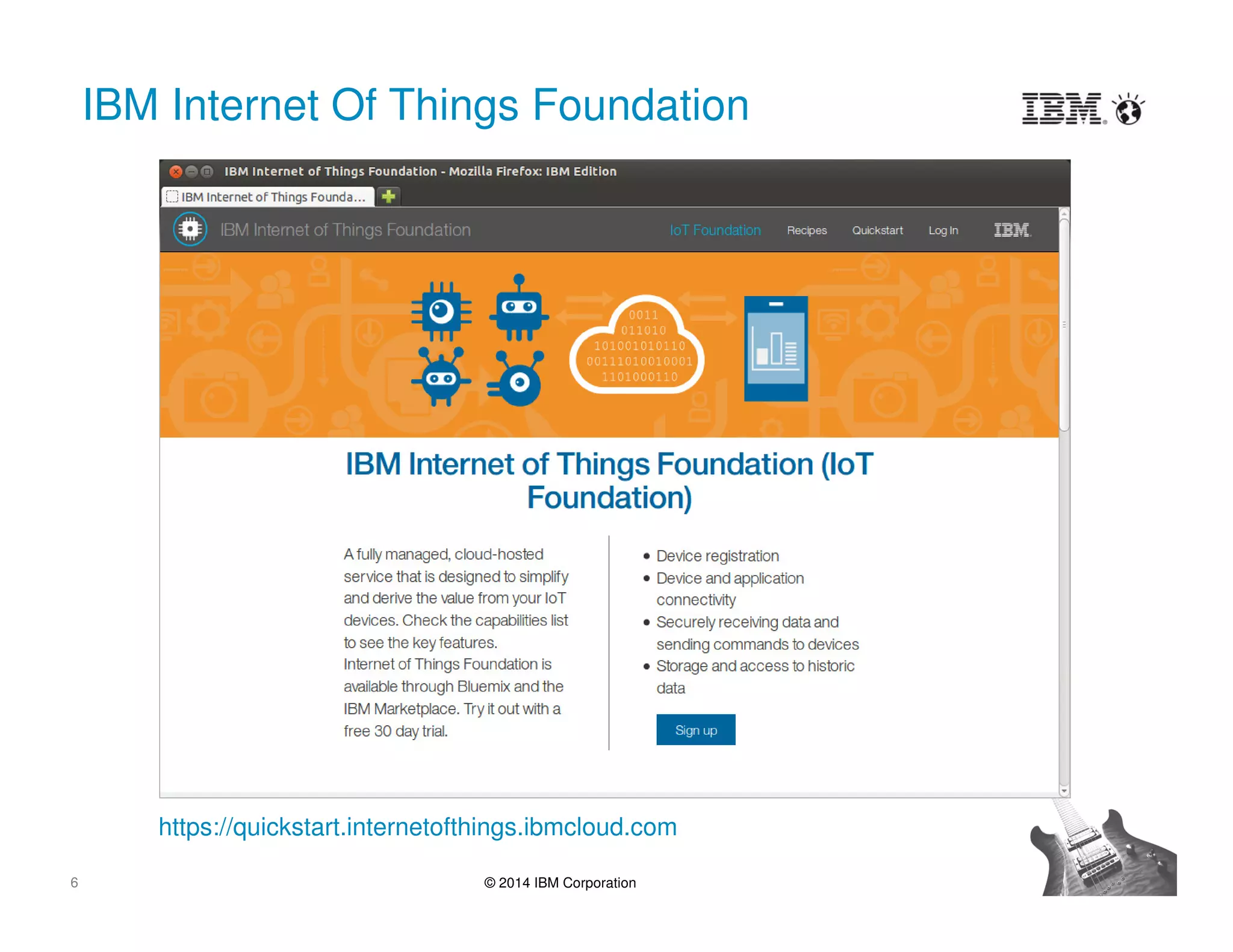

IBM Internet Of Things Foundation
https://quickstart.internetofthings.ibmcloud.com

7. 7 © 2014 IBM Corporation

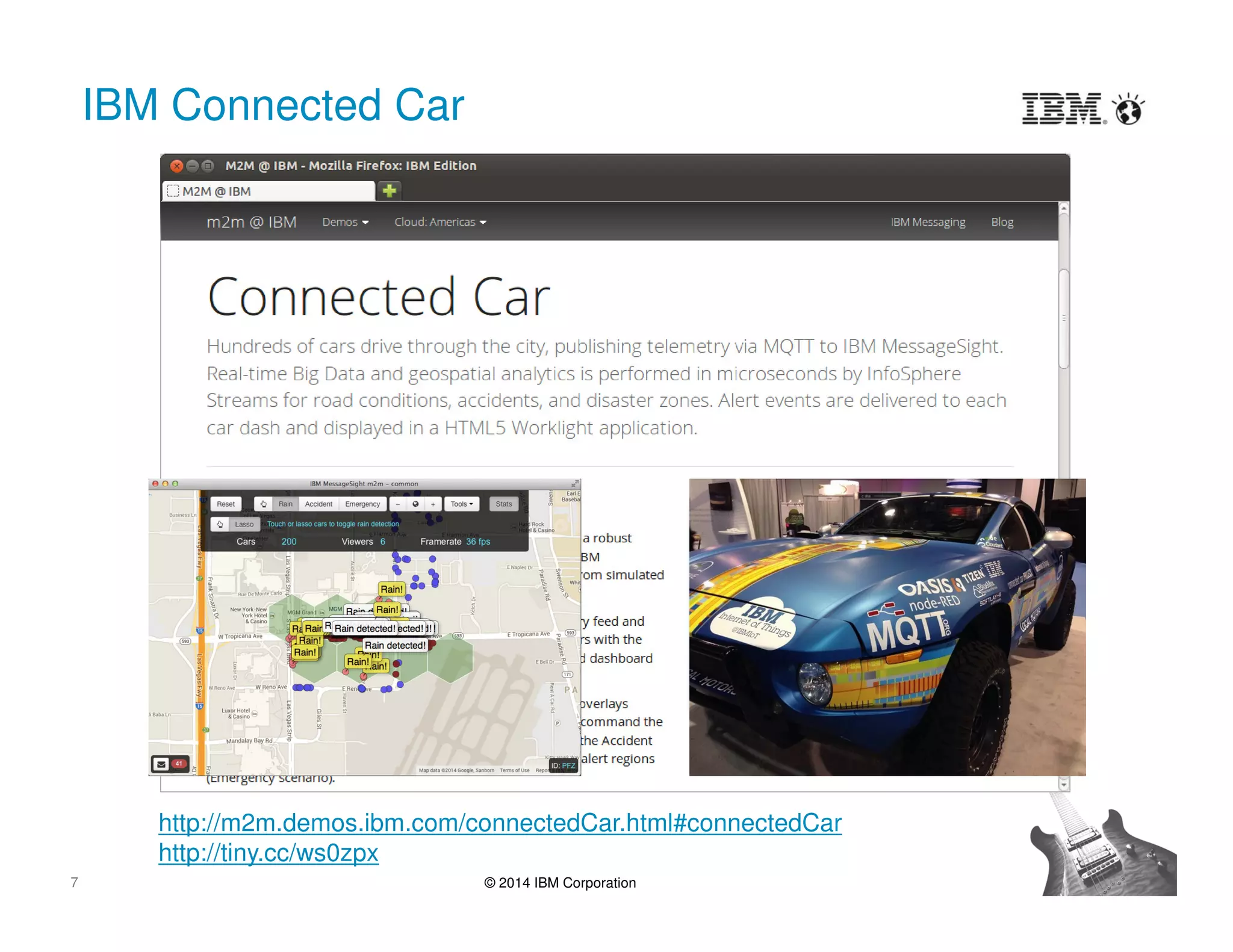

IBM Connected Car
http://m2m.demos.ibm.com/connectedCar.html#connectedCar
http://tiny.cc/ws0zpx

8. 8
Bluemix references.

9. 9 © 2014 IBM Corporation

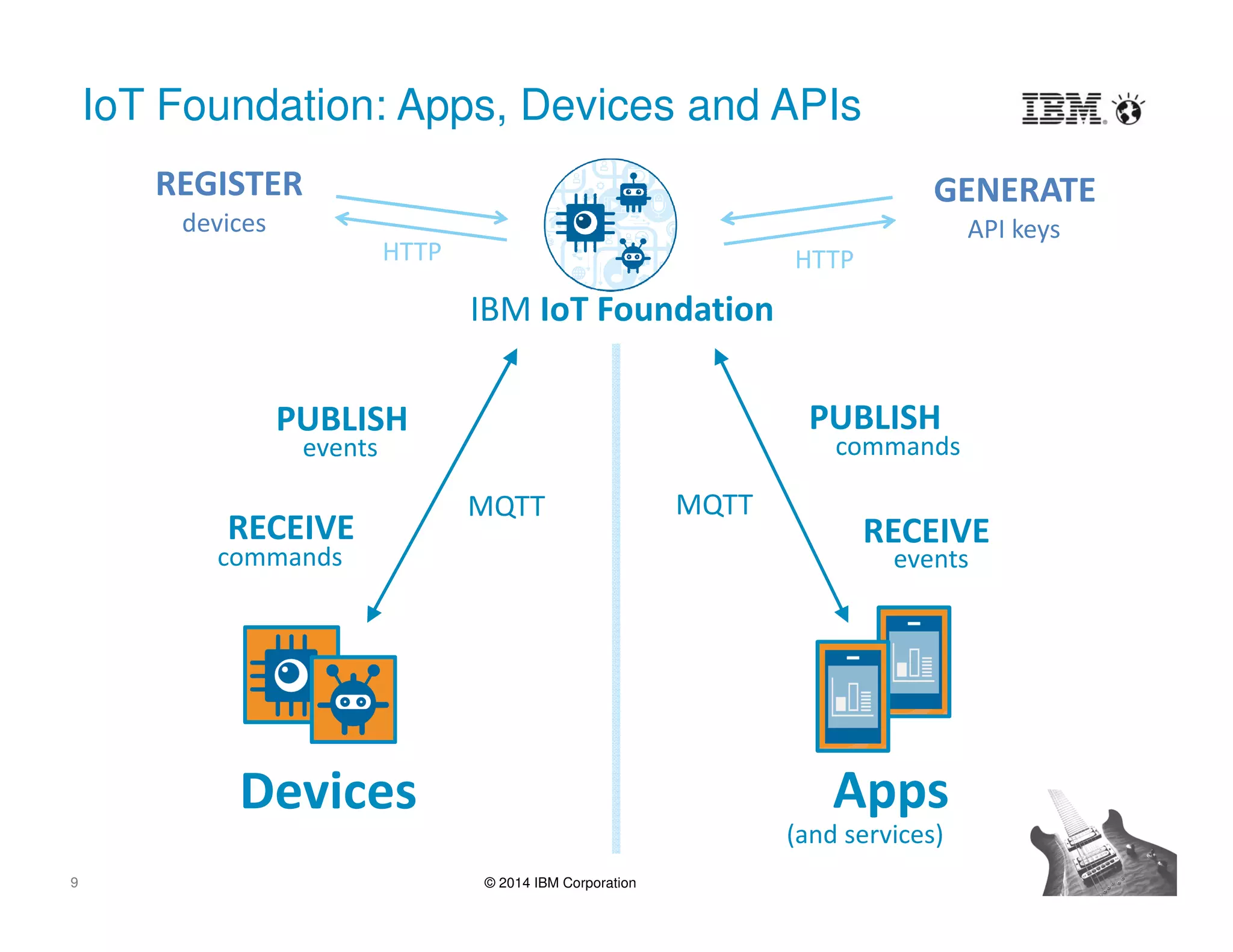

IoT Foundation: Apps, Devices and APIs
Devices
IBM IoT Foundation
Apps
PUBLISH
RECEIVE
events
commands
PUBLISH
commands
REGISTER
devices
GENERATE
API keys
HTTP HTTP
RECEIVE
events
(and services)
MQTT MQTT

10. 10 © 2014 IBM Corporation

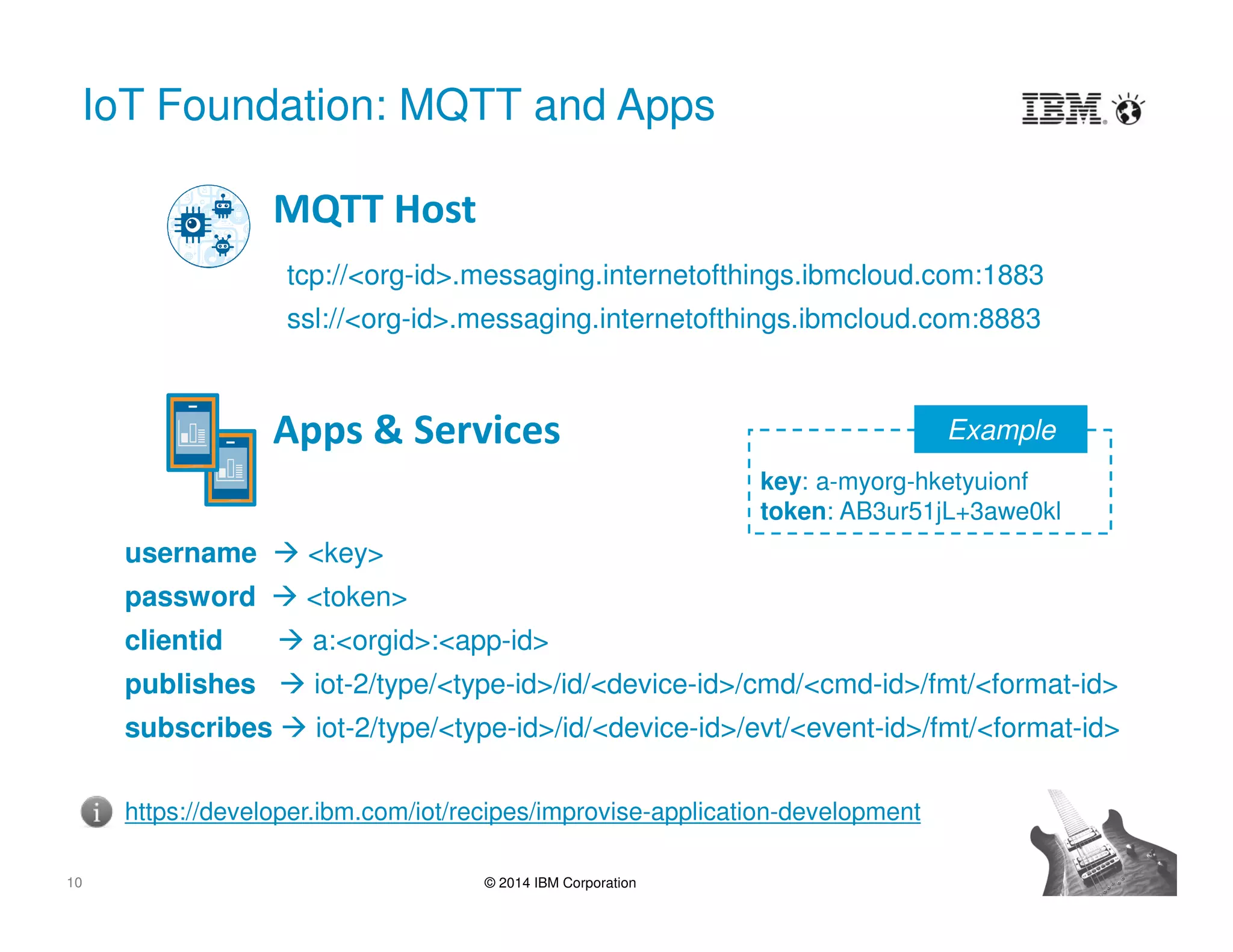

IoT Foundation: MQTT and Apps
https://developer.ibm.com/iot/recipes/improvise-application-development
username  <key>
password  <token>
clientid  a:<orgid>:<app-id>
publishes  iot-2/type/<type-id>/id/<device-id>/cmd/<cmd-id>/fmt/<format-id>
subscribes  iot-2/type/<type-id>/id/<device-id>/evt/<event-id>/fmt/<format-id>
Apps & Services
key: a-myorg-hketyuionf
token: AB3ur51jL+3awe0kl
Example
tcp://<org-id>.messaging.internetofthings.ibmcloud.com:1883
ssl://<org-id>.messaging.internetofthings.ibmcloud.com:8883
MQTT Host

11. 11 © 2014 IBM Corporation

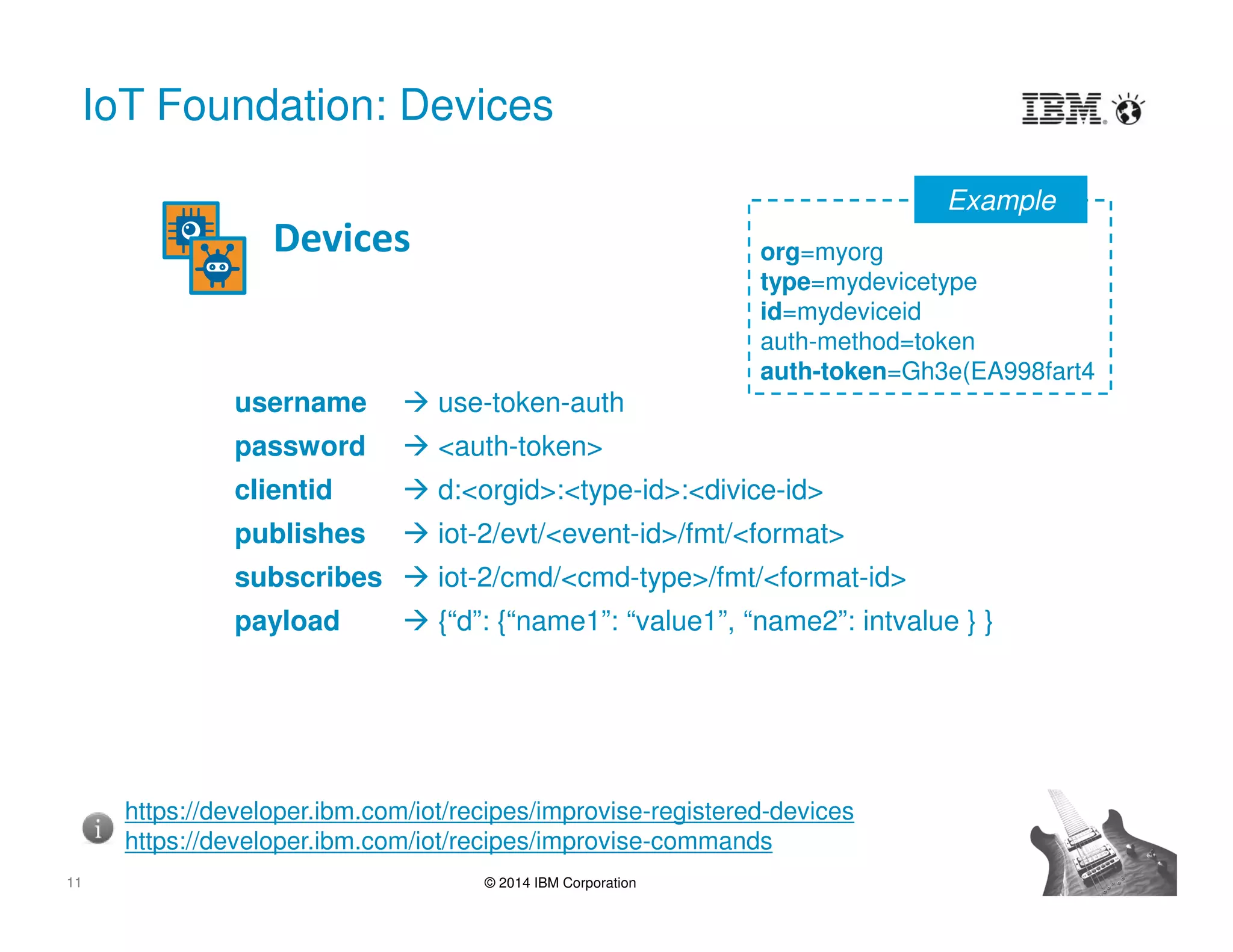

IoT Foundation: Devices
Devices
https://developer.ibm.com/iot/recipes/improvise-registered-devices
https://developer.ibm.com/iot/recipes/improvise-commands
username  use-token-auth
password  <auth-token>
clientid  d:<orgid>:<type-id>:<divice-id>
publishes  iot-2/evt/<event-id>/fmt/<format>
subscribes  iot-2/cmd/<cmd-type>/fmt/<format-id>
payload  {“d”: {“name1”: “value1”, “name2”: intvalue } }
org=myorg
type=mydevicetype
id=mydeviceid
auth-method=token
auth-token=Gh3e(EA998fart4
Example

12. 12 © 2014 IBM Corporation

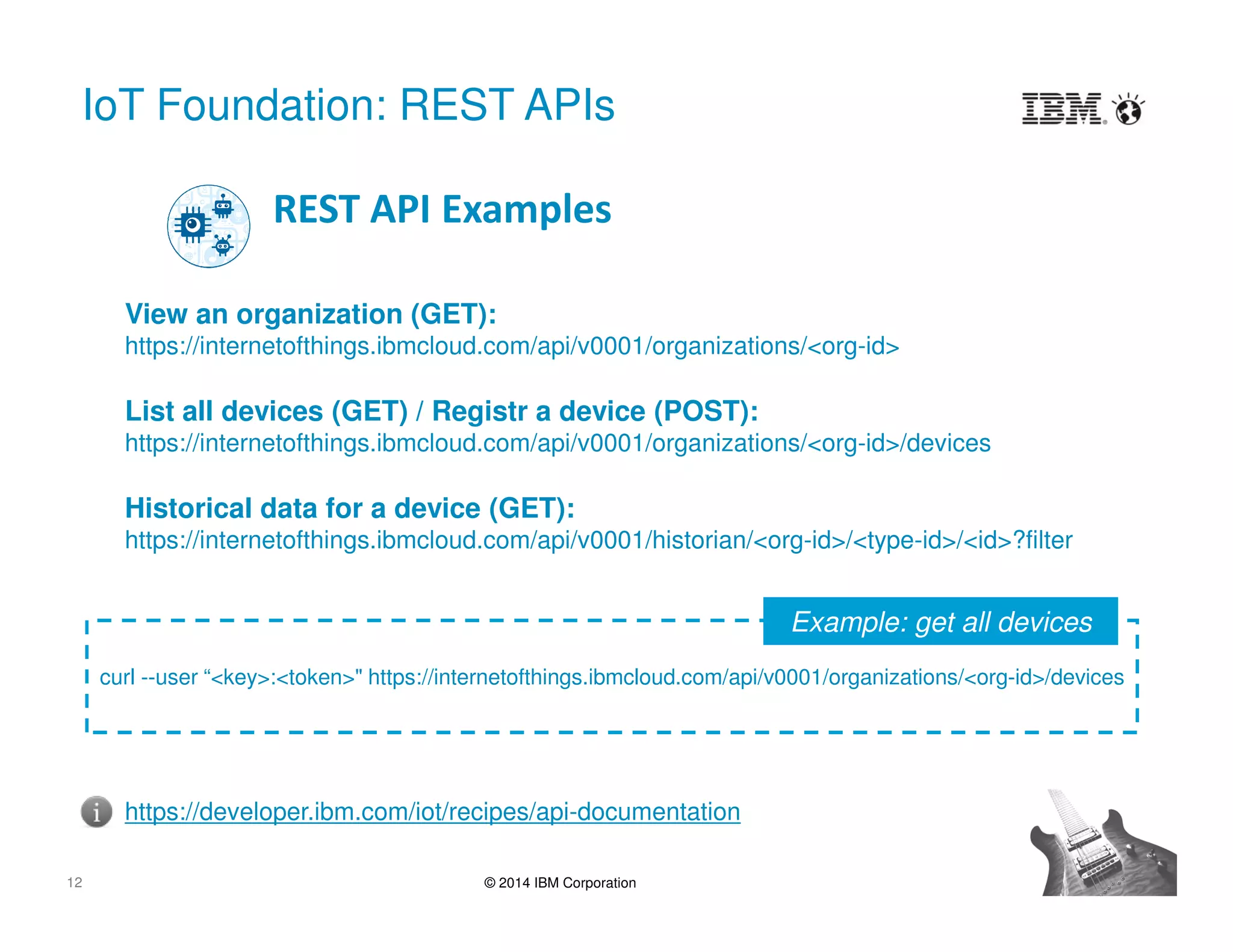

IoT Foundation: REST APIs
View an organization (GET):
https://internetofthings.ibmcloud.com/api/v0001/organizations/<org-id>
List all devices (GET) / Registr a device (POST):
https://internetofthings.ibmcloud.com/api/v0001/organizations/<org-id>/devices
Historical data for a device (GET):
https://internetofthings.ibmcloud.com/api/v0001/historian/<org-id>/<type-id>/<id>?filter
REST API Examples
https://developer.ibm.com/iot/recipes/api-documentation
curl --user “<key>:<token>" https://internetofthings.ibmcloud.com/api/v0001/organizations/<org-id>/devices
Example: get all devices

13. 13 © 2014 IBM Corporation

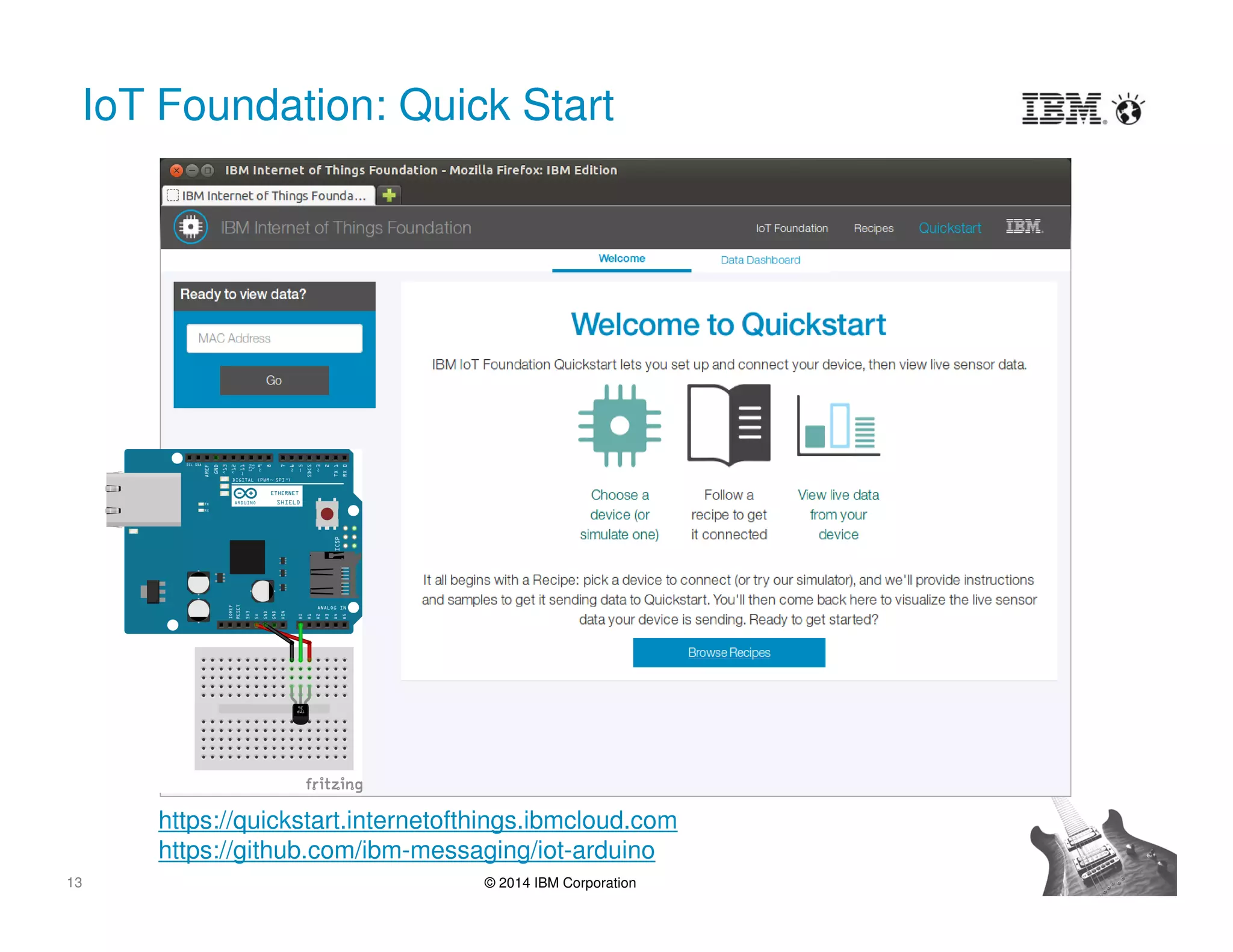

IoT Foundation: Quick Start
https://quickstart.internetofthings.ibmcloud.com
https://github.com/ibm-messaging/iot-arduino

14. 14 © 2014 IBM Corporation

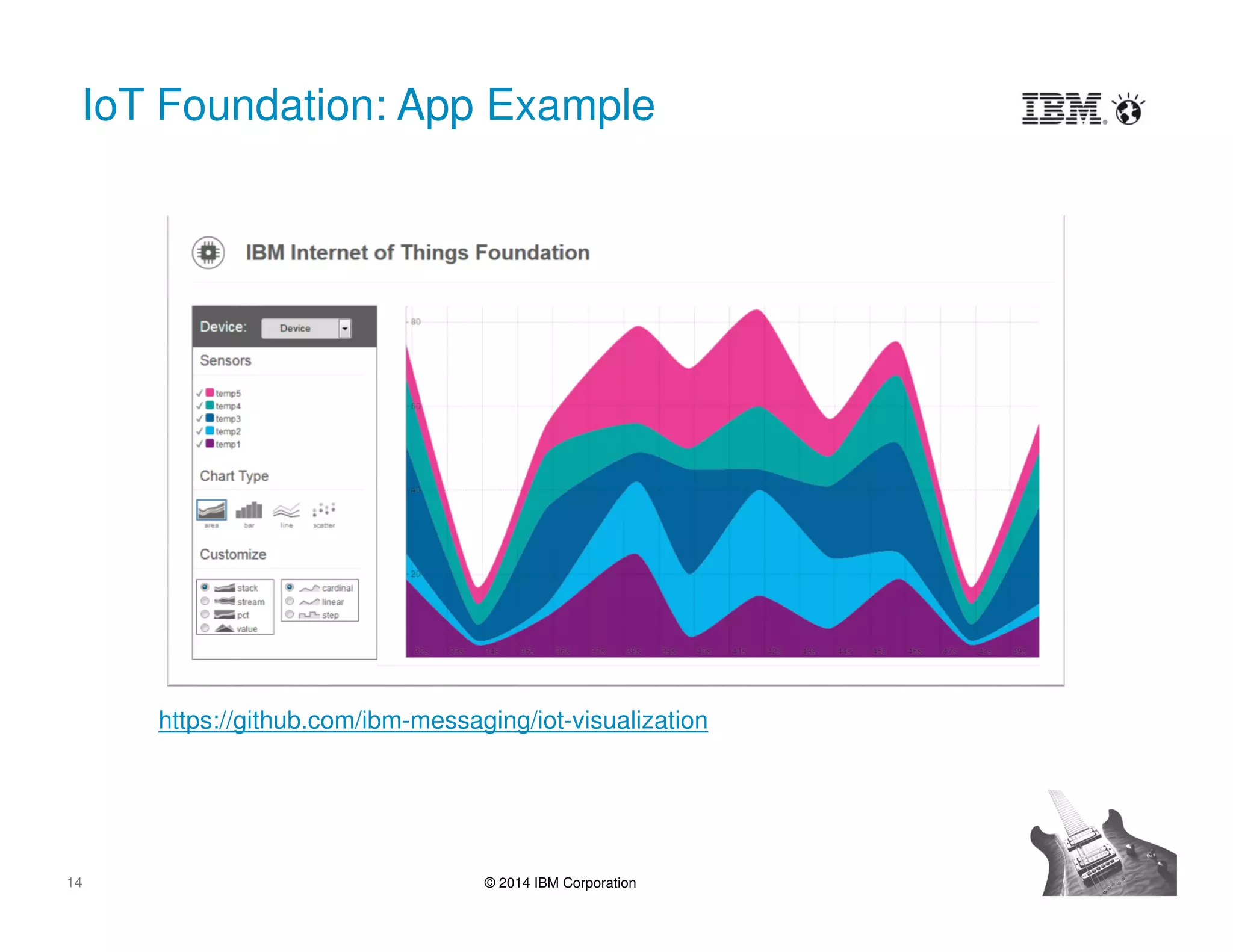

IoT Foundation: App Example
https://github.com/ibm-messaging/iot-visualization

15. 15 © 2014 IBM Corporation

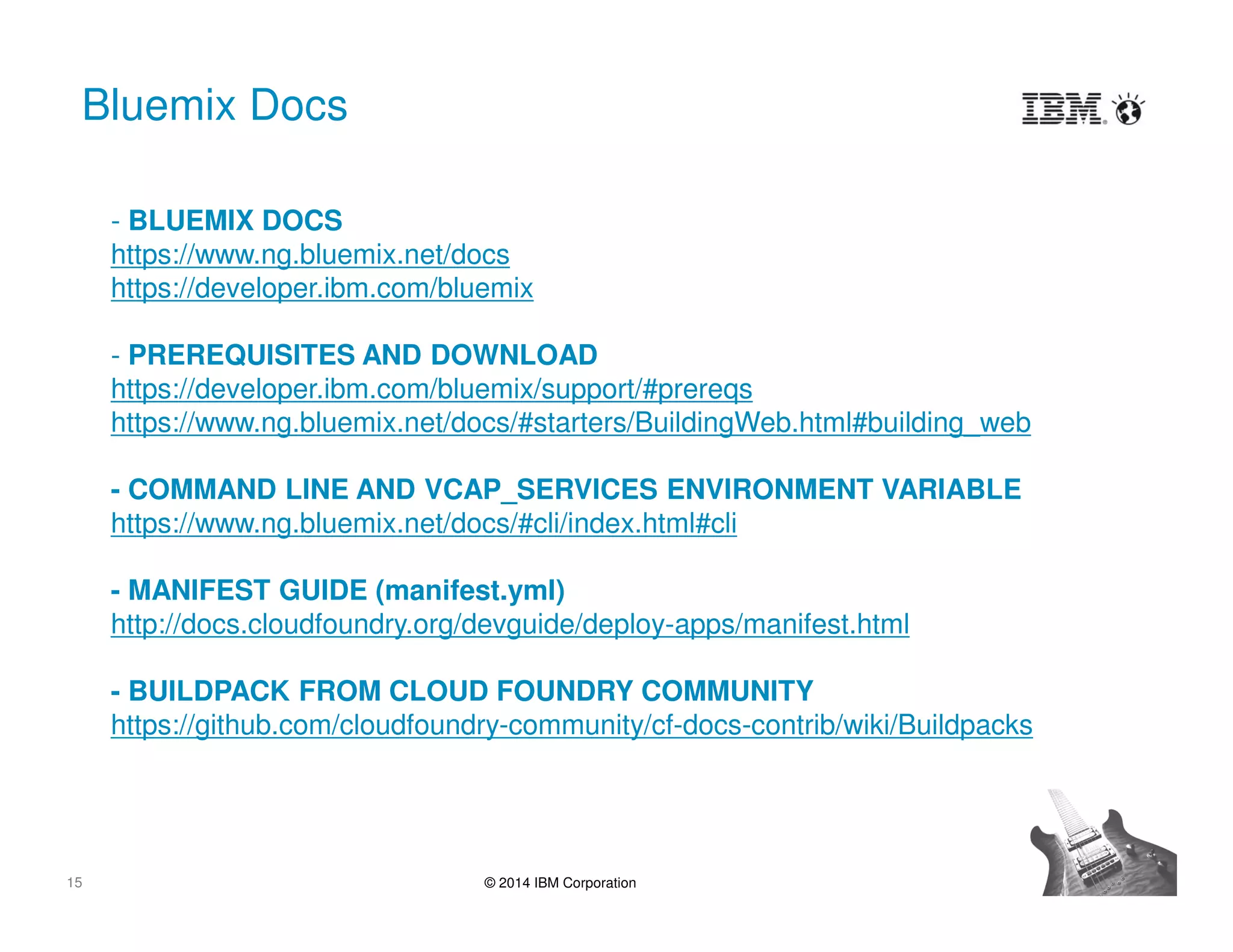

Bluemix Docs
- BLUEMIX DOCS
https://www.ng.bluemix.net/docs
https://developer.ibm.com/bluemix
- PREREQUISITES AND DOWNLOAD
https://developer.ibm.com/bluemix/support/#prereqs
https://www.ng.bluemix.net/docs/#starters/BuildingWeb.html#building_web
- COMMAND LINE AND VCAP_SERVICES ENVIRONMENT VARIABLE
https://www.ng.bluemix.net/docs/#cli/index.html#cli
- MANIFEST GUIDE (manifest.yml)
http://docs.cloudfoundry.org/devguide/deploy-apps/manifest.html
- BUILDPACK FROM CLOUD FOUNDRY COMMUNITY
https://github.com/cloudfoundry-community/cf-docs-contrib/wiki/Buildpacks

16. 16 © 2014 IBM Corporation

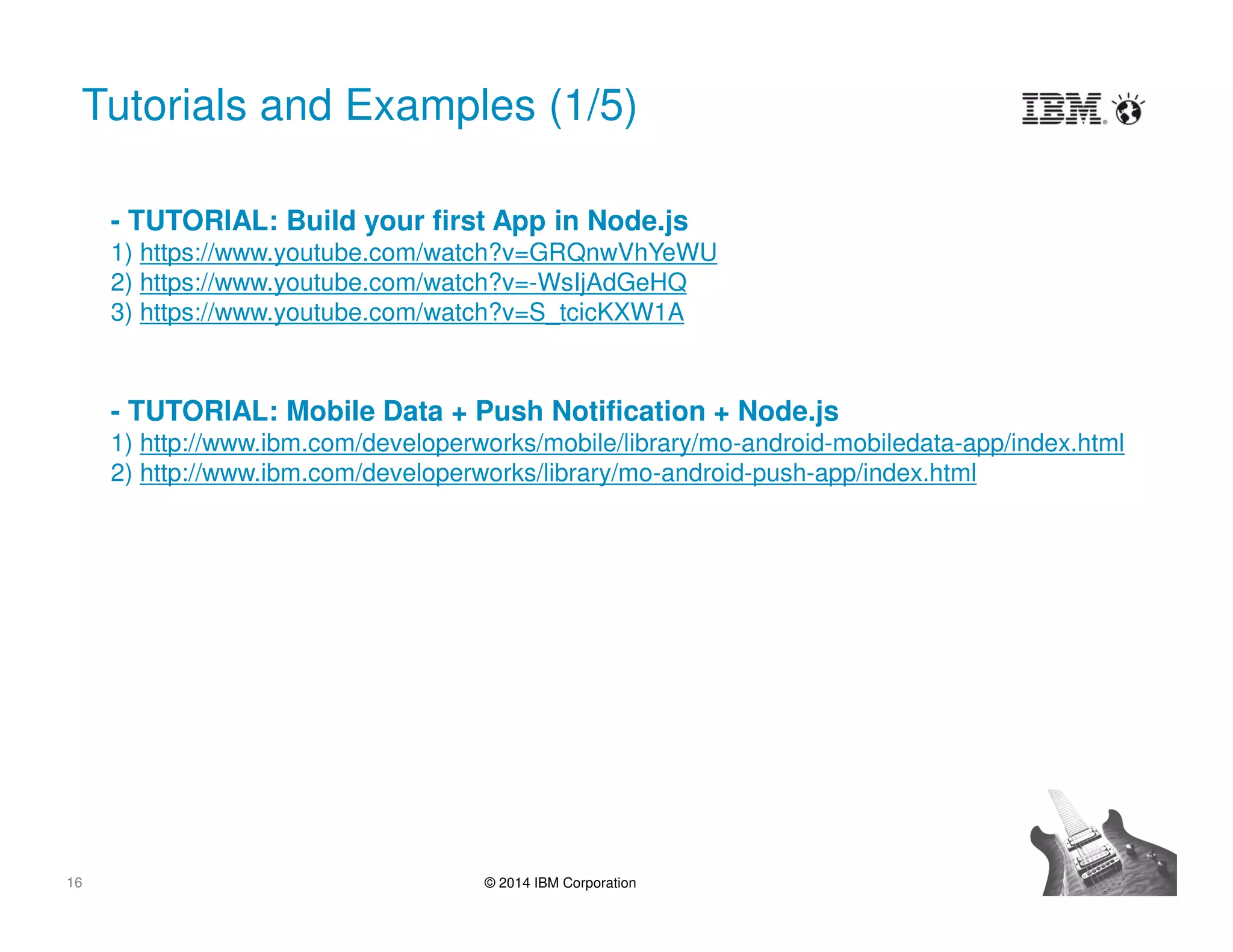

Tutorials and Examples (1/5)
- TUTORIAL: Build your first App in Node.js
1) https://www.youtube.com/watch?v=GRQnwVhYeWU
2) https://www.youtube.com/watch?v=-WsIjAdGeHQ
3) https://www.youtube.com/watch?v=S_tcicKXW1A
- TUTORIAL: Mobile Data + Push Notification + Node.js
1) http://www.ibm.com/developerworks/mobile/library/mo-android-mobiledata-app/index.html
2) http://www.ibm.com/developerworks/library/mo-android-push-app/index.html

17. 17 © 2014 IBM Corporation

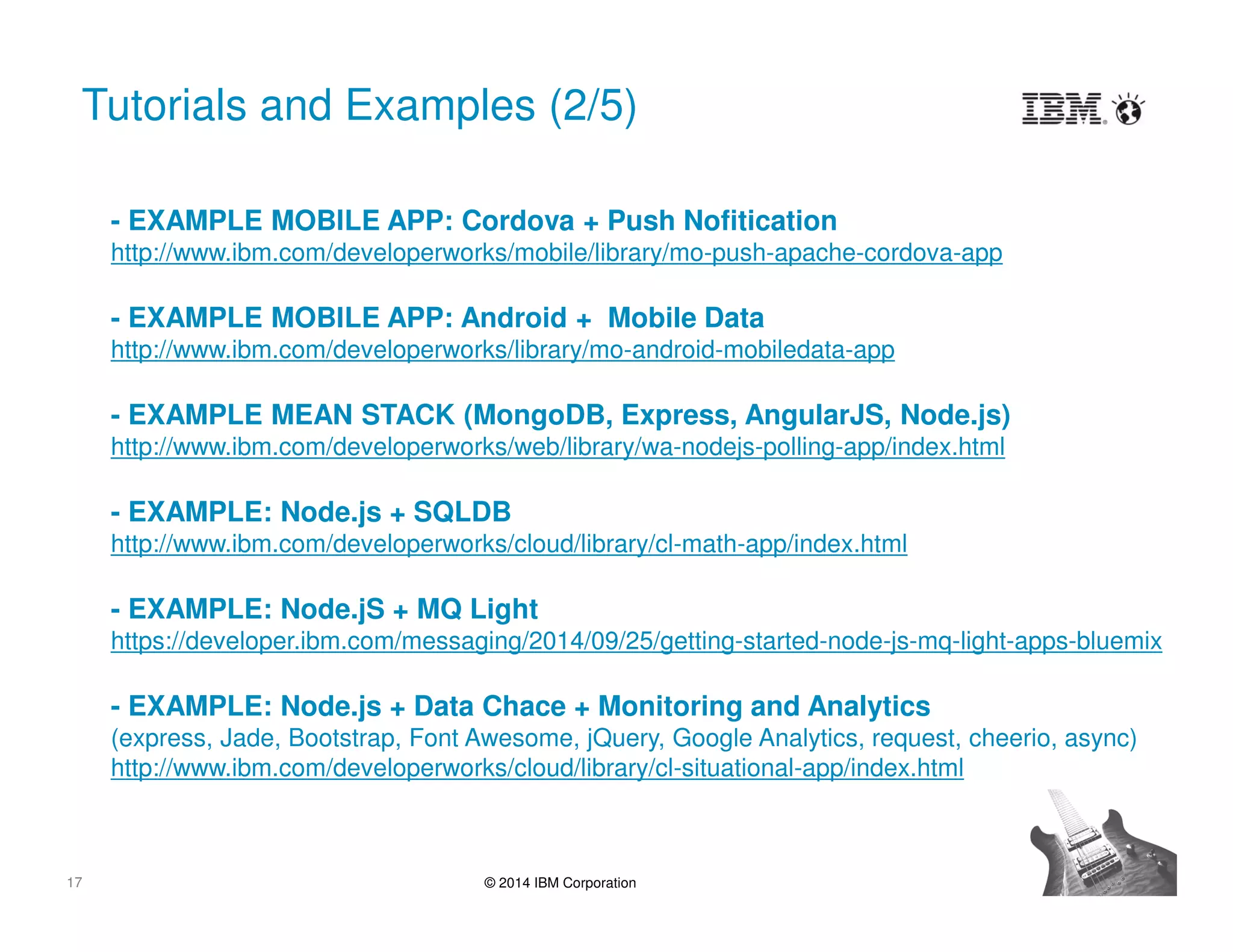

Tutorials and Examples (2/5)
- EXAMPLE MOBILE APP: Cordova + Push Nofitication
http://www.ibm.com/developerworks/mobile/library/mo-push-apache-cordova-app
- EXAMPLE MEAN STACK (MongoDB, Express, AngularJS, Node.js)
http://www.ibm.com/developerworks/web/library/wa-nodejs-polling-app/index.html
- EXAMPLE: Node.js + SQLDB
http://www.ibm.com/developerworks/cloud/library/cl-math-app/index.html
- EXAMPLE: Node.jS + MQ Light
https://developer.ibm.com/messaging/2014/09/25/getting-started-node-js-mq-light-apps-bluemix
- EXAMPLE: Node.js + Data Chace + Monitoring and Analytics
(express, Jade, Bootstrap, Font Awesome, jQuery, Google Analytics, request, cheerio, async)
http://www.ibm.com/developerworks/cloud/library/cl-situational-app/index.html

18. 18 © 2014 IBM Corporation

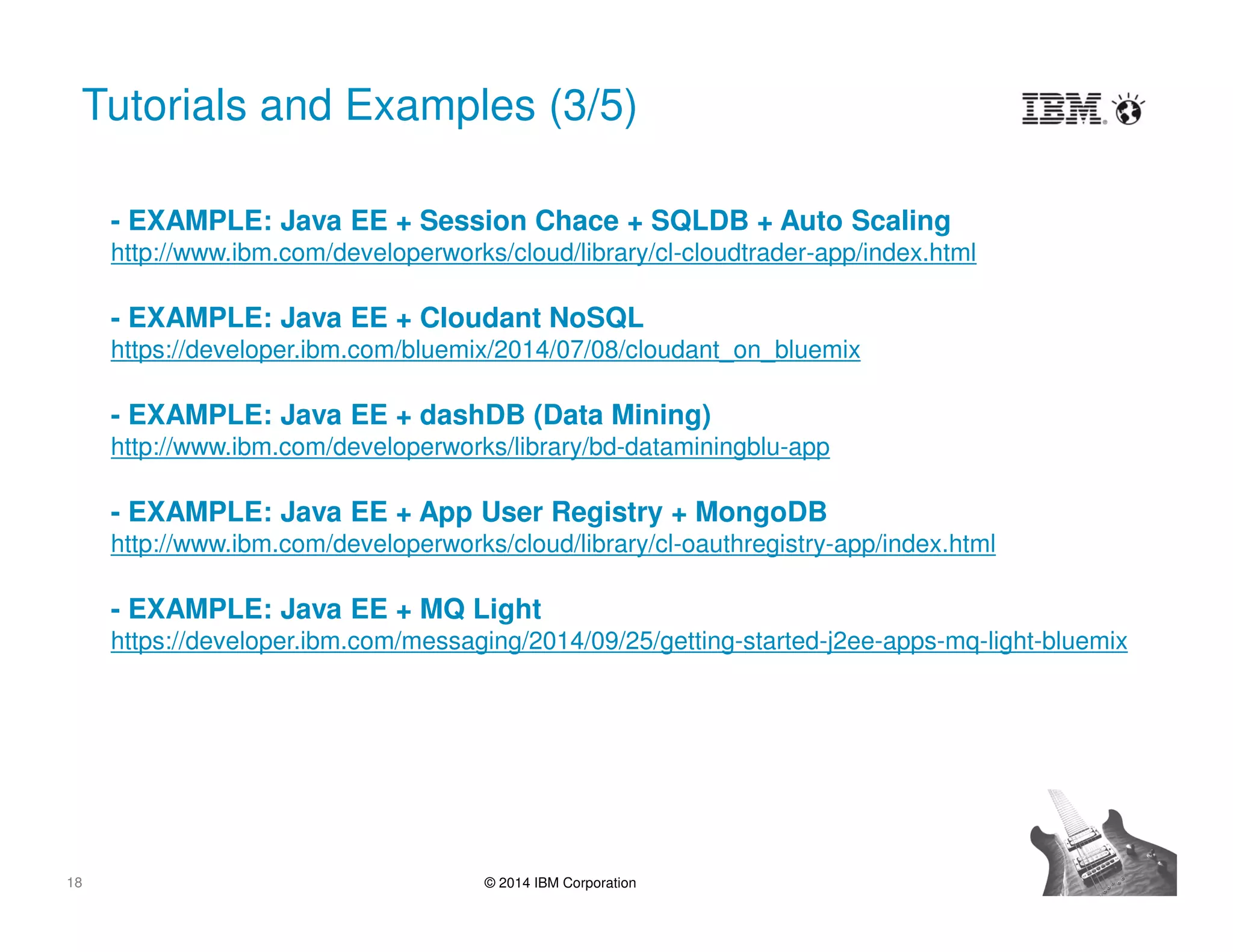

Tutorials and Examples (3/5)
- EXAMPLE: Java EE + Session Chace + SQLDB + Auto Scaling
http://www.ibm.com/developerworks/cloud/library/cl-cloudtrader-app/index.html
- EXAMPLE: Java EE + Cloudant NoSQL
https://developer.ibm.com/bluemix/2014/07/08/cloudant_on_bluemix
- EXAMPLE: Java EE + dashDB (Data Mining)
http://www.ibm.com/developerworks/library/bd-dataminingblu-app
- EXAMPLE: Java EE + App User Registry + MongoDB
http://www.ibm.com/developerworks/cloud/library/cl-oauthregistry-app/index.html
- EXAMPLE: Java EE + MQ Light
https://developer.ibm.com/messaging/2014/09/25/getting-started-j2ee-apps-mq-light-bluemix

19. 19 © 2014 IBM Corporation

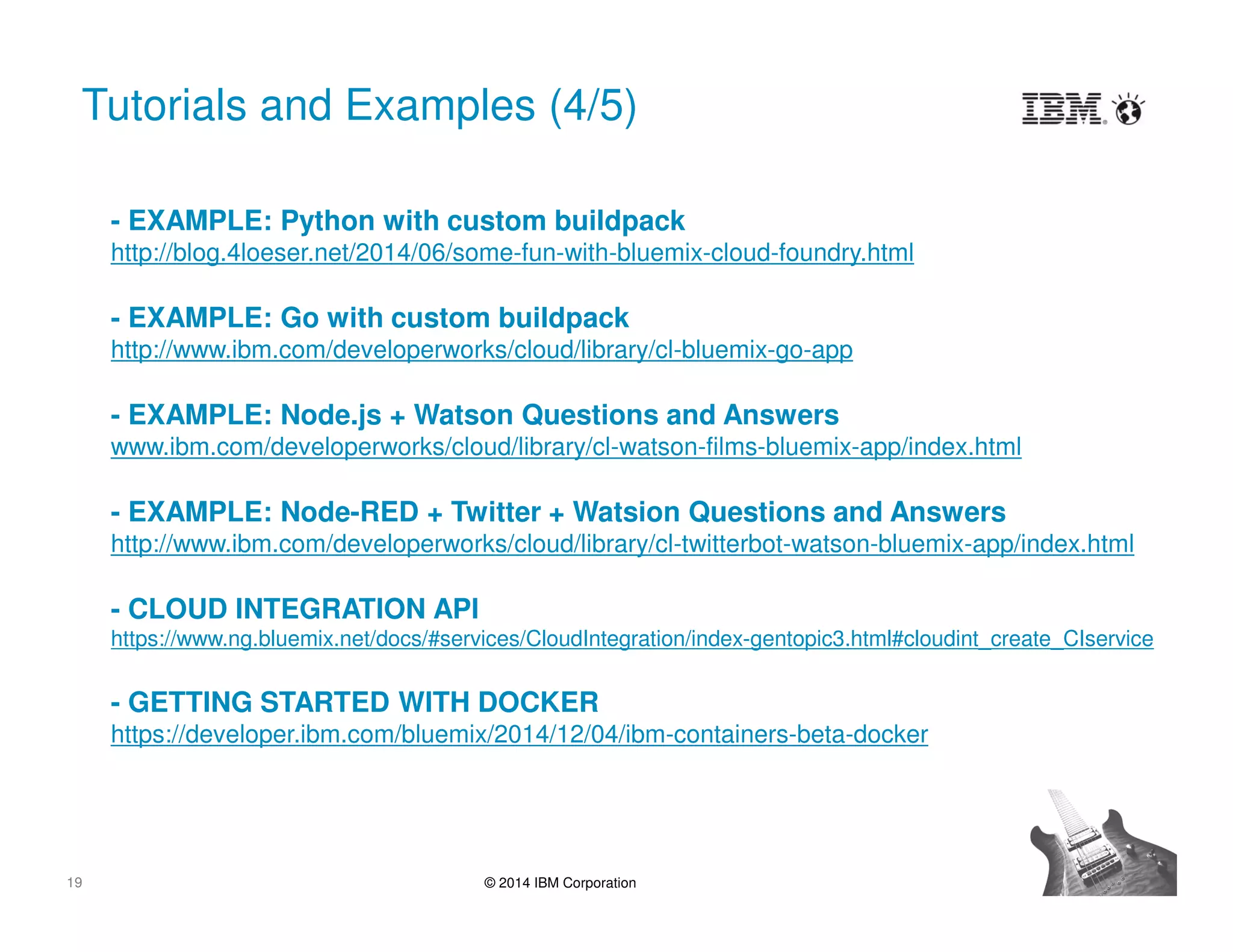

Tutorials and Examples (4/5)
- EXAMPLE: Python with custom buildpack
http://blog.4loeser.net/2014/06/some-fun-with-bluemix-cloud-foundry.html
- EXAMPLE: Go with custom buildpack
http://www.ibm.com/developerworks/cloud/library/cl-bluemix-go-app
- EXAMPLE: Node.js + Watson Questions and Answers
www.ibm.com/developerworks/cloud/library/cl-watson-films-bluemix-app/index.html
- EXAMPLE: Node-RED + Twitter + Watsion Questions and Answers
http://www.ibm.com/developerworks/cloud/library/cl-twitterbot-watson-bluemix-app/index.html
- CLOUD INTEGRATION API
https://www.ng.bluemix.net/docs/#services/CloudIntegration/index-gentopic3.html#cloudint_create_CIservice
- GETTING STARTED WITH DOCKER
https://developer.ibm.com/bluemix/2014/12/04/ibm-containers-beta-docker

20. 20 © 2014 IBM Corporation

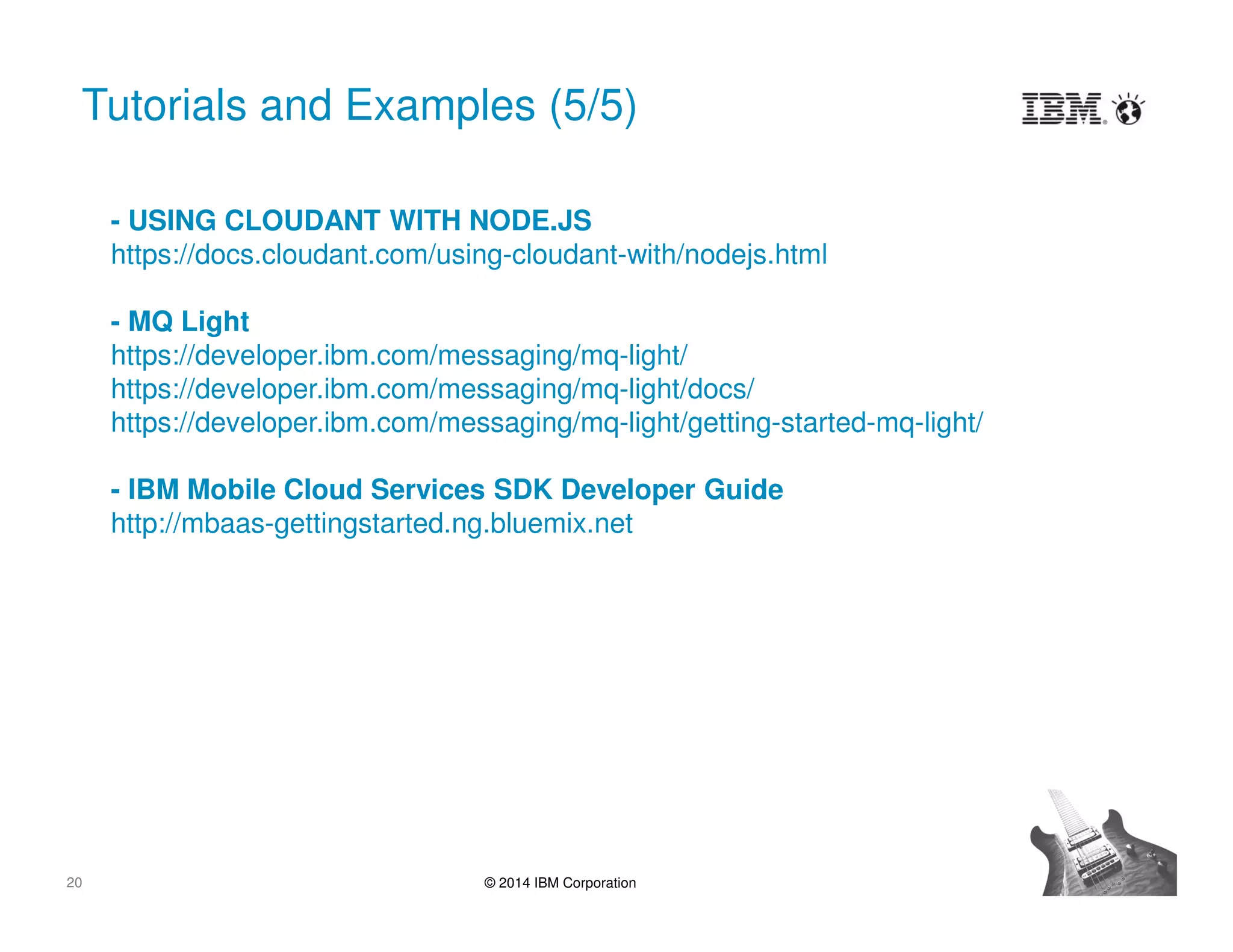

Tutorials and Examples (5/5)
- USING CLOUDANT WITH NODE.JS
https://docs.cloudant.com/using-cloudant-with/nodejs.html
- MQ Light
https://developer.ibm.com/messaging/mq-light/
https://developer.ibm.com/messaging/mq-light/docs/
https://developer.ibm.com/messaging/mq-light/getting-started-mq-light/
- IBM Mobile Cloud Services SDK Developer Guide
http://mbaas-gettingstarted.ng.bluemix.net

21. 21
Bluemix works.
Start a free trial today
ibm.biz/Bluemix2015
