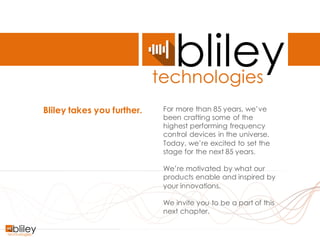

Bliley takes you further. For more than 85 years, we’ve
been crafting some of the
highest performing frequency
control devices in the universe.
Today, we’re excited to set the
stage for the next 85 years.
We’re motivated by what our
products enable and inspired by
your innovations.
We invite you to be a part of this
next chapter.
3. Company Confidential #BlileyTakesYouFurther
Company profile
name Bliley Technologies, Inc.
founded 1930
ownership Privately owned – S Corp.
website bliley.com
blog blog.bliley.com
engineers 9, 6 with Masters degrees
located 2545 West Grandview Blvd
Erie, PA 16506
4. Company Confidential #BlileyTakesYouFurther
Markets we love to serve…
Defense &
Non-export
Aerospace &
Avionics
Industrial &
Medical
Teleco
infrastructure
Satellite
communications
Don’t see your market?
Don’t worry, we can still be friends.
5. Company Confidential #BlileyTakesYouFurther

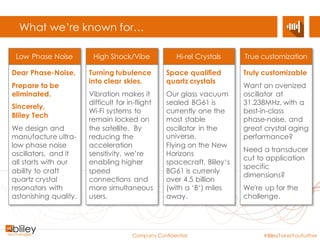

What we’re known for…
Space qualified
quartz crystals
Our glass vacuum
sealed BG61 is
currently one the
most stable
oscillator in the
universe.
Flying on the New
Horizons
spacecraft, Bliley‘s
BG61 is currenly
over 4.5 billion
(with a ‘B‘) miles
away.
Dear Phase-Noise,
Prepare to be
eliminated.
Sincerely,
Bliley Tech
We design and
manufacture ultra-
low phase noise
oscillators, and it
all starts with our
ability to craft
quartz crystal
resonators with
astonishing quality.
Truly customizable
Want an ovenized
oscillator at
31.238MHz, with a
best-in-class
phase-noise, and
great crystal aging
performance?
Need a transducer
cut to application
specific
dimensions?
We're up for the
challenge.
Turning tubulence
into clear skies.
Vibration makes it
difficult for in-flight
Wi-Fi systems to
remain locked on
the satellite. By
reducing the
acceleration
sensitivity, we’re
enabling higher
speed
connections and
more simultaneous
users.
Hi-rel Crystals True customizationHigh Shock/VibeLow Phase Noise
7. Company Confidential #BlileyTakesYouFurther
Oscillators
TCXOs
BTCS7; BTCS5; BTCS3; BTCS2.5 (ceramic)
•5x7mm; 5x3.2; 3.2x2.5; 2.5x2.0; 2.0x1.6
•10MHz to 1.45GHz (depends on output)
•Wide temp range +/-0.28ppm to 2.5ppm
BTC14; BTC8 (DIP style)
•14 pin DIP and 8 pin DIP
•1.0MHz to 1.45GHz (depends on output)
•Wide temp range +/-0.28ppm to 2.5ppm
BTCS9
•9x14mm SMD
•1.0MHz to 1.45GHz (depends on output)
•Wide temp range
BTCS (custom package and case sizes)
•1.0MHz to 1.45GHz
•Examples:
•1x1
•16pin
•Double DIP
•space level flat packs
•14x9mm J lead
Potential Applications
• Avionics
• Wearable’s
• IoT
• Network equipment
• Personal Computer
• Consumer Electronics
• Industrial control
• Military & Defense
• Medical devices and equipment
• SATCOM/Space
Output Options
• Clipped sinewave
• Sinewave
• HCMOS
• CMOS/TTL
• LVPECL
• LVDS
8. Company Confidential #BlileyTakesYouFurther
Oscillators
OCXOs
Standard footprints (SC & AT cut crystals)
•9X14mm thru 36X27mm
•Thru-Hole & SMD packages
•Complete Mil-Std Compliance
Apollo Series (ultra low phase noise)
•25 X 25mm
•30 MHz to 130 MHz
•-103dBc/Hz @ 10Hz; -175dBc/Hz @ 100kHz
Zeus Series (ultra low phase noise)
•Connectorized 50Ω output
•30 MHz to 130 MHz
•-103dBc/Hz @ 10Hz; -178dBc/Hz @ 100kHz
Low Power Series OCXOs
•Multiple footprints (from 0.5x0.5” to 0.8x0.8”)
•135mW steady state power consumption
•-95dBc/Hz @ 10Hz; -168dBc/Hz @ 100kHz
Poseidon Series (g-compensated OCXOs)
•Military & industrial grade options available
•5 MHz to 130 MHz
•0.02 PPB/G acceleration sensitivity
Potential Applications
• Aerospace and Defense
• Electronic Warfare and ELINT
• Position, navigation, & timing
• Radar (ATM and Surveillance)
• SATCOM (land mobile, airborne, fixed)
• Tactical Radios (Link16, JTRS, SW defined)
• Weapon Data Links
• Commercial Avionics
• Radar
• NextGen (ADS-B, Data Comm, NVS, SWIM)
• Medical
• Imaging
• Medical instruments
• Telecommunications//infrastructure
• Cellular base stations
• Wireline and wireless
• Network timing and synchronization
9. Company Confidential #BlileyTakesYouFurther
Quartz Crystals
Commercial, Military, and QPL MIL-3098
BQC – ceramic surface mount
•BQ49S HC49/SMD 3.5MHz to 100MHz
•BQCS8 8.0x8.0mm 8.0MHz to 200MHz
•BQCS7 7.0x5.0mm 6MHz to 200MHz
•BQCS5 5.0x3.2mm 8MHz to 200MHz
•BQCS3 3.2 x2.5mm 8MHz to 300MHz
•BQCS2.5 2.5x2.0mm 12MHz to 60MHz
•BQCS2 2.0x1.6mm 20MHz to 60 MHz
BG61 – vacuum sealed glass crystals
•AT or SC cut crystals
•3.0MHz-16.384MHz
•Ultra high stability
•Space Qualified with flight heritage
Potential Applications
• Avionics
• Wearable’s
• IoT
• Network equipment
• Personal Computer
• Consumer Electronics
• Industrial control
• Military & Defense
• Medical devices and equipment
• SATCOM/Space
BQ – through-hole
•BQ49 HC49/u 2.0MHz to 200MHz
•BQU1 UM-1 8.0MHz to 200MHz
•BQU5 UM-5 8.0MHz to 200MHz
•BQ35 HC35 10MHz to 130MHz
•BQTO5 TO5 8MHz to 200MHz
BQTO8 TO8 3MHz to 100MH
Hi-Rel Space Crystals
•New Horizons (Pluto exploration)
•Cassini (Saturn exploration)
•Mars Global Surveyor
•Various John Hopkins / Applied Research Lab Missions
Notable BG61 missions
10. Company Confidential #BlileyTakesYouFurther
Filters
Crystal and LC Filters
BXFMS1 (5x7mm)
•2 pole monolithic
•21.4MHz-170MHz
•Natural impedance
BXFD/M (standard, custom & legacy)
•Monolithic, up to 10 poles
•Up to 250MHz
•50 ohms in//out and other impedance
BLCF (lumped element LC filters)
•Multiple pole
•500KHz – 3.5GHz
•50 ohms, 75 ohms, or special impedance
BXFM49 (HC-49/U)
•2 pole monolithic
•10.7MHz-170MHz
•Natural impedance
BXFMU1 (UM-1)
•2 pole monolithic
•10.7MHz-170MHz
•Natural impedance
Potential Applications
• Aerospace and Defense
• Electronic Warfare and ELINT
• Position, navigation, & timing
• Radar (ATM and Surveillance)
• SATCOM (land mobile, airborne, fixed)
• Tactical Radios (Link16, JTRS, SW defined)
• Weapon Data Links
• Commercial Avionics
• Radar
• NextGen (ADS-B, Data Comm, NVS, SWIM)
• Medical
• Imaging
• Medical instruments
• Telecommunications//infrastructure
• Cellular base stations
• Wireline and wireless
• Network timing and synchronization
11. Company Confidential #BlileyTakesYouFurther
Space heritage
§ GPS Block Satellites
§ Globestar
§ Iridium
§ International Space Station
§ Cassini-Huggens (Saturn Mission)
§ New Horizons (NASA Pluto-Kuiper Belt
Mission)
§ Alenia Spazio (Various Missions)
§ L-3 Communications (Various Missions)
§ Lockheed Martin (Various Missions)
§ Mars Pathfinder (NASA/JPL)
§ SymmetricomMicrosemi (Various
Undisclosed Satellites)
§ TRAK Microwave (Various Missions)
§ Various Undisclosed missions for JHU/APL,
NSA, NASA and US Navy
• AMX Express AM4, AM5, AM6 (OCXO)
• Intelsat 17, 19,20 and 34 (TCXO)
• ABS2, OP10, THOR7 and ISDLA (TCXO)
• AlphaSat (OCXO)
CRYSTAL PRODUCTS
OSCILLATOR PRODUCTS
12. Company Confidential #BlileyTakesYouFurther
Quality and reliability is our priority
• ISO-9001: 2008 Certified
• RoHS Compliant Product
• REACH Compliant
• Environmental and Qualification testing to
MIL-STD-883B, MIL-STD-202 and MIL-O-55310
• Actively pursuing qualification with DLA/DSCC for
MIL-PRF-55310
• Product Screening and Qualification Programs
– Device Screening
– Element Evaluation on passive and active devices
• Other Specification Guidelines
– J-STD-001 Class 3 and IPC-A-610
– IPC-7711 and IPC-7721 for Rework and authorized repair operations
13. Company Confidential #BlileyTakesYouFurther

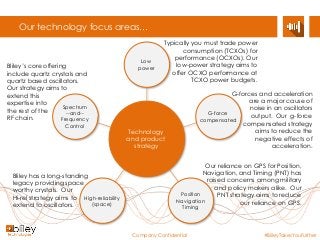

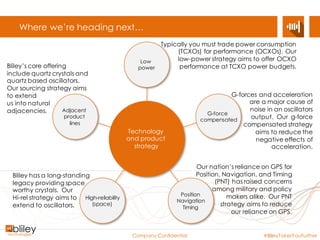

Our technology focus areas…
Typically you must trade power
consumption (TCXOs) for
performance (OCXOs). Our
low-power strategy aims to
offer OCXO performance at
TCXO power budgets.
G-forces and acceleration
are a major cause of
noise in an oscillators
output. Our g-force
compensated strategy
aims to reduce the
negative effects of
acceleration.
Our reliance on GPS for Position,
Navigation, and Timing (PNT) has
raised concerns among military
and policy makers alike. Our
PNT strategy aims to reduce
our reliance on GPS.
Bliley has a long-standing
legacy providing space
worthy crystals. Our
Hi-rel strategy aims to
extend to oscillators.
Bliley’s core offering
include quartz crystals and
quartz based oscillators.
Our strategy aims to
extend this
expertise into
the rest of the
RF chain.
Technology
and product
strategy
Low
power
Position
Navigation
Timing
High-reliability
(space)
Spectrum
--and--
Frequency
Control
G-force
compensated
14. Company Confidential #BlileyTakesYouFurther

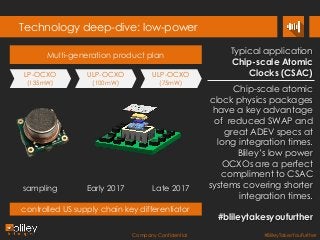

Technology deep-dive: low-power
Multi-generation product plan
LP-OCXO
(135mW)
ULP-OCXO
(100mW)
ULP-OCXO
(75mW)
sampling Late 2017Early 2017
controlled US supply chain key differentiator
Typical application
Chip-scale Atomic
Clocks (CSAC)
Chip-scale atomic
clock physics packages
have a key advantage
of reduced SWAP and
great ADEV specs at
long integration times.
Bliley’s low power
OCXOs are a perfect
compliment to CSAC
systems covering shorter
integration times.
#blileytakesyoufurther
15. Company Confidential #BlileyTakesYouFurther

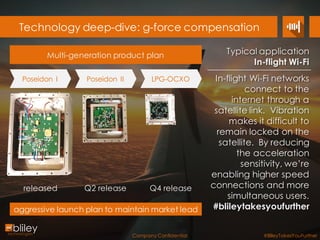

Technology deep-dive: g-force compensation
Poseidon I Poseidon II LPG-OCXO
Multi-generation product plan Typical application
In-flight Wi-Fi
In-flight Wi-Fi networks
connect to the
internet through a
satellite link. Vibration
makes it difficult to
remain locked on the
satellite. By reducing
the acceleration
sensitivity, we’re
enabling higher speed
connections and more
simultaneous users.
#blileytakesyoufurther
released FY17 releaseQ3 release
aggressive launch plan to maintain market lead
compensated
uncompensated
16. Company Confidential #BlileyTakesYouFurther
Management team
Keith R. Szewczyk
CEO & Director
Leading a talented team
through technological
advances in Bliley’s core
pillars of expertise in Low
Phase Noise, Low Power, G-
force Compensation, Position
Navigation Timing (PNT) and
High reliability (Space)
products. Providing an
entrepreneurial focus to to a
mature industry ripe for
innovation.
Keith has 20+ years of global
product growth leadership
within global executive/GM
roles at General Electric (GE)
and Finmeccanica.
Steve Runkel
SVP Sales & BD
Growing a solutions based
sales organization that
provides years of industry
knowledge and technical
expertise. Offering access to
innovative technology that
provides our customers with
disruptive advantages within
their markets. Combining
solution selling and technical
know-how to advance the
industry's capabilities.
Steve has 30+ years of global
technical sales and company
leadership through VP and
CEO roles at Black Box, B&B
Electronics and Quatech.
Tommy Reed
VP of Technology
Defining the technology
strategy that will propel Bliley
into our next chapter of
break-through solutions.
Balancing a research
portfolio that is yielding orders
of magnitude performance
improvements over current
industry standards. Applying
lean startup and design
thinking methodology to
future proof Bliley.
Tommy has lead R&D
programs for several years,
most recently with Harris
Corporation's Electronic
Systems Segment.
Gregory Rogers
VP of Products
Translating our technology
roadmap into best-in-class
product offerings. Working at
the intersection of innovation
and market needs to craft a
portfolio of compelling
solutions organized around
our core pillars of expertise.
Partnering with our customers
to develop tailored solutions
that meet their application
specific requirements.
Gregory has 35+ years of
global experiences within the
industry, where he help VP
roles at Bliley, M-Tron PTI and
Murata Electronics.
17. Company Confidential #BlileyTakesYouFurther

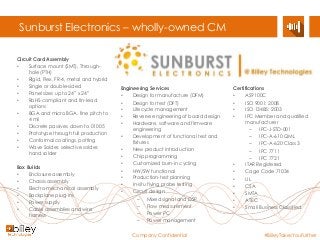

Circuit Card Assembly
• Surface mount (SMT), Through-
hole (PTH)
• Rigid, Flex, FR-4, metal and hybrid
• Single or double-sided
• Panel sizes up to 24” x 24”
• RoHS-compliant and tin-lead
options
• BGA and micro BGA, fine pitch to
4 mil
• Discrete passives down to 01005
• Prototype through full production
• Conformal coatings, potting
• Wave Solder, selective solder,
hand solder
Box Builds
• Enclosure assembly
• Chassis assembly
• Electro-mechanical assembly
• Backplane plug-ins
• Power supply
• Cable assemblies and wire
harness
Engineering Services
• Design for manufacture (DFM)
• Design for test (DFT)
• Lifecycle management
• Reverse engineering of board design
• Hardware, software and firmware
engineering
• Development of functional test and
fixtures
• New product introduction
• Chip programming
• Customized burn-in cycling
• HW/SW functional
• Production-test planning
• In-situ flying probe testing
• Circuit design
– Mixed signal and DSP
– Flow measurement
– Power PC
– Power management
Sunburst Electronics – wholly-owned CM
Certifications
• AS9100C
• ISO 9001: 2008
• ISO 13485: 2003
• IPC Member and qualified
manufacturer
– IPC-J-STD-001
– IPC-A-610 QML
– IPC-A-620 Class 3
– IPC 7711
– IPC 7721
• ITAR Registered
• Cage Code 71034
• UL
• CSA
• SMTA
• ATEC
• Small Business Classified
