- 1. Fiber: Not Just forBreakfast Anymore Heather Burnett Gold, President FTTH Council Americas

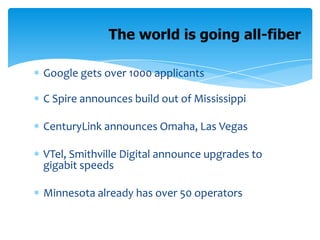

- 2. The world isgoing all-fiber Google gets over 1000 applicants C Spire announces build out of Mississippi CenturyLink announces Omaha, Las Vegas VTel, Smithville Digital announce upgrades to gigabit speeds Minnesota already has over 50 operators
- 3. North American FTTHGrowth Homes Passed Homes Marketed Homes Connected 30 25 20 2013 Homes Passed: 27.7M 2013 Homes Marketed: 25.5M 2013 Homes Connected: 10.7M 15 10 5 0 Sep' 13 Mar '13 Sep '12 Mar '12 Sep '11 Mar '11 Sep '10 Mar '10 Sep '09 Mar '09 Sep '08 Mar '08 Sep '07 Mar '07 Sep '06 Mar '06 Sep '05 Mar '05 Sep '04 Mar '04 Sep '03 Mar '03 Sep '02 Mar '02 Sep '01 Source: RVA annual Provider & Consumer Studies
- 4. Number Of U.S.FTTH Communities Based on the 2012 Consumer Study, approximately 8.5% of U.S. municipalities had FTTH – or about 1,759 Source: RVA 2012 Consumer Study
- 5. FTTH Take Rates U.S.Take-Rates Versus Homes Marketed Reach 45.8% Verizon Build Starts 50% 45% 40% 35% 30% 25% 20% 15% 10% 5% 0% Sep '13 Mar '13 Sep '12 Mar '12 Sep '11 Mar '11 Sep '10 Mar '10 Sep '09 Mar '09 Sep '08 Mar '08 Sep '07 Mar '07 Sep '06 Mar '06 Sep '05 Mar '05 Sep '04 Mar '04 Sep '03 Mar '03 Sep '02 Mar '02 Sep '01 Source: RVA annual Provider & Consumer Studies
- 6. FTTH Take-Rates AreEven Higher In Many Cases Take-Rates Vary From 25% To 81% Real Estate Dev (Greenfield) 81% Cable TV/ MSO (Greenfield) 62% Competitive Prov/ CLEC Rural 52% ILEC Tier 2 & 3 51% Muni Retail Rural 48% Tier 1 ILEC Overbuild 38% Competitive Prov/ CLEC… Muni Retail Urban/Suburban 31% 30% Muni Wholesale 25% 0% 20% 40% 60% 80% 100%

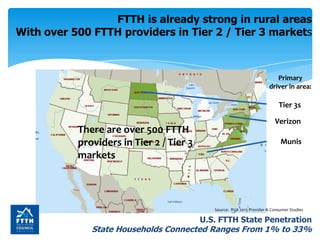

- 7. FTTH is alreadystrong in rural areas With over 500 FTTH providers in Tier 2 / Tier 3 markets Primary driver in area: Tier 3s There are over 500 FTTH providers in Tier 2 / Tier 3 markets Verizon Munis Source: RVA 2013 Provider & Consumer Studies U.S. FTTH State Penetration State Households Connected Ranges From 1% to 33%
- 8. FTTH in ruralareas benefited from the ARRA stimulus In 2009, major funding opportunities were made available through the stimulus. Broadband Initiatives Program provided $3.5 billion to expand and improve connectivity in rural areas and small towns/cities Broadband Technology Opportunities Program gave $3.7 billion focusing on middle mile infrastructure, “community anchor institutions,” broadband adoption and mapping
- 9. And the marketis still ripe According to RVA, LLC, 73.7 million homes in suburban and rural areas are not yet passed by FTTH Take rates in Tier 2 and 3 markets exceed 50 percent And FTTH results in higher ARPU over other types of broadband builds in the same areas0o
- 10. Why Is theWorld is Changing? In the past 15 years, we’ve seen… The Internet iPods HDTVs DVRs Smartphones (Blackberry, iPhone, etc.) Tablet computers All of these revolutionary technologies require higher speed networks We must expect and plan for more and faster changes in the future!

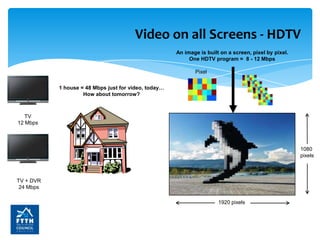

- 11. Video on allScreens - HDTV An image is built on a screen, pixel by pixel. One HDTV program = 8 - 12 Mbps Pixel 1 house = 48 Mbps just for video, today… How about tomorrow? TV 12 Mbps 1080 pixels TV + DVR 24 Mbps 1920 pixels
- 12. App Uses AlreadyAvailable Are Increasing Internet Activities Completed At Least Once/Month By FTTH Users 68% Shop online 25% Upload large files 10% Use VOIP for audio Download/ stream video to… 5% 36% 24% 23% 13% 20% Upload video content to Internet 7% Use two-way video conferencing 0% 81% 2010 2013 19% 20% 40% 60% 80% 100%
- 13. Why Fiber? Greater Bandwidth,Longer Distance, Lowest Cost / Bit Copper Bandwidth Distance Cost per Bit Fiber 2,400 Pair Copper Cable 100 Gbps to 1KM 1 Fiber Cable > 50 Tbps > 5,000 KM Bandwidth Distance Cost per Bit

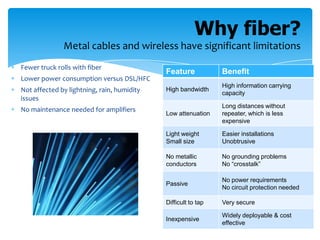

- 14. Why fiber? Metal cablesand wireless have significant limitations Fewer truck rolls with fiber Lower power consumption versus DSL/HFC Not affected by lightning, rain, humidity issues No maintenance needed for amplifiers Feature Benefit High bandwidth High information carrying capacity Low attenuation Long distances without repeater, which is less expensive Light weight Small size Easier installations Unobtrusive No metallic conductors No grounding problems No “crosstalk” Passive No power requirements No circuit protection needed Difficult to tap Very secure Inexpensive Widely deployable & cost effective
- 15. With An AllFiber Network You Build It Once – Its Build to Last

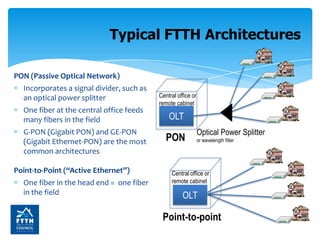

- 16. Typical FTTH Architectures PON(Passive Optical Network) Incorporates a signal divider, such as an optical power splitter One fiber at the central office feeds many fibers in the field G-PON (Gigabit PON) and GE-PON (Gigabit Ethernet-PON) are the most common architectures Point-to-Point (“Active Ethernet”) One fiber in the head end = one fiber in the field Central office or remote cabinet OLT PON Optical Power Splitter or wavelength filter Central office or remote cabinet OLT Point-to-point
- 17. Today’s Common FTTHArchitectures Curre nt Gen Next Gen Curren t Gen Next Gen Point to Point (Active Ethernet) 2.4 Gbps total 10 Gbps total 1.2 Gbps total 10 Gbps total 100 -1000 Mbps per sub GPON Downstream Bandwidth GE-PON Upstream Bandwidth 1.2 Gbps total 10 Gbps total 1.2 Gbps total 10 Gbps total 100 -1000 Mbps per sub Typical distance 20 km 20 km 20 km 20 km 20 km Wavelengths (nm), Downstream Upstream Central office or remote cabinet OLT PON Optical Power Splitter or wavelength filter Central office or remote cabinet OLT 1490 1310 1577 1270 1550 1310 1577 1270 1550 1310 * NG-PON 2 = 40 Gbps downstream/10 Gbps upstream Point-to-point
- 18. Passive Networks +/InUS – Passive Optical Networks is the predominant network architecture (94%) PONs have some distinct advantages. They're efficient, each fiber optic strand can serve up to 32 users. Have a lower building and maintenance costs Passive optical networks also have some disadvantages. They have less range than an active optical network, Make it difficult to isolate a failure when they occur. Because bandwidth in a PON is not dedicated to individual subscribers, data transmission speed may slow down during peak usage times in an effect known as latency.
- 19. Active Networks +/Activeoptical networks advantages Reliance on Ethernet technology makes interoperability among vendors easy. Subscribers control throughput Active optical networks disadvantages. Require at least one switch aggregator for every 48 subscribers. Requires power, so inherently less reliable than a passive optical network.
- 20. FTTH matters forrural residents Can erase educational inequities Reduce health care challenges like declining physician numbers, access problems Can turn rural America into a "middle shore" for high-tech job opportunities
- 21. So – HowDo You Get There?
- 22. Engage the community FINDA CHAMPION Create a steering team Recruit local organizations Use their language, not yours Establish your network as the game-changing asset Get people thinking and talking about your network
- 23. Build the BusinessPlan What resources are in your region? Check the FCC’s Broadband Deployment Map as a start Estimate Cost to Deploy Various state groups (i.e. Blandin) have model spreadsheets Find experts – ask others who have deployed Estimate what you can bring to the table Demand Assets

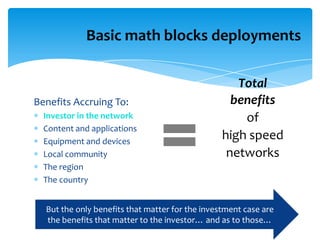

- 24. Basic math blocksdeployments Benefits Accruing To: Investor in the network Content and applications Equipment and devices Local community The region The country Total benefits of high speed networks But the only benefits that matter for the investment case are the benefits that matter to the investor… and as to those…

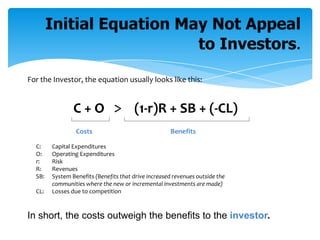

- 25. Initial Equation MayNot Appeal to Investors. For the Investor, the equation usually looks like this: C + O > (1-r)R + SB + (-CL) Costs C: O: r: R: SB: CL: Benefits Capital Expenditures Operating Expenditures Risk Revenues System Benefits (Benefits that drive increased revenues outside the communities where the new or incremental investments are made) Losses due to competition In short, the costs outweigh the benefits to the investor.
- 26. Communities can changethe math. But how do we do that? C + O < (1-r)R + SB + (-CL) Use existing assets, partnerships and opportunities to move the arrows.
- 27. Communities have Resources ReduceCap Ex Reduce Op Ex Reduce Risk Increase Revenues Increase Ecosystem Benefits •Build to Demand Model •Access to ROWs, Facilities •Reduce Regulatory Time •Access Payments •Reduce Ongoing Regulatory Costs •Utilize Existing Billing Platforms Basic Math for an Upgrade •Build to Demand •Standardize Functions Across Areas, Vendors •Demand Acceleration/Aggregation •Marketing Platform •New Services •Distributed Innovation •Seeding Long-Term Growth

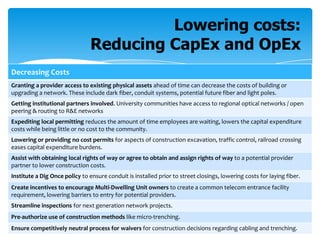

- 28. Lowering costs: Reducing CapExand OpEx Decreasing Costs Granting a provider access to existing physical assets ahead of time can decrease the costs of building or upgrading a network. These include dark fiber, conduit systems, potential future fiber and light poles. Getting institutional partners involved. University communities have access to regional optical networks / open peering & routing to R&E networks Expediting local permitting reduces the amount of time employees are waiting, lowers the capital expenditure costs while being little or no cost to the community. Lowering or providing no cost permits for aspects of construction excavation, traffic control, railroad crossing eases capital expenditure burdens. Assist with obtaining local rights of way or agree to obtain and assign rights of way to a potential provider partner to lower construction costs. Institute a Dig Once policy to ensure conduit is installed prior to street closings, lowering costs for laying fiber. Create incentives to encourage Multi-Dwelling Unit owners to create a common telecom entrance facility requirement, lowering barriers to entry for potential providers. Streamline inspections for next generation network projects. Pre-authorize use of construction methods like micro-trenching. Ensure competitively neutral process for waivers for construction decisions regarding cabling and trenching.
- 29. Reduce Risk, IncreaseRevenue Increasing Potential Revenue Marketing services to the community Effort to increase uptake of existing business services Assist with local political support Finding and securing local grants Exclusive marketing rights Named branding opportunities Anchor institution, enterprise and residential revenue commitment through demand aggregation Interested community and MDU owners willing to bundle the cost of services into rent for tenants Over the top services
- 30. Funding Exhaust all Federal,State and Local options Federal CAF – new experimental dollars for all types of entities Schools and Libraries Economic Development Agency loans RUS – loans and grants State Blandin Foundation
- 31. Implement/Build Issue an RFPto determine what kind of ownership/network will work Find a technical expert to assist in RFP review and implementation oversight Communicate with your constituents every step of the way Where do you deploy first? What applications do they want?
- 32. Many paths youcan follow A private entity completely owns the network and there is no public ownership Private Third Party: A service provider owns the network and provides retail and wholesale services Public-Private Partnership PPP Open: Network owned by PPP, has an open wholesale network and may provide retail services PPP Not Open: Network owned by PPP, not necessarily an open wholesale network but must provide retail services A public entity completely owns the network infrastructure Public A public entity owns or funds part of the infrastructure
- 33. Lots of Resourcesto Assist… But You Can’t Afford to Wait Blandin Foundation Toolkit -http://broadband.blandinfoundation.org/toolkit/ FTTH Council Community Toolkit -http://www.ftthcouncil.org/communitytoolkit Webinar on New FCC Rural Funding Experiments -http://www.ftthcouncil.org/p/ca/vi/sid=82
Editor's Notes
