This document provides an overview of big data processing tools and NoSQL databases. It discusses how Hadoop uses MapReduce and HDFS to distribute processing across large clusters. Spark is presented as an alternative to Hadoop. The CAP theorem is explained as relating to consistency, availability, and network partitions. Different types of NoSQL databases are described including key-value, column, document and graph databases. Examples are provided for each type.

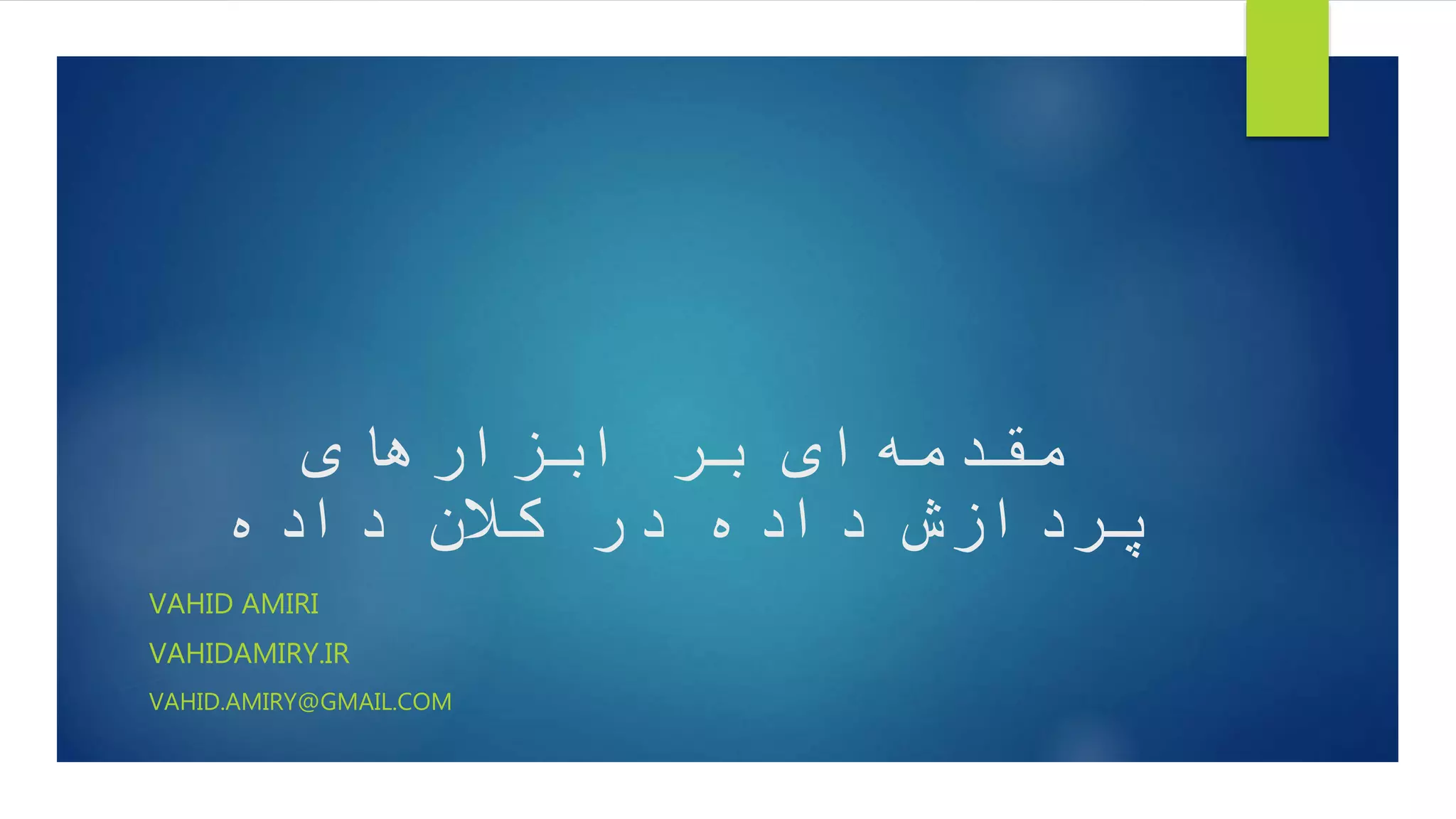

1. ‌‫‌ای‌بر‌ابزارهای‬‫ه‬‫مقدم‬
‫پردازش‌داده‌در‌کالن‌داده‬
VAHID AMIRI
VAHIDAMIRY.IR
VAHID.AMIRY@GMAIL.COM

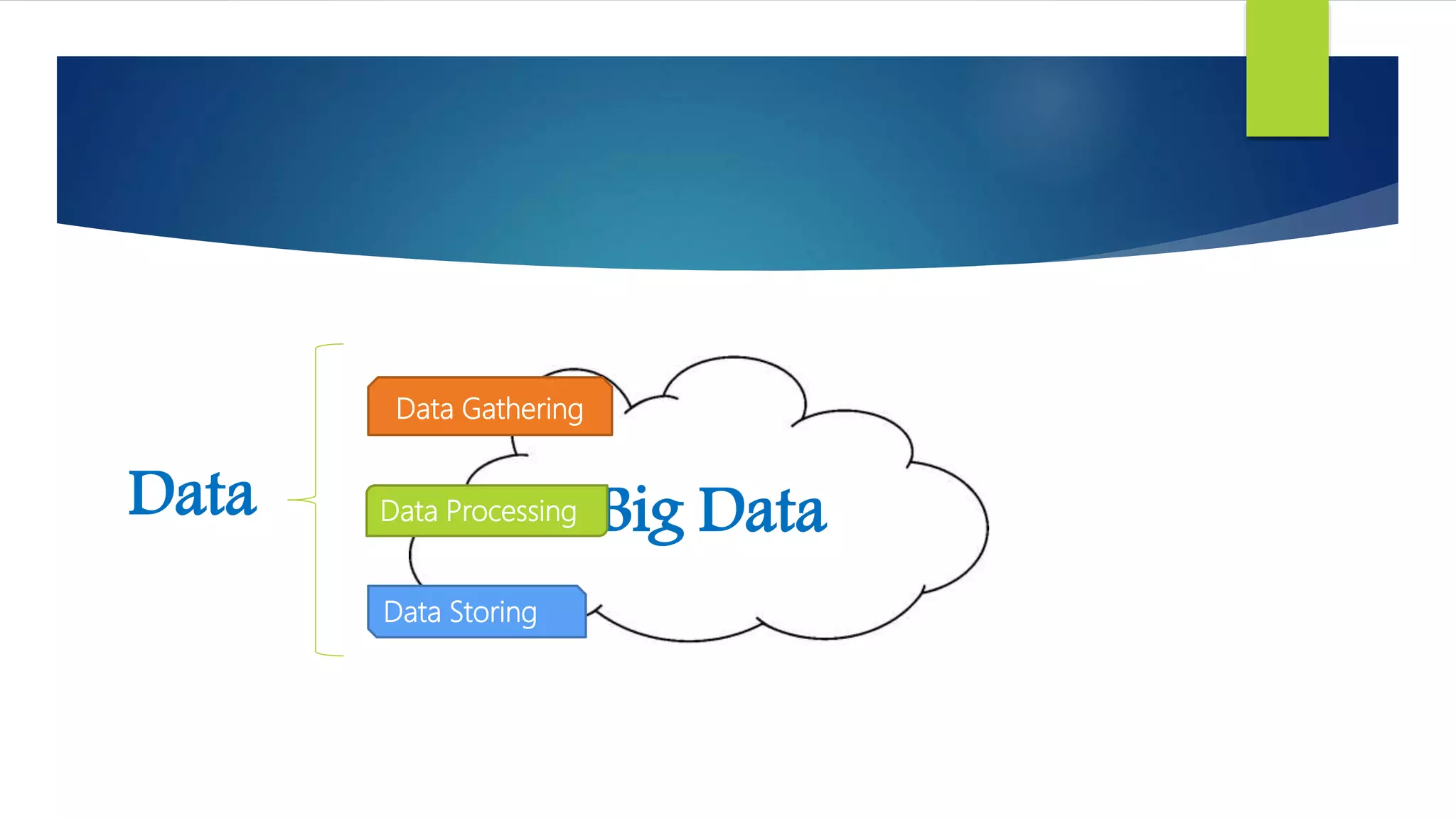

2. Big DataData Data Processing
Data Gathering
Data Storing

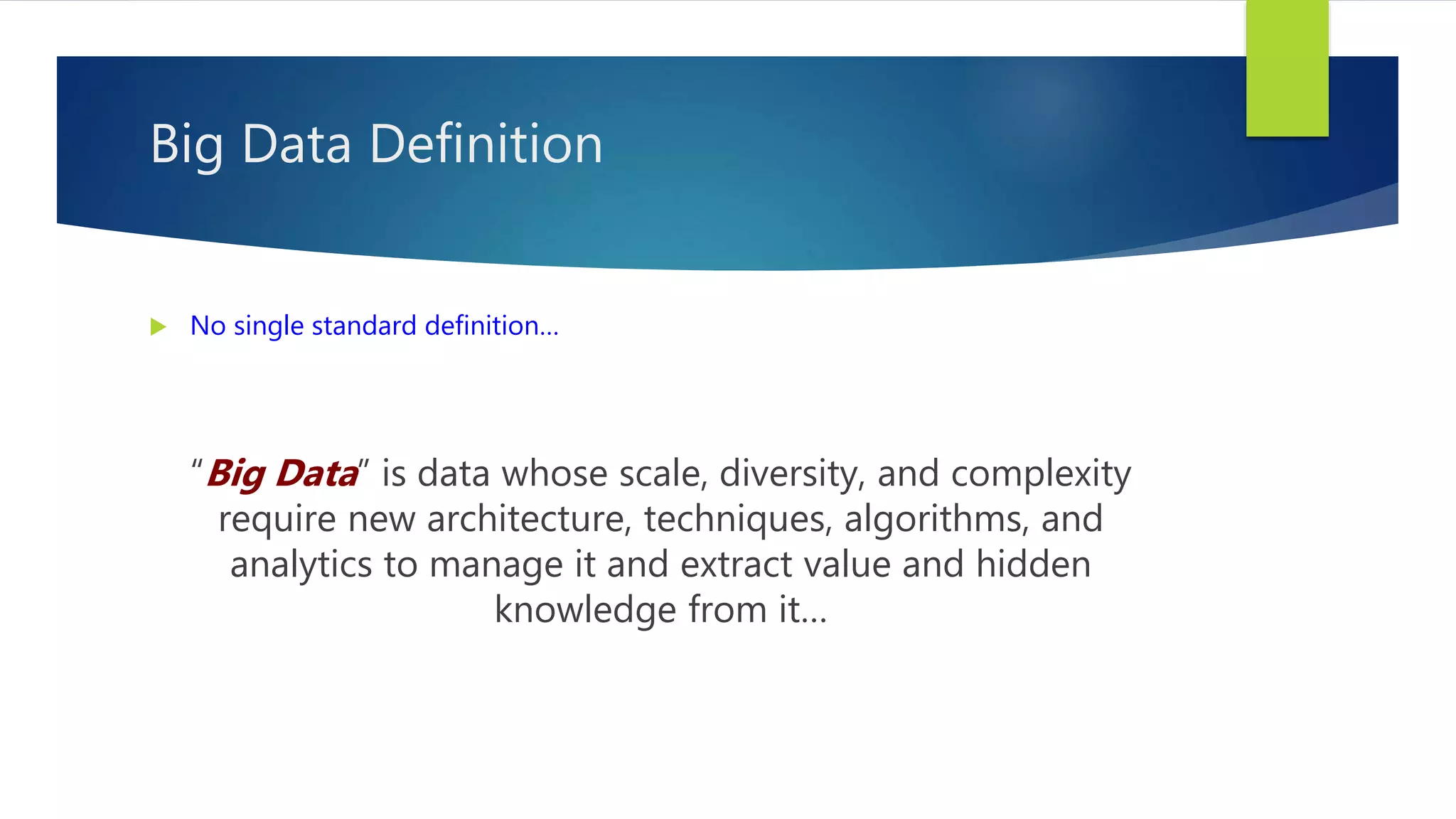

4. Big Data Definition
 No single standard definition…
“Big Data” is data whose scale, diversity, and complexity
require new architecture, techniques, algorithms, and
analytics to manage it and extract value and hidden
knowledge from it…

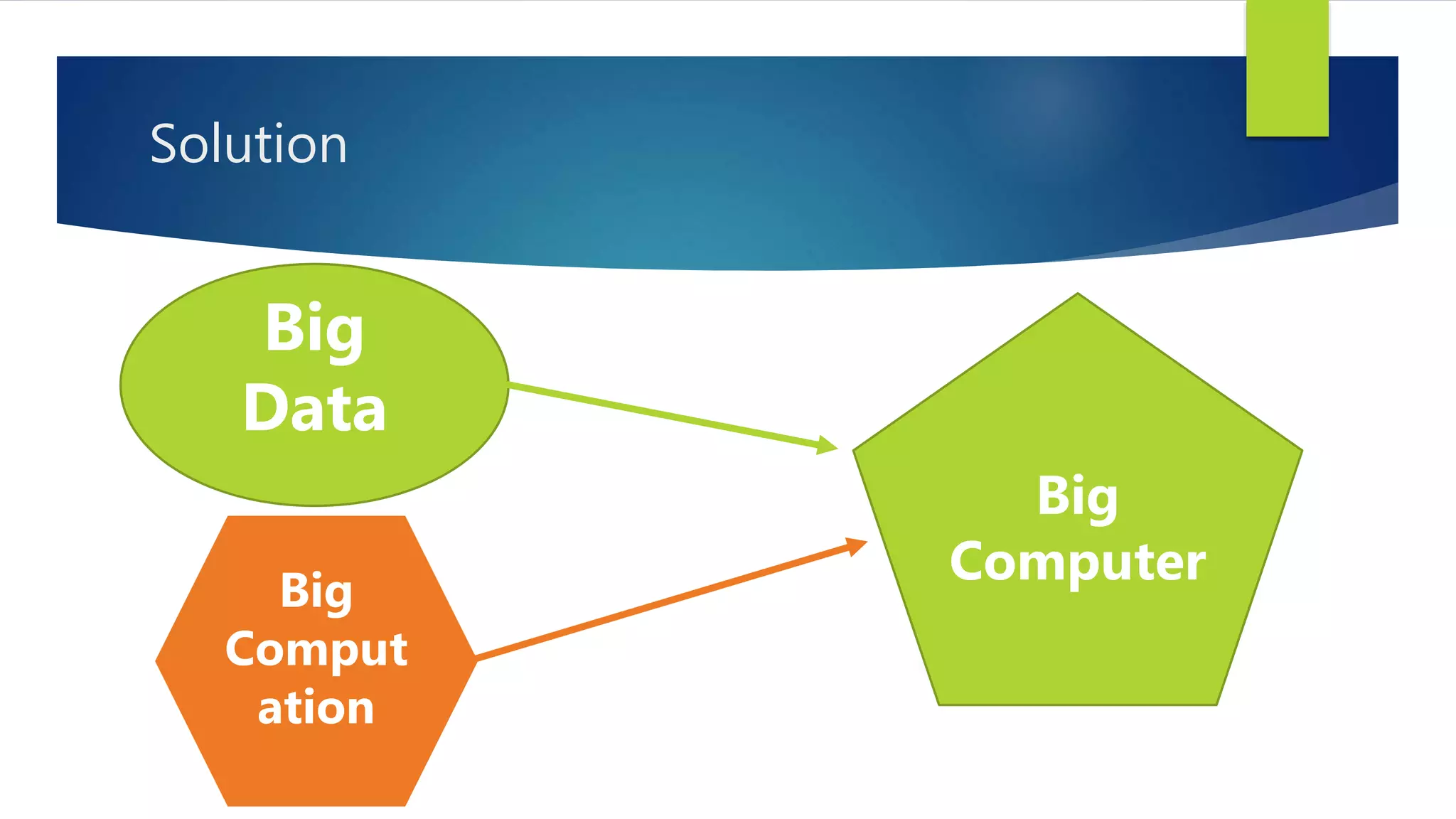

6. Solution
Big
Data
Big
Comput
ation
Big
Computer

7. Big Data Solutions

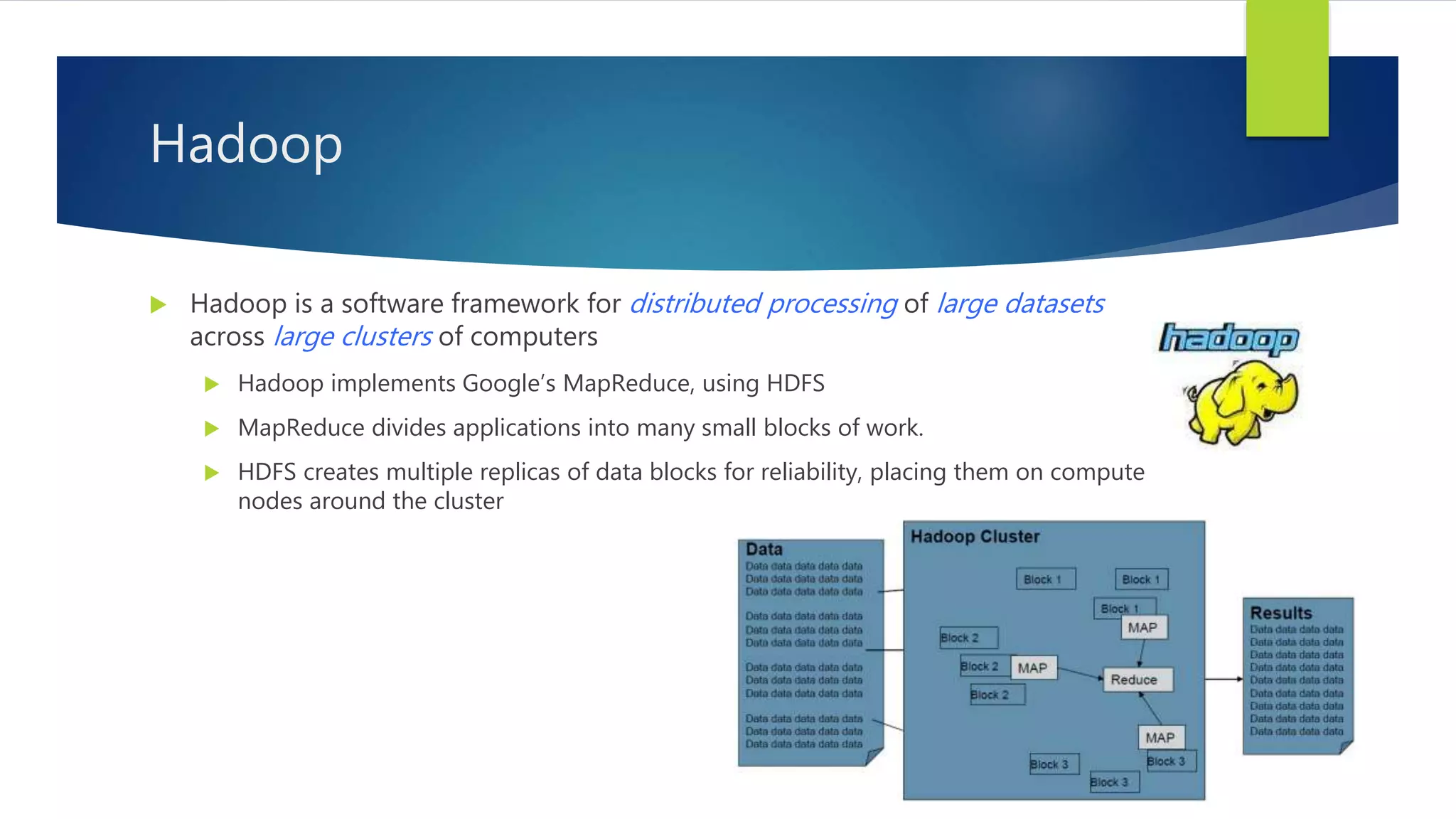

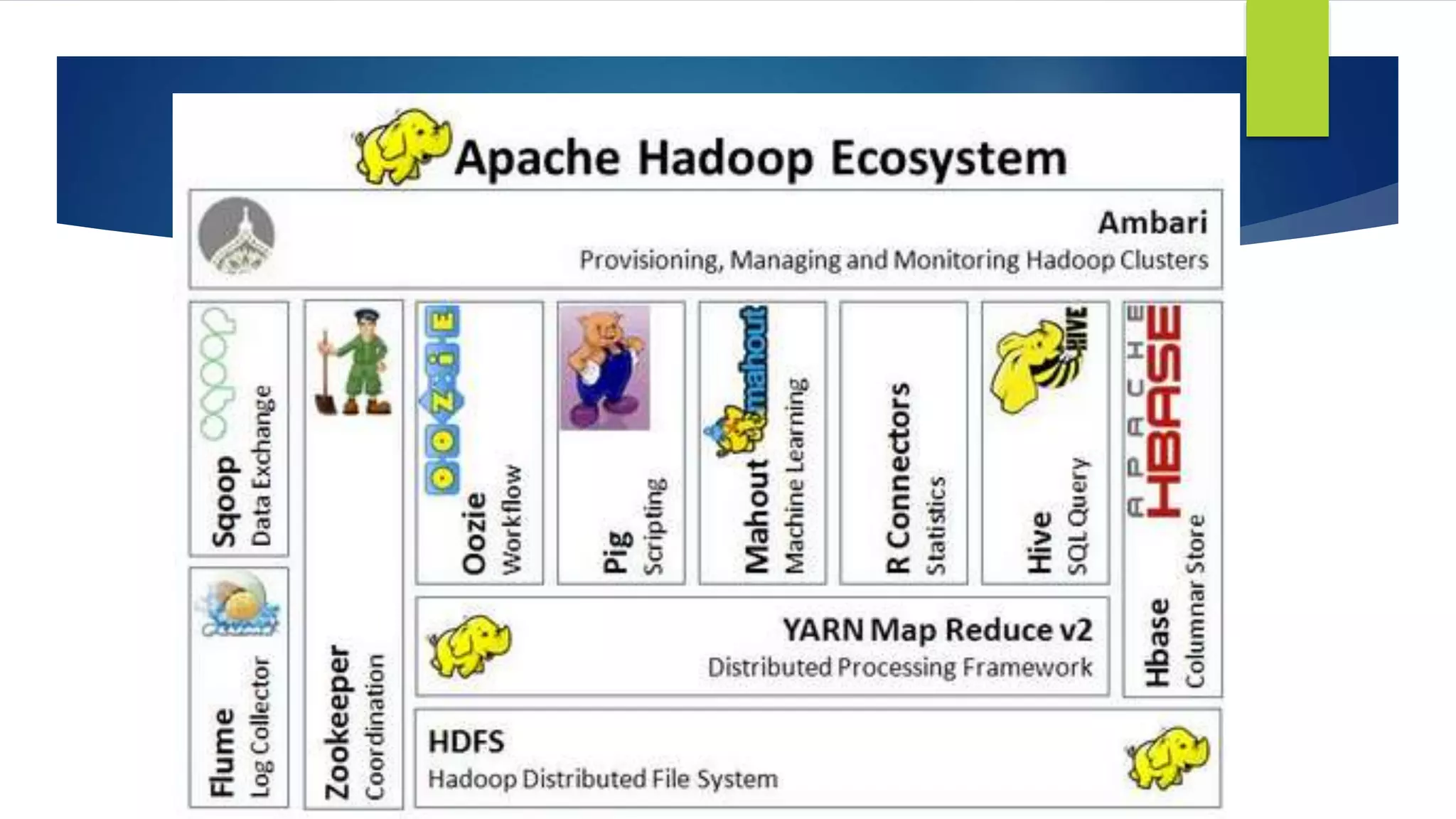

8.  Hadoop is a software framework for distributed processing of large datasets
across large clusters of computers
 Hadoop implements Google’s MapReduce, using HDFS
 MapReduce divides applications into many small blocks of work.
 HDFS creates multiple replicas of data blocks for reliability, placing them on compute
nodes around the cluster
Hadoop

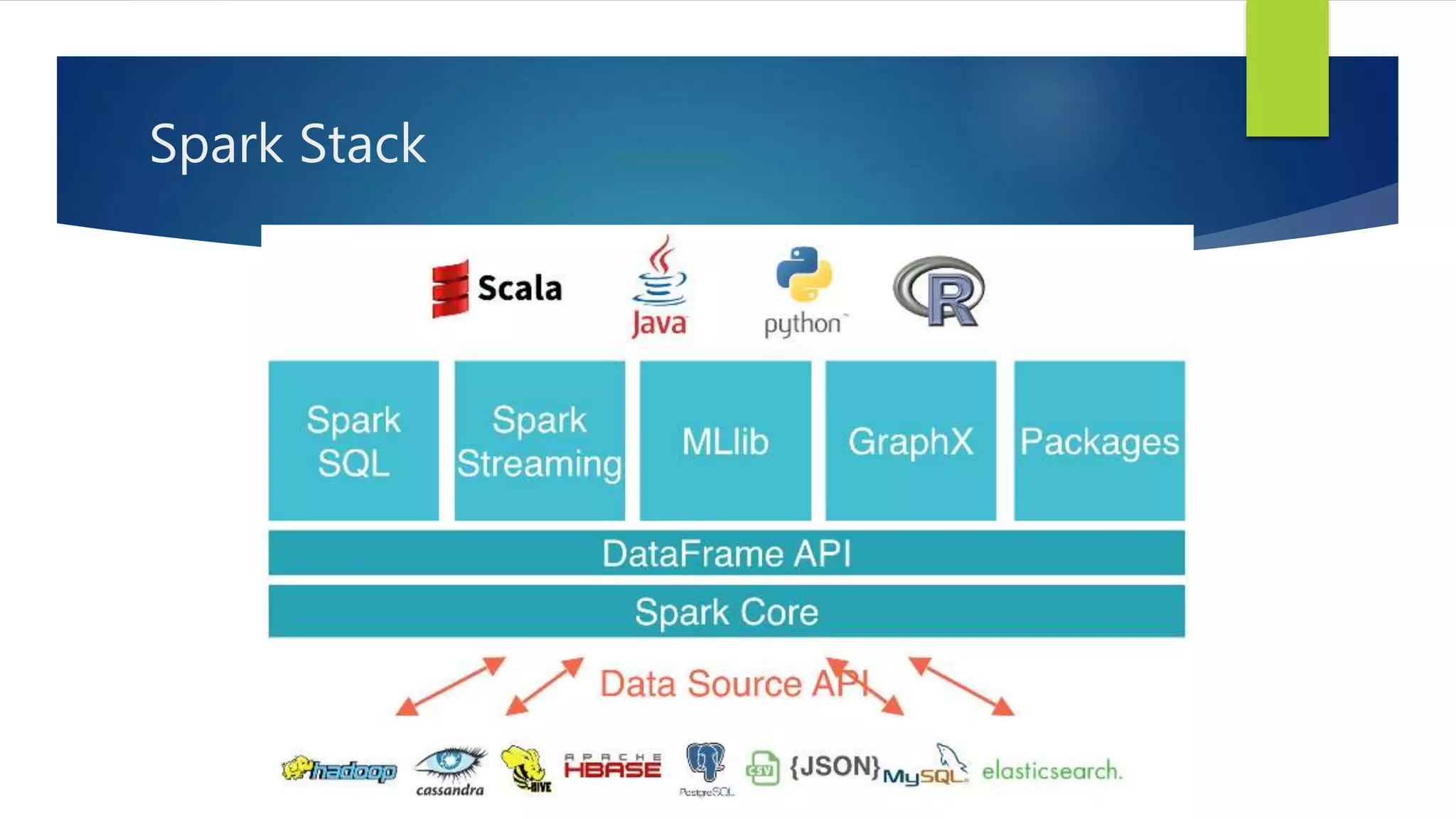

10. Spark Stack

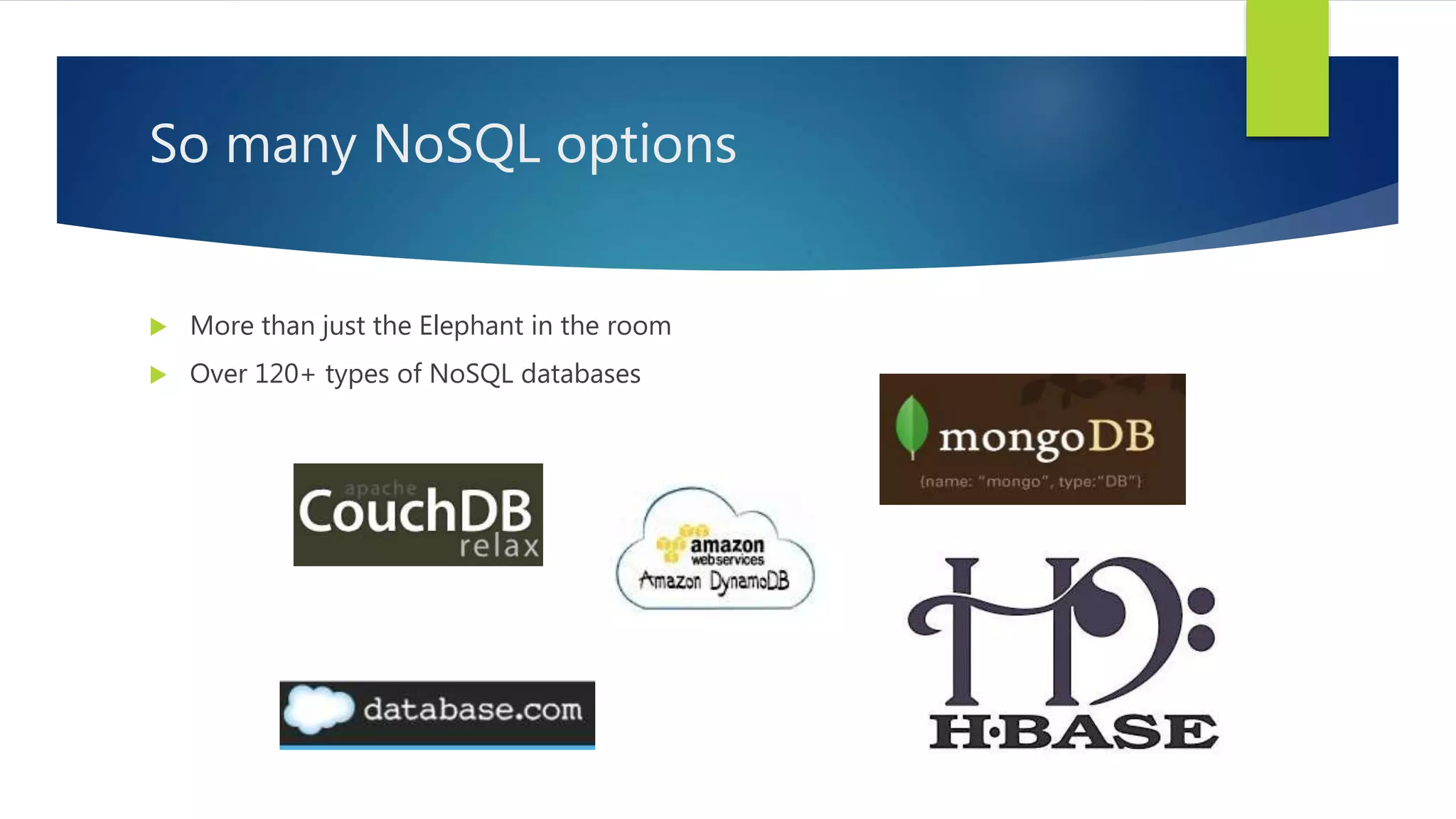

11.  More than just the Elephant in the room
 Over 120+ types of NoSQL databases
So many NoSQL options

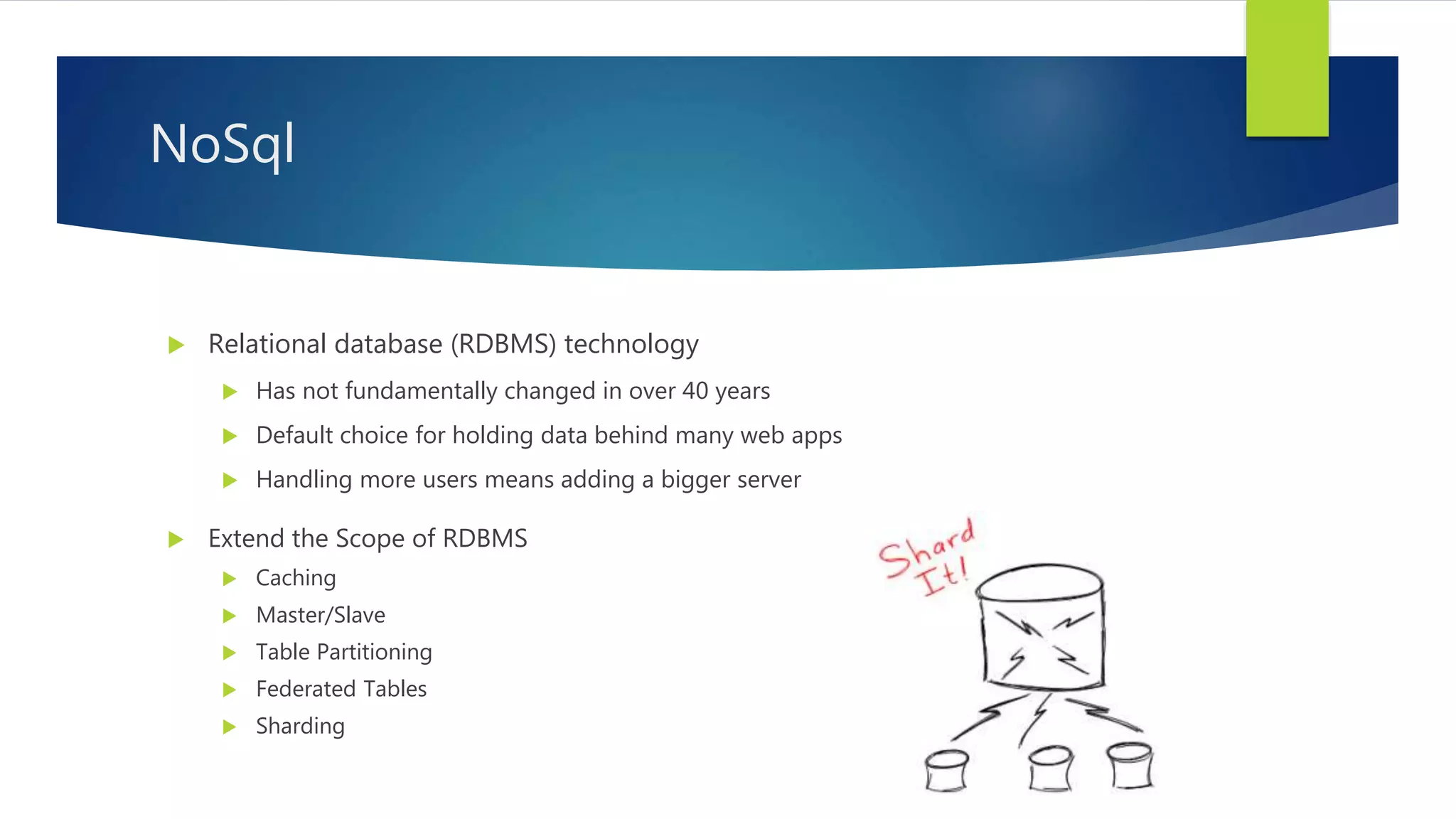

12.  Extend the Scope of RDBMS
 Caching
 Master/Slave
 Table Partitioning
 Federated Tables
 Sharding
NoSql
 Relational database (RDBMS) technology
 Has not fundamentally changed in over 40 years
 Default choice for holding data behind many web apps
 Handling more users means adding a bigger server

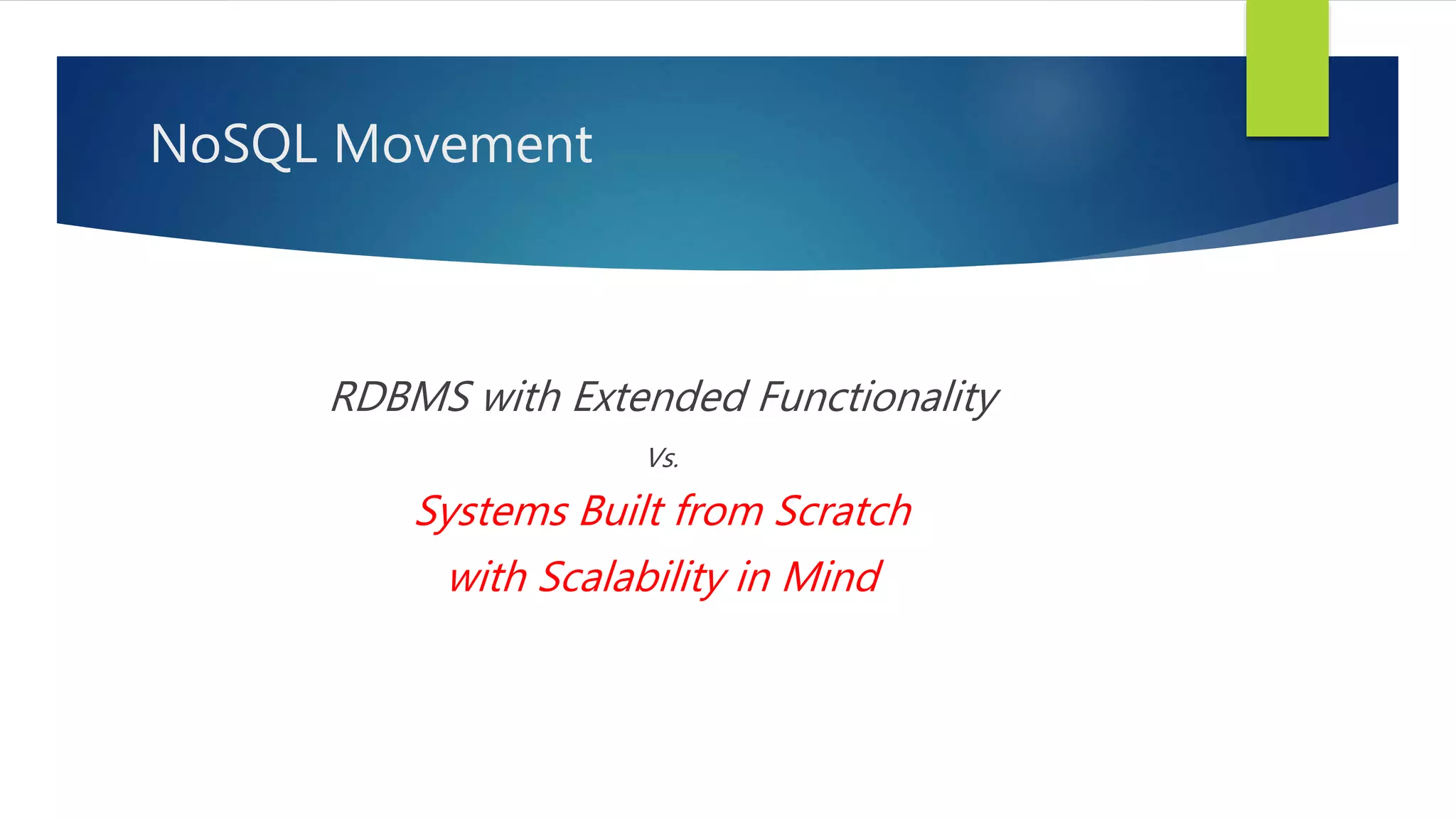

13. RDBMS with Extended Functionality
Vs.
Systems Built from Scratch
with Scalability in Mind
NoSQL Movement

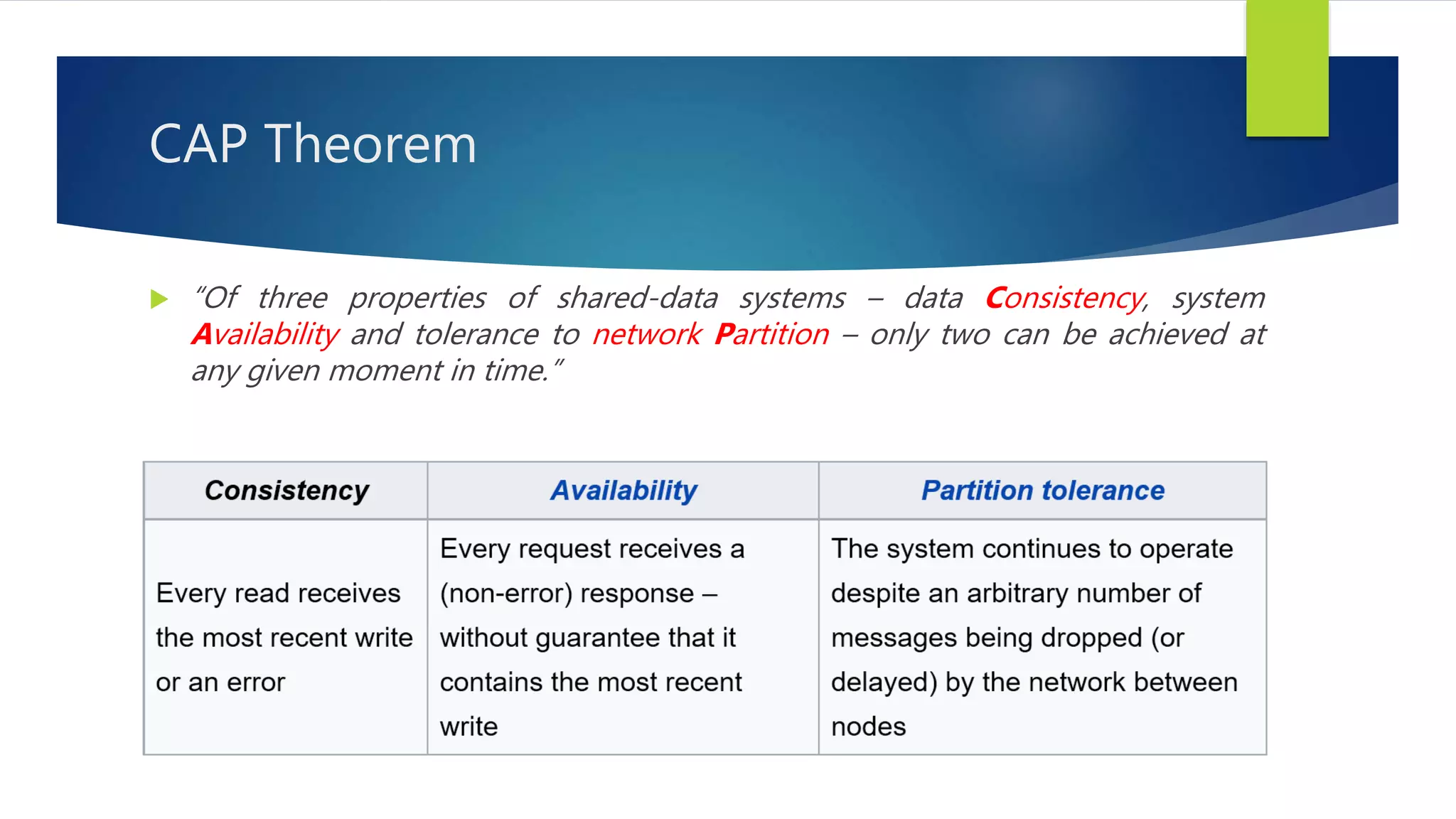

14. CAP Theorem
 “Of three properties of shared-data systems – data Consistency, system
Availability and tolerance to network Partition – only two can be achieved at
any given moment in time.”

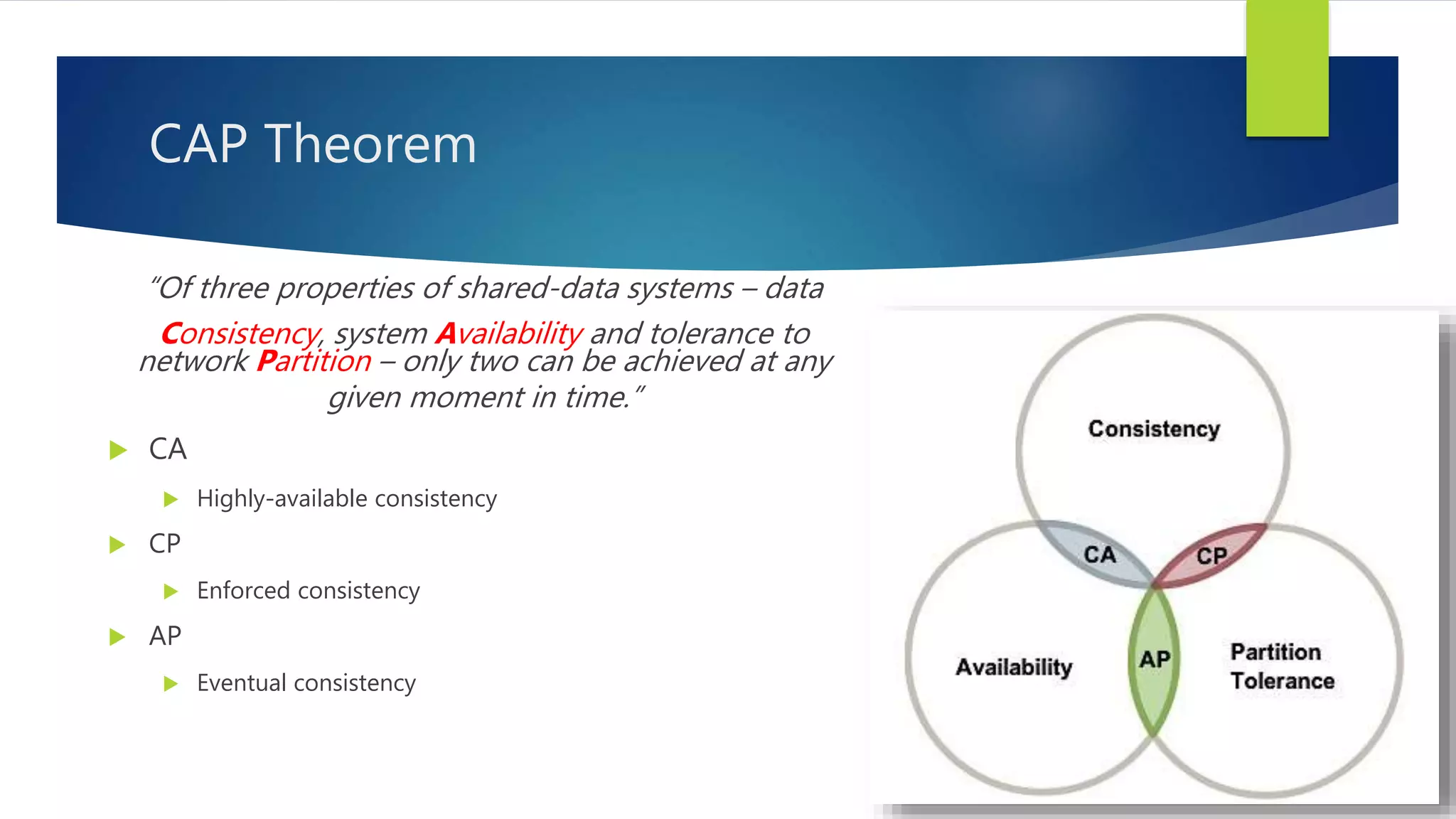

15. “Of three properties of shared-data systems – data
Consistency, system Availability and tolerance to
network Partition – only two can be achieved at any
given moment in time.”
 CA
 Highly-available consistency
 CP
 Enforced consistency
 AP
 Eventual consistency
CAP Theorem

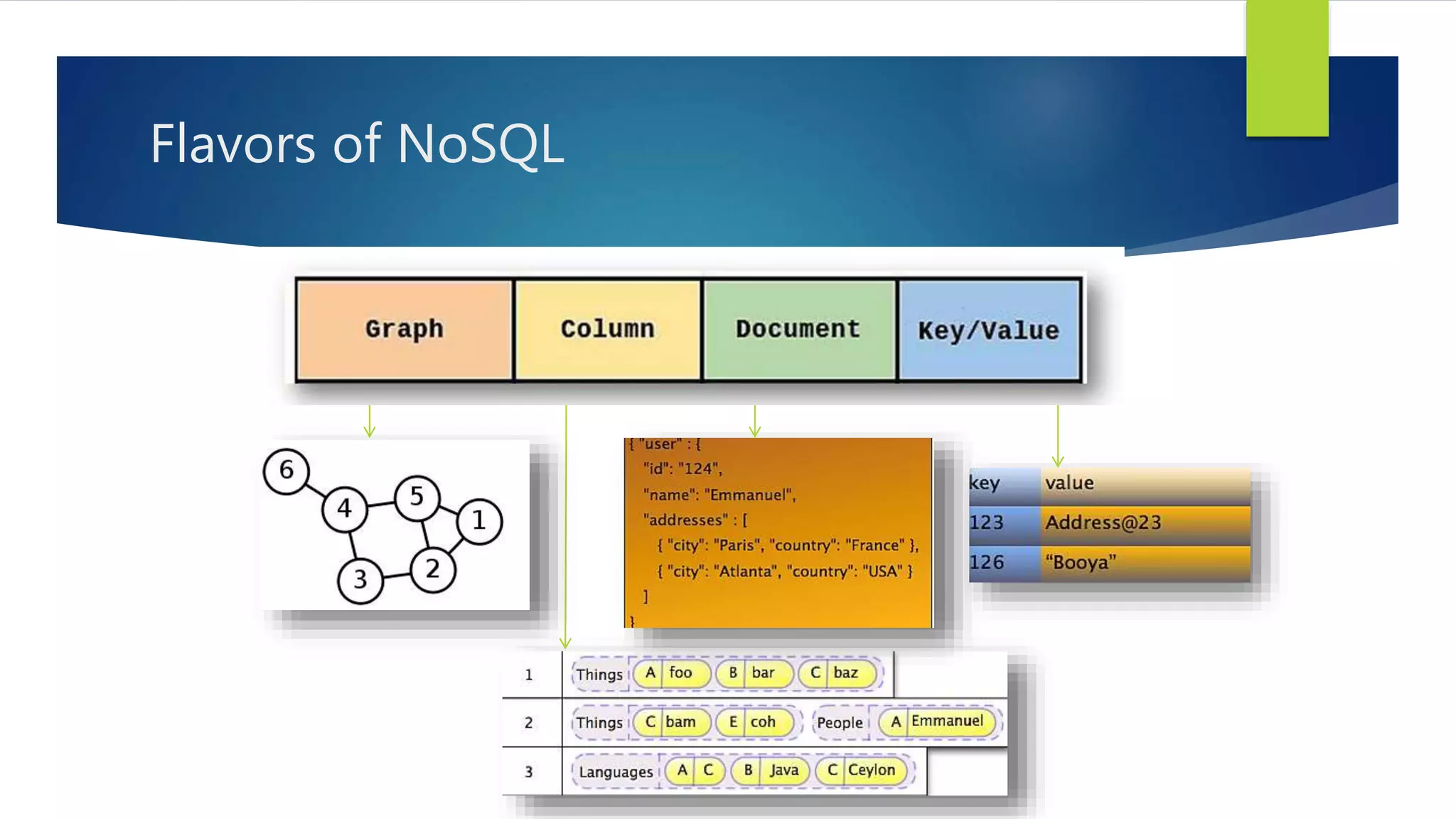

16. Flavors of NoSQL

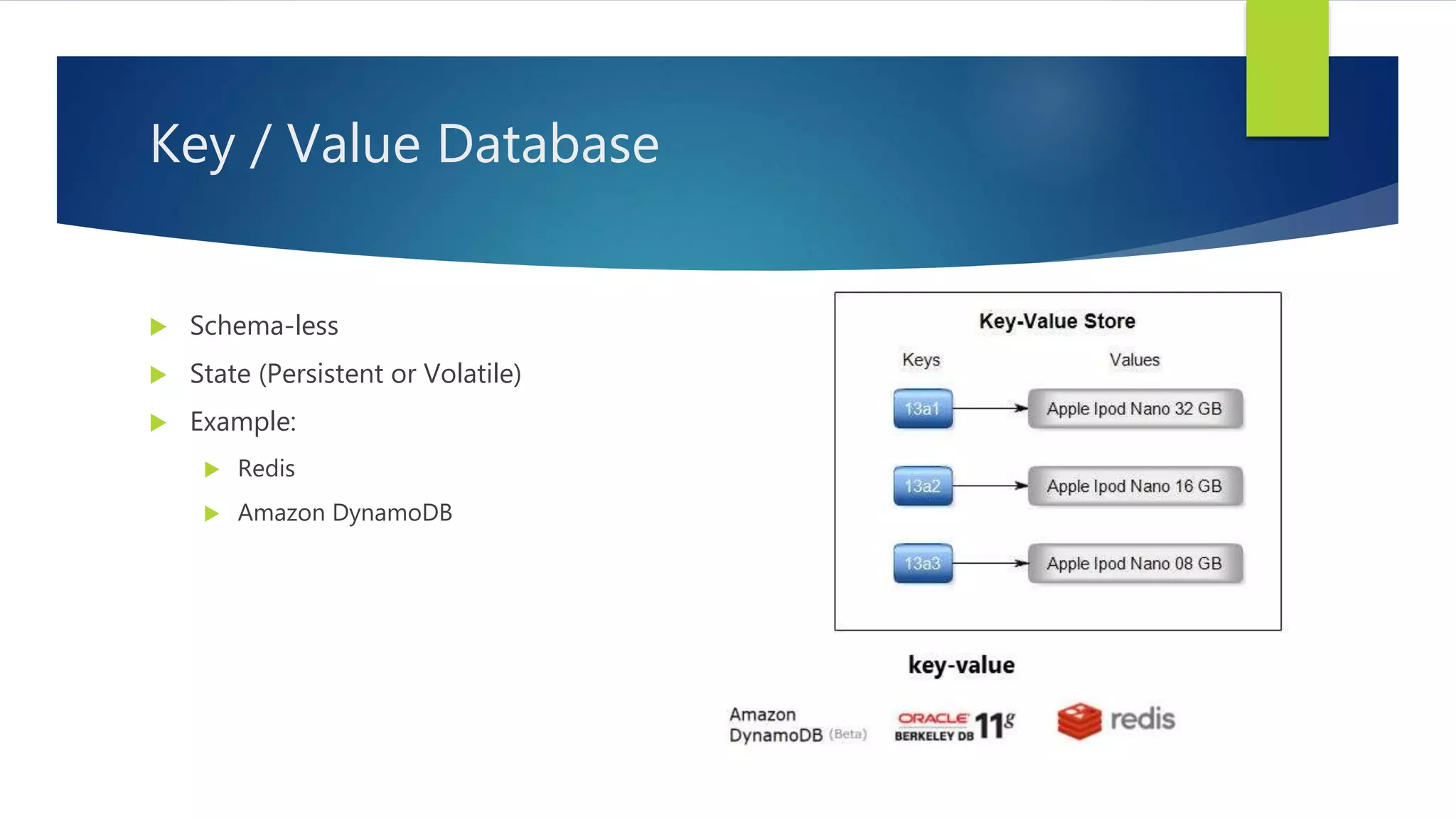

17.  Schema-less
 State (Persistent or Volatile)
 Example:
 Redis
 Amazon DynamoDB
Key / Value Database

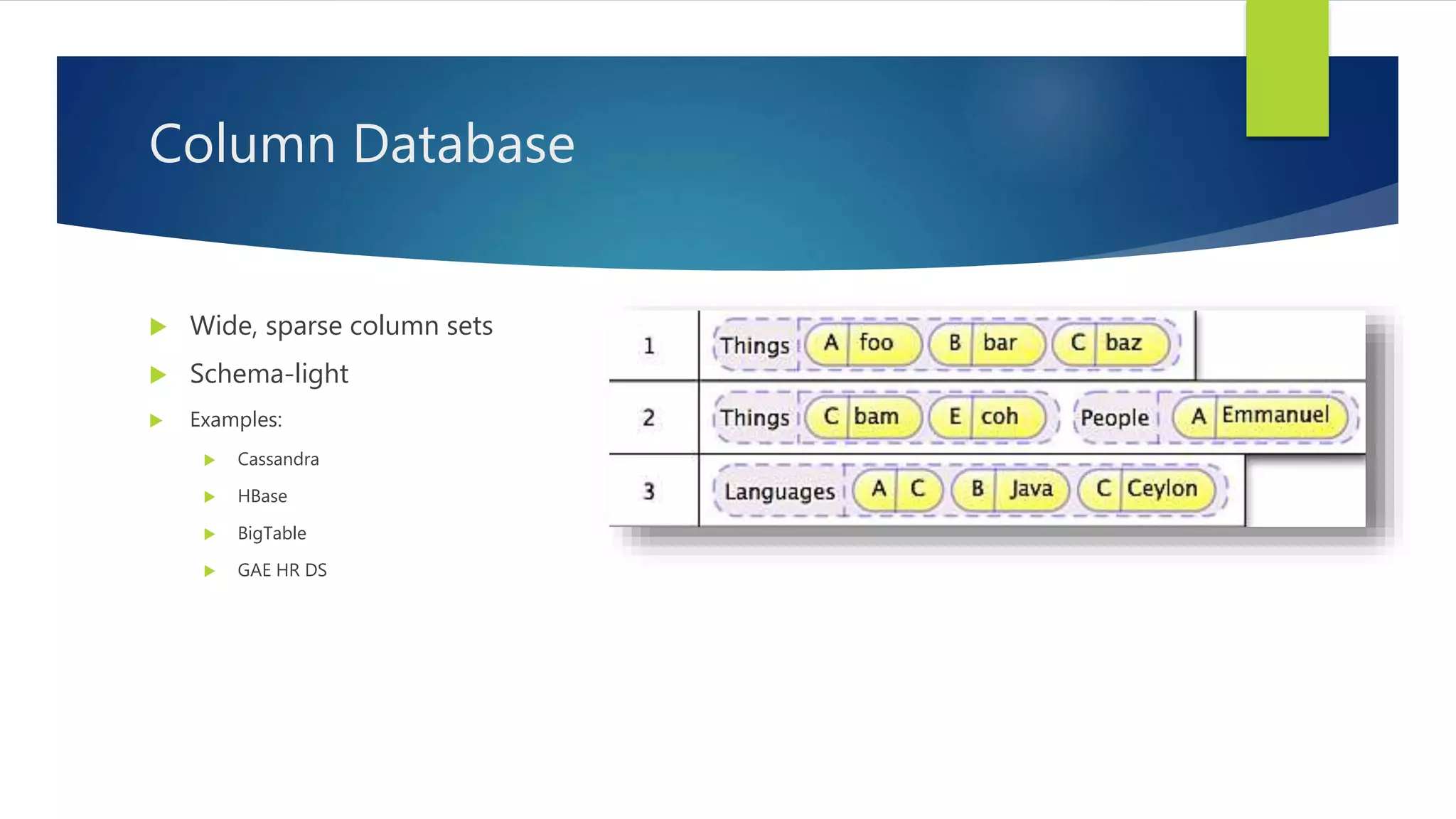

18.  Wide, sparse column sets
 Schema-light
 Examples:
 Cassandra
 HBase
 BigTable
 GAE HR DS
Column Database

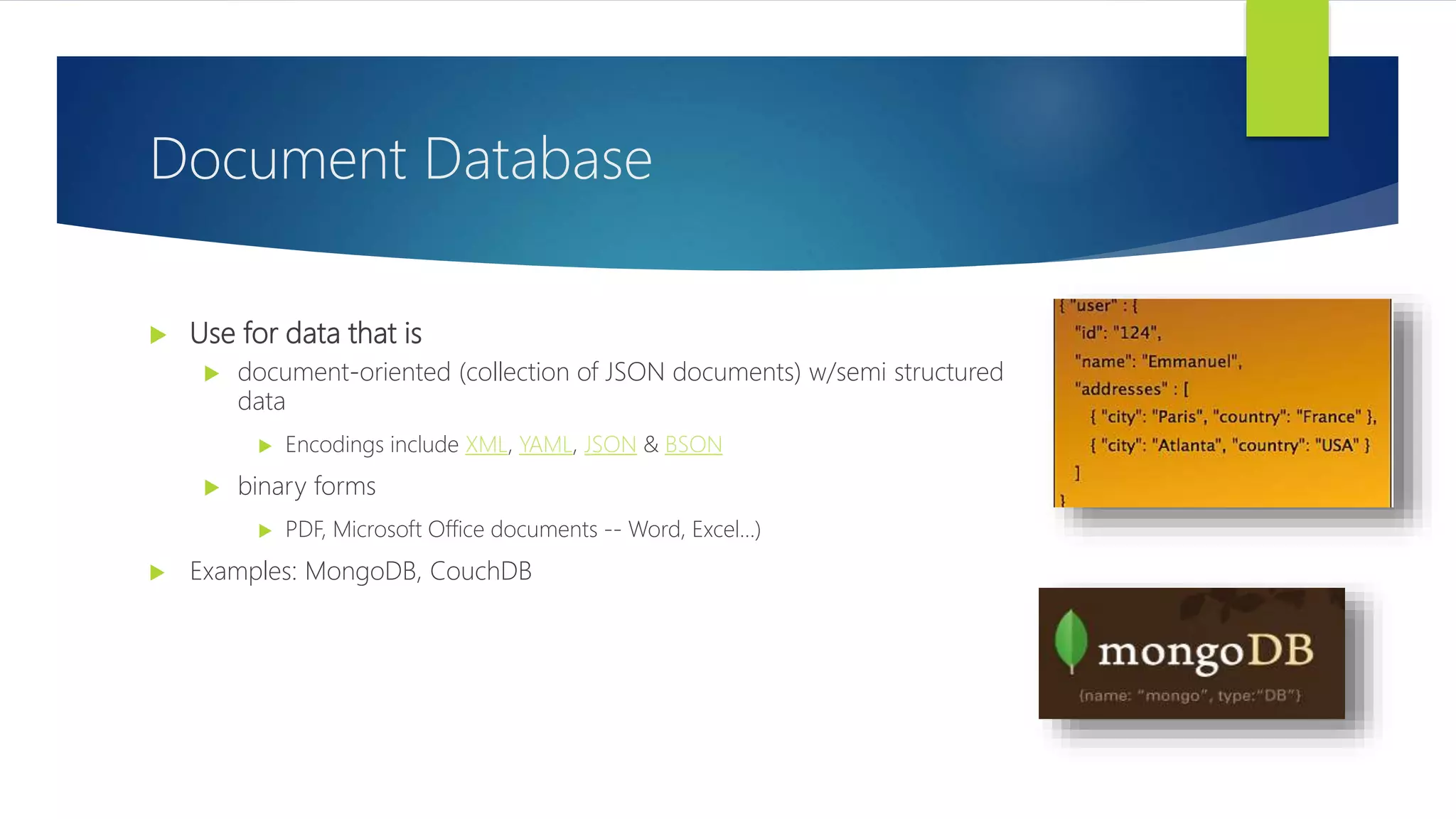

19.  Use for data that is
 document-oriented (collection of JSON documents) w/semi structured
data
 Encodings include XML, YAML, JSON & BSON
 binary forms
 PDF, Microsoft Office documents -- Word, Excel…)
 Examples: MongoDB, CouchDB
Document Database

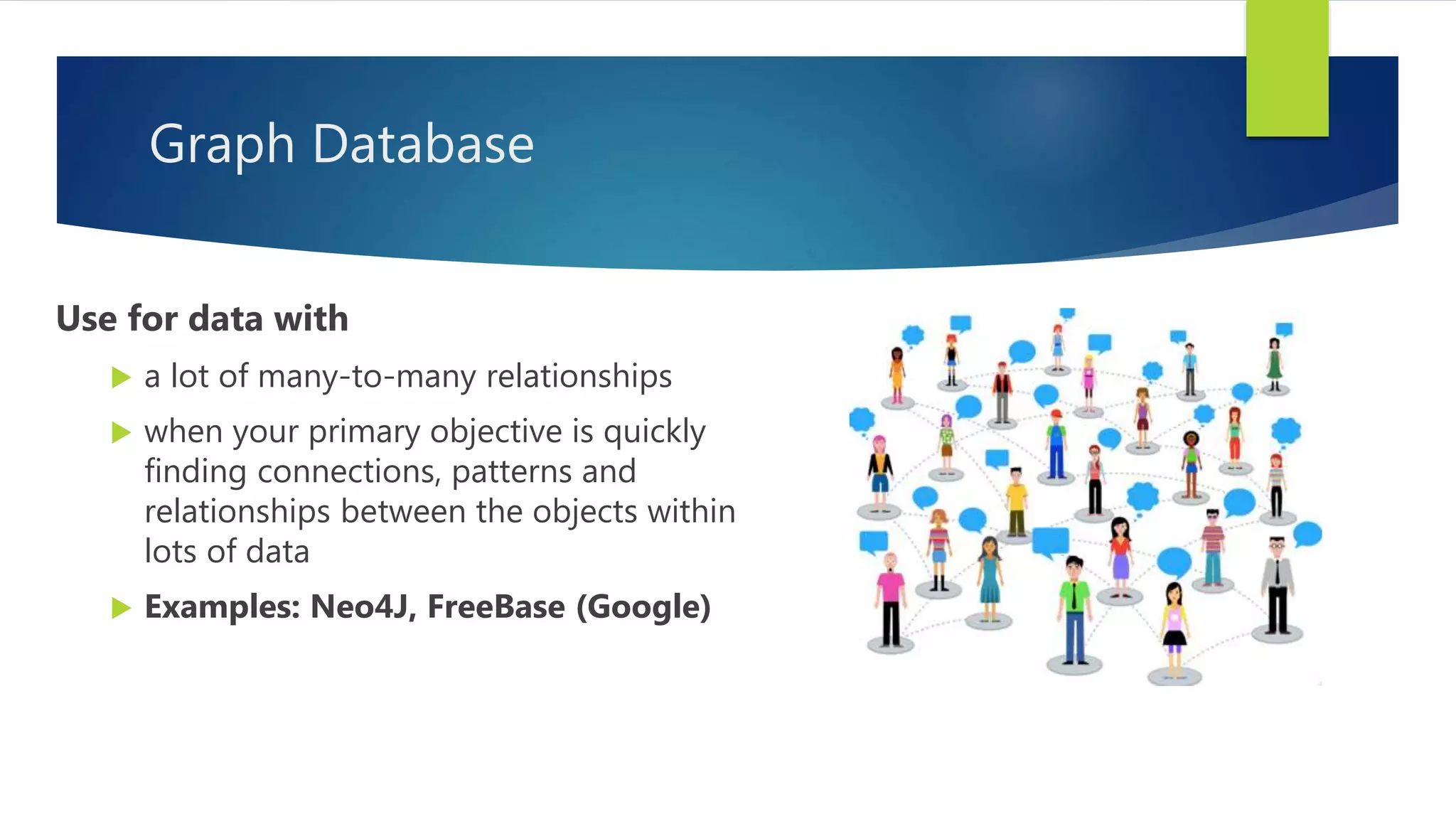

20. Graph Database
Use for data with
 a lot of many-to-many relationships
 when your primary objective is quickly
finding connections, patterns and
relationships between the objects within
lots of data
 Examples: Neo4J, FreeBase (Google)

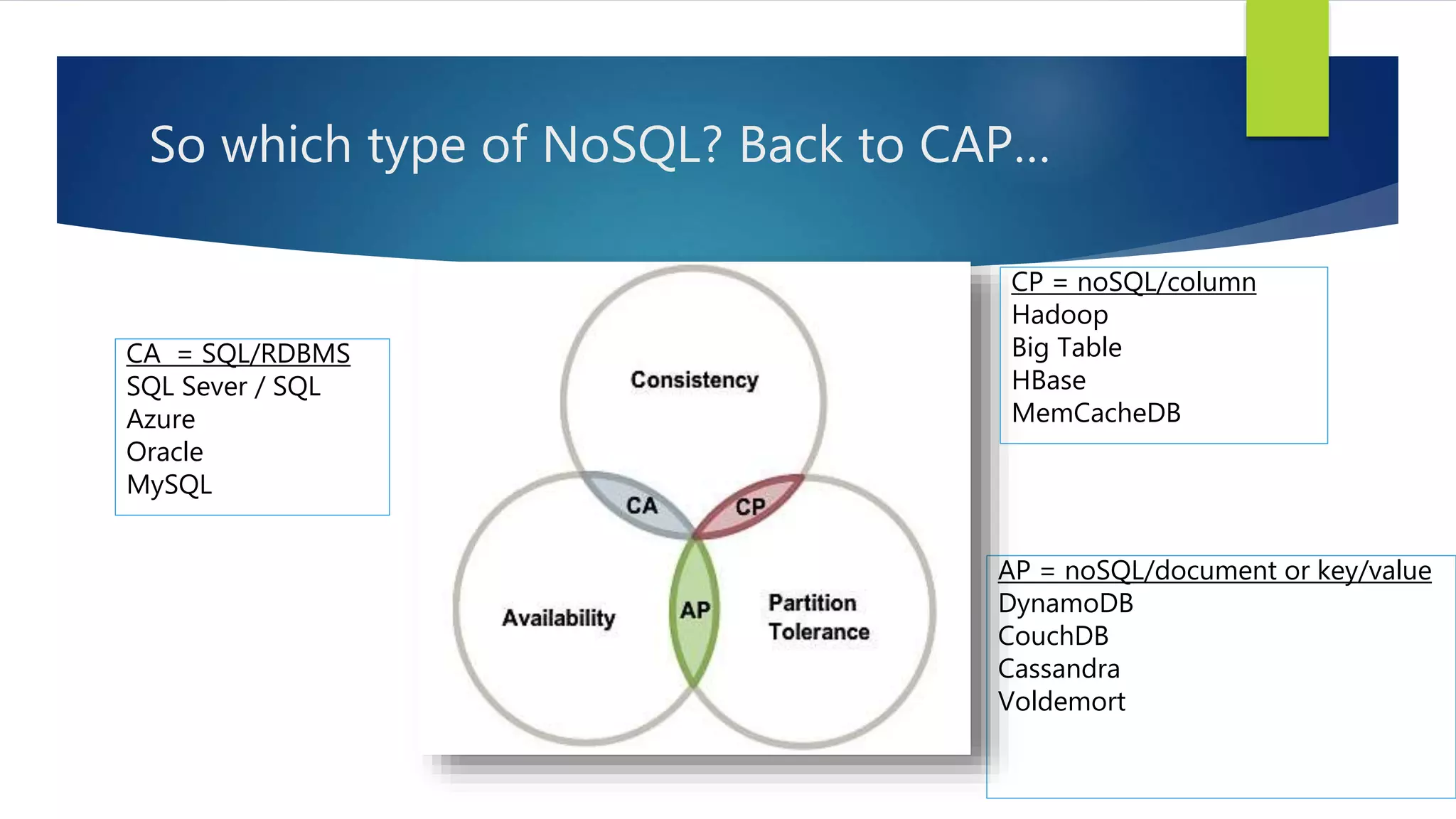

21. So which type of NoSQL? Back to CAP…
CP = noSQL/column
Hadoop
Big Table
HBase
MemCacheDB
AP = noSQL/document or key/value
DynamoDB
CouchDB
Cassandra
Voldemort
CA = SQL/RDBMS
SQL Sever / SQL
Azure
Oracle
MySQL
