Big Data Applications Made Easy: Fact Or Fiction?
- 1. Spring XD PivotalConfidential–Internal Use Only Glenn Renfro grenfro @pivotal.io @CPPWFS
- 2. Volume Pivotal Confidential–InternalUse Only Velocity Variety Veracity 60-100 sensors in each car 22 Billion sensors by 2020 420 Million Wearables Data 90% of enterprise data is unstructured 500 million tweets each day 2.3 Trillion GBs of each day 86% suspect data inaccuracy 30% revenue loss due to bad data quality Data Points: McKinsey, Twitter, Gartner, IBM
- 3. Batch and Streaming often handled by multiple platforms Fragmented Big Data Pivotal Confidential–Internal Use Only Ecosystem Not all data Hadoop bound
- 4. SPRING XD EXTREMEDATA “One stop shop for developing and deploying Big Data Applications”

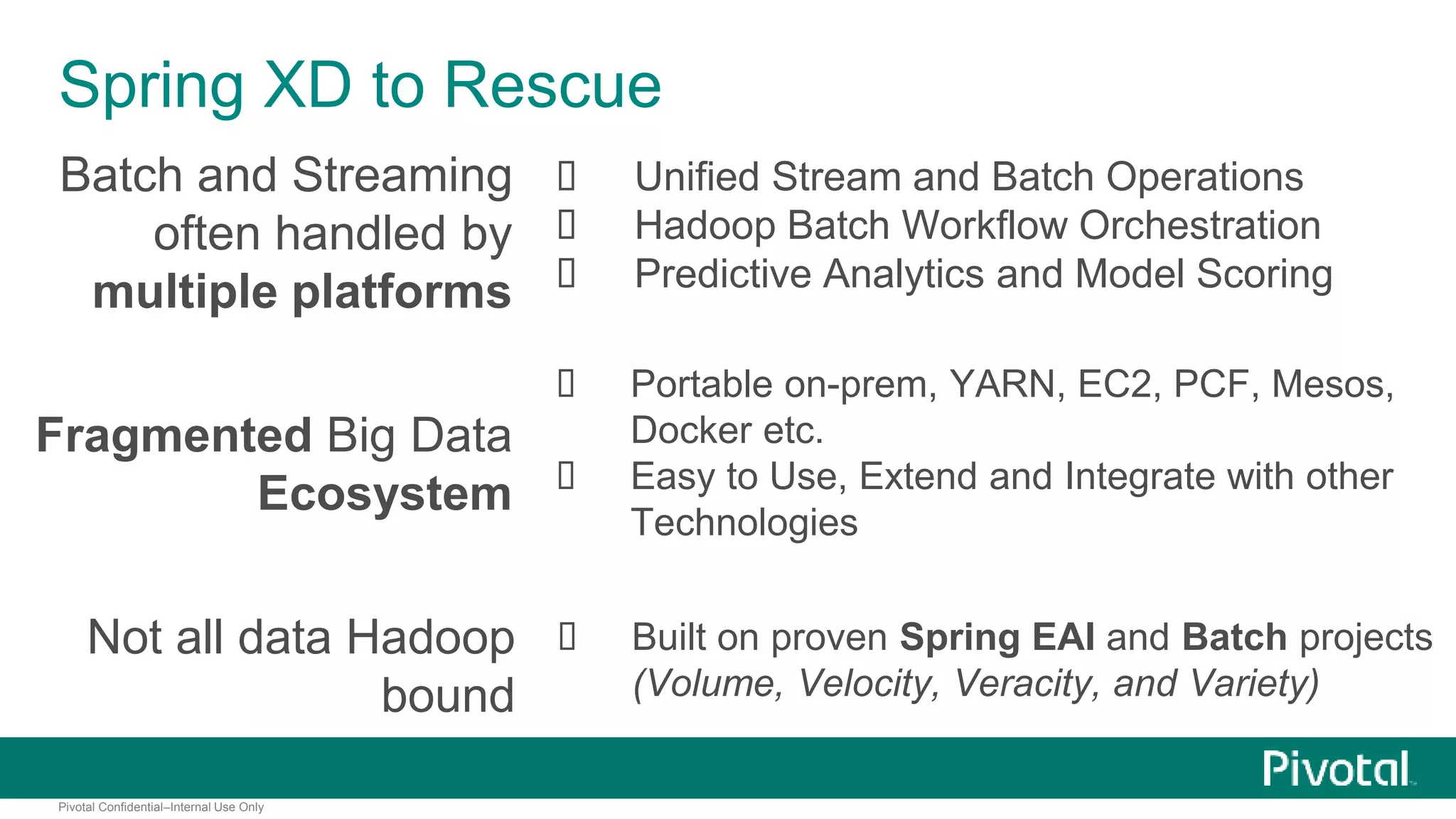

- 5. Spring XD toRescue Batch and Streaming often handled by multiple platforms Fragmented Big Data Ecosystem Not all data Hadoop Pivotal Confidential–Internal Use Only bound Unified Stream and Batch Operations Hadoop Batch Workflow Orchestration Predictive Analytics and Model Scoring Portable on-prem, YARN, EC2, PCF, Mesos, Docker etc. Easy to Use, Extend and Integrate with other Technologies Built on proven Spring EAI and Batch projects (Volume, Velocity, Veracity, and Variety)

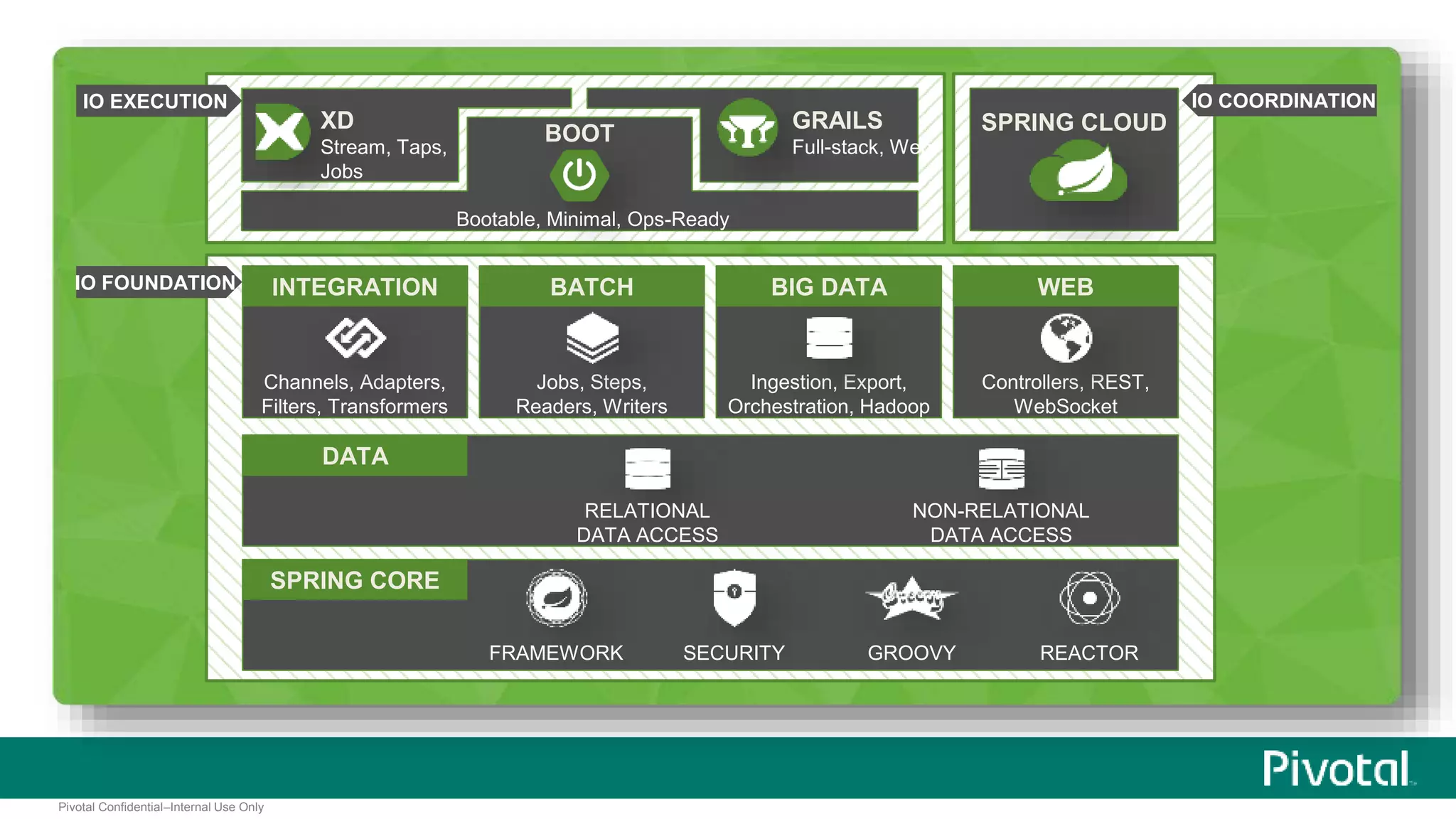

- 6. Pivotal Confidential–Internal UseOnly INTEGRATION BATCH BIG DATA WEB Jobs, Steps, Readers, Writers Ingestion, Export, Orchestration, Hadoop Controllers, REST, WebSocket Channels, Adapters, Filters, Transformers SPRING CORE FRAMEWORK SECURITY GROOVY REACTOR DATA RELATIONAL DATA ACCESS NON-RELATIONAL DATA ACCESS BOOT Bootable, Minimal, Ops-Ready GRAILS Full-stack, Web XD Stream, Taps, Jobs IO EXECUTION IO FOUNDATION IO COORDINATION SPRING CLOUD

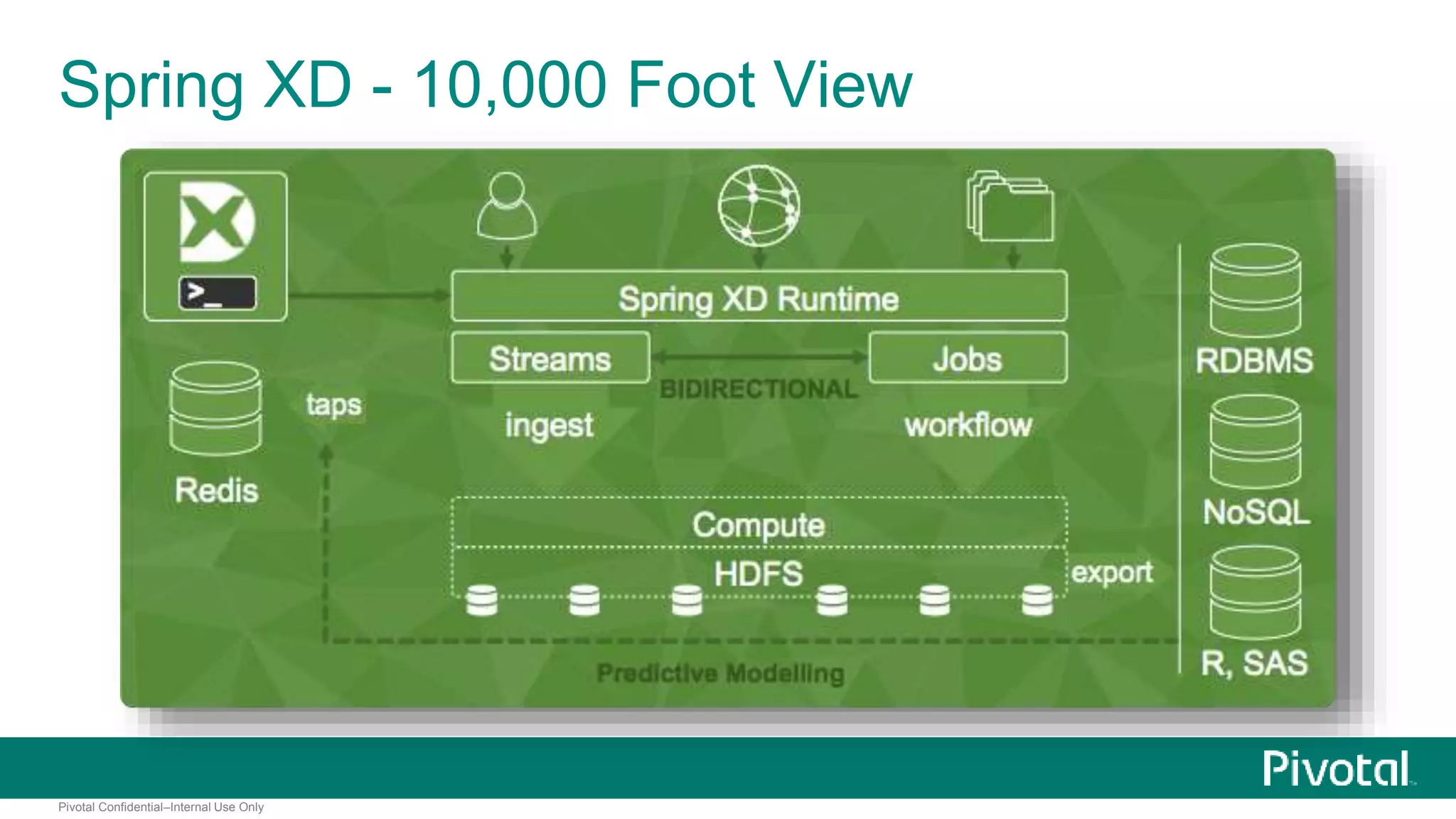

- 7. Spring XD -10,000 Foot View Pivotal Confidential–Internal Use Only

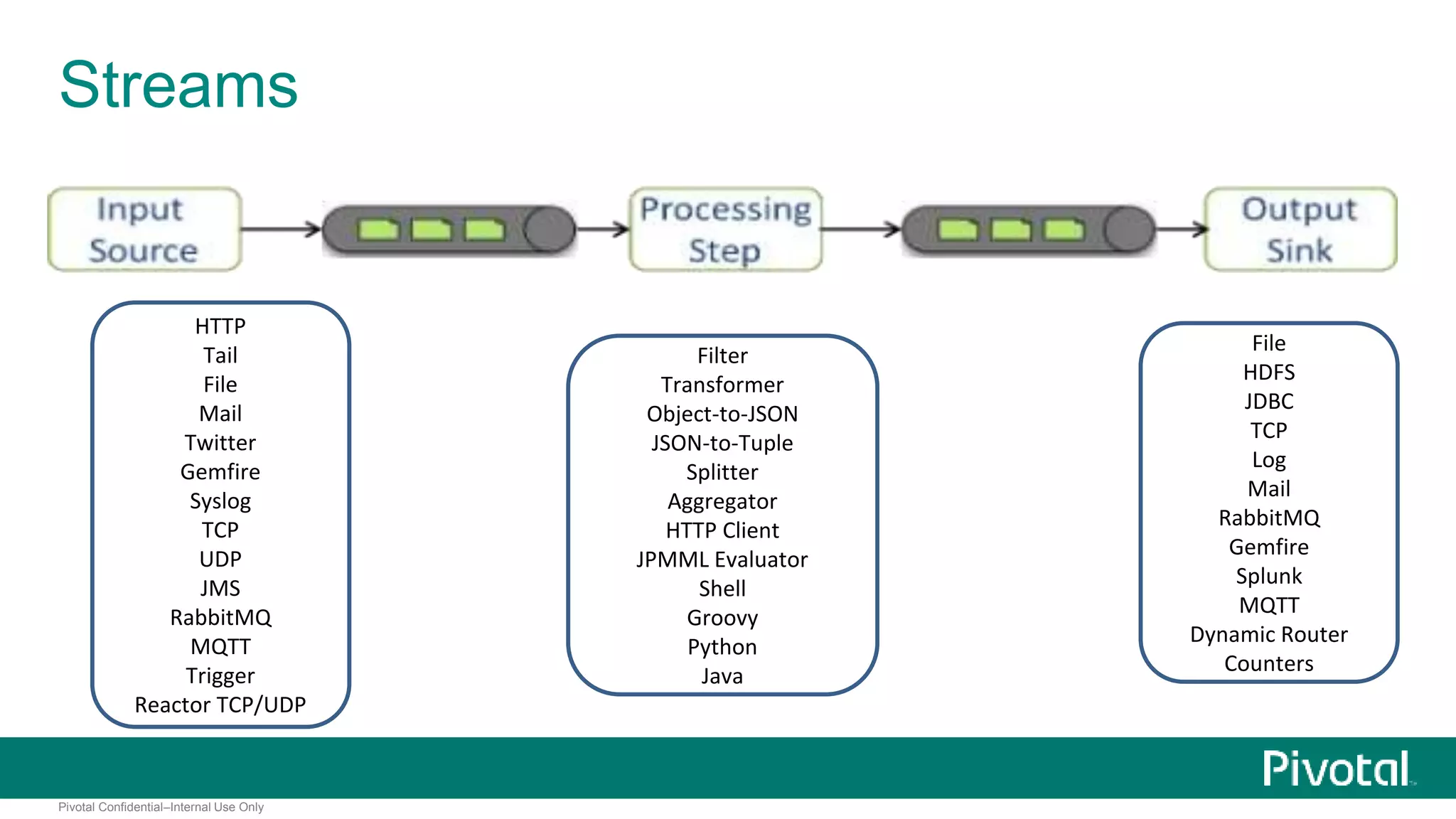

- 8. Streams HTTP Tail File Mail Twitter Gemfire Syslog TCP UDP JMS RabbitMQ MQTT Trigger Reactor TCP/UDP Pivotal Confidential–Internal Use Only Filter Transformer Object-to-JSON JSON-to-Tuple Splitter Aggregator HTTP Client JPMML Evaluator Shell Groovy Python Java File HDFS JDBC TCP Log Mail RabbitMQ Gemfire Splunk MQTT Dynamic Router Counters

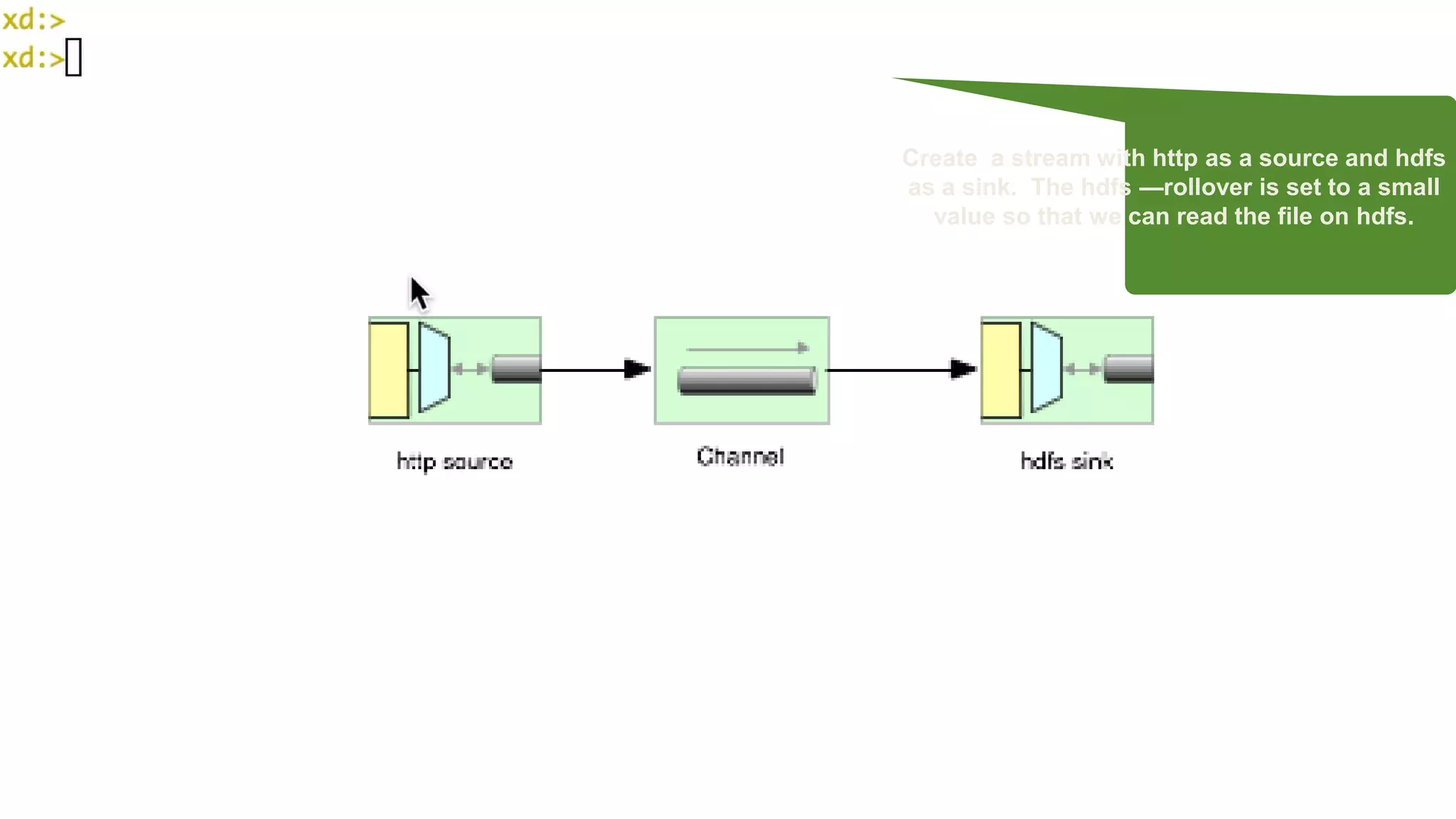

- 9. Pivotal Confidential–Internal UseOnly Create a stream with http as a source and hdfs as a sink. The hdfs —rollover is set to a small value so that we can read the file on hdfs.

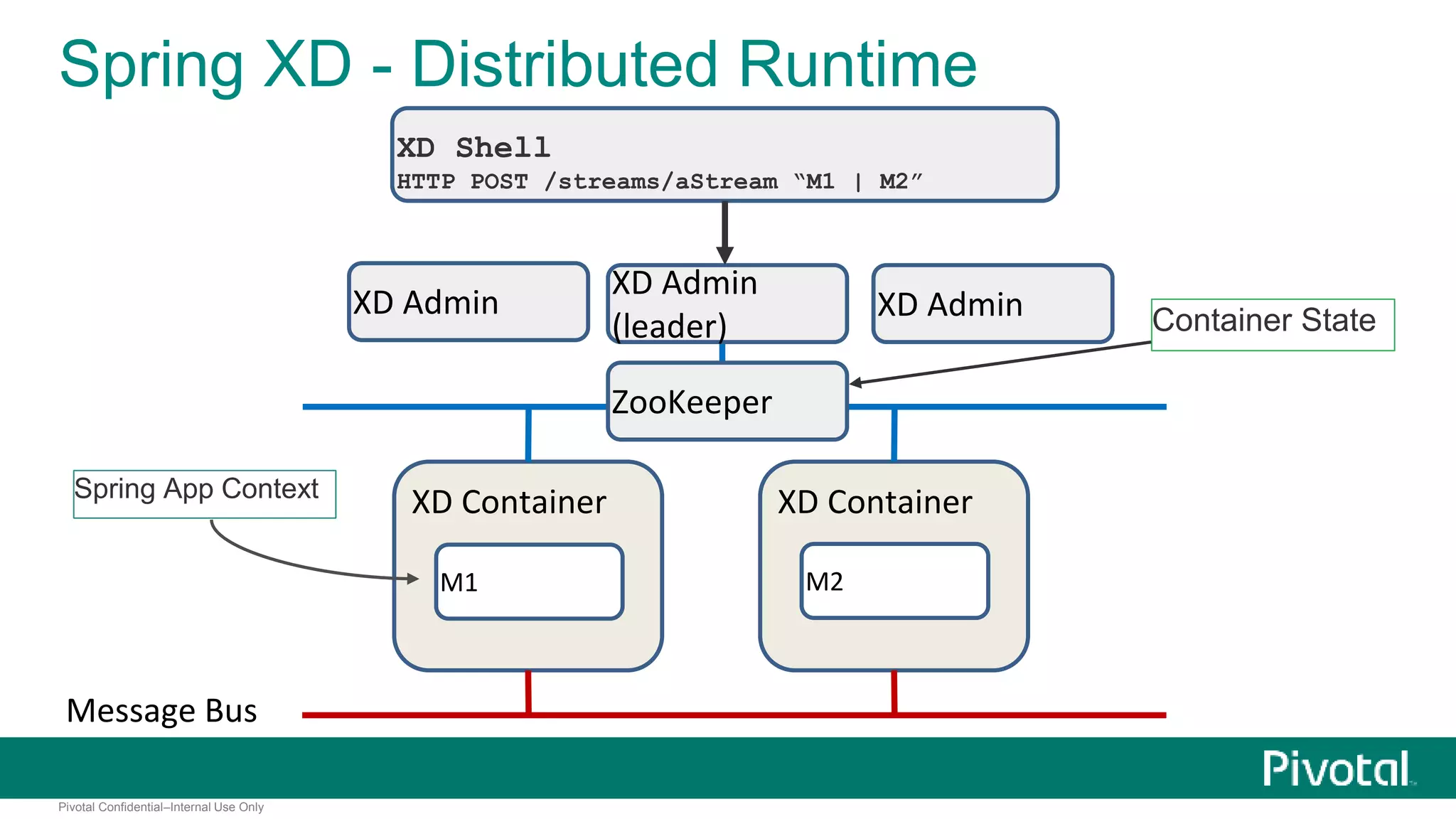

- 10. Spring XD -Distributed Runtime Pivotal Confidential–Internal Use Only XD Shell HTTP POST /streams/aStream “M1 | M2” XD Admin (leader) XD Admin XD Admin Container State XD Container XD Container Message Bus ZooKeeper Spring App Context M1 M2

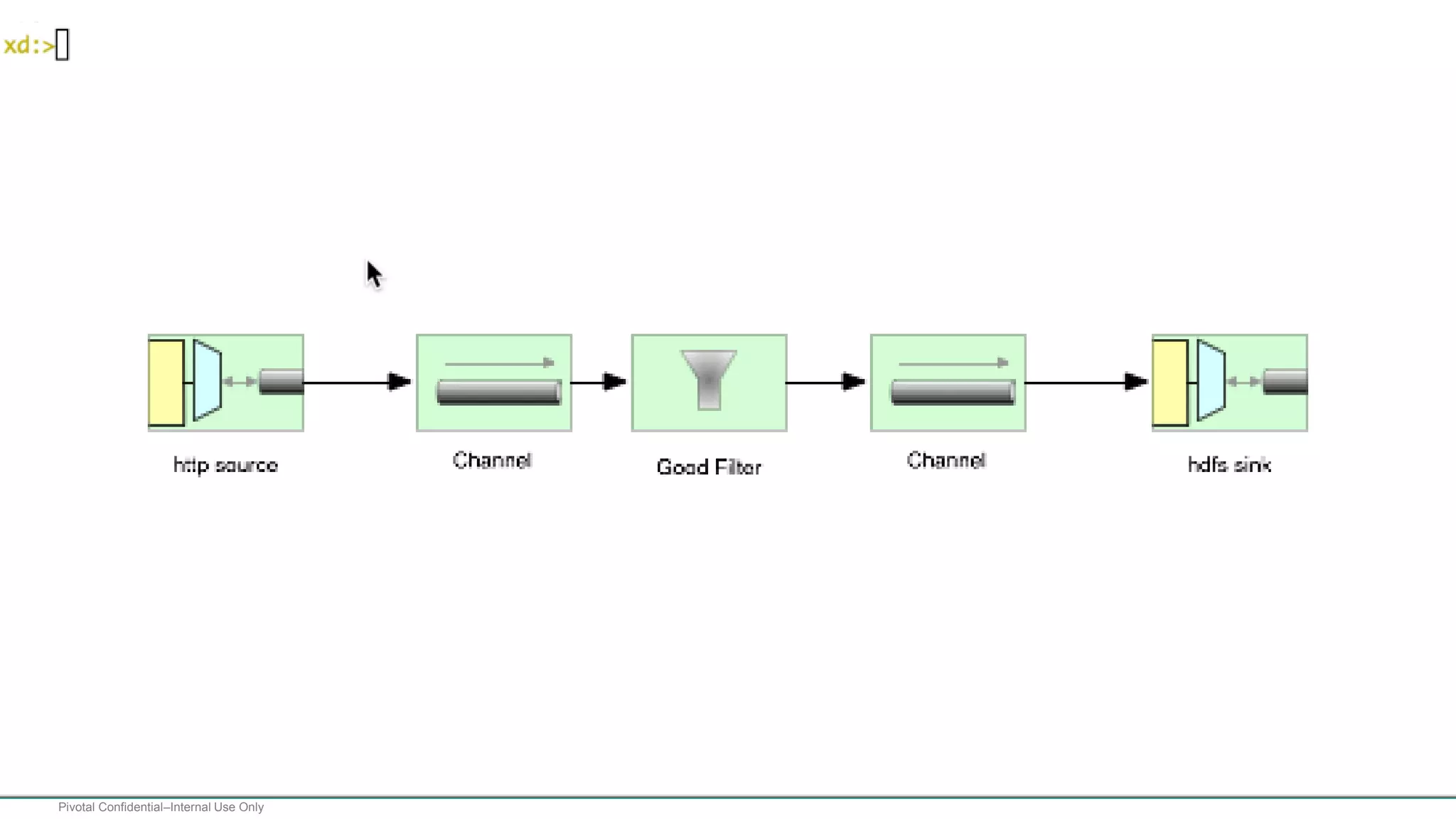

- 11.
- 12.

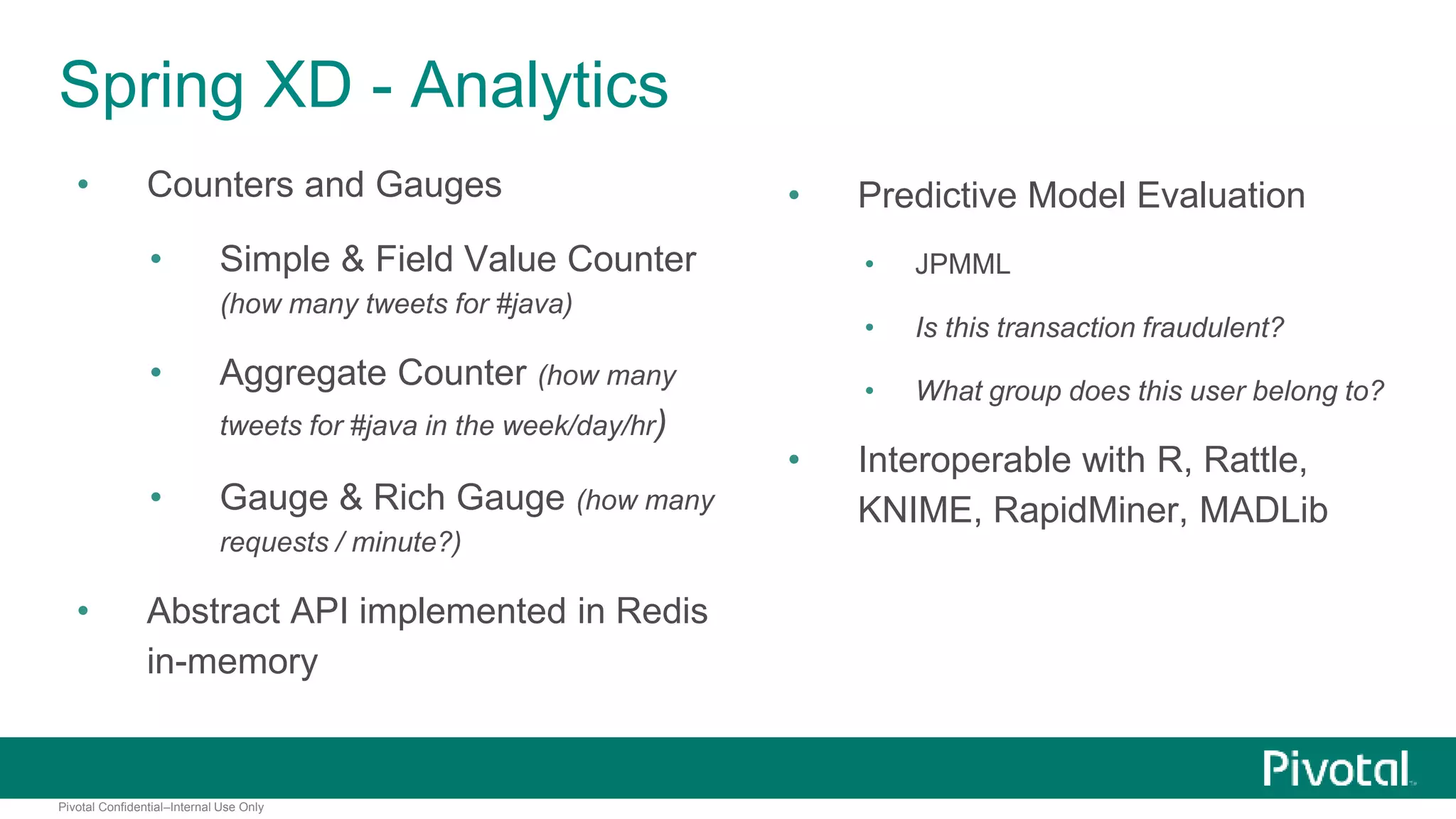

- 13. Spring XD -Analytics • Counters and Gauges • Simple & Field Value Counter (how many tweets for #java) • Aggregate Counter (how many tweets for #java in the week/day/hr) • Gauge & Rich Gauge (how many requests / minute?) • Abstract API implemented in Redis in-memory Pivotal Confidential–Internal Use Only • Predictive Model Evaluation • JPMML • Is this transaction fraudulent? • What group does this user belong to? • Interoperable with R, Rattle, KNIME, RapidMiner, MADLib

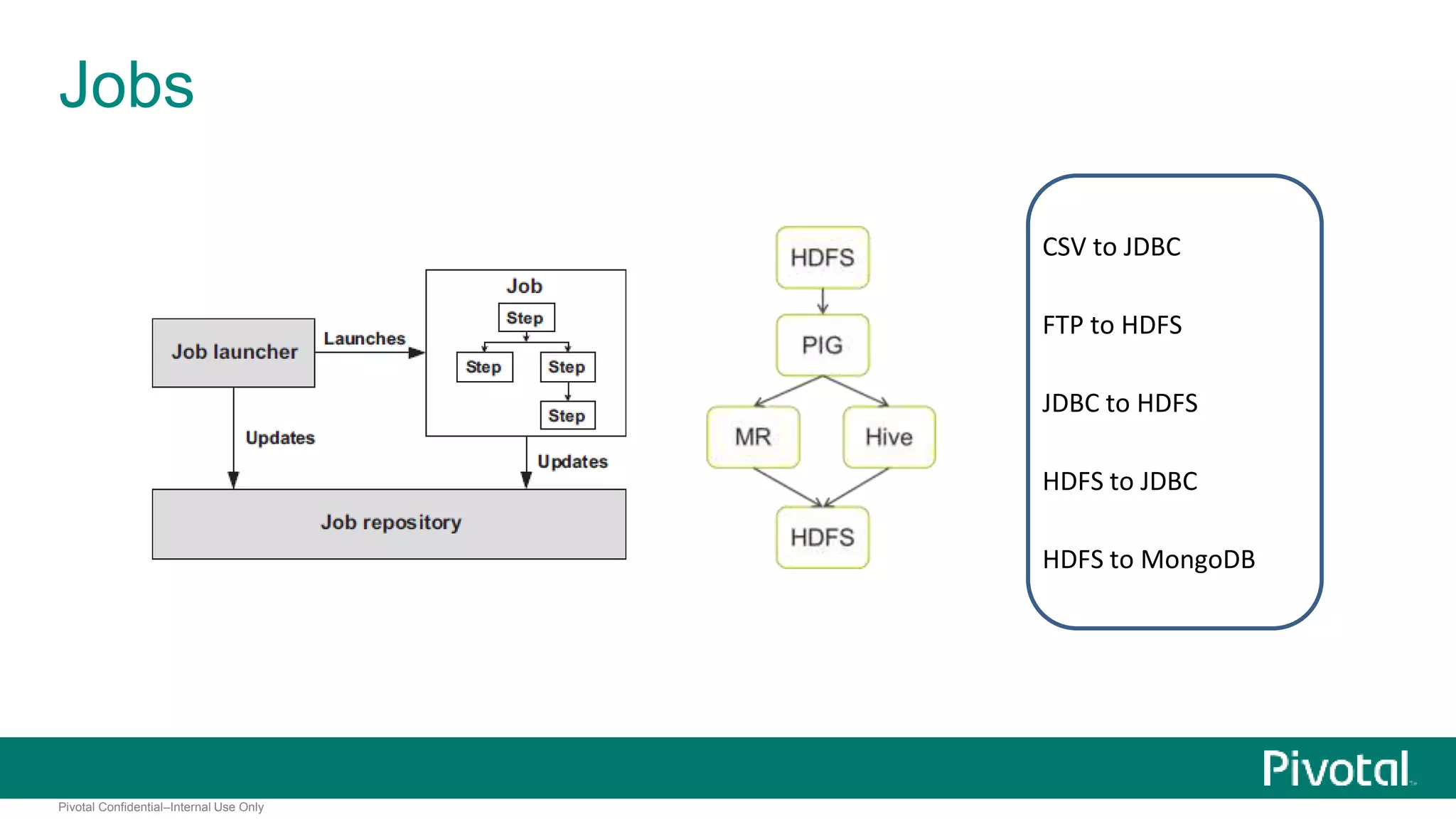

- 14. Jobs Pivotal Confidential–InternalUse Only CSV to JDBC FTP to HDFS JDBC to HDFS HDFS to JDBC HDFS to MongoDB

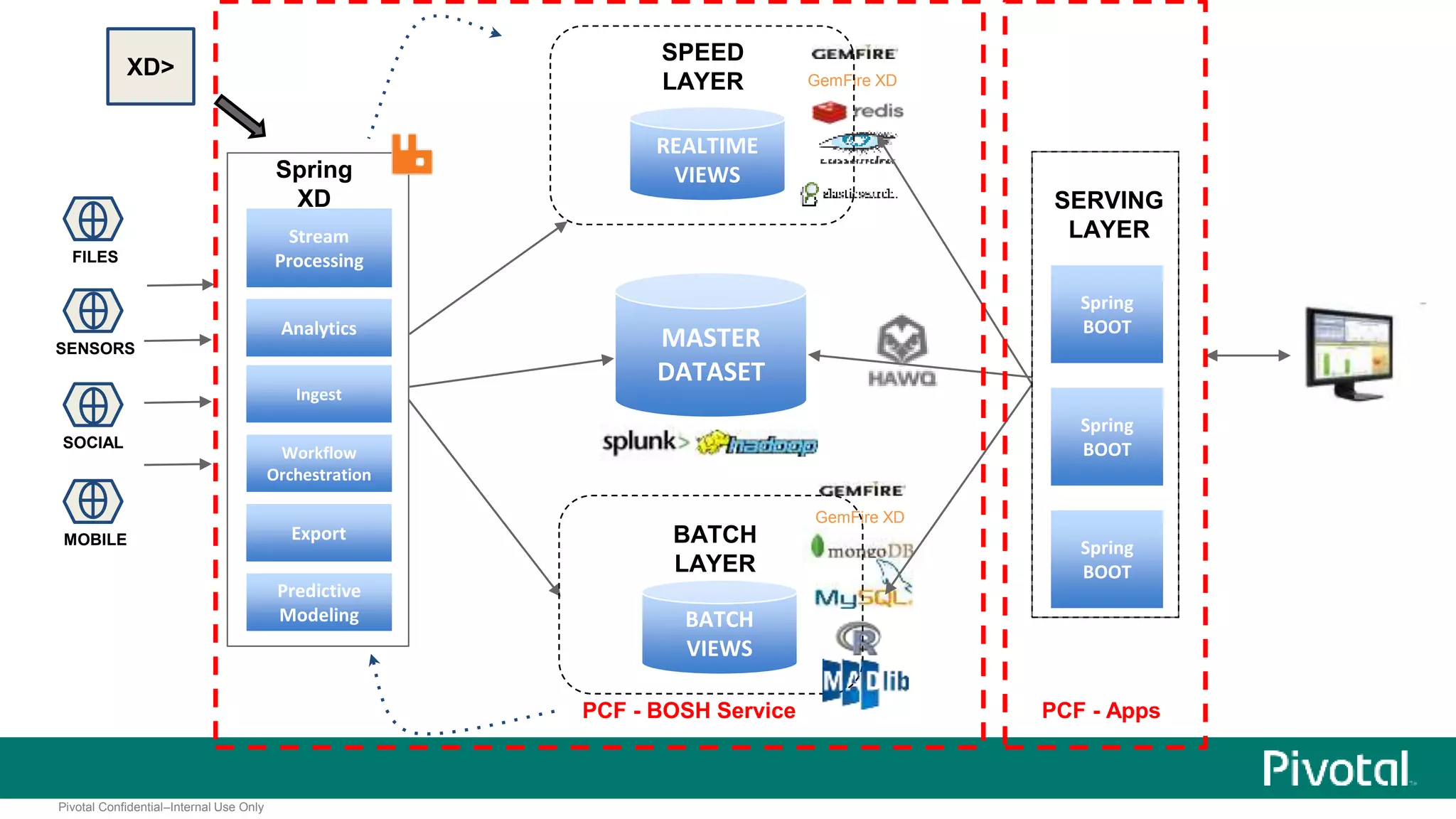

- 15. SENSORS SOCIAL PivotalConfidential–Internal Use Only REALTIME VIEWS BATCH VIEWS Spring XD Spring XD MASTER DATASET Spring BOOT Spring BOOT Spring BOOT FILES Stream Processing Analytics Ingest Workflow Orchestration Export XD> GemFire XD Predictive Modeling GemFire XD SPEED LAYER BATCH LAYER SERVING LAYER PCF - BOSH Service PCF - Apps MOBILE

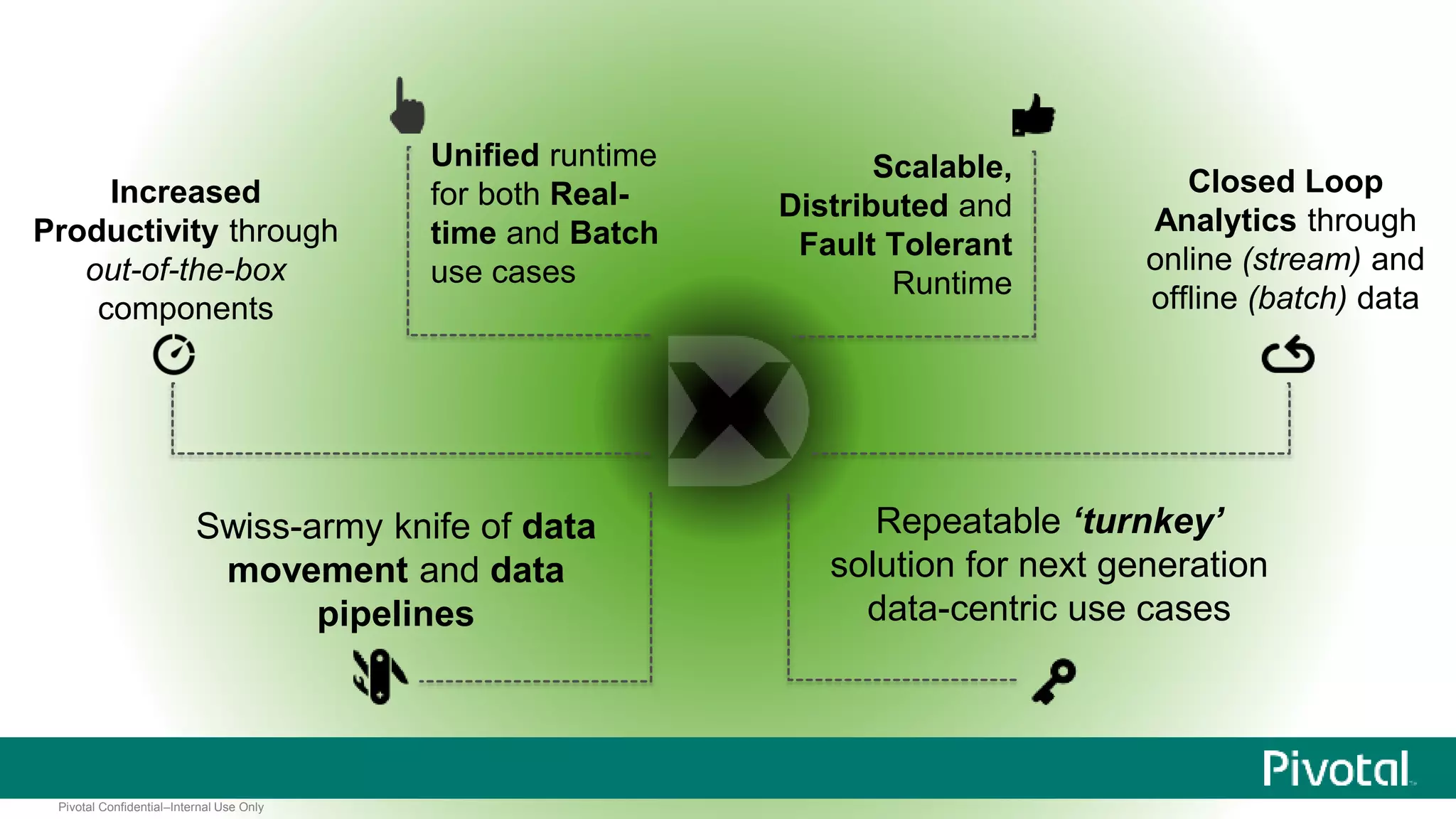

- 16. Pivotal Confidential–Internal UseOnly Unified runtime for both Real-time and Batch use cases Scalable, Distributed and Fault Tolerant Runtime Increased Productivity through out-of-the-box components Closed Loop Analytics through online (stream) and offline (batch) data Swiss-army knife of data movement and data pipelines Repeatable ‘turnkey’ solution for next generation data-centric use cases

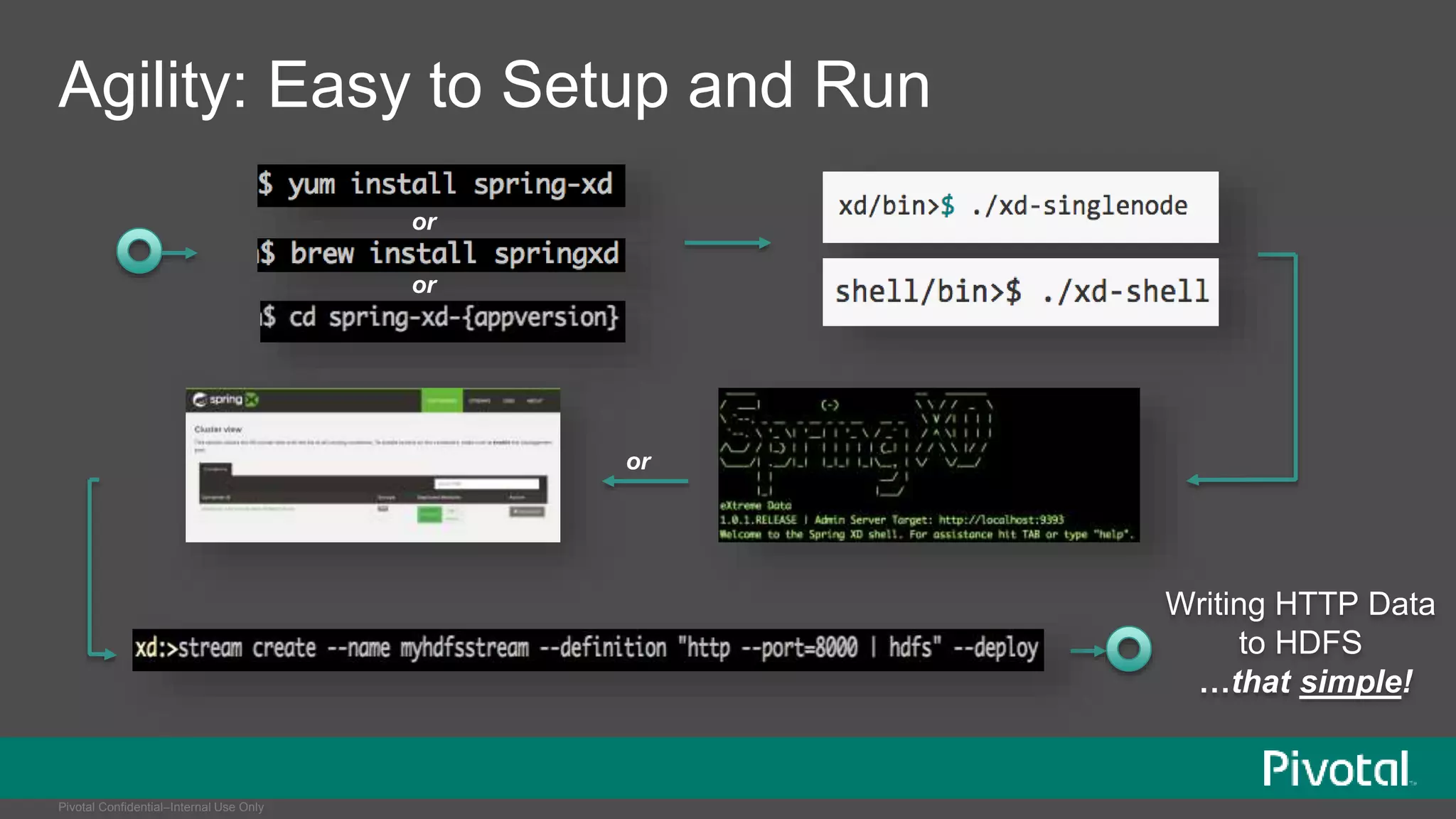

- 17. Agility: Easy toSetup and Run Pivotal Confidential–Internal Use Only Writing HTTP Data to HDFS …that simple! or or or

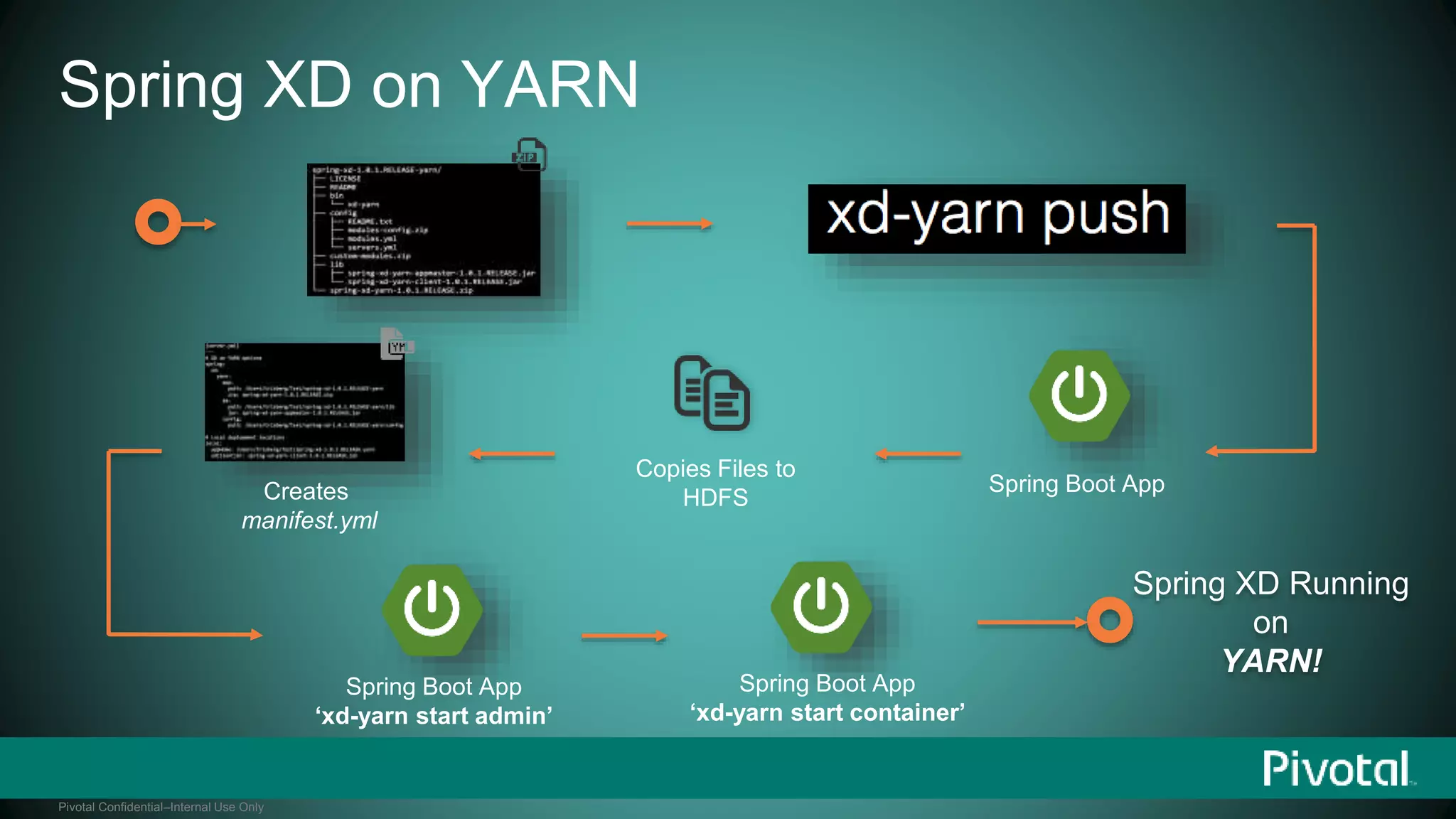

- 18. Spring XD onYARN Pivotal Confidential–Internal Use Only Spring XD Running on YARN! Copies Files to Creates HDFS manifest.yml Spring Boot App ‘xd-yarn start admin’ Spring Boot App ‘xd-yarn start container’ Spring Boot App
- 19. Pivotal Confidential–Internal UseOnly Even easier with PCF

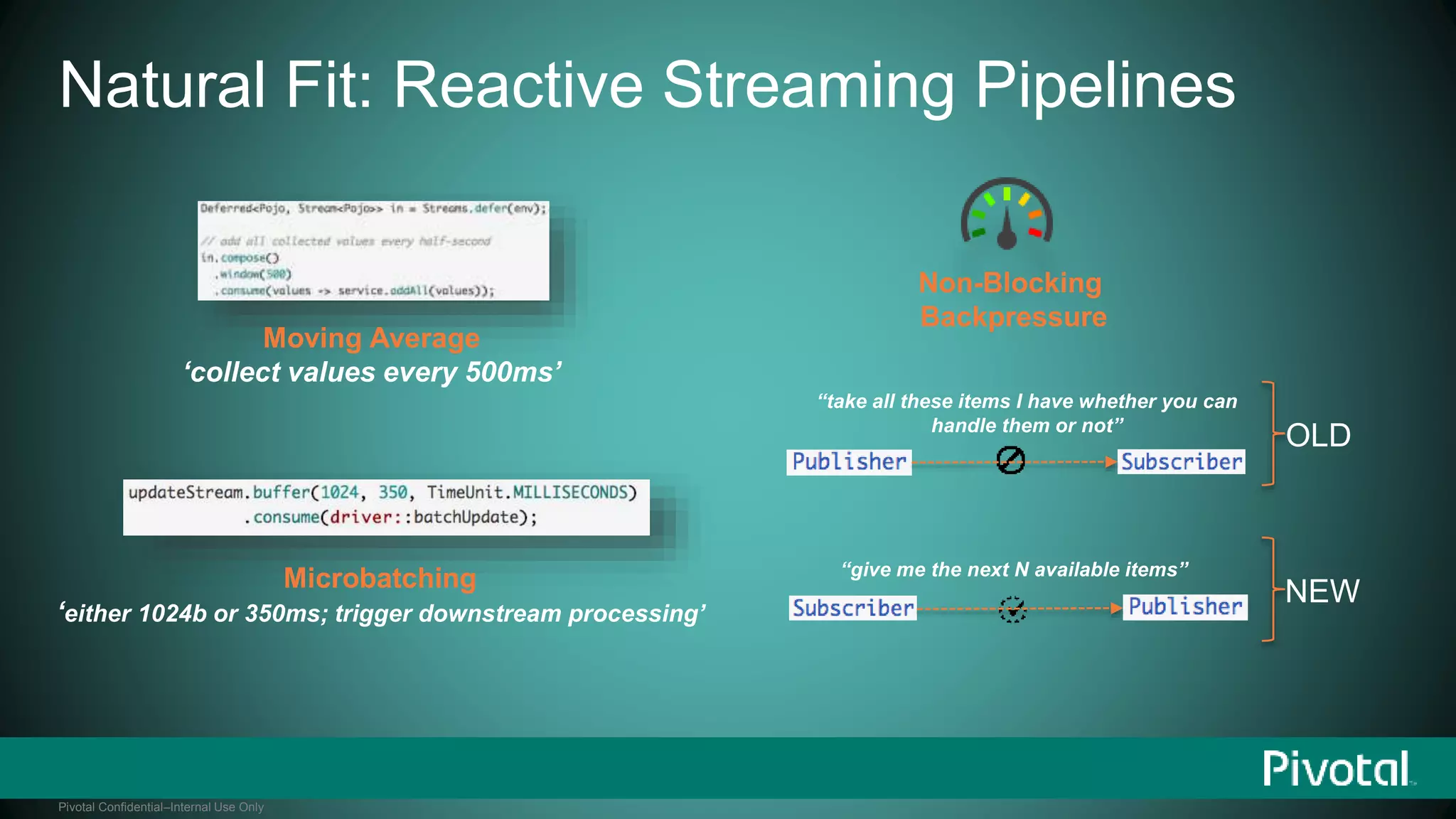

- 20. Natural Fit: ReactiveStreaming Pipelines Moving Average ‘collect values every 500ms’ Pivotal Confidential–Internal Use Only Non-Blocking Backpressure “take all these items I have whether you can handle them or not” “give me the next N available items” OLD NEW Microbatching ‘either 1024b or 350ms; trigger downstream processing’

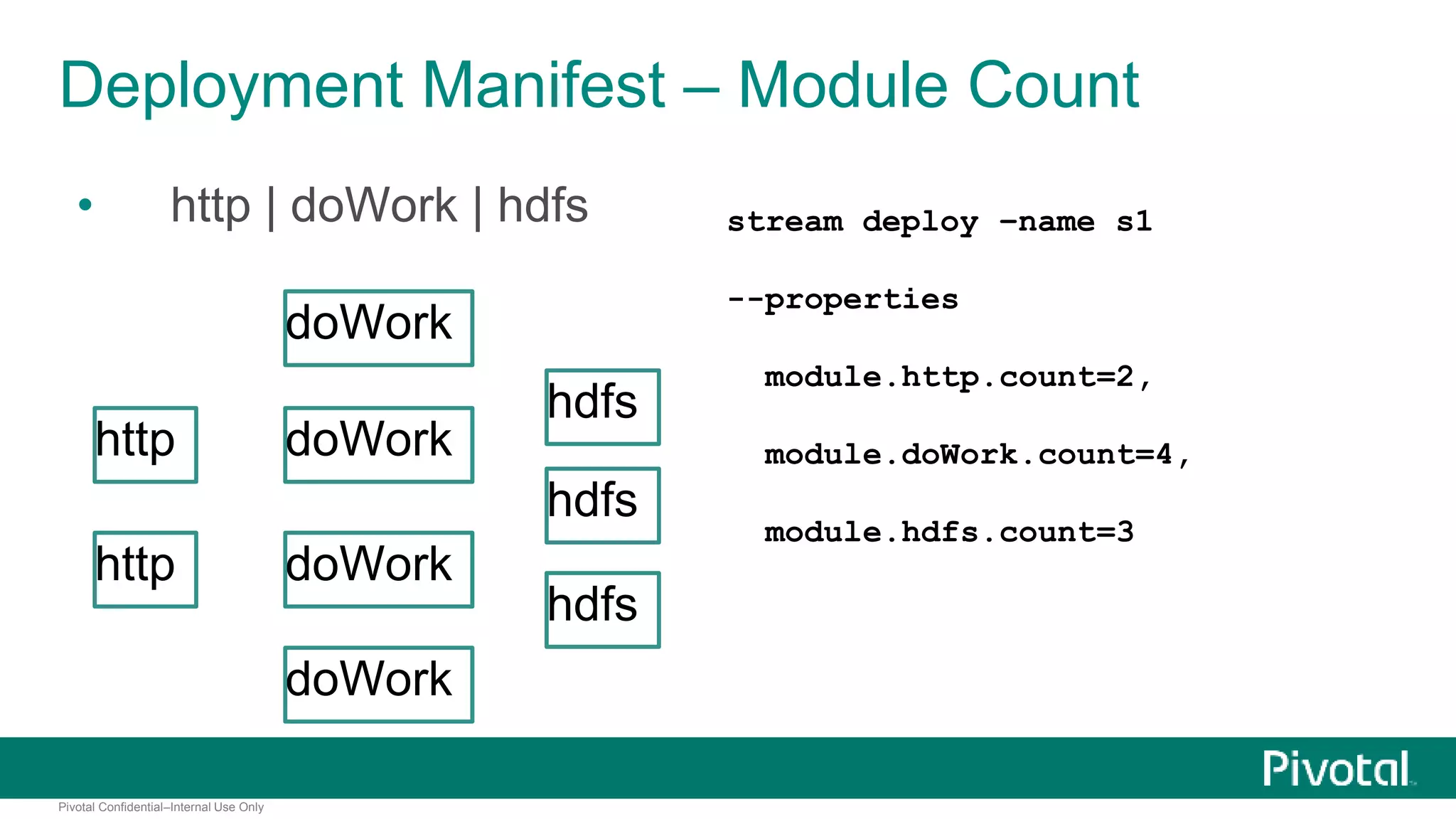

- 21. Deployment Manifest –Module Count • http | doWork | hdfs http http Pivotal Confidential–Internal Use Only doWork doWork doWork doWork hdfs hdfs hdfs stream deploy –name s1 --properties module.http.count=2, module.doWork.count=4, module.hdfs.count=3

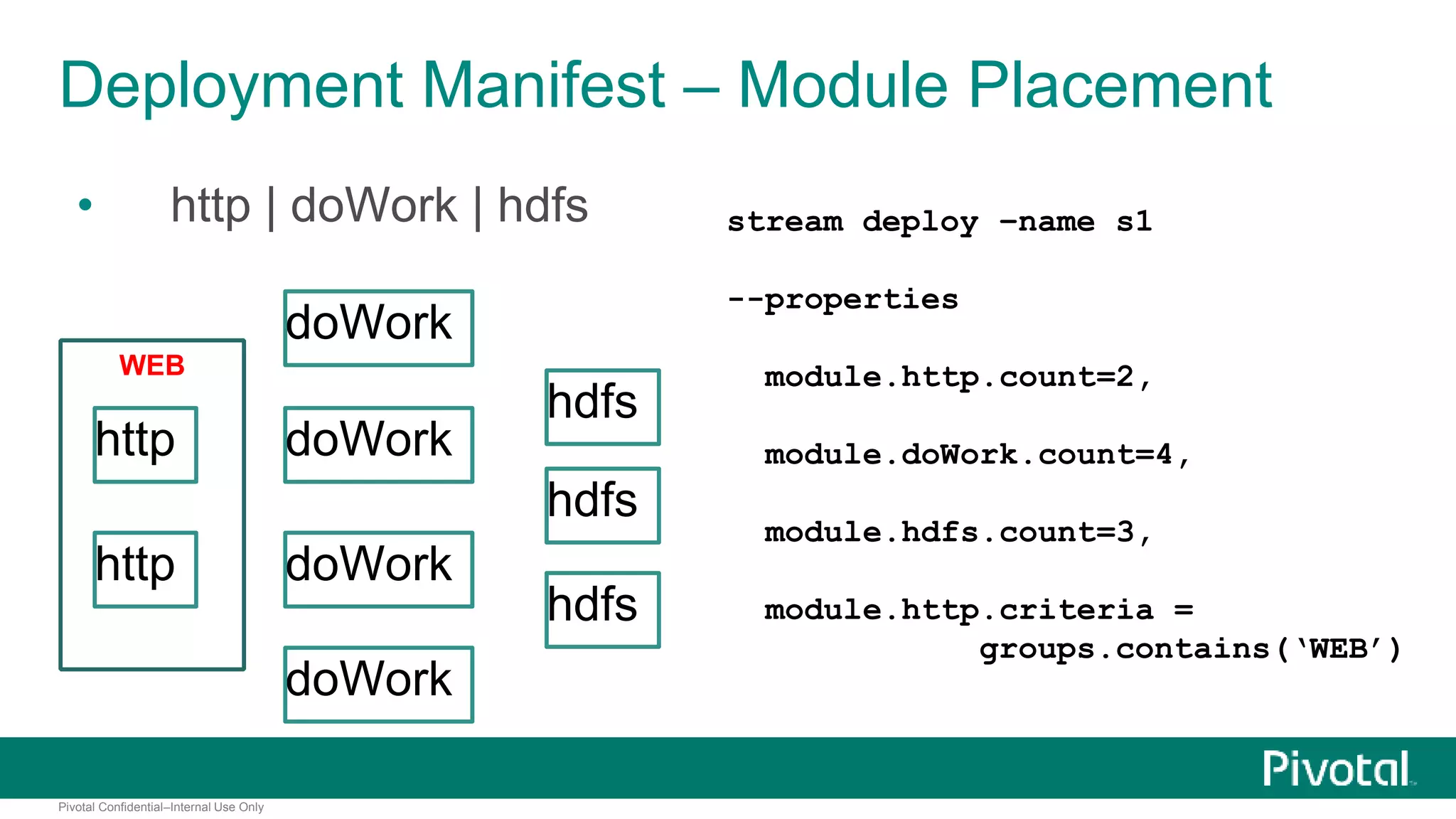

- 22. Deployment Manifest –Module Placement • http | doWork | hdfs http http Pivotal Confidential–Internal Use Only doWork doWork doWork doWork hdfs hdfs hdfs stream deploy –name s1 --properties module.http.count=2, module.doWork.count=4, module.hdfs.count=3, module.http.criteria = groups.contains(‘WEB’) WEB

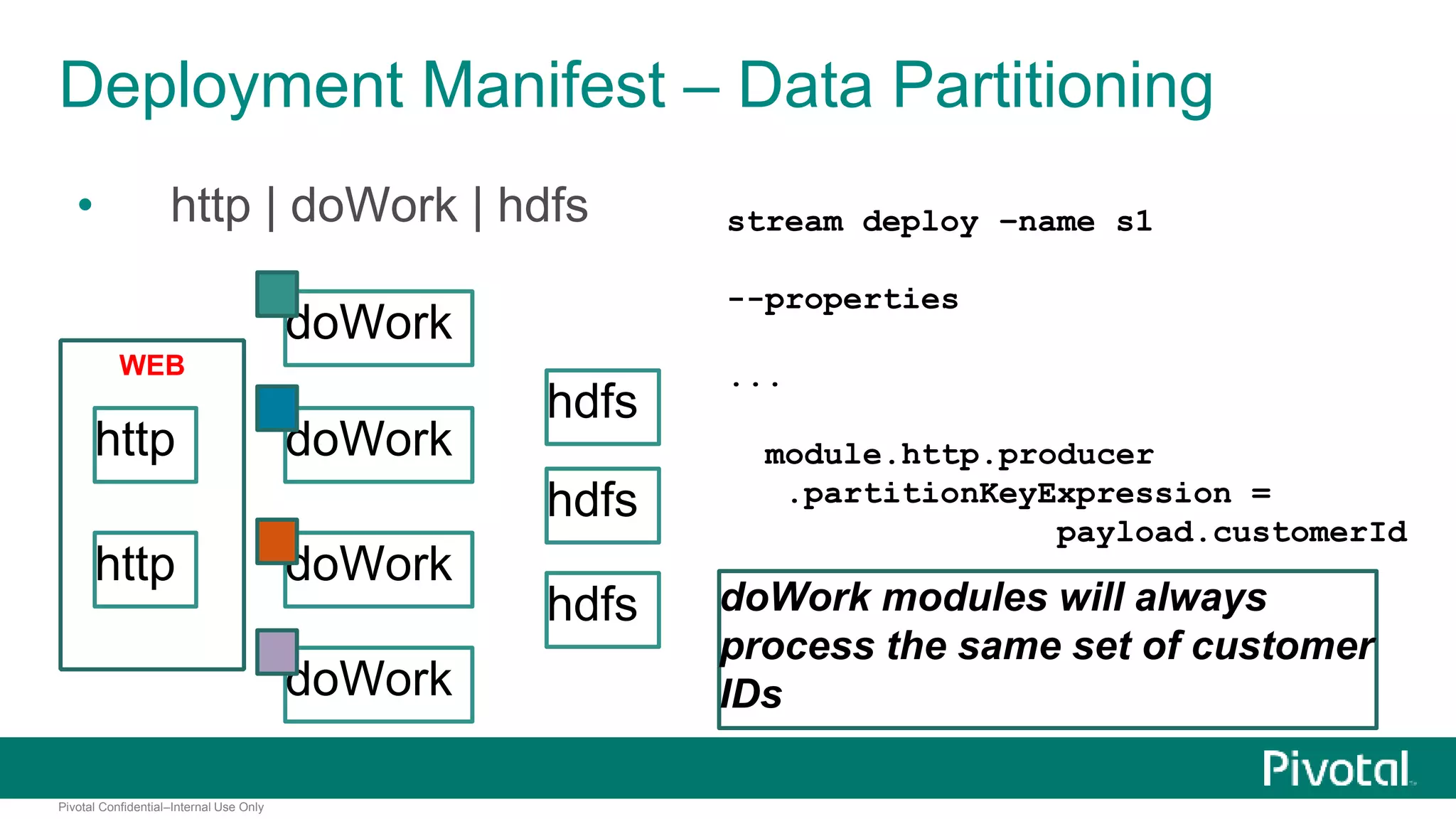

- 23. Deployment Manifest –Data Partitioning • http | doWork | hdfs http http Pivotal Confidential–Internal Use Only doWork doWork doWork doWork hdfs hdfs hdfs stream deploy –name s1 --properties ... module.http.producer .partitionKeyExpression = payload.customerId WEB doWork modules will always process the same set of customer IDs
- 24. Learn More •Project: http://projects.spring.io/spring-xd/ • GitHub: https://github.com/spring-projects/spring-xd/ • Wiki: https://github.com/spring-projects/spring-xd/wiki • Samples: https://github.com/spring-projects/spring-xd-samples Pivotal Confidential–Internal Use Only
- 25. Pivotal Confidential–Internal UseOnly A NEW PLATFORM FOR A NEW ERA
Editor's Notes
- #3 Big Data Overview: Everything starts with Data! Let’s look at the 4 V’s of Big Data. Volume: Data generation is at massive scale Velocity: Need for data agility is mandatory Veracity: Bad quality of data poses enormous risk Variety: Heterogeneous data requirements
- #4 Flume Storm Spark * notes* oozie List the top challenges. Hadoop isn’t always the target… Mongo, RDBMS, Redis, In memory data grid, or as a stream to a micro service
- #5 Pitch Spring XD! Relate to the discussed problem and progress to the next slide for solutions.
- #6 Let’s see how Spring XD tackles the described challenges. http client hdfs stream create foo --definition "http |hdfs --rollover=11" —deploy http post --target http://localhost:9000 --data "hello world” hadoop fs ls /xd/foo hadoop config fs --namenode hdfs://localhost:8020
- #7 Brief overview on Spring IO platform.
- #8 Architecture overview.

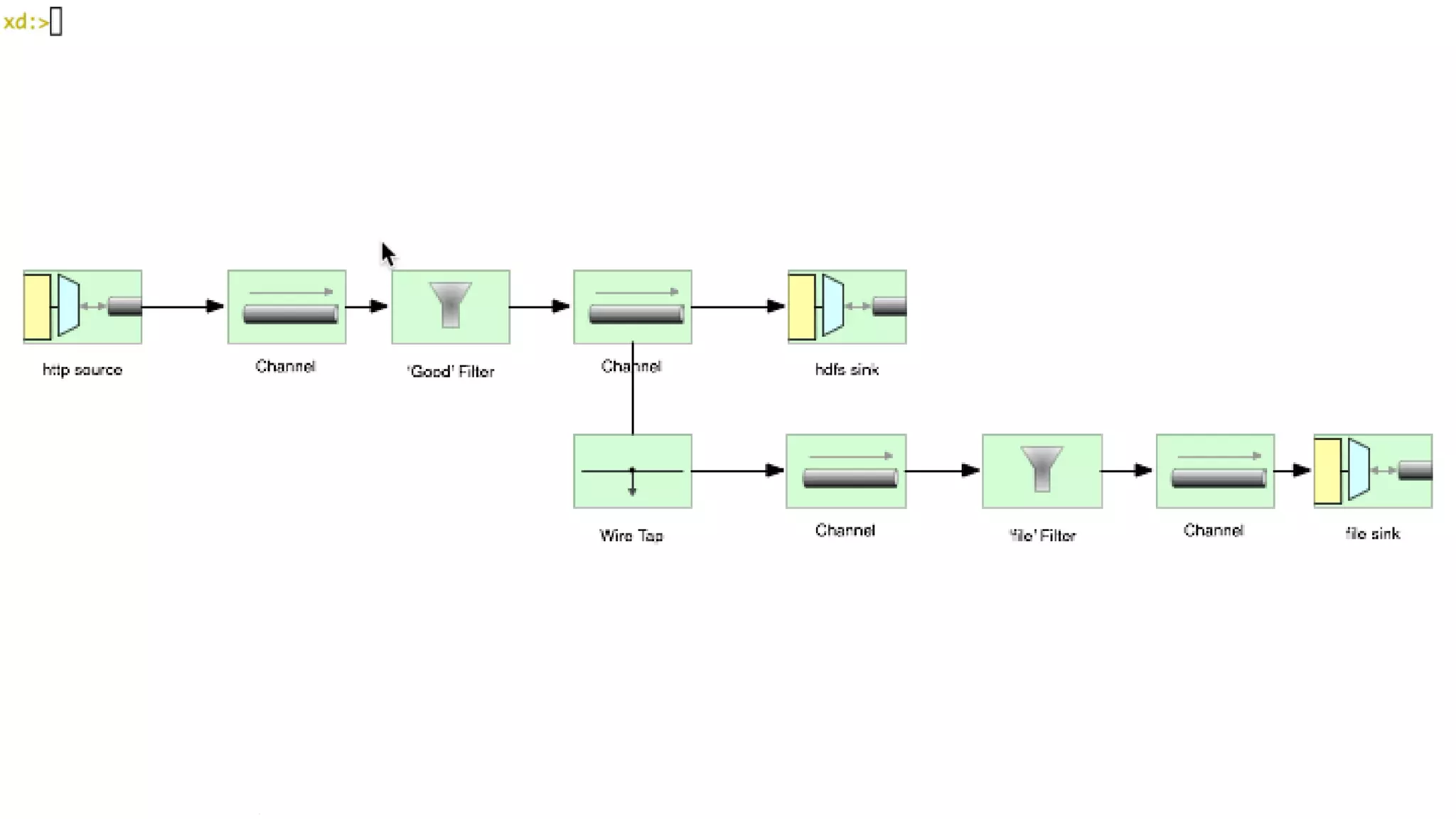

- #14 http client filter hdfs http client filter rdbms http client filter count on hdfs job move that data to mongo
- #17 Closer look at Spring XD’s business value proposition. Unified runtime Runtime features Productivity Closed loop analytics Enterprise data pipelines Data-centric use cases
- #18 Easy to setup.
- #19 Even on YARN, it’s that SIMPLE!
- #20 A
- #21 Spring Reactor’s NIO and async dispatcher fits Spring XD model naturally.
