- 1. Beyond Red Applications ofMultispectral Remote Sensing in Geoarchaeology Keith Challis IRISH QUATERNARY ASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012

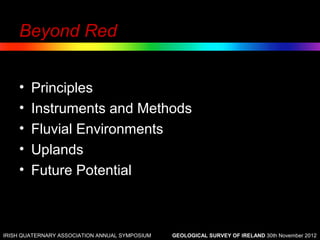

- 2. Beyond Red • Principles • Instruments and Methods • Fluvial Environments • Uplands • Future Potential IRISH QUATERNARY ASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012
- 3.

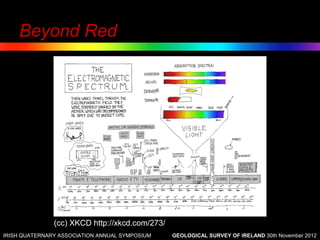

- 4. Beyond Red (cc) XKCD http://xkcd.com/273/ IRISH QUATERNARY ASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012

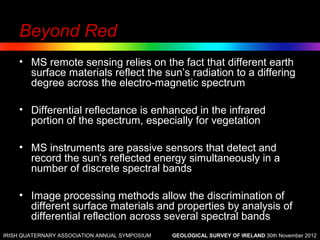

- 5. Beyond Red • MS remote sensing relies on the fact that different earth surface materials reflect the sun’s radiation to a differing degree across the electro-magnetic spectrum • Differential reflectance is enhanced in the infrared portion of the spectrum, especially for vegetation • MS instruments are passive sensors that detect and record the sun’s reflected energy simultaneously in a number of discrete spectral bands • Image processing methods allow the discrimination of different surface materials and properties by analysis of differential reflection across several spectral bands IRISH QUATERNARY ASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012

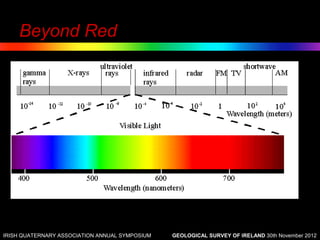

- 6. Beyond Red IRISH QUATERNARYASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012

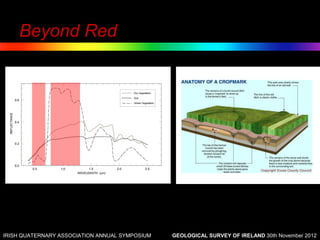

- 7. Beyond Red IRISH QUATERNARYASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012

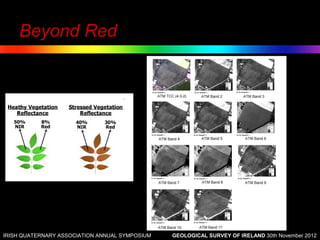

- 8. Beyond Red IRISH QUATERNARYASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012
- 9.

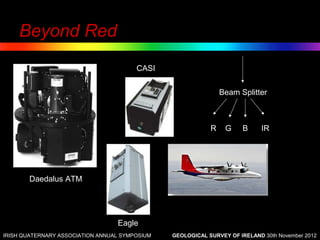

- 10. Beyond Red CASI Beam Splitter R G B IR Daedalus ATM Eagle IRISH QUATERNARY ASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012
- 11. Beyond Red Band Wavelength Association 1 0.42-0.45 VIS blue 2 0.45-0.52 VIS blue-green 3 0.52-0.60 VIS green 4 0.60-0.62 VIS red 5 0.63-0.69 VIS red 6 0.69-0.75 NIR 7 0.76-0.90 NIR 8 0.91-1.05 NIR 9 1.55-1.75 SWIR 10 2.08-2.35 SWIR 11 8.50-13.00 TIR 12 8.50-13.00 TIR IRISH QUATERNARY ASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012
- 12. Beyond Red • The various instruments offer differing combinations of characteristics • Fundamental variables are the spectral resolution (bands and band width), spatial resolution (footprint of one pixel on ground) and radiometric resolution (bits per pixel) • Instrument design is usually a trade off between these three IRISH QUATERNARY ASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012

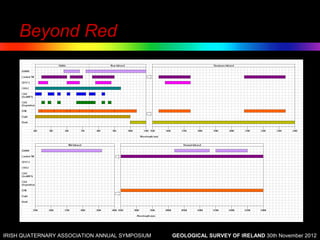

- 13. Beyond Red IRISH QUATERNARYASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012

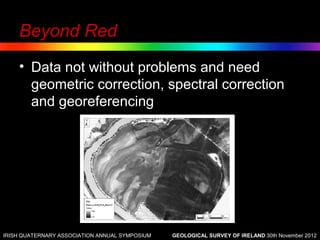

- 14. Beyond Red • Data not without problems and need geometric correction, spectral correction and georeferencing IRISH QUATERNARY ASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012

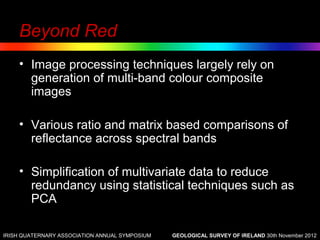

- 15. Beyond Red • Image processing techniques largely rely on generation of multi-band colour composite images • Various ratio and matrix based comparisons of reflectance across spectral bands • Simplification of multivariate data to reduce redundancy using statistical techniques such as PCA IRISH QUATERNARY ASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012
- 16. Beyond Red IRISH QUATERNARYASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012
- 17. Beyond Red • Thermal Imagery IRISH QUATERNARY ASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012

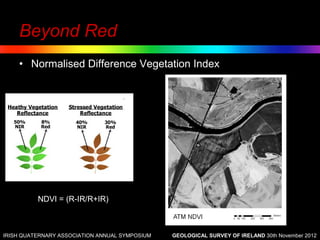

- 18. Beyond Red • Normalised Difference Vegetation Index NDVI = (R-IR/R+IR) IRISH QUATERNARY ASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012
- 19. Beyond Red • Principal Component Analysis IRISH QUATERNARY ASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012
- 20.

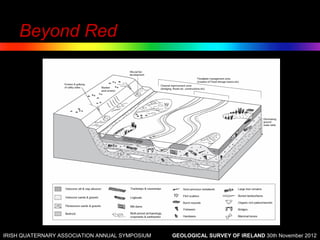

- 21. Beyond Red IRISH QUATERNARYASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012

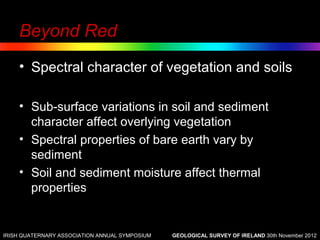

- 22. Beyond Red • Spectral character of vegetation and soils • Sub-surface variations in soil and sediment character affect overlying vegetation • Spectral properties of bare earth vary by sediment • Soil and sediment moisture affect thermal properties IRISH QUATERNARY ASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012

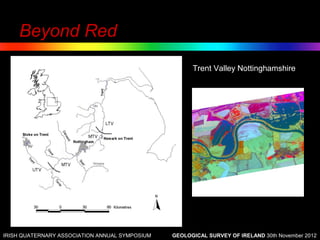

- 23. Beyond Red Trent Valley Nottinghamshire IRISH QUATERNARY ASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012

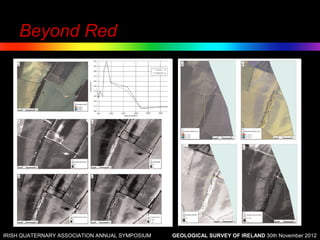

- 24. Beyond Red • Example IRISH QUATERNARY ASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012

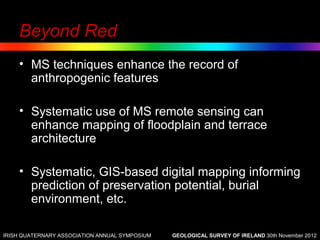

- 25. Beyond Red • MS techniques enhance the record of anthropogenic features • Systematic use of MS remote sensing can enhance mapping of floodplain and terrace architecture • Systematic, GIS-based digital mapping informing prediction of preservation potential, burial environment, etc. IRISH QUATERNARY ASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012

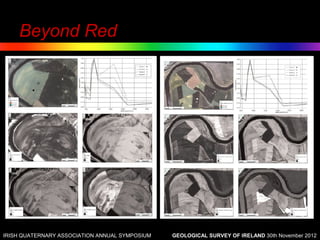

- 26. Beyond Red IRISH QUATERNARYASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012

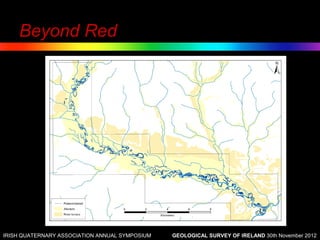

- 27. Beyond Red IRISH QUATERNARYASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012
- 28.
- 29. Beyond Red • Significant differences in spectral characteristics of vegetation, bare earth and exposed peat • Automatic mapping of erosion • Change detection IRISH QUATERNARY ASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012
- 30. Beyond Red Alston Moor, Co Durham IRISH QUATERNARY ASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012

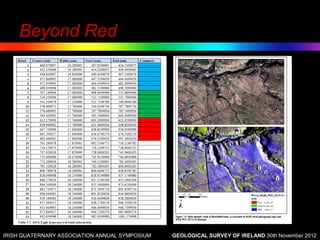

- 31. Beyond Red IRISH QUATERNARYASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012
- 32. Beyond Red IRISH QUATERNARYASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012
- 33.

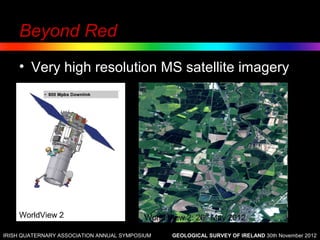

- 34. Beyond Red • Very high resolution MS satellite imagery WorldView 2 World View 2: 26th May 2012 IRISH QUATERNARY ASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012
- 35. Beyond Red • Ikonos 1999 on; 4 band 3.4m/0.8m/$20km • Quickbird 2001 on; 4band 2.4m/0.6m/$20 • Worldview 1 2007 on; 1 band 0.5m/$20 • Worldview 2 2009 on 8 band 1.8m/0.46m/$28 • GeoEye 1 2009 on; 4 band 1.65m/0.41m/$25 • GeoEye 2 2013 on; 4 band 1.36m/0.34m/$?? IRISH QUATERNARY ASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012

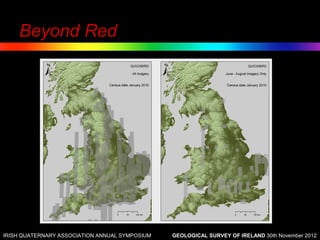

- 36. Beyond Red IRISH QUATERNARYASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012
- 37. Beyond Red The Remote Sensing Toolkit IRISH QUATERNARY ASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012

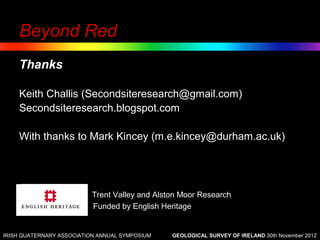

- 38. Beyond Red Thanks Keith Challis (Secondsiteresearch@gmail.com) Secondsiteresearch.blogspot.com With thanks to Mark Kincey (m.e.kincey@durham.ac.uk) Trent Valley and Alston Moor Research Funded by English Heritage IRISH QUATERNARY ASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012

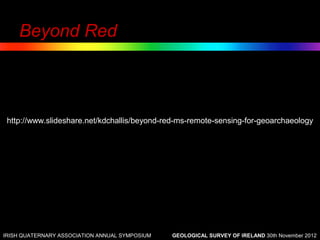

- 39. Beyond Red http://www.slideshare.net/kdchallis/beyond-red-ms-remote-sensing-for-geoarchaeology IRISHQUATERNARY ASSOCIATION ANNUAL SYMPOSIUM GEOLOGICAL SURVEY OF IRELAND 30th November 2012
