1. Beyond PHP :
It's not (just) about the code
Wim Godden
Cu.be Solutions

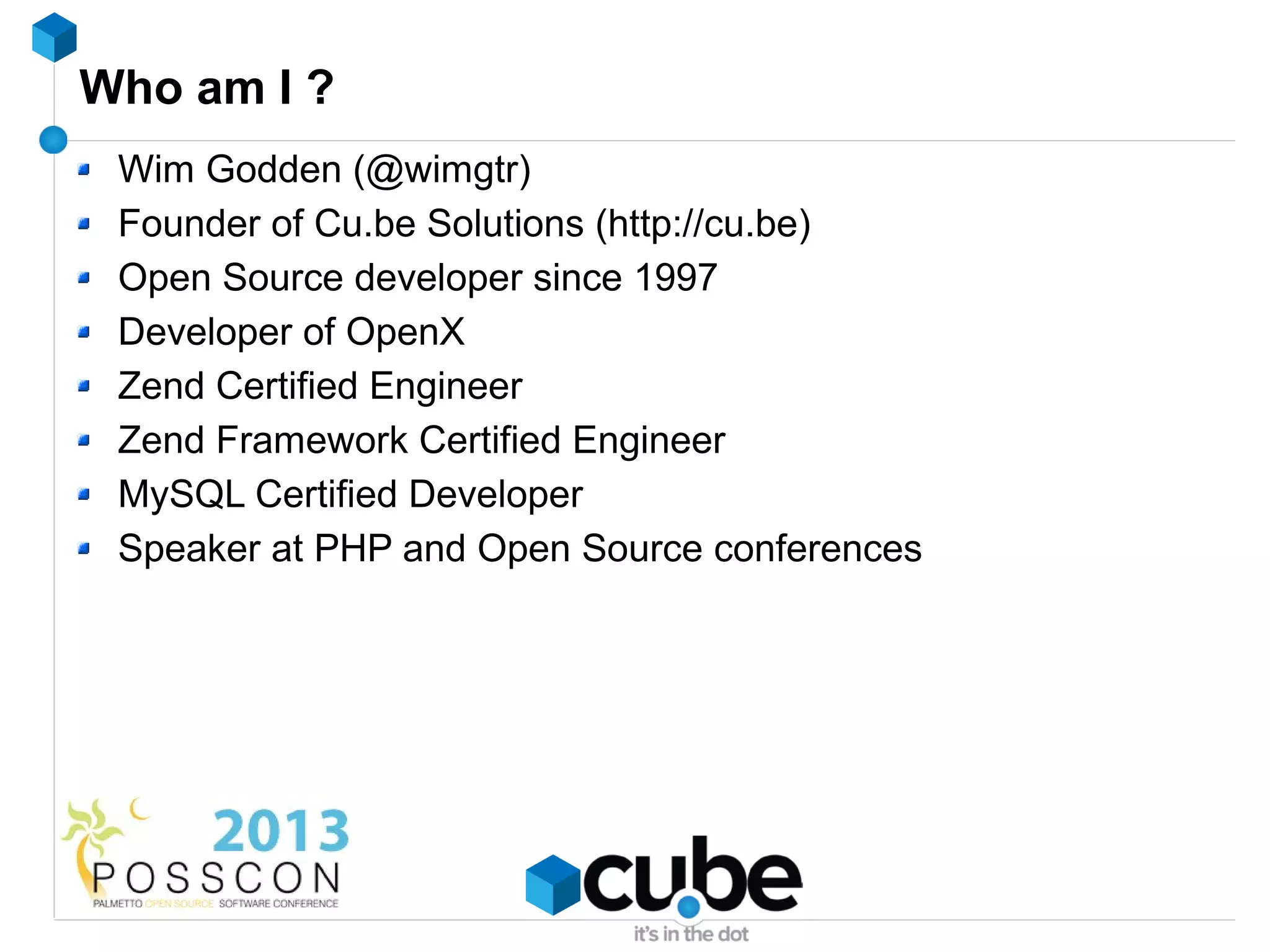

2. Who am I ?
Wim Godden (@wimgtr)
Founder of Cu.be Solutions (http://cu.be)
Open Source developer since 1997
Developer of OpenX
Zend Certified Engineer
Zend Framework Certified Engineer
MySQL Certified Developer
Speaker at PHP and Open Source conferences

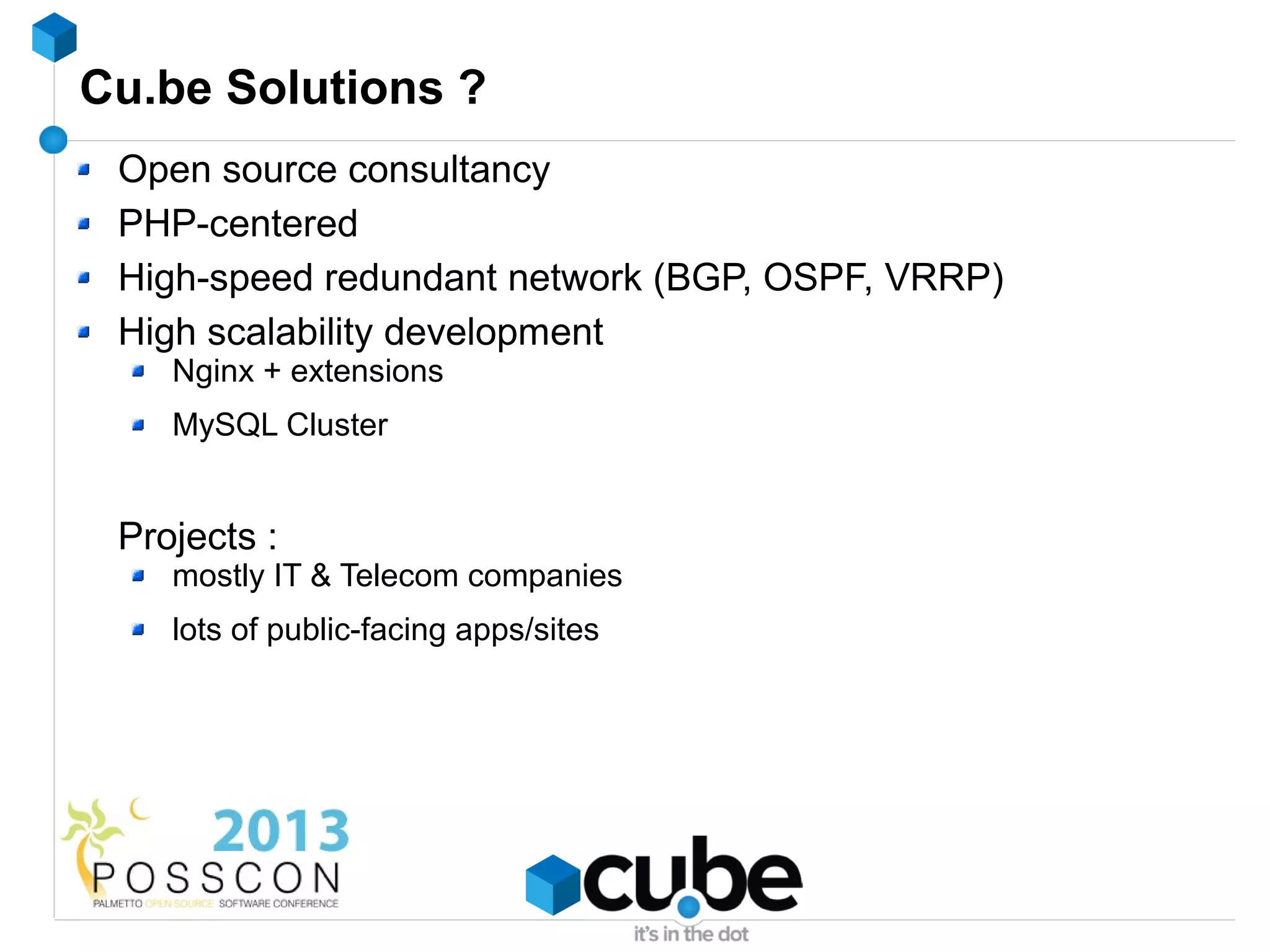

3. Cu.be Solutions ?
Open source consultancy
PHP-centered
High-speed redundant network (BGP, OSPF, VRRP)
High scalability development
Nginx + extensions
MySQL Cluster
Projects :
mostly IT & Telecom companies
lots of public-facing apps/sites

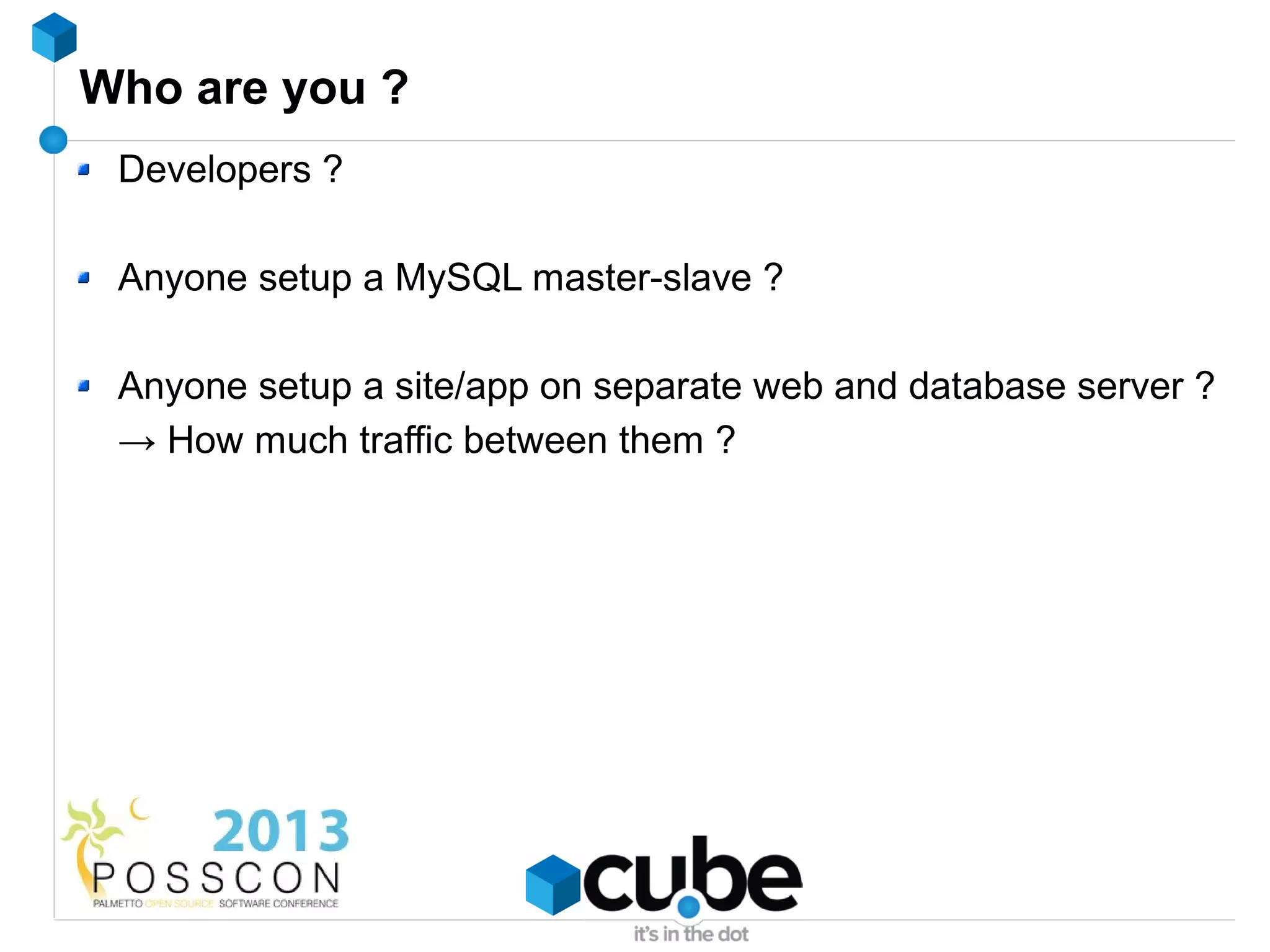

4. Who are you ?
Developers ?
Anyone setup a MySQL master-slave ?
Anyone setup a site/app on separate web and database server ?
→ How much traffic between them ?

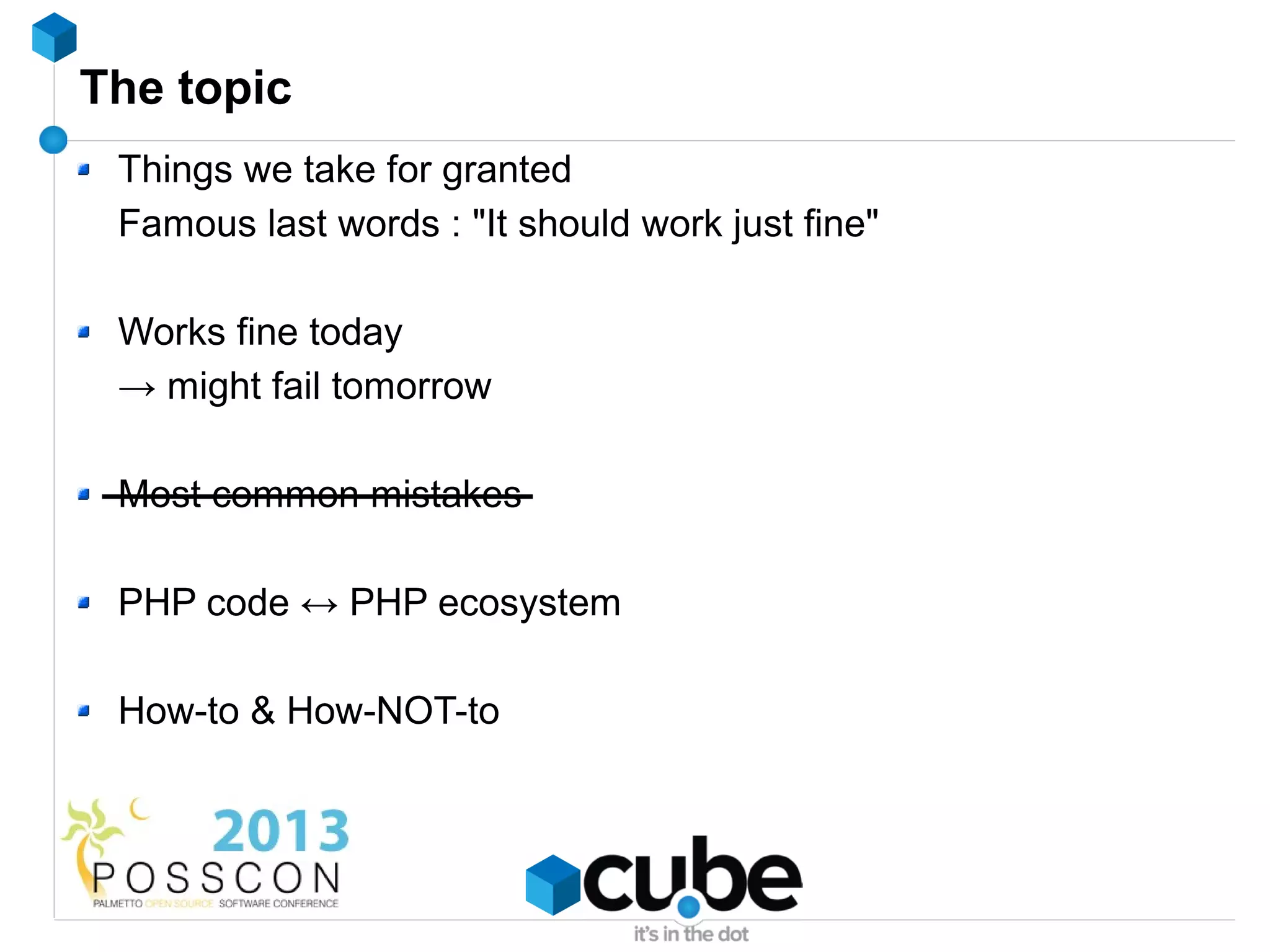

5. The topic
Things we take for granted
Famous last words : "It should work just fine"
Works fine today
→ might fail tomorrow
Most common mistakes
PHP code ↔ PHP ecosystem
How-to & How-NOT-to

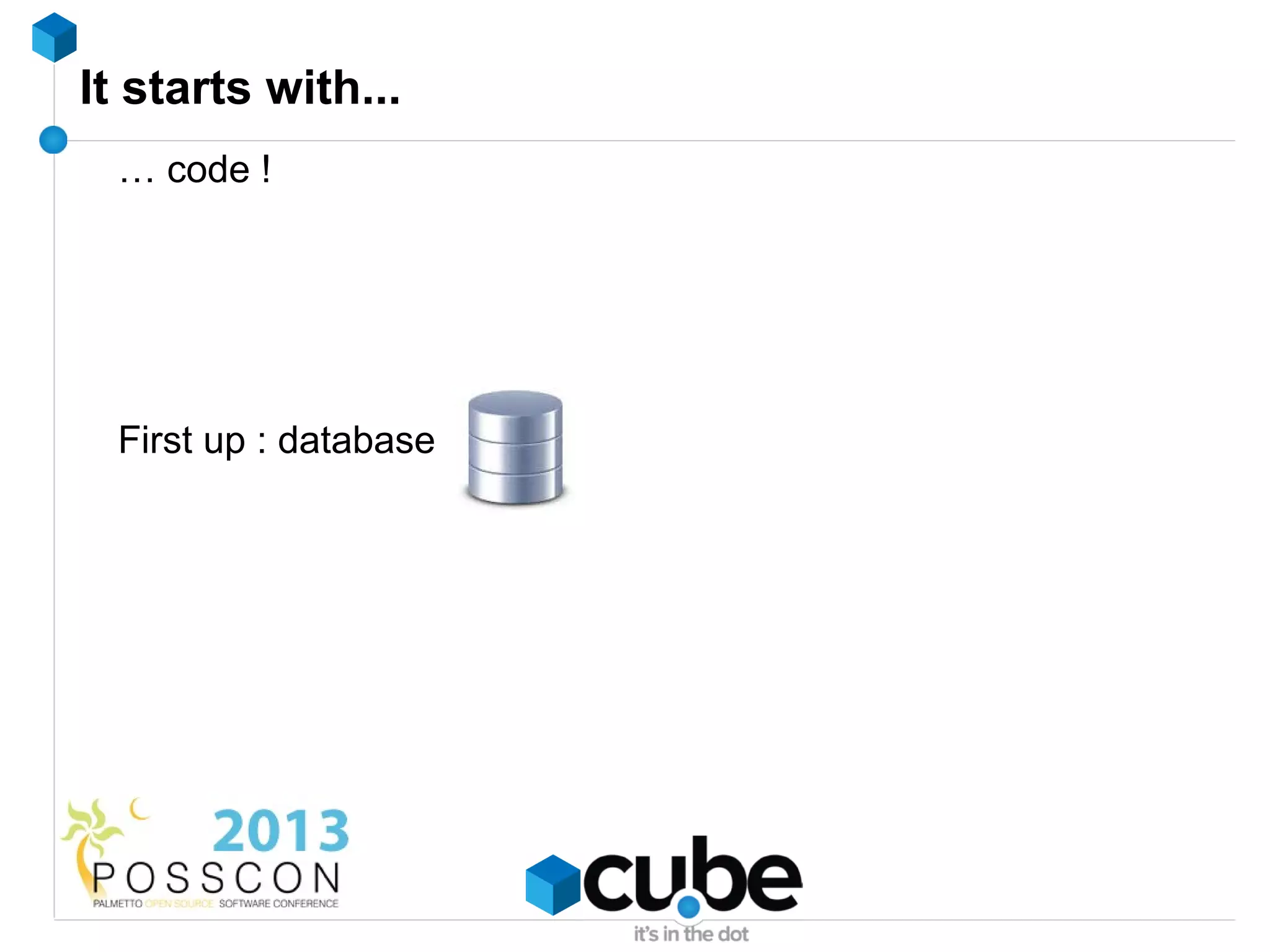

6. It starts with...
… code !
First up : database

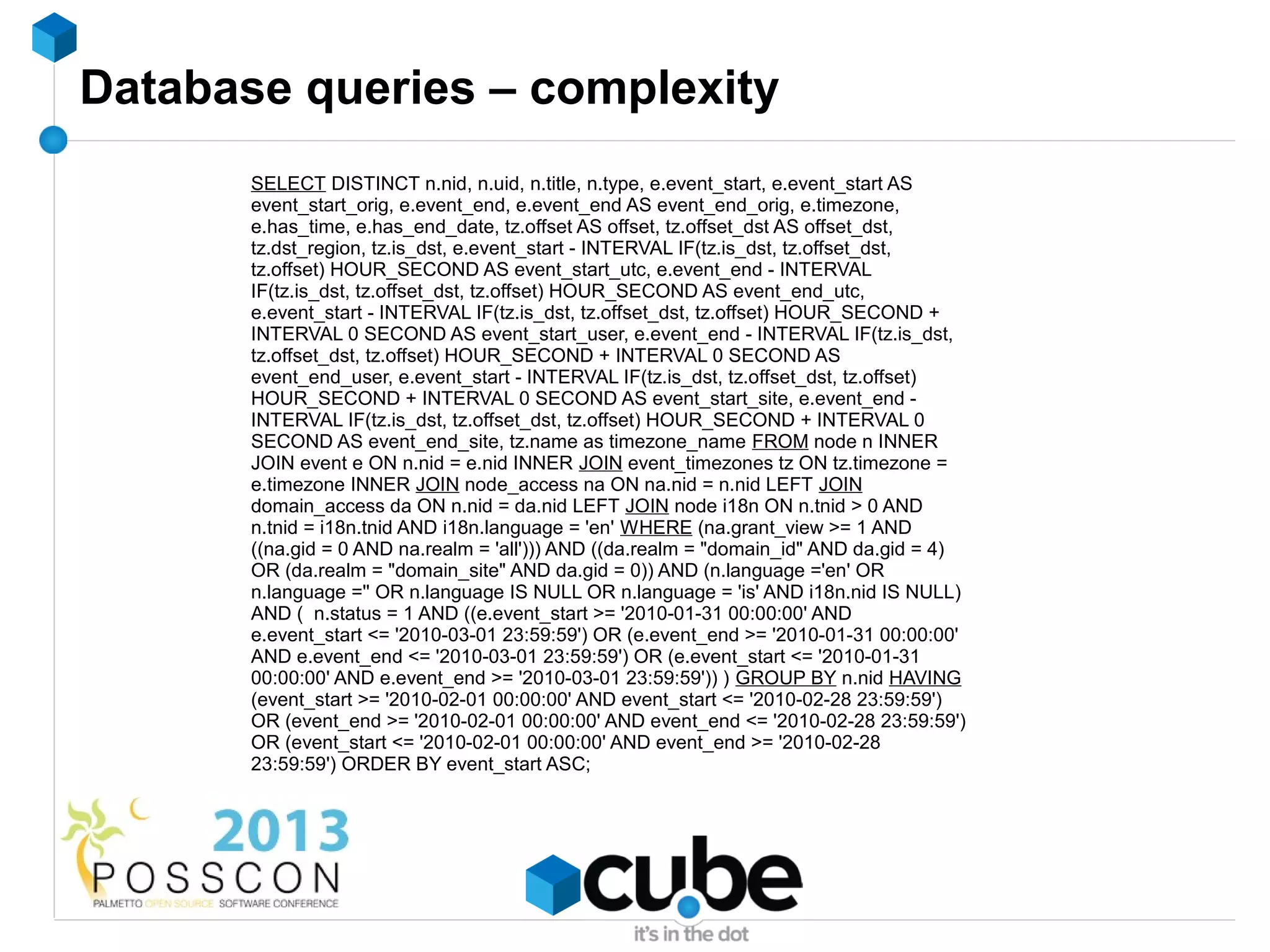

7. Database queries – complexity
SELECT DISTINCT n.nid, n.uid, n.title, n.type, e.event_start, e.event_start AS
event_start_orig, e.event_end, e.event_end AS event_end_orig, e.timezone,
e.has_time, e.has_end_date, tz.offset AS offset, tz.offset_dst AS offset_dst,
tz.dst_region, tz.is_dst, e.event_start - INTERVAL IF(tz.is_dst, tz.offset_dst,
tz.offset) HOUR_SECOND AS event_start_utc, e.event_end - INTERVAL
IF(tz.is_dst, tz.offset_dst, tz.offset) HOUR_SECOND AS event_end_utc,
e.event_start - INTERVAL IF(tz.is_dst, tz.offset_dst, tz.offset) HOUR_SECOND +
INTERVAL 0 SECOND AS event_start_user, e.event_end - INTERVAL IF(tz.is_dst,
tz.offset_dst, tz.offset) HOUR_SECOND + INTERVAL 0 SECOND AS
event_end_user, e.event_start - INTERVAL IF(tz.is_dst, tz.offset_dst, tz.offset)
HOUR_SECOND + INTERVAL 0 SECOND AS event_start_site, e.event_end -
INTERVAL IF(tz.is_dst, tz.offset_dst, tz.offset) HOUR_SECOND + INTERVAL 0
SECOND AS event_end_site, tz.name as timezone_name FROM node n INNER
JOIN event e ON n.nid = e.nid INNER JOIN event_timezones tz ON tz.timezone =
e.timezone INNER JOIN node_access na ON na.nid = n.nid LEFT JOIN
domain_access da ON n.nid = da.nid LEFT JOIN node i18n ON n.tnid > 0 AND
n.tnid = i18n.tnid AND i18n.language = 'en' WHERE (na.grant_view >= 1 AND
((na.gid = 0 AND na.realm = 'all'))) AND ((da.realm = "domain_id" AND da.gid = 4)
OR (da.realm = "domain_site" AND da.gid = 0)) AND (n.language ='en' OR
n.language ='' OR n.language IS NULL OR n.language = 'is' AND i18n.nid IS NULL)
AND ( n.status = 1 AND ((e.event_start >= '2010-01-31 00:00:00' AND
e.event_start <= '2010-03-01 23:59:59') OR (e.event_end >= '2010-01-31 00:00:00'
AND e.event_end <= '2010-03-01 23:59:59') OR (e.event_start <= '2010-01-31
00:00:00' AND e.event_end >= '2010-03-01 23:59:59')) ) GROUP BY n.nid HAVING
(event_start >= '2010-02-01 00:00:00' AND event_start <= '2010-02-28 23:59:59')
OR (event_end >= '2010-02-01 00:00:00' AND event_end <= '2010-02-28 23:59:59')
OR (event_start <= '2010-02-01 00:00:00' AND event_end >= '2010-02-28
23:59:59') ORDER BY event_start ASC;

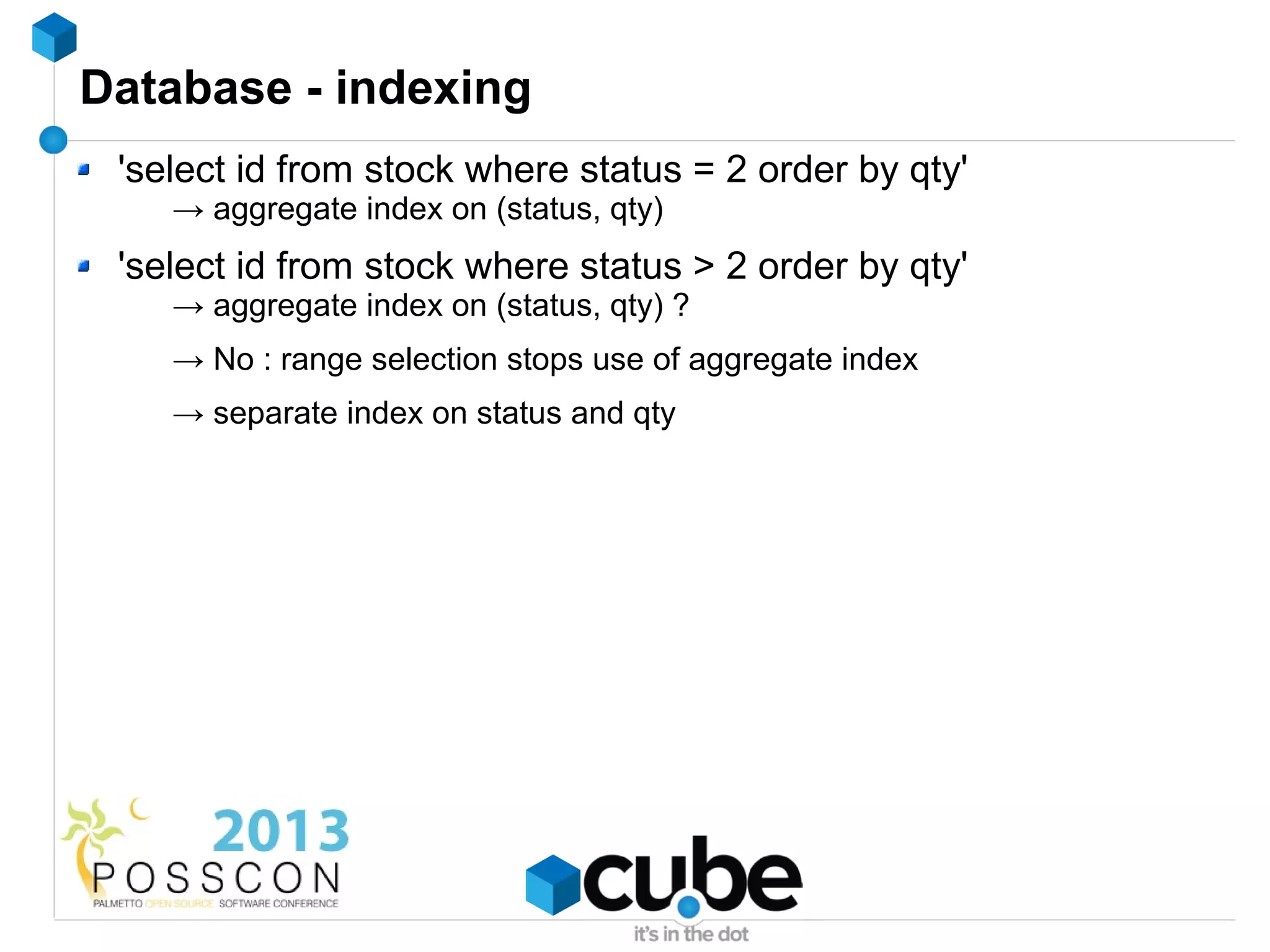

8. Database - indexing
'select id from stock where status = 2 order by qty'
→ aggregate index on (status, qty)
'select id from stock where status > 2 order by qty'
→ aggregate index on (status, qty) ?
→ No : range selection stops use of aggregate index
→ separate index on status and qty

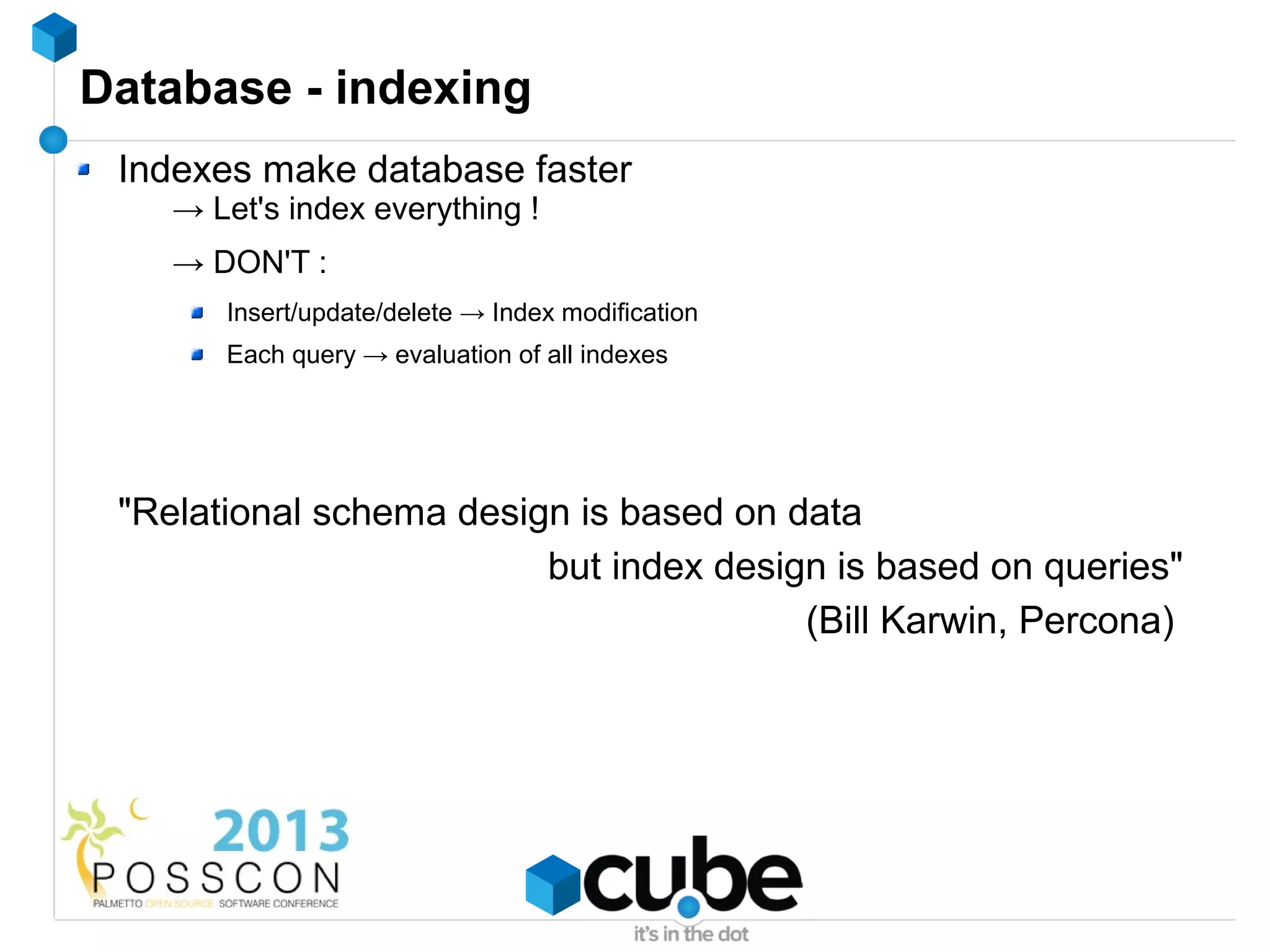

9. Database - indexing
Indexes make database faster
→ Let's index everything !
→ DON'T :
Insert/update/delete → Index modification
Each query → evaluation of all indexes
"Relational schema design is based on data
but index design is based on queries"
(Bill Karwin, Percona)

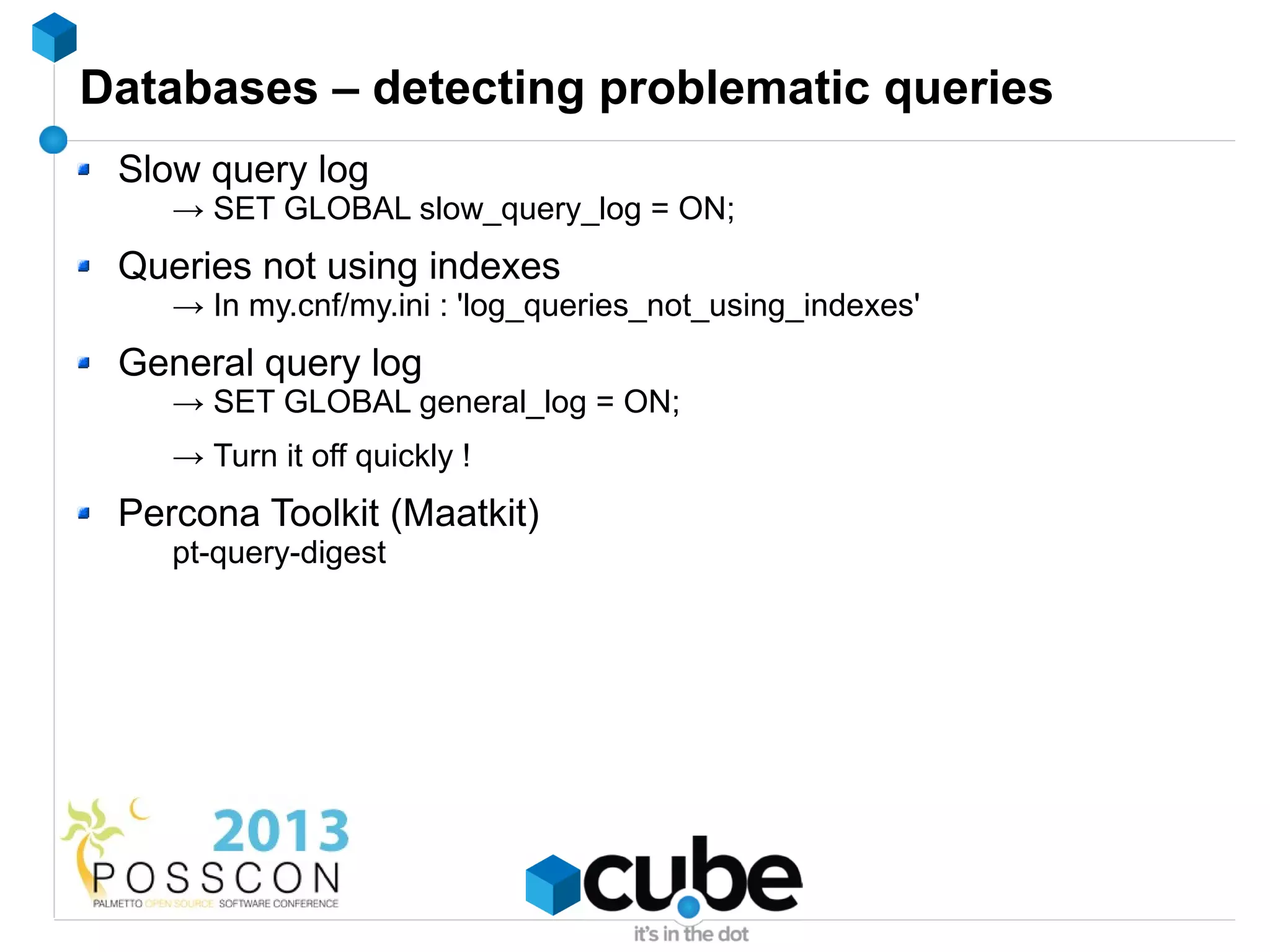

10. Databases – detecting problematic queries
Slow query log
→ SET GLOBAL slow_query_log = ON;
Queries not using indexes
→ In my.cnf/my.ini : 'log_queries_not_using_indexes'
General query log
→ SET GLOBAL general_log = ON;
→ Turn it off quickly !
Percona Toolkit (Maatkit)
pt-query-digest

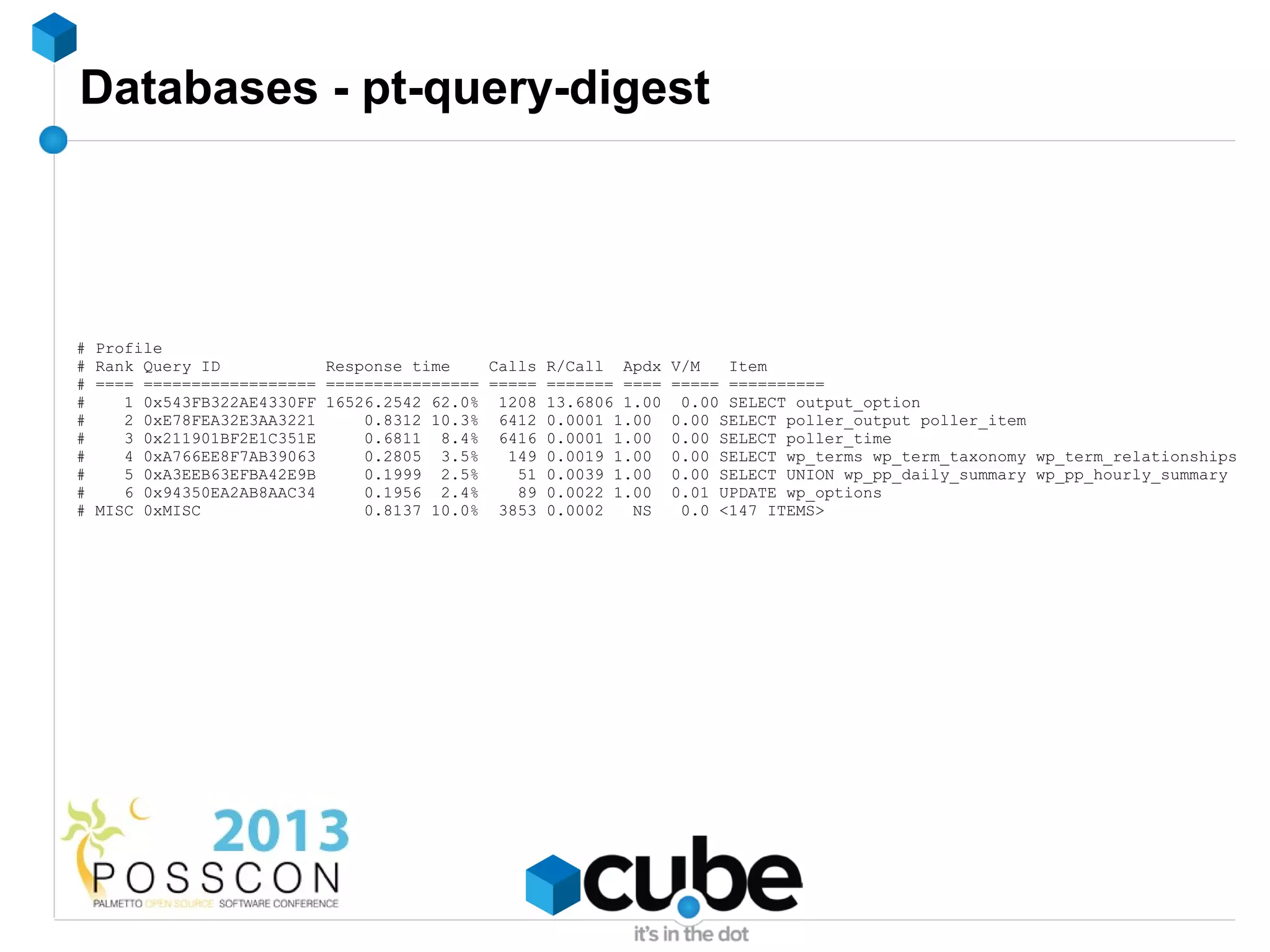

11. Databases - pt-query-digest
# Profile
# Rank Query ID Response time Calls R/Call Apdx V/M Item
# ==== ================== ================ ===== ======= ==== ===== ==========
# 1 0x543FB322AE4330FF 16526.2542 62.0% 1208 13.6806 1.00 0.00 SELECT output_option
# 2 0xE78FEA32E3AA3221 0.8312 10.3% 6412 0.0001 1.00 0.00 SELECT poller_output poller_item
# 3 0x211901BF2E1C351E 0.6811 8.4% 6416 0.0001 1.00 0.00 SELECT poller_time
# 4 0xA766EE8F7AB39063 0.2805 3.5% 149 0.0019 1.00 0.00 SELECT wp_terms wp_term_taxonomy wp_term_relationships
# 5 0xA3EEB63EFBA42E9B 0.1999 2.5% 51 0.0039 1.00 0.00 SELECT UNION wp_pp_daily_summary wp_pp_hourly_summary
# 6 0x94350EA2AB8AAC34 0.1956 2.4% 89 0.0022 1.00 0.01 UPDATE wp_options
# MISC 0xMISC 0.8137 10.0% 3853 0.0002 NS 0.0 <147 ITEMS>

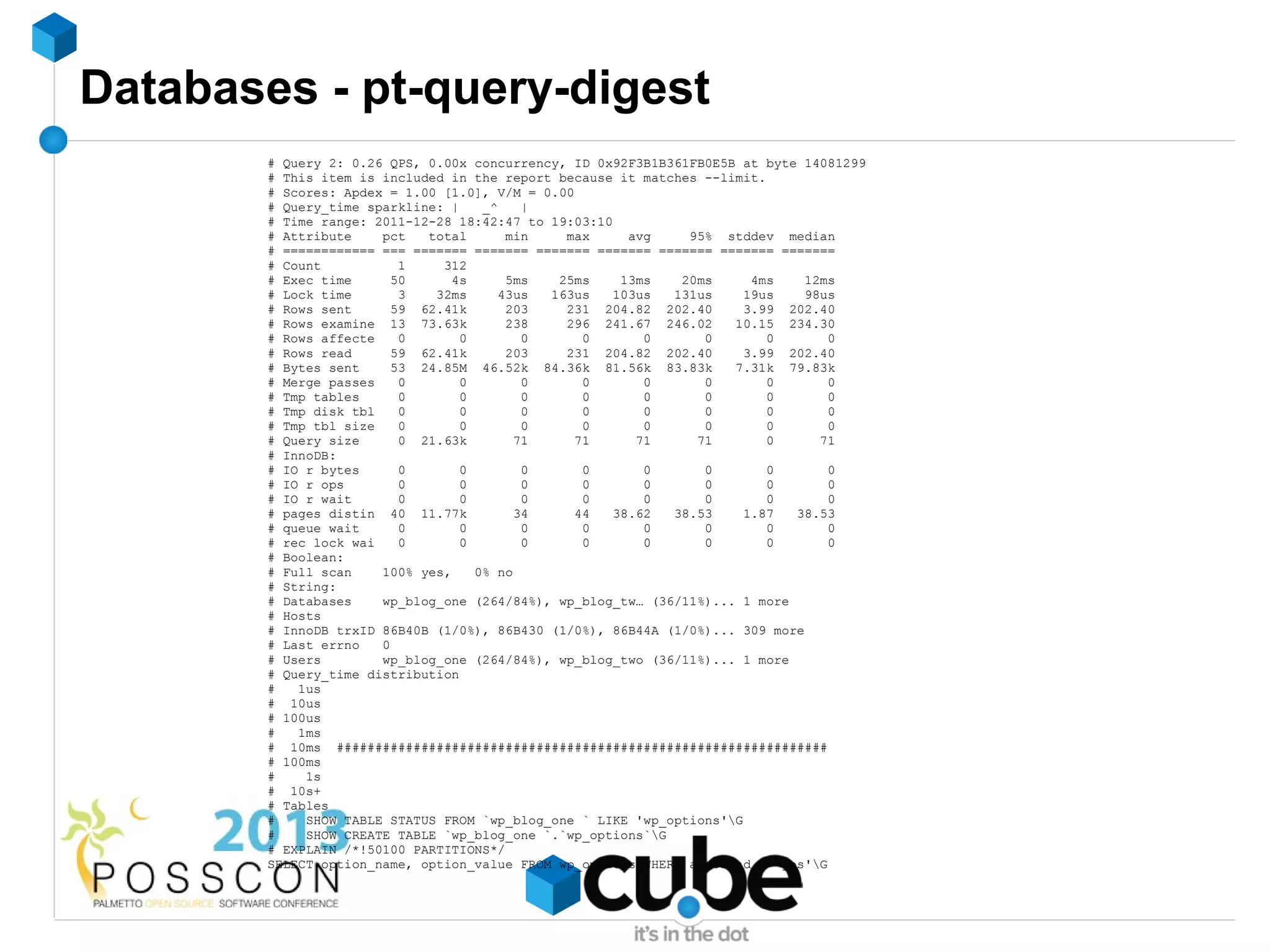

12. Databases - pt-query-digest
# Query 2: 0.26 QPS, 0.00x concurrency, ID 0x92F3B1B361FB0E5B at byte 14081299
# This item is included in the report because it matches --limit.
# Scores: Apdex = 1.00 [1.0], V/M = 0.00
# Query_time sparkline: | _^ |
# Time range: 2011-12-28 18:42:47 to 19:03:10
# Attribute pct total min max avg 95% stddev median
# ============ === ======= ======= ======= ======= ======= ======= =======
# Count 1 312
# Exec time 50 4s 5ms 25ms 13ms 20ms 4ms 12ms
# Lock time 3 32ms 43us 163us 103us 131us 19us 98us
# Rows sent 59 62.41k 203 231 204.82 202.40 3.99 202.40
# Rows examine 13 73.63k 238 296 241.67 246.02 10.15 234.30
# Rows affecte 0 0 0 0 0 0 0 0
# Rows read 59 62.41k 203 231 204.82 202.40 3.99 202.40
# Bytes sent 53 24.85M 46.52k 84.36k 81.56k 83.83k 7.31k 79.83k
# Merge passes 0 0 0 0 0 0 0 0
# Tmp tables 0 0 0 0 0 0 0 0
# Tmp disk tbl 0 0 0 0 0 0 0 0
# Tmp tbl size 0 0 0 0 0 0 0 0
# Query size 0 21.63k 71 71 71 71 0 71
# InnoDB:
# IO r bytes 0 0 0 0 0 0 0 0
# IO r ops 0 0 0 0 0 0 0 0
# IO r wait 0 0 0 0 0 0 0 0
# pages distin 40 11.77k 34 44 38.62 38.53 1.87 38.53
# queue wait 0 0 0 0 0 0 0 0
# rec lock wai 0 0 0 0 0 0 0 0
# Boolean:
# Full scan 100% yes, 0% no
# String:
# Databases wp_blog_one (264/84%), wp_blog_tw… (36/11%)... 1 more
# Hosts
# InnoDB trxID 86B40B (1/0%), 86B430 (1/0%), 86B44A (1/0%)... 309 more
# Last errno 0
# Users wp_blog_one (264/84%), wp_blog_two (36/11%)... 1 more
# Query_time distribution
# 1us
# 10us
# 100us
# 1ms
# 10ms ################################################################
# 100ms
# 1s
# 10s+
# Tables
# SHOW TABLE STATUS FROM `wp_blog_one ` LIKE 'wp_options'G
# SHOW CREATE TABLE `wp_blog_one `.`wp_options`G
# EXPLAIN /*!50100 PARTITIONS*/
SELECT option_name, option_value FROM wp_options WHERE autoload = 'yes'G

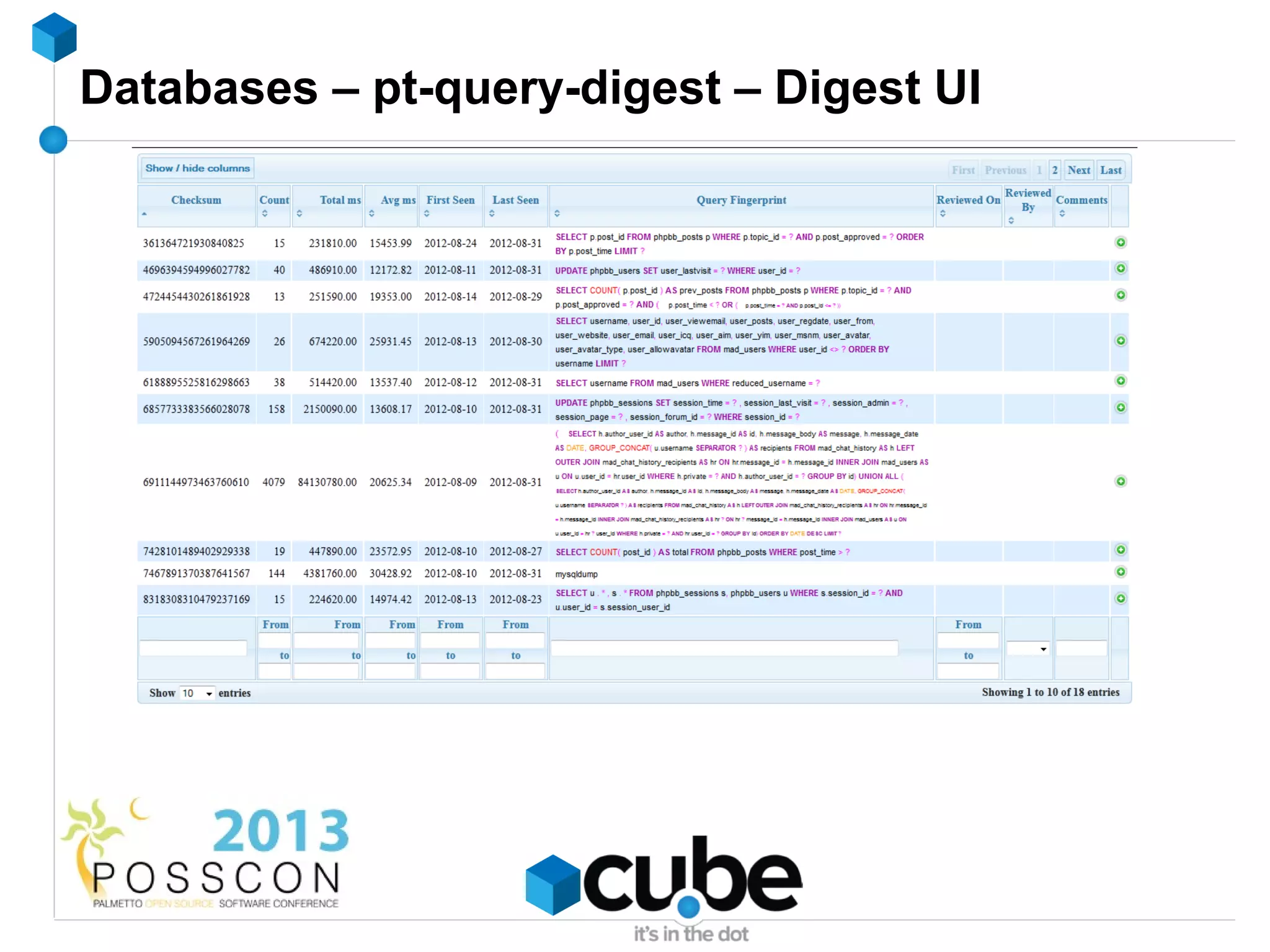

13. Databases – pt-query-digest – Digest UI

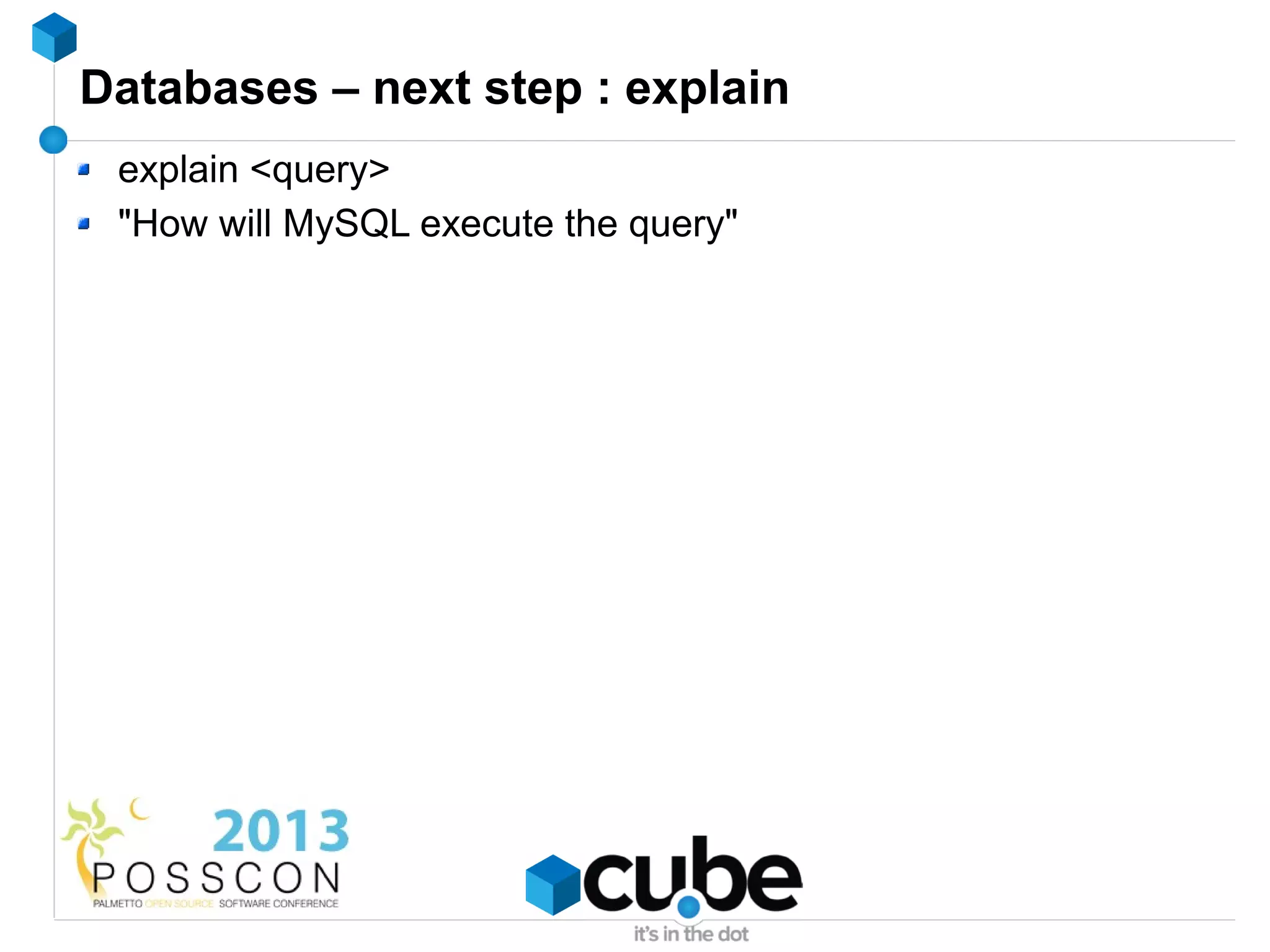

14. Databases – next step : explain
explain <query>
"How will MySQL execute the query"

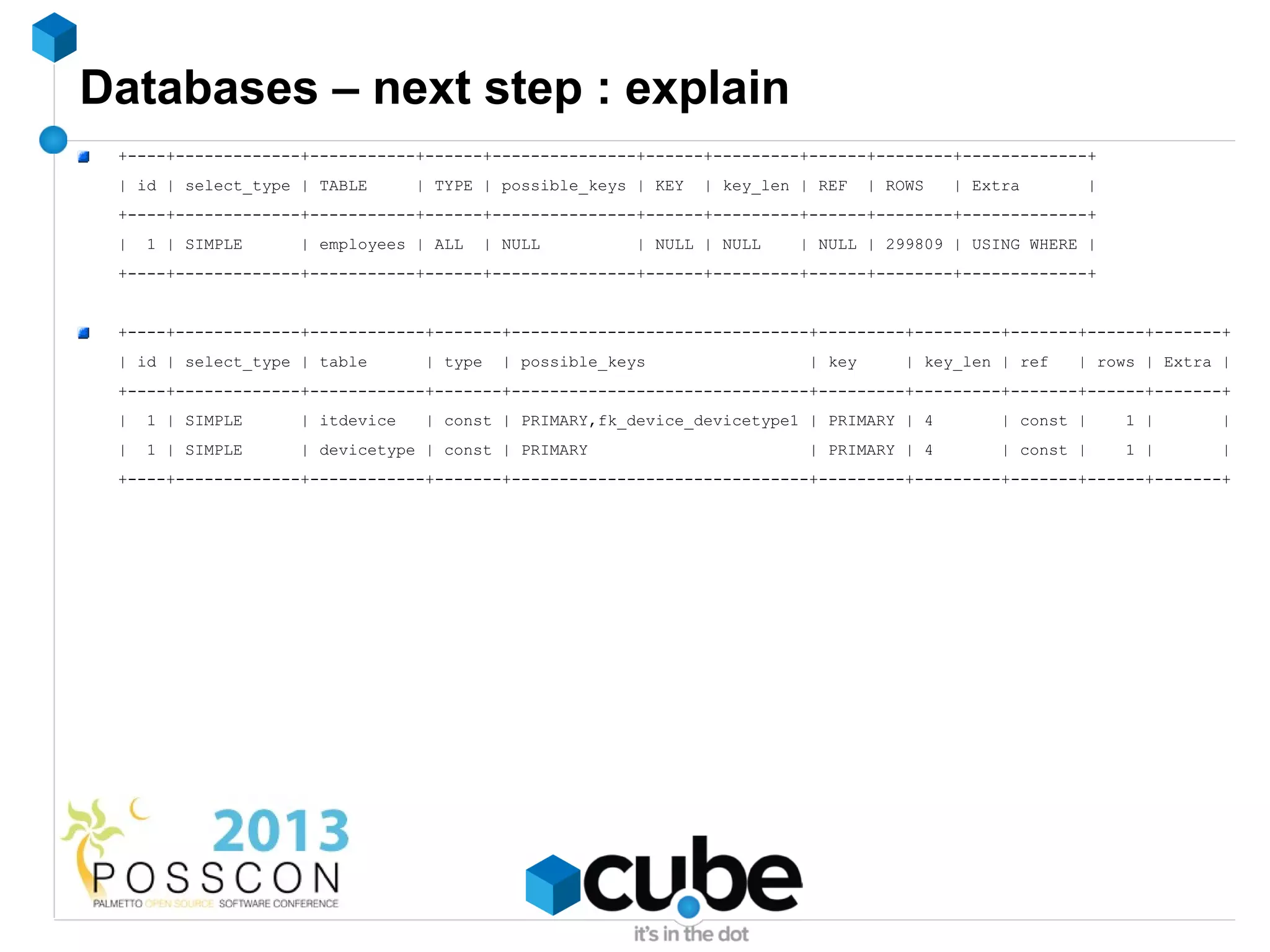

15. Databases – next step : explain
+----+-------------+-----------+------+---------------+------+---------+------+--------+-------------+
| id | select_type | TABLE | TYPE | possible_keys | KEY | key_len | REF | ROWS | Extra |
+----+-------------+-----------+------+---------------+------+---------+------+--------+-------------+
| 1 | SIMPLE | employees | ALL | NULL | NULL | NULL | NULL | 299809 | USING WHERE |
+----+-------------+-----------+------+---------------+------+---------+------+--------+-------------+
+----+-------------+------------+-------+-------------------------------+---------+---------+-------+------+-------+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+----+-------------+------------+-------+-------------------------------+---------+---------+-------+------+-------+
| 1 | SIMPLE | itdevice | const | PRIMARY,fk_device_devicetype1 | PRIMARY | 4 | const | 1 | |
| 1 | SIMPLE | devicetype | const | PRIMARY | PRIMARY | 4 | const | 1 | |
+----+-------------+------------+-------+-------------------------------+---------+---------+-------+------+-------+

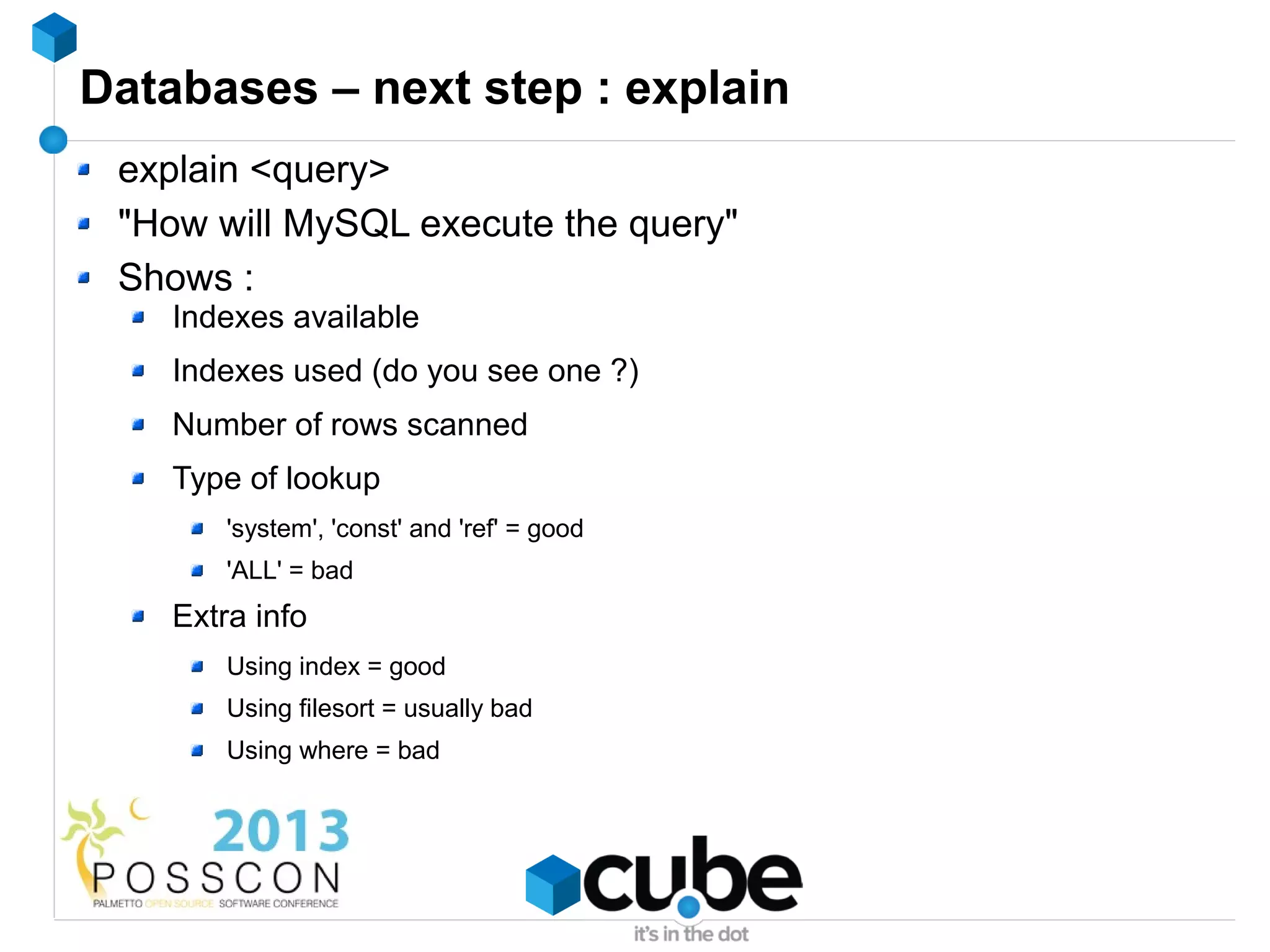

16. Databases – next step : explain
explain <query>
"How will MySQL execute the query"
Shows :
Indexes available
Indexes used (do you see one ?)
Number of rows scanned
Type of lookup
'system', 'const' and 'ref' = good
'ALL' = bad
Extra info
Using index = good
Using filesort = usually bad
Using where = bad

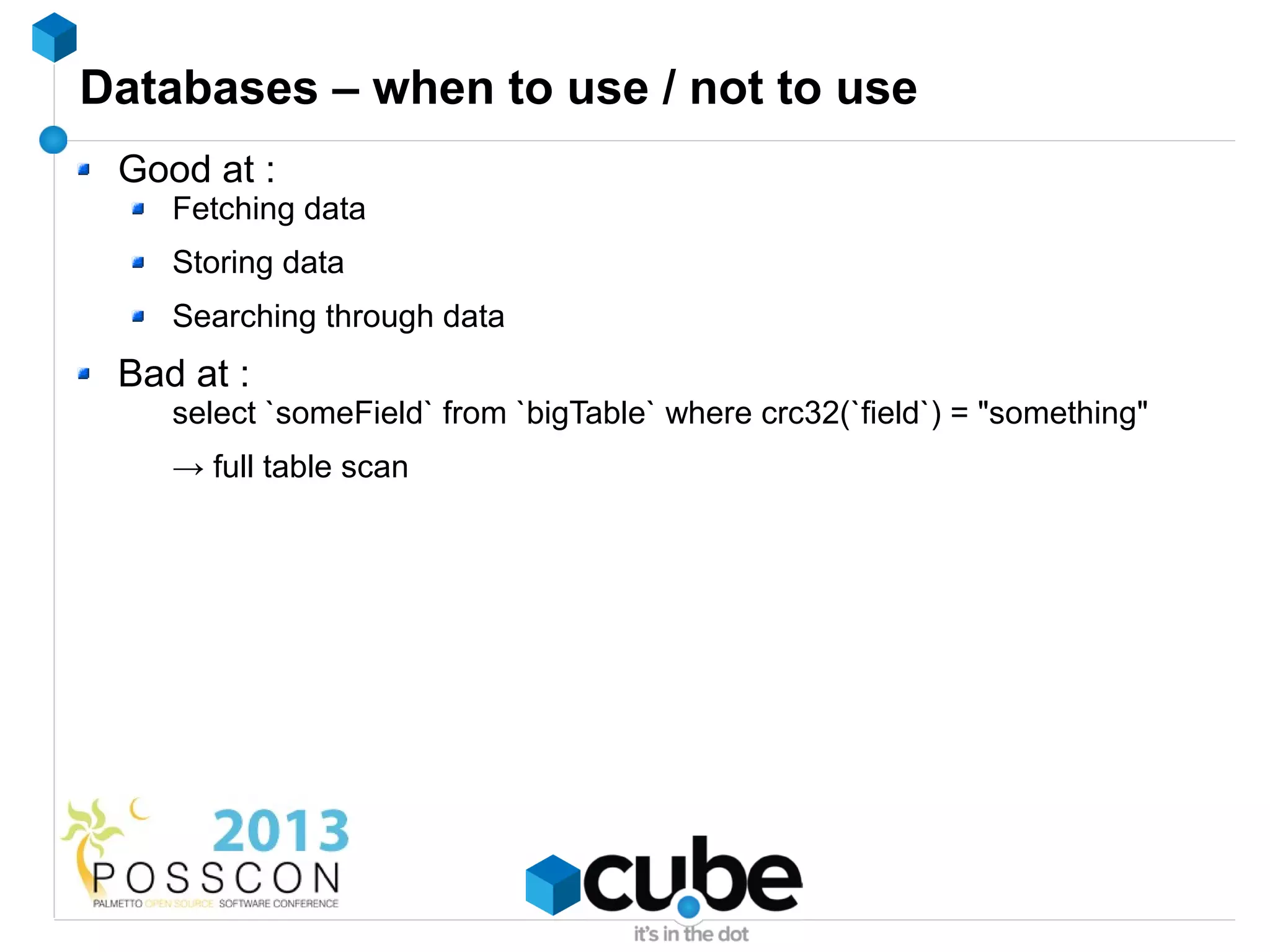

17. Databases – when to use / not to use
Good at :
Fetching data
Storing data
Searching through data
Bad at :
select `someField` from `bigTable` where crc32(`field`) = "something"
→ full table scan

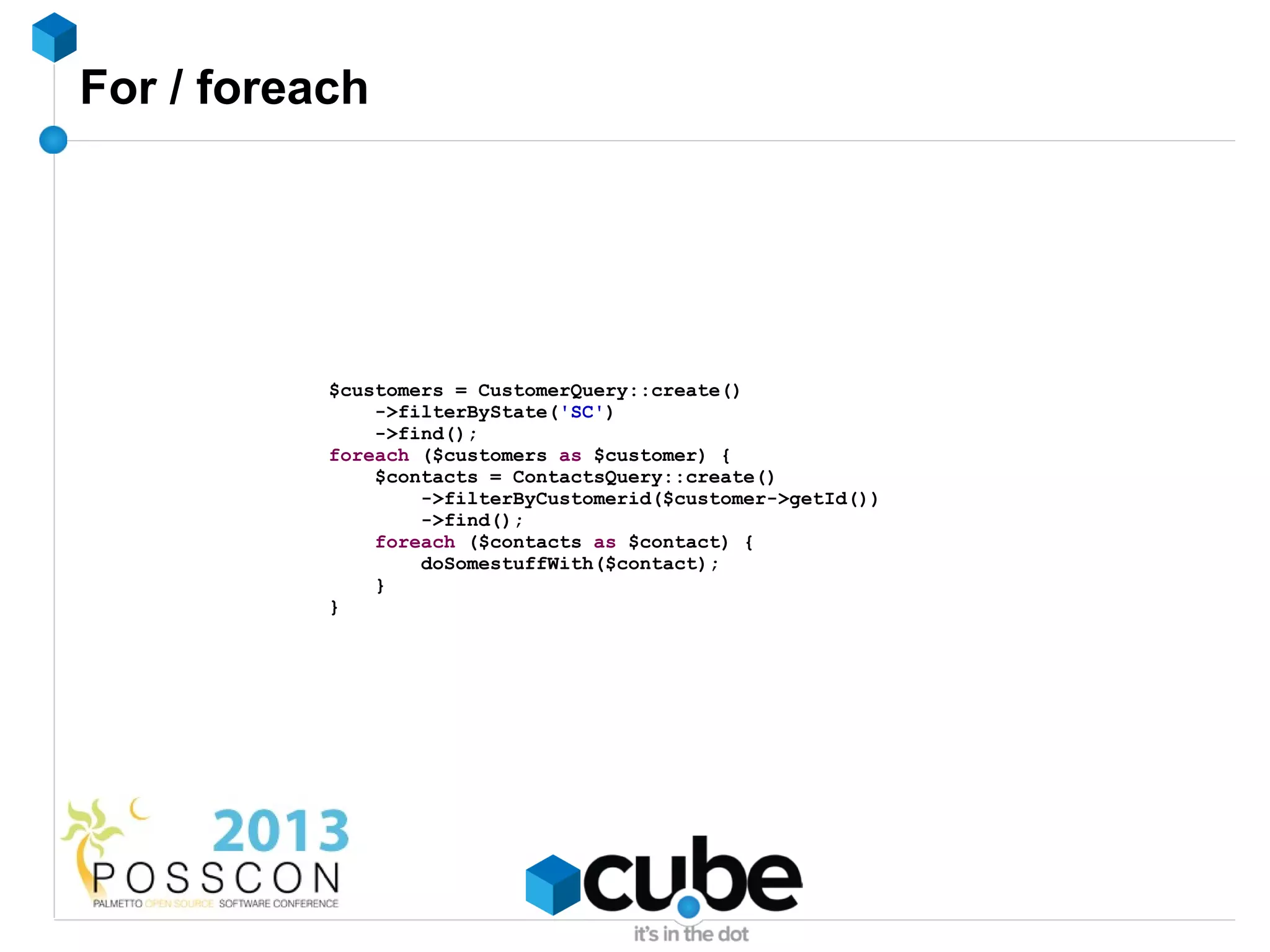

18. For / foreach
$customers = CustomerQuery::create()
->filterByState('SC')
->find();
foreach ($customers as $customer) {
$contacts = ContactsQuery::create()
->filterByCustomerid($customer->getId())
->find();
foreach ($contacts as $contact) {
doSomestuffWith($contact);
}
}

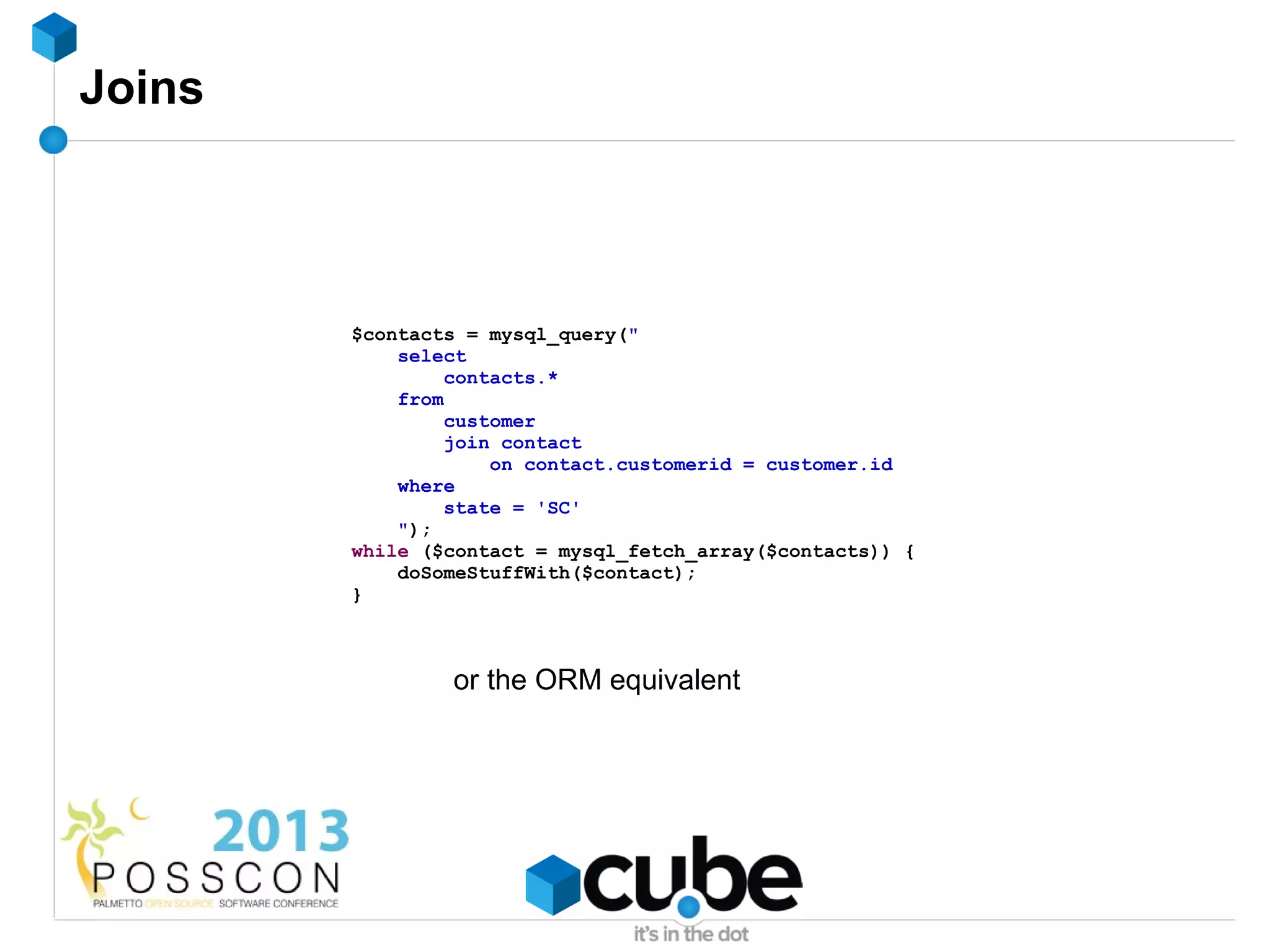

19. Joins
$contacts = mysql_query("
select
contacts.*
from
customer
join contact
on contact.customerid = customer.id
where
state = 'SC'
");
while ($contact = mysql_fetch_array($contacts)) {
doSomeStuffWith($contact);
}
or the ORM equivalent

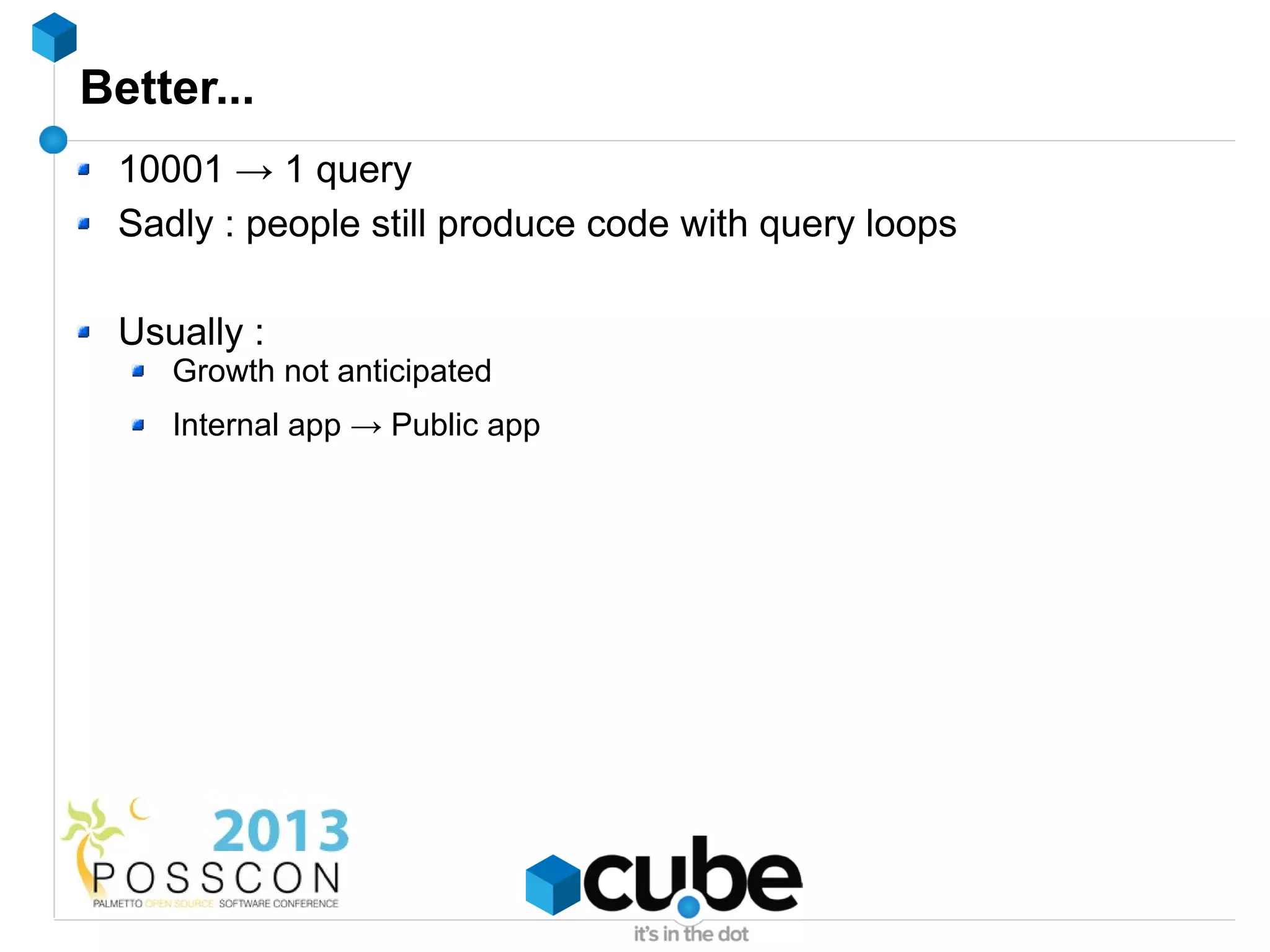

20. Better...
10001 → 1 query
Sadly : people still produce code with query loops
Usually :
Growth not anticipated
Internal app → Public app

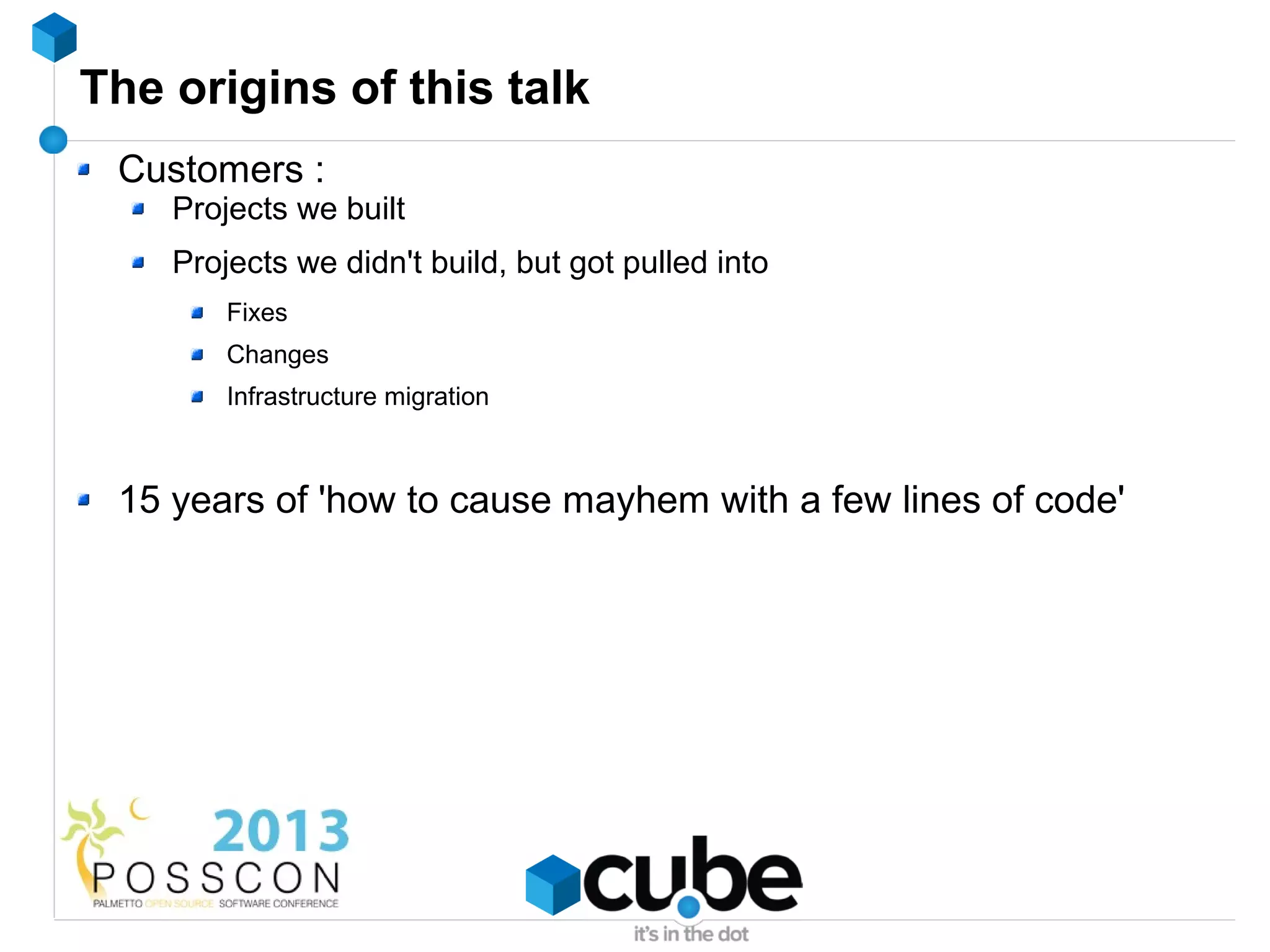

21. The origins of this talk
Customers :
Projects we built
Projects we didn't build, but got pulled into
Fixes
Changes
Infrastructure migration
15 years of 'how to cause mayhem with a few lines of code'

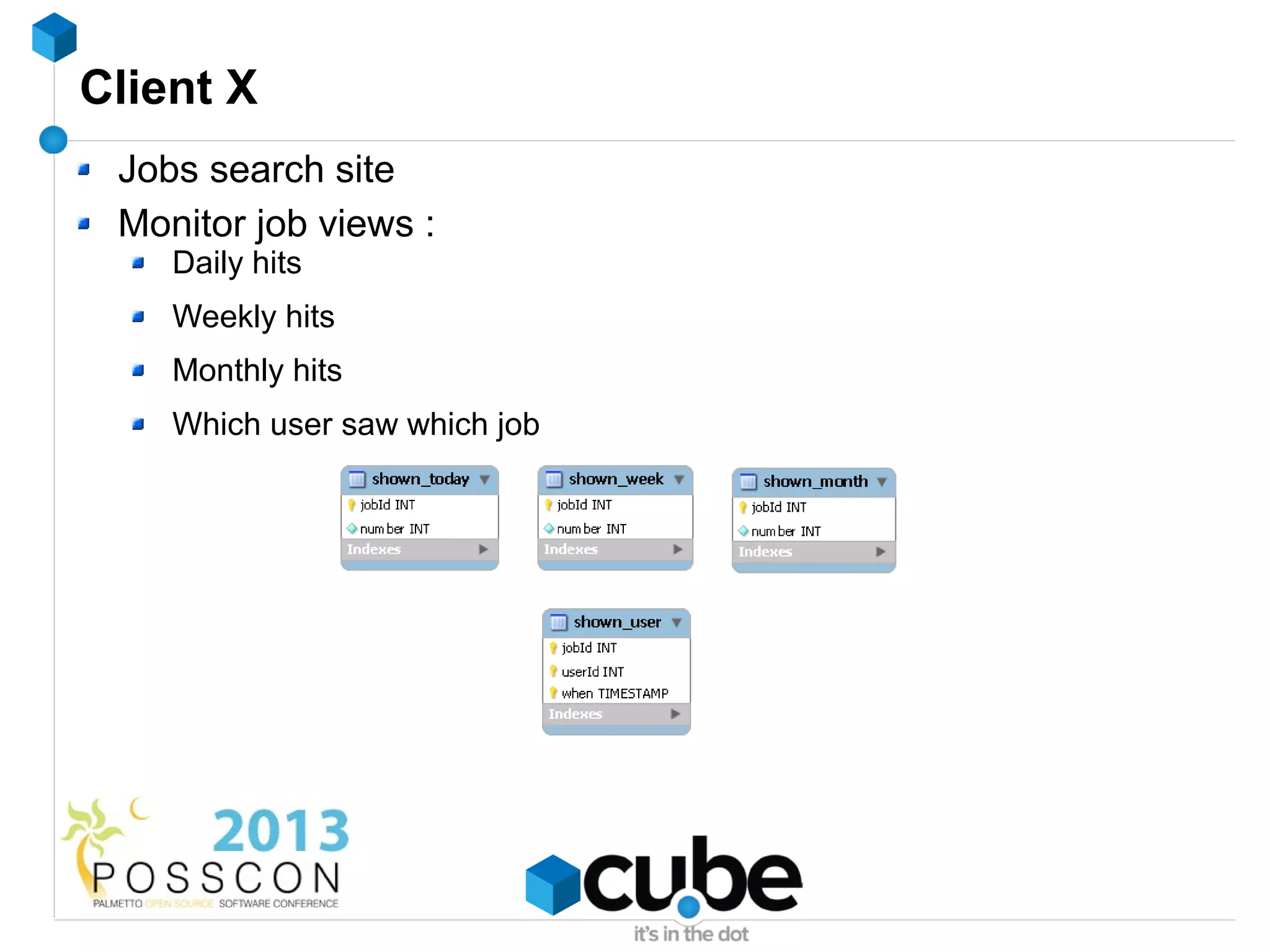

22. Client X
Jobs search site
Monitor job views :
Daily hits
Weekly hits
Monthly hits
Which user saw which job

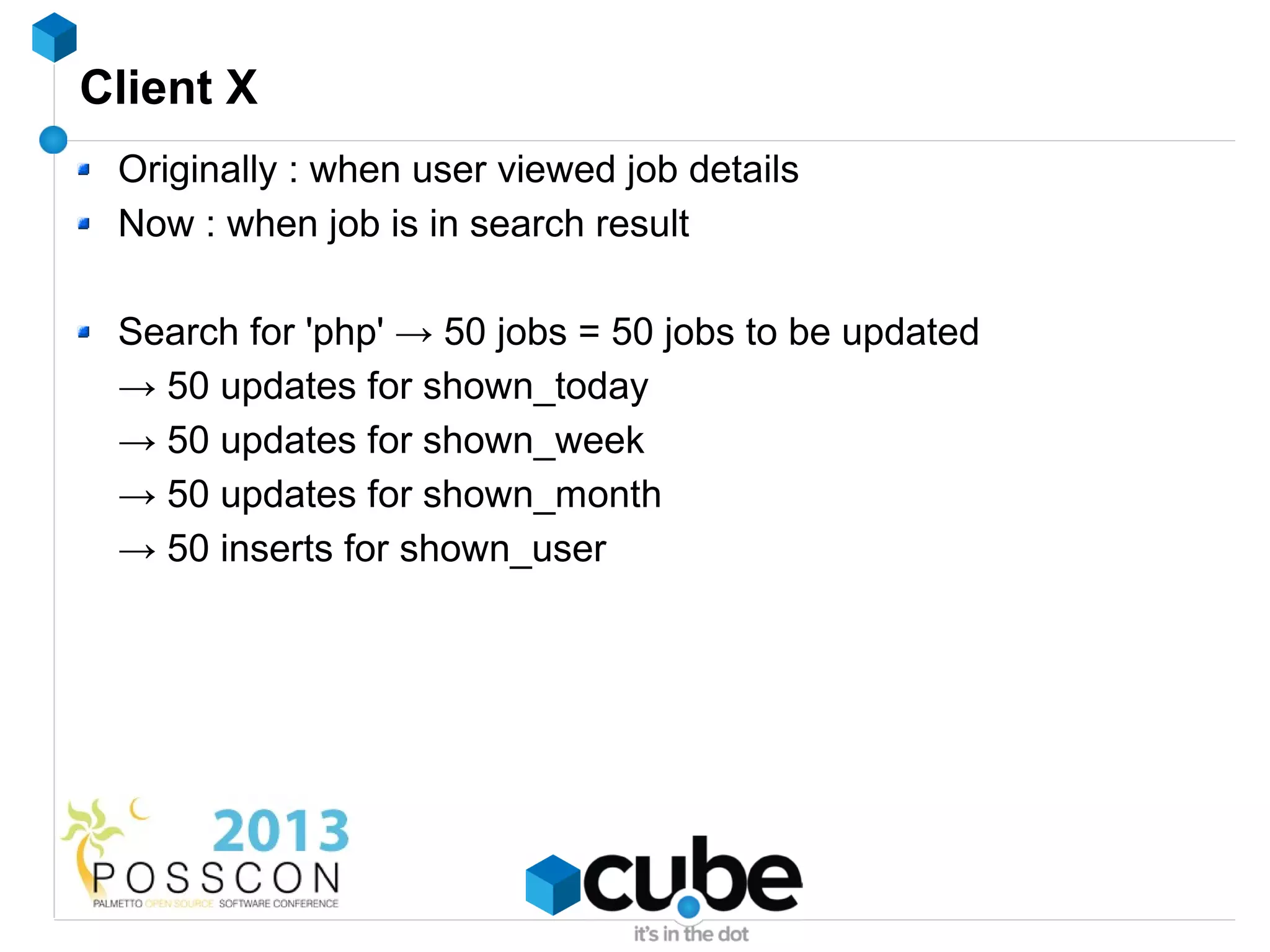

23. Client X
Originally : when user viewed job details
Now : when job is in search result
Search for 'php' → 50 jobs = 50 jobs to be updated
→ 50 updates for shown_today
→ 50 updates for shown_week
→ 50 updates for shown_month
→ 50 inserts for shown_user

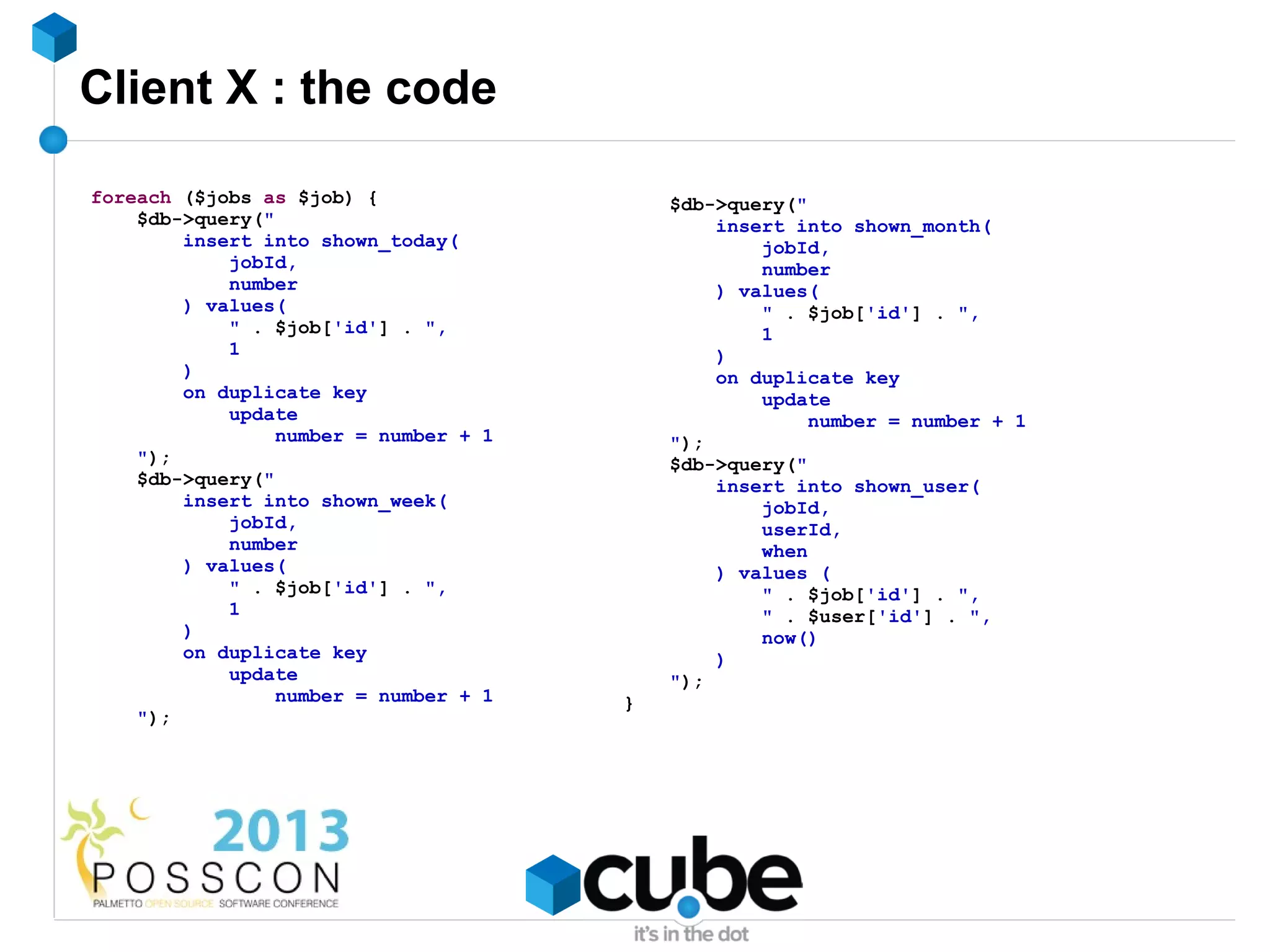

24. Client X : the code
foreach ($jobs as $job) { $db->query("
$db->query(" insert into shown_month(
insert into shown_today( jobId,
jobId, number
number ) values(
) values( " . $job['id'] . ",
" . $job['id'] . ", 1
1 )
) on duplicate key
on duplicate key update
update number = number + 1
number = number + 1 ");
"); $db->query("
$db->query(" insert into shown_user(
insert into shown_week( jobId,
jobId, userId,
number when
) values( ) values (
" . $job['id'] . ", " . $job['id'] . ",
1 " . $user['id'] . ",
) now()
on duplicate key )
update ");
number = number + 1 }
");

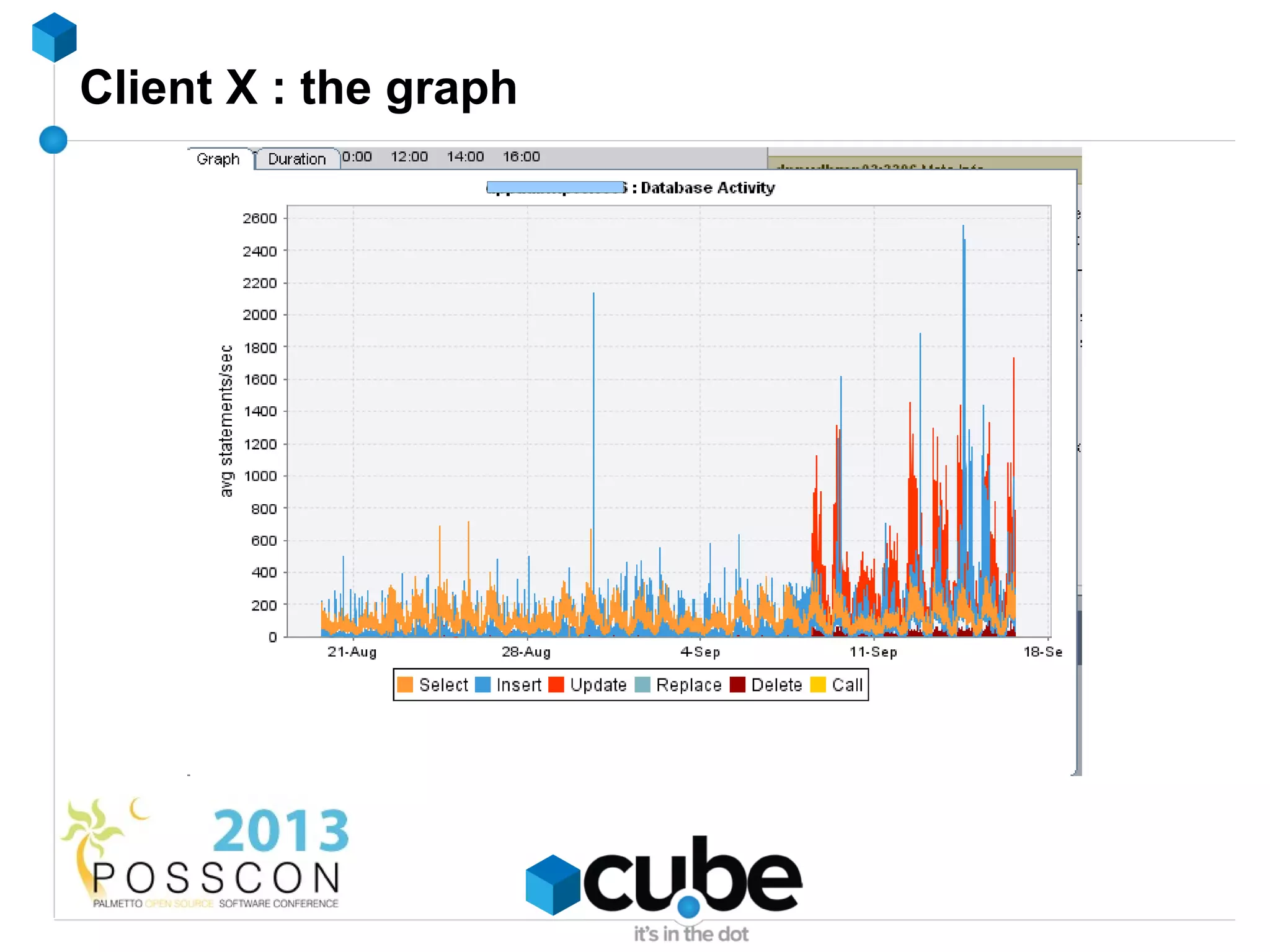

25. Client X : the graph

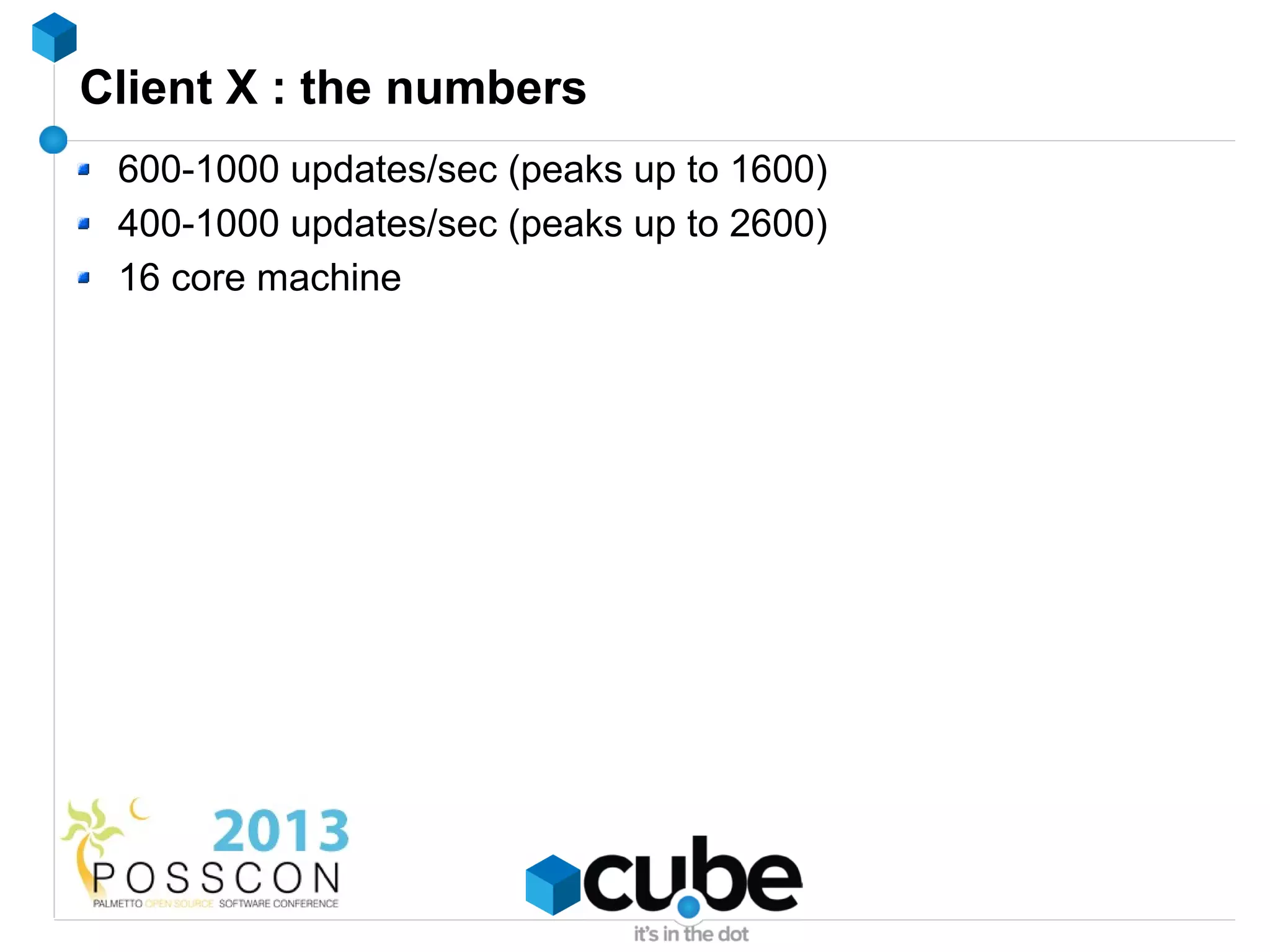

26. Client X : the numbers
600-1000 updates/sec (peaks up to 1600)
400-1000 updates/sec (peaks up to 2600)
16 core machine

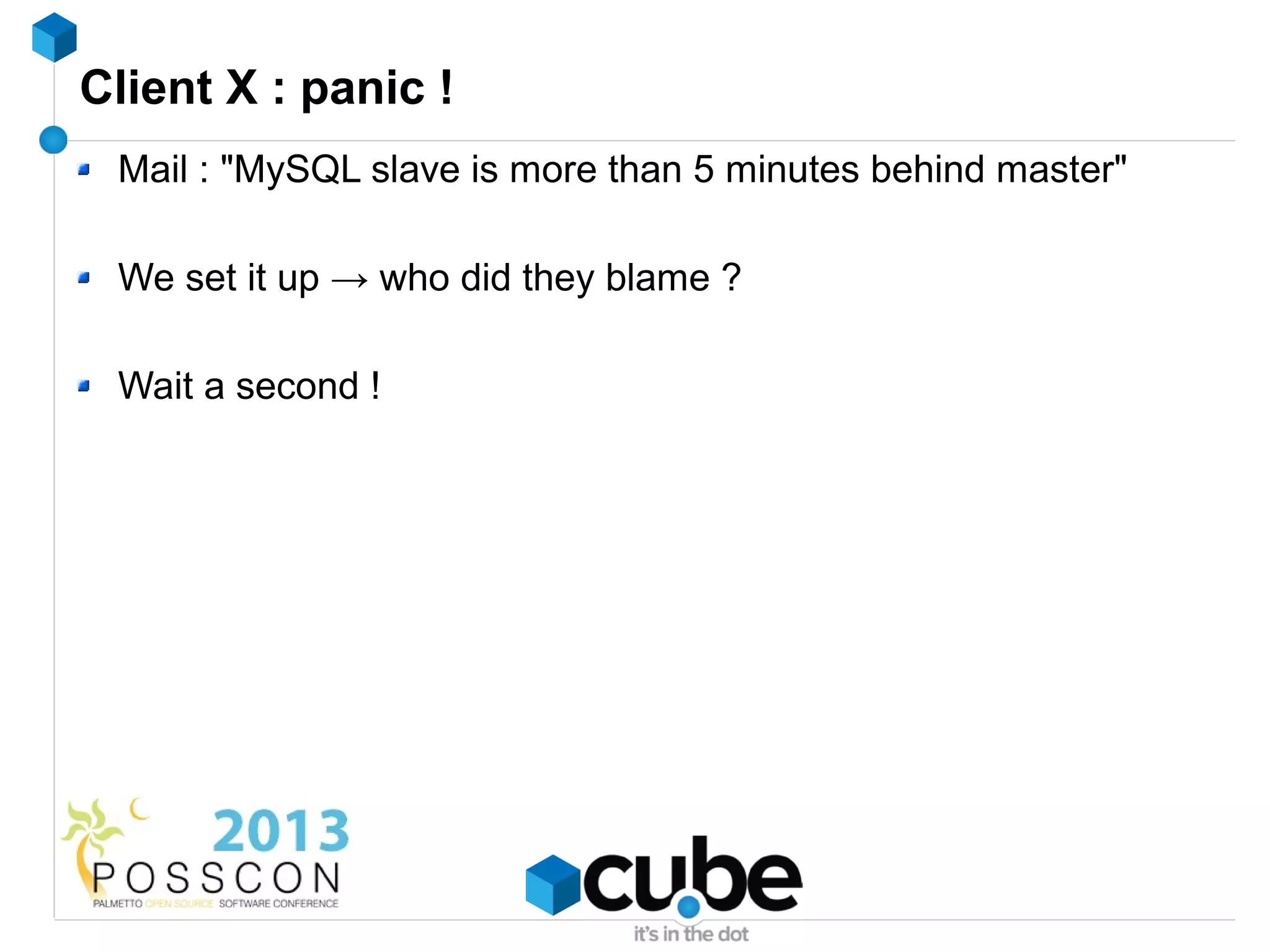

27. Client X : panic !
Mail : "MySQL slave is more than 5 minutes behind master"
We set it up → who did they blame ?
Wait a second !

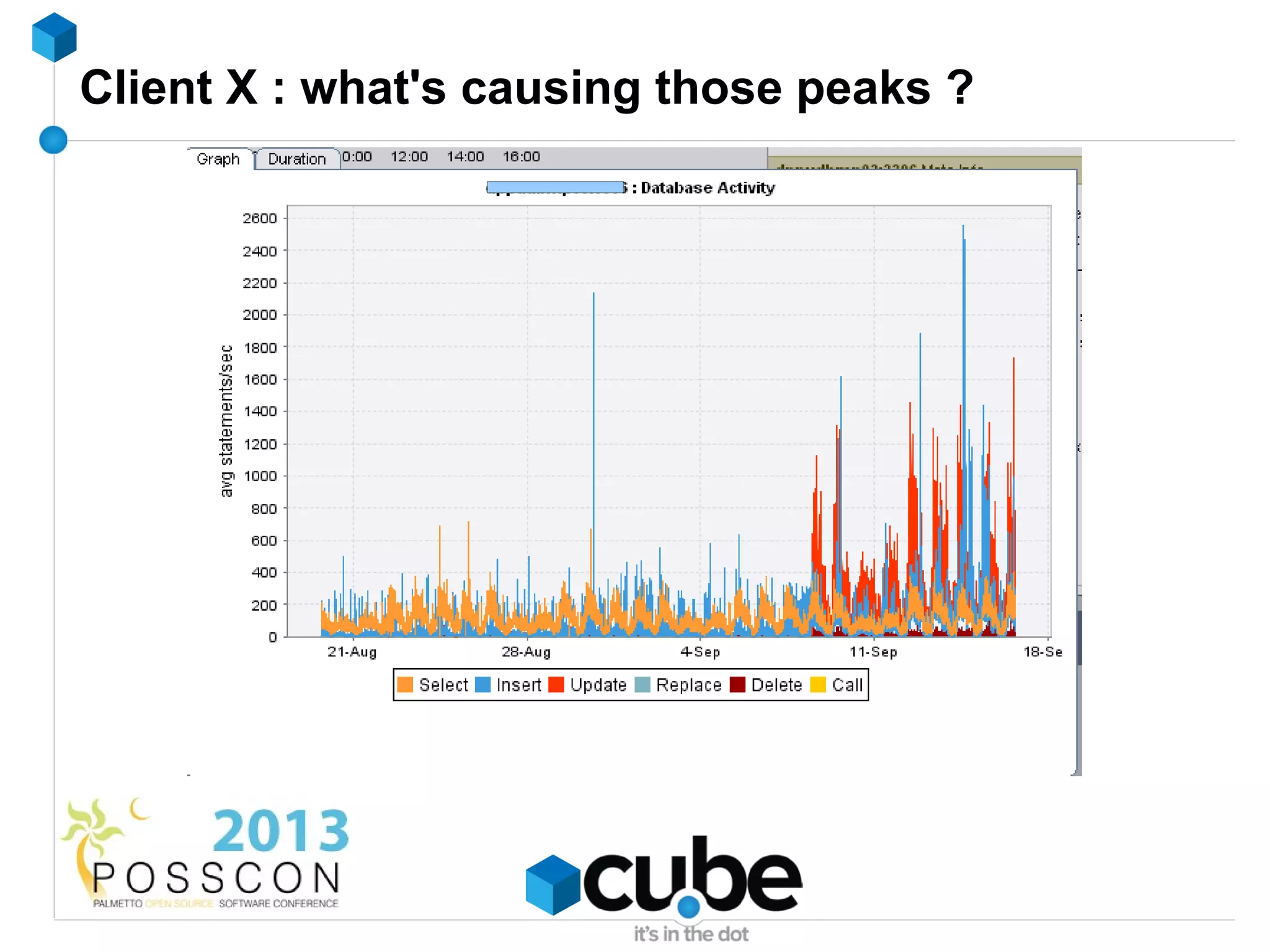

28. Client X : what's causing those peaks ?

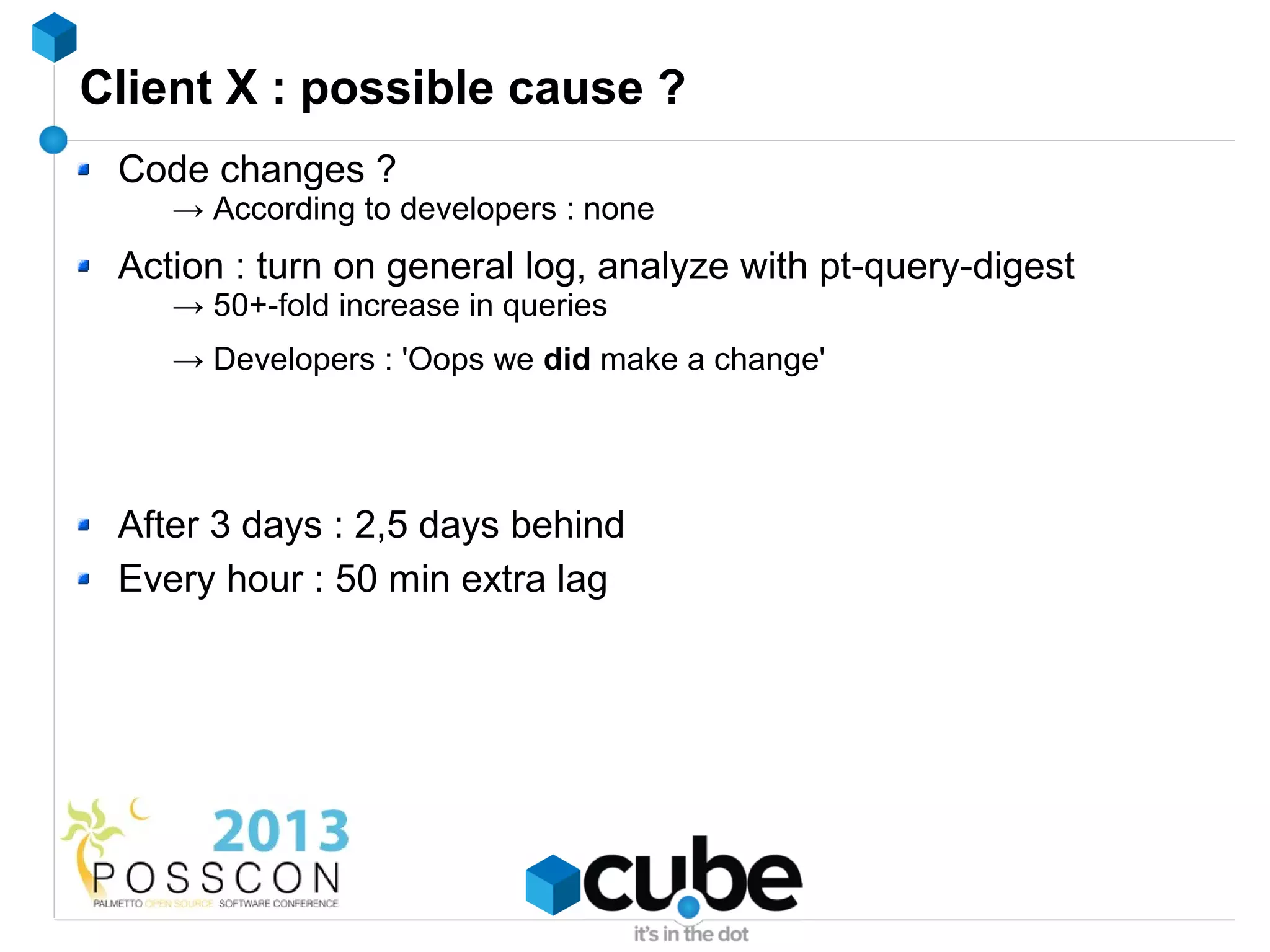

29. Client X : possible cause ?
Code changes ?
→ According to developers : none
Action : turn on general log, analyze with pt-query-digest
→ 50+-fold increase in queries
→ Developers : 'Oops we did make a change'
After 3 days : 2,5 days behind
Every hour : 50 min extra lag

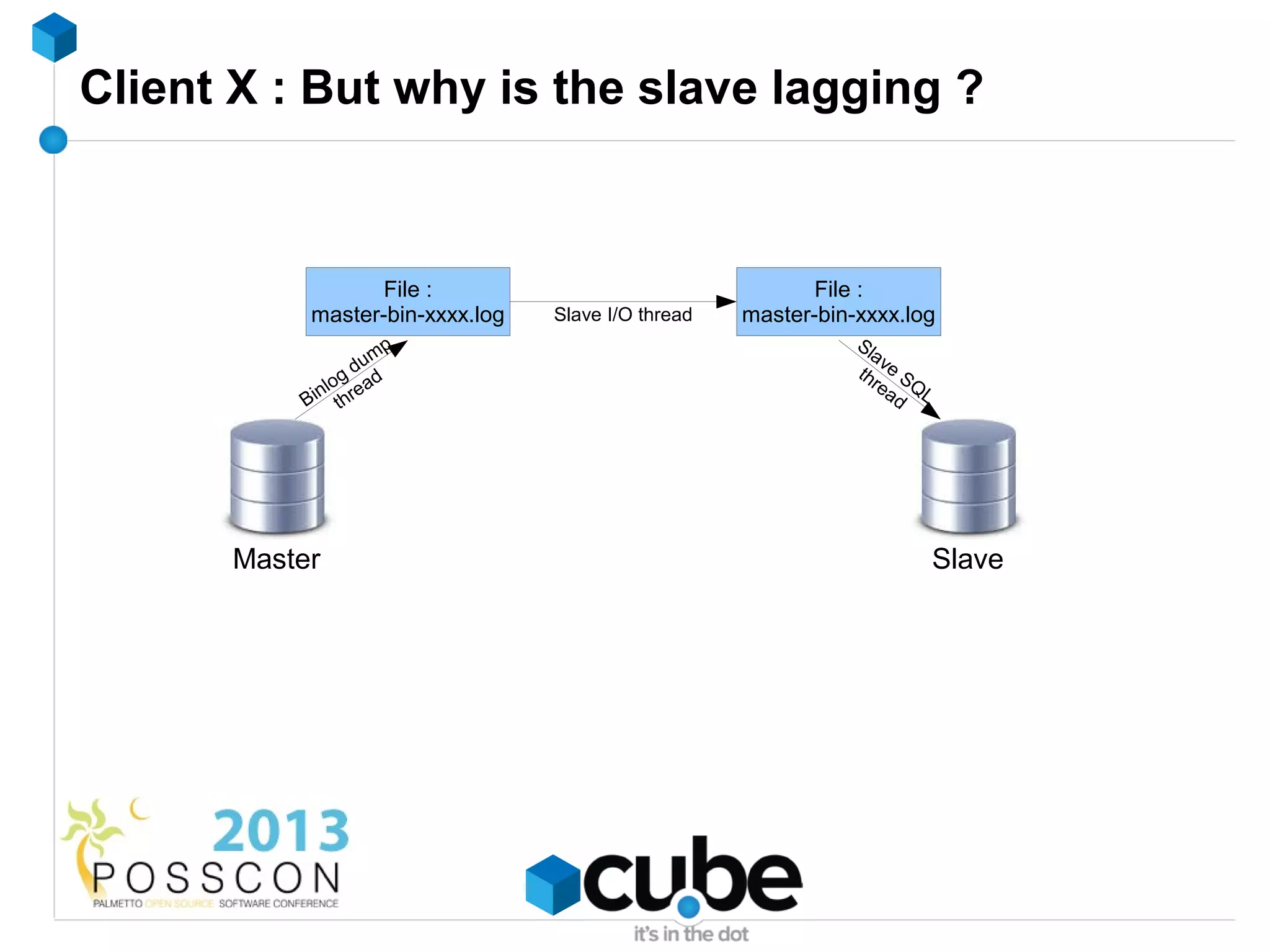

30. Client X : But why is the slave lagging ?
File : File :
master-bin-xxxx.log Slave I/O thread master-bin-xxxx.log
p Sl
um av
g d ad th e S
re Q
n lo e ad L
Bi thr
Master Slave

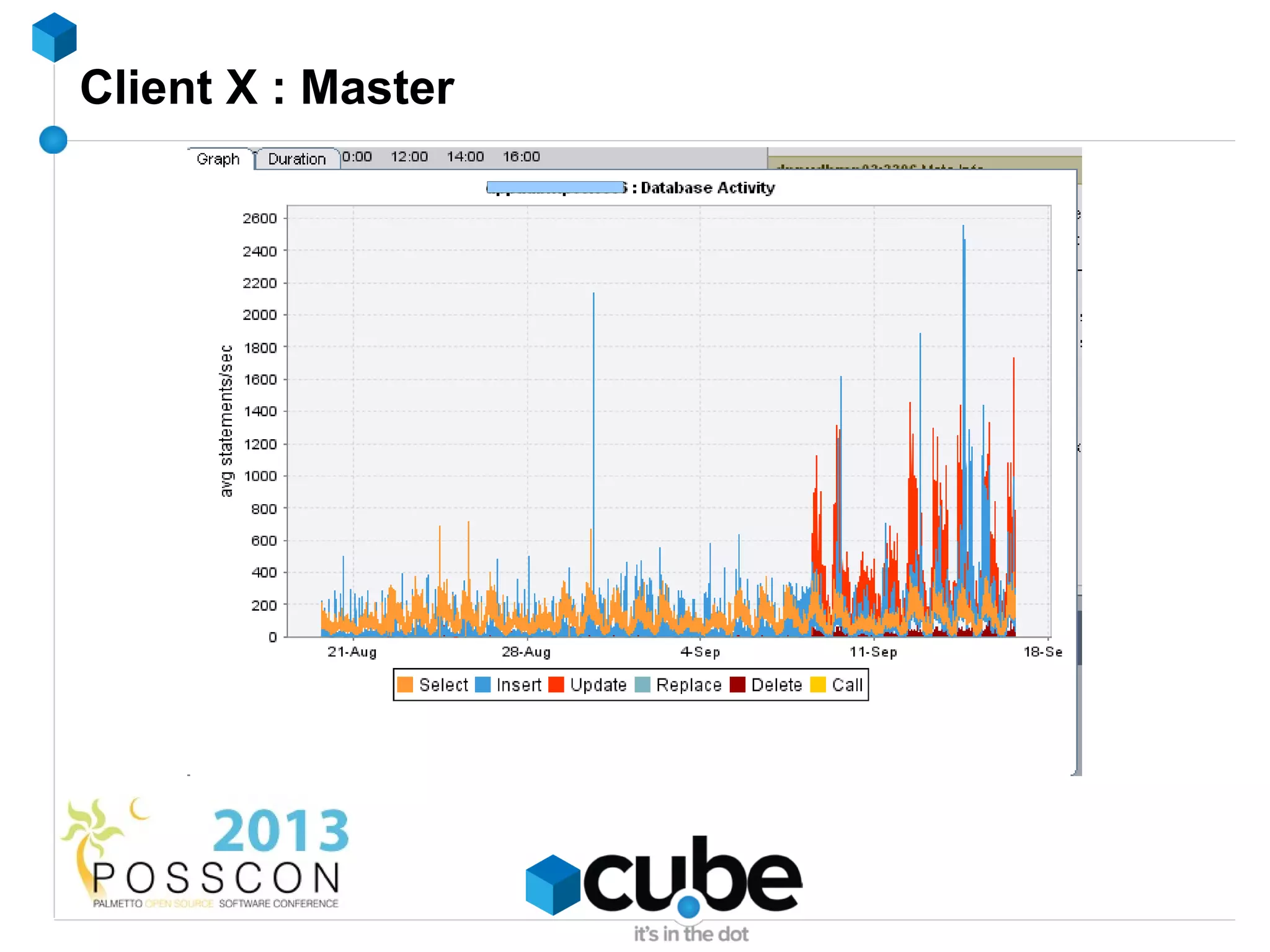

31. Client X : Master

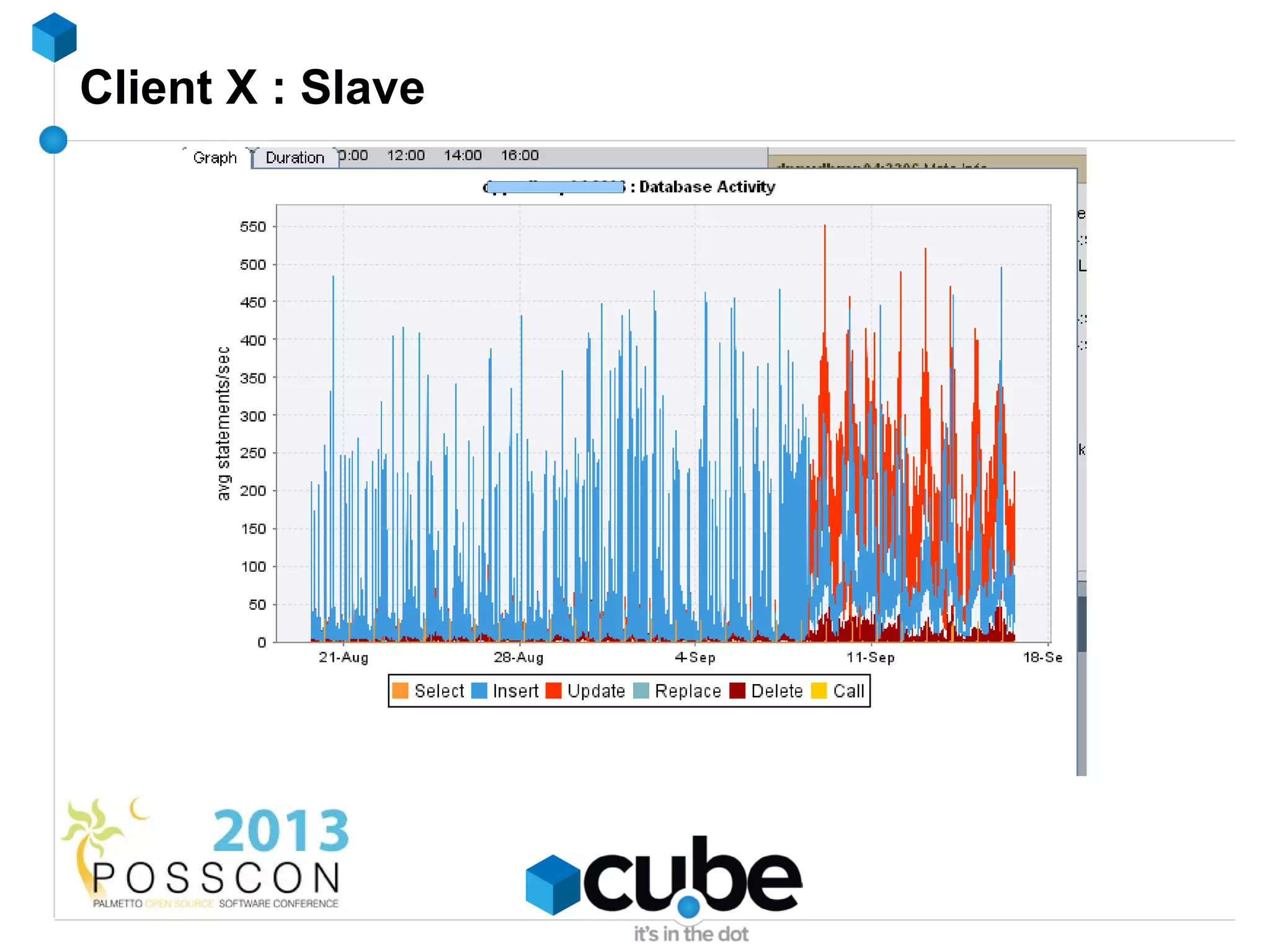

32. Client X : Slave

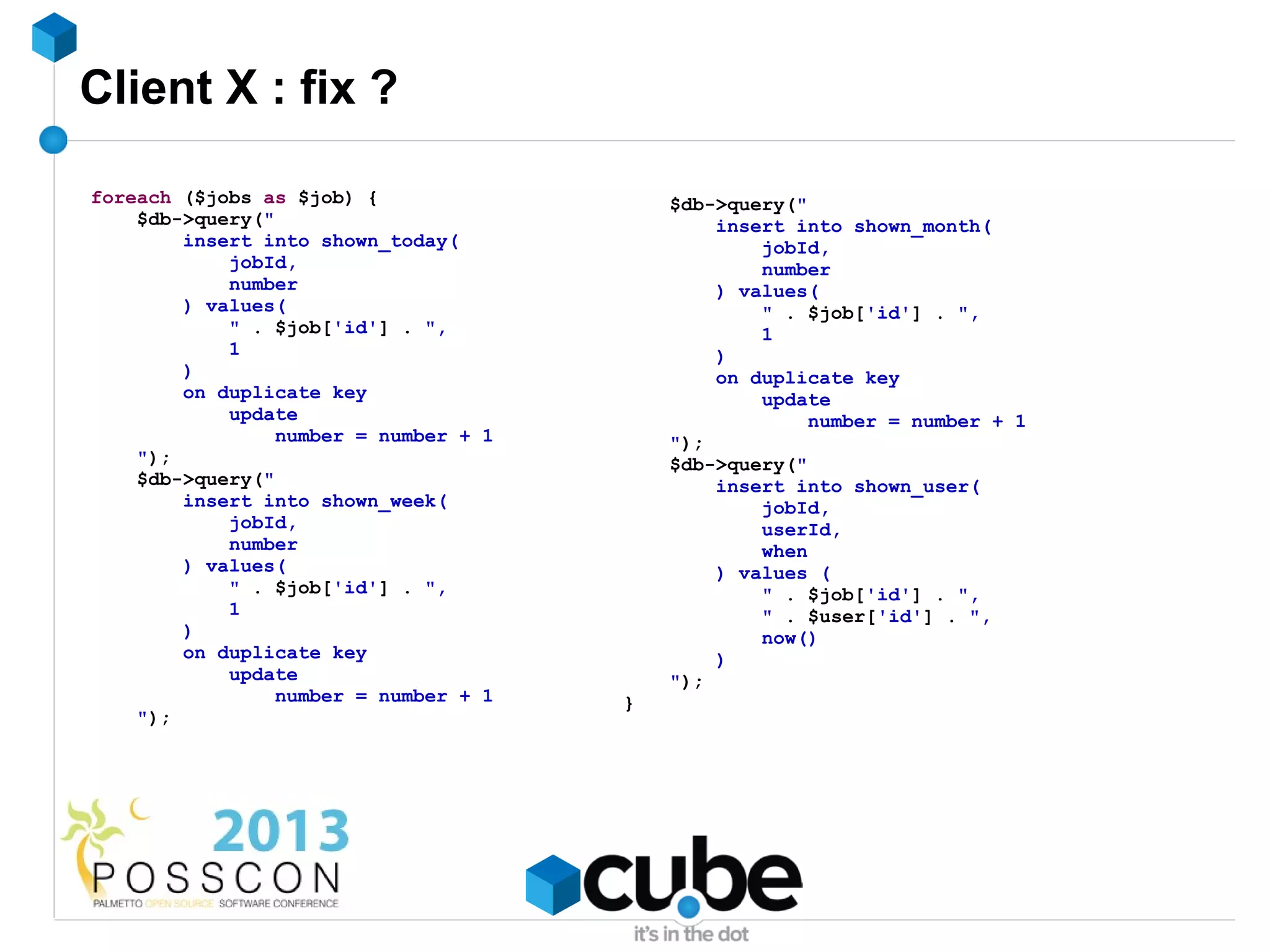

33. Client X : fix ?
foreach ($jobs as $job) { $db->query("
$db->query(" insert into shown_month(
insert into shown_today( jobId,
jobId, number
number ) values(
) values( " . $job['id'] . ",
" . $job['id'] . ", 1
1 )
) on duplicate key
on duplicate key update
update number = number + 1
number = number + 1 ");
"); $db->query("
$db->query(" insert into shown_user(
insert into shown_week( jobId,
jobId, userId,
number when
) values( ) values (
" . $job['id'] . ", " . $job['id'] . ",
1 " . $user['id'] . ",
) now()
on duplicate key )
update ");
number = number + 1 }
");

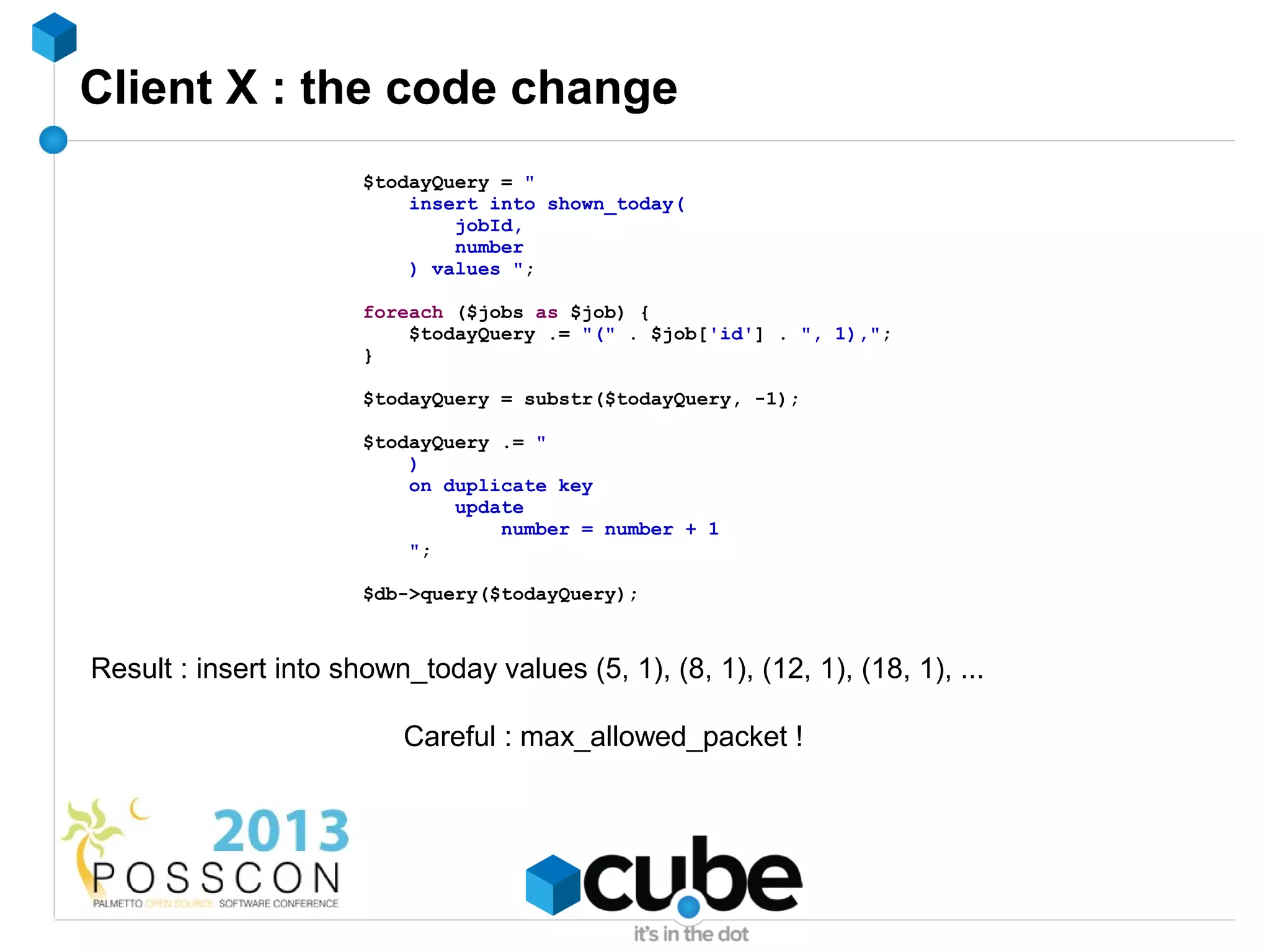

34. Client X : the code change
$todayQuery = "
insert into shown_today(
jobId,
number
) values ";
foreach ($jobs as $job) {
$todayQuery .= "(" . $job['id'] . ", 1),";
}
$todayQuery = substr($todayQuery, -1);
$todayQuery .= "
)
on duplicate key
update
number = number + 1
";
$db->query($todayQuery);
Result : insert into shown_today values (5, 1), (8, 1), (12, 1), (18, 1), ...
Careful : max_allowed_packet !

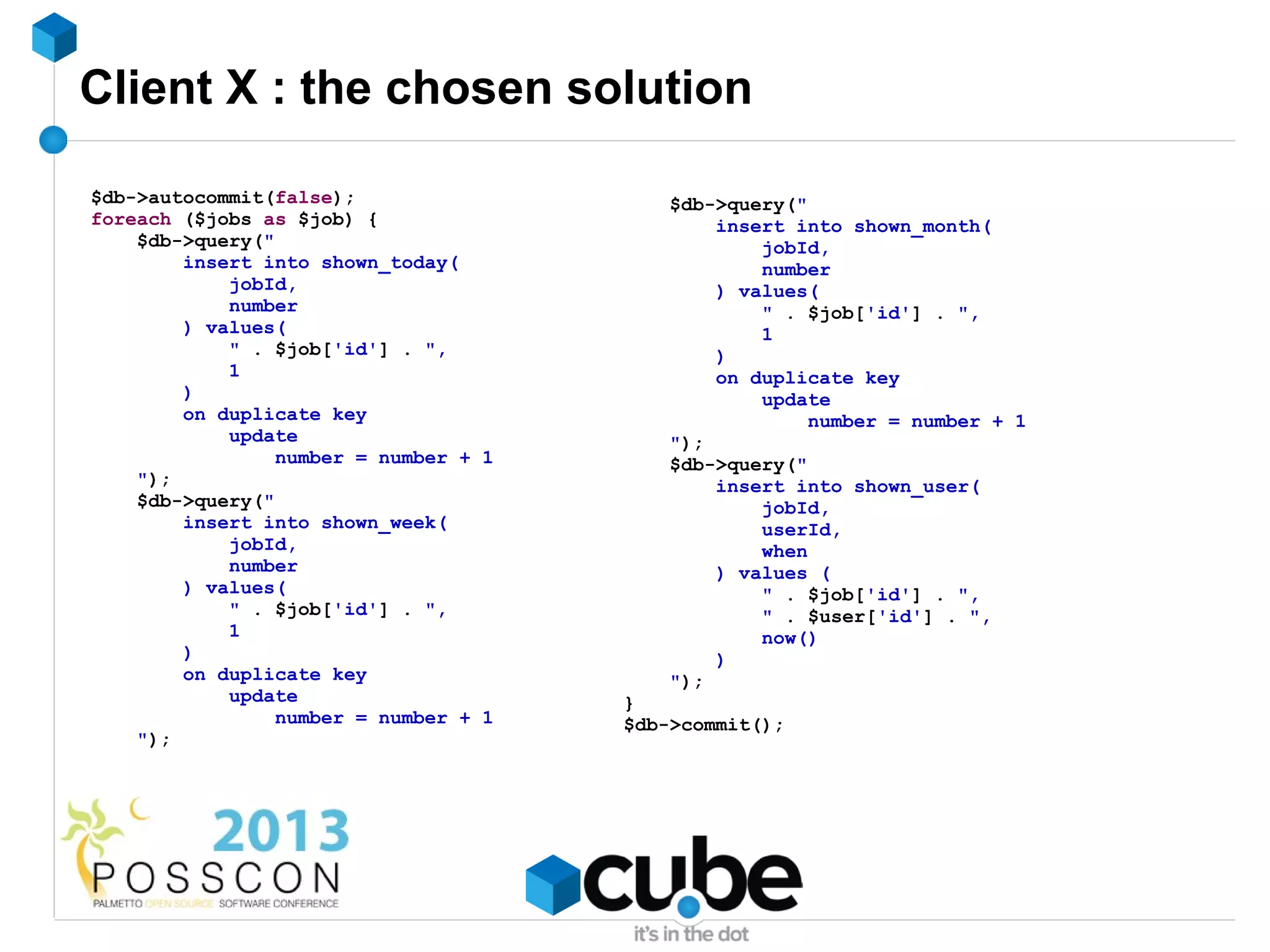

35. Client X : the chosen solution
$db->autocommit(false); $db->query("
foreach ($jobs as $job) { insert into shown_month(
$db->query(" jobId,
insert into shown_today( number
jobId, ) values(
number " . $job['id'] . ",
) values( 1
" . $job['id'] . ", )
1 on duplicate key
) update
on duplicate key number = number + 1
update ");
number = number + 1 $db->query("
"); insert into shown_user(
$db->query(" jobId,
insert into shown_week( userId,
jobId, when
number ) values (
) values( " . $job['id'] . ",
" . $job['id'] . ", " . $user['id'] . ",
1 now()
) )
on duplicate key ");
update }
number = number + 1 $db->commit();
");

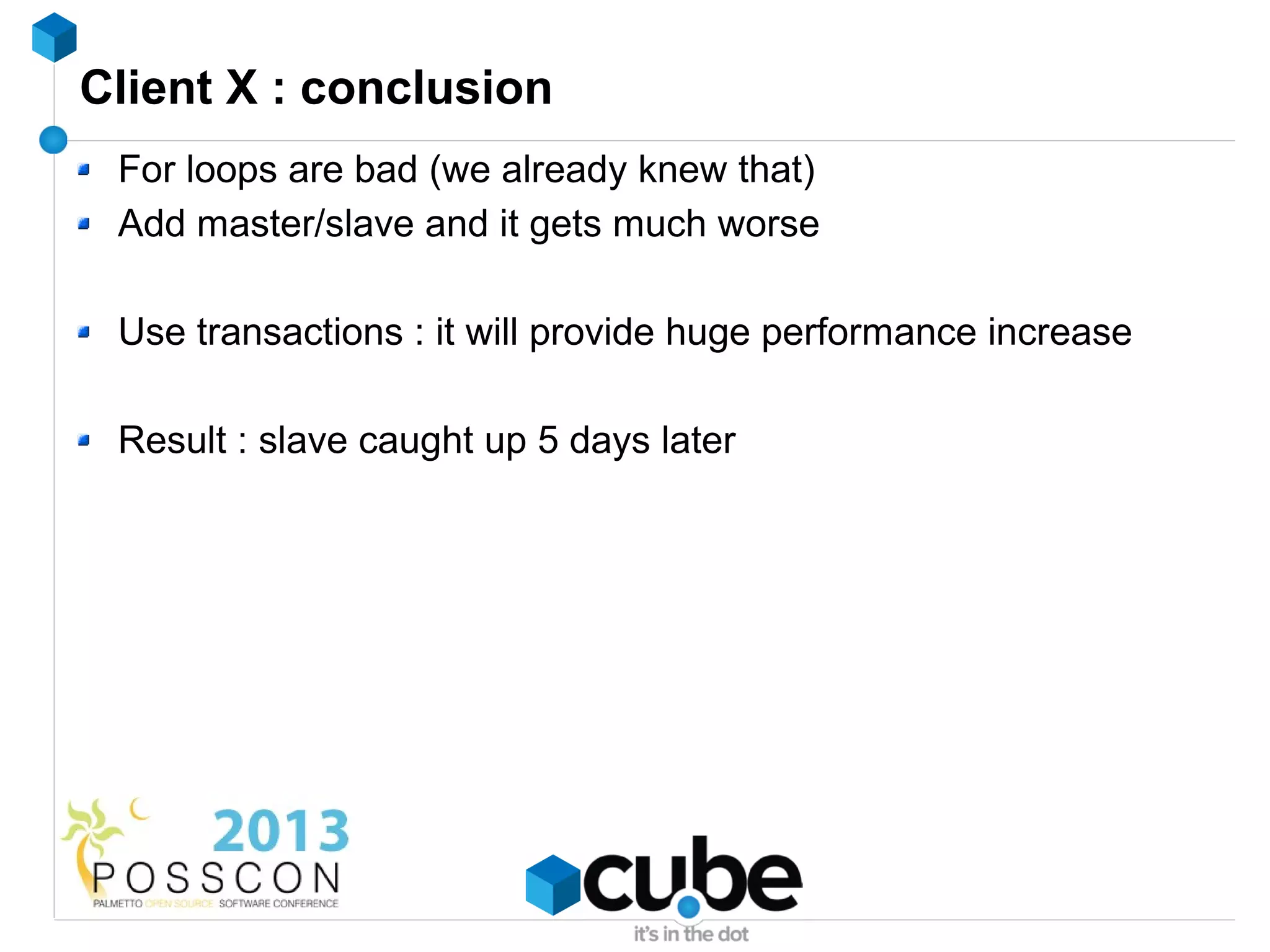

36. Client X : conclusion
For loops are bad (we already knew that)
Add master/slave and it gets much worse
Use transactions : it will provide huge performance increase
Result : slave caught up 5 days later

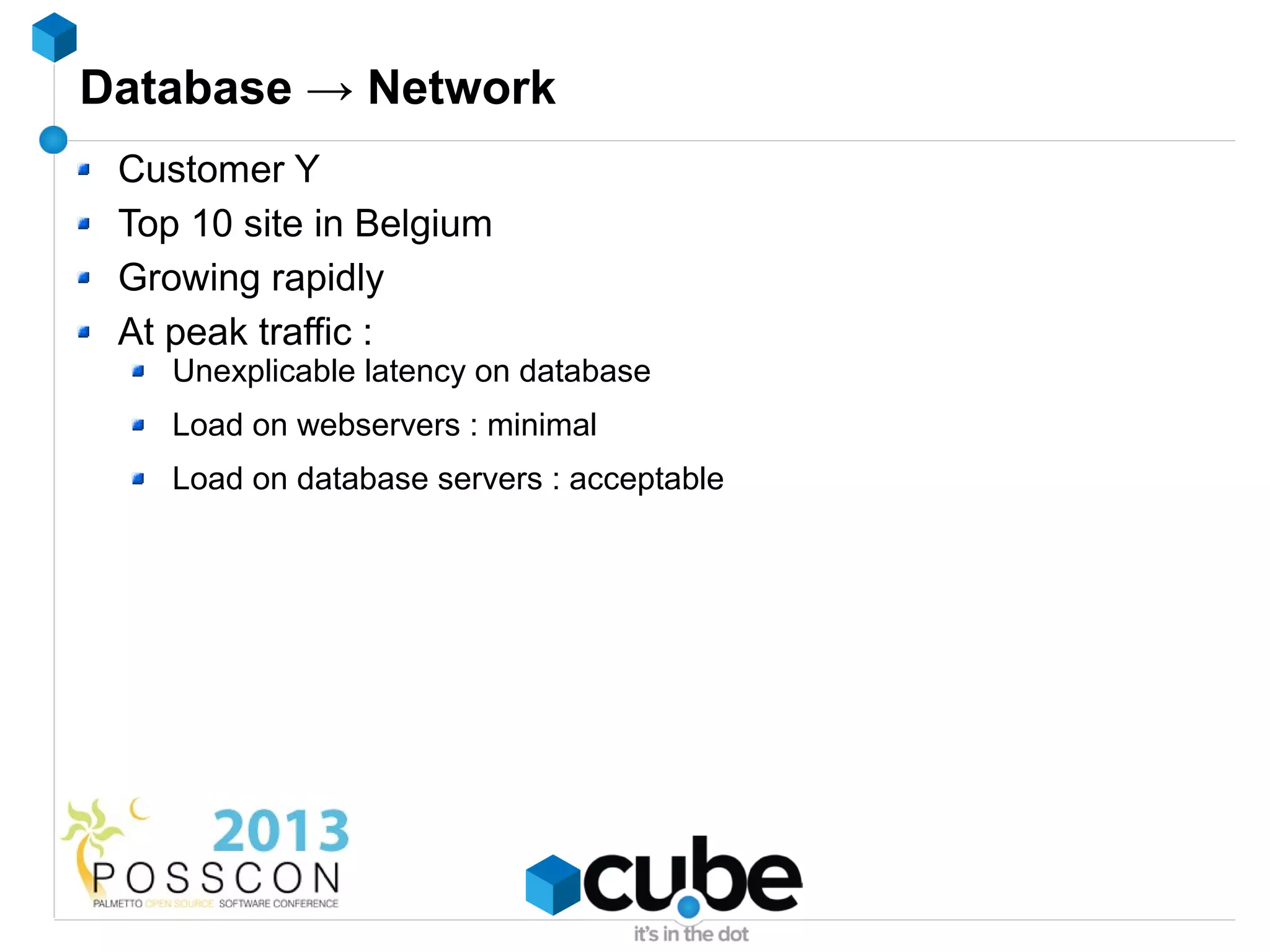

37. Database → Network
Customer Y
Top 10 site in Belgium
Growing rapidly
At peak traffic :
Unexplicable latency on database
Load on webservers : minimal
Load on database servers : acceptable

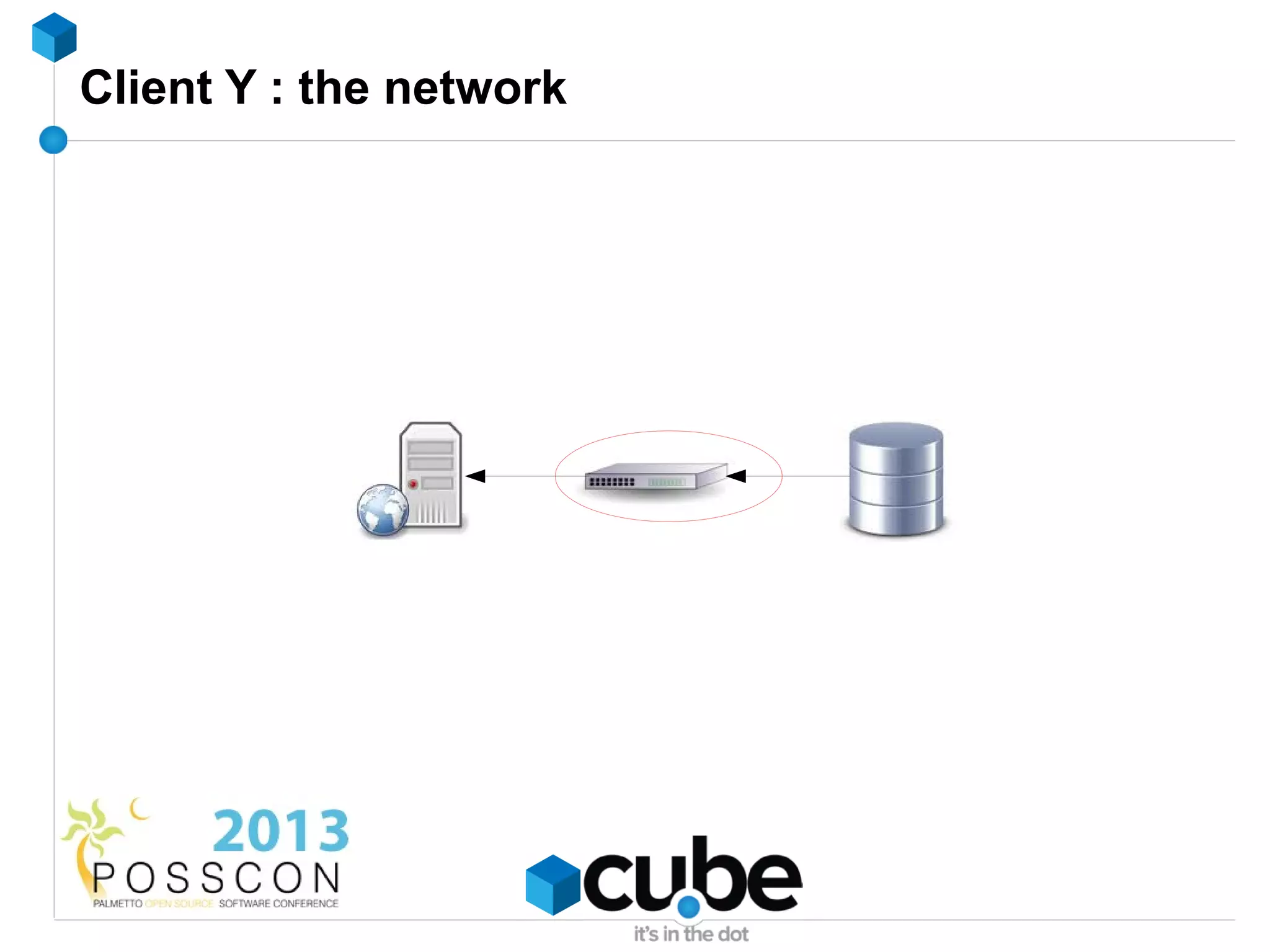

38. Client Y : the network

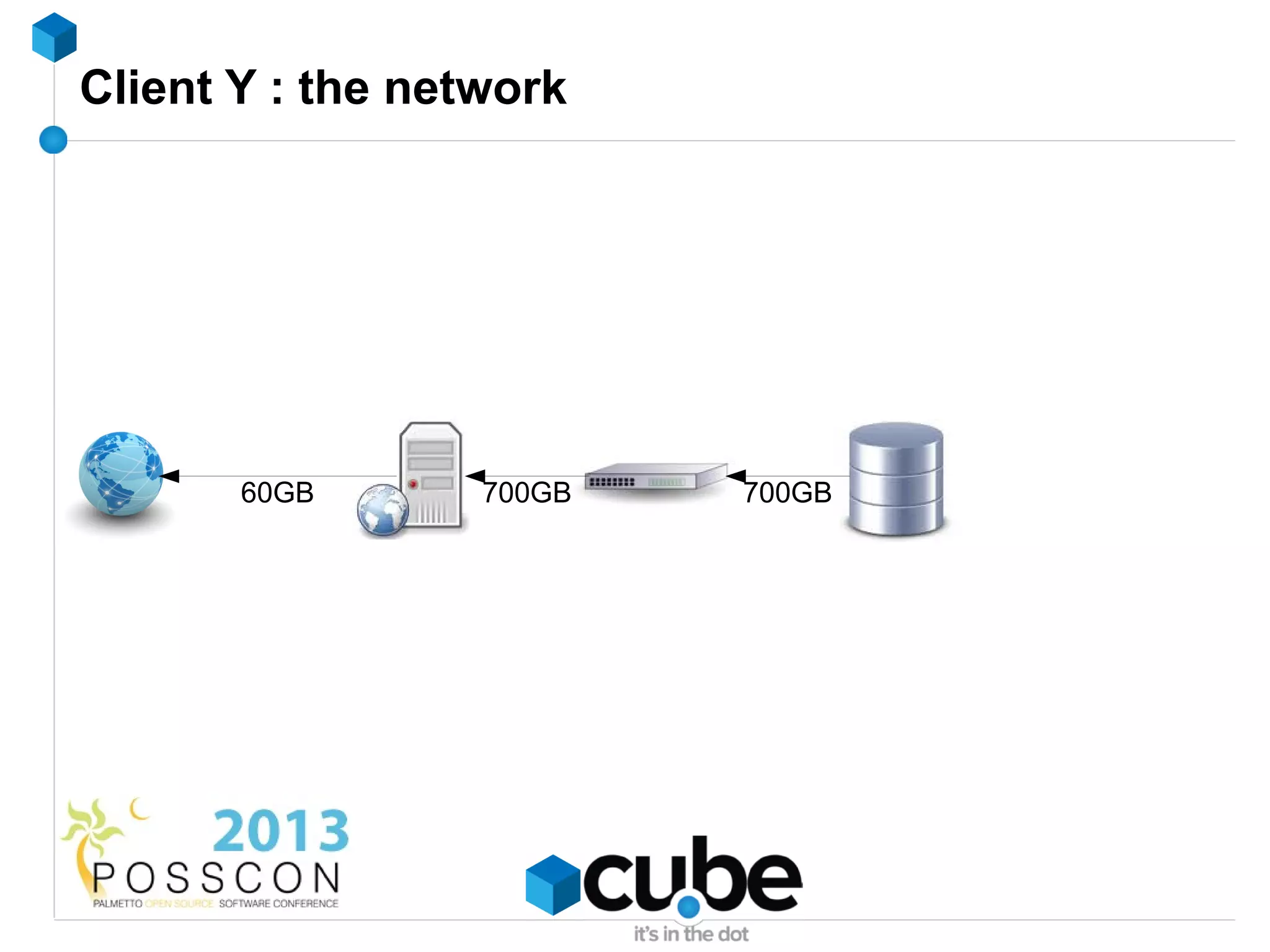

39. Client Y : the network
60GB 700GB 700GB

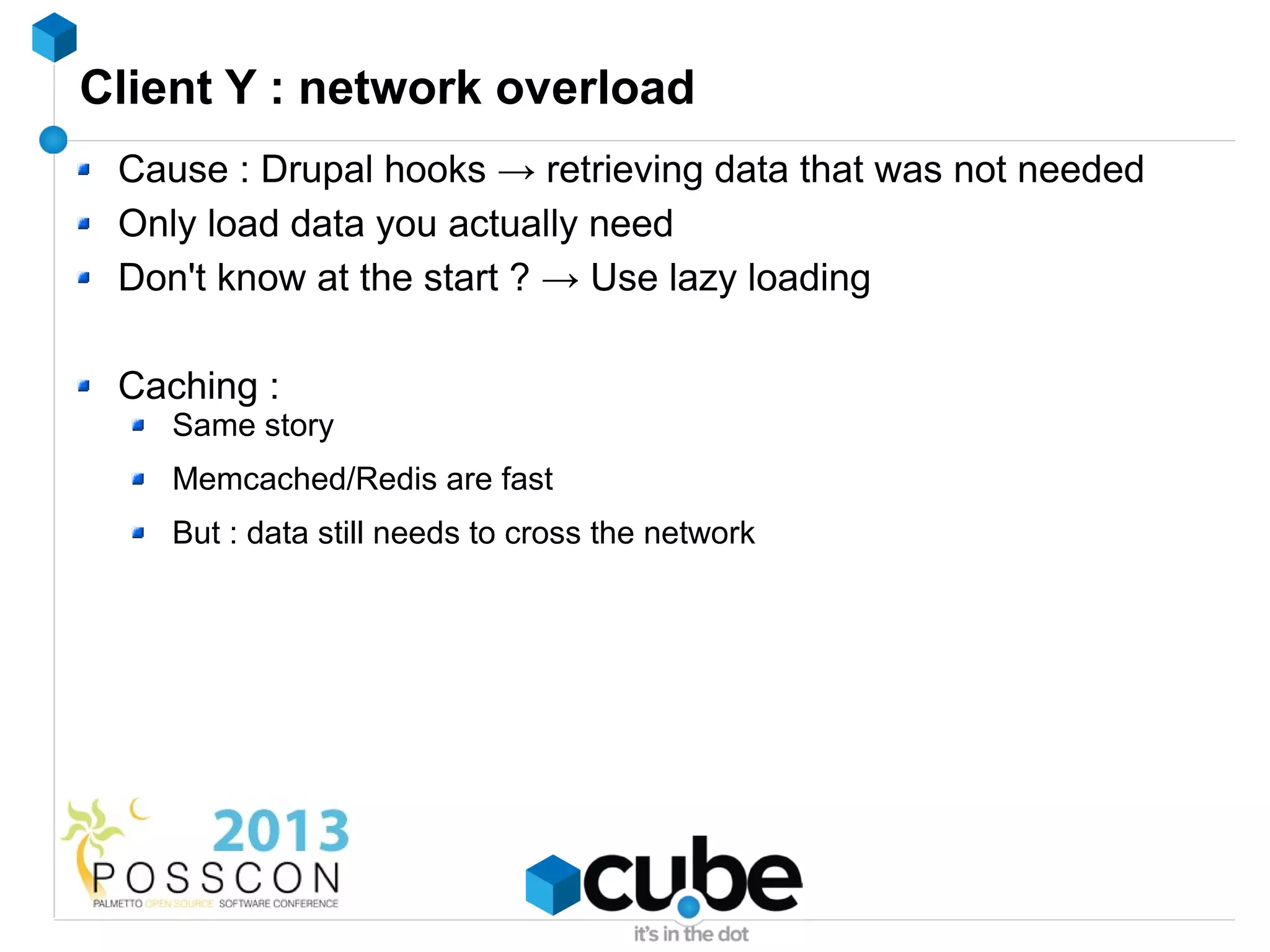

40. Client Y : network overload
Cause : Drupal hooks → retrieving data that was not needed
Only load data you actually need
Don't know at the start ? → Use lazy loading
Caching :
Same story
Memcached/Redis are fast
But : data still needs to cross the network

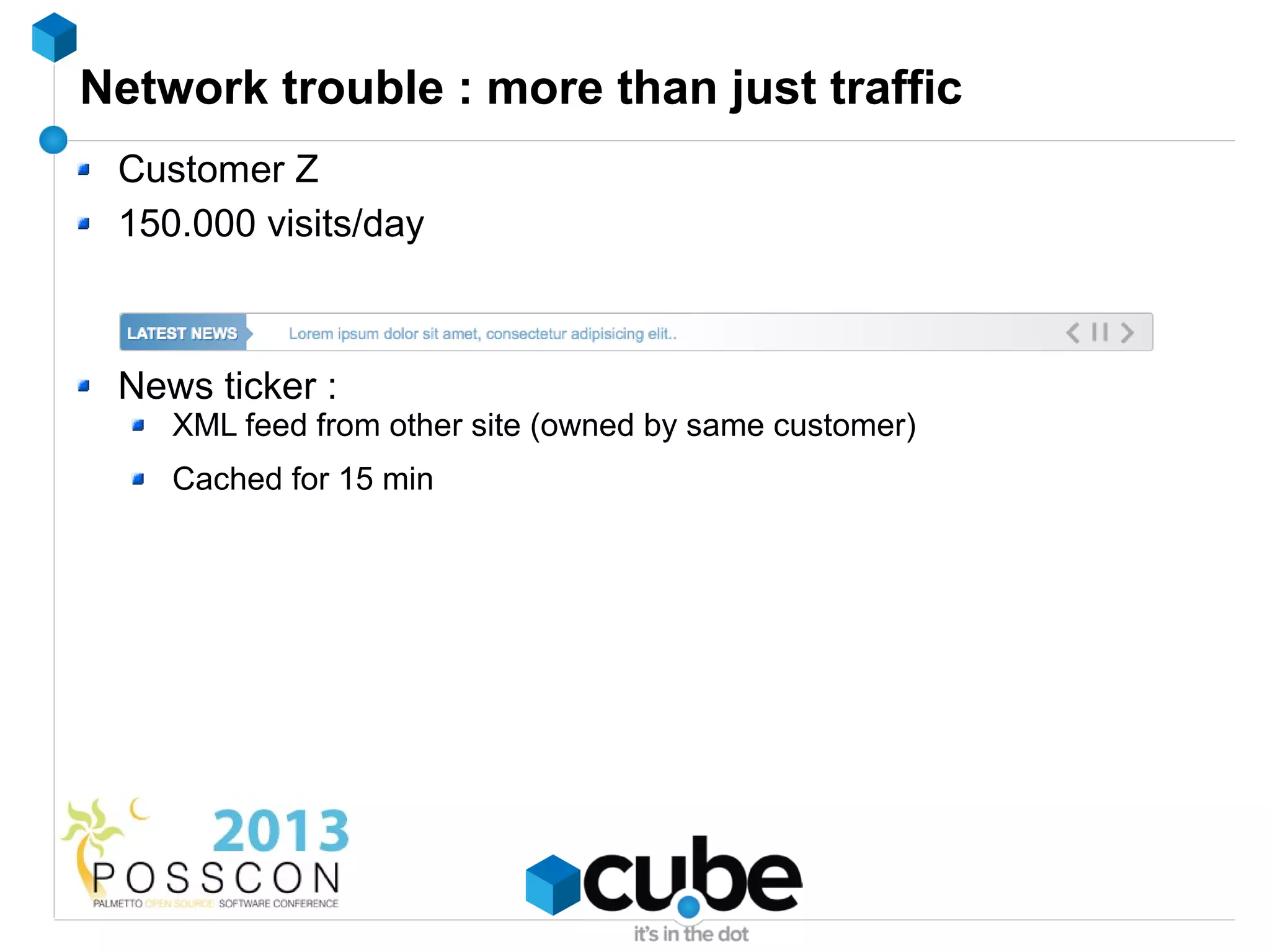

41. Network trouble : more than just traffic
Customer Z
150.000 visits/day
News ticker :
XML feed from other site (owned by same customer)
Cached for 15 min

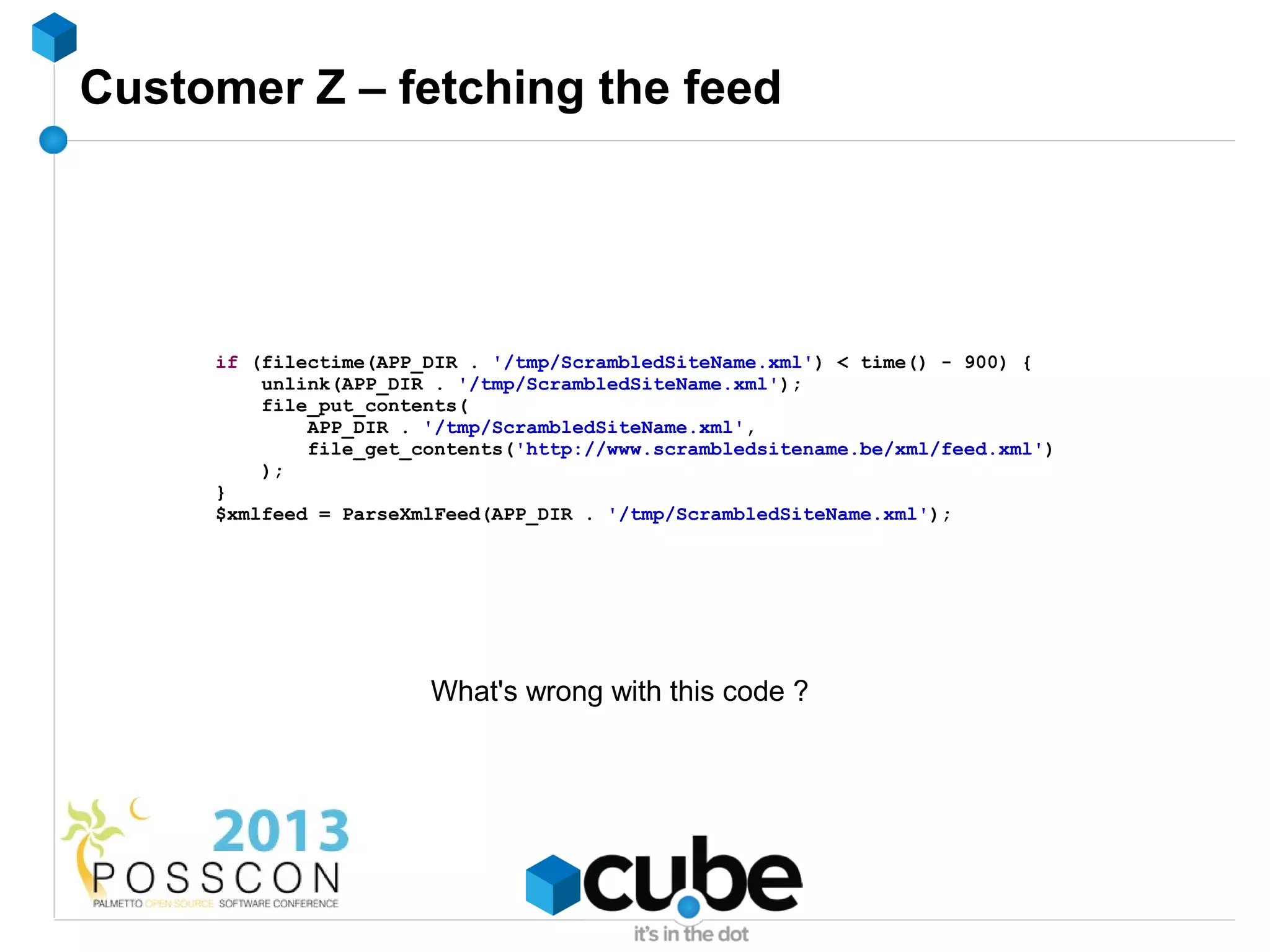

42. Customer Z – fetching the feed
if (filectime(APP_DIR . '/tmp/ScrambledSiteName.xml') < time() - 900) {
unlink(APP_DIR . '/tmp/ScrambledSiteName.xml');
file_put_contents(
APP_DIR . '/tmp/ScrambledSiteName.xml',
file_get_contents('http://www.scrambledsitename.be/xml/feed.xml')
);
}
$xmlfeed = ParseXmlFeed(APP_DIR . '/tmp/ScrambledSiteName.xml');
What's wrong with this code ?

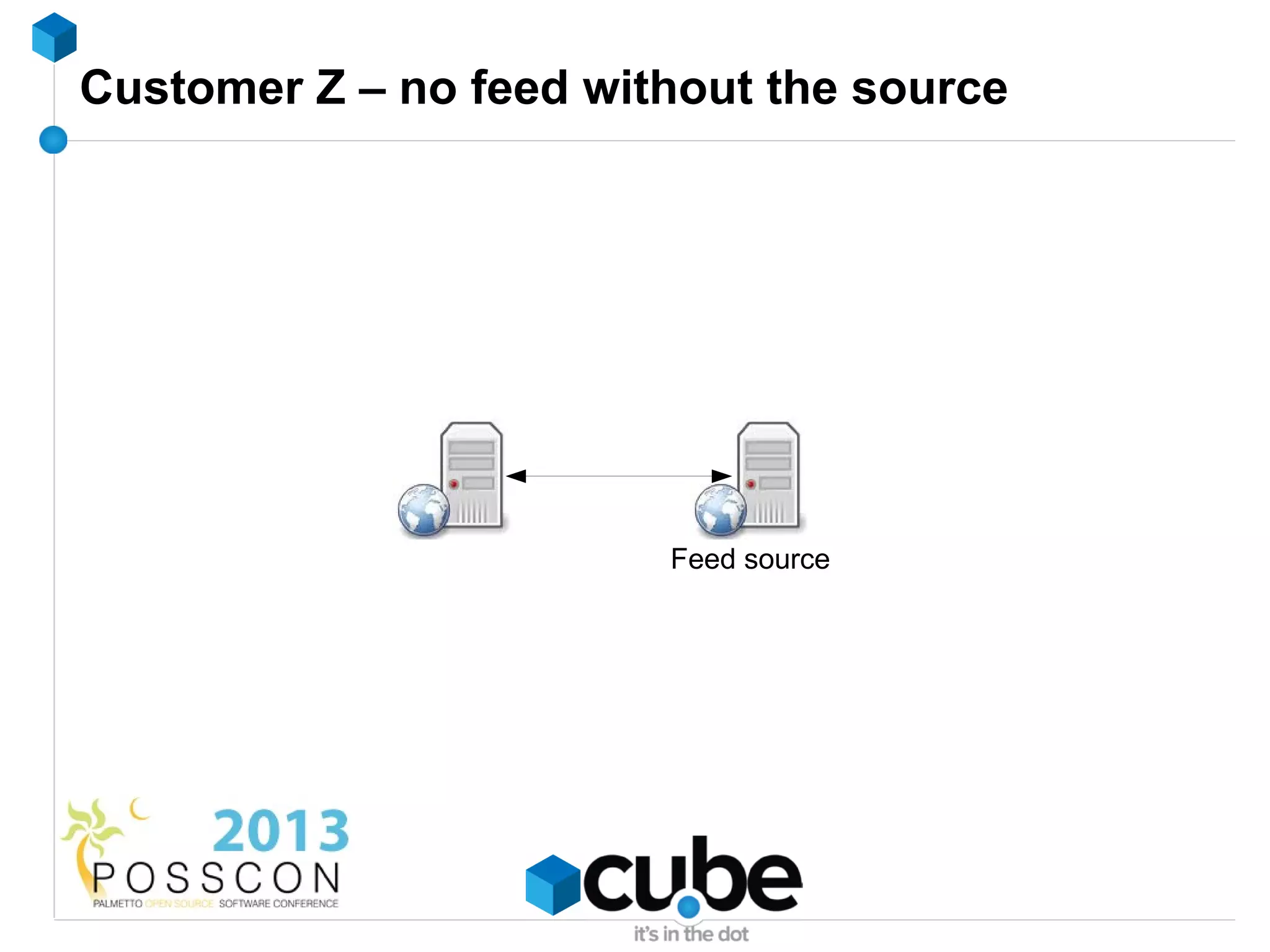

43. Customer Z – no feed without the source
Feed source

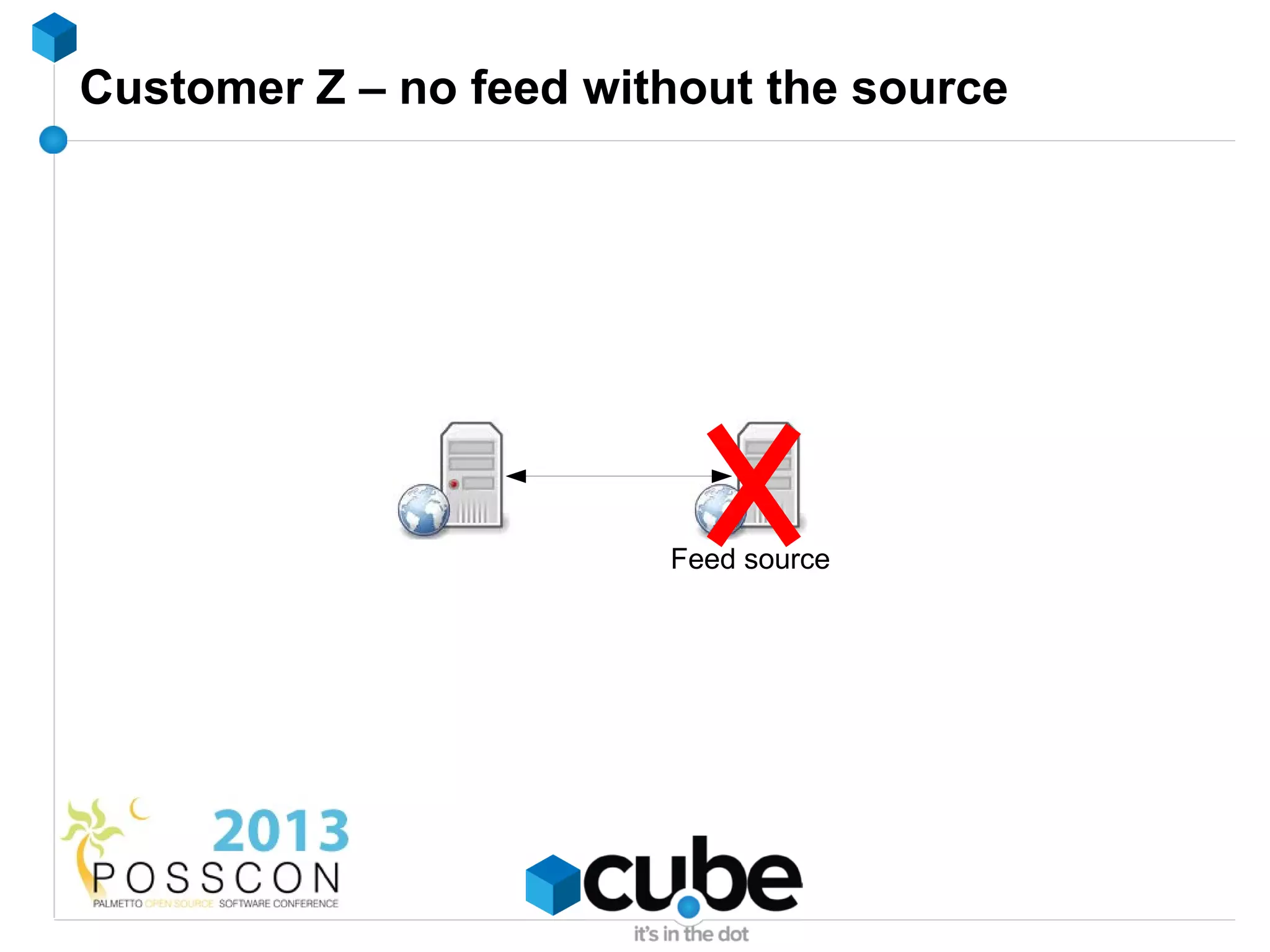

44. Customer Z – no feed without the source
Feed source

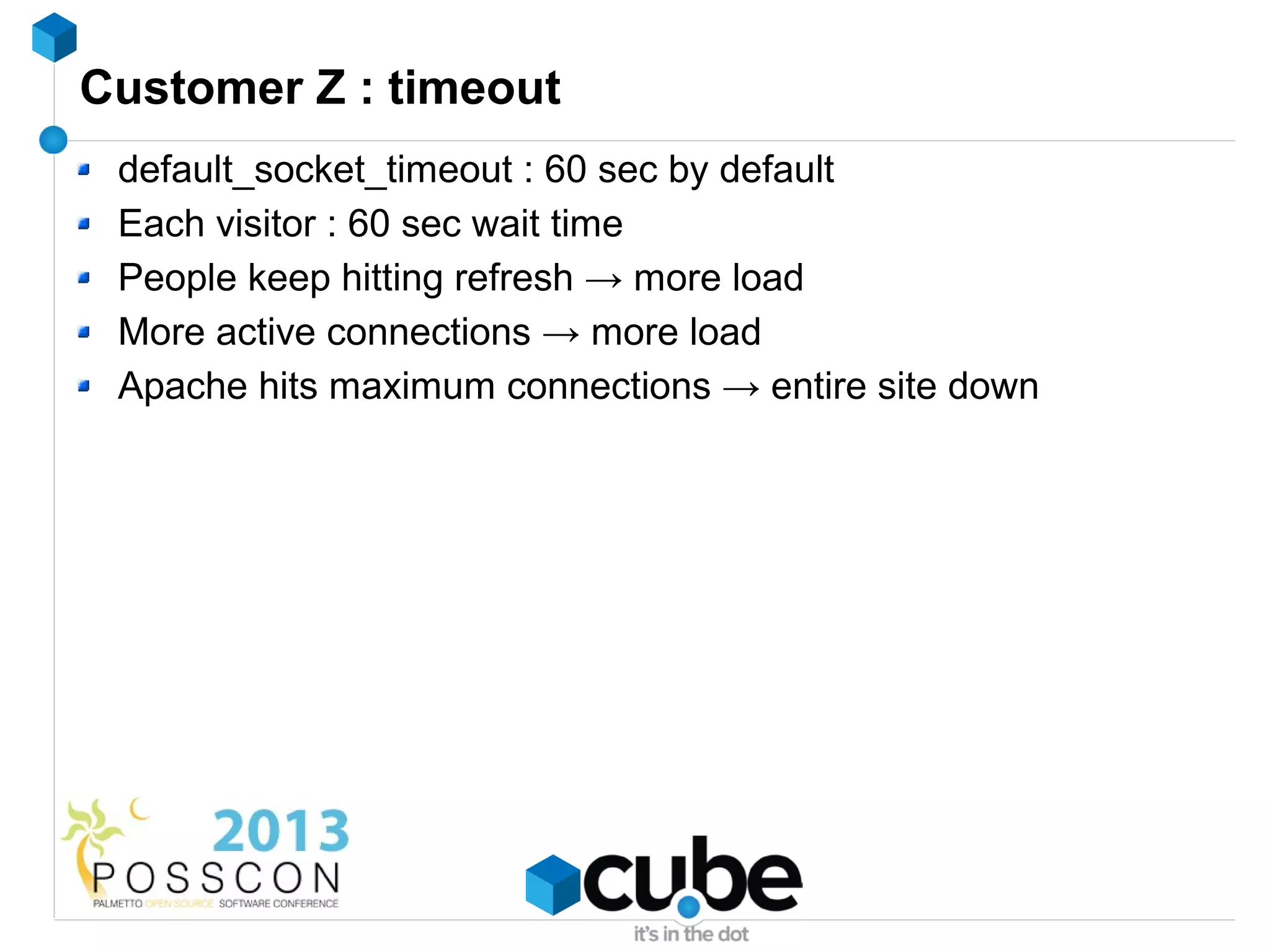

45. Customer Z : timeout
default_socket_timeout : 60 sec by default
Each visitor : 60 sec wait time
People keep hitting refresh → more load
More active connections → more load
Apache hits maximum connections → entire site down

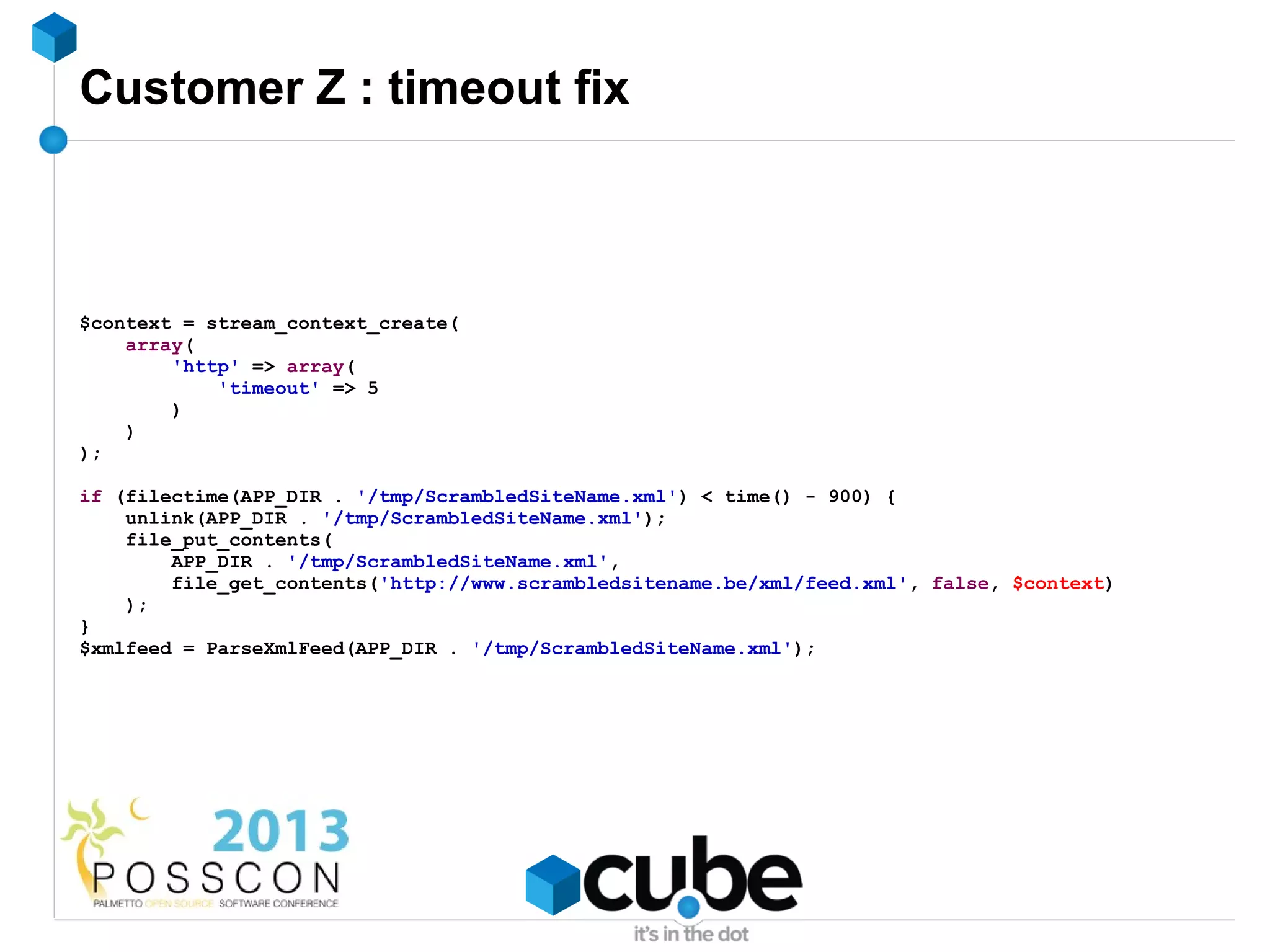

46. Customer Z : timeout fix
$context = stream_context_create(
array(
'http' => array(
'timeout' => 5
)
)
);
if (filectime(APP_DIR . '/tmp/ScrambledSiteName.xml') < time() - 900) {
unlink(APP_DIR . '/tmp/ScrambledSiteName.xml');
file_put_contents(
APP_DIR . '/tmp/ScrambledSiteName.xml',
file_get_contents('http://www.scrambledsitename.be/xml/feed.xml', false, $context)
);
}
$xmlfeed = ParseXmlFeed(APP_DIR . '/tmp/ScrambledSiteName.xml');

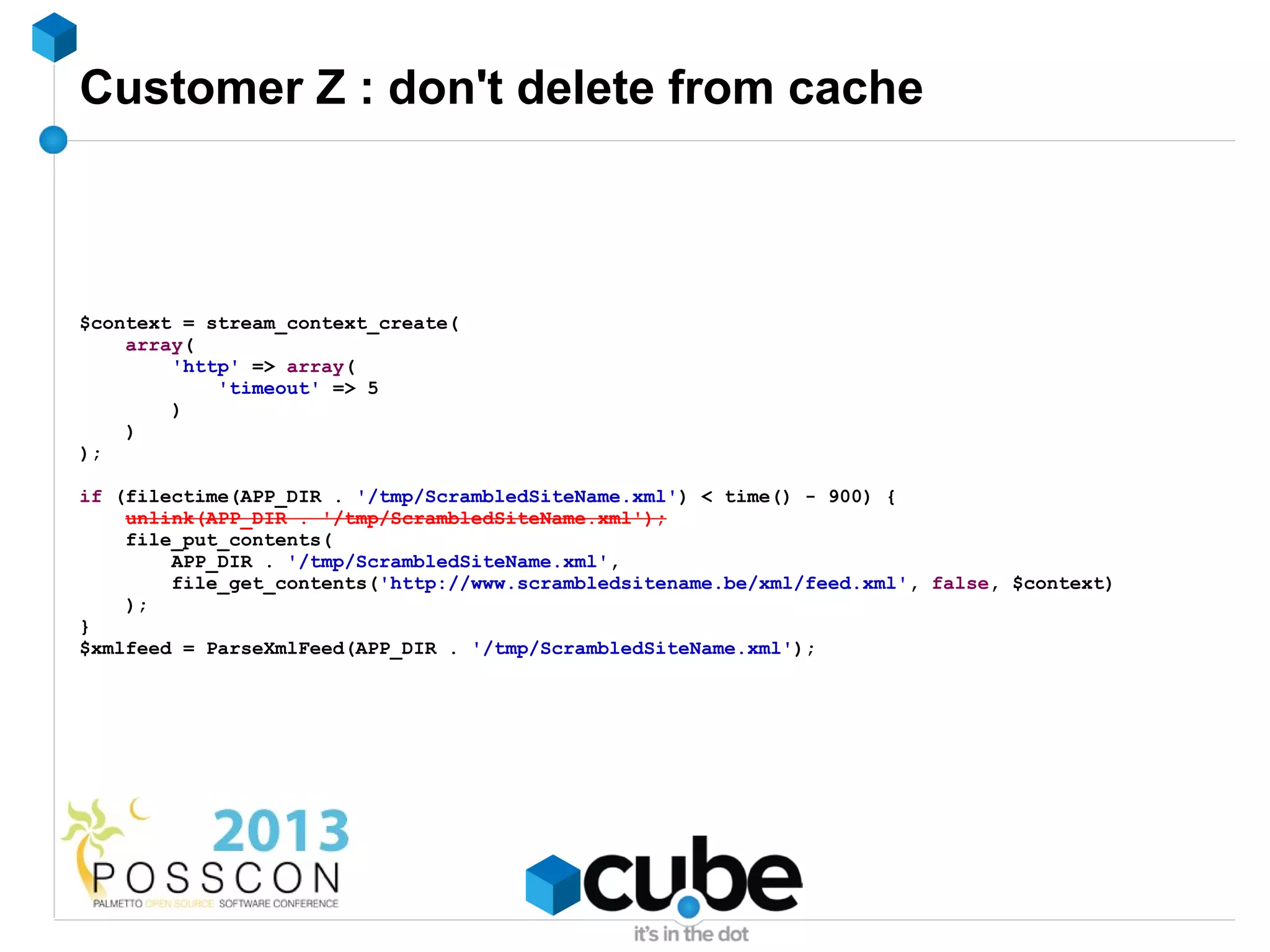

47. Customer Z : don't delete from cache
$context = stream_context_create(
array(
'http' => array(
'timeout' => 5
)
)
);
if (filectime(APP_DIR . '/tmp/ScrambledSiteName.xml') < time() - 900) {
unlink(APP_DIR . '/tmp/ScrambledSiteName.xml');
file_put_contents(
APP_DIR . '/tmp/ScrambledSiteName.xml',
file_get_contents('http://www.scrambledsitename.be/xml/feed.xml', false, $context)
);
}
$xmlfeed = ParseXmlFeed(APP_DIR . '/tmp/ScrambledSiteName.xml');

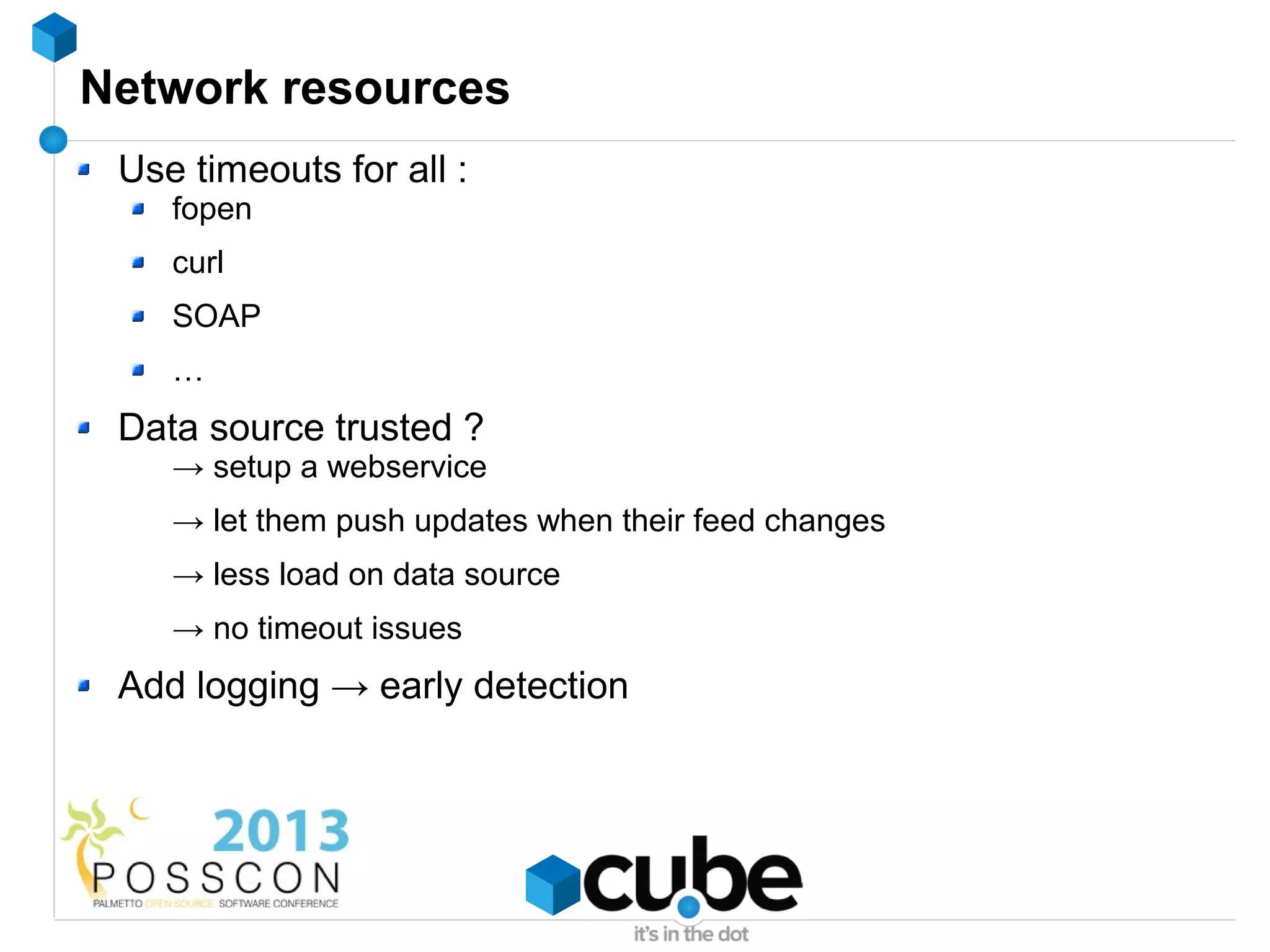

48. Network resources
Use timeouts for all :
fopen
curl
SOAP
…
Data source trusted ?
→ setup a webservice
→ let them push updates when their feed changes
→ less load on data source
→ no timeout issues
Add logging → early detection

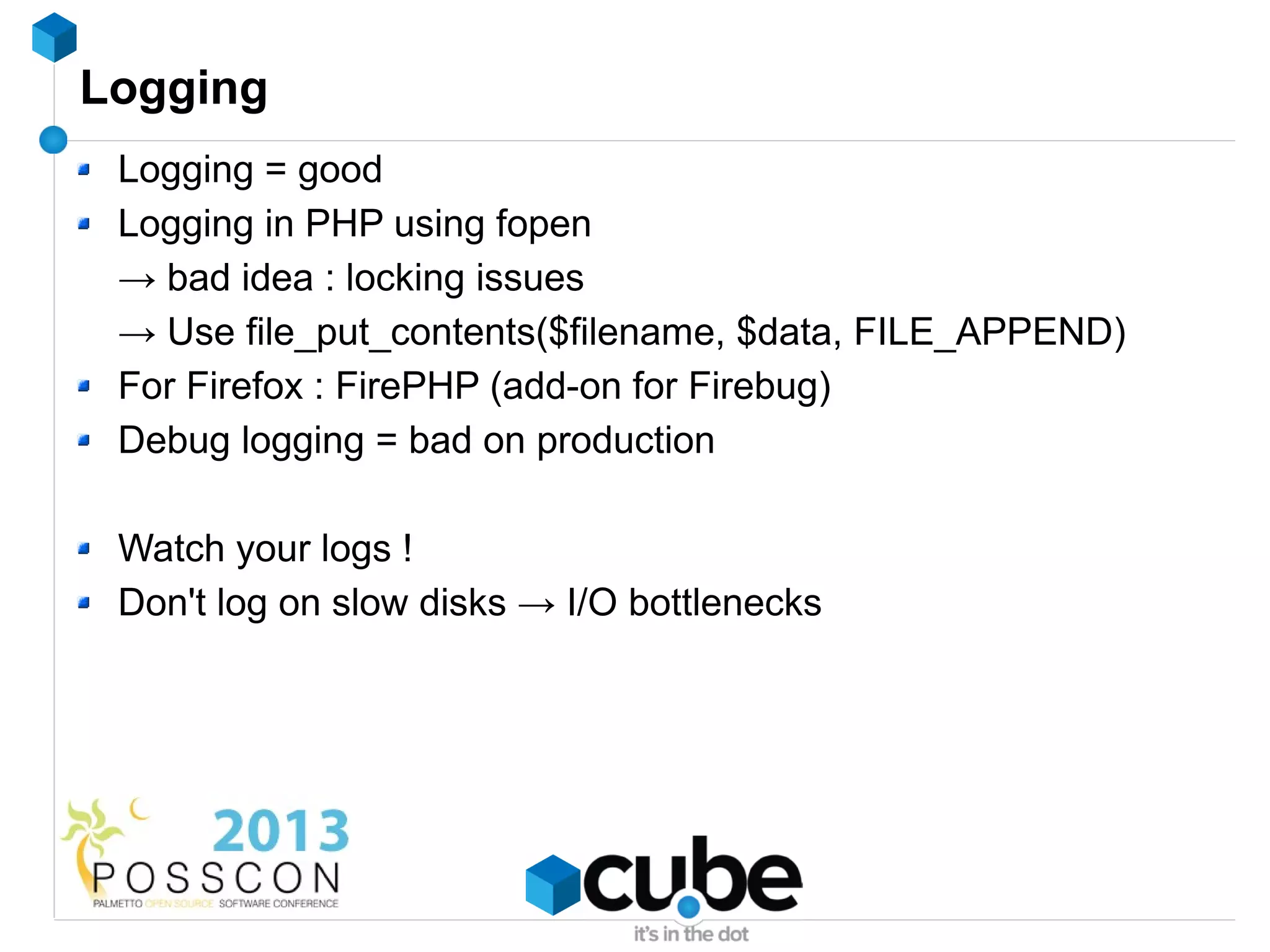

49. Logging
Logging = good
Logging in PHP using fopen
→ bad idea : locking issues
→ Use file_put_contents($filename, $data, FILE_APPEND)
For Firefox : FirePHP (add-on for Firebug)
Debug logging = bad on production
Watch your logs !
Don't log on slow disks → I/O bottlenecks

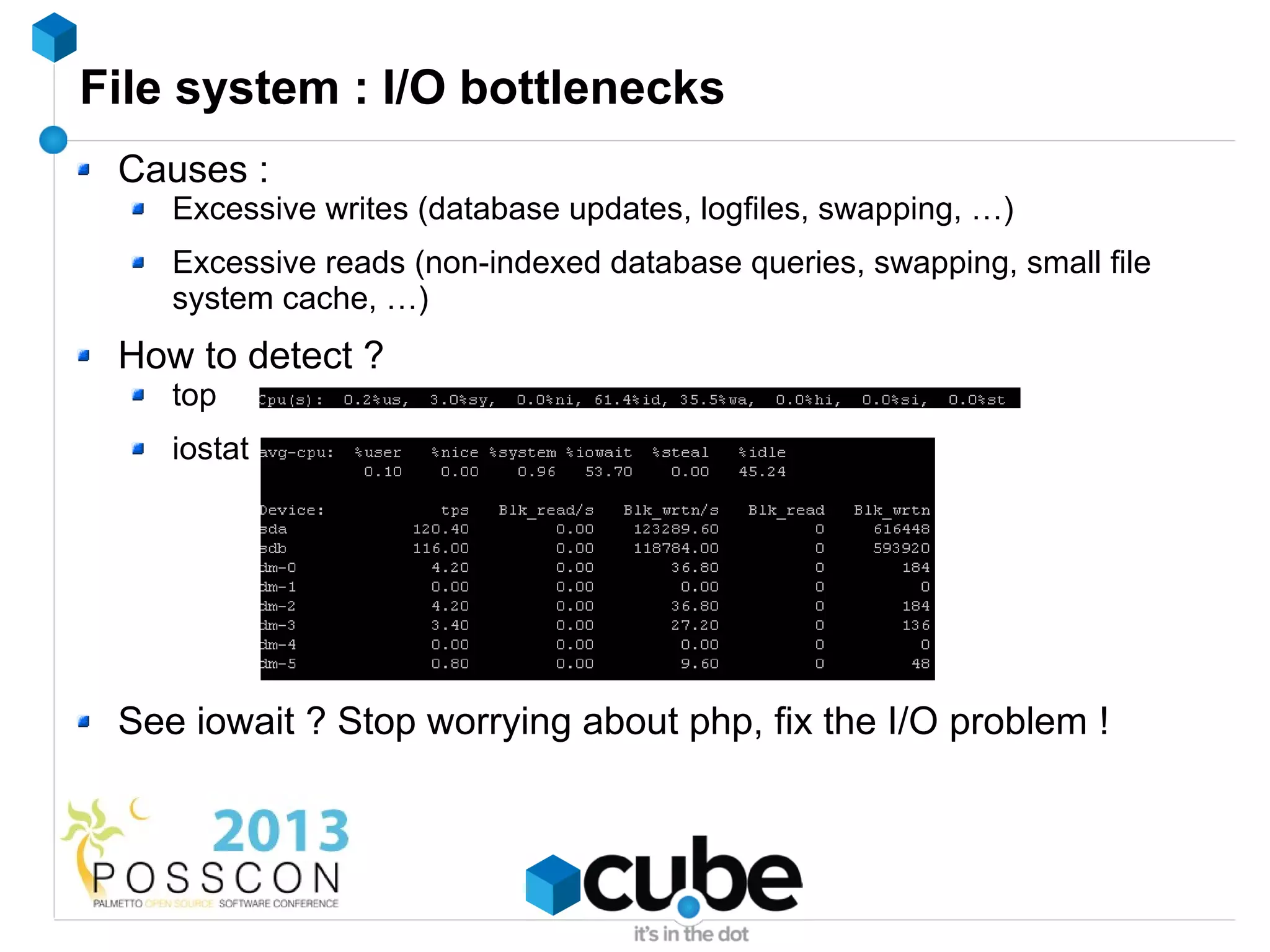

50. File system : I/O bottlenecks
Causes :
Excessive writes (database updates, logfiles, swapping, …)
Excessive reads (non-indexed database queries, swapping, small file
system cache, …)
How to detect ?
top
iostat
See iowait ? Stop worrying about php, fix the I/O problem !

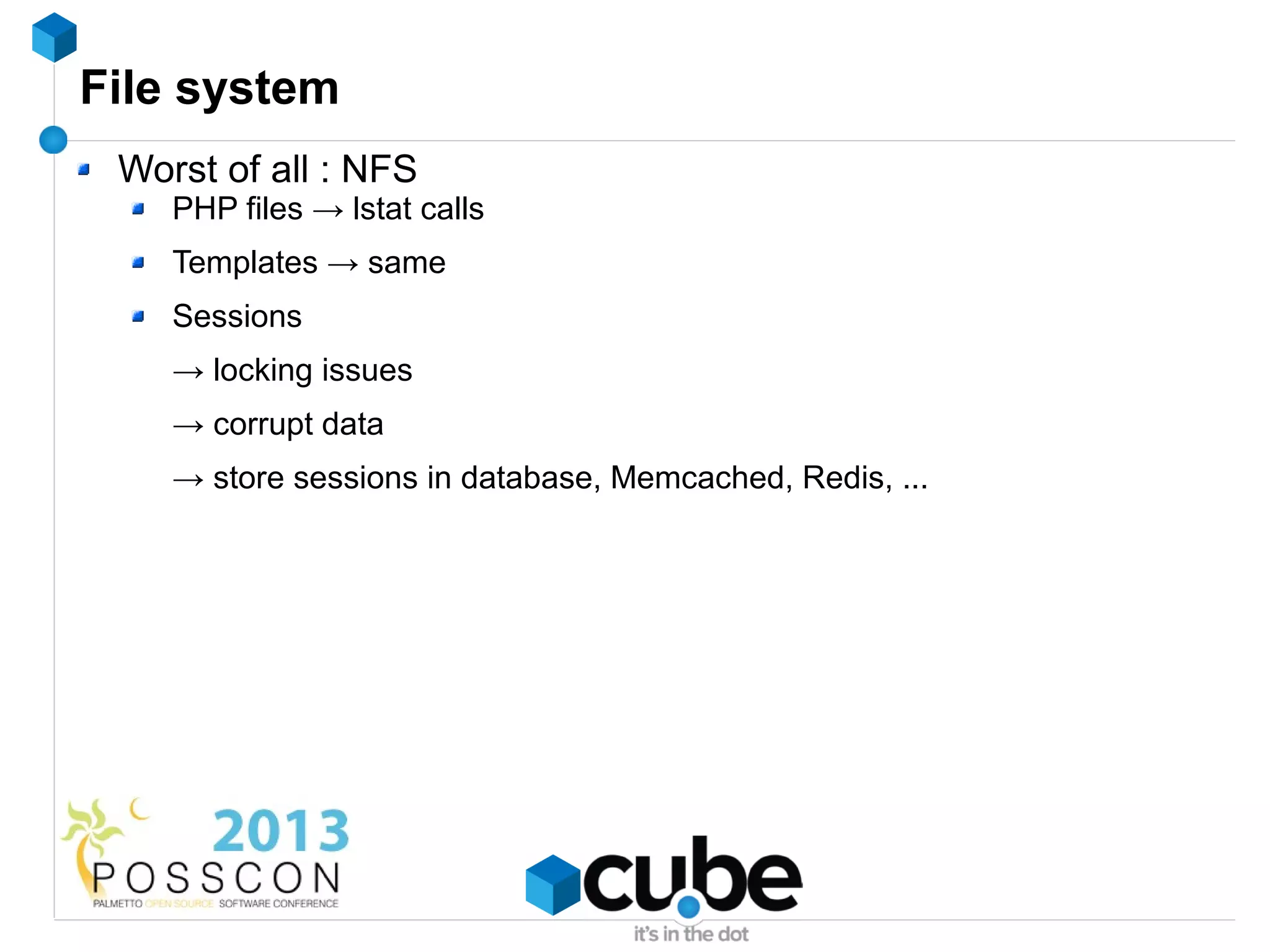

51. File system
Worst of all : NFS
PHP files → lstat calls
Templates → same
Sessions
→ locking issues
→ corrupt data
→ store sessions in database, Memcached, Redis, ...

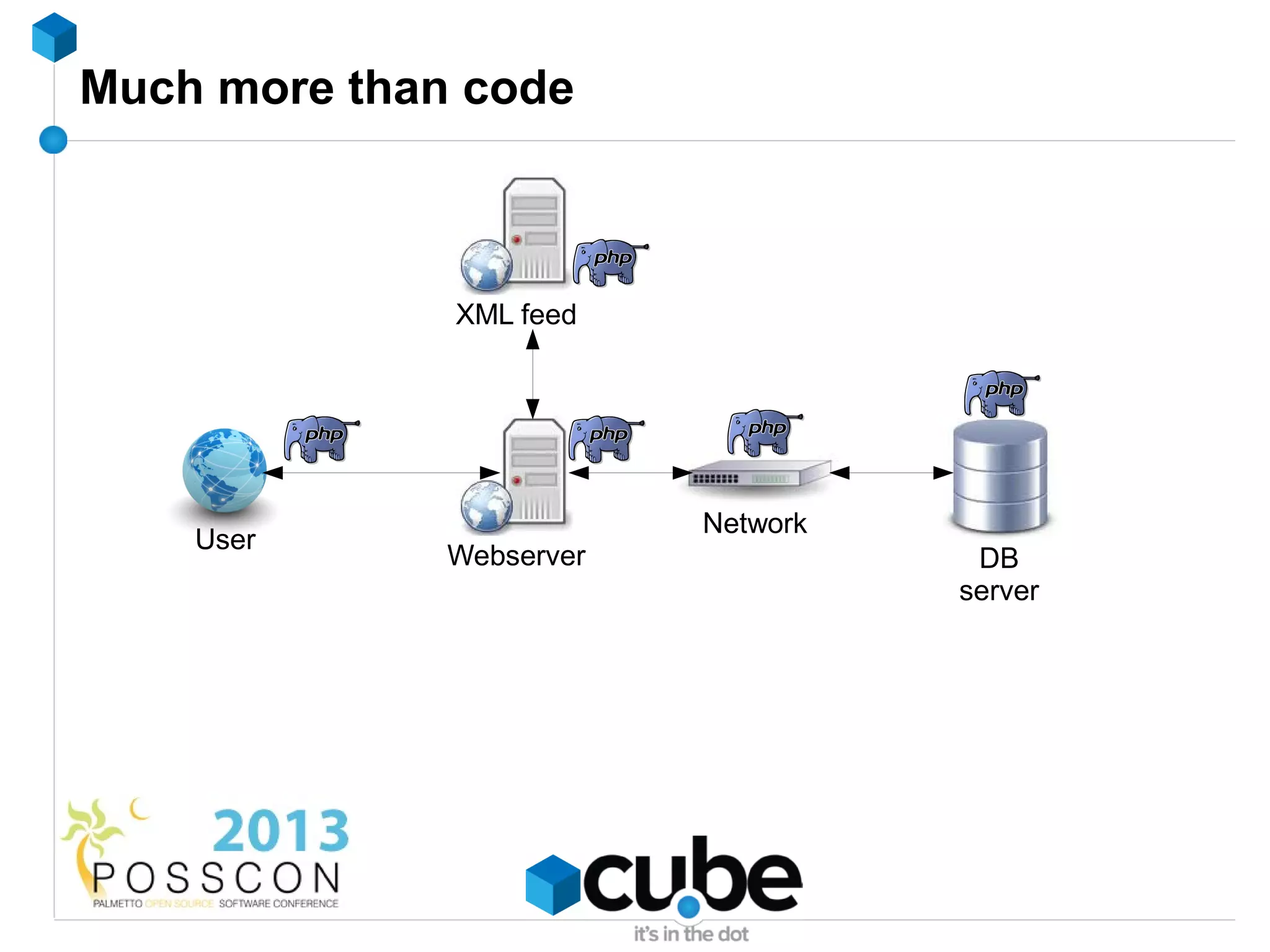

52. Much more than code
XML feed
Network
User
Webserver DB
server

53. Questions ?

54. Questions ?

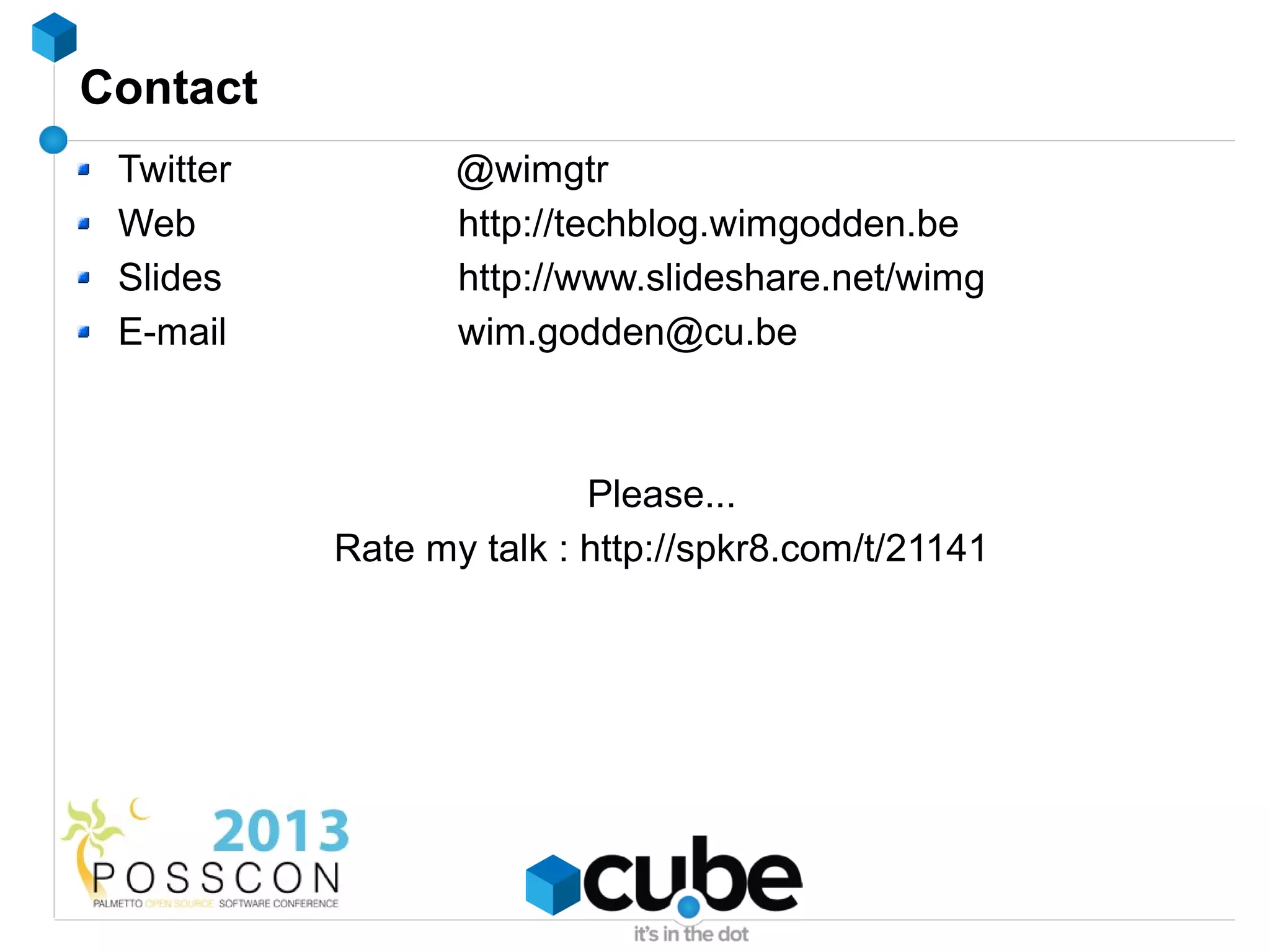

55. Contact
Twitter @wimgtr
Web http://techblog.wimgodden.be
Slides http://www.slideshare.net/wimg
E-mail wim.godden@cu.be
Please...
Rate my talk : http://spkr8.com/t/21141

56. Thanks !
Please...
Rate my talk : http://spkr8.com/t/21141
