The Actor model has been around for a while, but only the Reactive revolution is bringing it to trend. Find out how your application can benefit from Actors to achieve Resilience - the ability to spring back into shape from a failure state. Akka is a toolkit that brings Actors to the JVM - think Java or Scala - and that leverages on them to help you build concurrent, distributed and resilient applications.

1. HOW REACTIVE CAN YOU BE?
AMSTERDAM 16-17th MAY 2017
Beyond Fault Tolerance: Achieve
Resilience with Actor Programming

2. A little info about myself - Fabio Tiriticco
Tech Lead /
Software Architect
@ticofab

3. Reactive Amsterdam meetup

4. Reactive Amsterdam meetup

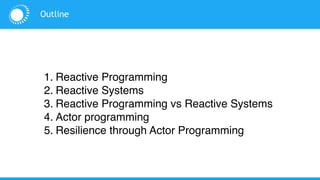

5. 1. Reactive Programming
2. Reactive Systems
3. Reactive Programming vs Reactive Systems
4. Actor programming
5. Resilience through Actor Programming
Outline

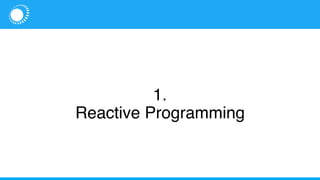

6. 1.
Reactive Programming

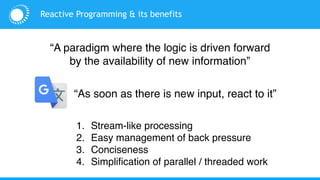

7. Reactive Programming & its benefits
1. Stream-like processing
2. Easy management of back pressure
3. Conciseness
4. Simplification of parallel / threaded work
“A paradigm where the logic is driven forward
by the availability of new information”
“As soon as there is new input, react to it”

8. The World is a Streaming Place
Many processes can be modelled as a stream.

9. The World is a Streaming Place
Many processes can be modelled as a stream.

10. The World is a Streaming Place
Many processes can be modelled as a stream.

11. The World is a Streaming Place

12. One challenge: different speed of producer and consumer
100 op/sec 10 op/sec
Backpressure
==
“Dear sender,
please slow down!”

13. Observable.from(myCats)
Reactive Programming example (RxJava on Android)
List<Cat> myCats;
.subscribeOn(Schedulers.newThread())
.observeOn(AndroidSchedulers.mainThread())
.filter(cat -> cat.isWhite())
.map(cat -> cat.fetchPicture())
.map(picture -> Filter.applyFilter(picture))
.subscribe(filteredPicture -> display(filteredPicture));
.onBackpressureBuffer(16)
1. Stream-like processing
2. Conciseness
3. Simplification of threaded work
4. Easy management of back pressure

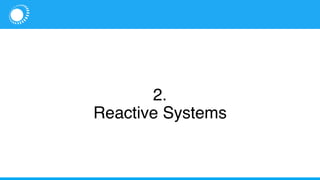

14. 2.
Reactive Systems

15. Goal
“Reactive Systems strive to increase productivity and make
sure that development and maintenance of components
reduce the accidental complexity to a minimum.”
the ability to react quickly
and appropriately to change
agility
əˈdʒɪlɪti/
Software Architect
increase productivity
facilitate development
facilitate maintenance
reduce accidental complexity
Company as whole

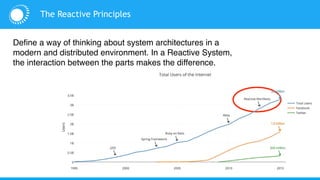

16. The Reactive Principles
Define a way of thinking about system architectures in a
modern and distributed environment. In a Reactive System,
the interaction between the parts makes the difference.

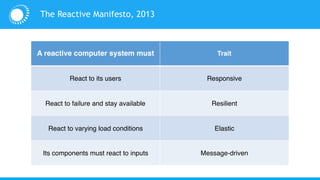

17. The Reactive Manifesto, 2013
A reactive computer system must Trait
React to its users Responsive
React to failure and stay available Resilient
React to varying load conditions Elastic
Its components must react to inputs Message-driven

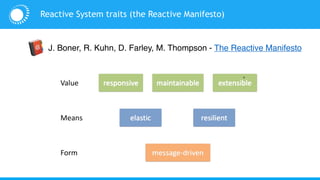

18. Reactive System traits (the Reactive Manifesto)
J. Boner, R. Kuhn, D. Farley, M. Thompson - The Reactive Manifesto

19. 3.
Reactive Programming
vs Reactive Systems

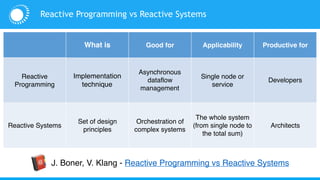

20. Reactive Programming vs Reactive Systems
What is Good for Applicability Productive for
Reactive
Programming
Implementation
technique
Asynchronous
dataflow
management
Single node or
service
Developers
Reactive Systems
Set of design
principles
Orchestration of
complex systems
The whole system
(from single node to
the total sum)
Architects
J. Boner, V. Klang - Reactive Programming vs Reactive Systems

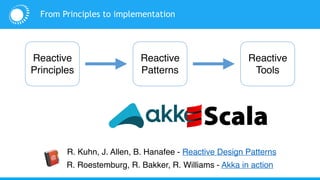

21. From Principles to implementation
Reactive
Principles
Reactive
Patterns
Reactive
Tools
R. Roestemburg, R. Bakker, R. Williams - Akka in action
R. Kuhn, J. Allen, B. Hanafee - Reactive Design Patterns

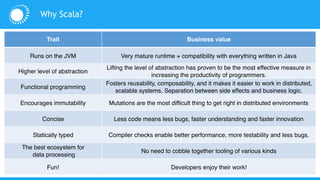

22. Trait Business value
Runs on the JVM Very mature runtime + compatibility with everything written in Java
Higher level of abstraction
Lifting the level of abstraction has proven to be the most effective measure in
increasing the productivity of programmers.
Functional programming
Fosters reusability, composability, and it makes it easier to work in distributed,
scalable systems. Separation between side effects and business logic.
Encourages immutability Mutations are the most difficult thing to get right in distributed environments
Concise Less code means less bugs, faster understanding and faster innovation
Statically typed Compiler checks enable better performance, more testability and less bugs.
The best ecosystem for
data processing
No need to cobble together tooling of various kinds
Fun! Developers enjoy their work!
Why Scala?

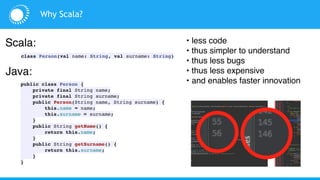

23. Why Scala?
Scala:
class Person(val name: String, val surname: String)
Java:
public class Person {
private final String name;
private final String surname;
public Person(String name, String surname) {
this.name = name;
this.surname = surname;
}
public String getName() {
return this.name;
}
public String getSurname() {
return this.surname;
}
}
• less code
• thus simpler to understand
• thus less bugs
• thus less expensive
• and enables faster innovation

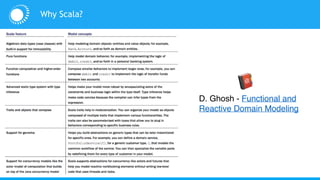

24. Why Scala?
D. Ghosh - Functional and
Reactive Domain Modeling

25. 4.
Actor Programming

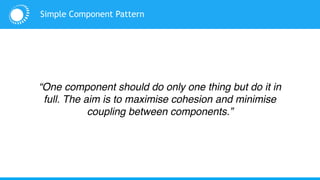

26. Simple Component Pattern
“One component should do only one thing but do it in
full. The aim is to maximise cohesion and minimise
coupling between components.”

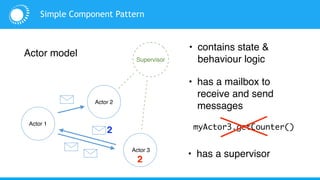

27. Actor 1
Actor 3
Actor 2
• contains state &
behaviour logic
Actor model
Supervisor
Simple Component Pattern
• has a mailbox to
receive and send
messages
• has a supervisor
myActor3.getCounter()
2
2

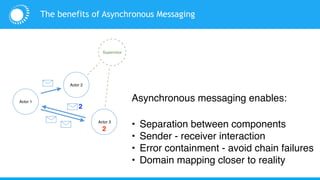

28. The benefits of Asynchronous Messaging
• Separation between components
• Sender - receiver interaction
• Error containment - avoid chain failures
• Domain mapping closer to reality
Asynchronous messaging enables:Actor 1
Actor 3
Actor 2
Supervisor
2
2

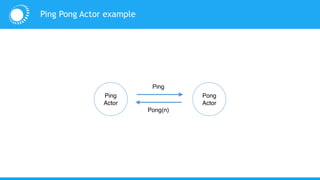

29. Ping Pong Actor example
Pong
Actor
Ping
Actor
Ping
Pong(n)

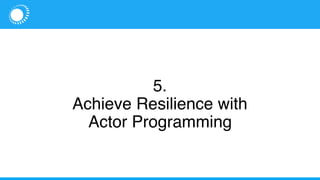

30. 5.
Achieve Resilience with
Actor Programming

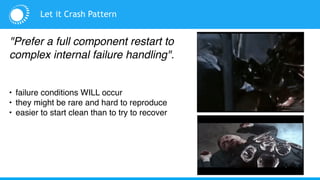

31. Let it Crash Pattern
"Prefer a full component restart to
complex internal failure handling".
• failure conditions WILL occur
• they might be rare and hard to reproduce
• easier to start clean than to try to recover

32. Actor supervision example
Actor 1
Actor 2
Supervisor
WhateverException!
X
Restart
(doing something else…)(yay!)
Let it Crash Pattern

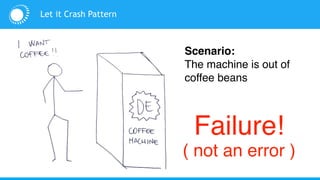

33. Scenario:
The machine is out of
coffee beans
Failure!
( not an error )
Let it Crash Pattern

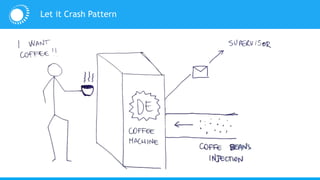

34. Let it Crash Pattern

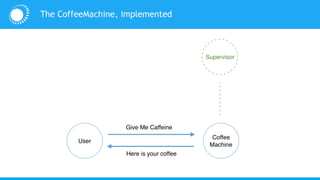

35. The CoffeeMachine, implemented
User
Coffee
Machine
Supervisor
Give Me Caffeine
Here is your coffee

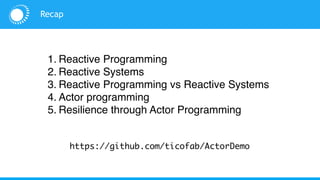

36. 1. Reactive Programming
2. Reactive Systems
3. Reactive Programming vs Reactive Systems
4. Actor programming
5. Resilience through Actor Programming
Recap
https://github.com/ticofab/ActorDemo

37. Thanks!
@ticofab
http://weeronline.nl
All pictures belong
to their respective authors
