ISSUE 20 | WINTER 2016PUBLICATIONNUMBER42408014
Brookfield Blazes Own Trail
Near Zero at Echo Haven
Refining HRV/ERV Choices
Exceptional Customer Service
Outstanding Custom Home
Clean50 Award Winner
Proofing
THIRD
ANNUAL
ISSUE
IN THIS ISSUE
Future
A b r e a t h o f f r e s h a i r .
MAX SERVICE
All mechanical and electrical components are
accessible from the front of the unit.
Heating coil and fan/motor slide out for easy
service.
One of the most extensive warranties in the
business:1-year parts & labour,2-years on parts
only,where applicable.
MAX COMFORT
With the increased efficiency of this optional
Electronically Commuted Motor (ECM),
homeowners will be free to cycle air continuously
with a minimal increase in electricity cost.
Continuous fan operation helps improve
filtration,reduce temperature variations,and
helps keep the air clear of dust and allergens –
making your customers’ homes more comfortable.
Mini Ducted Hi-Velocity Air Handling System
Optional Prioritizing of Comfort Levels with Energy Savings
MAX SPACE SAVER
The MAXAIR fan coil is so compact that it fits
anywhere:laundry room,attic,crawl space,you
can even place it in a closet.
It can be installed in new or existing homes.
It takes less than 1/3 of the space of a conventional
heating and air conditioning unit.
MAX ENERGY SAVINGS
Energy savings,temperature control and comfort
levels are achieved in individual levels of the home
by prioritizing the requirements.This is achieved
by installing optional space thermostats. If any
area calls for heating or cooling, the individual
thermostat allows the space it serves to achieve
optimum comfort and still maintain continuous
air circulation throughout the home.
This method of prioritizing is a great energy
savings measure while offering an increased
comfort level to the home owner.
FLEXAIRTM
DISTRIBUTION SYSTEM
MAX FLEXIBILITY
The supply outlets can be placed in the wall,
ceiling or floor.
Each unit has four choices of locations for the
return air connections.
The FLEXAIR™ insulated 2½" supply
duct will fit in a standard 2"x 4" wall cavity.
Can be mounted for vertical or horizontal airflow.
Can be combined with humidifiers,high efficiency
air cleaners or ERVs / HRVs.
Snap-together branch duct and diffuser
connections.
MAX ELECTRICAL SAVINGS
ECMs are ultra-high-efficient programmable
brushless DC motors that are more efficient than
the permanently split capacitor (PSC) motors used
in most residential furnaces.This is especially true
at lower speeds used for continuous circulation in
many new homes.
1-800-453-6669 905-951-0022519-578-5560613-966-5643 416-213-1555 877-254-4729905-264-1414
For distribution of Air Max Technologies products call
www.airmaxtechnologies.com209 Citation Drive, Units 5&6, Concord, ON L4K 2Y8, Canada
BETTERBUILDER.CA | ISSUE 20 | WINTER 2016
16
1
PUBLISHER’S NOTE
2
Everything in Moderation
by John Godden
THE BADA TEST
3
The Planning Act, the Ontario
Building Code, Energy
Efficiency and Building Permits
by Lou Bada
INDUSTRY NEWS
6
Ontario’s Mandatory
Home Energy Rating and
Disclosure Program
by Patricia Duffy
10

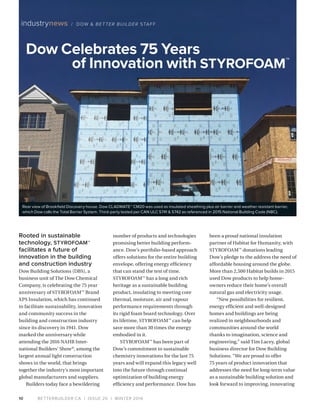

Dow Celebrates 75 Years of
Innovation with STYROFOAM™
by Dow & Better Builder Staff
20

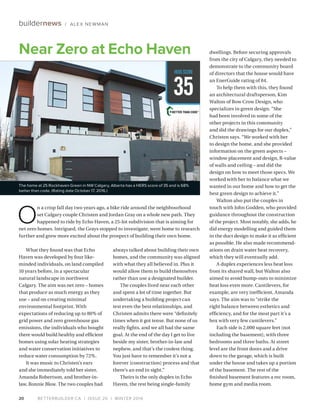

Near Zero at Echo Haven
by Alex Newman
29
New, Higher Performing
Insulated Exterior Sheathing
by Amvic
INDUSTRY EXPERT
12

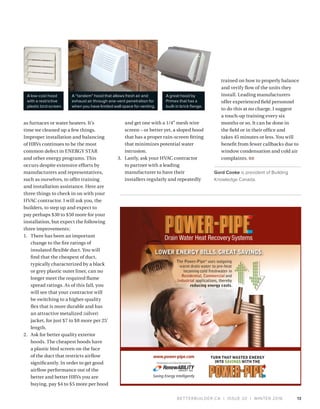

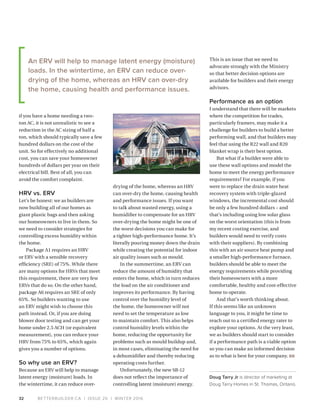

Refining Your HRV/ERV Choices
by Gord Cooke
14

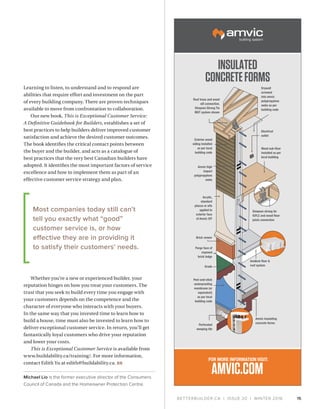

Exceptional Customer Service
by Michael Lio
BUILDER NEWS
9

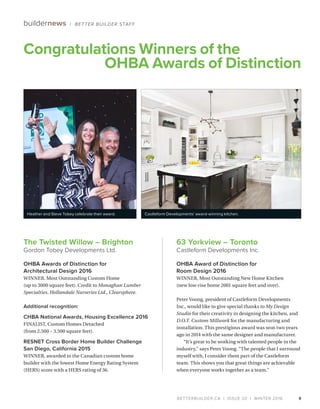

Congratulations Award Winners
by Better Builder Staff
24

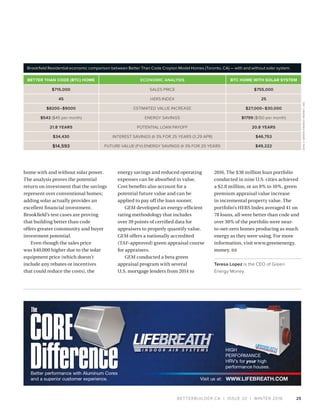

Translating and Quantifying
Appraisal Value for
Better Than Code Homes
by Teresa Lopez
SITE SPECIFIC
27
Meet Clean50 Award Winner
Candice Luck
by Alex Newman
FROM THE GROUND UP
31

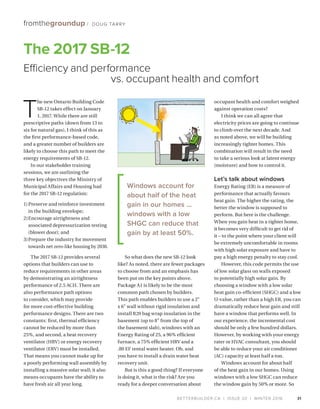

The 2017 SB-12
by Doug Tarry
FEATURE STORY
16

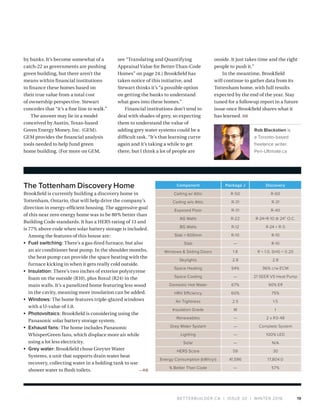

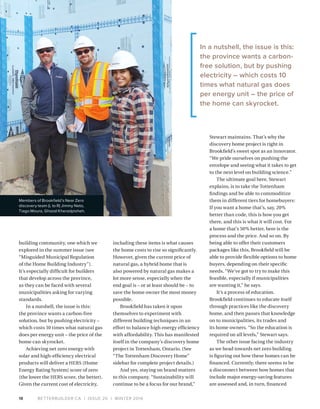

Brookfield Blazes Own Trail
North American builder continues to innovate in energy efficient housing
by Rob Blackstien
9
20
ISSUE 20 | WINTER 2016
On our cover: CHOATphotographer / SHUTTERSTOCK
Images internally supplied unless otherwise credited.
27
BETTERBUILDER.CA | ISSUE 20 | WINTER 20162

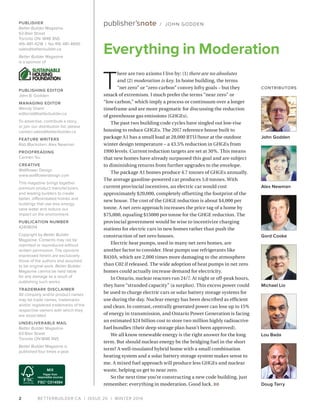

T
here are two axioms I live by: (1) there are no absolutes
and (2) moderation is key. In home building, the terms
“net zero” or “zero carbon” convey lofty goals – but they
smack of extremism. I much prefer the terms “near zero” or
“low carbon,” which imply a process or continuum over a longer
timeframe and are more pragmatic for discussing the reduction
of greenhouse gas emissions (GHGEs).
The past two building code cycles have singled out low-rise
housing to reduce GHGEs. The 2017 reference house built to
package A1 has a small load at 28,000 BTU/hour at the outdoor
winter design temperature – a 43.5% reduction in GHGEs from
1990 levels. Current reduction targets are set at 30%. This means
that new homes have already surpassed this goal and are subject
to diminishing returns from further upgrades to the envelope.
The package A1 homes produce 4.7 tonnes of GHGEs annually.
The average gasoline-powered car produces 5.0 tonnes. With
current provincial incentives, an electric car would cost
approximately $20,000, completely offsetting the footprint of the
new house. The cost of the GHGE reduction is about $4,000 per
tonne. A net zero approach increases the price tag of a home by
$75,000, equaling $15000 per tonne for the GHGE reduction. The
provincial government would be wise to incentivize charging
stations for electric cars in new homes rather than push the
construction of net zero houses.
Electric heat pumps, used in many net zero homes, are
another factor to consider. Heat pumps use refrigerants like
R410A, which are 2,000 times more damaging to the atmosphere
than C02 if released. The wide adoption of heat pumps in net zero
homes could actually increase demand for electricity.
In Ontario, nuclear reactors run 24/7. At night or off-peak hours,
they have “stranded capacity” (a surplus). This excess power could
be used to charge electric cars or solar battery storage systems for
use during the day. Nuclear energy has been described as efficient
and clean. In contrast, centrally generated power can lose up to 15%
of energy in transmission, and Ontario Power Generation is facing
an estimated $24 billion cost to store two million highly radioactive
fuel bundles (their deep storage plan hasn’t been approved).
We all know renewable energy is the right answer for the long
term. But should nuclear energy be the bridging fuel in the short
term? A well-insulated hybrid home with a small combination
heating system and a solar battery storage system makes sense to
me. A mixed fuel approach will produce less GHGEs and nuclear
waste, helping us get to near zero.
So the next time you’re constructing a new code building, just
remember: everything in moderation. Good luck. BB
Everything in Moderation
PUBLISHER
Better Builder Magazine
63 Blair Street
Toronto ON M4B 3N5
416-481-4218 | fax 416-481-4695
sales@betterbuilder.ca
Better Builder Magazine
is a sponsor of
PUBLISHING EDITOR
John B. Godden
MANAGING EDITOR
Wendy Shami
editorial@betterbuilder.ca
To advertise, contribute a story,
or join our distribution list, please
contact sales@betterbuilder.ca
FEATURE WRITERS
Rob Blackstien, Alex Newman
PROOFREADING
Carmen Siu
CREATIVE
Wallflower Design
www.wallflowerdesign.com
This magazine brings together
premium product manufacturers
and leading builders to create
better, differentiated homes and
buildings that use less energy,
save water and reduce our
impact on the environment.
PUBLICATION NUMBER
42408014
Copyright by Better Builder
Magazine. Contents may not be
reprinted or reproduced without
written permission. The opinions
expressed herein are exclusively
those of the authors and assumed
to be original work. Better Builder
Magazine cannot be held liable
for any damage as a result of
publishing such works.
TRADEMARK DISCLAIMER
All company and/or product names
may be trade names, trademarks
and/or registered trademarks of the
respective owners with which they
are associated.
UNDELIVERABLE MAIL
Better Builder Magazine
63 Blair Street
Toronto ON M4B 3N5
Better Builder Magazine is
published four times a year.
publisher’snote / JOHN GODDEN
John Godden
Alex Newman
Gord Cooke
Michael Lio
Lou Bada
Doug Tarry
CONTRIBUTORS
BETTERBUILDER.CA | ISSUE 20 | WINTER 2016 3

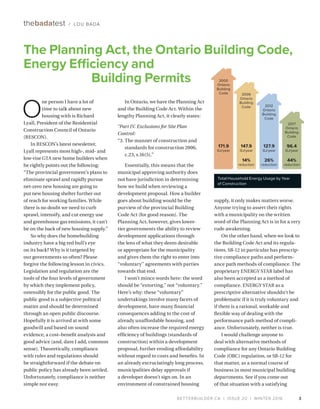

O
ne person I have a lot of
time to talk about new
housing with is Richard
Lyall, President of the Residential
Construction Council of Ontario
(RESCON).
In RESCON’s latest newsletter,
Lyall represents most high-, mid- and
low-rise GTA new home builders when
he rightly points out the following:
“The provincial government’s plans to
eliminate sprawl and rapidly pursue
net-zero new housing are going to
put new housing shelter further out
of reach for working families. While
there is no doubt we need to curb
sprawl, intensify, and cut energy use
and greenhouse gas emissions, it can’t
be on the back of new housing supply.”
So why does the homebuilding
industry have a big red bull’s eye
on its back? Why is it targeted by
our governments so often? Please
forgive the following lesson in civics.
Legislation and regulation are the
tools of the four levels of government
by which they implement policy,
ostensibly for the public good. The
public good is a subjective political
matter and should be determined
through an open public discourse.
Hopefully it is arrived at with some
goodwill and based on sound
evidence, a cost–benefit analysis and
good advice (and, dare I add, common
sense). Theoretically, compliance
with rules and regulations should
be straightforward if the debate on
public policy has already been settled.
Unfortunately, compliance is neither
simple nor easy.
In Ontario, we have the Planning Act
and the Building Code Act. Within the
lengthy Planning Act, it clearly states:
“Part IV. Exclusions for Site Plan
Control:
“3.	The manner of construction and
standards for construction 2006,
c.23, s.16(5).”
Essentially, this means that the
municipal approving authority does
not have jurisdiction in determining
how we build when reviewing a
development proposal. How a builder
goes about building would be the
purview of the provincial Building
Code Act (for good reason). The
Planning Act, however, gives lower-
tier governments the ability to review
development applications through
the lens of what they deem desirable
or appropriate for the municipality
and gives them the right to enter into
“voluntary” agreements with parties
towards that end.
I won’t mince words here: the word
should be “extorting,” not “voluntary.”
Here’s why: these “voluntary”
undertakings involve many facets of
development, have many financial
consequences adding to the cost of
already unaffordable housing, and
also often increase the required energy
efficiency of buildings (standards of
construction) within a development
proposal, further eroding affordability
without regard to costs and benefits. In
an already excruciatingly long process,
municipalities delay approvals if
a developer doesn’t sign on. In an
environment of constrained housing
supply, it only makes matters worse.
Anyone trying to assert their rights
with a municipality on the written
word of the Planning Act is in for a very
rude awakening.
On the other hand, when we look to
the Building Code Act and its regula­
tions, SB-12 in particular has prescrip­
tive compliance paths and perform­
ance path methods of compliance. The
proprietary ENERGY STAR label has
also been accepted as a method of
compliance. ENERGY STAR as a
prescriptive alternative shouldn’t be
problematic if it is truly voluntary and
if there is a rational, workable and
flexible way of dealing with the
performance path method of compli­
ance. Unfortunately, neither is true.
I would challenge anyone to
deal with alternative methods of
compliance for any Ontario Building
Code (OBC) regulation, or SB-12 for
that matter, as a normal course of
business in most municipal building
departments. See if you come out
of that situation with a satisfying
The Planning Act, the Ontario Building Code,
Energy Efficiency and
Building Permits
thebadatest / LOU BADA
Total Household Energy Usage by Year
of Construction
2000
Ontario
Building
Code
171.9
GJ/year
2006
Ontario
Building
Code
147.9
GJ/year
14%
reduction
2012
Ontario
Building
Code
127.9
GJ/year
26%
reduction
2017
Ontario
Building
Code
96.4
GJ/year
44%
reduction
BETTERBUILDER.CA | ISSUE 20 | WINTER 20164

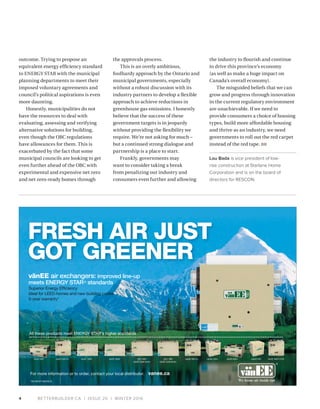

outcome. Trying to propose an
equivalent energy efficiency standard
to ENERGY STAR with the municipal
planning departments to meet their
imposed voluntary agreements and
council’s political aspirations is even
more daunting.
Honestly, municipalities do not
have the resources to deal with
evaluating, assessing and verifying
alternative solutions for building,
even though the OBC regulations
have allowances for them. This is
exacerbated by the fact that some
municipal councils are looking to get
even further ahead of the OBC with
experimental and expensive net zero
and net zero-ready homes through
the approvals process.
This is an overly ambitious,
foolhardy approach by the Ontario and
municipal governments, especially
without a robust discussion with its
industry partners to develop a flexible
approach to achieve reductions in
greenhouse gas emissions. I honestly
believe that the success of these
government targets is in jeopardy
without providing the flexibility we
require. We’re not asking for much –
but a continued strong dialogue and
partnership is a place to start.
Frankly, governments may
want to consider taking a break
from penalizing our industry and
consumers even further and allowing
the industry to flourish and continue
to drive this province’s economy
(as well as make a huge impact on
Canada’s overall economy).
The misguided beliefs that we can
grow and progress through innovation
in the current regulatory environment
are unachievable. If we need to
provide consumers a choice of housing
types, build more affordable housing
and thrive as an industry, we need
governments to roll out the red carpet
instead of the red tape. BB
Lou Bada is vice president of low-
rise construction at Starlane Home
Corporation and is on the board of
directors for RESCON.
vanee.ca
All these products meet ENERGY STAR’s higher standards
For more information or to order, contact your local distributor.
vänEE 100H vänEE 200HvänEE 60H vänEE 60H-V+ vänEE 90H-V ECMvänEE 40H+vänEE 90H-V+ vänEE 60H+ vänEE 50H1001 HRV
vänEE Gold Series
2001 HRV
vänEE Gold Series
vänEE air exchangers: improved line-up
meets ENERGY STAR®
standards
Superior Energy Efficiency
Ideal for LEED homes and new building codes
5-year warranty*
FRESH AIR JUST
GOT GREENER
*ON MOST MODELS.
PANASONIC
HAS THE
RIGHT
PRODUCTS
TO BUILD THE
RIGHT
HOME
go.panasonic.ca/build
Learn more about Panasonic’s Partnership
Program for rebates, co-branding and
value added programs for your buyers
and employees
BETTERBUILDER.CA | ISSUE 20 | WINTER 20166
industrynews / PATRICIA DUFFY
A
s we have been hearing
now for several years, ever
since the adoption of the
Green Energy Act in 2009, Ontario
has had a conservation-first focus
– and this includes the authority to
implement a home energy rating and
disclosure program. The reality of
such a program came into sharper
focus with the release last June of the
Climate Change Action Plan:
“7.1 Provide free energy audits
for pre-sale homes
“Energy audits would be required
before a new or existing single-family
home can be listed for sale, and the
energy rating will be included in the
real estate listing. These audits are
intended to be provided free of charge
under this plan. The Home Energy
Rating and Disclosure program will
improve consumer awareness by
allowing homebuyers to compare
homes by energy rating. It will also
encourage uptake of retrofit incentive
programs. To meet the expected
demand for home energy auditors,
Ontario will support development of
energy audit training programs and
will further consult before launching
this program in 2019.”
The board of directors for both
the Canadian Residential Energy
Services Network (CRESNET) and
the Sustainable Housing Foundation
(SHF) have made a commitment
to engage in a lobby effort with the
provincial government to ensure
that the politicians voting on the
implementation of any regulations
around this proposal are aware of
the complexity of the issues involved
in a mandatory program. Both
organizations are also reaching out to
other organizations and partnering
with them to ensure a coordinated
lobby effort with all political parties
is undertaken. After all, there will be a
provincial election between now and
the proposed 2019 launch date!
July 8, 2016
CRESNET and SHF board members
meet with John Yakabuski, Progressive
Conservative energy critic.
September 14, 2016
CRESNET and SHF board members
meet with Lisa Thompson, Progressive
Conservative climate change critic.
October 6, 2016
CRESNET and RESCON meet with
members of Glen Murray’s staff,
Ministry of the Environment and
Climate Change. BB
Patricia Duffy is executive director
of CRESNET and the Sustainable
Housing Foundation.
Making Our Voice Heard:
Ontario’s Mandatory Home Energy
Rating and Disclosure Program
Both organizations are
reaching out to ensure
a coordinated lobby
effort is undertaken
with all political parties.
(L to R) Patricia Duffy, John Godden, The Honourable John Yakabuski and Michael White.
BETTERBUILDER.CA | ISSUE 20 | WINTER 2016 7
Save more.
Worry less.
Professionals who install Uponor PEX plumbing, radiant floor heating, and fire sprinkler
systems report faster installation times, fewer callbacks and greater peace of mind.
Exceptional products, tools and support. Uponor. Tested in the lab. Proven in the field.
Connect with Uponor.
Connect with confidence.
PEX PLUMBING
FIRE SPRINKLER SYSTEMS
RADIANT HEATING & COOLING
PRE-INSULATED PIPEFind your solution at
www.uponor.ca
BETTERBUILDER.CA | ISSUE 20 | WINTER 2016
Barrie, GTA West, GTA North
Eric Byle | 416-937-8793
Toronto East
Al Crost | 416-676-0168
Available to water heater customers whose equipment is not operational (i.e. no hot water)
BETTERBUILDER.CA | ISSUE 20 | WINTER 2016 9
Congratulations Winners of the
 OHBA Awards of Distinction
buildernews / BETTER BUILDER STAFF
63 Yorkview – Toronto
Castleform Developments Inc.
OHBA Award of Distinction for
Room Design 2016
WINNER, Most Outstanding New Home Kitchen
(new low-rise home 2001 square feet and over).
Peter Voong, president of Castleform Developments
Inc., would like to give special thanks to My Design
Studio for their creativity in designing the kitchen, and
D.O.T. Custom Millwork for the manufacturing and
installation. This prestigious award was won two years
ago in 2014 with the same designer and manufacturer.
“It’s great to be working with talented people in the
industry,” says Peter Voong. “The people that I surround
myself with, I consider them part of the Castleform
team. This shows you that great things are achievable
when everyone works together as a team.”
The Twisted Willow – Brighton
Gordon Tobey Developments Ltd.
OHBA Awards of Distinction for
Architectural Design 2016
WINNER, Most Outstanding Custom Home
(up to 3000 square feet). Credit to Monaghan Lumber
Specialties, Hollandale Nurseries Ltd., Clearsphere.
Additional recognition:
CHBA National Awards, Housing Excellence 2016
FINALIST, Custom Homes Detached
(from 2,500 – 3,500 square feet).
RESNET Cross Border Home Builder Challenge
San Diego, California 2015
WINNER, awarded to the Canadian custom home
builder with the lowest Home Energy Rating System
(HERS) score with a HERS rating of 36.
Heather and Steve Tobey celebrate their award. Castleform Developments’ award-winning kitchen.
BETTERBUILDER.CA | ISSUE 20 | WINTER 201610
industrynews / DOW  BETTER BUILDER STAFF
Rooted in sustainable
technology, STYROFOAM™
facilitates a future of
innovation in the building
and construction industry
Dow Building Solutions (DBS), a
business unit of The Dow Chemical
Company, is celebrating the 75 year
anniversary of STYRO­FOAM™
Brand
XPS Insulation, which has continued
to facilitate sustain­ability, innovation
and community success in the
building and construc­tion industry
since its discovery in 1941. Dow
marked the anniversary while
attending the 2016 NAHB Inter-
national Builders’ Show®
, among the
largest annual light construction
shows in the world, that brings
together the industry’s most important
global manufacturers and suppliers.
Builders today face a bewildering
number of products and technologies
promising better building perform­
ance. Dow’s portfolio-based approach
offers solutions for the entire building
envelope, offering energy efficiency
that can stand the test of time.
STYROFOAM™
has a long and rich
heritage as a sustainable building
product, insulating to meeting core
thermal, moisture, air and vapour
performance requirements through
its rigid foam board technology. Over
its lifetime, STYROFOAM™
can help
save more than 30 times the energy
embodied in it.
STYROFOAM™
has been part of
Dow’s commitment to sustainable
chemistry innovations for the last 75
years and will expand this legacy well
into the future through continual
optimization of building energy
efficiency and performance. Dow has
been a proud national insulation
partner of Habitat for Humanity, with
STYROFOAM™
donations leading
Dow’s pledge to the address the need of
affordable housing around the globe.
More than 2,500 Habitat builds in 2015
used Dow products to help home­
owners reduce their home’s overall
natural gas and electricity usage.
“New possibilities for resilient,
energy efficient and well-designed
homes and buildings are being
realized in neighbourhoods and
communities around the world
thanks to imagination, science and
engineering,” said Tim Lacey, global
business director for Dow Building
Solutions. “We are proud to offer
75 years of product innovation that
addresses the need for long-term value
as a sustainable building solution and
look forward to improving, innovating
Dow Celebrates 75 Years
 of Innovation with STYROFOAM™
Rear view of Brookfield Discovery house. Dow CLADMATE™ CM20 was used as insulated sheathing plus air barrier and weather resistant barrier,
which Dow calls the Total Barrier System. Third-party tested per CAN ULC S741  S742 as referenced in 2015 National Building Code (NBC).
BETTERBUILDER.CA | ISSUE 20 | WINTER 2016 11
Dow’s full house of insulation, air sealants and
adhesives work together to create an airtight,
moisture resistant structure from roof to
foundation, helping builders and contractors
meet or exceed building codes, reduce
callbacks and create a comfortable, durable,
energy efficient structure for their customers.
Dow BuilDing SolutionS
1-866-583-BluE (2583)
www.insulateyourhome.ca
®™The DOW Diamond Logo is a trademark of The Dow Chemical Company © 2014
Whole-House
SolutionstHAt HElP BuilDERS AnD
ContRACtoRS outPERFoRM
and perfecting building envelope
science well into the future.”
About Dow Building
Solutions
Dow Building Solutions serves the
residential and commercial building
and construction markets with an
industry-leading portfolio of products
and integrated systems designed to
insulate and seal the whole house.
Beginning more than 70 years ago
with our flagship STYROFOAM™
Brand
Extruded Polystyrene (XPS) Foam
Insulation, Dow has continued to offer
innovative insulation, weatherization
and air sealing solutions that work
behind the scenes – above grade,
below grade – to help builders and
contractors deliver more comfortable,
durable and affordable homes. Follow
Dow Building Solutions on Facebook,
Twitter, and LinkedIn or subscribe to
our News Release RSS Feed.
About Dow
Dow combines the power of science
and technology to passionately
innovate what is essential to human
progress. The Company is driving
innovations that extract value from
the intersection of chemical, physical
and biological sciences to help address
many of the world’s most challenging
problems such as the need for clean
water, clean energy generation
and conservation, and increasing
agricultural productivity. Dow’s
integrated, market-driven, industry-
leading portfolio of specialty chemical,
advanced materials, agrosciences
and plastics businesses delivers a
broad range of technology-based
products and solutions to customers
in approximately 180 countries
and in high-growth sectors such as
packaging, electronics, water, coatings
and agriculture. In 2014, Dow had
annual sales of more than $58 billion
and employed approximately 53,000
people worldwide. The Company’s
more than 6,000 product families
are manufactured at 201 sites in 35
countries across the globe. BB
References to “Dow” or the “Company”
mean The Dow Chemical Company and its
consolidated subsidiaries unless otherwise
expressly noted. More information about
Dow can be found at www.dow.com
BETTERBUILDER.CA | ISSUE 20 | WINTER 201612
industryexpert / GORD COOKE
The changes in SB-12 (2017)
should spur you to review and fine
tune your HRV and ERV selections
to take advantage of the hard work
manufacturers have put in to provide
cost-effective solutions to meet the
new prescriptive and performance
pathways described in the code.
One significant change in the
2017 code requirements is the
addition of the following words: “the
minimum SRE (Sensible Recovery
Efficiency) required is based on a test
temperature of 0 °C at an air flow rate
equal to the principle exhaust flow but
need not exceed 30 L/s.” In previous
codes, an HRV or ERV efficiency could
be selected at any airflow. Now, it is
tied to the principal ventilation rate of
the house. The example below should
help illustrate this. It shows the SRE
required for prescriptive package A1.
If you are going to use one of the
prescriptive packages A1 through
A6, for homes in southern Ontario,
you will be looking for HRVs or ERVs
with an SRE of between 65% and
81%, with the most likely packages
requiring an SRE of 75%. Fortunately,
leading manufacturers such as vänEE
and Venmar are responding quickly
with cost-effective units that will
still fit nicely into the ever-smaller
mechanical spaces builders like to
provide. This is something you will
want to check up on, because higher-
efficiency HRVs are by definition
bigger, and not all manufacturers will
have choices available in compact
models. The good news is that all HRVs
or ERVs installed in Canada must be
independently rated and listed by
the Home Ventilating Institute. Just
confirm that your HVAC contractor
is able to provide you with this
independent listing showing that the
equipment they are installing meets
code requirements.
Of course, more thoughtful builders
may well decide to use the more
flexible performance path options in
SB-12. Using REM/Rate or HOT2000,
or simply building to ENERGY STAR
specifications, allows total flexibility
in choices of efficiencies of HRVs
or ERVs. For example, if you are
using a 65% efficient HRV as part of
your ENERGY STAR specifications
now, you can continue to use those
specifications and that appliance
under the 2017 code requirements.
In other performance path software
evaluations, you will find that higher
efficiency HRVs or ERVs may be more
cost-effective than other envelope
upgrades. For example, choosing one
of the new high-performance HRVs or
ERVs would offset or allow a builder
to reduce basement insulation from
R20 back down to R12 or eliminate the
need for a drain water heat recovery
unit. Ask your energy rater to run
some comparisons for you so you can
best match your selections with your
building process.
I do feel inclined to ask you to
tune up a few other things now that
HRVs are as normal and as common
P
lease don’t blame me, but the new 2017 Ontario Supplementary Standard
SB-12 for energy efficiency requires all Part 9 dwellings to meet the
principal ventilation requirements with a heat recovery ventilator (HRV) or
energy recovery ventilator (ERV). Certainly I have been an advocate for properly
balanced ventilation for over 30 years, but I think most readers will know that this
specific new requirement is a natural progression.
The requirement for mechanical ventilation first appeared in 1990. With
recognition that ventilation without heat recovery can easily represent 15% to
20% of the annual energy loss of a home, it stands to reason there needs to be an
energy efficiency requirement on ventilation, in the same way that other house
components such as furnaces, water heaters and even windows and walls are
required to meet minimum energy efficiency levels.
Refining Your HRV/ERV Choices
Number
Bedrooms
Compliance
Package
Minimum SRE Requirement
0 ºC –25 ºC
1 A1 75% at 15 L/s (31.8 cfm) 55% at 30 L/s (63.6 cfm)
2 A1 75% at 22.5 L/s (47.7 cfm) 55% at 30 L/s (63.6 cfm)
3+ A1 75% at 30 L/s (63.6 cfm) 55% at 30 L/s (63.6 cfm)
An example illustrating the SRE required for prescriptive package A1.
BETTERBUILDER.CA | ISSUE 20 | WINTER 2016
as furnaces or water heaters. It’s
time we cleaned up a few things.
Improper installation and balancing
of HRVs continues to be the most
common defect in ENERGY STAR
and other energy programs. This
occurs despite extensive efforts by
manufacturers and representatives,
such as ourselves, to offer training
and installation assistance. Here are
three things to check in on with your
HVAC contractor. I will ask you, the
builders, to step up and expect to
pay perhaps $30 to $50 more for your
installation, but expect the following
three improvements:
1.	 There has been an important
change to the fire ratings of
insulated flexible duct. You will
find that the cheapest of duct,
typically characterized by a black
or grey plastic outer liner, can no
longer meet the required flame
spread ratings. As of this fall, you
will see that your contractor will
be switching to a higher-quality
flex that is more durable and has
an attractive metalized (silver)
jacket, for just $7 to $8 more per 25'
length.
2.	 Ask for better quality exterior
hoods. The cheapest hoods have
a plastic bird screen on the face
of the duct that restricts airflow
significantly. In order to get good
airflow performance out of the
better and better HRVs you are
buying, pay $4 to $5 more per hood
and get one with a 1/4” mesh wire
screen – or better yet, a sloped hood
that has a proper rain-screen fitting
that minimizes potential water
intrusion.
3.	 Lastly, ask your HVAC contractor
to partner with a leading
manufacturer to have their
installers regularly and repeatedly
trained on how to properly balance
and verify flow of the units they
install. Leading manufacturers
offer experienced field personnel
to do this at no charge. I suggest
a touch-up training every six
months or so. It can be done in
the field or in their office and
takes 45 minutes or less. You will
benefit from fewer callbacks due to
window condensation and cold air
complaints. BB
Gord Cooke is president of Building
Knowledge Canada.
13
A low-cost hood
with a restrictive
plastic bird screen.
A “tandem” hood that allows fresh air and
exhaust air through one-vent penetration for
when you have limited wall space for venting.
A great hood by
Primex that has a
built-in brick flange.
BETTERBUILDER.CA | ISSUE 20 | WINTER 201614
industryexpert / MICHAEL LIO
C
ustomer service delivery has
become the most important
factor contributing to
customer satisfaction. Builders
are always looking for better ways
to understand and to serve their
customers.
In the 1980s, service culture
captured the attention of North
America with the publication of
landmark books such as In Search of
Excellence by Tom Peters and Robert
H. Waterman and Service America!
by Karl Albrecht and Ron Zemke.
A decade later, service companies
realized that better service was a
business strategy that was critical to
their success. Customers would seek
out ratings for various products and
services such as those from J.D. Power
 Associates before they buy.
Historically, builders have not
fared well in customer service. In
the earliest Canadian J.D. Power
 Associates ratings of new home
buyer satisfaction in 2005, only 33%
of customers responded that they
were satisfied with their homes. In
the same year, Jim Adair wrote an
article in Homes  Cottages which
also reported that customer service
tops the list of complaints about
builders, according to focus groups
conducted by the Canadian Home
Builders’ Association. Less than half
of the homeowners in the focus group
felt their builder had set realistic
expectations and prepared them for
what to expect with their new home
purchase experience. In 2009, the
great recession took its toll on the
building industry. The 2009 J.D. Power
survey of new home buyer satisfaction
in four major Canadian cities reported
that satisfaction declined significantly
as builders diverted resources away
from customer service.
Builders today recognize that bad
customer service affects customer
satisfaction and their reputations.
They are eager to adopt practices that
improve the efficiency or profitability
of their company, but may fail to
address customer satisfaction as
a critical component to building a
resilient organization.
Few builders understand the full
range of policies and procedures that
they can adopt within their companies
to enable them to deliver the customer
outcomes that they want. In her book,
The House that Service Built, Nancy
Bandy suggests that for all their good
intentions to establish responsive
customer-service capabilities, most
companies today still can’t tell you
exactly what “good” customer service is,
or how effective they are in providing it
to satisfy their customers’ needs.
Bandy defines customer care
as the process of understanding,
communicating with and supporting
the needs of a builder’s customers
before, during and after the product
is purchased. In fact, the customer
experience at each customer contact
point needs to be appropriately
engineered to produce the desired
customer outcomes. This is only
possible if each contact point is
supported by detailed policies and
procedures that guide the actions of
the builder’s staff.
Builders need to create a service
culture that is driven by empathy and
that is informed by the customer’s
home buying journey. Failing to
understand the customer’s journey can
mean that the customer’s expectations
and the builder’s actions become
misaligned. Service strategy should
be founded on what customers think,
say, feel and do. Understanding the
customer’s explicit expectations –
and their seldom-spoken implicit
expectations – is key. Business
schools across North America teach
methods that can be used to better
understand customers and their needs
and expectations. Closing the gap
between reality and their expectations
minimizes disappointment and
improves satisfaction.
When the disagreements arise,
good builders need to have the tools
to be able to dissect the conversation
and shift from arguing positions to
learning from one another. Good
builders recognize the elements of
difficult conversations and are able to
pivot toward constructive resolution.
This Is Exceptional
Customer Service
Expectations
Reality Disappointment
BETTERBUILDER.CA | ISSUE 20 | WINTER 2016 15
Learning to listen, to understand and to respond are
abilities that require effort and investment on the part
of every building company. There are proven techniques
available to move from confrontation to collaboration.
Our new book, This is Exceptional Customer Service:
A Definitive Guidebook for Builders, establishes a set of
best practices to help builders deliver improved customer
satisfaction and achieve the desired customer outcomes.
The book identifies the critical contact points between
the buyer and the builder, and acts as a catalogue of
best practices that the very best Canadian builders have
adopted. It identifies the most important factors of service
excellence and how to implement them as part of an
effective customer service strategy and plan.
Whether you’re a new or experienced builder, your
reputation hinges on how you treat your customers. The
trust that you seek to build every time you engage with
your customers depends on the competence and the
character of everyone who interacts with your buyers.
In the same way that you invested time to learn how to
build a house, time must also be invested to learn how to
deliver exceptional customer service. In return, you’ll get
fantastically loyal customers who drive your reputation
and lower your costs.
This is Exceptional Customer Service is available from
www.buildability.ca/training/. For more information,
contact Edith Yu at edith@buildability.ca. BB
Michael Lio is the former executive director of the Consumers
Council of Canada and the Homeowner Protection Centre.
Roof truss and wood
sill connection.
Simpson Strong Tie
MGT system shown
Drywall
screwed
into amvic
polypropylene
webs as per
building code
Electrical
outlet
Wood sub-floor
installed as per
local building
Simpson strong tie
ICFLC and wood floor
joists connection
Amvic insulating
concrete forms
Amdeck floor
roof system
Exterior wood
siding installed
as per local
building code
Amvic high
impact
polypropylene
webs
Acrylic,
standard
ptucco or eifs
applied to
exterior face
of Amvic ICF
Brick veneer
Parge face of
exposed
brick ledge
Grade
Peel-and-stick
waterproofing
membrane (or
equivalent)
as per local
building code
Perforated
weeping tile
INSULATED
CONCRETEFORMS
FOR MORE INFORMATION VISIT:
AMVIC.COM
Most companies today still can’t
tell you exactly what “good”
customer service is, or how
effective they are in providing it
to satisfy their customers’ needs.
BETTERBUILDER.CA | ISSUE 20 | WINTER 2016
Brookfield
featurestory / ROB BLACKSTIEN
The Brookfield Residential home at 4 McCabe Lane in Tottenham,
Ontario is 57% better than code. (Rating date October 20, 2016.)
HERSSCORE
30
BETTERBUILDER.CA | ISSUE 20 | WINTER 2016 17
“The goal here is simple,” explains
Bob Stewart, director, land develop­
ment, “build great communities that
meet the needs of the present without
compromising the ability of future
generations to meet their own needs.”
Brookfield aims to be ahead of
the curve in the development of their
communities as well as their home
building techniques. In a nutshell,
the company’s philosophy is “the best
places to call home,” he says. That
ethos encompasses all aspects of the
process, from land development and
design all the way through to the end
product and end user. “We try to do the
right thing for the community and our
stakeholders,” Stewart says.
Brookfield’s focus on the future
is very much centred on developing
more energy-efficient housing – at a
cost that won’t bankrupt potential
North American builder continues to innovate
in the area of energy-efficient housing
T
he Ontario (Canada) division of Brookfield Residential is celebrating its
60th anniversary this year – but instead of revelling in its past, this North
American development giant continues to look towards the future.
Brookfield has spread its wings far across North America, currently developing
in 12 cities across the continent, with a particular focus in the western U.S.,
including Hawaii, Los Angeles, San Francisco, Sacramento and San Diego.
home owners. This is currently a huge
issue in Ontario, with the provincial
government’s climate change policy
combining with a new Building
Code set to be enacted in 2017 that is
expected to be among the strictest in
the country.
This could present a perfect storm
for builders trying to grapple with all
these changes while continuing to
try to provide top-quality housing at
a price that hopefully won’t reach the
stratosphere. There are many moving
parts that make this a big challenge for
the building community, Stewart says,
not the least of which is the fact that on
the building science side of Ontario’s
climate change policy, the province is
essentially encouraging municipalities
to ask for better-than-code standards
within proposed communities.
This is an issue of concern for the
Blazes OwnTrail
BETTERBUILDER.CA | ISSUE 20 | WINTER 201618
building community, one which we
explored in the summer issue (see
“Misguided Municipal Regulation
of the Home Building Industry”).
It’s especially difficult for builders
that develop across the province,
as they can be faced with several
municipalities asking for varying
standards.
In a nutshell, the issue is this:
the province wants a carbon-free
solution, but by pushing electricity –
which costs 10 times what natural gas
does per energy unit – the price of the
home can skyrocket.
Achieving net zero energy with
solar and high-efficiency electrical
products will deliver a HERS (Home
Energy Rating System) score of zero
(the lower the HERS score, the better).
Given the current cost of electricity,
including these items is what causes
the home costs to rise so significantly.
However, given the current price of
natural gas, a hybrid home that is
also powered by natural gas makes a
lot more sense, especially when the
end goal is – or at least should be – to
save the home owner the most money
possible.
Brookfield has taken it upon
themselves to experiment with
different building techniques in an
effort to balance high energy efficiency
with affordability. This has manifested
itself in the company’s discovery home
project in Tottenham, Ontario. (See
“The Tottenham Discovery Home”
sidebar for complete project details.)
And yes, staying on brand matters
to this company. “Sustainability will
continue to be a focus for our brand,”
Stewart maintains. That’s why the
discovery home project is right in
Brookfield’s sweet spot as an innovator.
“We pride ourselves on pushing the
envelope and seeing what it takes to get
to the next level on building science.”
The ultimate goal here, Stewart
explains, is to take the Tottenham
findings and be able to commoditize
them in different tiers for homebuyers:
If you want a home that’s, say, 20%
better than code, this is how you get
there, and this is what it will cost. For
a home that’s 50% better, here is the
process and the price. And so on. By
being able to offer their customers
packages like this, Brookfield will be
able to provide flexible options to home
buyers, depending on their specific
needs. “We’ve got to try to make this
feasible, especially if municipalities
are wanting it,” he says.
It’s a process of education.
Brookfield continues to educate itself
through practices like the discovery
home, and then passes that knowledge
on to municipalities, its trades and
its home owners. “So the education is
required on all levels,” Stewart says.
The other issue facing the industry
as we head towards net zero building
is figuring out how these homes can be
financed. Currently, there seems to be
a disconnect between how homes that
include major energy-saving features
are assessed and, in turn, financed
In a nutshell, the issue is this:
the province wants a carbon-
free solution, but by pushing
electricity – which costs 10
times what natural gas does
per energy unit – the price of
the home can skyrocket.
Members of Brookfield’s Near Zero
discovery team (L to R) Jimmy Neto,
Tiago Moura, Ghazal Kheradpisheh.
BETTERBUILDER.CA | ISSUE 20 | WINTER 2016 19
The Tottenham Discovery Home
Brookfield is currently building a discovery home in
Tottenham, Ontario, that will help drive the company’s
direction in energy-efficient housing. The aggressive goal
of this near zero energy home was to be 80% better than
Building Code standards. It has a HERS rating of 13 and
is 77% above code when solar battery storage is included.
Among the features of this house are:
•	 Fuel switching: There’s a gas-fired furnace, but also
an air conditioner heat pump. In the shoulder months,
the heat pump can provide the space heating with the
furnace kicking in when it gets really cold outside.
•	 Insulation: There’s two inches of exterior polystyrene
foam on the outside (R10), plus Roxul (R24) in the
main walls. It’s a panelized home featuring less wood
in the cavity, meaning more insulation can be added.
•	 Windows: The home features triple-glazed windows
with a U-value of 1.0.
•	 Photovoltaics: Brookfield is considering using the
Panasonic solar battery storage system.
•	 Exhaust fans: The home includes Panasonic
WhisperGreen fans, which displace more air while
using a lot less electricity.
•	 Grey water: Brookfield chose Greyter Water
Systems, a unit that supports drain water heat
recovery, collecting water in a holding tank to use
shower water to flush toilets. —RB
see “Translating and Quantifying
Appraisal Value for Better-Than-Code
Homes” on page 24.) Brookfield has
taken notice of this initiative, and
Stewart thinks it’s “a possible option
on getting the banks to understand
what goes into these homes.”
Financial institutions don’t tend to
deal with shades of grey, so expecting
them to understand the value of
adding grey water systems could be a
difficult task. “It’s that learning curve
again and it’s taking a while to get
there, but I think a lot of people are
onside. It just takes time and the right
people to push it.”
In the meantime, Brookfield
will continue to gather data from its
Tottenham home, with full results
expected by the end of the year. Stay
tuned for a followup report in a future
issue once Brookfield shares what it
has learned. BB
Rob Blackstien is
a Toronto-based
freelance writer.
Pen-Ultimate.ca
by banks. It’s become somewhat of a
catch-22 as governments are pushing
green building, but there aren’t the
means within financial institutions
to finance these homes based on
their true value from a total cost
of ownership perspective. Stewart
concedes that “it’s a fine line to walk.”
The answer may lie in a model
conceived by Austin, Texas-based
Green Energy Money, Inc. (GEM).
GEM provides the financial analysis
tools needed to help fund green
home building. (For more on GEM,
Component Package J Discovery
Ceiling w/ Attic R-50 R-60
Ceiling w/o Attic R-31 R-31
Exposed Floor R-31 R-40
AG Walls R-22 R-24+R-10 @ 24” O.C.
BG Walls R-12 R-24 + R-5
Slab  600mm R-10 R-10
Slab — R-10
Windows  Sliding Doors 1.8 R = 1.0, SHG = 0.20
Skylights 2.8 2.8
Space Heating 94% 96% c/w ECM
Space Cooling — 21 SEER VS Heat Pump
Domestic Hot Water 67% 90% Eff
HRV Efficiency 60% 75%
Air Tightness 2.5 1.5
Insulation Grade III I
Renewables — 2 x R3-48
Grey Water System — Complete System
Lighting — 100% LED
Solar — N/A
HERS Score 59 30
Energy Consumption (kWh/yr) 41,596 17,804.0
% Better Than Code — 57%
BETTERBUILDER.CA | ISSUE 20 | WINTER 201620
buildernews / ALEX NEWMAN
What they found was that Echo
Haven was developed by four like-
minded individuals, on land compiled
10 years before, in a spectacular
natural landscape in northwest
Calgary. The aim was net zero – homes
that produce as much energy as they
use – and on creating minimal
environmental footprint. With
expectations of reducing up to 80% of
grid power and zero greenhouse gas
emissions, the individuals who bought
there would build healthy and efficient
homes using solar heating strategies
and water conservation initiatives to
reduce water consumption by 72%.
It was music to Christen’s ears
and she immediately told her sister,
Amanda Robertson, and brother-in-
law, Ronnie Blow. The two couples had
always talked about building their own
homes, and the community was aligned
with what they all believed in. Plus it
would allow them to build themselves
rather than use a designated builder.
The couples lived near each other
and spent a lot of time together. But
undertaking a building project can
test even the best relationships, and
Christen admits there were “definitely
times when it got tense. But none of us
really fights, and we all had the same
goal. At the end of the day I get to live
beside my sister, brother-in-law and
nephew, and that’s the coolest thing.
You just have to remember it’s not a
forever [construction] process and that
there’s an end in sight.”
Theirs is the only duplex in Echo
Haven, the rest being single-family
dwellings. Before securing approvals
from the city of Calgary, they needed to
demonstrate to the community board
of directors that the house would have
an EnerGuide rating of 84.
To help them with this, they found
an architectural draftsperson, Kim
Walton of Bow Crow Design, who
specializes in green design. “She
had been involved in some of the
other projects in this community
and did the drawings for our duplex,”
Christen says. “We worked with her
to design the home, and she provided
information on the green aspects –
window placement and design, R-value
of walls and ceiling – and did the
design on how to meet those specs. We
worked with her to balance what we
wanted in our home and how to get the
best green design to achieve it.”
Walton also put the couples in
touch with John Godden, who provided
guidance throughout the construction
of the project. Most notably, she adds, he
did energy modelling and guided them
in the duct design to make it as efficient
as possible. He also made recommend­
ations on drain water heat recovery,
which they will eventually add.
A duplex experiences less heat loss
from its shared wall, but Walton also
aimed to avoid bump-outs to minimize
heat loss even more. Cantilevers, for
example, are very inefficient, Amanda
says. The aim was to “strike the
right balance between esthetics and
efficiency, and for the most part it’s a
box with very few cantilevers.”
Each side is 2,000 square feet (not
including the basement), with three
bedrooms and three baths. At street
level are the front doors and a drive
down to the garage, which is built
under the house and takes up a portion
of the basement. The rest of the
finished basement features a rec room,
home gym and media room.
The home at 25 Rockhaven Green in NW Calgary, Alberta has a HERS score of 35 and is 68%
better than code. (Rating date October 17, 2016.)
O
n a crisp fall day two years ago, a bike ride around the neighbourhood
set Calgary couple Christen and Jordan Gray on a whole new path. They
happened to ride by Echo Haven, a 25-lot subdivision that is aiming for
net zero homes. Intrigued, the Grays stopped to investigate, went home to research
further and grew more excited about the prospect of building their own home.
HERSSCORE
35
Near Zero at Echo Haven
Better Builder Magazine, Issue 20 / Winter 2016
BETTERBUILDER.CA | ISSUE 20 | WINTER 201622
The building envelope
Because the couples didn’t have the
budget to accomplish net zero, they
aimed for near zero, which is 50%
better than code. This meant beefing
up the building envelope, making it
tighter so that less energy is consumed.
The exterior walls are constructed
like a sandwich – a one foot-thick
sandwich – with 2' x 4' walls on either
side with R-14 bats and the middle
gap filled with Roxul R-22 comfort bat
insulation, creating an overall R-value
of 50 (think extra thick Wonderbread
slathered with PBJ and you’ll get the
idea). That value doesn’t include the
drywall; the roof is filled with loose
cellulose fill for an R-value of 50.
Under the basement slab, two
layers of two-inch rigid foam
insulation were added. As Ronnie
explains, one typically packs down
gravel and then pours the slab – but
after they compacted the gravel in
place, they added two layers of rigid
foam insulation before pouring the
concrete slab. As well, the basement’s
outside cement walls were covered in
rigid foam insulation before exterior
cladding was applied.
Before adding the drywall, a
blower door air test was conducted by
Tyler Hermanson of 4elements design,
a local Calgary company, in order to
identify any leaks in the walls. Triple-
glazed windows with multiple coats
of low-e argon and selective coatings
were used to maximize solar heat
gain. Operating awning windows
were strategically placed to maximize
natural ventilation. As Amanda says,
the house is “very cozy” and draft-
free, as R-2000 levels of airtightness
were achieved.
The biggest thing about the energy
efficiency of this house is the building
envelope, says Christen. After that’s
done, you can work on the interior
efficiency: HVAC, heat recovery and
drain water recovery, right down to
LED lights, low VOC finishes and
energy-efficient appliances.
A key component in the mechanical
system was the Zuba central heat
pump system by Mitsubishi, which
looks like a furnace but isn’t. The
community does not have natural
gas hookups, because the aim is
to eventually go solar to produce
electricity. The Zuba has a compressor
in the back yard, an air handler inside
the mechanical room and a backup
heater because Calgary’s harsh winters
can dip below –30° C.
A Lifebreath high-efficiency double
core heat recovery ventilator (HRV)
constantly exchanges and circulates
fresh air from outside into the house
while exhausting stale air from each
bathroom. In the ensuite master
bathroom, a Panasonic WhisperGreen
exhaust fan manages the excess
humidity created by the large shower
stall with two shower heads.
For hot water, they have a hybrid
air source heat pump hot water heater,
which they purchased through Sears,
because it had the best rating on noise
and was very efficient, Ronnie says.
The water heater will be enhanced by
drain water heat recovery, which will
be supplied by Renewability.
Since the community has no storm
sewers – to reduce burden on the city’s
storm sewer infrastructure – rainwater
runoff is to be managed within each
yard and on common grounds by the
condo development. (Only common
land is under condo ownership, not
homes, which owners maintain
themselves.) Calgary does not allow
grey water recycling at present, but
the community plans to implement it
when the bylaw changes.
Although the houses (at around
$480,000) were about 30% more
expensive than a regular home,
the final cost brought them better
insulation, more expensive windows
and rough-ins for solar panels and for
separate greywater plumbing. The
land for each home was $215,000 – but
condo ownership gives them access
to large common areas like a pond,
skating rink and village green.
The couples found that
construction was more demanding
than they expected, especially since
all four work full time, but it was also
richly rewarding. Jordan oversaw
the building envelope, exterior
finishing, interior finishing and on-site
coordination of trades, while Christen
and Amanda researched interior
finishing and Christen looked into
windows. Ronnie handled plumbing,
electrical, HVAC, interior finishing and
on-site coordination of trades.
The biggest challenge, say Amanda
and Ronnie, was having a small
child – their son was just a year old
through the whole endeavour and, not
surprisingly, they are later moving in
than Christen and Jordan. Amanda’s
advice? “Don’t build a house when you
have a one-year-old.” BB
Alex Newman is a writer, editor and
researcher at www.alexnewmanwriter.com.
Calgary Near Zero owner/builders Ronnie
Blow and Jordan Gray.
Better Builder Magazine, Issue 20 / Winter 2016
BETTERBUILDER.CA | ISSUE 20 | WINTER 201624
buildernews / TERESA LOPEZ
Quantifying and monetizing the
value of homes built better than code
is possible today through a certified
third-party Home Energy Rating
System (HERS) energy audit as well as
education that teaches appraisers and
lenders how to interpret and monetize
building performance data.
The Appraisal Foundation (TAF)
provides appraisers with critical tools
to make proper comparisons and
adjustments to appraisal valuations.
Appraisers are now being armed with
guidance for homes that are better
quality, more durable and energy
efficient. Still, many appraisers are not
competent in interpreting or adopting
green premium guideline adjustments.
The potential value the high-
performance building market repre­
sents is only beginning to be under­
stood. Collateral in current loan
portfolios may be discounted (brown
discount) in the near future as inven­
tory and demand increases for homes
built beyond code (green premium).
Market research and studies show that
building performance represents a
new era of risk mitigation, and high-
performance building can serve as a
buffer to those risks.
TAF’s 2013 first exposure draft
report, Valuation of Green Buildings:
Background and Core Competency,
included a definition of a brown
discount noted in their research:
“Potential for obsolescence, also
known as the brown discount, for
existing buildings that don’t ‘green up’:
Just as green buildings that outperform
the market may show a value premium,
brown buildings that underperform
relative to their market may show a
discount.”
Building science quantifies
durability, quality of construction
and efficiency. HERS audits provide
baselines on energy savings and
costs, allowing for an industry-
accepted present-value formula
calculation. This practice combines a
paired sales analysis with an income
adjustment for energy savings.
Appraisers typically can’t factor
the costs associated with high-
performance building upgrades in
value. However, the costs to operate
and the savings can be quantified to
make income adjustments in value.
This is a critical factor for appraisers
who need data in order to support
energy cost-savings adjustments and
who can now use HERS analysis data.
This methodology can impact higher
green value premiums in appraisal
valuations.
A recent Green Energy Money, Inc.
(GEM) economic analysis conducted
for a Brookfield Residential, Toronto
project compares a better-than-code
Translating and Quantifying Appraisal Value
for Better-Than-Code Homes
A
s building science and technology continue to evolve, scale and become
more affordable, innovative builders are finding ways to meet and exceed
mandated energy building code requirements. However, builders are
finding that projects built better than code can pose new challenges with trans­
lating the extra costs to buyers, lenders and appraisers, even though the energy
savings are at least 50% greater than comparable conventional new homes.
ADAPTEDFROMCOSTAR.COM/UPLOADEDFILES/JOSRE/JOURNALPDFS/11.221_248.PDF
Green Premium and Brown Discount Appraisal Valuations
GREEN PREMIUM
•	 Demand for green
•	 Sufficient supply of green buildings
•	 High-quality asset
•	 Premium value assignment
BROWN DISCOUNT
•	 High deferred maintenance-energy
operating costs
•	 Low-quality asset
•	 Declining regional markets
EARLY
ADAPTER
MID
ADAPTER
LATE
ADAPTER
2013
2014–2016
TIPPING POINT
Critical Mass
Mortgage Write-Downs
BETTERBUILDER.CA | ISSUE 20 | WINTER 2016
home with and without solar power.
The analysis proves the potential
return on investment that the savings
represent over conventional homes;
adding solar actually provides an
excellent financial investment.
Brookfield’s test cases are proving
that building better than code
offers greater community and buyer
investment potential.
Even though the sales price
was $40,000 higher due to the solar
equipment price (which doesn’t
include any rebates or incentives
that could reduce the costs), the
energy savings and reduced operating
expenses can be absorbed in value.
Cost benefits also account for a
potential future value and can be
applied to pay off the loan sooner.
GEM developed an energy-efficient
rating methodology that includes
over 39 points of certified data for
appraisers to properly quantify value.
GEM offers a nationally accredited
(TAF-approved) green appraisal course
for appraisers.
GEM conducted a beta green
appraisal program with several
U.S. mortgage lenders from 2014 to
2016. The $38 million loan portfolio
conducted in nine U.S. cities achieved
a $2.8 million, or an 8% to 10%, green
premium appraisal value increase
in incremental property value. The
portfolio’s HERS Index averaged 41 on
78 loans, all were better than code and
over 30% of the portfolio were near-
to-net-zero homes producing as much
energy as they were using. For more
information, visit www.greenenergy.
money. BB
Teresa Lopez is the CEO of Green
Energy Money.
25
BETTER THAN CODE (BTC) HOME ECONOMIC ANALYSIS BTC HOME WITH SOLAR SYSTEM
$715,000 SALES PRICE $755,000
45 HERS INDEX 25
$8200–$9000 ESTIMATED VALUE INCREASE $27,000–$30,000
$543 ($45 per month) ENERGY SAVINGS $1799 ($150 per month)
21.8 YEARS POTENTIAL LOAN PAYOFF 20.8 YEARS
$34,430 INTEREST SAVINGS @ 3% FOR 25 YEARS (3.29 APR) $46,753
$14,593 FUTURE VALUE (FV) ENERGY SAVINGS @ 3% FOR 20 YEARS $49,222
Brookfield Residential economic comparison between Better Than Code Croyton Model Homes (Toronto, CA) — with and without solar system.
2016©GREENENERGYMONEY,INC.
BETTERBUILDER.CA | ISSUE 20 | WINTER 201626
BETTERBUILDER.CA | ISSUE 20 | WINTER 2016
As part of the project, Luck
was responsible for selecting five
participating home builders who
would think – and act – outside the
box when it came to energy efficiency.
In addition to adopting net zero
energy in some of the homes within
their regular projects, the five home
builders would also be “influencers”
by educating others in their region
– builders and the general public –
about the benefits of net zero.
The point of the Buildability
initiative, Luck says, was to demon­
strate that it was possible to build
quality, energy efficient homes
that were also affordable. “Cost is
obviously an issue,” she admits.
“But if we don’t demonstrate that it’s
technically feasible, costs will never
come down, so our team studied the
type of builder who might be ready
and able to adopt this.”
Finding the five participants
wasn’t all that easy, and the team
interviewed several builders to ensure
that each one would understand the
Buildability approach. They also had
to be of a certain size, Luck adds, to
absorb the higher cost of building
the net zero ready housing, since
production builders generally keep
construction costs down by working
assembly-line style. In contrast to
the Equilibrium Project launched
in 2007 by the Canada Mortgage and
Housing Corporation, which invited
custom builders constructing homes
for families or clients who had “bought
into the idea of net zero already,” these
five builders took on the task because
“it helped them know what their trades
were capable of.”
Each builder took a different
approach to the challenge. In Calgary,
Mattamy is offering some of the net
zero upgrades as part of their standard
package. In Ottawa, Minto is offering a
single detached model as a net zero
option at an upgrade cost of about 15%.
Reid’s Heritage Homes in Guelph has
committed to building all of their single
detached homes as net zero ready – a
strategic move that Luck says will
leverage national, and even interna­
tional, presence for this small builder.
For these builders, doing better
than capacity and being the only one
in a particular region to build a set
of net zero homes is a point of pride.
But the project – and the award – also
boosts the builder’s exposure and
enhances marketing efforts. They’ve
produced videos on each site’s progress
so that the public and buyers can see
what is being done and when.
At the end of the day, though, it’s
also a business investment. “They
aren’t there out of the goodness of their
hearts,” Luck says. “They’re looking
at ways to make building better, and
we were able to define how this would
work for them business-wise.”
This is also the first time Natural
Resources Canada will provide a label
that reflects the modelled energy
consumption of a home. Because it
produces as much energy as it uses, a
net zero home garners a zero rating.
But the rating and the attention from
Natural Resources Canada were non-
existent when the project first began,
Luck says. “Nobody was talking about
27
Meet Candice Luck
Clean50 Award Winner
sitespecific / ALEX NEWMAN
I
n the recent national Clean50 awards, 50 companies or individuals were
honoured for their efforts to “advance the cause of sustainability and clean
capitalism in Canada.”
Among them was Candice Luck, director of strategy and programs with
Buildability. At just 30, she is project leader of Buildability’s $4 million initiative
aimed at demonstrating to home builders that building net zero energy homes is
technologically feasible.
The experience ended
up teaching Luck
much more: “It wasn’t
about the technology
itself, but about how
people could adopt
it and how trades
would understand it.”
BETTERBUILDER.CA | ISSUE 20 | WINTER 2016
mandating net zero in government. It
was only recently when the Climate
Change Action Plan came out that
this idea of achieving net zero carbon
footprint has been all over the news.”
Since the five builders are all on the
Canadian Housing Council, their
involvement in the project helps move
the net zero discussion forward.
Luck, who has an architecture
degree from the University of Toronto,
met Buildability’s president Michael
Lio when he taught her building
science. The course, which explored
the “nuts and bolts of the built
environment – what went between
the walls, how materials interact
with environment, the health of
the built space,” was challenging.
But during the exam, while Luck was
“frantically” calculating a difficult
R-value equation, Lio tapped her on
the shoulder and asked if she would
send him a resume.
Having already agreed to an
internship in New York, she took a
pass, but contacted him on her return
and accepted a position in his code
consulting practice. “It was very
educational, we looked a lot at the
technical aspects of building.”
At the time, Lio was also president
of EnerQuality, which had piloted
a program to help builders adopt
ENERGY STAR. Luck was brought
in to help him coordinate meetings
and ensure builders met action lists.
“I was quite impressed with these
people, these executives of building
companies, when they talked about the
new technology.” But the experience
ended up teaching her much more than
that: “It wasn’t about the technology
itself, the insulation or whatever,
but about how people around could
adopt the technology and how the
trades would understand it, and
how important it was for people to
understand they were building homes
and how much they care about that.”
Better Builder would like to congra­
tulate Candice on her achievements
and recognize her contributions for
making Canada a cleaner country. BB
Alex Newman is a writer, editor and
researcher at www.alexnewmanwriter.com.
BETTERBUILDER.CA | ISSUE 20 | WINTER 2016
A
s codes and standards change, it is important to
constantly find innovative ways to maintain and
improve the quality of a building. For Amvic, that means
providing builders with the right products to achieve that
quality. That is why SilveRboard Graphite exterior sheathing
was developed. SilveRboard®
Graphite XS is an expanded
polystyrene (EPS) base material that is embedded with carbon
“Graphite” particles which increase the thermal performance
of the EPS insulation. The Graphite EPS beads reflect radiant
heat energy similar to the effect of a mirror that reduces
thermal conductivity and increases the material’s ability to
resist the flow of heat (or R-value).
SilveRboard®
Graphite XS is a combination of graphite
embedded EPS beads surrounded by air pockets, laminated on
both sides with perforated reflective film. 98% of the EPS in
SilveRboard®
Graphite XS is air; Amvic calls this insulation
“engineered air.” “We wanted to provide one of the most energy-
efficient, environmentally friendly, sustainable and cost-effective
insulation products available today,” says Victor Amend, presi­
dent and CEO of Amvic Building System. “And we did just that.”
SilveRboard®
Graphite XS performs better than traditional
flat-sheet insulation by providing a built-in vapour and air
barrier – the colder the climate, the higher the thermal resist­
ance (R-value). This unique property of EPS insulation is not
commonly found in other rigid insulation boards. SilveRboard®
Graphite XS holds its R-value for the life of the product and is an
ideal exterior sheathing for the Canadian environment.
SilveRboard®
Graphite XS eliminates the need for house
wrap and is effectively durable to resist construction site and
weather damage. It is also lightweight, easy to handle and
highly flexible for radius walls. “This type of insulation is
perfect for builders looking for a sheet with reduced thickness
that provides more flexible options and a leveled rigid surface
for exterior finish materials,” Amend says. “It also accepts
taping which adheres quickly and permanently to the
SilveRboard film.” SilveRboard®
Graphite XS creates a higher
performing thermal envelope, maximizes heating and cooling
efficiency and improves indoor air quality. It is designed with
built-in air and moisture barriers and delivers a higher, long-
term, stable R-value.
“SilveRboard®
Graphite XS is the new innovation of insulation,”
says Amend. “It’s designed to build to a higher standard.” BB
29
A higher performing
wall sheathing
SilveRboard®
Graphite XS
industrynews / AMVIC
BETTERBUILDER.CA | ISSUE 20 | WINTER 201630
BETTERBUILDER.CA | ISSUE 20 | WINTER 2016
T
he new Ontario Building Code
SB-12 takes effect on January
1, 2017. While there are still
prescriptive paths (down from 13 to
six for natural gas), I think of this as
the first performance-based code,
and a greater number of builders are
likely to choose this path to meet the
energy requirements of SB-12.
In our stakeholder training
sessions, we are outlining the
three key objectives the Ministry of
Municipal Affairs and Housing had
for the 2017 SB-12 regulation:
1)	Preserve and reinforce investment
in the building envelope;
2)	Encourage airtightness and
associated depressurization testing
(blower door); and
3)	Prepare the industry for movement
towards net zero-like housing by 2030.
The 2017 SB-12 provides several
options that builders can use to
reduce requirements in other areas
by demonstrating an airtightness
performance of 2.5 ACH. There are
also performance path options
to consider, which may provide
for more cost-effective building
performance designs. There are two
constants: first, thermal efficiency
cannot be reduced by more than
25%, and second, a heat recovery
ventilator (HRV) or energy recovery
ventilator (ERV) must be installed.
That means you cannot make up for
a poorly performing wall assembly by
installing a massive solar wall; it also
means occupants have the ability to
have fresh air all year long.
So what does the new SB-12 look
like? As noted, there are fewer packages
to choose from and an emphasis has
been put on the key points above.
Package A1 is likely to be the most
common path chosen by builders.
This path enables builders to use a 2
x 6 wall without rigid insulation and
install R20 bag wrap insulation in the
basement (up to 8” from the top of
the basement slab), windows with an
Energy Rating of 25, a 96% efficient
furnace, a 75% efficient HRV and a
.80 EF rental water heater. Oh, and
you have to install a drain water heat
recovery unit.
But is this a good thing? If everyone
is doing it, what is the risk? Are you
ready for a deeper conversation about
occupant health and comfort weighed
against operation costs?
I think we can all agree that
electricity prices are going to continue
to climb over the next decade. And
as noted above, we will be building
increasingly tighter homes. This
combination will result in the need
to take a serious look at latent energy
(moisture) and how to control it.
Let’s talk about windows
Energy Rating (ER) is a measure of
performance that actually favours
heat gain. The higher the rating, the
better the window is supposed to
perform. But here is the challenge.
When you gain heat in a tighter home,
it becomes very difficult to get rid of
it – to the point where your client will
be extremely uncomfortable in rooms
with high solar exposure and have to
pay a high energy penalty to stay cool.
However, this code permits the use
of low solar glass on walls exposed
to potentially high solar gain. By
choosing a window with a low solar
heat gain co-efficient (SHGC) and a low
U-value, rather than a high ER, you can
dramatically reduce heat gain and still
have a window that performs well. In
our experience, the incremental cost
should be only a few hundred dollars.
However, by working with your energy
rater or HVAC consultant, you should
be able to reduce your air conditioner
(AC) capacity at least half a ton.
Windows account for about half
of the heat gain in our homes. Using
windows with a low SHGC can reduce
the window gain by 50% or more. So
31
The 2017 SB-12
Efficiency and performance
 vs. occupant health and comfort
fromthegroundup / DOUG TARRY
Windows account for
about half of the heat
gain in our homes ...
windows with a low
SHGC can reduce that
gain by at least 50%.
BETTERBUILDER.CA | ISSUE 20 | WINTER 201632
if you have a home needing a two-
ton AC, it is not unrealistic to see a
reduction in the AC sizing of half a
ton, which should typically save a few
hundred dollars on the cost of the
unit. So for effectively no additional
cost, you can save your homeowner
hundreds of dollars per year on their
electrical bill. Best of all, you can
avoid the comfort complaint.
HRV vs. ERV
Let’s be honest: we as builders are
now building all of our homes as
giant plastic bags and then asking
our homeowners to live in them. So
we need to consider strategies for
controlling excess humidity within
the home.
Package A1 requires an HRV
or ERV with a sensible recovery
efficiency (SRE) of 75%. While there
are many options for HRVs that meet
this requirement, there are very few
ERVs that do so. On the other hand,
package A6 requires an SRE of only
65%. So builders wanting to use
an ERV might wish to choose this
path instead. Or, if you are doing
blower door testing and can get your
home under 2.5 ACH (or equivalent
measurement), you can reduce your
HRV from 75% to 65%, which again
gives you a number of options.
So why use an ERV?
Because an ERV will help to manage
latent energy (moisture) loads. In
the wintertime, it can reduce over-
drying of the home, whereas an HRV
can over-dry the home, causing health
and performance issues. If you want
to talk about wasted energy, using a
humidifier to compensate for an HRV
over-drying the home might be one of
the worst decisions you can make for
a tighter high-performance home. It’s
literally pouring money down the drain
while creating the potential for indoor
air quality issues such as mould.
In the summertime, an ERV can
reduce the amount of humidity that
enters the home, which in turn reduces
the load on the air conditioner and
improves its performance. By having
control over the humidity level of
the home, the homeowner will not
need to set the temperature as low
to maintain comfort. This also helps
control humidity levels within the
home, reducing the opportunity for
problems such as mould buildup and,
in most cases, eliminating the need for
a dehumidifier and thereby reducing
operating costs further.
Unfortunately, the new SB-12
does not reflect the importance of
controlling latent (moisture) energy.
This is an issue that we need to
advocate strongly with the Ministry
so that better decision options are
available for builders and their energy
advisors.
Performance as an option
I understand that there will be markets
where the competition for trades,
particularly framers, may make it a
challenge for builders to build a better
performing wall, and that builders may
feel that using the R22 wall and R20
blanket wrap is their best option.
But what if a builder were able to
use these wall options and model the
home to meet the energy performance
requirements? For example, if you
were to replace the drain water heat
recovery system with triple-glazed
windows, the incremental cost should
be only a few hundred dollars – and
that’s including using low solar glass
on the worst orientation (this is from
my recent costing exercise, and
builders would need to verify costs
with their suppliers). By combining
this with an air source heat pump and
a smaller high-performance furnace,
builders should be able to meet the
energy requirements while providing
their homeowners with a more
comfortable, healthy and cost-effective
home to operate.
And that’s worth thinking about.
If this seems like an unknown
language to you, it might be time to
reach out to a certified energy rater to
explore your options. At the very least,
we as builders should start to consider
if a performance path is a viable option
so you can make an informed decision
as to what is best for your company. BB
Doug Tarry Jr is director of marketing at
Doug Tarry Homes in St. Thomas, Ontario.
An ERV will help to manage latent energy (moisture)
loads. In the wintertime, an ERV can reduce over-
drying of the home, whereas an HRV can over-dry
the home, causing health and performance issues.
Your reputation is built, or crumbles, long after the keys have been handed over.
That’s why projects like The Edelweiss Home – Canada’s first LEED®
v4 home, and
second in the world to achieve Platinum status – rely on the continuous insulation of
ROXUL®
COMFORTBOARD™
exterior sheathing. Its vapour permeability enables your
wall assembly to dry to the outside, providing your clients with durability and comfort.
See why ROXUL is a better fit for your next project at roxul.com/comfortboard
A BETTER WAY TO BUILD YOUR HOMES –
AND YOUR REPUTATION.
CAVITYROCK
®
and COMFORTBOARD
TM
.
For a better way to build.
COMFORTBOARD™
.
For the better way to build.LEED®
is a registered trademark of United States Green Building Council.
The demand for energy efficient homes is increasing and building codes will be changing in 2017. Enbridge can help.
Our Savings by Design (SBD) program offers free access to design and technical experts, plus over $100,000
in incentives and benefits.*
It’s the support you need to construct energy efficient, healthy and sustainable homes
beyond code requirements. Find out how the SBD program helps builders like you at residential.savingsbydesign.ca
Over80Ontariobuildershave
participated.Jointhem.
*Builders can earn $300,000 in incentives by participating in the program three separate times. To qualify for the program, your project must be located in the
Enbridge Gas Distribution franchise area. Participation is a three-year commitment. During that time, builders are expected to design and construct at least one
new construction home based on resulting recommendations. In order to receive incentive payments, you must agree to all program terms and conditions, must fully
participate in all stages of the program and must meet all program requirements.

More Related Content

What's hot

Better Builder Magazine, Issue 14 / Summer 2015
Better Builder Magazine, Issue 14 / Summer 2015Better Builder Magazine, Issue 14 / Summer 2015
Better Builder Magazine, Issue 14 / Summer 2015
Better Builder Magazine

Better Builder, Issue 15, Fall-2015
Better Builder, Issue 15, Fall-2015Better Builder, Issue 15, Fall-2015
Better Builder, Issue 15, Fall-2015
Better Builder

Better Builder Magazine Summer Issue 2014
Better Builder Magazine Summer Issue 2014Better Builder Magazine Summer Issue 2014
Better Builder Magazine Summer Issue 2014
Better Builder

Better Builder Magazine, Issue 39 / Autumn 2021
Better Builder Magazine, Issue 39 / Autumn 2021Better Builder Magazine, Issue 39 / Autumn 2021
Better Builder Magazine, Issue 39 / Autumn 2021
Better Builder Magazine

Better Builder Magazine, Issue 37 / Spring 2021
Better Builder Magazine, Issue 37 / Spring 2021Better Builder Magazine, Issue 37 / Spring 2021
Better Builder Magazine, Issue 37 / Spring 2021
Better Builder Magazine

Better Builder Magazine, Winter Issue 2014
Better Builder Magazine, Winter Issue 2014Better Builder Magazine, Winter Issue 2014
Better Builder Magazine, Winter Issue 2014
Better Builder

Better Builder, Issue 32 / Winter 2019
Better Builder, Issue 32 / Winter 2019Better Builder, Issue 32 / Winter 2019
Better Builder, Issue 32 / Winter 2019
Better Builder Magazine

Better Builder Magazine, Issue 21 / Spring 2017
Better Builder Magazine, Issue 21 / Spring 2017Better Builder Magazine, Issue 21 / Spring 2017
Better Builder Magazine, Issue 21 / Spring 2017
Better Builder Magazine

Better Builder Magazine, Issue 38 / Summer 2021
Better Builder Magazine, Issue 38 / Summer 2021 Better Builder Magazine, Issue 38 / Summer 2021
Better Builder Magazine, Issue 38 / Summer 2021
Better Builder Magazine

Better Builder Magazine, Issue 36 / Winter 2020
 Better Builder Magazine, Issue 36 / Winter 2020  Better Builder Magazine, Issue 36 / Winter 2020
Better Builder Magazine, Issue 36 / Winter 2020
Better Builder Magazine

Better Builder, Issue 31 / Fall 2019
Better Builder, Issue 31 / Fall 2019Better Builder, Issue 31 / Fall 2019
Better Builder, Issue 31 / Fall 2019
Better Builder Magazine

Better Builder Issue 2
Better Builder Issue 2Better Builder Issue 2
Better Builder Issue 2
Anna-Marie McDonald

Better Builder Magazine, Winter 2014
Better Builder Magazine, Winter 2014Better Builder Magazine, Winter 2014
Better Builder Magazine, Winter 2014
Better Builder

Better Builder Magazine
Better Builder MagazineBetter Builder Magazine
Better Builder Magazine
Better Builder

Better Builder Magazine Issue 18 Summer 2016
Better Builder Magazine Issue 18 Summer 2016Better Builder Magazine Issue 18 Summer 2016
Better Builder Magazine Issue 18 Summer 2016
Better Builder

Better Builder Magazine, Issue 23 / Fall 2017
Better Builder Magazine, Issue 23 / Fall 2017Better Builder Magazine, Issue 23 / Fall 2017
Better Builder Magazine, Issue 23 / Fall 2017
Better Builder Magazine

Better Builder Magazine, Issue 17 / Spring 2016
Better Builder Magazine, Issue 17 / Spring 2016Better Builder Magazine, Issue 17 / Spring 2016
Better Builder Magazine, Issue 17 / Spring 2016
Better Builder Magazine

Better Builder Magazine, Issue 35 / Autumn 2020
Better Builder Magazine, Issue 35 / Autumn 2020Better Builder Magazine, Issue 35 / Autumn 2020
Better Builder Magazine, Issue 35 / Autumn 2020
Better Builder Magazine

Better Builder Magazine, Fall 2013
Better Builder Magazine, Fall 2013Better Builder Magazine, Fall 2013
Better Builder Magazine, Fall 2013
Better Builder

Better Builder Magazine, Issue 30 / Summer 2019
Better Builder Magazine, Issue 30 / Summer 2019Better Builder Magazine, Issue 30 / Summer 2019
Better Builder Magazine, Issue 30 / Summer 2019
Better Builder Magazine


What's hot (20)

Better Builder Magazine, Issue 14 / Summer 2015
Better Builder Magazine, Issue 14 / Summer 2015Better Builder Magazine, Issue 14 / Summer 2015
Better Builder Magazine, Issue 14 / Summer 2015

Better Builder, Issue 15, Fall-2015
Better Builder, Issue 15, Fall-2015Better Builder, Issue 15, Fall-2015
Better Builder, Issue 15, Fall-2015

Better Builder Magazine Summer Issue 2014
Better Builder Magazine Summer Issue 2014Better Builder Magazine Summer Issue 2014
Better Builder Magazine Summer Issue 2014

Better Builder Magazine, Issue 39 / Autumn 2021
Better Builder Magazine, Issue 39 / Autumn 2021Better Builder Magazine, Issue 39 / Autumn 2021
Better Builder Magazine, Issue 39 / Autumn 2021

Better Builder Magazine, Issue 37 / Spring 2021
Better Builder Magazine, Issue 37 / Spring 2021Better Builder Magazine, Issue 37 / Spring 2021
Better Builder Magazine, Issue 37 / Spring 2021

Better Builder Magazine, Winter Issue 2014
Better Builder Magazine, Winter Issue 2014Better Builder Magazine, Winter Issue 2014
Better Builder Magazine, Winter Issue 2014

Better Builder, Issue 32 / Winter 2019
Better Builder, Issue 32 / Winter 2019Better Builder, Issue 32 / Winter 2019
Better Builder, Issue 32 / Winter 2019

Better Builder Magazine, Issue 21 / Spring 2017
Better Builder Magazine, Issue 21 / Spring 2017Better Builder Magazine, Issue 21 / Spring 2017
Better Builder Magazine, Issue 21 / Spring 2017

Better Builder Magazine, Issue 38 / Summer 2021
Better Builder Magazine, Issue 38 / Summer 2021 Better Builder Magazine, Issue 38 / Summer 2021
Better Builder Magazine, Issue 38 / Summer 2021

Better Builder Magazine, Issue 36 / Winter 2020
 Better Builder Magazine, Issue 36 / Winter 2020  Better Builder Magazine, Issue 36 / Winter 2020
Better Builder Magazine, Issue 36 / Winter 2020

Better Builder, Issue 31 / Fall 2019
Better Builder, Issue 31 / Fall 2019Better Builder, Issue 31 / Fall 2019
Better Builder, Issue 31 / Fall 2019

Better Builder Issue 2
Better Builder Issue 2Better Builder Issue 2
Better Builder Issue 2

Better Builder Magazine, Winter 2014
Better Builder Magazine, Winter 2014Better Builder Magazine, Winter 2014
Better Builder Magazine, Winter 2014

Better Builder Magazine
Better Builder MagazineBetter Builder Magazine
Better Builder Magazine

Better Builder Magazine Issue 18 Summer 2016
Better Builder Magazine Issue 18 Summer 2016Better Builder Magazine Issue 18 Summer 2016
Better Builder Magazine Issue 18 Summer 2016

Better Builder Magazine, Issue 23 / Fall 2017
Better Builder Magazine, Issue 23 / Fall 2017Better Builder Magazine, Issue 23 / Fall 2017
Better Builder Magazine, Issue 23 / Fall 2017

Better Builder Magazine, Issue 17 / Spring 2016
Better Builder Magazine, Issue 17 / Spring 2016Better Builder Magazine, Issue 17 / Spring 2016
Better Builder Magazine, Issue 17 / Spring 2016

Better Builder Magazine, Issue 35 / Autumn 2020
Better Builder Magazine, Issue 35 / Autumn 2020Better Builder Magazine, Issue 35 / Autumn 2020
Better Builder Magazine, Issue 35 / Autumn 2020

Better Builder Magazine, Fall 2013
Better Builder Magazine, Fall 2013Better Builder Magazine, Fall 2013
Better Builder Magazine, Fall 2013

Better Builder Magazine, Issue 30 / Summer 2019
Better Builder Magazine, Issue 30 / Summer 2019Better Builder Magazine, Issue 30 / Summer 2019
Better Builder Magazine, Issue 30 / Summer 2019


Viewers also liked

Better Builder Magazine, Issue 18 / Summer 2016
Better Builder Magazine, Issue 18 / Summer 2016Better Builder Magazine, Issue 18 / Summer 2016
Better Builder Magazine, Issue 18 / Summer 2016
Better Builder Magazine

Better Builder Magazine, Issue 03 / Fall 2012
Better Builder Magazine, Issue 03 / Fall 2012Better Builder Magazine, Issue 03 / Fall 2012
Better Builder Magazine, Issue 03 / Fall 2012
Better Builder Magazine

Better Builder Magazine, Issue 15 / Fall 2015
Better Builder Magazine, Issue 15 / Fall 2015Better Builder Magazine, Issue 15 / Fall 2015
Better Builder Magazine, Issue 15 / Fall 2015
Better Builder Magazine

Better Builder Magazine, Issue 01 / Spring 2012
Better Builder Magazine, Issue 01 / Spring 2012Better Builder Magazine, Issue 01 / Spring 2012
Better Builder Magazine, Issue 01 / Spring 2012
Better Builder Magazine

Better Builder Magazine, Issue 04 / Winter 2012
Better Builder Magazine, Issue 04 / Winter 2012Better Builder Magazine, Issue 04 / Winter 2012
Better Builder Magazine, Issue 04 / Winter 2012
Better Builder Magazine

Better Builder Magazine, Issue 02 / Summer 2012
Better Builder Magazine, Issue 02 / Summer 2012Better Builder Magazine, Issue 02 / Summer 2012
Better Builder Magazine, Issue 02 / Summer 2012
Better Builder Magazine

Report Kathy Flament Remove Hidden Data
Report Kathy Flament Remove Hidden DataReport Kathy Flament Remove Hidden Data
Report Kathy Flament Remove Hidden Data
kathyflament

Zero Energy House - Bellevue WA
Zero Energy House - Bellevue WAZero Energy House - Bellevue WA
Zero Energy House - Bellevue WA
shireyhandyman

Gbf08 laebon chess net zero home
Gbf08 laebon chess net zero homeGbf08 laebon chess net zero home
Gbf08 laebon chess net zero home
Toronto 2030 District

A Comparison of Two Homes - How to Compare Builders
A Comparison of Two Homes - How to Compare BuildersA Comparison of Two Homes - How to Compare Builders
A Comparison of Two Homes - How to Compare Builders
Bethany Jenkins

Utility New Construction Programs Report
Utility New Construction Programs ReportUtility New Construction Programs Report
Utility New Construction Programs Report
JC Martel

Better Builder Magazine Issue 19 Fall 2016
Better Builder Magazine Issue 19 Fall 2016Better Builder Magazine Issue 19 Fall 2016
Better Builder Magazine Issue 19 Fall 2016
Better Builder

Innovations in Sustainable Housing/Green Building Best Practices
Innovations in Sustainable Housing/Green Building Best PracticesInnovations in Sustainable Housing/Green Building Best Practices
Innovations in Sustainable Housing/Green Building Best Practices
tigerrealestate

Forests, Climate Change and REDD+: A brief introduction
Forests, Climate Change and REDD+: A brief introductionForests, Climate Change and REDD+: A brief introduction
Forests, Climate Change and REDD+: A brief introduction
CIFOR-ICRAF

Better Builder Magazine Issue 17 Spring 2016
Better Builder Magazine Issue 17 Spring 2016Better Builder Magazine Issue 17 Spring 2016
Better Builder Magazine Issue 17 Spring 2016
Better Builder

Big Builder Benefits of Mergers & Acquisitions
Big Builder Benefits of Mergers & AcquisitionsBig Builder Benefits of Mergers & Acquisitions
Big Builder Benefits of Mergers & Acquisitions
Tcallaha

Merger and Acquisitions -HP and Compac
Merger and Acquisitions -HP and CompacMerger and Acquisitions -HP and Compac
Merger and Acquisitions -HP and Compac
Augustin Bangalore

Home Builder Adds New Smart Home Technology
Home Builder Adds New Smart Home TechnologyHome Builder Adds New Smart Home Technology
Home Builder Adds New Smart Home Technology
First Texas Homes

Coca -Cola and Pepsi in Vietnam and India Market
Coca -Cola and Pepsi in Vietnam and India MarketCoca -Cola and Pepsi in Vietnam and India Market
Coca -Cola and Pepsi in Vietnam and India Market
Tran Minh Hai

Sun Pharma - Ranbaxy Merger Presentation
Sun Pharma - Ranbaxy Merger PresentationSun Pharma - Ranbaxy Merger Presentation
Sun Pharma - Ranbaxy Merger Presentation
Deepak Shenoy


Viewers also liked (20)

Better Builder Magazine, Issue 18 / Summer 2016
Better Builder Magazine, Issue 18 / Summer 2016Better Builder Magazine, Issue 18 / Summer 2016
Better Builder Magazine, Issue 18 / Summer 2016

Better Builder Magazine, Issue 03 / Fall 2012
Better Builder Magazine, Issue 03 / Fall 2012Better Builder Magazine, Issue 03 / Fall 2012
Better Builder Magazine, Issue 03 / Fall 2012

Better Builder Magazine, Issue 15 / Fall 2015
Better Builder Magazine, Issue 15 / Fall 2015Better Builder Magazine, Issue 15 / Fall 2015
Better Builder Magazine, Issue 15 / Fall 2015

Better Builder Magazine, Issue 01 / Spring 2012
Better Builder Magazine, Issue 01 / Spring 2012Better Builder Magazine, Issue 01 / Spring 2012
Better Builder Magazine, Issue 01 / Spring 2012

Better Builder Magazine, Issue 04 / Winter 2012
Better Builder Magazine, Issue 04 / Winter 2012Better Builder Magazine, Issue 04 / Winter 2012
Better Builder Magazine, Issue 04 / Winter 2012

Better Builder Magazine, Issue 02 / Summer 2012
Better Builder Magazine, Issue 02 / Summer 2012Better Builder Magazine, Issue 02 / Summer 2012
Better Builder Magazine, Issue 02 / Summer 2012

Report Kathy Flament Remove Hidden Data
Report Kathy Flament Remove Hidden DataReport Kathy Flament Remove Hidden Data
Report Kathy Flament Remove Hidden Data

Zero Energy House - Bellevue WA
Zero Energy House - Bellevue WAZero Energy House - Bellevue WA
Zero Energy House - Bellevue WA

Gbf08 laebon chess net zero home
Gbf08 laebon chess net zero homeGbf08 laebon chess net zero home
Gbf08 laebon chess net zero home

A Comparison of Two Homes - How to Compare Builders
A Comparison of Two Homes - How to Compare BuildersA Comparison of Two Homes - How to Compare Builders
A Comparison of Two Homes - How to Compare Builders

Utility New Construction Programs Report
Utility New Construction Programs ReportUtility New Construction Programs Report
Utility New Construction Programs Report

Better Builder Magazine Issue 19 Fall 2016
Better Builder Magazine Issue 19 Fall 2016Better Builder Magazine Issue 19 Fall 2016
Better Builder Magazine Issue 19 Fall 2016

Innovations in Sustainable Housing/Green Building Best Practices
Innovations in Sustainable Housing/Green Building Best PracticesInnovations in Sustainable Housing/Green Building Best Practices
Innovations in Sustainable Housing/Green Building Best Practices

Forests, Climate Change and REDD+: A brief introduction
Forests, Climate Change and REDD+: A brief introductionForests, Climate Change and REDD+: A brief introduction
Forests, Climate Change and REDD+: A brief introduction

Better Builder Magazine Issue 17 Spring 2016
Better Builder Magazine Issue 17 Spring 2016Better Builder Magazine Issue 17 Spring 2016
Better Builder Magazine Issue 17 Spring 2016

Big Builder Benefits of Mergers & Acquisitions
Big Builder Benefits of Mergers & AcquisitionsBig Builder Benefits of Mergers & Acquisitions
Big Builder Benefits of Mergers & Acquisitions

Merger and Acquisitions -HP and Compac
Merger and Acquisitions -HP and CompacMerger and Acquisitions -HP and Compac
Merger and Acquisitions -HP and Compac

Home Builder Adds New Smart Home Technology
Home Builder Adds New Smart Home TechnologyHome Builder Adds New Smart Home Technology
Home Builder Adds New Smart Home Technology

Coca -Cola and Pepsi in Vietnam and India Market
Coca -Cola and Pepsi in Vietnam and India MarketCoca -Cola and Pepsi in Vietnam and India Market
Coca -Cola and Pepsi in Vietnam and India Market

Sun Pharma - Ranbaxy Merger Presentation
Sun Pharma - Ranbaxy Merger PresentationSun Pharma - Ranbaxy Merger Presentation
Sun Pharma - Ranbaxy Merger Presentation


Similar to Better Builder Magazine, Issue 20 / Winter 2016

Better Builder Magazine, Issue 16 / Winter 2015
Better Builder Magazine, Issue 16 / Winter 2015Better Builder Magazine, Issue 16 / Winter 2015
Better Builder Magazine, Issue 16 / Winter 2015
Better Builder Magazine

Better Builder Magazine, Issue 06 / Summer 2013
Better Builder Magazine, Issue 06 / Summer 2013Better Builder Magazine, Issue 06 / Summer 2013
Better Builder Magazine, Issue 06 / Summer 2013
Better Builder Magazine

Better Builder Issue 8
Better Builder Issue 8Better Builder Issue 8
Better Builder Issue 8
Anna-Marie McDonald

Better Builder Magazine, Issue 08 / Winter 2014
Better Builder Magazine, Issue 08 / Winter 2014Better Builder Magazine, Issue 08 / Winter 2014
Better Builder Magazine, Issue 08 / Winter 2014
Better Builder Magazine

Better Builder Magazine, Issue 09 / Spring 2014
Better Builder Magazine, Issue 09 / Spring 2014Better Builder Magazine, Issue 09 / Spring 2014
Better Builder Magazine, Issue 09 / Spring 2014
Better Builder Magazine

Better Builder Issue 9
Better Builder Issue 9Better Builder Issue 9
Better Builder Issue 9
Anna-Marie McDonald

Better Builder Magazine, Issue 11 / Fall 2014
Better Builder Magazine, Issue 11 / Fall 2014Better Builder Magazine, Issue 11 / Fall 2014
Better Builder Magazine, Issue 11 / Fall 2014
Better Builder Magazine

Better Builder, Issue 14, Summer 2015
Better Builder, Issue 14, Summer 2015Better Builder, Issue 14, Summer 2015
Better Builder, Issue 14, Summer 2015
Better Builder

Better Builder Magazine, Issue 13 / Spring 2015
Better Builder Magazine, Issue 13 / Spring 2015Better Builder Magazine, Issue 13 / Spring 2015
Better Builder Magazine, Issue 13 / Spring 2015
Better Builder Magazine

Daikin commercial heating brochure
Daikin commercial  heating brochureDaikin commercial  heating brochure
Daikin commercial heating brochure
Canzonet Ltd

EnergyBank Presentation
EnergyBank PresentationEnergyBank Presentation
EnergyBank Presentation
WesKam

Transitioning to a clean energy economy (slide deck revised)
Transitioning to a clean energy economy (slide deck revised)Transitioning to a clean energy economy (slide deck revised)
Transitioning to a clean energy economy (slide deck revised)
CGC CGC

Better Builder Magazine, Issue 07 / Fall 2013
Better Builder Magazine, Issue 07 / Fall 2013Better Builder Magazine, Issue 07 / Fall 2013
Better Builder Magazine, Issue 07 / Fall 2013
Better Builder Magazine

Handbook 12-18-15 (1)
Handbook 12-18-15 (1)Handbook 12-18-15 (1)
Handbook 12-18-15 (1)
Anna Mortimer

Preben Munch - Creating new Renewable Power from the Sale of Guarantees of Or...
Preben Munch - Creating new Renewable Power from the Sale of Guarantees of Or...Preben Munch - Creating new Renewable Power from the Sale of Guarantees of Or...
Preben Munch - Creating new Renewable Power from the Sale of Guarantees of Or...
Innovation Norway

Better Builder Magazine, Issue 47 / Autumn 2023
Better Builder Magazine, Issue 47 / Autumn 2023 Better Builder Magazine, Issue 47 / Autumn 2023
Better Builder Magazine, Issue 47 / Autumn 2023
Better Builder Magazine

Zero Carbon Homes in the UK
Zero Carbon Homes in the UKZero Carbon Homes in the UK
Zero Carbon Homes in the UK
Worldview Impact Foundation

Delivering On Our Promise
Delivering On Our PromiseDelivering On Our Promise
Delivering On Our Promise
Recurve

Better Builder Magazine, Issue 12 / Winter 2014
Better Builder Magazine, Issue 12 / Winter 2014Better Builder Magazine, Issue 12 / Winter 2014
Better Builder Magazine, Issue 12 / Winter 2014
Better Builder Magazine


Similar to Better Builder Magazine, Issue 20 / Winter 2016 (19)

Better Builder Magazine, Issue 16 / Winter 2015
Better Builder Magazine, Issue 16 / Winter 2015Better Builder Magazine, Issue 16 / Winter 2015
Better Builder Magazine, Issue 16 / Winter 2015

Better Builder Magazine, Issue 06 / Summer 2013
Better Builder Magazine, Issue 06 / Summer 2013Better Builder Magazine, Issue 06 / Summer 2013
Better Builder Magazine, Issue 06 / Summer 2013

Better Builder Issue 8
Better Builder Issue 8Better Builder Issue 8
Better Builder Issue 8

Better Builder Magazine, Issue 08 / Winter 2014
Better Builder Magazine, Issue 08 / Winter 2014Better Builder Magazine, Issue 08 / Winter 2014
Better Builder Magazine, Issue 08 / Winter 2014

Better Builder Magazine, Issue 09 / Spring 2014
Better Builder Magazine, Issue 09 / Spring 2014Better Builder Magazine, Issue 09 / Spring 2014
Better Builder Magazine, Issue 09 / Spring 2014

Better Builder Issue 9
Better Builder Issue 9Better Builder Issue 9
Better Builder Issue 9

Better Builder Magazine, Issue 11 / Fall 2014
Better Builder Magazine, Issue 11 / Fall 2014Better Builder Magazine, Issue 11 / Fall 2014
Better Builder Magazine, Issue 11 / Fall 2014

Better Builder, Issue 14, Summer 2015
Better Builder, Issue 14, Summer 2015Better Builder, Issue 14, Summer 2015
Better Builder, Issue 14, Summer 2015

Better Builder Magazine, Issue 13 / Spring 2015
Better Builder Magazine, Issue 13 / Spring 2015Better Builder Magazine, Issue 13 / Spring 2015
Better Builder Magazine, Issue 13 / Spring 2015

Daikin commercial heating brochure
Daikin commercial  heating brochureDaikin commercial  heating brochure
Daikin commercial heating brochure

EnergyBank Presentation
EnergyBank PresentationEnergyBank Presentation
EnergyBank Presentation

Transitioning to a clean energy economy (slide deck revised)
Transitioning to a clean energy economy (slide deck revised)Transitioning to a clean energy economy (slide deck revised)
Transitioning to a clean energy economy (slide deck revised)

Better Builder Magazine, Issue 07 / Fall 2013
Better Builder Magazine, Issue 07 / Fall 2013Better Builder Magazine, Issue 07 / Fall 2013
Better Builder Magazine, Issue 07 / Fall 2013

Handbook 12-18-15 (1)
Handbook 12-18-15 (1)Handbook 12-18-15 (1)
Handbook 12-18-15 (1)

Preben Munch - Creating new Renewable Power from the Sale of Guarantees of Or...
Preben Munch - Creating new Renewable Power from the Sale of Guarantees of Or...Preben Munch - Creating new Renewable Power from the Sale of Guarantees of Or...
Preben Munch - Creating new Renewable Power from the Sale of Guarantees of Or...

Better Builder Magazine, Issue 47 / Autumn 2023
Better Builder Magazine, Issue 47 / Autumn 2023 Better Builder Magazine, Issue 47 / Autumn 2023
Better Builder Magazine, Issue 47 / Autumn 2023

Zero Carbon Homes in the UK
Zero Carbon Homes in the UKZero Carbon Homes in the UK
Zero Carbon Homes in the UK

Delivering On Our Promise
Delivering On Our PromiseDelivering On Our Promise
Delivering On Our Promise

Better Builder Magazine, Issue 12 / Winter 2014
Better Builder Magazine, Issue 12 / Winter 2014Better Builder Magazine, Issue 12 / Winter 2014
Better Builder Magazine, Issue 12 / Winter 2014


More from Better Builder Magazine

Better Builder Magazine, Issue 49 / Spring 2024
Better Builder Magazine, Issue 49 / Spring 2024Better Builder Magazine, Issue 49 / Spring 2024
Better Builder Magazine, Issue 49 / Spring 2024
Better Builder Magazine

Better Builder Magazine, Issue 48 / Winter 2023
Better Builder Magazine, Issue 48 / Winter 2023Better Builder Magazine, Issue 48 / Winter 2023
Better Builder Magazine, Issue 48 / Winter 2023
Better Builder Magazine

Better Builder Magazine, Issue 46 / Summer 2023
Better Builder Magazine, Issue 46 / Summer 2023Better Builder Magazine, Issue 46 / Summer 2023
Better Builder Magazine, Issue 46 / Summer 2023
Better Builder Magazine

Better Builder Magazine, Issue 45 / Spring 2023
Better Builder Magazine, Issue 45 / Spring 2023Better Builder Magazine, Issue 45 / Spring 2023
Better Builder Magazine, Issue 45 / Spring 2023
Better Builder Magazine

Better Builder Magazine, Issue 44 / Winter 2022
Better Builder Magazine, Issue 44 / Winter 2022Better Builder Magazine, Issue 44 / Winter 2022
Better Builder Magazine, Issue 44 / Winter 2022
Better Builder Magazine

Better Builder Magazine, Issue 43 / Autumn 2022
Better Builder Magazine, Issue 43 / Autumn 2022Better Builder Magazine, Issue 43 / Autumn 2022
Better Builder Magazine, Issue 43 / Autumn 2022
Better Builder Magazine

Better Builder Magazine, Issue 42 / Summer 2022
Better Builder Magazine, Issue 42 / Summer 2022 Better Builder Magazine, Issue 42 / Summer 2022
Better Builder Magazine, Issue 42 / Summer 2022
Better Builder Magazine

Better Builder Magazine, Issue 41 / Spring 2022
Better Builder Magazine, Issue 41 / Spring 2022 Better Builder Magazine, Issue 41 / Spring 2022
Better Builder Magazine, Issue 41 / Spring 2022
Better Builder Magazine

Better Builder Magazine, Issue 34 / Summer 2020
Better Builder Magazine, Issue 34 / Summer 2020Better Builder Magazine, Issue 34 / Summer 2020
Better Builder Magazine, Issue 34 / Summer 2020
Better Builder Magazine

Better Builder, Issue 33 / Spring 2020
Better Builder, Issue 33 / Spring 2020Better Builder, Issue 33 / Spring 2020
Better Builder, Issue 33 / Spring 2020
Better Builder Magazine

Better Builder Magazine, Issue 29 / Spring 2019
Better Builder Magazine, Issue 29 / Spring 2019 Better Builder Magazine, Issue 29 / Spring 2019
Better Builder Magazine, Issue 29 / Spring 2019
Better Builder Magazine

Better Builder Magazine, Issue 28 / Winter 2018
Better Builder Magazine, Issue 28 / Winter 2018Better Builder Magazine, Issue 28 / Winter 2018
Better Builder Magazine, Issue 28 / Winter 2018
Better Builder Magazine

Better Builder Magazine, Issue 27 / Fall 2018
Better Builder Magazine, Issue 27 / Fall 2018Better Builder Magazine, Issue 27 / Fall 2018
Better Builder Magazine, Issue 27 / Fall 2018
Better Builder Magazine

Better Builder Magazine, Issue 26 / Summer 2018
Better Builder Magazine, Issue 26 / Summer 2018Better Builder Magazine, Issue 26 / Summer 2018
Better Builder Magazine, Issue 26 / Summer 2018
Better Builder Magazine

Better Builder Magazine, Issue 25 / Spring 2018
Better Builder Magazine, Issue 25 / Spring 2018Better Builder Magazine, Issue 25 / Spring 2018
Better Builder Magazine, Issue 25 / Spring 2018
Better Builder Magazine

Better Builder Magazine, Issue 24 / Winter 2017
Better Builder Magazine, Issue 24 / Winter 2017Better Builder Magazine, Issue 24 / Winter 2017
Better Builder Magazine, Issue 24 / Winter 2017
Better Builder Magazine


More from Better Builder Magazine (16)

Better Builder Magazine, Issue 49 / Spring 2024
Better Builder Magazine, Issue 49 / Spring 2024Better Builder Magazine, Issue 49 / Spring 2024
Better Builder Magazine, Issue 49 / Spring 2024

Better Builder Magazine, Issue 48 / Winter 2023
Better Builder Magazine, Issue 48 / Winter 2023Better Builder Magazine, Issue 48 / Winter 2023
Better Builder Magazine, Issue 48 / Winter 2023

Better Builder Magazine, Issue 46 / Summer 2023
Better Builder Magazine, Issue 46 / Summer 2023Better Builder Magazine, Issue 46 / Summer 2023
Better Builder Magazine, Issue 46 / Summer 2023

Better Builder Magazine, Issue 45 / Spring 2023
Better Builder Magazine, Issue 45 / Spring 2023Better Builder Magazine, Issue 45 / Spring 2023
Better Builder Magazine, Issue 45 / Spring 2023

Better Builder Magazine, Issue 44 / Winter 2022
Better Builder Magazine, Issue 44 / Winter 2022Better Builder Magazine, Issue 44 / Winter 2022
Better Builder Magazine, Issue 44 / Winter 2022

Better Builder Magazine, Issue 43 / Autumn 2022
Better Builder Magazine, Issue 43 / Autumn 2022Better Builder Magazine, Issue 43 / Autumn 2022
Better Builder Magazine, Issue 43 / Autumn 2022

Better Builder Magazine, Issue 42 / Summer 2022
Better Builder Magazine, Issue 42 / Summer 2022 Better Builder Magazine, Issue 42 / Summer 2022
Better Builder Magazine, Issue 42 / Summer 2022

Better Builder Magazine, Issue 41 / Spring 2022
Better Builder Magazine, Issue 41 / Spring 2022 Better Builder Magazine, Issue 41 / Spring 2022
Better Builder Magazine, Issue 41 / Spring 2022

Better Builder Magazine, Issue 34 / Summer 2020
Better Builder Magazine, Issue 34 / Summer 2020Better Builder Magazine, Issue 34 / Summer 2020
Better Builder Magazine, Issue 34 / Summer 2020

Better Builder, Issue 33 / Spring 2020
Better Builder, Issue 33 / Spring 2020Better Builder, Issue 33 / Spring 2020
Better Builder, Issue 33 / Spring 2020

Better Builder Magazine, Issue 29 / Spring 2019
Better Builder Magazine, Issue 29 / Spring 2019 Better Builder Magazine, Issue 29 / Spring 2019
Better Builder Magazine, Issue 29 / Spring 2019

Better Builder Magazine, Issue 28 / Winter 2018
Better Builder Magazine, Issue 28 / Winter 2018Better Builder Magazine, Issue 28 / Winter 2018
Better Builder Magazine, Issue 28 / Winter 2018

Better Builder Magazine, Issue 27 / Fall 2018
Better Builder Magazine, Issue 27 / Fall 2018Better Builder Magazine, Issue 27 / Fall 2018
Better Builder Magazine, Issue 27 / Fall 2018

Better Builder Magazine, Issue 26 / Summer 2018
Better Builder Magazine, Issue 26 / Summer 2018Better Builder Magazine, Issue 26 / Summer 2018
Better Builder Magazine, Issue 26 / Summer 2018

Better Builder Magazine, Issue 25 / Spring 2018
Better Builder Magazine, Issue 25 / Spring 2018Better Builder Magazine, Issue 25 / Spring 2018
Better Builder Magazine, Issue 25 / Spring 2018

Better Builder Magazine, Issue 24 / Winter 2017
Better Builder Magazine, Issue 24 / Winter 2017Better Builder Magazine, Issue 24 / Winter 2017
Better Builder Magazine, Issue 24 / Winter 2017


Recently uploaded

How Social Media Hackers Help You to See Your Wife's Message.pdf
How Social Media Hackers Help You to See Your Wife's Message.pdfHow Social Media Hackers Help You to See Your Wife's Message.pdf
How Social Media Hackers Help You to See Your Wife's Message.pdf
HackersList

RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptxRPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
SynapseIndia

How RPA Help in the Transportation and Logistics Industry.pptx
How RPA Help in the Transportation and Logistics Industry.pptxHow RPA Help in the Transportation and Logistics Industry.pptx
How RPA Help in the Transportation and Logistics Industry.pptx
SynapseIndia

Google I/O Extended Harare Merged Slides
Google I/O Extended Harare Merged SlidesGoogle I/O Extended Harare Merged Slides
Google I/O Extended Harare Merged Slides
Google Developer Group - Harare

"Mastering Graphic Design: Essential Tips and Tricks for Beginners and Profes...
"Mastering Graphic Design: Essential Tips and Tricks for Beginners and Profes..."Mastering Graphic Design: Essential Tips and Tricks for Beginners and Profes...
"Mastering Graphic Design: Essential Tips and Tricks for Beginners and Profes...
Anant Gupta

find out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challengesfind out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challenges
huseindihon

Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Muhammad Ali

[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
Kief Morris

WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdfWhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
ArgaBisma

Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - MydbopsScaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Mydbops

High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
bhumivarma35300

High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
aslasdfmkhan4750

Implementations of Fused Deposition Modeling in real world
Implementations of Fused Deposition Modeling  in real worldImplementations of Fused Deposition Modeling  in real world
Implementations of Fused Deposition Modeling in real world
Emerging Tech

CiscoIconsLibrary cours de réseau VLAN.ppt
CiscoIconsLibrary cours de réseau VLAN.pptCiscoIconsLibrary cours de réseau VLAN.ppt
CiscoIconsLibrary cours de réseau VLAN.ppt
moinahousna

Opencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of MünsterOpencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of Münster
Matthias Neugebauer

The Role of IoT in Australian Mobile App Development - PDF Guide
The Role of IoT in Australian Mobile App Development - PDF GuideThe Role of IoT in Australian Mobile App Development - PDF Guide
The Role of IoT in Australian Mobile App Development - PDF Guide
Shiv Technolabs

Introduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptxIntroduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptx
313mohammedarshad

Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy
Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyyActive Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy
Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy
RaminGhanbari2

Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
sunilverma7884

(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
Priyanka Aash


Recently uploaded (20)

How Social Media Hackers Help You to See Your Wife's Message.pdf
How Social Media Hackers Help You to See Your Wife's Message.pdfHow Social Media Hackers Help You to See Your Wife's Message.pdf
How Social Media Hackers Help You to See Your Wife's Message.pdf

RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptxRPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx

How RPA Help in the Transportation and Logistics Industry.pptx
How RPA Help in the Transportation and Logistics Industry.pptxHow RPA Help in the Transportation and Logistics Industry.pptx
How RPA Help in the Transportation and Logistics Industry.pptx

Google I/O Extended Harare Merged Slides
Google I/O Extended Harare Merged SlidesGoogle I/O Extended Harare Merged Slides
Google I/O Extended Harare Merged Slides

"Mastering Graphic Design: Essential Tips and Tricks for Beginners and Profes...
"Mastering Graphic Design: Essential Tips and Tricks for Beginners and Profes..."Mastering Graphic Design: Essential Tips and Tricks for Beginners and Profes...
"Mastering Graphic Design: Essential Tips and Tricks for Beginners and Profes...

find out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challengesfind out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challenges

Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)

[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf

WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdfWhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf

Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - MydbopsScaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops

High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...

High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...

Implementations of Fused Deposition Modeling in real world
Implementations of Fused Deposition Modeling  in real worldImplementations of Fused Deposition Modeling  in real world
Implementations of Fused Deposition Modeling in real world

CiscoIconsLibrary cours de réseau VLAN.ppt
CiscoIconsLibrary cours de réseau VLAN.pptCiscoIconsLibrary cours de réseau VLAN.ppt
CiscoIconsLibrary cours de réseau VLAN.ppt

Opencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of MünsterOpencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of Münster

The Role of IoT in Australian Mobile App Development - PDF Guide
The Role of IoT in Australian Mobile App Development - PDF GuideThe Role of IoT in Australian Mobile App Development - PDF Guide
The Role of IoT in Australian Mobile App Development - PDF Guide

Introduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptxIntroduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptx

Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy
Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyyActive Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy
Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy

Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery

(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...


Better Builder Magazine, Issue 20 / Winter 2016

  • 1. ISSUE 20 | WINTER 2016PUBLICATIONNUMBER42408014 Brookfield Blazes Own Trail Near Zero at Echo Haven Refining HRV/ERV Choices Exceptional Customer Service Outstanding Custom Home Clean50 Award Winner Proofing THIRD ANNUAL ISSUE IN THIS ISSUE Future
  • 2. A b r e a t h o f f r e s h a i r . MAX SERVICE All mechanical and electrical components are accessible from the front of the unit. Heating coil and fan/motor slide out for easy service. One of the most extensive warranties in the business:1-year parts & labour,2-years on parts only,where applicable. MAX COMFORT With the increased efficiency of this optional Electronically Commuted Motor (ECM), homeowners will be free to cycle air continuously with a minimal increase in electricity cost. Continuous fan operation helps improve filtration,reduce temperature variations,and helps keep the air clear of dust and allergens – making your customers’ homes more comfortable. Mini Ducted Hi-Velocity Air Handling System Optional Prioritizing of Comfort Levels with Energy Savings MAX SPACE SAVER The MAXAIR fan coil is so compact that it fits anywhere:laundry room,attic,crawl space,you can even place it in a closet. It can be installed in new or existing homes. It takes less than 1/3 of the space of a conventional heating and air conditioning unit. MAX ENERGY SAVINGS Energy savings,temperature control and comfort levels are achieved in individual levels of the home by prioritizing the requirements.This is achieved by installing optional space thermostats. If any area calls for heating or cooling, the individual thermostat allows the space it serves to achieve optimum comfort and still maintain continuous air circulation throughout the home. This method of prioritizing is a great energy savings measure while offering an increased comfort level to the home owner. FLEXAIRTM DISTRIBUTION SYSTEM MAX FLEXIBILITY The supply outlets can be placed in the wall, ceiling or floor. Each unit has four choices of locations for the return air connections. The FLEXAIR™ insulated 2½" supply duct will fit in a standard 2"x 4" wall cavity. Can be mounted for vertical or horizontal airflow. Can be combined with humidifiers,high efficiency air cleaners or ERVs / HRVs. Snap-together branch duct and diffuser connections. MAX ELECTRICAL SAVINGS ECMs are ultra-high-efficient programmable brushless DC motors that are more efficient than the permanently split capacitor (PSC) motors used in most residential furnaces.This is especially true at lower speeds used for continuous circulation in many new homes. 1-800-453-6669 905-951-0022519-578-5560613-966-5643 416-213-1555 877-254-4729905-264-1414 For distribution of Air Max Technologies products call www.airmaxtechnologies.com209 Citation Drive, Units 5&6, Concord, ON L4K 2Y8, Canada
  • 3. BETTERBUILDER.CA | ISSUE 20 | WINTER 2016 16 1 PUBLISHER’S NOTE 2 Everything in Moderation by John Godden THE BADA TEST 3 The Planning Act, the Ontario Building Code, Energy Efficiency and Building Permits by Lou Bada INDUSTRY NEWS 6 Ontario’s Mandatory Home Energy Rating and Disclosure Program by Patricia Duffy 10 Dow Celebrates 75 Years of Innovation with STYROFOAM™ by Dow & Better Builder Staff 20 Near Zero at Echo Haven by Alex Newman 29 New, Higher Performing Insulated Exterior Sheathing by Amvic INDUSTRY EXPERT 12 Refining Your HRV/ERV Choices by Gord Cooke 14 Exceptional Customer Service by Michael Lio BUILDER NEWS 9 Congratulations Award Winners by Better Builder Staff 24 Translating and Quantifying Appraisal Value for Better Than Code Homes by Teresa Lopez SITE SPECIFIC 27 Meet Clean50 Award Winner Candice Luck by Alex Newman FROM THE GROUND UP 31 The 2017 SB-12 by Doug Tarry FEATURE STORY 16 Brookfield Blazes Own Trail North American builder continues to innovate in energy efficient housing by Rob Blackstien 9 20 ISSUE 20 | WINTER 2016 On our cover: CHOATphotographer / SHUTTERSTOCK Images internally supplied unless otherwise credited. 27
  • 4. BETTERBUILDER.CA | ISSUE 20 | WINTER 20162 T here are two axioms I live by: (1) there are no absolutes and (2) moderation is key. In home building, the terms “net zero” or “zero carbon” convey lofty goals – but they smack of extremism. I much prefer the terms “near zero” or “low carbon,” which imply a process or continuum over a longer timeframe and are more pragmatic for discussing the reduction of greenhouse gas emissions (GHGEs). The past two building code cycles have singled out low-rise housing to reduce GHGEs. The 2017 reference house built to package A1 has a small load at 28,000 BTU/hour at the outdoor winter design temperature – a 43.5% reduction in GHGEs from 1990 levels. Current reduction targets are set at 30%. This means that new homes have already surpassed this goal and are subject to diminishing returns from further upgrades to the envelope. The package A1 homes produce 4.7 tonnes of GHGEs annually. The average gasoline-powered car produces 5.0 tonnes. With current provincial incentives, an electric car would cost approximately $20,000, completely offsetting the footprint of the new house. The cost of the GHGE reduction is about $4,000 per tonne. A net zero approach increases the price tag of a home by $75,000, equaling $15000 per tonne for the GHGE reduction. The provincial government would be wise to incentivize charging stations for electric cars in new homes rather than push the construction of net zero houses. Electric heat pumps, used in many net zero homes, are another factor to consider. Heat pumps use refrigerants like R410A, which are 2,000 times more damaging to the atmosphere than C02 if released. The wide adoption of heat pumps in net zero homes could actually increase demand for electricity. In Ontario, nuclear reactors run 24/7. At night or off-peak hours, they have “stranded capacity” (a surplus). This excess power could be used to charge electric cars or solar battery storage systems for use during the day. Nuclear energy has been described as efficient and clean. In contrast, centrally generated power can lose up to 15% of energy in transmission, and Ontario Power Generation is facing an estimated $24 billion cost to store two million highly radioactive fuel bundles (their deep storage plan hasn’t been approved). We all know renewable energy is the right answer for the long term. But should nuclear energy be the bridging fuel in the short term? A well-insulated hybrid home with a small combination heating system and a solar battery storage system makes sense to me. A mixed fuel approach will produce less GHGEs and nuclear waste, helping us get to near zero. So the next time you’re constructing a new code building, just remember: everything in moderation. Good luck. BB Everything in Moderation PUBLISHER Better Builder Magazine 63 Blair Street Toronto ON M4B 3N5 416-481-4218 | fax 416-481-4695 sales@betterbuilder.ca Better Builder Magazine is a sponsor of PUBLISHING EDITOR John B. Godden MANAGING EDITOR Wendy Shami editorial@betterbuilder.ca To advertise, contribute a story, or join our distribution list, please contact sales@betterbuilder.ca FEATURE WRITERS Rob Blackstien, Alex Newman PROOFREADING Carmen Siu CREATIVE Wallflower Design www.wallflowerdesign.com This magazine brings together premium product manufacturers and leading builders to create better, differentiated homes and buildings that use less energy, save water and reduce our impact on the environment. PUBLICATION NUMBER 42408014 Copyright by Better Builder Magazine. Contents may not be reprinted or reproduced without written permission. The opinions expressed herein are exclusively those of the authors and assumed to be original work. Better Builder Magazine cannot be held liable for any damage as a result of publishing such works. TRADEMARK DISCLAIMER All company and/or product names may be trade names, trademarks and/or registered trademarks of the respective owners with which they are associated. UNDELIVERABLE MAIL Better Builder Magazine 63 Blair Street Toronto ON M4B 3N5 Better Builder Magazine is published four times a year. publisher’snote / JOHN GODDEN John Godden Alex Newman Gord Cooke Michael Lio Lou Bada Doug Tarry CONTRIBUTORS
  • 5. BETTERBUILDER.CA | ISSUE 20 | WINTER 2016 3 O ne person I have a lot of time to talk about new housing with is Richard Lyall, President of the Residential Construction Council of Ontario (RESCON). In RESCON’s latest newsletter, Lyall represents most high-, mid- and low-rise GTA new home builders when he rightly points out the following: “The provincial government’s plans to eliminate sprawl and rapidly pursue net-zero new housing are going to put new housing shelter further out of reach for working families. While there is no doubt we need to curb sprawl, intensify, and cut energy use and greenhouse gas emissions, it can’t be on the back of new housing supply.” So why does the homebuilding industry have a big red bull’s eye on its back? Why is it targeted by our governments so often? Please forgive the following lesson in civics. Legislation and regulation are the tools of the four levels of government by which they implement policy, ostensibly for the public good. The public good is a subjective political matter and should be determined through an open public discourse. Hopefully it is arrived at with some goodwill and based on sound evidence, a cost–benefit analysis and good advice (and, dare I add, common sense). Theoretically, compliance with rules and regulations should be straightforward if the debate on public policy has already been settled. Unfortunately, compliance is neither simple nor easy. In Ontario, we have the Planning Act and the Building Code Act. Within the lengthy Planning Act, it clearly states: “Part IV. Exclusions for Site Plan Control: “3. The manner of construction and standards for construction 2006, c.23, s.16(5).” Essentially, this means that the municipal approving authority does not have jurisdiction in determining how we build when reviewing a development proposal. How a builder goes about building would be the purview of the provincial Building Code Act (for good reason). The Planning Act, however, gives lower- tier governments the ability to review development applications through the lens of what they deem desirable or appropriate for the municipality and gives them the right to enter into “voluntary” agreements with parties towards that end. I won’t mince words here: the word should be “extorting,” not “voluntary.” Here’s why: these “voluntary” undertakings involve many facets of development, have many financial consequences adding to the cost of already unaffordable housing, and also often increase the required energy efficiency of buildings (standards of construction) within a development proposal, further eroding affordability without regard to costs and benefits. In an already excruciatingly long process, municipalities delay approvals if a developer doesn’t sign on. In an environment of constrained housing supply, it only makes matters worse. Anyone trying to assert their rights with a municipality on the written word of the Planning Act is in for a very rude awakening. On the other hand, when we look to the Building Code Act and its regula­ tions, SB-12 in particular has prescrip­ tive compliance paths and perform­ ance path methods of compliance. The proprietary ENERGY STAR label has also been accepted as a method of compliance. ENERGY STAR as a prescriptive alternative shouldn’t be problematic if it is truly voluntary and if there is a rational, workable and flexible way of dealing with the performance path method of compli­ ance. Unfortunately, neither is true. I would challenge anyone to deal with alternative methods of compliance for any Ontario Building Code (OBC) regulation, or SB-12 for that matter, as a normal course of business in most municipal building departments. See if you come out of that situation with a satisfying The Planning Act, the Ontario Building Code, Energy Efficiency and Building Permits thebadatest / LOU BADA Total Household Energy Usage by Year of Construction 2000 Ontario Building Code 171.9 GJ/year 2006 Ontario Building Code 147.9 GJ/year 14% reduction 2012 Ontario Building Code 127.9 GJ/year 26% reduction 2017 Ontario Building Code 96.4 GJ/year 44% reduction
  • 6. BETTERBUILDER.CA | ISSUE 20 | WINTER 20164 outcome. Trying to propose an equivalent energy efficiency standard to ENERGY STAR with the municipal planning departments to meet their imposed voluntary agreements and council’s political aspirations is even more daunting. Honestly, municipalities do not have the resources to deal with evaluating, assessing and verifying alternative solutions for building, even though the OBC regulations have allowances for them. This is exacerbated by the fact that some municipal councils are looking to get even further ahead of the OBC with experimental and expensive net zero and net zero-ready homes through the approvals process. This is an overly ambitious, foolhardy approach by the Ontario and municipal governments, especially without a robust discussion with its industry partners to develop a flexible approach to achieve reductions in greenhouse gas emissions. I honestly believe that the success of these government targets is in jeopardy without providing the flexibility we require. We’re not asking for much – but a continued strong dialogue and partnership is a place to start. Frankly, governments may want to consider taking a break from penalizing our industry and consumers even further and allowing the industry to flourish and continue to drive this province’s economy (as well as make a huge impact on Canada’s overall economy). The misguided beliefs that we can grow and progress through innovation in the current regulatory environment are unachievable. If we need to provide consumers a choice of housing types, build more affordable housing and thrive as an industry, we need governments to roll out the red carpet instead of the red tape. BB Lou Bada is vice president of low- rise construction at Starlane Home Corporation and is on the board of directors for RESCON. vanee.ca All these products meet ENERGY STAR’s higher standards For more information or to order, contact your local distributor. vänEE 100H vänEE 200HvänEE 60H vänEE 60H-V+ vänEE 90H-V ECMvänEE 40H+vänEE 90H-V+ vänEE 60H+ vänEE 50H1001 HRV vänEE Gold Series 2001 HRV vänEE Gold Series vänEE air exchangers: improved line-up meets ENERGY STAR® standards Superior Energy Efficiency Ideal for LEED homes and new building codes 5-year warranty* FRESH AIR JUST GOT GREENER *ON MOST MODELS.
  • 7. PANASONIC HAS THE RIGHT PRODUCTS TO BUILD THE RIGHT HOME go.panasonic.ca/build Learn more about Panasonic’s Partnership Program for rebates, co-branding and value added programs for your buyers and employees
  • 8. BETTERBUILDER.CA | ISSUE 20 | WINTER 20166 industrynews / PATRICIA DUFFY A s we have been hearing now for several years, ever since the adoption of the Green Energy Act in 2009, Ontario has had a conservation-first focus – and this includes the authority to implement a home energy rating and disclosure program. The reality of such a program came into sharper focus with the release last June of the Climate Change Action Plan: “7.1 Provide free energy audits for pre-sale homes “Energy audits would be required before a new or existing single-family home can be listed for sale, and the energy rating will be included in the real estate listing. These audits are intended to be provided free of charge under this plan. The Home Energy Rating and Disclosure program will improve consumer awareness by allowing homebuyers to compare homes by energy rating. It will also encourage uptake of retrofit incentive programs. To meet the expected demand for home energy auditors, Ontario will support development of energy audit training programs and will further consult before launching this program in 2019.” The board of directors for both the Canadian Residential Energy Services Network (CRESNET) and the Sustainable Housing Foundation (SHF) have made a commitment to engage in a lobby effort with the provincial government to ensure that the politicians voting on the implementation of any regulations around this proposal are aware of the complexity of the issues involved in a mandatory program. Both organizations are also reaching out to other organizations and partnering with them to ensure a coordinated lobby effort with all political parties is undertaken. After all, there will be a provincial election between now and the proposed 2019 launch date! July 8, 2016 CRESNET and SHF board members meet with John Yakabuski, Progressive Conservative energy critic. September 14, 2016 CRESNET and SHF board members meet with Lisa Thompson, Progressive Conservative climate change critic. October 6, 2016 CRESNET and RESCON meet with members of Glen Murray’s staff, Ministry of the Environment and Climate Change. BB Patricia Duffy is executive director of CRESNET and the Sustainable Housing Foundation. Making Our Voice Heard: Ontario’s Mandatory Home Energy Rating and Disclosure Program Both organizations are reaching out to ensure a coordinated lobby effort is undertaken with all political parties. (L to R) Patricia Duffy, John Godden, The Honourable John Yakabuski and Michael White.
  • 9. BETTERBUILDER.CA | ISSUE 20 | WINTER 2016 7 Save more. Worry less. Professionals who install Uponor PEX plumbing, radiant floor heating, and fire sprinkler systems report faster installation times, fewer callbacks and greater peace of mind. Exceptional products, tools and support. Uponor. Tested in the lab. Proven in the field. Connect with Uponor. Connect with confidence. PEX PLUMBING FIRE SPRINKLER SYSTEMS RADIANT HEATING & COOLING PRE-INSULATED PIPEFind your solution at www.uponor.ca
  • 10. BETTERBUILDER.CA | ISSUE 20 | WINTER 2016 Barrie, GTA West, GTA North Eric Byle | 416-937-8793 Toronto East Al Crost | 416-676-0168 Available to water heater customers whose equipment is not operational (i.e. no hot water)
  • 11. BETTERBUILDER.CA | ISSUE 20 | WINTER 2016 9 Congratulations Winners of the OHBA Awards of Distinction buildernews / BETTER BUILDER STAFF 63 Yorkview – Toronto Castleform Developments Inc. OHBA Award of Distinction for Room Design 2016 WINNER, Most Outstanding New Home Kitchen (new low-rise home 2001 square feet and over). Peter Voong, president of Castleform Developments Inc., would like to give special thanks to My Design Studio for their creativity in designing the kitchen, and D.O.T. Custom Millwork for the manufacturing and installation. This prestigious award was won two years ago in 2014 with the same designer and manufacturer. “It’s great to be working with talented people in the industry,” says Peter Voong. “The people that I surround myself with, I consider them part of the Castleform team. This shows you that great things are achievable when everyone works together as a team.” The Twisted Willow – Brighton Gordon Tobey Developments Ltd. OHBA Awards of Distinction for Architectural Design 2016 WINNER, Most Outstanding Custom Home (up to 3000 square feet). Credit to Monaghan Lumber Specialties, Hollandale Nurseries Ltd., Clearsphere. Additional recognition: CHBA National Awards, Housing Excellence 2016 FINALIST, Custom Homes Detached (from 2,500 – 3,500 square feet). RESNET Cross Border Home Builder Challenge San Diego, California 2015 WINNER, awarded to the Canadian custom home builder with the lowest Home Energy Rating System (HERS) score with a HERS rating of 36. Heather and Steve Tobey celebrate their award. Castleform Developments’ award-winning kitchen.
  • 12. BETTERBUILDER.CA | ISSUE 20 | WINTER 201610 industrynews / DOW BETTER BUILDER STAFF Rooted in sustainable technology, STYROFOAM™ facilitates a future of innovation in the building and construction industry Dow Building Solutions (DBS), a business unit of The Dow Chemical Company, is celebrating the 75 year anniversary of STYRO­FOAM™ Brand XPS Insulation, which has continued to facilitate sustain­ability, innovation and community success in the building and construc­tion industry since its discovery in 1941. Dow marked the anniversary while attending the 2016 NAHB Inter- national Builders’ Show® , among the largest annual light construction shows in the world, that brings together the industry’s most important global manufacturers and suppliers. Builders today face a bewildering number of products and technologies promising better building perform­ ance. Dow’s portfolio-based approach offers solutions for the entire building envelope, offering energy efficiency that can stand the test of time. STYROFOAM™ has a long and rich heritage as a sustainable building product, insulating to meeting core thermal, moisture, air and vapour performance requirements through its rigid foam board technology. Over its lifetime, STYROFOAM™ can help save more than 30 times the energy embodied in it. STYROFOAM™ has been part of Dow’s commitment to sustainable chemistry innovations for the last 75 years and will expand this legacy well into the future through continual optimization of building energy efficiency and performance. Dow has been a proud national insulation partner of Habitat for Humanity, with STYROFOAM™ donations leading Dow’s pledge to the address the need of affordable housing around the globe. More than 2,500 Habitat builds in 2015 used Dow products to help home­ owners reduce their home’s overall natural gas and electricity usage. “New possibilities for resilient, energy efficient and well-designed homes and buildings are being realized in neighbourhoods and communities around the world thanks to imagination, science and engineering,” said Tim Lacey, global business director for Dow Building Solutions. “We are proud to offer 75 years of product innovation that addresses the need for long-term value as a sustainable building solution and look forward to improving, innovating Dow Celebrates 75 Years of Innovation with STYROFOAM™ Rear view of Brookfield Discovery house. Dow CLADMATE™ CM20 was used as insulated sheathing plus air barrier and weather resistant barrier, which Dow calls the Total Barrier System. Third-party tested per CAN ULC S741 S742 as referenced in 2015 National Building Code (NBC).
  • 13. BETTERBUILDER.CA | ISSUE 20 | WINTER 2016 11 Dow’s full house of insulation, air sealants and adhesives work together to create an airtight, moisture resistant structure from roof to foundation, helping builders and contractors meet or exceed building codes, reduce callbacks and create a comfortable, durable, energy efficient structure for their customers. Dow BuilDing SolutionS 1-866-583-BluE (2583) www.insulateyourhome.ca ®™The DOW Diamond Logo is a trademark of The Dow Chemical Company © 2014 Whole-House SolutionstHAt HElP BuilDERS AnD ContRACtoRS outPERFoRM and perfecting building envelope science well into the future.” About Dow Building Solutions Dow Building Solutions serves the residential and commercial building and construction markets with an industry-leading portfolio of products and integrated systems designed to insulate and seal the whole house. Beginning more than 70 years ago with our flagship STYROFOAM™ Brand Extruded Polystyrene (XPS) Foam Insulation, Dow has continued to offer innovative insulation, weatherization and air sealing solutions that work behind the scenes – above grade, below grade – to help builders and contractors deliver more comfortable, durable and affordable homes. Follow Dow Building Solutions on Facebook, Twitter, and LinkedIn or subscribe to our News Release RSS Feed. About Dow Dow combines the power of science and technology to passionately innovate what is essential to human progress. The Company is driving innovations that extract value from the intersection of chemical, physical and biological sciences to help address many of the world’s most challenging problems such as the need for clean water, clean energy generation and conservation, and increasing agricultural productivity. Dow’s integrated, market-driven, industry- leading portfolio of specialty chemical, advanced materials, agrosciences and plastics businesses delivers a broad range of technology-based products and solutions to customers in approximately 180 countries and in high-growth sectors such as packaging, electronics, water, coatings and agriculture. In 2014, Dow had annual sales of more than $58 billion and employed approximately 53,000 people worldwide. The Company’s more than 6,000 product families are manufactured at 201 sites in 35 countries across the globe. BB References to “Dow” or the “Company” mean The Dow Chemical Company and its consolidated subsidiaries unless otherwise expressly noted. More information about Dow can be found at www.dow.com
  • 14. BETTERBUILDER.CA | ISSUE 20 | WINTER 201612 industryexpert / GORD COOKE The changes in SB-12 (2017) should spur you to review and fine tune your HRV and ERV selections to take advantage of the hard work manufacturers have put in to provide cost-effective solutions to meet the new prescriptive and performance pathways described in the code. One significant change in the 2017 code requirements is the addition of the following words: “the minimum SRE (Sensible Recovery Efficiency) required is based on a test temperature of 0 °C at an air flow rate equal to the principle exhaust flow but need not exceed 30 L/s.” In previous codes, an HRV or ERV efficiency could be selected at any airflow. Now, it is tied to the principal ventilation rate of the house. The example below should help illustrate this. It shows the SRE required for prescriptive package A1. If you are going to use one of the prescriptive packages A1 through A6, for homes in southern Ontario, you will be looking for HRVs or ERVs with an SRE of between 65% and 81%, with the most likely packages requiring an SRE of 75%. Fortunately, leading manufacturers such as vänEE and Venmar are responding quickly with cost-effective units that will still fit nicely into the ever-smaller mechanical spaces builders like to provide. This is something you will want to check up on, because higher- efficiency HRVs are by definition bigger, and not all manufacturers will have choices available in compact models. The good news is that all HRVs or ERVs installed in Canada must be independently rated and listed by the Home Ventilating Institute. Just confirm that your HVAC contractor is able to provide you with this independent listing showing that the equipment they are installing meets code requirements. Of course, more thoughtful builders may well decide to use the more flexible performance path options in SB-12. Using REM/Rate or HOT2000, or simply building to ENERGY STAR specifications, allows total flexibility in choices of efficiencies of HRVs or ERVs. For example, if you are using a 65% efficient HRV as part of your ENERGY STAR specifications now, you can continue to use those specifications and that appliance under the 2017 code requirements. In other performance path software evaluations, you will find that higher efficiency HRVs or ERVs may be more cost-effective than other envelope upgrades. For example, choosing one of the new high-performance HRVs or ERVs would offset or allow a builder to reduce basement insulation from R20 back down to R12 or eliminate the need for a drain water heat recovery unit. Ask your energy rater to run some comparisons for you so you can best match your selections with your building process. I do feel inclined to ask you to tune up a few other things now that HRVs are as normal and as common P lease don’t blame me, but the new 2017 Ontario Supplementary Standard SB-12 for energy efficiency requires all Part 9 dwellings to meet the principal ventilation requirements with a heat recovery ventilator (HRV) or energy recovery ventilator (ERV). Certainly I have been an advocate for properly balanced ventilation for over 30 years, but I think most readers will know that this specific new requirement is a natural progression. The requirement for mechanical ventilation first appeared in 1990. With recognition that ventilation without heat recovery can easily represent 15% to 20% of the annual energy loss of a home, it stands to reason there needs to be an energy efficiency requirement on ventilation, in the same way that other house components such as furnaces, water heaters and even windows and walls are required to meet minimum energy efficiency levels. Refining Your HRV/ERV Choices Number Bedrooms Compliance Package Minimum SRE Requirement 0 ºC –25 ºC 1 A1 75% at 15 L/s (31.8 cfm) 55% at 30 L/s (63.6 cfm) 2 A1 75% at 22.5 L/s (47.7 cfm) 55% at 30 L/s (63.6 cfm) 3+ A1 75% at 30 L/s (63.6 cfm) 55% at 30 L/s (63.6 cfm) An example illustrating the SRE required for prescriptive package A1.
  • 15. BETTERBUILDER.CA | ISSUE 20 | WINTER 2016 as furnaces or water heaters. It’s time we cleaned up a few things. Improper installation and balancing of HRVs continues to be the most common defect in ENERGY STAR and other energy programs. This occurs despite extensive efforts by manufacturers and representatives, such as ourselves, to offer training and installation assistance. Here are three things to check in on with your HVAC contractor. I will ask you, the builders, to step up and expect to pay perhaps $30 to $50 more for your installation, but expect the following three improvements: 1. There has been an important change to the fire ratings of insulated flexible duct. You will find that the cheapest of duct, typically characterized by a black or grey plastic outer liner, can no longer meet the required flame spread ratings. As of this fall, you will see that your contractor will be switching to a higher-quality flex that is more durable and has an attractive metalized (silver) jacket, for just $7 to $8 more per 25' length. 2. Ask for better quality exterior hoods. The cheapest hoods have a plastic bird screen on the face of the duct that restricts airflow significantly. In order to get good airflow performance out of the better and better HRVs you are buying, pay $4 to $5 more per hood and get one with a 1/4” mesh wire screen – or better yet, a sloped hood that has a proper rain-screen fitting that minimizes potential water intrusion. 3. Lastly, ask your HVAC contractor to partner with a leading manufacturer to have their installers regularly and repeatedly trained on how to properly balance and verify flow of the units they install. Leading manufacturers offer experienced field personnel to do this at no charge. I suggest a touch-up training every six months or so. It can be done in the field or in their office and takes 45 minutes or less. You will benefit from fewer callbacks due to window condensation and cold air complaints. BB Gord Cooke is president of Building Knowledge Canada. 13 A low-cost hood with a restrictive plastic bird screen. A “tandem” hood that allows fresh air and exhaust air through one-vent penetration for when you have limited wall space for venting. A great hood by Primex that has a built-in brick flange.
  • 16. BETTERBUILDER.CA | ISSUE 20 | WINTER 201614 industryexpert / MICHAEL LIO C ustomer service delivery has become the most important factor contributing to customer satisfaction. Builders are always looking for better ways to understand and to serve their customers. In the 1980s, service culture captured the attention of North America with the publication of landmark books such as In Search of Excellence by Tom Peters and Robert H. Waterman and Service America! by Karl Albrecht and Ron Zemke. A decade later, service companies realized that better service was a business strategy that was critical to their success. Customers would seek out ratings for various products and services such as those from J.D. Power Associates before they buy. Historically, builders have not fared well in customer service. In the earliest Canadian J.D. Power Associates ratings of new home buyer satisfaction in 2005, only 33% of customers responded that they were satisfied with their homes. In the same year, Jim Adair wrote an article in Homes Cottages which also reported that customer service tops the list of complaints about builders, according to focus groups conducted by the Canadian Home Builders’ Association. Less than half of the homeowners in the focus group felt their builder had set realistic expectations and prepared them for what to expect with their new home purchase experience. In 2009, the great recession took its toll on the building industry. The 2009 J.D. Power survey of new home buyer satisfaction in four major Canadian cities reported that satisfaction declined significantly as builders diverted resources away from customer service. Builders today recognize that bad customer service affects customer satisfaction and their reputations. They are eager to adopt practices that improve the efficiency or profitability of their company, but may fail to address customer satisfaction as a critical component to building a resilient organization. Few builders understand the full range of policies and procedures that they can adopt within their companies to enable them to deliver the customer outcomes that they want. In her book, The House that Service Built, Nancy Bandy suggests that for all their good intentions to establish responsive customer-service capabilities, most companies today still can’t tell you exactly what “good” customer service is, or how effective they are in providing it to satisfy their customers’ needs. Bandy defines customer care as the process of understanding, communicating with and supporting the needs of a builder’s customers before, during and after the product is purchased. In fact, the customer experience at each customer contact point needs to be appropriately engineered to produce the desired customer outcomes. This is only possible if each contact point is supported by detailed policies and procedures that guide the actions of the builder’s staff. Builders need to create a service culture that is driven by empathy and that is informed by the customer’s home buying journey. Failing to understand the customer’s journey can mean that the customer’s expectations and the builder’s actions become misaligned. Service strategy should be founded on what customers think, say, feel and do. Understanding the customer’s explicit expectations – and their seldom-spoken implicit expectations – is key. Business schools across North America teach methods that can be used to better understand customers and their needs and expectations. Closing the gap between reality and their expectations minimizes disappointment and improves satisfaction. When the disagreements arise, good builders need to have the tools to be able to dissect the conversation and shift from arguing positions to learning from one another. Good builders recognize the elements of difficult conversations and are able to pivot toward constructive resolution. This Is Exceptional Customer Service Expectations Reality Disappointment
  • 17. BETTERBUILDER.CA | ISSUE 20 | WINTER 2016 15 Learning to listen, to understand and to respond are abilities that require effort and investment on the part of every building company. There are proven techniques available to move from confrontation to collaboration. Our new book, This is Exceptional Customer Service: A Definitive Guidebook for Builders, establishes a set of best practices to help builders deliver improved customer satisfaction and achieve the desired customer outcomes. The book identifies the critical contact points between the buyer and the builder, and acts as a catalogue of best practices that the very best Canadian builders have adopted. It identifies the most important factors of service excellence and how to implement them as part of an effective customer service strategy and plan. Whether you’re a new or experienced builder, your reputation hinges on how you treat your customers. The trust that you seek to build every time you engage with your customers depends on the competence and the character of everyone who interacts with your buyers. In the same way that you invested time to learn how to build a house, time must also be invested to learn how to deliver exceptional customer service. In return, you’ll get fantastically loyal customers who drive your reputation and lower your costs. This is Exceptional Customer Service is available from www.buildability.ca/training/. For more information, contact Edith Yu at edith@buildability.ca. BB Michael Lio is the former executive director of the Consumers Council of Canada and the Homeowner Protection Centre. Roof truss and wood sill connection. Simpson Strong Tie MGT system shown Drywall screwed into amvic polypropylene webs as per building code Electrical outlet Wood sub-floor installed as per local building Simpson strong tie ICFLC and wood floor joists connection Amvic insulating concrete forms Amdeck floor roof system Exterior wood siding installed as per local building code Amvic high impact polypropylene webs Acrylic, standard ptucco or eifs applied to exterior face of Amvic ICF Brick veneer Parge face of exposed brick ledge Grade Peel-and-stick waterproofing membrane (or equivalent) as per local building code Perforated weeping tile INSULATED CONCRETEFORMS FOR MORE INFORMATION VISIT: AMVIC.COM Most companies today still can’t tell you exactly what “good” customer service is, or how effective they are in providing it to satisfy their customers’ needs.
  • 18. BETTERBUILDER.CA | ISSUE 20 | WINTER 2016 Brookfield featurestory / ROB BLACKSTIEN The Brookfield Residential home at 4 McCabe Lane in Tottenham, Ontario is 57% better than code. (Rating date October 20, 2016.) HERSSCORE 30
  • 19. BETTERBUILDER.CA | ISSUE 20 | WINTER 2016 17 “The goal here is simple,” explains Bob Stewart, director, land develop­ ment, “build great communities that meet the needs of the present without compromising the ability of future generations to meet their own needs.” Brookfield aims to be ahead of the curve in the development of their communities as well as their home building techniques. In a nutshell, the company’s philosophy is “the best places to call home,” he says. That ethos encompasses all aspects of the process, from land development and design all the way through to the end product and end user. “We try to do the right thing for the community and our stakeholders,” Stewart says. Brookfield’s focus on the future is very much centred on developing more energy-efficient housing – at a cost that won’t bankrupt potential North American builder continues to innovate in the area of energy-efficient housing T he Ontario (Canada) division of Brookfield Residential is celebrating its 60th anniversary this year – but instead of revelling in its past, this North American development giant continues to look towards the future. Brookfield has spread its wings far across North America, currently developing in 12 cities across the continent, with a particular focus in the western U.S., including Hawaii, Los Angeles, San Francisco, Sacramento and San Diego. home owners. This is currently a huge issue in Ontario, with the provincial government’s climate change policy combining with a new Building Code set to be enacted in 2017 that is expected to be among the strictest in the country. This could present a perfect storm for builders trying to grapple with all these changes while continuing to try to provide top-quality housing at a price that hopefully won’t reach the stratosphere. There are many moving parts that make this a big challenge for the building community, Stewart says, not the least of which is the fact that on the building science side of Ontario’s climate change policy, the province is essentially encouraging municipalities to ask for better-than-code standards within proposed communities. This is an issue of concern for the Blazes OwnTrail
  • 20. BETTERBUILDER.CA | ISSUE 20 | WINTER 201618 building community, one which we explored in the summer issue (see “Misguided Municipal Regulation of the Home Building Industry”). It’s especially difficult for builders that develop across the province, as they can be faced with several municipalities asking for varying standards. In a nutshell, the issue is this: the province wants a carbon-free solution, but by pushing electricity – which costs 10 times what natural gas does per energy unit – the price of the home can skyrocket. Achieving net zero energy with solar and high-efficiency electrical products will deliver a HERS (Home Energy Rating System) score of zero (the lower the HERS score, the better). Given the current cost of electricity, including these items is what causes the home costs to rise so significantly. However, given the current price of natural gas, a hybrid home that is also powered by natural gas makes a lot more sense, especially when the end goal is – or at least should be – to save the home owner the most money possible. Brookfield has taken it upon themselves to experiment with different building techniques in an effort to balance high energy efficiency with affordability. This has manifested itself in the company’s discovery home project in Tottenham, Ontario. (See “The Tottenham Discovery Home” sidebar for complete project details.) And yes, staying on brand matters to this company. “Sustainability will continue to be a focus for our brand,” Stewart maintains. That’s why the discovery home project is right in Brookfield’s sweet spot as an innovator. “We pride ourselves on pushing the envelope and seeing what it takes to get to the next level on building science.” The ultimate goal here, Stewart explains, is to take the Tottenham findings and be able to commoditize them in different tiers for homebuyers: If you want a home that’s, say, 20% better than code, this is how you get there, and this is what it will cost. For a home that’s 50% better, here is the process and the price. And so on. By being able to offer their customers packages like this, Brookfield will be able to provide flexible options to home buyers, depending on their specific needs. “We’ve got to try to make this feasible, especially if municipalities are wanting it,” he says. It’s a process of education. Brookfield continues to educate itself through practices like the discovery home, and then passes that knowledge on to municipalities, its trades and its home owners. “So the education is required on all levels,” Stewart says. The other issue facing the industry as we head towards net zero building is figuring out how these homes can be financed. Currently, there seems to be a disconnect between how homes that include major energy-saving features are assessed and, in turn, financed In a nutshell, the issue is this: the province wants a carbon- free solution, but by pushing electricity – which costs 10 times what natural gas does per energy unit – the price of the home can skyrocket. Members of Brookfield’s Near Zero discovery team (L to R) Jimmy Neto, Tiago Moura, Ghazal Kheradpisheh.
  • 21. BETTERBUILDER.CA | ISSUE 20 | WINTER 2016 19 The Tottenham Discovery Home Brookfield is currently building a discovery home in Tottenham, Ontario, that will help drive the company’s direction in energy-efficient housing. The aggressive goal of this near zero energy home was to be 80% better than Building Code standards. It has a HERS rating of 13 and is 77% above code when solar battery storage is included. Among the features of this house are: • Fuel switching: There’s a gas-fired furnace, but also an air conditioner heat pump. In the shoulder months, the heat pump can provide the space heating with the furnace kicking in when it gets really cold outside. • Insulation: There’s two inches of exterior polystyrene foam on the outside (R10), plus Roxul (R24) in the main walls. It’s a panelized home featuring less wood in the cavity, meaning more insulation can be added. • Windows: The home features triple-glazed windows with a U-value of 1.0. • Photovoltaics: Brookfield is considering using the Panasonic solar battery storage system. • Exhaust fans: The home includes Panasonic WhisperGreen fans, which displace more air while using a lot less electricity. • Grey water: Brookfield chose Greyter Water Systems, a unit that supports drain water heat recovery, collecting water in a holding tank to use shower water to flush toilets. —RB see “Translating and Quantifying Appraisal Value for Better-Than-Code Homes” on page 24.) Brookfield has taken notice of this initiative, and Stewart thinks it’s “a possible option on getting the banks to understand what goes into these homes.” Financial institutions don’t tend to deal with shades of grey, so expecting them to understand the value of adding grey water systems could be a difficult task. “It’s that learning curve again and it’s taking a while to get there, but I think a lot of people are onside. It just takes time and the right people to push it.” In the meantime, Brookfield will continue to gather data from its Tottenham home, with full results expected by the end of the year. Stay tuned for a followup report in a future issue once Brookfield shares what it has learned. BB Rob Blackstien is a Toronto-based freelance writer. Pen-Ultimate.ca by banks. It’s become somewhat of a catch-22 as governments are pushing green building, but there aren’t the means within financial institutions to finance these homes based on their true value from a total cost of ownership perspective. Stewart concedes that “it’s a fine line to walk.” The answer may lie in a model conceived by Austin, Texas-based Green Energy Money, Inc. (GEM). GEM provides the financial analysis tools needed to help fund green home building. (For more on GEM, Component Package J Discovery Ceiling w/ Attic R-50 R-60 Ceiling w/o Attic R-31 R-31 Exposed Floor R-31 R-40 AG Walls R-22 R-24+R-10 @ 24” O.C. BG Walls R-12 R-24 + R-5 Slab 600mm R-10 R-10 Slab — R-10 Windows Sliding Doors 1.8 R = 1.0, SHG = 0.20 Skylights 2.8 2.8 Space Heating 94% 96% c/w ECM Space Cooling — 21 SEER VS Heat Pump Domestic Hot Water 67% 90% Eff HRV Efficiency 60% 75% Air Tightness 2.5 1.5 Insulation Grade III I Renewables — 2 x R3-48 Grey Water System — Complete System Lighting — 100% LED Solar — N/A HERS Score 59 30 Energy Consumption (kWh/yr) 41,596 17,804.0 % Better Than Code — 57%
  • 22. BETTERBUILDER.CA | ISSUE 20 | WINTER 201620 buildernews / ALEX NEWMAN What they found was that Echo Haven was developed by four like- minded individuals, on land compiled 10 years before, in a spectacular natural landscape in northwest Calgary. The aim was net zero – homes that produce as much energy as they use – and on creating minimal environmental footprint. With expectations of reducing up to 80% of grid power and zero greenhouse gas emissions, the individuals who bought there would build healthy and efficient homes using solar heating strategies and water conservation initiatives to reduce water consumption by 72%. It was music to Christen’s ears and she immediately told her sister, Amanda Robertson, and brother-in- law, Ronnie Blow. The two couples had always talked about building their own homes, and the community was aligned with what they all believed in. Plus it would allow them to build themselves rather than use a designated builder. The couples lived near each other and spent a lot of time together. But undertaking a building project can test even the best relationships, and Christen admits there were “definitely times when it got tense. But none of us really fights, and we all had the same goal. At the end of the day I get to live beside my sister, brother-in-law and nephew, and that’s the coolest thing. You just have to remember it’s not a forever [construction] process and that there’s an end in sight.” Theirs is the only duplex in Echo Haven, the rest being single-family dwellings. Before securing approvals from the city of Calgary, they needed to demonstrate to the community board of directors that the house would have an EnerGuide rating of 84. To help them with this, they found an architectural draftsperson, Kim Walton of Bow Crow Design, who specializes in green design. “She had been involved in some of the other projects in this community and did the drawings for our duplex,” Christen says. “We worked with her to design the home, and she provided information on the green aspects – window placement and design, R-value of walls and ceiling – and did the design on how to meet those specs. We worked with her to balance what we wanted in our home and how to get the best green design to achieve it.” Walton also put the couples in touch with John Godden, who provided guidance throughout the construction of the project. Most notably, she adds, he did energy modelling and guided them in the duct design to make it as efficient as possible. He also made recommend­ ations on drain water heat recovery, which they will eventually add. A duplex experiences less heat loss from its shared wall, but Walton also aimed to avoid bump-outs to minimize heat loss even more. Cantilevers, for example, are very inefficient, Amanda says. The aim was to “strike the right balance between esthetics and efficiency, and for the most part it’s a box with very few cantilevers.” Each side is 2,000 square feet (not including the basement), with three bedrooms and three baths. At street level are the front doors and a drive down to the garage, which is built under the house and takes up a portion of the basement. The rest of the finished basement features a rec room, home gym and media room. The home at 25 Rockhaven Green in NW Calgary, Alberta has a HERS score of 35 and is 68% better than code. (Rating date October 17, 2016.) O n a crisp fall day two years ago, a bike ride around the neighbourhood set Calgary couple Christen and Jordan Gray on a whole new path. They happened to ride by Echo Haven, a 25-lot subdivision that is aiming for net zero homes. Intrigued, the Grays stopped to investigate, went home to research further and grew more excited about the prospect of building their own home. HERSSCORE 35 Near Zero at Echo Haven
  • 24. BETTERBUILDER.CA | ISSUE 20 | WINTER 201622 The building envelope Because the couples didn’t have the budget to accomplish net zero, they aimed for near zero, which is 50% better than code. This meant beefing up the building envelope, making it tighter so that less energy is consumed. The exterior walls are constructed like a sandwich – a one foot-thick sandwich – with 2' x 4' walls on either side with R-14 bats and the middle gap filled with Roxul R-22 comfort bat insulation, creating an overall R-value of 50 (think extra thick Wonderbread slathered with PBJ and you’ll get the idea). That value doesn’t include the drywall; the roof is filled with loose cellulose fill for an R-value of 50. Under the basement slab, two layers of two-inch rigid foam insulation were added. As Ronnie explains, one typically packs down gravel and then pours the slab – but after they compacted the gravel in place, they added two layers of rigid foam insulation before pouring the concrete slab. As well, the basement’s outside cement walls were covered in rigid foam insulation before exterior cladding was applied. Before adding the drywall, a blower door air test was conducted by Tyler Hermanson of 4elements design, a local Calgary company, in order to identify any leaks in the walls. Triple- glazed windows with multiple coats of low-e argon and selective coatings were used to maximize solar heat gain. Operating awning windows were strategically placed to maximize natural ventilation. As Amanda says, the house is “very cozy” and draft- free, as R-2000 levels of airtightness were achieved. The biggest thing about the energy efficiency of this house is the building envelope, says Christen. After that’s done, you can work on the interior efficiency: HVAC, heat recovery and drain water recovery, right down to LED lights, low VOC finishes and energy-efficient appliances. A key component in the mechanical system was the Zuba central heat pump system by Mitsubishi, which looks like a furnace but isn’t. The community does not have natural gas hookups, because the aim is to eventually go solar to produce electricity. The Zuba has a compressor in the back yard, an air handler inside the mechanical room and a backup heater because Calgary’s harsh winters can dip below –30° C. A Lifebreath high-efficiency double core heat recovery ventilator (HRV) constantly exchanges and circulates fresh air from outside into the house while exhausting stale air from each bathroom. In the ensuite master bathroom, a Panasonic WhisperGreen exhaust fan manages the excess humidity created by the large shower stall with two shower heads. For hot water, they have a hybrid air source heat pump hot water heater, which they purchased through Sears, because it had the best rating on noise and was very efficient, Ronnie says. The water heater will be enhanced by drain water heat recovery, which will be supplied by Renewability. Since the community has no storm sewers – to reduce burden on the city’s storm sewer infrastructure – rainwater runoff is to be managed within each yard and on common grounds by the condo development. (Only common land is under condo ownership, not homes, which owners maintain themselves.) Calgary does not allow grey water recycling at present, but the community plans to implement it when the bylaw changes. Although the houses (at around $480,000) were about 30% more expensive than a regular home, the final cost brought them better insulation, more expensive windows and rough-ins for solar panels and for separate greywater plumbing. The land for each home was $215,000 – but condo ownership gives them access to large common areas like a pond, skating rink and village green. The couples found that construction was more demanding than they expected, especially since all four work full time, but it was also richly rewarding. Jordan oversaw the building envelope, exterior finishing, interior finishing and on-site coordination of trades, while Christen and Amanda researched interior finishing and Christen looked into windows. Ronnie handled plumbing, electrical, HVAC, interior finishing and on-site coordination of trades. The biggest challenge, say Amanda and Ronnie, was having a small child – their son was just a year old through the whole endeavour and, not surprisingly, they are later moving in than Christen and Jordan. Amanda’s advice? “Don’t build a house when you have a one-year-old.” BB Alex Newman is a writer, editor and researcher at www.alexnewmanwriter.com. Calgary Near Zero owner/builders Ronnie Blow and Jordan Gray.
  • 26. BETTERBUILDER.CA | ISSUE 20 | WINTER 201624 buildernews / TERESA LOPEZ Quantifying and monetizing the value of homes built better than code is possible today through a certified third-party Home Energy Rating System (HERS) energy audit as well as education that teaches appraisers and lenders how to interpret and monetize building performance data. The Appraisal Foundation (TAF) provides appraisers with critical tools to make proper comparisons and adjustments to appraisal valuations. Appraisers are now being armed with guidance for homes that are better quality, more durable and energy efficient. Still, many appraisers are not competent in interpreting or adopting green premium guideline adjustments. The potential value the high- performance building market repre­ sents is only beginning to be under­ stood. Collateral in current loan portfolios may be discounted (brown discount) in the near future as inven­ tory and demand increases for homes built beyond code (green premium). Market research and studies show that building performance represents a new era of risk mitigation, and high- performance building can serve as a buffer to those risks. TAF’s 2013 first exposure draft report, Valuation of Green Buildings: Background and Core Competency, included a definition of a brown discount noted in their research: “Potential for obsolescence, also known as the brown discount, for existing buildings that don’t ‘green up’: Just as green buildings that outperform the market may show a value premium, brown buildings that underperform relative to their market may show a discount.” Building science quantifies durability, quality of construction and efficiency. HERS audits provide baselines on energy savings and costs, allowing for an industry- accepted present-value formula calculation. This practice combines a paired sales analysis with an income adjustment for energy savings. Appraisers typically can’t factor the costs associated with high- performance building upgrades in value. However, the costs to operate and the savings can be quantified to make income adjustments in value. This is a critical factor for appraisers who need data in order to support energy cost-savings adjustments and who can now use HERS analysis data. This methodology can impact higher green value premiums in appraisal valuations. A recent Green Energy Money, Inc. (GEM) economic analysis conducted for a Brookfield Residential, Toronto project compares a better-than-code Translating and Quantifying Appraisal Value for Better-Than-Code Homes A s building science and technology continue to evolve, scale and become more affordable, innovative builders are finding ways to meet and exceed mandated energy building code requirements. However, builders are finding that projects built better than code can pose new challenges with trans­ lating the extra costs to buyers, lenders and appraisers, even though the energy savings are at least 50% greater than comparable conventional new homes. ADAPTEDFROMCOSTAR.COM/UPLOADEDFILES/JOSRE/JOURNALPDFS/11.221_248.PDF Green Premium and Brown Discount Appraisal Valuations GREEN PREMIUM • Demand for green • Sufficient supply of green buildings • High-quality asset • Premium value assignment BROWN DISCOUNT • High deferred maintenance-energy operating costs • Low-quality asset • Declining regional markets EARLY ADAPTER MID ADAPTER LATE ADAPTER 2013 2014–2016 TIPPING POINT Critical Mass Mortgage Write-Downs
  • 27. BETTERBUILDER.CA | ISSUE 20 | WINTER 2016 home with and without solar power. The analysis proves the potential return on investment that the savings represent over conventional homes; adding solar actually provides an excellent financial investment. Brookfield’s test cases are proving that building better than code offers greater community and buyer investment potential. Even though the sales price was $40,000 higher due to the solar equipment price (which doesn’t include any rebates or incentives that could reduce the costs), the energy savings and reduced operating expenses can be absorbed in value. Cost benefits also account for a potential future value and can be applied to pay off the loan sooner. GEM developed an energy-efficient rating methodology that includes over 39 points of certified data for appraisers to properly quantify value. GEM offers a nationally accredited (TAF-approved) green appraisal course for appraisers. GEM conducted a beta green appraisal program with several U.S. mortgage lenders from 2014 to 2016. The $38 million loan portfolio conducted in nine U.S. cities achieved a $2.8 million, or an 8% to 10%, green premium appraisal value increase in incremental property value. The portfolio’s HERS Index averaged 41 on 78 loans, all were better than code and over 30% of the portfolio were near- to-net-zero homes producing as much energy as they were using. For more information, visit www.greenenergy. money. BB Teresa Lopez is the CEO of Green Energy Money. 25 BETTER THAN CODE (BTC) HOME ECONOMIC ANALYSIS BTC HOME WITH SOLAR SYSTEM $715,000 SALES PRICE $755,000 45 HERS INDEX 25 $8200–$9000 ESTIMATED VALUE INCREASE $27,000–$30,000 $543 ($45 per month) ENERGY SAVINGS $1799 ($150 per month) 21.8 YEARS POTENTIAL LOAN PAYOFF 20.8 YEARS $34,430 INTEREST SAVINGS @ 3% FOR 25 YEARS (3.29 APR) $46,753 $14,593 FUTURE VALUE (FV) ENERGY SAVINGS @ 3% FOR 20 YEARS $49,222 Brookfield Residential economic comparison between Better Than Code Croyton Model Homes (Toronto, CA) — with and without solar system. 2016©GREENENERGYMONEY,INC.
  • 28. BETTERBUILDER.CA | ISSUE 20 | WINTER 201626
  • 29. BETTERBUILDER.CA | ISSUE 20 | WINTER 2016 As part of the project, Luck was responsible for selecting five participating home builders who would think – and act – outside the box when it came to energy efficiency. In addition to adopting net zero energy in some of the homes within their regular projects, the five home builders would also be “influencers” by educating others in their region – builders and the general public – about the benefits of net zero. The point of the Buildability initiative, Luck says, was to demon­ strate that it was possible to build quality, energy efficient homes that were also affordable. “Cost is obviously an issue,” she admits. “But if we don’t demonstrate that it’s technically feasible, costs will never come down, so our team studied the type of builder who might be ready and able to adopt this.” Finding the five participants wasn’t all that easy, and the team interviewed several builders to ensure that each one would understand the Buildability approach. They also had to be of a certain size, Luck adds, to absorb the higher cost of building the net zero ready housing, since production builders generally keep construction costs down by working assembly-line style. In contrast to the Equilibrium Project launched in 2007 by the Canada Mortgage and Housing Corporation, which invited custom builders constructing homes for families or clients who had “bought into the idea of net zero already,” these five builders took on the task because “it helped them know what their trades were capable of.” Each builder took a different approach to the challenge. In Calgary, Mattamy is offering some of the net zero upgrades as part of their standard package. In Ottawa, Minto is offering a single detached model as a net zero option at an upgrade cost of about 15%. Reid’s Heritage Homes in Guelph has committed to building all of their single detached homes as net zero ready – a strategic move that Luck says will leverage national, and even interna­ tional, presence for this small builder. For these builders, doing better than capacity and being the only one in a particular region to build a set of net zero homes is a point of pride. But the project – and the award – also boosts the builder’s exposure and enhances marketing efforts. They’ve produced videos on each site’s progress so that the public and buyers can see what is being done and when. At the end of the day, though, it’s also a business investment. “They aren’t there out of the goodness of their hearts,” Luck says. “They’re looking at ways to make building better, and we were able to define how this would work for them business-wise.” This is also the first time Natural Resources Canada will provide a label that reflects the modelled energy consumption of a home. Because it produces as much energy as it uses, a net zero home garners a zero rating. But the rating and the attention from Natural Resources Canada were non- existent when the project first began, Luck says. “Nobody was talking about 27 Meet Candice Luck Clean50 Award Winner sitespecific / ALEX NEWMAN I n the recent national Clean50 awards, 50 companies or individuals were honoured for their efforts to “advance the cause of sustainability and clean capitalism in Canada.” Among them was Candice Luck, director of strategy and programs with Buildability. At just 30, she is project leader of Buildability’s $4 million initiative aimed at demonstrating to home builders that building net zero energy homes is technologically feasible. The experience ended up teaching Luck much more: “It wasn’t about the technology itself, but about how people could adopt it and how trades would understand it.”
  • 30. BETTERBUILDER.CA | ISSUE 20 | WINTER 2016 mandating net zero in government. It was only recently when the Climate Change Action Plan came out that this idea of achieving net zero carbon footprint has been all over the news.” Since the five builders are all on the Canadian Housing Council, their involvement in the project helps move the net zero discussion forward. Luck, who has an architecture degree from the University of Toronto, met Buildability’s president Michael Lio when he taught her building science. The course, which explored the “nuts and bolts of the built environment – what went between the walls, how materials interact with environment, the health of the built space,” was challenging. But during the exam, while Luck was “frantically” calculating a difficult R-value equation, Lio tapped her on the shoulder and asked if she would send him a resume. Having already agreed to an internship in New York, she took a pass, but contacted him on her return and accepted a position in his code consulting practice. “It was very educational, we looked a lot at the technical aspects of building.” At the time, Lio was also president of EnerQuality, which had piloted a program to help builders adopt ENERGY STAR. Luck was brought in to help him coordinate meetings and ensure builders met action lists. “I was quite impressed with these people, these executives of building companies, when they talked about the new technology.” But the experience ended up teaching her much more than that: “It wasn’t about the technology itself, the insulation or whatever, but about how people around could adopt the technology and how the trades would understand it, and how important it was for people to understand they were building homes and how much they care about that.” Better Builder would like to congra­ tulate Candice on her achievements and recognize her contributions for making Canada a cleaner country. BB Alex Newman is a writer, editor and researcher at www.alexnewmanwriter.com.
  • 31. BETTERBUILDER.CA | ISSUE 20 | WINTER 2016 A s codes and standards change, it is important to constantly find innovative ways to maintain and improve the quality of a building. For Amvic, that means providing builders with the right products to achieve that quality. That is why SilveRboard Graphite exterior sheathing was developed. SilveRboard® Graphite XS is an expanded polystyrene (EPS) base material that is embedded with carbon “Graphite” particles which increase the thermal performance of the EPS insulation. The Graphite EPS beads reflect radiant heat energy similar to the effect of a mirror that reduces thermal conductivity and increases the material’s ability to resist the flow of heat (or R-value). SilveRboard® Graphite XS is a combination of graphite embedded EPS beads surrounded by air pockets, laminated on both sides with perforated reflective film. 98% of the EPS in SilveRboard® Graphite XS is air; Amvic calls this insulation “engineered air.” “We wanted to provide one of the most energy- efficient, environmentally friendly, sustainable and cost-effective insulation products available today,” says Victor Amend, presi­ dent and CEO of Amvic Building System. “And we did just that.” SilveRboard® Graphite XS performs better than traditional flat-sheet insulation by providing a built-in vapour and air barrier – the colder the climate, the higher the thermal resist­ ance (R-value). This unique property of EPS insulation is not commonly found in other rigid insulation boards. SilveRboard® Graphite XS holds its R-value for the life of the product and is an ideal exterior sheathing for the Canadian environment. SilveRboard® Graphite XS eliminates the need for house wrap and is effectively durable to resist construction site and weather damage. It is also lightweight, easy to handle and highly flexible for radius walls. “This type of insulation is perfect for builders looking for a sheet with reduced thickness that provides more flexible options and a leveled rigid surface for exterior finish materials,” Amend says. “It also accepts taping which adheres quickly and permanently to the SilveRboard film.” SilveRboard® Graphite XS creates a higher performing thermal envelope, maximizes heating and cooling efficiency and improves indoor air quality. It is designed with built-in air and moisture barriers and delivers a higher, long- term, stable R-value. “SilveRboard® Graphite XS is the new innovation of insulation,” says Amend. “It’s designed to build to a higher standard.” BB 29 A higher performing wall sheathing SilveRboard® Graphite XS industrynews / AMVIC
  • 32. BETTERBUILDER.CA | ISSUE 20 | WINTER 201630
  • 33. BETTERBUILDER.CA | ISSUE 20 | WINTER 2016 T he new Ontario Building Code SB-12 takes effect on January 1, 2017. While there are still prescriptive paths (down from 13 to six for natural gas), I think of this as the first performance-based code, and a greater number of builders are likely to choose this path to meet the energy requirements of SB-12. In our stakeholder training sessions, we are outlining the three key objectives the Ministry of Municipal Affairs and Housing had for the 2017 SB-12 regulation: 1) Preserve and reinforce investment in the building envelope; 2) Encourage airtightness and associated depressurization testing (blower door); and 3) Prepare the industry for movement towards net zero-like housing by 2030. The 2017 SB-12 provides several options that builders can use to reduce requirements in other areas by demonstrating an airtightness performance of 2.5 ACH. There are also performance path options to consider, which may provide for more cost-effective building performance designs. There are two constants: first, thermal efficiency cannot be reduced by more than 25%, and second, a heat recovery ventilator (HRV) or energy recovery ventilator (ERV) must be installed. That means you cannot make up for a poorly performing wall assembly by installing a massive solar wall; it also means occupants have the ability to have fresh air all year long. So what does the new SB-12 look like? As noted, there are fewer packages to choose from and an emphasis has been put on the key points above. Package A1 is likely to be the most common path chosen by builders. This path enables builders to use a 2 x 6 wall without rigid insulation and install R20 bag wrap insulation in the basement (up to 8” from the top of the basement slab), windows with an Energy Rating of 25, a 96% efficient furnace, a 75% efficient HRV and a .80 EF rental water heater. Oh, and you have to install a drain water heat recovery unit. But is this a good thing? If everyone is doing it, what is the risk? Are you ready for a deeper conversation about occupant health and comfort weighed against operation costs? I think we can all agree that electricity prices are going to continue to climb over the next decade. And as noted above, we will be building increasingly tighter homes. This combination will result in the need to take a serious look at latent energy (moisture) and how to control it. Let’s talk about windows Energy Rating (ER) is a measure of performance that actually favours heat gain. The higher the rating, the better the window is supposed to perform. But here is the challenge. When you gain heat in a tighter home, it becomes very difficult to get rid of it – to the point where your client will be extremely uncomfortable in rooms with high solar exposure and have to pay a high energy penalty to stay cool. However, this code permits the use of low solar glass on walls exposed to potentially high solar gain. By choosing a window with a low solar heat gain co-efficient (SHGC) and a low U-value, rather than a high ER, you can dramatically reduce heat gain and still have a window that performs well. In our experience, the incremental cost should be only a few hundred dollars. However, by working with your energy rater or HVAC consultant, you should be able to reduce your air conditioner (AC) capacity at least half a ton. Windows account for about half of the heat gain in our homes. Using windows with a low SHGC can reduce the window gain by 50% or more. So 31 The 2017 SB-12 Efficiency and performance vs. occupant health and comfort fromthegroundup / DOUG TARRY Windows account for about half of the heat gain in our homes ... windows with a low SHGC can reduce that gain by at least 50%.
  • 34. BETTERBUILDER.CA | ISSUE 20 | WINTER 201632 if you have a home needing a two- ton AC, it is not unrealistic to see a reduction in the AC sizing of half a ton, which should typically save a few hundred dollars on the cost of the unit. So for effectively no additional cost, you can save your homeowner hundreds of dollars per year on their electrical bill. Best of all, you can avoid the comfort complaint. HRV vs. ERV Let’s be honest: we as builders are now building all of our homes as giant plastic bags and then asking our homeowners to live in them. So we need to consider strategies for controlling excess humidity within the home. Package A1 requires an HRV or ERV with a sensible recovery efficiency (SRE) of 75%. While there are many options for HRVs that meet this requirement, there are very few ERVs that do so. On the other hand, package A6 requires an SRE of only 65%. So builders wanting to use an ERV might wish to choose this path instead. Or, if you are doing blower door testing and can get your home under 2.5 ACH (or equivalent measurement), you can reduce your HRV from 75% to 65%, which again gives you a number of options. So why use an ERV? Because an ERV will help to manage latent energy (moisture) loads. In the wintertime, it can reduce over- drying of the home, whereas an HRV can over-dry the home, causing health and performance issues. If you want to talk about wasted energy, using a humidifier to compensate for an HRV over-drying the home might be one of the worst decisions you can make for a tighter high-performance home. It’s literally pouring money down the drain while creating the potential for indoor air quality issues such as mould. In the summertime, an ERV can reduce the amount of humidity that enters the home, which in turn reduces the load on the air conditioner and improves its performance. By having control over the humidity level of the home, the homeowner will not need to set the temperature as low to maintain comfort. This also helps control humidity levels within the home, reducing the opportunity for problems such as mould buildup and, in most cases, eliminating the need for a dehumidifier and thereby reducing operating costs further. Unfortunately, the new SB-12 does not reflect the importance of controlling latent (moisture) energy. This is an issue that we need to advocate strongly with the Ministry so that better decision options are available for builders and their energy advisors. Performance as an option I understand that there will be markets where the competition for trades, particularly framers, may make it a challenge for builders to build a better performing wall, and that builders may feel that using the R22 wall and R20 blanket wrap is their best option. But what if a builder were able to use these wall options and model the home to meet the energy performance requirements? For example, if you were to replace the drain water heat recovery system with triple-glazed windows, the incremental cost should be only a few hundred dollars – and that’s including using low solar glass on the worst orientation (this is from my recent costing exercise, and builders would need to verify costs with their suppliers). By combining this with an air source heat pump and a smaller high-performance furnace, builders should be able to meet the energy requirements while providing their homeowners with a more comfortable, healthy and cost-effective home to operate. And that’s worth thinking about. If this seems like an unknown language to you, it might be time to reach out to a certified energy rater to explore your options. At the very least, we as builders should start to consider if a performance path is a viable option so you can make an informed decision as to what is best for your company. BB Doug Tarry Jr is director of marketing at Doug Tarry Homes in St. Thomas, Ontario. An ERV will help to manage latent energy (moisture) loads. In the wintertime, an ERV can reduce over- drying of the home, whereas an HRV can over-dry the home, causing health and performance issues.
  • 35. Your reputation is built, or crumbles, long after the keys have been handed over. That’s why projects like The Edelweiss Home – Canada’s first LEED® v4 home, and second in the world to achieve Platinum status – rely on the continuous insulation of ROXUL® COMFORTBOARD™ exterior sheathing. Its vapour permeability enables your wall assembly to dry to the outside, providing your clients with durability and comfort. See why ROXUL is a better fit for your next project at roxul.com/comfortboard A BETTER WAY TO BUILD YOUR HOMES – AND YOUR REPUTATION. CAVITYROCK ® and COMFORTBOARD TM . For a better way to build. COMFORTBOARD™ . For the better way to build.LEED® is a registered trademark of United States Green Building Council.
  • 36. The demand for energy efficient homes is increasing and building codes will be changing in 2017. Enbridge can help. Our Savings by Design (SBD) program offers free access to design and technical experts, plus over $100,000 in incentives and benefits.* It’s the support you need to construct energy efficient, healthy and sustainable homes beyond code requirements. Find out how the SBD program helps builders like you at residential.savingsbydesign.ca Over80Ontariobuildershave participated.Jointhem. *Builders can earn $300,000 in incentives by participating in the program three separate times. To qualify for the program, your project must be located in the Enbridge Gas Distribution franchise area. Participation is a three-year commitment. During that time, builders are expected to design and construct at least one new construction home based on resulting recommendations. In order to receive incentive payments, you must agree to all program terms and conditions, must fully participate in all stages of the program and must meet all program requirements.
