Best Practices on building data lakes
& Overview on Lake Formation

2. Confidential Material / Chegg, Inc. © 2005 – 2019 / All Rights Reserved
Best Practices on building data lakes
& Overview on Lake Formation
Sep 13, 2019

3. 2019Confidential Material / Chegg, Inc. © 2005 – / All Rights Reserved

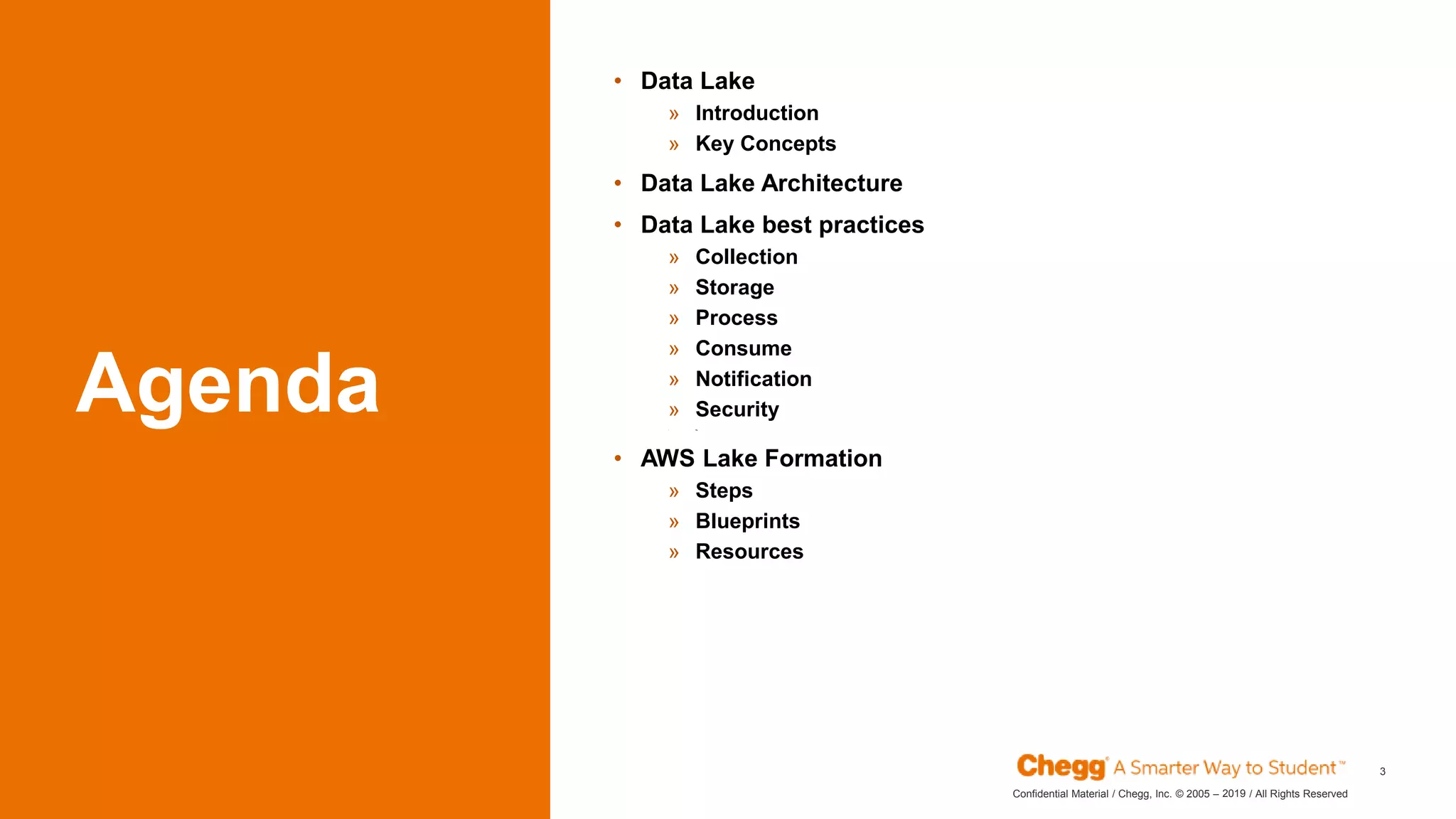

Agenda
• Data Lake
» Introduction
» Key Concepts
• Data Lake Architecture
• Data Lake best practices
» Collection
» Storage
» Process
» Consume
» Notification
» Security
» Ing
• AWS Lake Formation
» Steps
» Blueprints
» Resources
3

4. 2019Confidential Material / Chegg, Inc. © 2005 – / All Rights Reserved
4

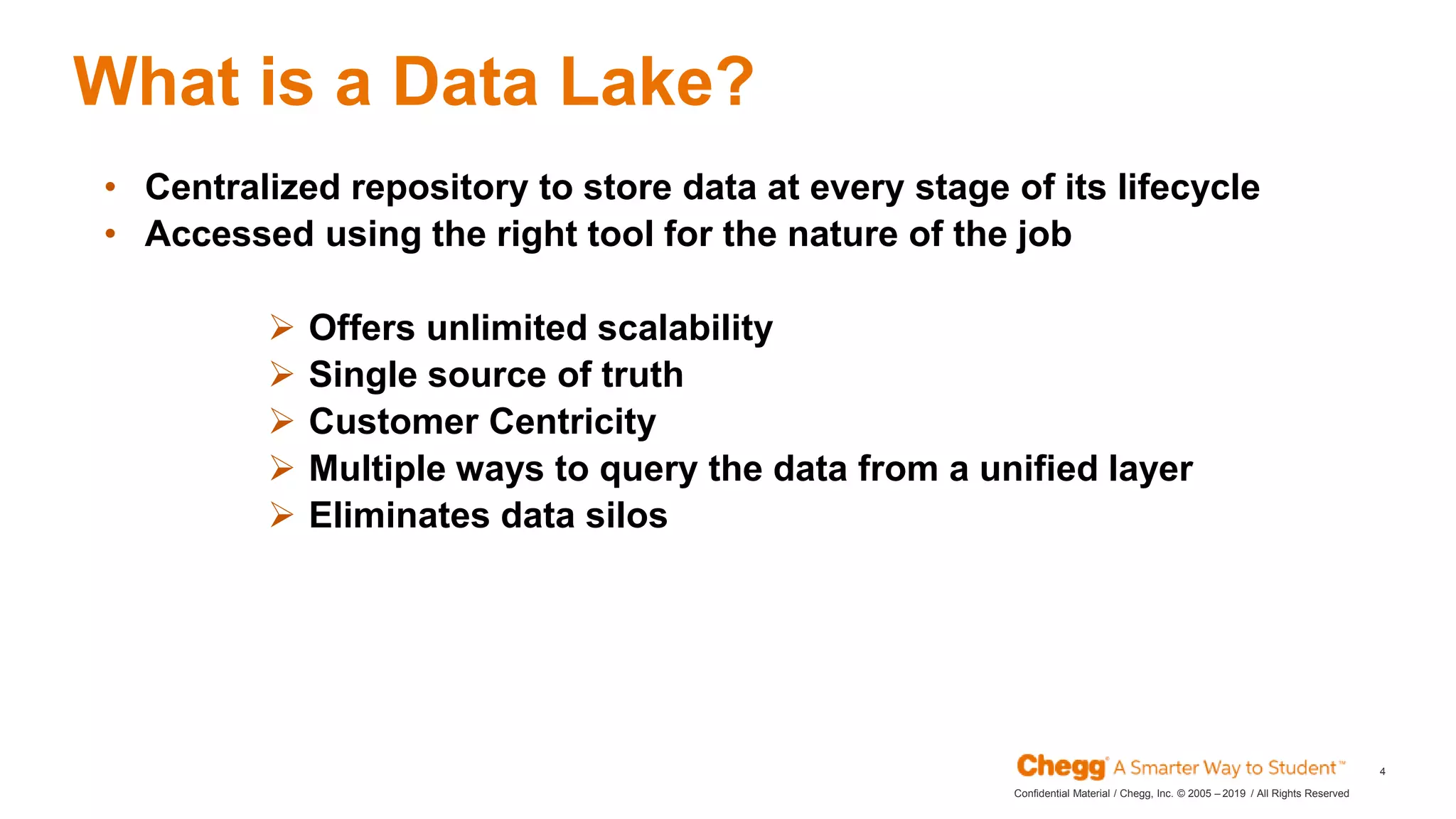

What is a Data Lake?
• Centralized repository to store data at every stage of its lifecycle
• Accessed using the right tool for the nature of the job
 Offers unlimited scalability
 Single source of truth
 Customer Centricity
 Multiple ways to query the data from a unified layer
 Eliminates data silos

5. 2019Confidential Material / Chegg, Inc. © 2005 – / All Rights Reserved
5

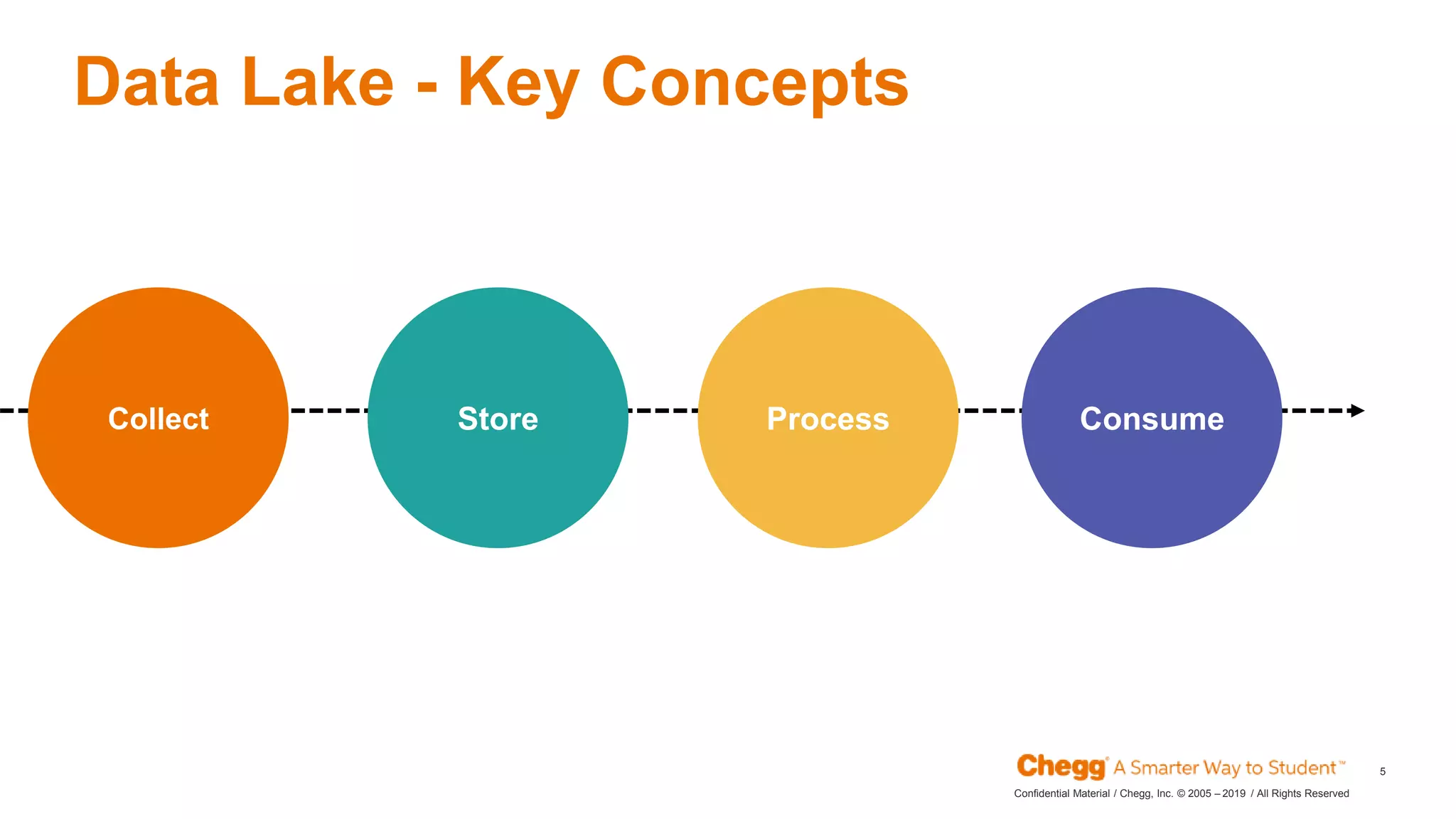

Data Lake - Key Concepts
JAN DATECollect Store Process Consume

6. 2019Confidential Material / Chegg, Inc. © 2005 – / All Rights Reserved
6

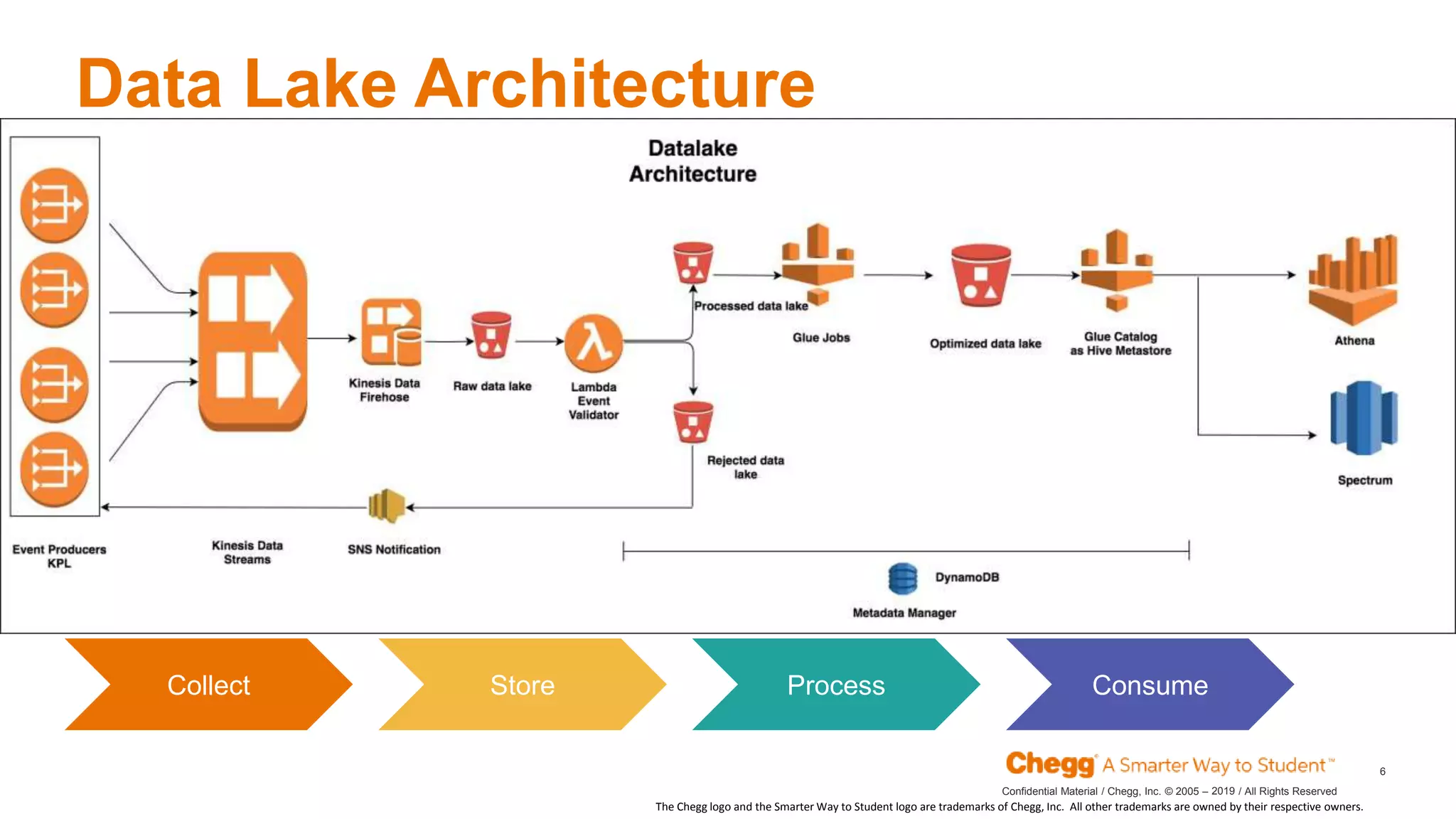

Data Lake Architecture
%
Collect Store Process Consume
The Chegg logo and the Smarter Way to Student logo are trademarks of Chegg, Inc. All other trademarks are owned by their respective owners.

7. 2019Confidential Material / Chegg, Inc. © 2005 – / All Rights Reserved
7

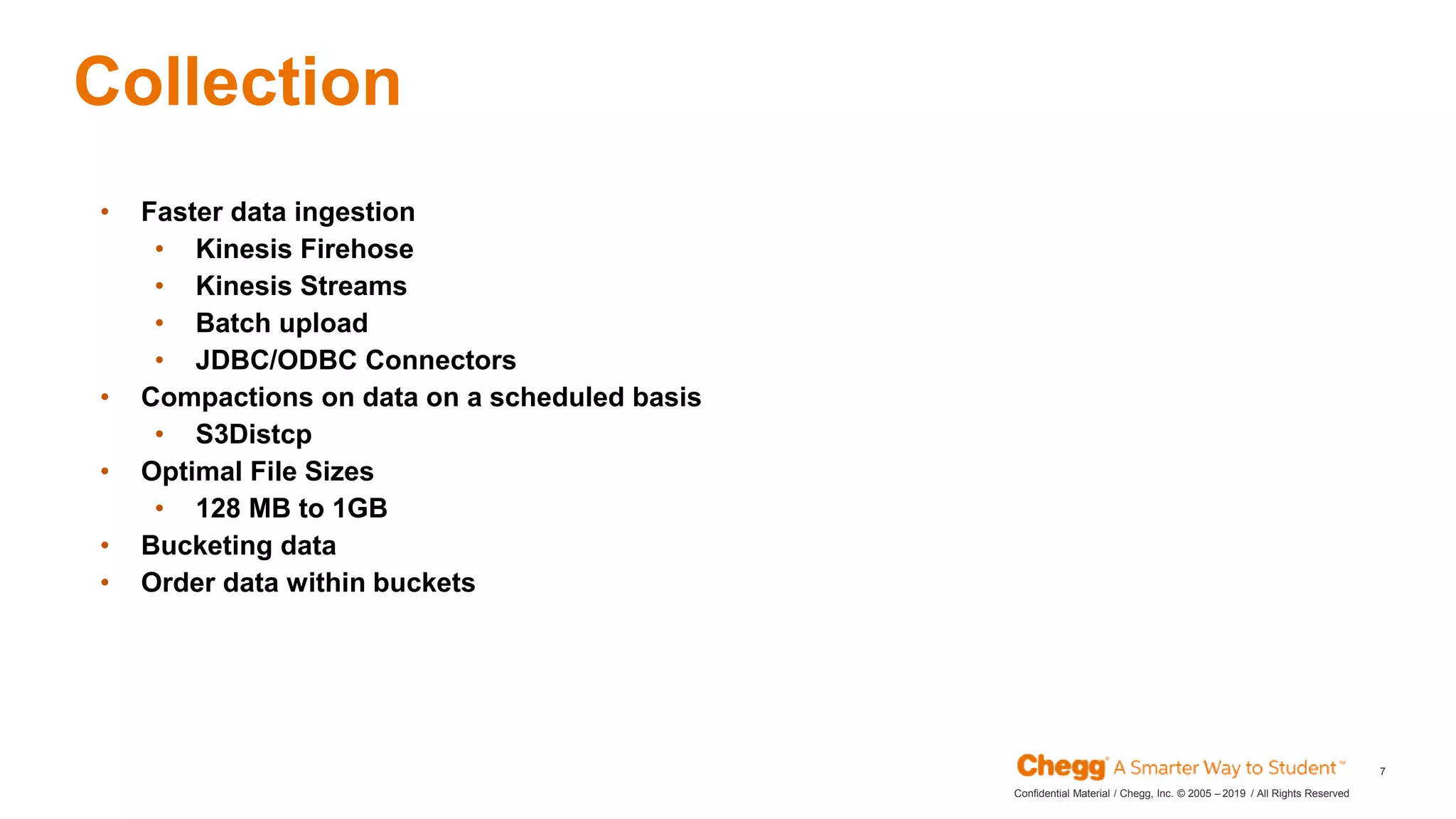

Collection
JAN
• Faster data ingestion
• Kinesis Firehose
• Kinesis Streams
• Batch upload
• JDBC/ODBC Connectors
• Compactions on data on a scheduled basis
• S3Distcp
• Optimal File Sizes
• 128 MB to 1GB
• Bucketing data
• Order data within buckets

8. 2019Confidential Material / Chegg, Inc. © 2005 – / All Rights Reserved
8

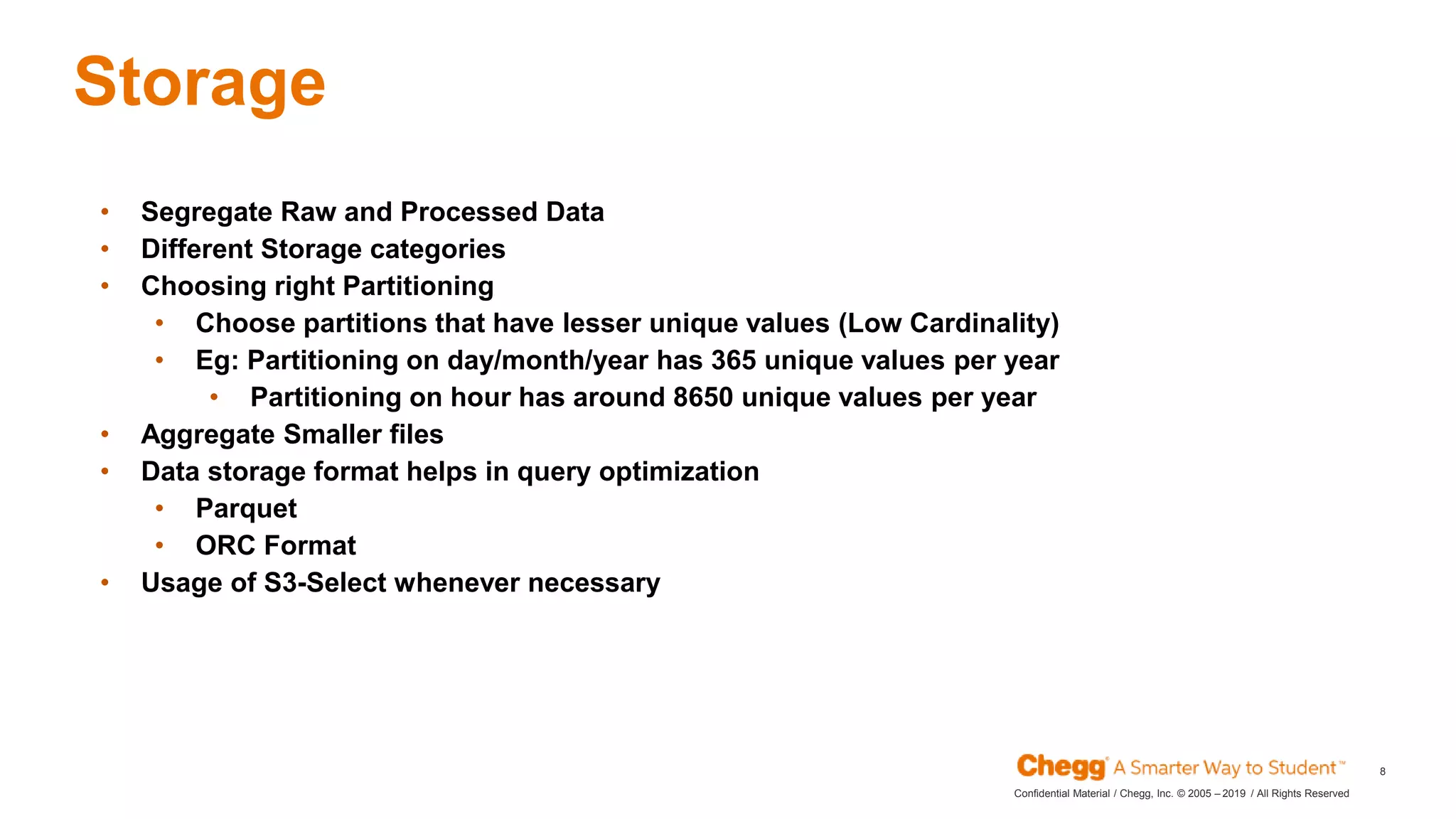

Storage
JAN
• Segregate Raw and Processed Data
• Different Storage categories
• Choosing right Partitioning
• Choose partitions that have lesser unique values (Low Cardinality)
• Eg: Partitioning on day/month/year has 365 unique values per year
• Partitioning on hour has around 8650 unique values per year
• Aggregate Smaller files
• Data storage format helps in query optimization
• Parquet
• ORC Format
• Usage of S3-Select whenever necessary

9. 2019Confidential Material / Chegg, Inc. © 2005 – / All Rights Reserved
9

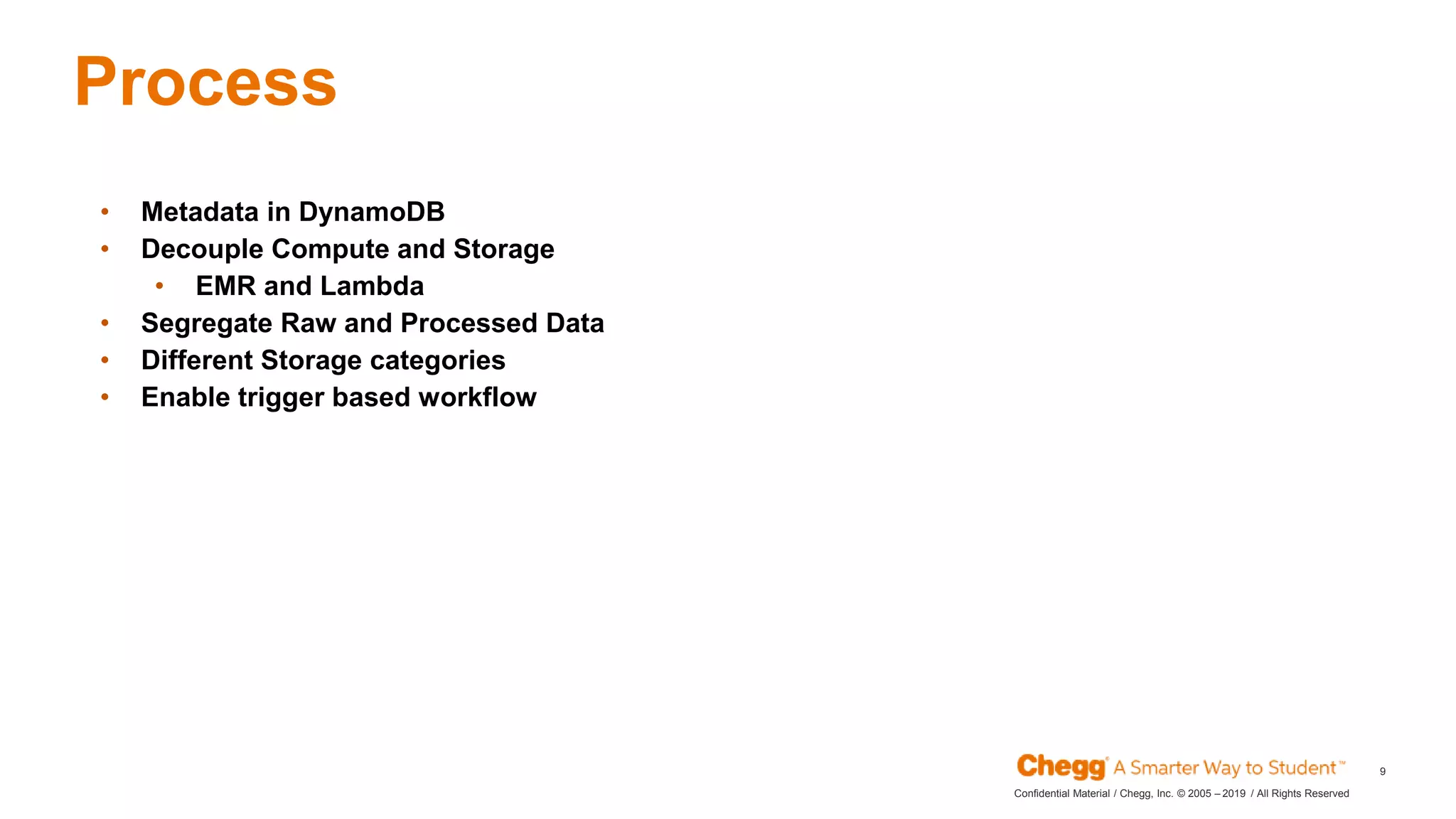

Process
JAN
• Metadata in DynamoDB
• Decouple Compute and Storage
• EMR and Lambda
• Segregate Raw and Processed Data
• Different Storage categories
• Enable trigger based workflow

10. 2019Confidential Material / Chegg, Inc. © 2005 – / All Rights Reserved
10

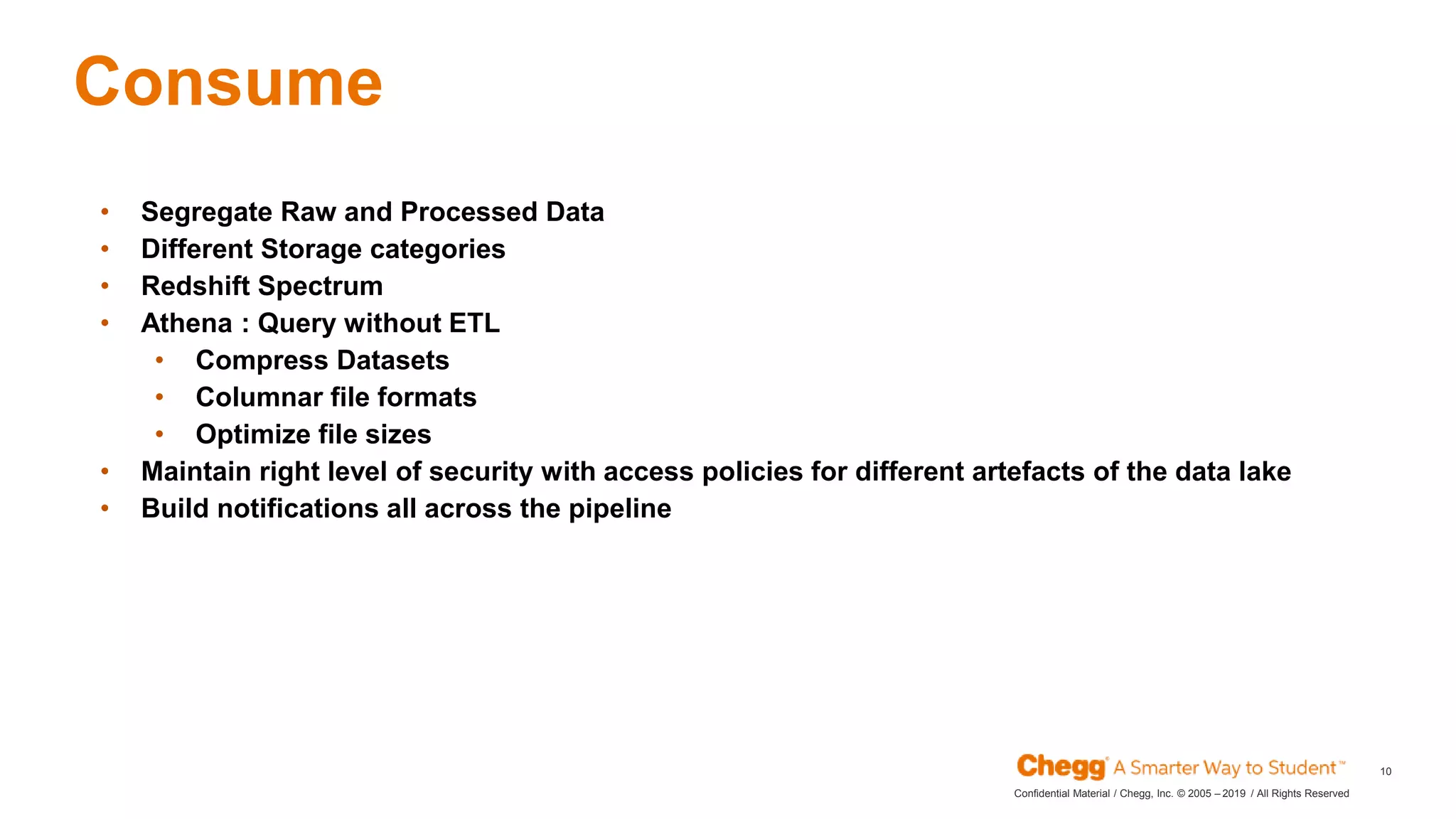

Consume
JAN
• Segregate Raw and Processed Data
• Different Storage categories
• Redshift Spectrum
• Athena : Query without ETL
• Compress Datasets
• Columnar file formats
• Optimize file sizes
• Maintain right level of security with access policies for different artefacts of the data lake
• Build notifications all across the pipeline

11. 2019Confidential Material / Chegg, Inc. © 2005 – / All Rights Reserved
11

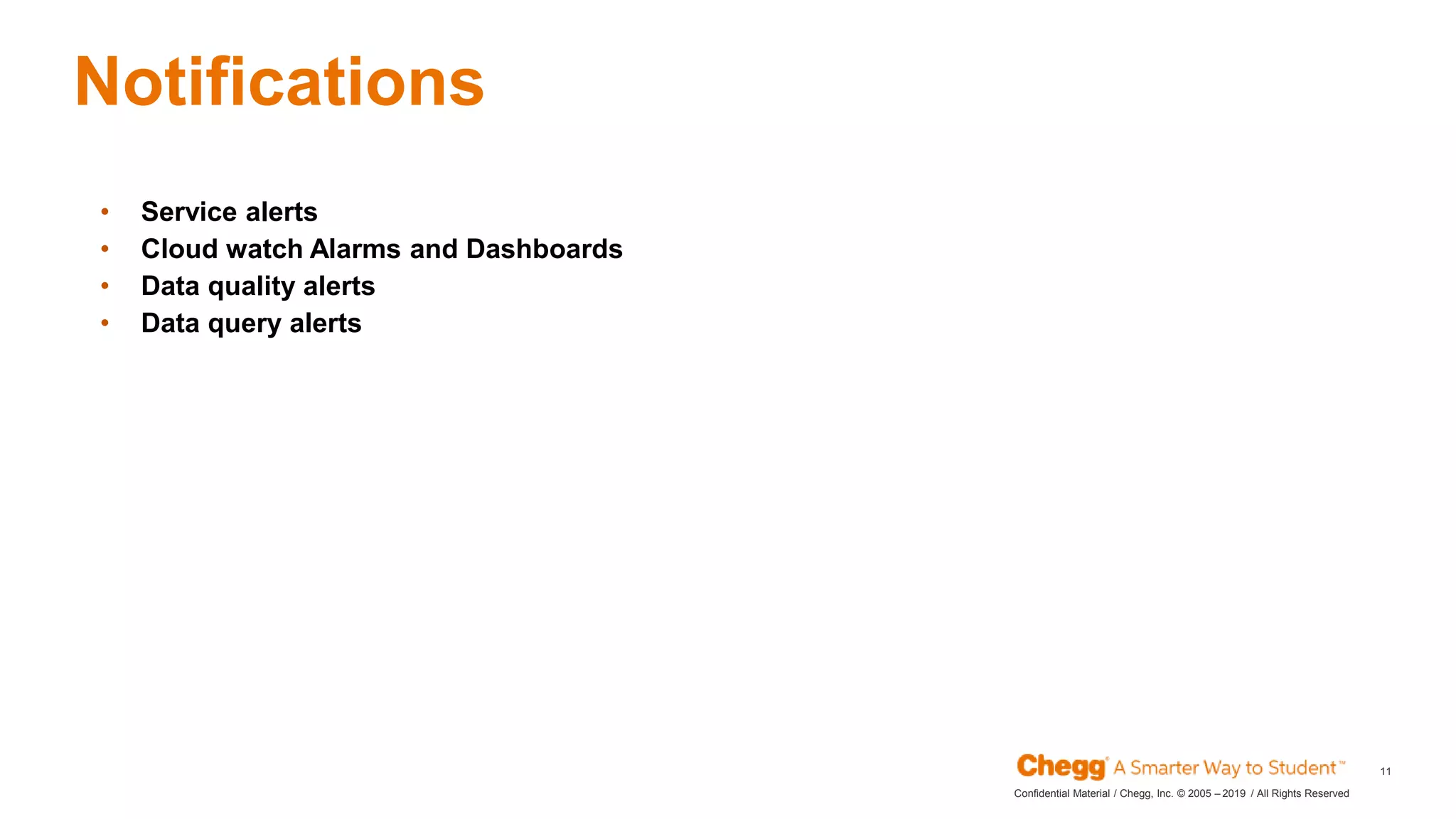

Notifications
JAN
• Service alerts
• Cloud watch Alarms and Dashboards
• Data quality alerts
• Data query alerts

12. 2019Confidential Material / Chegg, Inc. © 2005 – / All Rights Reserved
12

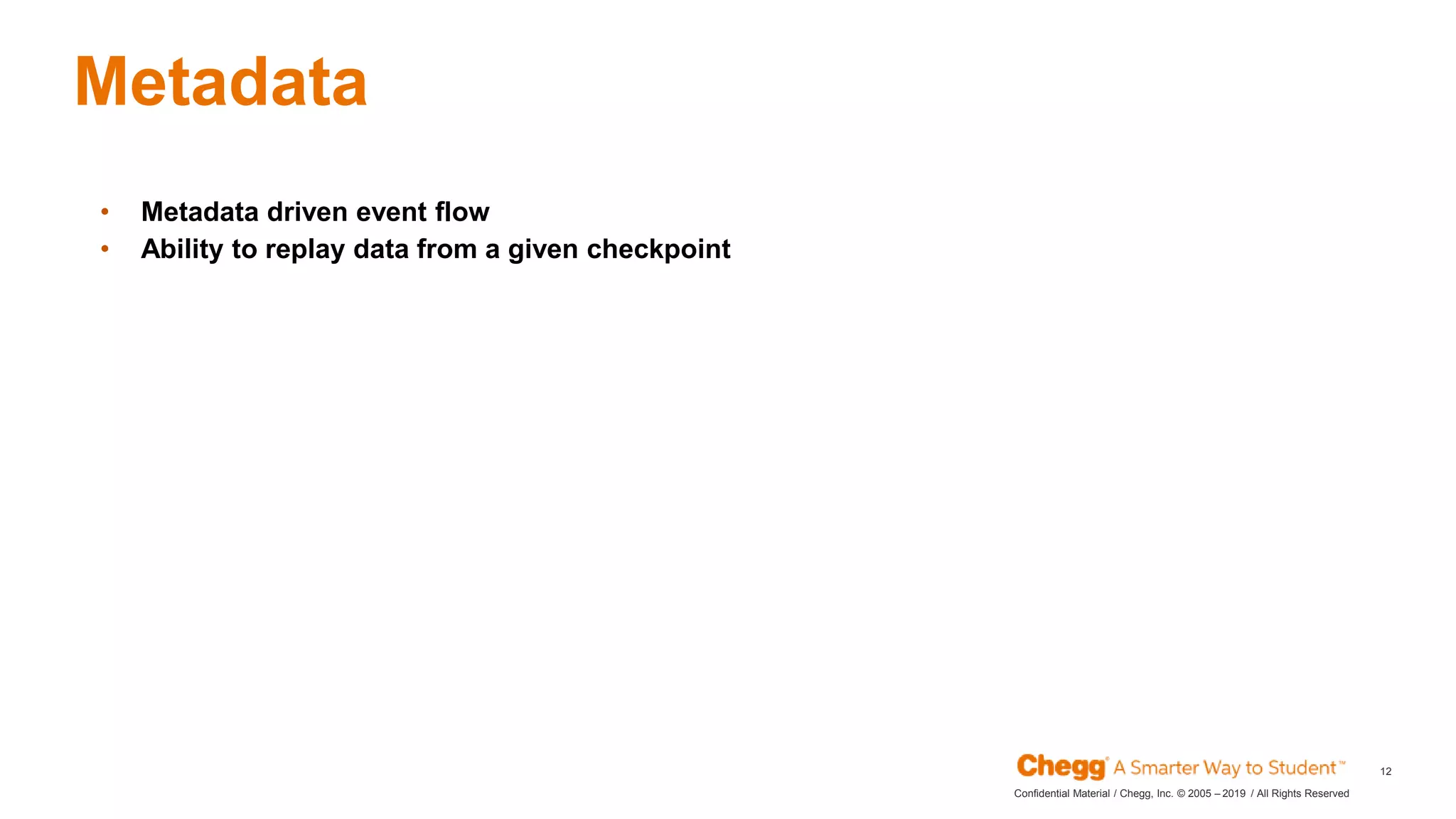

Metadata
JAN
• Metadata driven event flow
• Ability to replay data from a given checkpoint

13. 2019Confidential Material / Chegg, Inc. © 2005 – / All Rights Reserved
13

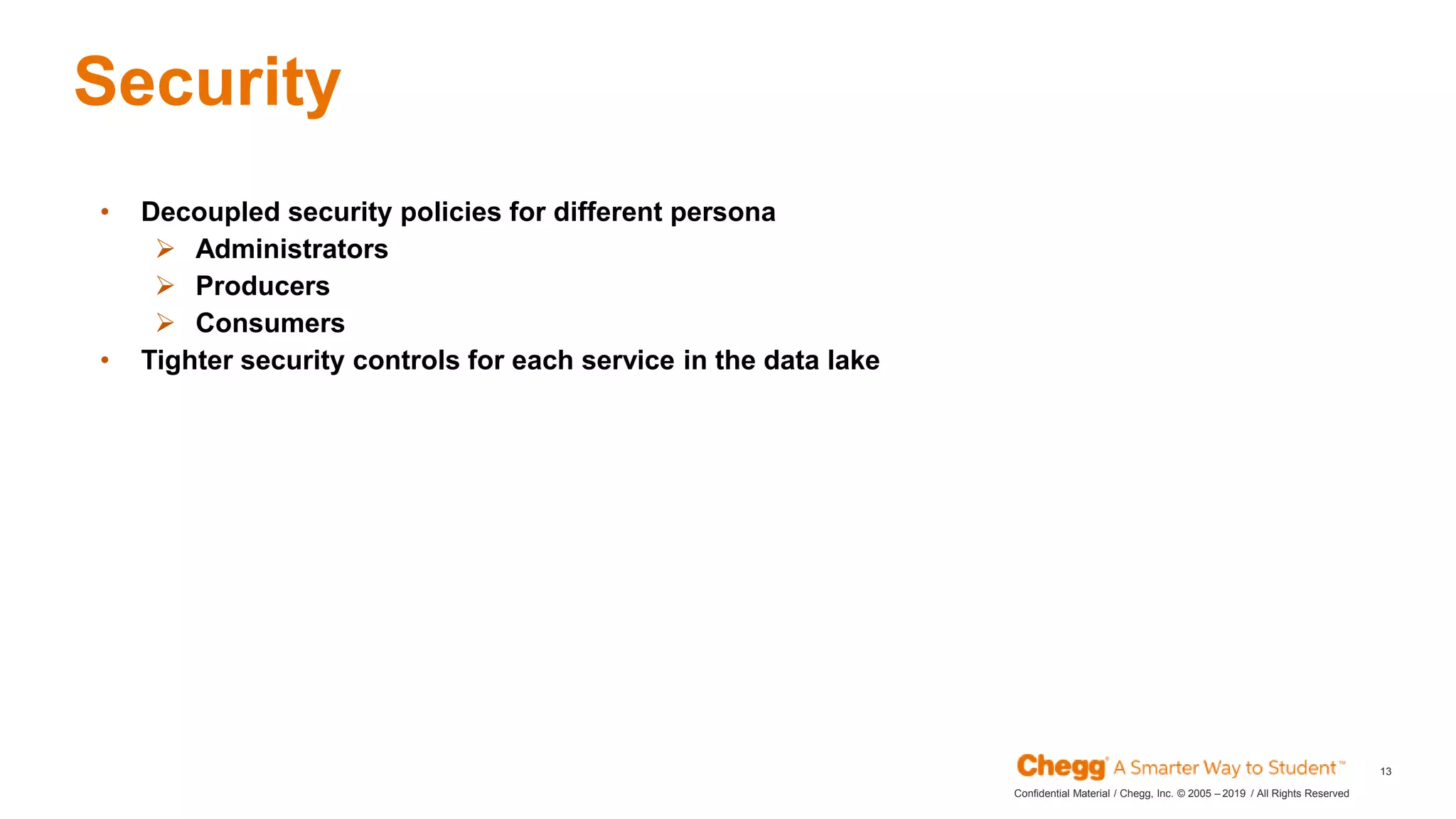

Security
JAN
• Decoupled security policies for different persona
 Administrators
 Producers
 Consumers
• Tighter security controls for each service in the data lake

14. 2019Confidential Material / Chegg, Inc. © 2005 – / All Rights Reserved
14

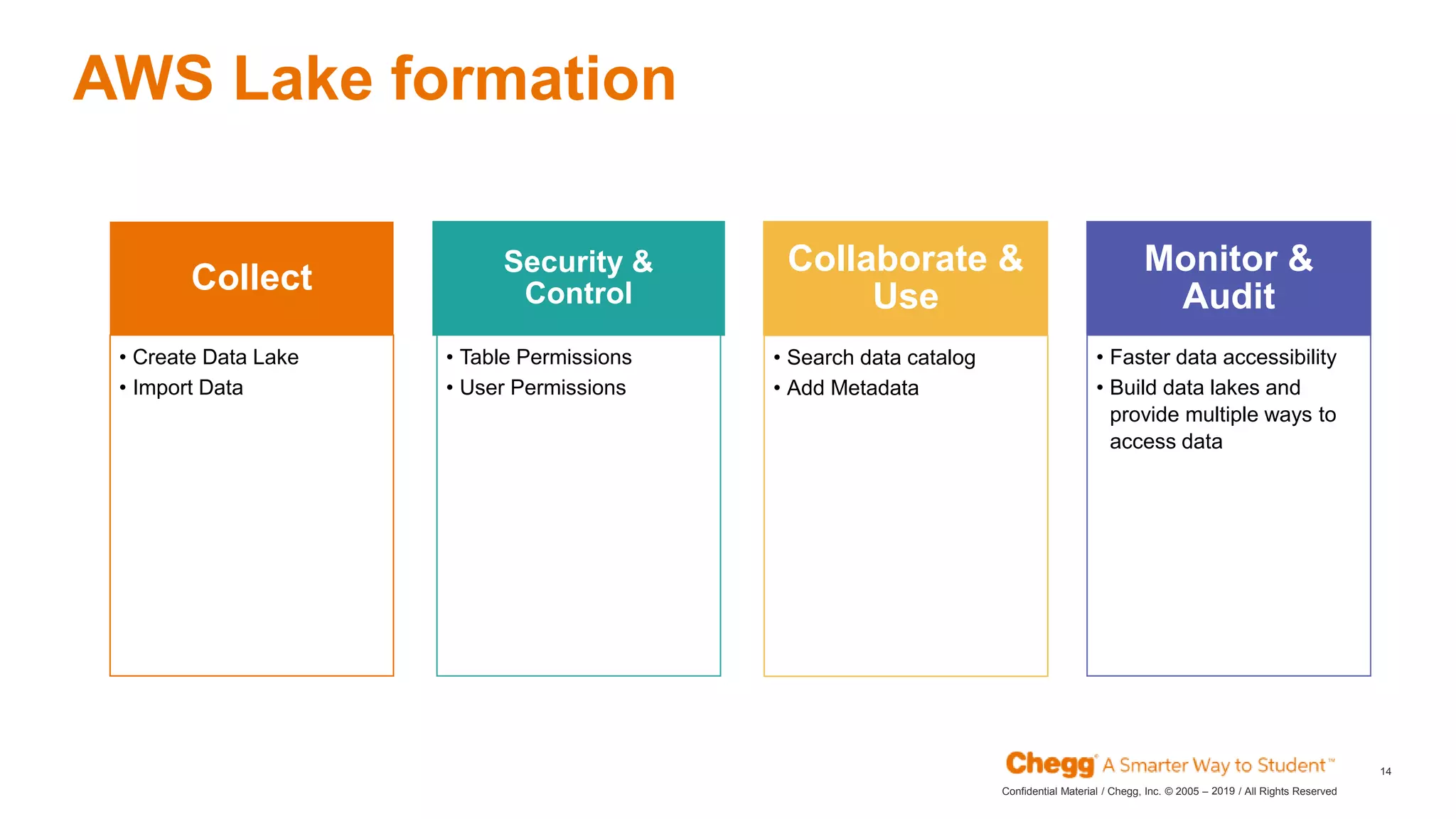

Collect
• Create Data Lake
• Import Data
Security &
Control
• Table Permissions
• User Permissions
Collaborate &
Use
• Search data catalog
• Add Metadata
Monitor &
Audit
• Faster data accessibility
• Build data lakes and
provide multiple ways to
access data
AWS Lake formation

15. 2019Confidential Material / Chegg, Inc. © 2005 – / All Rights Reserved
15

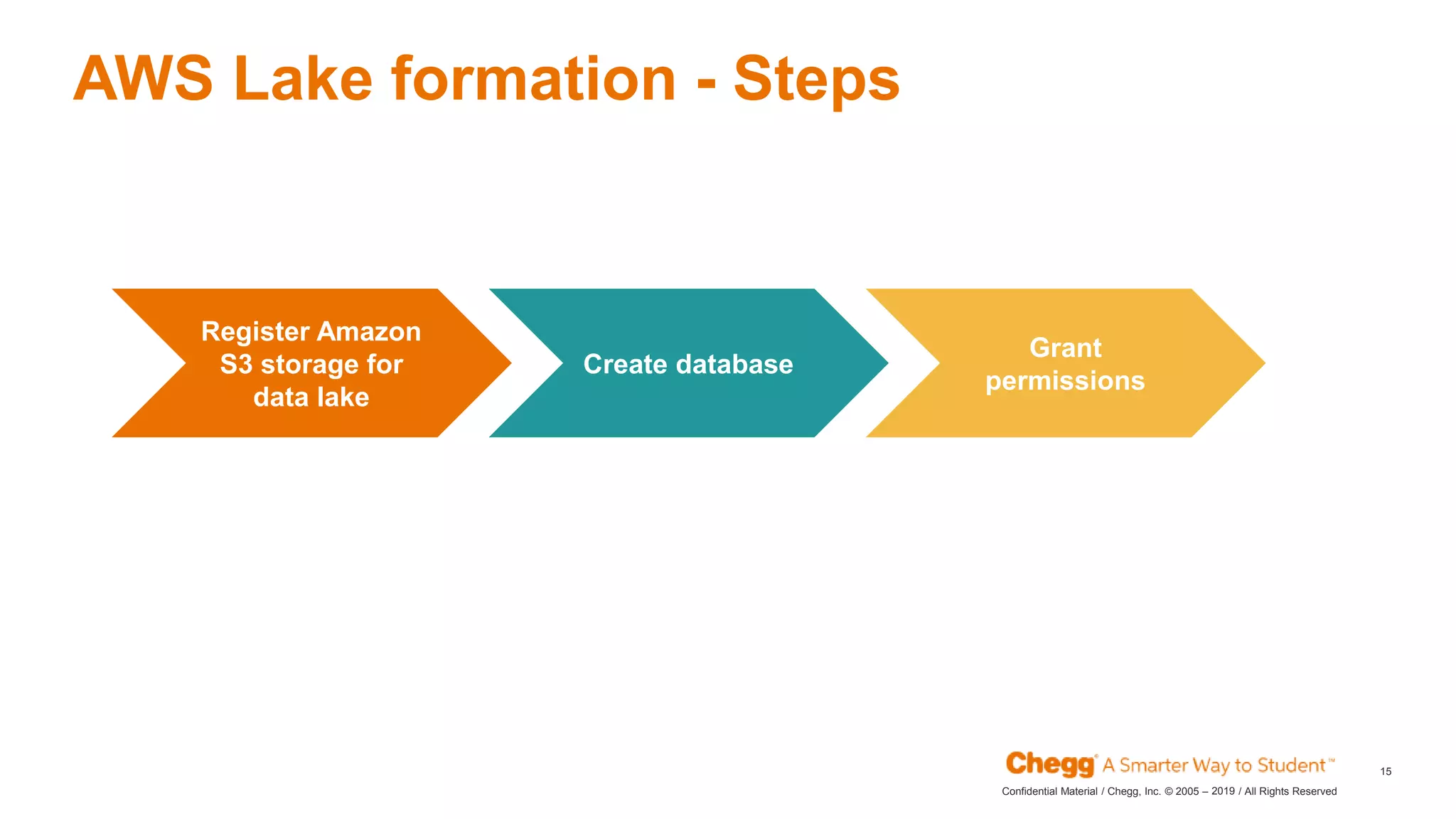

AWS Lake formation - Steps
Register Amazon
S3 storage for
data lake
Create database
Grant
permissions

16. 2019Confidential Material / Chegg, Inc. © 2005 – / All Rights Reserved
16

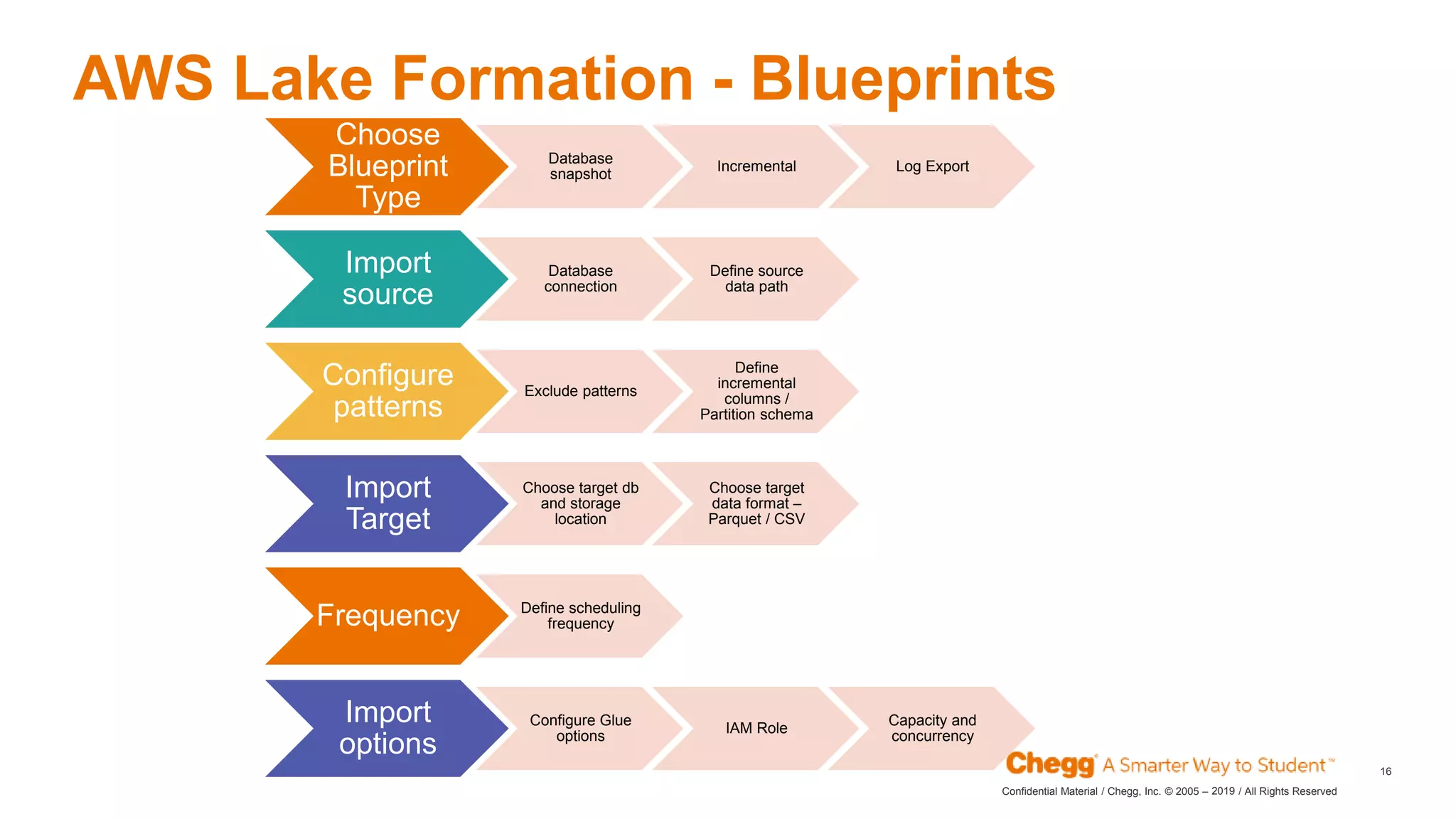

AWS Lake Formation - Blueprints
Choose
Blueprint
Type
Database
snapshot
Incremental Log Export
Import
source
Database
connection
Define source
data path
Configure
patterns
Exclude patterns
Define
incremental
columns /
Partition schema
Import
Target
Choose target db
and storage
location
Choose target
data format –
Parquet / CSV
Frequency Define scheduling
frequency
Import
options
Configure Glue
options
IAM Role
Capacity and
concurrency

17. 2019Confidential Material / Chegg, Inc. © 2005 – / All Rights Reserved
17

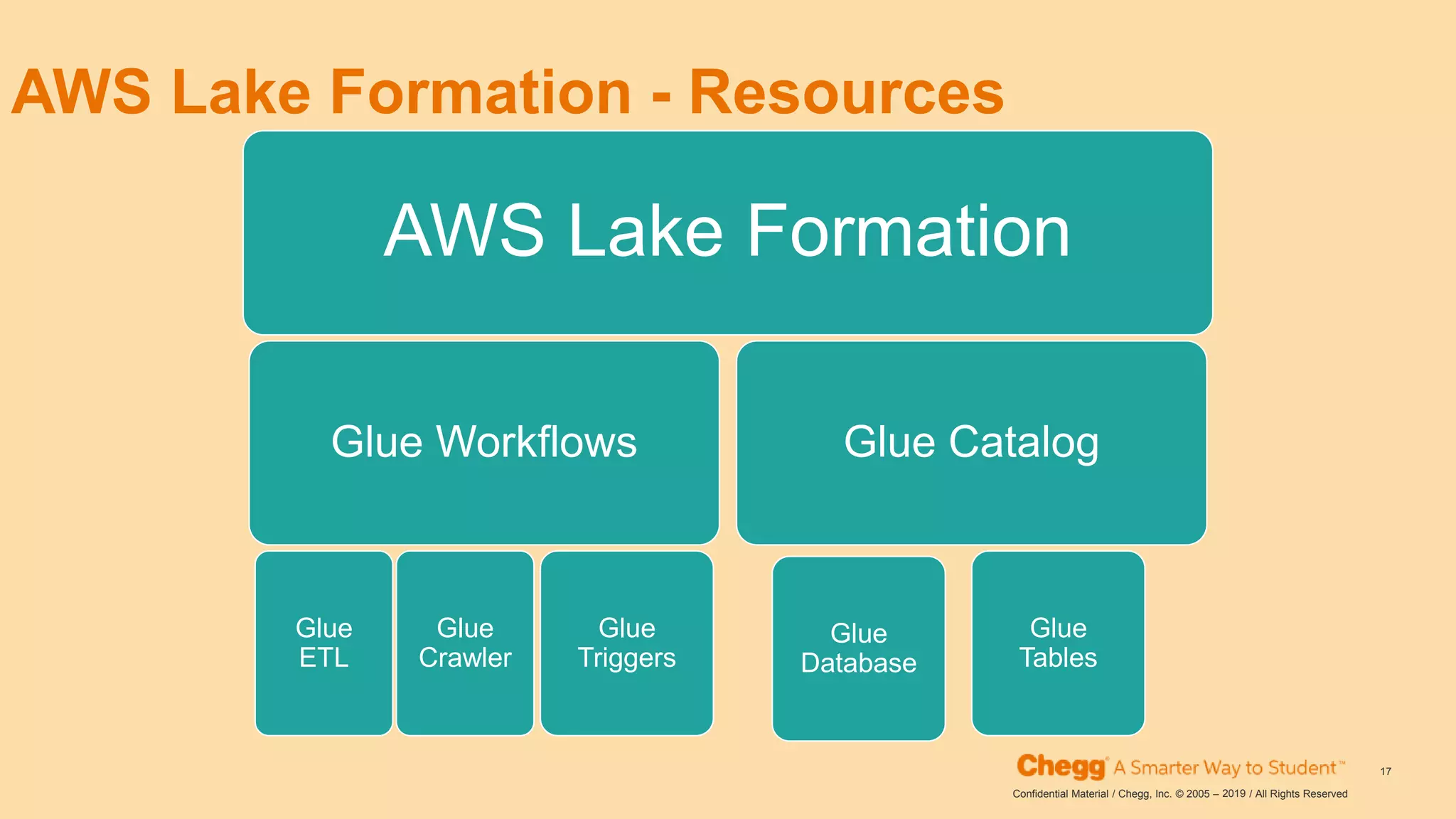

AWS Lake Formation - Resources
AWS Lake Formation
Glue Workflows Glue Catalog
Glue
ETL
Glue
Crawler
Glue
Triggers
Glue
Database
Glue
Tables

18. 2019Confidential Material / Chegg, Inc. © 2005 – / All Rights Reserved
18

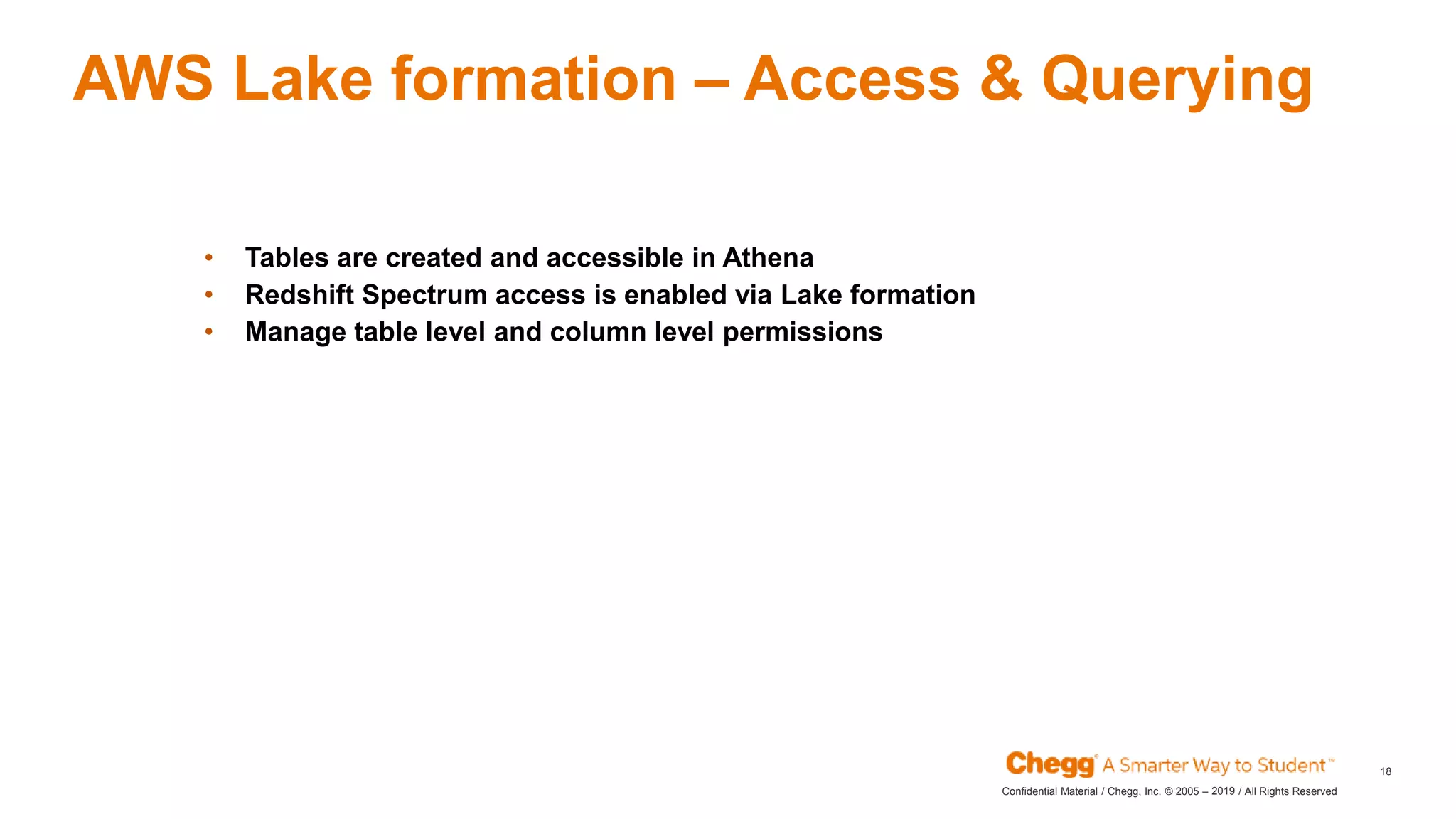

AWS Lake formation – Access & Querying
• Tables are created and accessible in Athena
• Redshift Spectrum access is enabled via Lake formation
• Manage table level and column level permissions

19. 2019Confidential Material / Chegg, Inc. © 2005 – / All Rights Reserved
