This document provides an overview of Bluetooth Low Energy beacon technology. It discusses how beacons use Bluetooth signals to transmit identification information to nearby devices, allowing them to detect their location indoors. It also explains that iBeacons are a specific standard developed by Apple that many vendors have adopted for their beacon hardware. Finally, it raises questions about applying beacon technology in Indonesia.

1. BLUETOOTH LOW ENERGY TECHNOLOGY :
A GUIDE TO BEACONS
New way to experience the world
24/05/2015
15:30 WIB
#TechTalk80
@JDV
By : Arif Akbarul Huda @omayib | omayib@gmail.com

2. overview
It's not chip. It's not a technology.
It's new way to Experience the world
http://www.slideshare.net/Dusan_Writer/ibeacon-and-bluetooth-le-an-introduction?related=1

3. overview
http://www.slideshare.net/Dusan_Writer/ibeacon-and-bluetooth-le-an-introduction?related=1
Beacons turn the physical world
into a new digital channel
?

4. Beacon device

5. How does beacon work?
http://www.ibeacon.com/what-is-ibeacon-a-guide-to-beacons/

6. What is Beacon?
http://www.slideshare.net/Dusan_Writer/ibeacon-and-bluetooth-le-an-introduction?related=1
Bluetooth LE is a spesification
The spesification is used to create
Bluetooth LE chipset
The chipset are embedded in devices

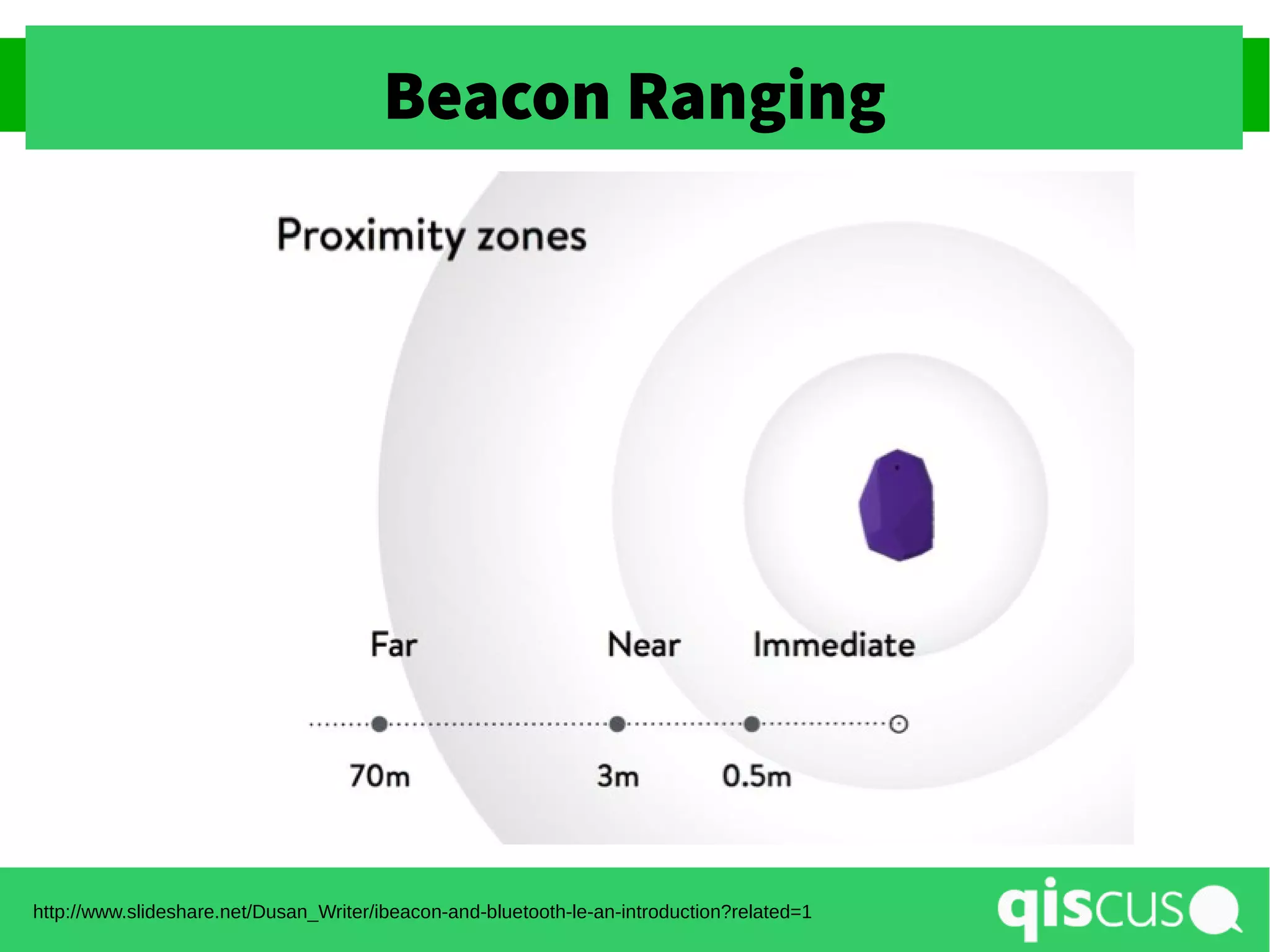

7. Beacon Ranging
http://www.slideshare.net/Dusan_Writer/ibeacon-and-bluetooth-le-an-introduction?related=1

8. iBeacon vs Beacon
https://en.wikipedia.org/wiki/IBeacon
iBeacon is a protocol standardised by
Apple and introduced at the Apple
Worldwide Developers Conference in
2013.
Various vendors are create beacon with
iBeacon-compatible hardware
transmitters
original
customized
vs

9. overview
http://www.slideshare.net/Dusan_Writer/ibeacon-and-bluetooth-le-an-introduction?related=1

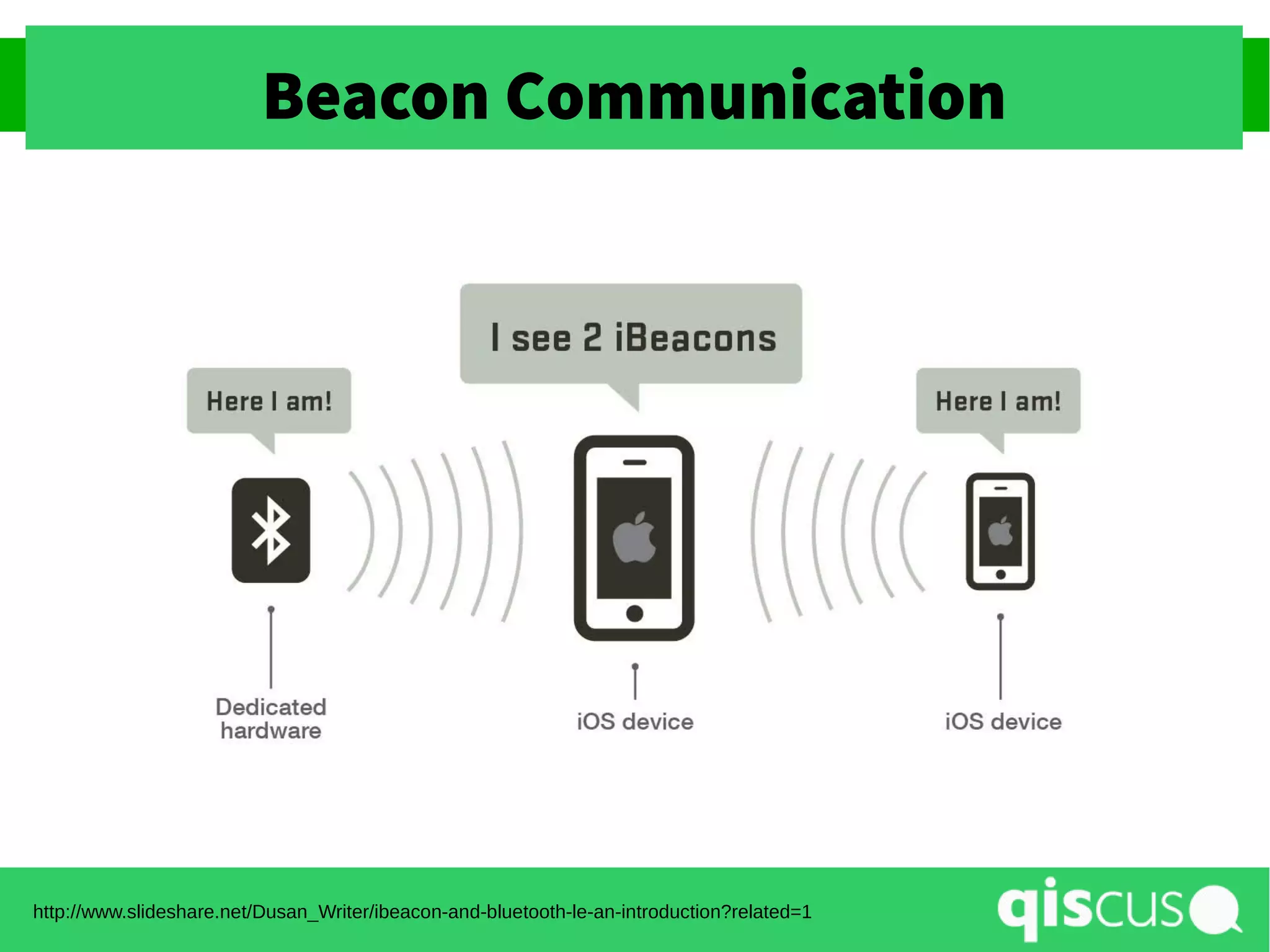

10. Beacon Communication
http://www.slideshare.net/Dusan_Writer/ibeacon-and-bluetooth-le-an-introduction?related=1

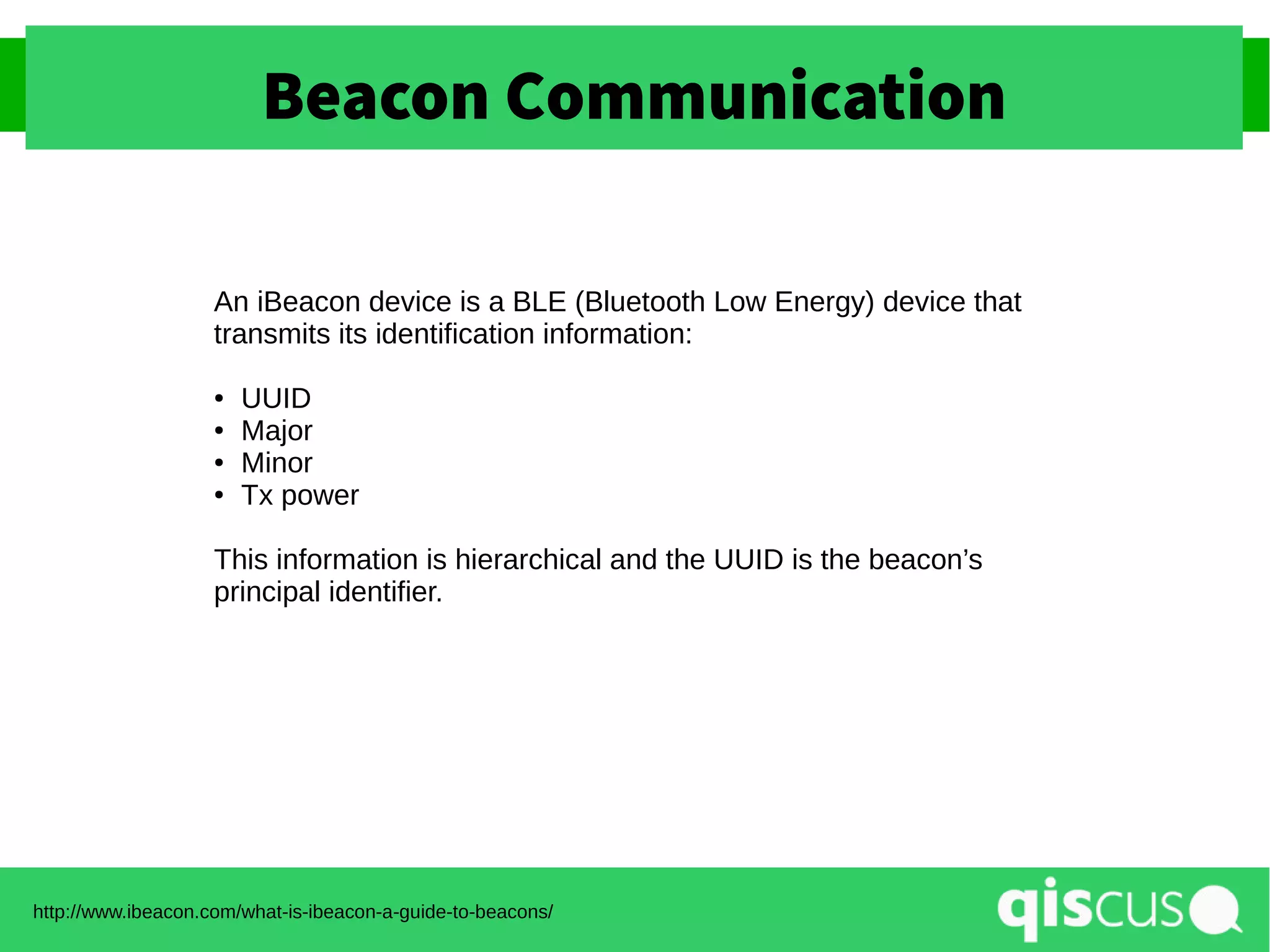

11. Beacon Communication
http://www.ibeacon.com/what-is-ibeacon-a-guide-to-beacons/
An iBeacon device is a BLE (Bluetooth Low Energy) device that
transmits its identification information:
● UUID
● Major
● Minor
● Tx power
This information is hierarchical and the UUID is the beacon’s
principal identifier.

12. Beacon Communication
http://www.slideshare.net/Dusan_Writer/ibeacon-and-bluetooth-le-an-introduction?related=1

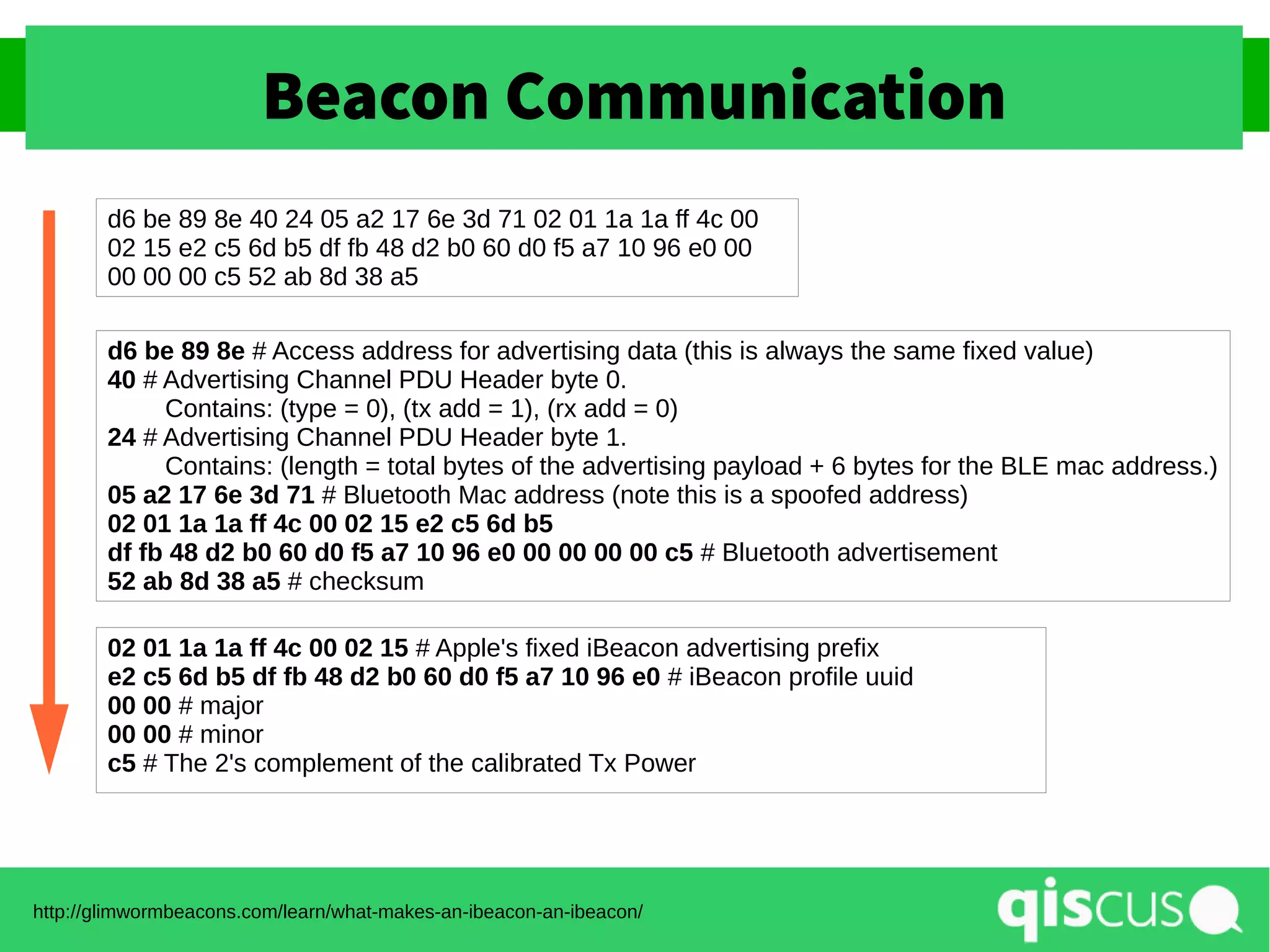

13. Beacon Communication
http://glimwormbeacons.com/learn/what-makes-an-ibeacon-an-ibeacon/
d6 be 89 8e 40 24 05 a2 17 6e 3d 71 02 01 1a 1a ff 4c 00
02 15 e2 c5 6d b5 df fb 48 d2 b0 60 d0 f5 a7 10 96 e0 00
00 00 00 c5 52 ab 8d 38 a5
d6 be 89 8e # Access address for advertising data (this is always the same fixed value)
40 # Advertising Channel PDU Header byte 0.
Contains: (type = 0), (tx add = 1), (rx add = 0)
24 # Advertising Channel PDU Header byte 1.
Contains: (length = total bytes of the advertising payload + 6 bytes for the BLE mac address.)
05 a2 17 6e 3d 71 # Bluetooth Mac address (note this is a spoofed address)
02 01 1a 1a ff 4c 00 02 15 e2 c5 6d b5
df fb 48 d2 b0 60 d0 f5 a7 10 96 e0 00 00 00 00 c5 # Bluetooth advertisement
52 ab 8d 38 a5 # checksum
02 01 1a 1a ff 4c 00 02 15 # Apple's fixed iBeacon advertising prefix
e2 c5 6d b5 df fb 48 d2 b0 60 d0 f5 a7 10 96 e0 # iBeacon profile uuid
00 00 # major
00 00 # minor
c5 # The 2's complement of the calibrated Tx Power

14. Beacon Ranging
http://www.slideshare.net/Dusan_Writer/ibeacon-and-bluetooth-le-an-introduction?related=1

15. Beacon Region
http://belencruz.com/2015/05/introduction-to-ibeacon/

16. Beacon Region
http://belencruz.com/2015/05/introduction-to-ibeacon/

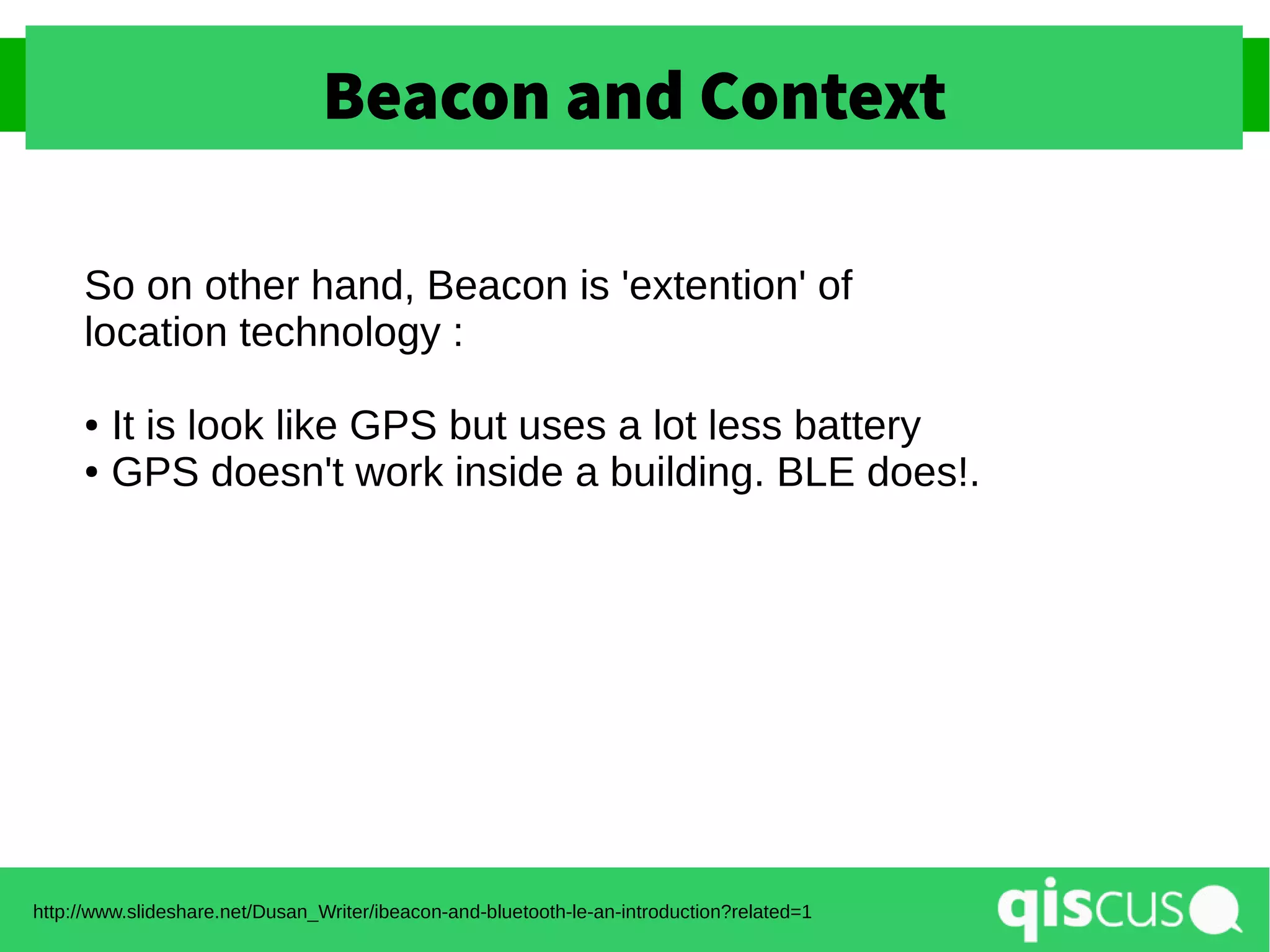

17. Beacon and Context
http://www.slideshare.net/Dusan_Writer/ibeacon-and-bluetooth-le-an-introduction?related=1
So on other hand, Beacon is 'extention' of
location technology :
● It is look like GPS but uses a lot less battery
● GPS doesn't work inside a building. BLE does!.

18. Beacon and Triangulation

19. discussion
Now, how about Indonesia?
● Is it ready?
● What is your idea to turn on this technology?

20. END
