![Mitt første dokument
documentclass[a4paper, 10pt]{article}
begin{document}
My first document!
end{document}
A lot of options for documentclass.
documentclass[options]{class}
∠ Options: font size, paper size, twoside/oneside, landscape etc.
∠ Class: book, article, report, minimal, beamer etc.
Brief intro to L
ATEX](https://image.slidesharecdn.com/presentasjon-230221194124-2b51c096/85/Basic-Introduction-to-LaTeX-5-320.jpg)
![Packages
For language and type faces.
usepackage[norsk]{babel}
usepackage[utf8]{inputenc}
usepackage[T1]{fontenc}
A lot of packages for anything! More on this later...
usepackage{hyperref}
usepackage{mathtools}
usepackage{listings}
usepackage{graphicx}
Brief intro to L
ATEX](https://image.slidesharecdn.com/presentasjon-230221194124-2b51c096/85/Basic-Introduction-to-LaTeX-6-320.jpg)
![Tables
begin{tabular}[h!]{|l|r|c|}
textbf{Table} textbf{Table} textbf{Table}
hline
one two three
four five six
seven eight nine
end{tabular}
Brief intro to L
ATEX](https://image.slidesharecdn.com/presentasjon-230221194124-2b51c096/85/Basic-Introduction-to-LaTeX-15-320.jpg)

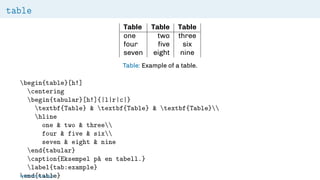

![table
Table Table Table
one two three
four five six
seven eight nine
Table: Example of a table.
begin{table}[h!]
centering
begin{tabular}[h!]{|l|r|c|}
textbf{Table} textbf{Table} textbf{Table}
hline
one two three
four five six
seven eight nine
end{tabular}
caption{Eksempel på en tabell.}
label{tab:example}
end{table}
Brief intro to L
ATEX](https://image.slidesharecdn.com/presentasjon-230221194124-2b51c096/85/Basic-Introduction-to-LaTeX-17-320.jpg)

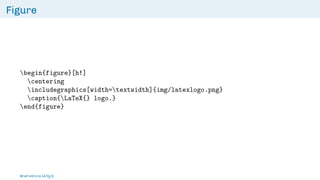

![Figure
begin{figure}[h!]
centering
includegraphics[width=textwidth]{img/latexlogo.png}
caption{LaTeX{} logo.}
end{figure}
Brief intro to L
ATEX](https://image.slidesharecdn.com/presentasjon-230221194124-2b51c096/85/Basic-Introduction-to-LaTeX-20-320.jpg)
![Lists, description
* This is a list element.
Element This is another list element.
begin{description}
item[*] This is a list element.
item[Element] This is another list element.
end{description}
Brief intro to L
ATEX](https://image.slidesharecdn.com/presentasjon-230221194124-2b51c096/85/Basic-Introduction-to-LaTeX-24-320.jpg)

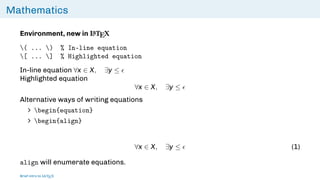

![Mathematics
Environment, new in L
ATEX
( ... ) % In-line equation
[ ... ] % Highlighted equation
In-line equation ∀x ∈ X, ∃y ≤
Highlighted equation
∀x ∈ X, ∃y ≤
Alternative ways of writing equations
∠ begin{equation}
∠ begin{align}
∀x ∈ X, ∃y ≤ (1)
align will enumerate equations.
Brief intro to L
ATEX](https://image.slidesharecdn.com/presentasjon-230221194124-2b51c096/85/Basic-Introduction-to-LaTeX-28-320.jpg)
![lstlistings
1 public class Code {
2 public static void main ( String [ ] args ) {
3 System . out . println ( Hello , world ! ) ;
4 }
5 }
Brief intro to L
ATEX](https://image.slidesharecdn.com/presentasjon-230221194124-2b51c096/85/Basic-Introduction-to-LaTeX-30-320.jpg)
![lstlistings
begin{lstlisting}
public class Code {
public static void main(String[] args) {
System.out.println(Hello, world!);
}
}
end{lstlisting}
Load code by using lstinputlisting{source_filename.py}
Brief intro to L
ATEX](https://image.slidesharecdn.com/presentasjon-230221194124-2b51c096/85/Basic-Introduction-to-LaTeX-32-320.jpg)
![Options
draw[draw=yellow, thick, fill=orange] (0,0) rectangle (2,2);
draw[draw=none, fill=teal] (0,0) circle (1);
draw[draw=red, ultra thick, dashed] (0,0) ellipse (1 and 0.5);
Brief intro to L
ATEX](https://image.slidesharecdn.com/presentasjon-230221194124-2b51c096/85/Basic-Introduction-to-LaTeX-39-320.jpg)

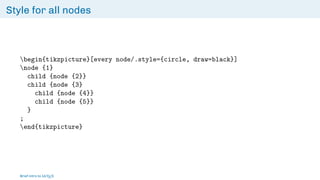

![Style for all nodes
begin{tikzpicture}[every node/.style={circle, draw=black}]
node {1}
child {node {2}}
child {node {3}
child {node {4}}
child {node {5}}
}
;
end{tikzpicture}
Brief intro to L
ATEX](https://image.slidesharecdn.com/presentasjon-230221194124-2b51c096/85/Basic-Introduction-to-LaTeX-42-320.jpg)
Basic Introduction to LaTeX
- 1. Brief intro toL ATEX Veronika Heimsbakk Brief intro to L ATEX
- 2. ∠ A documentmarkup language. ∠ Released in 1984. ∠ L ATEXan abbreviation for Lamport TEX. ‡ https://github.com/latex3/latex2e Brief intro to L ATEX
- 3. TEX TEX (τχ) isan abbreviation τχνη—TEXNH—technē. Greek for art and craft, root for technical. ∠ Released in 1978 by Donald Knuth. ∠ Typesetting system. ∠ Developed to let anyone on any machine could create books and documents of high quality. ∠ https://www.tug.org/texlive/devsrc/Build/source/texk/web2c/tex.web Brief intro to L ATEX
- 4. Installation ∠ TeXworks, Kile,Vim, Emacs etc. ∠ Package handling: MikTeX, MacTeX ∠ apt-get install texlive ∠ Browser based Overleaf1 1 https://www.overleaf.com/ Brief intro to L ATEX
- 5. Mitt første dokument documentclass[a4paper,10pt]{article} begin{document} My first document! end{document} A lot of options for documentclass. documentclass[options]{class} ∠ Options: font size, paper size, twoside/oneside, landscape etc. ∠ Class: book, article, report, minimal, beamer etc. Brief intro to L ATEX
- 6. Packages For language andtype faces. usepackage[norsk]{babel} usepackage[utf8]{inputenc} usepackage[T1]{fontenc} A lot of packages for anything! More on this later... usepackage{hyperref} usepackage{mathtools} usepackage{listings} usepackage{graphicx} Brief intro to L ATEX
- 7. Author and title title{Introductionto LaTeX{}} author{Veronika Heimsbakkveronika.heimsbakk@capgemini.com} begin{document} maketitle end{document} Brief intro to L ATEX
- 8. Sections section{Section} This is section1! subsection{Sub section} This is section 1's first sub section. subsubsection{Sub sub section} This is section 1's first sub section's sub section! Brief intro to L ATEX

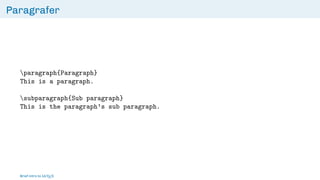

- 9. Paragrafer paragraph{Paragraph} This is aparagraph. subparagraph{Sub paragraph} This is the paragraph's sub paragraph. Brief intro to L ATEX

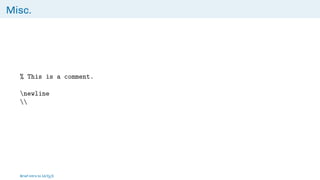

- 10. Misc. % This isa comment. newline Brief intro to L ATEX

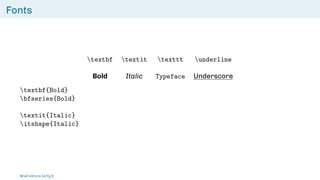

- 11. Fonts textbf textit textttunderline Bold Italic Typeface Underscore textbf{Bold} bfseries{Bold} textit{Italic} itshape{Italic} Brief intro to L ATEX
- 12. Fonts, packages ∠ Severalpackages for font styling. ∠ soul, color, . . . st textcolor{red}{Rød tekst} Strike through Red text caps so Small Capitals s p a c e y s t u f f Brief intro to L ATEX

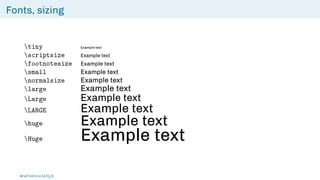

- 13. Fonts, sizing tiny Exampletext scriptsize Example text footnotesize Example text small Example text normalsize Example text large Example text Large Example text LARGE Example text huge Example text Huge Example text Brief intro to L ATEX

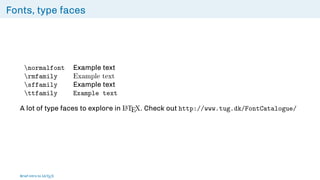

- 14. Fonts, type faces normalfontExample text rmfamily Example text sffamily Example text ttfamily Example text A lot of type faces to explore in L ATEX. Check out http://www.tug.dk/FontCatalogue/ Brief intro to L ATEX
- 15. Tables begin{tabular}[h!]{|l|r|c|} textbf{Table} textbf{Table} textbf{Table} hline one two three four five six seven eight nine end{tabular} Brief intro to L ATEX

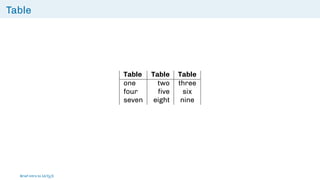

- 16. Table Table Table Table onetwo three four five six seven eight nine Brief intro to L ATEX
- 17. table Table Table Table onetwo three four five six seven eight nine Table: Example of a table. begin{table}[h!] centering begin{tabular}[h!]{|l|r|c|} textbf{Table} textbf{Table} textbf{Table} hline one two three four five six seven eight nine end{tabular} caption{Eksempel på en tabell.} label{tab:example} end{table} Brief intro to L ATEX

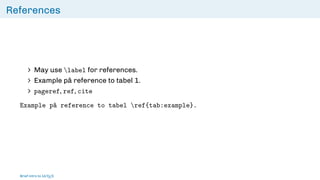

- 18. References ∠ May uselabel for references. ∠ Example på reference to tabel 1. ∠ pageref, ref, cite Example på reference to tabel ref{tab:example}. Brief intro to L ATEX

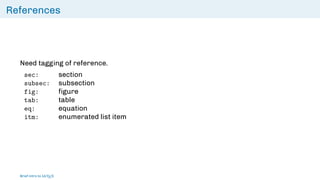

- 19. References Need tagging ofreference. sec: section subsec: subsection fig: figure tab: table eq: equation itm: enumerated list item Brief intro to L ATEX
- 20.

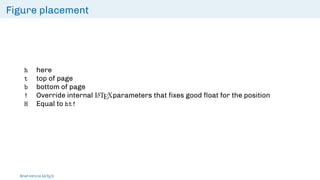

- 21. Figure placement h here ttop of page b bottom of page ! Override internal L ATEXparameters that fixes good float for the position H Equal to ht! Brief intro to L ATEX

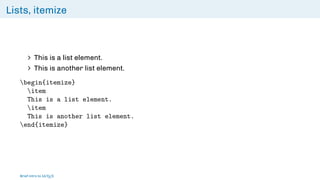

- 22. Lists, itemize ∠ Thisis a list element. ∠ This is another list element. begin{itemize} item This is a list element. item This is another list element. end{itemize} Brief intro to L ATEX

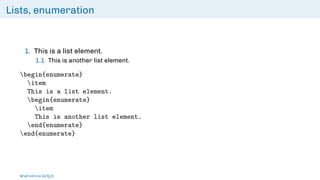

- 23. Lists, enumeration 1. Thisis a list element. 1.1 This is another list element. begin{enumerate} item This is a list element. begin{enumerate} item This is another list element. end{enumerate} end{enumerate} Brief intro to L ATEX
- 24. Lists, description * Thisis a list element. Element This is another list element. begin{description} item[*] This is a list element. item[Element] This is another list element. end{description} Brief intro to L ATEX

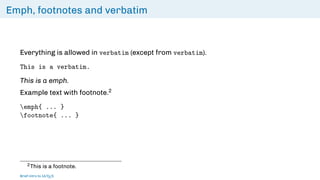

- 25. Emph, footnotes andverbatim Everything is allowed in verbatim (except from verbatim). This is a verbatim. This is a emph. Example text with footnote.2 emph{ ... } footnote{ ... } 2This is a footnote. Brief intro to L ATEX

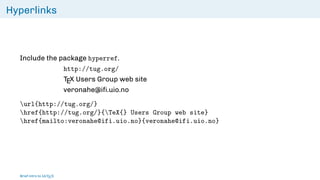

- 26. Hyperlinks Include the packagehyperref. http://tug.org/ TEX Users Group web site veronahe@ifi.uio.no url{http://tug.org/} href{http://tug.org/}{TeX{} Users Group web site} href{mailto:veronahe@ifi.uio.no}{veronahe@ifi.uio.no} Brief intro to L ATEX

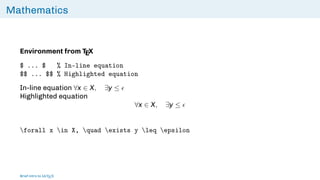

- 27. Mathematics Environment from TEX $... $ % In-line equation $$ ... $$ % Highlighted equation In-line equation ∀x ∈ X, ∃y ≤ Highlighted equation ∀x ∈ X, ∃y ≤ forall x in X, quad exists y leq epsilon Brief intro to L ATEX
- 28. Mathematics Environment, new inL ATEX ( ... ) % In-line equation [ ... ] % Highlighted equation In-line equation ∀x ∈ X, ∃y ≤ Highlighted equation ∀x ∈ X, ∃y ≤ Alternative ways of writing equations ∠ begin{equation} ∠ begin{align} ∀x ∈ X, ∃y ≤ (1) align will enumerate equations. Brief intro to L ATEX
- 29. Symbols Symbol Command ∩ cap ∪cup ⊆ subseteq ≡ equiv ∈ in / ∈ notin ∧ land ∨ lor |= models ∅ emptyset Λ Lambda λ lambda ∠ The Comprehensive L ATEXSymbol List ∠ L ATEXWiki Mathematics Brief intro to L ATEX
- 30. lstlistings 1 public classCode { 2 public static void main ( String [ ] args ) { 3 System . out . println ( Hello , world ! ) ; 4 } 5 } Brief intro to L ATEX
- 31.
- 32. lstlistings begin{lstlisting} public class Code{ public static void main(String[] args) { System.out.println(Hello, world!); } } end{lstlisting} Load code by using lstinputlisting{source_filename.py} Brief intro to L ATEX

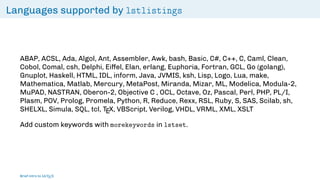

- 33. Languages supported bylstlistings ABAP, ACSL, Ada, Algol, Ant, Assembler, Awk, bash, Basic, C#, C++, C, Caml, Clean, Cobol, Comal, csh, Delphi, Eiffel, Elan, erlang, Euphoria, Fortran, GCL, Go (golang), Gnuplot, Haskell, HTML, IDL, inform, Java, JVMIS, ksh, Lisp, Logo, Lua, make, Mathematica, Matlab, Mercury, MetaPost, Miranda, Mizar, ML, Modelica, Modula-2, MuPAD, NASTRAN, Oberon-2, Objective C , OCL, Octave, Oz, Pascal, Perl, PHP, PL/I, Plasm, POV, Prolog, Promela, Python, R, Reduce, Rexx, RSL, Ruby, S, SAS, Scilab, sh, SHELXL, Simula, SQL, tcl, TEX, VBScript, Verilog, VHDL, VRML, XML, XSLT Add custom keywords with morekeywords in lstset. Brief intro to L ATEX

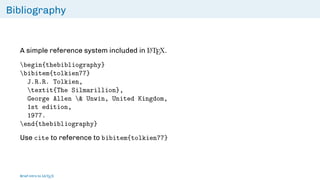

- 34. Bibliography A simple referencesystem included in L ATEX. begin{thebibliography} bibitem{tolkien77} J.R.R. Tolkien, textit{The Silmarillion}, George Allen Unwin, United Kingdom, 1st edition, 1977. end{thebibliography} Use cite to reference to bibitem{tolkien77} Brief intro to L ATEX

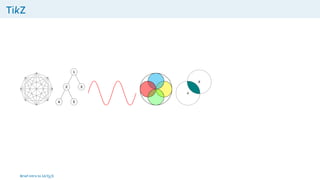

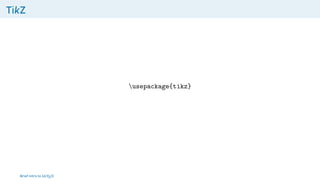

- 35. TikZ 1 2 4 5 3 A B Brief introto L ATEX
- 36.

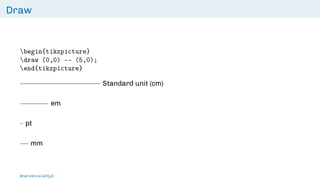

- 37. Draw begin{tikzpicture} draw (0,0) --(5,0); end{tikzpicture} Standard unit (cm) em pt mm Brief intro to L ATEX
- 38. Shapes usetikzlibrary{shapes} draw (0,0) rectangle(2,2); draw (0,0) circle (1); draw (0,0) ellipse (1 and 0,5); Brief intro to L ATEX
- 39. Options draw[draw=yellow, thick, fill=orange](0,0) rectangle (2,2); draw[draw=none, fill=teal] (0,0) circle (1); draw[draw=red, ultra thick, dashed] (0,0) ellipse (1 and 0.5); Brief intro to L ATEX
- 40. Tree 1 2 3 4 5 node{1} child {node {2}} child {node {3} child {node {4}} child {node {5}} } ; Brief intro to L ATEX

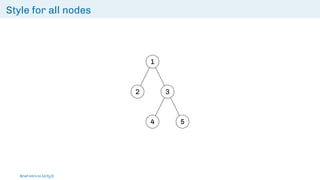

- 41. Style for allnodes 1 2 3 4 5 Brief intro to L ATEX
- 42. Style for allnodes begin{tikzpicture}[every node/.style={circle, draw=black}] node {1} child {node {2}} child {node {3} child {node {4}} child {node {5}} } ; end{tikzpicture} Brief intro to L ATEX

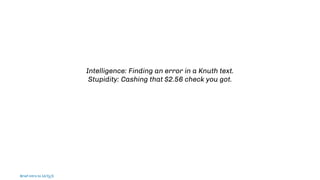

- 43. Intelligence: Finding anerror in a Knuth text. Stupidity: Cashing that $2.56 check you got. Brief intro to L ATEX
- 44. Useful resources ∠ TEXUsers Group ∠ TEXample ∠ TikZ PGF Manual ∠ L ATEXWiki Brief intro to L ATEX
