Backends of the Future
- 1. Backends of theFuture

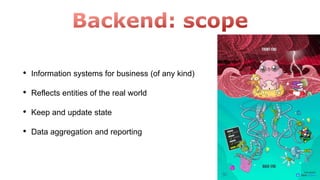

- 2. • Information systemsfor business (of any kind) • Reflects entities of the real world • Keep and update state • Data aggregation and reporting

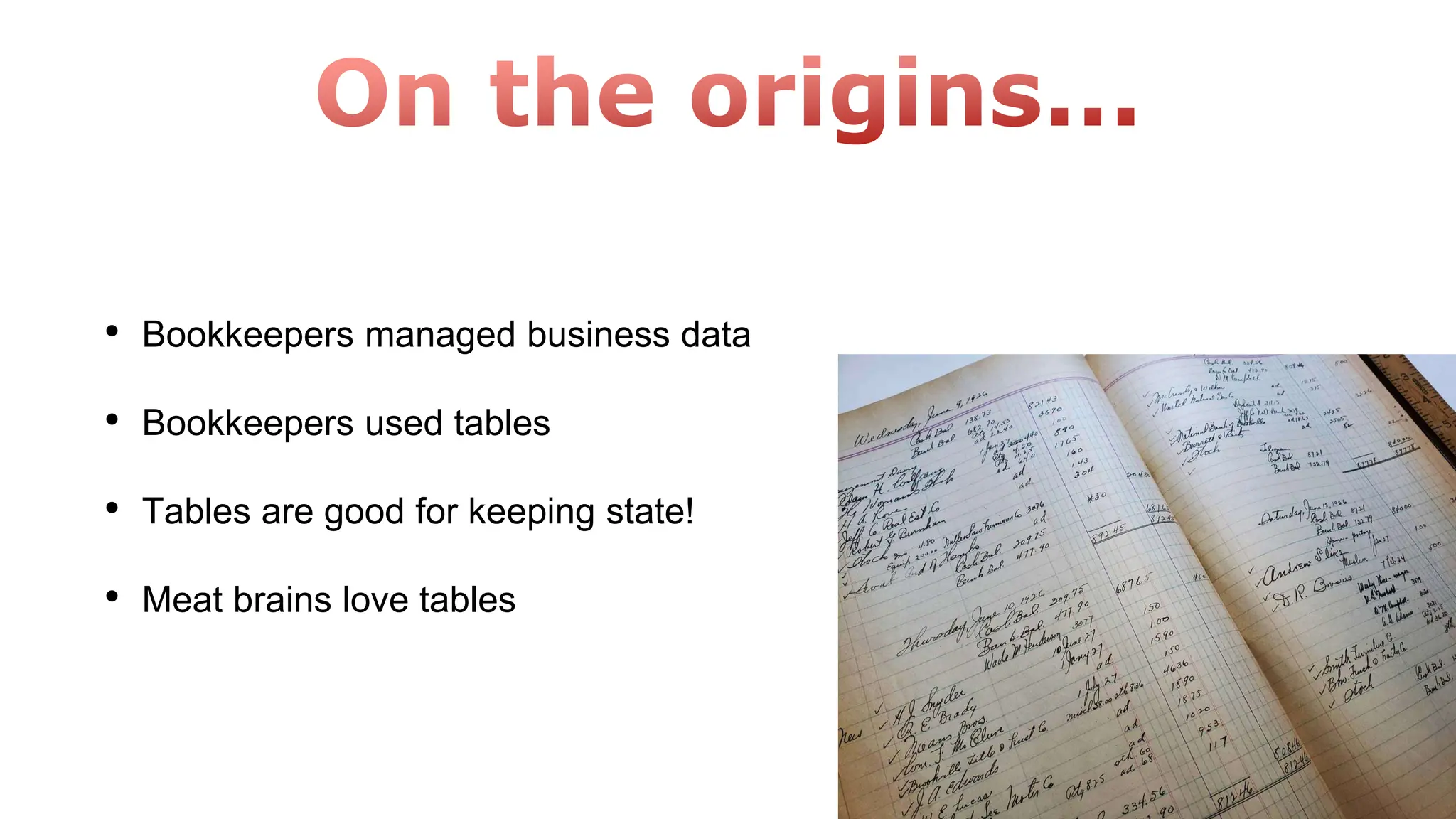

- 3. • Bookkeepers managedbusiness data • Bookkeepers used tables • Tables are good for keeping state! • Meat brains love tables
- 4. • State isstored in database in tables • Read-change-write on each request • Caches for performance • Works OK: for low loads or 99,9% reads

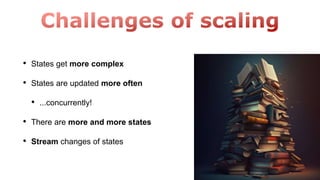

- 5. • States getmore complex • States are updated more often • ...concurrently! • There are more and more states • Stream changes of states

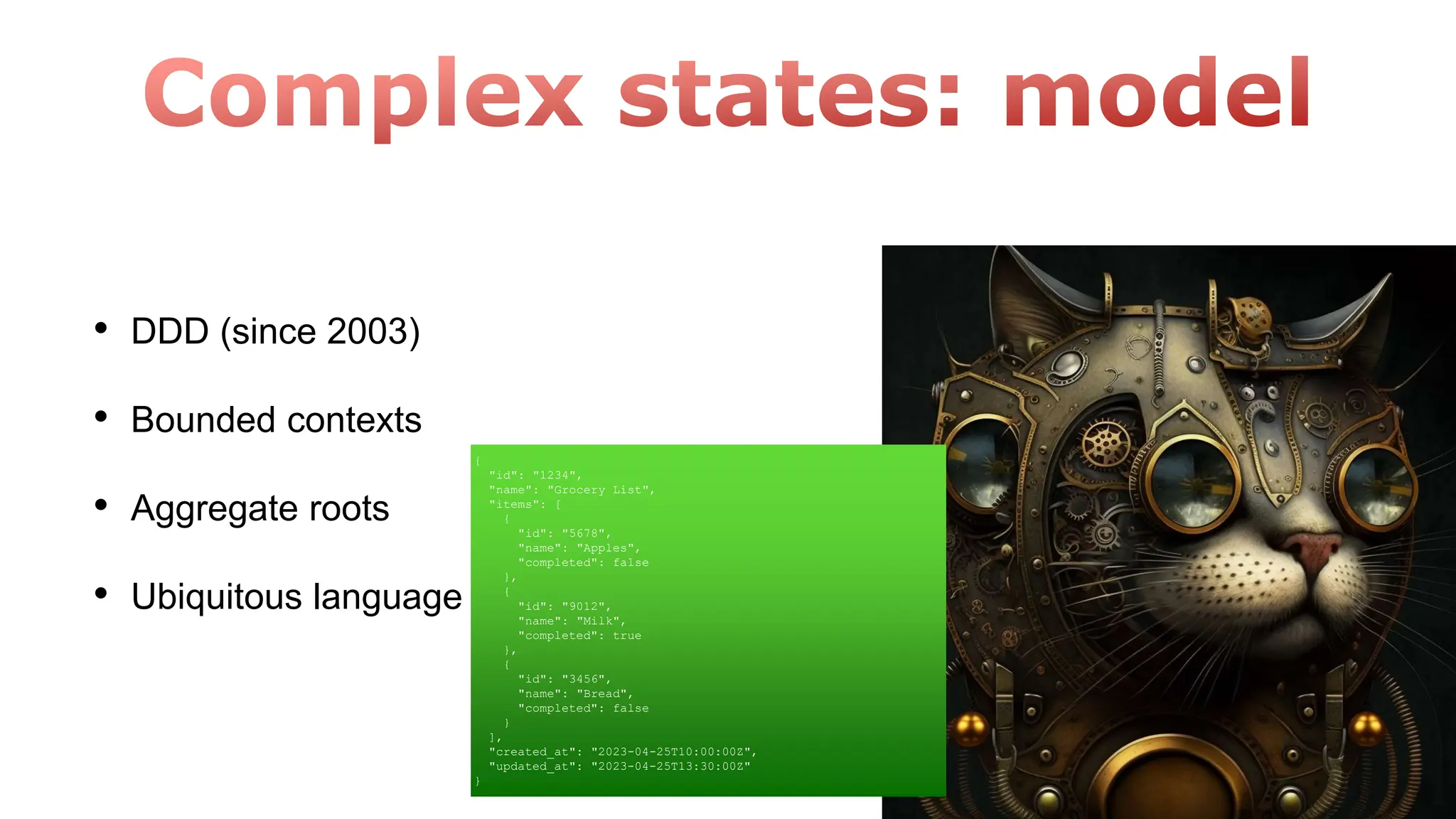

- 6. • DDD (since2003) • Bounded contexts • Aggregate roots • Ubiquitous language { "id": "1234", "name": "Grocery List", "items": [ { "id": "5678", "name": "Apples", "completed": false }, { "id": "9012", "name": "Milk", "completed": true }, { "id": "3456", "name": "Bread", "completed": false } ], "created_at": "2023-04-25T10:00:00Z", "updated_at": "2023-04-25T13:30:00Z" }

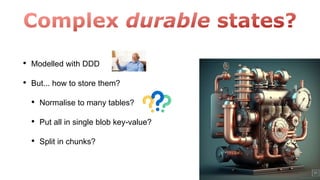

- 7. • Modelled withDDD • But... how to store them? • Normalise to many tables? • Put all in single blob key-value? • Split in chunks?

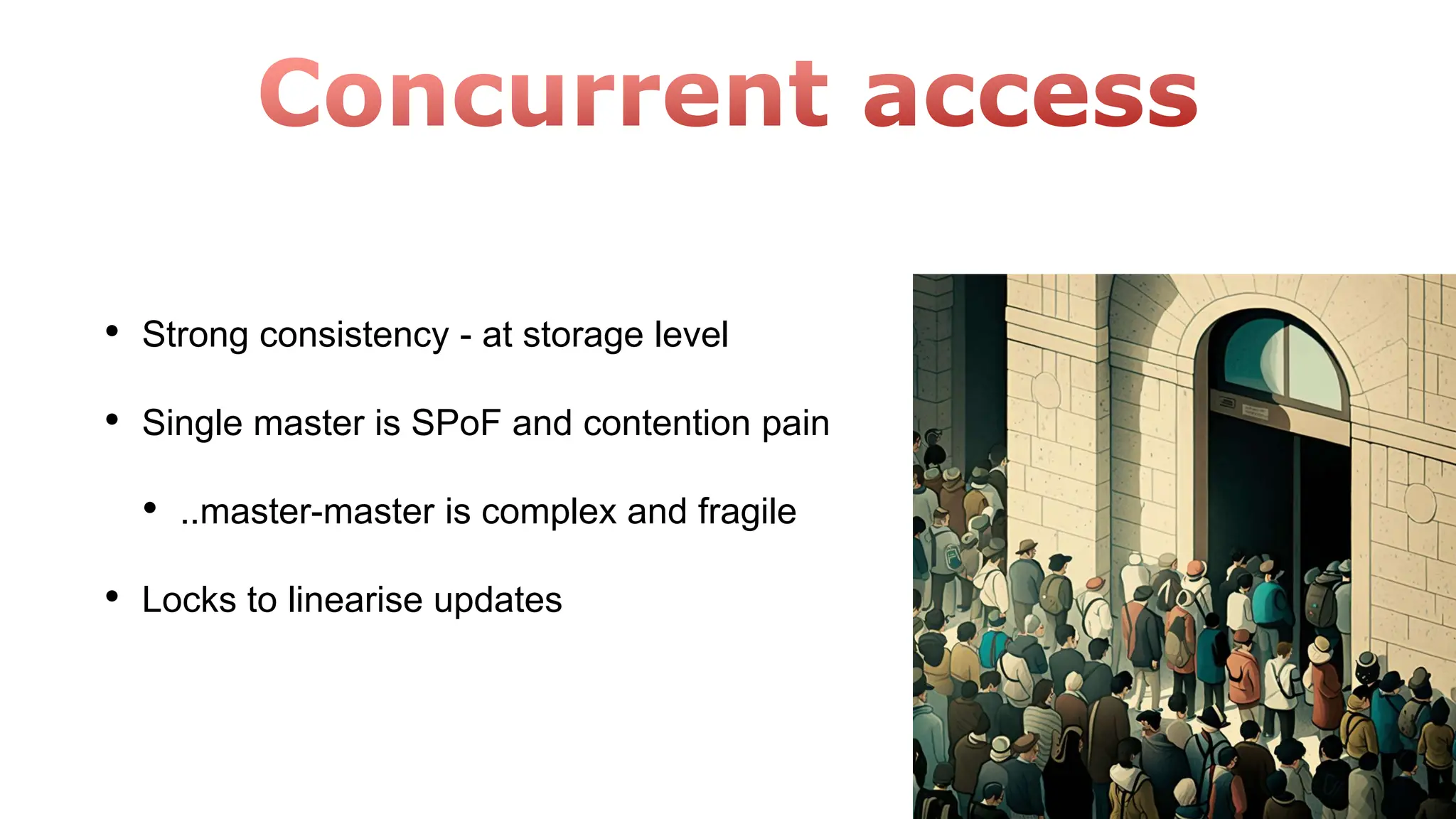

- 8. • Strong consistency- at storage level • Single master is SPoF and contention pain • ..master-master is complex and fragile • Locks to linearise updates

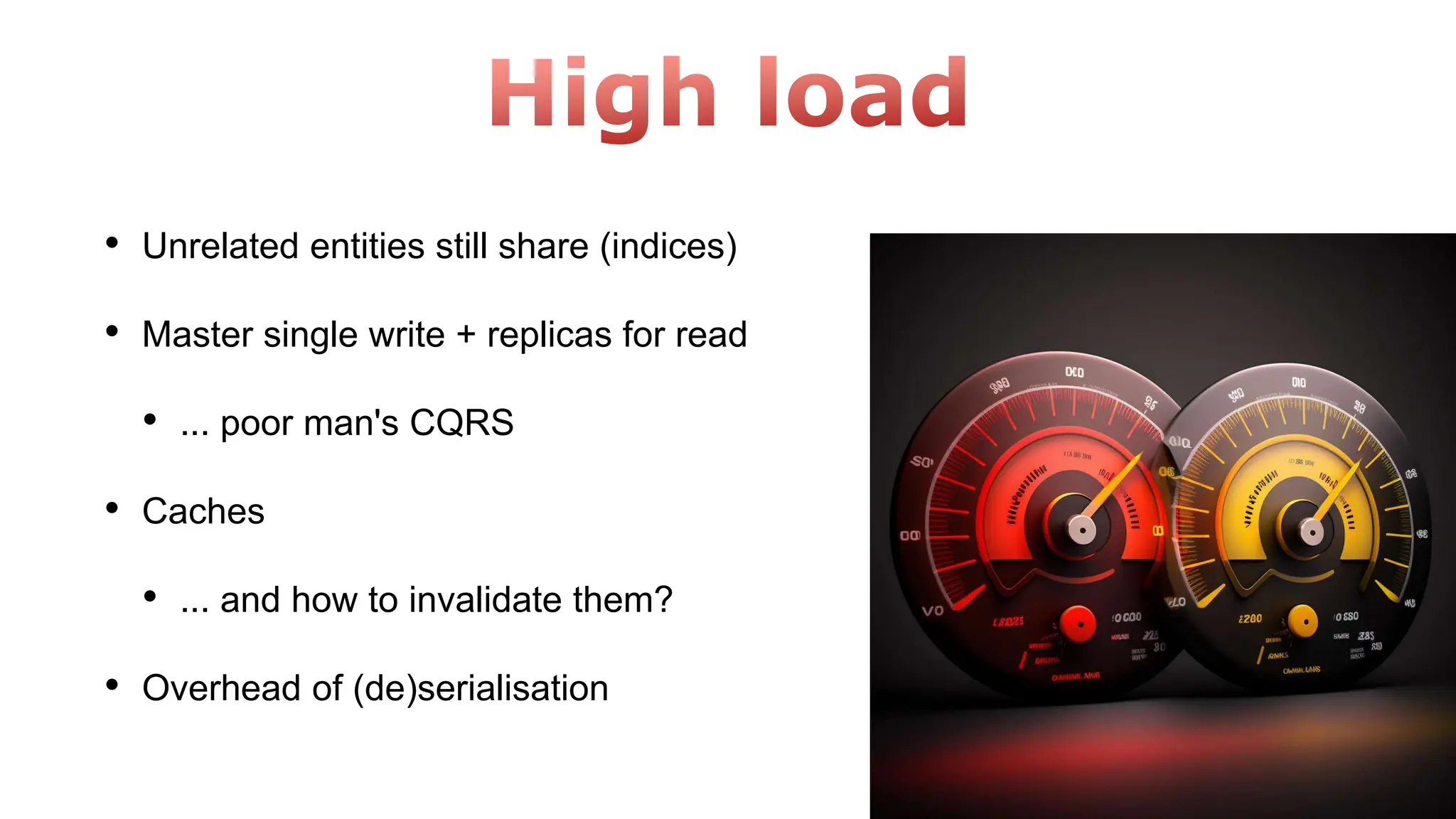

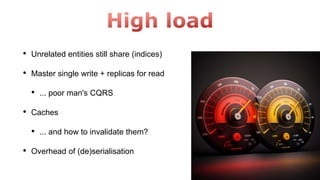

- 9. • Unrelated entitiesstill share (indices) • Master single write + replicas for read • ... poor man's CQRS • Caches • ... and how to invalidate them? • Overhead of (de)serialisation

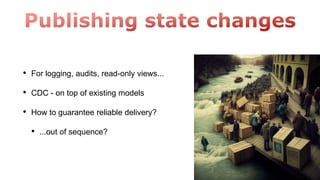

- 10. • For logging,audits, read-only views... • CDC - on top of existing models • How to guarantee reliable delivery? • ...out of sequence?

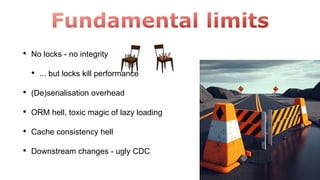

- 11. • No locks- no integrity • ... but locks kill performance • (De)serialisation overhead • ORM hell, toxic magic of lazy loading • Cache consistency hell • Downstream changes - ugly CDC

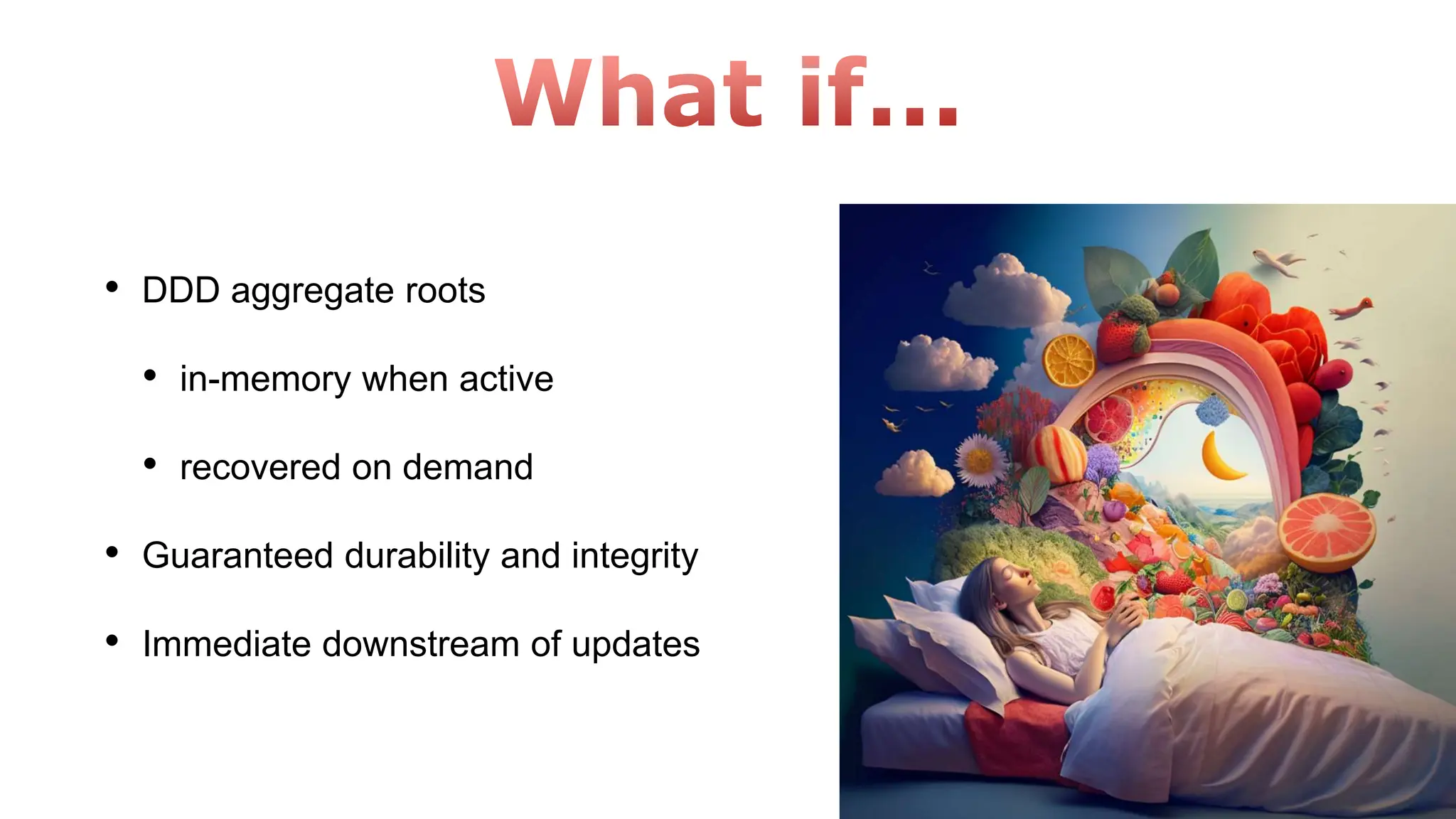

- 12. • DDD aggregateroots • in-memory when active • recovered on demand • Guaranteed durability and integrity • Immediate downstream of updates

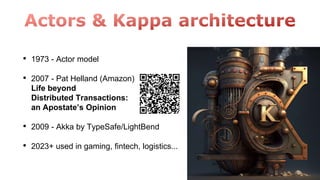

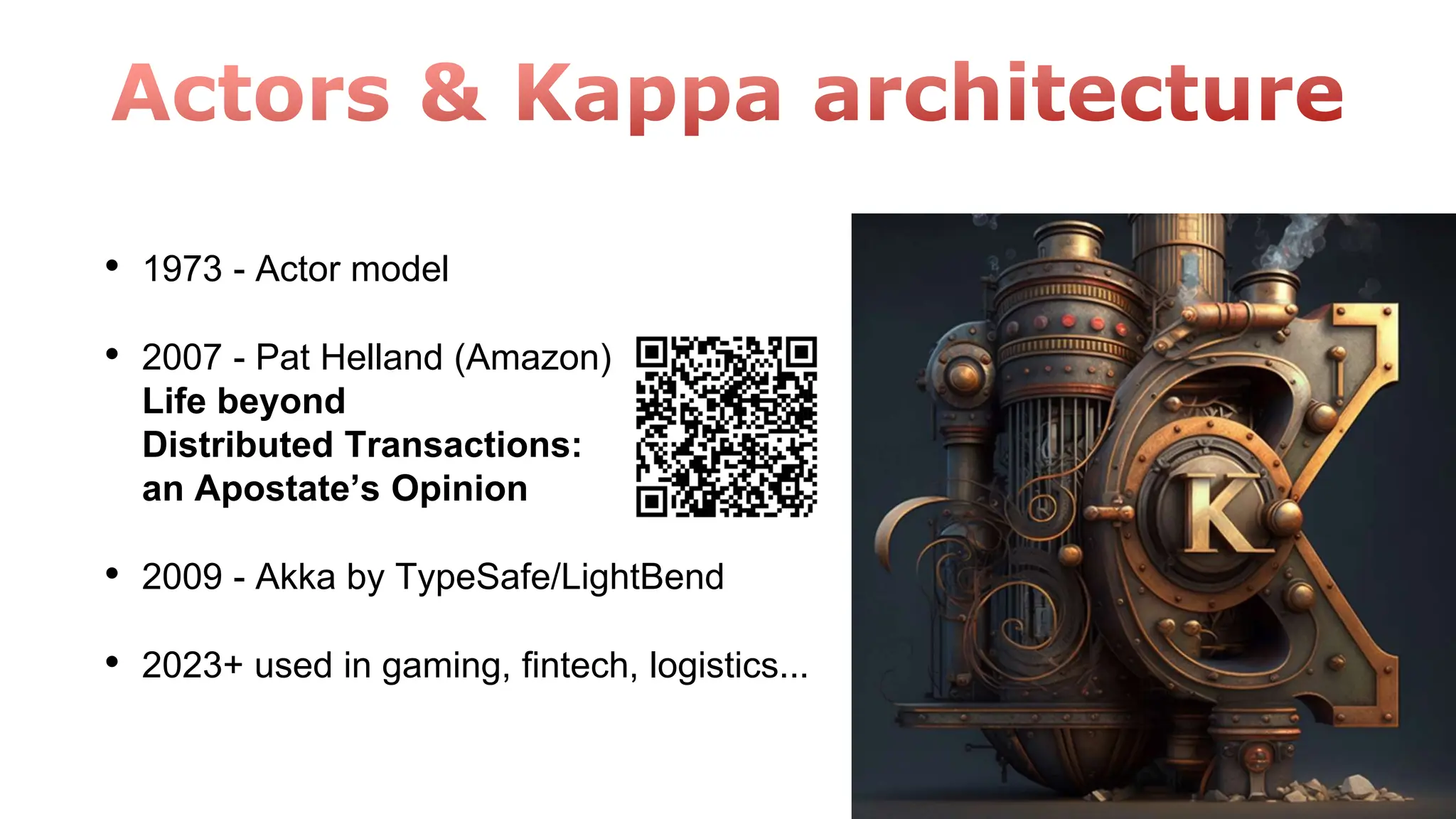

- 13. • 1973 -Actor model • 2007 - Pat Helland (Amazon) Life beyond Distributed Transactions: an Apostate’s Opinion • 2009 - Akka by TypeSafe/LightBend • 2023+ used in gaming, fintech, logistics...

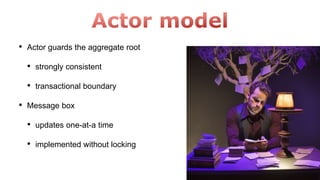

- 14. • Actor guardsthe aggregate root • strongly consistent • transactional boundary • Message box • updates one-at-a time • implemented without locking

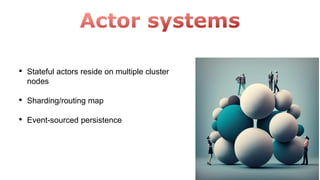

- 15. • Stateful actorsreside on multiple cluster nodes • Sharding/routing map • Event-sourced persistence

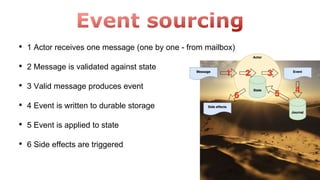

- 16. • 1 Actorreceives one message (one by one - from mailbox) • 2 Message is validated against state • 3 Valid message produces event • 4 Event is written to durable storage • 5 Event is applied to state • 6 Side effects are triggered

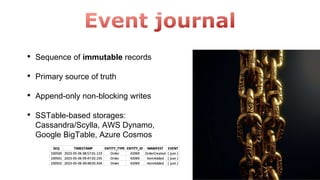

- 17. • Sequence ofimmutable records • Primary source of truth • Append-only non-blocking writes • SSTable-based storages: Cassandra/Scylla, AWS Dynamo, Google BigTable, Azure Cosmos

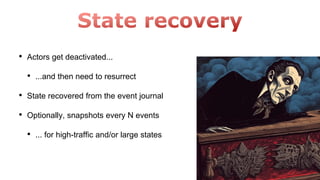

- 18. • Actors getdeactivated... • ...and then need to resurrect • State recovered from the event journal • Optionally, snapshots every N events • ... for high-traffic and/or large states

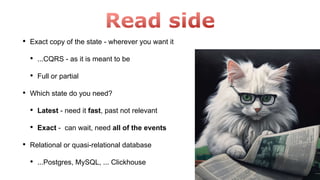

- 19. • Exact copyof the state - wherever you want it • ...CQRS - as it is meant to be • Full or partial • Which state do you need? • Latest - need it fast, past not relevant • Exact - can wait, need all of the events • Relational or quasi-relational database • ...Postgres, MySQL, ... Clickhouse
- 20. • States arevastly different • Journal performance read vs. write • Risk of split-brain • Complexity of custom implementation • Data lifecycle • Lack of experienced engineers • No single platform covering everything

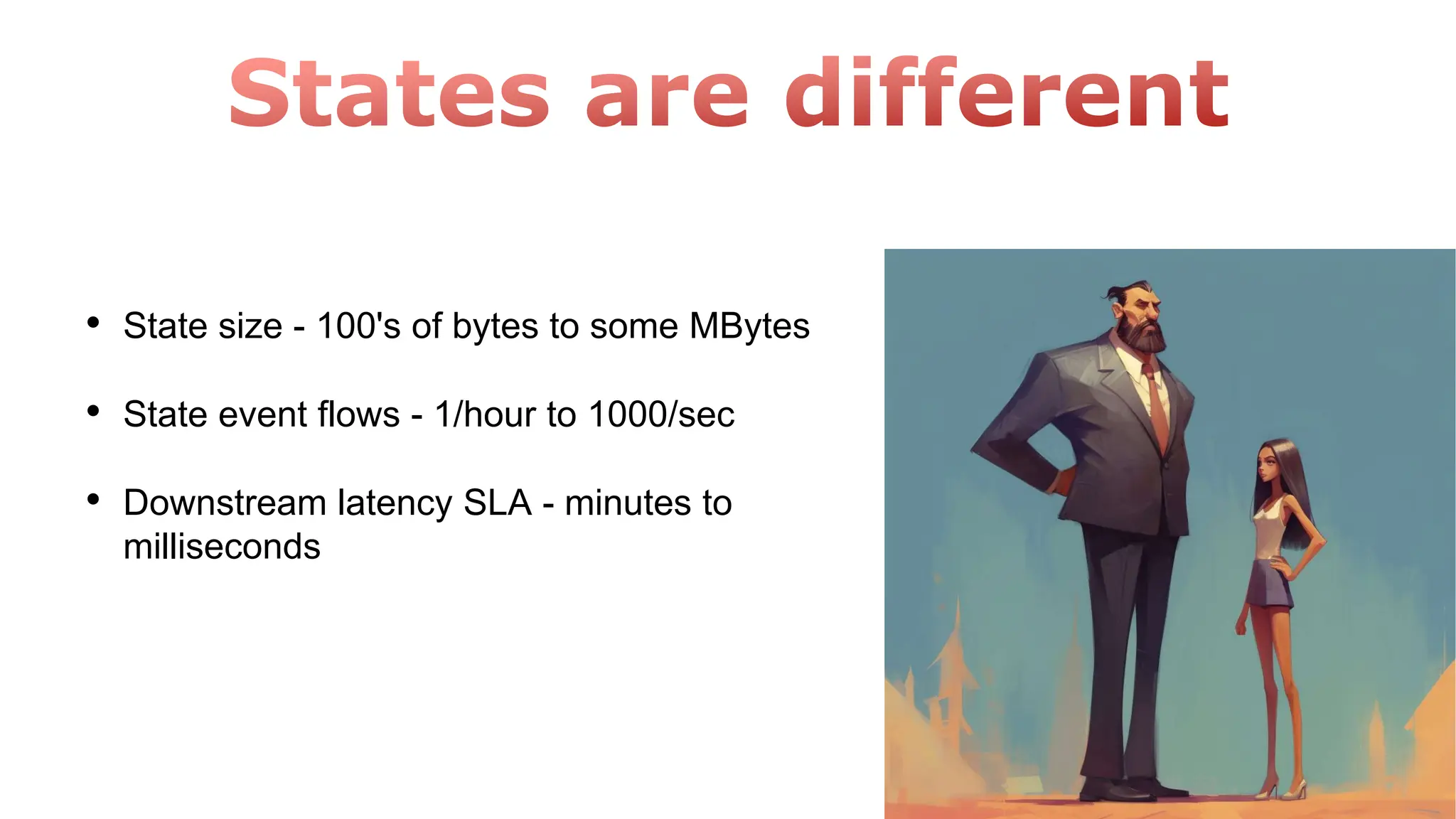

- 21. • State size- 100's of bytes to some MBytes • State event flows - 1/hour to 1000/sec • Downstream latency SLA - minutes to milliseconds

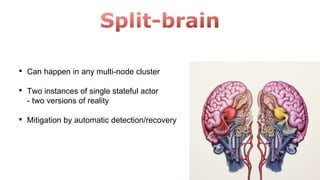

- 22. • Can happenin any multi-node cluster • Two instances of single stateful actor - two versions of reality • Mitigation by automatic detection/recovery

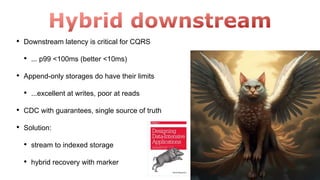

- 23. • Downstream latencyis critical for CQRS • ... p99 <100ms (better <10ms) • Append-only storages do have their limits • ...excellent at writes, poor at reads • CDC with guarantees, single source of truth • Solution: • stream to indexed storage • hybrid recovery with marker

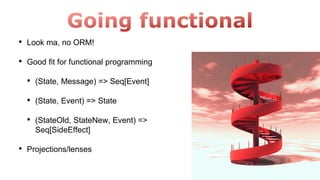

- 24. • Look ma,no ORM! • Good fit for functional programming • (State, Message) => Seq[Event] • (State, Event) => State • (StateOld, StateNew, Event) => Seq[SideEffect] • Projections/lenses

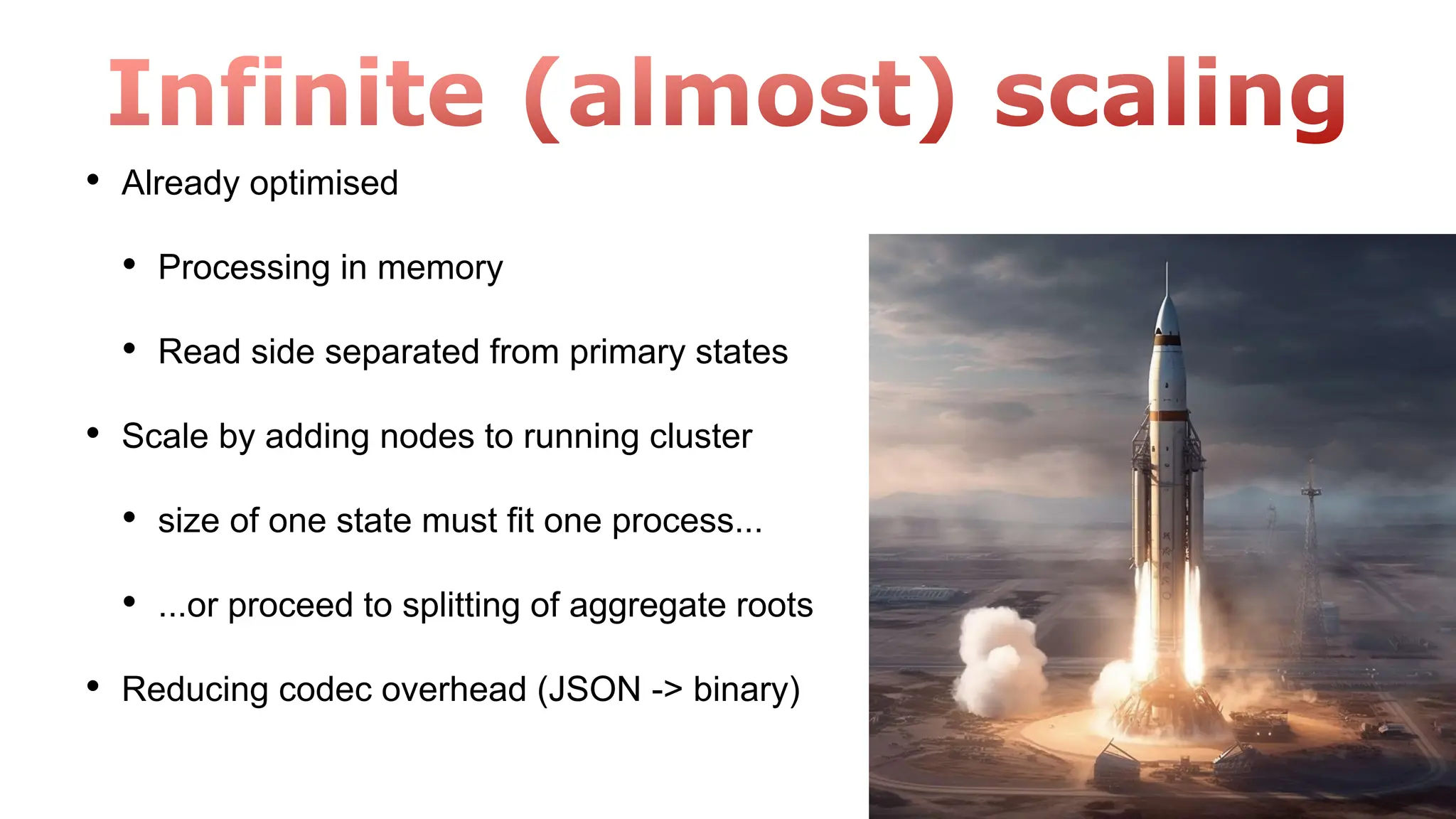

- 25. • Already optimised •Processing in memory • Read side separated from primary states • Scale by adding nodes to running cluster • size of one state must fit one process... • ...or proceed to splitting of aggregate roots • Reducing codec overhead (JSON -> binary)

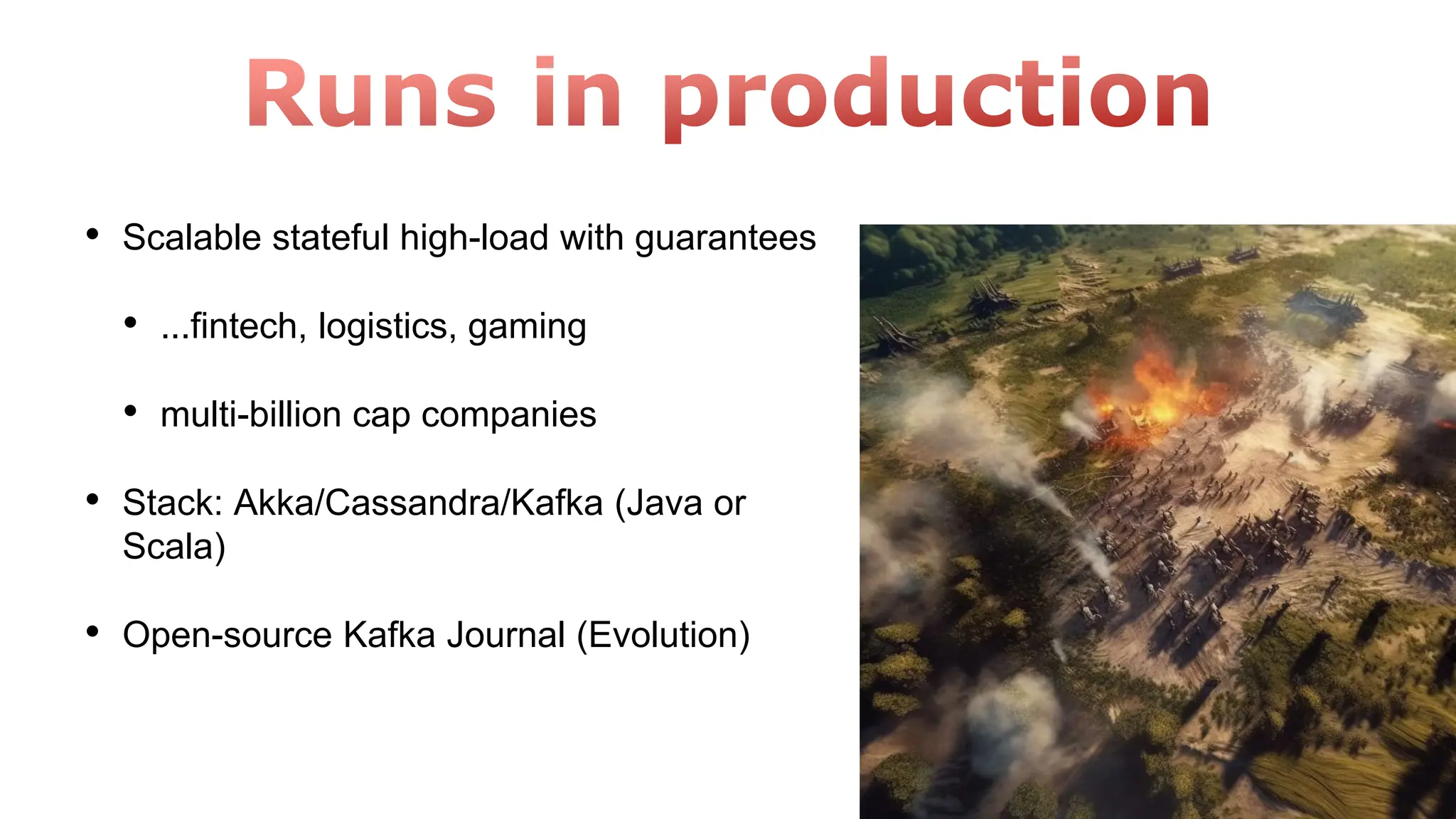

- 26. • Scalable statefulhigh-load with guarantees • ...fintech, logistics, gaming • multi-billion cap companies • Stack: Akka/Cassandra/Kafka (Java or Scala) • Open-source Kafka Journal (Evolution)
