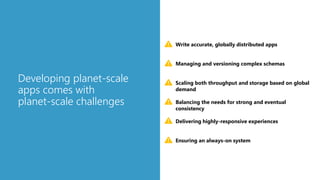

3. Developing planet-scale
apps comes with
planet-scale challenges
Scaling both throughput and storage based on global
demand
Delivering highly-responsive experiences
Ensuring an always-on system
Write accurate, globally distributed apps
Managing and versioning complex schemas
Balancing the needs for strong and eventual
consistency

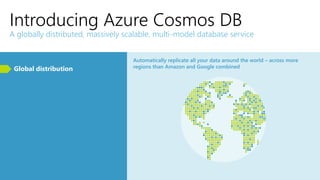

4. Introducing Azure Cosmos DB
A globally distributed, massively scalable, multi-model database service
Global distribution
Automatically replicate all your data around the world – across more
regions than Amazon and Google combined

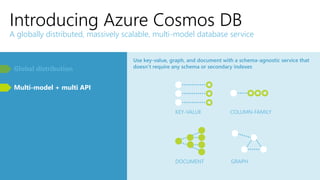

5. Introducing Azure Cosmos DB
A globally distributed, massively scalable, multi-model database service
Global distribution
Multi-model + multi API
Use key-value, graph, and document with a schema-agnostic service that
doesn’t require any schema or secondary indexes
KEY-VALUE COLUMN-FAMILY
DOCUMENT GRAPH

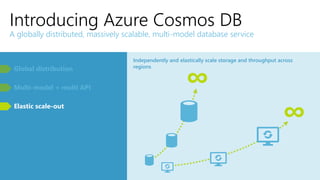

6. Introducing Azure Cosmos DB
A globally distributed, massively scalable, multi-model database service
Global distribution
Multi-model + multi API
Elastic scale-out
Independently and elastically scale storage and throughput across
regions

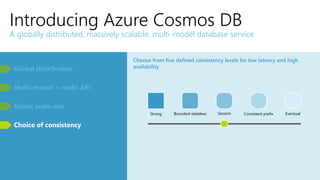

7. Introducing Azure Cosmos DB
A globally distributed, massively scalable, multi-model database service
Global distribution
Multi-model + multi API
Elastic scale-out
Choice of consistency
Choose from five defined consistency levels for low latency and high
availability
Strong Bounded-stateless Session Consistent prefix Eventual
8. Introducing Azure Cosmos DB
A globally distributed, massively scalable, multi-model database service
Global distribution
Multi-model + multi API
Elastic scale-out
Choice of consistency
Serve <10 ms read and <15 ms write requests at the 99th percentile from
the nearest region while delivering data globally
Guaranteed single-digit latency
Read < 1 ms
Writes < 6 ms
Read < 10 ms
Writes < 15 ms
99%50%

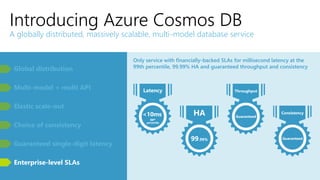

9. Introducing Azure Cosmos DB
A globally distributed, massively scalable, multi-model database service
Global distribution
Multi-model + multi API
Elastic scale-out
Choice of consistency
Guaranteed single-digit latency
Only service with financially-backed SLAs for millisecond latency at the
99th percentile, 99.99% HA and guaranteed throughput and consistency
99.99%
HA
Throughput
Guaranteed
Consistency
Guaranteed
Enterprise-level SLAs
<10ms
Latency
99th
percentile
10. Introducing Azure Cosmos DB
A globally distributed, massively scalable, multi-model database service
Global distribution
Multi-model + multi API
Elastic scale-out
Choice of consistency
Guaranteed single-digit latency
Enterprise-level SLAs

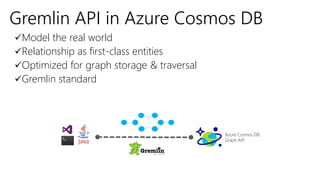

26. Model the real world
Relationship as first-class entities
Optimized for graph storage & traversal
Gremlin standard
Gremlin API in Azure Cosmos DB
Azure Cosmos DB:
Graph API

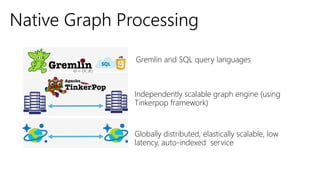

27. Globally distributed, elastically scalable, low
latency, auto-indexed service
Independently scalable graph engine (using
Tinkerpop framework)
Gremlin and SQL query languages
Native Graph Processing

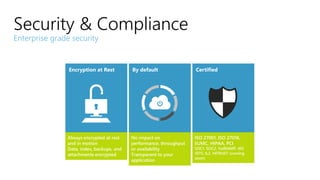

32. Security & Compliance
Enterprise grade security
Encryption at Rest By default Certified
Always encrypted at rest
and in motion
Data, index, backups, and
attachments encrypted
No impact on
performance, throughput
or availability
Transparent to your
application
ISO 27001, ISO 27018,
EUMC, HIPAA, PCI
SOC1, SOC2, FedRAMP, IRS
1075, IL2, HITRUST (coming
soon)

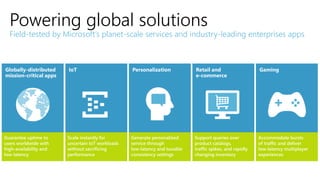

33. Powering global solutions
Field-tested by Microsoft’s planet-scale services and industry-leading enterprises apps
Globally-distributed
mission-critical apps
IoT
Accommodate bursts
of traffic and deliver
low-latency multiplayer
experiences
Personalization Retail and
e-commerce
Gaming
Guarantee uptime to
users worldwide with
high-availability and
low-latency
Scale instantly for
uncertain IoT workloads
without sacrificing
performance
Generate personalized
service through
low-latency and tunable
consistency settings
Support queries over
product catalogs,
traffic spikes, and rapidly
changing inventory

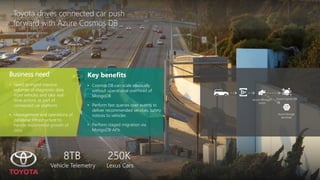

34. Key benefits
• Cosmos DB can scale elastically
without operational overhead of
MongoDB
• Perform fast queries over events to
deliver recommended services, safety
notices to vehicles
• Perform staged migration via
MongoDB APIs
Business need
• Need to ingest massive
volumes of diagnostic data
from vehicles and take real-
time actions as part of
connected car platform
• Management and operations of
database infrastructure to
handle exponential growth of
data
8TB
Vehicle Telemetry
250K
Lexus Cars
Toyota drives connected car push
forward with Azure Cosmos DB
Azure Cosmos DBAzure HDInsight
Storm
Azure Storage
(archival)

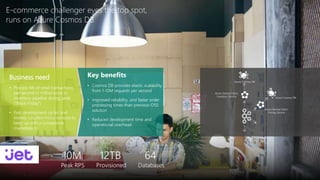

35. Business need
• Process Ms of retail transactions
per second in milliseconds in
inventory pipeline during peak
(“Black Friday”)
• Fast development cycles and
loosely coupled micro-services to
keep up with a competitive
marketplace
Key benefits
• Cosmos DB provides elastic scalability
from 1-10M requests per second
• Improved reliability, and faster order
processing times than previous OSS
solution
• Reduced development time and
operational overhead
Azure Cosmos DB
Azure Service Fabric
Pricing Service
Azure Cosmos DB
Azure Service Fabric
Inventory Service
E-commerce challenger eyes the top spot,
runs on Azure Cosmos DB
12TB
Provisioned
10M
Peak RPS
64
Databases

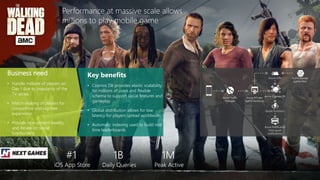

36. Business need
• Handle millions of players on
Day 1 due to popularity of the
TV series
• Match-making of players for
competitive and lag-free
experience
• Provide new content weekly,
and iterate on social
functionality
•
Key benefits
• Cosmos DB provides elastic scalability
for millions of users and flexible
schema to support social features and
gameplay
• Global distribution allows for low
latency for players spread worldwide
• Automatic indexing used to build real-
time leaderboards
Performance at massive scale allows
millions to play mobile game
Azure Traffic
Manager
Azure API Aps
(game backend)
Azure CDN
Azure Cosmos DB
Azure Functions
Azure Notification
Hubs (push
notifications)
Azure Storage
(game files)
1M
Peak Active
#1
iOS App Store
1B
Daily Queries
37. Try before you buy
Use the Azure Cosmos DB Emulator
aka.ms/cosmosdb-emulator
38. Try before you buy
Try Azure Cosmos DB for free
azure.microsoft.com/try/cosmosdb/
Every interaction you make with your phones, computers, watches or sport tracking devices, cars and even some things like smart fridges, generate big volumes of data. Data that represent you as consumers, users and individuals.
Worldwide presence
Automatic multi-region replication
Multi-homing APIs
Manual and automatic failovers
Latency, throughput, consistency, and availability guarantees
First party and popular third-party OSS APIs
Key-value, Document, Columnar, and Graph
DocumentDB (SQL and JavaScript), MongoDB, Table, and Gremlin

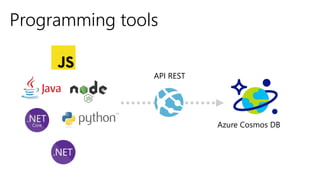

Supported across number of programming languages
More APIs to be added
Pay by the hour, only what you need
No partition management, no limits
Change throughput at any time, effective in seconds
Scale from 100 to 100s of millions of requests/sec across any number of regions
Automatically indexed SSD storage
Global distribution across Azure regions
Automatic expiration via TTL
Now supports requests/min to handle spikes cost-effectively
While most database services force you to choose between strong or eventual consistency, Azure Cosmos DB provides multiple well-defined, intuitive consistency choices – so you can select just the right one for your app.
Every globally distributed databases need to navigate the CAP theorem. This is a fact of life, how ever anyone else markets it.
We take a unique approach to it by allowing our developers to define the consistency levels their application needs. With well-defined consistency model, you have the choice and control but also have predictability in the trade offs you are making. As a globally distributed database which is designed from the ground up, Cosmos DB has taken a unique approach to navigate the CAP theorem to provide well-defined behavior between the tradeoffs between latency/high availability and consistency.
Globally distributed with reads and writes served from local region
Write optimized, latch-free database engine designed for SSDs
Synchronous and automatic indexing at sustained ingestion rates
Single-digit millisecond latency at any scale
Only service with financially-backed SLAs for millisecond latency at the 99th percentile, 99.99% HA and guaranteed throughput and consistency
Multi-model nature is based on a schema-less storage

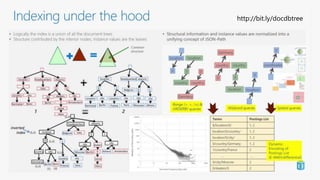

<Explain BW-TREE indexing as lightly and clear as posible>
Showcasing CosmosDB Data Explorer & Queries

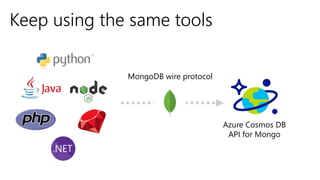

Migrate your MongoDB data to CosmosDB and keep using the same SDKs and apps; your applications will work just by changing your connection string
Benefit from Azure CosmosDB’s global distribution and scaling features while using Mongo in your application
Showcasing Mongo client with CosmosDB connection string

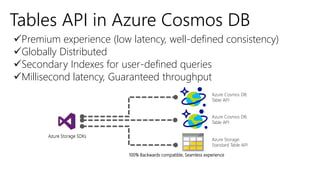

Today, I have the privilege of announcing that Azure Cosmos DB will support Azure Tables API for a premium experience for Tables customers. You can now use Azure tables and get the same millisecond latency that Azure Cosmos DB offers and you can control the consistency level for your app. Your Azure Tables can automatically be distributed across any Azure region. With automatic indexing, you do not need secondary indexes and all of this is 100% backwards compatible.
As a developer your experience is seamless – All it takes is to change a connection string.
With support for Tables API, we are brining to you most of the top 10 asks.
By GA, We will be bringing an update for existing Azure Tables and seamlessly migrating all of the current Azure Tables workloads to have the same functionality that we are announcing today with the simplicity and low cost of Azure Tables.
Showcasing Azure Storage Tables SDK with CosmosDB connection string & Azure Portal Data Explorer
Graph database provides a highly intuitive data model and allows us to to reflect how the world really operates. Graph databases and traversal allows us to find the relational connections between objects and data. In many scenarios that our customers use Azure Cosmos DB, one of the next steps often identified is the need to find these relationships and operate on them. They need to interact with the graph model. With Gremlin API support, we allow you to work with Azure Cosmos DB using the most popular graph language and standards out there.
Showcasing Azure Portal Data Explorer Graph queries

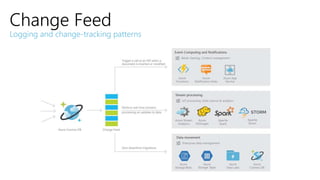

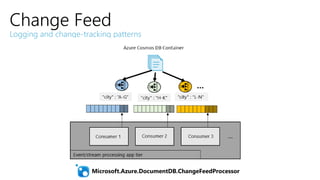

Update a cache, search index, or a data warehouse with data stored in Azure Cosmos DB.
Implement application-level data tiering and archival, that is, store "hot data" in Azure Cosmos DB, and age out "cold data" to Azure Blob Storage or Azure Data Lake Store.
Implement batch analytics on data using Apache Hadoop.
Implement lambda pipelines on Azure with Azure Cosmos DB. Azure Cosmos DB provides a scalable database solution that can handle both ingestion and query, and implement lambda architectures with low TCO.
Perform zero down-time migrations to another Azure Cosmos DB account with a different partitioning scheme.
Changes are persistent in Azure Cosmos DB and can be processed asynchronously.
Changes to documents within a collection are available immediately in the change feed.
Each change to a document appears exactly once in the change feed, and clients manage their checkpointing logic.
The change feed processor library provides automatic checkpointing and "at least once" semantics.
Only the most recent change for a given document is included in the change log. Intermediate changes may not be available.
The change feed is sorted by order of modification within each partition key value. There is no guaranteed order across partition-key values.
Changes can be synchronized from any point-in-time, that is, there is no fixed data retention period for which changes are available.
Changes are available in chunks of partition key ranges. This capability allows changes from large collections to be processed in parallel by multiple consumers/servers.
Applications can request for multiple change feeds simultaneously on the same collection
As a foundational Azure Service, Security and Compliance is an important aspect of Azure Cosmos DB.
As I previously mentioned, several high value Microsoft services that have stringent compliance and security requirements are built on Azure Cosmos DB. All of the data is encrypted at rest and it is enabled by default. We made sure that we continue to provide the performance guarantees even with encryption enabled and this is transparent to your application. The service is HIPAA , PCI, ISO certified and other compliance certifications are in the process with all of them estimated to be completed by next month.
