The document discusses scaling infrastructure using Amazon Web Services (AWS). It provides examples of how a vendor could programmatically spin up AWS instances and resources based on customer needs to handle scaling from one customer to thousands. It also describes various AWS services like EC2, EBS, S3, and Glacier for flexible and scalable infrastructure with no long term commitments.

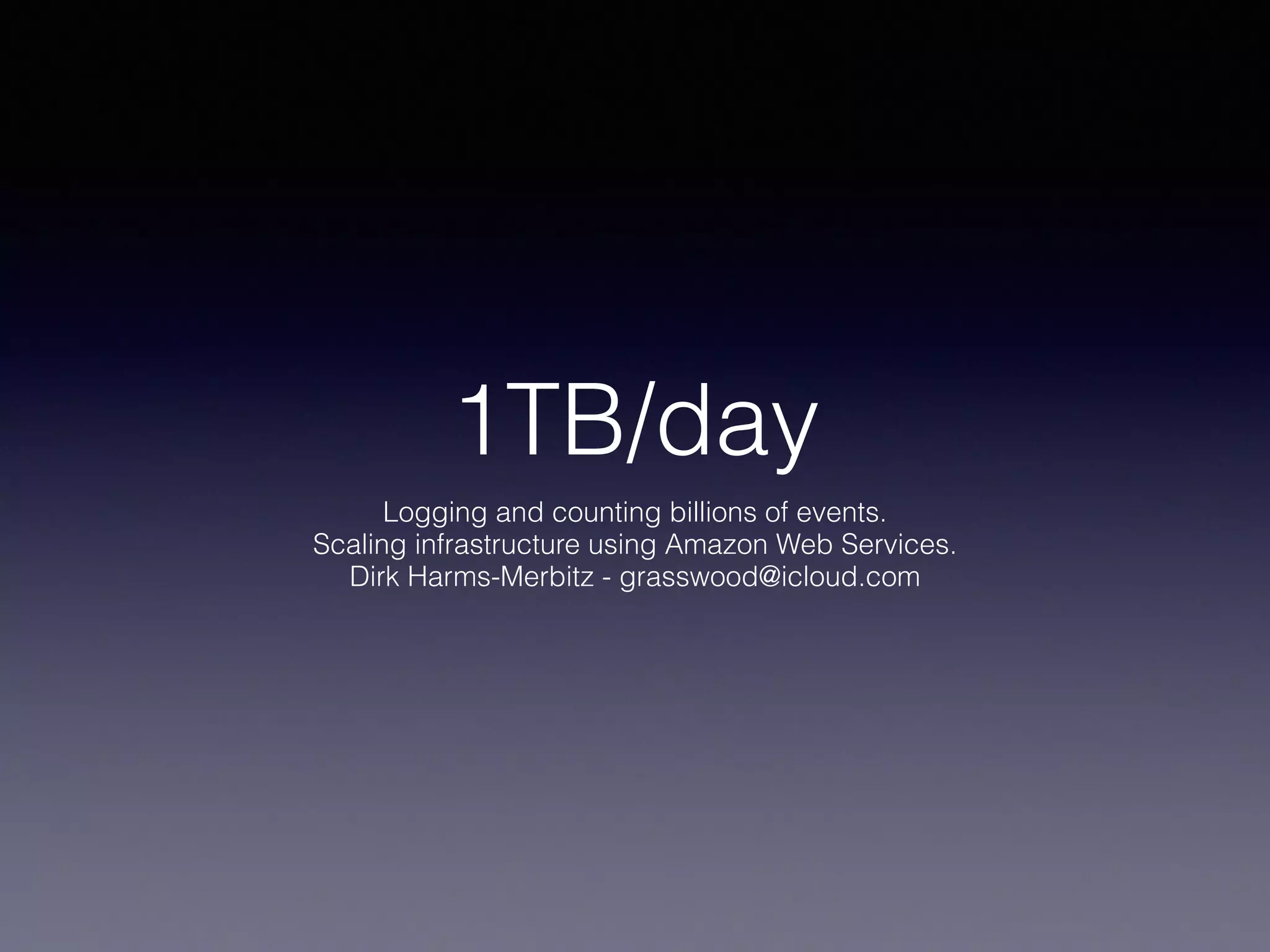

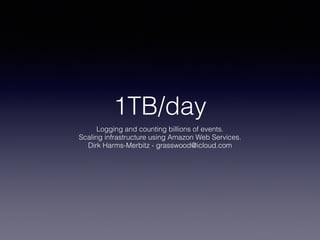

1. 1TB/day
Logging and counting billions of events.
Scaling infrastructure using Amazon Web Services.
Dirk Harms-Merbitz - grasswood@icloud.com

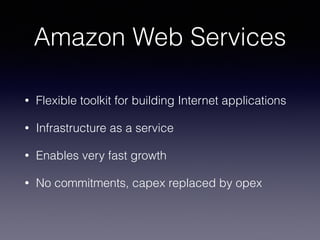

2. Amazon Web Services
• Flexible toolkit for building Internet applications
• Infrastructure as a service
• Enables very fast growth
• No commitments, capex replaced by opex

3. Example
• Customer signs up on web form, specifies number of
users, data retention policies, based on business needs.
• Vendor programmatically spins up an instance from a
custom AMI with EBS volumes or local storage RAIDed as
needed to match performance, size, and cost parameters.
• One customer or one thousand customers, the
infrastructure and scaling of resources is handled by
Amazon.
• Vendor focusses on marketing, support and software
development.

4. The AWS Toolkit
• EC2 = Containers on Demand
• EBS = Elastic Block Storage
• S3 = Object storage and static HTTP
• Glacier = Long term storage

5. Elastic Compute 2
• Container for OS and application software
• Storage is EBS or locally attached
• / on EBS makes it easy to change instance size
• Standard or custom AMI
• An EC2 instance is not a server

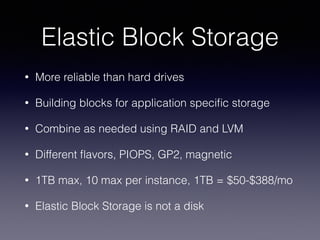

6. Elastic Block Storage
• More reliable than hard drives
• Building blocks for application specific storage
• Combine as needed using RAID and LVM
• Different flavors, PIOPS, GP2, magnetic
• 1TB max, 10 max per instance, 1TB = $50-$388/mo
• Elastic Block Storage is not a disk

7. Local storage
• Directly attached to an instance
• Lower cost compared to EBS, much faster
• Survives reboots but disappears when instance
is stopped or terminated
• Best used with instance level redundancy:
RAID0 with the same data on multiple instances
allows for very fast processing in parallel

8. Object Storage 3
• Stores objects of up to 5TB
• 4x9 availability, 11x9 durability
• REST and SOAP interfaces - $5/1M requests
• HTTP download, easy for customers to access
• 1TB = $30/mo storage, $120/mo to transfer

9. AWS Glacier
• Glacier Storage
• 4x9 availability, 11x9 durability
• $10/mo to store 1TB
• Cost for getting data out is based on speed
• Getting data out quickly can become expensive

10. AWS Optimizations
• EBS optimized instances offer better performance. Your
storage and network compete otherwise.
• RAID and LVM are used to combine EBS volumes to
match application storage size and throughput
requirements.
• Local SSDs double in size and speed with RAID0. Data
survives reboots but snapshots are needed before
stopping or terminating.
• Cloud is not just AWS: DigitalOcean, Linode, there are
many alternatives. EBS however makes resizing easy.

11. AWS Pro and Con
• Not hardware: Intuitions based on physical hardware won’t
transfer. Everything is throttled.
• Flexible: Used correctly you don’t have to think about scaling
your hardware to millions of users. Short term, testing ideas.
• Complex: Easy to use incorrectly, with very low performance and
very high costs possible as a result.
• Expensive Mistakes: Storing 6TB for three years can cost as
much as $83,808 or as little as $4,818.
• If you know what you need, co-location delivers more for less: A
physical 6TB drive is faster, lasts 3-5 years and costs $299.

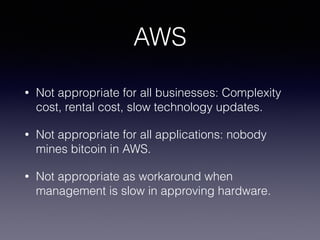

12. AWS
• Not appropriate for all businesses: Complexity
cost, rental cost, slow technology updates.
• Not appropriate for all applications: nobody
mines bitcoin in AWS.
• Not appropriate as workaround when
management is slow in approving hardware.

13. Tips & Tricks
• avoid copying data
• use parallel or exec
• speed up ssh, use mosh
• use fixed length records
• use raw block devices
• use bitmaps

14. avoid copying data
• write to EBS volume A until full
• switch to volume B, continue writing
• detach A and attach to processing instance
• zero copy when a volume is passed around

15. parallel and pexec
• grep, bzip2, wc, awk, sed use only a single CPU core
• gnu parallel or pexec make use of all cores, local and even neighbors
• pexec -o - -f instances -e x -c -- 'rsync -ae ssh /etc/hosts $x:/etc/hosts'
• parallel ping -c1 ::: host1 host2 host2 host4
• find -name “*csv.gz” -print | parallel zgrep “string”
• find -name “*.csv.gz” -print | parallel zcat >all.txt
• cat all.txt | parallel —pipe grep ‘api_key=xyz’
• cat all.txt | parallel —pipe wc -l | awk ‘{s+$1} END {print s}’

16. ssh and mosh
• 30x faster when reusing ssh connections:
• ControlMaster auto
• ControlPersist yes
• ControlPath ~/.ssh/socket-%r@%h:%p
• mosh.mit.edu works well over lossy connections
• including changing locations and IP numbers

17. fixed length records
• Fixed length records on raw block devices
• No compressing and uncompressing
• No parsing of ASCII
• No file system
• No overflow possible, write pointer wraps

18. raw block devices
• Counters on raw block devices
• By keeping just the lower byte of a counter in
RAM you can divide access frequency by 256
• RAID0 of SSDs can reach 1000-2000MB/s
• EBS 100MB/s, RAID0 of multiple EBS 800MB/s

19. bitmaps
• Bitmaps for counting things and other uses
• 100M unique users in 12.5MB of RAM
• Hourly, Daily, Weekly, Quarterly…
• 6TB SSD instance = 7000 bits / person on earth
