1. BADIR - Riyadh
29-12-2018
AWS Messaging
AWS Riyadh
User Group
Ahmed Aziz
21
@Ahmed_Aziz
/in/ahmedsleem
Ahmed.aziz.sleem@gmail.com

2. Agenda
• Events-Driven Architecture
• Overview
• Amazon MQ
• Amazon SQS
• Amazon Kinesis data stream
• Amazon SNS
• Amazon PinPoint
• AWS IoT Message Broker

3. If your application is
cloud-native, or large-scale,
or distributed, and doesn’t
include a messaging component,
that’s probably a bug
Tim Bray
Senior Principe Engineer

4. Events-Driven Architecture

5. Overview
• Enables different systems to communicate or
exchange information.
• Decouple and scale microservices, distributed
systems, and serverless applications.
• Stores messages redundantly across multiple AZs.
• Fully manage service:
– The underlying infrastructure is automatically provisioned
for high availability and message durability to support the
reliability of your applications.

6. Amazon MQ (1 of 2)
• Reduces your operational load by managing the provisioning,
setup, and maintenance of ActiveMQ.
• Uses standards(JMS, NMS, AMQP, STOMP, MQTT, WebSocket)
• There’s no need to rewrite any messaging code when you
migrate to AWS.
• With active/standby brokers, Amazon MQ automatically fails
over to a standby instance.
• Single-instance brokers (if the node fails, it will be unavailable
until it is restarted).

7. Amazon MQ (2 of 2)
• Uses the “network of brokers”.
• Brokers in the network share information about the
clients and destinations each broker hosts.
• You are charged for broker instance and storage usage,
and standard data transfer fees.
• Provides encryption of your messages at rest and in
transit.
• Integrated with AWS Identity and Access Management
(IAM)

8. Amazon SQS (1 of 3)
Standard Queues FIFO Queues
Unlimited Throughput • Up to 300 messages per second.
• Batch: 10 messages per operation(max)
At-Least-Once Delivery Exactly-Once Processing
Best-Effort Ordering First-In-First-Out Delivery
Tag the messages to form an ordered
groups

9. Amazon SQS

10. Amazon SQS (2 of 3)
• Message payload (single/Batch) size is (256 KB)
• Messages more than 256KB  use JAVA extended lib.
• Retain messages in queues up to 14 days (default 4d).
• Long polling is more cost effective than short polling.
• Message is locked once handled by the consumer.
• Message is not getting processed -> lock expired.
• Dead Letter Queue must be the same as source queue.

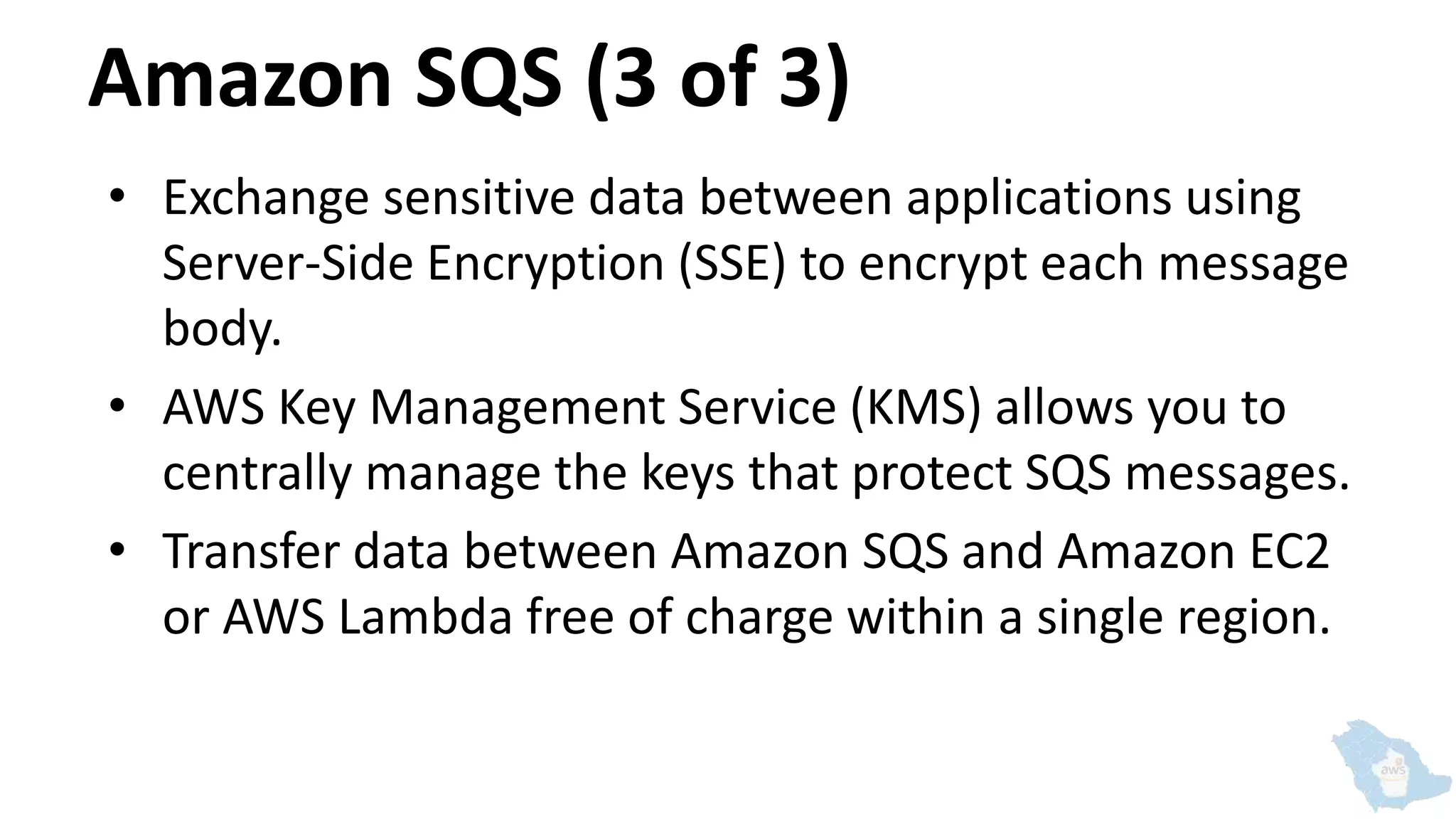

11. Amazon SQS (3 of 3)
• Exchange sensitive data between applications using
Server-Side Encryption (SSE) to encrypt each message
body.
• AWS Key Management Service (KMS) allows you to
centrally manage the keys that protect SQS messages.
• Transfer data between Amazon SQS and Amazon EC2
or AWS Lambda free of charge within a single region.

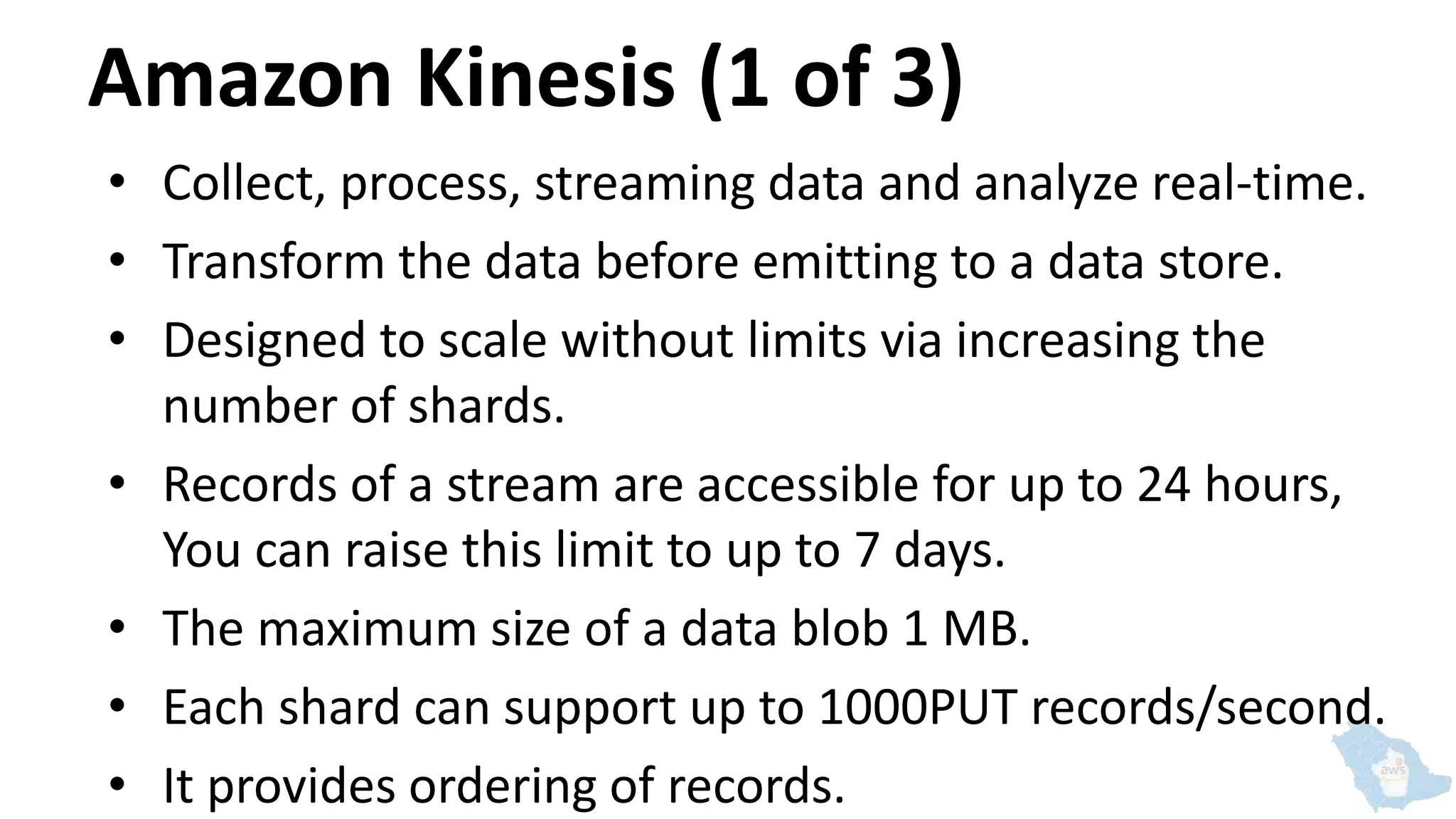

12. Amazon Kinesis (1 of 3)
• Collect, process, streaming data and analyze real-time.
• Transform the data before emitting to a data store.
• Designed to scale without limits via increasing the
number of shards.
• Records of a stream are accessible for up to 24 hours,
You can raise this limit to up to 7 days.
• The maximum size of a data blob 1 MB.
• Each shard can support up to 1000PUT records/second.
• It provides ordering of records.

13. Amazon Kinesis (2 of 3)

14. Amazon Kinesis (3 of 3)
Producer 1 Producer 2
Increase throughput Consumer Affinity

15. Amazon SNS (1 of 3)
• Push-based, many-to-many messaging. Using Amazon
SNS topics.
• Pub/Sub messaging architecture.
• Can fan out messages to a large number of endpoints.
• Subscribing endpoints receive only the messages of
interest.
• Data is encrypted in transit, and can also encrypt data
at rest.

16. Amazon SNS (2 of 3)

17. Amazon SNS (3 of 3)
• Push-based, many-to-many messaging uing SNS topics.
• Pub/Sub messaging architecture.
• Can fan out messages to a large number of endpoints.
• Subscribing endpoints filtration.
• Data is encrypted in transit, and at rest.
• maximum limit of 256 KB for published messages. Each
64KB chunk of published data is billed as 1 request.
• First 1 million  free, 1 million  $0.50 thereafter

18. Amazon PinPoint
• Messaging for real-time user engagement.
• Event-based campaigns to your customers when they
take specific actions within your applications.
• Deliverability Dashboard helps you improve your inbox
placement rate.
• Automatic responses when customers send you
messages that contain certain keywords.
• Reach your customers using dedicated, local number

19. AWS IoT Message Broker
• Pub/Sub broker service.
• Sending / receiving of messages to / from AWS IoT.
• Client sends a message addressed to a topic like
Sensor/temp/room1
• The message broker, in turn, sends the message to all
clients that have registered to receive messages for
that topic.
• The topic namespace is isolated for each AWS account
and region pair.

20. Questions

21. See You Next Meetup
AWS Riyadh User Group
