Message-Driven Architecture on AWS
- 1. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Jerome Van Der Linden (@jeromevdl) Message-Driven Architecture with AWS Worldwide Software Architecture Summit 26th of January 2021
- 2. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Who am I ? Jérôme Van Der Linden Solutions Architect @ AWS (Geneva, Switzerland) Former consultant, developer, tech lead, agile & devops coach, architect @ OCTO Technology Husband and Dad of 3 @jeromevdl
- 3. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Agenda Monolith to Microservices Microservices to Reactive Microservices Message-Driven Architecture on AWS Wrap-up
- 4. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Monoliths to Microservices

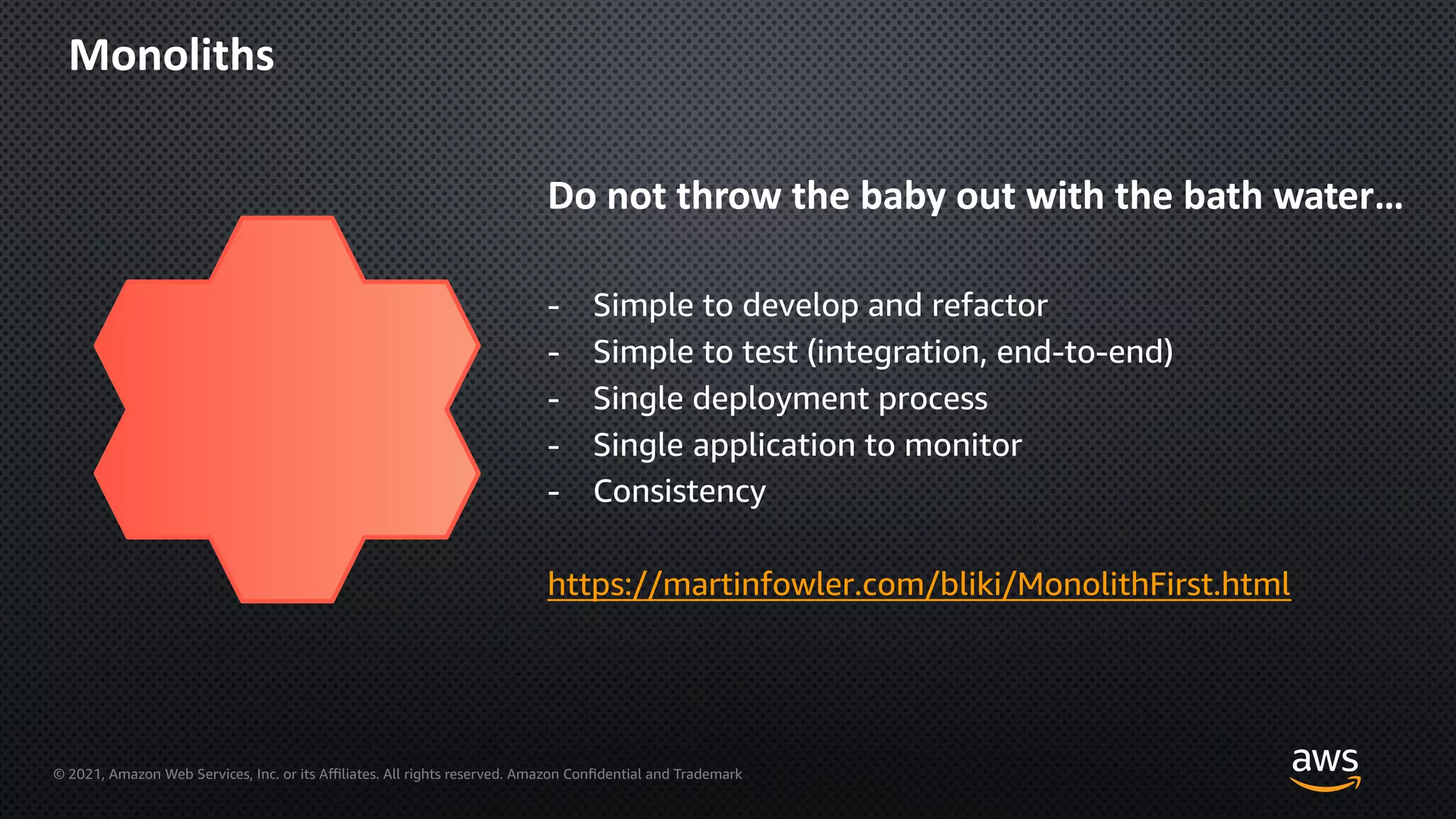

- 5. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Monoliths Do not throw the baby out with the bath water… - Simple to develop and refactor - Simple to test (integration, end-to-end) - Single deployment process - Single application to monitor - Consistency https://martinfowler.com/bliki/MonolithFirst.html

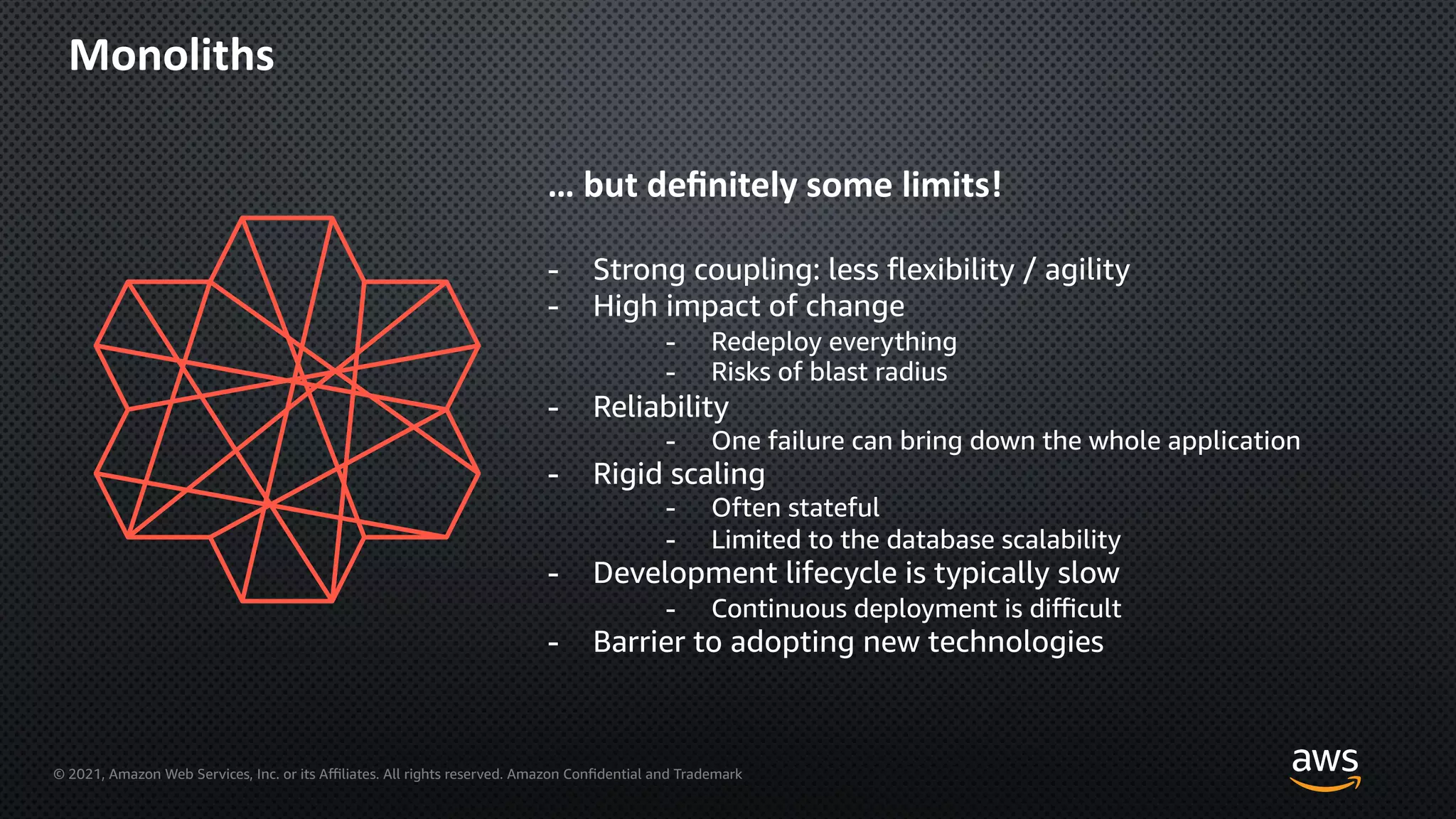

- 6. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Monoliths … but definitely some limits! - Strong coupling: less flexibility / agility - High impact of change - Redeploy everything - Risks of blast radius - Reliability - One failure can bring down the whole application - Rigid scaling - Often stateful - Limited to the database scalability - Development lifecycle is typically slow - Continuous deployment is difficult - Barrier to adopting new technologies

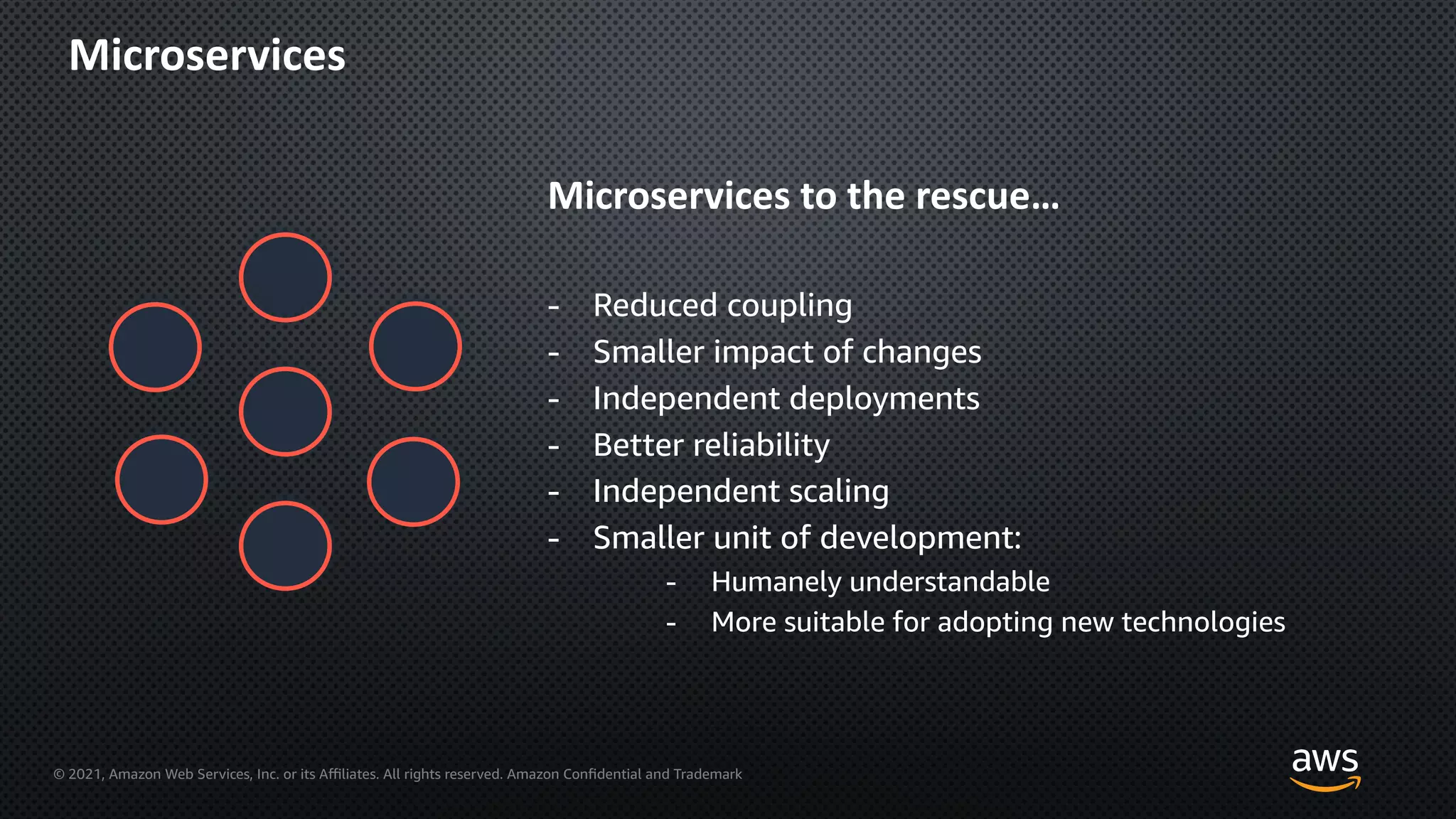

- 7. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Microservices Microservices to the rescue… - Reduced coupling - Smaller impact of changes - Independent deployments - Better reliability - Independent scaling - Smaller unit of development: - Humanely understandable - More suitable for adopting new technologies
- 8. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Microservices … but it is not that magic! - Reduced coupling - Smaller impact of changes - Independent deployments - Better reliability - Independent scaling - Smaller unit of development: - Humanely understandable - More suitable for adopting new technologies Are you sure?
- 9. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Microservices to Reac8ve Microservices

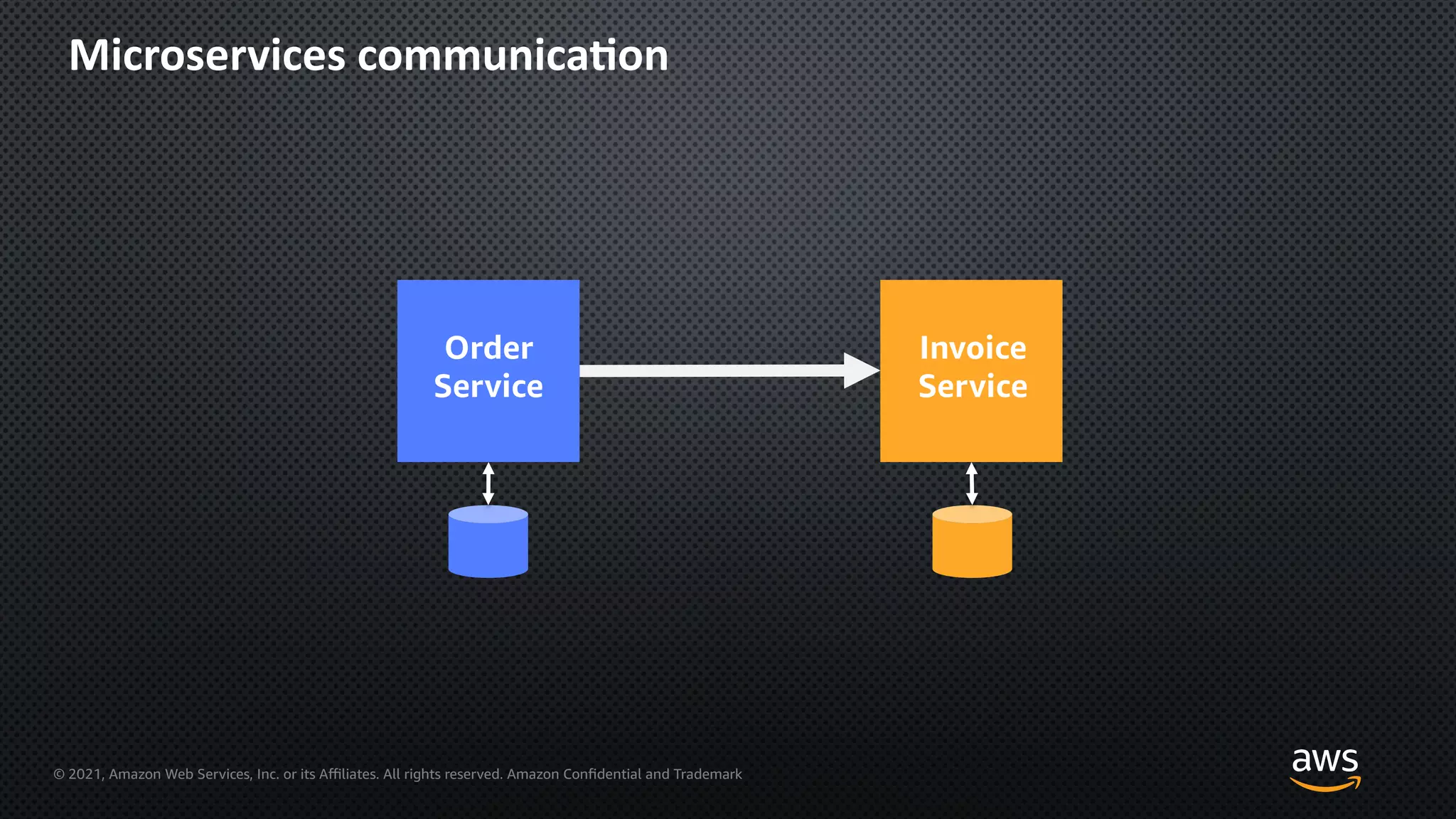

- 10. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Microservices communica=on Order Service Invoice Service
- 11. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Synchronous communica=on Order Service Invoice Service 🙂 201 created 201 created 😀

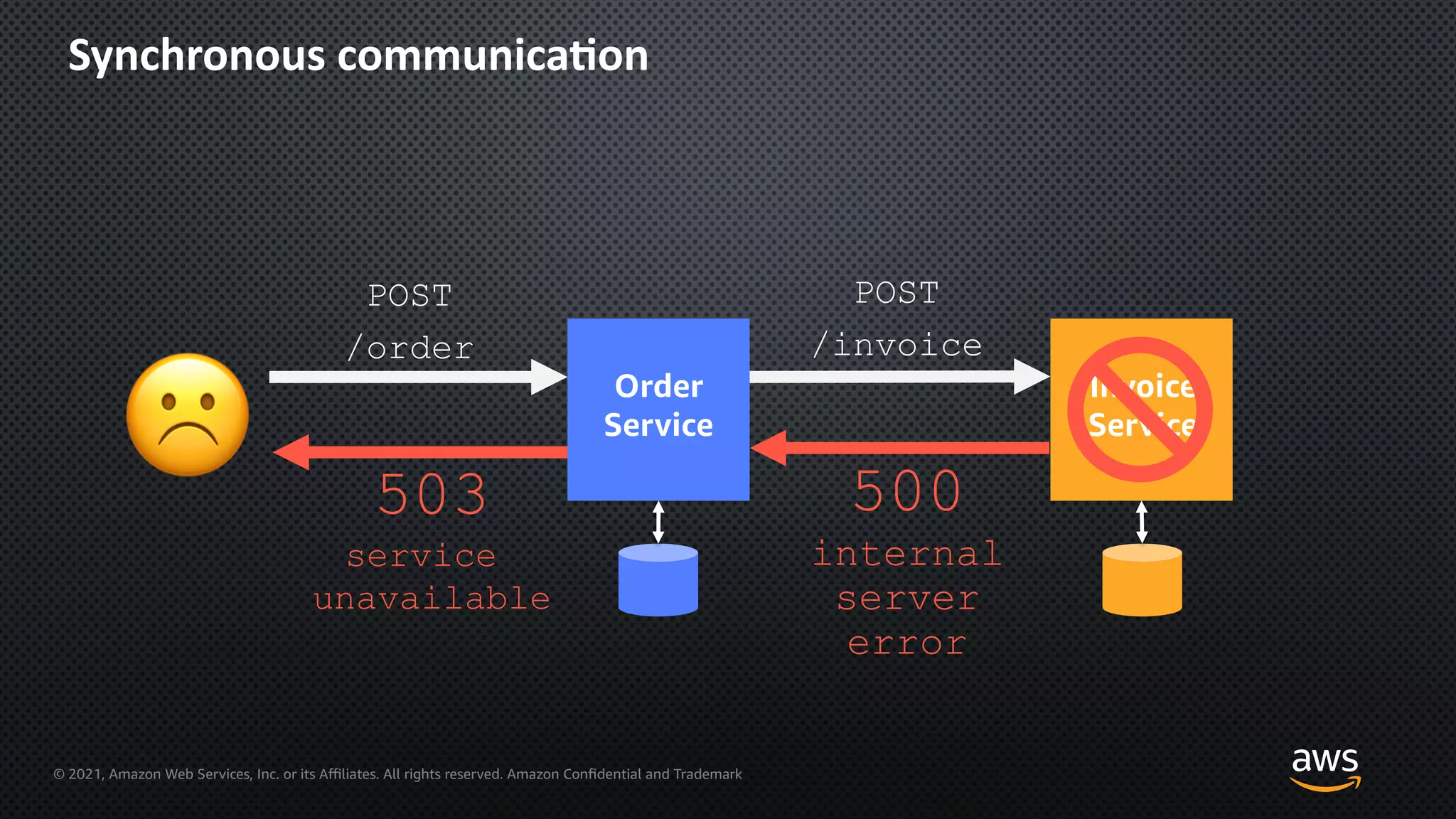

- 12. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark 🙂 Synchronous communica=on Order Service Invoice Service 500 internal server error 503 service unavailable ☹

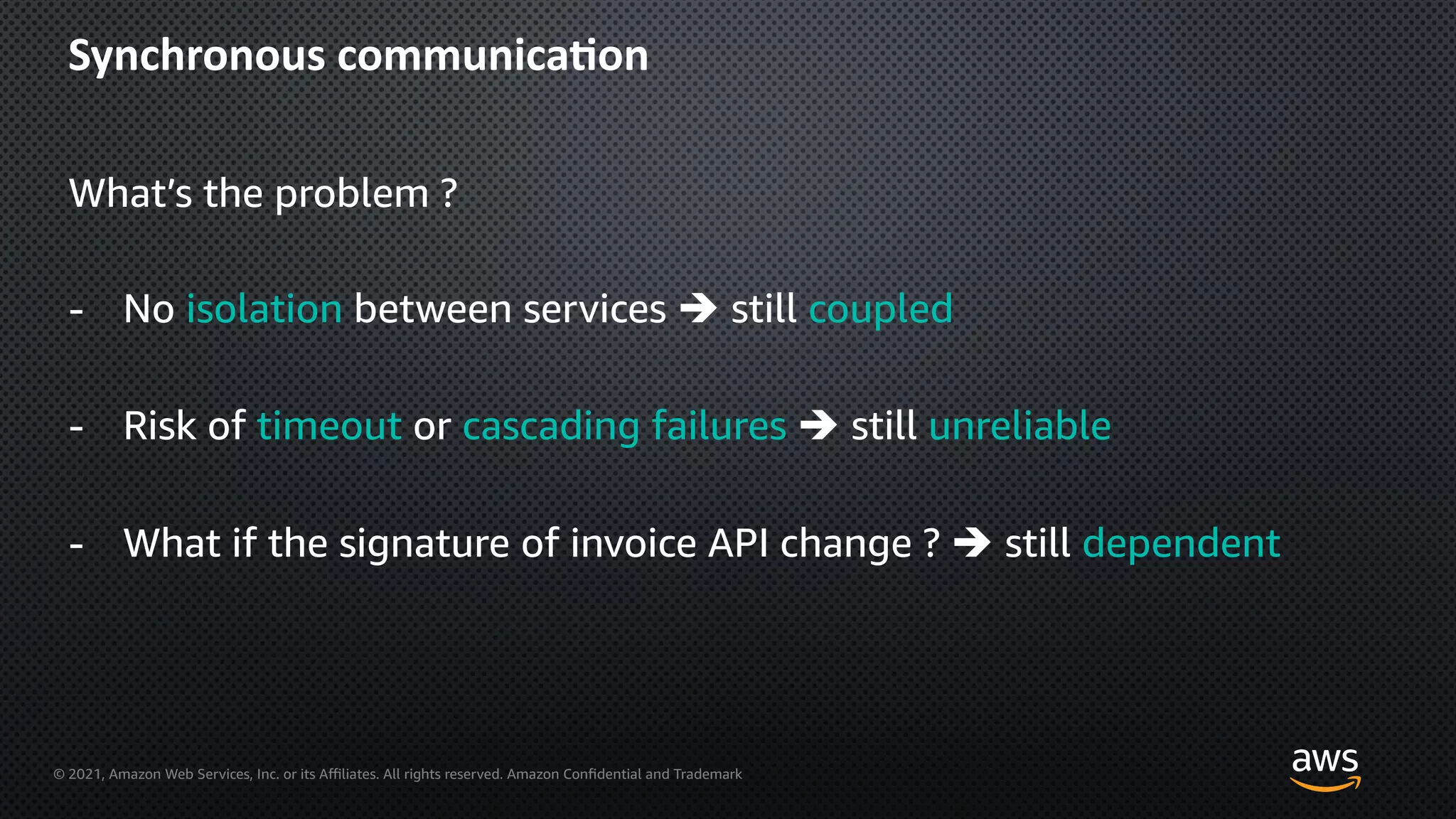

- 13. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Synchronous communica=on What’s the problem ? - No isolation between services è still coupled - Risk of timeout or cascading failures è still unreliable - What if the signature of invoice API change ? è still dependent

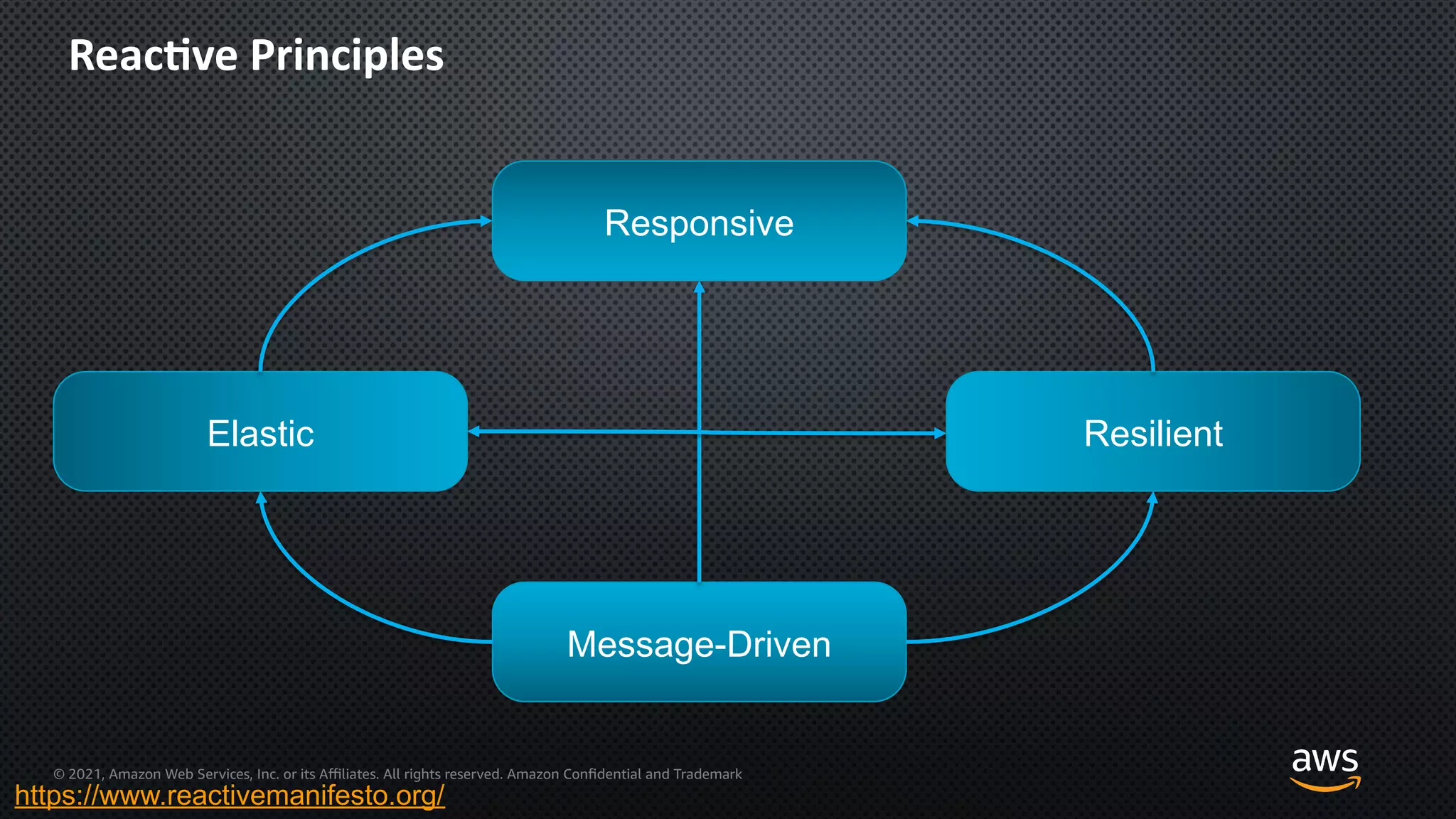

- 14. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Reac=ve Principles Responsive Resilient Elastic Message-Driven https://www.reactivemanifesto.org/

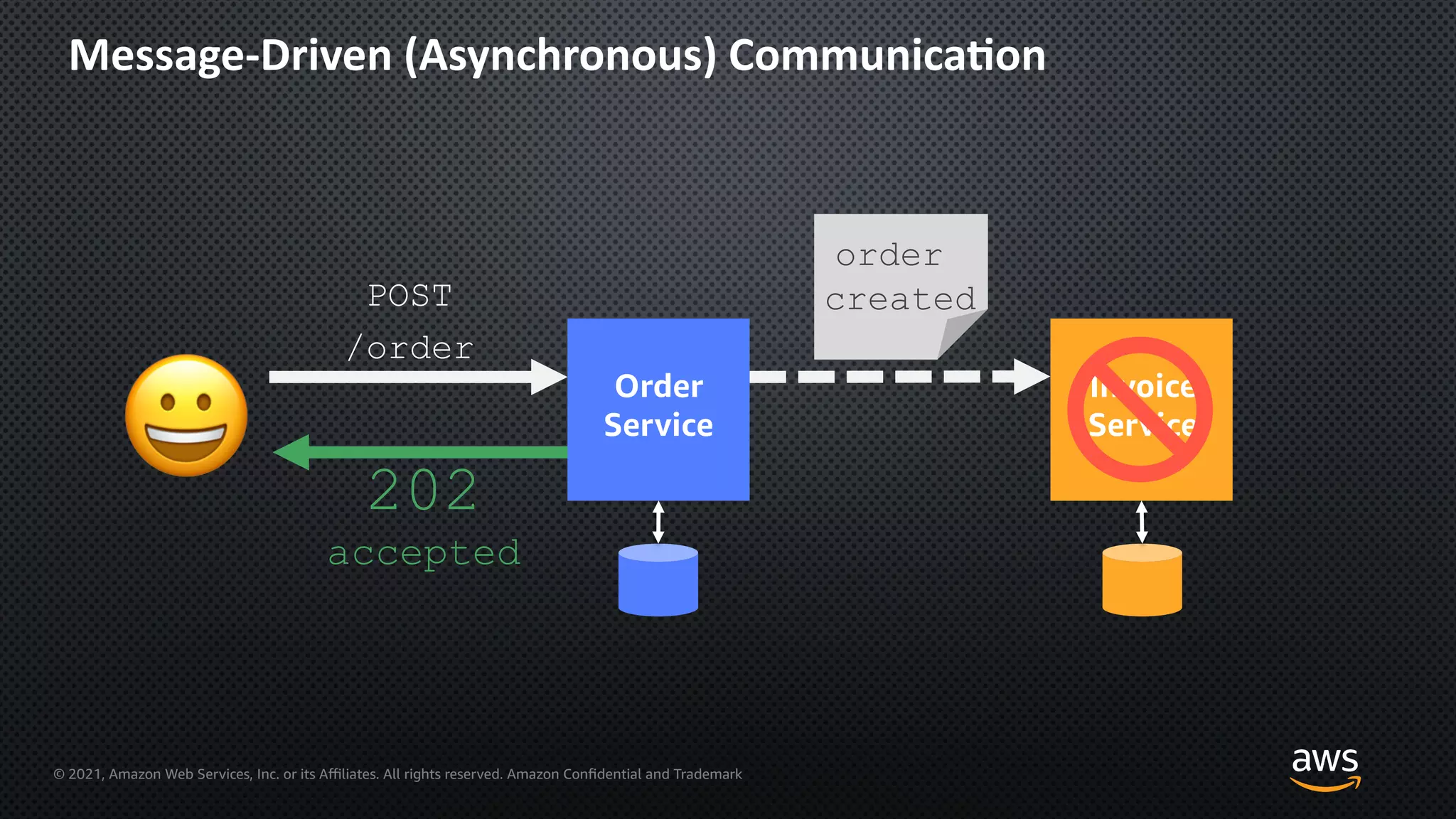

- 15. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Message-Driven (Asynchronous) Communica=on Order Service Invoice Service 🙂 202 accepted 😀 order created
- 16. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Message-Driven (Asynchronous) Communica=on Order Service Invoice Service 🙂 202 accepted 😀 order created

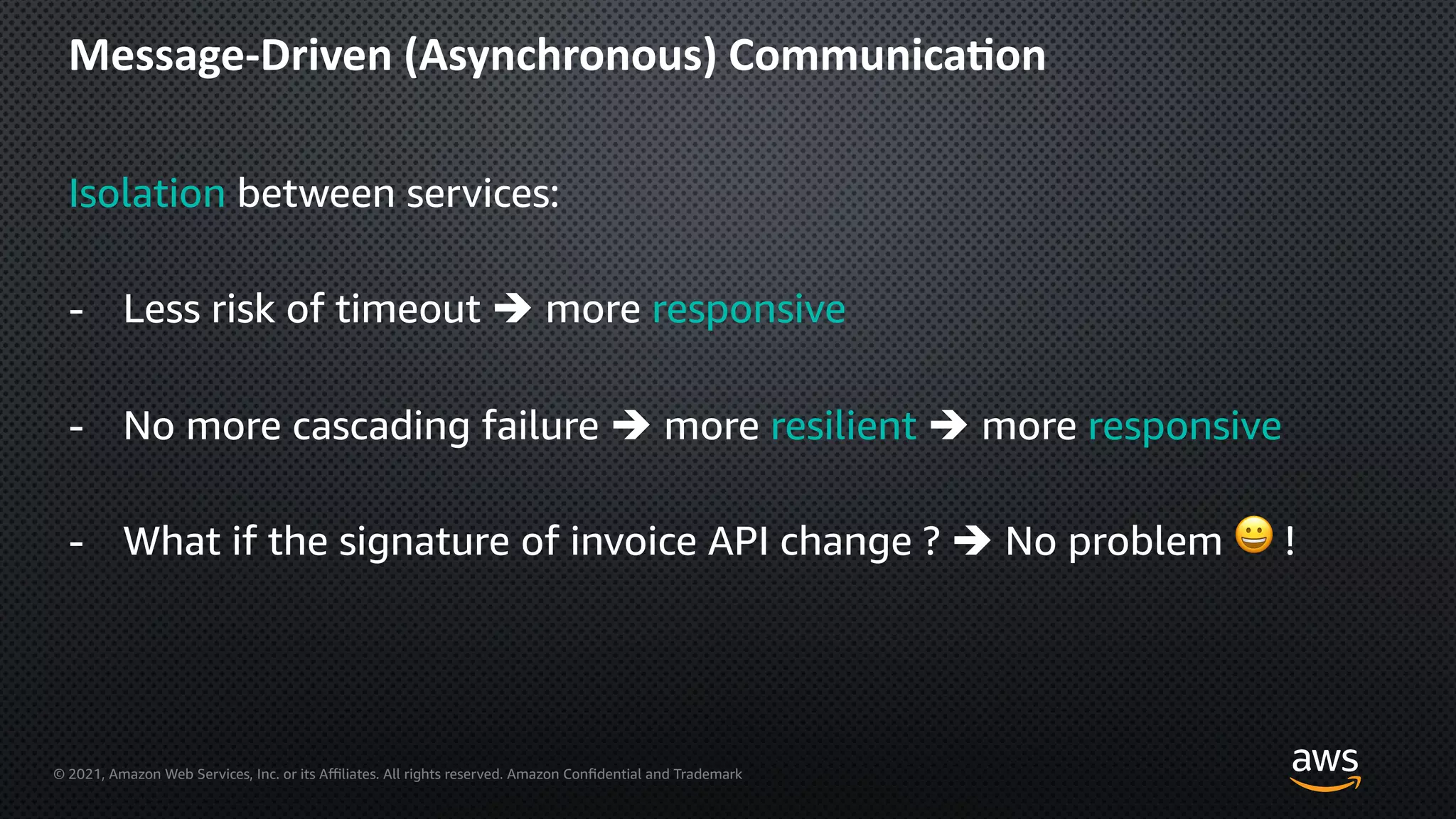

- 17. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Message-Driven (Asynchronous) Communica=on Isolation between services: - Less risk of timeout è more responsive - No more cascading failure è more resilient è more responsive - What if the signature of invoice API change ? è No problem 😀 !
- 18. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Message-Driven Architecture on AWS
- 19. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark (Serverless) Messaging services on AWS Amazon SNS Amazon EventBridge Amazon SQS

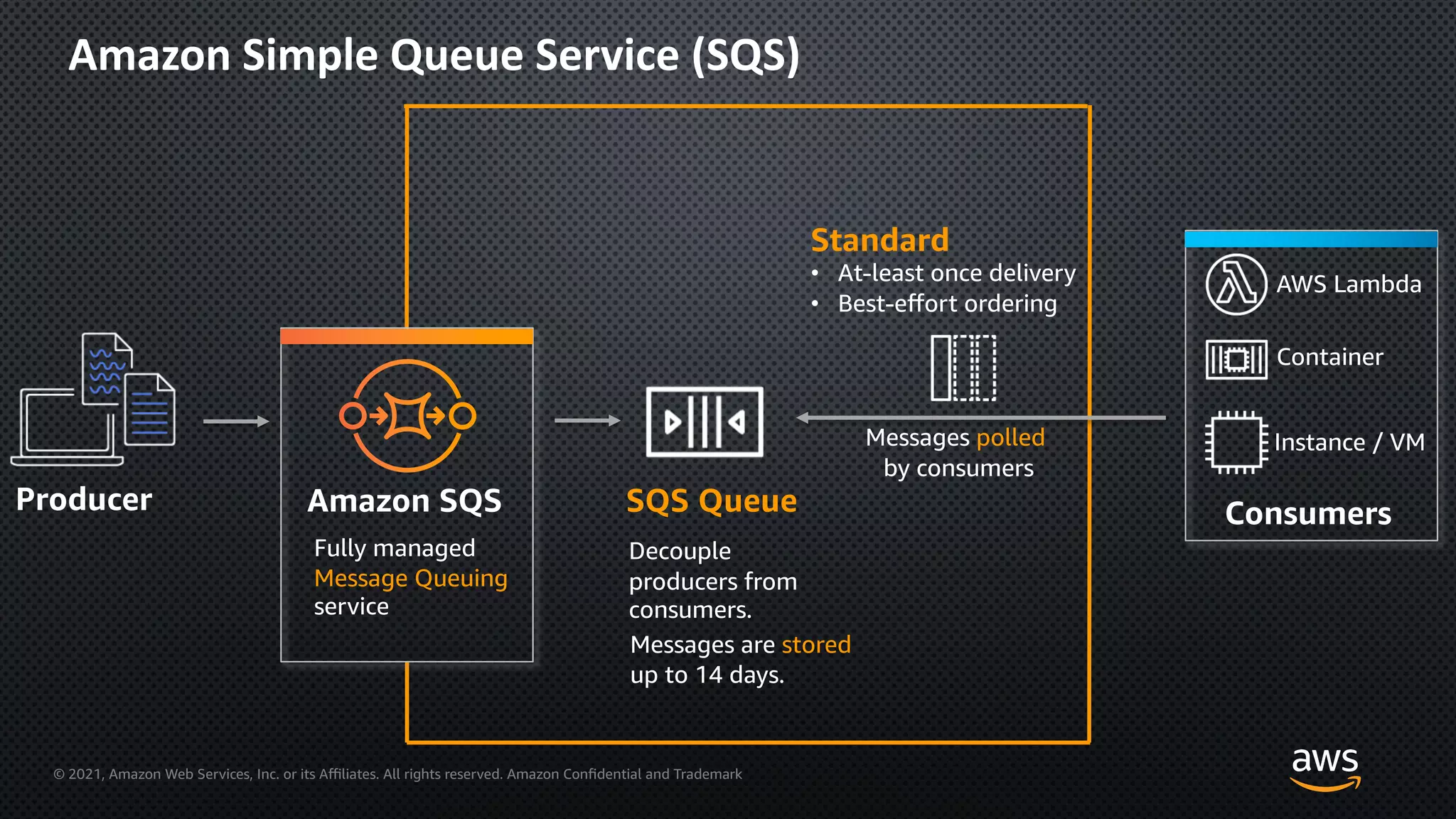

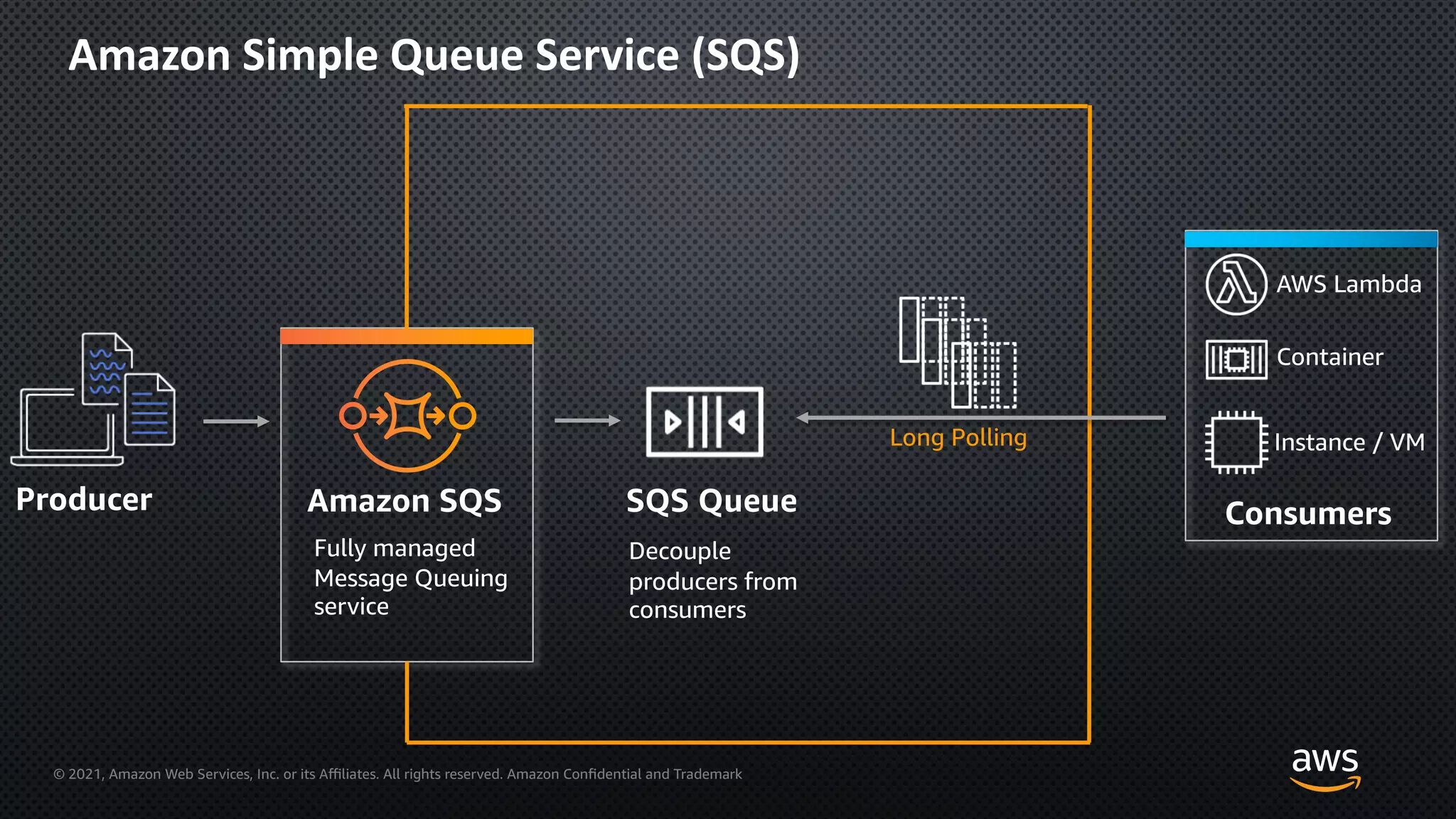

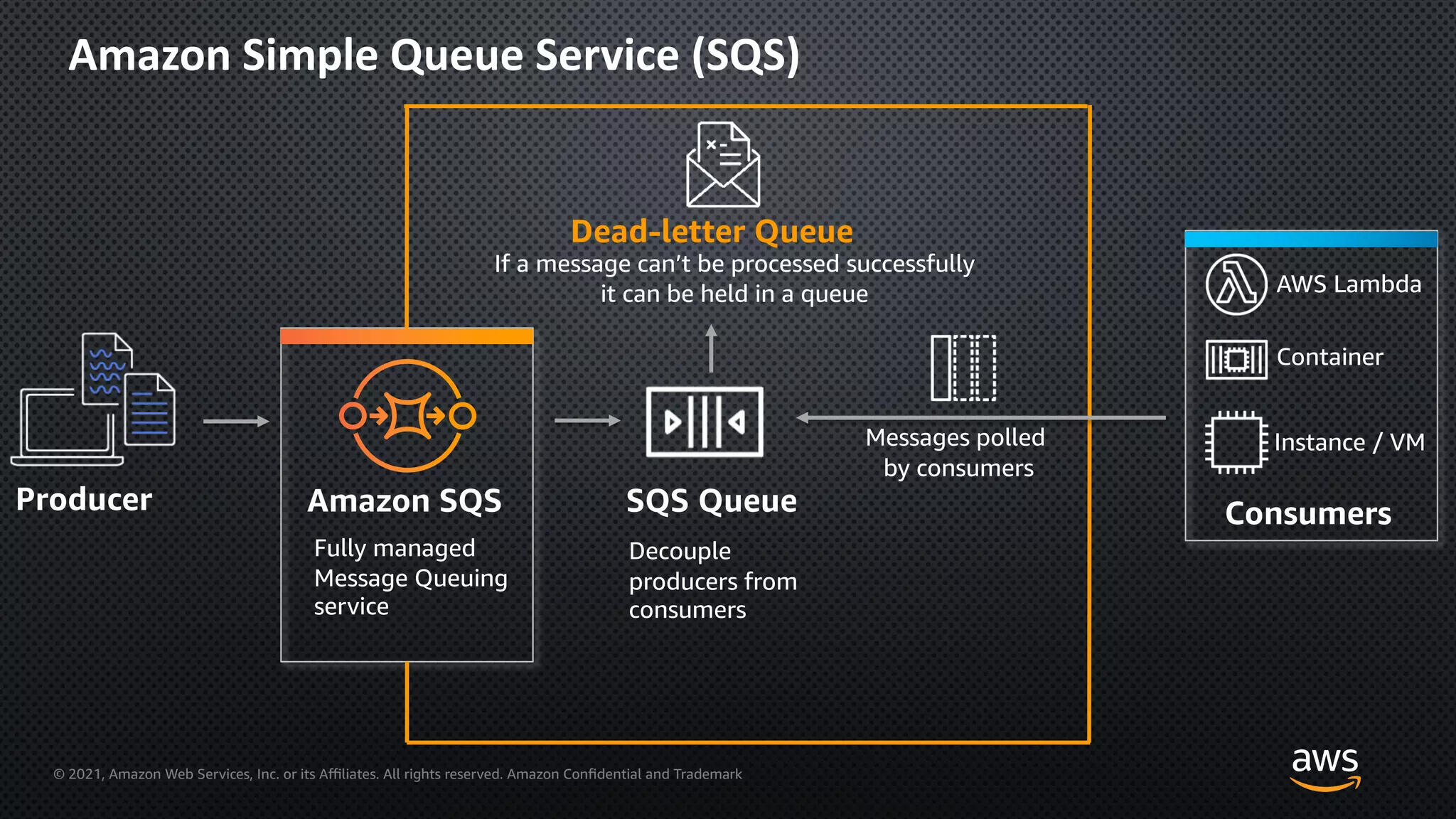

- 20. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Amazon Simple Queue Service (SQS) Producer SQS Queue Decouple producers from consumers. Messages polled by consumers Amazon SQS Fully managed Message Queuing service Consumers AWS Lambda Container Instance / VM Standard • At-least once delivery • Best-effort ordering Messages are stored up to 14 days.

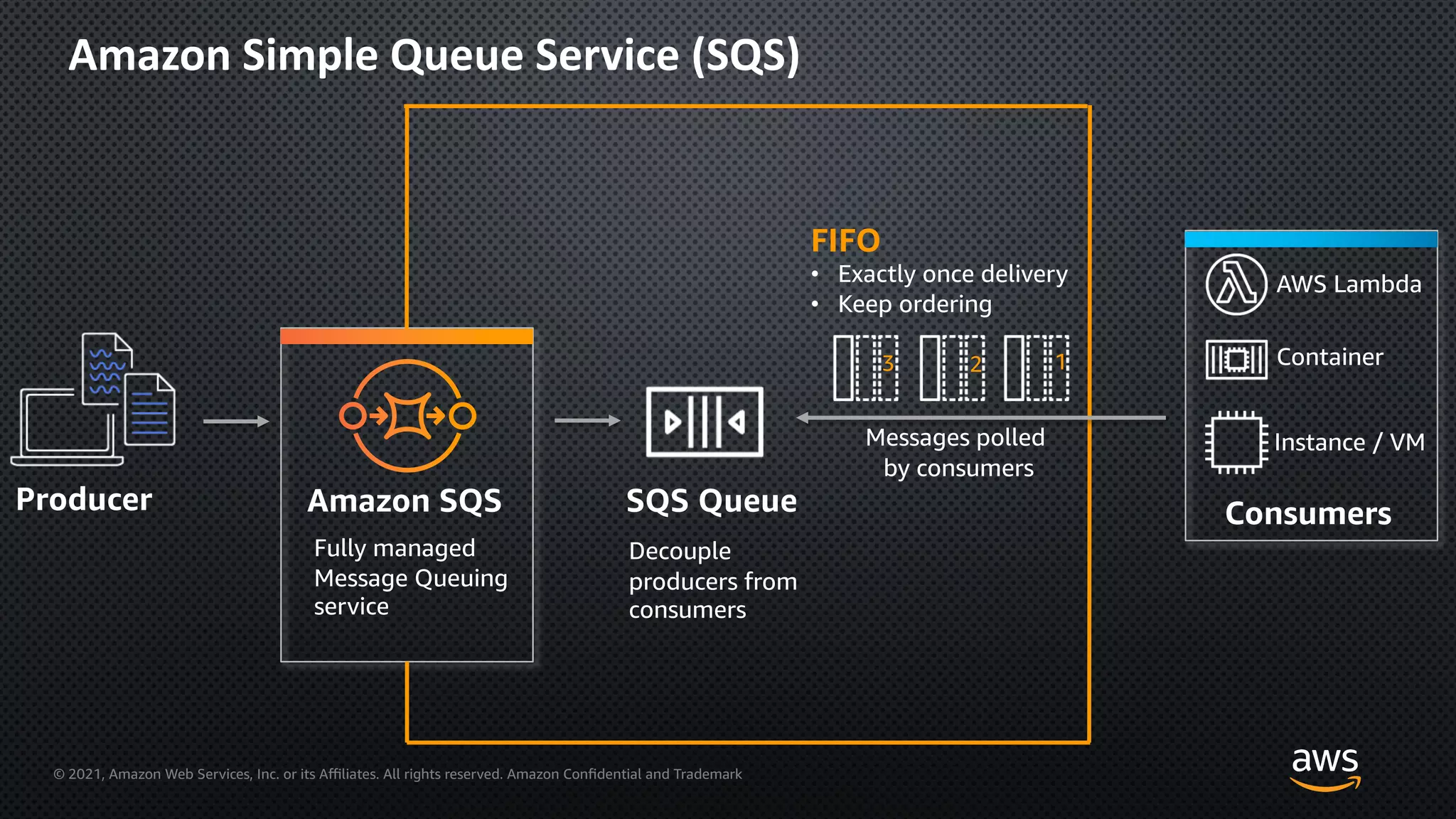

- 21. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Amazon Simple Queue Service (SQS) Producer Consumers AWS Lambda Amazon SQS Fully managed Message Queuing service SQS Queue Decouple producers from consumers Messages polled by consumers Container Instance / VM FIFO • Exactly once delivery • Keep ordering 1 2 3
- 22. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Amazon Simple Queue Service (SQS) Producer Consumers AWS Lambda Amazon SQS Fully managed Message Queuing service SQS Queue Decouple producers from consumers Long Polling Container Instance / VM
- 23. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Amazon Simple Queue Service (SQS) Producer Consumers AWS Lambda Amazon SQS Fully managed Message Queuing service SQS Queue Decouple producers from consumers Messages polled by consumers Container Instance / VM Dead-letter Queue If a message can’t be processed successfully it can be held in a queue

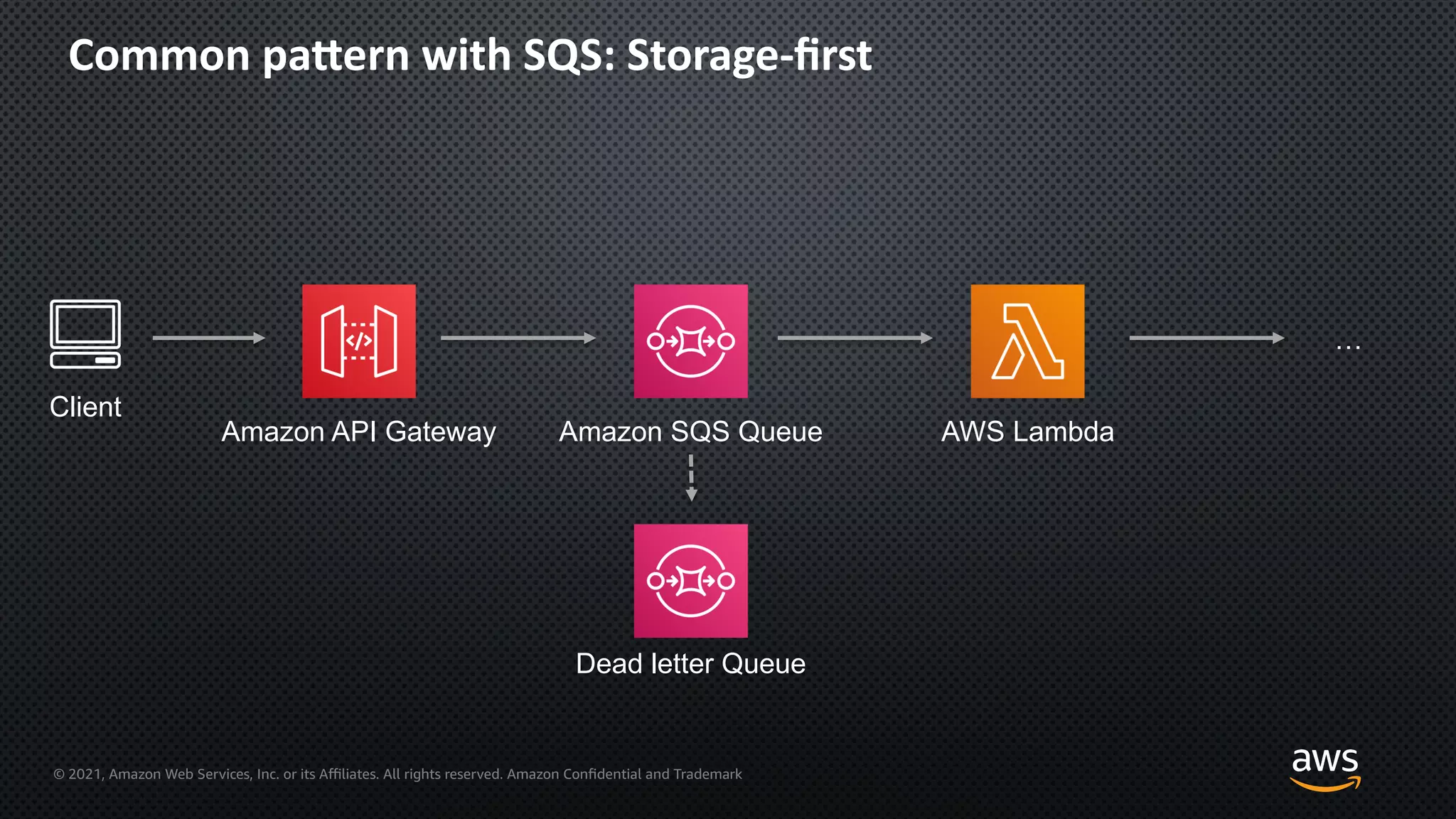

- 24. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Common paIern with SQS: Storage-first Amazon API Gateway Amazon SQS Queue Dead letter Queue AWS Lambda Client …

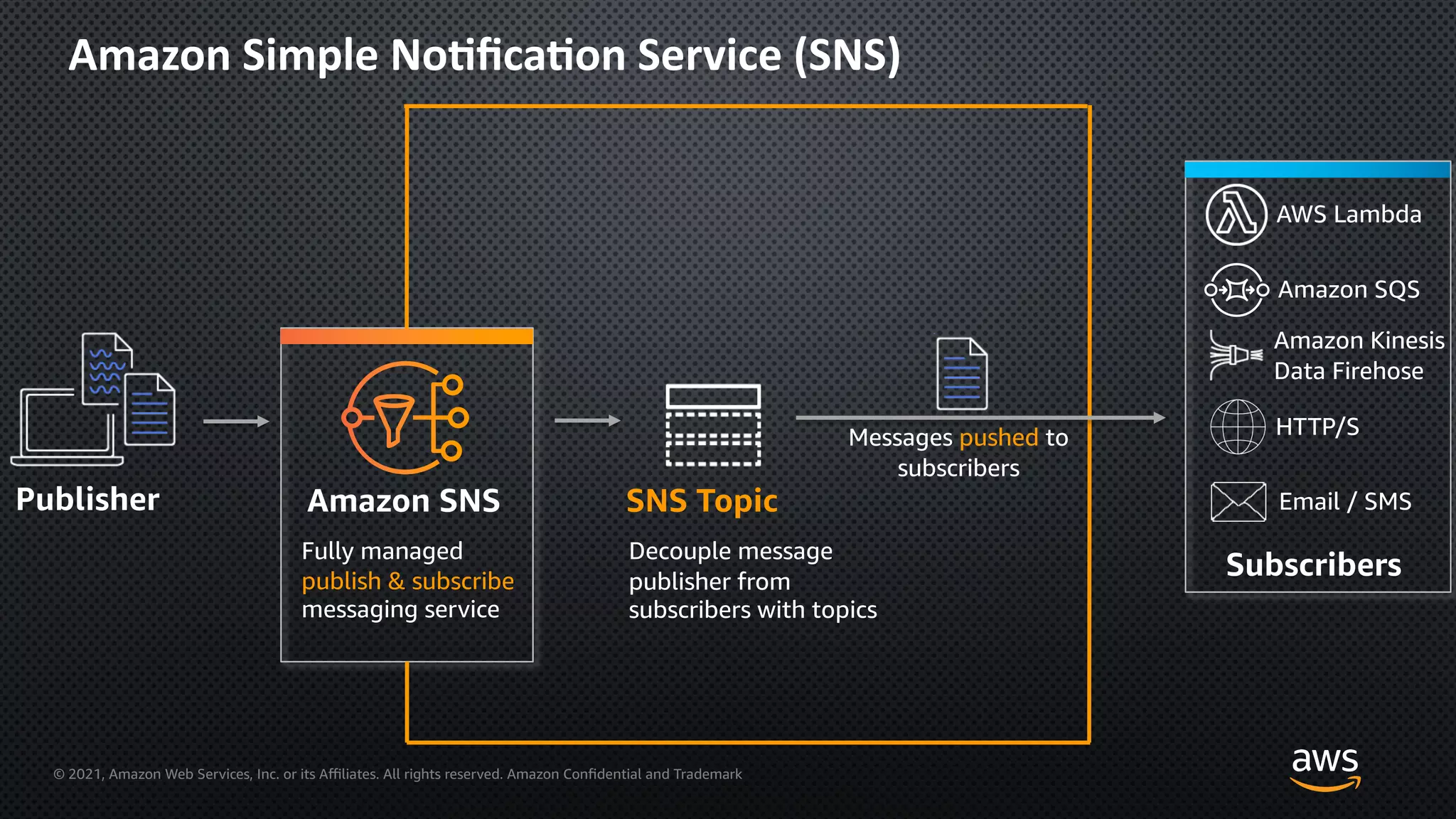

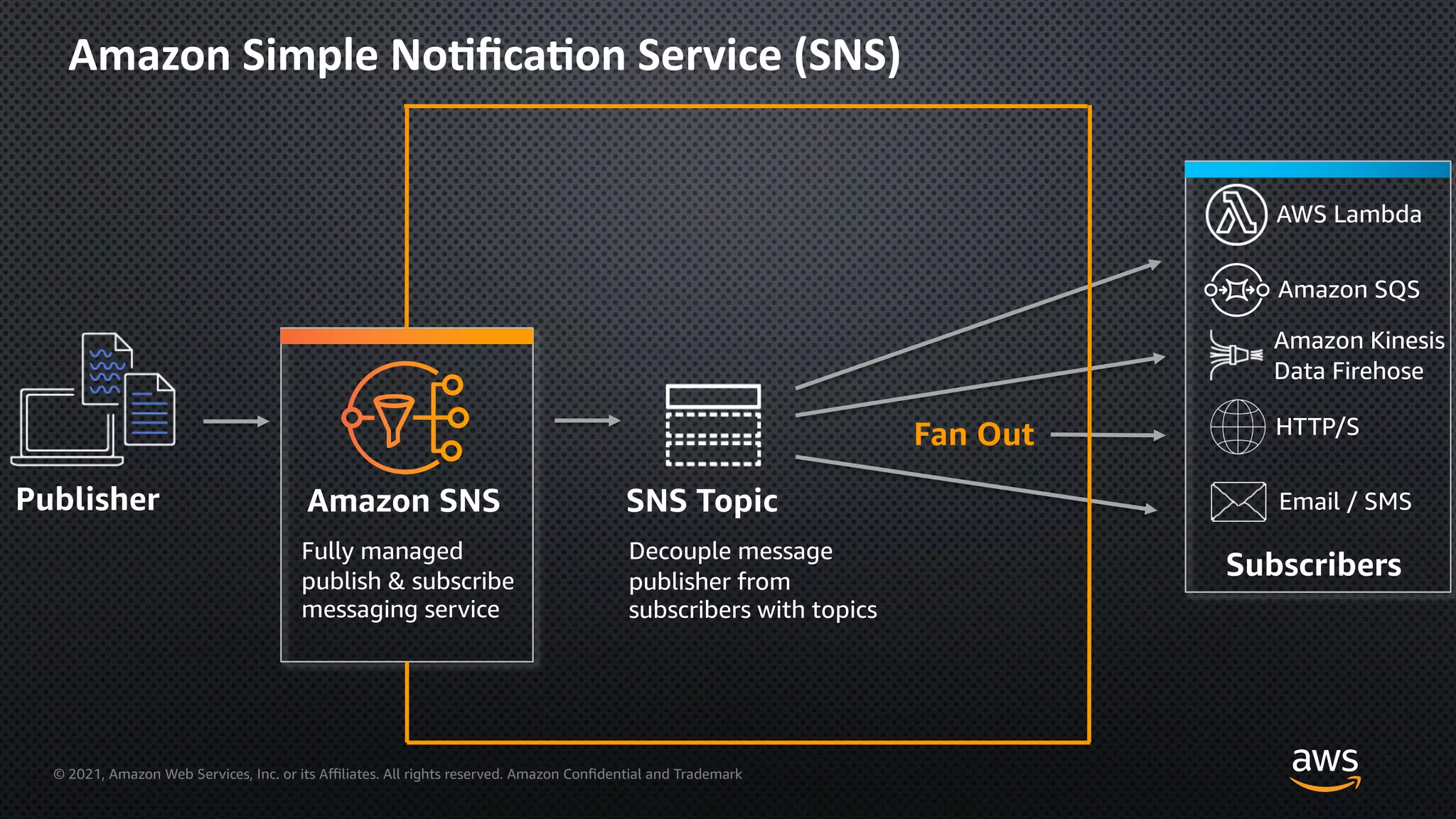

- 25. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Amazon Simple No=fica=on Service (SNS) Amazon SNS Fully managed publish & subscribe messaging service SNS Topic Decouple message publisher from subscribers with topics Publisher Messages pushed to subscribers Subscribers AWS Lambda Amazon SQS HTTP/S Email / SMS Amazon Kinesis Data Firehose

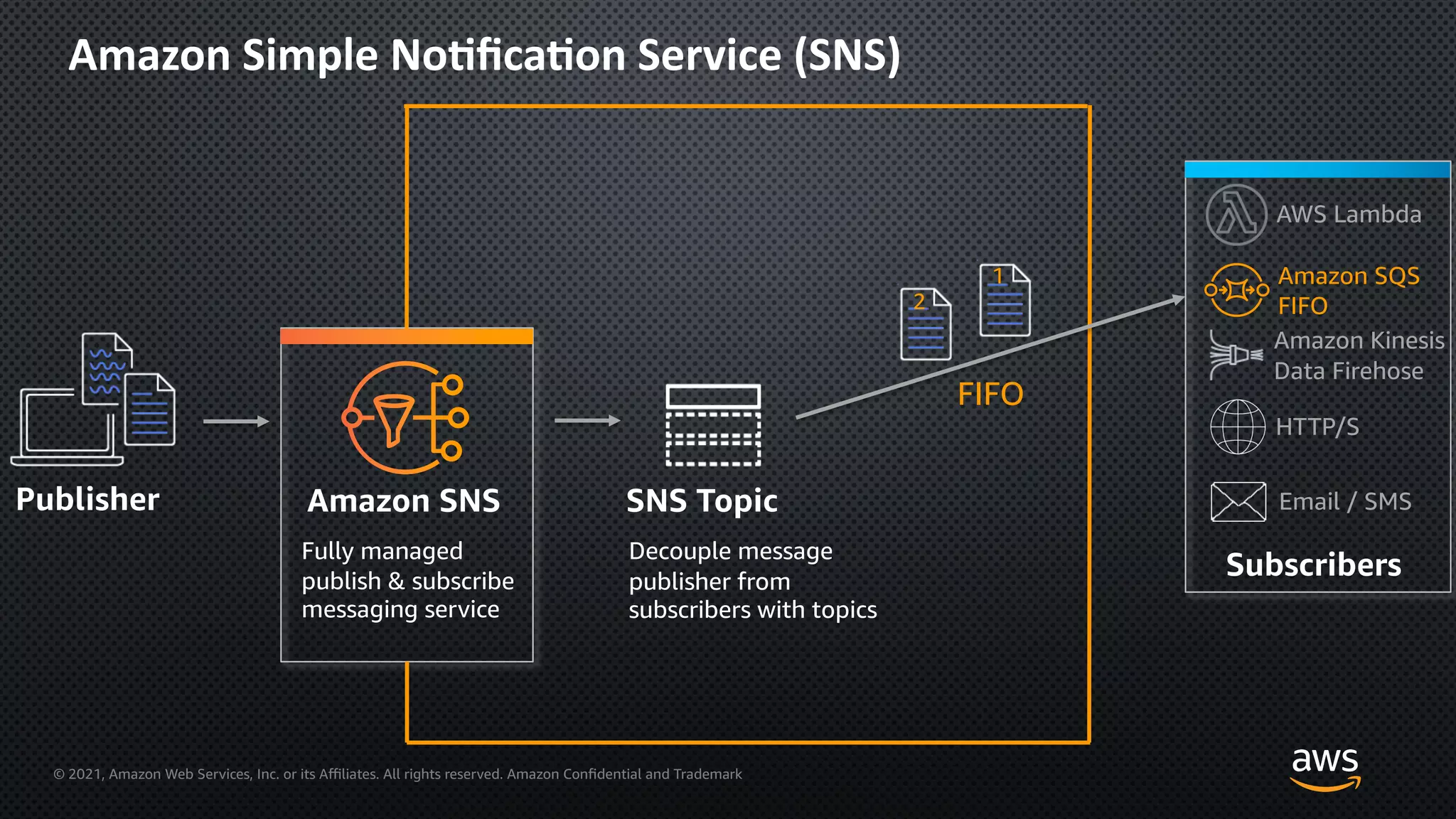

- 26. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Amazon Simple No=fica=on Service (SNS) Amazon SNS Fully managed publish & subscribe messaging service SNS Topic Decouple message publisher from subscribers with topics Publisher FIFO Subscribers AWS Lambda Amazon SQS FIFO HTTP/S Email / SMS Amazon Kinesis Data Firehose 1 2
- 27. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Amazon Simple No=fica=on Service (SNS) Fan Out Publisher Amazon SNS Fully managed publish & subscribe messaging service SNS Topic Decouple message publisher from subscribers with topics Subscribers AWS Lambda Amazon SQS HTTP/S Email / SMS Amazon Kinesis Data Firehose

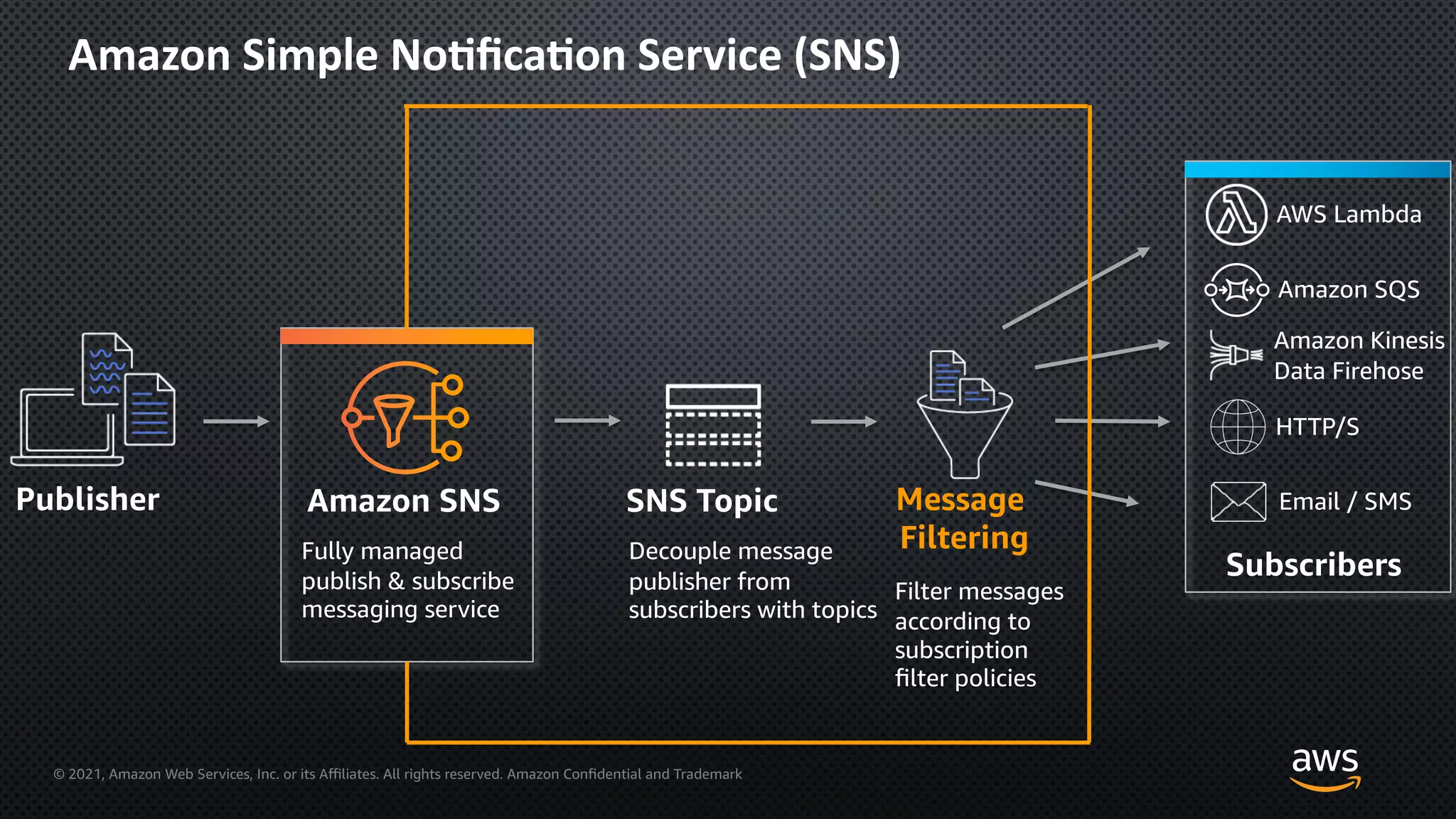

- 28. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Amazon Simple No=fica=on Service (SNS) Publisher Amazon SNS Fully managed publish & subscribe messaging service SNS Topic Decouple message publisher from subscribers with topics Message Filtering Filter messages according to subscription filter policies Subscribers AWS Lambda Amazon SQS HTTP/S Email / SMS Amazon Kinesis Data Firehose

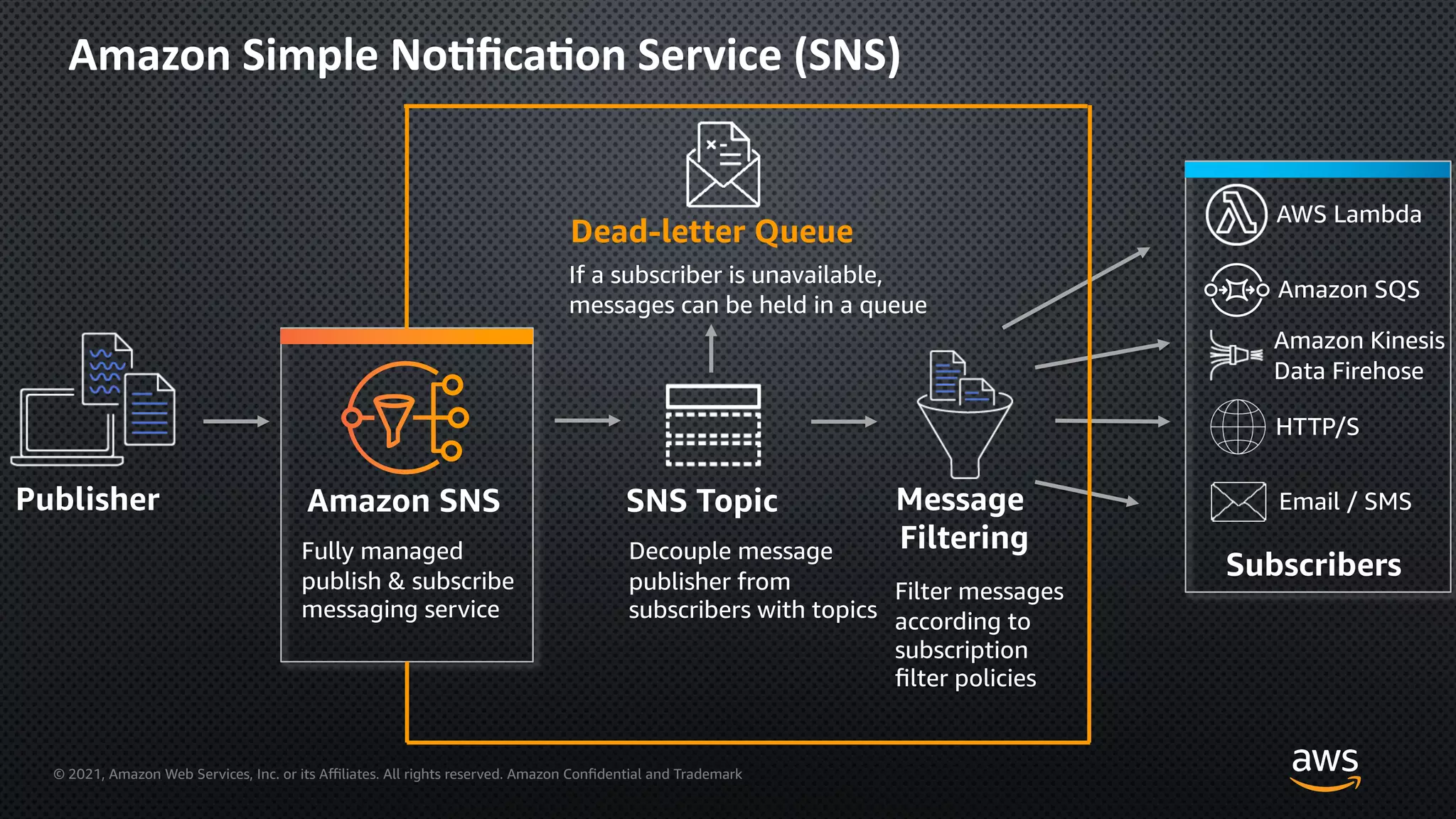

- 29. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Amazon Simple No=fica=on Service (SNS) Publisher Amazon SNS Fully managed publish & subscribe messaging service SNS Topic Decouple message publisher from subscribers with topics Message Filtering Filter messages according to subscription filter policies Dead-letter Queue If a subscriber is unavailable, messages can be held in a queue Subscribers AWS Lambda Amazon SQS HTTP/S Email / SMS Amazon Kinesis Data Firehose

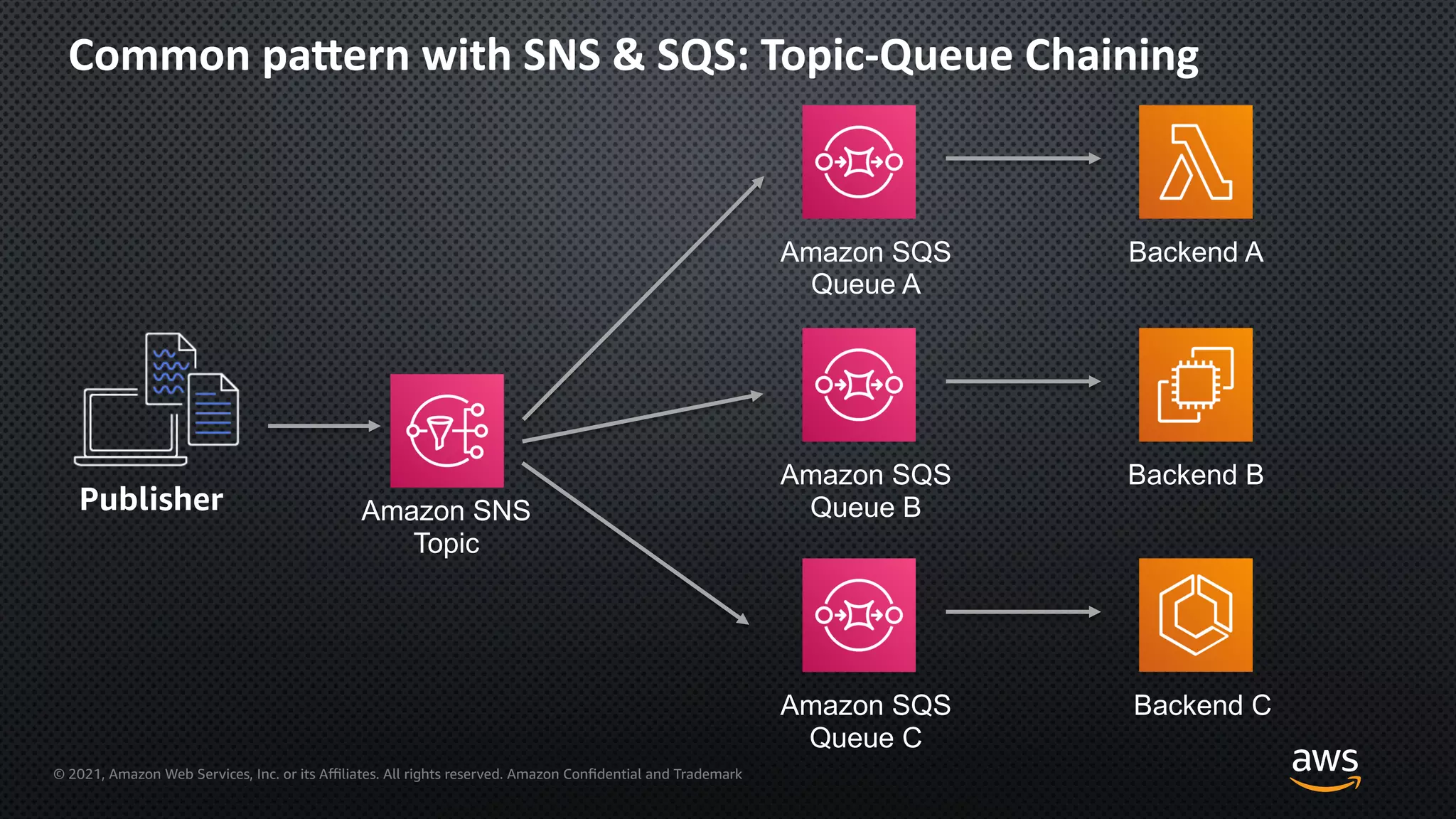

- 30. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Common paIern with SNS & SQS: Topic-Queue Chaining Amazon SQS Queue A Backend A Publisher Amazon SNS Topic Amazon SQS Queue B Backend B Amazon SQS Queue C Backend C

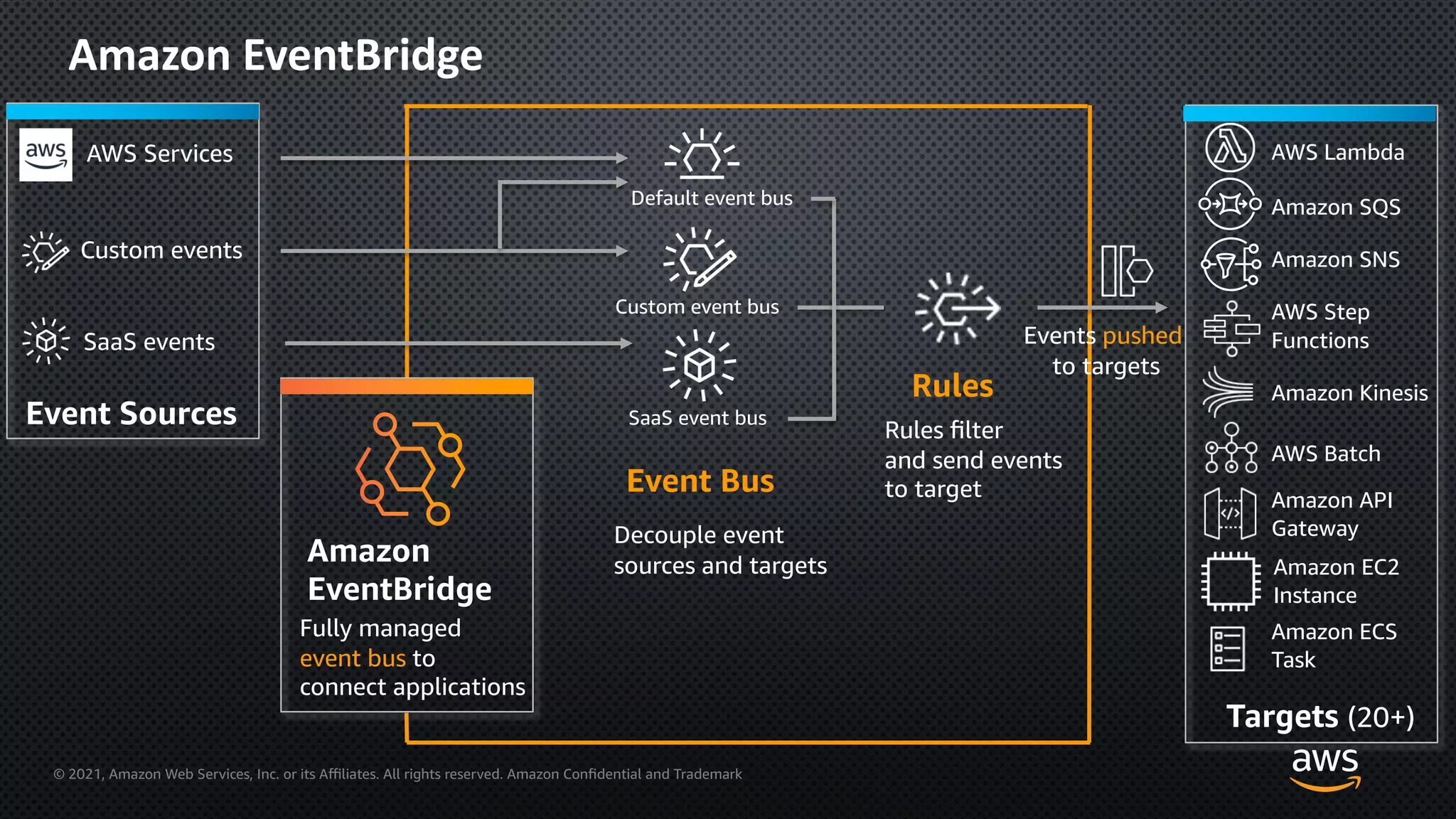

- 31. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Amazon EventBridge Amazon EventBridge Fully managed event bus to connect applications Event Sources AWS Services Custom events SaaS events Events pushed to targets Rules Rules filter and send events to target Event Bus Default event bus Custom event bus SaaS event bus Decouple event sources and targets Targets (20+) AWS Lambda Amazon SQS Amazon SNS AWS Step Functions Amazon Kinesis AWS Batch Amazon API Gateway Amazon EC2 Instance Amazon ECS Task

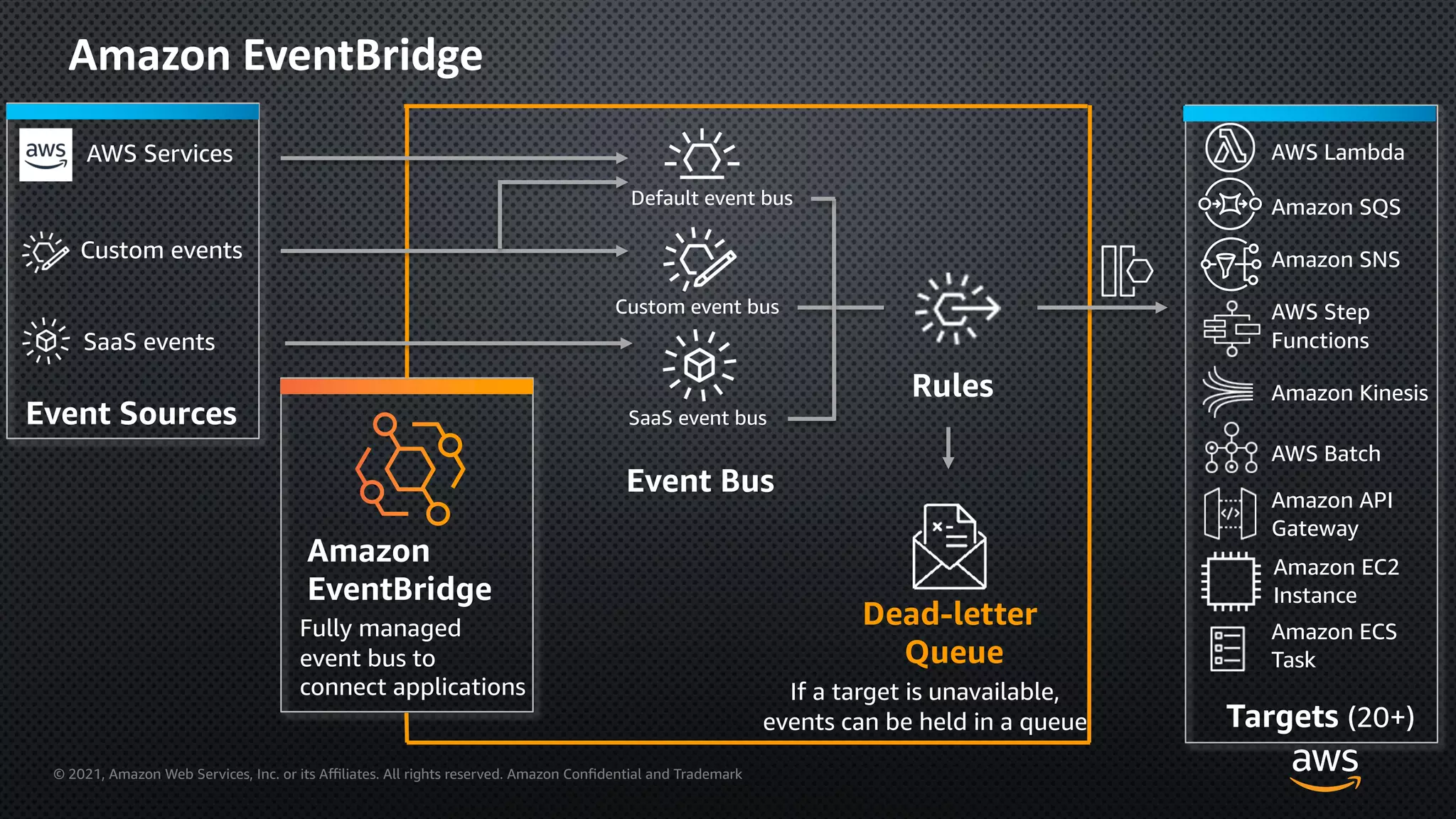

- 32. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Amazon EventBridge Event Sources Amazon EventBridge Fully managed event bus to connect applications Event Bus Targets (20+) AWS Lambda Amazon SQS AWS Services Custom events SaaS events Default event bus Custom event bus SaaS event bus Rules Amazon SNS AWS Step Functions Amazon Kinesis AWS Batch Amazon API Gateway Amazon EC2 Instance Amazon ECS Task Dead-letter Queue If a target is unavailable, events can be held in a queue

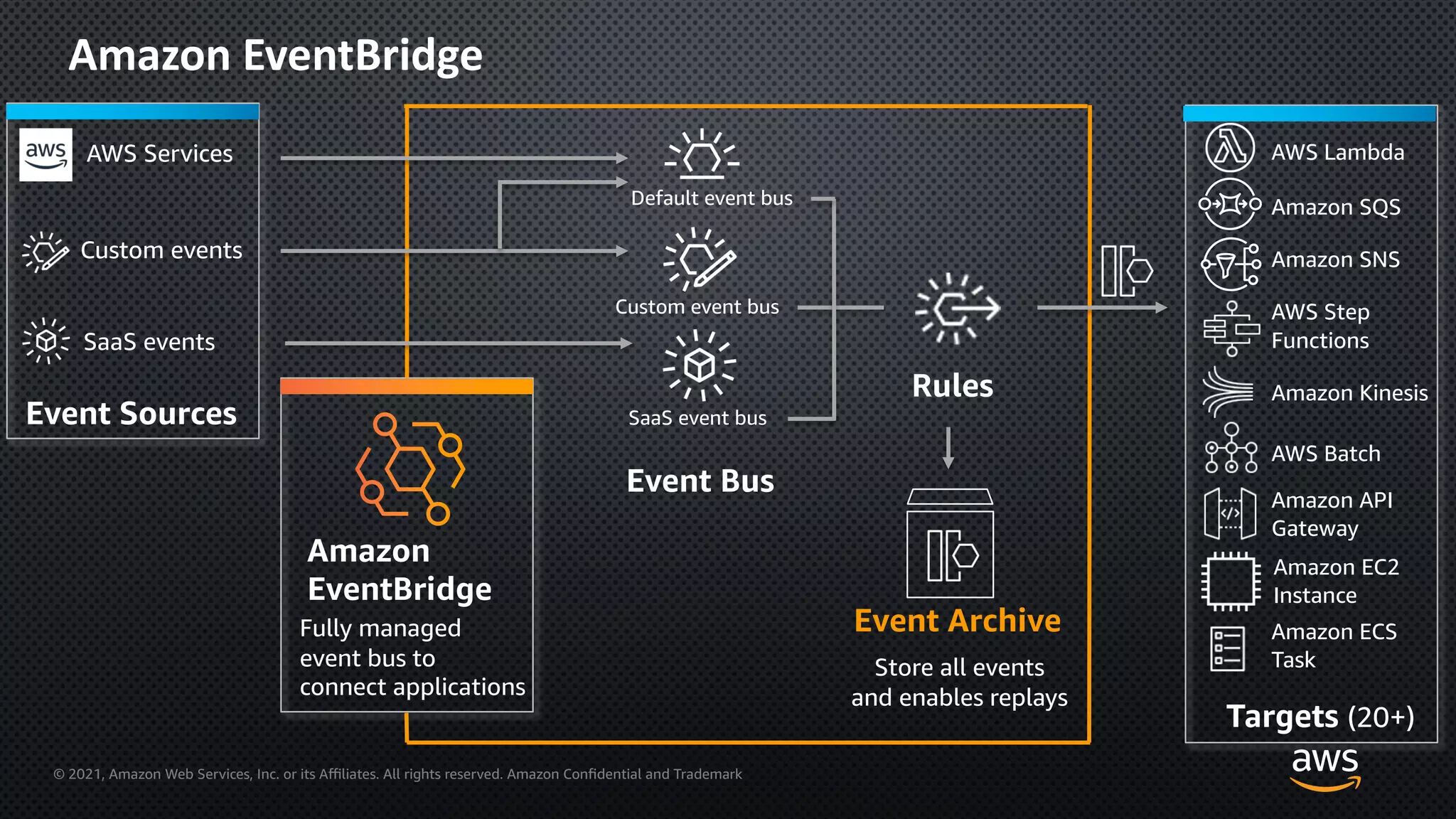

- 33. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Amazon EventBridge Event Sources Amazon EventBridge Fully managed event bus to connect applications Event Bus Targets (20+) AWS Lambda Amazon SQS AWS Services Custom events SaaS events Default event bus Custom event bus SaaS event bus Rules Amazon SNS AWS Step Functions Amazon Kinesis AWS Batch Amazon API Gateway Amazon EC2 Instance Amazon ECS Task Event Archive Store all events and enables replays

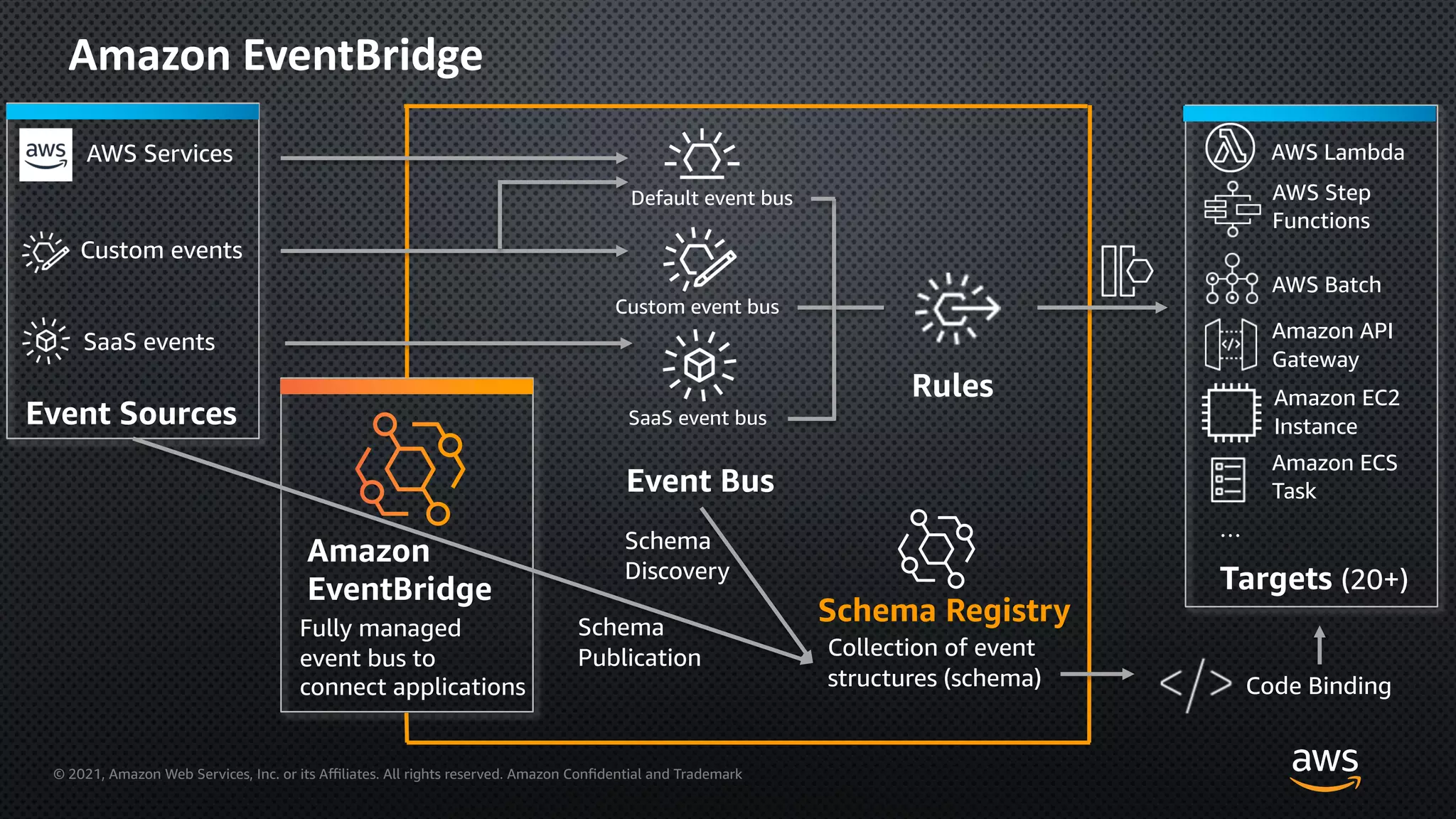

- 34. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Amazon EventBridge Event Sources Amazon EventBridge Fully managed event bus to connect applications Event Bus Targets (20+) AWS Lambda AWS Services Custom events SaaS events Default event bus Custom event bus SaaS event bus Rules AWS Step Functions AWS Batch Amazon API Gateway Amazon EC2 Instance Amazon ECS Task Schema Registry Collection of event structures (schema) … Code Binding Schema Discovery Schema Publication

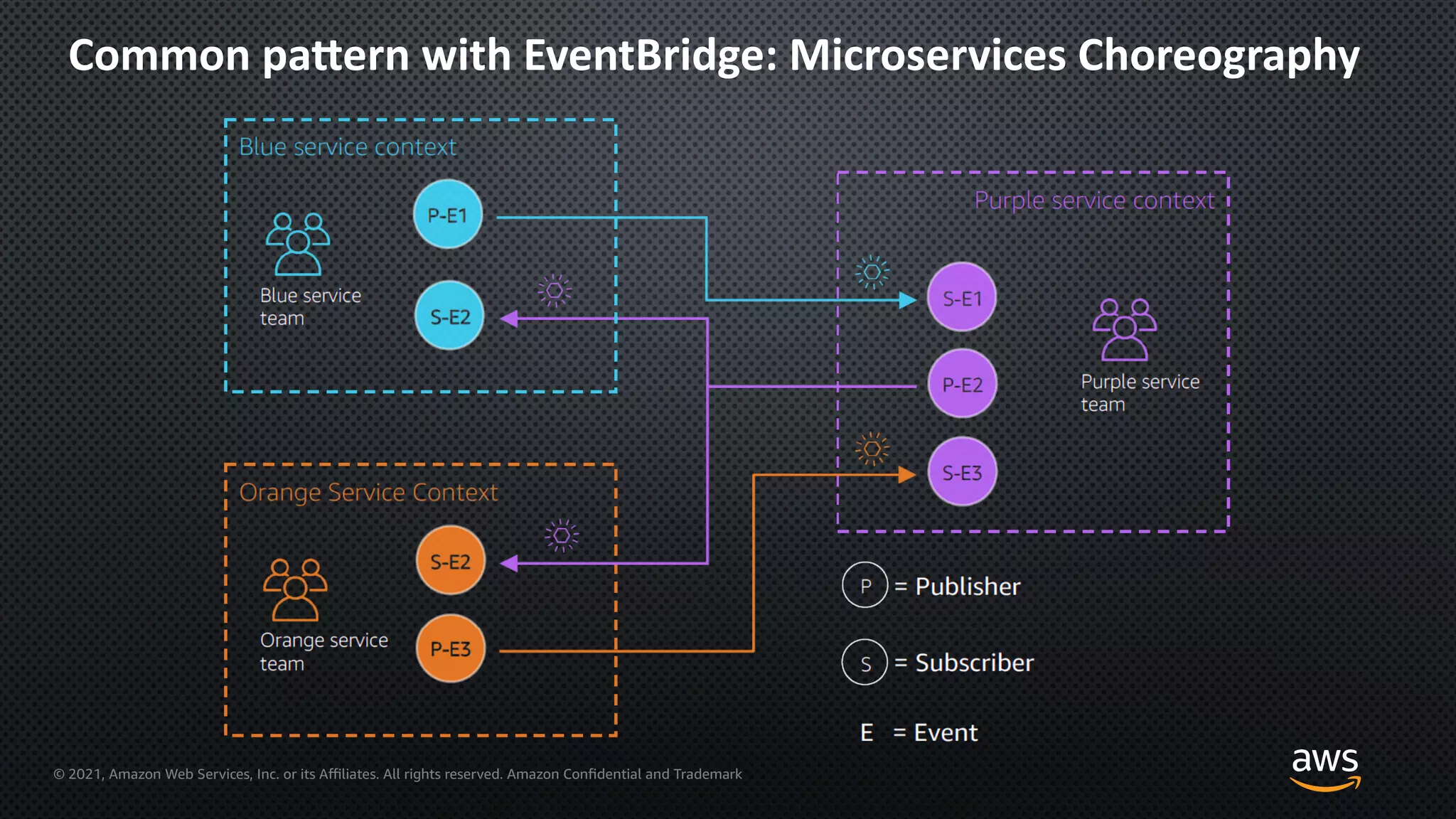

- 35. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Common paIern with EventBridge: Microservices Choreography
- 36. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Wrap-up
- 37. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Services Comparison Amazon SQS Amazon SNS Amazon EventBridge Type Queue (Pull) Publish / Subscribe (Push) Publish / Subscribe (Push) Persistence Yes (Up to 14 days, default: 4 days) No (retry up to 23 days + DLQ) No (retry up to 24h + DLQ + Archives) Ordering FIFO FIFO No Delivery Standard: at least once FIFO: exactly once Standard: at least once FIFO: exactly once At least once Filtering Yes Yes No Consumers Millions 5 per rule / Target services Lambda (+ compute & SDK) 2 (+ HTTP/SMS/Email/Push) 20+ Throughput * Price * Standard: Almost unlimited FIFO: 3 000 TPS (soft) Standard: 30 000 TPS (soft) FIFO: 300 TPS (soft) 10 000 TPS (soft) $ per million API requests Standard ≤ 0.4 / FIFO ≤ 0.5 $ per million API requests: 0.5 $ per million events: 1 * depends on the region (us-east-1)

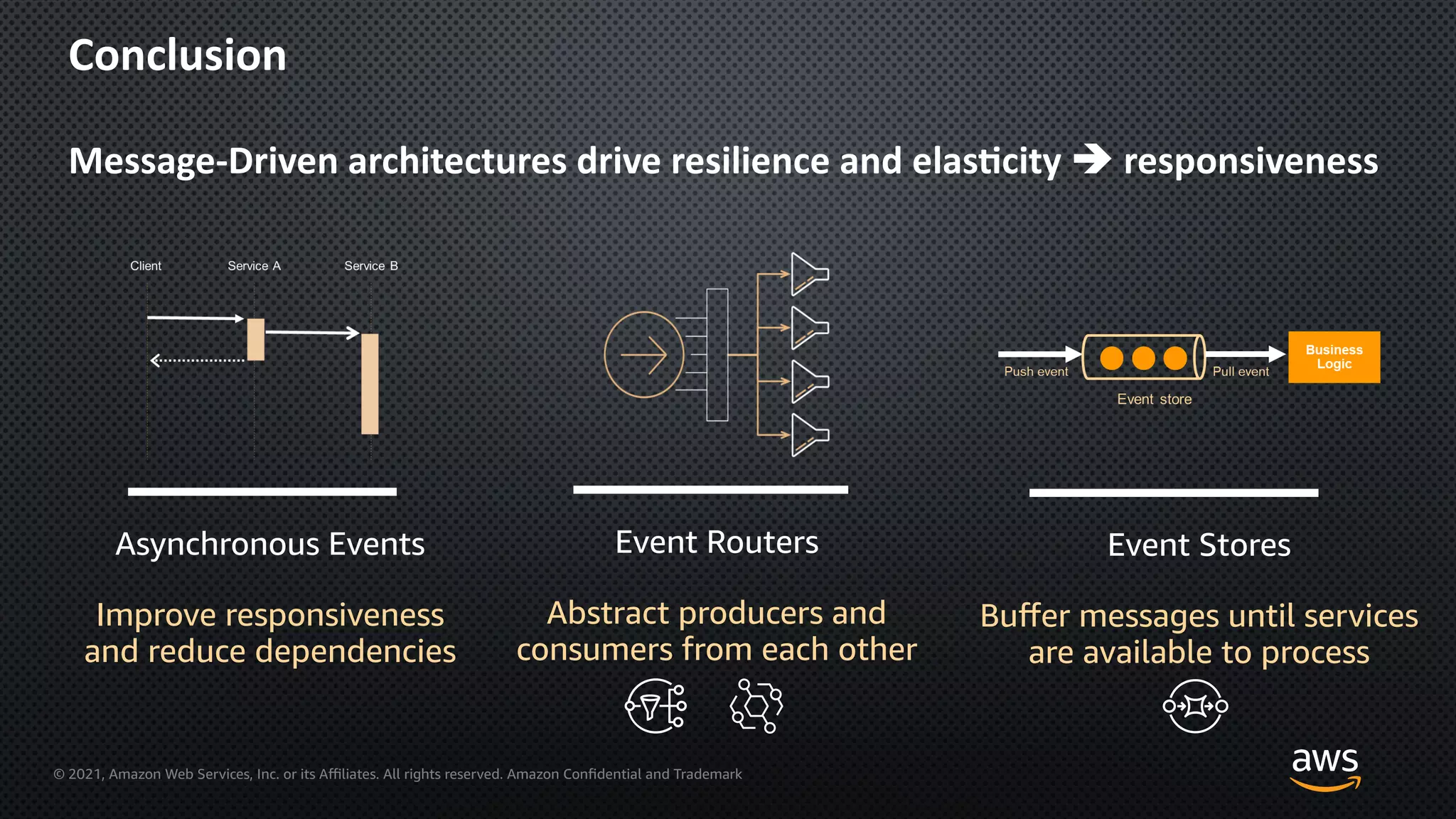

- 38. © 2021, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark Conclusion Message-Driven architectures drive resilience and elas3city è responsiveness Asynchronous Events Improve responsiveness and reduce dependencies Event Stores Buffer messages until services are available to process Event Routers Abstract producers and consumers from each other
