Autopsy Of A Widget

Autopsy of
a Widget
The Internals of a
qooxdoo Widget
by Fabian Jakobs
@fjakobs

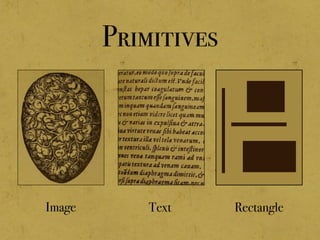

Primitives
Image Rectangle
Text

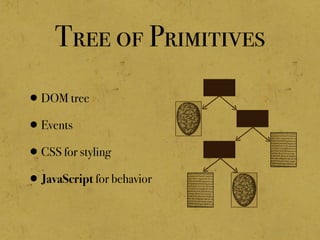

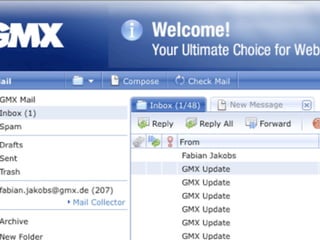

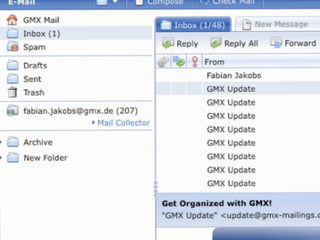

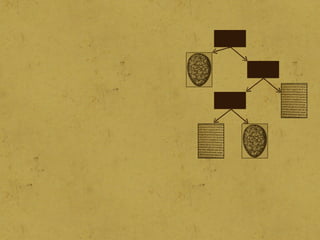

Tree of Primitives
•DOM tree
•Events
•CSS for styling
•JavaScript for behavior

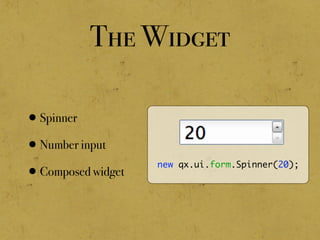

The Widget
•Spinner
•Number input
•Composed widget
new qx.ui.form.Spinner(20);

Static Structure:
Composed Widgets

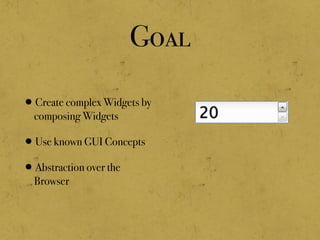

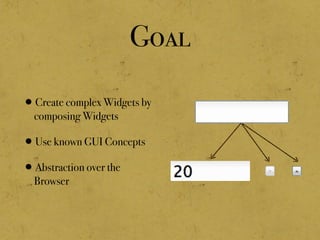

Goal
•Create complex Widgets by
composing Widgets
•Use known GUI Concepts
•Abstraction over the
Browser

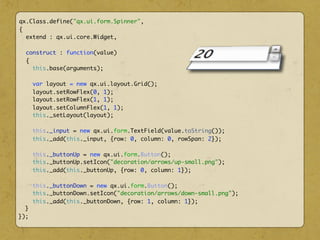

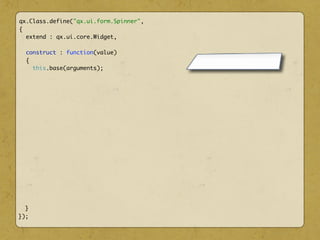

qx.Class.define("qx.ui.form.Spinner",
{
extend : qx.ui.core.Widget,
construct : function(value)
{
this.base(arguments);
}
});

{
{
var layout = new qx.ui.layout.Grid();
layout.setRowFlex(0, 1);
layout.setColumnFlex(1, 1);
this._setLayout(layout);
}
});

{
{
var layout = new qx.ui.layout.Grid();
layout.setColumnFlex(1, 1);
this._setLayout(layout);
this._input = new qx.ui.form.TextField(value.toString());
this._add(this._input, {row: 0, column: 0, rowSpan: 2});
this._buttonUp = new qx.ui.form.Button();
this._buttonUp.setIcon("decoration/arrows/up-small.png");
this._add(this._buttonUp, {row: 0, column: 1});
this._buttonDown = new qx.ui.form.Button();
this._buttonDown.setIcon("decoration/arrows/down-small.png");
this._add(this._buttonDown, {row: 1, column: 1});
}
});

Demo
http://demo.qooxdoo.org/current/playground

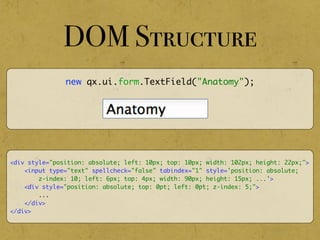

DOM Structure

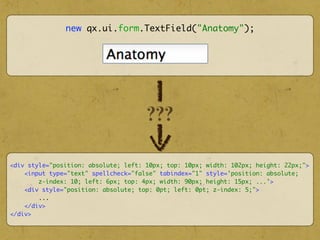

new qx.ui.form.TextField("Anatomy");

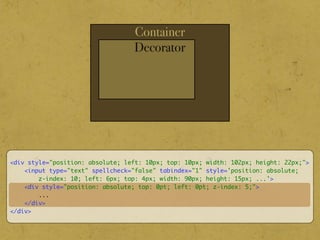

DOM Structure

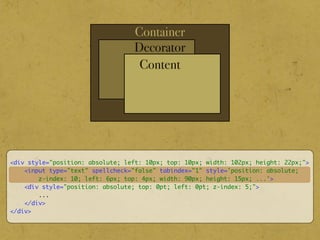

<div style="position: absolute; left: 10px; top: 10px; width: 102px; height: 22px;">
<input type="text" spellcheck="false" tabindex="1" style='position: absolute;
z-index: 10; left: 6px; top: 4px; width: 90px; height: 15px; ...'>
<div style="position: absolute; top: 0pt; left: 0pt; z-index: 5;">
...
</div>
</div>

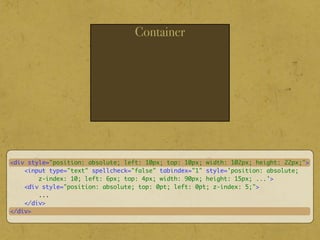

Container
...
</div>
</div>

Container
Decorator
...
</div>
</div>

Container
Decorator
Content
...
</div>
</div>

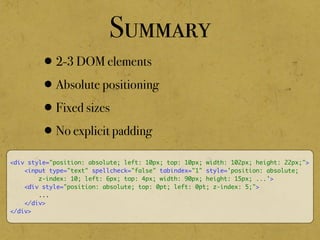

Summary
•2-3 DOM elements
•Absolute positioning
•Fixed sizes
•No explicit padding
...
</div>
</div>

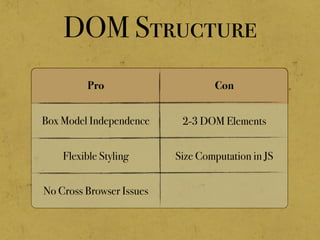

DOM Structure
Pro Con
No Cross Browser Issues
Flexible Styling
Box Model Independence 2-3 DOM Elements
Size Computation in JS

The Guts:
Working With The DOM

...
</div>
</div>
???

The DOM is a Mess
IE
element.style.filter =
"alpha(opacity=" +
(opacity * 100) +
");";
others
element.style.opacity = opacity;
•Many cross browser issues

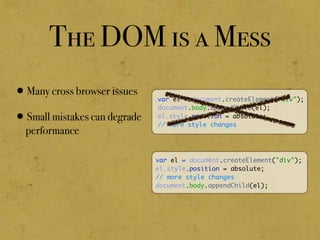

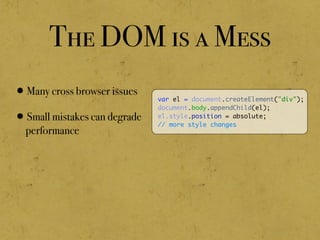

The DOM is a Mess
•Small mistakes can degrade
performance
var el = document.createElement("div");
document.body.appendChild(el);
el.style.position = absolute;
// more style changes

The DOM is a Mess
performance

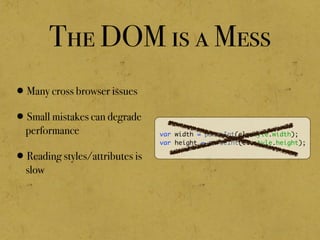

The DOM is a Mess
performance
•Reading styles/attributes is
slow
var width = parseInt(el.style.width);
var height = parseInt(el.style.height);

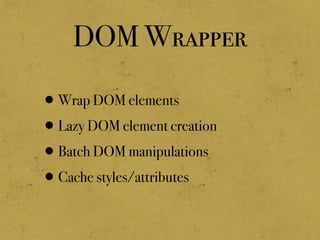

DOM Wrapper
•Wrap DOM elements
•Lazy DOM element creation
•Batch DOM manipulations
•Cache styles/attributes

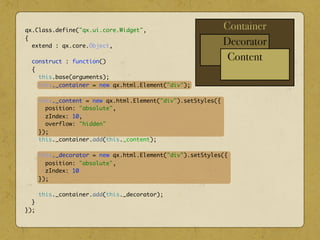

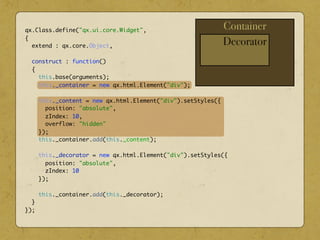

Container
qx.Class.define("qx.ui.core.Widget",
{
extend : qx.core.Object,
construct : function()
{
this._container = new qx.html.Element("div");
this._content = new qx.html.Element("div").setStyles({
position: "absolute",
zIndex: 10,
overflow: "hidden"
});
this._container.add(this._content);
this._decorator = new qx.html.Element("div").setStyles({
zIndex: 10
});
this._container.add(this._decorator);
}
});

Container
Decorator
{
{
zIndex: 10,
overflow: "hidden"
});
zIndex: 10
});
}
});

Container
Decorator
Content
{
{
zIndex: 10,
overflow: "hidden"
});
zIndex: 10
});
}
});

DOM Wrapper
Pro Con
Keeps widget code clean
Performance
Cross browser API Memory overhead
Additional complexity

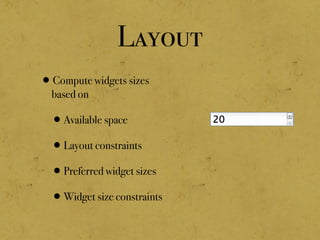

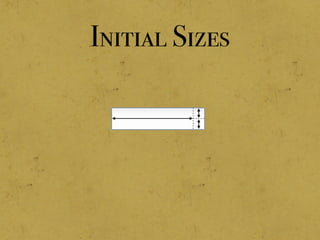

Layout
•Compute widgets sizes
based on
•Available space
•Layout constraints
•Preferred widget sizes
•Widget size constraints

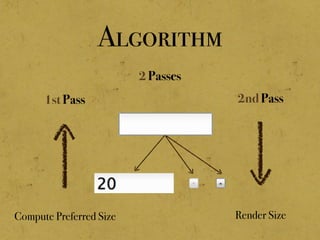

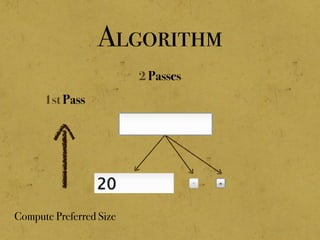

Algorithm
2 Passes
Compute Preferred Size
1st Pass

Algorithm
2 Passes
Compute Preferred Size
1st Pass
Render Size
2nd Pass

1st Pass
Grid
getSizeHint()
getLayoutChildren()
computeLayout(hints)
TextField
getSizeHint()
measureTextHeight()
Button
getSizeHint()
getImageSize()
Button
getSizeHint()
getImageSize()
Spinner
getSizeHint()
getLayout()

1st Pass
Grid
getSizeHint()
getLayoutChildren()
TextField
getSizeHint()
measureTextHeight()
Button
getSizeHint()
getImageSize()
Button
getSizeHint()
getImageSize()
Spinner
getSizeHint()
getLayout()
Spinner.getSizeHint = function() {
return this.getLayout().getSizeHint();
}

1st Pass
Grid
getSizeHint()
getLayoutChildren()
TextField
getSizeHint()
measureTextHeight()
Button
getSizeHint()
getImageSize()
Button
getSizeHint()
getImageSize()
Spinner
getSizeHint()
getLayout()

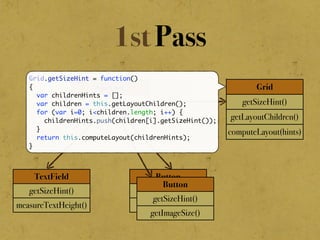

Grid.getSizeHint = function()
{
var childrenHints = [];
var children = this.getLayoutChildren();
for (var i=0; i<children.length; i++) {
childrenHints.push(children[i].getSizeHint());
}
return this.computeLayout(childrenHints);
}

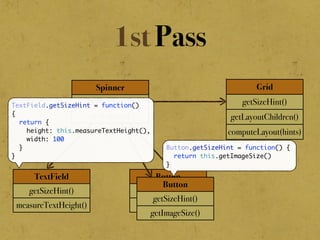

1st Pass
Grid
getSizeHint()
getLayoutChildren()
TextField
getSizeHint()
measureTextHeight()
Button
getSizeHint()
getImageSize()
Button
getSizeHint()
getImageSize()
Spinner
getSizeHint()
getLayout()
TextField.getSizeHint = function()
{
return {
height: this.measureTextHeight(),
width: 100
}
}
Button.getSizeHint = function() {
return this.getImageSize()
}

Button
renderLayout()
updateWidgetSize(bounds)

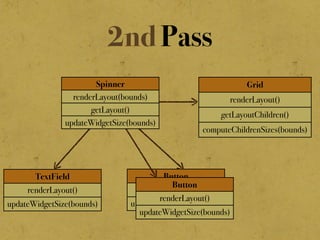

2nd Pass
Grid
renderLayout()
getLayoutChildren()
computeChildrenSizes(bounds)
TextField
renderLayout()
Spinner
renderLayout(bounds)
getLayout()
Button
renderLayout()

Button
renderLayout()

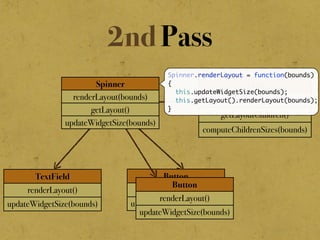

2nd Pass
Grid
renderLayout()
getLayoutChildren()
TextField
renderLayout()
Spinner
getLayout()
Button
renderLayout()
Spinner.renderLayout = function(bounds)
{
this.updateWidgetSize(bounds);
this.getLayout().renderLayout(bounds);
}

Button
renderLayout()
Grid
renderLayout()
getLayoutChildren()
TextField
renderLayout()
Spinner
getLayout()
Button
renderLayout()
Grid.renderLayout = function(bounds)
{
var sizes = this.computeChildrenSizes(bounds);
var children = this.getLayoutChildren();
for (var i=0; i<children.length; i++) {
children[i].renderLayout(childrenSizes[i]);
}
}
2nd Pass

Button
renderLayout()
Grid
renderLayout()
getLayoutChildren()
TextField
renderLayout()
Spinner
getLayout()
Button
renderLayout()

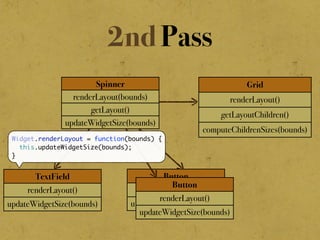

Widget.renderLayout = function(bounds) {
this.updateWidgetSize(bounds);
}
2nd Pass

Layout Summary
•Reflow computation in JavaScript
•Large collection of layout managers
•Highly optimized

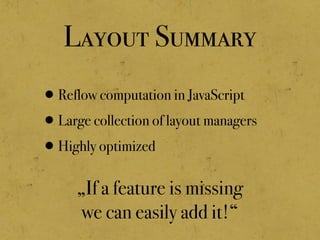

Layout Summary
•Reflow computation in JavaScript
•Large collection of layout managers
•Highly optimized
„If a feature is missing
we can easily add it!“

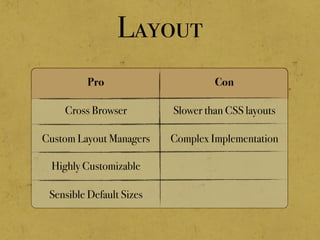

Layout
Pro Con
Slower than CSS layouts
Complex Implementation
Cross Browser
Custom Layout Managers
Highly Customizable
Sensible Default Sizes

„DOM events are a
huge stinking pile
of mess!“

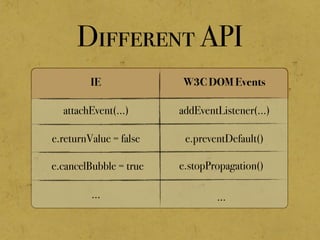

Different API
IE W3C DOM Events
addEventListener(...)
e.preventDefault()
attachEvent(...)
e.returnValue = false
e.cancelBubble = true
...
e.stopPropagation()
...

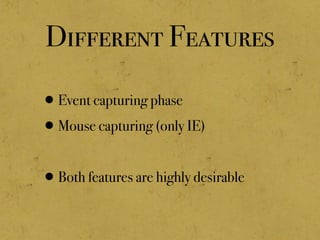

Different Features
•Event capturing phase
•Mouse capturing (only IE)
•Both features are highly desirable

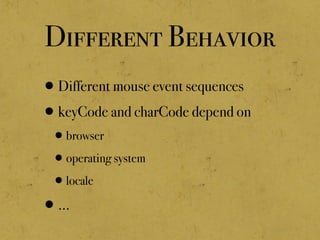

Different Behavior
•Different mouse event sequences
•keyCode and charCode depend on
•browser
•operating system
•locale
•...

{
{
// ...

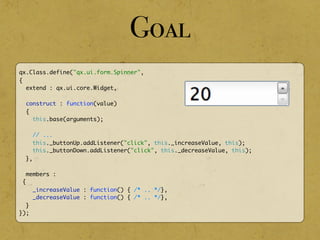

this._buttonUp.addListener("click", this._increaseValue, this);
this._buttonDown.addListener("click", this._decreaseValue, this);
},
members :
{
_increaseValue : function() { /* .. */},
_decreaseValue : function() { /* .. */},
}
});
Goal

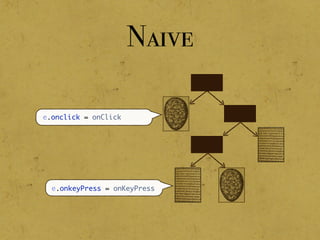

e.onclick = onClick
e.onkeyPress = onKeyPress

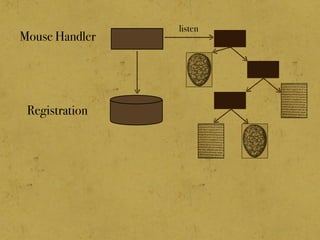

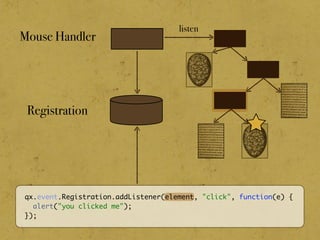

Naive

Registration

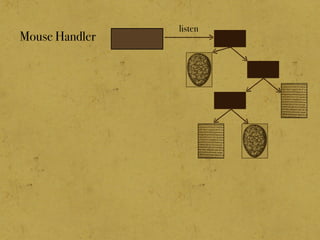

Mouse Handler
listen

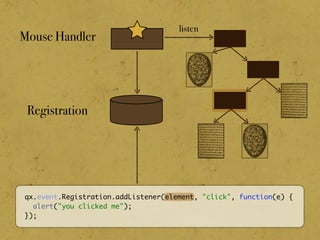

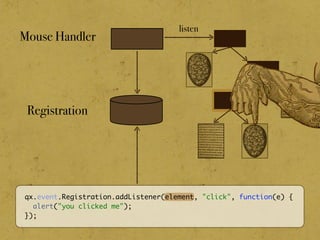

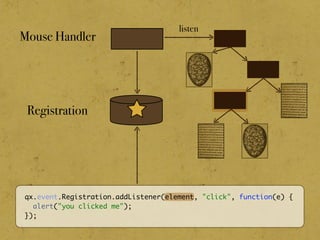

qx.event.Registration.addListener(element, "click", function(e) {
alert("you clicked me");
});
Registration
Mouse Handler
listen

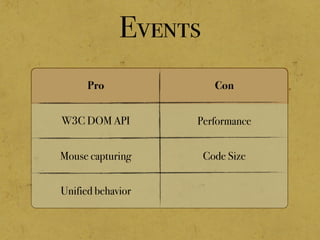

Events
Pro Con
Unified behavior
Mouse capturing
W3C DOM API Performance
Code Size

Composed Widgets DOM Structure Theming
DOM Wrapper Layout Events

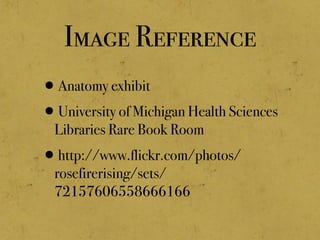

Image Reference
•Anatomy exhibit
•University of Michigan Health Sciences
Libraries Rare Book Room
•http://www.flickr.com/photos/
rosefirerising/sets/
72157606558666166

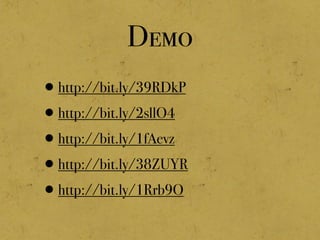

Demo
•http://bit.ly/39RDkP
•http://bit.ly/2sllO4
•http://bit.ly/1fAevz
•http://bit.ly/38ZUYR
•http://bit.ly/1Rrb9O
