The document summarizes research on automatically classifying Springer Nature proceedings using the Smart Topic Miner (STM). STM extracts topics from publications, maps them to a computer science ontology, selects relevant topics using a greedy algorithm, and infers tags. It was tested on 8 Springer Nature editors who found STM accurately classified 75-90% of proceedings and improved their work. However, STM is currently limited to computer science and occasional noisy results were found in books with few chapters. Future work aims to expand STM to characterize topic evolution over time and directly support author tagging.
Analytical Profile of Coleus Forskohlii | Forskolin .pdf
Classifying Scholarly Publications with Smart Topic Miner
1. Francesco Osborne1, Angelo Salatino1,
Aliaksandr Birukou2, Enrico Motta1
1 KMi, The Open University, United Kingdom
2 Springer Nature
ISWC 2016
Automatic Classification of Springer Nature
Proceedings with Smart Topic Miner

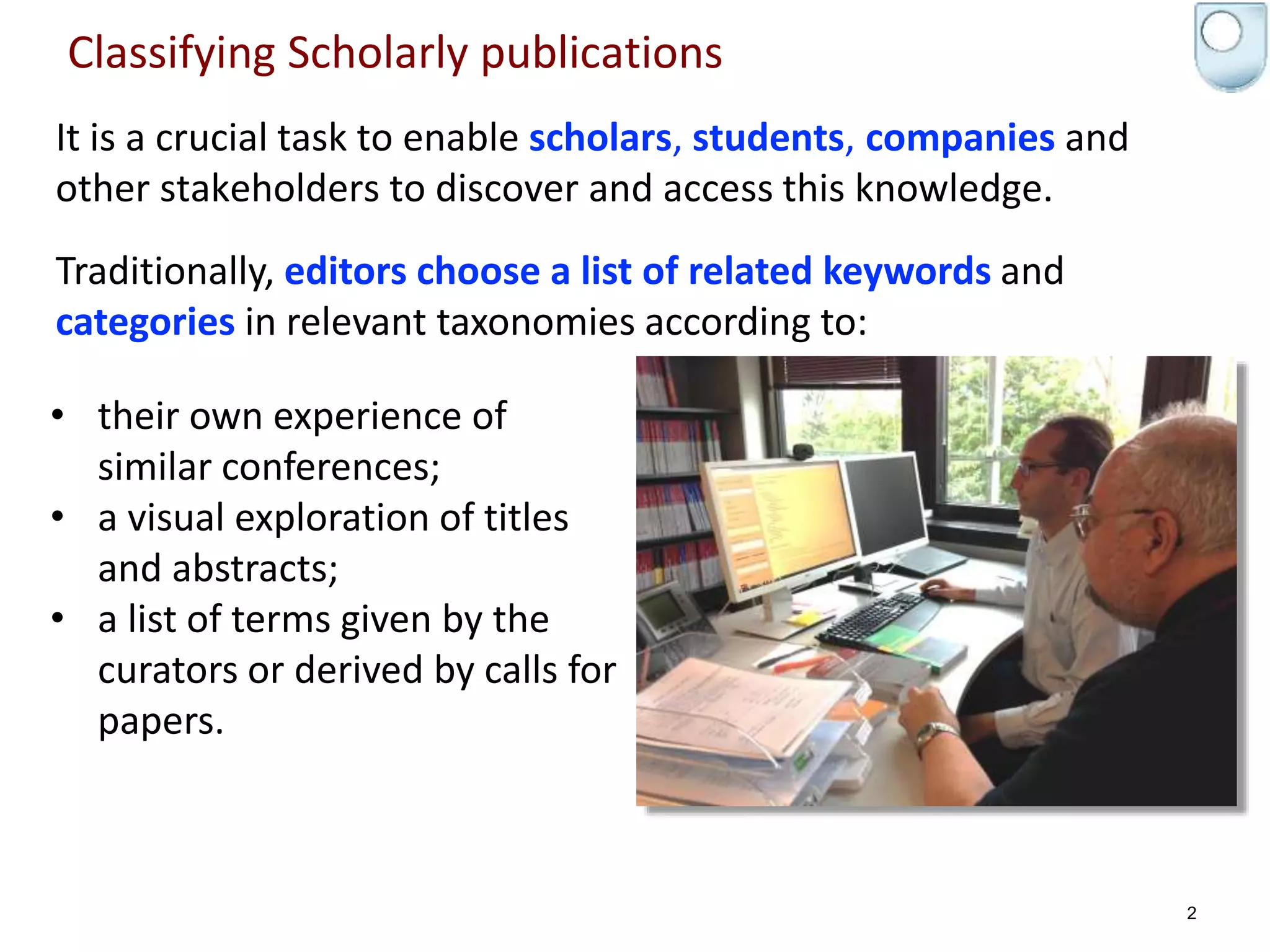

2. Classifying Scholarly publications
It is a crucial task to enable scholars, students, companies and
other stakeholders to discover and access this knowledge.
2
• their own experience of
similar conferences;
• a visual exploration of titles
and abstracts;
• a list of terms given by the
curators or derived by calls for
papers.
Traditionally, editors choose a list of related keywords and
categories in relevant taxonomies according to:

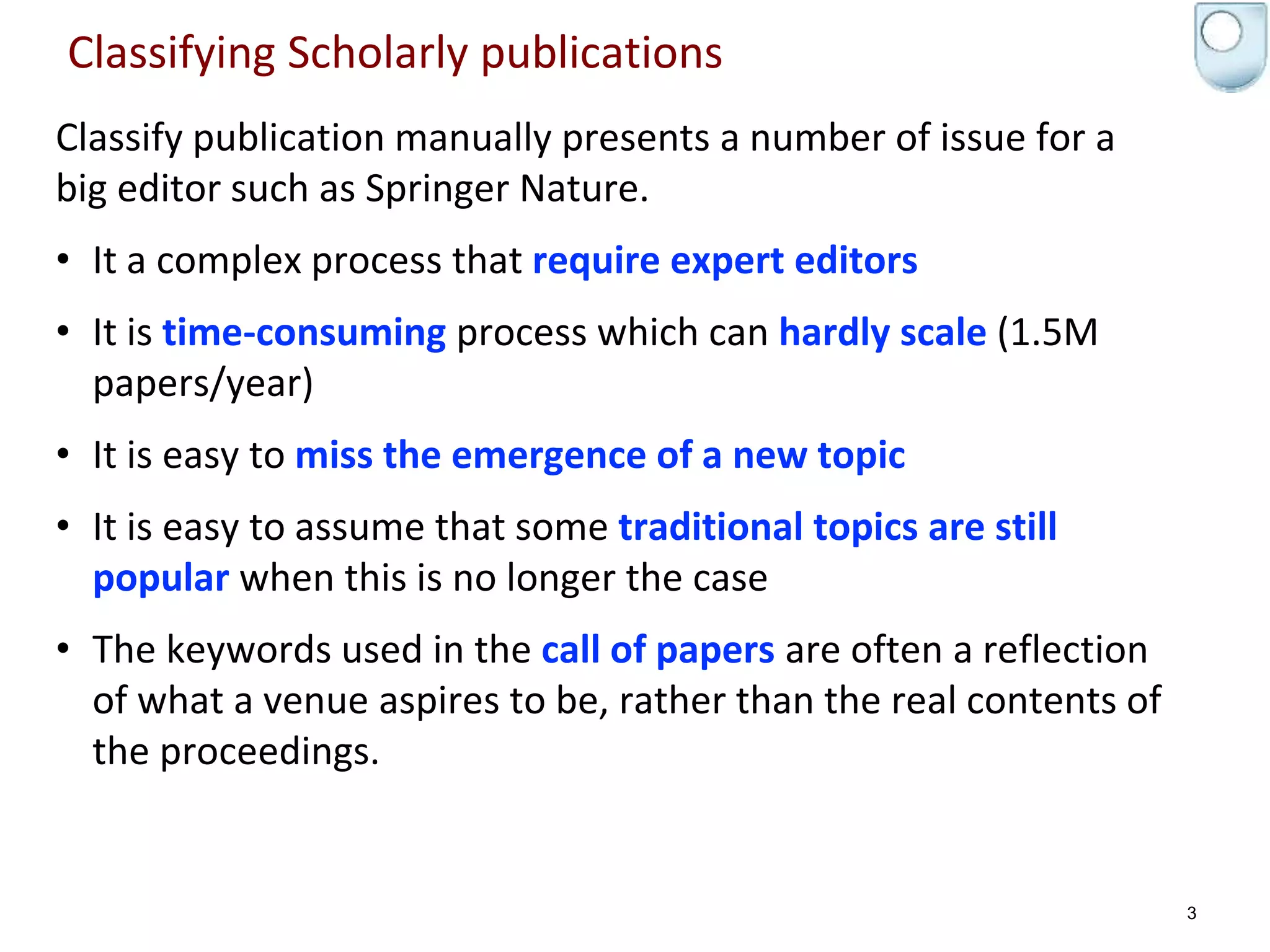

3. Classifying Scholarly publications
Classify publication manually presents a number of issue for a
big editor such as Springer Nature.
• It a complex process that require expert editors
• It is time-consuming process which can hardly scale (1.5M
papers/year)
• It is easy to miss the emergence of a new topic
• It is easy to assume that some traditional topics are still
popular when this is no longer the case
• The keywords used in the call of papers are often a reflection
of what a venue aspires to be, rather than the real contents of
the proceedings.
3

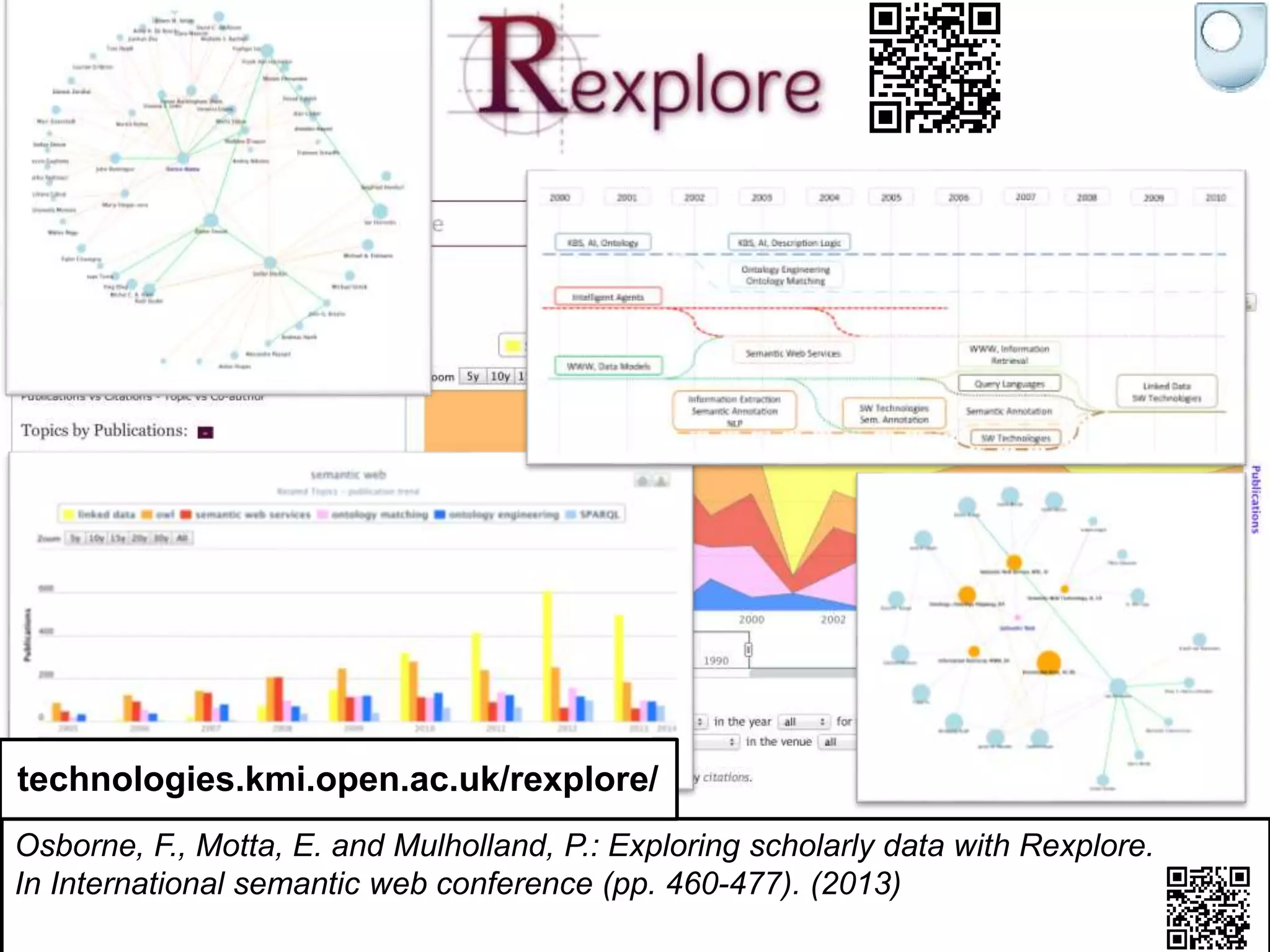

4. 44
Osborne, F., Motta, E. and Mulholland, P.: Exploring scholarly data with Rexplore.
In International semantic web conference (pp. 460-477). (2013)
technologies.kmi.open.ac.uk/rexplore/

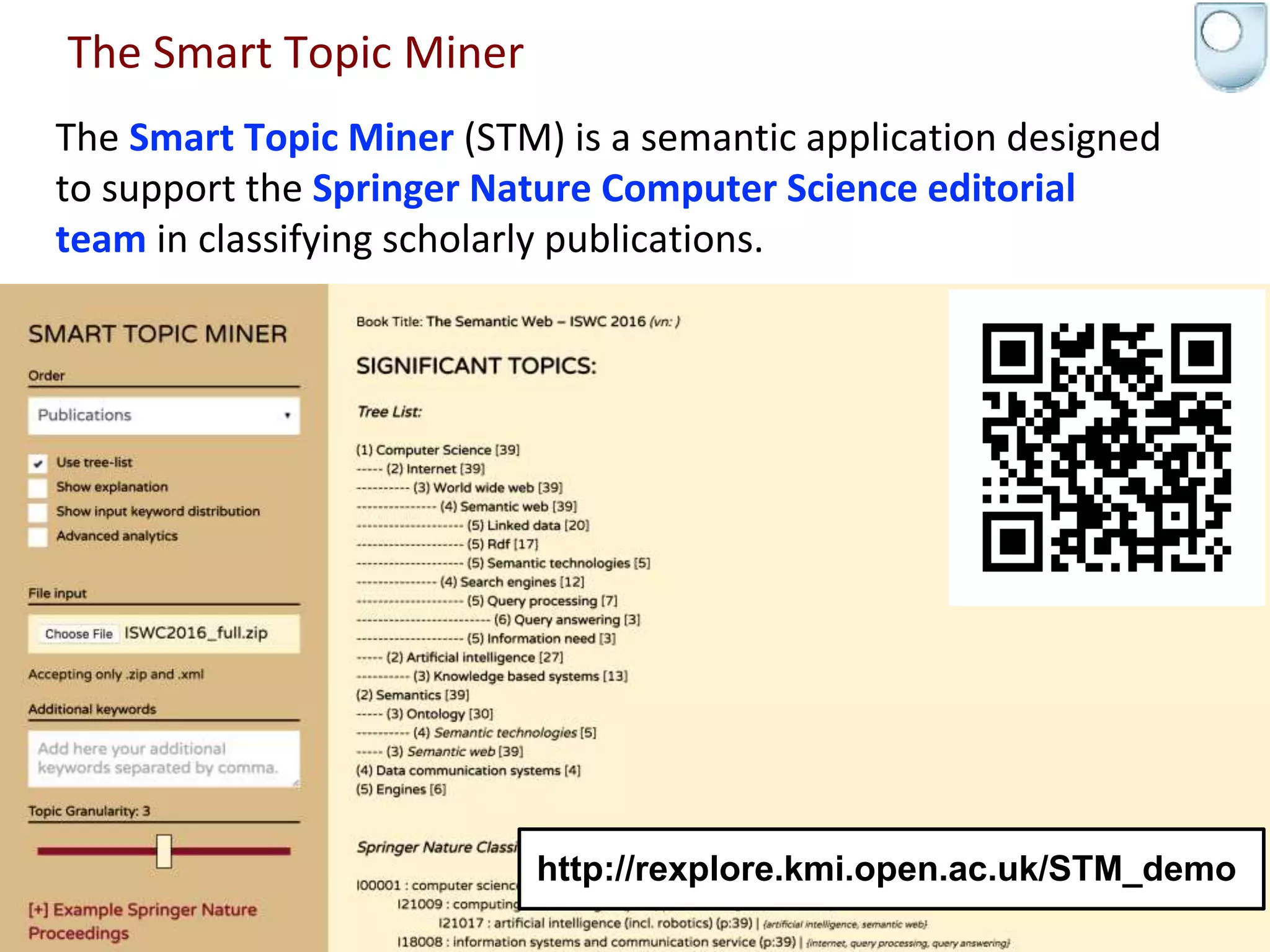

5. The Smart Topic Miner
The Smart Topic Miner (STM) is a semantic application designed
to support the Springer Nature Computer Science editorial
team in classifying scholarly publications.
5
http://rexplore.kmi.open.ac.uk/STM_demo

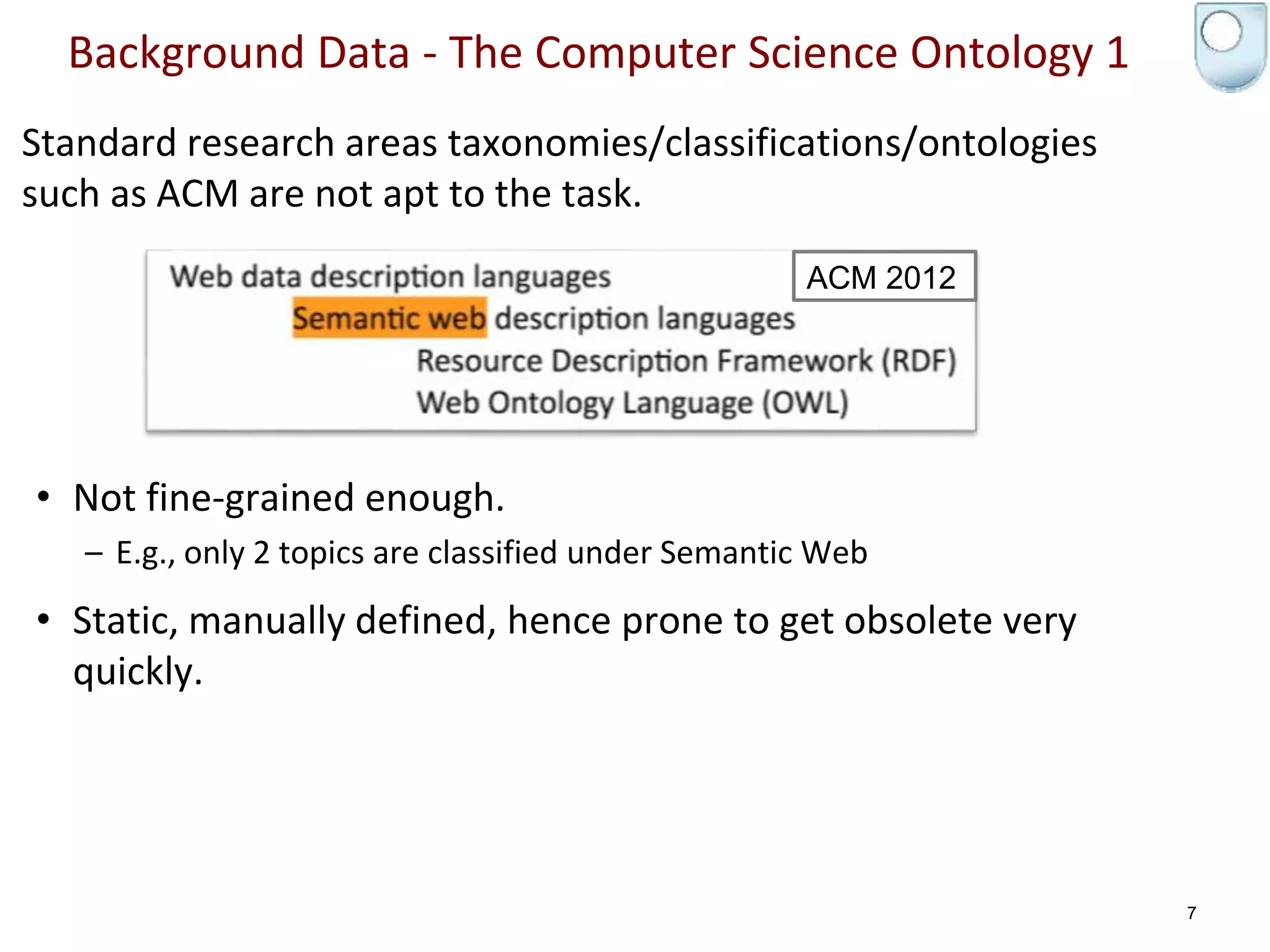

7. Background Data - The Computer Science Ontology 1
• Not fine-grained enough.
– E.g., only 2 topics are classified under Semantic Web
• Static, manually defined, hence prone to get obsolete very
quickly.
7
Standard research areas taxonomies/classifications/ontologies
such as ACM are not apt to the task.
ACM 2012

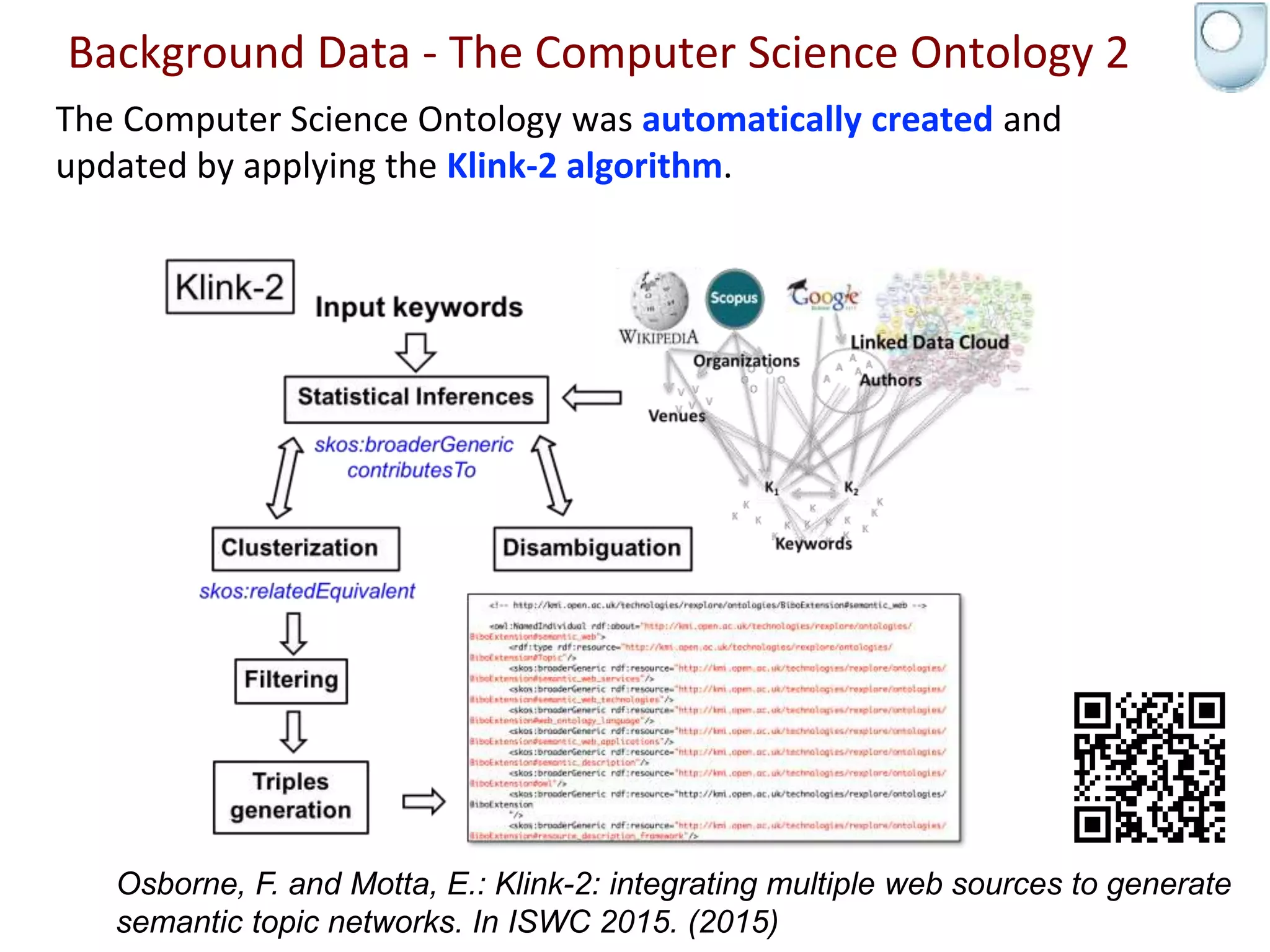

8. The Computer Science Ontology was automatically created and
updated by applying the Klink-2 algorithm.
Osborne, F. and Motta, E.: Klink-2: integrating multiple web sources to generate
semantic topic networks. In ISWC 2015. (2015)
Background Data - The Computer Science Ontology 2
9. • We automatically generated a large-scale ontology consist of about
15,000 topics linked by about 70,000 semantic relationships.
• It included very granular and low level research areas, e.g., Linked
open data, Probabilistic packet marking, Synthetic aperture radar
imaging
• It can be regularly updated by running Klink-2 on a new set of
publications.
• It allows for a research topic to have multiple super-areas – i.e., the
taxonomic structure is a graph rather than a tree, e.g., Inductive Logic
Programming is a sub-area of both Machine Learning and Logic
Programming.
9
Background Data - The Computer Science Ontology 3

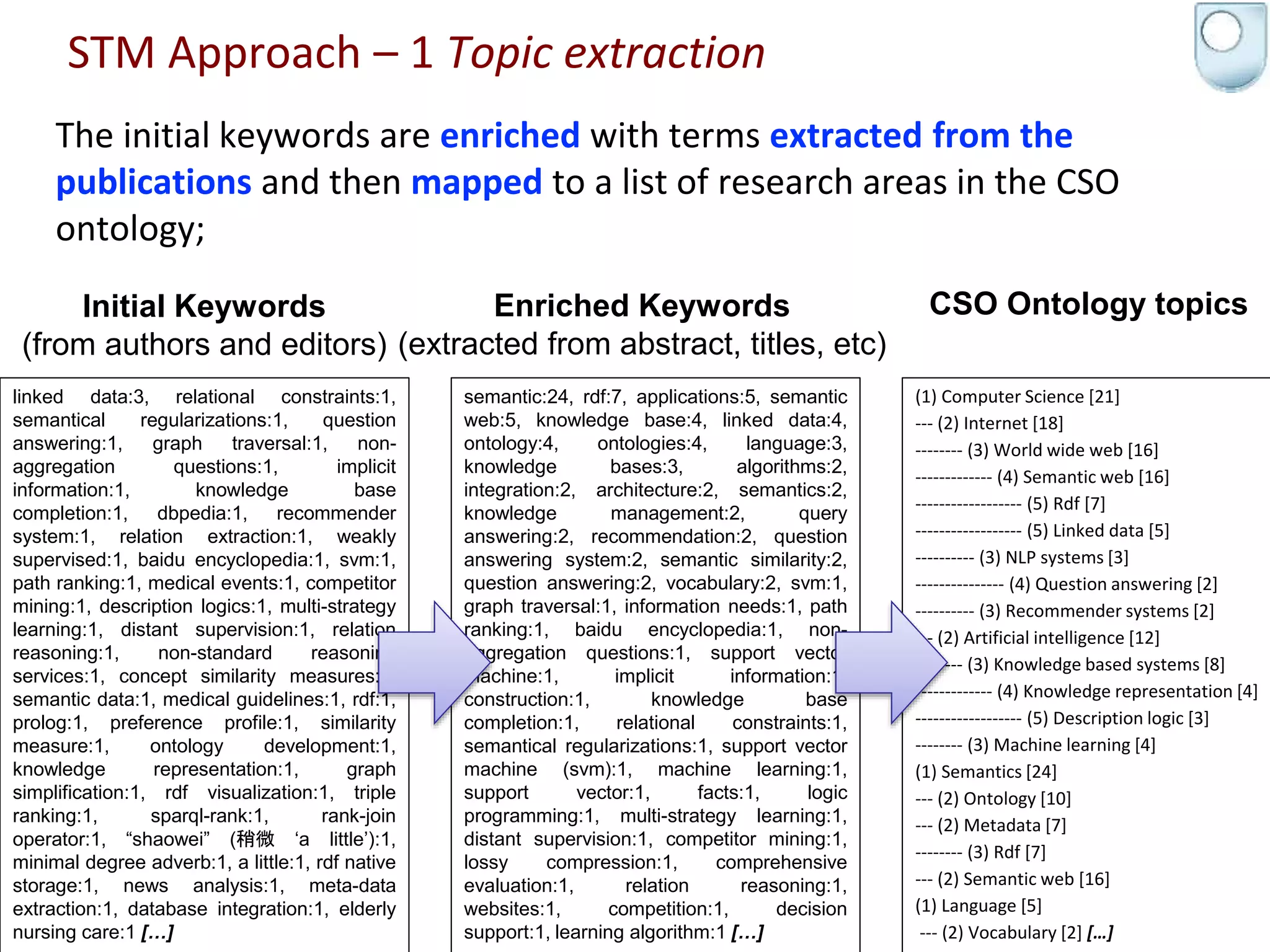

10. The initial keywords are enriched with terms extracted from the
publications and then mapped to a list of research areas in the CSO
ontology;
Initial Keywords
(from authors and editors)
(1) Computer Science [21]
--- (2) Internet [18]
-------- (3) World wide web [16]
------------- (4) Semantic web [16]
------------------ (5) Rdf [7]
------------------ (5) Linked data [5]
---------- (3) NLP systems [3]
--------------- (4) Question answering [2]
---------- (3) Recommender systems [2]
--- (2) Artificial intelligence [12]
-------- (3) Knowledge based systems [8]
------------- (4) Knowledge representation [4]
------------------ (5) Description logic [3]
-------- (3) Machine learning [4]
(1) Semantics [24]
--- (2) Ontology [10]
--- (2) Metadata [7]
-------- (3) Rdf [7]
--- (2) Semantic web [16]
(1) Language [5]
--- (2) Vocabulary [2] […]
semantic:24, rdf:7, applications:5, semantic
web:5, knowledge base:4, linked data:4,
ontology:4, ontologies:4, language:3,
knowledge bases:3, algorithms:2,
integration:2, architecture:2, semantics:2,
knowledge management:2, query
answering:2, recommendation:2, question
answering system:2, semantic similarity:2,
question answering:2, vocabulary:2, svm:1,
graph traversal:1, information needs:1, path
ranking:1, baidu encyclopedia:1, non-
aggregation questions:1, support vector
machine:1, implicit information:1,
construction:1, knowledge base
completion:1, relational constraints:1,
semantical regularizations:1, support vector
machine (svm):1, machine learning:1,
support vector:1, facts:1, logic
programming:1, multi-strategy learning:1,
distant supervision:1, competitor mining:1,
lossy compression:1, comprehensive
evaluation:1, relation reasoning:1,
websites:1, competition:1, decision
support:1, learning algorithm:1 […]
linked data:3, relational constraints:1,
semantical regularizations:1, question
answering:1, graph traversal:1, non-
aggregation questions:1, implicit
information:1, knowledge base
completion:1, dbpedia:1, recommender
system:1, relation extraction:1, weakly
supervised:1, baidu encyclopedia:1, svm:1,
path ranking:1, medical events:1, competitor
mining:1, description logics:1, multi-strategy
learning:1, distant supervision:1, relation
reasoning:1, non-standard reasoning
services:1, concept similarity measures:1,
semantic data:1, medical guidelines:1, rdf:1,
prolog:1, preference profile:1, similarity
measure:1, ontology development:1,
knowledge representation:1, graph
simplification:1, rdf visualization:1, triple
ranking:1, sparql-rank:1, rank-join
operator:1, “shaowei” (稍微 ‘a little’):1,
minimal degree adverb:1, a little:1, rdf native
storage:1, news analysis:1, meta-data
extraction:1, database integration:1, elderly
nursing care:1 […]
Enriched Keywords
(extracted from abstract, titles, etc)
CSO Ontology topics
STM Approach – 1 Topic extraction

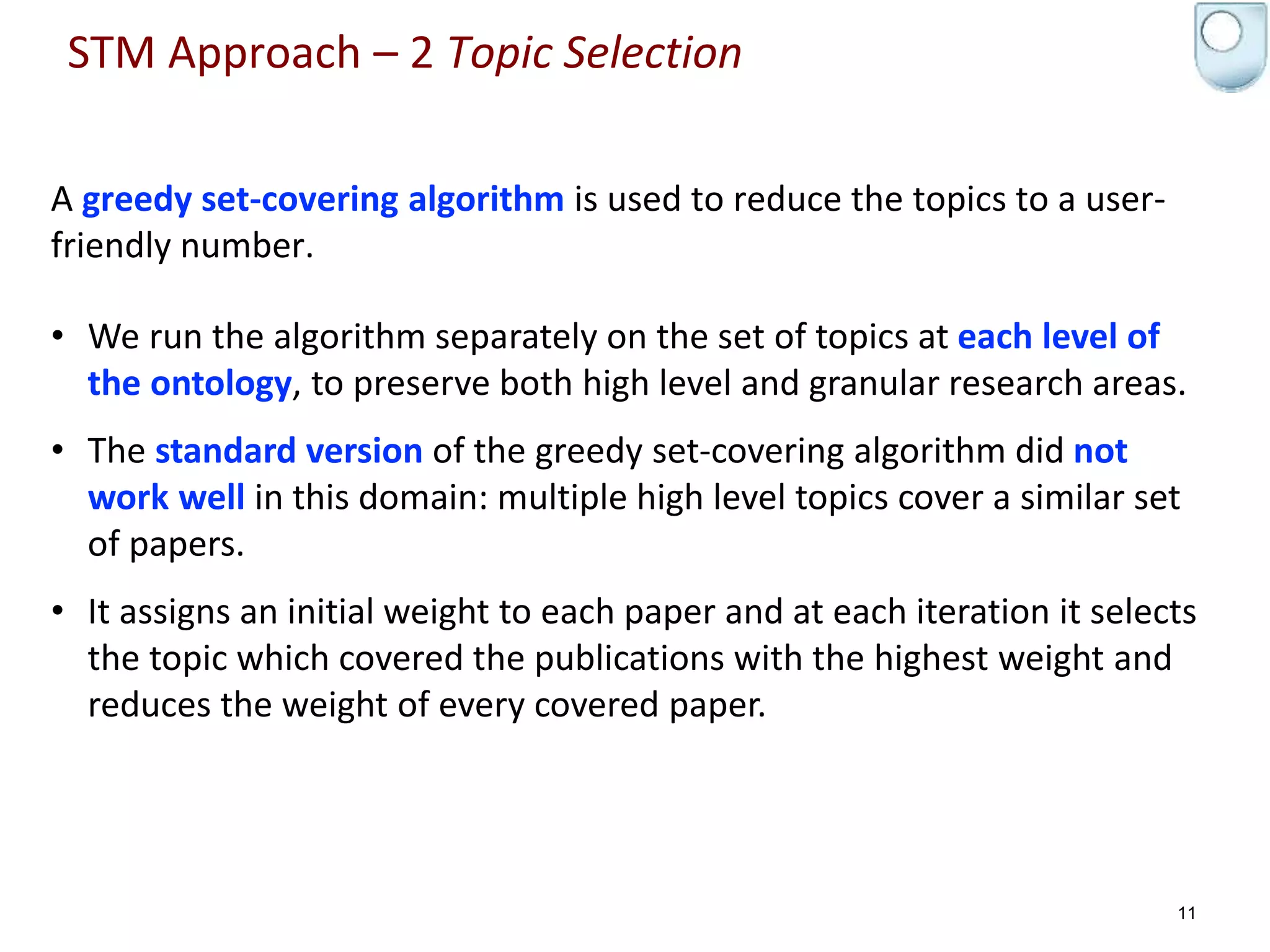

11. A greedy set-covering algorithm is used to reduce the topics to a user-
friendly number.
• We run the algorithm separately on the set of topics at each level of
the ontology, to preserve both high level and granular research areas.
• The standard version of the greedy set-covering algorithm did not
work well in this domain: multiple high level topics cover a similar set
of papers.
• It assigns an initial weight to each paper and at each iteration it selects
the topic which covered the publications with the highest weight and
reduces the weight of every covered paper.
11
STM Approach – 2 Topic Selection

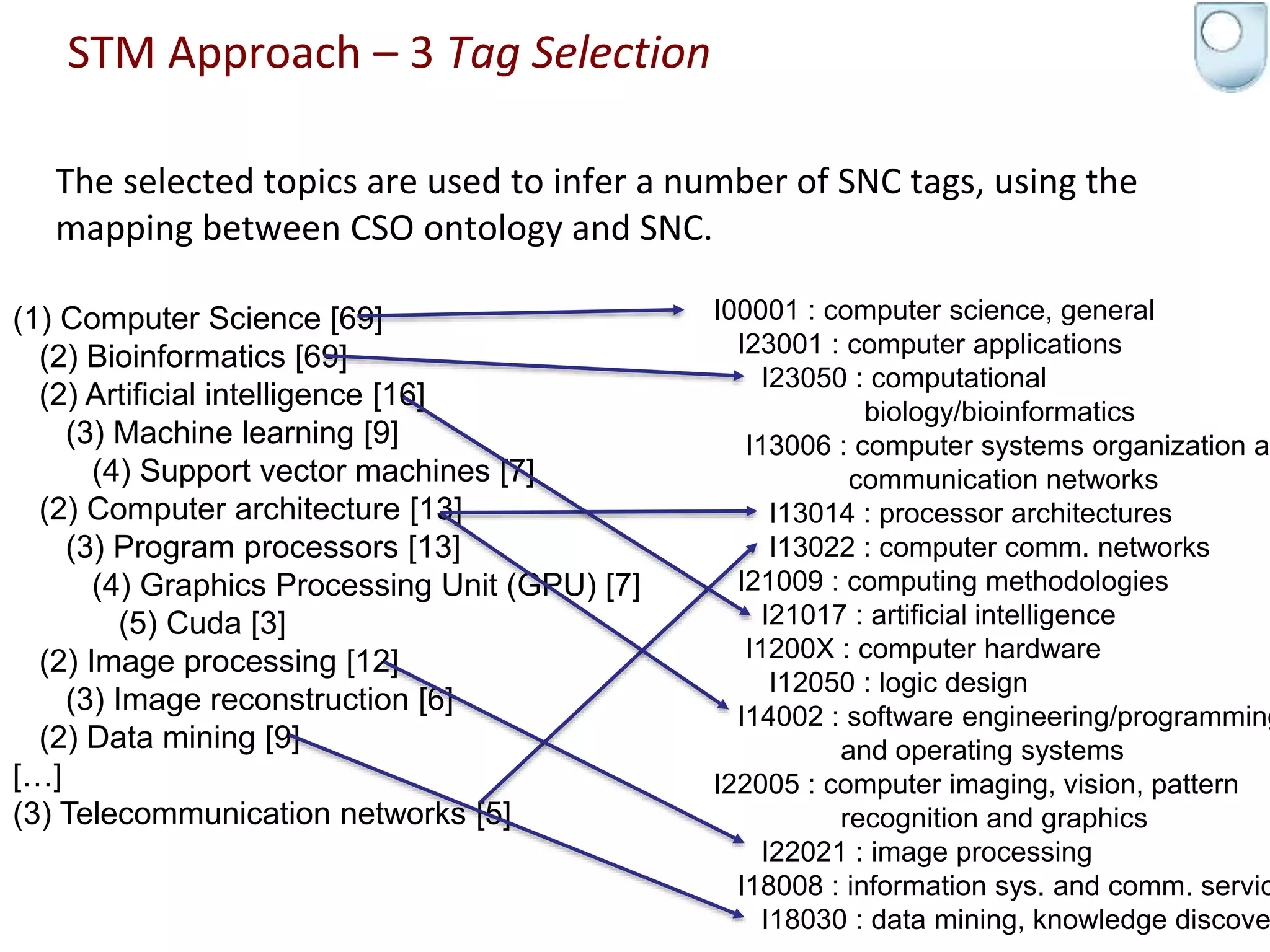

12. The selected topics are used to infer a number of SNC tags, using the
mapping between CSO ontology and SNC.
I00001 : computer science, general
I23001 : computer applications
I23050 : computational
biology/bioinformatics
I13006 : computer systems organization an
communication networks
I13014 : processor architectures
I13022 : computer comm. networks
I21009 : computing methodologies
I21017 : artificial intelligence
I1200X : computer hardware
I12050 : logic design
I14002 : software engineering/programming
and operating systems
I22005 : computer imaging, vision, pattern
recognition and graphics
I22021 : image processing
I18008 : information sys. and comm. servic
I18030 : data mining, knowledge discove
(1) Computer Science [69]
(2) Bioinformatics [69]
(2) Artificial intelligence [16]
(3) Machine learning [9]
(4) Support vector machines [7]
(2) Computer architecture [13]
(3) Program processors [13]
(4) Graphics Processing Unit (GPU) [7]
(5) Cuda [3]
(2) Image processing [12]
(3) Image reconstruction [6]
(2) Data mining [9]
[…]
(3) Telecommunication networks [5]
STM Approach – 3 Tag Selection

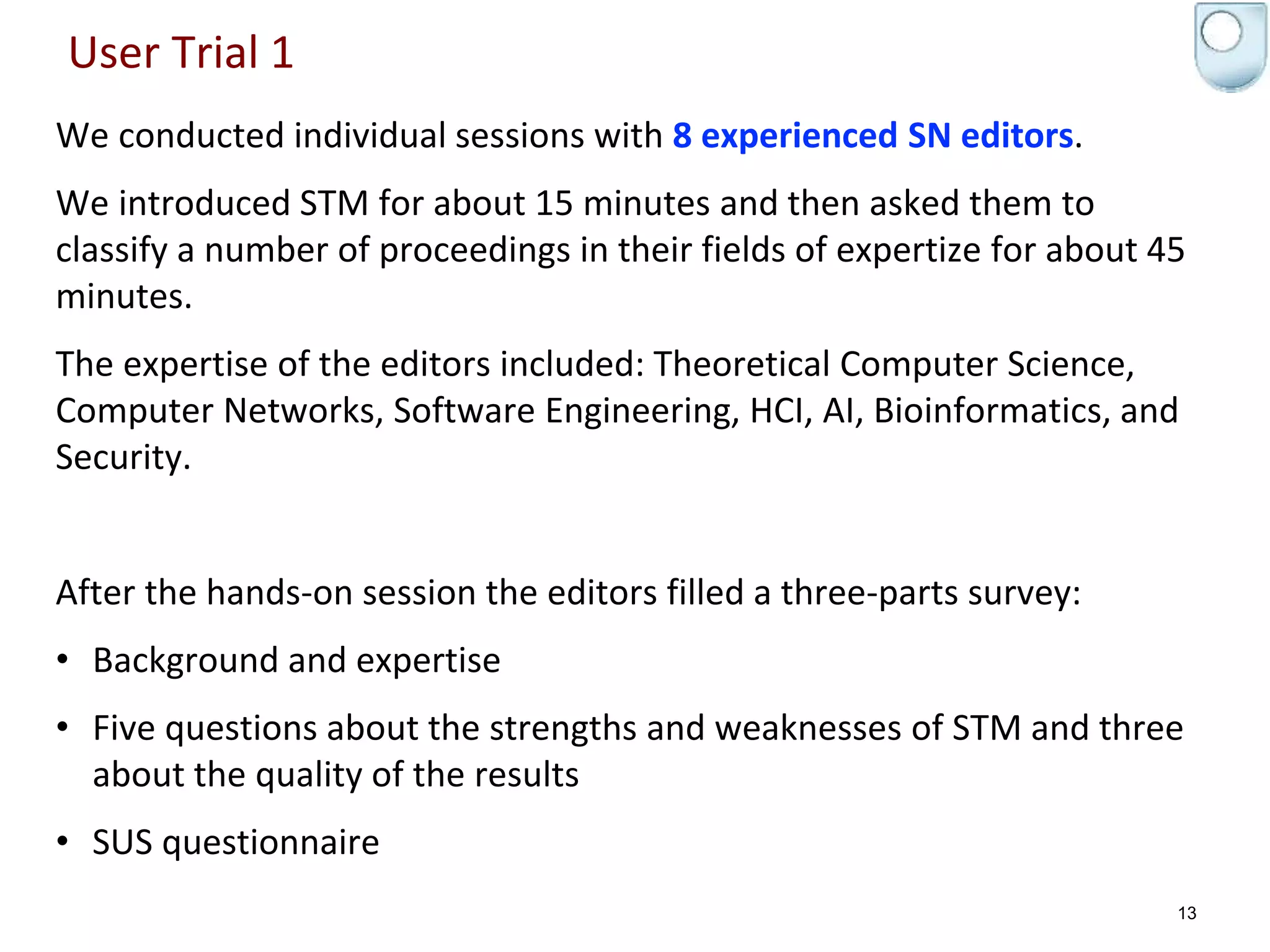

13. User Trial 1
We conducted individual sessions with 8 experienced SN editors.
We introduced STM for about 15 minutes and then asked them to
classify a number of proceedings in their fields of expertize for about 45
minutes.
The expertise of the editors included: Theoretical Computer Science,
Computer Networks, Software Engineering, HCI, AI, Bioinformatics, and
Security.
After the hands-on session the editors filled a three-parts survey:
• Background and expertise
• Five questions about the strengths and weaknesses of STM and three
about the quality of the results
• SUS questionnaire
13

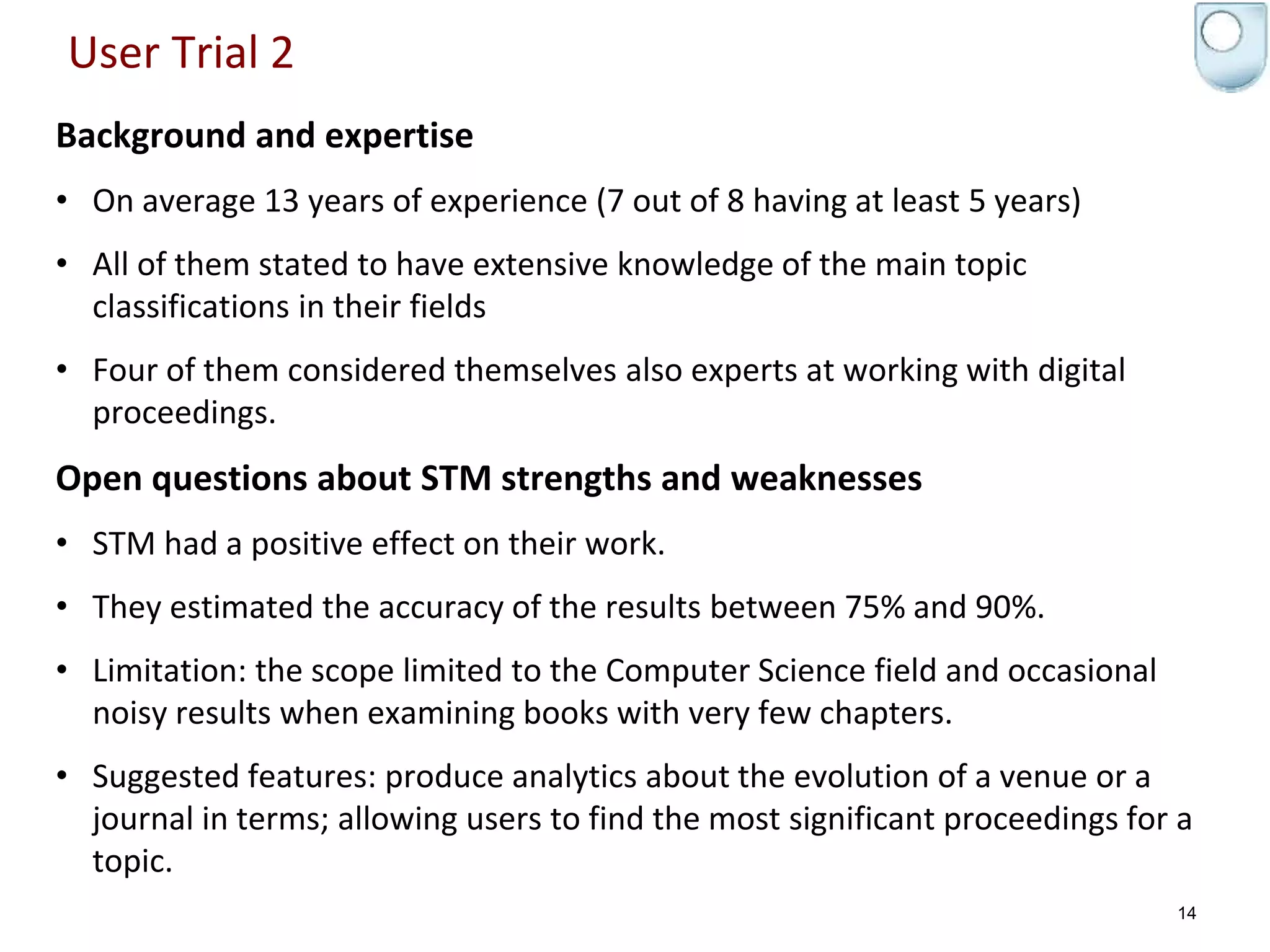

14. User Trial 2
Background and expertise
• On average 13 years of experience (7 out of 8 having at least 5 years)
• All of them stated to have extensive knowledge of the main topic
classifications in their fields
• Four of them considered themselves also experts at working with digital
proceedings.
Open questions about STM strengths and weaknesses
• STM had a positive effect on their work.
• They estimated the accuracy of the results between 75% and 90%.
• Limitation: the scope limited to the Computer Science field and occasional
noisy results when examining books with very few chapters.
• Suggested features: produce analytics about the evolution of a venue or a
journal in terms; allowing users to find the most significant proceedings for a
topic.
14

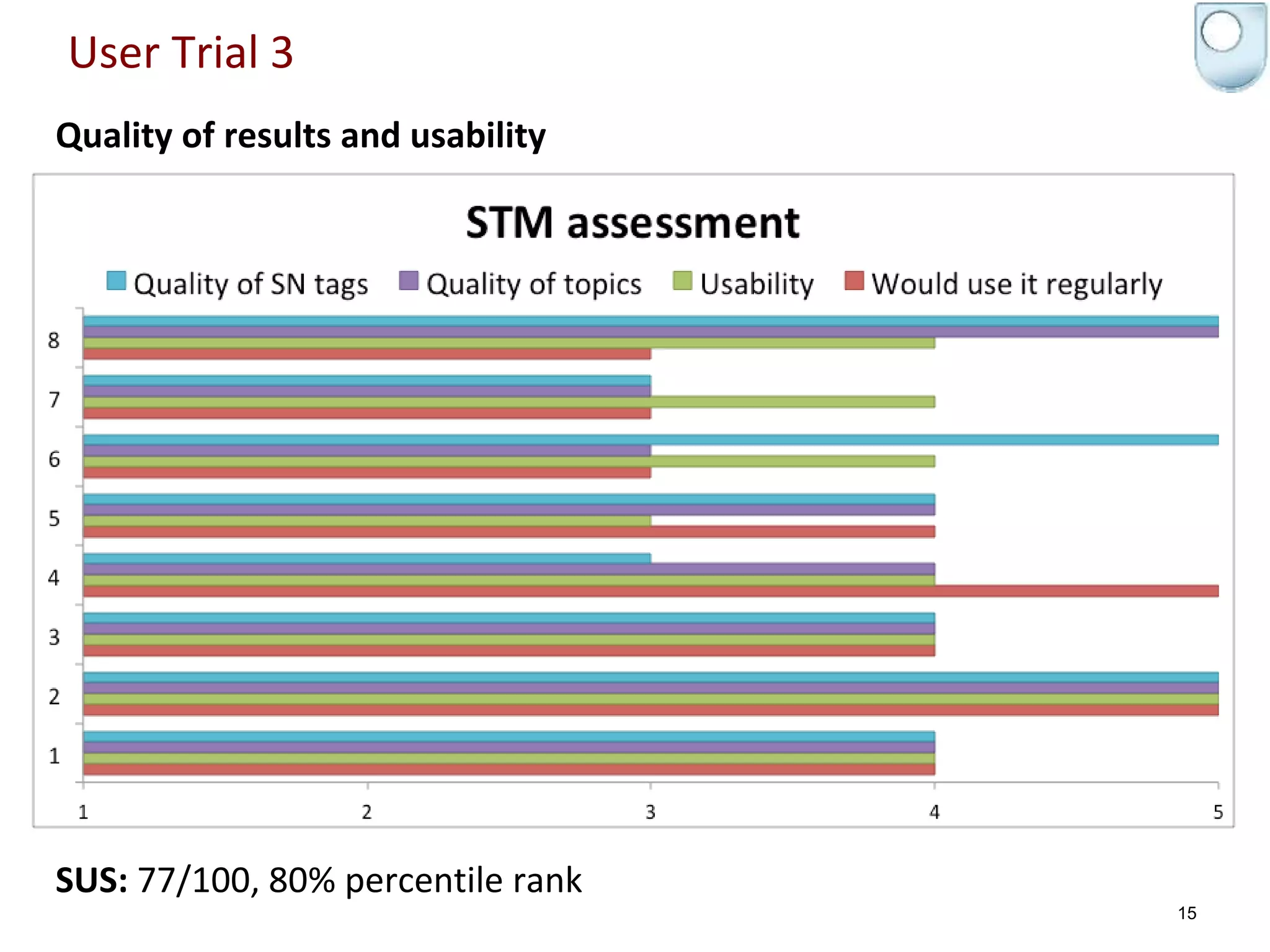

15. User Trial 3
Quality of results and usability
SUS: 77/100, 80% percentile rank
15

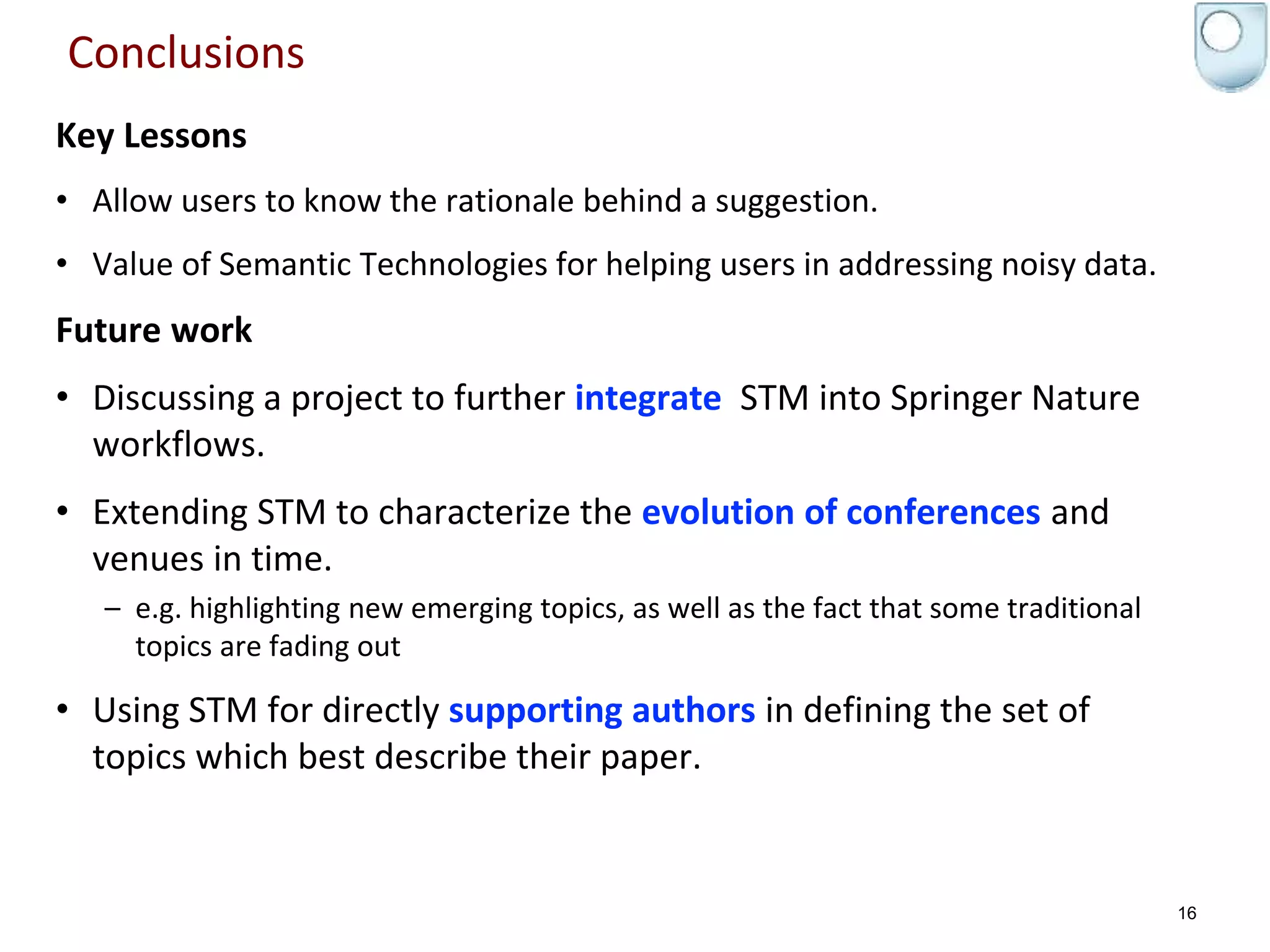

16. Conclusions
Key Lessons
• Allow users to know the rationale behind a suggestion.
• Value of Semantic Technologies for helping users in addressing noisy data.
Future work
• Discussing a project to further integrate STM into Springer Nature
workflows.
• Extending STM to characterize the evolution of conferences and
venues in time.
– e.g. highlighting new emerging topics, as well as the fact that some traditional
topics are fading out
• Using STM for directly supporting authors in defining the set of
topics which best describe their paper.
16
17. Francesco Osborne Angelo Salatino Aliaksandr Birukou Enrico Motta
Osborne, F., Salatino, A., Birukou, A. and Motta, E.: Automatic
Classification of Springer Nature Proceedings with Smart Topic
Miner. In International Semantic Web Conference (pp. 383-399).
Springer International Publishing. (2016)
Email: francesco.osborne@open.ac.uk
Twitter: FraOsborne
Site: people.kmi.open.ac.uk/francesco
