The document discusses the Automake and Autoconf build tools. It defines Automake as a tool that produces portable makefiles to be used by the Make program for compiling software. Autoconf is used to automatically generate configure scripts that conform to GNU coding standards. The key inputs for Automake are configure.ac and Makefile.am files. Automake generates makefiles that allow users to compile programs, clean files, create source distributions, and install/uninstall programs.

1. Definitions
Flow for Automake and Autocof
Input files
Features
Automake
An Autotool
Priyanka Kapoor
June 7, 2013
Guru Nanak Dev Engineering College priyankacool10.wordpress.com

2. Definitions
Flow for Automake and Autocof
Input files
Features
Make
Configure Script
Autoconf
Automake
Make
Make utility determines which piece of source code need to be
recompiled and it issues command to recompile only those pieces.
Guru Nanak Dev Engineering College priyankacool10.wordpress.com

3. Definitions
Flow for Automake and Autocof
Input files
Features
Make
Configure Script
Autoconf
Automake
Dependencies Between Files
Guru Nanak Dev Engineering College priyankacool10.wordpress.com

4. Definitions
Flow for Automake and Autocof
Input files
Features
Make
Configure Script
Autoconf
Automake
Source Code of Files in a Project
Guru Nanak Dev Engineering College priyankacool10.wordpress.com

5. Definitions
Flow for Automake and Autocof
Input files
Features
Make
Configure Script
Autoconf
Automake
Makefile for the Project
Syntax
target: prerequisite-list
TAB construction-commands
Guru Nanak Dev Engineering College priyankacool10.wordpress.com

6. Definitions
Flow for Automake and Autocof
Input files
Features
Make
Configure Script
Autoconf
Automake
Configure Script
A configure script can be used to aid cross-platform compiling. A
suitable configure script should interpret a Makefile.in file and then
create a platform-specific Makefile file.
Guru Nanak Dev Engineering College priyankacool10.wordpress.com

7. Definitions
Flow for Automake and Autocof
Input files
Features
Make
Configure Script
Autoconf
Automake
Autoconf
Autoconf is used to make configure scripts automatically and that
too with GNU coding standards.
Guru Nanak Dev Engineering College priyankacool10.wordpress.com

8. Definitions
Flow for Automake and Autocof
Input files
Features
Make
Configure Script
Autoconf
Automake
INs And OUTs Of Autoconf
Guru Nanak Dev Engineering College priyankacool10.wordpress.com

9. Definitions
Flow for Automake and Autocof
Input files
Features
Make
Configure Script
Autoconf
Automake
Automake
Automake is a programming tool that produces portable makefiles
for use by the make program, used in compiling software.
It is made by the Free Software Foundation as one of the GNU
programs, and is part of the GNU build system.
Guru Nanak Dev Engineering College priyankacool10.wordpress.com

10. Definitions
Flow for Automake and Autocof
Input files
Features
Make
Configure Script
Autoconf
Automake
INs And OUTs Of Automake
Guru Nanak Dev Engineering College priyankacool10.wordpress.com

11. Definitions
Flow for Automake and Autocof
Input files
Features
Flow for Automake and Autoconf
Guru Nanak Dev Engineering College priyankacool10.wordpress.com

12. Definitions
Flow for Automake and Autocof
Input files
Features
configure.ac
Makefile.am
Automake Input
Input Files
So to use automake, there are two input files. They are:
1 configure.ac
2 Makefile.ac
Guru Nanak Dev Engineering College priyankacool10.wordpress.com

13. Definitions
Flow for Automake and Autocof
Input files
Features
configure.ac
Makefile.am
Demo Of config.ac File
Every configure.ac should have lines like the following:
AC_INIT([hello], [0.1], [bug-report@hello.example.com],
[hello], [http://hello.example.com/])
AC_PREREQ([2.59])
AM_INIT_AUTOMAKE([1.10 no-define])
AC_CONFIG_HEADERS([config.h])
AC_PROG_CXX
AC_CONFIG_FILES([Makefile])
AC_OUTPUT
Guru Nanak Dev Engineering College priyankacool10.wordpress.com

14. Definitions
Flow for Automake and Autocof
Input files
Features
configure.ac
Makefile.am
Explanation of config.ac File
1 AC INIT macro initializes autoconf with information about
your project, including the project name, version number,
bug-reporting address, tarball name and the project homepage.
2 AC PREREQ(VERSION) macro is optional.
3 AM INIT AUTOMAKE macro takes two arguments: the
name of the package, and a version number.
4 AM CONFIG HEADER macro names the header file which
will hold the preprocessor macro definitions at run time.
5 AC PROG CXX checks for a C++ compiler. If your project
uses C, you can check for a C compiler with AC PROG CC.
6 AC OUTPUT macro takes a list of file names which the
configure process should produce
Guru Nanak Dev Engineering College priyankacool10.wordpress.com

15. Definitions
Flow for Automake and Autocof
Input files
Features
configure.ac
Makefile.am
Demo of Makefile.am File
AUTOMAKE_OPTIONS = foreign
CFLAGS=-Wall -I/usr/local/include -DVERSION="$(VERSION)"
-DPROG=""$(PACKAGE)""
LDFLAGS=-L/usr/local/lib -lX11 -lXtst -lxosd
bin_PROGRAMS = getkey
getkey_SOURCES = getkey.c circ_list.c
Guru Nanak Dev Engineering College priyankacool10.wordpress.com

16. Definitions
Flow for Automake and Autocof
Input files
Features
Features of Automake
Automake generates a makefile that allows the user to:
1 Compile the program.
2 The makefiles produced follow the GNU Coding Standards.
3 Clean (i.e. remove the files resulting from the compilation).
4 Create a source distribution archive (commonly called a
tarball).
5 Install the program in standard directories.
6 Uninstall the program from where it was installed.
Guru Nanak Dev Engineering College priyankacool10.wordpress.com

17. Definitions
Flow for Automake and Autocof
Input files
Features

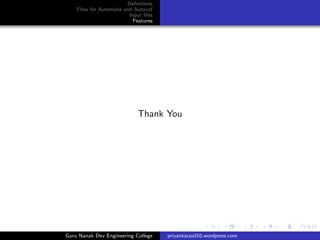

Thank You
Guru Nanak Dev Engineering College priyankacool10.wordpress.com
