1. DLSAU CAD
AutoCAD

2. OUTLINE
 Introduction
 History
 Giving commands
 Object snap
 Zooming and panning
 Drawing 2D shapes
 Drawing 3D shapes
 Editing
 UCS
 Assignment
 The AutoCAD Advantage
 The Disadvantages of AutoCAD
 References

3. Introduction
 AutoCAD is a commercial software application for 2D and
3D computer-aided design (CAD) and drafting — available
since 1982 as a desktop application and since 2010 as a
mobile web- and cloud-based app marketed as AutoCAD
360.

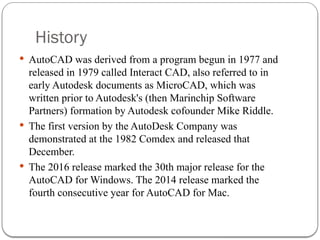

4. History
 AutoCAD was derived from a program begun in 1977 and
released in 1979 called Interact CAD, also referred to in
early Autodesk documents as MicroCAD, which was
written prior to Autodesk's (then Marinchip Software
Partners) formation by Autodesk cofounder Mike Riddle.
 The first version by the AutoDesk Company was
demonstrated at the 1982 Comdex and released that
December.
 The 2016 release marked the 30th major release for the
AutoCAD for Windows. The 2014 release marked the
fourth consecutive year for AutoCAD for Mac.

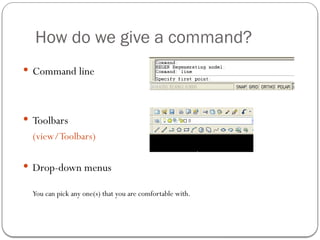

5. How do we give a command?
 Command line
 Toolbars
(view/Toolbars)
 Drop-down menus
You can pick any one(s) that you are comfortable with.

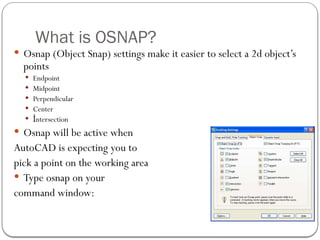

6. What is OSNAP?
 Osnap (Object Snap) settings make it easier to select a 2d object’s
points
 Endpoint
 Midpoint
 Perpendicular
 Center
 ntersection
İ
 Osnap will be active when
AutoCAD is expecting you to
pick a point on the working area
 Type osnap on your
command window:

7. Zooming...
 You will need to zoom in and out while drawing withAutoCAD.
This doesnt change your objects or UCS, only the way you see
your working space.This can be done in many ways:
1. Scroll bars
2. Typing z or zoom in your command window.
 All
 Center
 Dynamic
 Extents
 Previous
 Scale
 Window

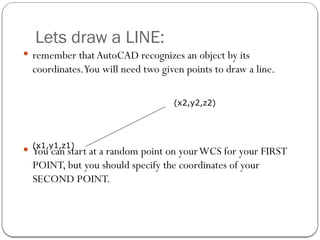

8. Lets draw a LINE:
 remember thatAutoCAD recognizes an object by its
coordinates.You will need two given points to draw a line.
 You can start at a random point on yourWCS for your FIRST
POINT, but you should specify the coordinates of your
SECOND POINT.
(x1,y1,z1)
(x2,y2,z2)

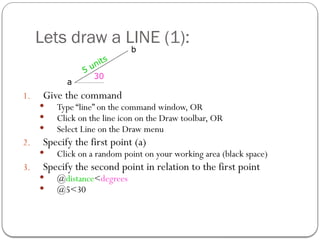

9. Lets draw a LINE (1):
1. Give the command
 Type “line” on the command window, OR
 Click on the line icon on the Draw toolbar, OR
 Select Line on the Draw menu
2. Specify the first point (a)
 Click on a random point on your working area (black space)
3. Specify the second point in relation to the first point
 @distance<degrees
 @5<30
30
5 units
a
b

10. Lets draw a LINE (2):
1. Hit F8 (ortho on)
2. Give the command
3. Specify the first point
4. Specify the second point in relation to the first point
 Point the cursor to the left hand side.You will see that the cursor
snaps only to 0o
-90o
-180o
-270o
 Type 7 and hit enter
a b
7 units

11. Lets draw a LINE (3):
If we know the coordinates of the line we want to draw, we can
simply type them into the command line. (However, this
mostly is not the case.)
1. Give the command
2. Specify the first point (4,8,11)
3. Specify the second point (5,11,23)
a
b
(4,8,11)
(5,22,13)

12. What else?
 Rectangle: two diagonal lines
(pick first point, select the second one with relation
to the first. @5<-33)
 Circle/Arc: center and radius
 Polygon: specify the number of edges and length of
a side
A small tip: you can use the EXPLODE command for the tool to split the
object into its components or lines
a
b
a
d
d

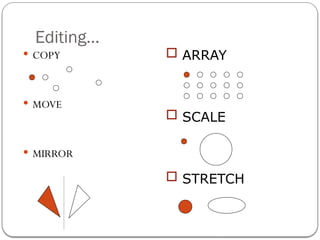

13. Editing…
 COPY
 MOVE
 MIRROR
 ARRAY
 SCALE
 STRETCH

14. More editing…
 STRETCH
 EXPLODE
 OFFSET
 ROTATE
 ERASE

15. Polyline (pline)
 The PLINE command creates a chain line with multiple
vertexes and straight or circular segments between the
vertexes
 Draw a closed shape with the pline command:
 Then type PEDIT (polyline edit) on the command line and
see what you can do with it:
Enter an option [Close/Join/Width/Edit vertex/Fit/Spline/Decurve/Ltype
gen/Undo]:
Try Width and Spline

16. Hatching
 Hatching is used to add shaded patterns to objects and shapes within anAutocad
drawing. Hatch patterns can be used to indicate a material to be used, such as a
concrete hatch.Alternatively it could be used to make an area of a drawing
stand out.
 You will pick:
 Pattern
 Scale
 Angle
 points

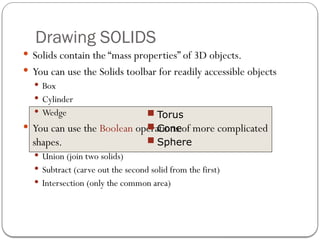

17. Drawing SOLIDS
 Solids contain the “mass properties” of 3D objects.
 You can use the Solids toolbar for readily accessible objects
 Box
 Cylinder
 Wedge
 You can use the Boolean operations of more complicated
shapes.
 Union (join two solids)
 Subtract (carve out the second solid from the first)
 Intersection (only the common area)
 Torus
 Cone
 Sphere

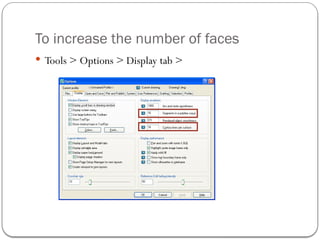

18. To increase the number of faces
 Tools > Options > Display tab >

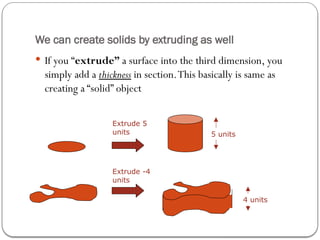

19. We can create solids by extruding as well
 If you “extrude” a surface into the third dimension, you
simply add a thickness in section.This basically is same as
creating a “solid” object
Extrude 5
units 5 units
Extrude -4
units
4 units

20. UCS and WCS
 The AutoCAD world is 3 dimensional. However, if we want to draw a 2d object,
such as a plan or a section, we will use only 2 dimensions (x and y).
 WCS (world coordinate system) is the imaginary plane that is parallel to the
ground. It is the default coordinate system.
 Modifications made to theWorld Coordinate System (WCS) result in a User
Coordinate System (UCS). It is the plane that you work on. It enables the user to
draw 3 dimensional objects.
 To create a new UCS, type ucs on the command window, then say New and
specify 3 points on your new UCS plane.

21. Lets change the UCS
 —Prompt: Command: Type ucs and press Enter.
 —Prompt: Enter and option [New/Move/ orthoGraphic /Prev/
Restore/Save/Del/ Apply/?/World] <World>:Type in n for the New
option and press Enter. —Prompt: Specify origin of new UCS or [Zaxis/
3point/ OBject/ Face/View/X/Y/Z <0,0,0>: Type 3 to select the 3point
option and press Enter.
 —Prompt: Specify a new origin point <0,0,0>:Use an Osnap or
coordinate to select the position for a new 0,0,0 point (this selects the junction
of the X,Y, and Z axes). NOTE:The intersection Osnap will NOT work with
solid models.
 —Prompt: Specify point on positive portion of X-axis
<1.000,0.000,0.000>:Use an Osnap or coordinate to select the direction of
the desired X-axis. NOTE: The numbers inside the brackets< > will not
necessarily be the same as those shown in this example.
 —Prompt: Specify point on positive-y portion of the UCS XY plane
<1.000,0.000,0.000>: Use an Osnap or coordinate to select the direction of
the Y-axis.The UCS icon should change position to indicate the new UCS
orientation.

22. Homework Assignment
 Your perspective assignments are due next week (March 16,
2006, 5pm)
 You will submit your *.dwg files by email.
 Late submission will be accepted subject to a mark penalty of
20% per day, up to two days. No late submission will be
accepted after March 18, 2006.
 You can email me with your questions, or stop by my office
anytime (A301)

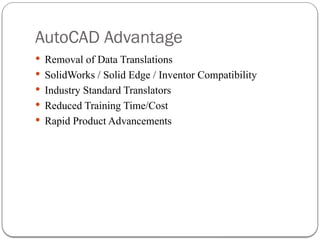

23. AutoCAD Advantage
 Removal of Data Translations
 SolidWorks / Solid Edge / Inventor Compatibility
 Industry Standard Translators
 Reduced Training Time/Cost
 Rapid Product Advancements

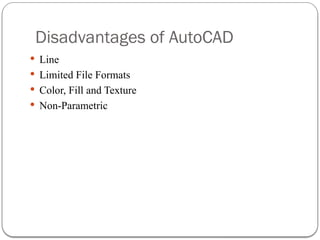

24. Disadvantages of AutoCAD
 Line
 Limited File Formats
 Color, Fill and Texture
 Non-Parametric

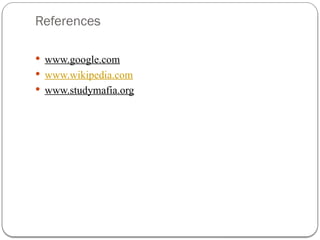

25. References
 www.google.com
 www.wikipedia.com
 www.studymafia.org

26. Thanks
