DSM has developed a new resin system called AtlacTM Premium for cured-in-place pipe (CIPP) relining that is more environmentally friendly than traditional resins. AtlacTM Premium is label-free and consists of components that do not contain hazardous chemicals, allowing repairs to be done with less disruption and impact on the environment. It offers strong performance for restoring sewer functionality while being safer for workers during installation and imposing no risk of disturbing water purification or polluting the ground. DSM's AtlacTM Premium resin system enables cost-effective pipe relining with improved sustainability.

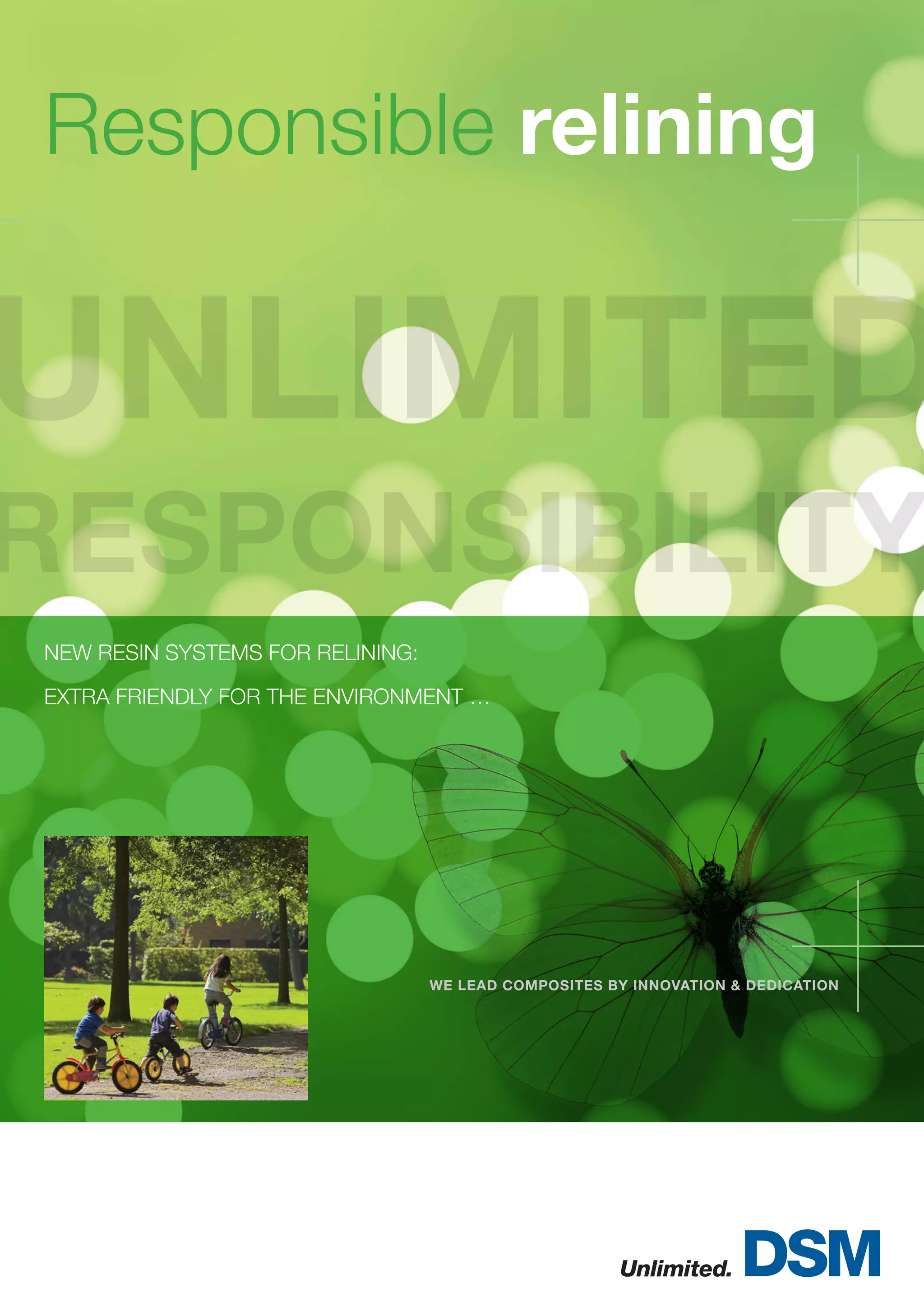

1. Responsible relining
NEW RESIN SYSTEMS FOR RELINING:
EXTRA FRIENDLY FOR THE ENVIRONMENT …
we lead composites by innovation & dedication

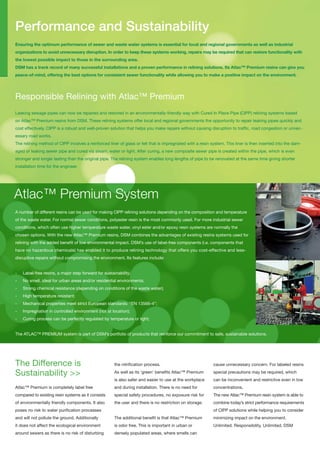

2. Performance and Sustainability
ensuring the optimum performance of sewer and waste water systems is essential for local and regional governments as well as industrial
organizations to avoid unnecessary disruption. in order to keep these systems working, repairs may be required that can restore functionality with
the lowest possible impact to those in the surrounding area.
dsm has a track record of many successful installations and a proven performance in relining solutions. its atlac™ premium resins can give you
peace-of-mind, offering the best options for consistent sewer functionality while allowing you to make a positive impact on the environment.
Responsible Relining with Atlac™ Premium
Leaking sewage pipes can now be repaired and restored in an environmentally-friendly way with Cured In Place Pipe (CIPP) relining systems based
on Atlac™ Premium resins from DSM. These relining systems offer local and regional governments the opportunity to repair leaking pipes quickly and
cost effectively. CIPP is a robust and well-proven solution that helps you make repairs without causing disruption to traffic, road congestion or unnec-
essary road works.
The relining method of CIPP involves a reinforced liner of glass or felt that is impregnated with a resin system. This liner is then inserted into the dam-
aged or leaking sewer pipe and cured via steam, water or light. After curing, a new composite sewer pipe is created within the pipe, which is even
stronger and longer lasting than the original pipe. The relining system enables long lengths of pipe to be renovated at the same time giving shorter
installation time for the engineer.
Atlac™ Premium System
A number of different resins can be used for making CIPP relining solutions depending on the composition and temperature
of the waste water. For normal sewer conditions, polyester resin is the most commonly used. For more industrial sewer
conditions, which often use higher temperature waste water, vinyl ester and/or epoxy resin systems are normally the
chosen options. With the new Atlac™ Premium resins, DSM combines the advantages of existing resins systems used for
relining with the added benefit of low environmental impact. DSM’s use of label-free components (i.e. components that
have no hazardous chemicals) has enabled it to produce relining technology that offers you cost-effective and less-
disruptive repairs without compromising the environment. Its features include:
- Label-free resins, a major step forward for sustainability;
- No smell, ideal for urban areas and/or residential environments;
- Strong chemical resistance (depending on conditions of the waste water);
- High temperature resistant;
- Mechanical properties meet strict European standards: “EN 13566-4”;
- Impregnation in controlled environment (not at location);
- Curing process can be perfectly regulated by temperature or light;
The ATLAC™ PREMIUM system is part of DSM’s portfolio of products that reinforce our commitment to safe, sustainable solutions.
The Difference is the nitrification process. cause unnecessary concern. For labeled resins
Sustainability >> As well as its ‘green’ benefits Atlac™ Premium special precautions may be required, which
is also safer and easier to use at the workplace can be inconvenient and restrictive even in low
Atlac™ Premium is completely label free and during installation. There is no need for concentrations.
compared to existing resin systems as it consists special safety procedures, no exposure risk for The new Atlac™ Premium resin system is able to
of environmentally friendly components. It also the user and there is no restriction on storage. combine today’s strict performance requirements
poses no risk to water purification processes of CIPP solutions while helping you to consider
and will not pollute the ground. Additionally The additional benefit is that Atlac™ Premium minimizing impact on the environment.
it does not affect the ecological environment is odor free. This is important in urban or Unlimited. Responsibility, Unlimited. DSM
around sewers as there is no risk of disturbing densely populated areas, where smells can

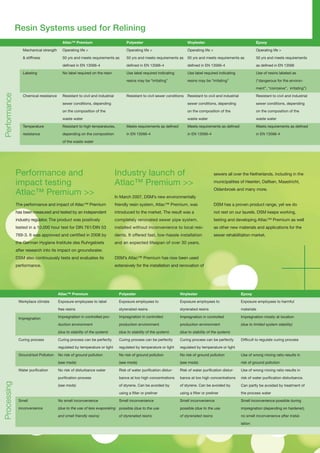

3. Resin Systems used for Relining
atlac™ premium polyester vinylester epoxy
Mechanical strength Operating life > Operating life > Operating life > Operating life >
& stiffness 50 yrs and meets requirements as 50 yrs and meets requirements as 50 yrs and meets requirements as 50 yrs and meets requirements
defined in EN 13566-4 defined in EN 13566-4 defined in EN 13566-4 as defined in EN 13566
Labeling No label required on the resin Use label required indicating Use label required indicating Use of resins labeled as
resins may be “irritating” resins may be “irritating” (“dangerous for the environ-
ment”, “corrosive”, irritating”)
Performance
Chemical resistance Resistant to civil and industrial Resistant to civil sewer conditions Resistant to civil and industrial Resistant to civil and industrial
sewer conditions, depending sewer conditions, depending sewer conditions, depending
on the composition of the on the composition of the on the composition of the
waste water waste water waste water
Temperature Resistant to high temperatures, Meets requirements as defined Meets requirements as defined Meets requirements as defined
resistance depending on the composition in EN 13566-4 in EN 13566-4 in EN 13566-4
of the waste water
Performance and Industry launch of sewers all over the Netherlands, including in the
impact testing Atlac™ Premium >> municipalities of Heerlen, Dalfsen, Maastricht,
Oldenbroek and many more.
Atlac™ Premium >> In March 2007, DSM’s new environmentally
The performance and impact of Atlac™ Premium friendly resin system, Atlac™ Premium, was DSM has a proven product range, yet we do
has been measured and tested by an independent introduced to the market. The result was a not rest on our laurels. DSM keeps working,
industry regulator. The product was positively completely renovated sewer pipe system, testing and developing Atlac™ Premium as well
tested in a 10,000 hour test for DIN 761/DIN 53 installed without inconvenience to local resi- as other new materials and applications for the
769-3. It was approved and certified in 2008 by dents. It offered fast, low-hassle installation sewer rehabilitation market.
the German Hygiene Institute des Ruhrgebiets and an expected lifespan of over 30 years.
after research into its impact on groundwater.
DSM also continuously tests and evaluates its DSM’s Atlac™ Premium has now been used
performance. extensively for the installation and renovation of
atlac™ premium polyester vinylester epoxy
Workplace climate Exposure employees to label Exposure employees to Exposure employees to Exposure employees to harmful
free resins styrenated resins styrenated resins materials
Impregnation Impregnation in controlled pro- Impregnation in controlled Impregnation in controlled Impregnation mostly at location
duction environment production environment production environment (due to limited system stability)
(due to stability of the system) (due to stability of the system) (due to stability of the system)
Curing process Curing process can be perfectly Curing process can be perfectly Curing process can be perfectly Difficult to regulate curing process
regulated by temperature or light regulated by temperature or light regulated by temperature or light
Ground/soil Pollution No risk of ground pollution No risk of ground pollution No risk of ground pollution Use of wrong mixing ratio results in
(see msds) (see msds) (see msds) risk of ground pollution
Water purification No risk of disturbance water Risk of water purification distur- Risk of water purification distur- Use of wrong mixing ratio results in
purification process bance at too high concentrations bance at too high concentrations risk of water purification disturbance.
Processing
(see msds) of styrene. Can be avoided by of styrene. Can be avoided by Can partly be avoided by treatment of
using a filter or preliner using a filter or preliner the process water
Smell No smell inconvenience Smell inconvenience Smell inconvenience Smell inconvenience possible during
inconvenience (due to the use of less evaporating possible (due to the use possible (due to the use impregnation (depending on hardener),
and smell friendly resins) of styrenated resins of styrenated resins no smell inconvenience after instal-
lation

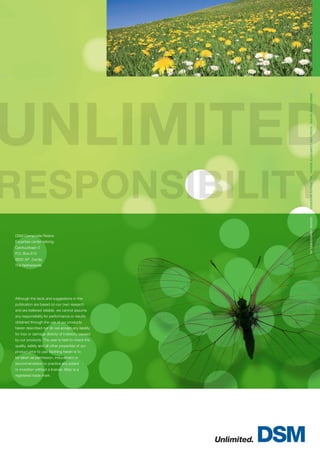

4. DRSATLPREM 291009 / ©2009 DSM COMPOSITE RESINS / ALL RIGHTS RESERVED
