Synopex is a global leader in advanced membrane technologies and eco-friendly materials, focusing on water and IT business sectors. They provide innovative solutions such as high-performance filters, water treatment systems, and environmentally friendly packing materials. Established in 1985, the company emphasizes technological integration and aims to meet global water challenges through sustainable practices.

1. A Global Leader in Advanced
Membrane System & Material Technologies
SYN PEX
www.synopex.com QR Code for Video

2. C O N T E N T S
02 Contents
03 Introductions
Business Areas
04 Water Business Group
SYNOPEX Water Division
SYNOPEX Filter Division
SYNOPEX Chemicore Inc.
11 Eco-friendly Environmental Packing Materials
12 Generalizing IT Business
Touch Screen
Mobile KEY-PBA
15 Global Network
“one more step to promote the innovation with synopex”
WATEr BuSINESS GrOuP ECO-FrIENDlY ENvIrONMENTAl GENErAlIzING IT BuSINESS
PACKING MATErIAlS
History
2010 Developed Ro (Reverse osmosis) membrane filter
started the tempered glass business
2009 Launched water business
selected the new Growth enterprise and Awarded
FDA approval on filter for Food & Beverage, pharmacy
started mass-production of the all-in-one touch screen
2008 Founded the company building in Dongtan
2007 Developed the nano membrane
Adopted automation system in the Key-pBA production line
established the synopex Inc. electronic public corporation in cheonjin, china
2006 merged sinyang p&p and yoowon Telecom
2004 started manufacturing the LcD module of samsung electronics
1995 Listed on KosDAQ
1990 Acquired a patent on the packing sheet
1989 Acquired Ks on the packing sheet
1986 established the packing sheet facilities and started sales
1985 established shinjung Inc.

3. I n t r o d u t i o n
About SYNOPEX
SYNOPEX is creating a new future by pursuing a fresh
challenge and innovation
The global company, SYNOPEX that pursues green growth, is the eco-friendly company fo-
cusing on the Water business and IT business. We make and provide Advanced membrane
system, High-performance filter, Environment-friendly packing materials and Mobile com-
ponents to prominent domestic · overseas enterprises. SYNOPEX aims to be the best com-
pany that realizes innovative technological integration through synergy effects between or-
ganizations with core technologies of different fields.
We have developed eco-friendly packing materials, high-performance Nano-filter for advanced IT
and various industries and supplied them to the major domestic · overseas companies, expanding
the core mobile components business including touch screen, Key-PBA since we succeeded in
manufacturing the first domestic touch screen for mobile in 2007. Especially, we have successfully
localized Nano-composite separator membrane which is the core technology of Water business and
we are growing into the leading company that has enough ability to cope with the future Water stress
based on the accumulated know-how for material / design / construction / operation related to water
business. We, SYNOPEX is doing our best to make and provide the products with a competitive cost
and promise to contribute to improve the quality and cost reduction with the best quality and service. 03
A Global Leader in Advanced membrane system & material Technologies
Business Areas Water Business
Manufacturing Membrane (MF/UF/NF/RO)
Material / Design / Construction / Operation
Water Treatment System
IT Business Future Environment Division
Touch Screen Eco-friendly Packing Sheet
Key-PBA High-performance Filter
FPCB Nano Membrane

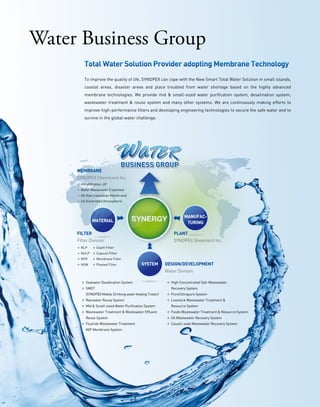

4. Water Business Group
Total Water Solution Provider adopting Membrane Technology
To improve the quality of life, SYNOPEX can cope with the New Smart Total Water Solution in small islands,
coastal areas, disaster areas and place troubled from water shortage based on the highly advanced
membrane technologies. We provide mid & small-sized water purification system, desalination system,
wastewater treatment & reuse system and many other systems. We are continuously making efforts to
improve high-performance filters and developing engineering technologies to secure the safe water and to
survive in the global water challenge.
MEMBRANE
synopex chemicore Inc.
● Ultrafiltration, UF
● wafer wastewater Treatment
● Gs (Gas separation membrane)
● cA (controlled Atmosphere)
MANUFAC-
MATERIAL SYNERGY TURING
FILTER PLANT
Filter Division synopex Greentech Inc.
● nLp ● Depth Filter
● nULp ● capsule Filter
● nFR ● membrane Filter
● nsw ● pleated Filter SYSTEM DESIGN/DEVELOPMENT
water Division
● seawater Desalination system ● High concentrated salt-wastewater
● smDT Recovery system
(synopex mobile Drinking water feeding Trailer) ● pure/Ultrapure system
● Rainwater Reuse system ● Livestock wastewater Treatment &
● mid & small-sized water purification system Resource system
● wastewater Treatment & wastewater effluent ● Foods wastewater Treatment & Resource system
Reuse system ● oil wastewater Recovery system
● Fluoride wastewater Treatment ● caustic soda wastewater Recovery system
m/F membrane system

5. B us i n e s s Ar e a s
 synopex Water Business Group
Seawater Desalination System
The system removes salt in seawater so that it can provide drinking water to
the cities having difficulties of getting water services.
• Applying RO (Reverse Osmosis) membrane system, it can remove any pollutants
including salinity and dissolved materials perfectly
• Compared to the Thermal process (MSF, MED, VCD), RO membrane system can
reduce more energy consumption
SMDT (Synopex Mobile Drinking water feeding Trailer)
SMDT (Synopex Mobile Drinking water feeding Trailer) is equipped with the
power generator and water treatment facilities inside of the container.
• Supply sanitary and reliable water in small islands, coastal areas, disaster areas
and places troubled with electricity
• Depending on the raw water quality, the treatment process can be modified easily 05
to optimize customer’s satisfaction
A Global Leader in Advanced membrane system & material Technologies
• Remove the heavy metals and ionic materials through RO membrane
• Meet water demands promptly
Rainwater Reuse System
The system is adopting the external Hybrid MBR instead of previous submerged
membrane system reusing rainwater in wastewater treatment.
• Easy to install and replace membrane
• Compact design including tanks, pipes, pumps and other equipment inside
of the installation
• Easy to install additional membranes and facilities to meet target capacities
by adding membrane modules horizontally
Mid & Small-sized Water Purification System
The system provides clean and safe water to the rural villages where can’t have
stable water supply by transforming valley water, stream water and groundwater.
• Perfectly remove pathogens, heavy metals, microorganism, turbidity,
suspended solids and etc.
• By adopting automatic back-washing filtration system, no man power and
no exchanging consumables are needed

6. SYNOPEX » WATEr BuSINESS GrOuP
Bu s i n e s s Ar e a s
물환경사업부
 synopex Water Business Group
Wastewater Treatment & Wastewater Effluent Reuse System
Wastewater Treatment System
The system is a combination of Membrane and physical, chemical, biological
treatment facilities.
• Increased efficiency of water treatment, stable in change of flow and water quality
• Satisfied with the legal discharge standard
Wastewater Effluent Reuse System
The system treats the effluent from the wastewater treatment plant for indus-
trial water to reuse.
• Remove particles, organic materials, ionic materials, T-N, T-P and color included in effluent
• Save water resources and decrease CO2 for company competitiveness
Fluoride Wastewater Treatment M/F Membrane System
The system safely treats fluoride wastewater coming from the manufacturing
06 process of LED, LCD, Solar products and semi-conductors to lower than dis-
posal standard (10,000ppm to lower than 15ppm).
A Global Leader in Advanced membrane system & material Technologies
• Instead of clarifier needing big space for installation, membrane system can save
the space for the compact composition
• The treated water quality and treatment efficiency can be improved by removing
the particulates and chemical floc
• High recovery rate due to collecting whole concentrate water for reuse
(recovery rate 95 ~ 99%, sludge disposal 1 ~ 5%)
High Concentrated Salt-Wastewater Recovery System
The system can recover 90 ~ 95% of salinity from the high concentrated salt-
wastewater from salt-down process of Kimchi factories.
• Perfect separation of color, odor and organic materials from salt-wastewater
• Sanitary treatment process without any chemical used
• Small footprint due to compact process
• Automatic operation by PLC control
Pure/Ultrapure System
The system is applied as the pre-treatment step which directly filters ground-
water and surface water to remove the suspended solids, viruses and algae for
drinking water, industrial usage water and pure treatment.
• By adding after-treatment system, can produce ultrapure water of specific resistance
• Can be applied to the producing process of pure water for cosmetics, drug and
semi-conductor industries

7. B us i n e s s Ar e a s
Livestock Wastewater Treatment & Resource System
Livestock wastewater treatment & resource system treats the waste from poul-
try businesses and ranches in odorless way and liquefy those fertilizers quickly.
• Can be added at the previous fertilizer producing process without big investment
• Increase the efficiency of the whole process by 25%
• Reduce the cost of equipment and management / Improvement on the farm products’
productivity by providing high-performance fertilizer
Foods Wastewater Treatment & Resource System
Foods wastewater treatment & resource system turns leftover foods into
resources and filters out the water.
• Easy to maintain and low operating costs
• Minimize sludge production and produce the condensate 07
(treatment connected with wastewater treatment plants)
A Global Leader in Advanced membrane system & material Technologies
Oil Wastewater Recovery System
The system can separate and filter the waste-oil from industrial wastewater
using the special membrane.
• Reduce the amount of waste-oil up to 90%
• No need of other chemical injections due to physical treatment system
• Reduce outsourcing cost for treatment due to decrease of the amount
of condensed oil wastewater under 1/10
Caustic soda Wastewater Recovery System
The system recovers caustic soda from its disposal process using the mem-
brane system in mercerizing wastewater and also reuses recovered caustic
soda in mercerizing process.
• Reduce amount of caustic soda used in the mercerizing process
• Reduce amount of wastewater production through reusing caustic soda
• Reduce manufacturing cost & maximize business profits through reuse of caustic soda

8. SYNOPEX » WATEr BuSINESS GrOuP
Bu s i n e s s Ar e a s
 synopex Water Business Group

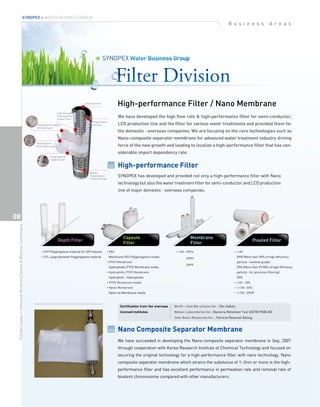

Filter Division
Sealing Gasket
High-performance Filter / Nano Membrane
High Strength
Polypropylene
Support Core
We have developed the high flow rate & high-performance filter for semi-conductor,
Polypropylene
Polypropylene Support End Cap LCD production line and the filter for various water treatments and provided them for
Drainage Layer
the domestic · overseas companies. We are focusing on the core technologies such as
Nano-composite separator membrane for advanced water treatment industry driving
Polypropylene
Filter Media Layers force of the new growth and leading to localize a high-performance filter that has con-
siderable import dependency rate.
Polypropylene
Support Layer
High-performance Filter
Molded
Polypropylene SYNOPEX has developed and provided not only a high-performance filter with Nano
Protective Cage
technology but also the water treatment filter for semi-conductor and LCD production
line of major domestic · overseas companies.
08
A Global Leader in Advanced membrane system & material Technologies
Capsule Membrane
Depth Filter Pleated Filter
Filter Filter
• SYP polypropylene material for syp Industry • PES • Φ68 : SPES • Φ68
• SYL Large diameter polygropylene material membrane pes polypropylene media SPNY spn (more than 90% of high efficiency
• PTFE Membrane particle : nominal grade)
SPPF
Hydrophobic pTFe membrane media spA (more than 99.98% of high efficiency
• Hydrophilic PTFE Membrane particle : for precision filtering)
Hydrophilic · Hydrophobic spG
• PTFE Membrane media • Φ83 : spL
• Nylon Membrane • Φ130 : spU
nylon 66 membrane media • Φ155 : spHF
Certification from the overseas North - view Bio science Inc. : Bio-safety
licensed institutes Nelson Laboratories Inc : Bacteria Retention Test (AsTm F838-83)
Inter Basic Resources Inc. : particle Removal Rating
Nano Composite Separator Membrane
We have succeeded in developing the Nano-composite separator membrane in Sep, 2007
through cooperation with Korea Research Institute of Chemical Technology and focused on
securing the original technology for a high-performance filter with nano technology. Nano
composite separator membrane which strains the substance of 1~2nm or more is the high-
performance filter and has excellent performance in permeation rate and removal rate of
bivalent chromosome compared with other manufacturers.

9. B us i n e s s Ar e a s
 synopex Water Business Group
Filter Division
RO Membrane
NLP (Low Pressure) - Brackish Water, Drinking Water, Ultrapure Water
NLP series are the aromatic composite membrane elements developed by NANOFILM
(applicable to brackish water desalination). It can work under the properties of low pressure
operation; high permeate flow and excellent desalination. Furthermore, it also can work under
NLP-8040
the high properties of eliminating the soluble salt, TOC and SiO2, and is especially applicable to
the manufacture of high-purity water for electronic industry and electric power industry.
NULP (Ultra Low Pressure) - Brackish Water, Drinking Water, Low Energy
NULP series are the ultra low-pressure aromatic composite membrane elements applicable
to desalination of surface water and underground water. This product is well suited for
conditioning of water for glass house irrigation. It can work under the ultra low pressure to
reach as high permeate flow and salt rejection as regular low-pressure membrane element.
NULP-4040 09
It operates under approximately 2 thirds of the operating pressure of regular low-pressure
A Global Leader in Advanced membrane system & material Technologies
composite membrane and achieves a salt rejection rate of up to 99.5% which can decrease
the investment costs for such relevant facilities as pump, piping, and container, etc. and the
operating cost for the RO system, thus increasing the economic efficiency.
NFR (Fouling Resistant) - Wastewater, Brackish Water, Drinking Water
NFR series are aromatic polyamide RO membrane elements which are newly developed
by NANOFILM and it can be used in desalination of brackish water. It is characterized by
ultra low-pressure operation, higher water productivity and excellent desalting property.
NFR-4040
Moreover, we make special treatment to the surface of membrane with unique technology
to change its electrical charge and smoothness, increasing the hydrophilicity of membrane
surface, thus decreasing the adhesion of contamination and microbe so as to lessen the
pollution and extend the service life of elements.
NSW (Seawater) - Seawater, High Concentration Brackish Water
NSW series are aromatic polyamide RO membrane elements which are newly developed
by NANOFILM and it is applicable to seawater desalination. By optimizing the structure of
membrane elements, the NSW series increases the permeate flow, and requires fewer
NSW-8040
elements for its permeate flow. It is characterized in low operating pressure, small equipment
investment, excellent rejection rate and reliable performance. Its high salt rejection can
ensure producing the drinking water from seawater simply through one-stage RO system.

10. SYNOPEX » WATEr BuSINESS GrOuP
Bu s i n e s s Ar e a s
 synopex Water Business Group
SYNOPEX Chemicore Inc.
Fiber module
UF (Ultrafiltration Membrane)
Feed water passed through the membrane with high speed. High molecular
weight materials & particles are circulated and eliminated by membrane to Feed Concentrate
purify water & solvent. The filtration system is Cross-Flow type. Permeate
water flows vertically against with the raw water flow direction so that
membrane fouling doesn’t occur often and the system can maintain the stable High Module
Water Ion
Low Module
flow rate. Especially, the UF membrane is made up of polyacrylonitrile(PAN)
Permeate
which is a hydrophilic material and it increases the membrane performance. Hollow Fiber
Module Housing Membrane
Feed Concentrate
[ UF Module ] Sealing
Wafer Wastewater Membrane Membrane
The membrane treatment system of wafer wastewater is applied at the DPG, PEG
10 existing method which requests the specialized company to dispose the
Permeate Tank
produced wastewater in wafers manufacturing process. But by adopting the
A Global Leader in Advanced membrane system & material Technologies
membrane system, the factory can dispose the treated water directly or can
reproduce ultrapure water by applying the RO system which can reuse wafer Centrifuge Wafer
Wastewater Tank
wastewater so that company can save cost for manufacturing wafers. SiC
Concentrate Tank Vacuum Distillation
GS (Gas Separation Membrane)
The membrane selectively filters certain gases among the gas mixture by
the difference of solubility of the gas and diffusion velocity. This membrane LOW Relative Permeability HIGH
is used at nitrogen enrichment, carbon dioxide separation, dehumidifying
Dry air
and purification of waste gas.
• Oxygen Enrichment Membrane: Increase the concentration of oxygen until Vapor
O2
40% (maximum) in the air Humid air N2
• Nitrogen Concentration Membrane: Increase the concentration of nitrogen
until 95 ~99% (maximum)
CA (Controlled Atmosphere)
O2 Sensor
Existing method of storing farm products and groceries has some problems N2 Sensor
CO2 Sensor
Methylene Sensor
Office
of quality deterioration due to change of the taste, color, smell and cellular Humidity Controller
Temperature Sensor
Humidity Sensor
tissues. By contrast, the CA system is applied at the storing the foods by
Network line Temperature Controller
CO2 Controller
Distinguish
O2 & N2 Controller
controlling the air reclamation. This system can store the foods for a long Inside of the
Box
Methylene Controller cold store
period without decomposition and restrain growth of products.

11. SYNOPEX » ECO-FrIENDlY ENvIrONMENTAl PACKING MATErIAlS
B us i n e s s Ar e a s
 synopex Eco-friendly Environmental Packing Materials
Eco-friendly Packing Materials
The company that considers environment
We are the only company that has KS Mark, ISO9001 / 14001 Certification, REACH
registration in the same field and we have the outstanding competitiveness including
the R&D Center and integrated production facilities. SYNOPEX which aims at Green
Growth Company has provided eco-friendly environmental packing materials to the
major domestic · overseas steel companies with continuous research and invest-
ment to develop environment-friendly products.
11
A Global Leader in Advanced membrane system & material Technologies
VCI (Volatile Corrosion Inhibitor) Treated Paper
The packing material which preserves the product from corrosion is very effective
at anti-rust. It is the most suitable to pack the exports for a long distance which is
applied to pack the steel product, vehicle, aircraft tire, shadow mask for TV · monitor.
Building Paper
It preserves the product from permeation of external moisture and various
waterproof papers are available depending on the purpose of packaging. SYNOPEX’s
building paper is applied to pack the steel materials, machinery, high-class paper.
Cardboard
A cardboard which is the substitute for metal packing materials is applied to
protect the interior and exterior of steel materials. The easy and simple packing is
suitable for heavy materials and it can be customized in various ways.

12. GENErAlIzING IT BUSINESS
SYNOPEX
synopex presents a new business model standing on a merger between conventional business & IT
enterprise. And synopex intends to promote the leverage through the technological approach for
the innovations and to reach the apex in the end.

13. SYNOPEX » GENErAlIzING IT BuSINESS
B us i n e s s Ar e a s
 synopex Generalizing IT Business
Touch Screen
Global company that leads technical innovation
SYNOPEX has made the first electrostatic capacity type touch screen in Korea and
developed · manufactured a touch module including touchpad, touch screen and pro-
vided them to the leading domestic · overseas mobile phone companies.
The leading company, synopex that goes ahead of customer’s needs deposits ITo on
the window directly to make a piece of window(tempered glass) to be a touch screen.
As a result of this, we are producing the next generation integrated touch screen with
13
a high permeation rate and polishing appearance, stable yield rate.
A Global Leader in Advanced membrane system & material Technologies
Systematic • Specialized • Customized System
we have provided the optimum product and service through operating take force
team system for the customers and are trying to secure the quality and competitive
price through Quality control Team’s prompt and correct analysis · measurement,
R&D center’s continuous research · development.
r e fo r t h e d ca
re f o r t he
d ca cu cu
iz e st iz e st
m o om
om
o
m
st
st
Cu
er
Cu
er
s
s
1. IQC list
shape, size, function, feature,
RoHs(Restriction of Hazardous substances), reliability
2. PQC list
Customers Customers
whole products management
(shape, size, function, feature, destruction)
(every day, line and model), reliability test
2-1.CTQ (critical to quality) list
along with each model’s feature
3. OQC list
shape. size, function, feature,
RoHs(Restriction of Hazardous substances), reliability
4. CS System
within 24 H analysis problem and within 48 H solve the problem.
Always support customers request.

14. SYNOPEX » GENErAlIzING IT BuSINESS
Bu s i n e s s Ar e a s
 synopex Generalizing IT Business
Mobile KEY-PBA
KEY-PBA for mobile equipment
We are producing the core component KEY-PBA that inputs data to mobile terminal
unit and operates various functions by assembling different components such as
dome, motor, speaker through Surface Mount Technology (SMT) process for FPCB
(Flexible Printed Circuit Board).
PBA for a printer
SYNOPEX that has the prominent technologies on Surface Mounted Technology
(SMT) for electronic components is producing the compact and high-quality PBA
for a printer with the minimum defect rate.
14
Producing KEY-PBA and assembling SUB (Ass’y)
A Global Leader in Advanced membrane system & material Technologies
• KEY-PBA: Producing SLIM KEY-PBA, RIGID/FLEXI BLE KEY-PBA, LCD SUM KEY-PBA
• SUB ASS’Y: producing CON ‘TP CPM’ ASS’Y, SP K/MO TO AS’Y, I RDA AS’Y
• Assembling and producing integrated KEY-PBA including injection material
Procuring competitiveness through developing
next generation KEY-PBA and cost reduction
• KEY-PBA: Producing SLIM KEY-PBA, RIGID/FLEXIBLE KEY-PBA, LCD SUM KEY-PBA
• SUB ASS’Y: Producing CON ‘TO CON’ ASS’Y, SP K/MO TO ASS’Y, IRDA AS’Y
• Improving productivity through Array Type Key-PBA
Automatized Facilities
• Improving the quality, productivity through automatized MIC SOLDORING
• Automatized attachment of DOME SHEET
• Improving productivity and effectiveness through a dual type behavior inspector

15. I n f o r m a t i o n
G l o b a l N e t work
Synopex leads Water business, IT business and Future environmental business.
Also Synopex is growing into the leading company for Global green growth through synergy effects
between affiliates with the best quality and service.
Tianjin, China | synopex’s overseas
corporation
Key-pBA
Tianjin Touch screen
cHInA Weihai Tempered Glass
Weihai, China | synopex’s overseas
corporation
pBA for a printer
Ansan | synopex Flex co., Ltd
15
Dongtan | synopex-Generalizing
A Global Leader in Advanced membrane system & material Technologies
Incheon | mogem IT business
Key-pBA
Tsp, ITo, Tempered Glass, window
Touch screen
Tempered Glass
Daejeon | synopex chemicore Inc. Ansan
membrane, module R&D Gimcheon | synopex
Gas seperation membrane Dongtan printech co., Ltd
Incheon
/module Development
Key-pBA
membrane contact module Development
pBA for a printer
Daejeon
Daegu | synopex water Division
Gimcheon
water Treatment system Design ·
manufacturing · commissioning
Pohang
water Treatment Technologies R&D
Daegu
Pohang | synopex Generalizing
Gimhae | synopex Greentech Inc. future-oriented
manufacturing super-large sized hydraulic Gimhae environmental business
equipment eco-friendly packing materials
manufacturing the components for wind High-performance filter
power, nuclear power generation nano-composite separation membrane
self-manufacturing the components for
vessel engine
manufacturing special iron facilities
manufacturing pulp modeling machine

16. www.synopex.com
SYNOPEX WATER DIVISION
704-946, # 204 High-tech center, 1-11 Hosan-dong, Dalseo-gu, Daegu, south Korea
Tel. +82-53-588-9881 Fax. +82-53-582-9884
DAEGU FACTORY
1010, woram-dong, Dalseo-gu, Daegu, south Korea
Tel. +82-53-588-2881
SYNOPEX Greentech Inc.
618, Gasan-ri, Hallim-myeon, Gimhae-si, Gyeongsangnam-do, south Korea (p.c. 621-871)
