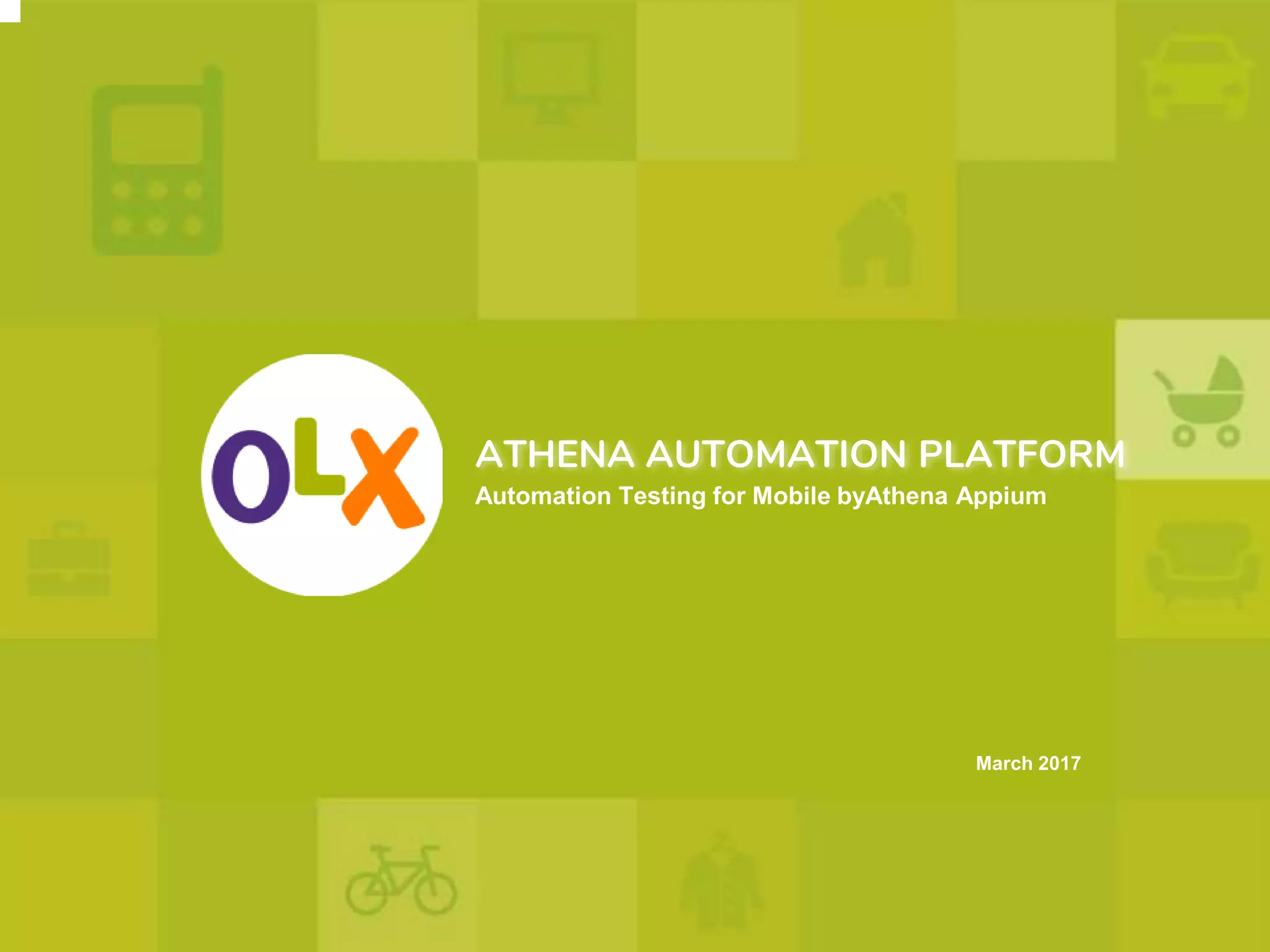

1. ATHENA AUTOMATION PLATFORM
Automation Testing for Mobile byAthena Appium
March 2017

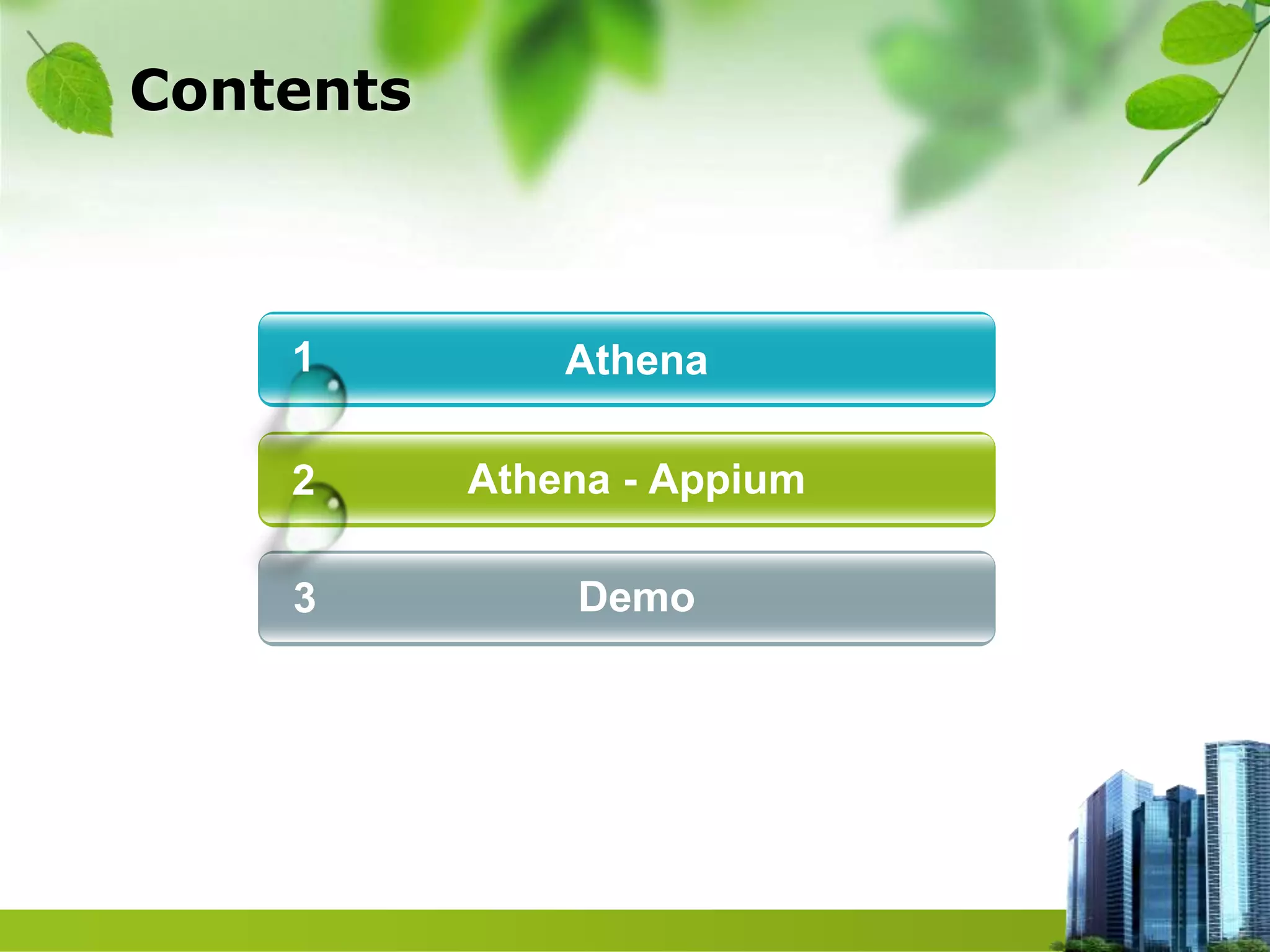

2. Contents
OLX Introduction
Athena
Athena - Appium
Demo3
1
2

3. Athena

4. Athena
❖automating the wiring of the dependencies
and tools
❖implementing a plugin architecture to
allow freedom and scalability
❖providing a wizard that takes care of the
boring stuff

5. Athena architecture
Engine
Plugin
• The Engine : based in bash
• The Plugins : typically
Services, Applications,
Jobs, etc. Using docker
virtualisation to support the
automation environments

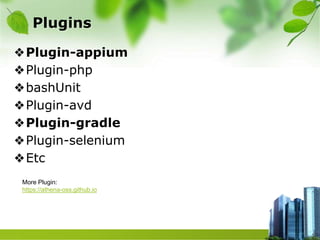

6. Plugins
❖Plugin-appium
❖Plugin-php
❖bashUnit
❖Plugin-avd
❖Plugin-gradle
❖Plugin-selenium
❖Etc
More Plugin:
https://athena-oss.github.io

7. Installation
❖Prerequisite:
▪ You have a bash shell
▪ You have Git installed
▪ You have Docker installed

8. Installation
❖On Mac
$ brew tap athena-oss/tap
$ brew install athena
❖Clone Repo
git clone https://github.com/athena-oss/athena.git

9. Appium is an open source test automation framework
which automates, native, hybrid, and mobile apps

11. Architecture
❖ appium is an HTTP server
that creates and handles
WebDriver sessions
❖ appium starts a “test cases”
on the device that spawns a
server and listens for proxied
commands
❖ on Android, appium proxies
commands to a UiAutomator
test cases running on the
devices

13. Elements (uiautomationviewer)

14. Intractions with App
Main Activity
PackageName

15. Intractions with Element
Classname

16. Prerequisites Appium
❖Intellij IDE
❖Genymotion or AVD emulator

17. Athena Command
Install Appium Plugin & Start :
notes :
❖ Kill adb server using : adb kill-server. Before Starting appium server
❖ start Genymotion or avd emulator
athena plugins install appium https://github.com/athena-oss/plugin-appium.git
athena appium start --port=4444 --apks-dir=<apk_directory_file> --adb-port=5037

18. Athena Command
Install Gradle Plugin & Running Test :
athena plugins install gradle https://github.com/athena-oss/plugin-gradle.git
athena gradle exec <project_dir> clean test —java-version=oracle-8jdk

19. DEMO

20. Resources
https://io2015codelabs.appspot.com/c
odelabs/android-studio-testing#1
https://codelabs.developers.google.co
m/codelabs/android-
testing/index.html?index=..%2F..%2F
index#0
