This document discusses integrating an OCL debugger with Eclipse and EMF modeling tools. It describes how the OCL debugger can leverage existing Eclipse mechanisms like resource set discovery and validation registries to access models and inject constraints. Demo examples are shown of discovering the resource set from a modeling application's selection and using an alternate validator with debugging capabilities. The goal is to make the OCL debugger a useful tool by starting it in conjunction with other modeling tools and allowing interaction through shared models and APIs.

1. Made available under EPL 1.0
At last an OCL Debugger
EclipseCon Europe, Ludwigsburg
4th November 2015
Edward Willink
(Eclipse MMT co-lead)
Eclipse OCL lead
Eclipse QVTd lead
Eclipse QVTo committer
OMG OCL 2.5 RTF chair
OMG QVT 1.3 RTF chair

2. 4-Nov-2015 At last an OCL Debugger 2Made available under EPL 1.0

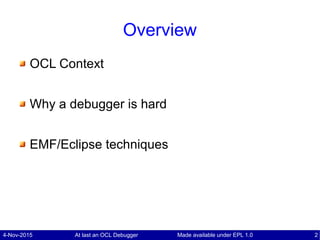

Overview
OCL Context
Why a debugger is hard
EMF/Eclipse techniques

3. 30-Sept-2014 OCL Integration and Debugging 3Made available under EPL 1.0
Models - Structure
Rich Models - Behavior
Applications
OCL Context
Ecore UML
OCLOCLinEcoreXcore
Ecore
+ Java
Programs
Declarative
Transformations
e.g. ATL, QVTr
Implementation Specification
Xtext
Xbase
Imperative
Transformations
e.g. QVTo

4. 4-Nov-2015 At last an OCL Debugger 4Made available under EPL 1.0
Launching a Java Debugger
Java etc, new process
start program in debug mode (with arguments)
program acquires its data
single mouse selection + action
Java
Debugger
User
Program
Command Line
Debug Launcher
User
Data
loads
reads

5. 4-Nov-2015 At last an OCL Debugger 5Made available under EPL 1.0

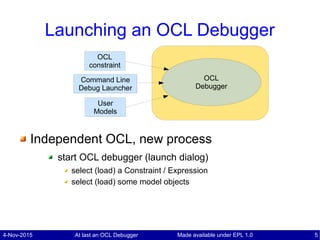

Launching an OCL Debugger
Independent OCL, new process
start OCL debugger (launch dialog)
select (load) a Constraint / Expression
select (load) some model objects
OCL
Debugger
OCL
constraint
Command Line
Debug Launcher
User
Models

6. 4-Nov-2015 At last an OCL Debugger 7Made available under EPL 1.0

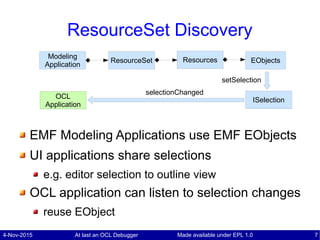

ResourceSet Discovery
EMF Modeling Applications use EMF EObjects
UI applications share selections
e.g. editor selection to outline view
OCL application can listen to selection changes
reuse EObject
EObjectsResourceSet ResourcesModeling
Application
ISelectionOCL
Application
selectionChanged
setSelection

7. 4-Nov-2015 At last an OCL Debugger 8Made available under EPL 1.0
OCL
constraints
Ecore
constraints
EPackage
Validators
Validation
Registry
Diagnostian

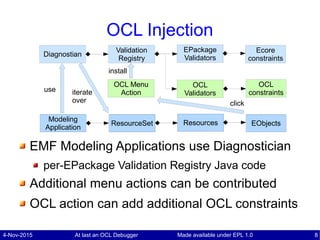

OCL Injection
EMF Modeling Applications use Diagnostician
per-EPackage Validation Registry Java code
Additional menu actions can be contributed
OCL action can add additional OCL constraints
EObjectsResourceSet ResourcesModeling
Application
iterate
over
EObjectsResourceSet ResourcesModeling
Application
OCL Menu
Actionuse
OCL
Validators
install
click

8. 4-Nov-2015 At last an OCL Debugger 10Made available under EPL 1.0

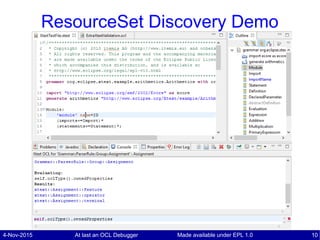

ResourceSet Discovery Demo

9. 4-Nov-2015 At last an OCL Debugger 11Made available under EPL 1.0

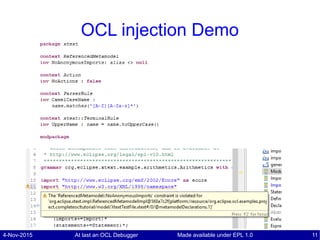

OCL injection Demo

10. 30-Sept-2014 OCL Integration and Debugging 12Made available under EPL 1.0
ConstraintsValidators
Validation
Registry
Diagnostian

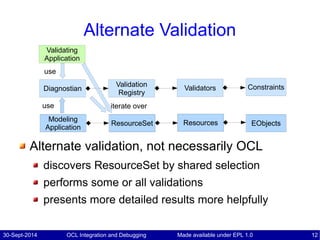

Alternate Validation
Alternate validation, not necessarily OCL
discovers ResourceSet by shared selection
performs some or all validations
presents more detailed results more helpfully
EObjectsResourceSet ResourcesModeling
Application
iterate over
EObjectsResourceSet ResourcesModeling
Application
Validating
Application
use
use

11. 30-Sept-2014 OCL Integration and Debugging 13Made available under EPL 1.0
EObjectsResources
Constraints
Validation
Registry
ValidatorsDiagnostian
Alternate Validation Debugging
Validating application is 'our' application
can use 'our' API to interact with debugger
just need to add a 'Debug' button
ResourceSet
Modeling
Application
iterate over
ResourceSet
Modeling
Application
Validating
Application
use
use
OCL
Debugger

12. 30-Sept-2014 OCL Integration and Debugging 14Made available under EPL 1.0

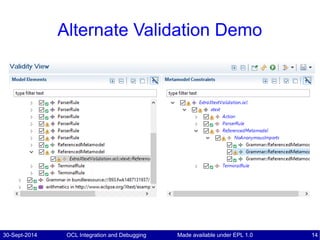

Alternate Validation Demo

13. 30-Sept-2014 OCL Integration and Debugging 15Made available under EPL 1.0

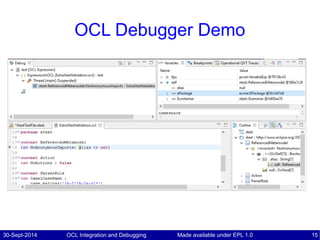

OCL Debugger Demo

14. 4-Nov-2015 At last an OCL Debugger 16Made available under EPL 1.0
OCL Debugger
2013: Dresden OCL debugger
2014: Eclipse OCL/QVTi debugger (Luna)
Ecore OCL
Acceleo Eclipse QVTo
Pivot OCL
QVTi
Eclipse QVTr
QVTs
QVTp
QVTm
QVTu
Eclipse QVTc
Debugger
Debugger
Debugger
Eclipse Tools
Debugger

15. 4-Nov-2015 At last an OCL Debugger 17Made available under EPL 1.0

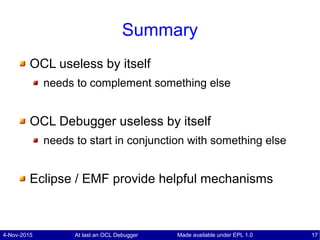

Summary
OCL useless by itself
needs to complement something else
OCL Debugger useless by itself
needs to start in conjunction with something else
Eclipse / EMF provide helpful mechanisms

16. 4-Nov-2015 At last an OCL Debugger 18Made available under EPL 1.0

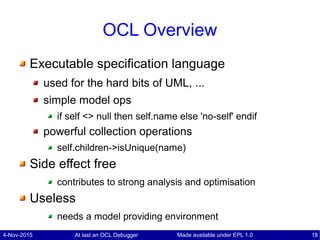

OCL Overview
Executable specification language
used for the hard bits of UML, ...
simple model ops
if self <> null then self.name else 'no-self' endif
powerful collection operations
self.children->isUnique(name)
Side effect free
contributes to strong analysis and optimisation
Useless
needs a model providing environment
