Assembly Language Fundamental- Computer Organisation

Assembly Language for Intel-
Based Computers,
Assembly Language
Fundamentals

Web site Examples
 Basic Elements of Assembly Language
 Example: Adding and Subtracting Integers
 Assembling, Linking, and Running Programs
 Defining Data
 Symbolic Constants

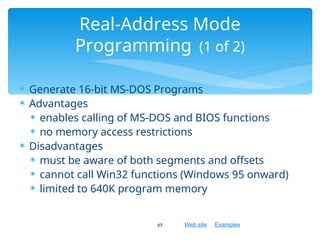

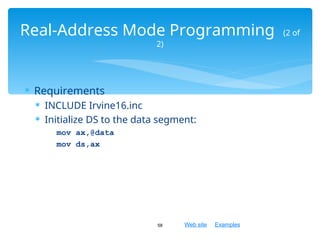

 Real-Address Mode Programming
2

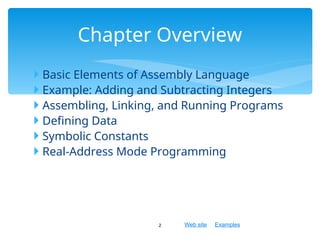

Chapter Overview

Web site Examples

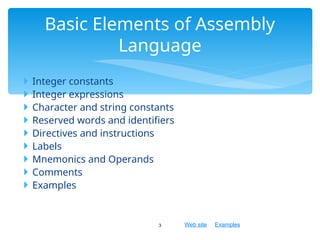

 Integer constants
 Integer expressions
 Character and string constants
 Reserved words and identifiers
 Directives and instructions
 Labels
 Mnemonics and Operands
 Comments
 Examples
3
Basic Elements of Assembly
Language

Web site Examples

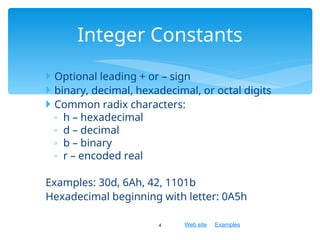

 Optional leading + or – sign
 binary, decimal, hexadecimal, or octal digits
 Common radix characters:
◦ h – hexadecimal
◦ d – decimal
◦ b – binary
◦ r – encoded real
Examples: 30d, 6Ah, 42, 1101b
Hexadecimal beginning with letter: 0A5h
4
Integer Constants

Web site Examples
 Operators and precedence levels:
 Examples:
5
Integer Expressions

Web site Examples

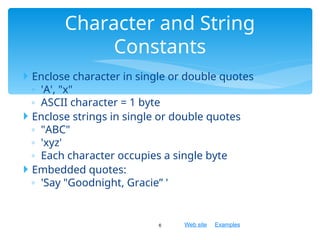

 Enclose character in single or double quotes
◦ 'A', "x"
◦ ASCII character = 1 byte
 Enclose strings in single or double quotes
◦ "ABC"
◦ 'xyz'
◦ Each character occupies a single byte
 Embedded quotes:
◦ 'Say "Goodnight, Gracie” '
6
Character and String
Constants

Web site Examples

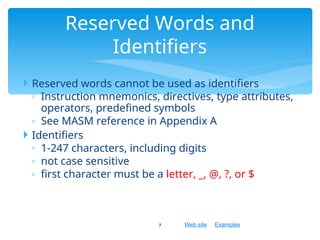

 Reserved words cannot be used as identifiers
◦ Instruction mnemonics, directives, type attributes,
operators, predefined symbols
◦ See MASM reference in Appendix A
 Identifiers
◦ 1-247 characters, including digits
◦ not case sensitive
◦ first character must be a letter, _, @, ?, or $
7
Reserved Words and
Identifiers

Web site Examples

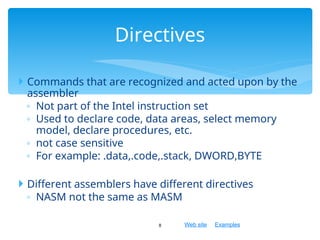

 Commands that are recognized and acted upon by the
assembler
◦ Not part of the Intel instruction set
◦ Used to declare code, data areas, select memory
model, declare procedures, etc.
◦ not case sensitive
◦ For example: .data,.code,.stack, DWORD,BYTE
 Different assemblers have different directives
◦ NASM not the same as MASM
8
Directives

Web site Examples

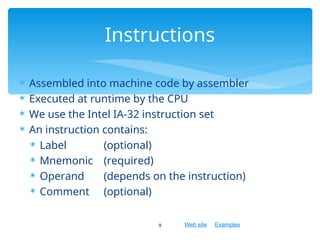

 Assembled into machine code by assembler
 Executed at runtime by the CPU
 We use the Intel IA-32 instruction set
 An instruction contains:
 Label (optional)
 Mnemonic (required)
 Operand (depends on the instruction)
 Comment (optional)
9
Instructions

Web site Examples

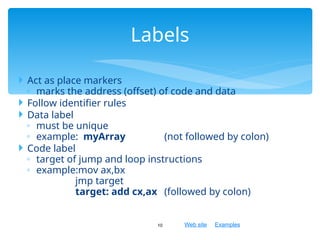

 Act as place markers
◦ marks the address (offset) of code and data
 Follow identifier rules
 Data label
◦ must be unique
◦ example: myArray (not followed by colon)
 Code label
◦ target of jump and loop instructions
◦ example:mov ax,bx
jmp target
target: add cx,ax (followed by colon)
10
Labels

Web site Examples

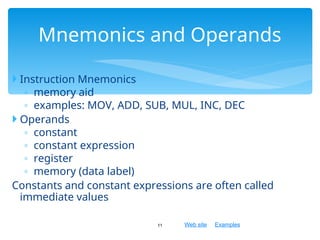

 Instruction Mnemonics
◦ memory aid
◦ examples: MOV, ADD, SUB, MUL, INC, DEC
 Operands
◦ constant
◦ constant expression
◦ register
◦ memory (data label)
Constants and constant expressions are often called
immediate values
11
Mnemonics and Operands

Web site Examples

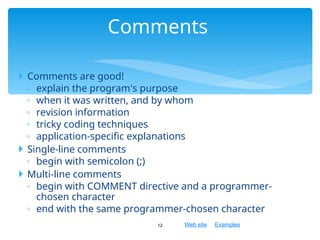

 Comments are good!
◦ explain the program's purpose
◦ when it was written, and by whom
◦ revision information
◦ tricky coding techniques
◦ application-specific explanations
 Single-line comments
◦ begin with semicolon (;)
 Multi-line comments
◦ begin with COMMENT directive and a programmer-
chosen character
◦ end with the same programmer-chosen character
12
Comments

Web site Examples

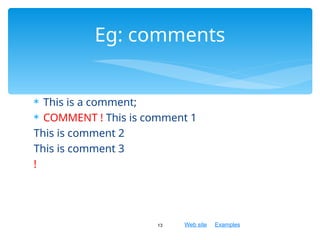

 This is a comment;
 COMMENT ! This is comment 1
This is comment 2
This is comment 3
!
13
Eg: comments

Web site Examples

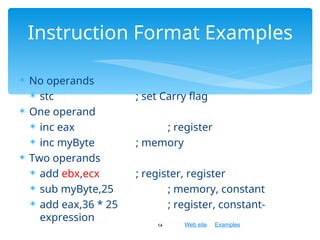

 No operands
 stc ; set Carry flag
 One operand
 inc eax ; register
 inc myByte ; memory
 Two operands
 add ebx,ecx ; register, register
 sub myByte,25 ; memory, constant
 add eax,36 * 25 ; register, constant-
expression
14
Instruction Format Examples

Web site Examples

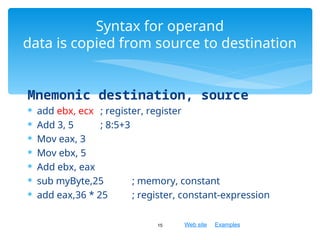

Mnemonic destination, source
 add ebx, ecx ; register, register
 Add 3, 5 ; 8:5+3
 Mov eax, 3
 Mov ebx, 5
 Add ebx, eax
 sub myByte,25 ; memory, constant
 add eax,36 * 25 ; register, constant-expression
15
Syntax for operand
data is copied from source to destination

Web site Examples
 Defining Data
16
What's Next

Web site Examples
Example: Adding and Subtracting
Integers
17
TITLE Add and Subtract (AddSub.asm)
; This program adds and subtracts 32-bit integers.
INCLUDE Irvine32.inc
.code
main PROC
mov eax,10000h ; EAX = 10000h
add eax,40000h ; EAX = 50000h
sub eax,20000h ; EAX = 30000h
call DumpRegs ; display registers
exit
main ENDP
END main

Web site Examples

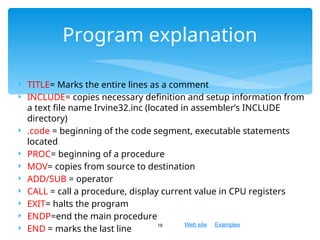

Program explanation
18
 TITLE= Marks the entire lines as a comment
 INCLUDE= copies necessary definition and setup information from
a text file name Irvine32.inc (located in assembler’s INCLUDE
directory)
 .code = beginning of the code segment, executable statements
located
 PROC= beginning of a procedure
 MOV= copies from source to destination
 ADD/SUB = operator
 CALL = call a procedure, display current value in CPU registers
 EXIT= halts the program
 ENDP=end the main procedure
 END = marks the last line

Web site Examples

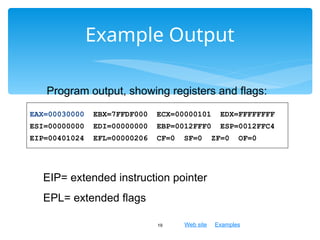

Example Output
19
Program output, showing registers and flags:
EAX=00030000 EBX=7FFDF000 ECX=00000101 EDX=FFFFFFFF
ESI=00000000 EDI=00000000 EBP=0012FFF0 ESP=0012FFC4
EIP=00401024 EFL=00000206 CF=0 SF=0 ZF=0 OF=0
EIP= extended instruction pointer
EPL= extended flags

Web site Examples
 Some approaches to capitalization
 capitalize nothing
 capitalize everything
 capitalize all reserved words, including
instruction mnemonics and register names
 capitalize only directives and operators
 Other suggestions
 descriptive identifier names
 spaces surrounding arithmetic operators
 blank lines between procedures
20
Suggested Coding Standards (1 of 2)

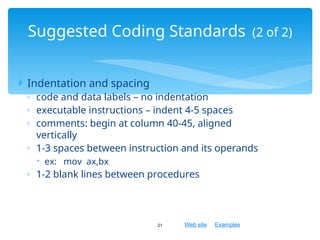

Web site Examples
 Indentation and spacing
◦ code and data labels – no indentation
◦ executable instructions – indent 4-5 spaces
◦ comments: begin at column 40-45, aligned
vertically
◦ 1-3 spaces between instruction and its operands
 ex: mov ax,bx
◦ 1-2 blank lines between procedures
21
Suggested Coding Standards (2 of 2)

Web site Examples

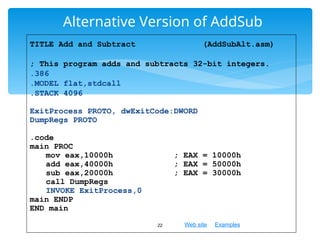

Alternative Version of AddSub
22
TITLE Add and Subtract (AddSubAlt.asm)
.386
.MODEL flat,stdcall
.STACK 4096
ExitProcess PROTO, dwExitCode:DWORD
DumpRegs PROTO
.code
main PROC
mov eax,10000h ; EAX = 10000h
add eax,40000h ; EAX = 50000h
sub eax,20000h ; EAX = 30000h
call DumpRegs
INVOKE ExitProcess,0
main ENDP
END main

Web site Examples
23
TITLE Add and Subtract (AddSubAlt.asm)
.386 = minimum CPU required (Intel386)
.MODEL flat,stdcall
.MODEL =instruct assmb to generate code
for protected mode;
STDCALL= calling MS-Windows functions
.STACK 4096
ExitProcess PROTO, dwExitCode:DWORD
DumpRegs PROTO
PROTO = declare prototypes for procedure used by the prog
ExitProcess= MS-Windows Function halts the current prog
DumpRegs= prcedure form Irvine32.inc to display registers
.code
main PROC
mov eax,10000h ; EAX = 10000h
add eax,40000h ; EAX = 50000h
sub eax,20000h ; EAX = 30000h
call DumpRegs
INVOKE ExitProcess,0
INVOKE= directive to call procedure or function
ExitProcess=passing it a return code of zero
main ENDP
END main

Web site Examples

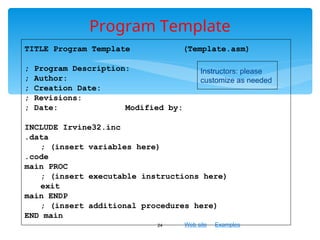

Program Template
24
TITLE Program Template (Template.asm)
; Program Description:
; Author:
; Creation Date:
; Revisions:
; Date: Modified by:
.data
; (insert variables here)
.code
main PROC
; (insert executable instructions here)
exit
main ENDP
; (insert additional procedures here)
END main
Instructors: please
customize as needed

Web site Examples
 Defining Data
25

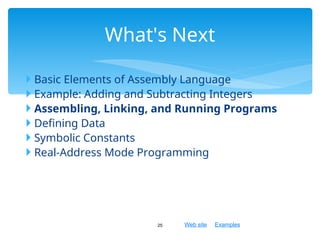

What's Next

Web site Examples

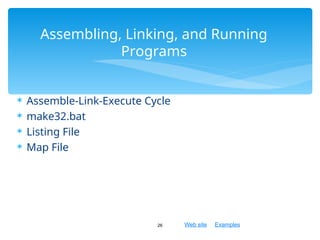

 Assemble-Link-Execute Cycle
 make32.bat
 Listing File
 Map File
26
Assembling, Linking, and Running
Programs

Web site Examples

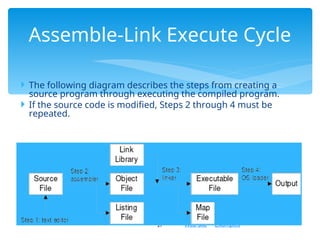

 The following diagram describes the steps from creating a
source program through executing the compiled program.
 If the source code is modified, Steps 2 through 4 must be
repeated.
27
Assemble-Link Execute Cycle

Web site Examples

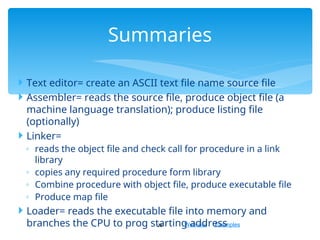

 Text editor= create an ASCII text file name source file
 Assembler= reads the source file, produce object file (a
machine language translation); produce listing file
(optionally)
 Linker=
◦ reads the object file and check call for procedure in a link
library
◦ copies any required procedure form library
◦ Combine procedure with object file, produce executable file
◦ Produce map file
 Loader= reads the executable file into memory and
branches the CPU to prog starting address
28
Summaries

Web site Examples

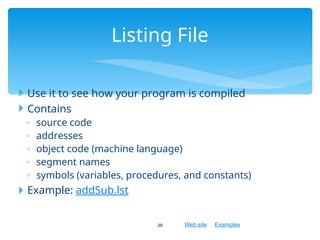

 Use it to see how your program is compiled
 Contains
◦ source code
◦ addresses
◦ object code (machine language)
◦ segment names
◦ symbols (variables, procedures, and constants)
 Example: addSub.lst
29
Listing File

Web site Examples

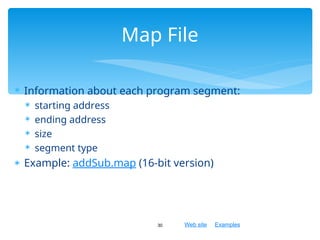

 Information about each program segment:
 starting address
 ending address
 size
 segment type
 Example: addSub.map (16-bit version)
30
Map File

Web site Examples
 Defining Data
31
What's Next

Web site Examples

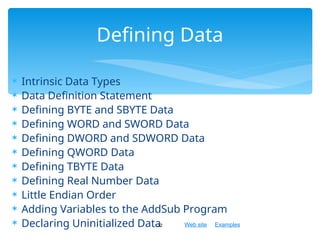

 Intrinsic Data Types
 Data Definition Statement
 Defining BYTE and SBYTE Data

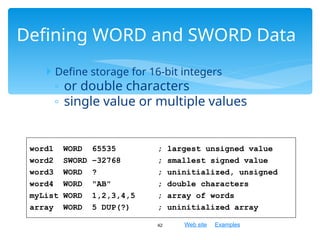

 Defining WORD and SWORD Data
 Defining DWORD and SDWORD Data
 Defining QWORD Data
 Defining TBYTE Data
 Defining Real Number Data

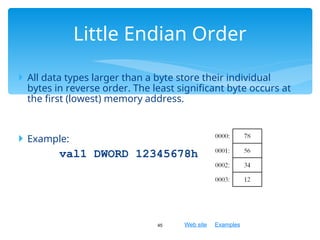

 Little Endian Order

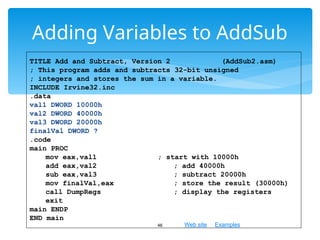

 Adding Variables to the AddSub Program

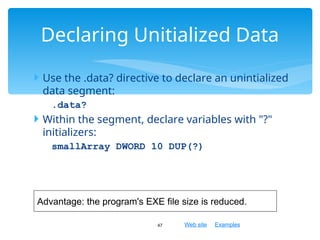

 Declaring Uninitialized Data
32
Defining Data

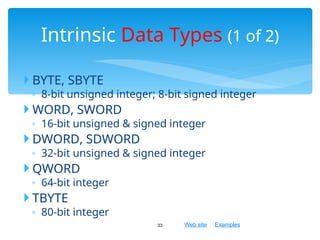

Web site Examples
 BYTE, SBYTE
◦ 8-bit unsigned integer; 8-bit signed integer
 WORD, SWORD
◦ 16-bit unsigned & signed integer
 DWORD, SDWORD
◦ 32-bit unsigned & signed integer
 QWORD
◦ 64-bit integer
 TBYTE
◦ 80-bit integer
33
Intrinsic Data Types (1 of 2)

Web site Examples

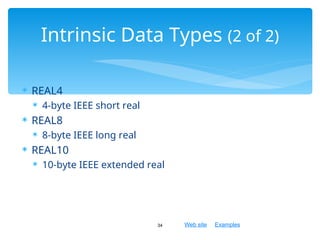

 REAL4
 4-byte IEEE short real
 REAL8
 8-byte IEEE long real
 REAL10
 10-byte IEEE extended real
34
Intrinsic Data Types (2 of 2)

Web site Examples

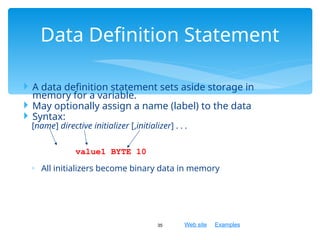

 A data definition statement sets aside storage in
memory for a variable.
 May optionally assign a name (label) to the data
 Syntax:
[name] directive initializer [,initializer] . . .
value1 BYTE 10
◦ All initializers become binary data in memory
35
Data Definition Statement

Web site Examples

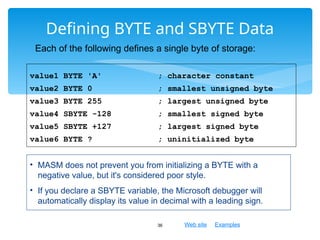

Defining BYTE and SBYTE Data
36
value1 BYTE 'A' ; character constant
value2 BYTE 0 ; smallest unsigned byte
value3 BYTE 255 ; largest unsigned byte
value4 SBYTE -128 ; smallest signed byte
value5 SBYTE +127 ; largest signed byte
value6 BYTE ? ; uninitialized byte
Each of the following defines a single byte of storage:
• MASM does not prevent you from initializing a BYTE with a
negative value, but it's considered poor style.
• If you declare a SBYTE variable, the Microsoft debugger will
automatically display its value in decimal with a leading sign.

Web site Examples

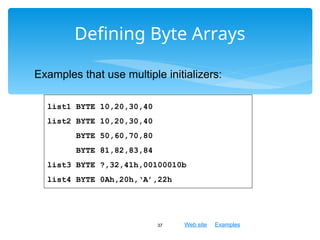

Defining Byte Arrays
37
list1 BYTE 10,20,30,40
list2 BYTE 10,20,30,40
BYTE 50,60,70,80
BYTE 81,82,83,84
list3 BYTE ?,32,41h,00100010b
list4 BYTE 0Ah,20h,‘A’,22h
Examples that use multiple initializers:

Web site Examples

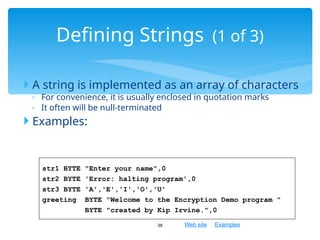

 A string is implemented as an array of characters
◦ For convenience, it is usually enclosed in quotation marks
◦ It often will be null-terminated
 Examples:
38
Defining Strings (1 of 3)
str1 BYTE "Enter your name",0
str2 BYTE 'Error: halting program',0
str3 BYTE 'A','E','I','O','U'
greeting BYTE "Welcome to the Encryption Demo program "
BYTE "created by Kip Irvine.",0

Web site Examples

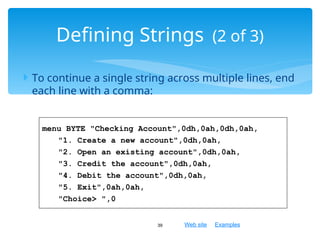

 To continue a single string across multiple lines, end
each line with a comma:
39
menu BYTE "Checking Account",0dh,0ah,0dh,0ah,
"1. Create a new account",0dh,0ah,
"2. Open an existing account",0dh,0ah,
"3. Credit the account",0dh,0ah,
"4. Debit the account",0dh,0ah,
"5. Exit",0ah,0ah,
"Choice> ",0

Web site Examples

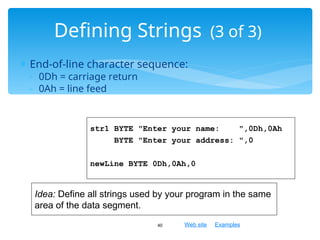

 End-of-line character sequence:
◦ 0Dh = carriage return
◦ 0Ah = line feed
40
str1 BYTE "Enter your name: ",0Dh,0Ah
BYTE "Enter your address: ",0
newLine BYTE 0Dh,0Ah,0
Idea: Define all strings used by your program in the same
area of the data segment.

Web site Examples

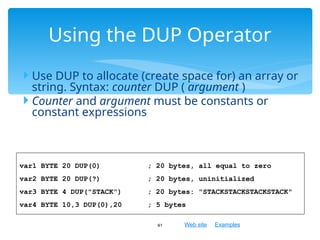

 Use DUP to allocate (create space for) an array or
string. Syntax: counter DUP ( argument )
 Counter and argument must be constants or
constant expressions
41
Using the DUP Operator
var1 BYTE 20 DUP(0) ; 20 bytes, all equal to zero
var2 BYTE 20 DUP(?) ; 20 bytes, uninitialized
var3 BYTE 4 DUP("STACK") ; 20 bytes: "STACKSTACKSTACKSTACK"
var4 BYTE 10,3 DUP(0),20 ; 5 bytes

Web site Examples
 Define storage for 16-bit integers
◦ or double characters
◦ single value or multiple values
42
Defining WORD and SWORD Data
word1 WORD 65535 ; largest unsigned value
word2 SWORD –32768 ; smallest signed value
word3 WORD ? ; uninitialized, unsigned
word4 WORD "AB" ; double characters
myList WORD 1,2,3,4,5 ; array of words
array WORD 5 DUP(?) ; uninitialized array

Web site Examples

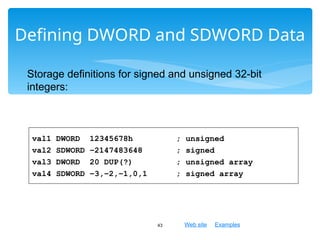

Defining DWORD and SDWORD Data
43
val1 DWORD 12345678h ; unsigned
val2 SDWORD –2147483648 ; signed
val3 DWORD 20 DUP(?) ; unsigned array
val4 SDWORD –3,–2,–1,0,1 ; signed array
Storage definitions for signed and unsigned 32-bit
integers:

Web site Examples

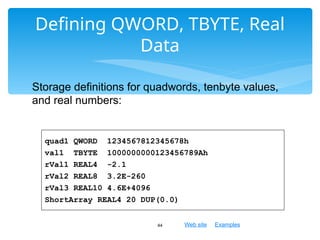

Defining QWORD, TBYTE, Real
Data
44
quad1 QWORD 1234567812345678h
val1 TBYTE 1000000000123456789Ah
rVal1 REAL4 -2.1
rVal2 REAL8 3.2E-260
rVal3 REAL10 4.6E+4096
ShortArray REAL4 20 DUP(0.0)
Storage definitions for quadwords, tenbyte values,
and real numbers:

Web site Examples
 All data types larger than a byte store their individual
bytes in reverse order. The least significant byte occurs at
the first (lowest) memory address.
 Example:
val1 DWORD 12345678h
45
Little Endian Order

Web site Examples
Adding Variables to AddSub
46
TITLE Add and Subtract, Version 2 (AddSub2.asm)
; This program adds and subtracts 32-bit unsigned
; integers and stores the sum in a variable.
.data
val1 DWORD 10000h
val2 DWORD 40000h
val3 DWORD 20000h
finalVal DWORD ?
.code
main PROC
mov eax,val1 ; start with 10000h
add eax,val2 ; add 40000h
sub eax,val3 ; subtract 20000h
mov finalVal,eax ; store the result (30000h)
call DumpRegs ; display the registers
exit
main ENDP
END main

Web site Examples
 Use the .data? directive to declare an unintialized
data segment:
.data?
 Within the segment, declare variables with "?"
initializers:
smallArray DWORD 10 DUP(?)
47
Declaring Unitialized Data
Advantage: the program's EXE file size is reduced.

Web site Examples
 Defining Data
48
What's Next

Web site Examples

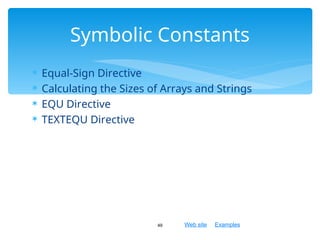

 Equal-Sign Directive
 Calculating the Sizes of Arrays and Strings
 EQU Directive
 TEXTEQU Directive
49
Symbolic Constants

Web site Examples
 name = expression
 expression is a 32-bit integer (expression or
constant)
 may be redefined
 name is called a symbolic constant
 good programming style to use symbols
50
Equal-Sign Directive
COUNT = 500
.
.
mov al,COUNT

Web site Examples

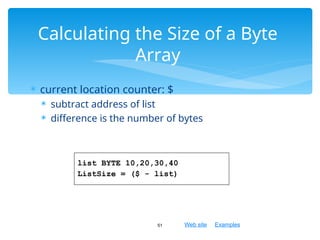

 current location counter: $
 subtract address of list
 difference is the number of bytes
51
Calculating the Size of a Byte
Array
list BYTE 10,20,30,40
ListSize = ($ - list)

Web site Examples

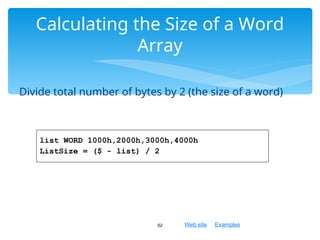

Divide total number of bytes by 2 (the size of a word)
52
Calculating the Size of a Word
Array
list WORD 1000h,2000h,3000h,4000h
ListSize = ($ - list) / 2

Web site Examples

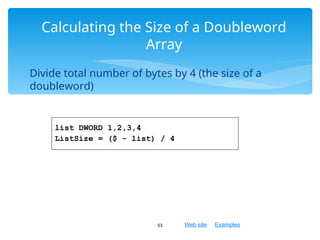

Divide total number of bytes by 4 (the size of a
doubleword)
53
Calculating the Size of a Doubleword
Array
list DWORD 1,2,3,4
ListSize = ($ - list) / 4

Web site Examples

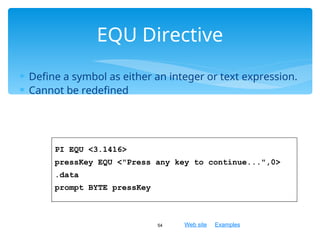

 Define a symbol as either an integer or text expression.
 Cannot be redefined
54
EQU Directive
PI EQU <3.1416>
pressKey EQU <"Press any key to continue...",0>
.data
prompt BYTE pressKey

Web site Examples
 Define a symbol as either an integer or text expression.
 Called a text macro
 Can be redefined
55
TEXTEQU Directive
continueMsg TEXTEQU <"Do you wish to continue (Y/N)?">
rowSize = 5
.data
prompt1 BYTE continueMsg
count TEXTEQU %(rowSize * 2) ; evaluates the expression
setupAL TEXTEQU <mov al,count>
.code
setupAL ; generates: "mov al,10"

Web site Examples
 Basic Elements of Assembly Language
 Example: Adding and Subtracting Integers
 Assembling, Linking, and Running Programs
 Defining Data
 Symbolic Constants
 Real-Address Mode Programming
56
What's Next

Web site Examples
 Generate 16-bit MS-DOS Programs
 Advantages
 enables calling of MS-DOS and BIOS functions
 no memory access restrictions
 Disadvantages
 must be aware of both segments and offsets
 cannot call Win32 functions (Windows 95 onward)
 limited to 640K program memory
57
Real-Address Mode
Programming (1 of 2)

Web site Examples
 Requirements
 INCLUDE Irvine16.inc
 Initialize DS to the data segment:
mov ax,@data
mov ds,ax
58
Real-Address Mode Programming (2 of
2)

Web site Examples

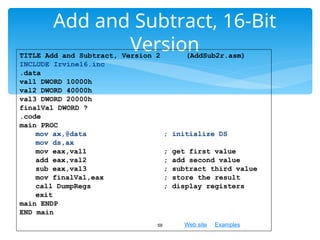

Add and Subtract, 16-Bit
Version
59
TITLE Add and Subtract, Version 2 (AddSub2r.asm)
.data
val1 DWORD 10000h
val2 DWORD 40000h
val3 DWORD 20000h
finalVal DWORD ?
.code
main PROC
mov ax,@data ; initialize DS
mov ds,ax
mov eax,val1 ; get first value
add eax,val2 ; add second value
sub eax,val3 ; subtract third value
mov finalVal,eax ; store the result
call DumpRegs ; display registers
exit
main ENDP
END main

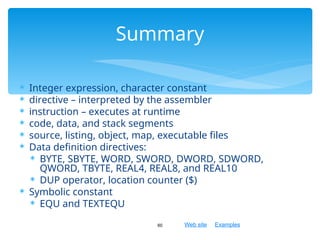

Web site Examples
 Integer expression, character constant
 directive – interpreted by the assembler
 instruction – executes at runtime
 code, data, and stack segments
 source, listing, object, map, executable files
 Data definition directives:
 BYTE, SBYTE, WORD, SWORD, DWORD, SDWORD,
QWORD, TBYTE, REAL4, REAL8, and REAL10
 DUP operator, location counter ($)
 Symbolic constant
 EQU and TEXTEQU
60
Summary

Assembly Language Fundamental- Computer Organisation

More Related Content

Similar to Assembly Language Fundamental- Computer Organisation

Recently uploaded

Assembly Language Fundamental- Computer Organisation
