Mule is a lightweight integration platform that connects systems, services, APIs and devices. It manages message routing, data mapping, orchestration, reliability, security and scalability between nodes. Mule allows different applications to communicate by acting as a transit system that reads, transforms and sends data as messages between applications. The core elements in Mule are flows, which are sequences of processing events, message sources which are inbound endpoints, and message processors which process data using transformers or components.

1. Architecture of MuleArchitecture of Mule

2. 2
Introduction
Mule is a lightweight integration platform that most widely used
integration platform in the industry. Mule enables you to connect
anything, anywhere. Rather than creating multiple point-to-point
integrations between systems, services, APIs, and devices, you can use
Mule to intelligently manage message routing, data mapping,
orchestration, reliability, security, and scalability between nodes.
Mule Soft Gurus/Experts says Mule is so named because it “carries the
heavy development load” of connecting systems.

3. 3
MULE-ESB Integration advantages
• Helps to connect to any third party application easily using Mule
• We can integrate the applications or systems on premise or in the
cloud (Web/Standalone/ Enterprise applications).
• Easily integrate anything from a “plain old Java object” (POJO) to a
component from another framework.
• Move your environment to cloud and communicate easily with cloud
providers
• Provides most of the standard/advanced security features for the
applications
• B2B e-commerce activities

4. 4
Providing an External HTTP or HTTPS Port
•Mule ESB is based on ideas from Enterprise Service Bus (ESB)
architectures. The key advantage of an ESB is that it allows different
applications to communicate with each other by acting as a transit
system for carrying data between applications within your intranet or
across the Internet. There are currently several commercial ESB
implementations on the market. However, many of these provide limited
functionality or are built on top of an existing application server or
messaging server, locking you into that specific vendor. Mule ESB is
vendor-neutral, so different vendor implementations can plug in to it.
You are never locked in to a specific
•vendor when you use Mule ESB.

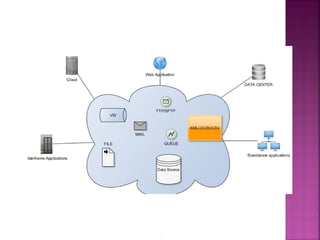

5. 5

6. 6
Elements in Mule
• Flow is sequence of processing events
• A Message enters a flow may pass a wide variety of processors.
• Message Source is component consist of Request-Response Inbound
End-point
• Message Processors is processing your data using transformer or
component

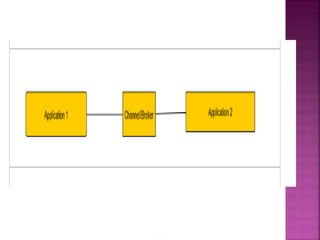

• The advantage of networking your applications is that one application
can send data to another application. However, many applications
don't have the ability to read or process data coming from another
application. Mule ESB solves this problem by providing a messaging
framework that reads, transforms, and sends data as messages
between applications. A message is simply a packet of data that can
be handled and sent between applications on a specific channel (also
called a queue).

7. 7
Logging
All log messages from your application are captured by the CloudHub
logging service and available through the log search tool in the CloudHub
console. If you wish to expose additional information in your logs for
diagnostic or audit purposes, Mule provides a logger element for fine
grained logging of message content.

8. 8

9. 9
Message Structure in Mule
Message Object consist Message
Message contains the mail message with header information and the
header information is consist of inbound property and outbound
property . Inbound property will be immutable. Below diagram illustrates
the message structure.

10. 10
