This document provides specifications for locating pins with diameters ranging from 6mm to 19mm. It includes dimensions for the pins like radii, depth, and tolerances. Charts list National Aerospace and Defense Contractors Accreditation Program (NAAMS) codes, dimensions, and weights for each pin size. Pins are made of SAE 8620 steel and hardened to 58-62 Rockwell C.

1. H H
F-XC A N GE F-XC A N GE
PD PD
!
!
W
W
O
O
N
N
y
y
LOCATING PIN
bu
bu
to
to
ww
ww
om
om
k
k
lic
lic
C
C
.c
.c
w
w
tr tr
6mm THRU 19mm DIAMETER
re re
.
.
ac ac
k e r- s o ft w a k e r- s o ft w a
TM
(FULL METRIC) Assembly 08/29/07
Tolerances: 1 PLACE 0.3
2 PLACE 0.03
3 PLACE 0.015
ALL MACHINED SURFACES TO FLAT.
PARALLEL AND PERPINDICULAR TO WITHIN
0.015 T.I.R. TO DATUMS A AND B AND
CONCENTRIC TO WITHIN 0.03 T.I.R. A
MATERIAL: S.A.E. 8620 STEEL
HARDNESS: 58 - 62 Rc TO A DEPTH OF 0.5 - 0.7 mm
AFTER GRINDING
F
NOTE: IDENTIFY WITH NAAMS CODE NUMBER AS
SHOWN XXX. H
SEE PAGE B-1.1 FOR
GLOBAL MATERIALS CHART
D
D
B
E
C
G
TABULATED INFORMATION ON FOLLOWING PAGE
©1997 Auto/Steel Partnership www.naamsstandards.org This document is Uncontrolled when printed. I – 11

2. H H
F-XC A N GE F-XC A N GE
PD PD
!
!
W
W
O
O
N
N
y
y
LOCATING PIN
bu
bu
to
to
ww
ww
om
om
k
k
lic
lic
C
C
.c
.c
w
w
tr re tr re
.
.
ac ac
k e r- s o ft w a k e r- s o ft w a

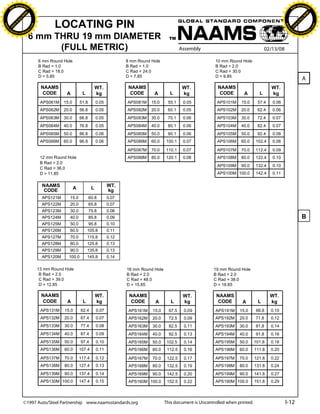

6 mm THRU 19 mm DIAMETER TM
(FULL METRIC)
6 mm Round Hole 8 mm Round Hole 10 mm Round Hole
B Rad = 1.0 B Rad = 1.0 B Rad = 2.0
C Rad = 18.0 C Rad = 24.0 C Rad = 30.0
D = 5.85 D = 7.85 D = 9.85
NAAMS WT. NAAMS WT. NAAMS WT.
CODE A L kg CODE A L kg CODE A L kg
APS061M 15.0 51.8 0.05 APS081M 15.0 55.1 0.05 APS101M 15.0 57.4 0.06
APS062M 20.0 56.8 0.05 APS082M 20.0 60.1 0.05 APS102M 20.0 62.4 0.06
APS063M 30.0 66.8 0.05 APS083M 30.0 70.1 0.06 APS103M 30.0 72.4 0.07
APS064M 40.0 76.8 0.05 APS084M 40.0 80.1 0.06 APS104M 40.0 82.4 0.07
APS065M 50.0 86.8 0.06 APS085M 50.0 90.1 0.06 APS105M 50.0 92.4 0.08
APS066M 60.0 96.8 0.06 APS086M 60.0 100.1 0.07 APS106M 60.0 102.4 0.08
APS087M 70.0 110.1 0.07 APS107M 70.0 112.4 0.09
12 mm Round Hole APS088M 80.0 120.1 0.08 APS108M 80.0 122.4 0.10
B Rad = 2.0
APS109M 90.0 132.4 0.10
C Rad = 36.0
D = 11.85 APS100M 100.0 142.4 0.11
NAAMS WT.
CODE A L kg
APS121M 15.0 60.8 0.07
APS122M 20.0 65.8 0.07
APS123M 30.0 75.8 0.08
APS124M 40.0 85.8 0.09 B
APS125M 50.0 95.8 0.10
APS126M 60.0 105.8 0.11
APS127M 70.0 115.8 0.12
APS128M 80.0 125.8 0.13
APS129M 90.0 135.8 0.13
APS120M 100.0 145.8 0.14
13 mm Round Hole 16 mm Round Hole 19 mm Round Hole
B Rad = 2.0 B Rad = 2.0 B Rad = 2.0
C Rad = 39.0 C Rad = 48.0 C Rad = 38.0
D = 12.85 D = 15.85 D = 18.85
NAAMS WT. NAAMS WT. NAAMS WT.
CODE A L kg CODE A L kg CODE A L kg
APS131M 15.0 62.4 0.07 APS161M 15.0 67.5 0.09 APS191M 15.0 66.8 0.10
APS132M 20.0 67.4 0.07 APS162M 20.0 72.5 0.09 APS192M 20.0 71.8 0.12
APS133M 30.0 77.4 0.08 APS163M 30.0 82.5 0.11 APS193M 30.0 81.8 0.14
APS134M 40.0 87.4 0.09 APS164M 40.0 92.5 0.13 APS194M 40.0 91.8 0.16
APS135M 50.0 97.4 0.10 APS165M 50.0 102.5 0.14 APS195M 50.0 101.8 0.18
APS136M 60.0 107.4 0.11 APS166M 60.0 112.5 0.16 APS196M 60.0 111.8 0.20
APS137M 70.0 117.4 0.12 APS167M 70.0 122.5 0.17 APS197M 70.0 121.8 0.22
APS138M 80.0 127.4 0.13 APS168M 80.0 132.5 0.19 APS198M 80.0 131.8 0.24
APS139M 90.0 137.4 0.14 APS169M 90.0 142.5 0.20 APS199M 90.0 141.8 0.27
APS130M 100.0 147.4 0.15 APS160M 100.0 152.5 0.22 APS190M 100.0 151.8 0.29
©
