DITEK's DTK-DB series surge protectors are designed to protect serial connections for 9, 15, and 25-pin computer equipment from damage caused by voltage surges. The protectors clamp voltages to safe levels to reduce equipment downtime and failure. Models are available for common serial port sizes and can protect RS-232 and RS-485 interfaces. The protectors are compact, weighing 8 ounces, and include a 10 year warranty.

1. DTK-DB15
DTK-DB25

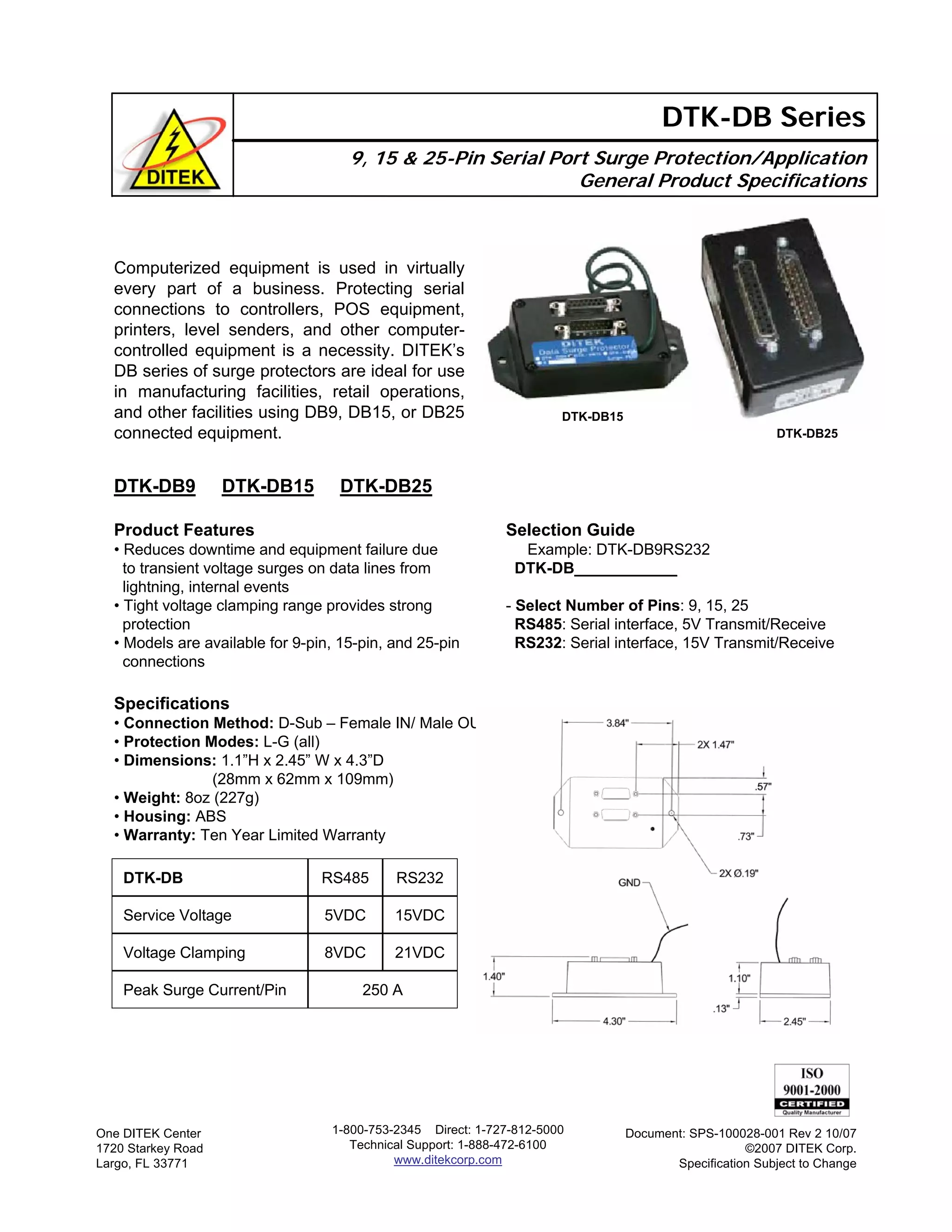

9, 15 & 25-Pin Serial Port Surge Protection/Application
General Product Specifications
DTK-DB Series
Computerized equipment is used in virtually
every part of a business. Protecting serial
connections to controllers, POS equipment,
printers, level senders, and other computer-
controlled equipment is a necessity. DITEK’s
DB series of surge protectors are ideal for use
in manufacturing facilities, retail operations,
and other facilities using DB9, DB15, or DB25
connected equipment.
DTK-DB9 DTK-DB15 DTK-DB25
Product Features
• Reduces downtime and equipment failure due
to transient voltage surges on data lines from
lightning, internal events
• Tight voltage clamping range provides strong
protection
• Models are available for 9-pin, 15-pin, and 25-pin
connections
Specifications
• Connection Method: D-Sub – Female IN/ Male OUT
• Protection Modes: L-G (all)
• Dimensions: 1.1”H x 2.45” W x 4.3”D
(28mm x 62mm x 109mm)
• Weight: 8oz (227g)
• Housing: ABS
• Warranty: Ten Year Limited Warranty
250 APeak Surge Current/Pin
21VDC8VDCVoltage Clamping
15VDC5VDCService Voltage
RS232RS485DTK-DB
One DITEK Center
1720 Starkey Road
Largo, FL 33771
Document: SPS-100028-001 Rev 2 10/07
©2007 DITEK Corp.
Specification Subject to Change
1-800-753-2345 Direct: 1-727-812-5000
Technical Support: 1-888-472-6100
www.ditekcorp.com
Selection Guide
Example: DTK-DB9RS232
DTK-DB____________
- Select Number of Pins: 9, 15, 25
RS485: Serial interface, 5V Transmit/Receive
RS232: Serial interface, 15V Transmit/Receive
