The Ditek FPK3 fire alarm system includes power and dialer surge protection with multi-stage protection for maximum coverage. Key components include the DTK-120SRD for AC power with high surge capacity and the DTK-2MHTPWB for dialer protection, both offering limited warranties. The system is aimed at commercial alarm professionals for fire detection, featuring remote notification capabilities.

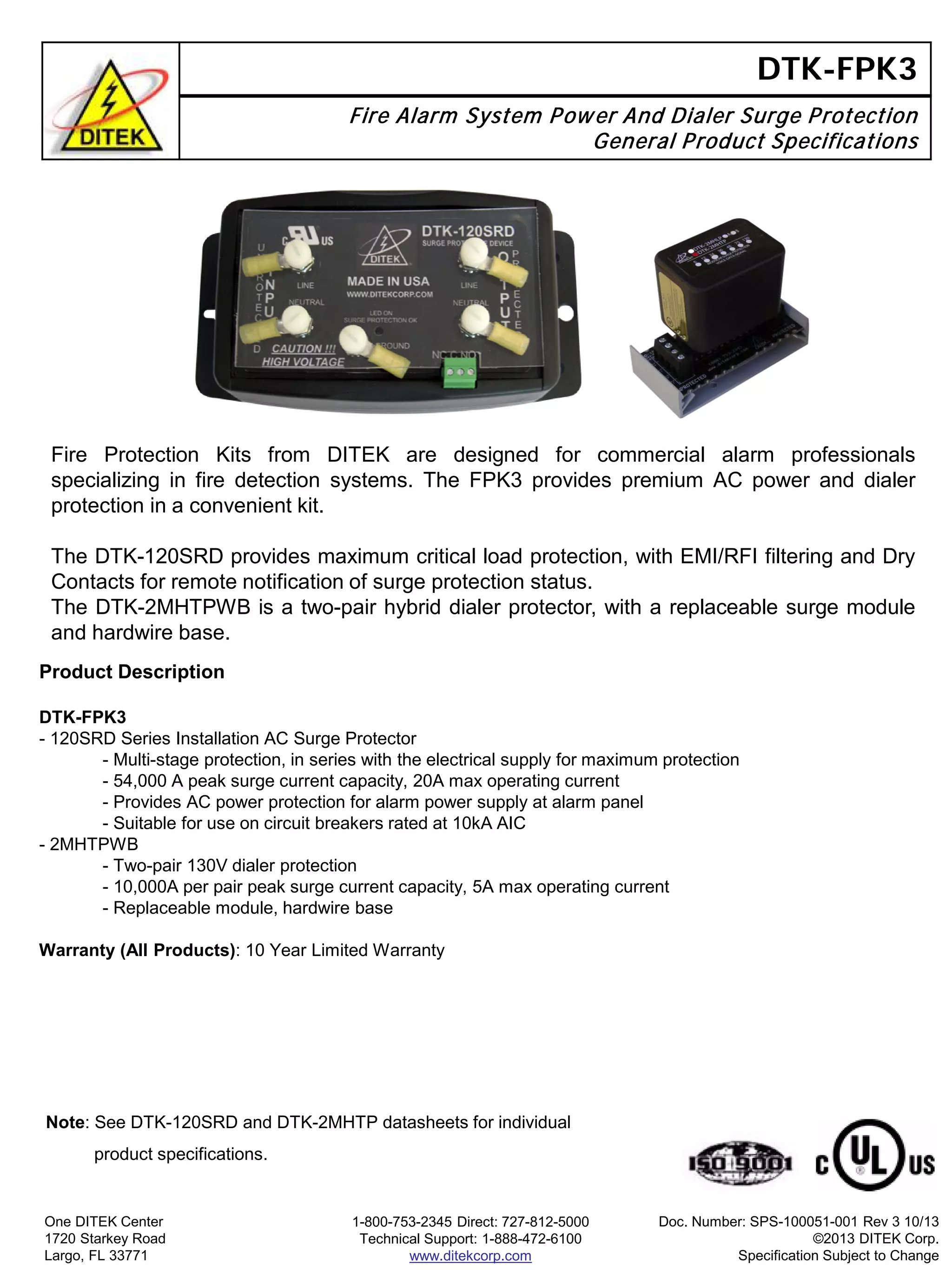

1. DTK-FPK3
Fire Alarm System Power And Dialer Surge Protection
General Product Specifications
Product Description
DTK-FPK3
- 120SRD Series Installation AC Surge Protector
- Multi-stage protection, in series with the electrical supply for maximum protection
- 54,000 A peak surge current capacity, 20A max operating current
- Provides AC power protection for alarm power supply at alarm panel
- Suitable for use on circuit breakers rated at 10kA AIC
- 2MHTPWB
- Two-pair 130V dialer protection
- 10,000A per pair peak surge current capacity, 5A max operating current
- Replaceable module, hardwire base
Warranty (All Products): 10 Year Limited Warranty
One DITEK Center
1720 Starkey Road
Largo, FL 33771
1-800-753-2345 Direct: 727-812-5000
Technical Support: 1-888-472-6100
www.ditekcorp.com
Doc. Number: SPS-100051-001 Rev 3 10/13
©2013 DITEK Corp.
Specification Subject to Change
Fire Protection Kits from DITEK are designed for commercial alarm professionals
specializing in fire detection systems. The FPK3 provides premium AC power and dialer
protection in a convenient kit.
The DTK-120SRD provides maximum critical load protection, with EMI/RFI filtering and Dry
Contacts for remote notification of surge protection status.
The DTK-2MHTPWB is a two-pair hybrid dialer protector, with a replaceable surge module
and hardwire base.
Note: See DTK-120SRD and DTK-2MHTP datasheets for individual
product specifications.
