Apache Geode で始める
Spring Data Gemfire
Pivotal ジャパン株式会社 テクニカルサポートエンジニア 北田 顕啓
@quitada
2
Unless otherwise indicated, these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a
Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/

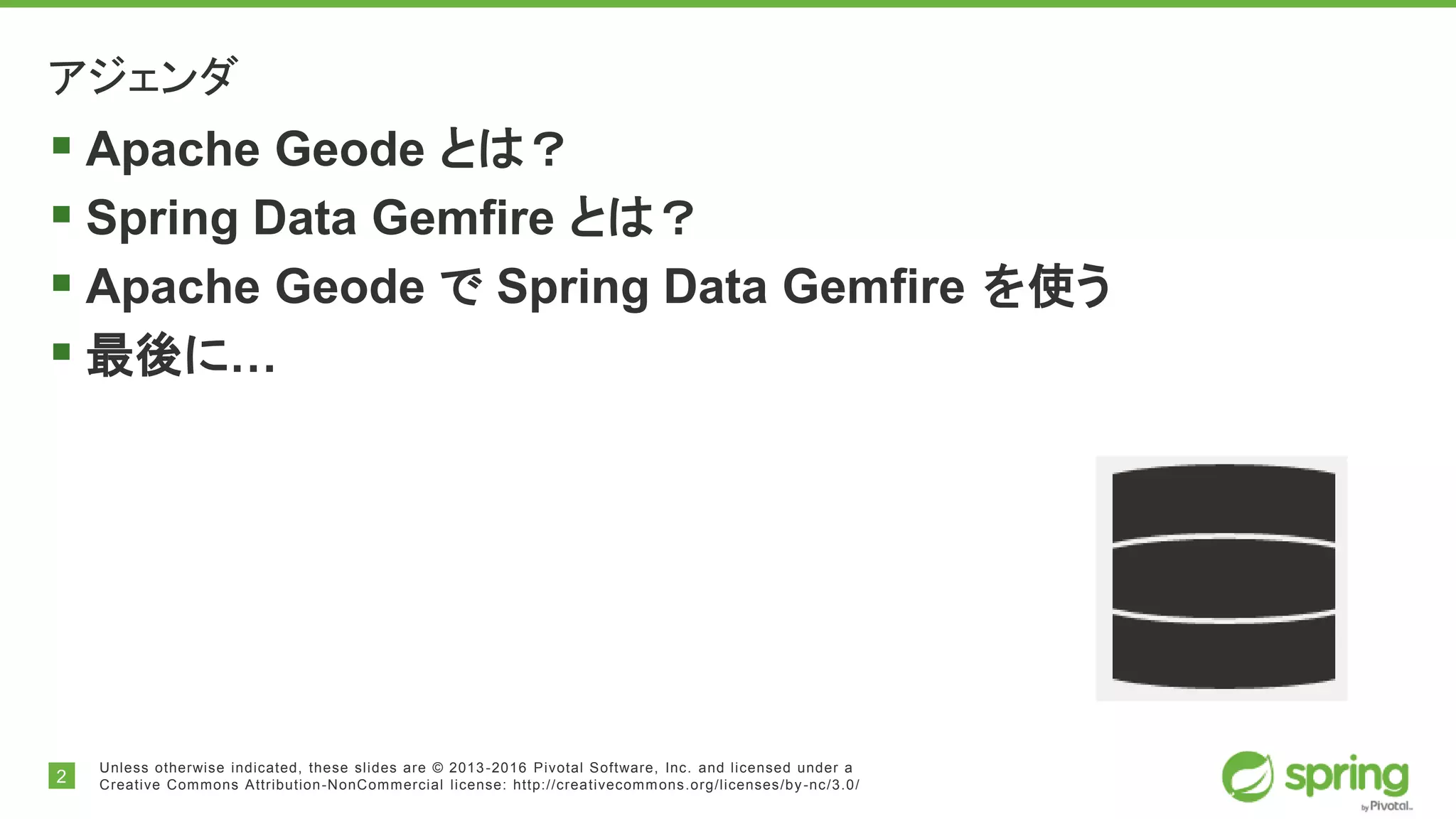

アジェンダ
 Apache Geode とは?
 Spring Data Gemfire とは?
 Apache Geode で Spring Data Gemfire を使う
 最後に…
3
Unless otherwise indicated, these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a
Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/
Apache Geode とは?
4
Unless otherwise indicated, these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a
Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/
Apache Geode とは?
 Pivotal 社のインメモリデータグリッド製品、Pivotal GemFire のオープンソース版
• 2016 年 3 月現在、Apache Geode と Pivotal GemFire の差は C#/C++ クライアン
トモジュール(Native Client、後述)の有無のみ
 インメモリデータグリッド製品 Pivotal GemFire とは?*
• スケールアウトする豪華な HashMap に対して…
• SQL ライクなオブジェクトクエリーとか、コンティニュアスクエリー(後述)とかできます
• データをディスクに永続化とかできます→NoSQL サーバーとしての側面
• MapReduce 的な処理ができます(ファンクション)
• 柔軟な構成がとれます〜peer-to-peer、Client-Server(後述)、WAN Gateway
• 同期&非同期イベント処理(後述)ができます
• 様々なアクセス手段を提供します(独自 API、Memcached、REST API) *= 個人の感想です
5
Unless otherwise indicated, these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a
Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/
Pivotal GemFire の構成例〜Client-Server 構成
 GemFire のキャッシュを専用サーバーとして
起動、データやイベント処理をクライアントより
行う→Geode も同様の構成が可能
 用語
• メンバー:データ格納プロセス
• キャッシュ:データ格納先
• 分散システム:クラスターのこと
• リージョン:データ格納テーブル
• キャッシュサーバー:データサーバー
• プール:サーバーへの接続プール
分散システム
キャッシュ
リージョン
リージョン
キャッシュサーバー
キャッシュ
リージョン
リージョン
キャッシュサーバー
キャッシュ
リージョン
リージョン
キャッシュサーバー
メンバー群
Java
クライアント
C#
クライアント
C++
クライアント
プール プール プール
REST
クライアント
Memcached
クライアント
Native Client
(Geode にはない)
6
Unless otherwise indicated, these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a
Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/

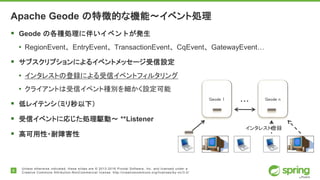

Apache Geode の特徴的な機能〜イベント処理
 Geode の各種処理に伴いイベントが発生
• RegionEvent、EntryEvent、TransactionEvent、CqEvent、GatewayEvent…
 サブスクリプションによるイベントメッセージ受信設定
• インタレストの登録による受信イベントフィルタリング
• クライアントは受信イベント種別を細かく設定可能
 低レイテンシ(ミリ秒以下)
 受信イベントに応じた処理駆動〜 **Listener
 高可用性・耐障害性
Geode 1 Geode n
…
インタレスト登録
7
Unless otherwise indicated, these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a
Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/

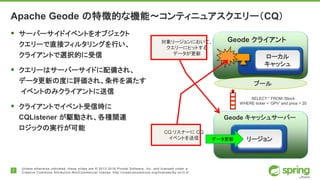

Apache Geode の特徴的な機能〜コンティニュアスクエリー(CQ)
 サーバーサイドイベントをオブジェクト
クエリーで直接フィルタリングを行い、
クライアントで選択的に受信
 クエリーはサーバーサイドに配備され、
データ更新の度に評価され、条件を満たす
イベントのみクライアントに送信
 クライアントでイベント受信時に
CQListener が駆動され、各種関連
ロジックの実行が可能
Geode キャッシュサーバー
リージョン
Geode クライアント
ローカル
キャッシュ
データ更新
対象リージョンにおいて、
クエリーにヒットする
データが更新
CQ リスナーに CQ
イベントを送信
プール
SELECT * FROM /Stock
WHERE ticker = ‘GPV’ and price > 20
8
Unless otherwise indicated, these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a
Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/
<client-cache …>
<pool name=”myPool" subscription-enabled="true">
<locator host="172.16.227.2" port="55221"/>
</pool>
<region name=“myRegion" refid="CACHING_PROXY">
<region-attributes pool-name=”myPool">
<cache-listener>
<class-name>io.pivotal.akitada.SimpleCacheListener</class-name>
</cache-listener>
</region-attributes>
</region>
</client-cache>
Apache Geode でクライアントプログラミング
 ソースコード
 キャッシュ設定ファイル(client-cache.xml)
ClientCache cache = new ClientCacheFactory()
.set("cache-xml-file", "client-cache.xml")
.create();
Region<String, String> region = cache.getRegion(“myRegion");
region.put(“key1”, “value1”);
クライアントキャッシュ生成
(サーバーアクセスのために
必要)
アクセス先のリージョン取得
生成プール情報
(分散システム接続情報)
リージョン情報
(プール名指定、
キャッシュリスナー付与)
データ put
9
Unless otherwise indicated, these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a
Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/

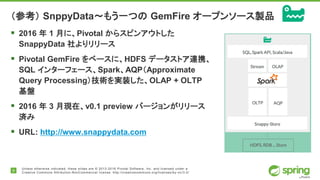

(参考) SnppyData〜もう一つの GemFire オープンソース製品
 2016 年 1 月に、Pivotal からスピンアウトした
SnappyData 社よりリリース
 Pivotal GemFire をベースに、HDFS データストア連携、
SQL インターフェース、Spark、AQP(Approximate
Query Processing)技術を実装した、OLAP + OLTP
基盤
 2016 年 3 月現在、v0.1 preview バージョンがリリース
済み
 URL: http://www.snappydata.com
10
Unless otherwise indicated, these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a
Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/

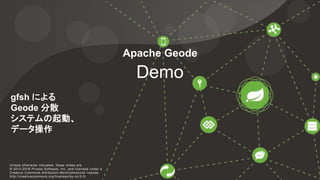

Demo
Unless otherwise indicated, these slides are
© 2013-2016 Pivotal Software, Inc. and licensed under a
Creative Commons Attribution-NonCommercial license:
http://creativecommons.org/licenses/by-nc/3.0/
gfsh による
Geode 分散
システムの起動、
データ操作
Apache Geode
11
Unless otherwise indicated, these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a
Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/

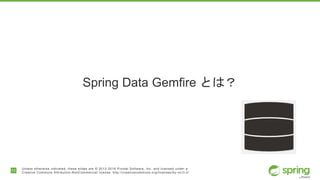

Spring Data Gemfire とは?
12
Unless otherwise indicated, these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a
Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/

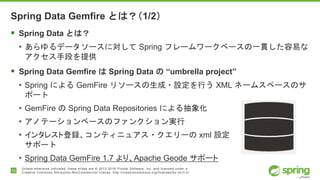

Spring Data Gemfire とは?(1/2)
 Spring Data とは?
• あらゆるデータソースに対して Spring フレームワークベースの一貫した容易な
アクセス手段を提供
 Spring Data Gemfire は Spring Data の “umbrella project”
• Spring による GemFire リソースの生成・設定を行う XML ネームスペースのサ
ポート
• GemFire の Spring Data Repositories による抽象化
• アノテーションベースのファンクション実行
• インタレスト登録、コンティニュアス・クエリーの xml 設定
サポート
• Spring Data GemFire 1.7 より、Apache Geode サポート
13
Unless otherwise indicated, these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a
Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/
Spring Data Gemfire によるコーディング例(1/2)
 再掲) Geode API を用いたクライアント実装
ClientCache cache = new ClientCacheFactory()
.set("cache-xml-file", "client-cache.xml")
.create();
Region<String, String> region = cache.getRegion(“myRegion");
region.put(“key1”, “value1”);
<client-cache …>
<pool name=”myPool" subscription-enabled="true">
<locator host="172.16.227.2" port="55221"/>
</pool>
<region name=“myRegion" refid="CACHING_PROXY">
<region-attributes pool-name=”myPool">
<cache-listener>
<class-name>io.pivotal.akitada.SimpleCacheListener</class-name>
</cache-listener>
</region-attributes>
</region>
</client-cache>
ソースコード
キャッシュ
設定ファイル
14
Unless otherwise indicated, these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a
Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/
Spring Data Gemfire によるコーディング例(2/2)
 Spring Data Gemfire を用いたクライアント実装
ApplicationContext context= new ClassPathXmlApplicationContext("META-INF/path-to/cache-config.xml");
Region<String,String> region = context.getBean(Region.class);
region.put("key1", "value1");
<beans ...>
<gfe-data:datasource subscription-enabled="true">
<gfe-data:locator host="172.16.9.1" port="55221" />
</gfe-data:datasource>
<gfe:client-region id="myRegion” shortcut="CACHING_PROXY">
<gfe:cache-listener>
<bean class="io.pivotal.akitada.SimpleCacheListener" />
</gfe:cache-listener>
</gfe:client-region>
</beans>
ソースコード
キャッシュ
設定ファイル
15
Unless otherwise indicated, these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a
Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/
Apache Geode で
Spring Data Gemfire を使う
16
Unless otherwise indicated, these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a
Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/
STS を使って Apache Geode + Spring Data Gemfire でアプリ開発
 STS とは? = Spring Tool Suite
• Java IDE Eclipse ベースの Spring
アプリケーション開発ツールスイート
• http://spring.io/tools
• 豊富な Spring プロジェクトテンプレート
• すぐに Spring ベースの開発が始められる
• Spring Data GemFire のプロジェクト
テンプレートも用意
• 無償提供
• Pivotal による有償サポートも提供(Spring Enterprise Support)
17
Unless otherwise indicated, these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a
Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/

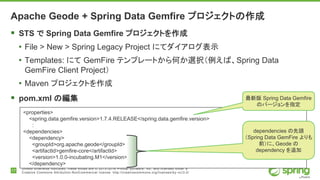

Apache Geode + Spring Data Gemfire プロジェクトの作成
 STS で Spring Data Gemfire プロジェクトを作成
• File > New > Spring Legacy Project にてダイアログ表示
• Templates: にて GemFire テンプレートから何か選択(例えば、Spring Data
GemFire Client Project)
• Maven プロジェクトを作成
 pom.xml の編集
<properties>
<spring.data.gemfire.version>1.7.4.RELEASE</spring.data.gemfire.version>
:
<dependencies>
<dependency>
<groupId>org.apache.geode</groupId>
<artifactId>gemfire-core</artifactId>
<version>1.0.0-incubating.M1</version>
</dependency>
最新版 Spring Data Gemfire
のバージョンを指定
dependencies の先頭
(Spring Data GemFire よりも
前)に、Geode の
dependency を追加
18
Unless otherwise indicated, these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a
Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/
Demo
Unless otherwise indicated, these slides are
© 2013-2016 Pivotal Software, Inc. and licensed under a
Creative Commons Attribution-NonCommercial license:
http://creativecommons.org/licenses/by-nc/3.0/
Spring Data
Gemfire をちょっ
と使った
CacheListener の
デモ
Apache Geode + Spring Data Gemfire
19
Unless otherwise indicated, these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a
Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/
最後に…
20
Unless otherwise indicated, these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a
Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/

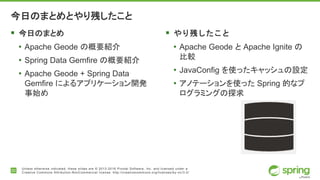

今日のまとめとやり残したこと
 今日のまとめ
• Apache Geode の概要紹介
• Spring Data Gemfire の概要紹介
• Apache Geode + Spring Data
Gemfire によるアプリケーション開発
事始め
 やり残したこと
• Apache Geode と Apache Ignite の
比較
• JavaConfig を使ったキャッシュの設定
• アノテーションを使った Spring 的なプ
ログラミングの探求
21
Unless otherwise indicated, these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a
Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/
Apache Geode / Spring Data Gemfire – 技術情報
 Spring Data Gemfire supports Apache Geode
• https://spring.io/blog/2015/06/12/spring-data-gemfire-supports-apache-geode
 GitHub – spring-projects/spring-gemfire-examples: サンプルコード
• https://github.com/spring-projects/spring-gemfire-examples
 Apache Geode: プロジェクトホーム
• http://geode.incubator.apache.org/
 Spring Data Gemfire: プロジェクトホーム
• http://projects.spring.io/spring-data-gemfire/
 今回使用したデモ用アプリケーションプロジェクト一式
• https://github.com/AkihiroKitada/MySpringDataGemfireSamples

Apache Geode で始める Spring Data Gemfire

  • 1.
    Unless otherwise indicated,these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/ Apache Geode で始める Spring Data Gemfire Pivotal ジャパン株式会社 テクニカルサポートエンジニア 北田 顕啓 @quitada
  • 2.
    2 Unless otherwise indicated,these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/ アジェンダ  Apache Geode とは?  Spring Data Gemfire とは?  Apache Geode で Spring Data Gemfire を使う  最後に…
  • 3.
    3 Unless otherwise indicated,these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/ Apache Geode とは?
  • 4.
    4 Unless otherwise indicated,these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/ Apache Geode とは?  Pivotal 社のインメモリデータグリッド製品、Pivotal GemFire のオープンソース版 • 2016 年 3 月現在、Apache Geode と Pivotal GemFire の差は C#/C++ クライアン トモジュール(Native Client、後述)の有無のみ  インメモリデータグリッド製品 Pivotal GemFire とは?* • スケールアウトする豪華な HashMap に対して… • SQL ライクなオブジェクトクエリーとか、コンティニュアスクエリー(後述)とかできます • データをディスクに永続化とかできます→NoSQL サーバーとしての側面 • MapReduce 的な処理ができます(ファンクション) • 柔軟な構成がとれます〜peer-to-peer、Client-Server(後述)、WAN Gateway • 同期&非同期イベント処理(後述)ができます • 様々なアクセス手段を提供します(独自 API、Memcached、REST API) *= 個人の感想です
  • 5.
    5 Unless otherwise indicated,these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/ Pivotal GemFire の構成例〜Client-Server 構成  GemFire のキャッシュを専用サーバーとして 起動、データやイベント処理をクライアントより 行う→Geode も同様の構成が可能  用語 • メンバー:データ格納プロセス • キャッシュ:データ格納先 • 分散システム:クラスターのこと • リージョン:データ格納テーブル • キャッシュサーバー:データサーバー • プール:サーバーへの接続プール 分散システム キャッシュ リージョン リージョン キャッシュサーバー キャッシュ リージョン リージョン キャッシュサーバー キャッシュ リージョン リージョン キャッシュサーバー メンバー群 Java クライアント C# クライアント C++ クライアント プール プール プール REST クライアント Memcached クライアント Native Client (Geode にはない)
  • 6.
    6 Unless otherwise indicated,these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/ Apache Geode の特徴的な機能〜イベント処理  Geode の各種処理に伴いイベントが発生 • RegionEvent、EntryEvent、TransactionEvent、CqEvent、GatewayEvent…  サブスクリプションによるイベントメッセージ受信設定 • インタレストの登録による受信イベントフィルタリング • クライアントは受信イベント種別を細かく設定可能  低レイテンシ(ミリ秒以下)  受信イベントに応じた処理駆動〜 **Listener  高可用性・耐障害性 Geode 1 Geode n … インタレスト登録
  • 7.
    7 Unless otherwise indicated,these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/ Apache Geode の特徴的な機能〜コンティニュアスクエリー(CQ)  サーバーサイドイベントをオブジェクト クエリーで直接フィルタリングを行い、 クライアントで選択的に受信  クエリーはサーバーサイドに配備され、 データ更新の度に評価され、条件を満たす イベントのみクライアントに送信  クライアントでイベント受信時に CQListener が駆動され、各種関連 ロジックの実行が可能 Geode キャッシュサーバー リージョン Geode クライアント ローカル キャッシュ データ更新 対象リージョンにおいて、 クエリーにヒットする データが更新 CQ リスナーに CQ イベントを送信 プール SELECT * FROM /Stock WHERE ticker = ‘GPV’ and price > 20
  • 8.
    8 Unless otherwise indicated,these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/ <client-cache …> <pool name=”myPool" subscription-enabled="true"> <locator host="172.16.227.2" port="55221"/> </pool> <region name=“myRegion" refid="CACHING_PROXY"> <region-attributes pool-name=”myPool"> <cache-listener> <class-name>io.pivotal.akitada.SimpleCacheListener</class-name> </cache-listener> </region-attributes> </region> </client-cache> Apache Geode でクライアントプログラミング  ソースコード  キャッシュ設定ファイル(client-cache.xml) ClientCache cache = new ClientCacheFactory() .set("cache-xml-file", "client-cache.xml") .create(); Region<String, String> region = cache.getRegion(“myRegion"); region.put(“key1”, “value1”); クライアントキャッシュ生成 (サーバーアクセスのために 必要) アクセス先のリージョン取得 生成プール情報 (分散システム接続情報) リージョン情報 (プール名指定、 キャッシュリスナー付与) データ put
  • 9.
    9 Unless otherwise indicated,these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/ (参考) SnppyData〜もう一つの GemFire オープンソース製品  2016 年 1 月に、Pivotal からスピンアウトした SnappyData 社よりリリース  Pivotal GemFire をベースに、HDFS データストア連携、 SQL インターフェース、Spark、AQP(Approximate Query Processing)技術を実装した、OLAP + OLTP 基盤  2016 年 3 月現在、v0.1 preview バージョンがリリース 済み  URL: http://www.snappydata.com
  • 10.
    10 Unless otherwise indicated,these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/ Demo Unless otherwise indicated, these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/ gfsh による Geode 分散 システムの起動、 データ操作 Apache Geode
  • 11.
    11 Unless otherwise indicated,these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/ Spring Data Gemfire とは?
  • 12.
    12 Unless otherwise indicated,these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/ Spring Data Gemfire とは?(1/2)  Spring Data とは? • あらゆるデータソースに対して Spring フレームワークベースの一貫した容易な アクセス手段を提供  Spring Data Gemfire は Spring Data の “umbrella project” • Spring による GemFire リソースの生成・設定を行う XML ネームスペースのサ ポート • GemFire の Spring Data Repositories による抽象化 • アノテーションベースのファンクション実行 • インタレスト登録、コンティニュアス・クエリーの xml 設定 サポート • Spring Data GemFire 1.7 より、Apache Geode サポート
  • 13.
    13 Unless otherwise indicated,these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/ Spring Data Gemfire によるコーディング例(1/2)  再掲) Geode API を用いたクライアント実装 ClientCache cache = new ClientCacheFactory() .set("cache-xml-file", "client-cache.xml") .create(); Region<String, String> region = cache.getRegion(“myRegion"); region.put(“key1”, “value1”); <client-cache …> <pool name=”myPool" subscription-enabled="true"> <locator host="172.16.227.2" port="55221"/> </pool> <region name=“myRegion" refid="CACHING_PROXY"> <region-attributes pool-name=”myPool"> <cache-listener> <class-name>io.pivotal.akitada.SimpleCacheListener</class-name> </cache-listener> </region-attributes> </region> </client-cache> ソースコード キャッシュ 設定ファイル
  • 14.
    14 Unless otherwise indicated,these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/ Spring Data Gemfire によるコーディング例(2/2)  Spring Data Gemfire を用いたクライアント実装 ApplicationContext context= new ClassPathXmlApplicationContext("META-INF/path-to/cache-config.xml"); Region<String,String> region = context.getBean(Region.class); region.put("key1", "value1"); <beans ...> <gfe-data:datasource subscription-enabled="true"> <gfe-data:locator host="172.16.9.1" port="55221" /> </gfe-data:datasource> <gfe:client-region id="myRegion” shortcut="CACHING_PROXY"> <gfe:cache-listener> <bean class="io.pivotal.akitada.SimpleCacheListener" /> </gfe:cache-listener> </gfe:client-region> </beans> ソースコード キャッシュ 設定ファイル
  • 15.
    15 Unless otherwise indicated,these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/ Apache Geode で Spring Data Gemfire を使う
  • 16.
    16 Unless otherwise indicated,these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/ STS を使って Apache Geode + Spring Data Gemfire でアプリ開発  STS とは? = Spring Tool Suite • Java IDE Eclipse ベースの Spring アプリケーション開発ツールスイート • http://spring.io/tools • 豊富な Spring プロジェクトテンプレート • すぐに Spring ベースの開発が始められる • Spring Data GemFire のプロジェクト テンプレートも用意 • 無償提供 • Pivotal による有償サポートも提供(Spring Enterprise Support)
  • 17.
    17 Unless otherwise indicated,these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/ Apache Geode + Spring Data Gemfire プロジェクトの作成  STS で Spring Data Gemfire プロジェクトを作成 • File > New > Spring Legacy Project にてダイアログ表示 • Templates: にて GemFire テンプレートから何か選択(例えば、Spring Data GemFire Client Project) • Maven プロジェクトを作成  pom.xml の編集 <properties> <spring.data.gemfire.version>1.7.4.RELEASE</spring.data.gemfire.version> : <dependencies> <dependency> <groupId>org.apache.geode</groupId> <artifactId>gemfire-core</artifactId> <version>1.0.0-incubating.M1</version> </dependency> 最新版 Spring Data Gemfire のバージョンを指定 dependencies の先頭 (Spring Data GemFire よりも 前)に、Geode の dependency を追加
  • 18.
    18 Unless otherwise indicated,these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/ Demo Unless otherwise indicated, these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/ Spring Data Gemfire をちょっ と使った CacheListener の デモ Apache Geode + Spring Data Gemfire
  • 19.
    19 Unless otherwise indicated,these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/ 最後に…
  • 20.
    20 Unless otherwise indicated,these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/ 今日のまとめとやり残したこと  今日のまとめ • Apache Geode の概要紹介 • Spring Data Gemfire の概要紹介 • Apache Geode + Spring Data Gemfire によるアプリケーション開発 事始め  やり残したこと • Apache Geode と Apache Ignite の 比較 • JavaConfig を使ったキャッシュの設定 • アノテーションを使った Spring 的なプ ログラミングの探求
  • 21.
    21 Unless otherwise indicated,these slides are © 2013-2016 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/ Apache Geode / Spring Data Gemfire – 技術情報  Spring Data Gemfire supports Apache Geode • https://spring.io/blog/2015/06/12/spring-data-gemfire-supports-apache-geode  GitHub – spring-projects/spring-gemfire-examples: サンプルコード • https://github.com/spring-projects/spring-gemfire-examples  Apache Geode: プロジェクトホーム • http://geode.incubator.apache.org/  Spring Data Gemfire: プロジェクトホーム • http://projects.spring.io/spring-data-gemfire/  今回使用したデモ用アプリケーションプロジェクト一式 • https://github.com/AkihiroKitada/MySpringDataGemfireSamples
