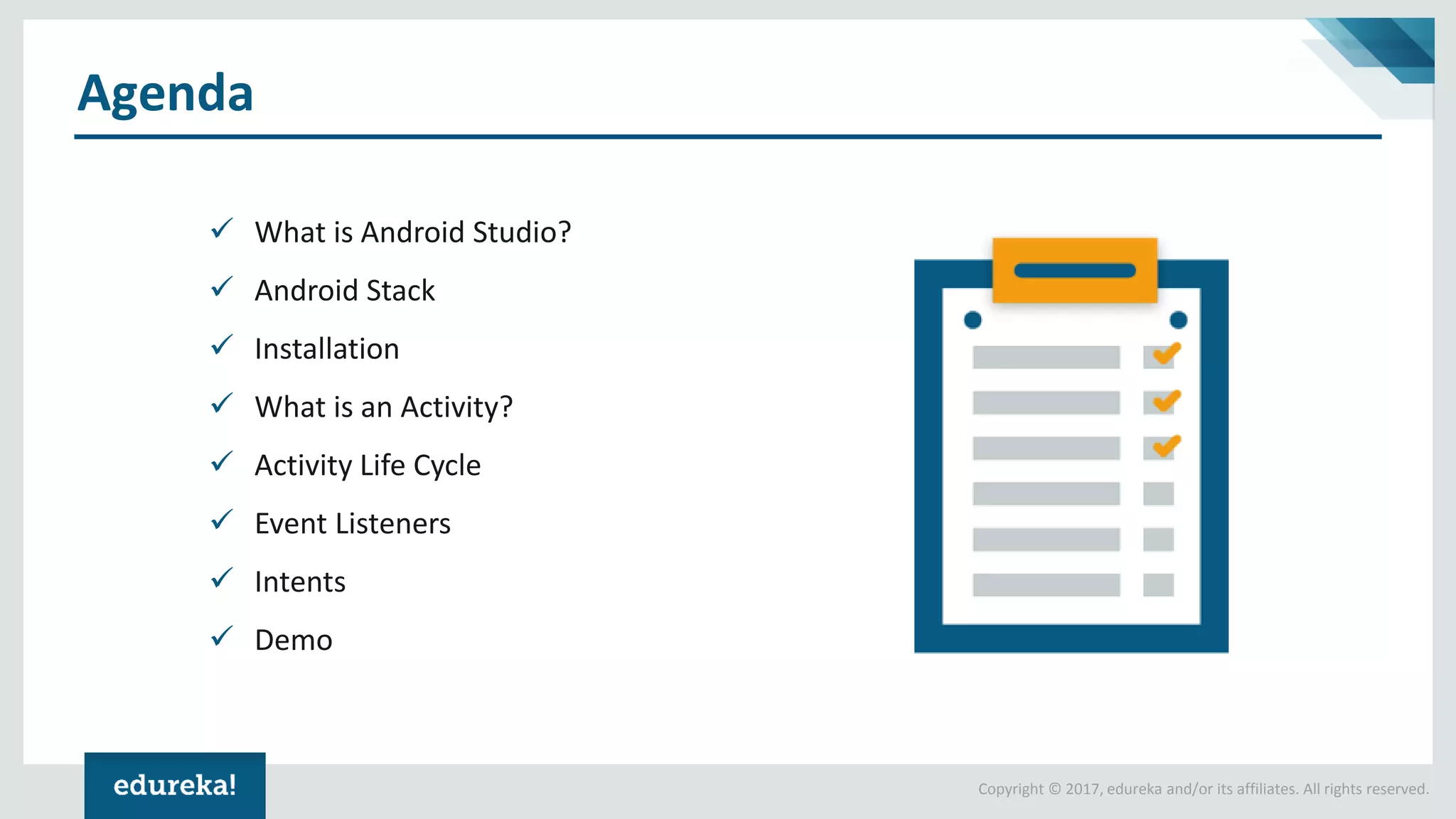

Agenda
✓ What is Android Studio?
✓ Android Stack
✓ Installation
✓ What is an Activity?
✓ Activity Life Cycle
✓ Event Listeners
✓ Intents
✓ Demo

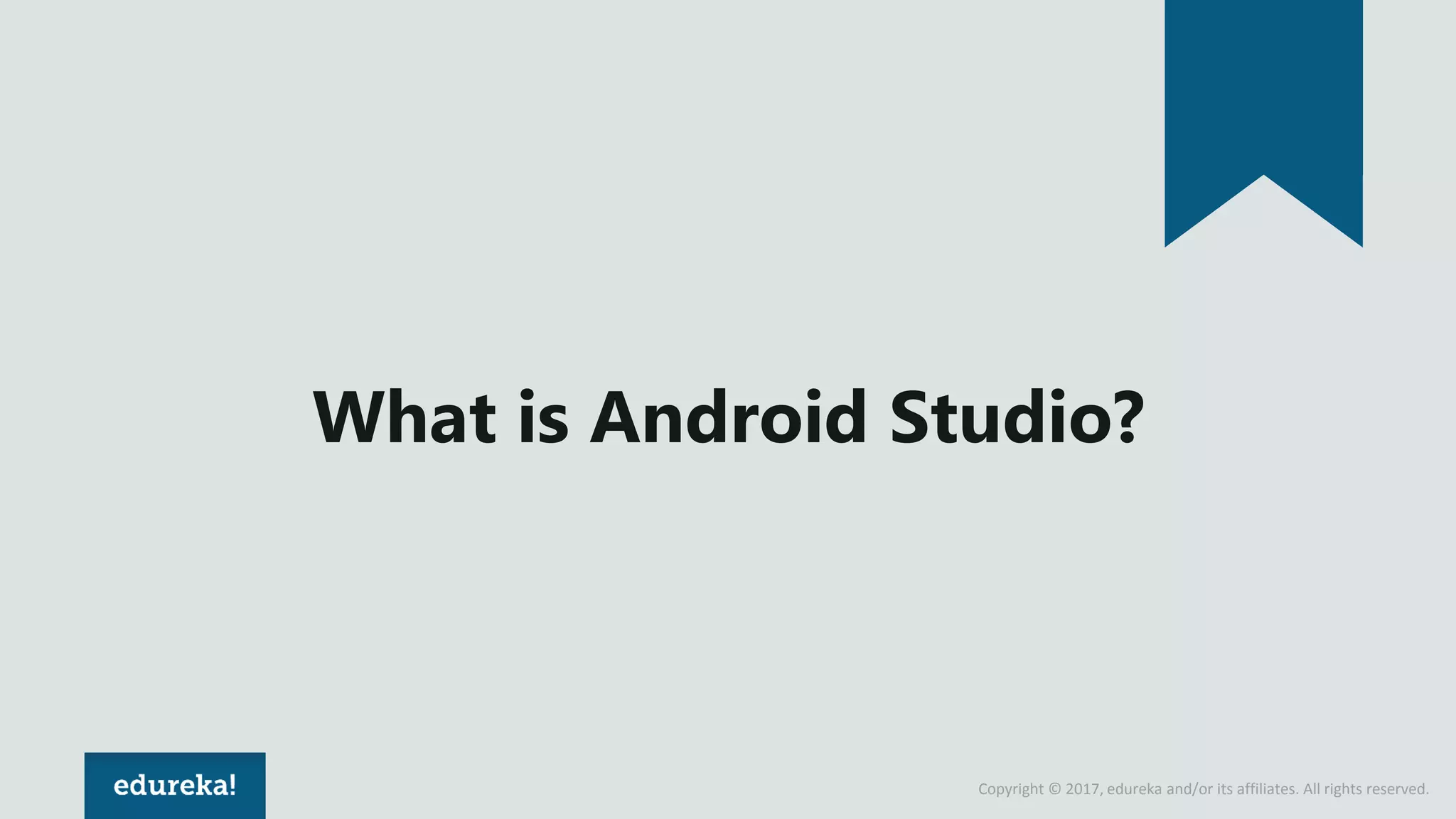

What is Android Studio?

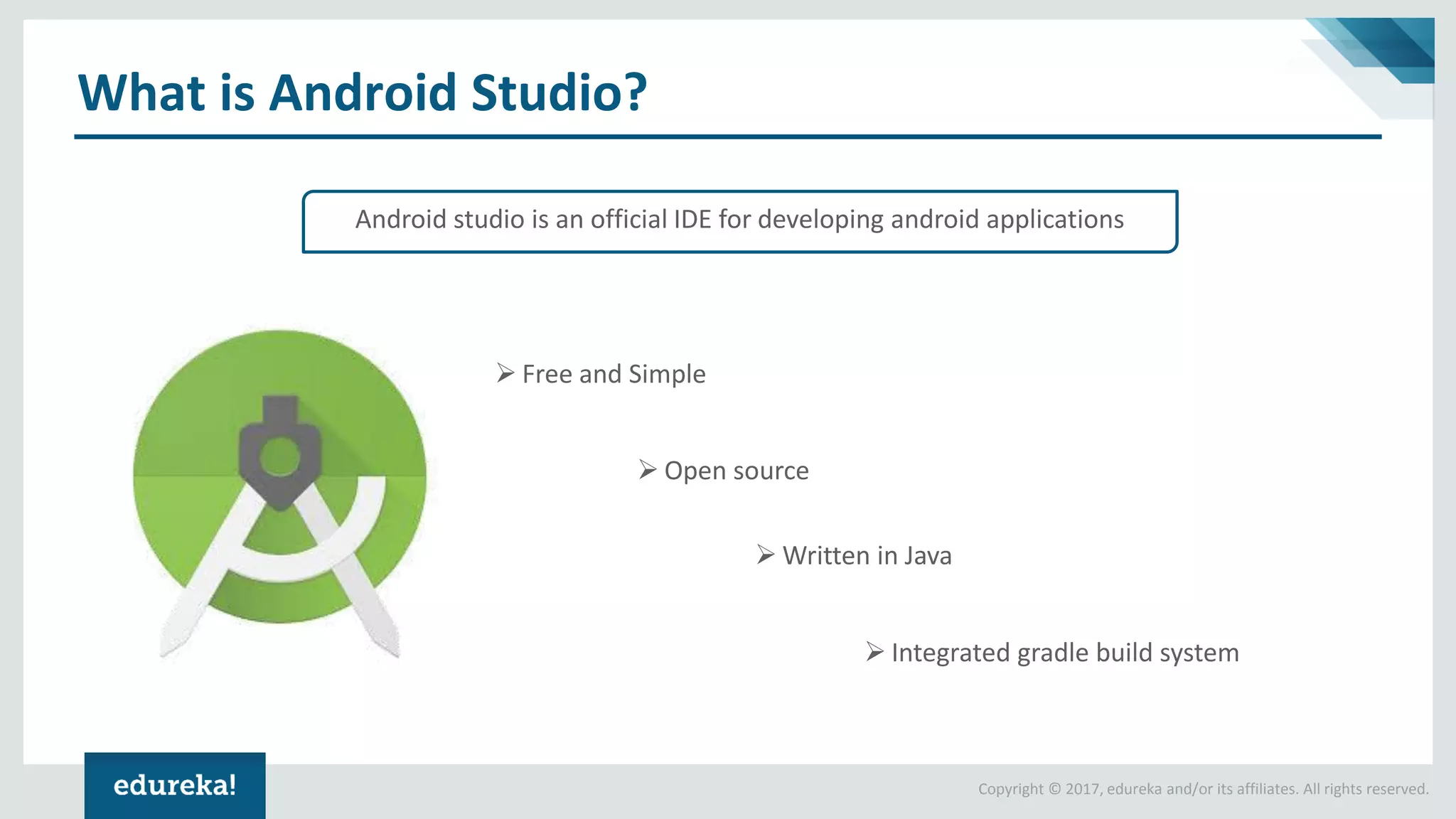

What is Android Studio?
Android studio is an official IDE for developing android applications
➢ Free and Simple
➢ Open source
➢ Written in Java
➢ Integrated gradle build system

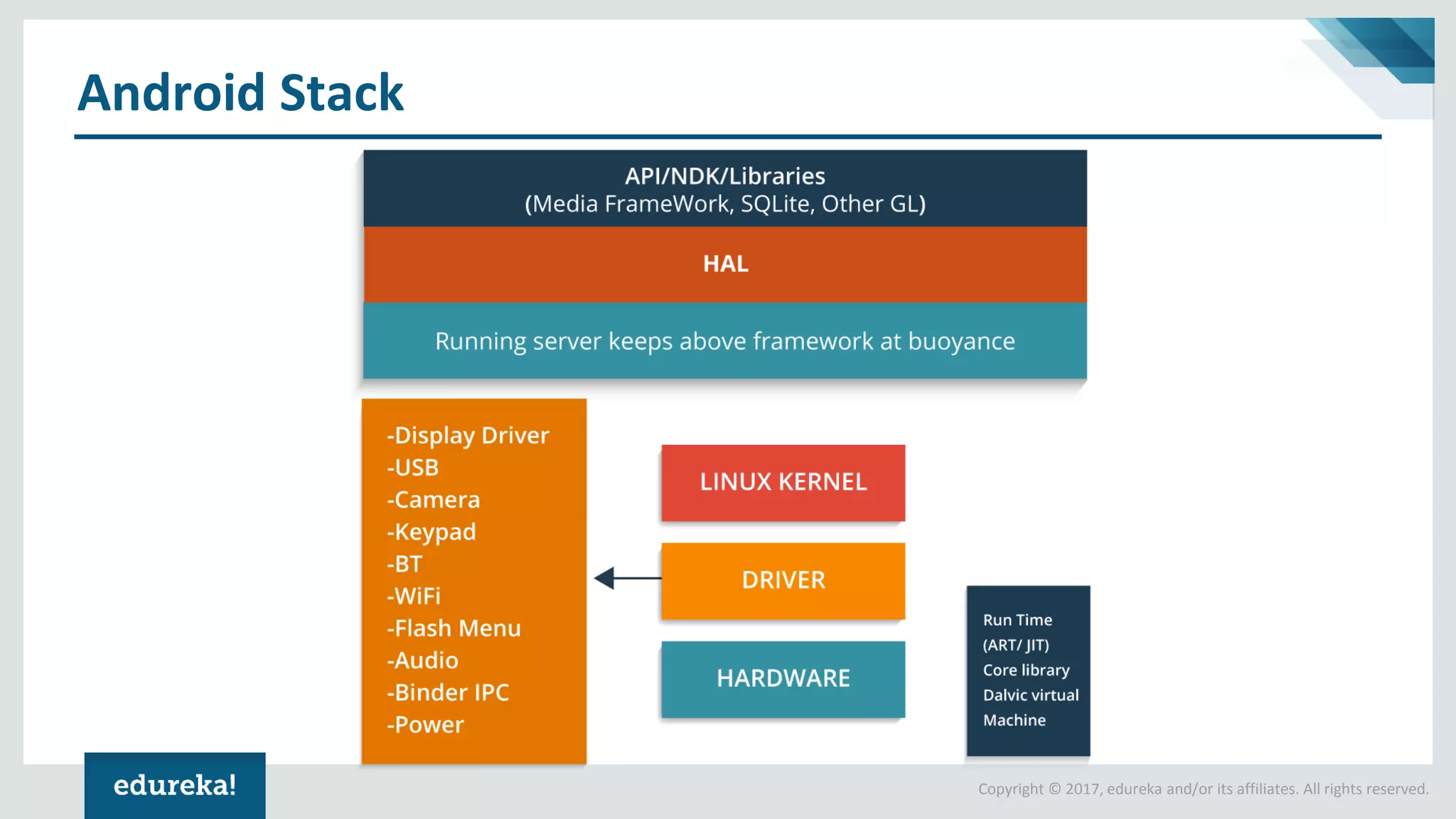

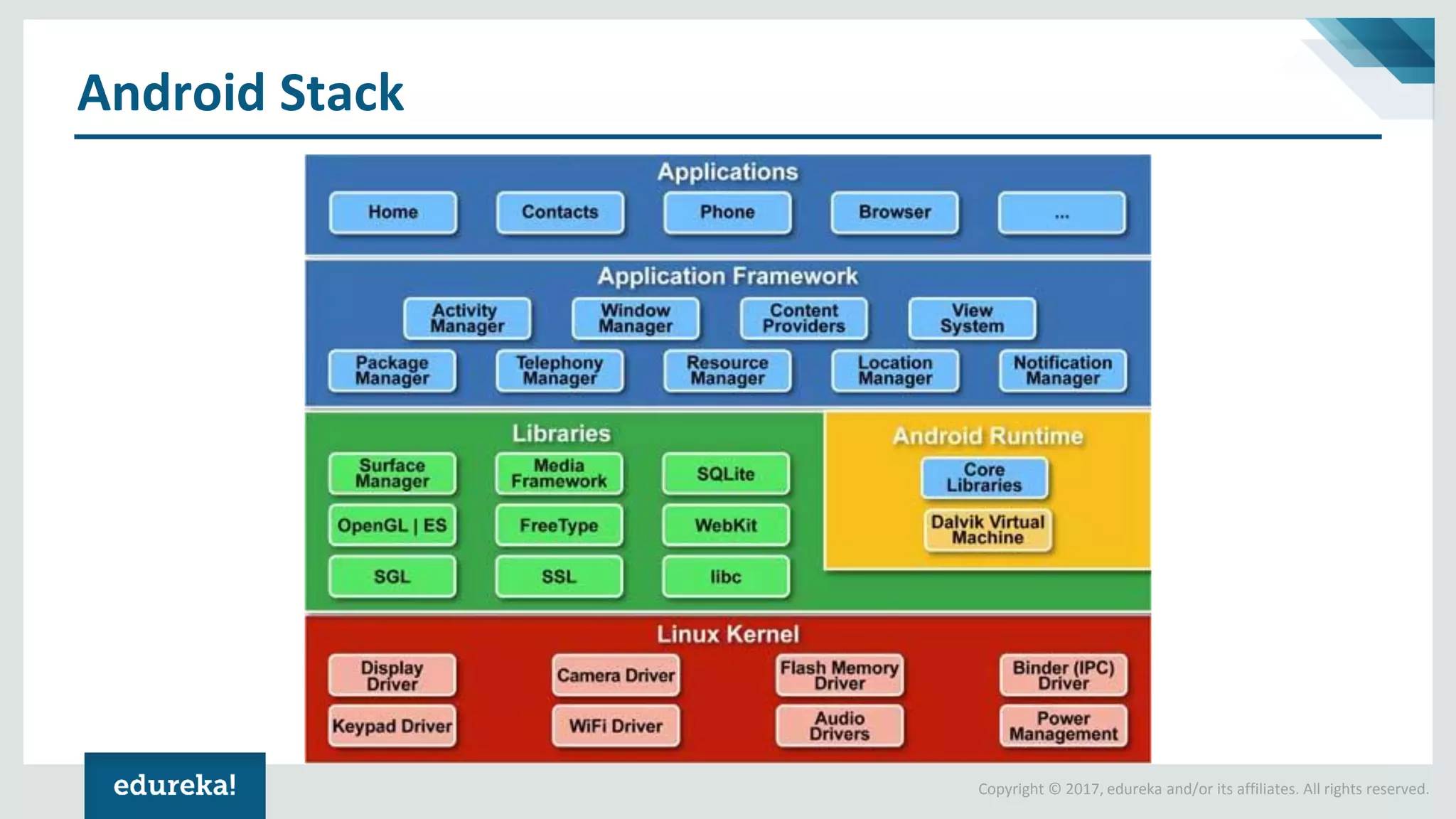

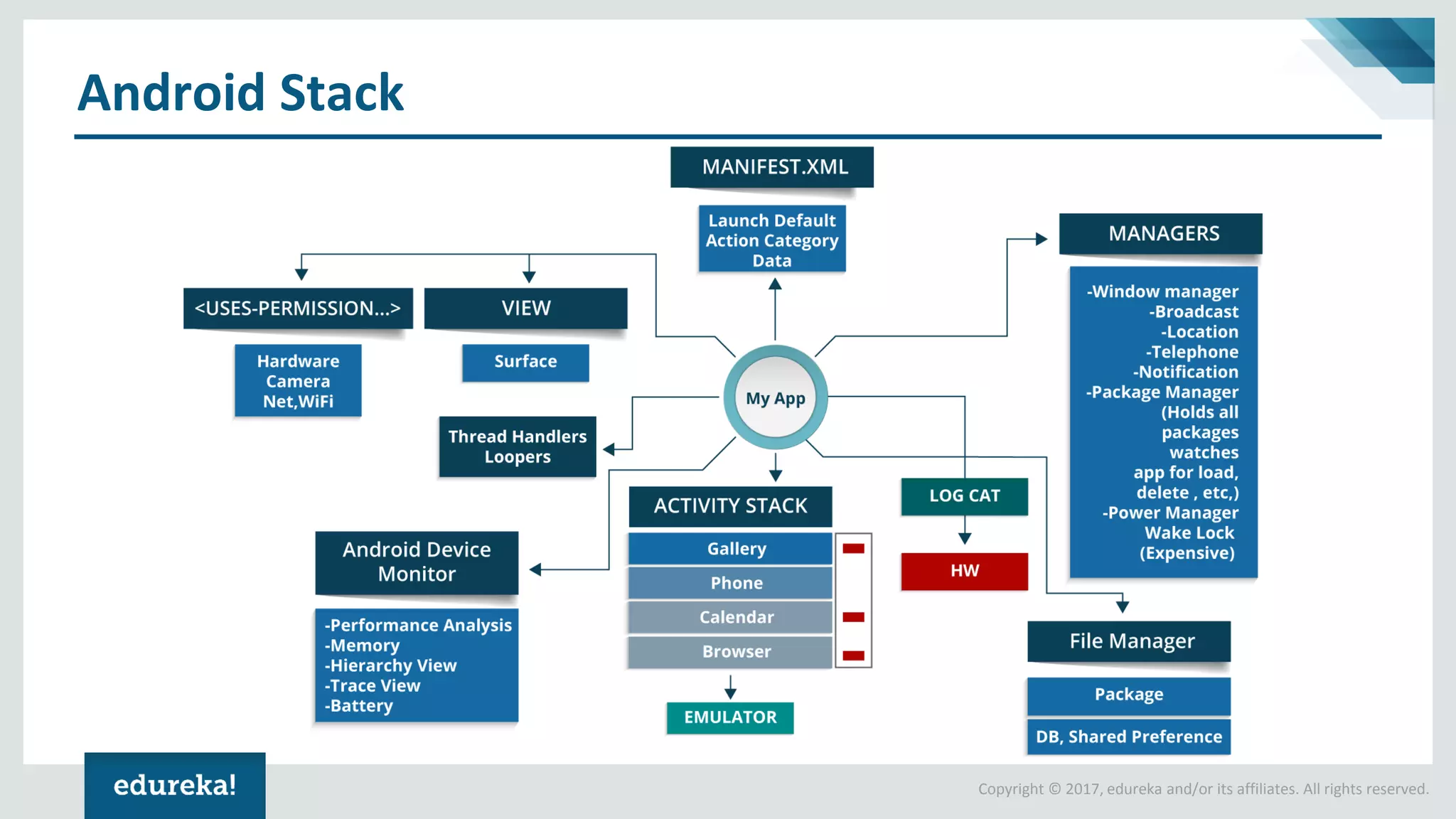

Android Stack

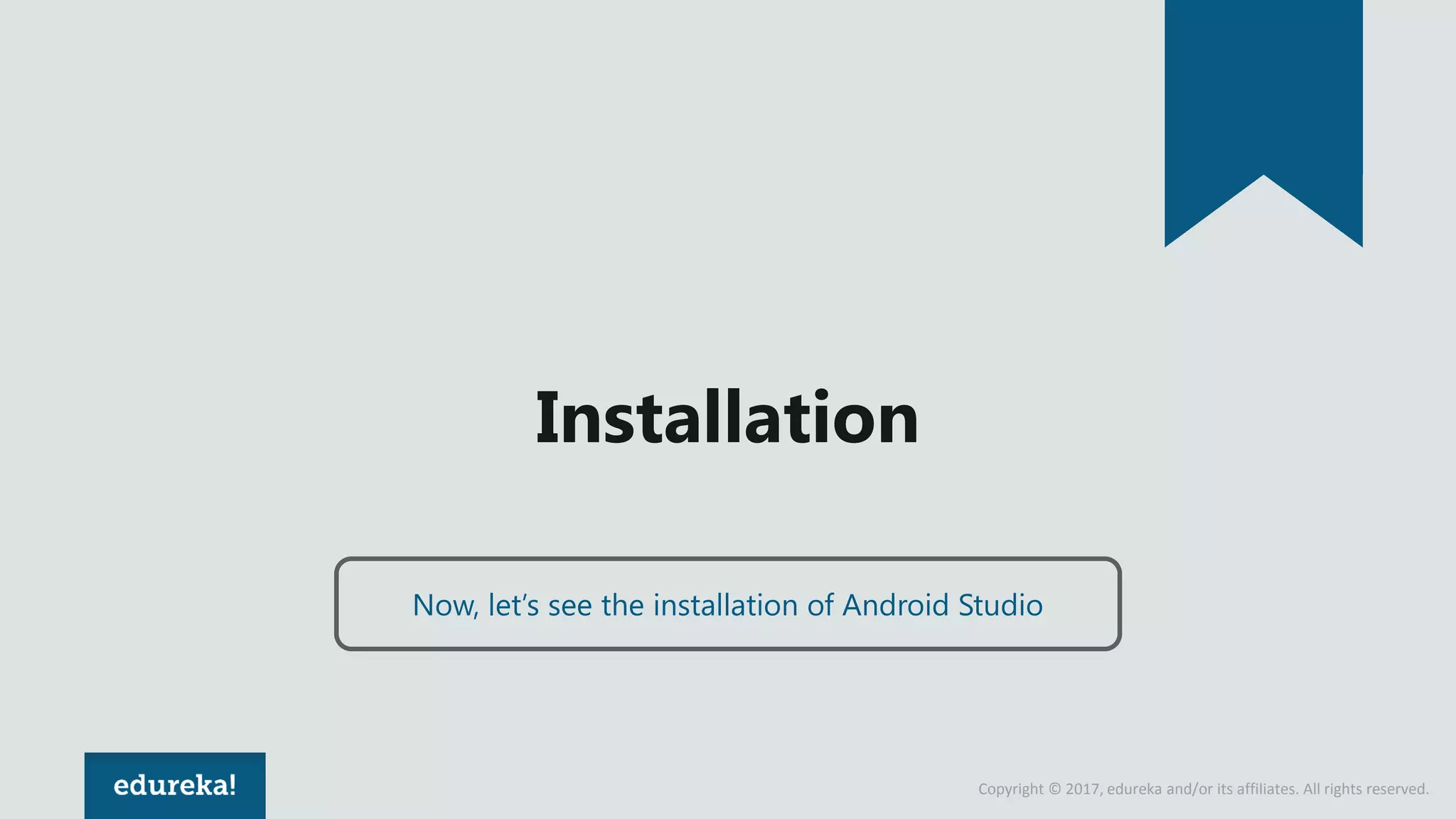

Installation
Now, let’s see the installation of Android Studio

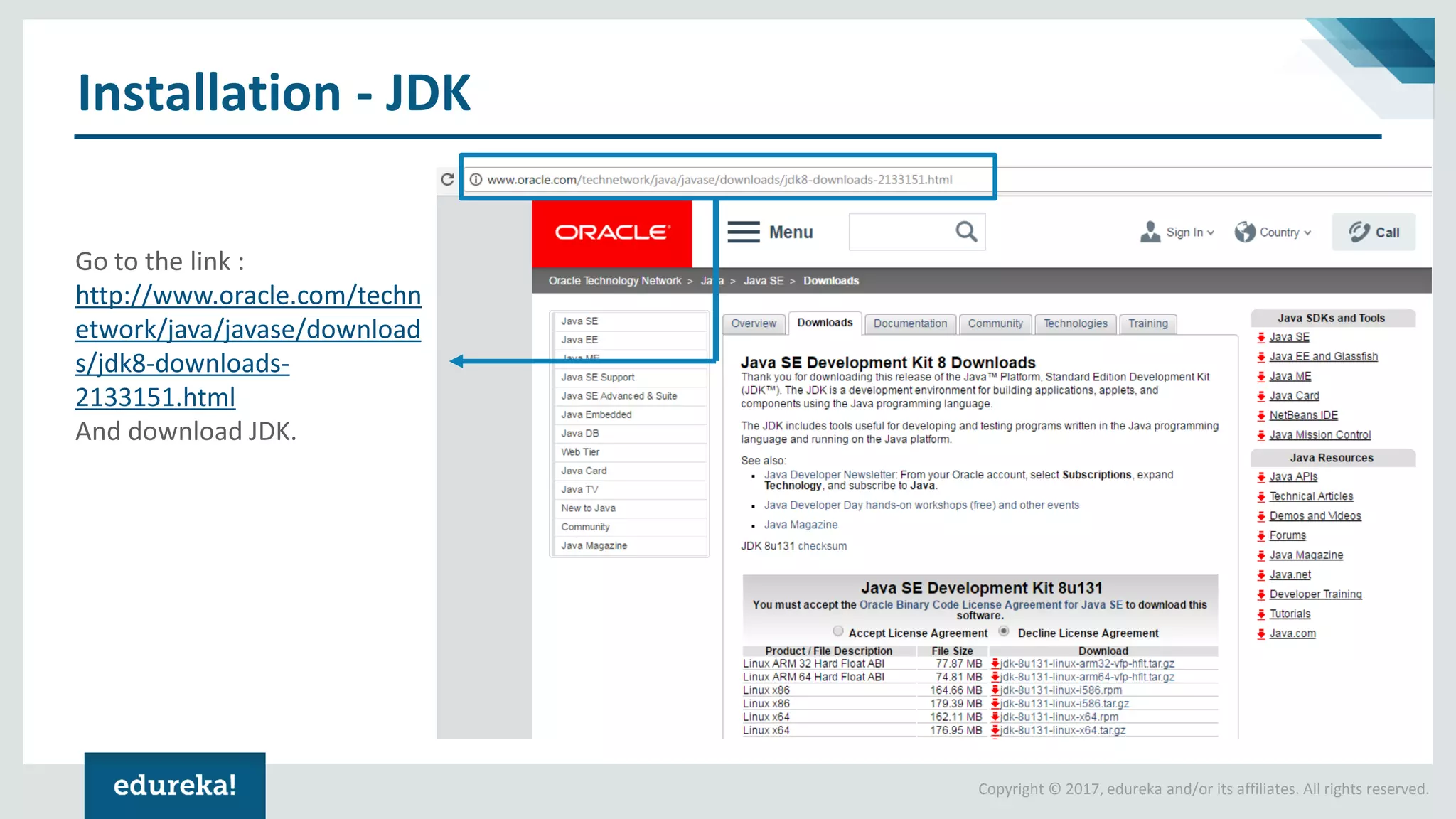

Installation - JDK
Go to the link :
http://www.oracle.com/techn
etwork/java/javase/download
s/jdk8-downloads-
2133151.html
And download JDK.

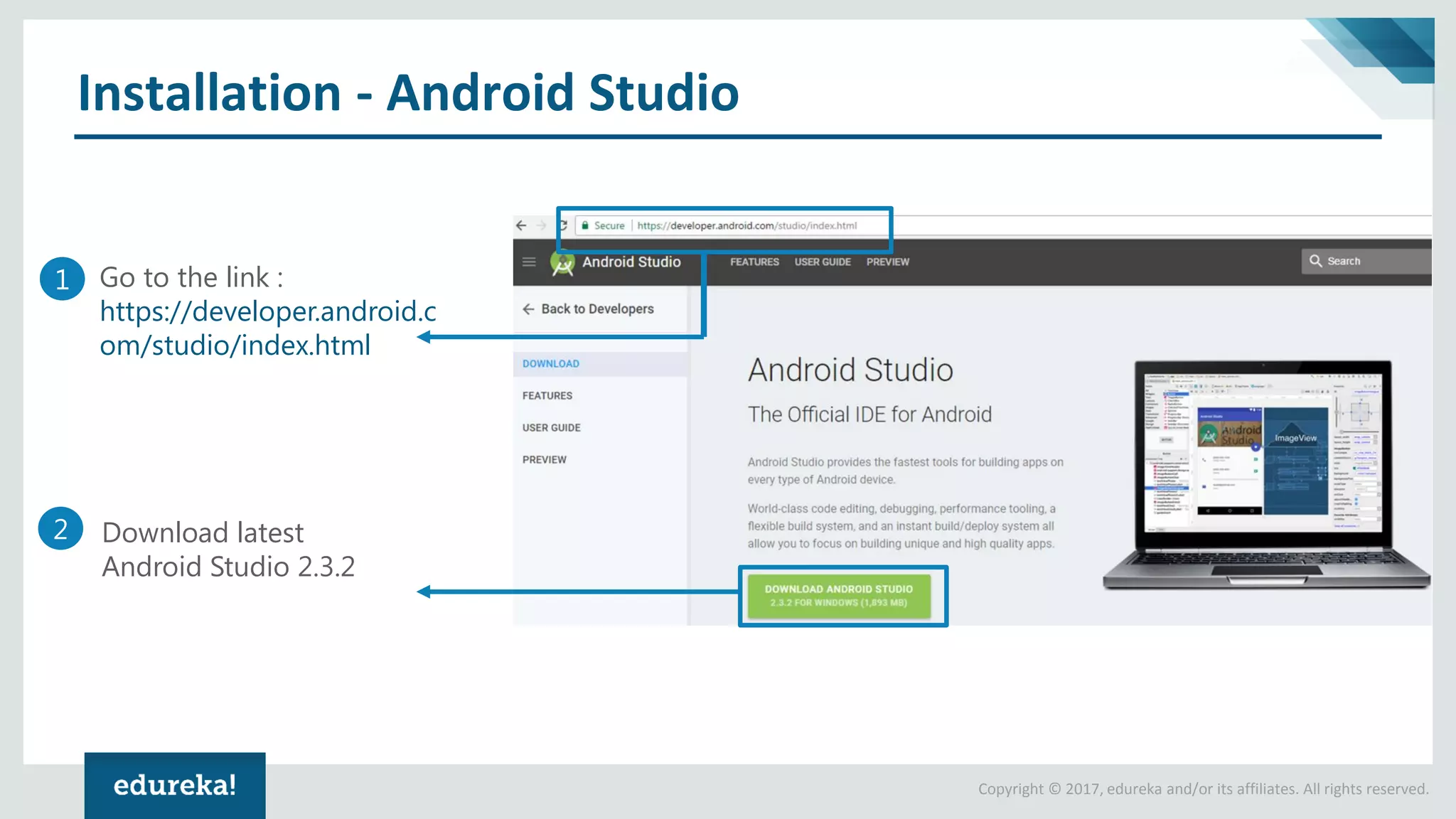

Installation - Android Studio
Go to the link :
https://developer.android.c
om/studio/index.html
Download latest
Android Studio 2.3.2
1
2

What is an Activity?

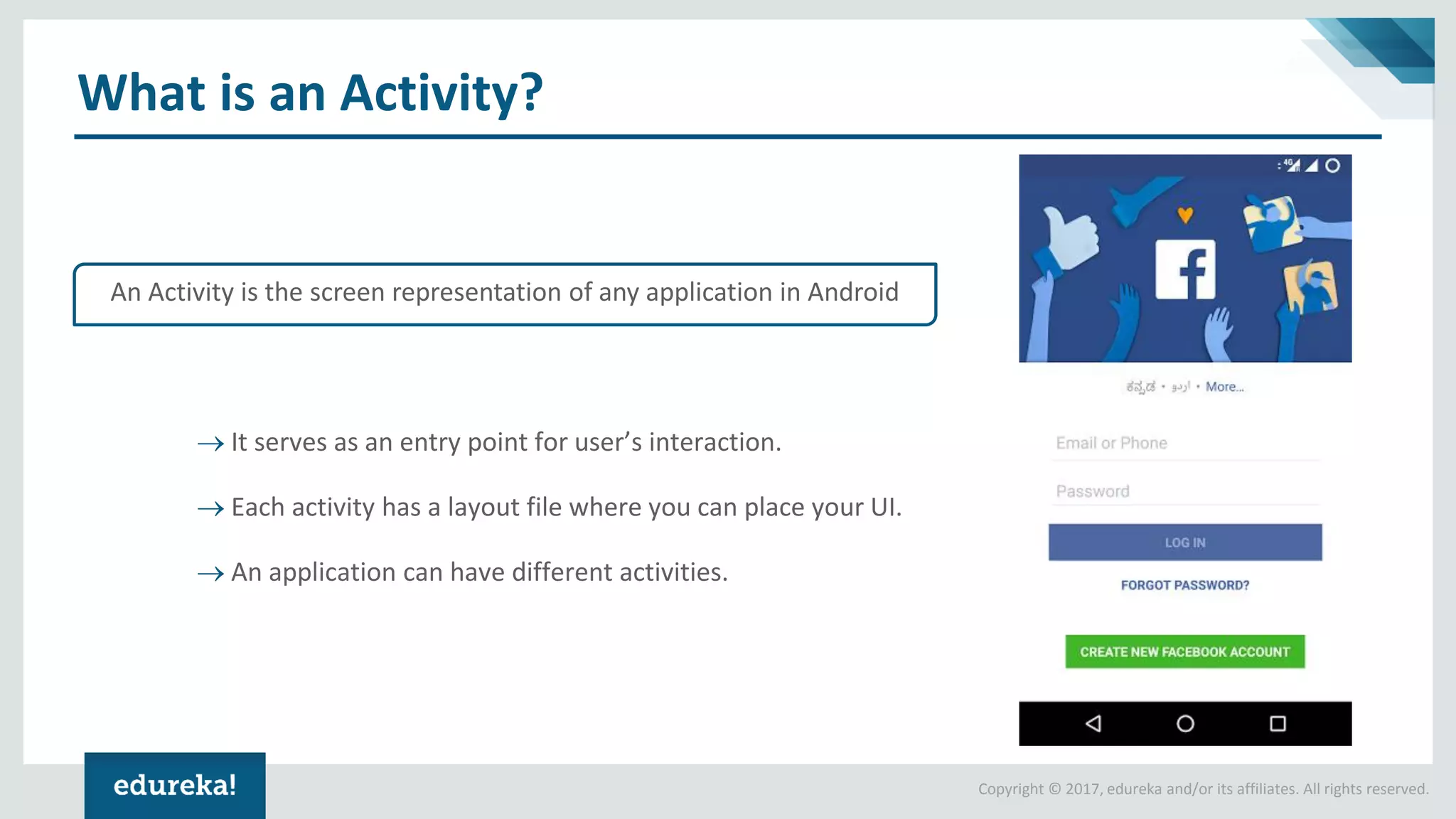

What is an Activity?
 It serves as an entry point for user’s interaction.
 Each activity has a layout file where you can place your UI.
 An application can have different activities.
An Activity is the screen representation of any application in Android

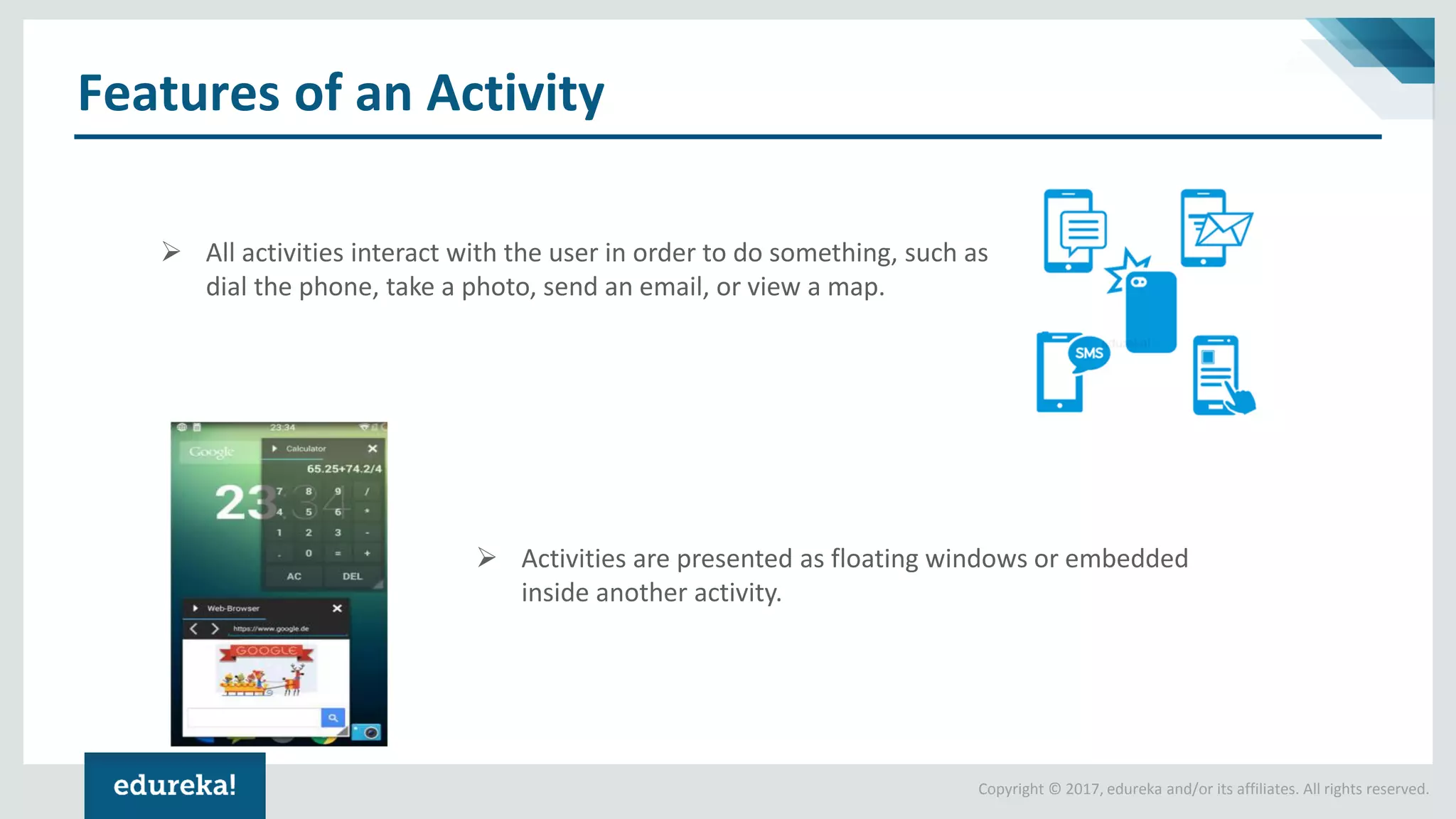

Features of an Activity
➢ All activities interact with the user in order to do something, such as
dial the phone, take a photo, send an email, or view a map.
➢ Activities are presented as floating windows or embedded
inside another activity.

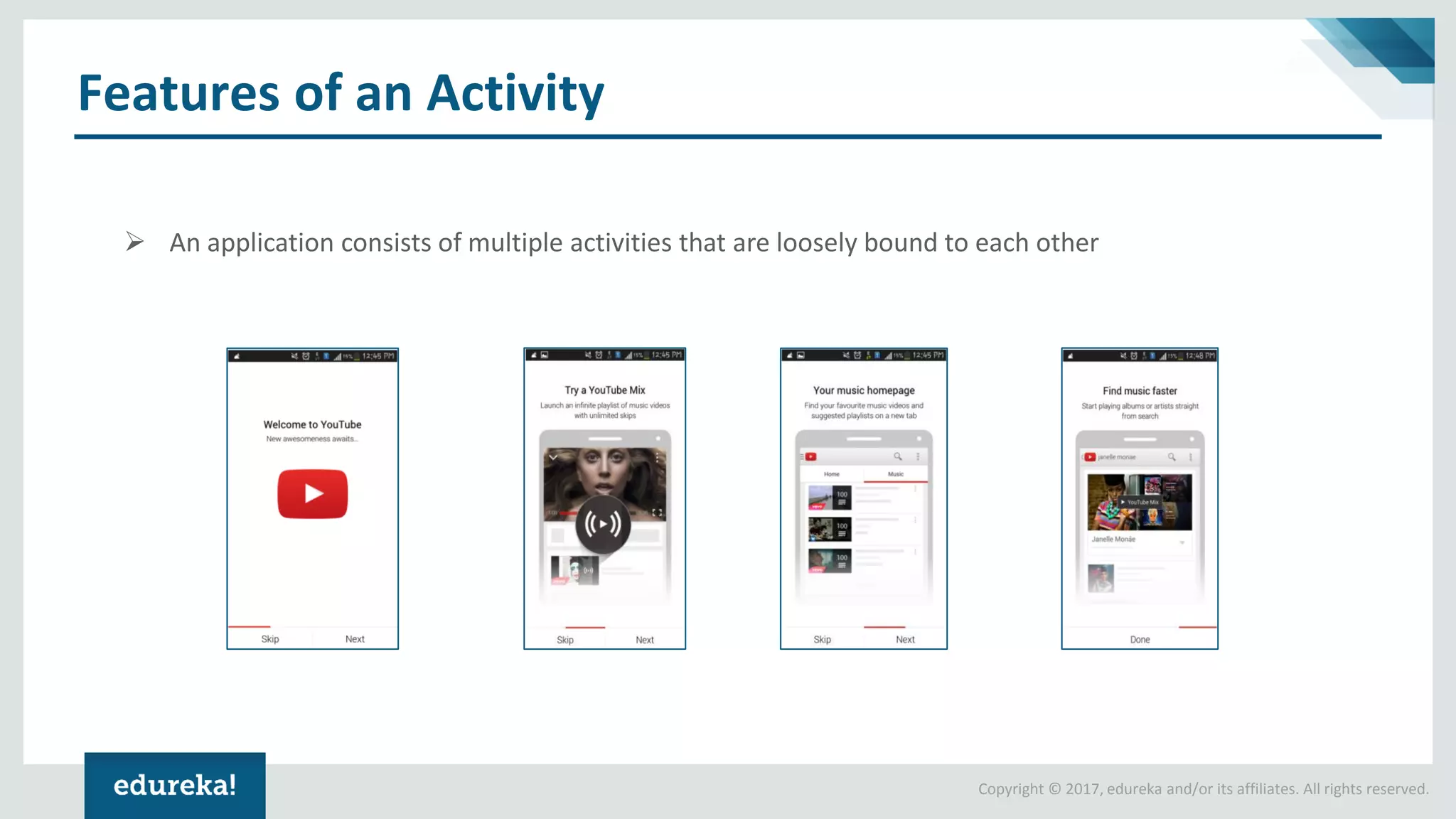

Features of an Activity
➢ An application consists of multiple activities that are loosely bound to each other

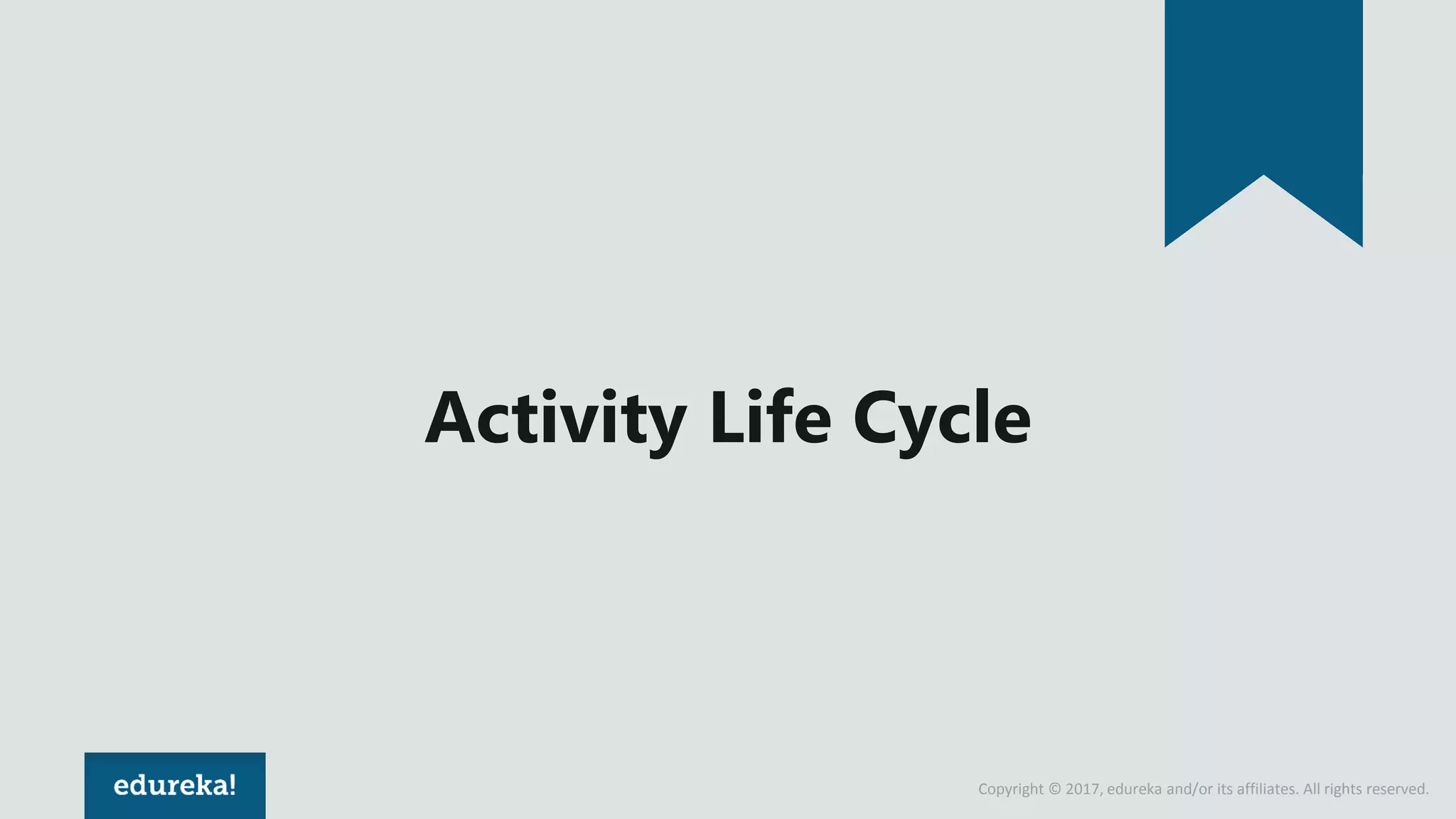

Activity Life Cycle

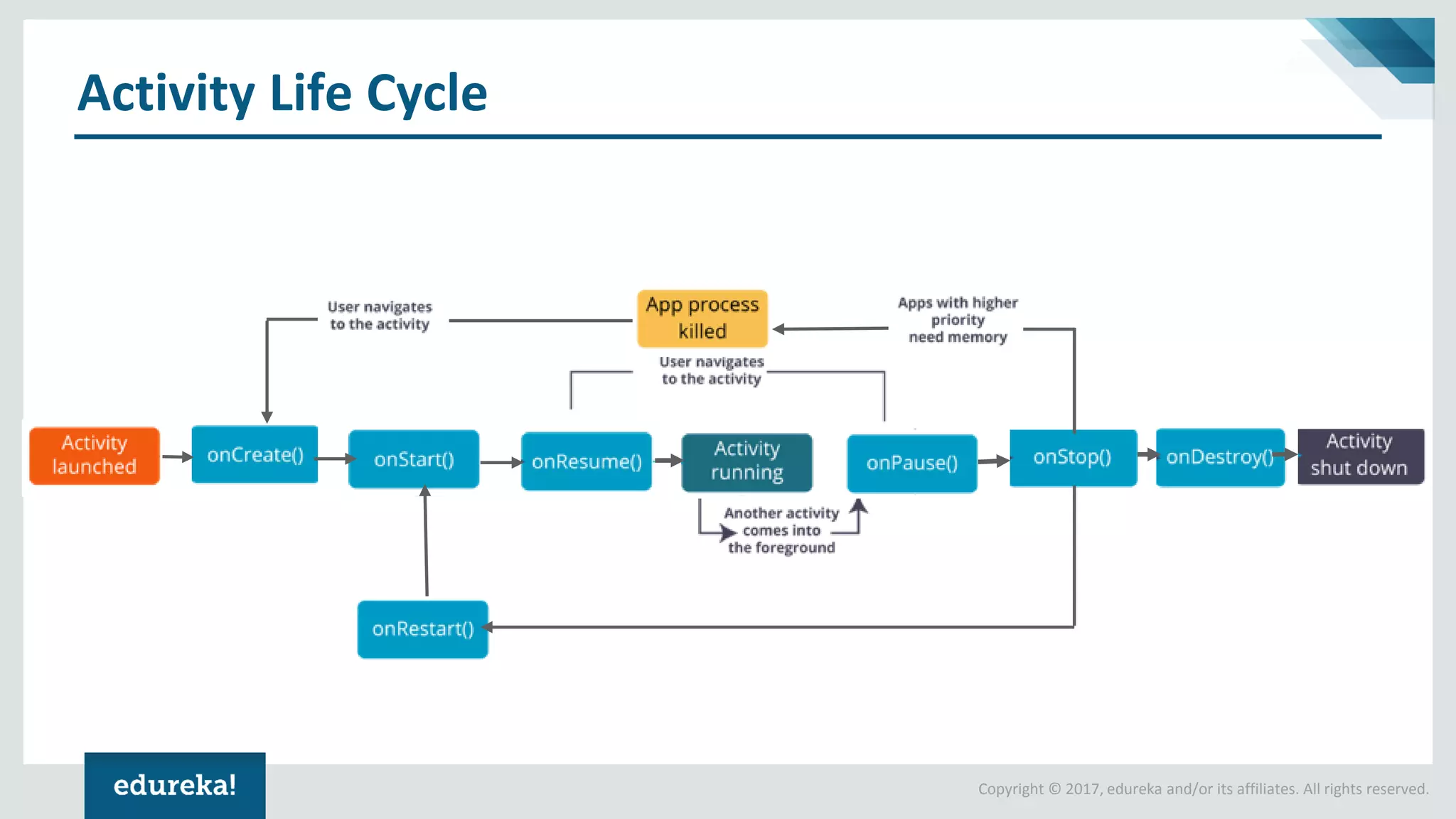

Activity Life Cycle
In this case the activity is
destroyed and removed
from the memory
In this state, the
activity is created.
Activity is in the
foreground and the user
can interact with it.
Activity is partially
obscured by another
activity. The other activity
that's in the foreground is
semi-transparent.
Activity is completely
hidden and not visible to
the user.
Create
Resumed (running state)
Stopped
Paused
Destroy

Event Listeners
Let’s look at various event listeners in an activity

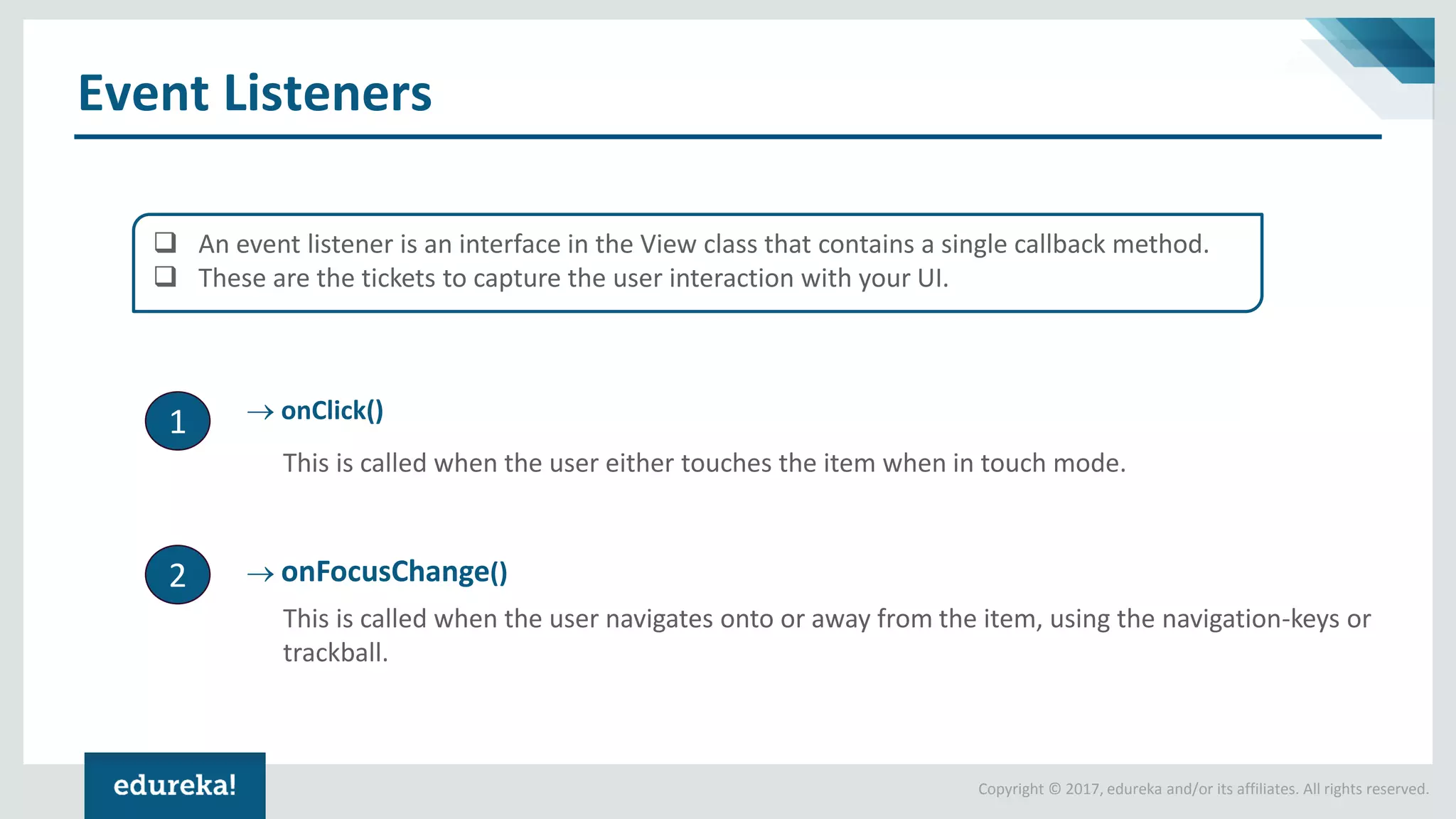

Event Listeners
 An event listener is an interface in the View class that contains a single callback method.
 These are the tickets to capture the user interaction with your UI.
This is called when the user either touches the item when in touch mode.
 onClick()
This is called when the user navigates onto or away from the item, using the navigation-keys or
trackball.
 onFocusChange()
1
2

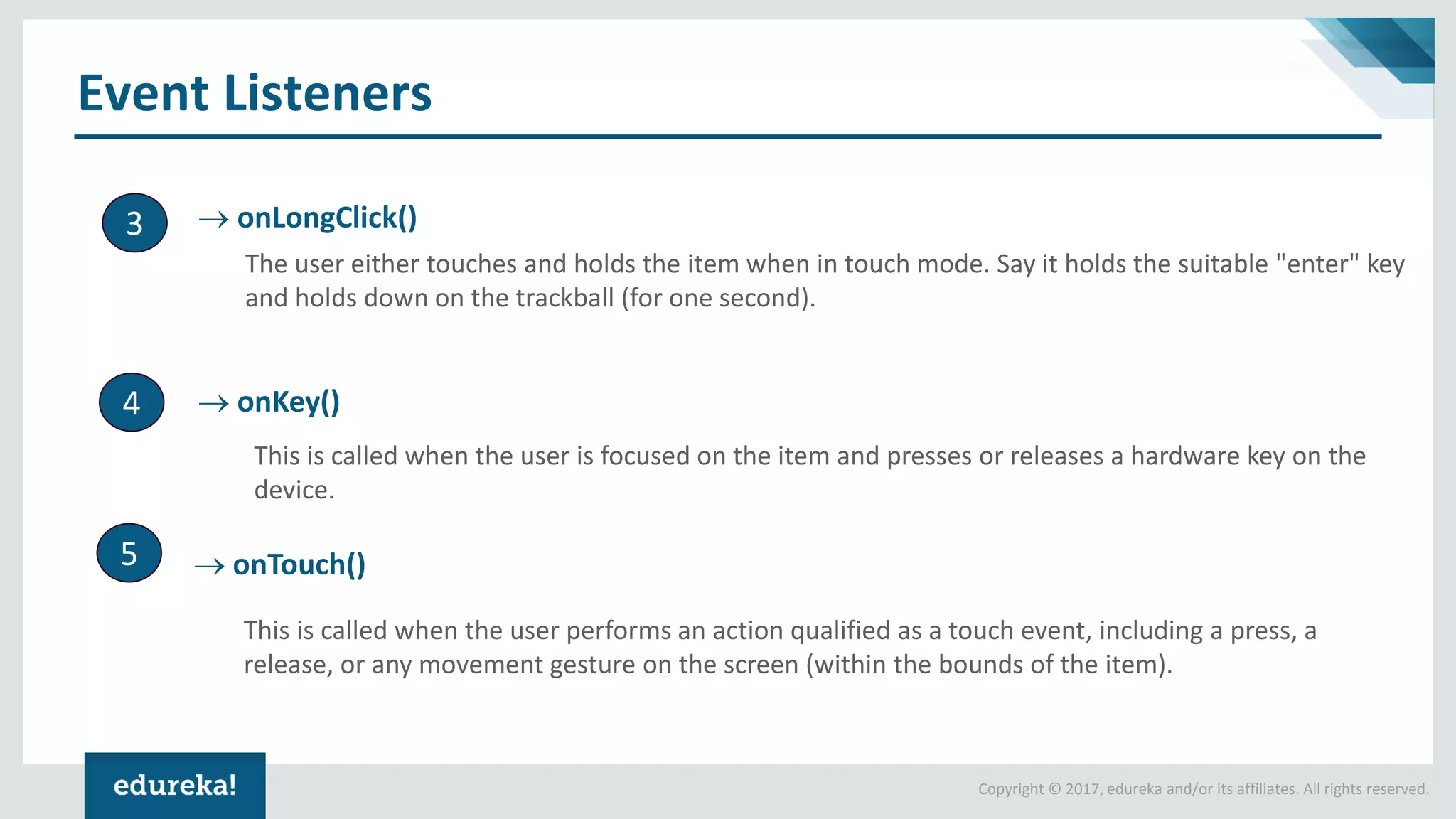

Event Listeners
 onLongClick()
 onKey()
 onTouch()
The user either touches and holds the item when in touch mode. Say it holds the suitable "enter" key
and holds down on the trackball (for one second).
This is called when the user is focused on the item and presses or releases a hardware key on the
device.
This is called when the user performs an action qualified as a touch event, including a press, a
release, or any movement gesture on the screen (within the bounds of the item).
3
4
5

Intents

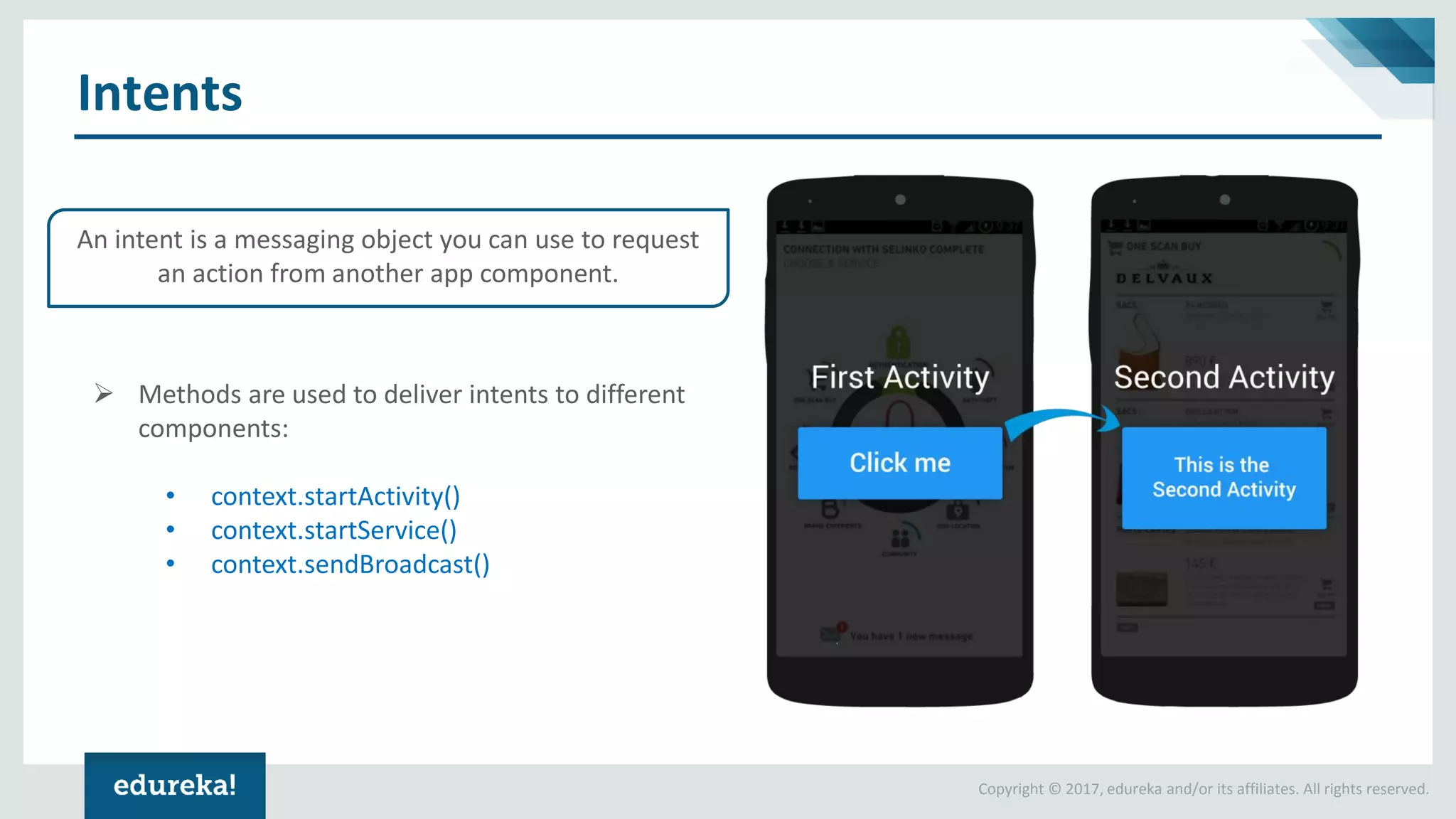

Intents
An intent is a messaging object you can use to request
an action from another app component.
➢ Methods are used to deliver intents to different
components:
• context.startActivity()
• context.startService()
• context.sendBroadcast()

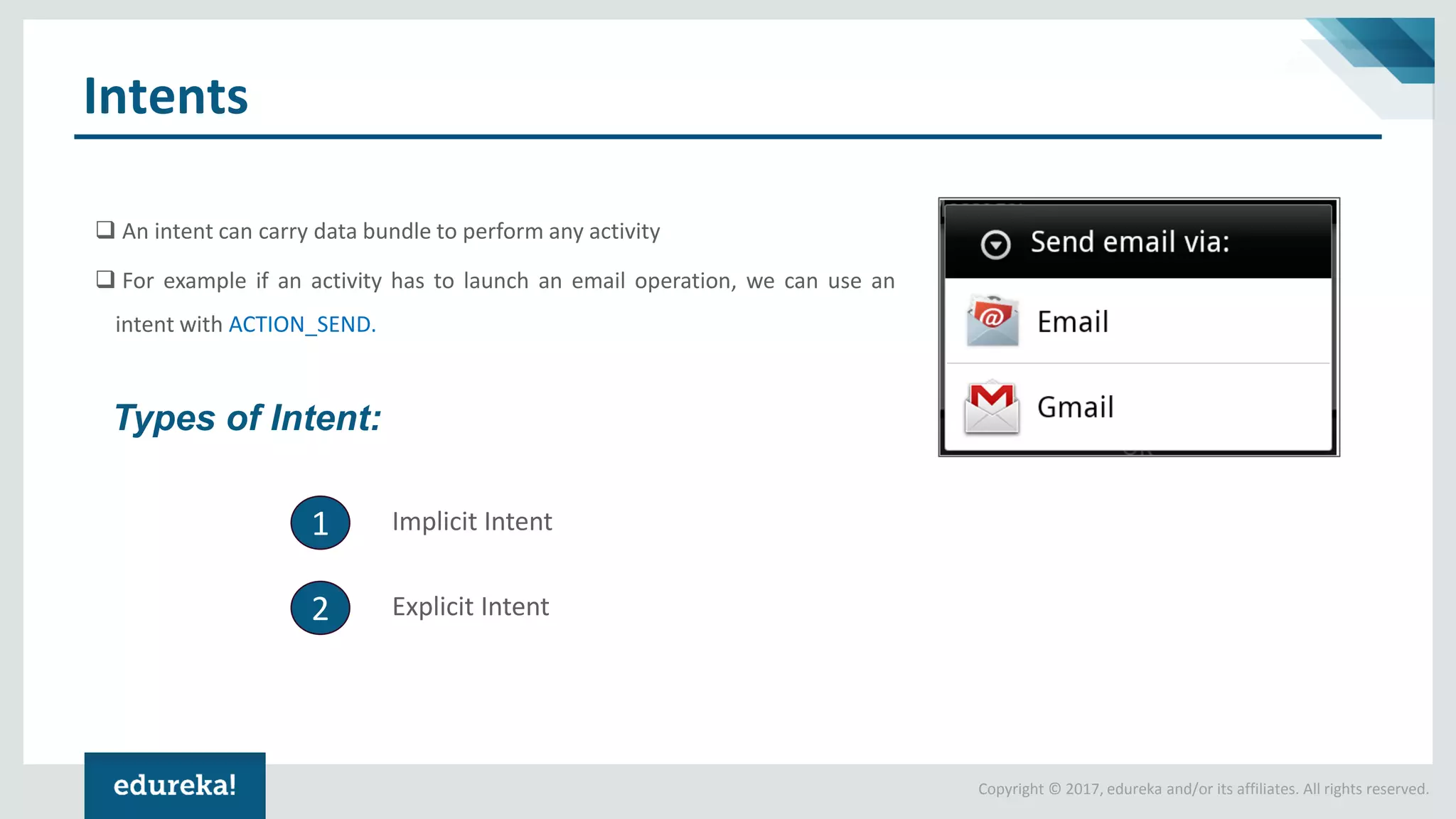

Intents
 An intent can carry data bundle to perform any activity
 For example if an activity has to launch an email operation, we can use an
intent with ACTION_SEND.
Types of Intent:
Implicit Intent
Explicit Intent
1
2

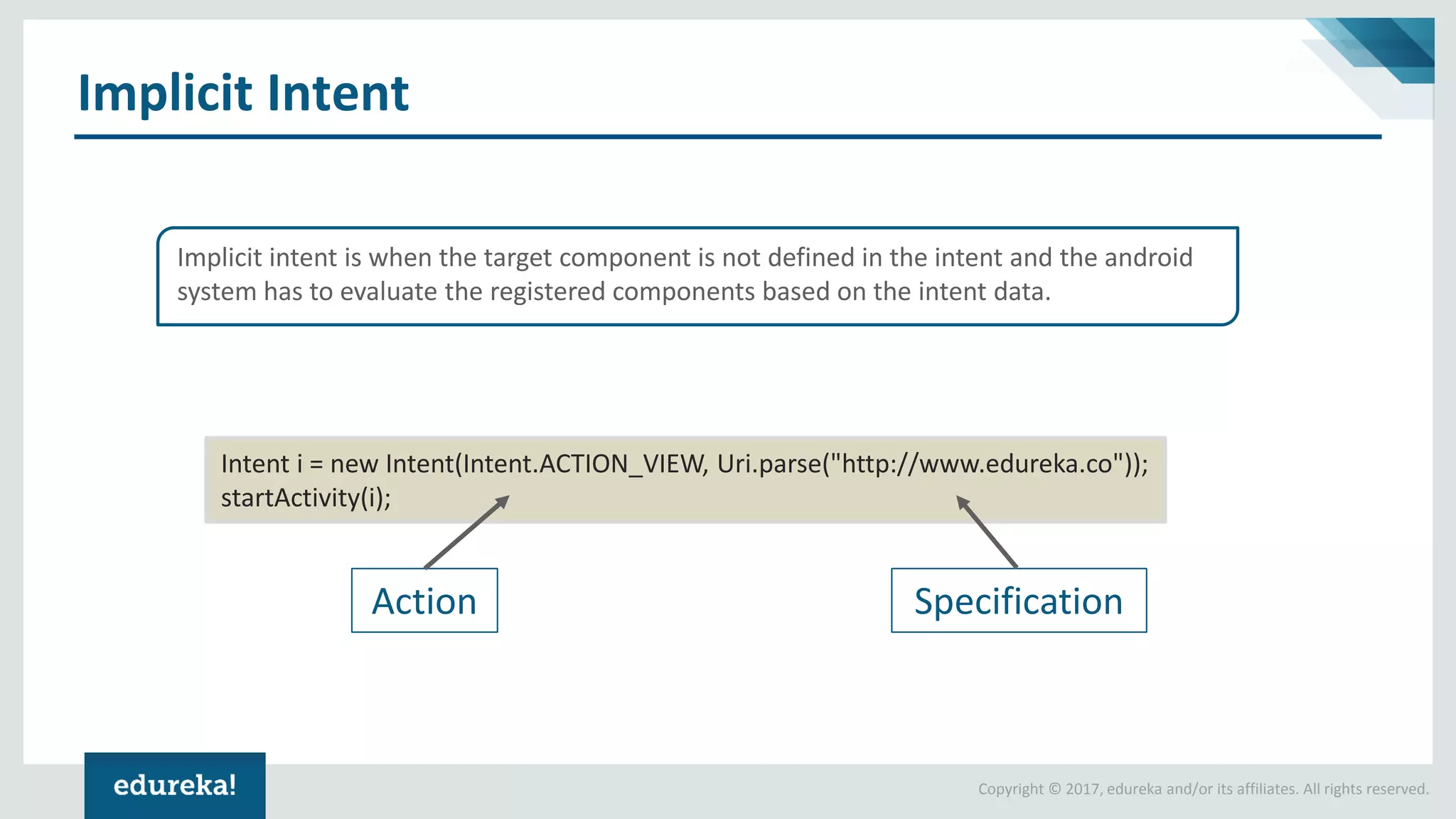

Implicit Intent
Implicit intent is when the target component is not defined in the intent and the android
system has to evaluate the registered components based on the intent data.
Intent i = new Intent(Intent.ACTION_VIEW, Uri.parse("http://www.edureka.co"));
startActivity(i);
Action Specification

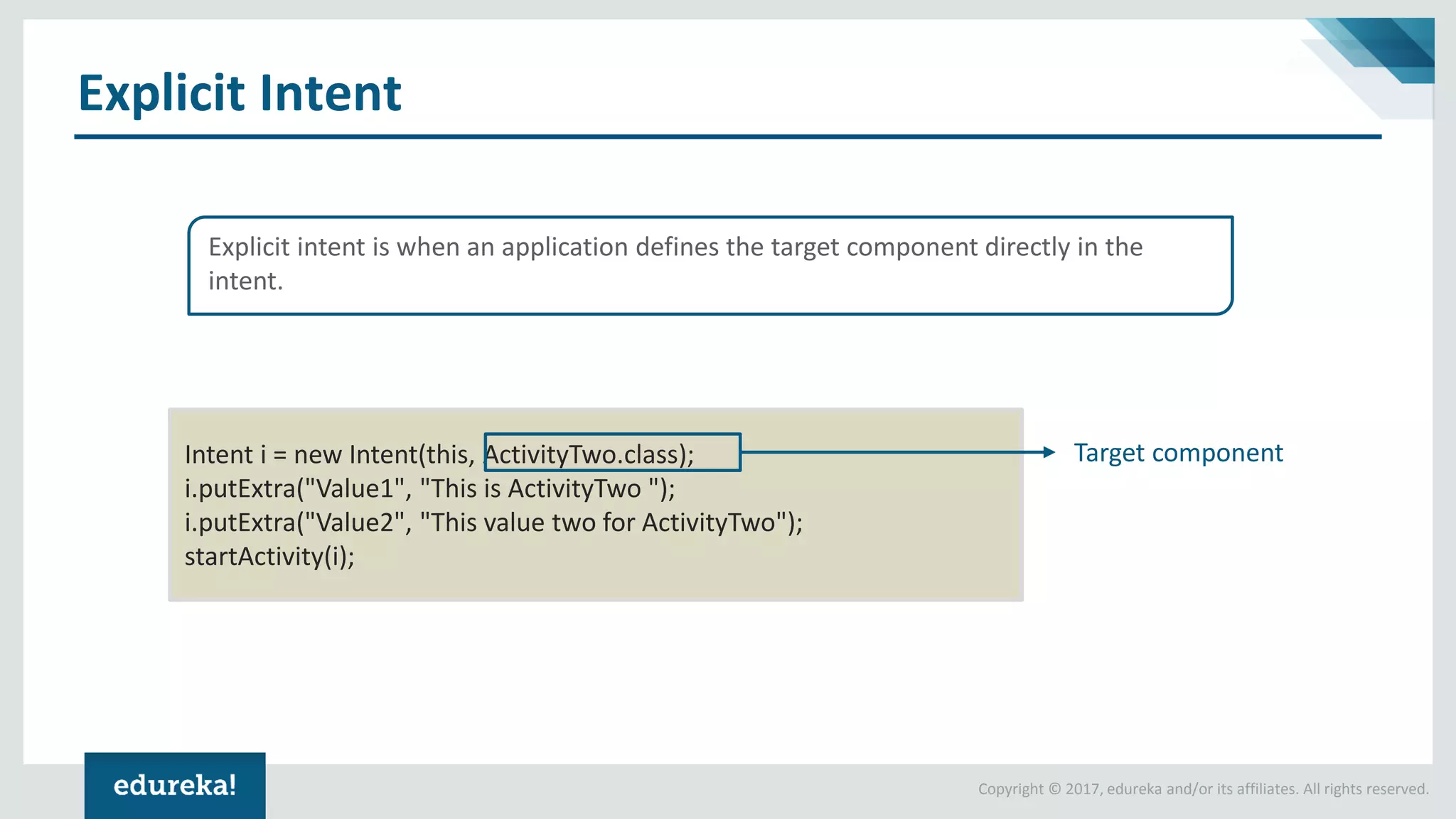

Explicit Intent
Explicit intent is when an application defines the target component directly in the
intent.
Intent i = new Intent(this, ActivityTwo.class);
i.putExtra("Value1", "This is ActivityTwo ");
i.putExtra("Value2", "This value two for ActivityTwo");
startActivity(i);
Target component

Demo
