1. Android-Based Robots
Bridging the gap...
Khaled Al-Kady
Robotics25

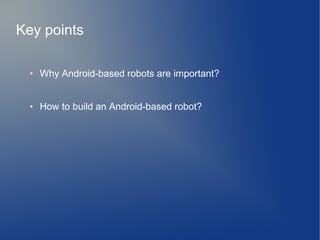

2. Key points
● Why Android-based robots are important?
● How to build an Android-based robot?

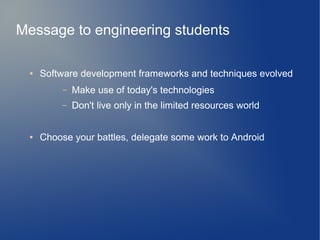

3. Message to engineering students
● Software development frameworks and techniques evolved
– Make use of today's technologies
– Don't live only in the limited resources world
● Choose your battles, delegate some work to Android

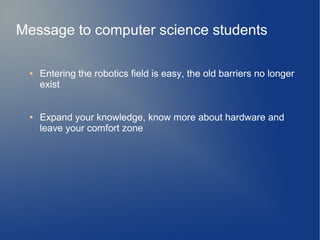

4. Message to computer science students
● Entering the robotics field is easy, the old barriers no longer
exist
● Expand your knowledge, know more about hardware and
leave your comfort zone

5. Now let's start!

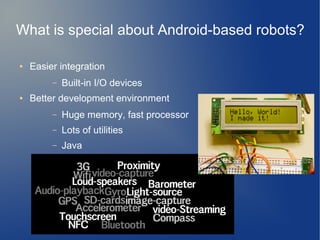

6. What is special about Android-based robots?
● Easier integration
– Built-in I/O devices
● Better development environment
– Huge memory, fast processor
– Lots of utilities
– Java

7. input
devices
output
devices
Micro-controller
IOIO or
Arduino
Android
device

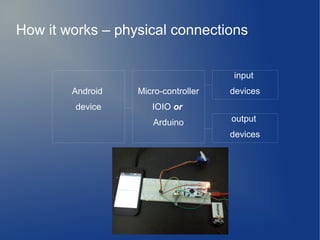

How it works – physical connections

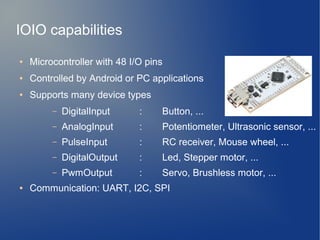

8. IOIO capabilities
● Microcontroller with 48 I/O pins
● Controlled by Android or PC applications
● Supports many device types
– DigitalInput : Button, ...
– AnalogInput : Potentiometer, Ultrasonic sensor, ...
– PulseInput : RC receiver, Mouse wheel, ...
– DigitalOutput : Led, Stepper motor, ...
– PwmOutput : Servo, Brushless motor, ...
● Communication: UART, I2C, SPI

9. Code!

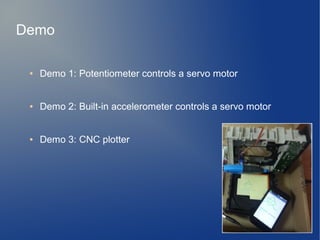

10. ● Demo 1: Potentiometer controls a servo motor
● Demo 2: Built-in accelerometer controls a servo motor
● Demo 3: CNC plotter
Demo

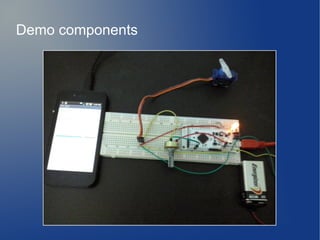

11. Demo components

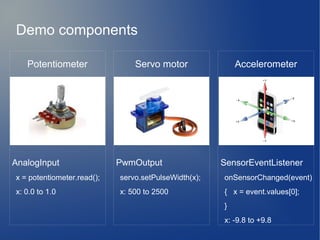

12. Servo motor
PwmOutput
servo.setPulseWidth(x);
x: 500 to 2500
Accelerometer
SensorEventListener
onSensorChanged(event)
{ x = event.values[0];
}
x: -9.8 to +9.8
Potentiometer
AnalogInput
x = potentiometer.read();
x: 0.0 to 1.0
Demo components

13. BaseIOIOLooperIOIOActivity IOIO
open X Output()
open Y Input()
MyLooper
setup() { }
loop() { }
MyScreen
createIOIOLooper(){ }

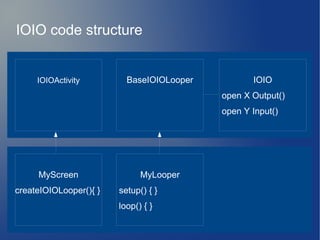

IOIO code structure

14. Connect the phone to Arduino using
● Google ADK
● ADB shield
● Bluetooth shield
Other approaches: Arduino
input
devices
output
devices
ArduinoAndroid

15. Computer on chip with built-in ports
● RaspberryPI
● BeagleBone
● PcDuino
sensors screen
input
devices
output
devices
Computer on chip

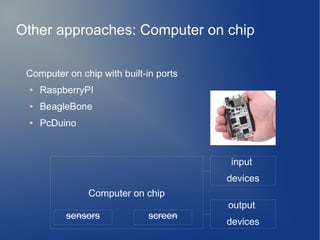

Other approaches: Computer on chip

16. ● Facebook.com/Robotics25
● Open source robotics projects
● Technical support for projects in the same domain
Get Involved

17. Thank you : )
Facebook.com/Robotics25
