Android app to the challenge
- 1. Android App to the challenge Udi Cohen

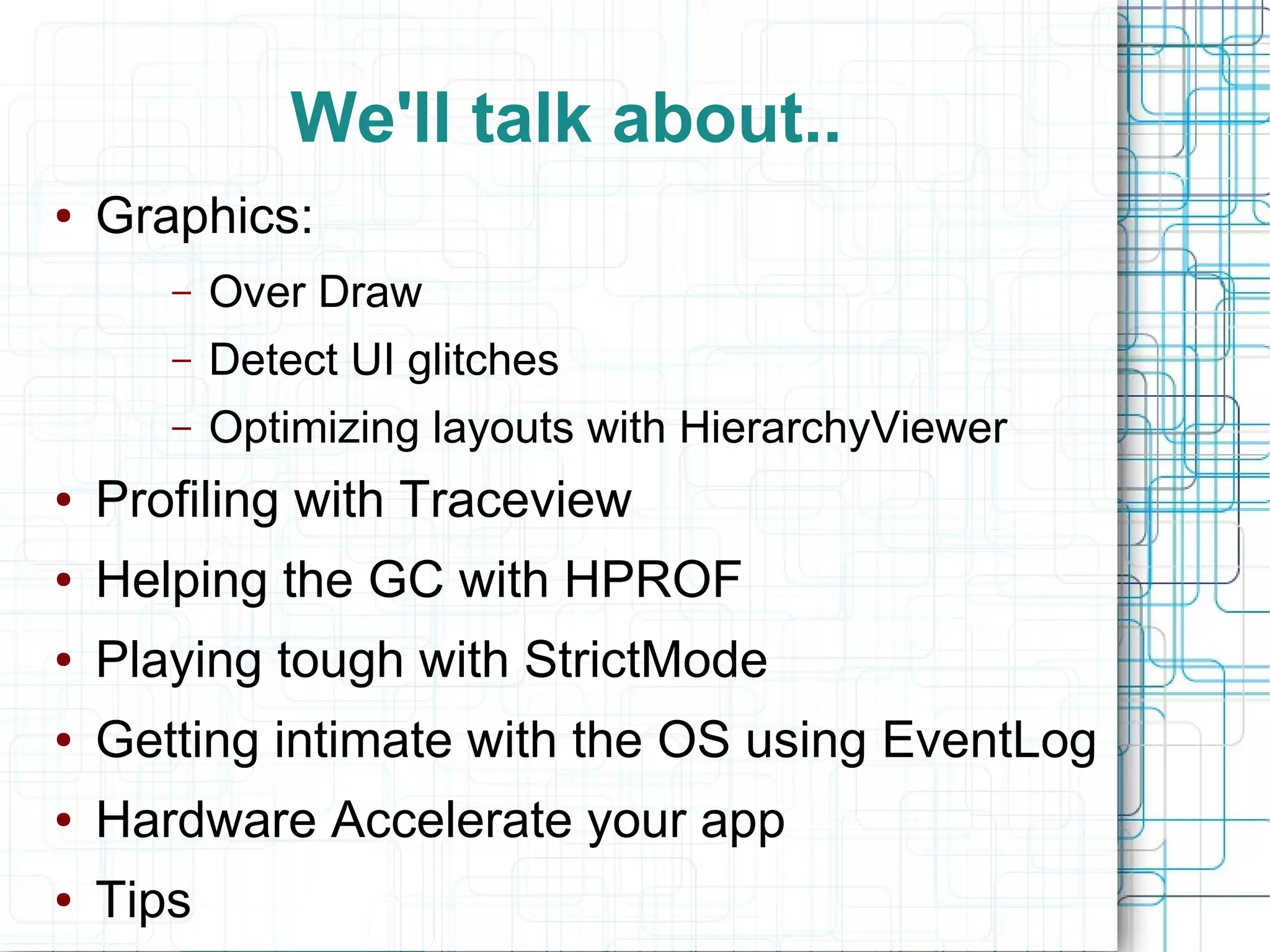

- 2. We'll talk about.. ● Graphics: – Over Draw – Detect UI glitches – Optimizing layouts with HierarchyViewer ● Profiling with Traceview ● Helping the GC with HPROF ● Playing tough with StrictMode ● Getting intimate with the OS using EventLog ● Hardware Accelerate your app ● Tips
- 3. whoami

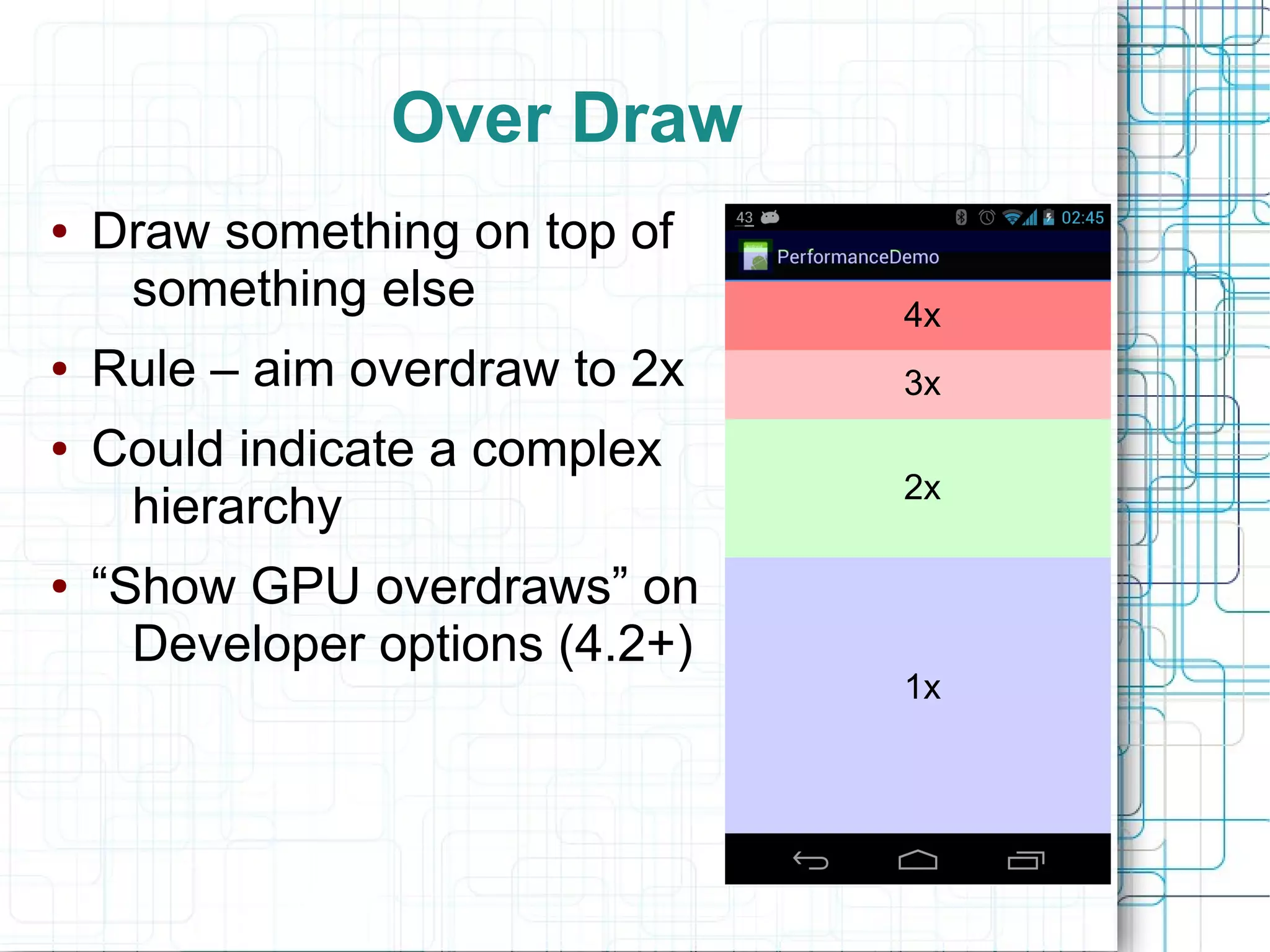

- 4. Over Draw ● Draw something on top of something else 4x ● Rule – aim overdraw to 2x 3x ● Could indicate a complex 2x hierarchy ● “Show GPU overdraws” on Developer options (4.2+) 1x

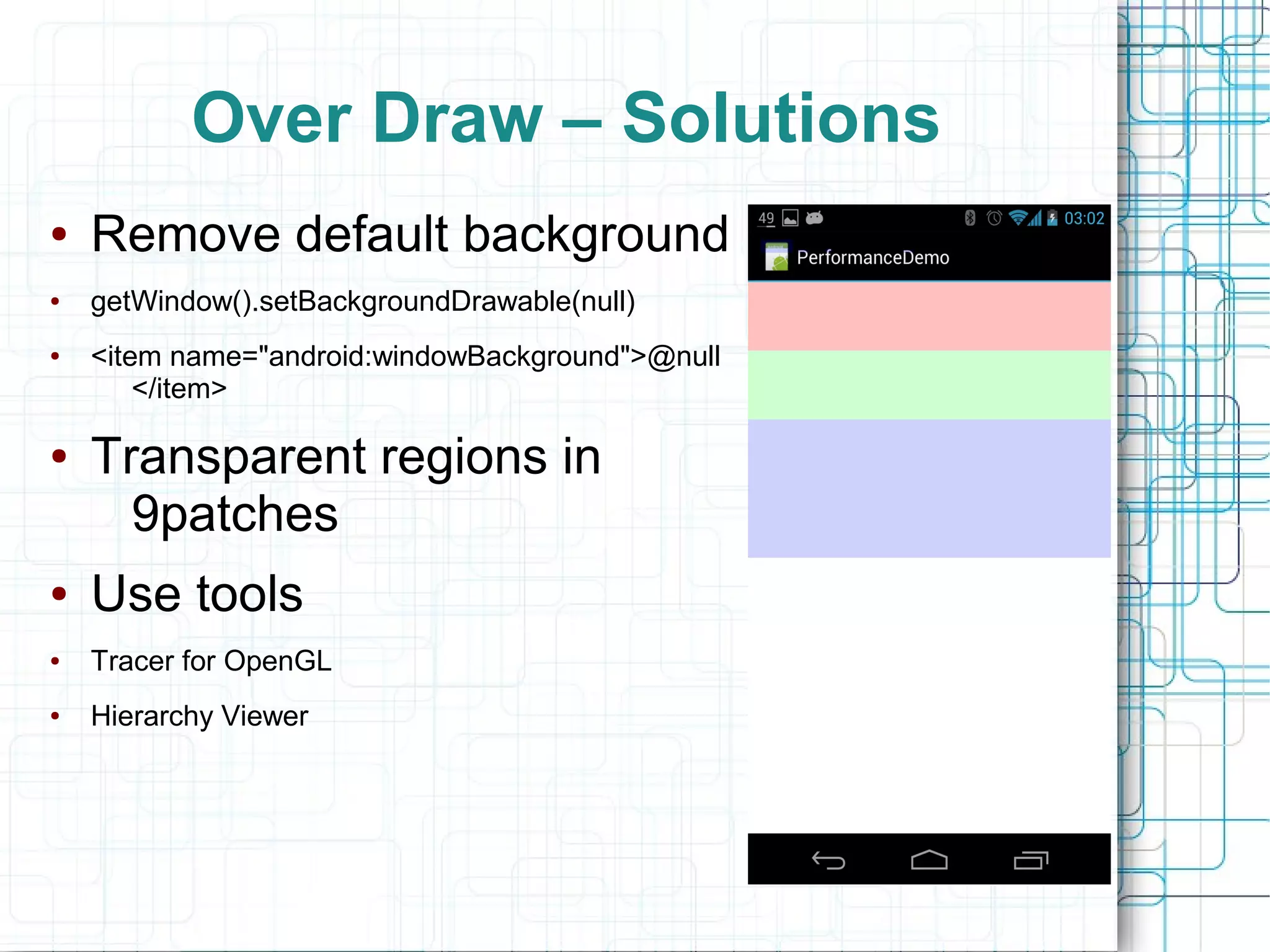

- 5. Over Draw – Solutions ● Remove default background ● getWindow().setBackgroundDrawable(null) ● <item name="android:windowBackground">@null </item> ● Transparent regions in 9patches ● Use tools ● Tracer for OpenGL ● Hierarchy Viewer

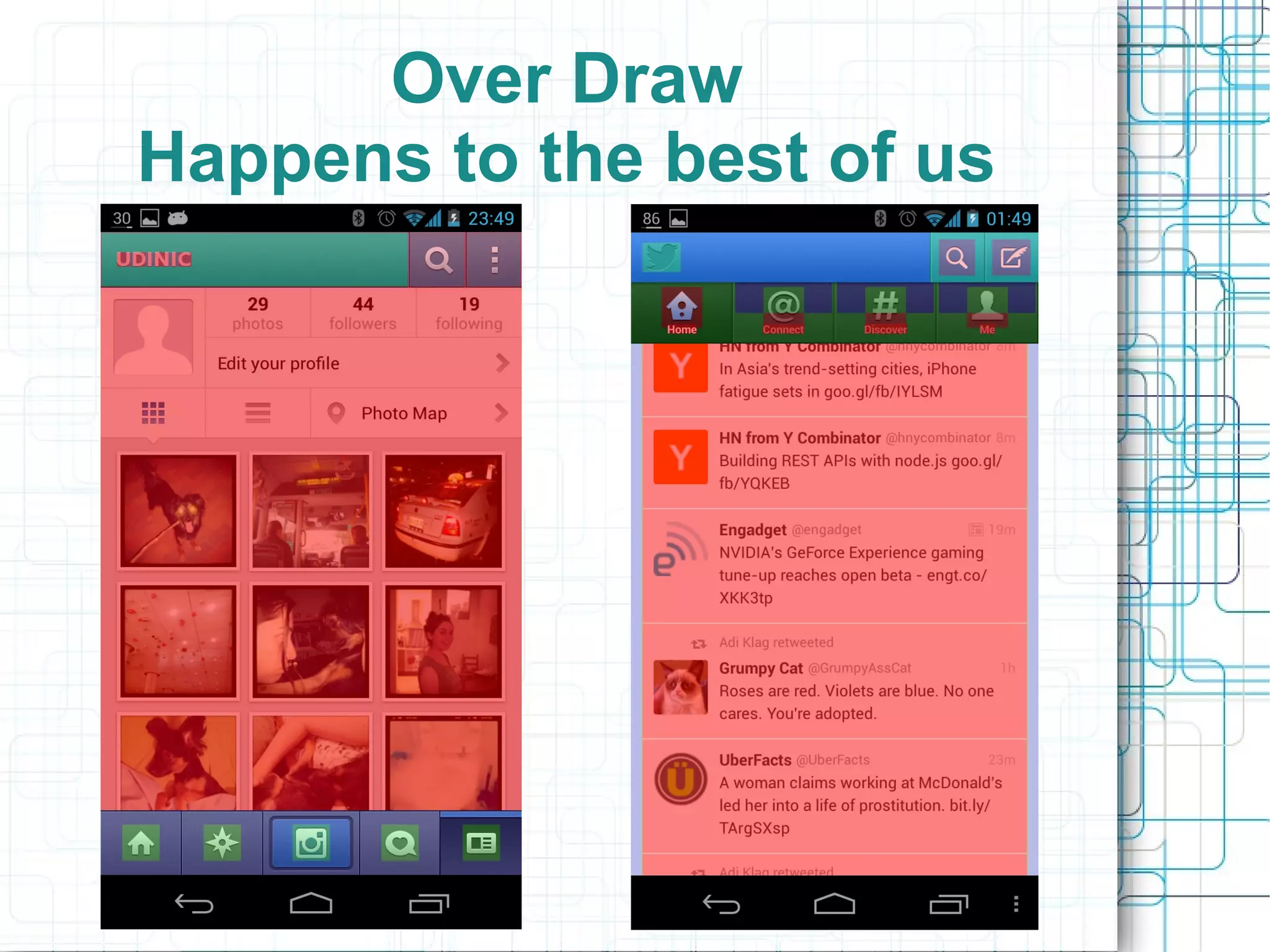

- 6. Over Draw Happens to the best of us

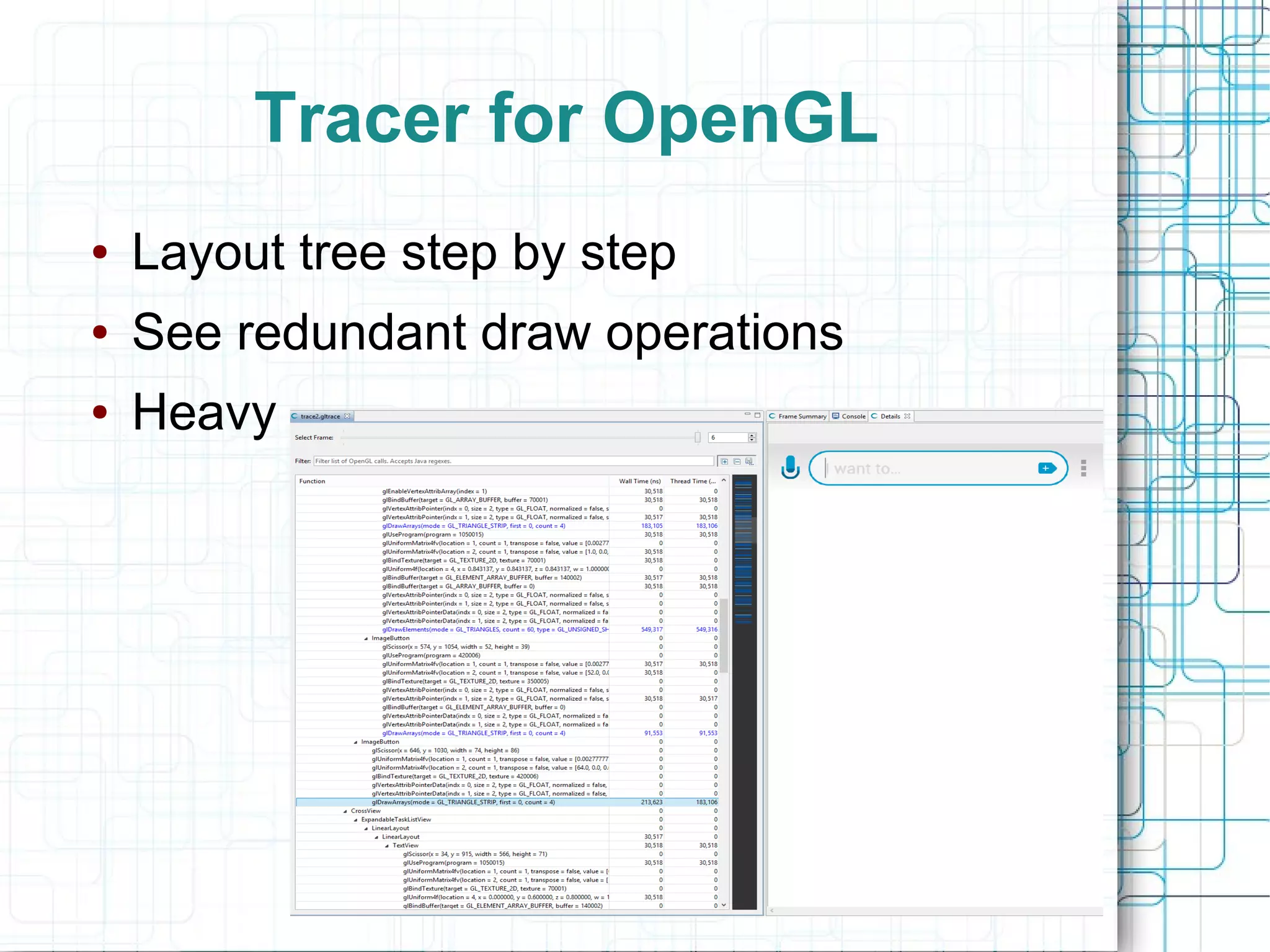

- 7. Tracer for OpenGL ● Layout tree step by step ● See redundant draw operations ● Heavy

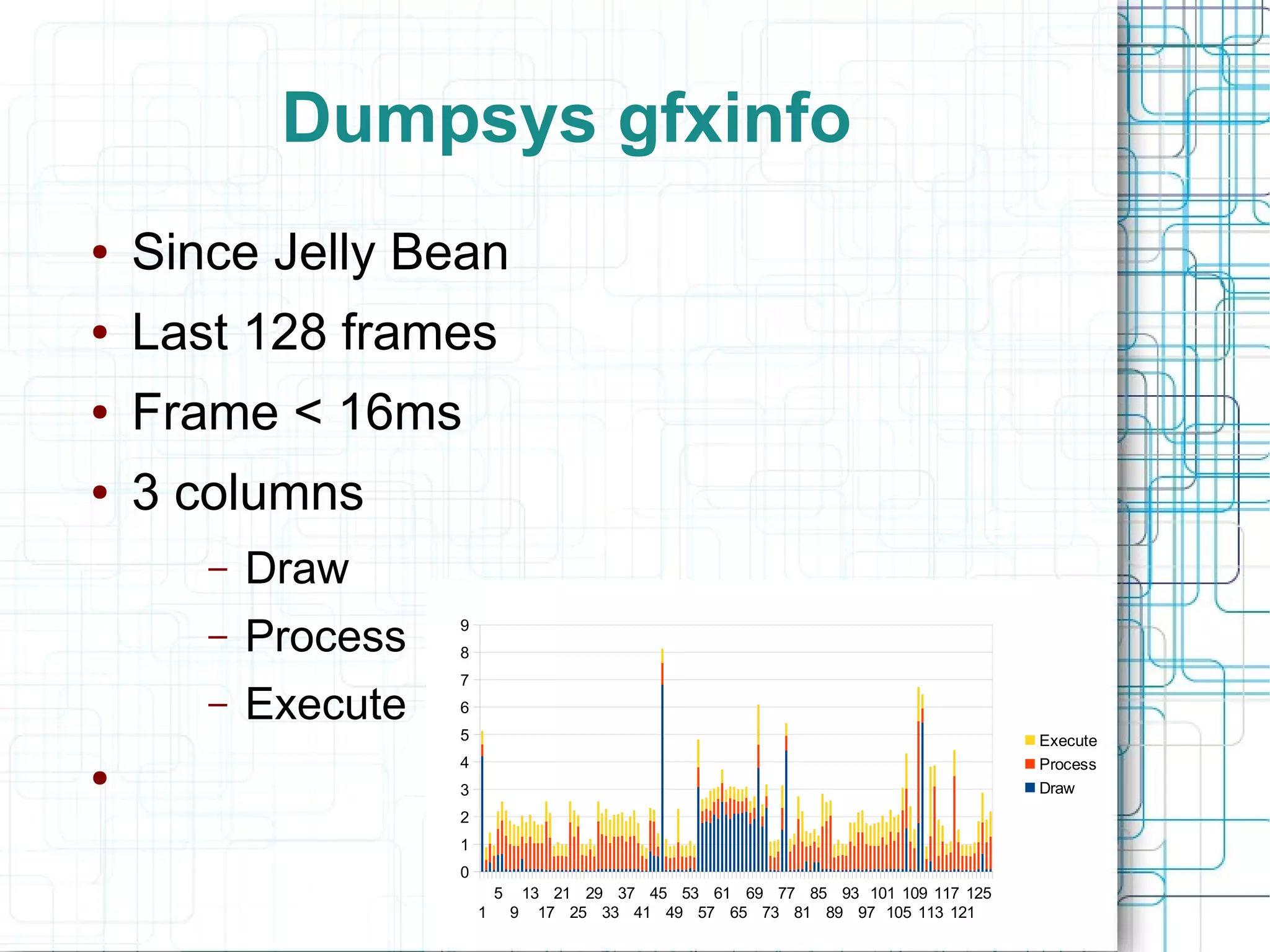

- 8. Dumpsys gfxinfo ● Since Jelly Bean ● Last 128 frames ● Frame < 16ms ● 3 columns – Draw – Process 9 8 7 – Execute 6 5 Execute 4 Process ● 3 Draw 2 1 0 5 13 21 29 37 45 53 61 69 77 85 93 101 109 117 125 1 9 17 25 33 41 49 57 65 73 81 89 97 105 113 121

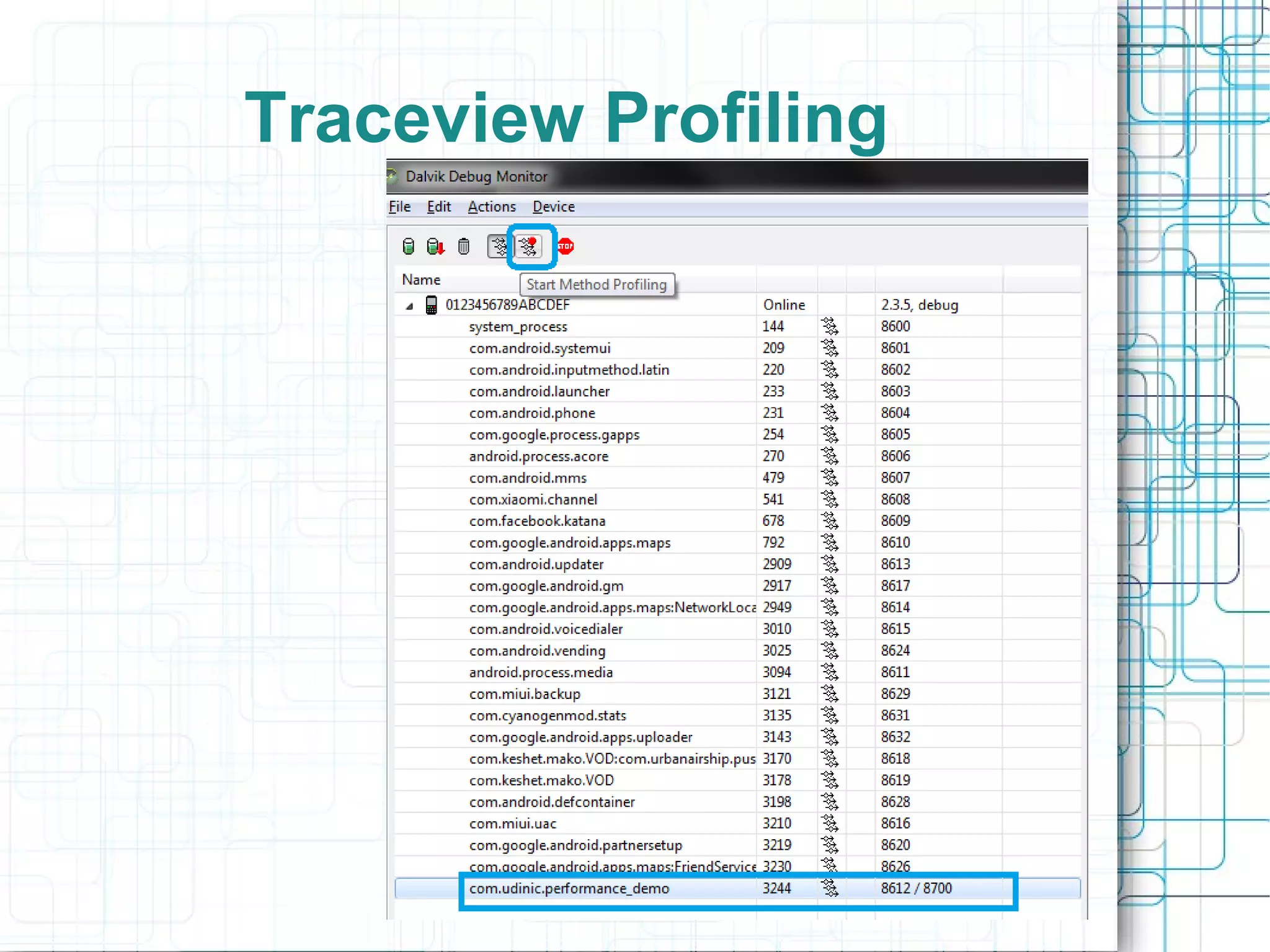

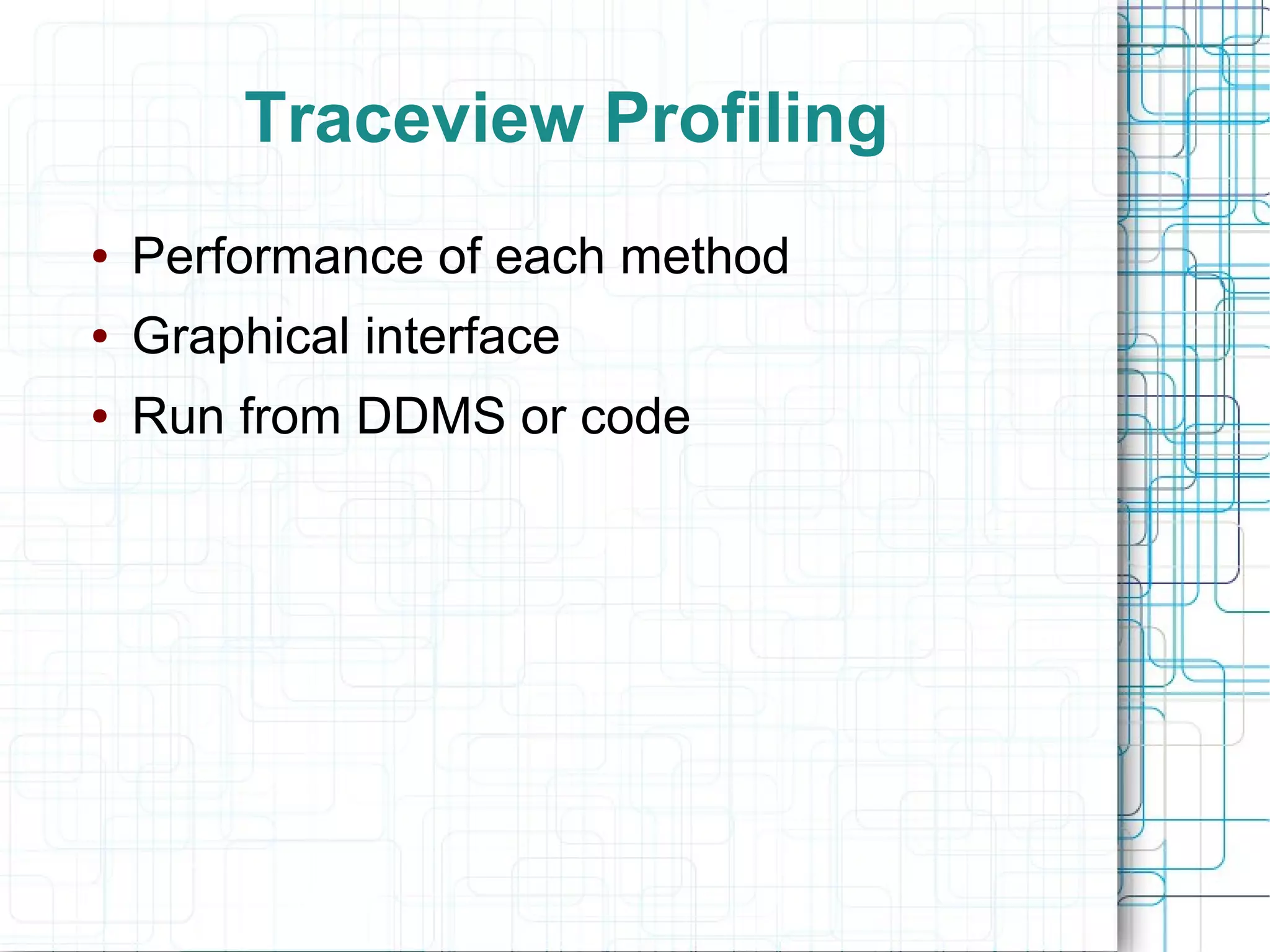

- 10. Traceview Profiling ● Performance of each method ● Graphical interface ● Run from DDMS or code

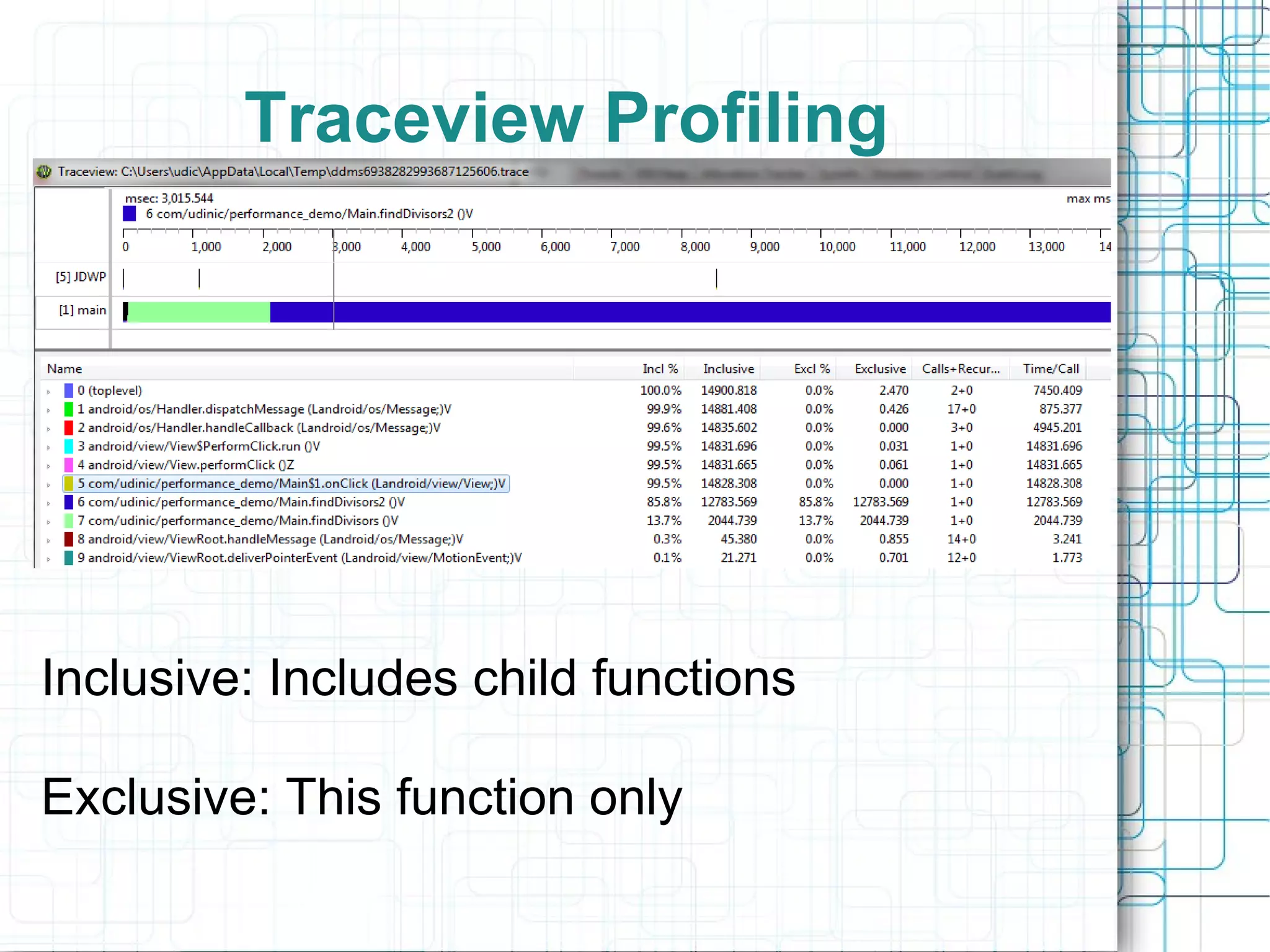

- 12. Traceview Profiling Inclusive: Includes child functions Exclusive: This function only

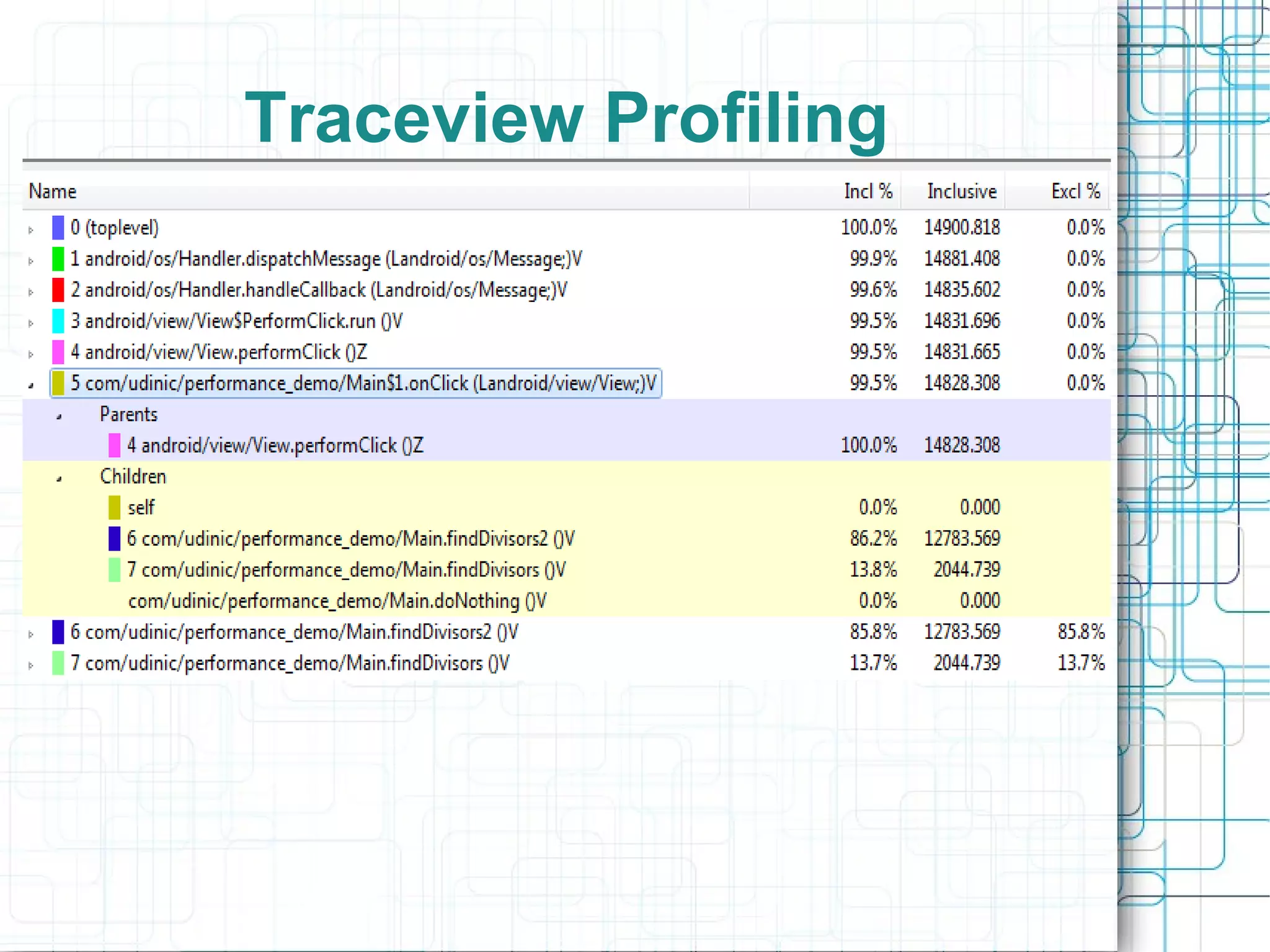

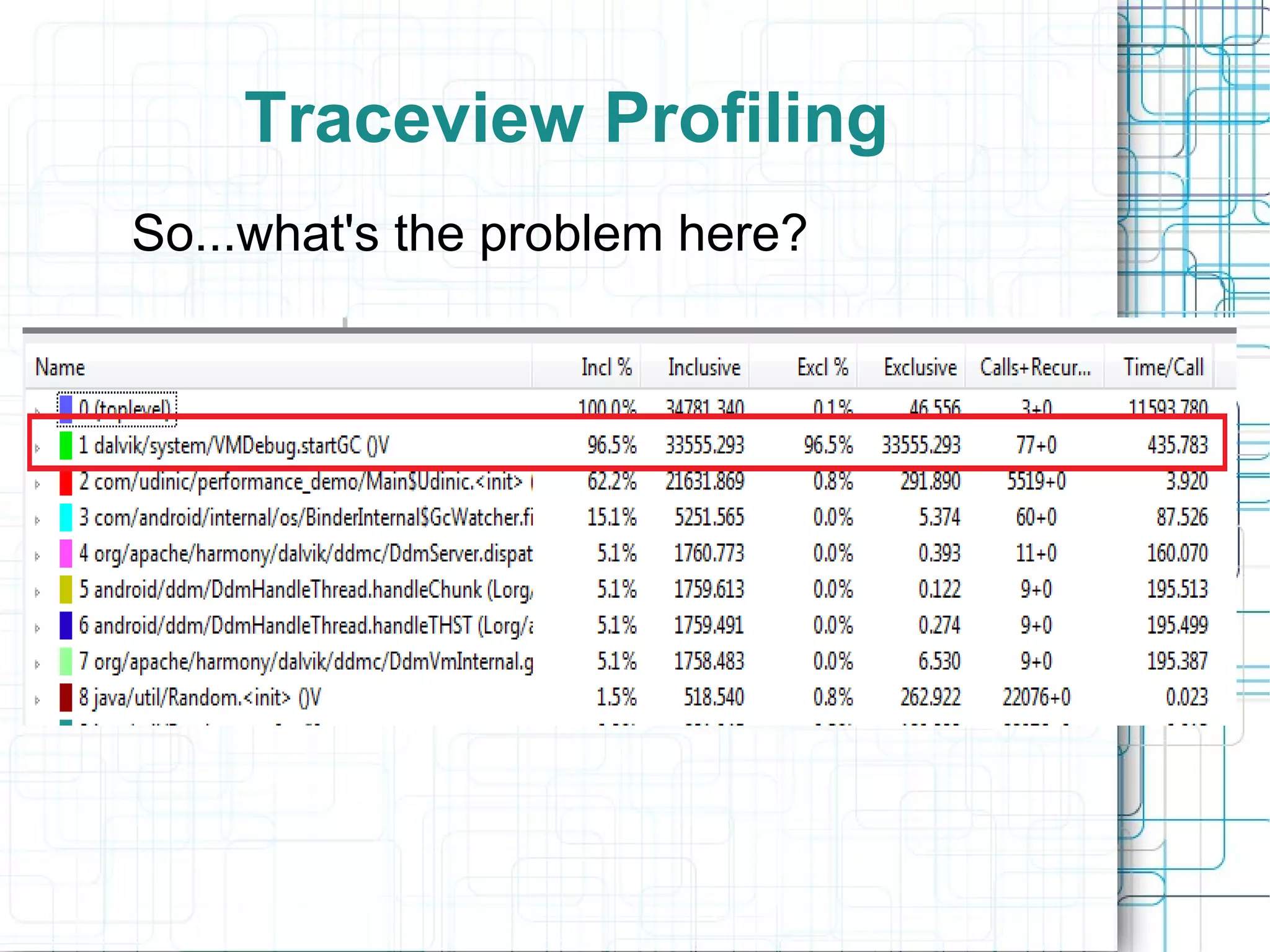

- 14. Traceview Profiling So...what's the problem here?

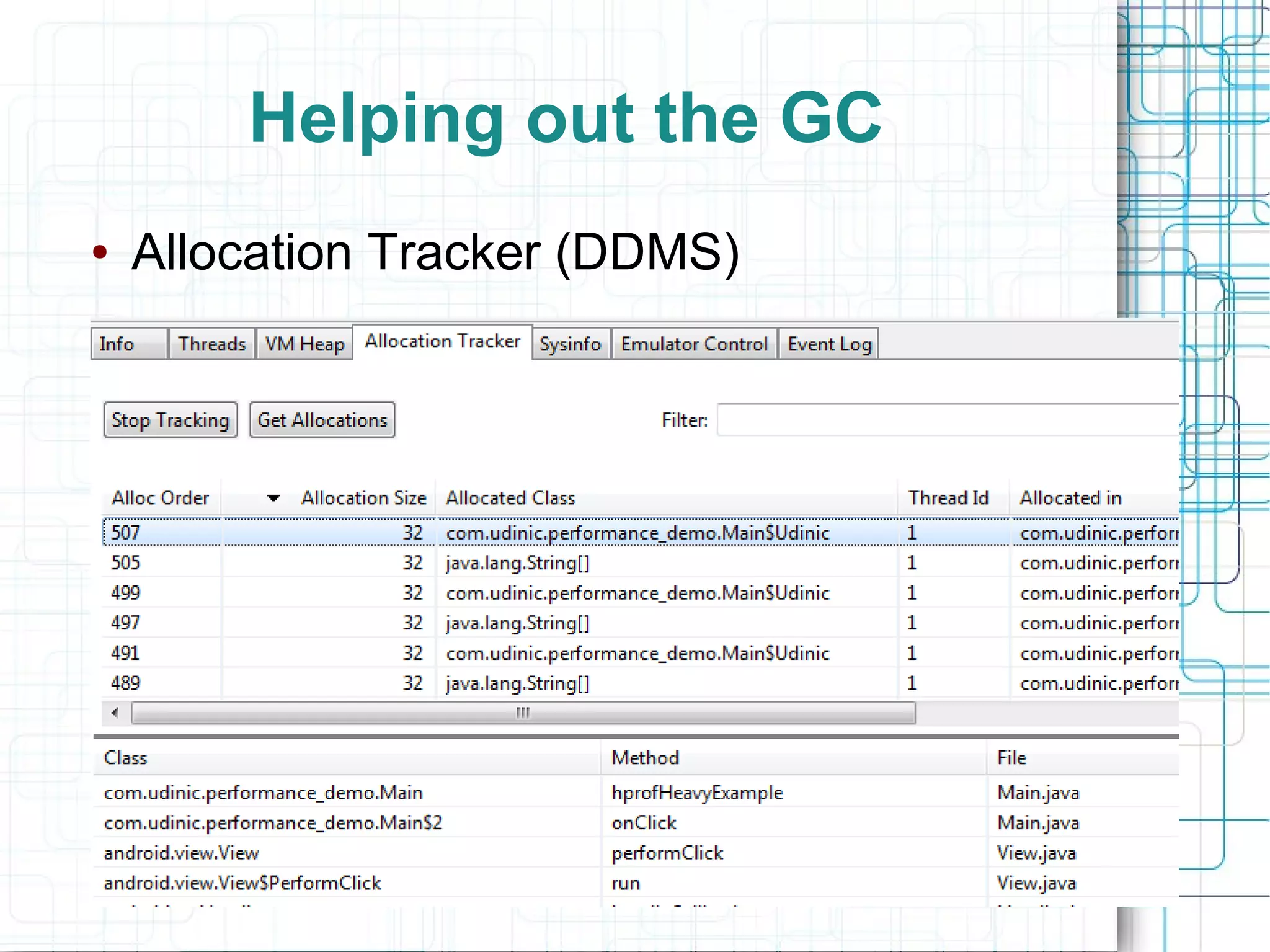

- 15. Helping out the GC ● Allocation Tracker (DDMS) ●

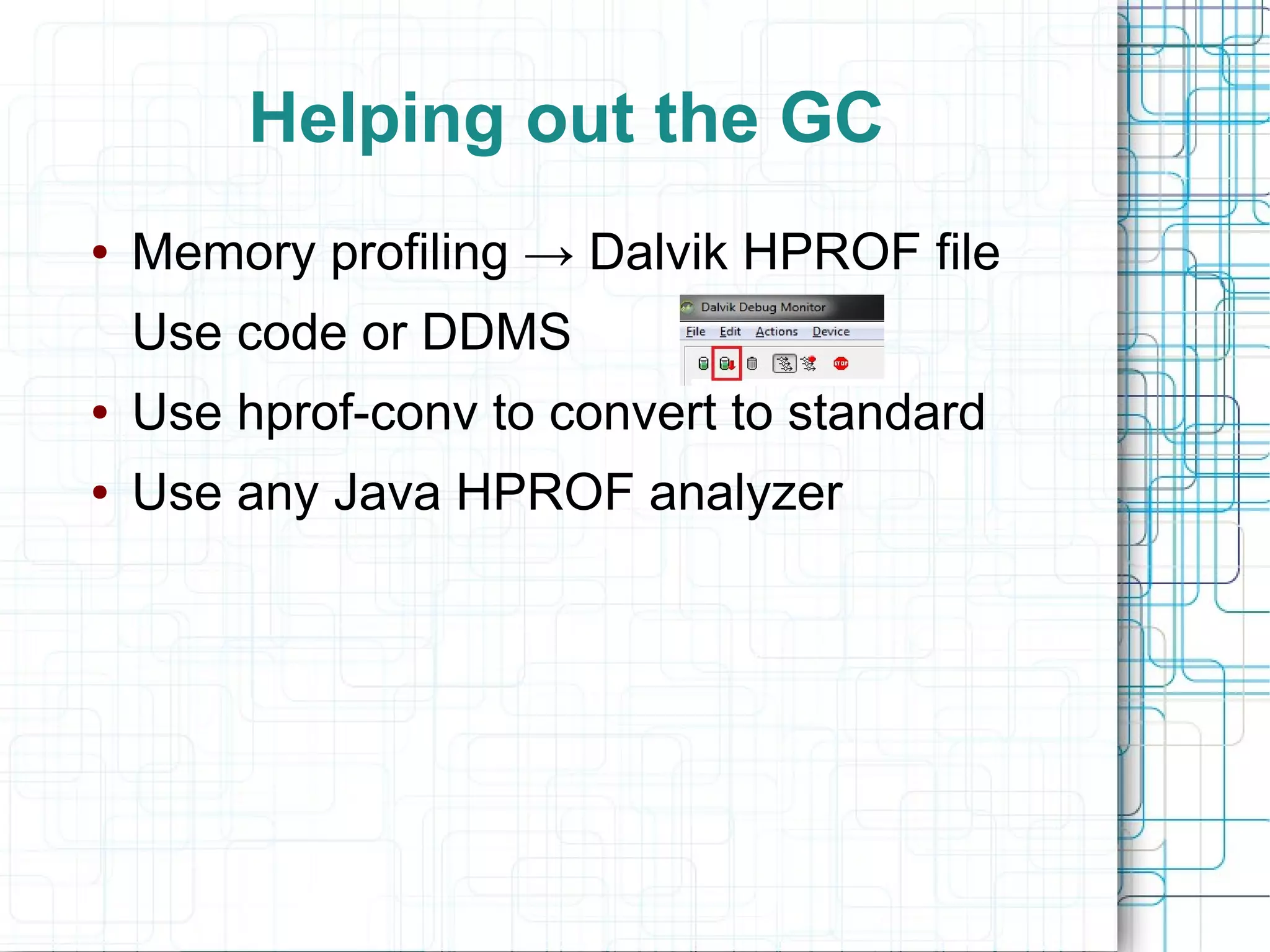

- 16. Helping out the GC ● Memory profiling → Dalvik HPROF file Use code or DDMS ● Use hprof-conv to convert to standard ● Use any Java HPROF analyzer

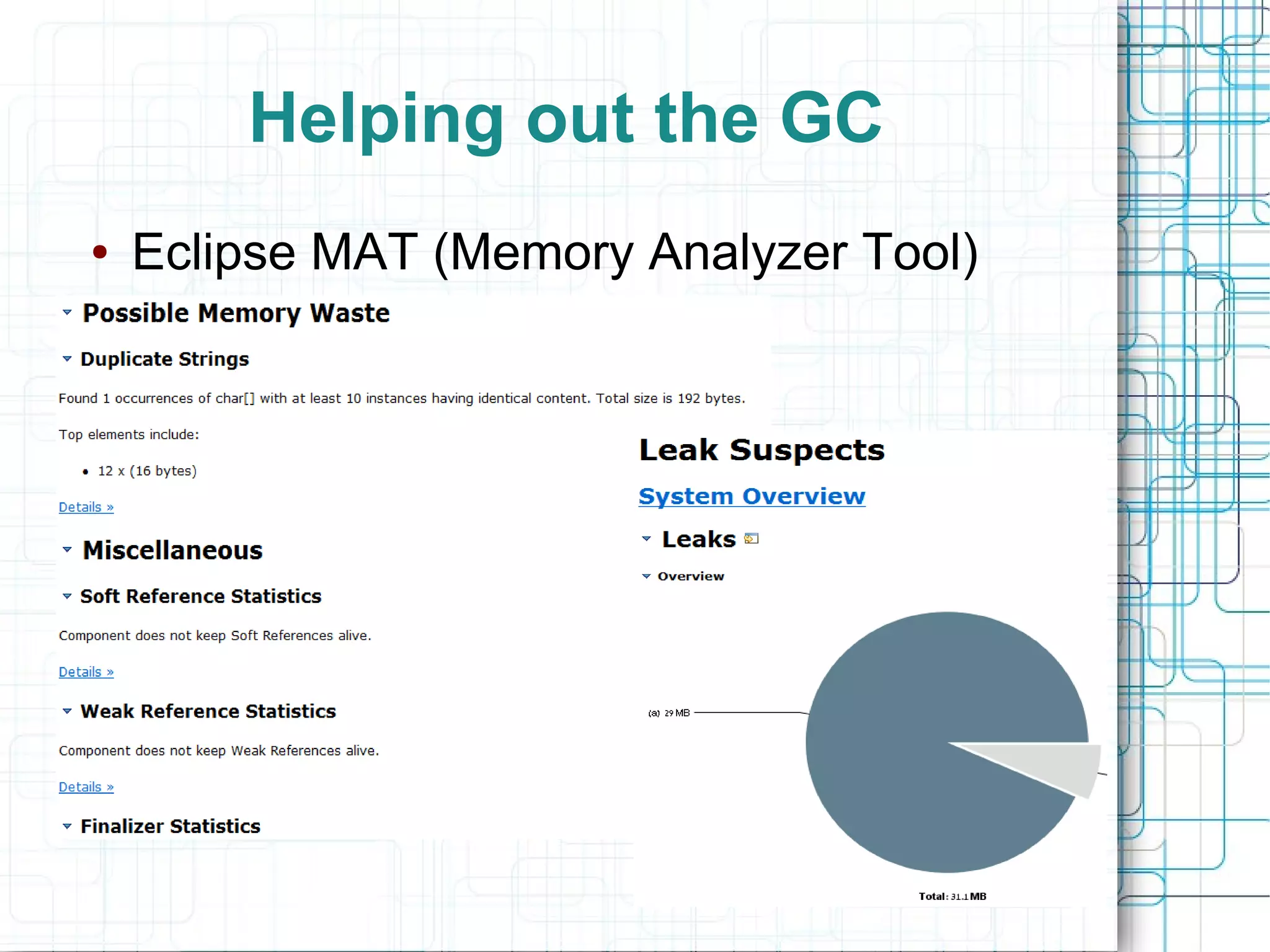

- 17. Helping out the GC ● Eclipse MAT (Memory Analyzer Tool)

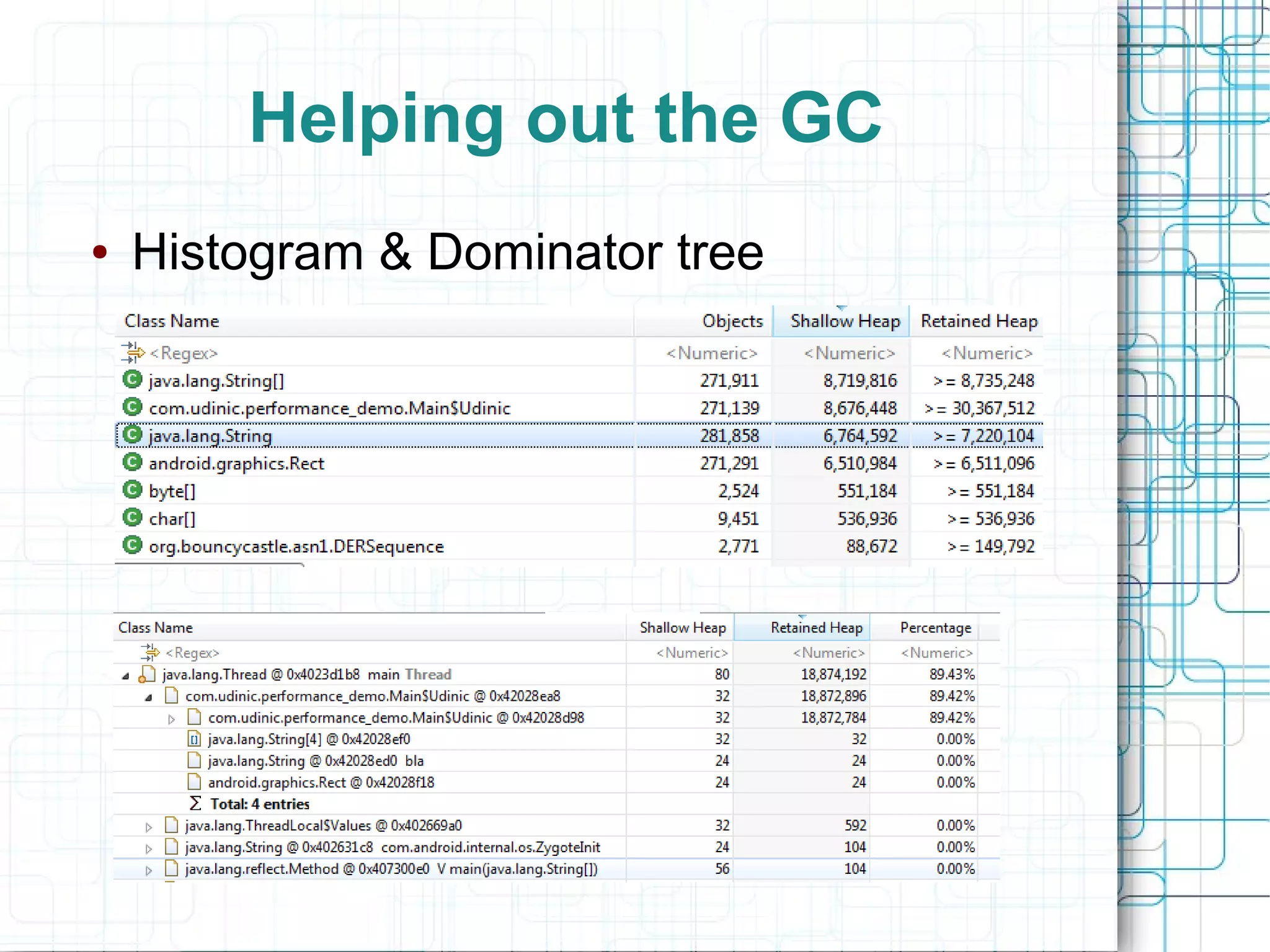

- 18. Helping out the GC ● Histogram & Dominator tree

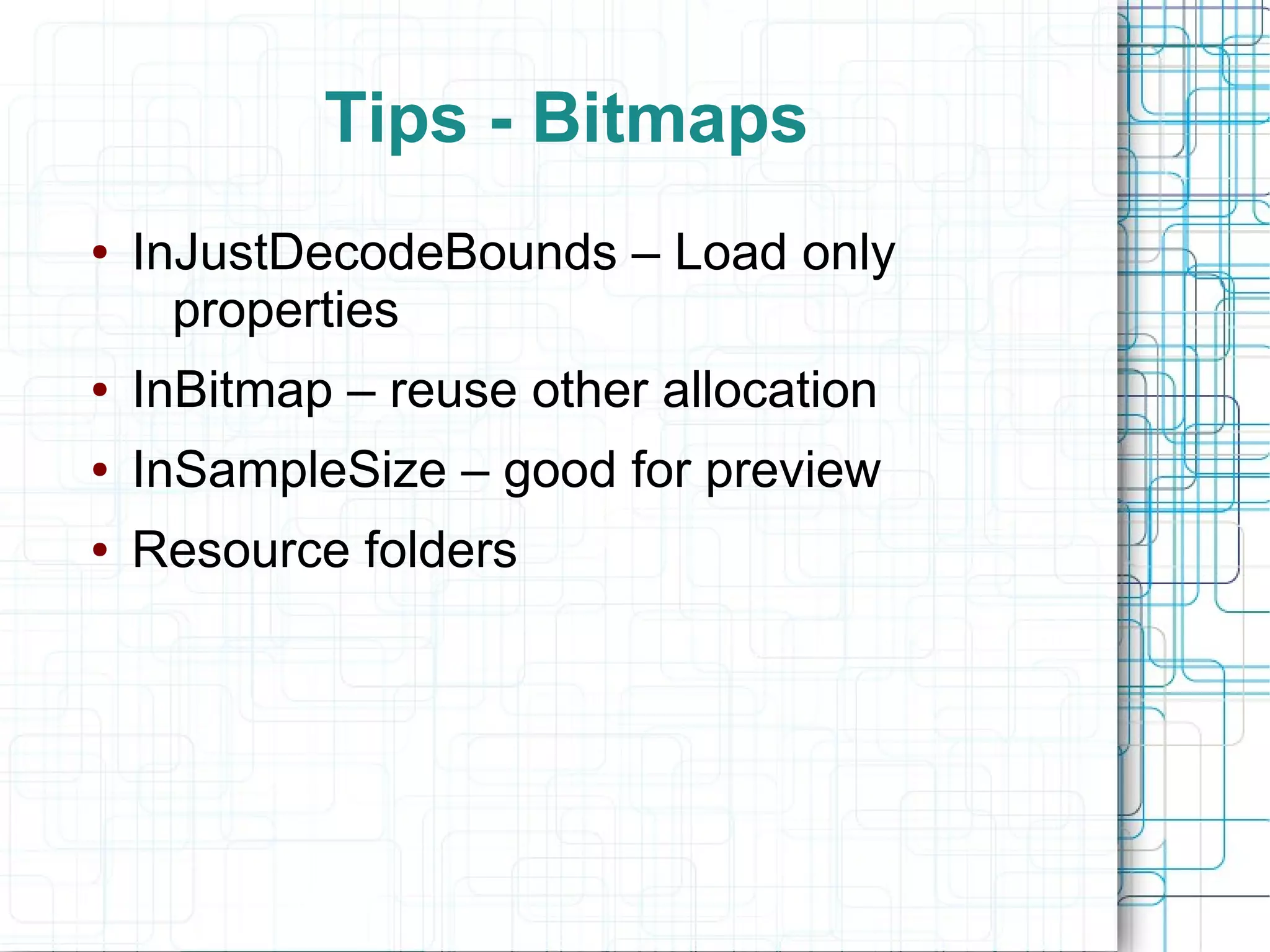

- 19. Tips - Bitmaps ● InJustDecodeBounds – Load only properties ● InBitmap – reuse other allocation ● InSampleSize – good for preview ● Resource folders

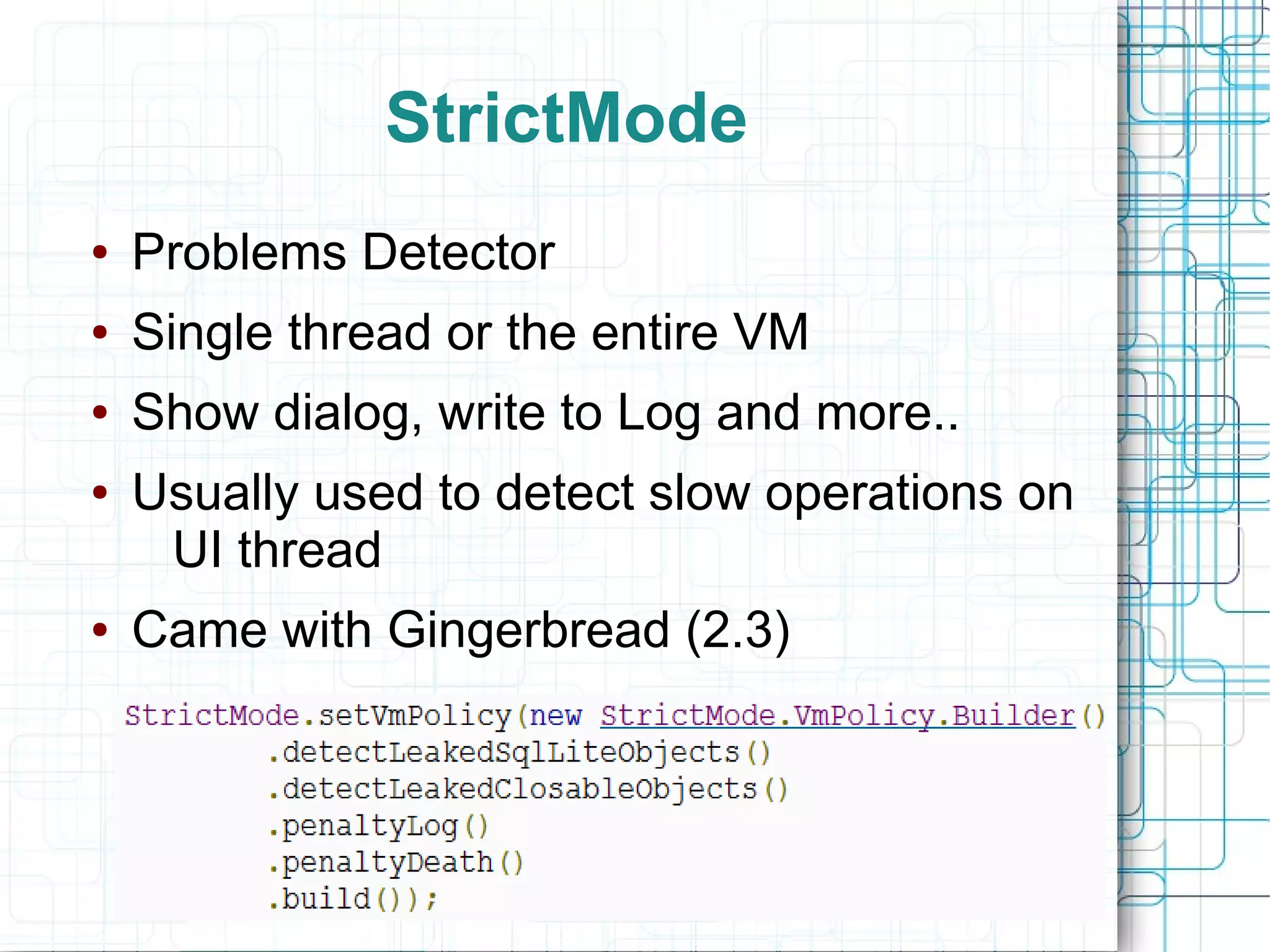

- 20. StrictMode ● Problems Detector ● Single thread or the entire VM ● Show dialog, write to Log and more.. ● Usually used to detect slow operations on UI thread ● Came with Gingerbread (2.3)

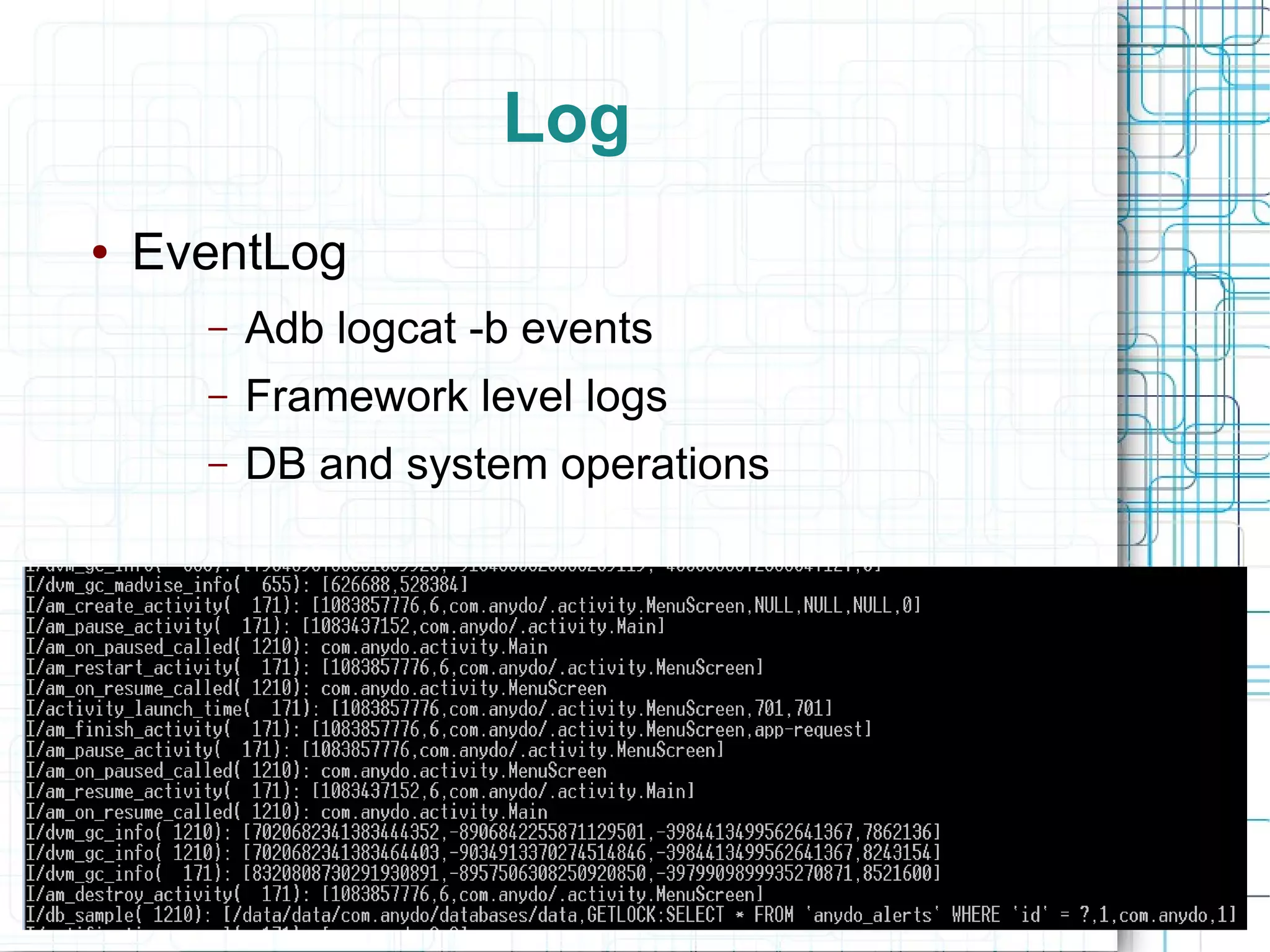

- 21. Log ● EventLog – Adb logcat -b events – Framework level logs – DB and system operations

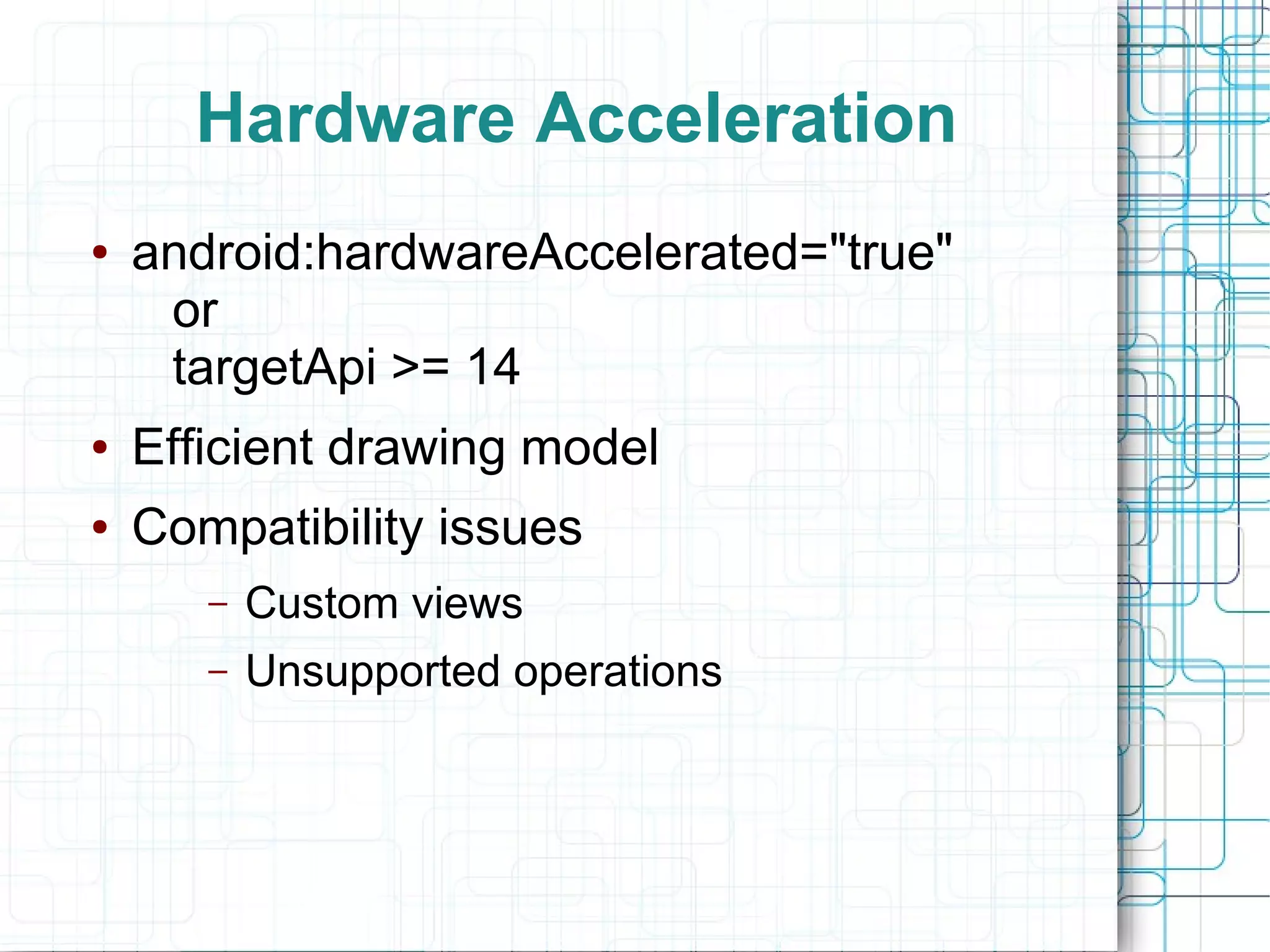

- 22. Hardware Acceleration ● android:hardwareAccelerated="true" or targetApi >= 14 ● Efficient drawing model ● Compatibility issues – Custom views – Unsupported operations

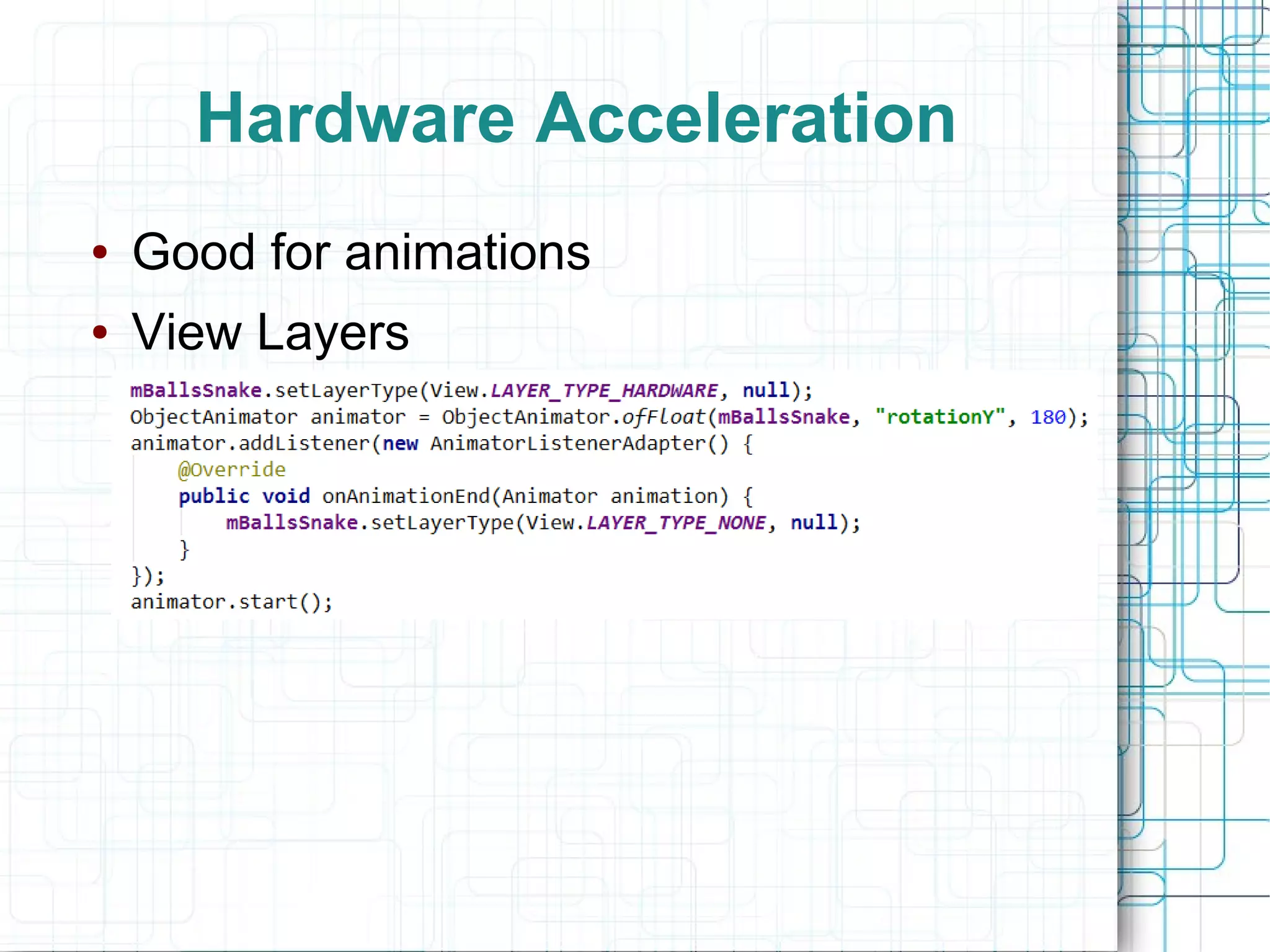

- 23. Hardware Acceleration ● Good for animations ● View Layers

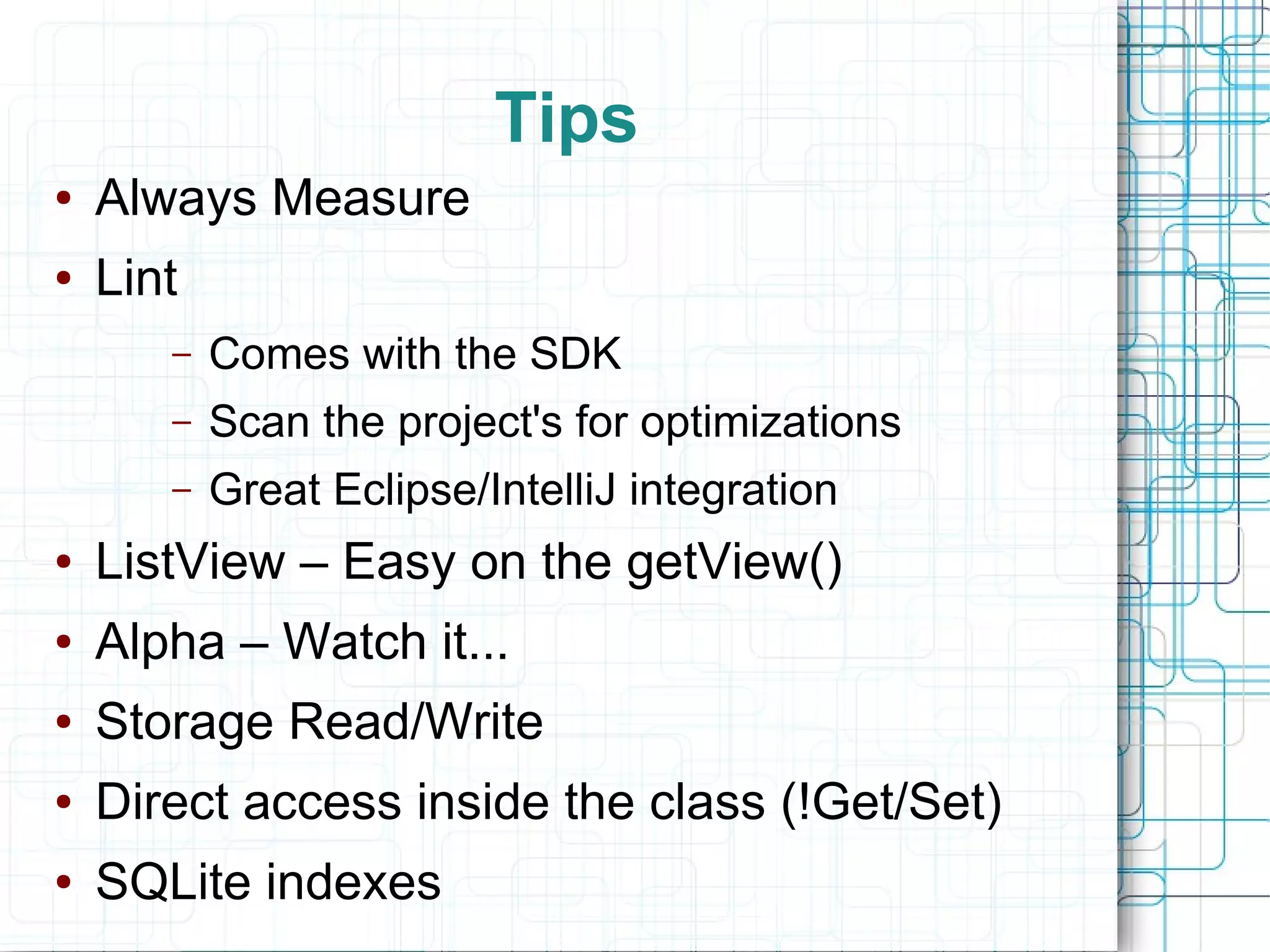

- 24. Tips ● Always Measure ● Lint – Comes with the SDK – Scan the project's for optimizations – Great Eclipse/IntelliJ integration ● ListView – Easy on the getView() ● Alpha – Watch it... ● Storage Read/Write ● Direct access inside the class (!Get/Set) ● SQLite indexes
- 25. @udinic http://www.udinic.com udi@udinic.com Thank you
