2. Andrew HBX-6516DS-A1M
DualPol Antenna, 1710-2170…
_______________________________________
How to Buy
Call: 1-877-878-9134 for this product Email: sales@launch3.net Click to send an RFQ:
http://www.launch3telecom.com/andrew/hbx6516dsa1m.html

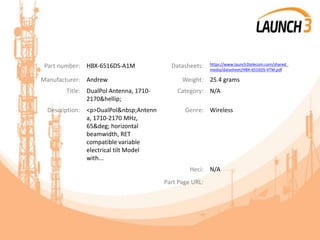

3. Part number: HBX-6516DS-A1M Datasheets: https://www.launch3telecom.com/shared_
media/datasheet/HBX-6516DS-VTM.pdf
Manufacturer: Andrew Weight: 25.4 grams
Title: DualPol Antenna, 1710-
2170…
Category: N/A
Description: <p>DualPol&nbsp;Antenn
a, 1710-2170 MHz,
65&deg; horizontal
beamwidth, RET
compatible variable
electrical tilt Model
with...
Genre: Wireless
Heci: N/A
Part Page URL:

4. About Us
Launch 3 Telecom is your one stop shop for all your Telecom and Data/Networking
Hardware needs and genuine Andrew replacement parts. We have loyally served our
customers since 2003. Our product expertise, quality customer service, competitive pricing
-on items like this Andrew HBX-6516DS-A1M -- are a few of the reasons why more telecom
professionals buy from Launch 3 Telecom every day.
_______________________________________
Payment and Processing
We accept Visa, Mastercard, American Express and Paypal payments for this Andrew HBX-
6516DS-A1M. We can also accept Purchase Orders for Net Terms upon approval. Launch 3
Telecom does have a Government Cage Code so if this is for a Government purchase please
tells us! You may also call us at 877-878-9134 or email us at sales@launch3.net for our
credit card form. Please call us today to purchase this Andrew HBX-6516DS-A1M item while
inventory and sale last.

5. Same Day Shipping, Order Confirmation and Order
Tracking
Once your order is placed for the Andrew HBX-6516DS-A1M, you may select from several
shipping methods, including UPS, Federal Express, DHL, USPS, 3 day, 2 day, overnight and
international methods. Orders received and approved before 3PM EST will generally ship
the same business day. You will receive an order confirmation email for your Andrew HBX-
6516DS-A1M along with the tracking number as soon as it is available. The tracking
number will allow you to track your shipment in real time. We pack the Andrew HBX-
6516DS-A1M in anti-static bubble wrap to ensure safe delivery. We will combine multiple
items in one shipment whenever possible to save on shipping time and costs. Because we
have several distribution points and vendor locations, sometimes orders will be divided
into multiple shipments, but never at extra cost to you.
_______________________________________
Warranty
Every item you purchase from us includes a warranty and our hassle-free return policy. We
stand by our product and your satisfaction is our goal. If you ever have questions or
concerns about your Andrew HBX-6516DS-A1M order, simply contact our Customer Service
Department at 877-878-9134, Monday - Friday, 9 AM - 5 PM EST. Friendly customer service
reps are available to assist you with your order.

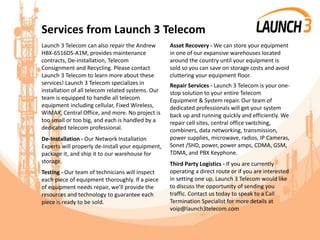

6. Services from Launch 3 Telecom
Launch 3 Telecom can also repair the Andrew
HBX-6516DS-A1M, provides maintenance
contracts, De-installation, Telecom
Consignment and Recycling. Please contact
Launch 3 Telecom to learn more about these
services! Launch 3 Telecom specializes in
installation of all telecom related systems. Our
team is equipped to handle all telecom
equipment including cellular, Fixed Wireless,
WiMAX, Central Office, and more. No project is
too small or too big, and each is handled by a
dedicated telecom professional.
De-Installation - Our Network Installation
Experts will properly de-install your equipment,
package it, and ship it to our warehouse for
storage.
Testing - Our team of technicians will inspect
each piece of equipment thoroughly. If a piece
of equipment needs repair, we’ll provide the
resources and technology to guarantee each
piece is ready to be sold.
Asset Recovery - We can store your equipment
in one of our expansive warehouses located
around the country until your equipment is
sold so you can save on storage costs and avoid
cluttering your equipment floor.
Repair Services - Launch 3 Telecom is your one-
stop solution to your entire Telecom
Equipment & System repair. Our team of
dedicated professionals will get your system
back up and running quickly and efficiently. We
repair cell sites, central office switching,
combiners, data networking, transmission,
power supplies, microwave, radios, IP Cameras,
Sonet /SHD, power, power amps, CDMA, GSM,
TDMA, and PBX Keyphone.
Third Party Logistics - If you are currently
operating a direct route or if you are interested
in setting one up, Launch 3 Telecom would like
to discuss the opportunity of sending you
traffic. Contact us today to speak to a Call
Termination Specialist for more details at
voip@launch3telecom.com

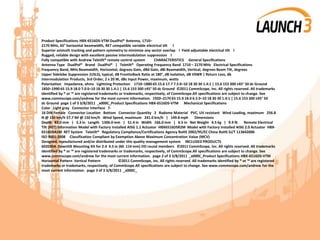

7. Product Specifications HBX-6516DS-VTM DualPol® Antenna, 1710–
2170 MHz, 65° horizontal beamwidth, RET compatible variable electrical tilt l
Superior azimuth tracking and pattern symmetry to minimize any sector overlap l Field adjustable electrical tilt l
Rugged, reliable design with excellent passive intermodulation suppression l
Fully compatible with Andrew Teletilt® remote control system CHARACTERISTICS General Specifications
Antenna Type DualPol® Brand DualPol® | Teletilt® Operating Frequency Band 1710 – 2170 MHz Electrical Specifications
Frequency Band, MHz Beamwidth, Horizontal, degrees Gain, dBd Gain, dBi Beamwidth, Vertical, degrees Beam Tilt, degrees
Upper Sidelobe Suppression (USLS), typical, dB FronttoBack Ratio at 180°, dB Isolation, dB VSWR | Return Loss, db
Intermodulation Products, 3rd Order, 2 x 20 W, dBc Input Power, maximum, watts
Polarization Impedance, ohms Lightning Protection 1710–1880 65 15.6 17.7 7.5 0–10 18 30 30 1.4:1 | 15.6 153 300 ±45° 50 dc Ground
1850–1990 65 15.9 18.0 7.0 0–10 18 30 30 1.4:1 | 15.6 153 300 ±45° 50 dc Ground ©2011 CommScope, Inc. All rights reserved. All trademarks
identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope.All specifications are subject to change. See
www.commscope.com/andrew for the most current information. 1920–2170 65 15.9 18.0 6.5 0–10 18 30 30 1.4:1 | 15.6 153 300 ±45° 50
dc Ground page 1 of 3 3/8/2011 _x000C_Product Specifications HBX-6516DS-VTM Mechanical Specifications
Color Light gray Connector Interface 7-
16 DIN Female Connector Location Bottom Connector Quantity 2 Radome Material PVC, UV resistant Wind Loading, maximum 256.8
N @ 150 km/h 57.7 lbf @ 150 km/h Wind Speed, maximum 241.0 km/h | 149.8 mph Dimensions
Depth 83.0 mm | 3.3 in Length 1306.0 mm | 51.4 in Width 166.0 mm | 6.5 in Net Weight 4.5 kg | 9.9 lb Remote Electrical
Tilt (RET) Information Model with Factory Installed AISG 1.1 Actuator HBX6516DSR2M Model with Factory Installed AISG 2.0 Actuator HBX-
6516DSA1M RET System Teletilt® Regulatory Compliance/Certifications Agency RoHS 2002/95/EC China RoHS SJ/T 113642006
ISO 9001:2008 Classification Compliant by Exemption Above Maximum Concentration Value (MCV)
Designed, manufactured and/or distributed under this quality management system INCLUDED PRODUCTS
602030A Downtilt Mounting Kit for 2.4 4.5 in (60 114 mm) OD round members ©2011 CommScope, Inc. All rights reserved. All trademarks
identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope.All specifications are subject to change. See
www.commscope.com/andrew for the most current information. page 2 of 3 3/8/2011 _x000C_Product Specifications HBX-6516DS-VTM
Horizontal Pattern Vertical Pattern ©2011 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered
trademarks or trademarks, respectively, of CommScope.All specifications are subject to change. See www.commscope.com/andrew for the
most current information. page 3 of 3 3/8/2011 _x000C_
