The document provides product specifications for the Andrew HBXX-6516DS-VTM DualPol Quad Antenna. It includes details about its operating frequency band, electrical specifications including gain, beamwidth, and isolation. Mechanical specifications like dimensions, weight, color and wind loading are also listed. The antenna supports wireless spectrum bands and can be adjusted for flexibility. It provides robust performance for network coverage and capacity.

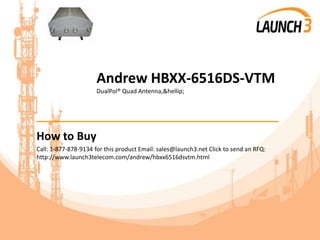

2. Andrew HBXX-6516DS-VTM
DualPol® Quad Antenna,…
_______________________________________
How to Buy
Call: 1-877-878-9134 for this product Email: sales@launch3.net Click to send an RFQ:
http://www.launch3telecom.com/andrew/hbxx6516dsvtm.html

3. Part number: HBXX-6516DS-VTM Datasheets: https://www.launch3telecom.com/shared_
media/datasheet/p_1259244685_1.pdf
Manufacturer: Andrew Weight: 0.0 grams
Title: DualPol® Quad
Antenna,…
Category: N/A
Description: <p>Andrew&reg; Quad
Port Antenna,
1710&ndash;2180 MHz,
65&deg; horizontal
beamwidth, RET
compatible Each DualPol
array c...
Genre: Wireless
Heci: N/A
Part Page URL:

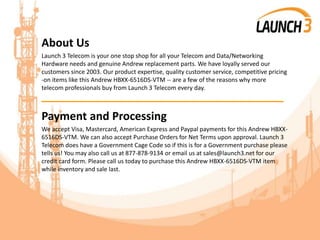

4. About Us
Launch 3 Telecom is your one stop shop for all your Telecom and Data/Networking
Hardware needs and genuine Andrew replacement parts. We have loyally served our
customers since 2003. Our product expertise, quality customer service, competitive pricing
-on items like this Andrew HBXX-6516DS-VTM -- are a few of the reasons why more
telecom professionals buy from Launch 3 Telecom every day.
_______________________________________
Payment and Processing
We accept Visa, Mastercard, American Express and Paypal payments for this Andrew HBXX-
6516DS-VTM. We can also accept Purchase Orders for Net Terms upon approval. Launch 3
Telecom does have a Government Cage Code so if this is for a Government purchase please
tells us! You may also call us at 877-878-9134 or email us at sales@launch3.net for our
credit card form. Please call us today to purchase this Andrew HBXX-6516DS-VTM item
while inventory and sale last.

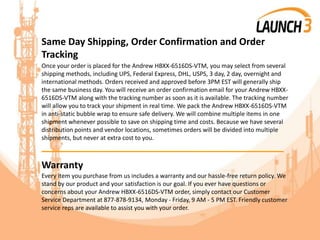

5. Same Day Shipping, Order Confirmation and Order
Tracking
Once your order is placed for the Andrew HBXX-6516DS-VTM, you may select from several
shipping methods, including UPS, Federal Express, DHL, USPS, 3 day, 2 day, overnight and
international methods. Orders received and approved before 3PM EST will generally ship
the same business day. You will receive an order confirmation email for your Andrew HBXX-
6516DS-VTM along with the tracking number as soon as it is available. The tracking number
will allow you to track your shipment in real time. We pack the Andrew HBXX-6516DS-VTM
in anti-static bubble wrap to ensure safe delivery. We will combine multiple items in one
shipment whenever possible to save on shipping time and costs. Because we have several
distribution points and vendor locations, sometimes orders will be divided into multiple
shipments, but never at extra cost to you.
_______________________________________
Warranty
Every item you purchase from us includes a warranty and our hassle-free return policy. We
stand by our product and your satisfaction is our goal. If you ever have questions or
concerns about your Andrew HBXX-6516DS-VTM order, simply contact our Customer
Service Department at 877-878-9134, Monday - Friday, 9 AM - 5 PM EST. Friendly customer
service reps are available to assist you with your order.

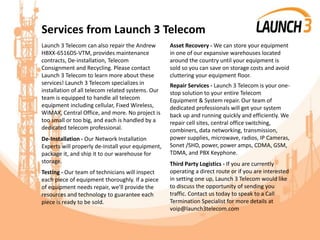

6. Services from Launch 3 Telecom
Launch 3 Telecom can also repair the Andrew
HBXX-6516DS-VTM, provides maintenance
contracts, De-installation, Telecom
Consignment and Recycling. Please contact
Launch 3 Telecom to learn more about these
services! Launch 3 Telecom specializes in
installation of all telecom related systems. Our
team is equipped to handle all telecom
equipment including cellular, Fixed Wireless,
WiMAX, Central Office, and more. No project is
too small or too big, and each is handled by a
dedicated telecom professional.
De-Installation - Our Network Installation
Experts will properly de-install your equipment,
package it, and ship it to our warehouse for
storage.
Testing - Our team of technicians will inspect
each piece of equipment thoroughly. If a piece
of equipment needs repair, we’ll provide the
resources and technology to guarantee each
piece is ready to be sold.
Asset Recovery - We can store your equipment
in one of our expansive warehouses located
around the country until your equipment is
sold so you can save on storage costs and avoid
cluttering your equipment floor.
Repair Services - Launch 3 Telecom is your one-
stop solution to your entire Telecom
Equipment & System repair. Our team of
dedicated professionals will get your system
back up and running quickly and efficiently. We
repair cell sites, central office switching,
combiners, data networking, transmission,
power supplies, microwave, radios, IP Cameras,
Sonet /SHD, power, power amps, CDMA, GSM,
TDMA, and PBX Keyphone.
Third Party Logistics - If you are currently
operating a direct route or if you are interested
in setting one up, Launch 3 Telecom would like
to discuss the opportunity of sending you
traffic. Contact us today to speak to a Call
Termination Specialist for more details at
voip@launch3telecom.com

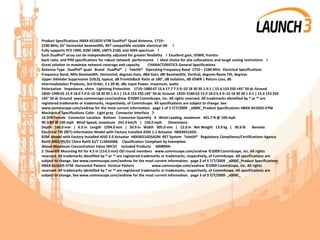

7. Product Specifications HBXX-6516DS-VTM DualPol® Quad Antenna, 1710–
2180 MHz, 65° horizontal beamwidth, RET compatible variable electrical tilt l
Fully supports PCS 1900, GSM 1800, UMTS 2100, and AWS spectrum l
Each DualPol® array can be independently adjusted for greater flexibility l Excellent gain, VSWR, frontto-
back ratio, and PIM specifications for robust network performance l Ideal choice for site collocations and tough zoning restrictions l
Great solution to maximize network coverage and capacity CHARACTERISTICS General Specifications
Antenna Type DualPol® quad Brand DualPol® | Teletilt® Operating Frequency Band 1710 – 2180 MHz Electrical Specifications
Frequency Band, MHz Beamwidth, Horizontal, degrees Gain, dBd Gain, dBi Beamwidth, Vertical, degrees Beam Tilt, degrees
Upper Sidelobe Suppression (USLS), typical, dB FronttoBack Ratio at 180°, dB Isolation, dB VSWR | Return Loss, db
Intermodulation Products, 3rd Order, 2 x 20 W, dBc Input Power, maximum, watts
Polarization Impedance, ohms Lightning Protection 1710–1880 67 15.6 17.7 7.5 0–10 18 30 30 1.4:1 | 15.6 153 250 ±45° 50 dc Ground
1850–1990 65 15.9 18.0 7.0 0–10 18 30 30 1.4:1 | 15.6 153 250 ±45° 50 dc Ground 1920–2180 63 15.9 18.0 6.5 0–10 18 30 30 1.4:1 | 15.6 153 250
±45° 50 dc Ground www.commscope.com/andrew ©2009 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are
registered trademarks or trademarks, respectively, of CommScope. All specifications are subject to change. See
www.commscope.com/andrew for the most current information. page 1 of 3 7/7/2009 _x000C_Product Specifications HBXX-6516DS-VTM
Mechanical Specifications Color Light gray Connector Interface 7-
16 DIN Female Connector Location Bottom Connector Quantity 4 Wind Loading, maximum 401.7 N @ 100 mph
90.3 lbf @ 100 mph Wind Speed, maximum 241.4 km/h | 150.0 mph Dimensions
Depth 166.0 mm | 6.5 in Length 1294.0 mm | 50.9 in Width 305.0 mm | 12.0 in Net Weight 13.9 kg | 30.6 lb Remote
Electrical Tilt (RET) Information Model with Factory Installed AISG 1.1 Actuator HBXX6516DS-
R2M Model with Factory Installed AISG 2.0 Actuator HBXX6516DSA2M RET System Teletilt® Regulatory Compliance/Certifications Agency
RoHS 2002/95/EC China RoHS SJ/T 113642006 Classification Compliant by Exemption
Above Maximum Concentration Value (MCV) Included Products 600899A-
2 Downtilt Mounting Kit for 4.5 in (114.3 mm) OD round members www.commscope.com/andrew ©2009 CommScope, Inc. All rights
reserved. All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope. All specifications are
subject to change. See www.commscope.com/andrew for the most current information. page 2 of 3 7/7/2009 _x000C_Product Specifications
HBXX-6516DS-VTM Horizontal Pattern Vertical Pattern www.commscope.com/andrew ©2009 CommScope, Inc. All rights
reserved. All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope. All specifications are
subject to change. See www.commscope.com/andrew for the most current information. page 3 of 3 7/7/2009 _x000C_
