This document provides product details and purchasing information for an Andrew Commscope SBNH-1D8585B dual band antenna. Specifically, it includes: - Technical specifications for the antenna such as frequency bands, gain, beamwidth, connectors, weight, and certifications. - Instructions on how to purchase the antenna through Launch 3 Telecom including payment methods and same day shipping. - Information on Launch 3 Telecom's warranty, repair services, and experience in the telecommunications field.

2. Andrew SBNH-1D8585B
Commscope 698 - 896 MHz and…
_______________________________________

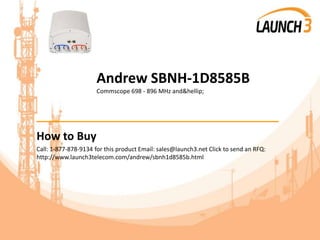

How to Buy
Call: 1-877-878-9134 for this product Email: sales@launch3.net Click to send an RFQ:
http://www.launch3telecom.com/andrew/sbnh1d8585b.html

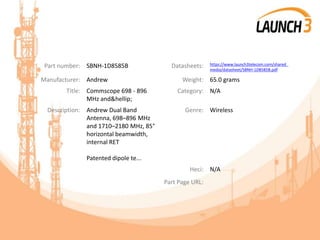

3. Part number: SBNH-1D8585B Datasheets: https://www.launch3telecom.com/shared_
media/datasheet/SBNH-1D8585B.pdf
Manufacturer: Andrew Weight: 65.0 grams
Title: Commscope 698 - 896
MHz and…
Category: N/A
Description: Andrew Dual Band
Antenna, 698–896 MHz
and 1710–2180 MHz, 85°
horizontal beamwidth,
internal RET
Patented dipole te...
Genre: Wireless
Heci: N/A
Part Page URL:

4. About Us
Launch 3 Telecom is your one stop shop for all your Telecom and Data/Networking
Hardware needs and genuine Andrew replacement parts. We have loyally served our
customers since 2003. Our product expertise, quality customer service, competitive pricing
-on items like this Andrew SBNH-1D8585B -- are a few of the reasons why more telecom
professionals buy from Launch 3 Telecom every day.
_______________________________________
Payment and Processing
We accept Visa, Mastercard, American Express and Paypal payments for this Andrew SBNH-
1D8585B. We can also accept Purchase Orders for Net Terms upon approval. Launch 3
Telecom does have a Government Cage Code so if this is for a Government purchase please
tells us! You may also call us at 877-878-9134 or email us at sales@launch3.net for our
credit card form. Please call us today to purchase this Andrew SBNH-1D8585B item while
inventory and sale last.

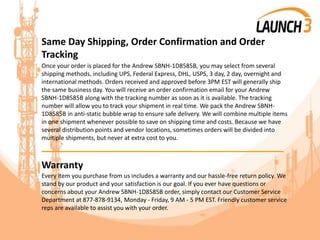

5. Same Day Shipping, Order Confirmation and Order
Tracking
Once your order is placed for the Andrew SBNH-1D8585B, you may select from several
shipping methods, including UPS, Federal Express, DHL, USPS, 3 day, 2 day, overnight and
international methods. Orders received and approved before 3PM EST will generally ship
the same business day. You will receive an order confirmation email for your Andrew
SBNH-1D8585B along with the tracking number as soon as it is available. The tracking
number will allow you to track your shipment in real time. We pack the Andrew SBNH-
1D8585B in anti-static bubble wrap to ensure safe delivery. We will combine multiple items
in one shipment whenever possible to save on shipping time and costs. Because we have
several distribution points and vendor locations, sometimes orders will be divided into
multiple shipments, but never at extra cost to you.
_______________________________________
Warranty
Every item you purchase from us includes a warranty and our hassle-free return policy. We
stand by our product and your satisfaction is our goal. If you ever have questions or
concerns about your Andrew SBNH-1D8585B order, simply contact our Customer Service
Department at 877-878-9134, Monday - Friday, 9 AM - 5 PM EST. Friendly customer service
reps are available to assist you with your order.

6. Services from Launch 3 Telecom
Launch 3 Telecom can also repair the Andrew
SBNH-1D8585B, provides maintenance
contracts, De-installation, Telecom
Consignment and Recycling. Please contact
Launch 3 Telecom to learn more about these
services! Launch 3 Telecom specializes in
installation of all telecom related systems. Our
team is equipped to handle all telecom
equipment including cellular, Fixed Wireless,
WiMAX, Central Office, and more. No project is
too small or too big, and each is handled by a
dedicated telecom professional.
De-Installation - Our Network Installation
Experts will properly de-install your equipment,
package it, and ship it to our warehouse for
storage.
Testing - Our team of technicians will inspect
each piece of equipment thoroughly. If a piece
of equipment needs repair, we’ll provide the
resources and technology to guarantee each
piece is ready to be sold.
Asset Recovery - We can store your equipment
in one of our expansive warehouses located
around the country until your equipment is
sold so you can save on storage costs and avoid
cluttering your equipment floor.
Repair Services - Launch 3 Telecom is your one-
stop solution to your entire Telecom
Equipment & System repair. Our team of
dedicated professionals will get your system
back up and running quickly and efficiently. We
repair cell sites, central office switching,
combiners, data networking, transmission,
power supplies, microwave, radios, IP Cameras,
Sonet /SHD, power, power amps, CDMA, GSM,
TDMA, and PBX Keyphone.
Third Party Logistics - If you are currently
operating a direct route or if you are interested
in setting one up, Launch 3 Telecom would like
to discuss the opportunity of sending you
traffic. Contact us today to speak to a Call
Termination Specialist for more details at
voip@launch3telecom.com

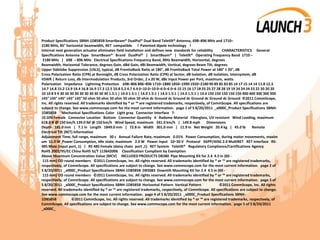

7. Product Specifications SBNH-1D8585B Smartbeam® DualPol® Dual Band Teletilt® Antenna, 698–896 MHz and 1710–
2180 MHz, 85° horizontal beamwidth, RET compatible l Patented dipole technology l
Internal next generation actuator eliminates field installation and defines new standards for reliability CHARACTERISTICS General
Specifications Antenna Type SmartBeam® Brand DualPol® | SmartBeam® | Teletilt® Operating Frequency Band 1710 –
2180 MHz | 698 – 896 MHz Electrical Specifications Frequency Band, MHz Beamwidth, Horizontal, degrees
Beamwidth, Horizontal Tolerance, degrees Gain, dBd Gain, dBi Beamwidth, Vertical, degrees Beam Tilt, degrees
Upper Sidelobe Suppression (USLS), typical, dB FronttoBack Ratio at 180°, dB FronttoBack Total Power at 180° ± 20°, dB
Cross Polarization Ratio (CPR) at Boresight, dB Cross Polarization Ratio (CPR) at Sector, dB Isolation, dB Isolation, Intersystem, dB
VSWR | Return Loss, db Intermodulation Products, 3rd Order, 2 x 20 W, dBc Input Power per Port, maximum, watts
Polarization Impedance Lightning Protection 698–806 806–896 1710–1880 1850–1990 1920–2180 90 89 85 83 85 ±4 ±7 ±5 ±4 ±4 11.8 12.3
14.7 14.8 15.2 13.9 14.4 16.8 16.9 17.3 12.5 10.8 5.2 4.7 4.4 0–10 0–10 0–6 0–6 0–6 15 15 16 17 18 25 25 27 28 28 19 19 24 24 24 23 22 20 20 20
10 10 8 9 9 30 30 30 30 30 30 30 30 30 30 1.5:1 | 14.0 1.5:1 | 14.0 1.5:1 | 14.0 1.5:1 | 14.0 1.5:1 | 14.0 150 150 150 150 150 400 400 300 300 300
±45° ±45° ±45° ±45° ±45° 50 ohm 50 ohm 50 ohm 50 ohm 50 ohm dc Ground dc Ground dc Ground dc Ground dc Ground ©2011 CommScope,
Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope. All specifications are
subject to change. See www.commscope.com for the most current information. page 1 of 5 8/20/2011 _x000C_Product Specifications SBNH-
1D8585B Mechanical Specifications Color Light gray Connector Interface 7-
16 DIN Female Connector Location Bottom Connector Quantity 4 Radome Material Fiberglass, UV resistant Wind Loading, maximum
618.5 N @ 150 km/h 139.0 lbf @ 150 km/h Wind Speed, maximum 241.0 km/h | 149.8 mph Dimensions
Depth 181.0 mm | 7.1 in Length 1849.0 mm | 72.8 in Width 301.0 mm | 11.9 in Net Weight 20.4 kg | 45.0 lb Remote
Electrical Tilt (RET) Information
Adjustment Time, full range, maximum 30 s Annual Failure Rate, maximum 0.01% Power Consumption, during motor movements, maxim
um 11.0 W Power Consumption, idle state, maximum 2.0 W Power Input 10–30 V Protocol 3GPP/AISG 2.0 MultiRET RET Interface RS-
485 Male (input port, 1) | RS 485 Female (daisy chain port ,1) RET System Teletilt® Regulatory Compliance/Certifications Agency
RoHS 2002/95/EC China RoHS SJ/T 113642006 Classification Compliant by Exemption
Above Maximum Concentration Value (MCV) INCLUDED PRODUCTS DB380 Pipe Mounting Kit for 2.4 4.5 in (60 -
115 mm) OD round members ©2011 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope. All specifications are subject to change. See www.commscope.com for the most current information. page 2 of
5 8/20/2011 _x000C_Product Specifications SBNH-1D8585B DB5083 Downtilt Mounting Kit for 2.4 4.5 in (60 -
115 mm) OD round members ©2011 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope. All specifications are subject to change. See www.commscope.com for the most current information. page 3 of
5 8/20/2011 _x000C_Product Specifications SBNH-1D8585B Horizontal Pattern Vertical Pattern ©2011 CommScope, Inc. All rights
reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope. All specifications are subject to change.
See www.commscope.com for the most current information. page 4 of 5 8/20/2011 _x000C_Product Specifications SBNH-
1D8585B ©2011 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of
CommScope. All specifications are subject to change. See www.commscope.com for the most current information. page 5 of 5 8/20/2011
