The document provides product information and instructions for purchasing an Andrew DBXLH-6565A-R2M DualPol dual band antenna. It describes the antenna's specifications including frequency bands, gain, beamwidth, electrical tilt capabilities. It also provides instructions on how to purchase the antenna from Launch 3 Telecom, including payment and shipping options.

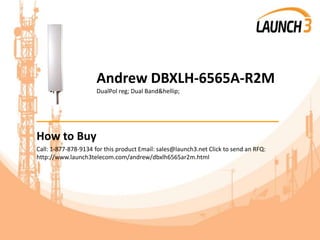

2. Andrew DBXLH-6565A-R2M
DualPol reg; Dual Band…
_______________________________________
How to Buy
Call: 1-877-878-9134 for this product Email: sales@launch3.net Click to send an RFQ:
http://www.launch3telecom.com/andrew/dbxlh6565ar2m.html

3. Part number: DBXLH-6565A-R2M Datasheets: https://www.launch3telecom.com/shared_
media/datasheet/p_1259325710_1.pdf
Manufacturer: Andrew Weight: 35.0 grams
Title: DualPol reg; Dual
Band…
Category: N/A
Description: <p>DualPol&reg; Dual
Band Antenna, 824-960
MHz and 1710-2180
MHz, 65&deg; horizontal
beamwidth, RET
compatible variable ...
Genre: Wireless
Heci: N/A
Part Page URL:

4. About Us
Launch 3 Telecom is your one stop shop for all your Telecom and Data/Networking
Hardware needs and genuine Andrew replacement parts. We have loyally served our
customers since 2003. Our product expertise, quality customer service, competitive pricing
-on items like this Andrew DBXLH-6565A-R2M -- are a few of the reasons why more
telecom professionals buy from Launch 3 Telecom every day.
_______________________________________
Payment and Processing
We accept Visa, Mastercard, American Express and Paypal payments for this Andrew
DBXLH-6565A-R2M. We can also accept Purchase Orders for Net Terms upon approval.
Launch 3 Telecom does have a Government Cage Code so if this is for a Government
purchase please tells us! You may also call us at 877-878-9134 or email us at
sales@launch3.net for our credit card form. Please call us today to purchase this Andrew
DBXLH-6565A-R2M item while inventory and sale last.

5. Same Day Shipping, Order Confirmation and Order
Tracking
Once your order is placed for the Andrew DBXLH-6565A-R2M, you may select from several
shipping methods, including UPS, Federal Express, DHL, USPS, 3 day, 2 day, overnight and
international methods. Orders received and approved before 3PM EST will generally ship
the same business day. You will receive an order confirmation email for your Andrew
DBXLH-6565A-R2M along with the tracking number as soon as it is available. The tracking
number will allow you to track your shipment in real time. We pack the Andrew DBXLH-
6565A-R2M in anti-static bubble wrap to ensure safe delivery. We will combine multiple
items in one shipment whenever possible to save on shipping time and costs. Because we
have several distribution points and vendor locations, sometimes orders will be divided
into multiple shipments, but never at extra cost to you.
_______________________________________
Warranty
Every item you purchase from us includes a warranty and our hassle-free return policy. We
stand by our product and your satisfaction is our goal. If you ever have questions or
concerns about your Andrew DBXLH-6565A-R2M order, simply contact our Customer
Service Department at 877-878-9134, Monday - Friday, 9 AM - 5 PM EST. Friendly customer
service reps are available to assist you with your order.

6. Services from Launch 3 Telecom
Launch 3 Telecom can also repair the Andrew
DBXLH-6565A-R2M, provides maintenance
contracts, De-installation, Telecom
Consignment and Recycling. Please contact
Launch 3 Telecom to learn more about these
services! Launch 3 Telecom specializes in
installation of all telecom related systems. Our
team is equipped to handle all telecom
equipment including cellular, Fixed Wireless,
WiMAX, Central Office, and more. No project is
too small or too big, and each is handled by a
dedicated telecom professional.
De-Installation - Our Network Installation
Experts will properly de-install your equipment,
package it, and ship it to our warehouse for
storage.
Testing - Our team of technicians will inspect
each piece of equipment thoroughly. If a piece
of equipment needs repair, we’ll provide the
resources and technology to guarantee each
piece is ready to be sold.
Asset Recovery - We can store your equipment
in one of our expansive warehouses located
around the country until your equipment is
sold so you can save on storage costs and avoid
cluttering your equipment floor.
Repair Services - Launch 3 Telecom is your one-
stop solution to your entire Telecom
Equipment & System repair. Our team of
dedicated professionals will get your system
back up and running quickly and efficiently. We
repair cell sites, central office switching,
combiners, data networking, transmission,
power supplies, microwave, radios, IP Cameras,
Sonet /SHD, power, power amps, CDMA, GSM,
TDMA, and PBX Keyphone.
Third Party Logistics - If you are currently
operating a direct route or if you are interested
in setting one up, Launch 3 Telecom would like
to discuss the opportunity of sending you
traffic. Contact us today to speak to a Call
Termination Specialist for more details at
voip@launch3telecom.com

7. Product Specifications DBXLH-6565A-VTM DualPol® Dual Band Antenna, 824–960 MHz and 1710–
2180 MHz, 65° horizontal beamwidth, RET compatible variable electrical tilt l Two DualPol® antennas under one radome l
Interleaved dipole technology providing for attractive, low wind load mechanical package l
Each antenna is independently capable of field adjustable electrical tilt l
Fully compatible with Andrew Teletilt® remote control system CHARACTERISTICS General Specifications
Antenna Type DualPol® dual band Brand DualPol® | Teletilt® Operating Frequency Band 1710 – 2180 MHz | 824 –
960 MHz Electrical Specifications Frequency Band, MHz Beamwidth, Horizontal, degrees Gain, dBd Gain, dBi Beamwidth, Vertical, degrees
Beam Tilt, degrees Upper Sidelobe Suppression (USLS), typical, dB FronttoBack Ratio at 180°, dB Isolation, dB VSWR | Return Loss, db
Intermodulation Products, 3rd Order, 2 x 20 W, dBc Input Power, maximum, watts
Polarization Impedance, ohms Lightning Protection 824–896 870–960 1710–1880 1850–1990 1920–2180 68 65 65 63 61 11.9 12.2 14.4 14.7
14.9 14.0 14.3 16.5 16.8 17.0 16.0 15.0 7.2 6.8 6.5 0–15 0–15 0–8 0–8 0–8 16 18 15 15 15 25 25 28 28 27 25 30 30 30 30 1.4:1 | 15.6 1.5:1 | 14.0
1.5:1 | 14.0 1.4:1 | 15.6 1.5:1 | 14.0 150 150 150 150 150 250 250 250 250 250 ±45° ±45° ±45° ±45° ±45° 50 50 50 50 50 dc Ground dc Ground
dc Ground dc Ground dc Ground www.commscope.com/andrew ©2009 CommScope, Inc. All rights reserved. All trademarks identified by ®
or ™ are registered trademarks or trademarks, respectively, of CommScope. All specifications are subject to change. See
www.commscope.com/andrew for the most current information. page 1 of 4 7/7/2009 _x000C_Product Specifications DBXLH-6565A-VTM
Mechanical Specifications Color Light gray Connector Interface 7-
16 DIN Female Connector Location Bottom Connector Quantity 4 Wind Loading, maximum 466.6 N @ 100 mph
104.9 lbf @ 100 mph Wind Speed, maximum 201.0 km/h | 124.9 mph Dimensions
Depth 132.0 mm | 5.2 in Length 1294.0 mm | 50.9 in Width 269.0 mm | 10.6 in Net Weight 14.2 kg | 31.3 lb Remote
Electrical Tilt (RET) Information Model with Factory Installed AISG 1.1 Actuator DBXLH6565A-
R2M Model with Factory Installed AISG 2.0 Actuator DBXLH6565AA2M RET System Teletilt® Regulatory Compliance/Certifications Agency
RoHS 2002/95/EC China RoHS SJ/T 113642006 Classification Compliant by Exemption
Above Maximum Concentration Value (MCV) Included Products 600899A-
2 Downtilt Mounting Kit for 4.5 in (114.3 mm) OD round members www.commscope.com/andrew ©2009 CommScope, Inc. All rights
reserved. All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope. All specifications are
subject to change. See www.commscope.com/andrew for the most current information. page 2 of 4 7/7/2009 _x000C_Product Specifications
DBXLH-6565A-VTM Horizontal Pattern Vertical Pattern www.commscope.com/andrew ©2009 CommScope, Inc. All rights
reserved. All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope. All specifications are
subject to change. See www.commscope.com/andrew for the most current information. page 3 of 4 7/7/2009 _x000C_Product Specifications
DBXLH-6565A-VTM www.commscope.com/andrew ©2009 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™
are registered trademarks or trademarks, respectively, of CommScope. All specifications are subject to change. See
www.commscope.com/andrew for the most current information. page 4 of 4 7/7/2009 _x000C_
