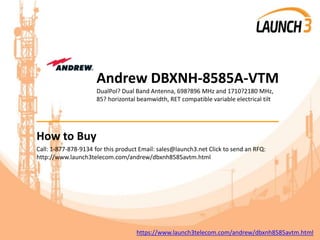

2. Andrew DBXNH-8585A-VTM
DualPol? Dual Band Antenna, 698?896 MHz and 1710?2180 MHz,
85? horizontal beamwidth, RET compatible variable electrical tilt
_______________________________________
How to Buy
Call: 1-877-878-9134 for this product Email: sales@launch3.net Click to send an RFQ:
http://www.launch3telecom.com/andrew/dbxnh8585avtm.html
https://www.launch3telecom.com/andrew/dbxnh8585avtm.html

3. Part number: DBXNH-8585A-VTM Datasheets: https://www.launch3telecom.com/shared_
media/datasheet/DBXNH-8585A-VTM.pdf
Manufacturer: Andrew Weight: N/A
Title: DualPol? Dual Band
Antenna, 698?896 MHz
and 1710?2180 MHz, 85?
horizontal beamwi...
Category: N/A
Description: DualPol? Dual Band
Antenna, 698?896 MHz
and 1710?2180 MHz, 85?
horizontal beamwidth,
RET compatible variable
electrical ...
Genre: Wireless
Heci: N/A
Part Page URL: https://www.launch3telecom.com/andrew/
dbxnh8585avtm.html
https://www.launch3telecom.com/andrew/dbxnh8585avtm.html

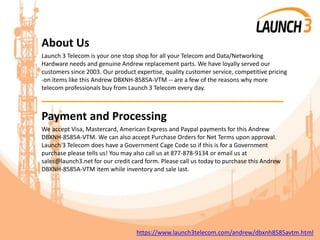

4. About Us
Launch 3 Telecom is your one stop shop for all your Telecom and Data/Networking
Hardware needs and genuine Andrew replacement parts. We have loyally served our
customers since 2003. Our product expertise, quality customer service, competitive pricing
-on items like this Andrew DBXNH-8585A-VTM -- are a few of the reasons why more
telecom professionals buy from Launch 3 Telecom every day.
_______________________________________
Payment and Processing
We accept Visa, Mastercard, American Express and Paypal payments for this Andrew
DBXNH-8585A-VTM. We can also accept Purchase Orders for Net Terms upon approval.
Launch 3 Telecom does have a Government Cage Code so if this is for a Government
purchase please tells us! You may also call us at 877-878-9134 or email us at
sales@launch3.net for our credit card form. Please call us today to purchase this Andrew
DBXNH-8585A-VTM item while inventory and sale last.
https://www.launch3telecom.com/andrew/dbxnh8585avtm.html

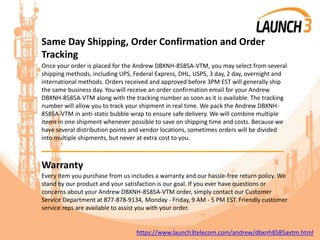

5. Same Day Shipping, Order Confirmation and Order
Tracking
Once your order is placed for the Andrew DBXNH-8585A-VTM, you may select from several
shipping methods, including UPS, Federal Express, DHL, USPS, 3 day, 2 day, overnight and
international methods. Orders received and approved before 3PM EST will generally ship
the same business day. You will receive an order confirmation email for your Andrew
DBXNH-8585A-VTM along with the tracking number as soon as it is available. The tracking
number will allow you to track your shipment in real time. We pack the Andrew DBXNH-
8585A-VTM in anti-static bubble wrap to ensure safe delivery. We will combine multiple
items in one shipment whenever possible to save on shipping time and costs. Because we
have several distribution points and vendor locations, sometimes orders will be divided
into multiple shipments, but never at extra cost to you.
_______________________________________
Warranty
Every item you purchase from us includes a warranty and our hassle-free return policy. We
stand by our product and your satisfaction is our goal. If you ever have questions or
concerns about your Andrew DBXNH-8585A-VTM order, simply contact our Customer
Service Department at 877-878-9134, Monday - Friday, 9 AM - 5 PM EST. Friendly customer
service reps are available to assist you with your order.
https://www.launch3telecom.com/andrew/dbxnh8585avtm.html

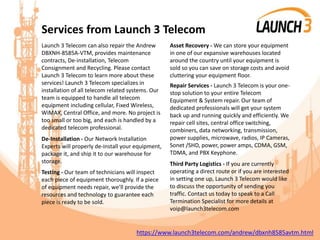

6. Services from Launch 3 Telecom
Launch 3 Telecom can also repair the Andrew
DBXNH-8585A-VTM, provides maintenance
contracts, De-installation, Telecom
Consignment and Recycling. Please contact
Launch 3 Telecom to learn more about these
services! Launch 3 Telecom specializes in
installation of all telecom related systems. Our
team is equipped to handle all telecom
equipment including cellular, Fixed Wireless,
WiMAX, Central Office, and more. No project is
too small or too big, and each is handled by a
dedicated telecom professional.
De-Installation - Our Network Installation
Experts will properly de-install your equipment,
package it, and ship it to our warehouse for
storage.
Testing - Our team of technicians will inspect
each piece of equipment thoroughly. If a piece
of equipment needs repair, we’ll provide the
resources and technology to guarantee each
piece is ready to be sold.
Asset Recovery - We can store your equipment
in one of our expansive warehouses located
around the country until your equipment is
sold so you can save on storage costs and avoid
cluttering your equipment floor.
Repair Services - Launch 3 Telecom is your one-
stop solution to your entire Telecom
Equipment & System repair. Our team of
dedicated professionals will get your system
back up and running quickly and efficiently. We
repair cell sites, central office switching,
combiners, data networking, transmission,
power supplies, microwave, radios, IP Cameras,
Sonet /SHD, power, power amps, CDMA, GSM,
TDMA, and PBX Keyphone.
Third Party Logistics - If you are currently
operating a direct route or if you are interested
in setting one up, Launch 3 Telecom would like
to discuss the opportunity of sending you
traffic. Contact us today to speak to a Call
Termination Specialist for more details at
voip@launch3telecom.com
https://www.launch3telecom.com/andrew/dbxnh8585avtm.html

7. Product Specifications DBXNH-8585A-VTM DualPol® Dual Band Antenna, 698–896 MHz and 1710–
2180 MHz, 85° horizontal beamwidth, RET compatible variable electrical tilt l Two DualPol® antennas under one radome l
Patented dipole technology l Each antenna is independently capable of field adjustable electrical tilt l
Fully compatible with Andrew Teletilt® remote control system l
The RF connectors are IP67 rated and the radome is IP56 rated CHARACTERISTICS General Specifications
Antenna Type DualPol® dual band Brand DualPol® | Teletilt® Operating Frequency Band 1710 – 2180 MHz | 698 –
896 MHz Electrical Specifications Frequency Band, MHz Beamwidth, Horizontal, degrees Beamwidth, Horizontal Tolerance, degrees
Gain, dBd Gain, dBi Beamwidth, Vertical, degrees Beam Tilt, degrees Upper Sidelobe Suppression (USLS), typical, dB Frontto-
Back Ratio at 180°, dB FronttoBack Total Power at 180° ± 20°, dB Cross Polarization Ratio (CPR) at Boresight, dB
Cross Polarization Ratio (CPR) at Sector, dB Isolation, dB Isolation, Intersystem, dB VSWR | Return Loss, db
Intermodulation Products, 3rd Order, 2 x 20 W, dBc Input Power, maximum, watts
Polarization Impedance, ohms Lightning Protection 698–806 806–896 1710–1880 1850–1990 1920–2180 90 88 85 85 84 ±6 ±6 ±6.5 ±6.5 ±8
10.5 11.0 13.7 13.8 13.9 12.6 13.1 15.8 15.9 16.0 18.0 16.5 7.3 7.0 6.5 0–15 0–15 0–10 0–10 0–10 15 16 15 15 15 25 25 28 26 26 15 19 22 22 22 18
18 17 17 17 10 10 5 7 7 30 30 30 30 30 40 40 35 35 35 1.5:1 | 14.0 1.5:1 | 14.0 1.5:1 | 14.0 1.5:1 | 14.0 1.5:1 | 14.0 150 150 150 150 150 500 500
300 300 300 ±45° ±45° ±45° ±45° ±45° 50 50 50 50 50 dc Ground dc Ground dc Ground dc Ground dc Ground ©2011 CommScope, Inc. All rights
reserved. All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope.All specifications are
subject to change. See www.commscope.com/andrew for the most current information. page 1 of 4 3/17/2011 _x000C_Product
Specifications DBXNH-8585A-VTM Mechanical Specifications Color Light gray Connector Interface 7-
16 DIN Female Connector Location Bottom Connector Quantity 4 Radome Material Fiberglass, UV resistant Wind Loading, maximum
402.7 N @ 150 km/h 90.5 lbf @ 150 km/h Wind Speed, maximum 241.0 km/h | 149.8 mph Dimensions
Depth 181.0 mm | 7.1 in Length 1298.0 mm | 51.1 in Width 301.0 mm | 11.9 in Net Weight 14.5 kg | 32.0 lb Remote
Electrical Tilt (RET) Information Model with Factory Installed AISG 1.1 Actuator DBXNH8585A-
R2M Model with Factory Installed AISG 2.0 Actuator DBXNH8585AA2M RET System Teletilt® Regulatory Compliance/Certifications Agency
ISO 9001:2008 Classification Designed, manufactured and/or distributed under this quality management system INCLUDED PRODUCTS
DB380 Pipe Mounting Kit for 2.4 4.5 in (60 115 mm) OD round members DB5083 Downtilt Mounting Kit for 2.4 4.5 in (60 -
115 mm) OD round members ©2011 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks or
trademarks, respectively, of CommScope.All specifications are subject to change. See www.commscope.com/andrew for the most current
information. page 2 of 4 3/17/2011 _x000C_Product Specifications DBXNH-8585A-VTM Horizontal Pattern Vertical Pattern ©2011
CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of
CommScope.All specifications are subject to change. See www.commscope.com/andrew for the most current information. page 3 of 4
3/17/2011 _x000C_Product Specifications DBXNH-8585A-VTM ©2011 CommScope, Inc. All rights reserved. All trademarks identified
by ® or ™ are registered trademarks or trademarks, respectively, of CommScope.All specifications are subject to change. See
www.commscope.com/andrew for the most current information. page 4 of 4 3/17/2011 _x000C_
