Launch 3 Telecom provides information on and options for purchasing the Commscope-Andrew DBXLH-9090A-VTM dual band antenna. The antenna operates in the 850MHz and 1.9GHz bands with a horizontal beamwidth of 90 degrees and supports variable electrical tilt. Launch 3 Telecom offers payment and shipping options for purchasing the antenna and provides warranty and repair services.

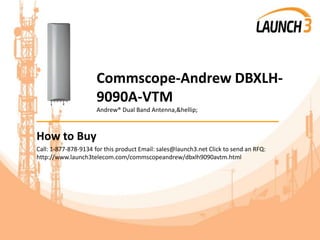

2. Commscope-Andrew DBXLH-
9090A-VTM
Andrew® Dual Band Antenna,…
_______________________________________
How to Buy
Call: 1-877-878-9134 for this product Email: sales@launch3.net Click to send an RFQ:
http://www.launch3telecom.com/commscopeandrew/dbxlh9090avtm.html

3. Part number: DBXLH-9090A-VTM Datasheets: https://www.launch3telecom.com/shared_
media/datasheet/DBXLH-9090A-VTM.pdf
Manufacturer: Commscope-Andrew Weight: N/A
Title: Andrew® Dual Band
Antenna,…
Category: N/A
Description: <span
id="phBody_lblDescriptio
n">Andrew&reg; Dual
Band Antenna, 824–896
MHz and 1850–2180
MHz, 90&deg; horizontal
be...
Genre: Base Station
Heci: N/A
Part Page URL:

4. About Us
Launch 3 Telecom is your one stop shop for all your Telecom and Data/Networking
Hardware needs and genuine Commscope-Andrew replacement parts. We have loyally
served our customers since 2003. Our product expertise, quality customer service,
competitive pricing -on items like this Commscope-Andrew DBXLH-9090A-VTM -- are a few
of the reasons why more telecom professionals buy from Launch 3 Telecom every day.
_______________________________________
Payment and Processing
We accept Visa, Mastercard, American Express and Paypal payments for this Commscope-
Andrew DBXLH-9090A-VTM. We can also accept Purchase Orders for Net Terms upon
approval. Launch 3 Telecom does have a Government Cage Code so if this is for a
Government purchase please tells us! You may also call us at 877-878-9134 or email us at
sales@launch3.net for our credit card form. Please call us today to purchase this
Commscope-Andrew DBXLH-9090A-VTM item while inventory and sale last.

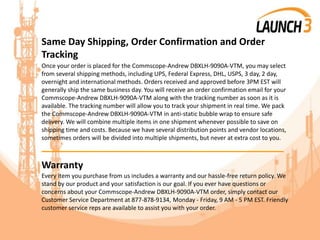

5. Same Day Shipping, Order Confirmation and Order
Tracking
Once your order is placed for the Commscope-Andrew DBXLH-9090A-VTM, you may select
from several shipping methods, including UPS, Federal Express, DHL, USPS, 3 day, 2 day,
overnight and international methods. Orders received and approved before 3PM EST will
generally ship the same business day. You will receive an order confirmation email for your
Commscope-Andrew DBXLH-9090A-VTM along with the tracking number as soon as it is
available. The tracking number will allow you to track your shipment in real time. We pack
the Commscope-Andrew DBXLH-9090A-VTM in anti-static bubble wrap to ensure safe
delivery. We will combine multiple items in one shipment whenever possible to save on
shipping time and costs. Because we have several distribution points and vendor locations,
sometimes orders will be divided into multiple shipments, but never at extra cost to you.
_______________________________________
Warranty
Every item you purchase from us includes a warranty and our hassle-free return policy. We
stand by our product and your satisfaction is our goal. If you ever have questions or
concerns about your Commscope-Andrew DBXLH-9090A-VTM order, simply contact our
Customer Service Department at 877-878-9134, Monday - Friday, 9 AM - 5 PM EST. Friendly
customer service reps are available to assist you with your order.

6. Services from Launch 3 Telecom
Launch 3 Telecom can also repair the
Commscope-Andrew DBXLH-9090A-VTM,
provides maintenance contracts, De-
installation, Telecom Consignment and
Recycling. Please contact Launch 3 Telecom to
learn more about these services! Launch 3
Telecom specializes in installation of all
telecom related systems. Our team is equipped
to handle all telecom equipment including
cellular, Fixed Wireless, WiMAX, Central Office,
and more. No project is too small or too big,
and each is handled by a dedicated telecom
professional.
De-Installation - Our Network Installation
Experts will properly de-install your equipment,
package it, and ship it to our warehouse for
storage.
Testing - Our team of technicians will inspect
each piece of equipment thoroughly. If a piece
of equipment needs repair, we’ll provide the
resources and technology to guarantee each
piece is ready to be sold.
Asset Recovery - We can store your equipment
in one of our expansive warehouses located
around the country until your equipment is
sold so you can save on storage costs and avoid
cluttering your equipment floor.
Repair Services - Launch 3 Telecom is your one-
stop solution to your entire Telecom
Equipment & System repair. Our team of
dedicated professionals will get your system
back up and running quickly and efficiently. We
repair cell sites, central office switching,
combiners, data networking, transmission,
power supplies, microwave, radios, IP Cameras,
Sonet /SHD, power, power amps, CDMA, GSM,
TDMA, and PBX Keyphone.
Third Party Logistics - If you are currently
operating a direct route or if you are interested
in setting one up, Launch 3 Telecom would like
to discuss the opportunity of sending you
traffic. Contact us today to speak to a Call
Termination Specialist for more details at
voip@launch3telecom.com

7. Product Specifications DBXLH-9090A-VTM DualPol® Dual Band Antenna, 824–896 MHz and 1850–
2180 MHz, 90° horizontal beamwidth, RET compatible variable electrical tilt OBSOLETE This product was discontinued on: 2/4/2009 Repla
ced By: DBXLH8585AVTM DualPol® Dual Band Antenna, 824–960 MHz and 1710–
2180 MHz, 85° horizontal beamwidth, RET compatible variable electrical tilt l Two DualPol® antennas under one radome l
Patented dipole technology l Each antenna is independently capable of field adjustable electrical tilt l
Fully compatible with Andrew Teletilt® remote control system CHARACTERISTICS General Specifications
Antenna Type DualPol® dual band Brand DualPol® | Teletilt® Operating Frequency Band 1850 – 2180 MHz | 824 –
896 MHz Electrical Specifications Frequency Band, MHz Beamwidth, Horizontal, degrees Gain, dBd Gain, dBi Beamwidth, Vertical, degrees
Beam Tilt, degrees Upper Sidelobe Suppression (USLS), typical, dB FronttoBack Ratio at 180°, dB Isolation, dB VSWR | Return Loss, db
Intermodulation Products, 3rd Order, 2 x 20 W, dBc 824–896 87 11.2 13.3 16.0 0–16 15 26 28 1.4:1 | 15.6 150 1850–1990 90 14.1 16.2 6.8 0–8
15 30 30 1.5:1 | 14.0 150 ©2011 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks or
trademarks, respectively, of CommScope.All specifications are subject to change. See www.commscope.com/andrew for the most current
information. 1920–2180 90 14.1 16.2 6.5 0–8 15 30 30 1.5:1 | 14.0 150 page 1 of 4 3/17/2011 _x000C_Product Specifications DBXLH-9090A-
VTM Input Power, maximum, watts Polarization Impedance, ohms Lightning Protection 300 ±45° 50 dc Ground 250 ±45° 50 dc Ground
©2011 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of
CommScope.All specifications are subject to change. See www.commscope.com/andrew for the most current information. 250 ±45° 50
dc Ground page 2 of 4 3/17/2011 _x000C_Product Specifications DBXLH-9090A-VTM Mechanical Specifications
Color Light gray Connector Interface 7-
16 DIN Female Connector Location Bottom Connector Quantity 4 Radome Material UV protected radome Wind Loading, maximum 65
3.9 N @ 100 mph 147.0 lbf @ 100 mph Wind Speed, maximum 241.4 km/h | 150.0 mph Dimensions
Depth 127.0 mm | 5.0 in Length 1305.6 mm | 51.4 in Width 391.2 mm | 15.4 in Net Weight 12.7 kg | 28.0 lb Remote
Electrical Tilt (RET) Information Model with Factory Installed AISG 1.1 Actuator DBXLH9090AR2M RET System Teletilt® Regulatory
Compliance/Certifications Agency RoHS 2002/95/EC China RoHS SJ/T 113642006 Classification Compliant by Exemption
Above Maximum Concentration Value (MCV) INCLUDED PRODUCTS DB380 Pipe Mounting Kit for 2.4 4.5 in (60 -
115 mm) OD round members DB5083 Downtilt Mounting Kit for 2.4 4.5 in (60 115 mm) OD round members ©2011 CommScope, Inc. All
rights reserved. All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope.All specifications
are subject to change. See www.commscope.com/andrew for the most current information. page 3 of 4 3/17/2011 _x000C_Product
Specifications DBXLH-9090A-VTM Horizontal Pattern Vertical Pattern ©2011 CommScope, Inc. All rights reserved. All trademarks
identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope.All specifications are subject to change. See
www.commscope.com/andrew for the most current information. page 4 of 4 3/17/2011 _x000C_
