The document provides product details and purchasing information for an Andrew E15Z09P94 Tower Mounted Amplifier. Key details include the part number, manufacturer, description as a tower mounted amplifier for AWS/700-750 MHz bands, specifications for RF and electrical performance, mechanical dimensions, environmental tolerances, and regulatory compliance certifications. Purchasing through Launch3 Telecom is described, including payment methods, same-day shipping, and warranty support.

2. Andrew E15Z09P94
Tower Mounted Amplifier, Twin…
_______________________________________
How to Buy
Call: 1-877-878-9134 for this product Email: sales@launch3.net Click to send an RFQ:
http://www.launch3telecom.com/andrew/e15z09p94.html

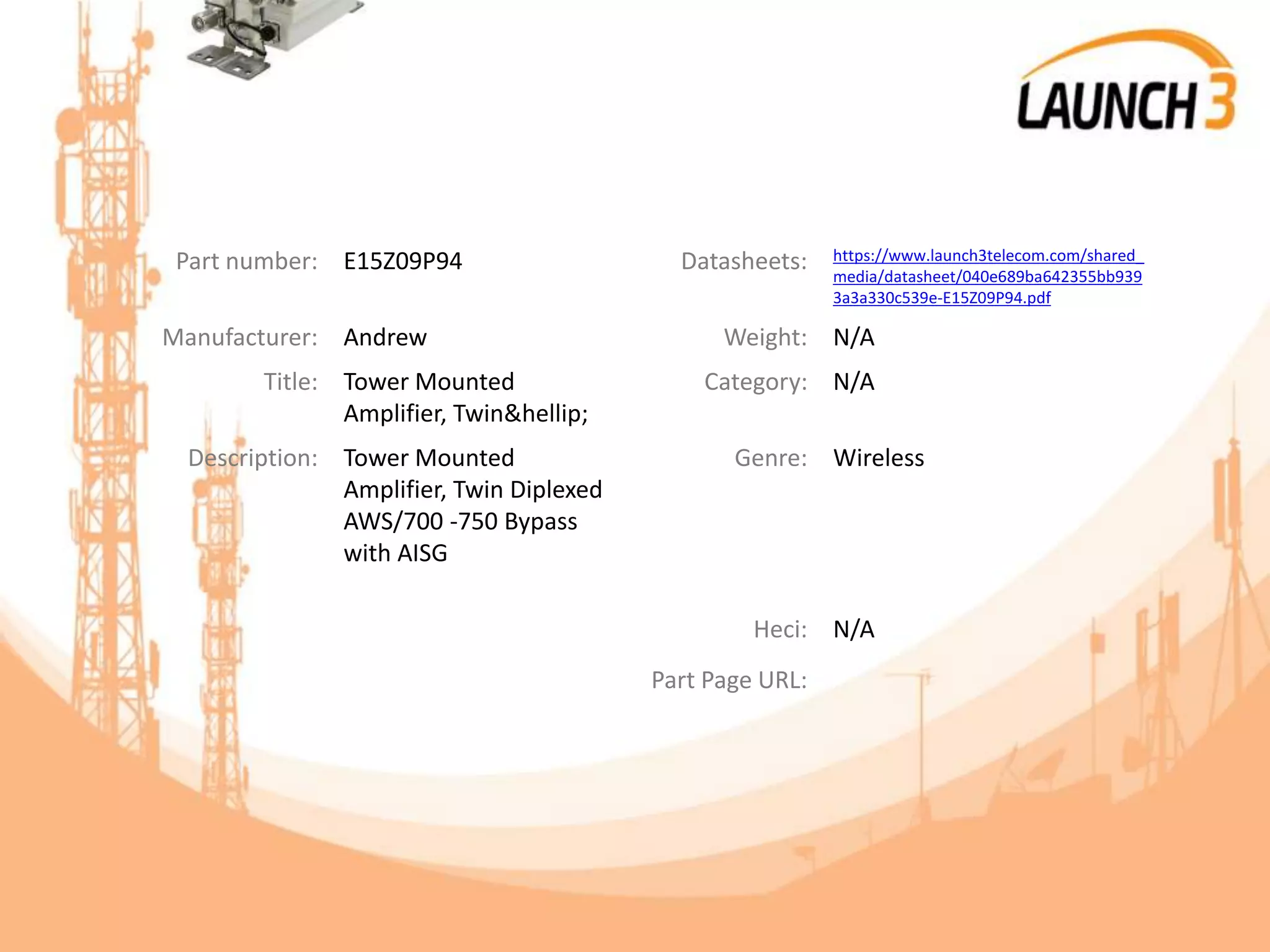

3. Part number: E15Z09P94 Datasheets: https://www.launch3telecom.com/shared_
media/datasheet/040e689ba642355bb939
3a3a330c539e-E15Z09P94.pdf
Manufacturer: Andrew Weight: N/A
Title: Tower Mounted
Amplifier, Twin…
Category: N/A
Description: Tower Mounted
Amplifier, Twin Diplexed
AWS/700 -750 Bypass
with AISG
Genre: Wireless
Heci: N/A
Part Page URL:

4. About Us
Launch 3 Telecom is your one stop shop for all your Telecom and Data/Networking
Hardware needs and genuine Andrew replacement parts. We have loyally served our
customers since 2003. Our product expertise, quality customer service, competitive pricing
-on items like this Andrew E15Z09P94 -- are a few of the reasons why more telecom
professionals buy from Launch 3 Telecom every day.
_______________________________________
Payment and Processing
We accept Visa, Mastercard, American Express and Paypal payments for this Andrew
E15Z09P94. We can also accept Purchase Orders for Net Terms upon approval. Launch 3
Telecom does have a Government Cage Code so if this is for a Government purchase please
tells us! You may also call us at 877-878-9134 or email us at sales@launch3.net for our
credit card form. Please call us today to purchase this Andrew E15Z09P94 item while
inventory and sale last.

5. Same Day Shipping, Order Confirmation and Order
Tracking
Once your order is placed for the Andrew E15Z09P94, you may select from several shipping
methods, including UPS, Federal Express, DHL, USPS, 3 day, 2 day, overnight and
international methods. Orders received and approved before 3PM EST will generally ship
the same business day. You will receive an order confirmation email for your Andrew
E15Z09P94 along with the tracking number as soon as it is available. The tracking number
will allow you to track your shipment in real time. We pack the Andrew E15Z09P94 in anti-
static bubble wrap to ensure safe delivery. We will combine multiple items in one shipment
whenever possible to save on shipping time and costs. Because we have several
distribution points and vendor locations, sometimes orders will be divided into multiple
shipments, but never at extra cost to you.
_______________________________________
Warranty
Every item you purchase from us includes a warranty and our hassle-free return policy. We
stand by our product and your satisfaction is our goal. If you ever have questions or
concerns about your Andrew E15Z09P94 order, simply contact our Customer Service
Department at 877-878-9134, Monday - Friday, 9 AM - 5 PM EST. Friendly customer service
reps are available to assist you with your order.

6. Services from Launch 3 Telecom
Launch 3 Telecom can also repair the Andrew
E15Z09P94, provides maintenance contracts,
De-installation, Telecom Consignment and
Recycling. Please contact Launch 3 Telecom to
learn more about these services! Launch 3
Telecom specializes in installation of all
telecom related systems. Our team is equipped
to handle all telecom equipment including
cellular, Fixed Wireless, WiMAX, Central Office,
and more. No project is too small or too big,
and each is handled by a dedicated telecom
professional.
De-Installation - Our Network Installation
Experts will properly de-install your equipment,
package it, and ship it to our warehouse for
storage.
Testing - Our team of technicians will inspect
each piece of equipment thoroughly. If a piece
of equipment needs repair, we’ll provide the
resources and technology to guarantee each
piece is ready to be sold.
Asset Recovery - We can store your equipment
in one of our expansive warehouses located
around the country until your equipment is
sold so you can save on storage costs and avoid
cluttering your equipment floor.
Repair Services - Launch 3 Telecom is your one-
stop solution to your entire Telecom
Equipment & System repair. Our team of
dedicated professionals will get your system
back up and running quickly and efficiently. We
repair cell sites, central office switching,
combiners, data networking, transmission,
power supplies, microwave, radios, IP Cameras,
Sonet /SHD, power, power amps, CDMA, GSM,
TDMA, and PBX Keyphone.
Third Party Logistics - If you are currently
operating a direct route or if you are interested
in setting one up, Launch 3 Telecom would like
to discuss the opportunity of sending you
traffic. Contact us today to speak to a Call
Termination Specialist for more details at
voip@launch3telecom.com

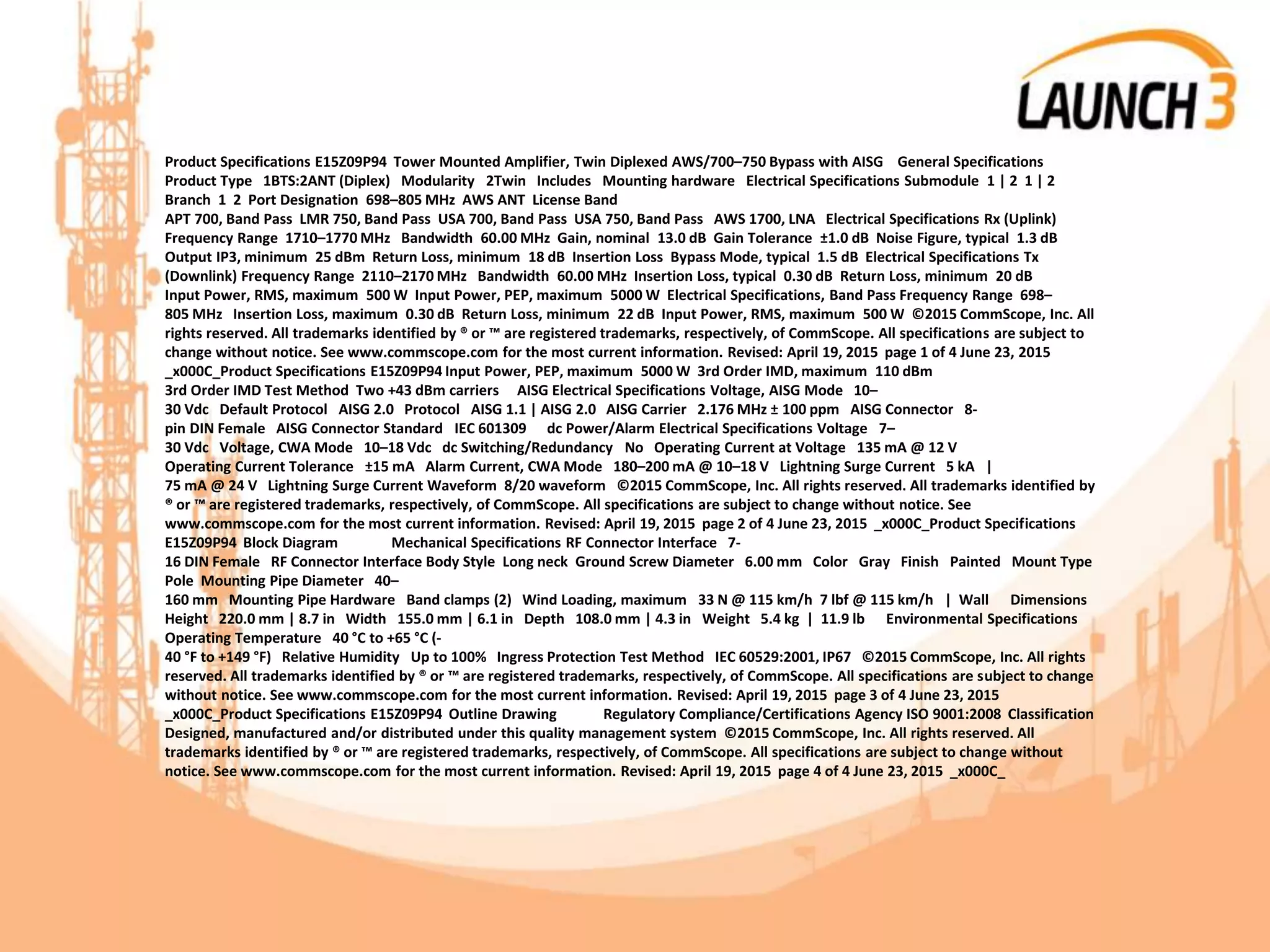

7. Product Specifications E15Z09P94 Tower Mounted Amplifier, Twin Diplexed AWS/700–750 Bypass with AISG General Specifications
Product Type 1BTS:2ANT (Diplex) Modularity 2Twin Includes Mounting hardware Electrical Specifications Submodule 1 | 2 1 | 2
Branch 1 2 Port Designation 698–805 MHz AWS ANT License Band
APT 700, Band Pass LMR 750, Band Pass USA 700, Band Pass USA 750, Band Pass AWS 1700, LNA Electrical Specifications Rx (Uplink)
Frequency Range 1710–1770 MHz Bandwidth 60.00 MHz Gain, nominal 13.0 dB Gain Tolerance ±1.0 dB Noise Figure, typical 1.3 dB
Output IP3, minimum 25 dBm Return Loss, minimum 18 dB Insertion Loss Bypass Mode, typical 1.5 dB Electrical Specifications Tx
(Downlink) Frequency Range 2110–2170 MHz Bandwidth 60.00 MHz Insertion Loss, typical 0.30 dB Return Loss, minimum 20 dB
Input Power, RMS, maximum 500 W Input Power, PEP, maximum 5000 W Electrical Specifications, Band Pass Frequency Range 698–
805 MHz Insertion Loss, maximum 0.30 dB Return Loss, minimum 22 dB Input Power, RMS, maximum 500 W ©2015 CommScope, Inc. All
rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope. All specifications are subject to
change without notice. See www.commscope.com for the most current information. Revised: April 19, 2015 page 1 of 4 June 23, 2015
_x000C_Product Specifications E15Z09P94 Input Power, PEP, maximum 5000 W 3rd Order IMD, maximum 110 dBm
3rd Order IMD Test Method Two +43 dBm carriers AISG Electrical Specifications Voltage, AISG Mode 10–
30 Vdc Default Protocol AISG 2.0 Protocol AISG 1.1 | AISG 2.0 AISG Carrier 2.176 MHz ± 100 ppm AISG Connector 8-
pin DIN Female AISG Connector Standard IEC 601309 dc Power/Alarm Electrical Specifications Voltage 7–
30 Vdc Voltage, CWA Mode 10–18 Vdc dc Switching/Redundancy No Operating Current at Voltage 135 mA @ 12 V
Operating Current Tolerance ±15 mA Alarm Current, CWA Mode 180–200 mA @ 10–18 V Lightning Surge Current 5 kA |
75 mA @ 24 V Lightning Surge Current Waveform 8/20 waveform ©2015 CommScope, Inc. All rights reserved. All trademarks identified by
® or ™ are registered trademarks, respectively, of CommScope. All specifications are subject to change without notice. See
www.commscope.com for the most current information. Revised: April 19, 2015 page 2 of 4 June 23, 2015 _x000C_Product Specifications
E15Z09P94 Block Diagram Mechanical Specifications RF Connector Interface 7-
16 DIN Female RF Connector Interface Body Style Long neck Ground Screw Diameter 6.00 mm Color Gray Finish Painted Mount Type
Pole Mounting Pipe Diameter 40–
160 mm Mounting Pipe Hardware Band clamps (2) Wind Loading, maximum 33 N @ 115 km/h 7 lbf @ 115 km/h | Wall Dimensions
Height 220.0 mm | 8.7 in Width 155.0 mm | 6.1 in Depth 108.0 mm | 4.3 in Weight 5.4 kg | 11.9 lb Environmental Specifications
Operating Temperature 40 °C to +65 °C (-
40 °F to +149 °F) Relative Humidity Up to 100% Ingress Protection Test Method IEC 60529:2001, IP67 ©2015 CommScope, Inc. All rights
reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope. All specifications are subject to change
without notice. See www.commscope.com for the most current information. Revised: April 19, 2015 page 3 of 4 June 23, 2015
_x000C_Product Specifications E15Z09P94 Outline Drawing Regulatory Compliance/Certifications Agency ISO 9001:2008 Classification
Designed, manufactured and/or distributed under this quality management system ©2015 CommScope, Inc. All rights reserved. All
trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope. All specifications are subject to change without
notice. See www.commscope.com for the most current information. Revised: April 19, 2015 page 4 of 4 June 23, 2015 _x000C_
