This document provides product specifications for an Andrew 8841405/10 750 feet black insulation cable. It includes details on ordering, payment, shipping, warranty and repair services available from Launch 3 Telecom for this product. Specifications cover electrical performance, mechanical properties, materials used, testing standards and environmental requirements.

2. Andrew 8841405/10
750 feet Black Insulation…
_______________________________________
How to Buy
Call: 1-877-878-9134 for this product Email: sales@launch3.net Click to send an RFQ:
http://www.launch3telecom.com/andrew/884140510.html

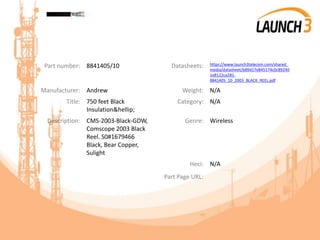

3. Part number: 8841405/10 Datasheets: https://www.launch3telecom.com/shared_
media/datasheet/b89d17e845174c0c89240
1e8122ca281-
8841405_10_2003_BLACK_REEL.pdf
Manufacturer: Andrew Weight: N/A
Title: 750 feet Black
Insulation…
Category: N/A
Description: CMS-2003-Black-GDW,
Comscope 2003 Black
Reel. S0#1679466
Black, Bear Copper,
Sulight
Genre: Wireless
Heci: N/A
Part Page URL:

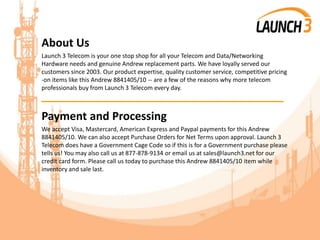

4. About Us
Launch 3 Telecom is your one stop shop for all your Telecom and Data/Networking
Hardware needs and genuine Andrew replacement parts. We have loyally served our
customers since 2003. Our product expertise, quality customer service, competitive pricing
-on items like this Andrew 8841405/10 -- are a few of the reasons why more telecom
professionals buy from Launch 3 Telecom every day.
_______________________________________
Payment and Processing
We accept Visa, Mastercard, American Express and Paypal payments for this Andrew
8841405/10. We can also accept Purchase Orders for Net Terms upon approval. Launch 3
Telecom does have a Government Cage Code so if this is for a Government purchase please
tells us! You may also call us at 877-878-9134 or email us at sales@launch3.net for our
credit card form. Please call us today to purchase this Andrew 8841405/10 item while
inventory and sale last.

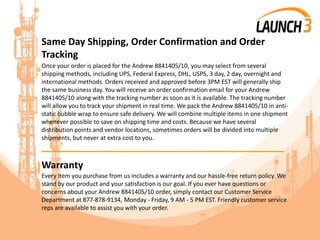

5. Same Day Shipping, Order Confirmation and Order
Tracking
Once your order is placed for the Andrew 8841405/10, you may select from several
shipping methods, including UPS, Federal Express, DHL, USPS, 3 day, 2 day, overnight and
international methods. Orders received and approved before 3PM EST will generally ship
the same business day. You will receive an order confirmation email for your Andrew
8841405/10 along with the tracking number as soon as it is available. The tracking number
will allow you to track your shipment in real time. We pack the Andrew 8841405/10 in anti-
static bubble wrap to ensure safe delivery. We will combine multiple items in one shipment
whenever possible to save on shipping time and costs. Because we have several
distribution points and vendor locations, sometimes orders will be divided into multiple
shipments, but never at extra cost to you.
_______________________________________
Warranty
Every item you purchase from us includes a warranty and our hassle-free return policy. We
stand by our product and your satisfaction is our goal. If you ever have questions or
concerns about your Andrew 8841405/10 order, simply contact our Customer Service
Department at 877-878-9134, Monday - Friday, 9 AM - 5 PM EST. Friendly customer service
reps are available to assist you with your order.

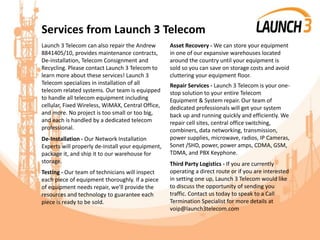

6. Services from Launch 3 Telecom
Launch 3 Telecom can also repair the Andrew
8841405/10, provides maintenance contracts,
De-installation, Telecom Consignment and
Recycling. Please contact Launch 3 Telecom to
learn more about these services! Launch 3
Telecom specializes in installation of all
telecom related systems. Our team is equipped
to handle all telecom equipment including
cellular, Fixed Wireless, WiMAX, Central Office,
and more. No project is too small or too big,
and each is handled by a dedicated telecom
professional.
De-Installation - Our Network Installation
Experts will properly de-install your equipment,
package it, and ship it to our warehouse for
storage.
Testing - Our team of technicians will inspect
each piece of equipment thoroughly. If a piece
of equipment needs repair, we’ll provide the
resources and technology to guarantee each
piece is ready to be sold.
Asset Recovery - We can store your equipment
in one of our expansive warehouses located
around the country until your equipment is
sold so you can save on storage costs and avoid
cluttering your equipment floor.
Repair Services - Launch 3 Telecom is your one-
stop solution to your entire Telecom
Equipment & System repair. Our team of
dedicated professionals will get your system
back up and running quickly and efficiently. We
repair cell sites, central office switching,
combiners, data networking, transmission,
power supplies, microwave, radios, IP Cameras,
Sonet /SHD, power, power amps, CDMA, GSM,
TDMA, and PBX Keyphone.
Third Party Logistics - If you are currently
operating a direct route or if you are interested
in setting one up, Launch 3 Telecom would like
to discuss the opportunity of sending you
traffic. Contact us today to speak to a Call
Termination Specialist for more details at
voip@launch3telecom.com

7. Product Specifications 8841405/10 | 2003 BLACK REEL Sunlight and Oil Resistant Category 5e F/UTP 2003 Cable, non-
plenum, black jacket, 4 pair count, 1000 ft (305 m) length, reel Cross Section Drawing Construction Materials
Jacket Material PVC Conductor Material Bare copper Drain Wire Material Tinned copper Insulation Material Polyolefin Shield (Tape)
Material Polyester/Aluminum tape Dimensions Cable Length 305 m |
1000 ft Cable Weight 29.06 lb/kft Diameter Over Bundle 4.191 mm | 0.165 in Diameter Over Jacket 6.350 mm |
0.250 in Jacket Thickness 0.762 mm | 0.030 in Electrical Specifications
ANSI/TIA Category 5e dc Resistance Unbalance, maximum 5 % dc Resistance, maximum 9.38 ohms/100 m Delay Skew, maximum 45 ns
Mutual Capacitance 5.6 nF/100 m @ 1 kHz Nominal Velocity of Propagation (NVP) 69 % ©2015 CommScope, Inc. All rights reserved. All
trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope. All specifications are subject to change without
notice. See www.commscope.com for the most current information. Revised: July 11, 2014 page 1 of 3 June 18, 2015 _x000C_Product
Specifications 8841405/10 | 2003 BLACK REEL Operating Frequency, maximum 100 MHz Transmission Standards ANSI/TIA568-
C.2 Safety Voltage Rating 300 V Dielectric Strength, minimum 1500 Vac | 2500 Vdc Environmental Specifications
Environmental Space Non-
plenum Flame Test Method CMR Installation Temperature 0 °C to +60 °C (+32 °F to +140 °F) Operating Temperature 40 °C to +75 °C (-
40 °F to +167 °F) General Specifications
Cable Type F/UTP (shielded) Pairs, quantity 4 Application Industrial Cable Component Type Horizontal Packaging Type Reel Brand
CommScope® Jacket Color Black Product Number 2003 Conductor Gauge, singles 24 AWG Conductor Type, singles Solid Conductors,
quantity 8 Mechanical Specifications Pulling Tension, maximum 11 kg | 25 lb Regulatory Compliance/Certifications Agency
RoHS 2011/65/EU ISO 9001:2008 Classification Compliant
Designed, manufactured and/or distributed under this quality management system Electrical Performance Std
Refers to the standard value listed under Transmission Standards in the Electrical Specifications above IL Insertion Loss (dB/100m) PSACR
Power Sum Attenuation to Crosstalk Ratio (dB/100m) NEXT Near End Crosstalk (dB/100m) ACRF Attenuation to Crosstalk Ratio -
Far End (dB/100m) ACR Attenuation to Crosstalk Ratio (dB/100m) PSACRF Power Sum Attenuation to Crosstalk Ratio – Far End (dB/100m)
PSNEXT Power Sum Near End Crosstalk (db/100m) RL Return Loss (dB) ©2015 CommScope, Inc. All rights reserved. All trademarks
identified by ® or ™ are registered trademarks, respectively, of CommScope. All specifications are subject to change without notice. See
www.commscope.com for the most current information. Revised: July 11, 2014 page 2 of 3 June 18, 2015 _x000C_Product Specifications
8841405/10 | 2003 BLACK REEL Freq. MHz IL NEXT ACR PSNEXT PSACR ACRF PSACRF RL Std Std Std Std Std Std Std Std 1 2.0 65.3
63.3 62.3 60.3 63.8 60.8 20.0 4 4.1 56.3 52.2 53.3 49.2 51.8 48.8 23.0 8 5.8 51.8 46.0 48.8 43.0 45.7 42.7 24.5 10 6.5 50.3 43.8 47.3
40.8 43.8 40.8 25.0 16 8.2 47.2 39.0 44.2 36.0 39.7 36.7 25.0 20 9.3 45.8 36.5 42.8 33.5 37.8 34.8 25.0 25 10.4 44.3 33.9 41.3 30.9
35.8 32.8 24.3 31.25 11.7 42.9 31.2 39.9 28.2 33.9 30.9 23.6 62.5 17.0 38.4 21.4 35.4 18.4 27.9 24.9 21.5 100 22.0 35.3 13.3 32.3
10.3 23.8 20.8 20.1 ©2015 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively,
of CommScope. All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised:
July 11, 2014 page 3 of 3 June 18, 2015 _x000C_
