This document provides product information and purchasing details for the Andrew ABT-DFDM-ADBH Dual Band Bias Tee Surge Arrestor. Key details include: - It is a dual band bias tee surge arrestor that operates between 698-960 MHz and 1710-2170 MHz. - It can be purchased from Launch 3 Telecom by calling, emailing, or clicking to send a request for quote. Same day shipping is available. - Launch 3 Telecom provides repair services, maintenance contracts, de-installation, and recycling in addition to sales of the product.

2. Andrew ABT-DFDM-ADBH
Dual Band Bias Tee Surge…
_______________________________________

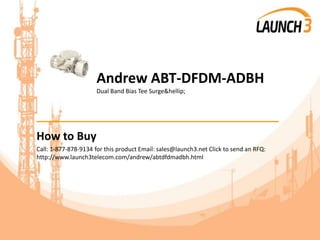

How to Buy
Call: 1-877-878-9134 for this product Email: sales@launch3.net Click to send an RFQ:
http://www.launch3telecom.com/andrew/abtdfdmadbh.html

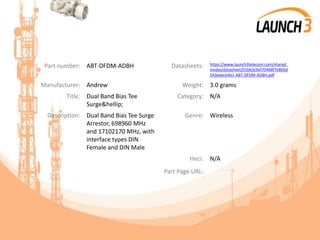

3. Part number: ABT-DFDM-ADBH Datasheets: https://www.launch3telecom.com/shared_
media/datasheet/01b63c9ef70468f7e856d
543ee6cb461-ABT-DFDM-ADBH.pdf
Manufacturer: Andrew Weight: 3.0 grams
Title: Dual Band Bias Tee
Surge…
Category: N/A
Description: Dual Band Bias Tee Surge
Arrestor, 698960 MHz
and 17102170 MHz, with
interface types DIN
Female and DIN Male
Genre: Wireless
Heci: N/A
Part Page URL:

4. About Us
Launch 3 Telecom is your one stop shop for all your Telecom and Data/Networking
Hardware needs and genuine Andrew replacement parts. We have loyally served our
customers since 2003. Our product expertise, quality customer service, competitive pricing
-on items like this Andrew ABT-DFDM-ADBH -- are a few of the reasons why more telecom
professionals buy from Launch 3 Telecom every day.
_______________________________________
Payment and Processing
We accept Visa, Mastercard, American Express and Paypal payments for this Andrew ABT-
DFDM-ADBH. We can also accept Purchase Orders for Net Terms upon approval. Launch 3
Telecom does have a Government Cage Code so if this is for a Government purchase please
tells us! You may also call us at 877-878-9134 or email us at sales@launch3.net for our
credit card form. Please call us today to purchase this Andrew ABT-DFDM-ADBH item while
inventory and sale last.

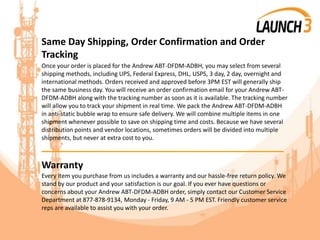

5. Same Day Shipping, Order Confirmation and Order
Tracking
Once your order is placed for the Andrew ABT-DFDM-ADBH, you may select from several
shipping methods, including UPS, Federal Express, DHL, USPS, 3 day, 2 day, overnight and
international methods. Orders received and approved before 3PM EST will generally ship
the same business day. You will receive an order confirmation email for your Andrew ABT-
DFDM-ADBH along with the tracking number as soon as it is available. The tracking number
will allow you to track your shipment in real time. We pack the Andrew ABT-DFDM-ADBH
in anti-static bubble wrap to ensure safe delivery. We will combine multiple items in one
shipment whenever possible to save on shipping time and costs. Because we have several
distribution points and vendor locations, sometimes orders will be divided into multiple
shipments, but never at extra cost to you.
_______________________________________
Warranty
Every item you purchase from us includes a warranty and our hassle-free return policy. We
stand by our product and your satisfaction is our goal. If you ever have questions or
concerns about your Andrew ABT-DFDM-ADBH order, simply contact our Customer Service
Department at 877-878-9134, Monday - Friday, 9 AM - 5 PM EST. Friendly customer service
reps are available to assist you with your order.

6. Services from Launch 3 Telecom
Launch 3 Telecom can also repair the Andrew
ABT-DFDM-ADBH, provides maintenance
contracts, De-installation, Telecom
Consignment and Recycling. Please contact
Launch 3 Telecom to learn more about these
services! Launch 3 Telecom specializes in
installation of all telecom related systems. Our
team is equipped to handle all telecom
equipment including cellular, Fixed Wireless,
WiMAX, Central Office, and more. No project is
too small or too big, and each is handled by a
dedicated telecom professional.
De-Installation - Our Network Installation
Experts will properly de-install your equipment,
package it, and ship it to our warehouse for
storage.
Testing - Our team of technicians will inspect
each piece of equipment thoroughly. If a piece
of equipment needs repair, we’ll provide the
resources and technology to guarantee each
piece is ready to be sold.
Asset Recovery - We can store your equipment
in one of our expansive warehouses located
around the country until your equipment is
sold so you can save on storage costs and avoid
cluttering your equipment floor.
Repair Services - Launch 3 Telecom is your one-
stop solution to your entire Telecom
Equipment & System repair. Our team of
dedicated professionals will get your system
back up and running quickly and efficiently. We
repair cell sites, central office switching,
combiners, data networking, transmission,
power supplies, microwave, radios, IP Cameras,
Sonet /SHD, power, power amps, CDMA, GSM,
TDMA, and PBX Keyphone.
Third Party Logistics - If you are currently
operating a direct route or if you are interested
in setting one up, Launch 3 Telecom would like
to discuss the opportunity of sending you
traffic. Contact us today to speak to a Call
Termination Specialist for more details at
voip@launch3telecom.com

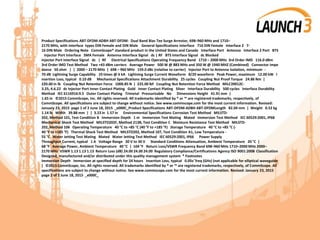

7. Product Specifications ABT-DFDM-ADBH ABT-DFDM- Dual Band Bias Tee Surge Arrestor, 698–960 MHz and 1710–
2170 MHz, with interface types DIN Female and DIN Male General Specifications Interface 716 DIN Female Interface 2 7-
16 DIN Male Ordering Note CommScope® standard product in the United States and Canada Interface Port Antenna Interface 2 Port BTS
Injector Port Interface SMA Female Antenna Interface Signal dc | RF BTS Interface Signal dc Blocked
Injector Port Interface Signal dc | RF Electrical Specifications Operating Frequency Band 1710 – 2000 MHz 3rd Order IMD 116.0 dBm
3rd Order IMD Test Method Two +43 dBm carriers Average Power 500 W @ 883 MHz and 350 W @ 1940 MHZ (Combined) Connector Impe
dance 50 ohm | | 2000 – 2170 MHz | 698 – 960 MHz 159.0 dBc (relative to carrier) Injector Port to Antenna Isolation, minimum -
70 dB Lightning Surge Capability 10 times @ 6 kA Lightning Surge Current Waveform 8/20 waveform Peak Power, maximum 12.00 kW I
nsertion Loss, typical 0.10 dB Mechanical Specifications Attachment Durability 25 cycles Coupling Nut Proof Torque 24.86 Nm |
220.00 in lb Coupling Nut Retention Force 1000.85 N | 225.00 lbf Coupling Nut Retention Force Method MILC39012C-
3.25, 4.6.22 dc Injector Port Inner Contact Plating Gold Inner Contact Plating Silver Interface Durability 500 cycles Interface Durability
Method IEC 6116916:9.5 Outer Contact Plating Trimetal Pressurizable No Dimensions Height 41.91 mm |
1.65 in ©2015 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of
CommScope. All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised:
January 23, 2015 page 1 of 2 June 18, 2015 _x000C_Product Specifications ABT-DFDM-ADBH ABT-DFDMLength 82.04 mm | Weight 0.52 kg
1.14 lb Width 39.88 mm | | 3.23 in 1.57 in Environmental Specifications Corrosion Test Method MILSTD-
202, Method 101, Test Condition B Immersion Depth 1 m Immersion Test Mating Mated Immersion Test Method IEC 60529:2001, IP68
Mechanical Shock Test Method MILSTD202F, Method 213B, Test Condition C Moisture Resistance Test Method MILSTD-
202, Method 106 Operating Temperature 40 °C to +85 °C (40 °F to +185 °F) Storage Temperature 40 °C to +85 °C (-
40 °F to +185 °F) Thermal Shock Test Method MILSTD202, Method 107, Test Condition A1, Low Temperature -
55 °C Water Jetting Test Mating Mated Water Jetting Test Method IEC 60529:2001, IP66 Power Supply
Throughput Current, typical 1 A Voltage Range 30 V to 30 V Standard Conditions Attenuation, Ambient Temperature 20 °C |
68 °F Average Power, Ambient Temperature 40 °C | 104 °F Return Loss/VSWR Frequency Band 698–960 MHz 1710–2000 MHz 2000–
2170 MHz VSWR 1.13 1.13 1.13 Return Loss (dB) 24.00 24.00 24.00 Regulatory Compliance/Certifications Agency ISO 9001:2008 Classification
Designed, manufactured and/or distributed under this quality management system * Footnotes
Immersion Depth Immersion at specified depth for 24 hours Insertion Loss, typical 0.05v¯freq (GHz) (not applicable for elliptical waveguide
) ©2015 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope. All
specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: January 23, 2015
page 2 of 2 June 18, 2015 _x000C_
