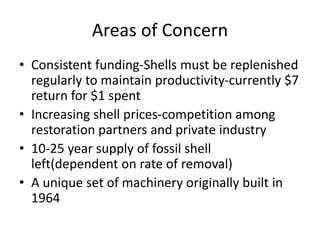

3. Areas of Concern
• Consistent funding-Shells must be replenished
regularly to maintain productivity-currently $7
return for $1 spent
• Increasing shell prices-competition among
restoration partners and private industry
• 10-25 year supply of fossil shell
left(dependent on rate of removal)

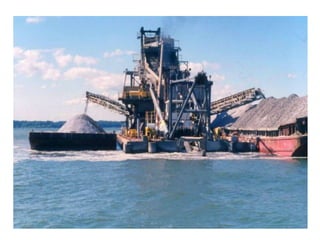

• A unique set of machinery originally built in
1964

4. 0
0.5
1
1.5
2
2.5
3
3.5
4
4.5

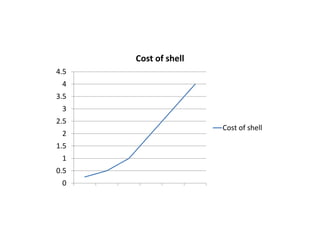

Cost of shell
Cost of shell

5. Water Body Bar Lat Long Acreage Cultch/per meter² Total Bu Total Cu yds Area Type
Tangier
5-H-1 37 54.285 75 56.362 6.3 4.1 6,300 400 H
7-H-1 37 52.406 75 55.804 14.1 3.6 14,100 900 H
7-H-2 37 52.182 75 55.572 14.9 5.4 14,900 960 H
7-H-4 37 51.680 75 55.460 4.0 4.0 4,000 260 H
Subtotals 39.2 39,300 2,520
Pocomoke
Onancock 37 44.930 75 51.634 10.4 4.1 10,400 670 H
10-H-1 37 56.195 75 44.980 69.7 0.9 69,700 4,500 H
10-H-2 37 56.640 75 44.495 20.9 0.1 20,900 1,350 H
9-H-1 37 56.800 75 43.010 21.3 1.7 21,300 1,375 H
9-H-2 37 56.990 75 42.650 32.6 4.6 32,600 2,100 H
11-H-1 37 55.415 75 44.765 37.3 3.0 37,300 2,400 H
Subtotals 192.2 192,200 12,395
Great Wicomico
Fleeton 37 48.663 76 19.265 14.6 3.0 14,600 950 H
Ingram S 37 47.620 76 17.220 8.6 3.9 8,600 560 H
Mill Creek 37 47.610 76 18.455 2.3 0.2 2,300 150 H
Subtotals 25.5 25,500 1,660
Rappahannock Lower
Temples Bay 14 37 36.976 76 28.245 5.3 3.3 5,300 350 H
Lower Edge 5 37 34.604 76 18.103 13.5 5.1 13,500 870 H
Larson Upper 48 37 37.687 76 23.495 3.5 4.0 3,500 225 S
Sturgeon 8 37 34.795 76 21.807 13.9 6.7 13,900 900 H
Sturgeon 9 37 34.952 76 22.214 8.2 3.6 8,200 530 H
Mill Creek 51 37 35.167 76 24.108 4.1 3.6 4,100 265 S
Drumming Ground 18 37 38.326 76 27.690 28.4 5.7 28,400 1,800 H
Drumming Ground 18.1 37 38.318 76 27.928 7.0 6.1 7,000 450 H
Drumming Ground 19 37 38.700 76 27.947 28.9 5.9 28,900 1,900 H
Corrotoman 20 C1 37 39.560 76 28.652 10.1 1.7 10,100 650 H
Corrotoman 22 C3 37 40.052 76 28.726 8.3 3.1 8,300 540 H
Middle Ground 23 37 41.005 76 28.290 5.3 5.3 5,300 350 S
Drumming Ground 40 37 38.900 76 27.618 7.1 3.7 7,100 450 S

6. Water Body Bar Lat Long Acreage Cultch/per meter² Total Bu Total Cu yds Area Type
Rappahannock Lower
Drumming Ground 41 37 39.202 76 27.718 0.8 0.6 10,100 65 S
Corrotoman 42 37 40.225 76 28.504 9.2 3.6 9,200 600 S
Subtotals 153.6 162,900 9,945
Rappahannock Upper
Little Wicks 34 37 41.428 76 34.322 5.6 4.4 5,600 360 H
Little Wicks 35 37 41.473 76 34.385 7.2 4.1 7,200 460 H
Big Wicks 36.3 37 42.090 76 34.720 24.0 1.9 24,000 1,550 H
Big Wicks 36.2 37 41.965 76 34.610 24.2 4.6 24,200 1,560 H
Stove Point 37 37 42.770 76 34.900 29.5 4.4 29,500 1,900 H
Smokey Point 38 37 43.200 76 34.940 26.1 2.6 26,100 1,680 H
Waterview 39.2 37 43.520 76 35.278 19.8 3.3 19,800 1,280 H
Subtotals 136.4
Chesapeake Bay
Deep Rock 1 37 30.470 76 14.372 10.9 4.1 10,900 700 H
Deep Rock 3 37 30.485 76 14.762 16.9 3.8 16,900 1,100 H
Beverlys 3 37 31.660 76 14.902 13.9 5.1 13,900 900 H
Subtotals 41.7 41,700 2,700
Piankatank
Hills Bay 12 37 30.473 79 19.125 9.4 1.8 9,400 600 S
Island Bar 13 37 32.015 76 23.055 5.3 3.9 5,300 350 S
Cobbs Creek 14 37 31.725 76 23.678 4.3 4.1 4,300 275 S
Thompson 16 37 31.140 76 24.496 0.8 3.6 1,000 65 S
Doc's View 17 37 30.690 76 25.129 1.1 1.3 1,100 70 S
Subtotals 20.9 21,100 1,360
Mobjack
Toe Stake 1 37 20.272 76 23.420 3.1 4.6 3,100 200 H
Toe Stake 2 37 20.345 76 23.180 6.2 4.4 6,200 400 H
Pultz 37 21.155 76 21.150 14.1 4.7 14,100 900 H
Brown Bay 1 37 18.595 76 21.205 83.3 2.5 83,000 5,350 H
Subtotals 106.7 106,400 6,850

7. Water Body Bar Lat Long Acreage Cultch/per meter² Total Bu Total Cu yds Area Type
York
Aberdeen 1 37 19.900 76 35.860 14.9 3.2 14,900 960 H
Aberdeen 3 37 20.175 76 35.990 14.7 4.7 14,700 950 H
Timberneck 3 37 16.418 76 31.880 15.4 3.6 3,600 250 H
Subtotals 45.0 33,200 2,160
Lower James
Lower Thomas 37 01.235 76 29.282 60.2 3.4 60,200 3,880 H
Nansemond Ridge 36 56.045 76 27.070 284.2 3.3 284,000 18,300 H
Subtotals 344.4 344,200 22,180
Grand Total 1,129.5 966,500 63,270

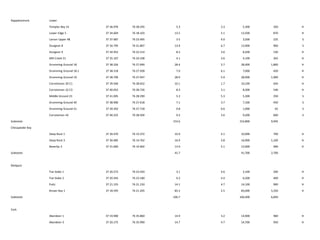

8. Rappahannock Lower
Temples Bay 14 37 36.976 76 28.245 5.3 3.3 5,300 350 H
Lower Edge 5 37 34.604 76 18.103 13.5 5.1 13,500 870 H
Larson Upper 48 37 37.687 76 23.495 3.5 4.0 3,500 225 S
Sturgeon 8 37 34.795 76 21.807 13.9 6.7 13,900 900 S
Sturgeon 9 37 34.952 76 22.214 8.2 3.6 8,200 530 H
Mill Creek 51 37 35.167 76 24.108 4.1 3.6 4,100 265 H
Drumming Ground 18 37 38.326 76 27.690 28.4 5.7 28,400 1,800 H
Drumming Ground 18.1 37 38.318 76 27.928 7.0 6.1 7,000 450 H
Drumming Ground 19 37 38.700 76 27.947 28.9 5.9 28,900 1,900 H
Corrotoman 20 C1 37 39.560 76 28.652 10.1 1.7 10,100 650 H
Corrotoman 22 C3 37 40.052 76 28.726 8.3 3.1 8,300 540 H
Middle Ground 23 37 41.005 76 28.290 5.3 5.3 5,300 350 S
Drumming Ground 40 37 38.900 76 27.618 7.1 3.7 7,100 450 S
Drumming Ground 41 37 39.202 76 27.718 0.8 0.6 1,000 65 S
Corrotoman 42 37 40.225 76 28.504 9.2 3.6 9,200 600 S
Subtotals 153.6 153,800 9,945
Chesapeake Bay
Deep Rock 1 37 30.470 76 14.372 10.9 4.1 10,900 700 H
Deep Rock 3 37 30.485 76 14.762 16.9 3.8 16,900 1,100 H
Beverlys 3 37 31.660 76 14.902 13.9 5.1 13,900 900 H
Subtotals 41.7 41,700 2,700
Mobjack
Toe Stake 1 37 20.272 76 23.420 3.1 4.6 3,100 200 H
Toe Stake 2 37 20.345 76 23.180 6.2 4.4 6,200 400 H
Pultz 37 21.155 76 21.150 14.1 4.7 14,100 900 H
Brown Bay 1 37 18.595 76 21.205 83.3 2.5 83,000 5,350 H
Subtotals 106.7 106,400 6,850
York
Aberdeen 1 37 19.900 76 35.860 14.9 3.2 14,900 960 H
Aberdeen 3 37 20.175 76 35.990 14.7 4.7 14,700 950 H

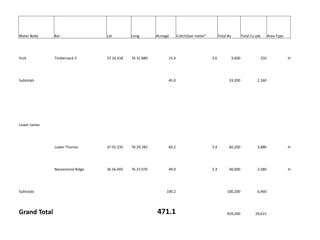

9. Water Body Bar Lat Long Acreage Cultch/per meter² Total Bu Total Cu yds Area Type
York Timberneck 3 37 16.418 76 31.880 15.4 3.6 3,600 250 H
Subtotals 45.0 33,200 2,160
Lower James
Lower Thomas 37 01.235 76 29.282 60.2 3.4 60,200 3,880 H
Nansemond Ridge 36 56.045 76 27.070 40.0 3.3 40,000 2,580 H
Subtotals 100.2 100,200 6,460
Grand Total 471.1 459,200 29,615

10. 0
100,000
200,000
300,000
400,000
500,000
600,000
700,000
800,000
0
50
100
150
200
250
300
350
400
450
500
1980
1981
1982
1983
1984
1985
1986
1987
1988
1989
1990
1991
1992
1993
1994
1995
1996
1997
1998
1999
2000
2001
2002
2003
2004
2005
2006
2007
2008
2009
2010
2011
2012
2013
No. of Bushels
Years

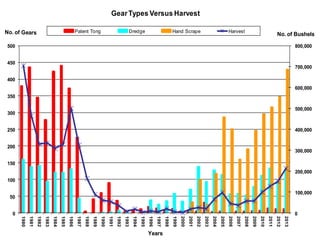

GearTypes Versus Harvest
Patent Tong Dredge Hand Scrape Harvest

11. Alternative Substrate

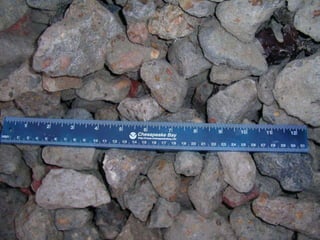

• Stone
– Needs to be appropriate size
– 4 to 5 times amount deployed compared to shell
– Suitable bottom
• Crushed Concrete
– Free of any foreign objects(plastic, rebar, other
construction materials)
• Deployable 3-D structures(castles, reef balls,…)
– Harvest resistant
– Can create user conflicts
– Good for shallow water/fringe
