Anatomy of a Codename One Application
- 1. Anatomy of aCodename One Application

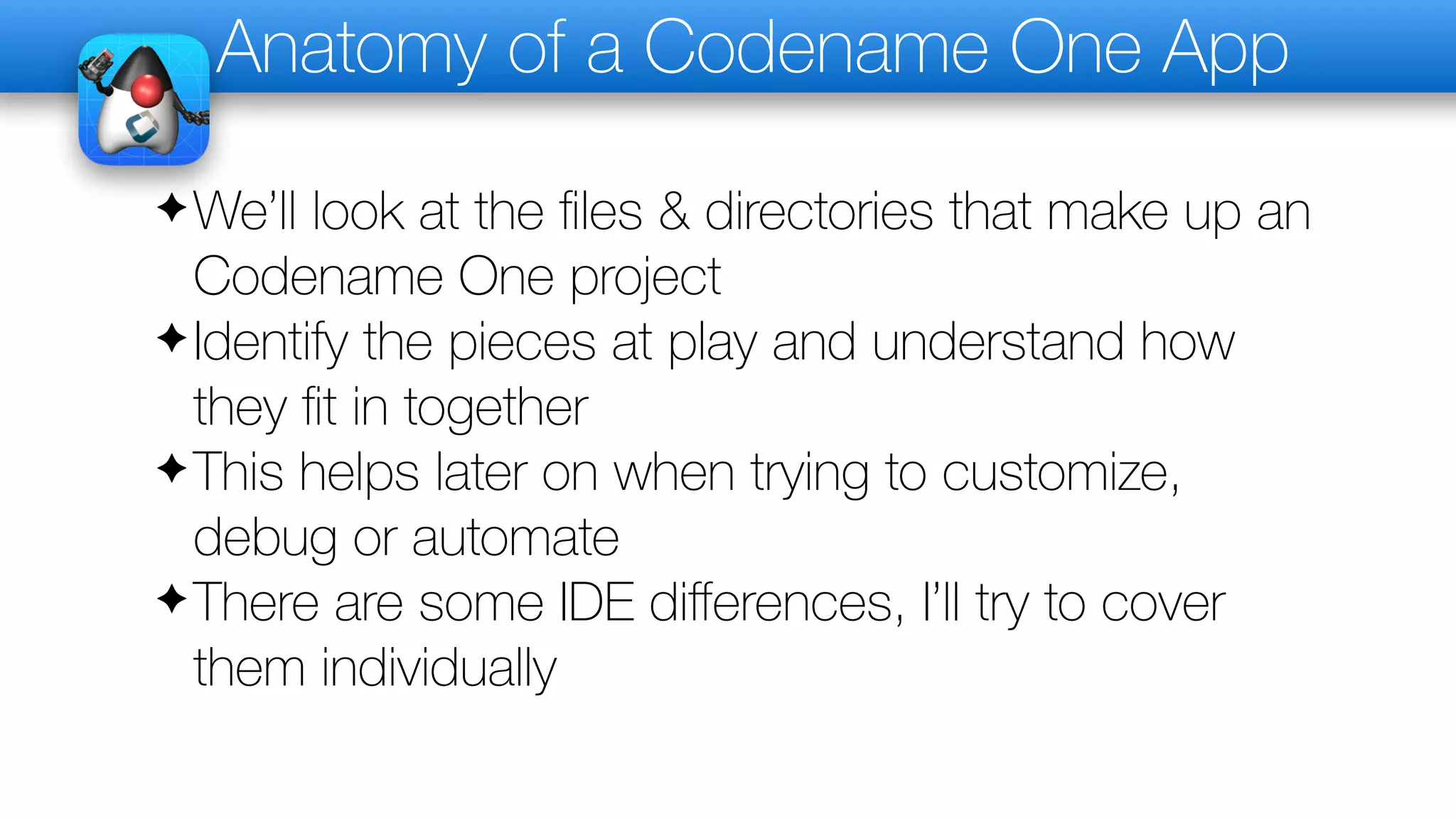

- 2. Anatomy of aCodename One App ✦We’ll look at the files & directories that make up an Codename One project ✦Identify the pieces at play and understand how they fit in together ✦This helps later on when trying to customize, debug or automate ✦There are some IDE differences, I’ll try to cover them individually
- 3. Before we Begin ✦Iassume you already installed and created a hello world app ✦If not please follow the instructional videos here: https://www.codenameone.com/download.html
- 4.

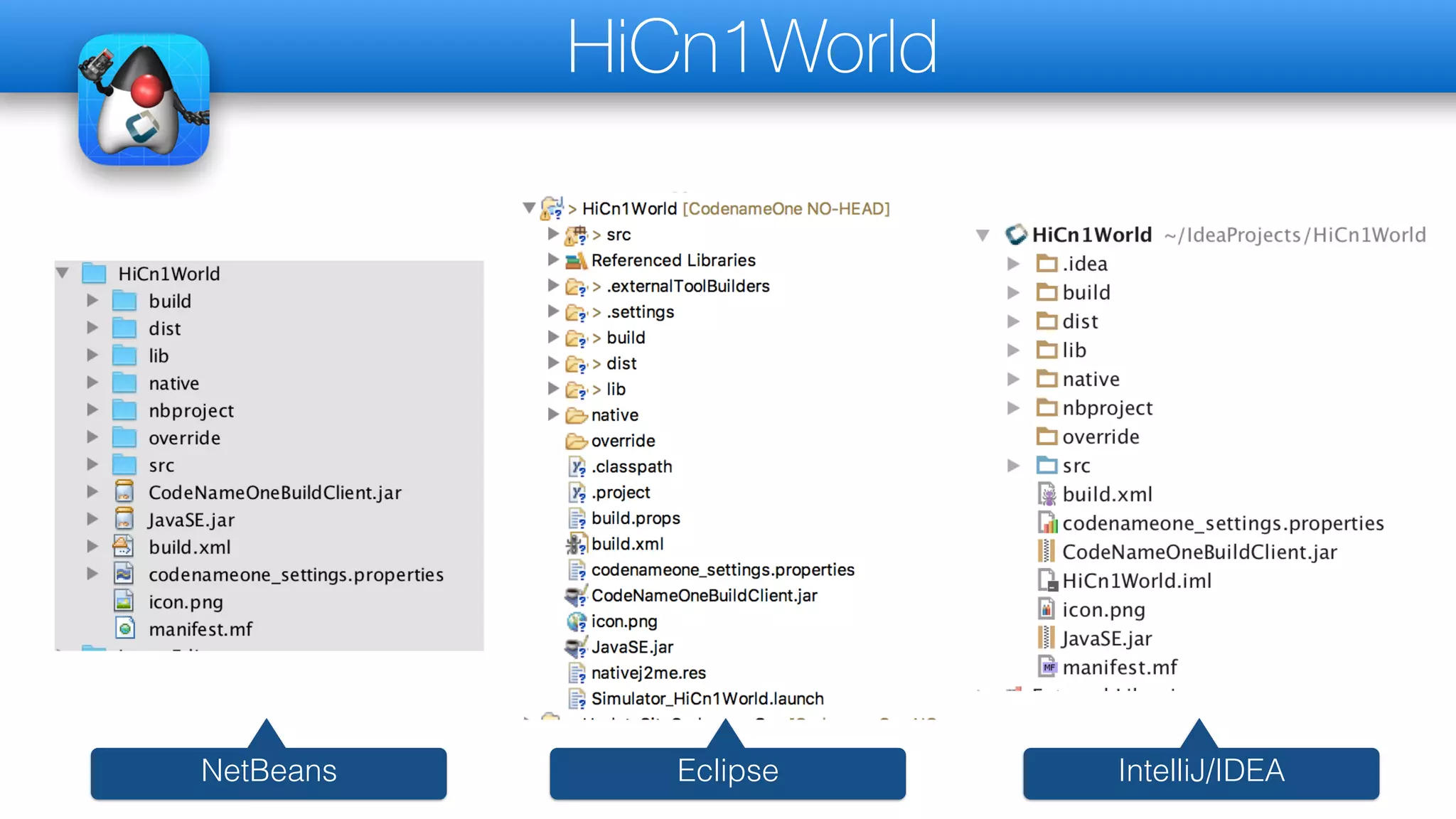

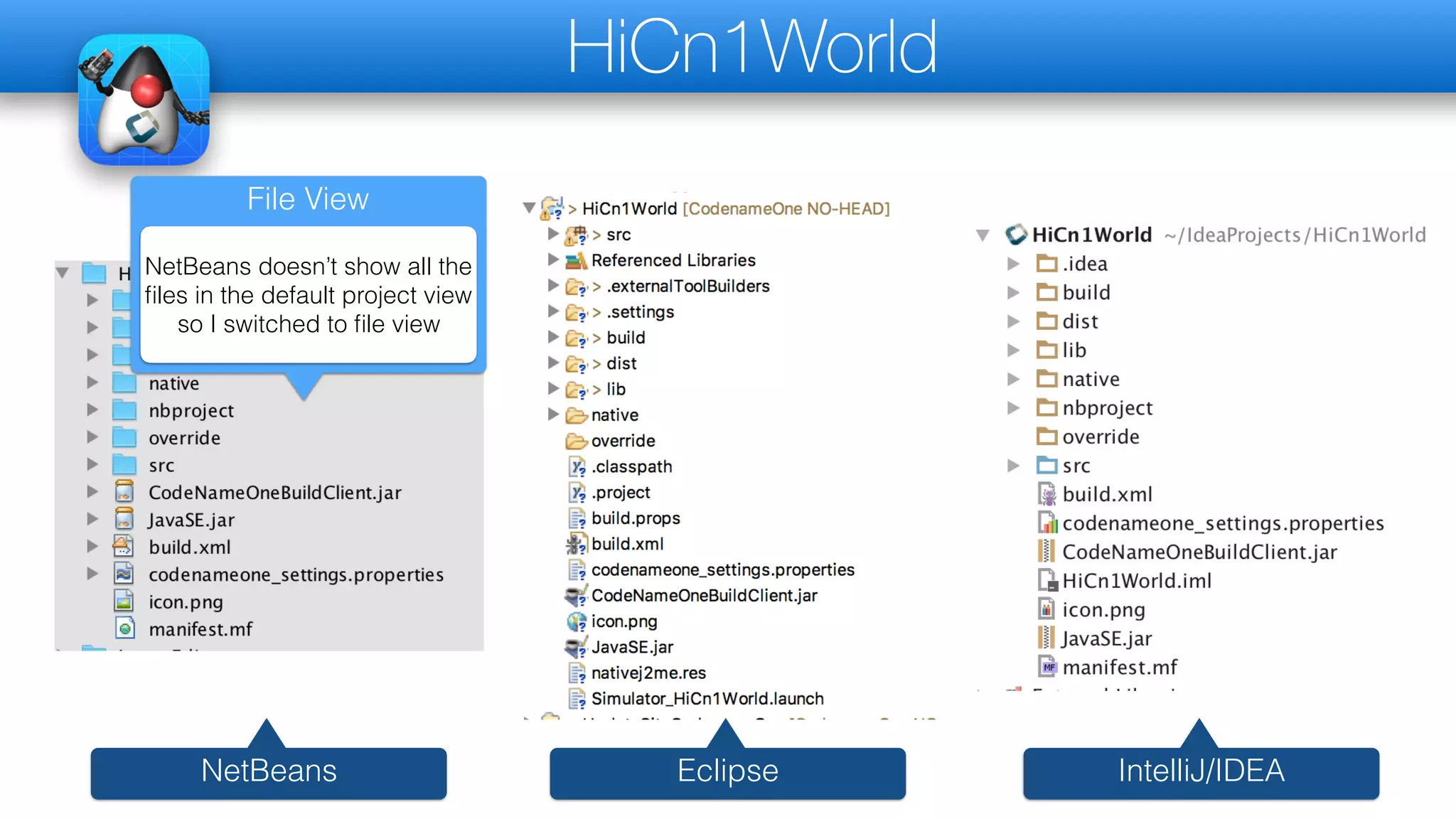

- 5. HiCn1World NetBeans Eclipse IntelliJ/IDEA FileView NetBeans doesn’t show all the files in the default project view so I switched to file view

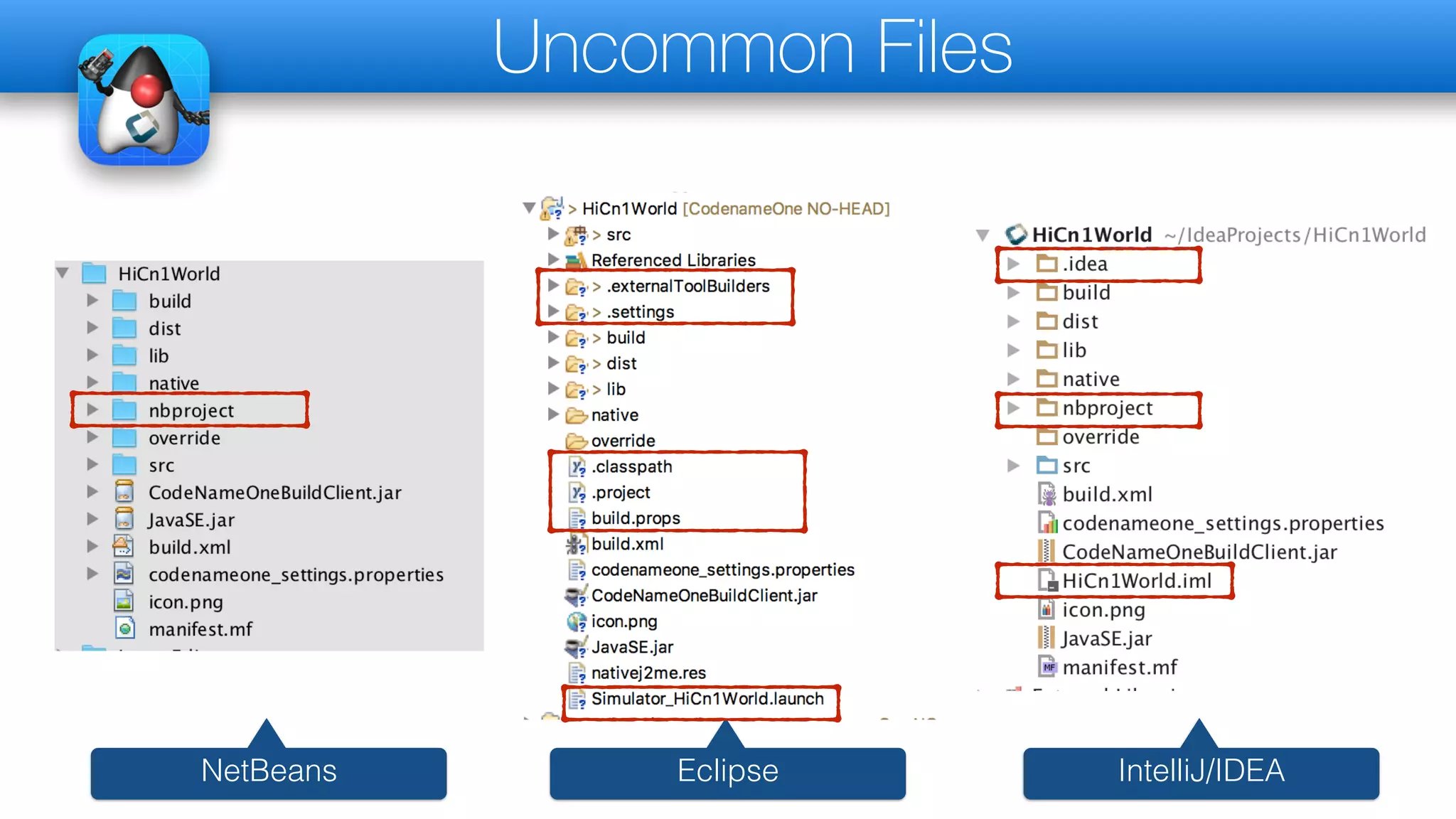

- 6. Uncommon Files NetBeans EclipseIntelliJ/IDEA

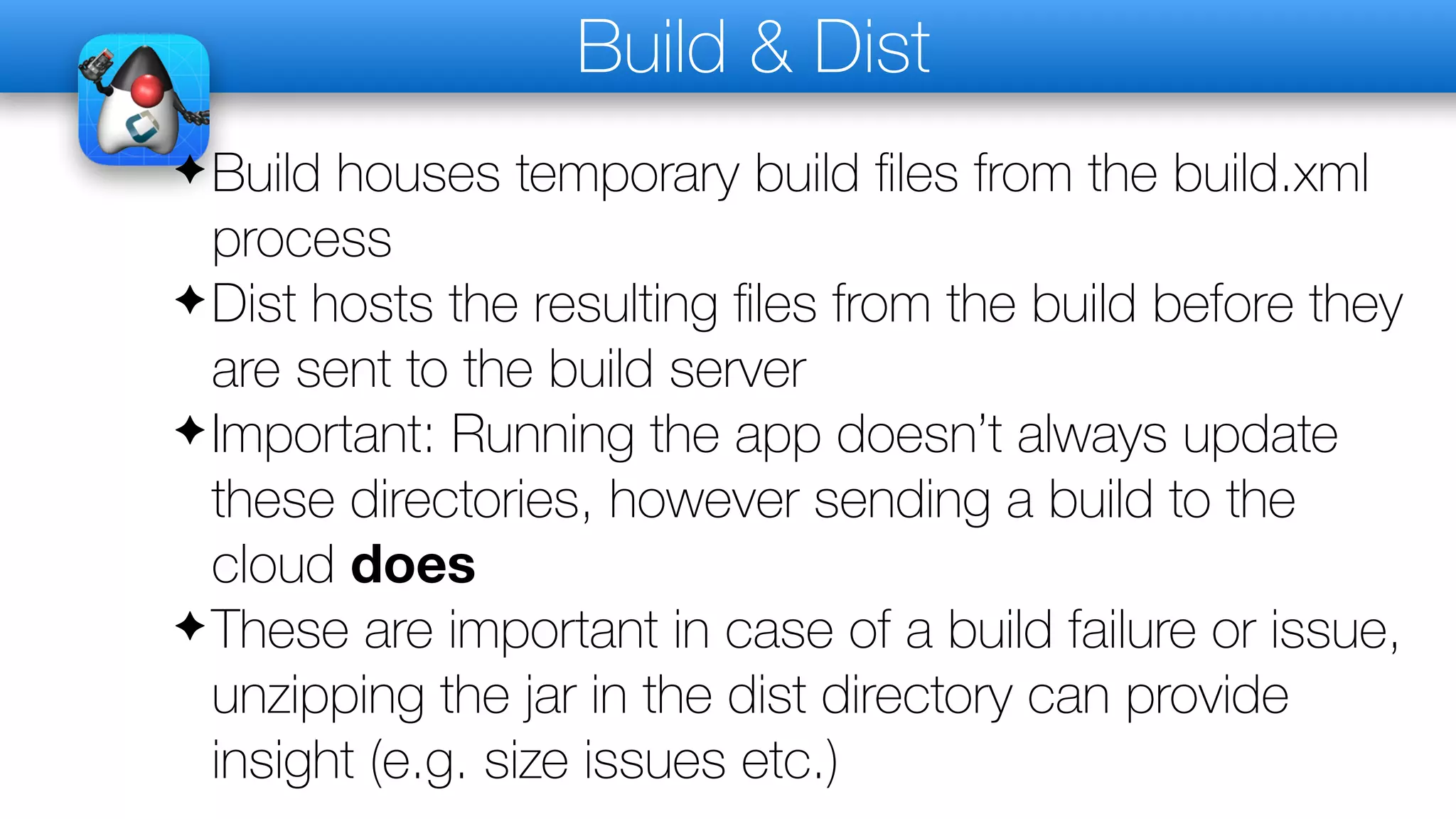

- 7. Build & Dist ✦Buildhouses temporary build files from the build.xml process ✦Dist hosts the resulting files from the build before they are sent to the build server ✦Important: Running the app doesn’t always update these directories, however sending a build to the cloud does ✦These are important in case of a build failure or issue, unzipping the jar in the dist directory can provide insight (e.g. size issues etc.)

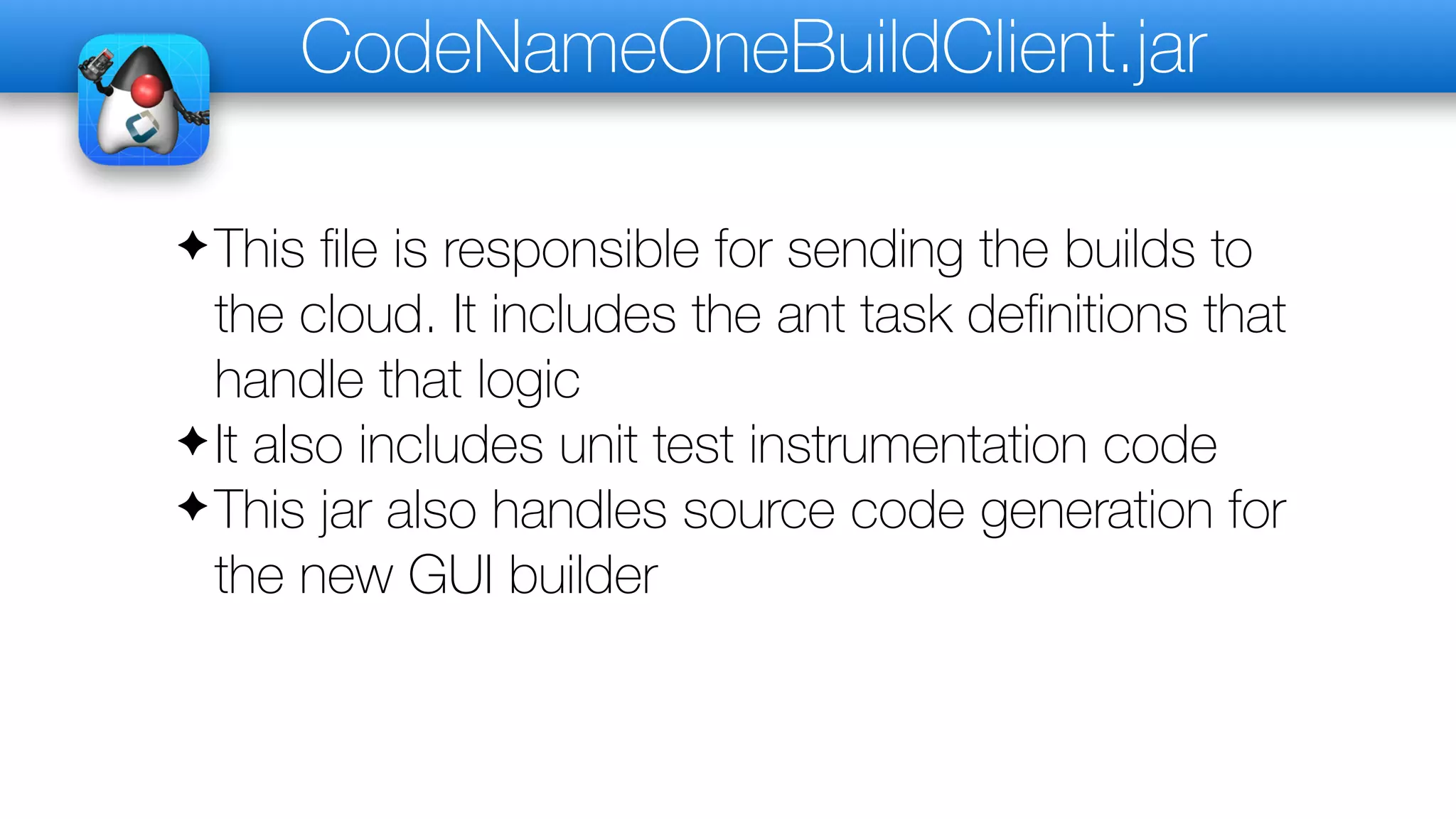

- 8. CodeNameOneBuildClient.jar ✦This file isresponsible for sending the builds to the cloud. It includes the ant task definitions that handle that logic ✦It also includes unit test instrumentation code ✦This jar also handles source code generation for the new GUI builder

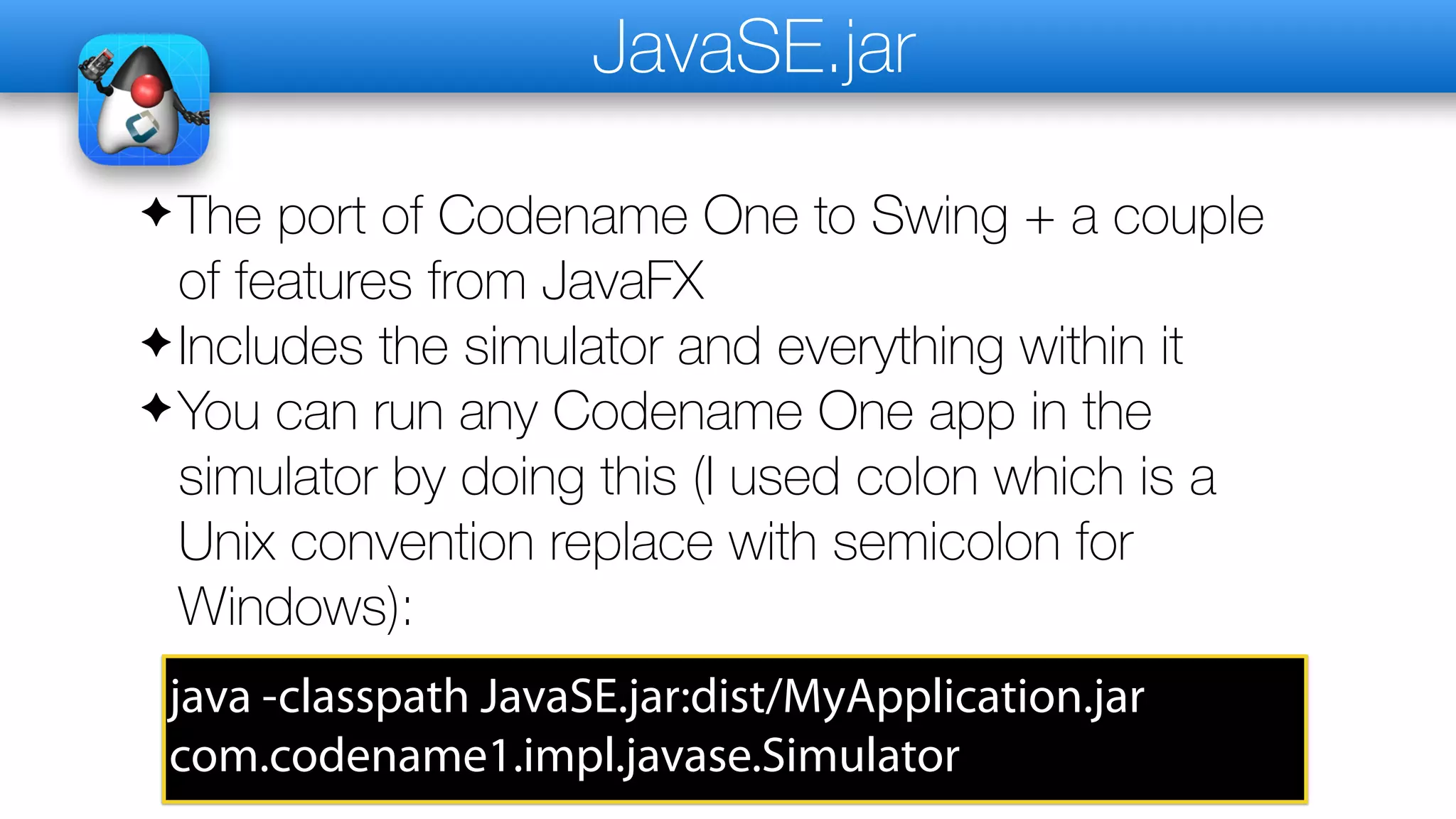

- 9. JavaSE.jar ✦The port ofCodename One to Swing + a couple of features from JavaFX ✦Includes the simulator and everything within it ✦You can run any Codename One app in the simulator by doing this (I used colon which is a Unix convention replace with semicolon for Windows): java -classpath JavaSE.jar:dist/MyApplication.jar com.codename1.impl.javase.Simulator

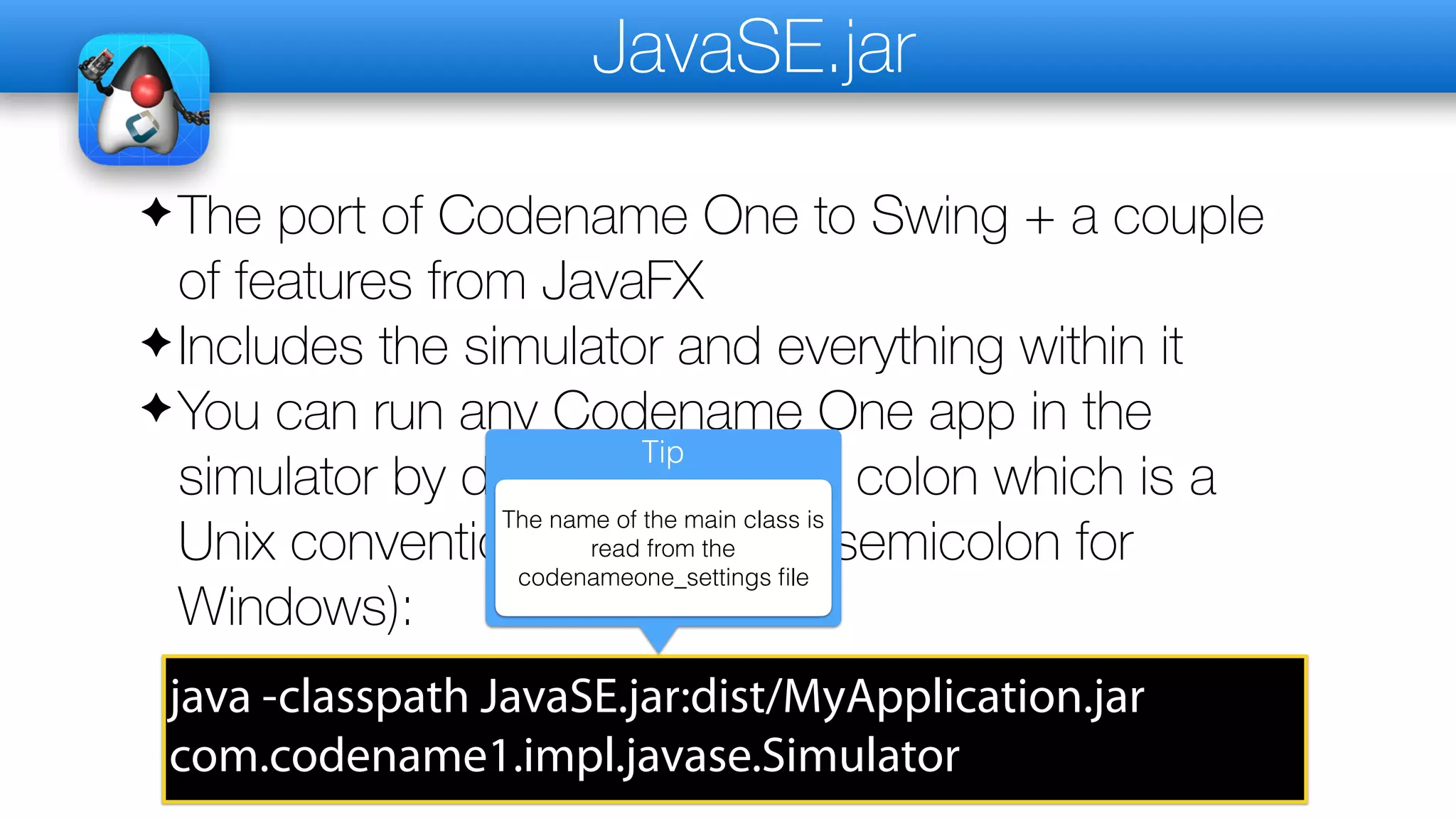

- 10. JavaSE.jar ✦The port ofCodename One to Swing + a couple of features from JavaFX ✦Includes the simulator and everything within it ✦You can run any Codename One app in the simulator by doing this (I used colon which is a Unix convention replace with semicolon for Windows): java -classpath JavaSE.jar:dist/MyApplication.jar com.codename1.impl.javase.Simulator Tip The name of the main class is read from the codenameone_settings file
- 11.
- 12.

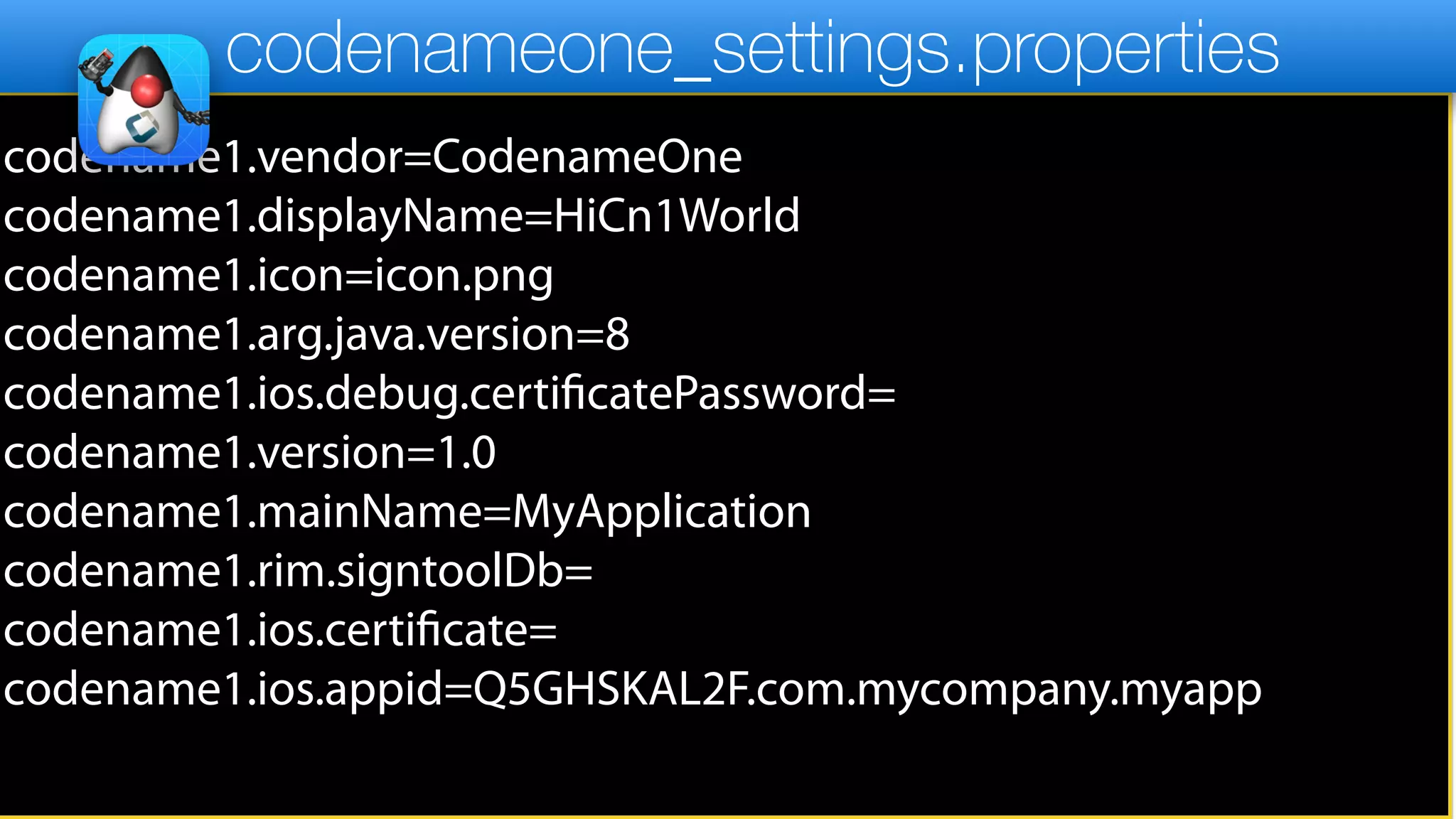

- 13. codename1.vendor=CodenameOne codename1.displayName=HiCn1World codename1.icon=icon.png codename1.arg.java.version=8 codename1.ios.debug.certificatePassword= codename1.version=1.0 codename1.mainName=MyApplication codename1.rim.signtoolDb= codename1.ios.certificate= codename1.ios.appid=Q5GHSKAL2F.com.mycompany.myapp codenameone_settings.properties Build Hint Build hintsare more flexible and allow us to customize the build process extensively
- 14. <taskdef name="codeNameOne" classname="com.codename1.build.client.CodeNameOneBuildTask" classpath=“CodeNameOneBuildClient.jar"/> <target name="build-for-ios-device"depends="clean,copy-ios- override,copy-libs,jar,clean-override"> <codeNameOne jarFile=“${dist.jar}" displayName=“$ {codename1.displayName}" packageName = "${codename1.packageName}" mainClassName = "${codename1.mainName}" targetType=“iphone"/> </target> build.xml

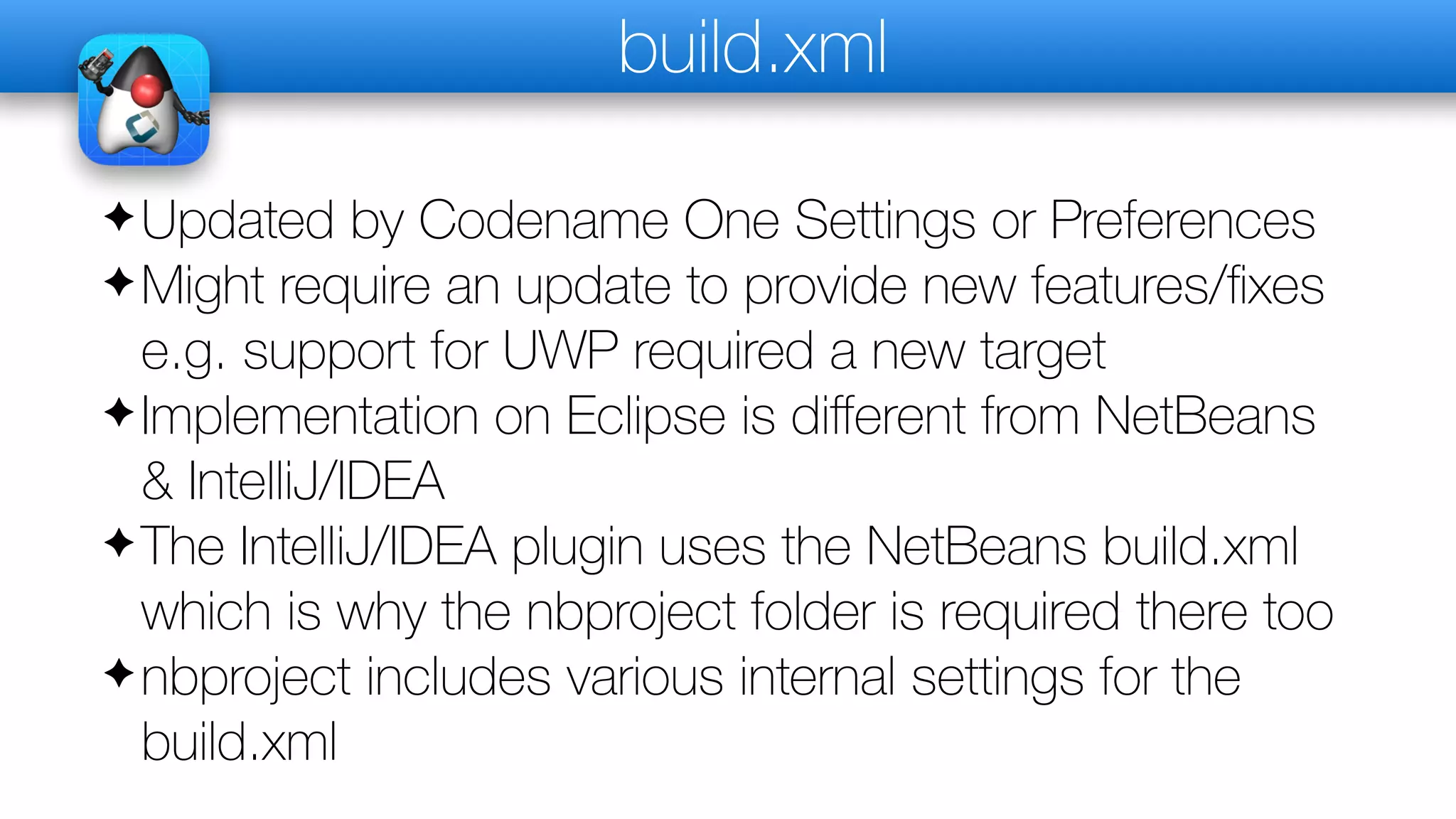

- 15. build.xml ✦Updated by CodenameOne Settings or Preferences ✦Might require an update to provide new features/fixes e.g. support for UWP required a new target ✦Implementation on Eclipse is different from NetBeans & IntelliJ/IDEA ✦The IntelliJ/IDEA plugin uses the NetBeans build.xml which is why the nbproject folder is required there too ✦nbproject includes various internal settings for the build.xml
- 16. lib directory ✦Identical onall IDE’s Includes the builtin JAR’s ✦CLDC11.jar - historical name. Includes the Java API subset supported by Codename One. These are just stubs for compilation (no implementation) ✦CodenameOne.jar includes the Codename One API to compile against (when running in the simulator the JavaSE.jar is used. ✦CodenameOne_SRC.zip includes the main Codename One source for code completion

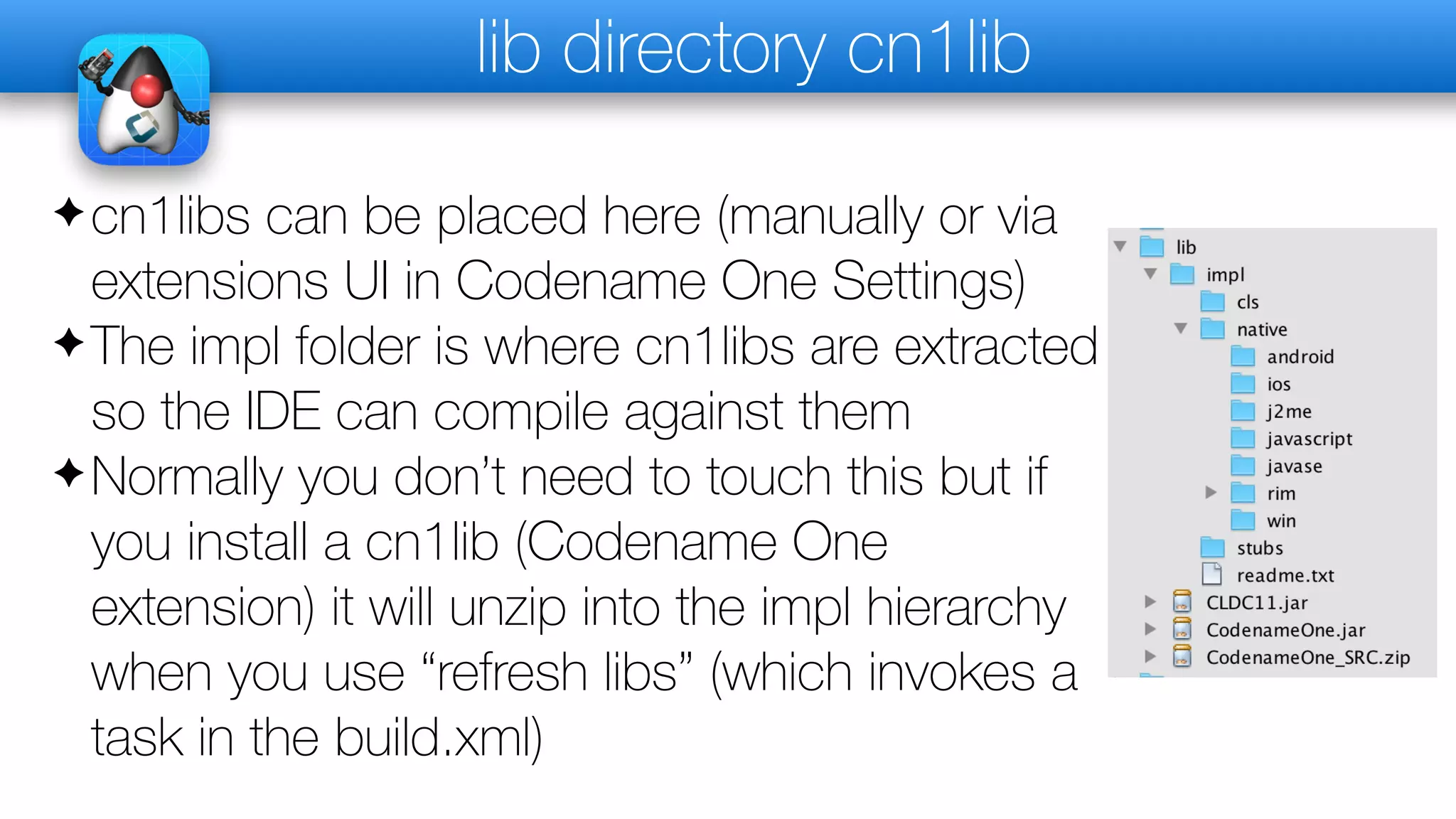

- 17. lib directory cn1lib ✦cn1libscan be placed here (manually or via extensions UI in Codename One Settings) ✦The impl folder is where cn1libs are extracted so the IDE can compile against them ✦Normally you don’t need to touch this but if you install a cn1lib (Codename One extension) it will unzip into the impl hierarchy when you use “refresh libs” (which invokes a task in the build.xml)

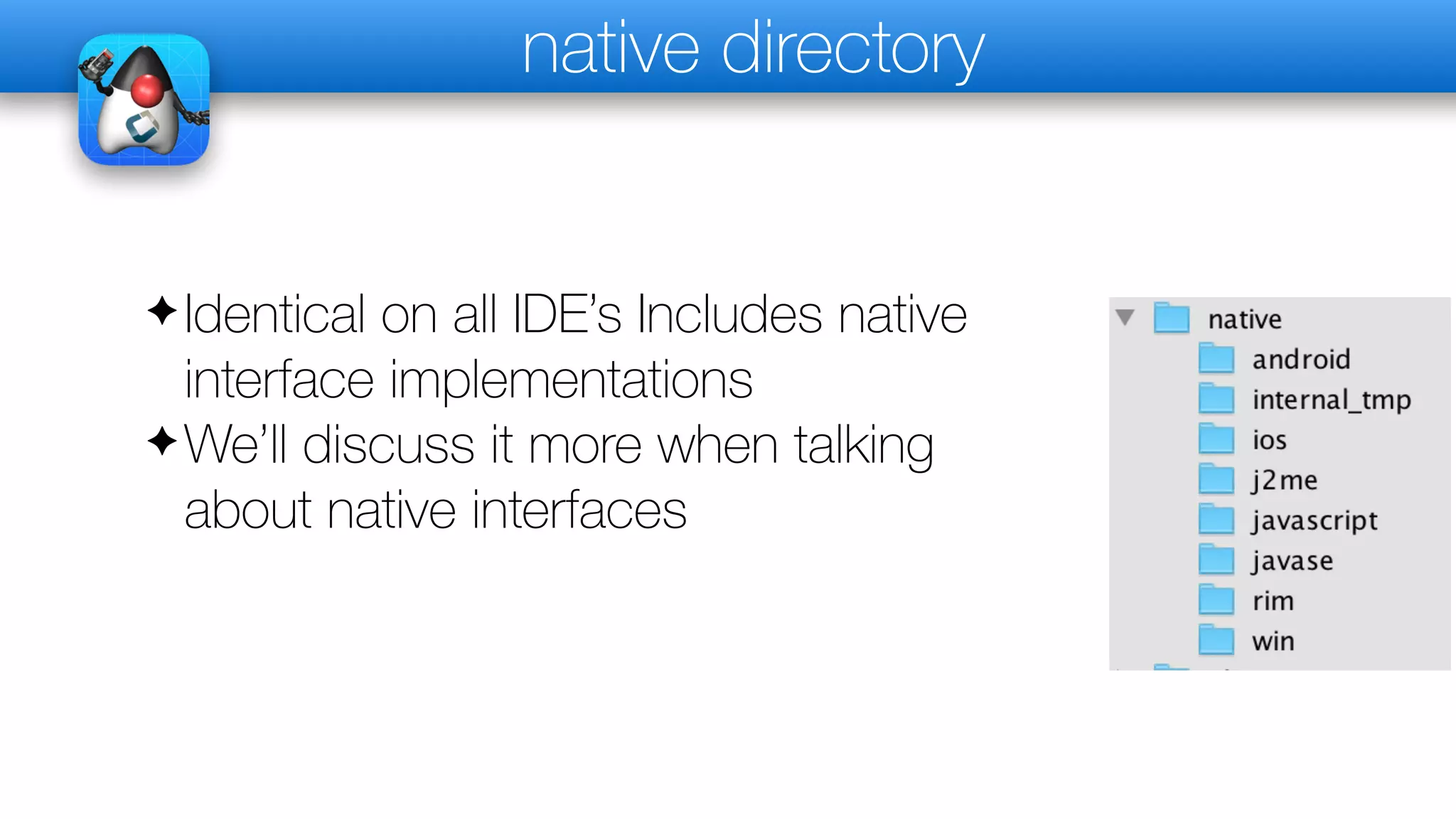

- 18. native directory ✦ Identicalon all IDE’s Includes native interface implementations ✦ We’ll discuss it more when talking about native interfaces
- 19. Update Process ✦ Whenwe update something in Codename One how does it get to the project you created a while back? ✦ There are 3 distinct update pieces in Codename One: Plugin update, build.xml update & libs update
- 20. Plugin Update ✦ Youneed to update the IDE plugin manually via the vendor settings. This impacts our tooling (e.g. GUI builder etc.) ✦ However, only new projects will be impacted by updates in the plugin with one major exception ✦ CodeNameOneBuildClient.jar is updated from the plugin dynamically without a user prompt

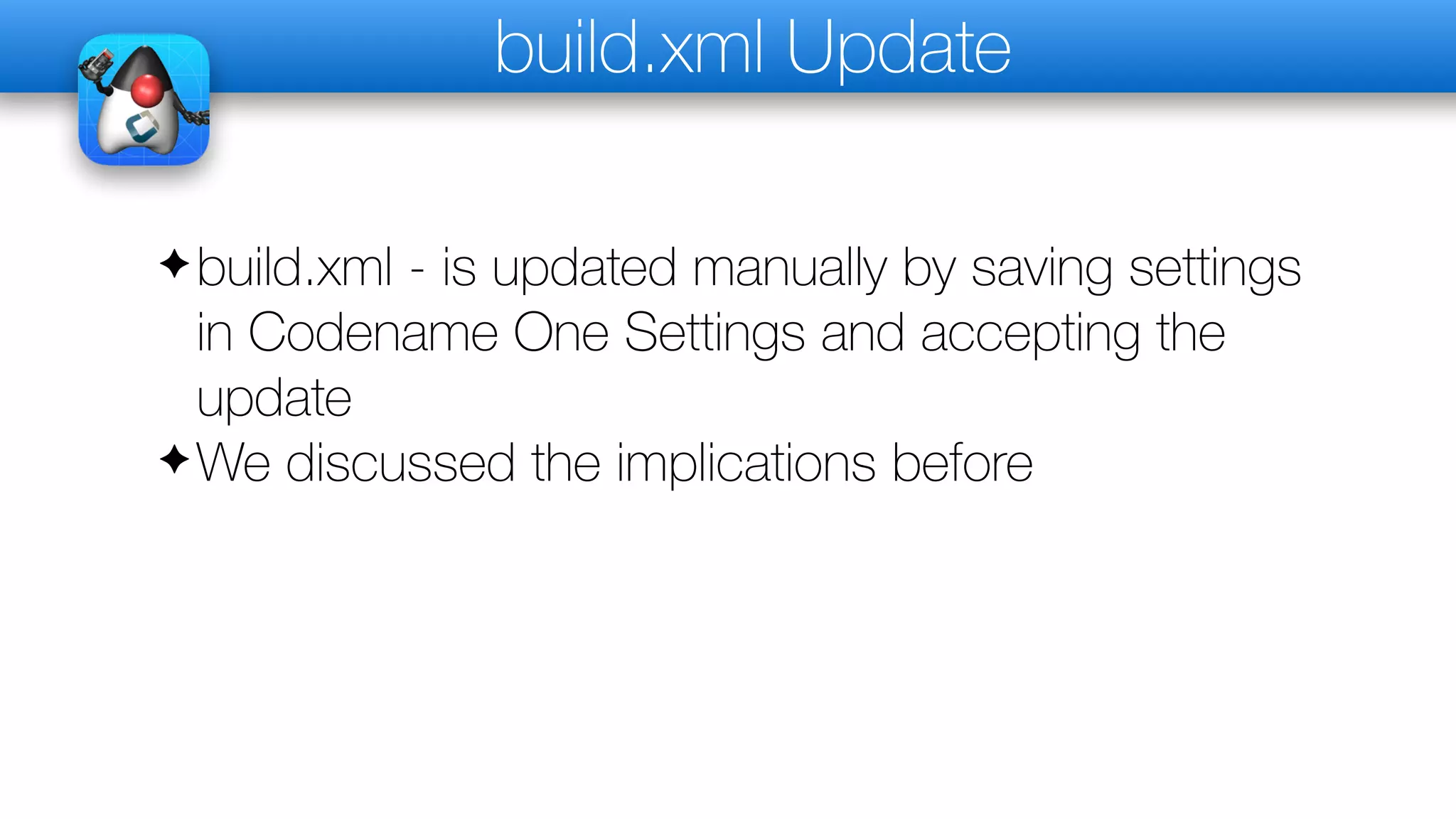

- 21. build.xml Update ✦build.xml -is updated manually by saving settings in Codename One Settings and accepting the update ✦We discussed the implications before
- 22. libs Update ✦A libsupdate brings JavaSE.jar, CodenameOne.jar, CLDC11.jar & CodenameOne_SRC.jar up to date ✦It can be triggered manually by pressing “Update Client Libs” in Codename One Settings (under basic) ✦It happens implicitly when you send a build with an older version of the libs ✦It can happen when you send a versioned build

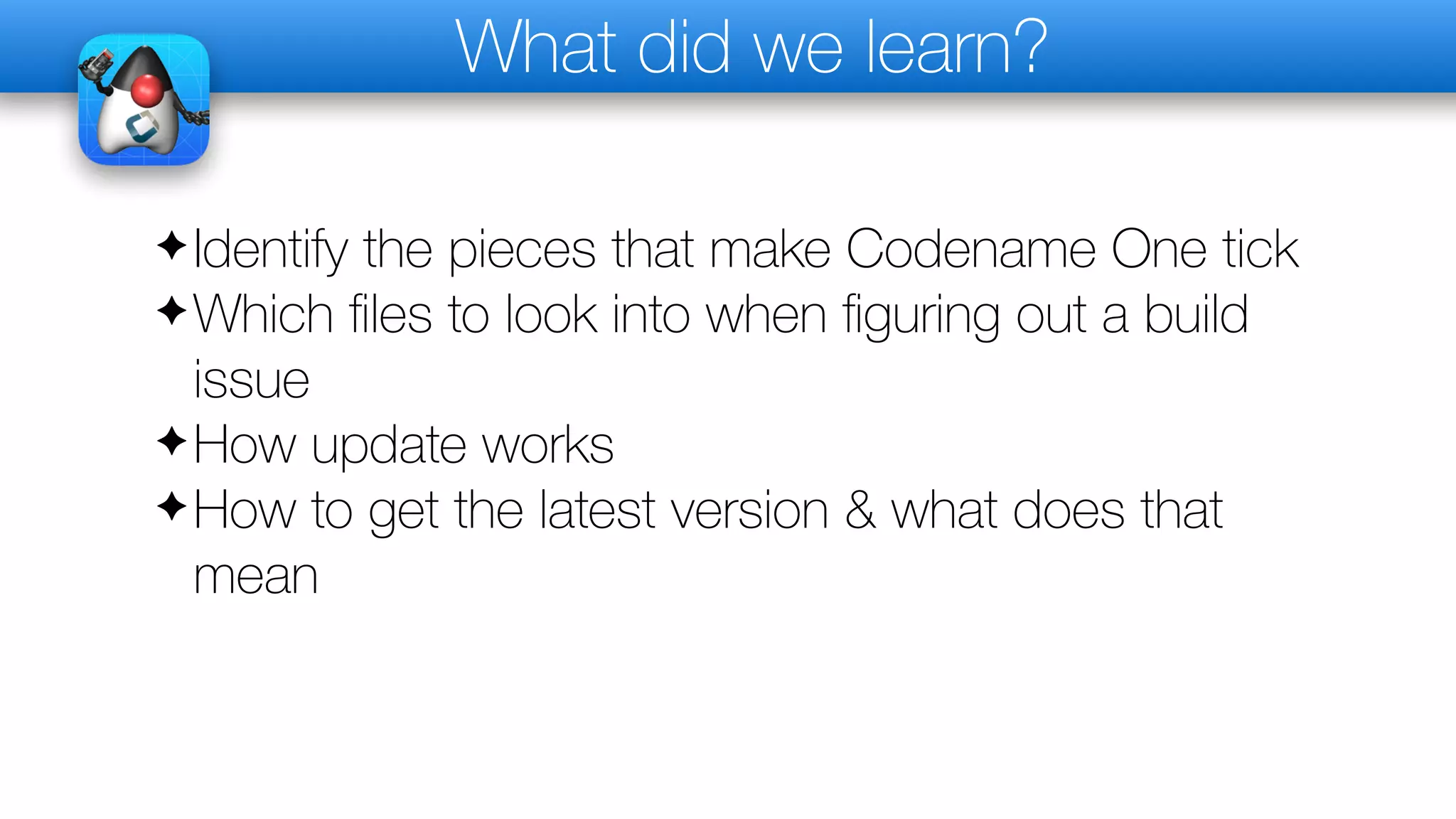

- 23. What did welearn? ✦Identify the pieces that make Codename One tick ✦Which files to look into when figuring out a build issue ✦How update works ✦How to get the latest version & what does that mean
