This document provides an overview of event sourcing and CQRS approaches to system architecture. It discusses command handling, view handling, and writing event sourced DDD systems. It provides code examples of modeling commands, events, and aggregates in an event sourced system. It discusses benefits of event sourcing like having an audit log, horizontal scaling, and using events to power other services.

1. DDD South West 2An Introduction to CQRS approaches to system architecture@NeilRobbinsneil@computer.org

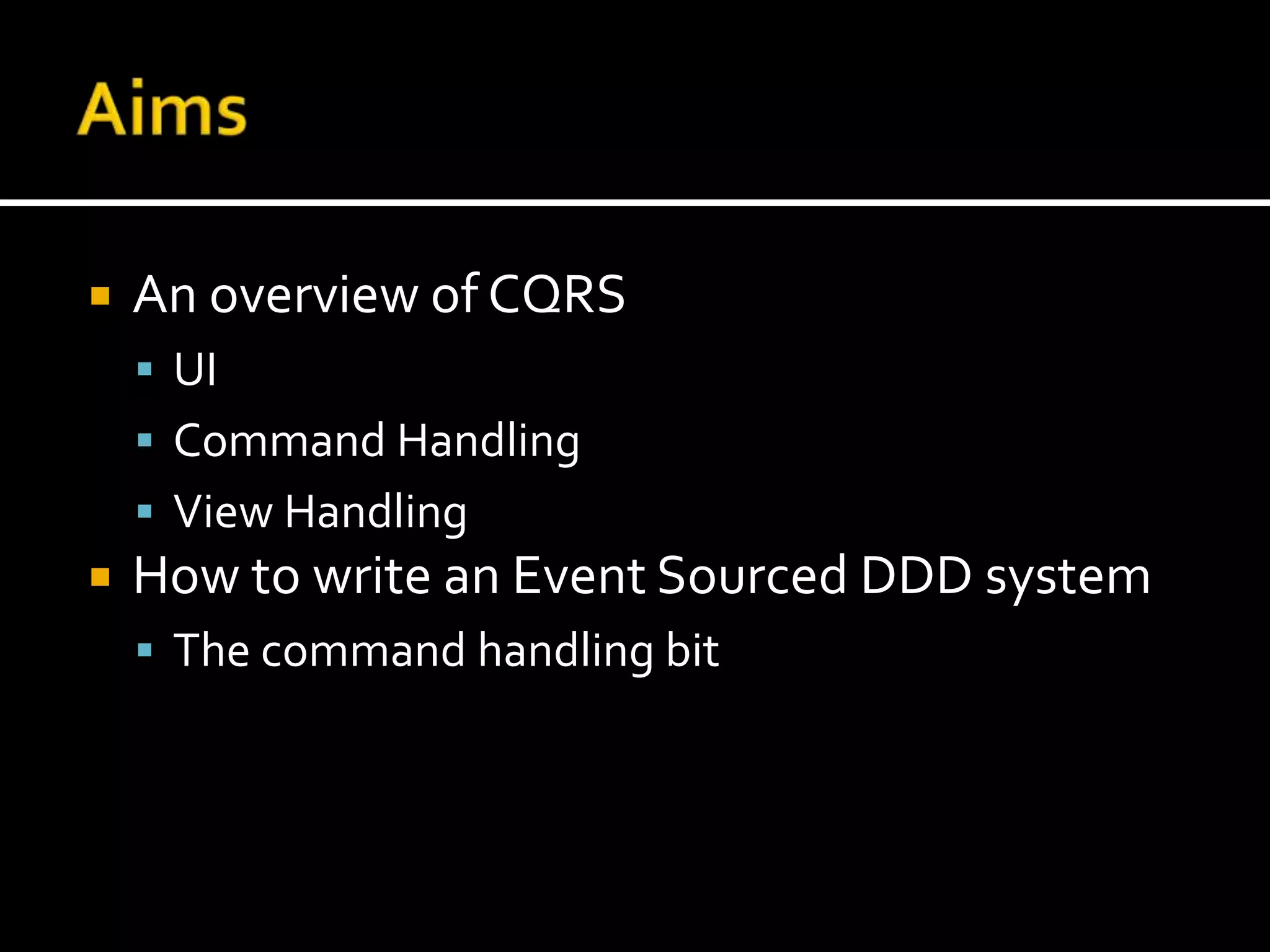

2. AimsAn overview of CQRSUICommand HandlingView HandlingHow to write an Event Sourced DDD systemThe command handling bit

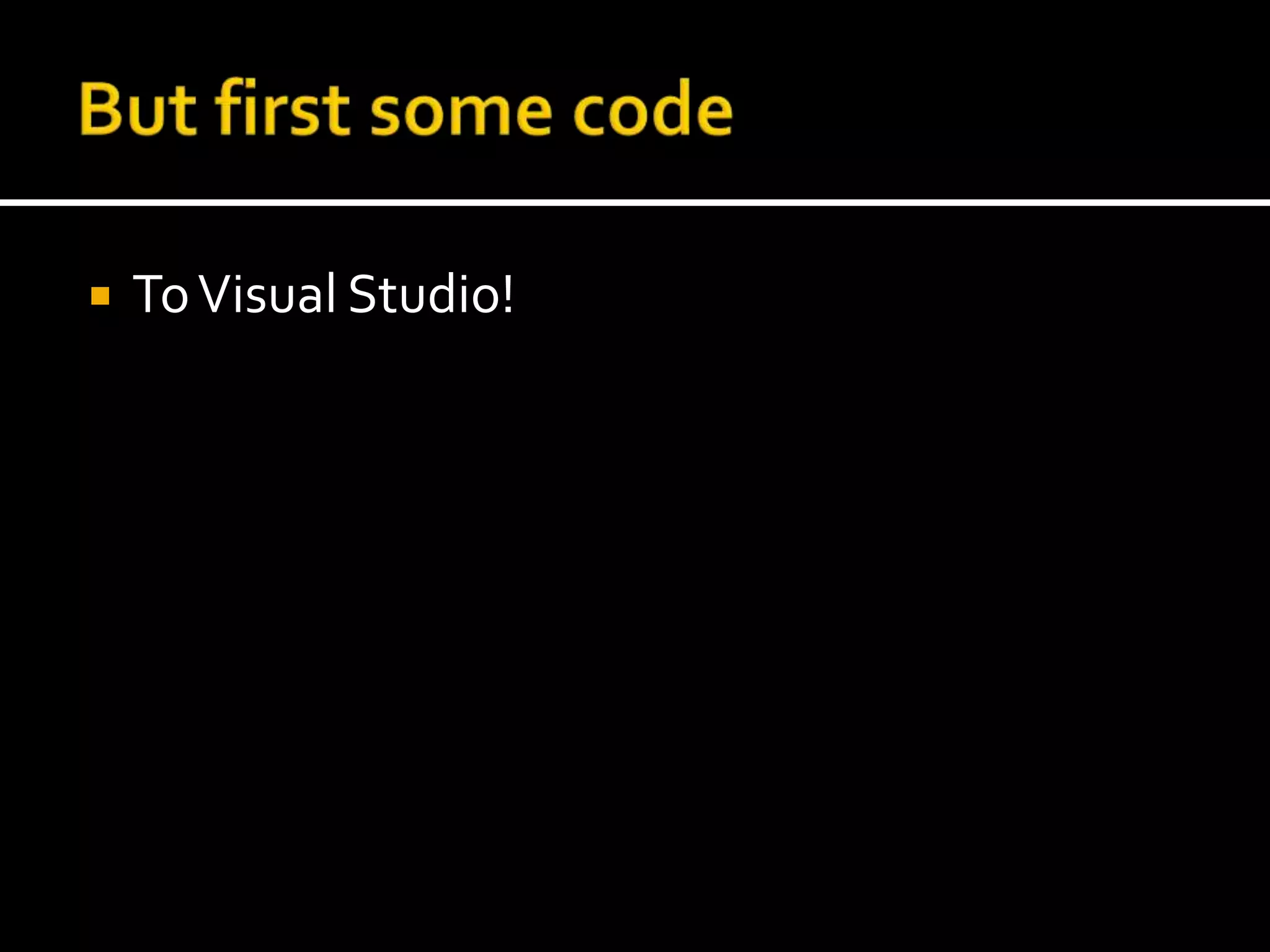

3. But first some codeTo Visual Studio!

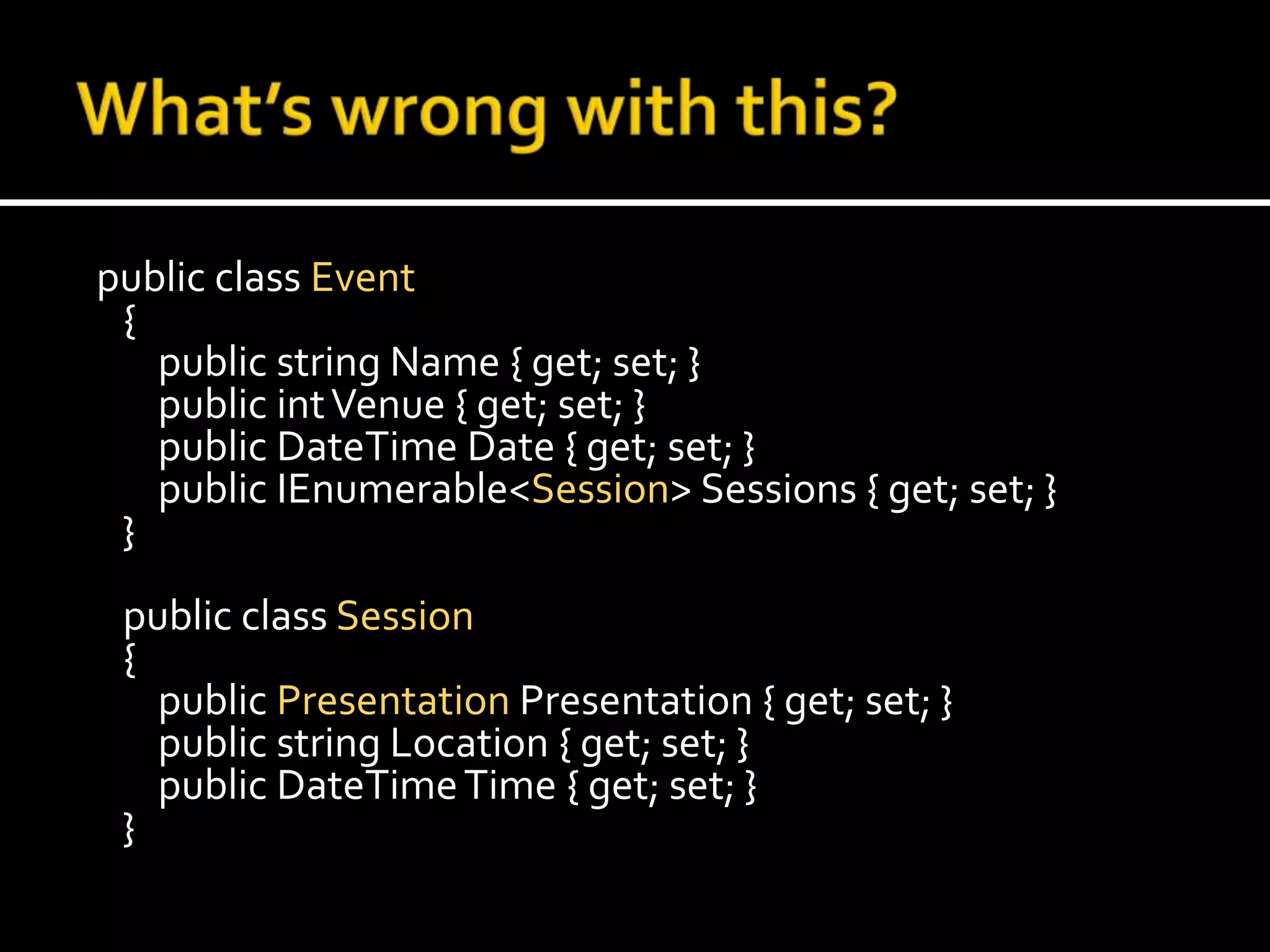

4. What’s wrong with this? public class Event { public string Name { get; set; } public int Venue { get; set; } public DateTime Date { get; set; } public IEnumerable<Session> Sessions { get; set; } } public class Session { public PresentationPresentation { get; set; } public string Location { get; set; } public DateTime Time { get; set; } }

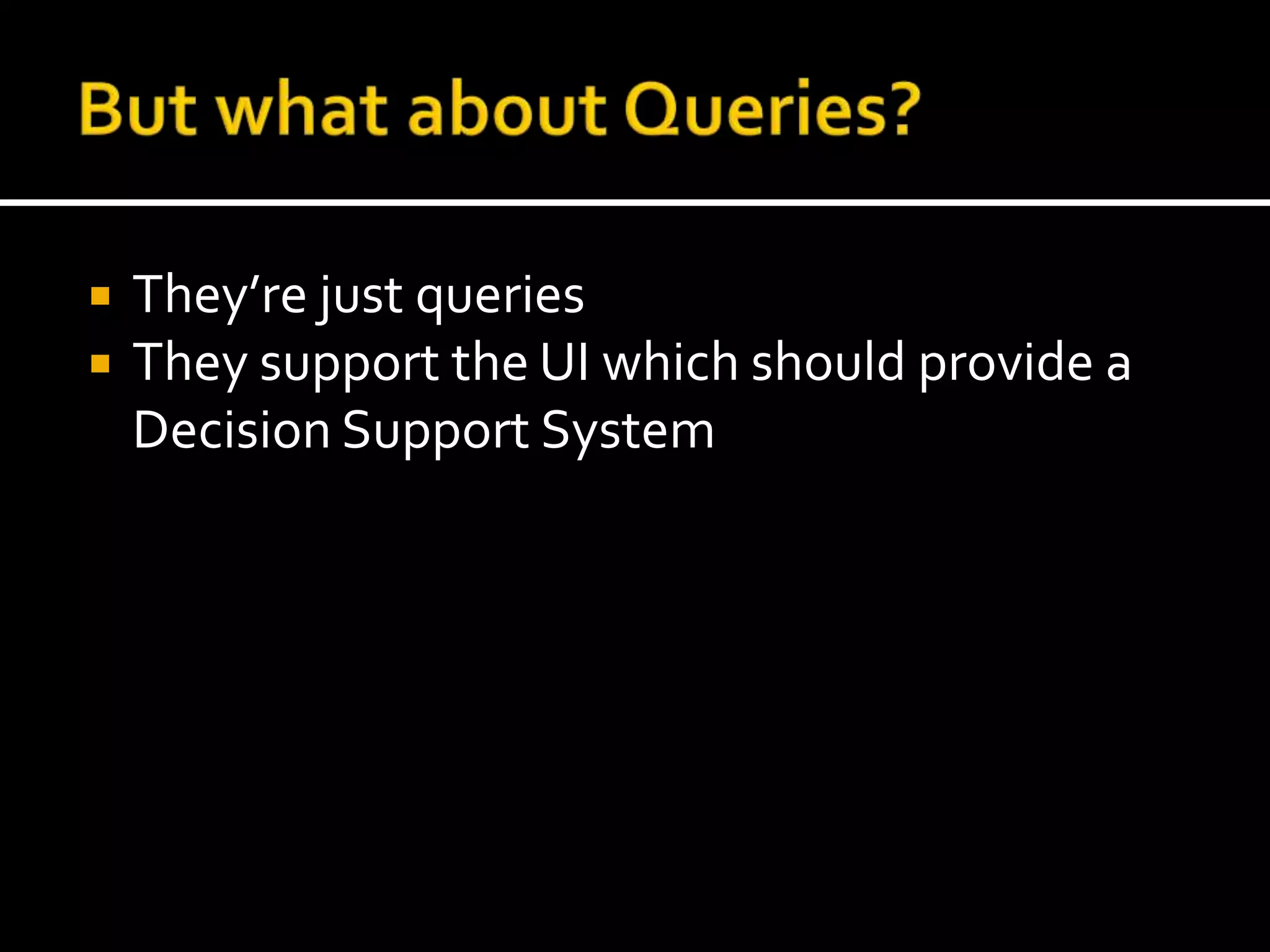

5. But what about Queries?They’re just queriesThey support the UI which should provide a Decision Support System

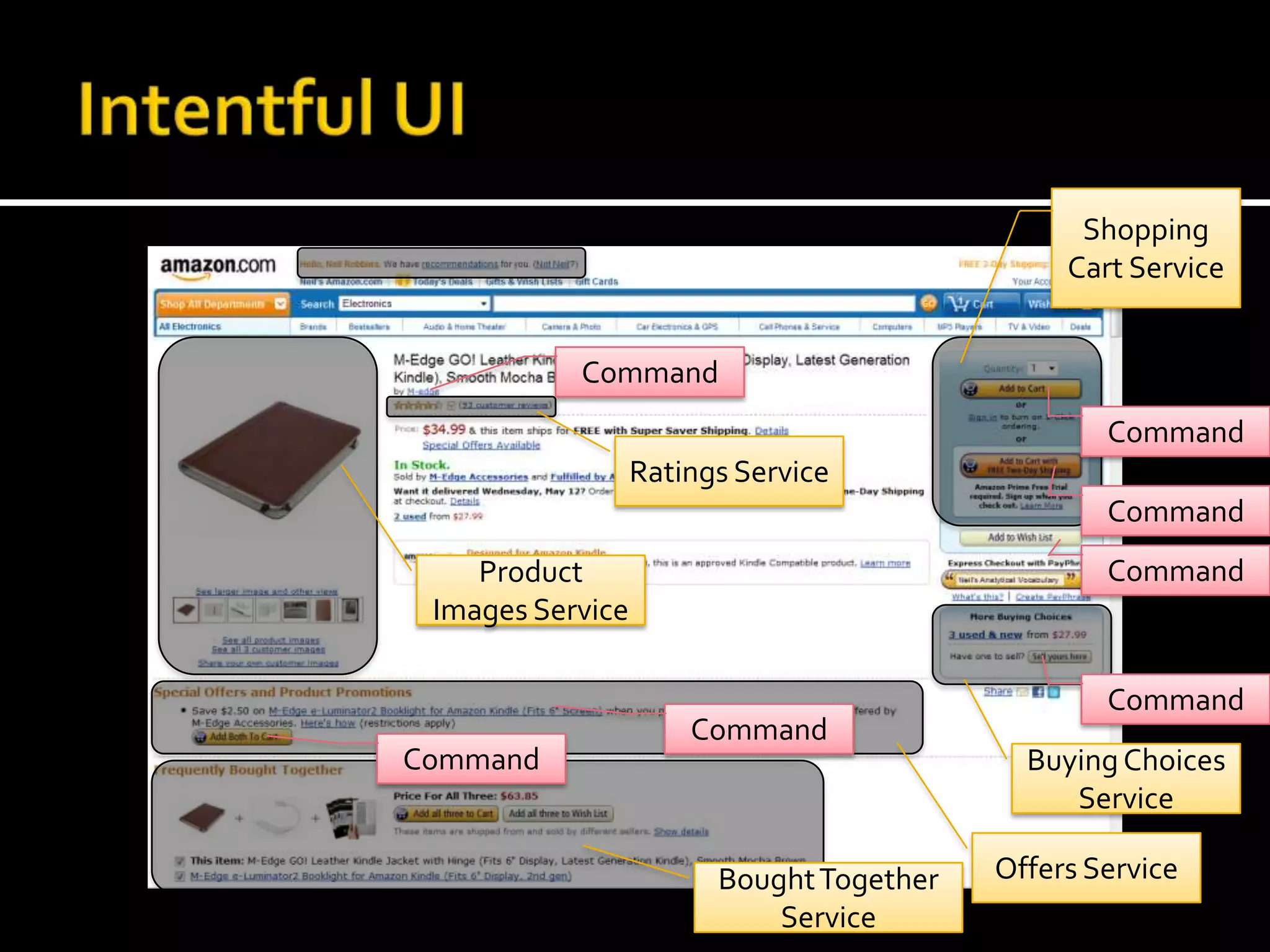

6. Intentful UIShopping Cart ServiceCommandCommandRatings ServiceCommandCommandProduct Images ServiceCommandCommandCommandBuying Choices ServiceOffers ServiceBought Together Service

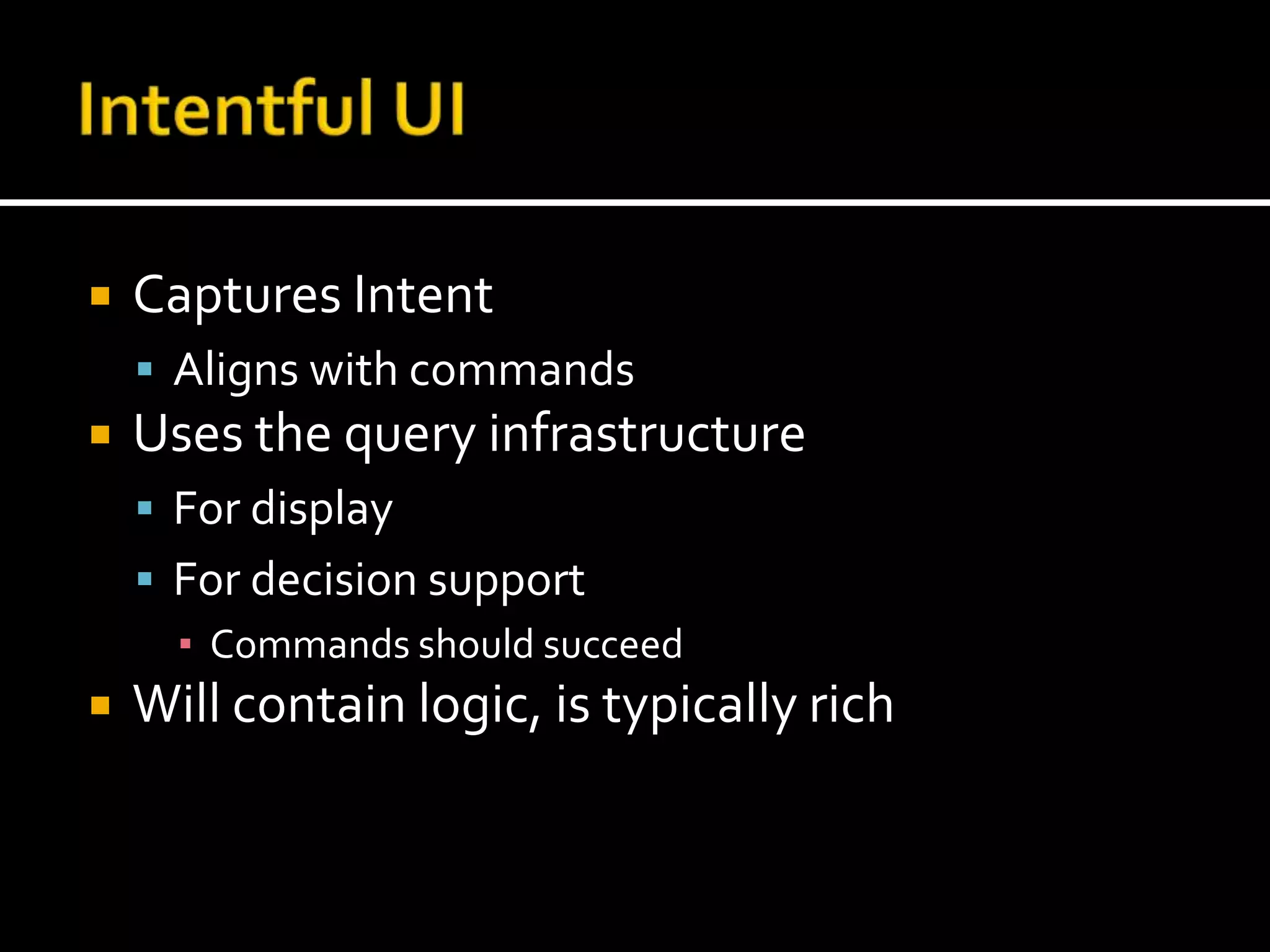

7. Intentful UICaptures IntentAligns with commandsUses the query infrastructureFor displayFor decision supportCommands should succeedWill contain logic, is typically rich

8. Some SlidesBig picture & background stuff!

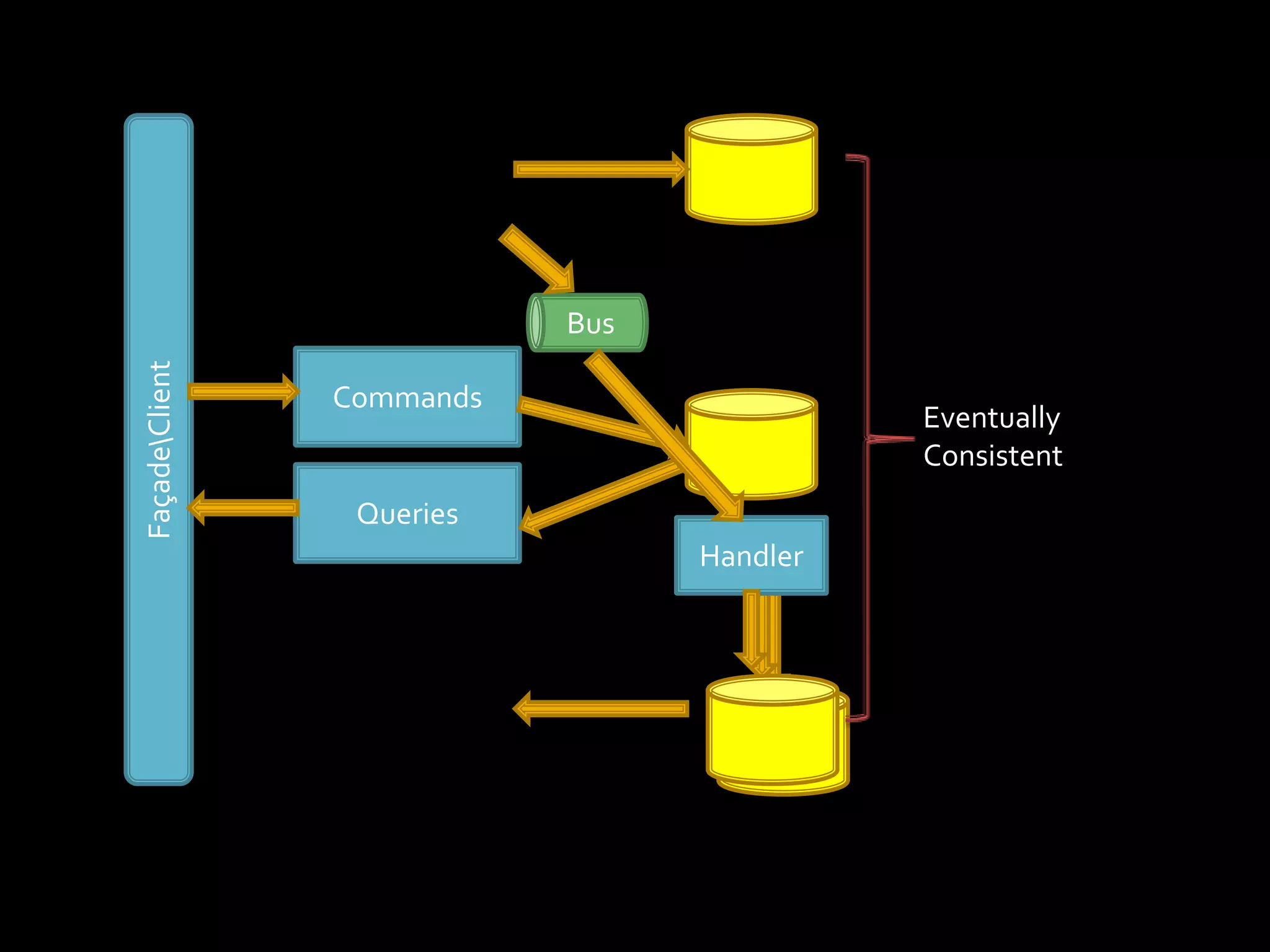

9. Façade\ClientBusCommandsEventuallyConsistentQueriesHandler

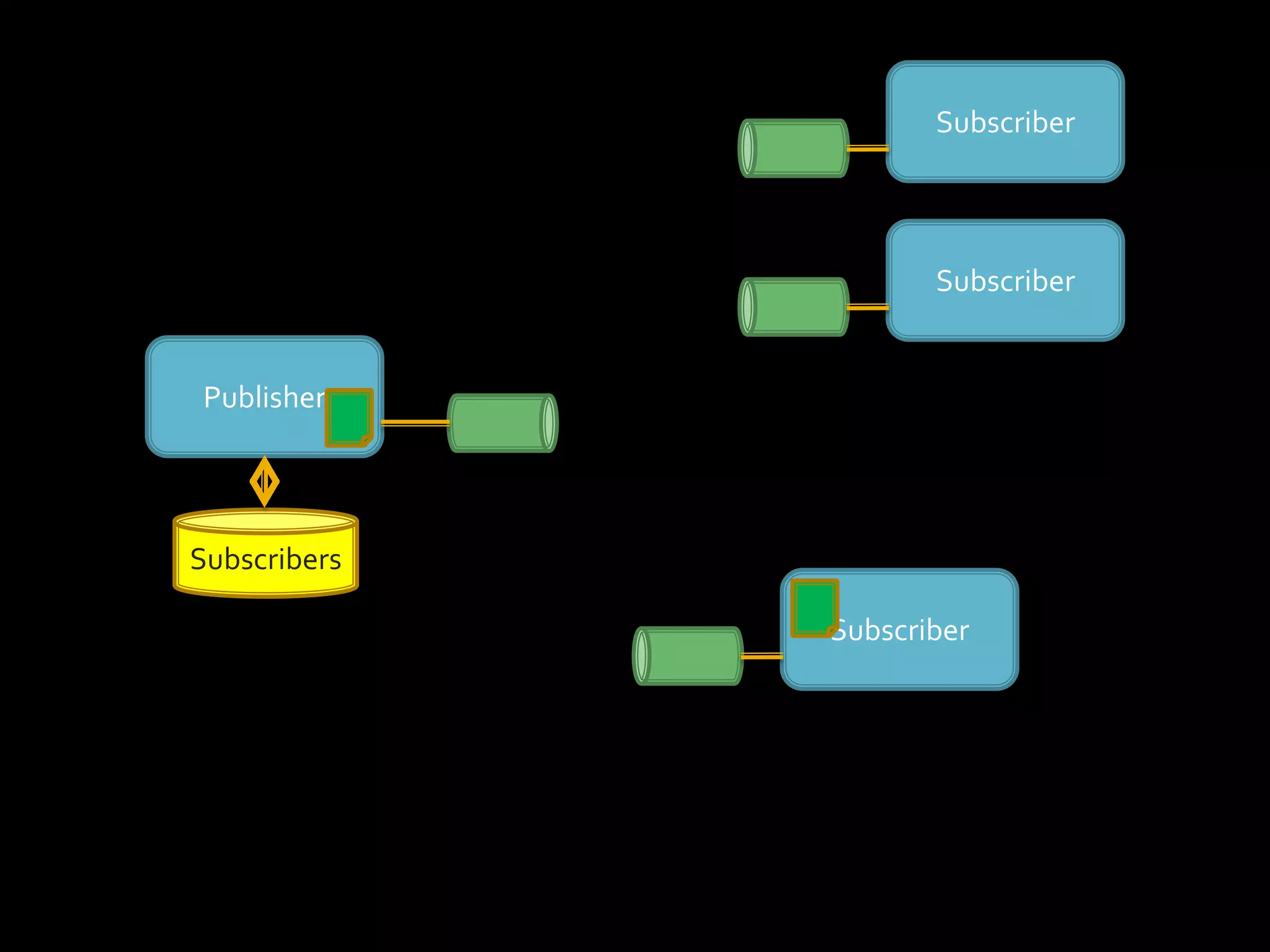

10. SubscriberSubscriberPublisherSubscribersSubscriber

11. ID : 123Name : The Art of WarAuthor: Sun TzuISBN: 1234ABCD5678Event: BookIsbnChangedNewValue: 4321DCBA8765

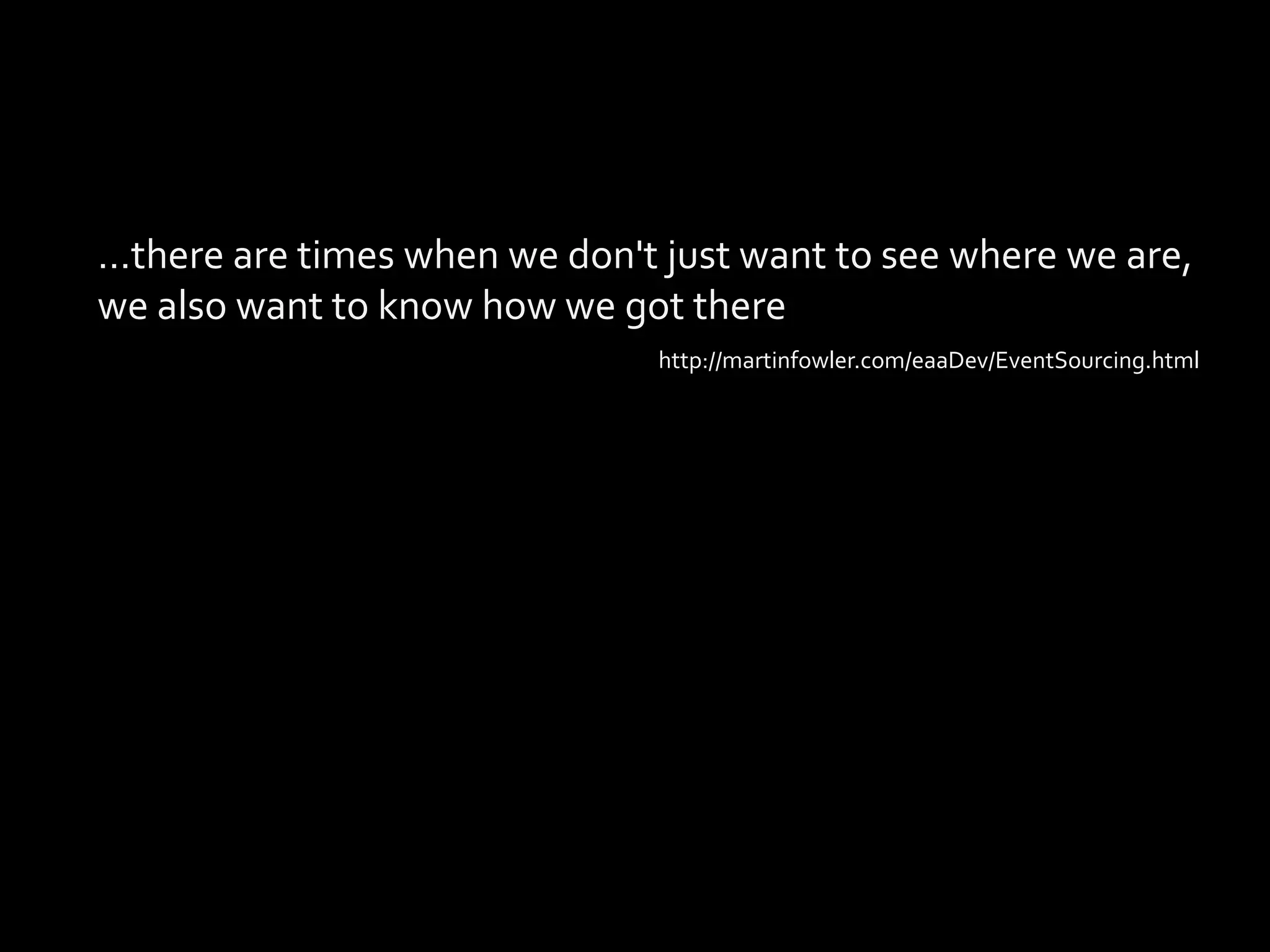

12. …there are times when we don't just want to see where we are,we also want to know how we got therehttp://martinfowler.com/eaaDev/EventSourcing.html

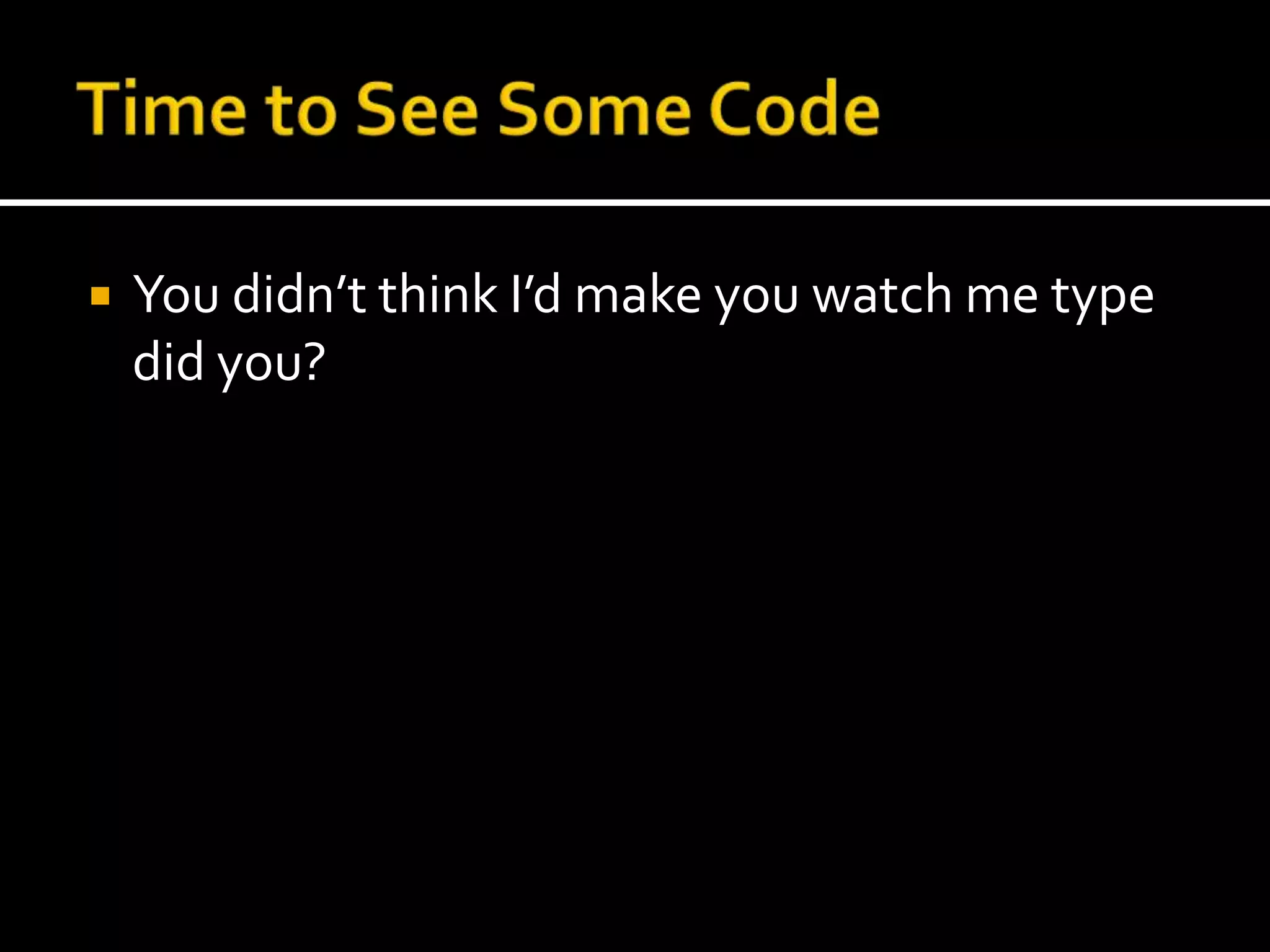

13. Time to See Some CodeYou didn’t think I’d make you watch me type did you?

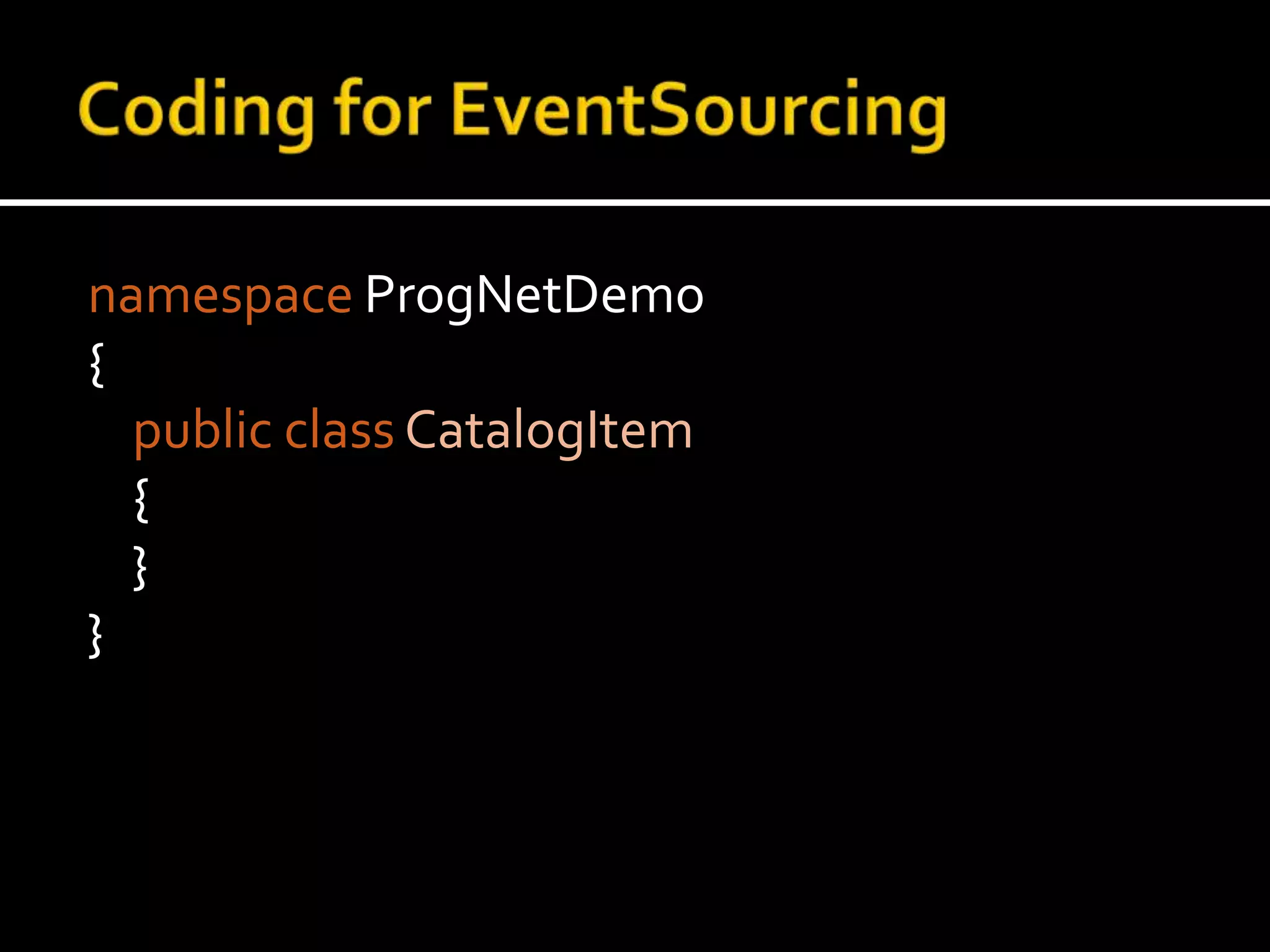

14. Coding for EventSourcingnamespaceProgNetDemo{public classCatalogItem { }}

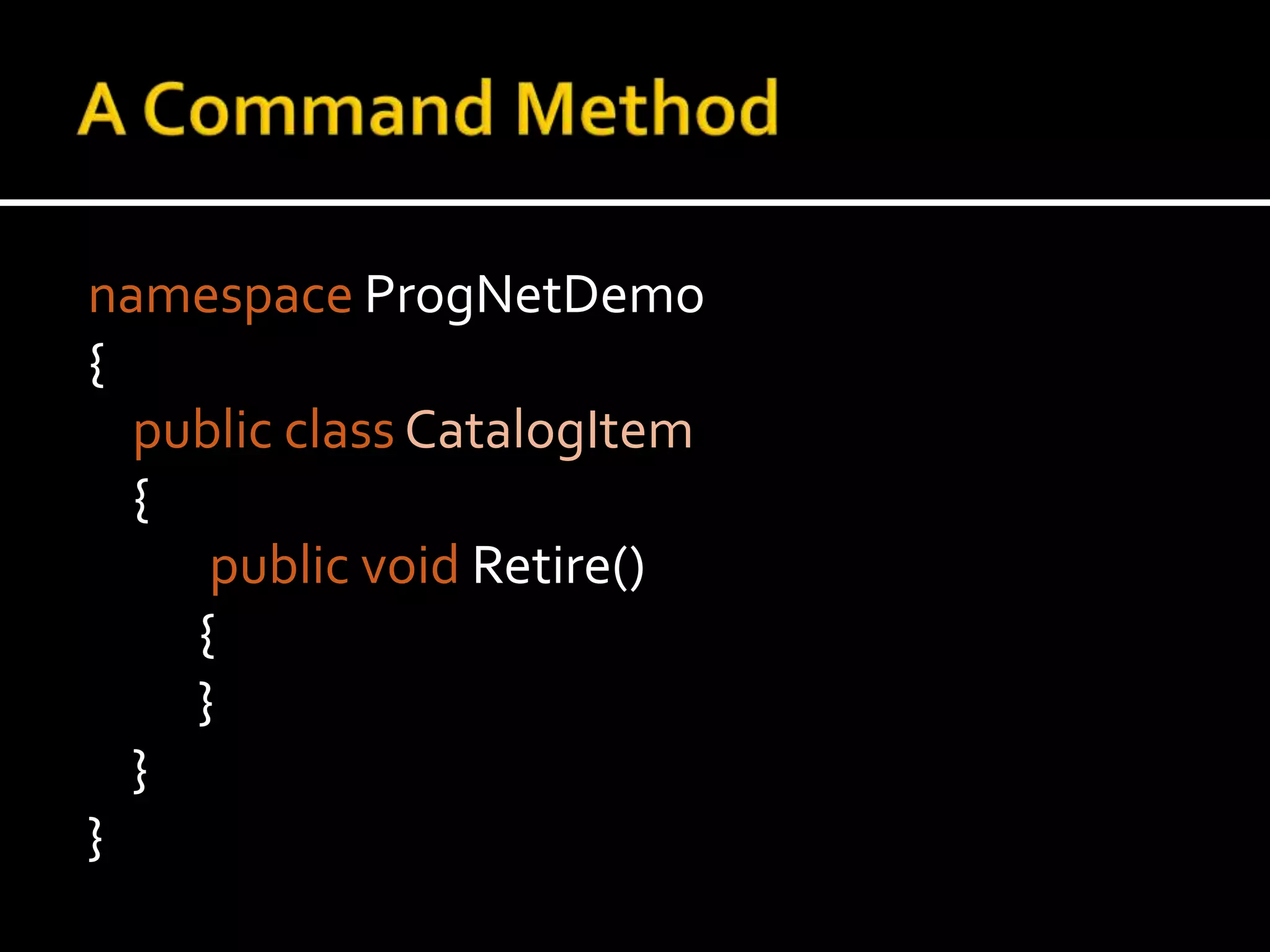

15. A Command MethodnamespaceProgNetDemo{public classCatalogItem { public void Retire() { } }}

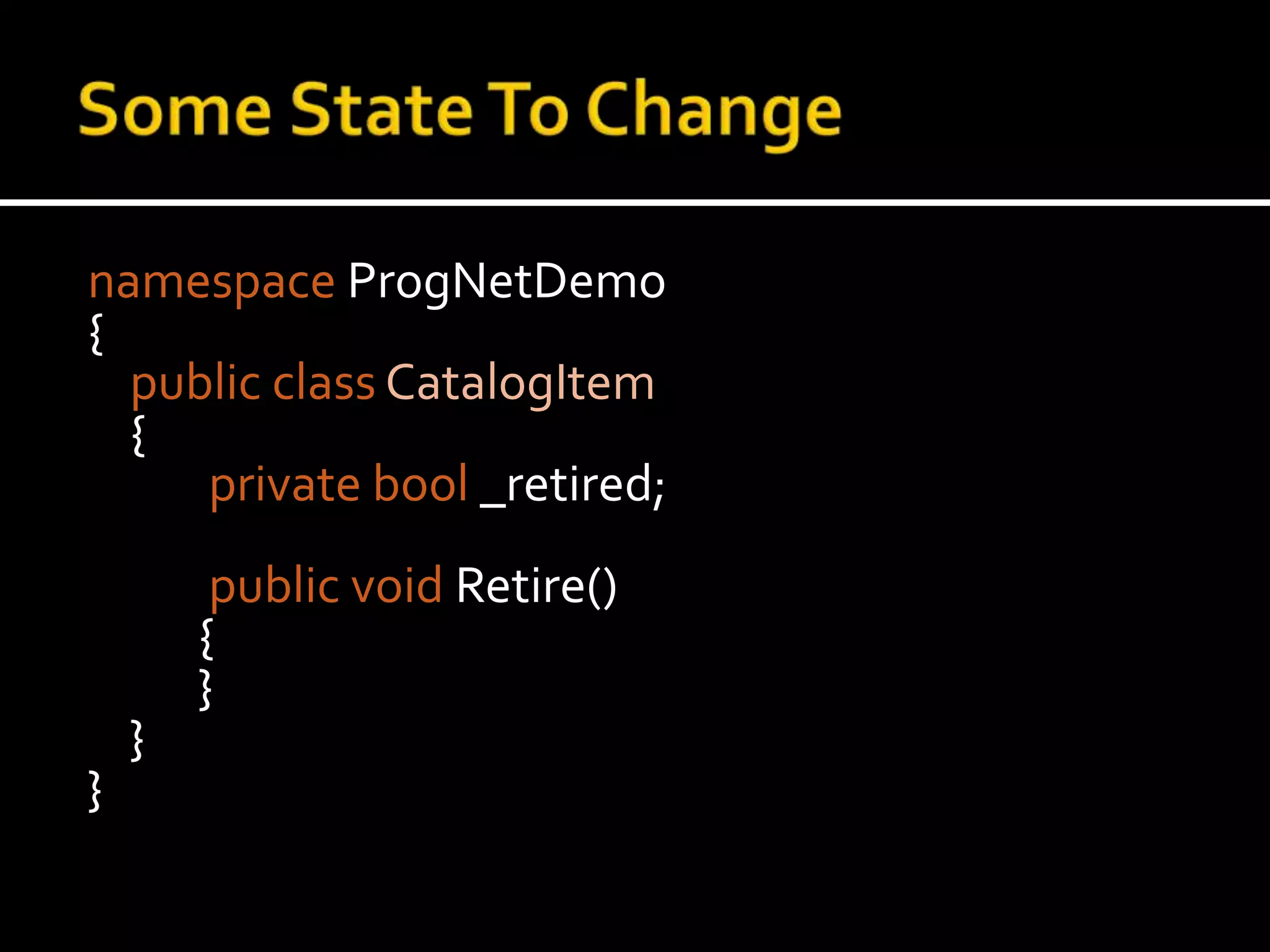

16. Some State To ChangenamespaceProgNetDemo{public classCatalogItem {privatebool _retired; public void Retire() { } }}

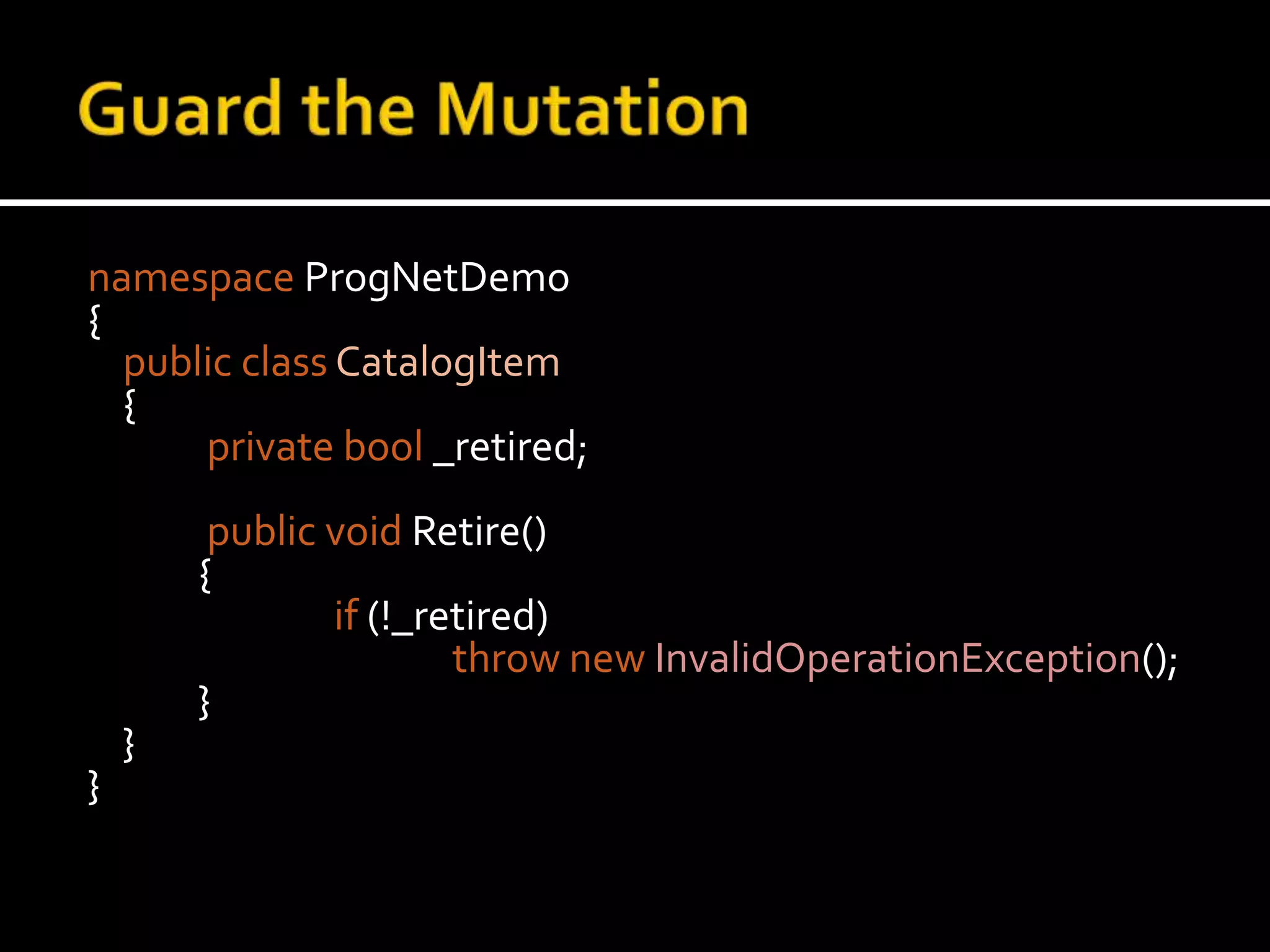

17. Guard the MutationnamespaceProgNetDemo{public classCatalogItem {privatebool _retired; public void Retire() {if (!_retired)thrownewInvalidOperationException(); } }}

18. Make the State Mutation A Domain EventnamespaceProgNetDemo{public classCatalogItem {privatebool _retired; public void Retire() {if (!_retired)thrownewInvalidOperationException();ApplyEvent(new RetiredEvent(_id)); } }}

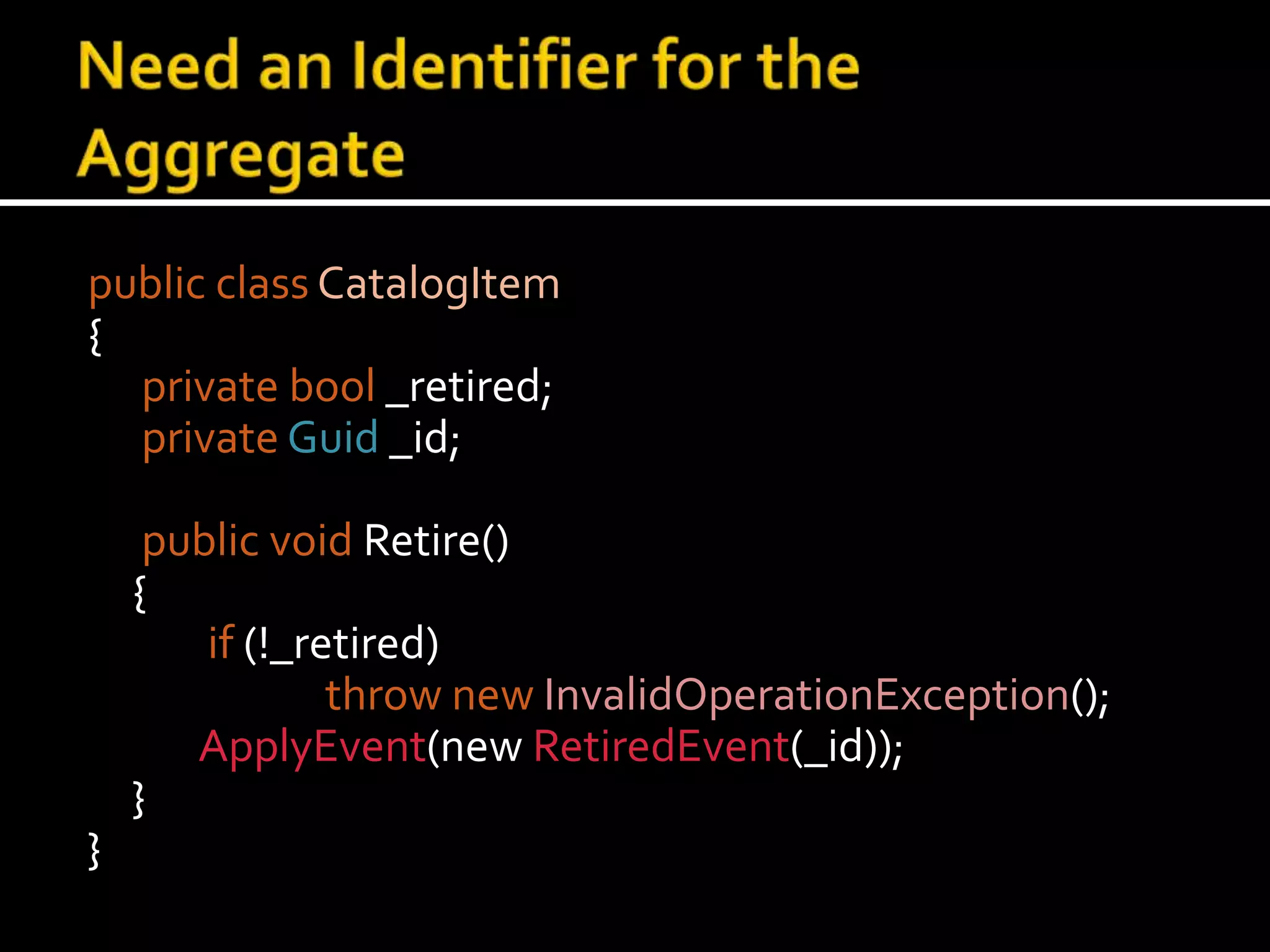

19. Need an Identifier for the Aggregatepublic classCatalogItem{privatebool _retired;privateGuid_id; public void Retire() {if (!_retired)thrownewInvalidOperationException();ApplyEvent(new RetiredEvent(_id)); }}

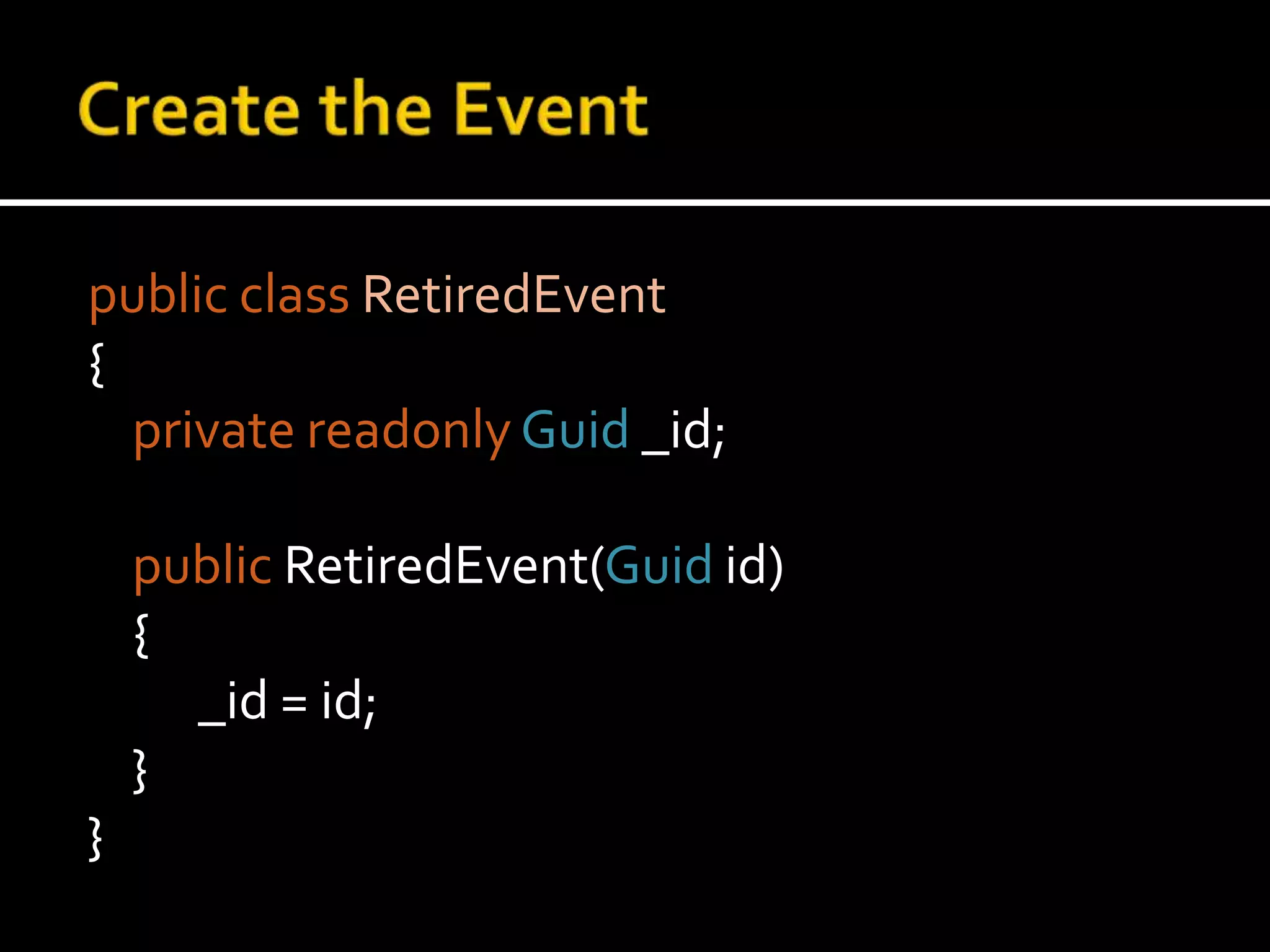

20. Create the EventpublicclassRetiredEvent{privatereadonlyGuid _id;publicRetiredEvent(Guid id) { _id = id; }}

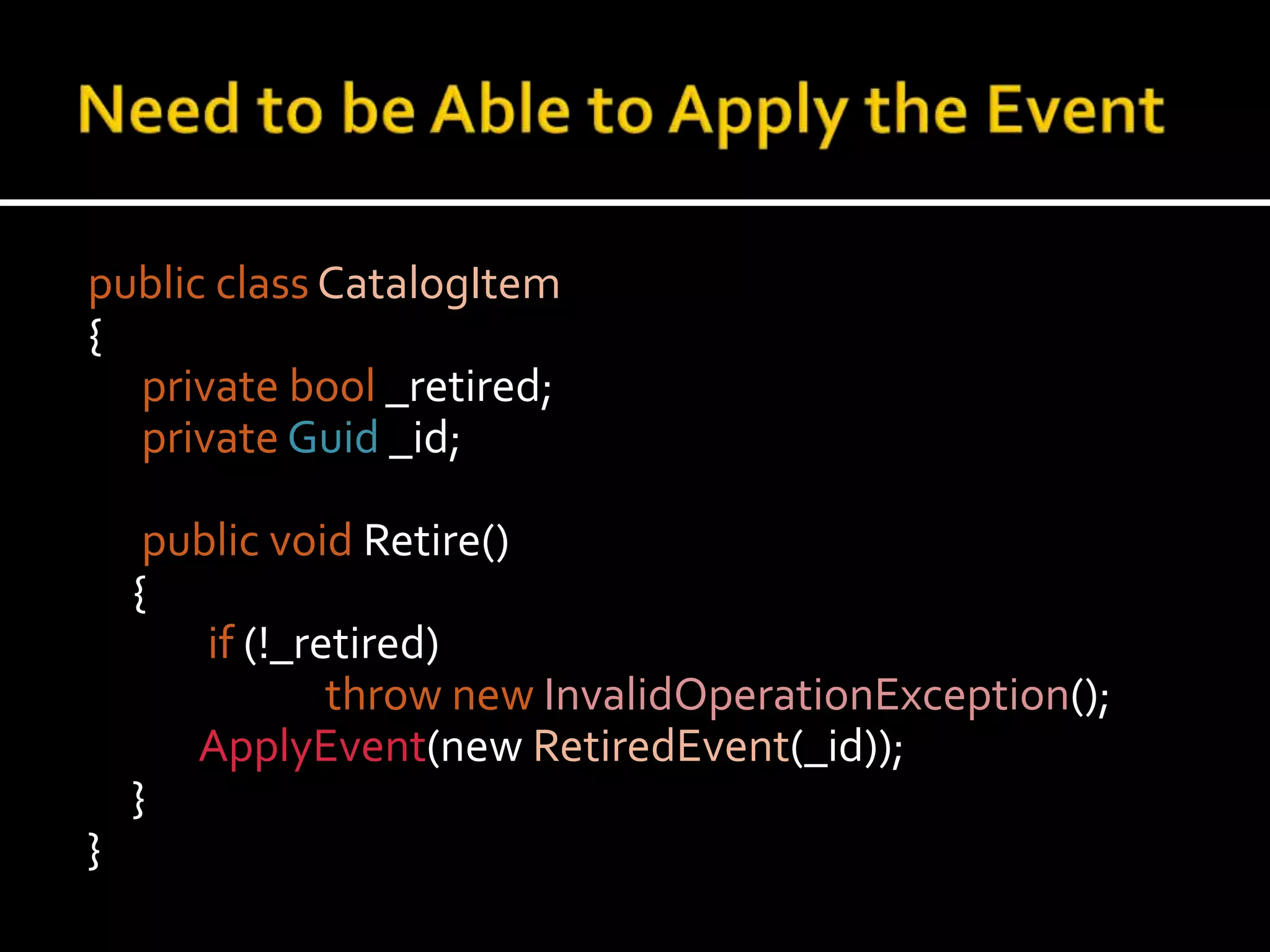

21. Need to be Able to Apply the Eventpublic classCatalogItem{privatebool _retired;privateGuid_id; public void Retire() {if (!_retired)thrownewInvalidOperationException();ApplyEvent(new RetiredEvent(_id)); }}

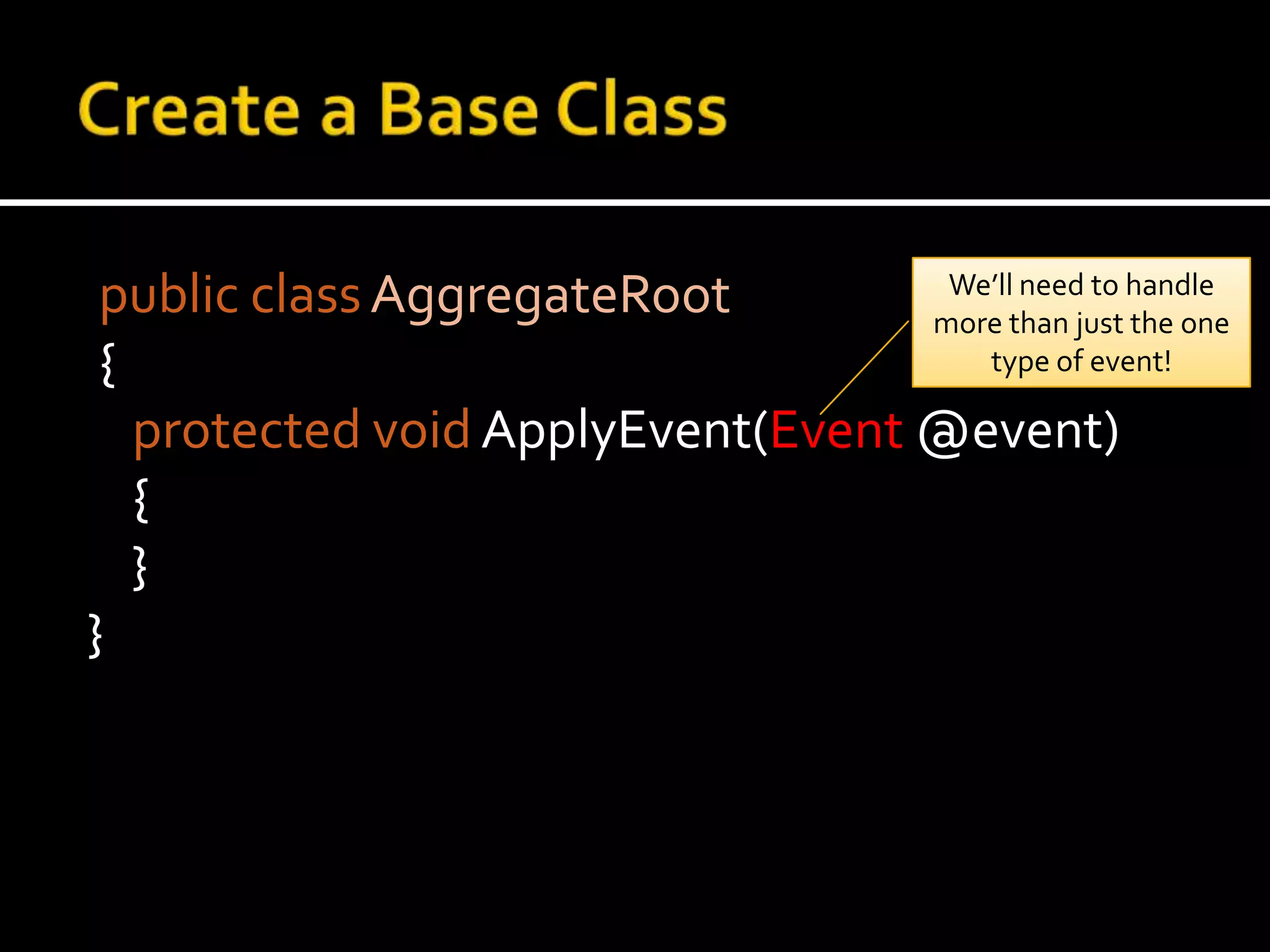

22. Create a Base Classpublic classAggregateRoot {protected voidApplyEvent(Event @event) { }}We’ll need to handle more than just the one type of event!

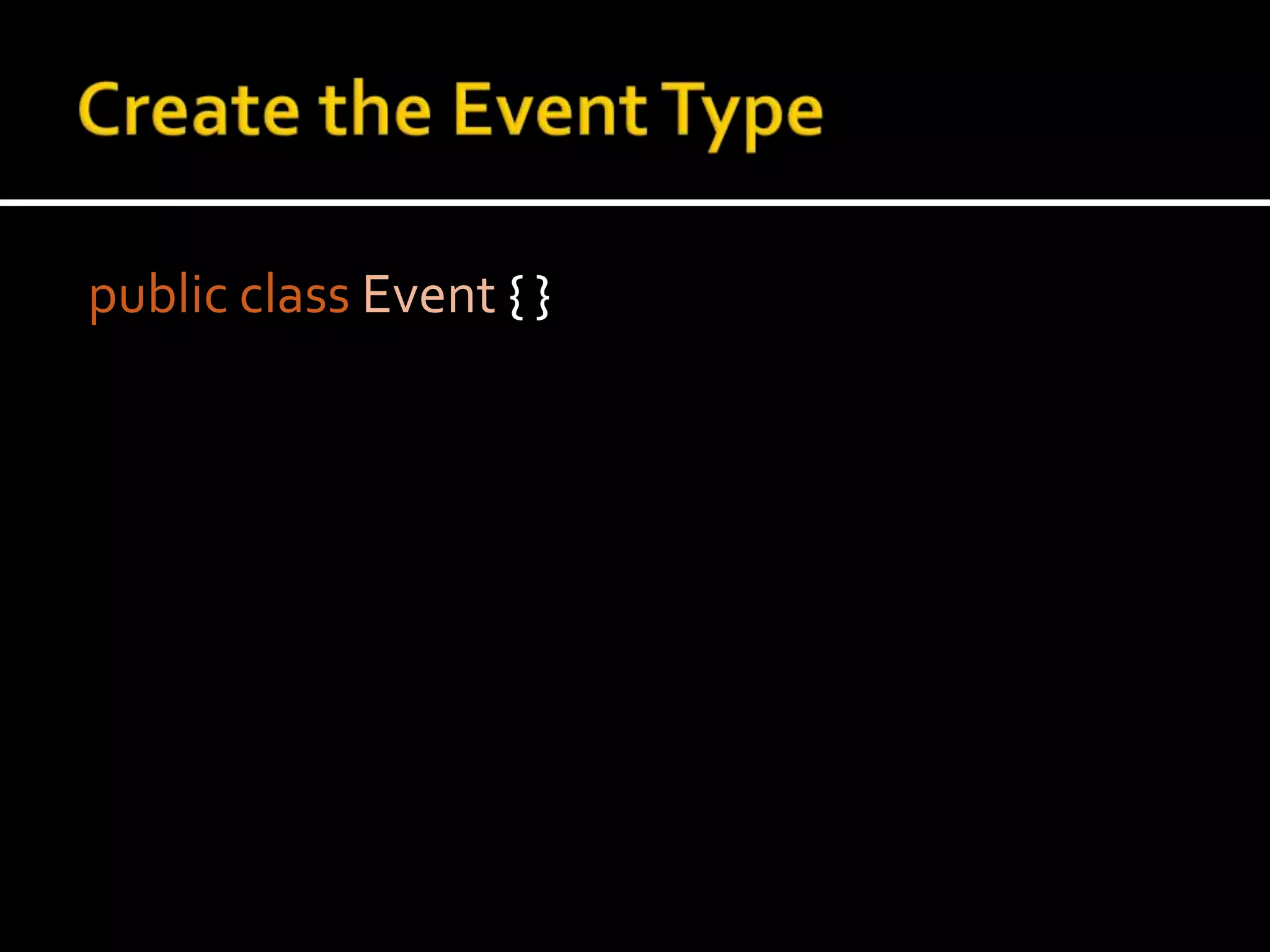

23. Create the Event Typepublic classEvent { }

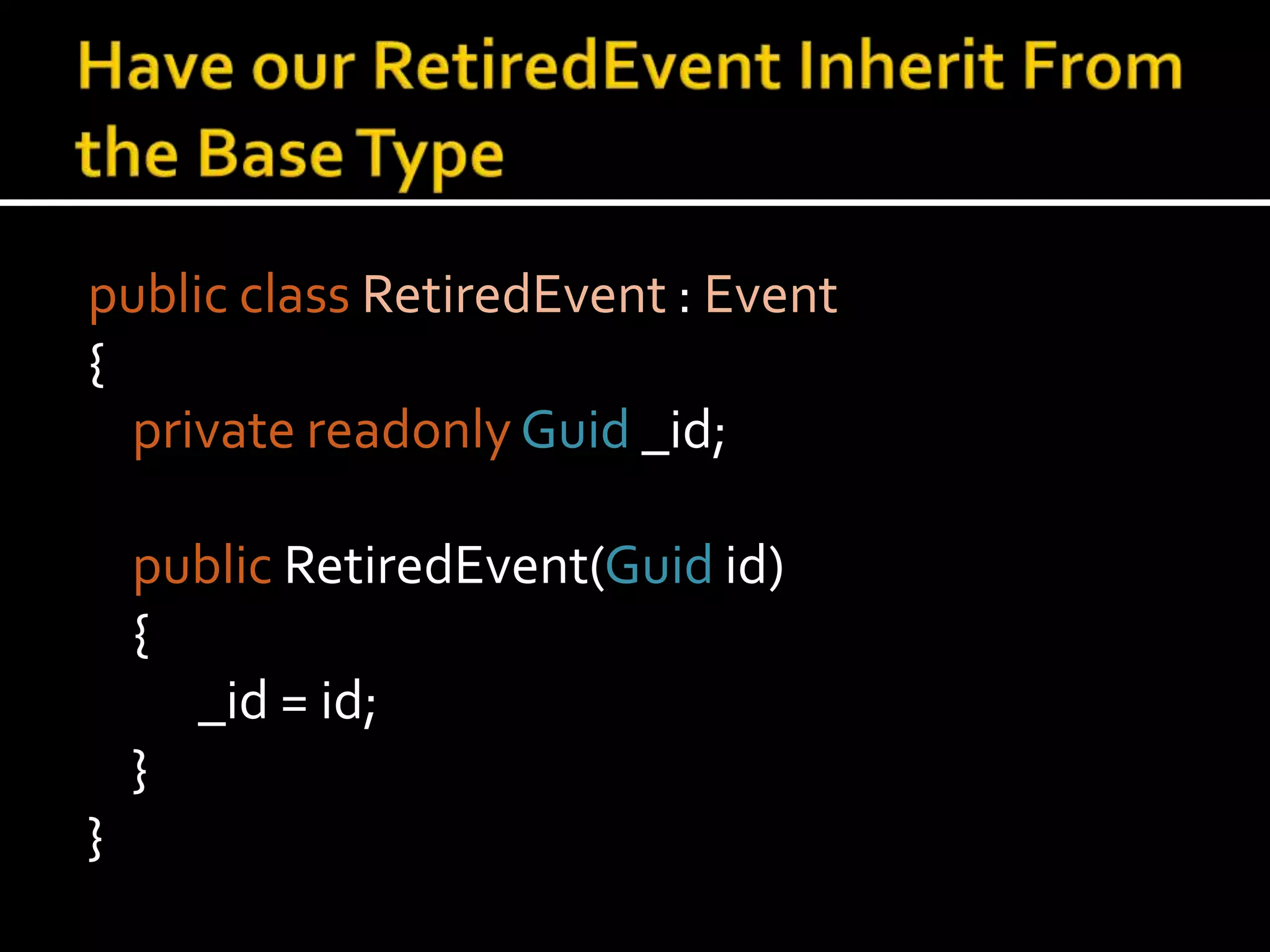

24. Have our RetiredEvent Inherit From the Base TypepublicclassRetiredEvent : Event{privatereadonlyGuid _id;publicRetiredEvent(Guid id) { _id = id; }}

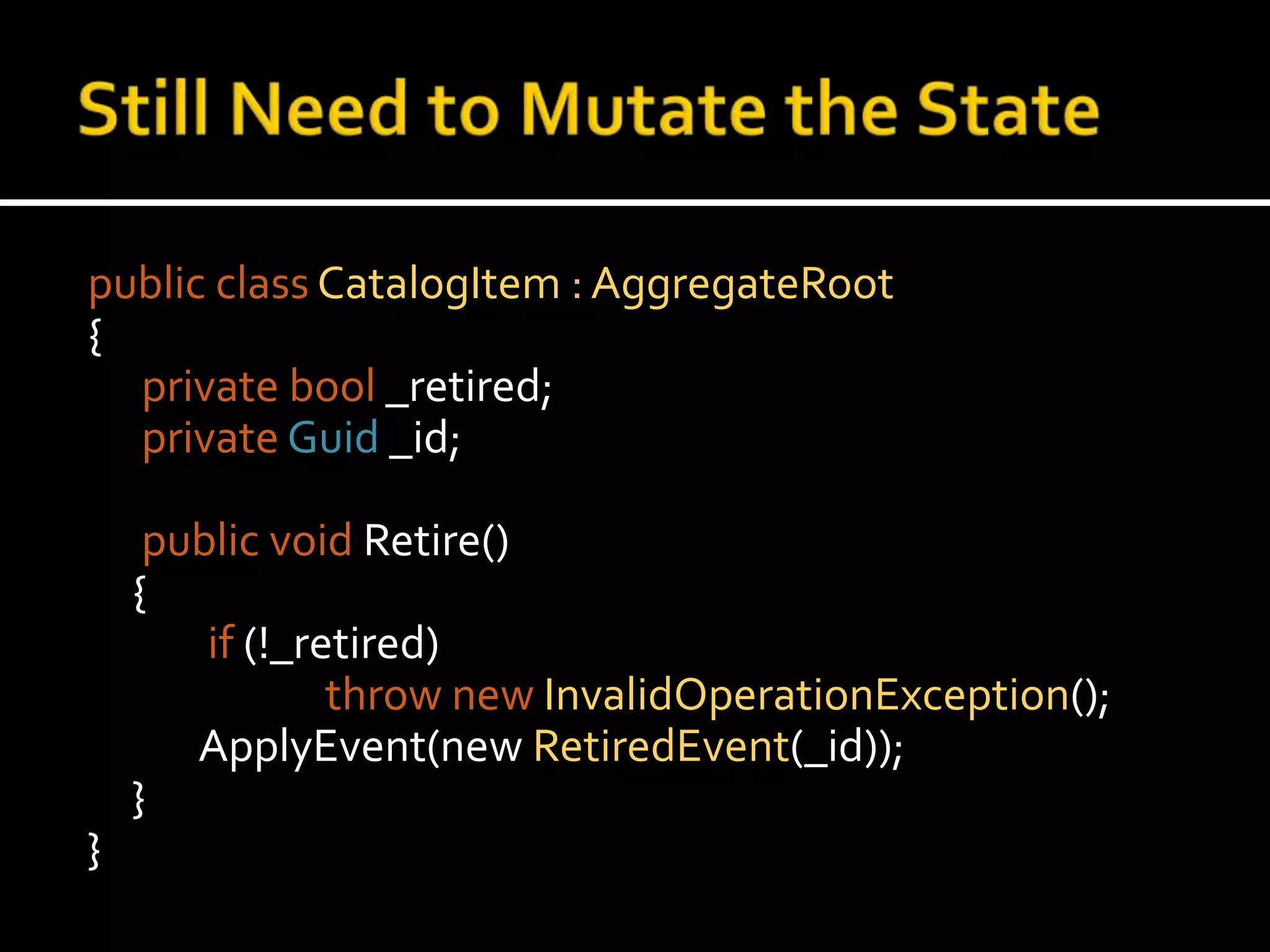

25. Still Need to Mutate the Statepublic classCatalogItem : AggregateRoot{privatebool _retired;privateGuid_id; public void Retire() {if (!_retired)thrownewInvalidOperationException();ApplyEvent(new RetiredEvent(_id)); }}

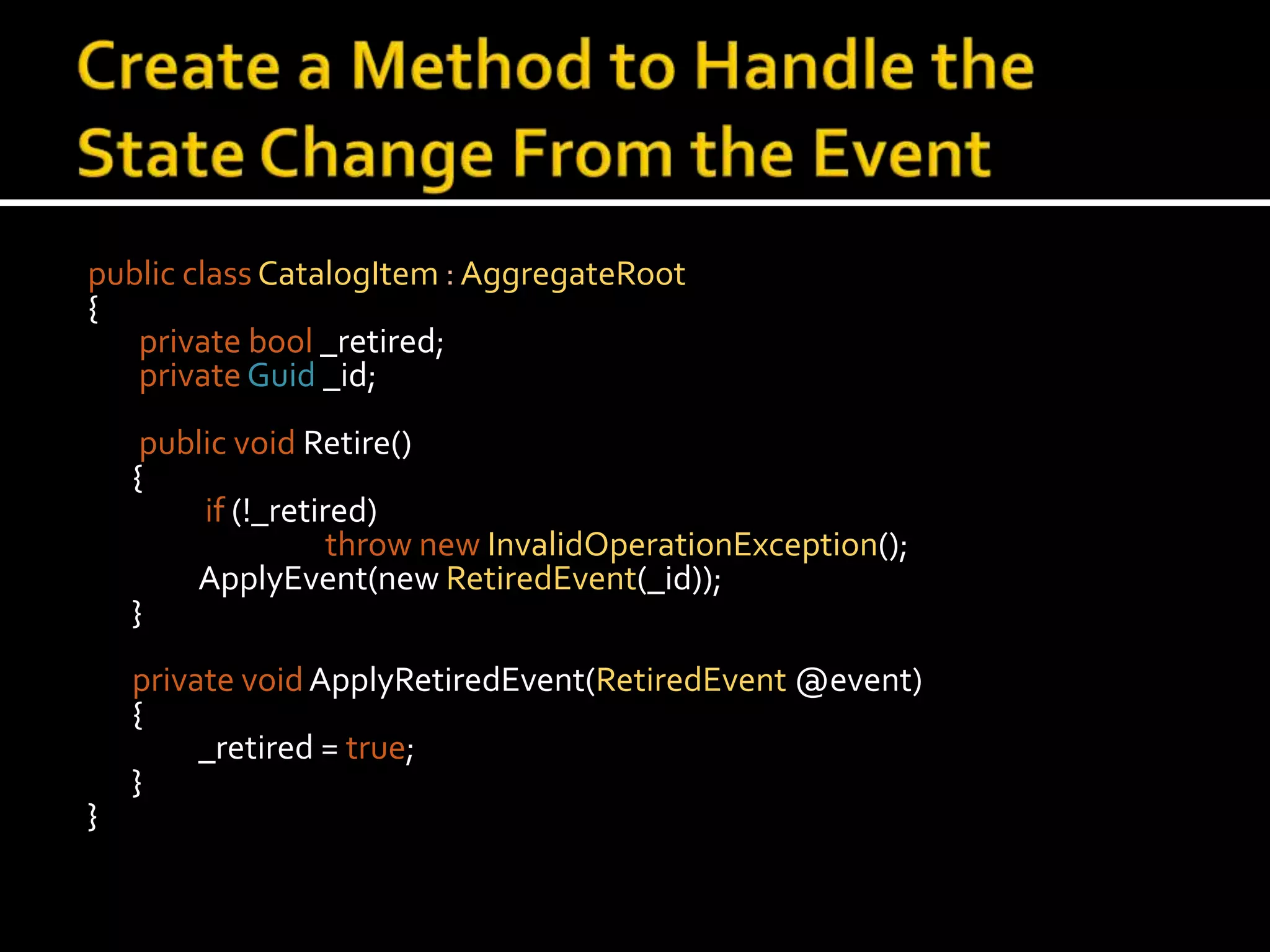

26. Create a Method to Handle the State Change From the Eventpublic classCatalogItem : AggregateRoot{privatebool _retired;privateGuid_id; public void Retire() {if (!_retired)thrownewInvalidOperationException();ApplyEvent(new RetiredEvent(_id)); }private voidApplyRetiredEvent(RetiredEvent @event) { _retired = true; }}

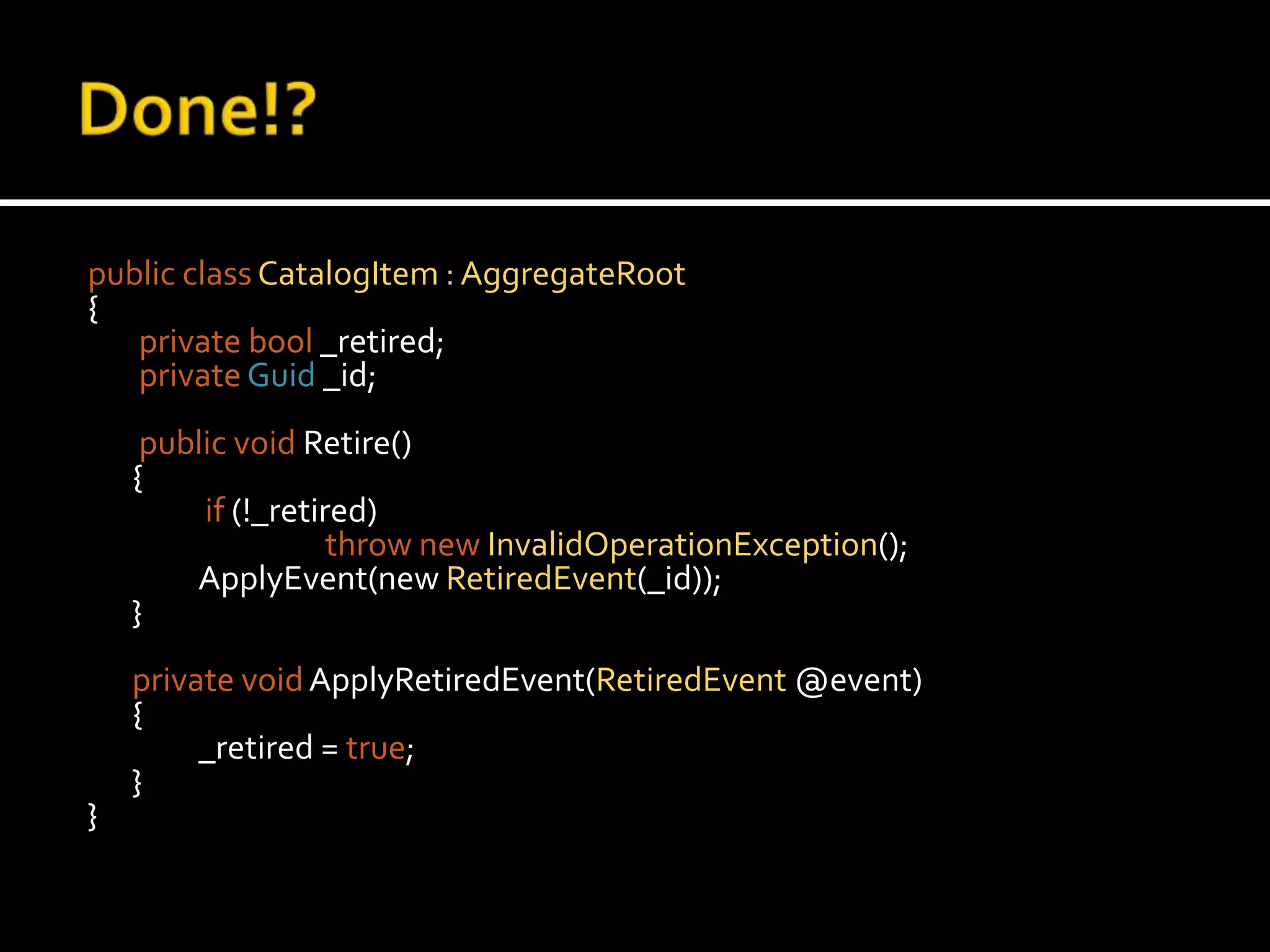

27. Done!?public classCatalogItem : AggregateRoot{privatebool _retired;privateGuid_id; public void Retire() {if (!_retired)thrownewInvalidOperationException();ApplyEvent(new RetiredEvent(_id)); }private voidApplyRetiredEvent(RetiredEvent @event) { _retired = true; }}

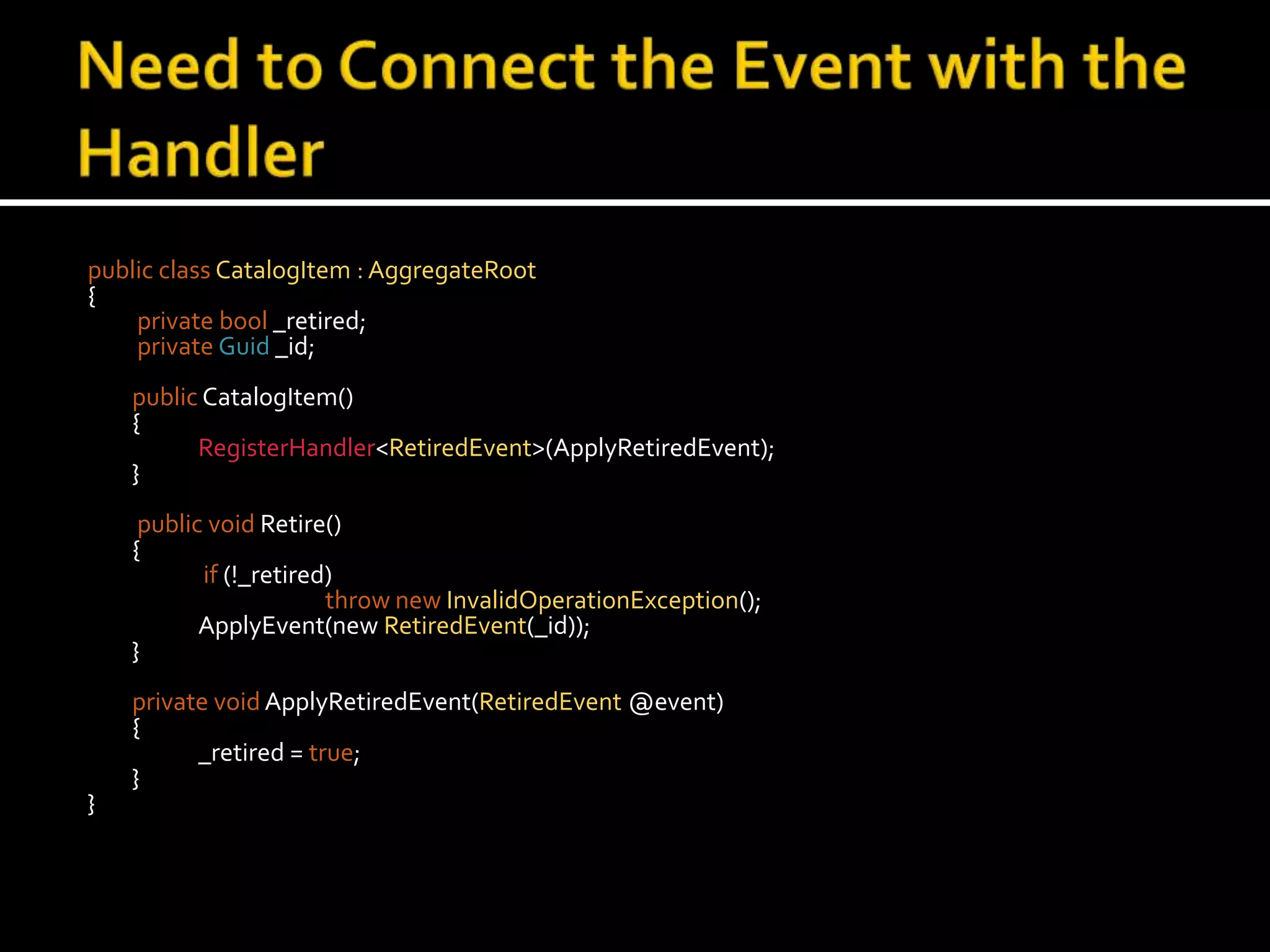

28. Need to Connect the Event with the Handlerpublic classCatalogItem : AggregateRoot{privatebool _retired;privateGuid_id;publicCatalogItem() {RegisterHandler<RetiredEvent>(ApplyRetiredEvent); } public void Retire() {if (!_retired)thrownewInvalidOperationException();ApplyEvent(new RetiredEvent(_id)); }private voidApplyRetiredEvent(RetiredEvent @event) { _retired = true; }}

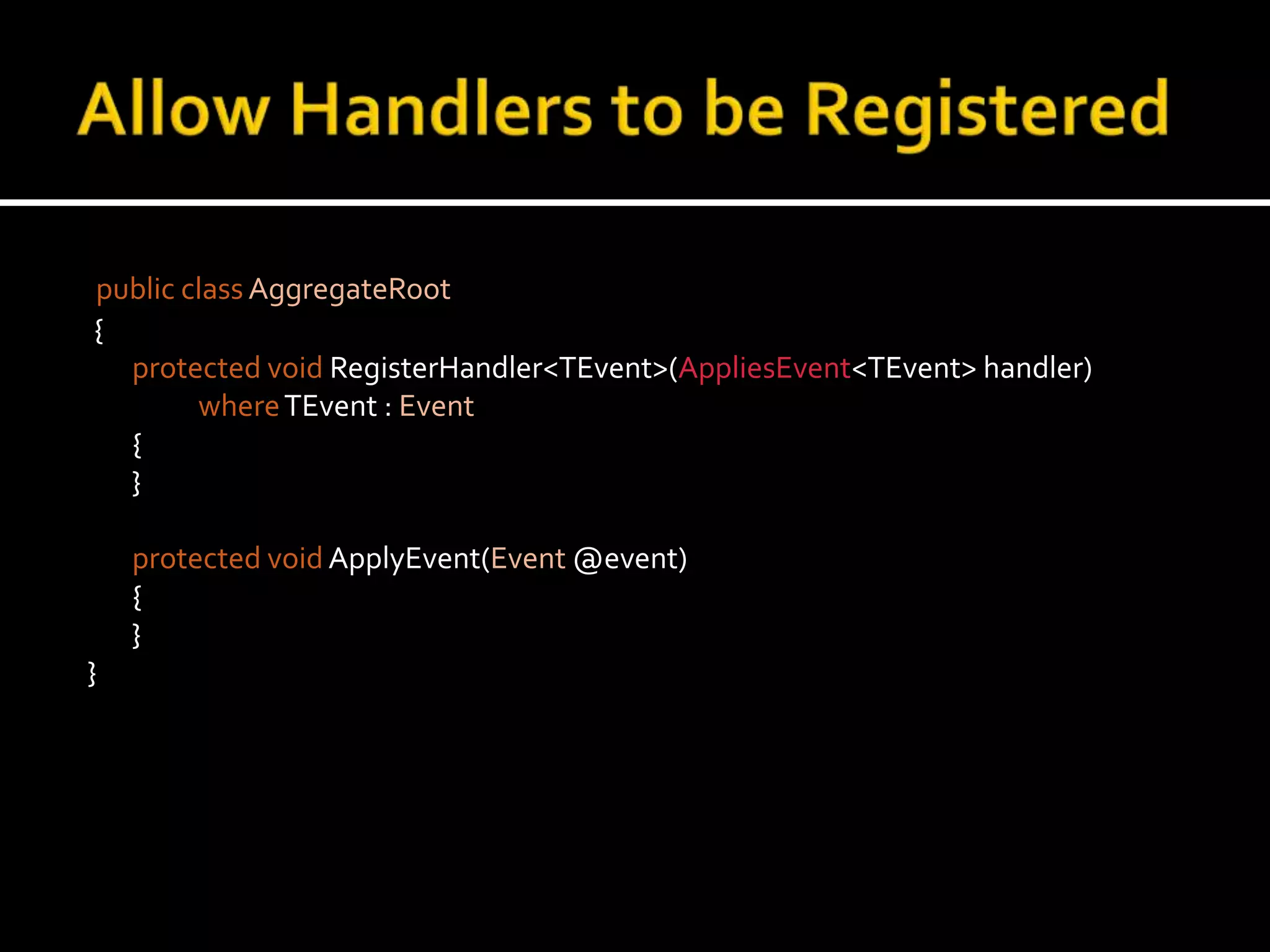

29. Allow Handlers to be Registeredpublic classAggregateRoot {protected voidRegisterHandler<TEvent>(AppliesEvent<TEvent> handler)whereTEvent : Event { }protected voidApplyEvent(Event @event) { }}

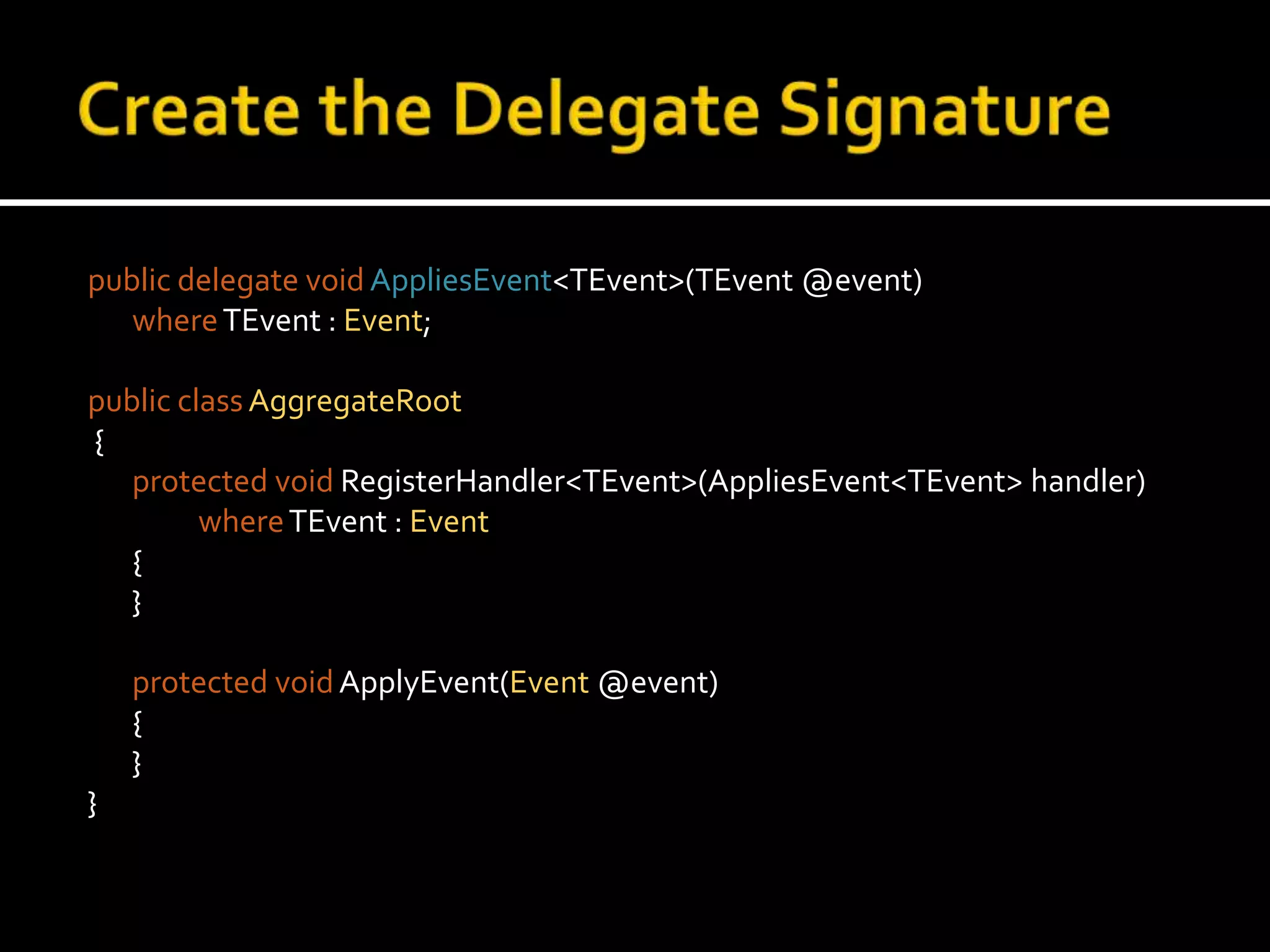

30. Create the Delegate Signaturepublic delegate voidAppliesEvent<TEvent>(TEvent @event)where TEvent : Event;public classAggregateRoot {protected voidRegisterHandler<TEvent>(AppliesEvent<TEvent> handler)whereTEvent : Event { }protected voidApplyEvent(Event @event) { }}

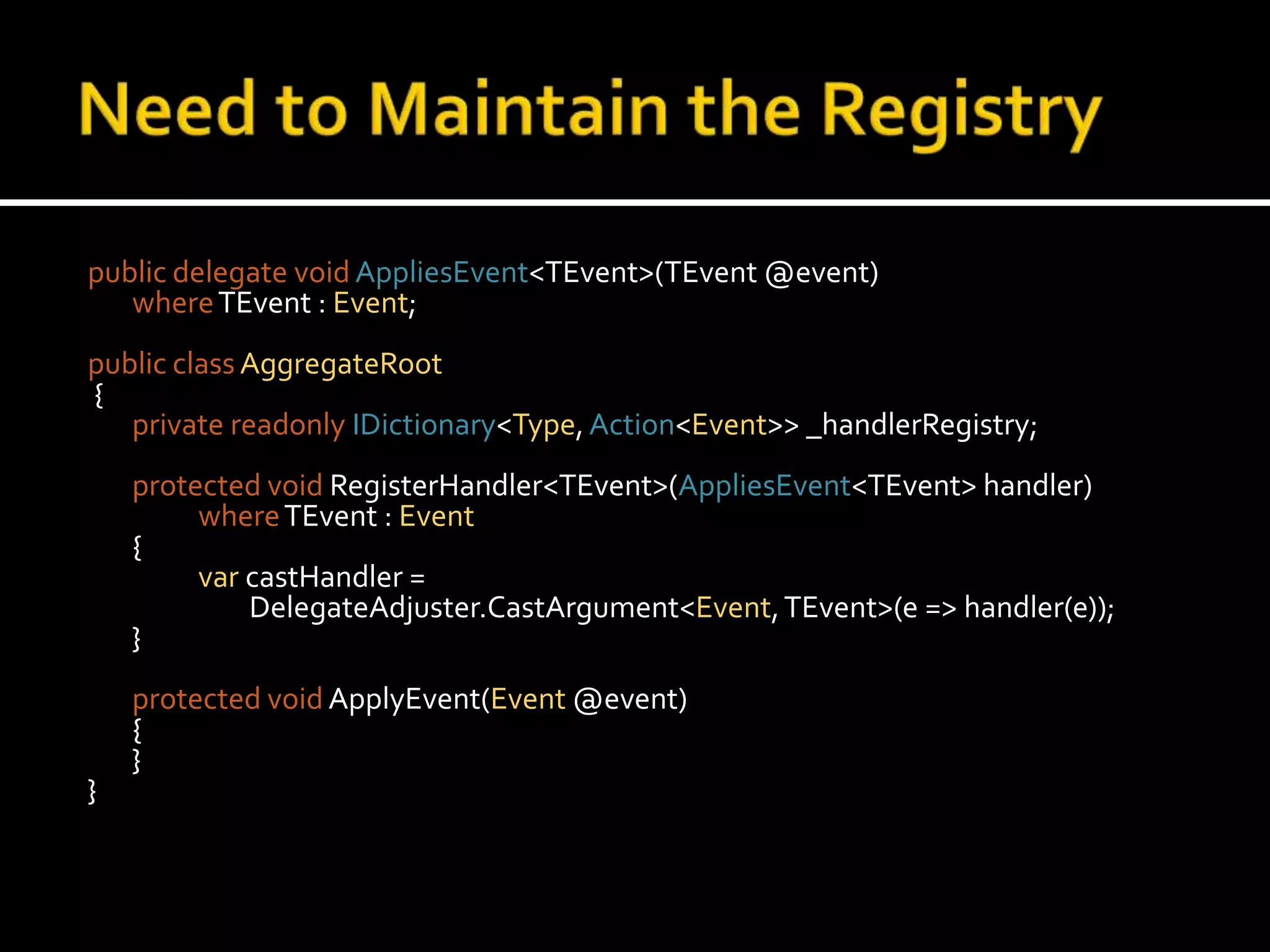

31. Need to Maintain the Registrypublic delegate voidAppliesEvent<TEvent>(TEvent @event)where TEvent : Event;public classAggregateRoot {private readonlyIDictionary<Type, Action<Event>> _handlerRegistry;protected voidRegisterHandler<TEvent>(AppliesEvent<TEvent> handler)whereTEvent : Event {var castHandler = DelegateAdjuster.CastArgument<Event, TEvent>(e => handler(e)); }protected voidApplyEvent(Event @event) { }}

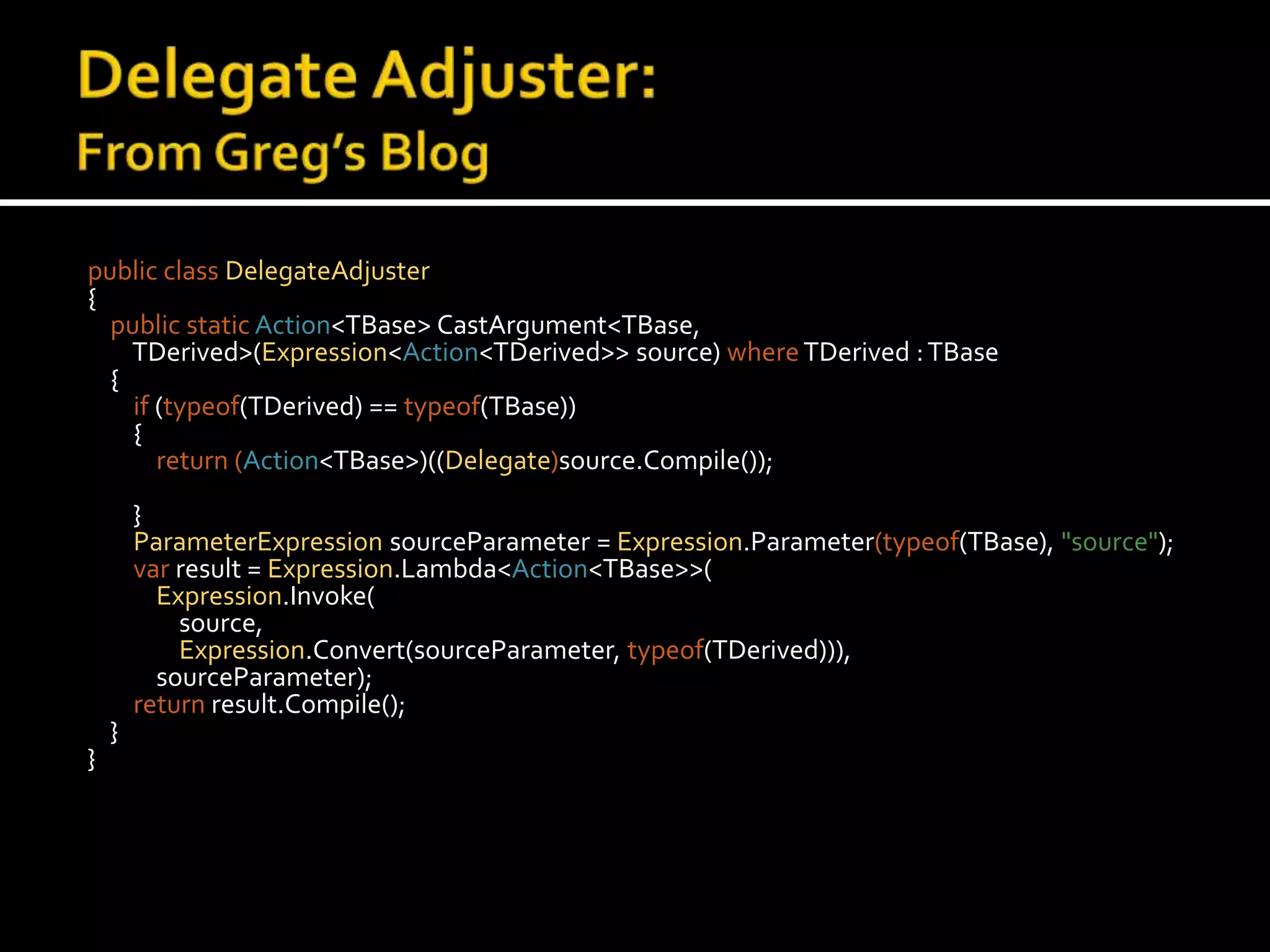

32. Delegate Adjuster:From Greg’s Blogpublic class DelegateAdjuster{ public static Action<TBase> CastArgument<TBase, TDerived>(Expression<Action<TDerived>> source) whereTDerived : TBase{ if (typeof(TDerived) ==typeof(TBase)){ return (Action<TBase>)((Delegate)source.Compile());}ParameterExpressionsourceParameter = Expression.Parameter(typeof(TBase),"source");varresult = Expression.Lambda<Action<TBase>>(Expression.Invoke( source,Expression.Convert(sourceParameter, typeof(TDerived))),sourceParameter); return result.Compile();}}

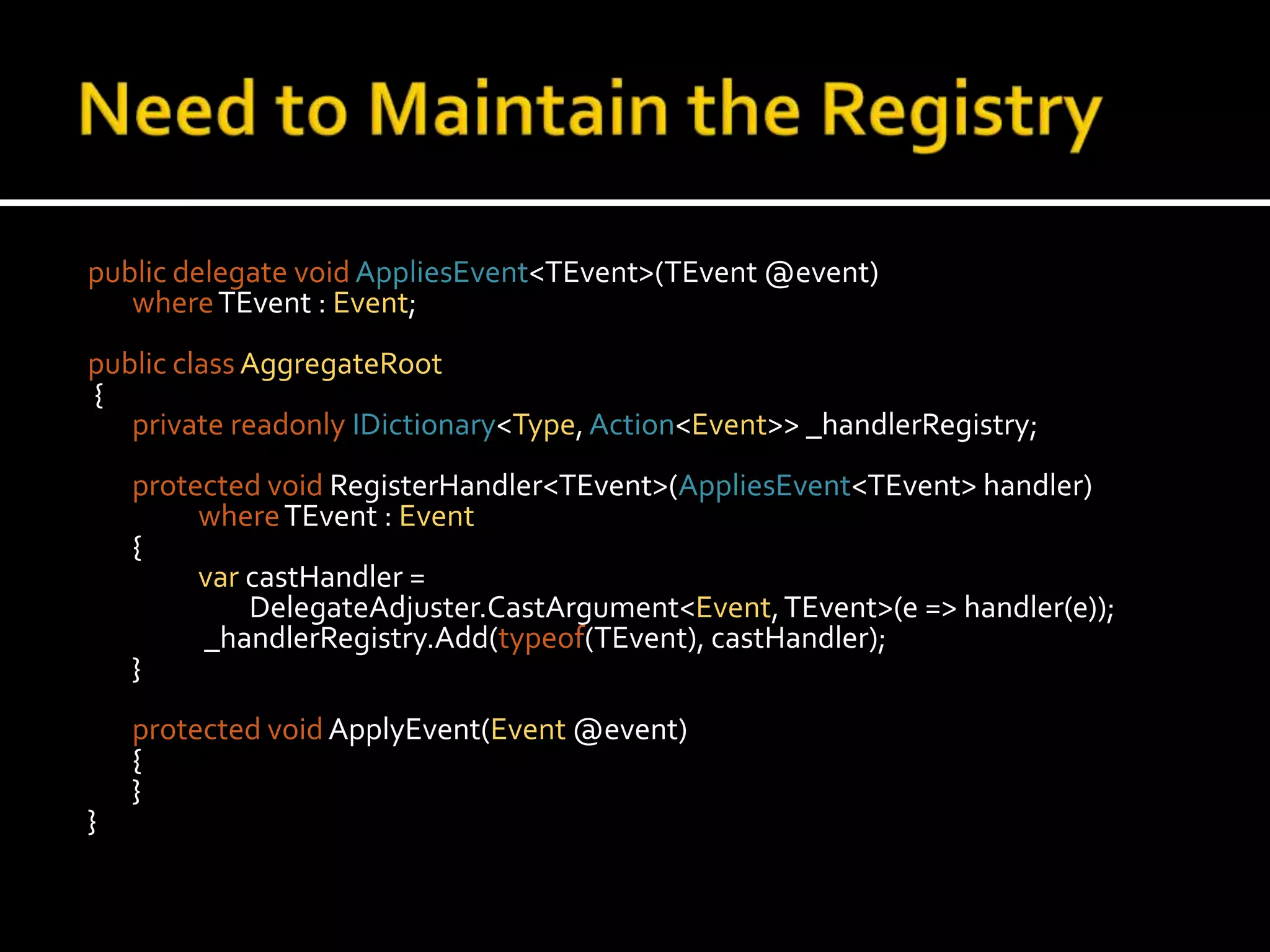

33. Need to Maintain the Registrypublic delegate voidAppliesEvent<TEvent>(TEvent @event)where TEvent : Event;public classAggregateRoot {private readonlyIDictionary<Type, Action<Event>> _handlerRegistry;protected voidRegisterHandler<TEvent>(AppliesEvent<TEvent> handler)whereTEvent : Event {var castHandler = DelegateAdjuster.CastArgument<Event, TEvent>(e => handler(e)); _handlerRegistry.Add(typeof(TEvent), castHandler); }protected voidApplyEvent(Event @event) { }}

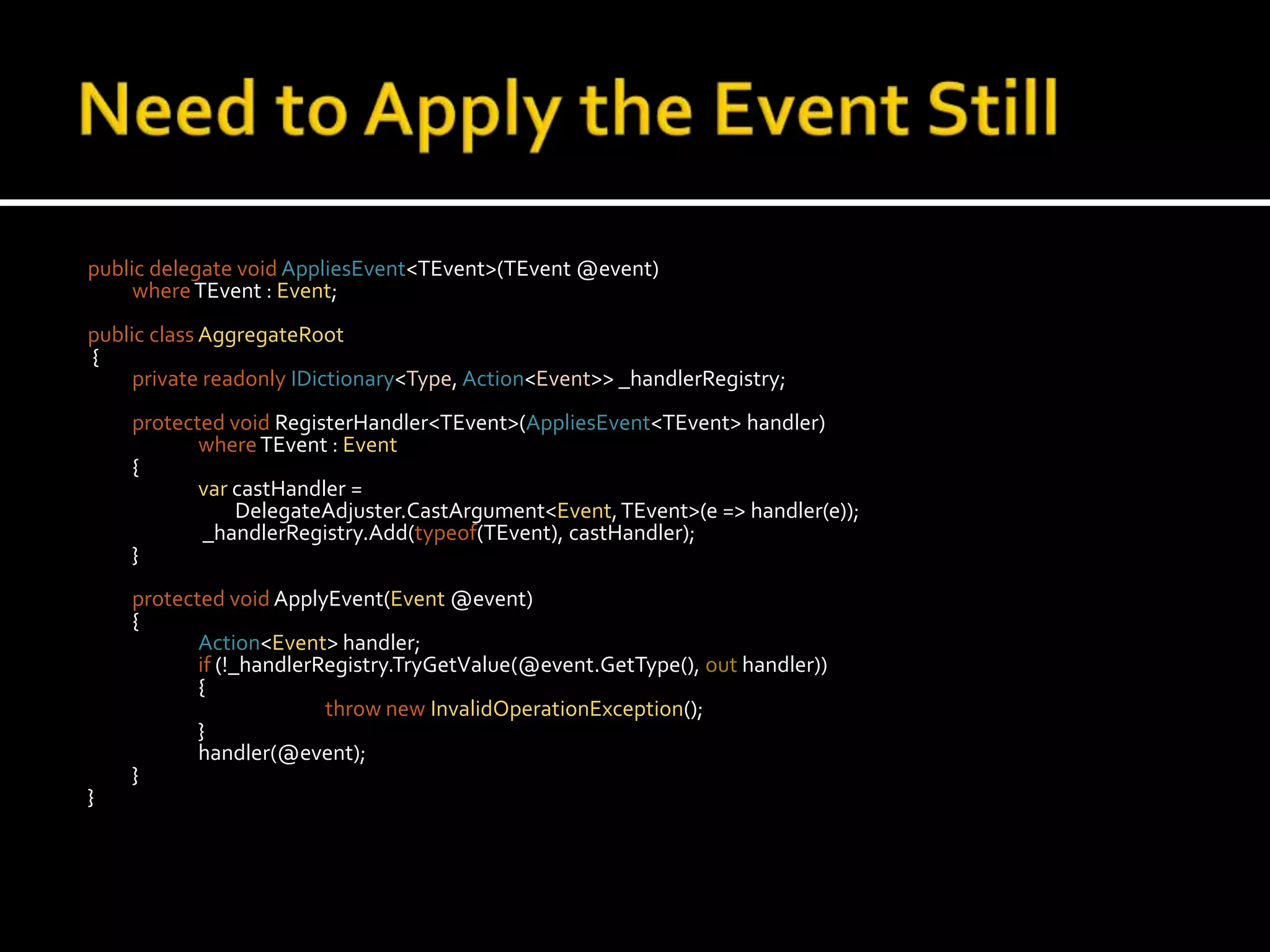

34. Need to Apply the Event Stillpublic delegate voidAppliesEvent<TEvent>(TEvent @event)where TEvent : Event;public classAggregateRoot {private readonlyIDictionary<Type, Action<Event>> _handlerRegistry;protected voidRegisterHandler<TEvent>(AppliesEvent<TEvent> handler)whereTEvent : Event {var castHandler = DelegateAdjuster.CastArgument<Event, TEvent>(e => handler(e)); _handlerRegistry.Add(typeof(TEvent), castHandler); }protected voidApplyEvent(Event @event) {Action<Event> handler;if (!_handlerRegistry.TryGetValue(@event.GetType(), out handler)) {throw newInvalidOperationException(); } handler(@event); }}

35. Need to Track Applied Eventspublic delegate voidAppliesEvent<TEvent>(TEvent @event)where TEvent : Event;public classAggregateRoot {private readonlyIDictionary<Type, Action<Event>> _handlerRegistry;private readonlyICollection<Event> _events;protected voidRegisterHandler<TEvent>(AppliesEvent<TEvent> handler)whereTEvent : Event {var castHandler = DelegateAdjuster.CastArgument<Event, TEvent>(e => handler(e)); _handlerRegistry.Add(typeof(TEvent), castHandler); }protected voidApplyEvent(Event @event) {Action<Event> handler;if (!_handlerRegistry.TryGetValue(@event.GetType(), out handler)) {throw newInvalidOperationException(); } handler(@event); _events.Add(@event); }}

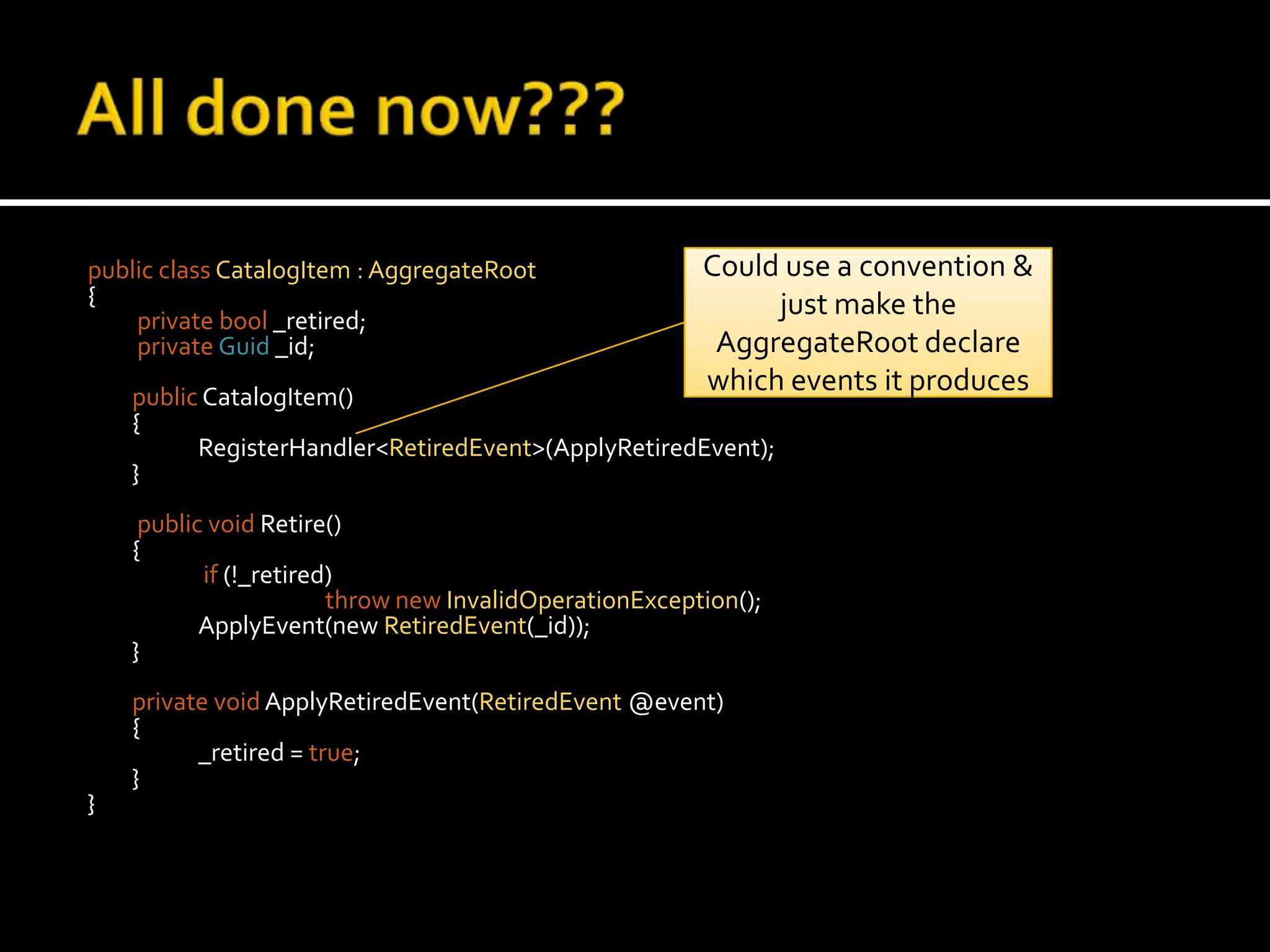

36. All done now???public classCatalogItem : AggregateRoot{privatebool _retired;privateGuid_id;publicCatalogItem() {RegisterHandler<RetiredEvent>(ApplyRetiredEvent); } public void Retire() {if (!_retired)thrownewInvalidOperationException();ApplyEvent(new RetiredEvent(_id)); }private voidApplyRetiredEvent(RetiredEvent @event) { _retired = true; }}Could use a convention & just make the AggregateRoot declare which events it produces

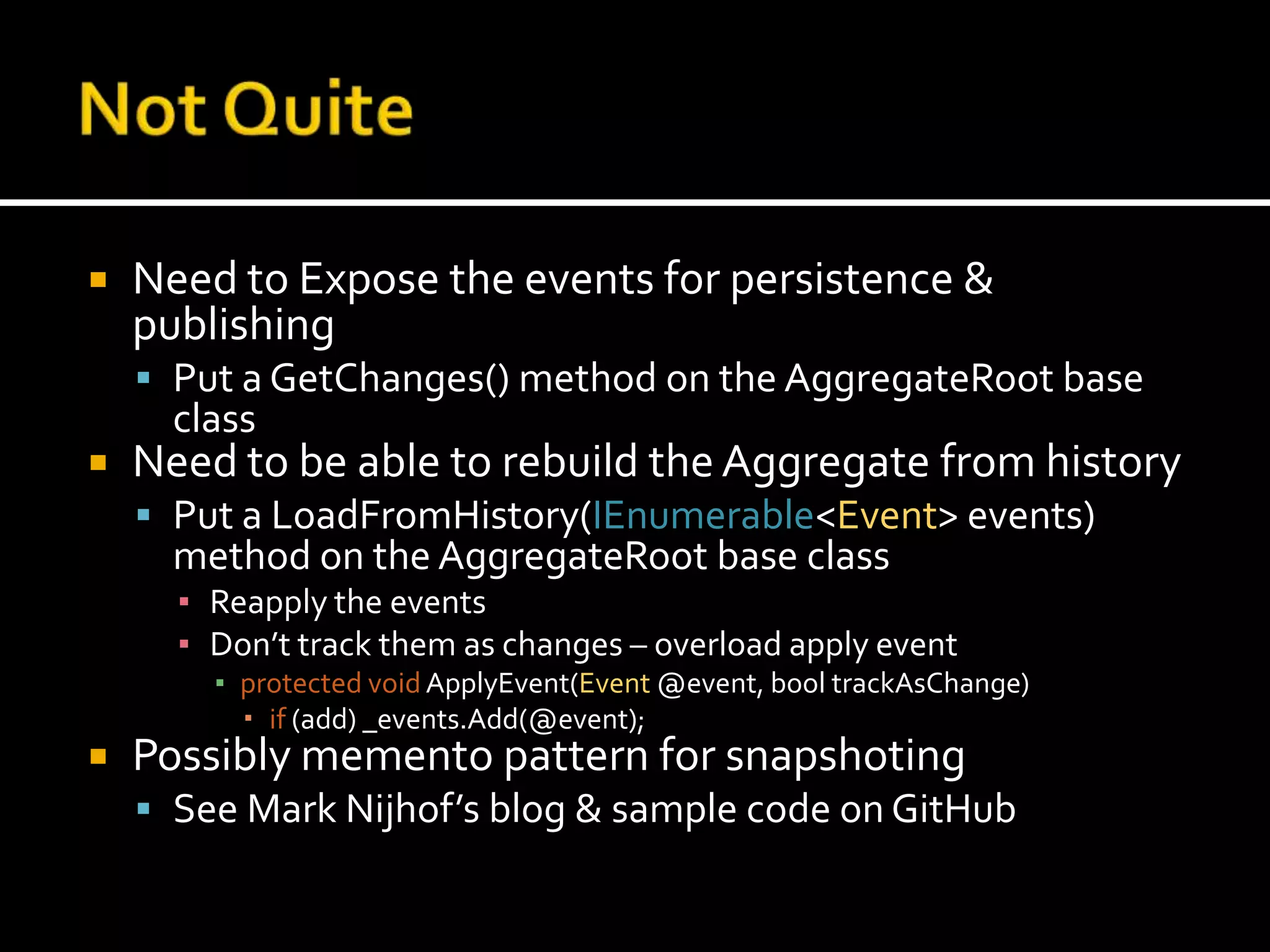

37. Not QuiteNeed to Expose the events for persistence & publishingPut a GetChanges() method on the AggregateRoot base classNeed to be able to rebuild the Aggregate from historyPut a LoadFromHistory(IEnumerable<Event> events) method on the AggregateRoot base classReapply the eventsDon’t track them as changes – overload apply eventprotected voidApplyEvent(Event @event, booltrackAsChange)if (add) _events.Add(@event);Possibly memento pattern for snapshotingSee Mark Nijhof’s blog & sample code on GitHub

38. Back to the Whiteboard!Some more on Query Stores

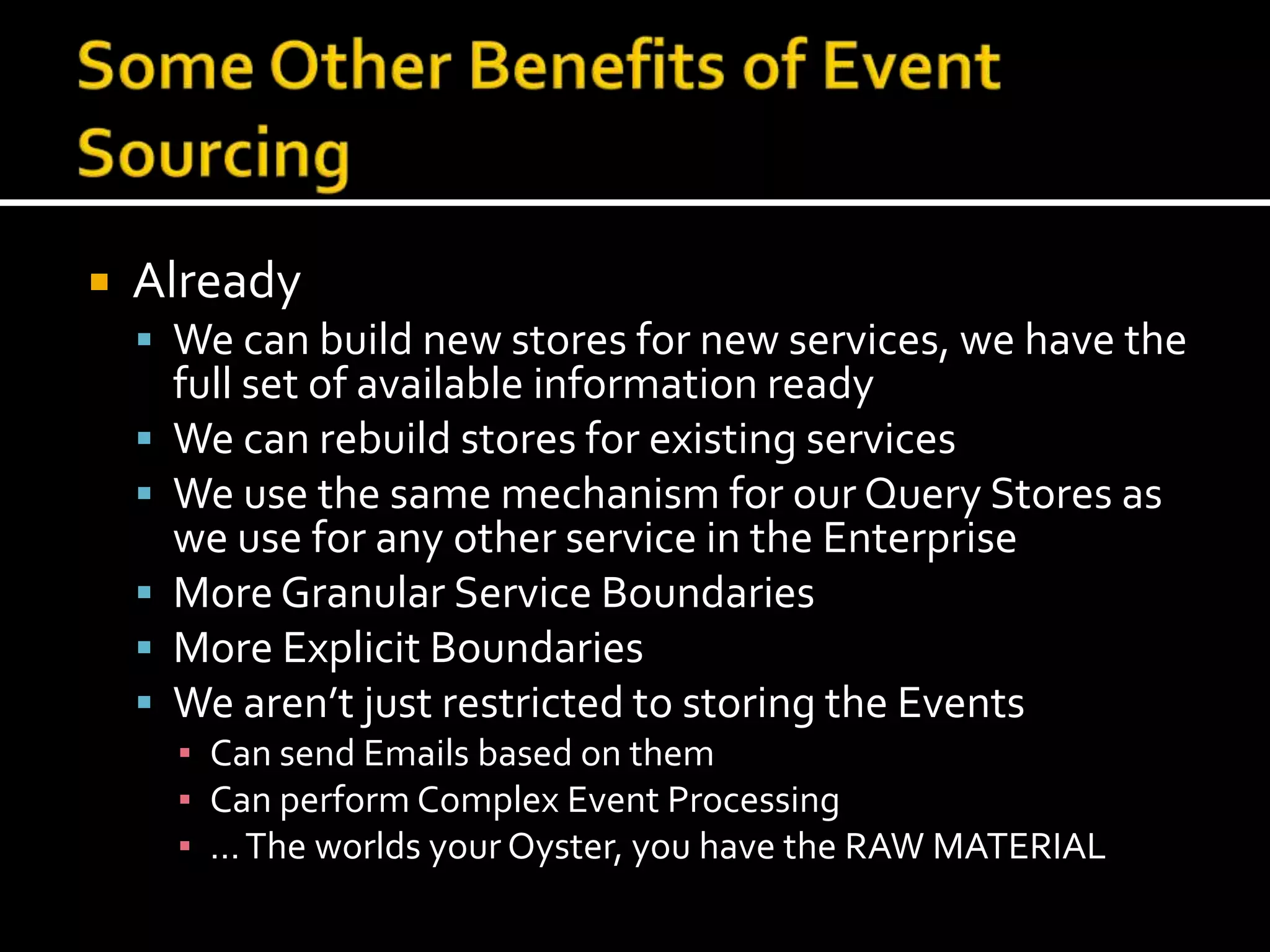

39. Some Other Benefits of Event SourcingAlreadyWe can build new stores for new services, we have the full set of available information readyWe can rebuild stores for existing servicesWe use the same mechanism for our Query Stores as we use for any other service in the EnterpriseMore Granular Service BoundariesMore Explicit BoundariesWe aren’t just restricted to storing the EventsCan send Emails based on themCan perform Complex Event Processing… The worlds your Oyster, you have the RAW MATERIAL

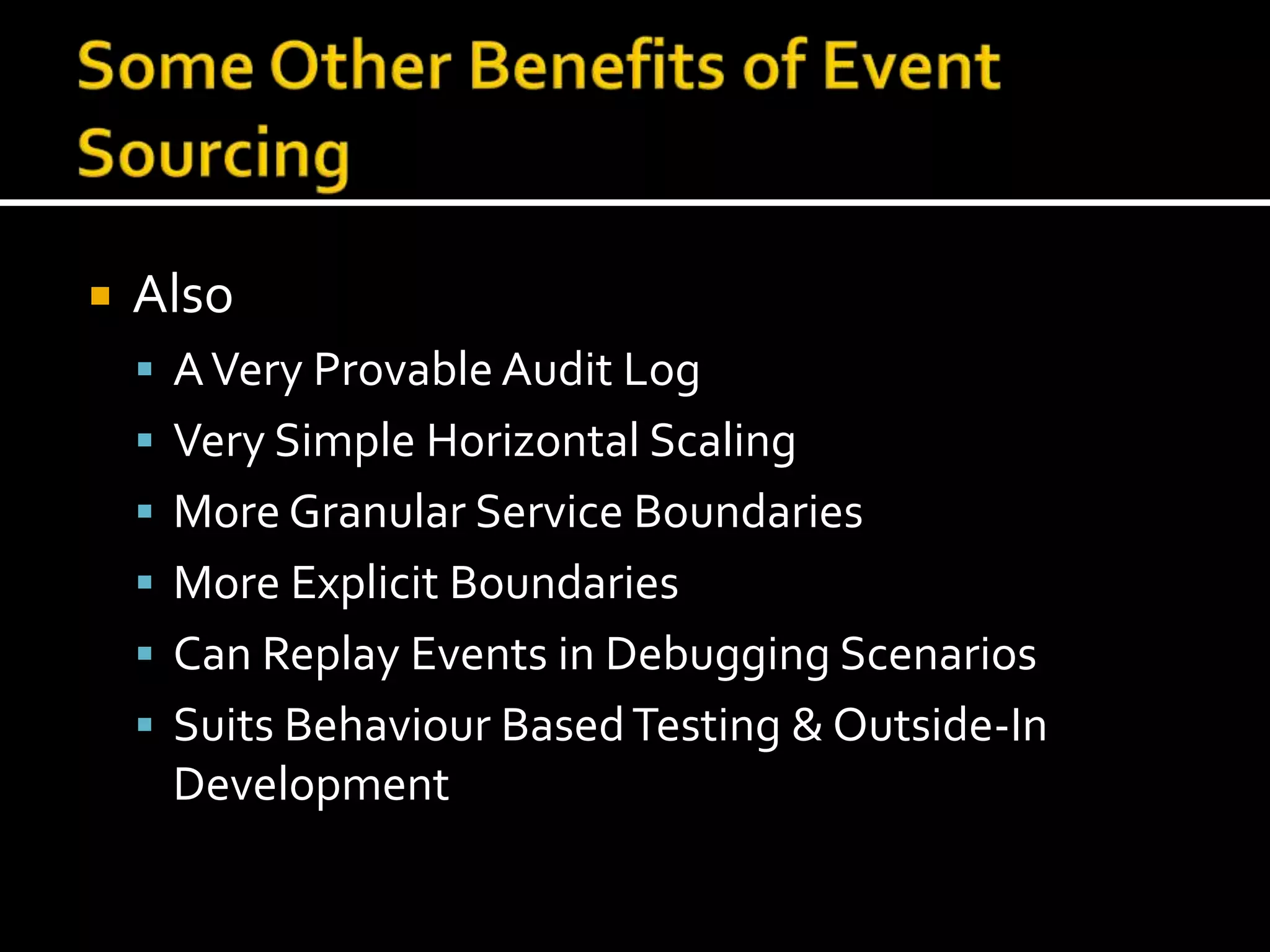

40. Some Other Benefits of Event SourcingAlsoA Very Provable Audit LogVery Simple Horizontal ScalingMore Granular Service BoundariesMore Explicit BoundariesCan Replay Events in Debugging ScenariosSuits Behaviour Based Testing & Outside-In Development

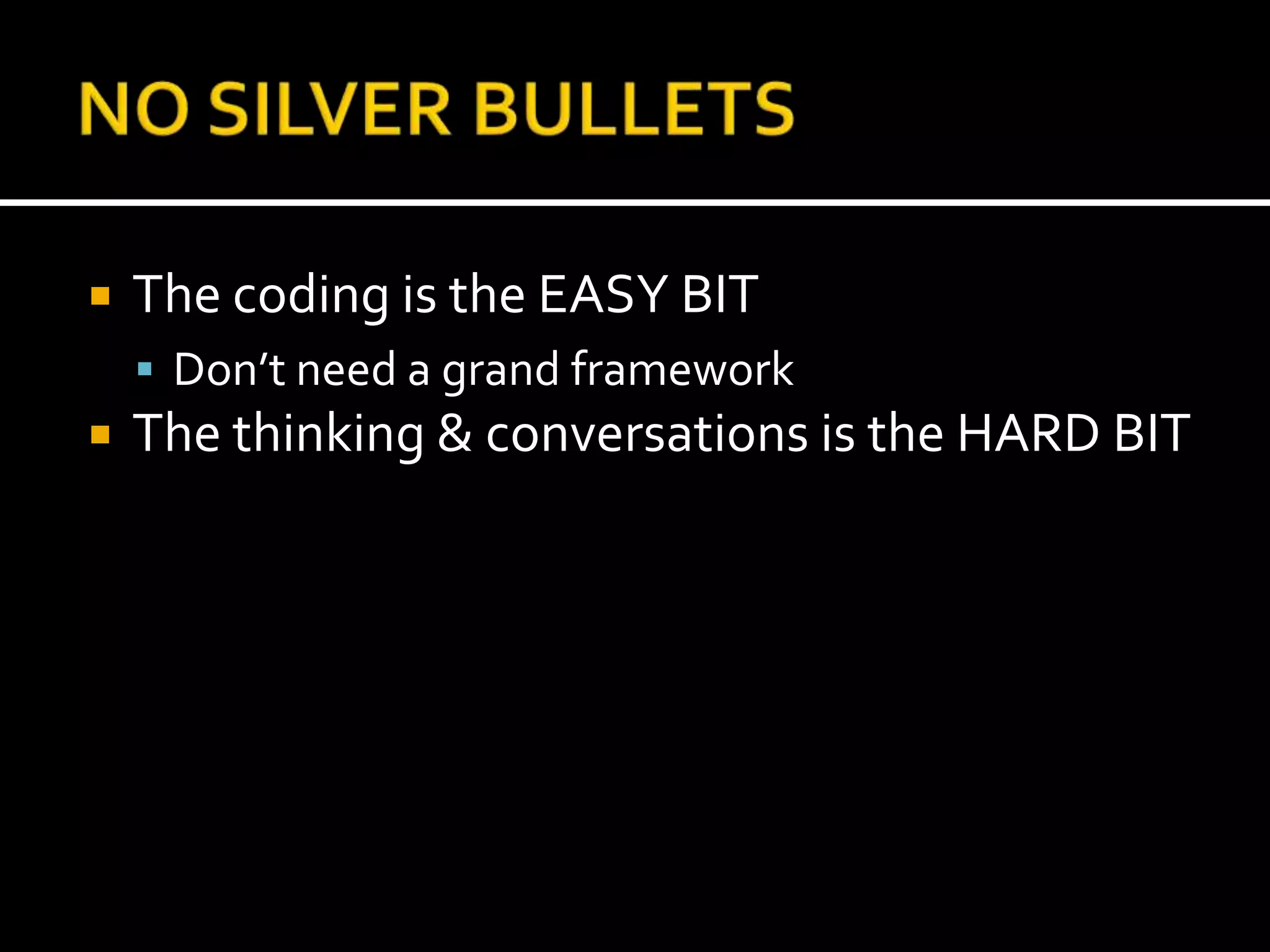

41. NO SILVER BULLETSThe coding is the EASY BITDon’t need a grand frameworkThe thinking & conversations is the HARD BIT

42. Referenced Material/LinksGreg Youngs:Course – http://bit.ly/gregscourseBlog – http://bit.ly/gregyoungsblogUdiDahans:Course – http://bit.ly/udiscourseBlog – http://bit.ly/udisblogMark Nijhof’s sample codehttp://github.com/MarkNijhof/Fohjin
